WARNING!

Before using, be careful never to transmit without first having connected the antenna (connection "B" situated on the back panel of the equipment) or without having set the SWR (Standing Wave Ratio)! Failure to do so may result in destruction of the power amplifier, which is not covered by the guarantee.

MULTI-NORMS TRANSCEIVER!

See function "F" on page 35 and the Configuration table on page 68.

The guarantee of this transceiver is valid only in the country of purchase.

Welcome to the world of the new generation of CB radios. The new PRESIDENT range gives you access to top performance CB equipment. With the use of up-to-date technology, which guarantees unprecedented quality, your PRESIDENT TEDDY II is a new step in personal communication and is the surest choice for the most demanding of professional CB radio users. To ensure that you make the most of all its capacities, we advise you to read carefully this manual before installing and using your PRESIDENT TEDDY II.

A) INSTALLATION

1) WHERE AND HOW TO MOUNT YOUR MOBILE CB RADIO

a) You should choose the most appropriate setting from a simple and practical point of view.
b) Your CB radio should not interfere with the driver or the passengers.
c) Remember to provide for the passing and protection of different wires (e.g. power, antenna, accessory cabling) so that they do not in any way interfere with the driving of the vehicle.

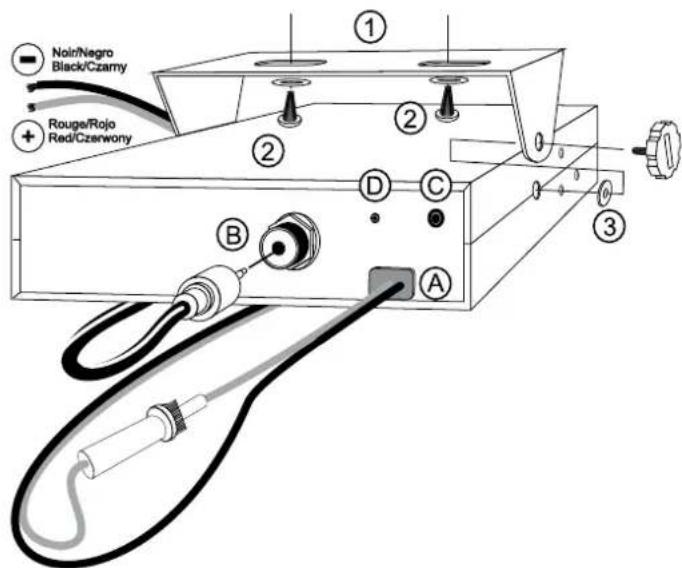

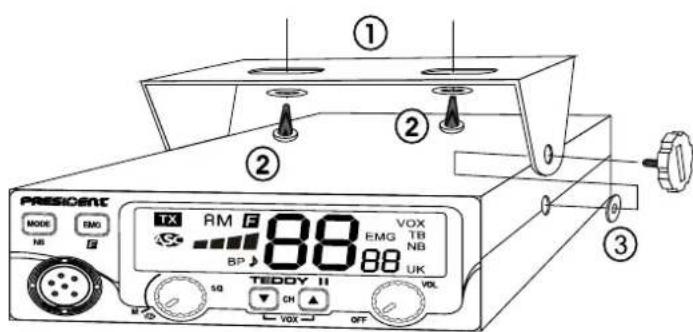

MOUNTING DIAGRAM

d) To install your equipment, use the cradle (1) and the self-tapping screws (2) provided (drilling diameter 3.2 mm). Take care not to damage the vehicle's electrical system while drilling the dash board.
e) Do not forget to insert the rubber joints (3) between the CB and its support as these have a shock-absorbing effect which permits gentle orientation and tightening of the set.
f) Choose where to place the microphone support and remember that the microphone cord must stretch to the driver without interfering with the controls of the vehicle.
- Note: As the transceiver has a frontal microphone socket, it can be set into the dash board. In this case, you will need to add an external loud speaker to improve the sound quality of communications (connector EXT.SP situated on the back panel: C). Ask your dealer for advice on mounting your CB radio.

2) ANTENNA INSTALLATION

a) Choosing your antenna

- For CB radios, the longer the antenna, the better its results. Your dealer will be able to help you with your choice of antenna.

b) Mobile antenna

• Must be fixed to the vehicle where there is a maximum of metallic surface (ground plane), away from windscreen mountings.
• If you already have a radio-telephone antenna installed, the CB antenna should be higher than this.
• There are two types of antenna: pre-regulated which should be used on a good ground plane (e.g. car roof or lid of the boot), and adjustable which offer a much larger range and can be used on a smaller ground plane (see § 5 page 32, ADJUSTMENT OF SWR).
• For an antenna which must be fixed by drilling, you will need a good contact between the antenna and the ground plane. To obtain this, you should lightly scratch the surface where the screw and tightening star are to be placed.
• Be careful not to pinch or flatten the coaxial cable (as this runs the risk of break down and/or short-circuiting).
• Connect the antenna (B).

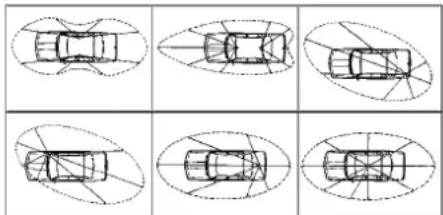

OUTPUT RADIUS PATTERN

Six identical line drawings of a car viewed from top and side, showing different angles and orientations (no text or symbols)

c) Fixed antenna

- A fixed antenna should be installed in a clear space as possible. If it is fixed to a mast, it will perhaps be necessary to stay it, according to the laws in force (you should seek professional advice). All PRESIDENT antennas and accessories are designed to give maximum efficiency to each CB radio within the range.

3) POWER CONNECTION

Your PRESIDENTTEDDY II is protected against an inversion of polarities. However, before switching it on, you are advised to check all the connections. Your equipment must be supplied with a continued current of 12 volts (A). Today, most cars and lorries are negative earth. You can check this by making sure that the negative terminal of the battery is connected either to the engine block or to the chassis. If this is not the case, you should consult your dealer.

WARNING: Lorries generally have two batteries and an electrical installation of 24 volts, in which case it will be necessary to insert a 24/12 volt converter (type CV 24/12 PRESIDENT) into the electrical circuit. The following connection steps should be carried out with the power cable disconnected from the set.

a) Check that the battery is of 12 volts.
b) Locate the positive and negative terminals of the battery (+ is red and - is black). Should it be necessary to lengthen the power cable, you should use the same or a superior type of cable.
c) It is necessary to connect your CB to a permanent (+) and (-). We advise you to connect the power cable directly to the battery (as the connection of the CB cable to the wiring of the car-radio or other parts of the electrical circuit may, in some cases, increase the likelihood of interference).
d) Connect the red wire (+) to the positive terminal of the battery and the black(-)wire

to the negative terminal of the battery.

e) Connect the power cable to your CB radio.

WARNING: Never replace the original fuse by one of a different value.

4) BASIC OPERATIONS TO BE CARRIED OUT BEFORE USING YOUR SET FOR THE FIRST TIME (without transmitting and without using the "push-to-talk" switch on the microphone)

a) Connect the microphone,
b) Check the antenna connections,
c) Turn the set on by turning the volume knob VOL (1) clockwise,
d) Turn the squelch SQ knob (3) to minimum (M position),
e) Adjust the volume to a comfortable level,
f) Go to Channel 20 using either ▲/▼ keys (2) or the UP/DN knobs (9).
5) ADJUSTMENT OF SWR (Standing wave ratio)

WARNING: This must be carried out when you use your CB radio for the first time (and whenever you re-position your antenna). The adjustment must be carried out in an obstacle-free area.

* Adjustment with external SWR-meter (e.g. TOS-1 PRESIDENT)
a) To connect the SWR meter
- Connect the SWR meter between the CB radio and the antenna as close as possible to the CB (use a maximum of 40 cm cable, type President CA-2C).
b) To adjust the SWR meter

• Set the CB on channel 20.
• Put the switch on the SWR-meter to position FWD (calibration).
• Press the «push-to-talk» switch on the microphone to transmit.
• Bring the index needle to ▼ by using the calibration key.
• Change the switch to position REF (reading of the SWR level). The reading on the Meter should be as near as possible to 1. If this is not the case, re-adjust your antenna to obtain a reading as close as possible to 1. (An SWR reading between 1 and 1.8 is acceptable).
• It will be necessary to re-calibrate the SWR meter after each adjustment of the antenna.

WARNING: In order to avoid any losses and attenuations in cables used for connection between the radio and its accessories, PRESIDENT recommends to use a cable with a length inferior to 3m.

Your CB is now ready for use.

a) To turn the set on, turn the VOL knob (1) clockwise.
If the KEY BEEP function is activated, 4 tones sound when you turn the CB radio on. See § KEY BEEP page 35. Display briefly shows the frequency band (see § F - FREQUENCY BAND SELECTION page 35).
See FUNCTIONS TURNING ON THE UNIT on page 34.
b) To increase the sound level, turn the same knob further clockwise.
2) CHANNEL SELECTOR: ▲/▼ keys on unit

These keys allow increasing or decreasing a channel. A «beep» sounds each time the channel changes if the KEY BEEP function is activated. See § KEY BEEP page 35.

See also § 9 page 34.

2a and 2b) VOX \~ VOX SET

VOX (short press)

The VOX function allows transmitting by speaking into the original microphone (or in the optional vox microphone) without pressing the PTT switch (8). The use of an optional vox microphone connected to the rear panel of the transceiver (D) disables the original microphone.

Press simultaneously the ▲ key (2a) and the ▼ keys (2b) on the unit in order to activate the VOX function. «VOX» appears on the display. A new press on these key disables the function, «VOX» disappears.

VOX SET (long press)

1. Long press simultaneously the ▲ key (2a) and the ▼ keys (2b) on the unit to enter the VOX SETTING. "VOX" blinks, the current setting and its value appear on the display. Three parameters allow to adjust the VOX: Sensitivity: L / Anti-vox level: R / Vox delay time: L.

2a. Use the ▲/▼ key (2) on the unit or the UP/DN key (9) on the microphone to modify the current parameter then, press the F key (5) to select the next parameter or....
2b. Press first the F key (5) to select another parameter and then use the ▲/▼ key (2) on the unit or the UP/DN key (9) on the microphone to modify the current parameter.
3. When all adjustments are done, long press the PTT switch (8) to store and exit. If the KEY BEEP function is activated, a long beep sounds to confirm the success of the operation (see § KEY BEEP page 35).
4. If no key is pressed for 10 seconds, the unit automatically exits the function VOX SETTING without saving.

- Sensitivity L : allows the adjustment of the microphone (original one or optional vox) for an optimum transmission quality. Adjustable level from L 1 (high level) to L 9 (low level). Default value: L 5.

- Anti-Vox R: allows disabling the transmission generated by the surrounding noise. The level is adjustable. RF (according the squelch level) and from RD (without anti-vox) to RG (low level). Default value: RF.

- Delay time : allows avoiding the sudden cut of the transmission by adding a delay at the end of speaking. The level is adjustable from (short delay) to 9 (long delay). Default value: 1. VOX SETTING doesn't activate the VOX function.

3) ASC (Automatic Squelch Control) / SQUELCH

Suppresses undesirable background noises when there is no communication. Squelch does not affect neither sound nor transmission power, but allows a considerable improvement in listening comfort.

a) ASC: AUTOMATIC SQUELCH CONTROL

Worldwide patent, a PRESIDENT exclusivity

Turn the SQ knob (3) anti-clockwise into ASC position. 🧀️ appears on the display. No repetitive manual adjustment and a permanent improvement between the sensitivity and the listening comfort when ASC is active. This function can be disconnected by turning the switch clockwise. In this case the squelch adjustment becomes manual again. 🔗 disappears from the display.

b) MANUAL SQUELCH

Turn the SQ knob (3) clockwise to the exact point where all background noises disappear. This adjustment should be done with precision as, if set to maximum (fully clockwise), only the strongest signals will be received.

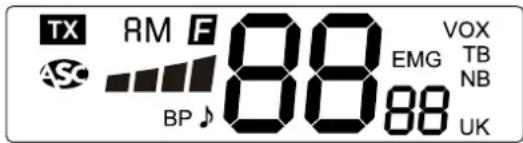

4) DISPLAY

It shows all functions:

The BARGRAPH shows the reception level and the output power level.

Emergency channels will be automatically selected by pressing the EMG key (5). First press: emergency channel 1 is activated. Second press: emergency channel 2 is activated. Third press: return to the current channel. "EMG" appears on the display when an emergency channel is activated. The default emergency channels are channel 9/AM (1) and channel 19/AM (2).

EMG STORE (long press)

Emergency channel can be stored to any channel with mode AM or FM. To set a new emergency channel:

• Short press on EMG key (5) to call the current emergency channel. "EMG" appears on the display.
• Long press on EMG/F key (5). F appears on the display and "EMG" blinks.

• Using the ▲/▼ keys (2) on the unit or the UP/DN knobs (9) on the microphone, select the new emergency channel.

• Press MODE key (6) to select the mode (AM, FM or FM UK) used with new emergency channel.

• Short press on PTT switch (8) to validate and store the new emergency channel. A validation beep sounds.
  Note: Emergency setting is not allowed if the current emergency channel is not the active channel.

F - FREQUENCY BAND SELECTION

See on page 35.

6) MODE \~ NB

MODE (short press)

This key allows you to select the modulation mode (AM or FM). Your modulation mode has to correspond to the one of your correspondent. Corresponding mode is displayed on the LCD.

• Amplitude Modulation / AM: communication on a field with relief and obstacles at middle distance (the most used).
• Frequency Modulation / FM: for nearby communications on a flat open field.

In U configuration ONLY: press MODE key (6) to alternate the frequency band between ENG and CEPT. "UK" appears in the display when the ENG band is selected. "UK" disappears from the display when CEPT is selected (see table at page 64).

NB (long press)

Long press the NB key (6) to activate/deactivate this filter.

NOISE BLANKER : This filter allows the reduction of back ground noise, and some reception interference. "NB" is displayed when NB filter is active.

7) 6 PIN MICROPHONE PLUG

The plug is located on the front panel of the transceiver and makes the setting of the equipment into the dashboard easier.

See cabling diagram page 67.

8) PTT (Push To Talk)

Transmission key, press to transmit a message, is displayed and release to listen to an incoming communication.

See FUNCTIONS WITH PTT SWITCH on page 35.

TOT (Time Out Timer)

If the transmission key is longer than 3 minutes, TX and the active channel start blinking, the transmission ends. The time-out tone will sound until the PTT switch (8) is released.

9) CHANNEL SELECTOR: UP/DN knobs on the microphone

These keys allow increasing or decreasing a channel. A «beep» sounds each time the channel changes if the KEY BEEP function is activated. See § KEY BEEP page 35.

See also § 2 page 32.

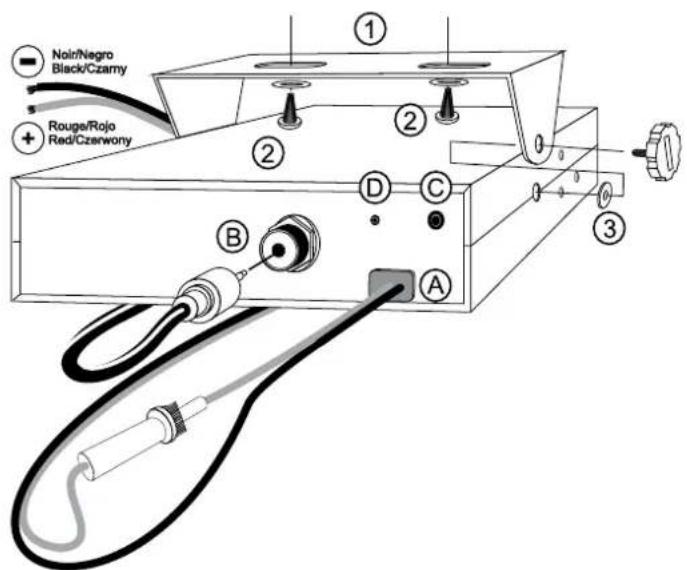

A) DC-POWER TERMINAL (13.2 V / 26.4 V)

B) ANTENNA CONNECTOR (SO-239)

C) EXTERNAL SPEAKER JACK (8 Ω, ∅ 3.5 mm)

D) OPTIONAL VOX MIKE ( 2.5 mm)

C) FUNCTIONS TURNING ON THE UNIT

5 more functions are available. Turn off the unit. Turn on the radio while pressing one or two keys to set the function.

1) ROGER BEEP (▲ key or UP knob)

The ROGER BEEP sounds when the PTT switch (8) of the microphone is released in order to let your correspondent speak. Historically as CB is a "simplex" communication mode, it is not possible to speak and listen at the same time (as it is the case with a telephone). Once the conversation was over, he said "Roger" in order to prevent his correspondent that it was his turn to talk. The word "Roger" has been replaced by a significant beep. That is where the name "Roger beep" comes from.

• Turn on the power while pressing the ▲ key (3a) or UP knob (9) to alternate between enable (□n) or disable (□F) the ROGER BEEP function.
• When function is activated, “” appears on the display.
  Note: The Roger beep also sounds in the loudspeaker if the KEY BEEP function is active. If the KEY BEEP function is not active, only the correspondent can hear the ROGER BEEP.
  In PA mode the function is not allowed.

Some operations such as changing channels, pressure on keys etc. are confirmed by a beep tone. This beep tone can be activated or deactivated as follows:
- Turn on the power while pressing the ▼ key (3b) or the DN knob (9) to alternate between enable (On) or disable (OF) the KEY BEEP function.
- When function is activated, "BP" appears on the display.

3) F - FREQUENCY BAND SELECTION (F key)

(Configuration: EU; PL; d; EC; U; In)

The frequency bands have to be chosen according to the country of use. Don't use any other configuration. Some countries need a user's licence. See table page 68.

Proceeding:

• Turn on the power while pressing the F key (5).
  The symbol corresponding to the current configuration is blinking.
• In order to change the configuration, use the ▲/▼ keys (2) on the unit or the UP/DN knobs (9) on the microphone.
• When the configuration is selected, press the F key (5) during 1 second. The symbol corresponding to the configuration is continuously displayed and a confirmation tone beep sounds.
• At this point, confirm the selection by switching off the transceiver and then switching it on again.
  See the configurations/frequency bands table at pages 64 to 66.

4) COLOR (MODE + EMG keys)

• Turn on the power while pressing the MODE (6) and EMG (5) keys.
  The symbol of the current color, among the seven, blinks: (orange), 9(green), (blue), (cyan), (yellow), (purple) or CL (cyan light).
• Use the ▲/▼ keys (2) on the unit or UP/DN knobs (9) on the microphone to change the color.

$$ \boxed {\begin{array}{c}\rightarrow 0 r \longrightarrow 9 r \longrightarrow b L \longrightarrow C Y \longrightarrow Y E \longrightarrow P U \longrightarrow C L\end{array}} $$

- When the color is set, long press the F key (5). A beep sounds, the characters of the color are displayed during 1 second.

5) RESET (▲ + EMG keys)

• Turn on the power while pressing the ▲ (2a) key on the unit and the EMG key (5) to reset to the factory settings.
• "r5" blinks in the display.
• Press the F key (5) for 1 second to confirm.

D) FUNCTIONS WITH PTT SWITCH

2 more functions are available. To activate the function press and hold the PTT switch (8) and press the function key. Repeat this process to deactivate the function.

1) TALKBACK (PTT + F)

The TALKBACK function can be activated or deactivated as follows: a) Press and hold the PTT switch (8)
b) Short press on F key (5). Current TALKBACK level blinks 3 times allowing you to adjust this level.
When function is activated, "TALKBACK" appears on the display. This function allows to ear your own modulation with the CB speaker.

2) TALKBACK LEVEL (PTT + ▲ or ▼)

- At step b) adjust the TALKBACK level using the ▲/▼ keys (2) on the unit.

• When the function in on and "TALKBACK" is shown on the display, press and hold the PTT switch (8), then use the ▲(3a) / ▼(3b) keys on the unit to select the level. 9 levels from 0 to 09.
• Note: The use of the UP/DN knobs (9) on microphone are not allowed to adjust TALKBACK level.

• Channels : 40
• Modulation modes : AM/FM
• Frequency ranges : from 26.965 MHz to 27.405 MHz
• Antenna impedance : 50 ohms
• Power supply : 13.2 V
• Dimensions (in mm) : 125 (L) x 151 (D) x 45 (H)
• Weight : 0.9 kg
• Accessories supplied : Electret microphone UP/DOWN with
  support, mounting cradle, screws.
• Filter
  : ANL (Automatic Noise Limiter) built-in

2) TRANSMISSION

• Frequency allowance : +/- 200 Hz
• Carrier power : 4 W AM / 4 W FM
• Transmission interference : inferior to 4 nW (- 54 dBm)
• Audio response : 300 Hz to 3 KHz in AM/FM
• Emitted power in the adj. channel
• Microphone sensitivity
• Maximum drain
• Modul. signal distortion

3) RECEPTION

• Maxi. sensitivity at 20 dB sinad
• Frequency response
• Adjacent chan. selectivity
• Maximum audio power
• Squelch sensitivity
  : 0.5 μV - 113 dBm AM / 0.35 μV - 116 dBm FM
  : 300 Hz to 3 kHz
  : 60 dB
  : 2.5 W
  : minimum 0.2 μV - 120 dBm

maximum 1 mV - 47 dBm

• Frequency image
  rejection rate : 60 dB
• Intermediate frequency
  rejection rate : 70 dB
• Drain : 160 \~ 420 mA

F) TROUBLE SHOOTING

1) YOUR CB RADIO WILL NOT TRANSMIT OR YOUR TRANSMISSION IS OF POOR QUALITY

• Check that the antenna is correctly connected and that the SWR is properly adjusted.
• Check that the microphone is properly plugged in.
• Check that the programmed configuration is the correct one (see table page 68).

2) YOUR CB RADIO WILL NOT RECEIVE OR RECEPTION IS POOR

• Check that the squelch level is properly adjusted.
• Check that the programmed configuration is the correct one (see table page 68).
• Check that the volume is set to a comfortable listening level.
• Check that the antenna is correctly connected and that the SWR is properly adjusted.
• You are using the same modulation mode than your correspondent.

3) YOUR CB WILL NOT LIGHT UP

• Check the power supply.
• Check the connection wiring.
• Check the fuse.

G) HOW TO TRANSMIT OR RECEIVE A MESSAGE

Now that you have read the manual, make sure that your CB Radio is ready for use (i.e. check that your antenna is connected). Choose your channel (19, 27).

Press the «push-to-talk» switch (8) and announce your message «Attention stations, transmission testing» which will allow you to check the clearness and the power of your signal. Release the switch and wait for a reply. You should receive a reply like, «Strong and clear».

If you use a calling channel (19, 27) and you have established communication with someone, it is common practice to choose another available channel so as not to block the calling channel.

H) GLOSSARY

Below you will find some of the most frequently used CB radio expressions. Remember this is meant for fun and that you are by no means obliged to use them. In an emergency, you should be as clear as possible.

INTERNATIONAL PHONETIC ALPHABET

A	Alpha	H	Hotel	O	Oscar	V	Victor
B	Bravo	I	India	P	Papa	W	Whiskey
C	Charlie	J	Juliet	Q	Quebec	X	X-ray
D	Delta	K	Kilo	R	Romeo	Y	Yankee
E	Echo	L	Lima	S	Sierra	Z	Zulu
F	Foxtrot	M	Mike	T	Tango
G	Golf	N	November	U	Uniform

TECHNICAL VOCABULARY

AM : Amplitude Modulation

CB : Citizen's Band

CH : Channel

CW : Continuous Wave

DX : Long Distance Liaison

DW : Dual Watch

FM : Frequency Modulation

GMT : Greenwich Meantime

HF : High Frequency

LF : Low Frequency

LSB : Lower Side Band

RX :	Receiver
SSB :	Single Side Band
SWR :	Standing Wave Ratio
SWL :	Short Wave Listening
SW :	Short Wave
TX :	CB Transceiver
UHF :	Ultra High Frequency
USB :	Upper Side Band
VHF :	Very High Frequency

CB LANGUAGE

Advertising	: Flashing lights of police car
Back off	: Slow down
Basement	: Channel 1
Base station	: A CB set in fixed location
Bear	: Policeman
Bear bite	: Speeding fine
Bear cage	: Police station
Big slab	: Motorway
Big 10-4	: Absolutely
Bleeding	: Signal from an adjacent channel interfering with the transmission
Blocking the channel	: Pressing the PTT switch without talking
Blue boys	: Police
Break	: Used to ask permission to join a conversation
Breaker	: A CBer wishing to join a channel
Clean and green	: Clear of police
Cleaner channel	: Channel with less interference
Coming in loud and proud	: Good reception
Doughnut	: Tyre
Down and gone : Turning CB off
Down one	: Go to a lower channel
Do you copy?	: Understand?
DX	: Long distance
Eighty eights	: Love and kisses
Eye ball	: CBers meeting together
Good buddy	: Fellow CBer

Hammer : Accelerator

Handle : CBer's nickname

Harvey wall banger : Dangerous driver

How am I hitting you? : How are you receiving me?

Keying the mike : Pressing the PTT switch without talking

Kojac with a kodak : Police radar

Land line : Telephone

Lunch box : CB set

Man with a gun : Police radar

Mayday : SOS

Meat wagon : Ambulance

Midnight shopper : Thief

Modulation

Conversation

Negative copy

No reply

Over your shoulder

Right behind you

Part your hair

Behave yourself - police ahead

Pull your hammer back

Slow down

Rat race

Congested traffic

Rubberbander

New CBer

Sail boat fuel

Wind

Smokey dozing

Parked police car

Smokey with a camera

Police radar

Spaghetti bowl

Interchange

Stinger

Antenna

Turkey

Dumb CBer

Up one : Go up one channel

Wall to wall

All over/everywhere

What am I putting to you? : Please give me an S-meter reading

SIMPLIFIED EU

DECLARATION OF CONFORMITY

Hereby, Groupe President Electronics, declares that the radio equipment :

Brand: PRESIDENT

Type: TXPR276

Commercial Name: TEDDY II

is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

https://president-electronics.com/DC/TXPR276

GENERAL WARRANTY CONDITIONS

This device is guaranteed 2 years parts and labour in its country of purchase against any manufacturing defects validated by our technical department. *The After-sales Service of PRESIDENT reserves the right not to apply the warranty if a breakdown is caused by an antenna other than those distributed by PRESIDENT, and if said antenna is at the origin of the breakdown. An extension of 3 years warranty is proposed systematically for the purchase and use of a PRESIDENT antenna, bringing the total duration of the warranty to 5 years. In order to be valid, the warranty certificate must be returned within a period of 30 days after the purchase date to the After-sales Service of the company Groupe President Electronics, or any foreign subsidiary.

It is recommended to carefully read the following conditions and to respect them under penalty of losing their benefit.

• To be valid the warranty certificate must be returned to us at the latest 1 month after the purchase.
• Please duly complete the warranty certificate on the right hand side of the page, detach it (portion to be removed marked by dotted line) and send it back.
• Any repair under warranty will be free and the return delivery costs will be borne by our company.
• A purchase proof must be necessarily included with the device to be repaired.
• The dates listed on the warranty certificate and proof of purchase must match.
• Do not proceed with the installation of the device without reading the user manual.
• No spare part will be sent nor exchanged by our services under warranty.
  The warranty is only valid in the country of purchase.

Exclusions (are not covered):

• Damages caused by accident, shock or inadequate packaging.
• Power transistors, microphones, lights, fuses and the non respect of the installation and use of specifications (including but not limited to antenna used with too high power, final output power transistors (SWR), inversion of polarities, bad connections, overvoltage,...).
• The warranty cannot be extended due to the non-availability of the device while it is being serviced at our technical services location, nor by a change of one or more components or spare parts.
• Transceivers which have been modified. The warranty application is excluded in case of modification or poor maintenance done by a third party not approved by our company.

If you note malfunctions:

- Check the power supply of your device and the quality of the fuse.

• Check that the antenna, the microphone are correctly connected.
• Check that the squelch level is properly adjusted; the programmed configuration is the correct one...
• In case the device is not under warranty, the repair and return of the device will be charged.
• All related documents must be preserved even after the end of the warranty period and if you resell your device, given to the new owner for the After-sales follow-up.
• In case of real malfunction, please contact your dealer first; they will decide action to be taken.
• In case of an intervention not covered by the warranty, an estimate will be established before any repair.

Thank you for your trust in the PRESIDENT quality and experience. We recommend that you read this manual carefully so that you are completely satisfied with your purchase. Do not forget to return the detachable warranty certificate on the right hand side of this page; it is very important for the identification of your device during a possible rendering of our services.

Technical Manager

and

Quality Manager

Date of the purchase:

Type: CB Radio TEDDY II

Serial Number:

NOT COVERED BY THE WARRANTY WITHOUT THE DEALER STAMP

OSTRZEŻENIE!

Schemat montażu

Six identical line drawings of a car viewed from top and side, showing different angles and orientations (no text or symbols)

A	Alpha	H	Hotel	O	Oscar	V	Victor
B	Bravo	I	India	P	Papa	W	Whiskey
C	Charlie	J	Juliett	Q	Quebec	X	X-ray
D	Delta	K	Kilo	R	Romeo	Y	Yankee
E	Echo	L	Lima	S	Sierra	Z	Zulu
F	Foxtrott	M	Mike	T	Tango
G	Golf	N	November	U	Uniform

TERMINOLOGIA TECHNICZNA

https://president-electronics.com/DC/TXPR276

OGÓLNE WARUNKI GWARANCJI

Six identical top-down diagrams of a car with various lane markings, shown from different angles (no text or symbols)

8) PTT (PUSH TO TALK)

A	Alpha	H	Hotel	O	Oscar	V	Victor
B	Bravo	I	India	P	Papa	W	Whiskey
C	Charlie	J	Juliet	Q	Quebec	X	X-ray
D	Delta	K	Kilo	R	Romeo	Y	Yankee
E	Echo	L	Lima	S	Sierra	Z	Zulu
F	Foxtrott	M	Mike		Tango
G	Golf	N	November	U	Uniform

ТЕХНИЧЕСКИЕ ТЕРМИНЫ

FREQUENCY TABLE for d

Note: In U configuration: In order to select the frequency band ENG, press several times F key (5) until "UK" appears in the display. In order to select the CEPT frequency band, press several times F key (5) until "UK" disappears from the display (see table at page 65).

Countries in which there are particular restrictions (Licence ^1 / Register ^2 )
