USER MANUAL IAN 333828 Livarno Lux

LED AVEC VENTILATEUR AMOVIBLE

REMOVABLE FAN Operation and safety notes

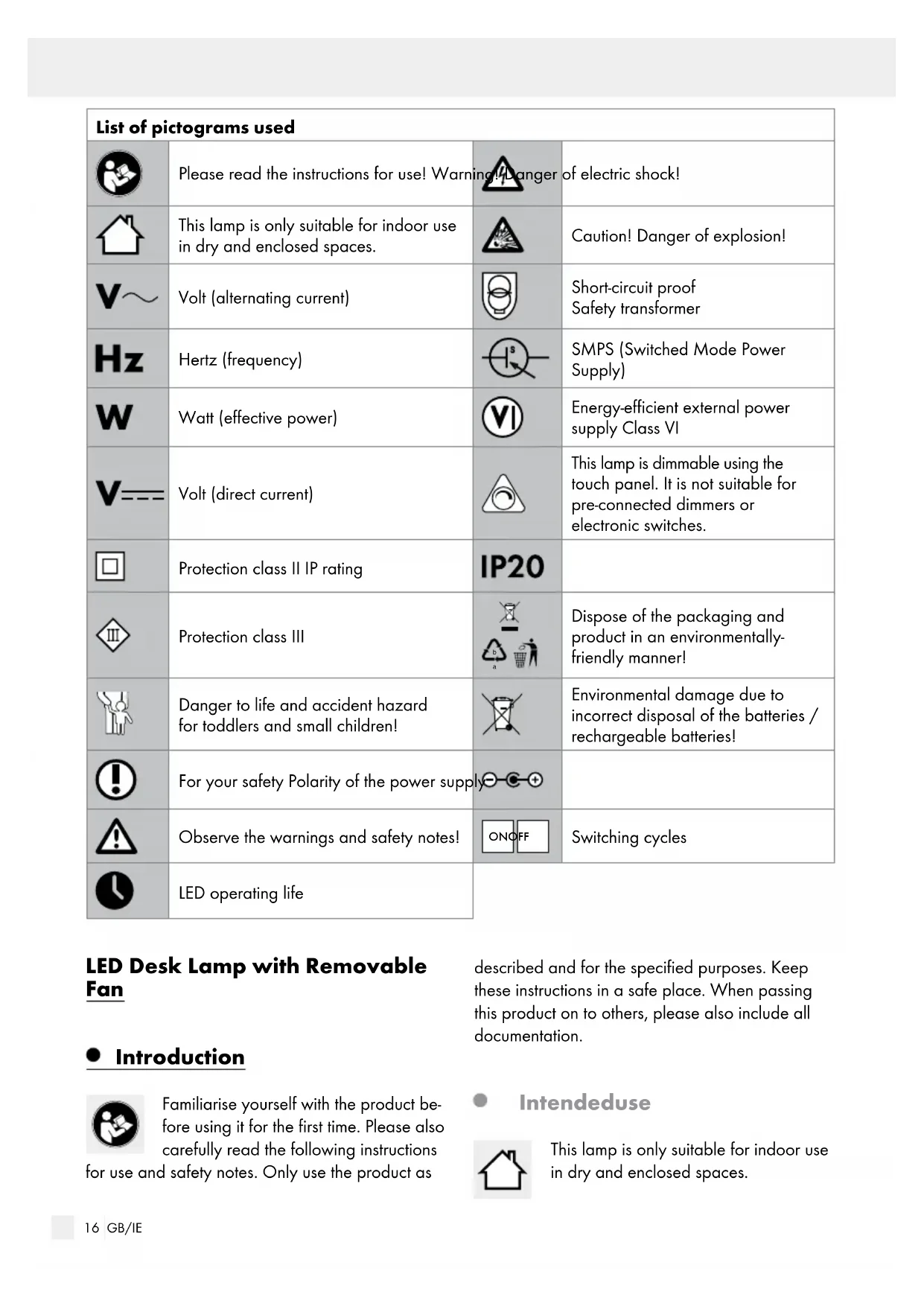

Dispose of the packaging and product in an environmentally- friendly manner! Danger to life and accident hazard for toddlers and small children! Environmental damage due to incorrect disposal of the batteries / rechargeable batteries! For your safety Polarity of the power supply Observe the warnings and safety notes! ON OFF Switching cycles LED operating life LED Desk Lamp with Removable Fan Introduction Familiarise yourself with the product be- fore using it for the first time. Please also carefully read the following instructions for use and safety notes. Only use the product as described and for the specified purposes. Keep these instructions in a safe place. When passing this product on to others, please also include all documentation. Intended use This lamp is only suitable for indoor use in dry and enclosed spaces.17 GB/IE Only use the lamp as described in these instructions for use. Any other use is considered improper use and may result in property damage and / or personal injury. The lamp is not a toy. The manufacturer and retailer assume no liability for damages due to im- proper or incorrect use. Scope of delivery 1 LED desk lamp with removable fan, model 55399 1 Mains adapter 1 Micro-USB cable 1 Set of instructions for use Parts description

touch button (reduce brightness)

touch button (increase brightness)

Charging cradle (fan)

Connection socket (mains adapter)

LED (charge indicator) Technical data Item number: 55399 Model: LED desk lamp with removable fan Protection class (lamp): III / Connections: 2 USB ports 5 V / 1 A Operating voltage: 12 V LED output: max. 6.2 W Total output: max. 24 W Fan: Item number: 55399_ET3278 Rechargeable battery: Li-ion rechargeable battery, type 18650 Operating voltage: 5 V Connections: 1 Micro-USB port 5 V / 1 A Mains adapter: BI24T-120200-AdV(EU) Item number: 55399_ET3279 Protection class: II / Operating voltage: 200–240 V

FOR INFANTS AND CHILDREN! This product may be used by children aged 8 years and older and persons with reduced phy- sical, sensory or mental capabilities or lacking experience and knowledge when supervised or instructed in safe product use by a person responsible for their safety. Do not allow child- ren to play with the product. Cleaning and user maintenance must not be performed by children without supervision. Keep children under age eight years away from the light, the connection cable, and the mains adapter. Never leave the lamp on unattended. Do not allow children to play with the packaging film. Children can get entangled in the packaging whilst laying and suffocate.

SHOCK! Risk of electric shock due to faulty electrical installation or excess line voltage. Only connect the lamp if the mains voltage of the socket corresponds with the specifications in the type plate.18 GB/IE Always connect the lamp to an easy to reach socket so the lamp can quickly be disconnected from the mains in the event of a fault. Do not use the lamp if you detect any type of damage or the connection cable / mains adapter is defective. Do not open the housing; repairs must be car- ried out by a professional. Contact a specialist workshop for this purpose. Unauthorised repairs, incorrect connection or improper use will void all warranty and liability claims. Always repair using parts which meet the origi- nal product specifications. This lamp contains electrical and mechanical parts which are vital to prevent safety hazards. The illuminant in this lamp is not replaceable; if the illuminant reaches the end of its life, replace the entire lamp. Do not use the lamp with an external timer s witch or a separate remote control system. Do not immerse the lamp or the connection cable or mains adapter in water or other liquids. Never handle the mains adapter with wet hands. Never pull on the mains cable to unplug the mains adapter from the socket. Always take hold of the mains adapter to do so. Never use the mains cable as a carrying handle. Keep the lamp, the mains adapter and the mains cable away from open fire and hot surfaces. Make sure that the mains cable does not become a tripping hazard. Do not kink the mains cable or run it over sharp edges. Only use the lamp indoors. Never user the lamp in wet rooms or in rain. Never store the lamp where it can fall into a bath or washbasin. Never reach for an electrical appliance which has fallen into water. In this event, immediately unplug the mains adapter from the socket. CAUTION! RISK OF INJURY! Improper use of the lamp may result in injuries. Do not look directly into the LED illuminant dur- ing operation to prevent damage to the retina. Also instruct other users of this hazard. The LED lamp and the mains adapter become hot during use. Allow the lamp and mains adapter to cool down after use before touching. NOTE: RISK OF DAMAGE! Improper use of the lamp may result in damage. Place the lamp on an easy to access, level, dry, and sufficiently sturdy surface. Do not place the lamp near the edge. Never place the lamp on or near hot surfaces (hobs etc.). Do not cover the lamp. Do not allow the mains cable to come into contact with hot parts. Never expose the lamp to high temperatures (radiators etc.) or the weather (rain etc.). Never immerse the lamp in water to clean or use a steam cleaner. Discontinue use of the lamp if parts are cracked or deformed. Always replace damaged parts with genuine spare parts. This lamp is dimmable using the touch panel. It is not suitable for pre-connected dimmers or electronic switches. Safety instructions for batteries / rechargeable batteries DANGER TO LIFE! Keep batteries / recharge- able batteries out of reach of children. If acci- dentally swallowed seek immediate medical attention. DANGER OF EXPLOSION! Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.19 GB/IE Never throw batteries / rechargeable batteries into fire or water. Do not exert mechanical loads to batteries / rechargeable batteries. Risk of leakage of batteries / rechargeable batteries Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight. If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous mem- branes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention! WEAR PROTECTIVE GLOVES! Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs. This product has a built-in rechargeable battery which cannot be replaced by the user. The removal or replacement of the rechargeable battery may only be carried out by the manu- facturer or his customer service or by a similarly qualified person in order to avoid hazards. When disposing of the product, it should be noted that this product contains a rechargeable battery. Initial use Examining the lamp and the scope of delivery NOTE: RISK OF DAMAGE! Opening the packaging carelessly with a sharp knife or other sharp objects may damage the lamp. Open the packaging with care.

1. Remove the lamp and all of the accessories

from the packaging and remove all protective film.

erify the scope of delivery is complete.

3. Check the lamp and accessories for damage.

Do not use the lamp if you detect any type of damage. In this case, please contact the manu- facturer (see “Service address“). Use Setting up the lamp Place the lamp on a level surface. Insert the mains cable barrel connector

into the connection socket

into a properly installed mains socket to connect the lamp to the mains. Adjusting the lamp Note: Only change the alignment of the light when it is switched off. Note: When adjusting the lamp, take care not to overtighten the joints. Otherwise the lamp may get damaged. Carefully move the lamp head

up or down (90 ° to 180 °) to move the lamp to the desired position. Turn the lamp base

by 68 ° to the left or right. Switching the lamp on or off Touch the on / off touch button

to turn on the lamp. Touch the on / off touch button

a second time to turn off the lamp. Dimming the lamp This light has 5 dimmer settings: Touch the touch button

to decrease or increase the brightness.20 GB/IE Setting the light colour Touch the touch button

several times in quick succession to set the desired light colour: warm white / neutral white / cold white Activating the timer function Turn the light on by touching the on / off touch button

to activate the timer function. The light will flash twice. The lamp will switch off automatically after 40 minutes. To turn off the timer function, touch the timer touch button

again. Charging the device The lamp has two USB ports

that allow you to charge devices (such as a smartphone or tablet) with a USB cable. Make sure that the lamp is connected to the power supply. Insert the USB plug of the USB cable into one of the lamp's USB ports

Insert the USB plug on the other side of the USB cable into the device you want to charge. Disconnect the USB cable as soon as charging is complete. Switching the fan on and off Note: The fan has three speed levels. Press the on / off button

. After switching on, speed level 1 is activated. Press the on / off button

a second time (speed level 2) and a third time (speed level 3) to set the speed. Press the on / off button

a fourth time to switch off the fan

as you wish, for example when using it in the charging cradle. Carefully tilt the fan head

forwards or backwards (see Fig. C). Charging the fan Charging via the integrated charging cradle

in the charging cradle

to charge it. Note: The lamp must be connected to the power supply in order to charge the fan

via the charging cradle

Charging via USB: Note: You can also connect the fan

to the supplied micro-USB cable

for charging. To do this, plug the plug of the supplied micro- USB cable

into the micro-USB port

. Connect the USB plug of the micro-USB cable to a mains adapter (not included) or to the USB port of another device to charge the fan

Note: The LED (charge indicator)

flashes red during charging. As soon as the fan

is fully charged, the LED (charge indicator)

stays lit up red. Cleaning RISK OF SHORT CIRCUIT! Water or other liquids inside the housing may cause a short circuit. Do not allow water or other liquids to enter the housing. Never immerse the lamp in water or other liquids. NOTE: RISK OF DAMAGE! Improper use of the lamp may result in damage. Do not use aggressive cleaning agents, brushes with metal or nylon bristles, or sharp or metal21 GB/IE cleaning tools such as knives, rigid scrapers, etc. These can damage the surface.

from the power supply before cleaning.

2. Allow the lamp and the mains adapter

cool down completely.

3. Wipe all parts with a slightly damp cloth.

4. Use a soft cloth to wipe all parts dry after

cleaning. Storage All parts must be completely dry prior to storage. Always store the lamp in a dry location. Protect the lamp and all accessories from direct sunlight. Store the lamp securely locked away out of the reach of children at a storage temperature be- tween 5 °C and 20 °C (room temperature). Disposal The packaging is made entirely of recyclable mate- rials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibre- board / 80–98: composite materials. The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only. Contact your local refuse disposal author- ity for more details of how to dispose of your worn-out product. To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information o

collection points and their opening hours can be obtained from your local authority. Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points. Environmental damage through incorrect disposal of the batter- ies / rechargeable batteries! Batteries / rechargeable batteries may not be dis- posed of with the usual domestic waste. They may contain toxic heavy metals and are subject to haz- ardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / recharge- able batteries at a local collection point. Warranty and service Warranty The product has been manufactured to strict quality guidelines and meticulously examined before deli- very. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below. The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe loca- tion. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.22 GB/IE The warranty applies to defects in material or manu- facture. This warranty does not cover product parts

ubject to normal wear, thus possibly considered co nsu- mables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts. Service address Great Britain / Ireland EGLO UK Ltd. Unit 12 Cirrus Park Lower Farm Road Moulton Park Industrial Estate Northampton, NN3 6UR, GREAT BRITAIN E-Mail: [e-mail] Phone: [phone] IAN 333828_1907 Please have your receipt and item number (e.g. IAN 123456_7890) ready as your proof of purchase when enquiring about the product. Declaration of conformity This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer. Warranty card Return address: Name / First name: Country / Postal code / City / Street address: Phone number: Item number / Description: Purchase date / Point of purchase: Description of the defect: Date / Signature:

Ładowarka (wentylator)

Port mikro-USB (wentylator)
