Product type	Children's flashlight with sound effects
Brand	Livarno Lux
Model	LKTL 3 A1
Power supply	2 AA LR06 1.5 V batteries
Bulb type	1 yellow LED, 0.06 W
Main functions	LED lighting, animal sound emission, activation by pressing the handle
What's included	Children's flashlight, 2 LR06 AA batteries, instruction manual
Batteries included	Yes, 2 AA LR06 batteries
Battery replacement	Open the screw under the device with a Phillips screwdriver, remove the cover, observe polarity
Care and cleaning	Wipe with a damp cloth, do not use harsh chemicals
Maintenance	No maintenance required, the LED is not replaceable
Safety	Not suitable for children under 36 months, use under adult supervision, do not look directly at the LED
Batteries: instructions	Do not recharge, do not throw into fire, check regularly, replace if leaking
Disposal of the device	Do not dispose of with household waste, follow the WEEE directive (2012/19/EU)
Disposal of batteries	Do not dispose of with household waste, return to a collection point
Warranty	3 years from date of purchase, covering material and manufacturing defects
After-sales service	France: 0800 919270, email: [e-mail]
Dimensions (estimated)	Approx. 15 x 10 x 8 cm (without guarantee)
Weight (estimated)	Approx. 150 g (with batteries)

Frequently Asked Questions - LKTL 3 A1 Livarno Lux

What type of batteries should I use?

Use two 1.5 V AA LR06 batteries. Observe the polarity indicated in the compartment.

How to replace the batteries?

Open the screw under the device with a Phillips screwdriver, remove the cover, change the batteries observing polarity, then close.

Can the LED be replaced?

No, the LED is not replaceable. It requires no maintenance.

How to activate the sound effects and light?

Press the activation handle. The animal's mouth opens, the LED lights up and an animal sound plays for a few seconds. Release to turn off.

Is the device suitable for young children?

It is designed for children over 36 months. Adult supervision is required due to small batteries.

Can I use rechargeable batteries?

No, use only non-rechargeable batteries. Rechargeable batteries may cause damage.

How to clean the lamp?

Wipe with a damp cloth. For stubborn stains, use a little mild dish soap. Never immerse in water.

What to do if the lamp stops working?

Check the batteries and their polarity. If the problem persists, contact after-sales service at 0800 919270.

How to dispose of the device at end of life?

Do not throw it in household waste. Take it to a WEEE collection point (directive 2012/19/EU). Remove the batteries first.

What is the warranty period?

The warranty is 3 years from the date of purchase, covering material and manufacturing defects.

USER MANUAL LKTL 3 A1 Livarno Lux

KIDS' TORCH LKTL 3 A1

GB IE

KIDS' TORCH

Operating instructio

DK

LOMMELYGTE TIL B∅RN

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

SE

GB/IE Operating instructions Page 1

SE	Bruksanvisning	Sidan	9
DK	Betjeningsvejledning	Side	17
FR/BE Mode d'emploi Page 25
NL/BE Gebruiksaanwijzing Pagina 33
DE/AT/CH Bedienungsanleitung Seite	41

Contents

Introduction....2

Intended use 2

Package contents 2

Components ....3

Technical details ....3

Safety instructions....3

Unpacking....5

Inserting/exchanging batteries....5

Function 5

Cleaning/maintenance....6

Disposal....6

Disposal of the appliance 6

Disposal of batteries 6

Appendix....7

Notes on the Declaration of Conformity 7

Warranty 7

Service 8

Importer 8

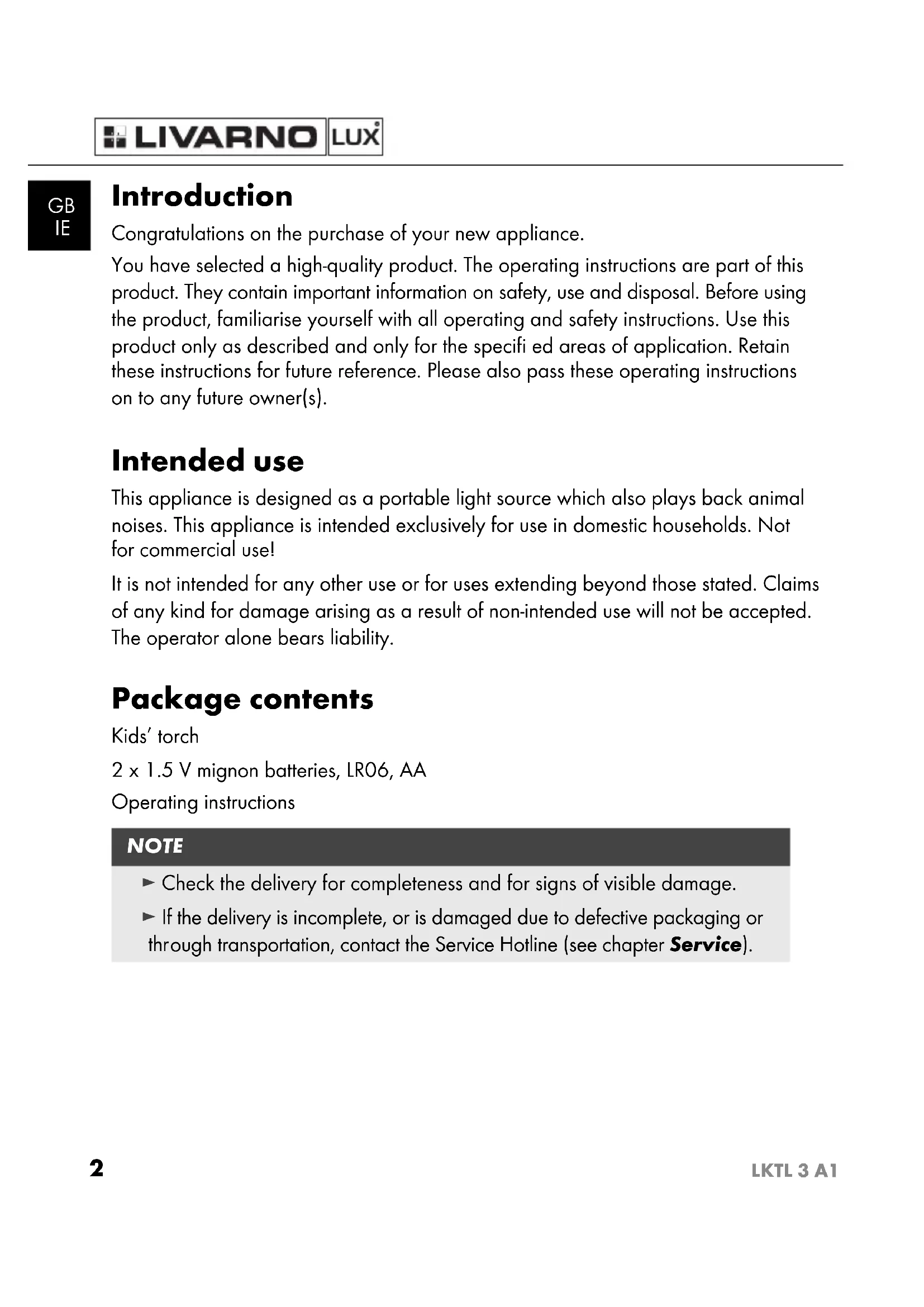

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use this product only as described and only for the specified areas of application. Retain these instructions for future reference. Please also pass these operating instructions on to any future owner(s).

Intended use

This appliance is designed as a portable light source which also plays back animal noises. This appliance is intended exclusively for use in domestic households. Not for commercial use!

It is not intended for any other use or for uses extending beyond those stated. Claims of any kind for damage arising as a result of non-intended use will not be accepted. The operator alone bears liability.

Package contents

Kids' torch

2 x 1.5 V mignon batteries, LR06, AA

Operating instructions

NOTE

▶ Check the delivery for completeness and for signs of visible damage.
▶ If the delivery is incomplete, or is damaged due to defective packaging or through transportation, contact the Service Hotline (see chapter Service).

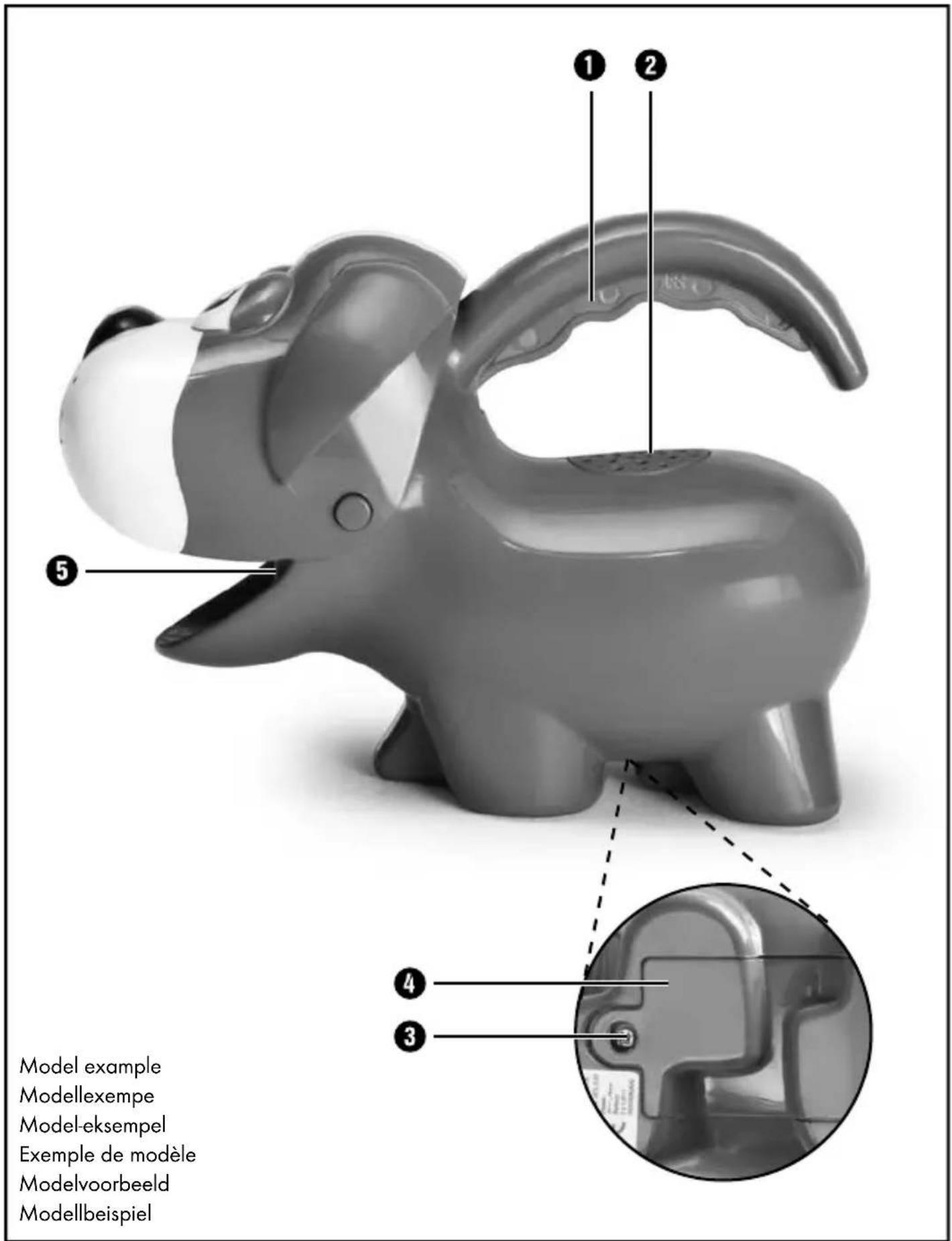

Components

① Activation handle
② Speaker
3 Screw
④ Battery compartment cover
5 LED

Technical details

Power supply: 2 x 1.5 V mignon batteries, LR06, AA ---

Light source: 1 x LED, yellow, 0.06 W

Safety instructions

WARNING - RISK OF INJURY!

▶ Not suitable for children under 36 months.
Danger of suffocation due to small parts which can be swallowed. To be used only under adult supervision.
- Cleaning must not be carried out by children unless they are supervised.
▶ Do not use optical instruments, such as a magnifying glass, to look directly into the beam. There is a risk of eye damage.
▶ Do not open the appliance (except the battery compartment) yourself. Risk of injury if appliance is not properly assembled!
▶ Never look directly into the LED! This can result in eye damage!

CAUTION - BATTERIES!

Safety information for handling batteries:

▶ Do not throw batteries into a fi re. Do not recharge batteries. Risk of explosions and injuries!
▶ Never open batteries and never solder or weld batteries. Risk of explosions and injuries!
▶ Check the condition of the batteries at regular intervals. Leaking batteries can cause damage to the appliance.
▶ If you do not intend to use the appliance for an extended period, remove the batteries.
▶ If the batteries have leaked, use protective gloves. Clean the battery compartment and the battery contacts with a dry cloth.
- Keep batteries out of the reach of children. Children might put batteries into their mouth and swallow them. If a battery is swallowed, medical assistance must be sought immediately.

CAUTION - PROPERTY DAMAGE!

▶ To avoid damage, do not allow liquids to penetrate the appliance and do not submerge it in water.
▶ Ensure that no foreign objects penetrate the appliance.

Unpacking

■ Remove all parts of the appliance and the operating instructions from the box.
■ Remove all packaging material from the appliance and the batteries.

WARNING

▶ Packaging materials should not be used as a plaything. There is a risk of suffocation.

Inserting/exchanging batteries

1) Remove the screw ③ on the underside of the appliance using a Philips screwdriver.
2) Remove the battery compartment cover ④.
3) For exchanging the batteries only: Remove dead batteries from the battery compartment.
4) Insert the new batteries (type mignon, AA, LR06). Observe the polarity markings in the battery compartment.
5) Close the battery compartment cover ④ and screw the screw ③ back in.

Function

When you press the activation handle ①, the animal's mouth opens, the LED ⑤ lights up and an animal noise can be heard from the speaker ②.
When you let go of the activation handle ①, the mouth closes, the LED ⑤ goes out and the animal noise, if it can still be heard, stops.

Cleaning/maintenance

CAUTION - PROPERTY DAMAGE!

▶ Do not use abrasive, chemical or caustic cleaning agents to clean this appliance. These can damage the surface of the appliance.

■ Wipe the appliance with a damp cloth. For stubborn soiling use a mild detergent on the cloth.

The children's torch is maintenance free! The LED ⑤ is not replaceable and does not require maintenance.

Disposal

Disposal of the appliance

spose of the appliance in normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU (Waste Electrical and Electronic Equipment).

Dispose of the appliance via an approved disposal company or your municipal waste facility. Please observe the currently applicable regulations. Please contact your waste disposal centre if you are in any doubt.

NOTE

▶ Before disposing of the appliance it is essential to remove the batteries first.

Disposal of batteries

Used batteries may not be disposed of in the household waste. All consumers are statutorily required to dispose of batteries at a collection point provided by their local community or at a retail store. The purpose of this obligation is to ensure that batteries are disposed of in a non-polluting manner. Only dispose of batteries when they are fully discharged.

Appendix

Notes on the Declaration of Conformity

With regard to conformity with essential requirements and other relevant provisions, this appliance complies with the guidelines of the Electromagnetic Compatibility Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC.

The full original Declaration of Conformity is available from the importer.

Warranty

The warranty provided for this appliance is 3 years from the date of purchase. This appliance has been manufactured with care and inspected meticulously prior to delivery.

Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service by telephone. This is the only way to guarantee free return of your goods.

NOTE

The warranty applies only to claims for material and manufacturing defects, not for transport damage, wearing parts or for damage to fragile components, e.g. bulbs or switches.

This appliance is intended solely for private use and not for commercial purposes. The warranty is deemed void if this product has been subjected to improper or inappropriate handling, abuse or modifications which were not carried out by one of our authorised service centres.

Your statutory rights are not restricted in any way by this warranty.

The warranty period is not prolonged by repairs made under the warranty. This also applies to replaced and repaired parts.

Damage and defects present at the time of purchase must be reported immediately after unpacking, or no later than two days after the date of purchase.

Repairs made after expiry of the warranty period are chargeable.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 94068

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 94068

Hotline availability: Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Indholdsfortegnelse

Indledning 18

Anvendelsesområde 18

Pakkens indhold 18

Komponentbeskrivelse 19

Tekniske data 19

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Table des matières

Introduction 26

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhoud

Inleiding....34

⚠ WAARSCHUWING - LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einleitung 42

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND / GERMANY

www.kompernass.com

Last Information Update · Informationsstatus · Tilstand af information

Version des informations · Stand van de informatie · Stand der Informationen:

11/2013. Ident.-No.: LKTL3A1-102013-2
