USER MANUAL 10513C Livarno Lux

Operation and safety notes

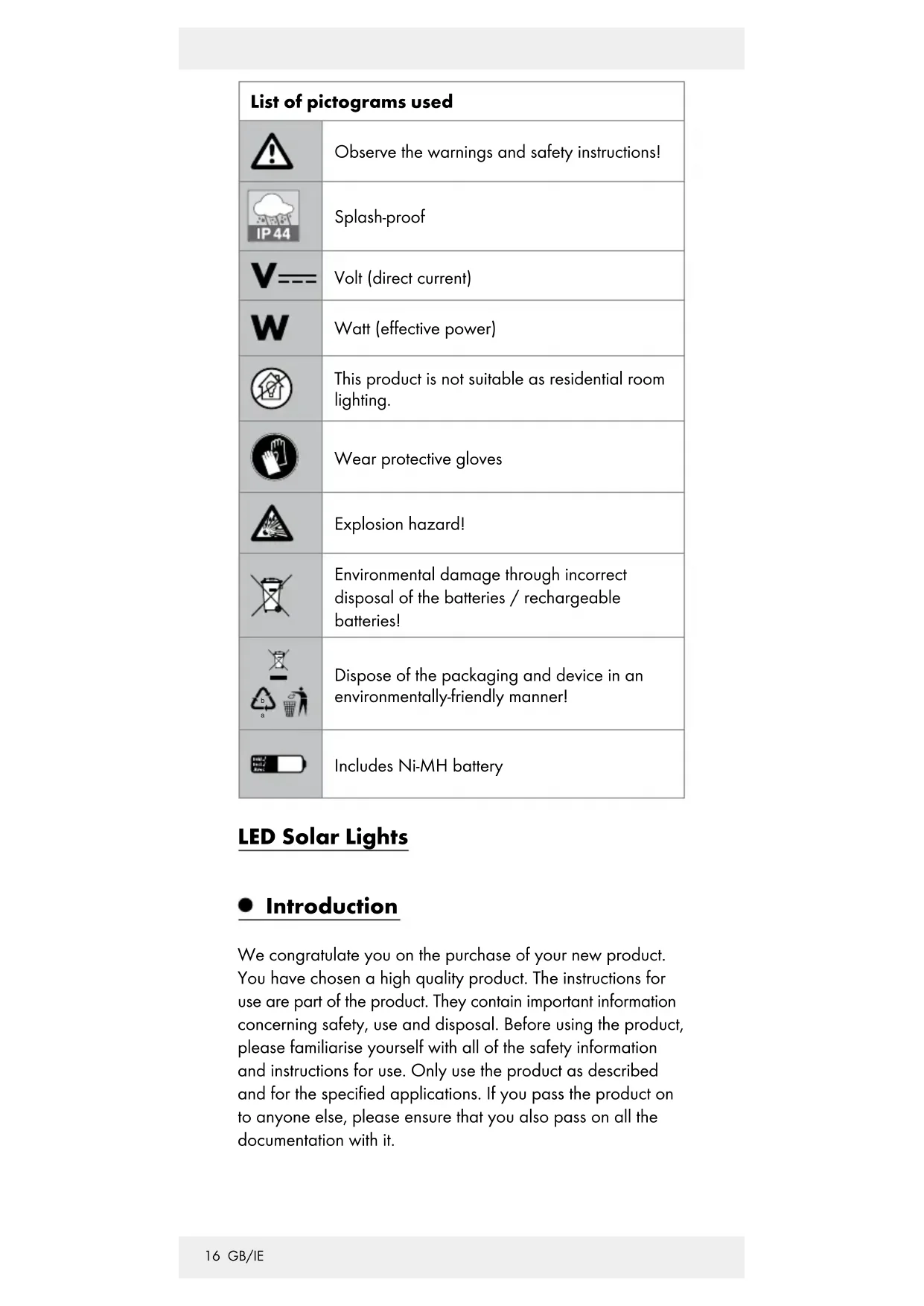

Dispose of the packaging and device in an environmentally-friendly manner! Includes Ni-MH battery LED Solar Lights Introduction We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.17 GB/IE Proper use The product is intended for outdoor use. The product is not in- tended for commercial use or for use in other applications. Not suitable for household room illumination. This product is suitable for extreme temperature up to -21°C. Description of parts and features

Battery compartment lid

Rechargeable battery Scope of delivery 5 Lamp heads with solar cell, LED and rechargeable battery 5 Lamp shades 5 Poles 5 Ground stakes 1 Assembly instruction Technical data Operating voltage: 1.2 V (direct current) Rechargeable battery: 1 x Ni-MH rechargeable battery / AAA / 1.2 V (direct current)/ 150 mAh Bulb: 1 x LED (not replaceable) Rated power LED: approx. 6 mW per LED Degree of protection: IP44 (splash proof) Solar cell: approx. 30 x 30 mm (L x W) Lighting Duration (with full charge): approx. 8 hours18 GB/IE Safety instructions YOU SHOULD STORE ALL SAFETY INFORMATION AND INSTRUCTIONS IN A SAFE PLACE IN CASE YOU NEED TO REFER TO THEM AGAIN IN THE FUTURE! This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concern- ing use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision. Do not use the product if you detect any kind of damage. The illuminant is not replaceable. If the illuminant fails at end of its life, the entire product must be replaced. Product-specific safety instructions Make sure that the solar cell is free of dirt and free of snow and ice in winter. Otherwise the performance of the solar cell will diminish. Cold temperatures have a negative influence on the oper- ating life of the rechargeable battery. If the product is not going to be used for a long time, e.g. in winter, it should be taken up, cleaned and stored in a dry, warm room. Safety instructions for batteries / rechargeable batteries DANGER TO LIFE! Keep batteries / rechargeable bat- teries out of reach of children. If accidentally swallowed seek immediate medical attention. Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of in- gestion. DANGER OF EXPLOSION! Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result. Never throw batteries / rechargeable batteries into fire or water.19 GB/IE Do not exert mechanical loads to batteries / rechargeable batteries. Risk of batteries / rechargeable batteries leakage Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight. If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention! WEAR PROTECTIVE GLOVES! Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs. In the event of a leakage of batteries / rechargeable bat- teries, immediately remove them from the product to pre- vent damage. Only use the same type of batteries / rechargeable batteries. Do not mix used and new batteries / rechargeable batteries. Remove batteries / rechargeable batteries if the product will not be used for a longer period. Risk of damage of the product Only use the specified type of battery / rechargeable battery! Insert batteries / rechargeable batteries according to po- larity marks (+) and (-) on the battery / rechargeable bat- tery and the product. Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting! Remove exhausted batteries / rechargeable batteries from the product immediately. Functioning The solar cell installed in the product converts sunlight into electrical energy and stores it in 1 Ni-MH battery. Switches on the light as it begins to get dark. The in-built light-emitting diodes are a very long-life and energy-saving light source. The light du- ration depends on the amount of sunlight, the angle of light on the solar cell and the temperature (the battery capacity is tem- perature-dependent). A vertical angle of light at temperatures above the freezing point is ideal. The battery does not achieve maximum capacity until after several charge and discharge cycles.20 GB/IE Preparing for use Installing the product Install the product in accordance with Figures A, C, D:

1. Rotate the solar cell housing

into the ON position to switch the light on.

3. Insert the solar cell housing

and tighten by turning it clockwise.

4. Place the light on to the pole

5. Take out the ground stake

and insert it into the pole

with the tip facing downwards (see Fig. C).

6. Your product is ready for use (see Fig. D).

Setting up the product Insert the assembled product far enough into the ground (lawn, flower bed) for it to be stable. Make sure you keep proper footing and balance at all times. Do not use any force when assembling or setting-up the product, e.g. hammer blows. This will damage the product. In order to achieve the best result, set the product up in a place where the solar cell will get direct sunlight for as long as possible. Make sure that the solar cell is not influenced by any other source of light such as yard or street lighting as otherwise the light will not come on in twilight. The light automatically switches on in twilight conditions and off again when normal outdoor lighting conditions return. Replacing the rechargeable battery The battery should be replaced every 12 months to ensure optimum performance.

1. Separate the solar cell housing

by moving it anti-clockwise (see Fig. A). Switch off the light with the ON- / OFF-switch

2. Loosen the fastening screws

by using a small cross head screwdriver and then lever out the battery compart- ment lid

of the solar cell housing

with the help of a slot screwdriver (see Fig. B).

3. Turn over the battery compartment lid

, take care not to damage the cables and cable connections (see Fig. B).21 GB/IE

4. Exchange the old rechargeable battery

to a new one. Take care to the correct polarity, when inserting the new rechargeable battery. The polarity is indicated in the bat- tery compartment. The new rechargeable battery has to have the same technical data like the old one.

5. Now again fasten the battery compartment lid

, fasten the fastening screws

by using a small cross head screw- driver. Slide the On / Off switch

6. Connect the solar cell housing

again to the lamp shade

and then connect every part of the product to each other (see Fig. C). Charging the rechargeable battery Note that the product must be switched on when the battery is charging. The charging time of the battery when the solar cell is used depends on the intensity of the sunlight and the angle of incidence of the light on the solar cell. Place the solar cell as perpendicular as possible to the angle of incidence of the light. In this way you will receive the highest light levels. Maintenance and care The light-emitting diodes cannot be replaced. The product is maintenance-free, except for any necessary change of battery. Clean the product regularly with a dry, lint-free cloth. Use a slightly dampened cloth to remove more stubborn dirt. Troubleshooting Note: This product has delicate electronic components. This means that if it is placed near an object that transmits radio signals, it could cause interference. If you notice that the product is malfunctioning, remove any sources of interference from the area of the product. Note: Electrostatic discharges may cause product to malfunction. In the event of such malfunctions, remove the batteries briefly and reinsert them.22 GB/IE Error Cause Solution The light will not switch on even though the sun shone on the product all day. Artificial sources of light, e.g. street lighting, are inter- fering with the product. Mount the product in a place where it can- not be disturbed by other sources of light. The light does not come on or comes on only briefly. The rechargeable battery is broken or there was not enough daylight. Replace the recharge- able battery or mount the product in a place where it can receive more sunlight. Disposal The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials. The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only. Contact your local refuse disposal authority for more details of how to dispose of your worn-out product. To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority. Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.23 GB/IE Environmental damage through incorrect disposal of the batteries / rechargeable batteries! Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point. Warranty The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below. The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This docu- ment is required as your proof of purchase. This warranty be- comes void if the product has been damaged, or used or maintained improperly. The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batte- ries or glass parts. Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase. You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.24 GB/IE If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. Service Service Great Britain Tel.: [phone] E-Mail: [e-mail] Service Ireland Tel.: [phone] (0,08 EUR / Min., (peak)) (0,06 EUR / Min., (off peak)) E-Mail: [e-mail]25 FR/BE Légende des pictogrammes utilisés .. Page 26 Introduction ......................................................... Page 26 Utilisation conforme .................................................. Page 27 Descriptif des pièces ................................................. Page 27 Contenu de la livraison ............................................. Page 27 Caractéristiques techniques ...................................... Page 27 Consignes de sécurité ................................. Page 28 Instructions de sécurité spécifiques au produit ........ Page 28 Consignes de sécurité relatives aux piles / aux piles rechargeables ................................................... Page 28 Fonctionnement ............................................... Page 29 Mise en service ................................................. Page 30 Montage de la lampe ............................................... Page 30 Installation du produit ............................................... Page 30 Remplacer la batterie ................................................ Page 30 Chargement de la batterie ....................................... Page 31 Entretien et nettoyage................................ Page 31 Problèmes et solutions ............................... Page 32 Mise au rebut ..................................................... Page 32 Garantie ................................................................. Page 33 Faire valoir sa garantie ............................................. Page 35 Service après-vente ................................................... Page 3526 FR/BE Légende des pictogrammes utilisés Respectez les avertissements et les consignes de sécurité ! Ne craint pas les projections d‘eau Volt (courant continu) Watt (puissance active) Ce produit ne peut pas servir d‘éclairage de pièce dans un foyer domestique. Porter des gants de protection ! Risque d’explosion! Pollution de l’environnement par la mise au rebut incorrecte des piles / piles rechargeables !
