USER MANUAL MD 37689 MEDION

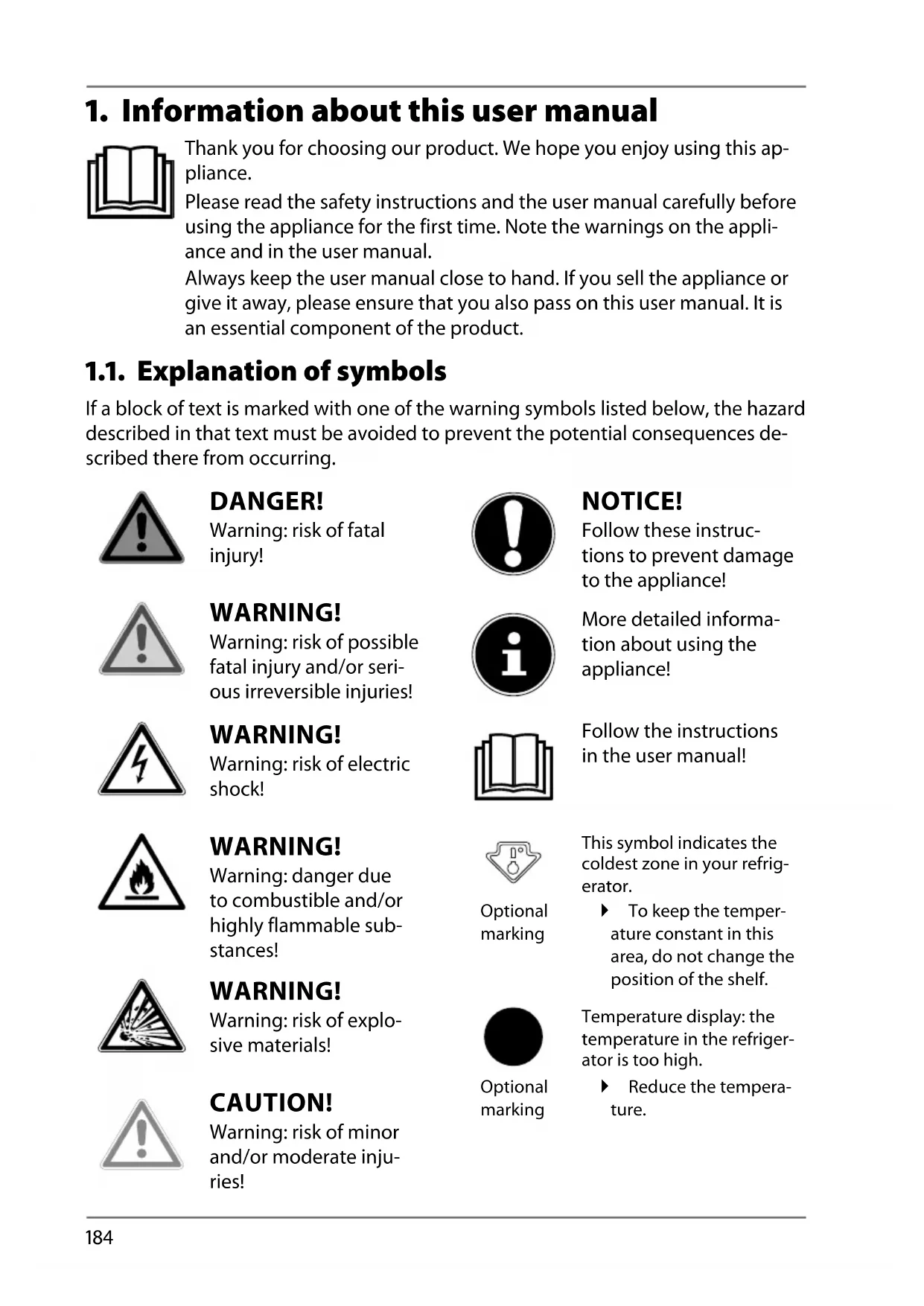

. Information about this user manual Thank you for choosing our product. We hope you enjoy using this ap- pliance. Please read the safety instructions and the user manual carefully before using the appliance for the first time. Note the warnings on the appli- ance and in the user manual. Always keep the user manual close to hand. If you sell the appliance or give it away, please ensure that you also pass on this user manual. It is an essential component of the product. .. Explanation of symbols If a block of text is marked with one of the warning symbols listed below, the hazard described in that text must be avoided to prevent the potential consequences de- scribed there from occurring. DANGER!

Warning: risk of fatal

Warning: risk of possible

fatal injury and/or seri- ous irreversible injuries! WARNING!

Warning: risk of electric

to combustible and/or highly flammable sub- stances! WARNING!

Warning: risk of explo-

sive materials! CAUTION!

Warning: risk of minor

and/or moderate inju- ries! NOTICE! Follow these instruc- tions to prevent damage to the appliance! More detailed informa- tion about using the appliance! Follow the instructions in the user manual! Optional marking This symbol indicates the coldest zone in your refrig- erator. To keep the temper- ature constant in this area, do not change the position of the shelf. Optional marking Temperature display: the temperature in the refriger- ator is too high. Reduce the tempera- ture.185

Optional markingTemperature display: ap-propriate temperature in the refrigerator. . Proper use This appliance is intended to be used for cooling and freezing food. This appliance is designed for use in private households and similar applications, such as: – Staff kitchens in shops, offices and other workplaces – In agriculture and by guests in hotels, motels and other types of accommodation – Bed-and-breakfast establishments – Catering establishments and wholesale use. The manufacturer accepts no liability for damages if the appli- ance is used for commercial purposes or for any purpose other than cooling and freezing food. Please note that we shall not be liable in cases of improper use:

• Do not modify the appliance without our consent and do not use any auxiliary equipment that we have not approved or supplied.

• Only use replacement parts or accessories that we have sup- plied or approved.

• Comply with all the information in this user manual, especially the safety instructions. Any other use is considered improper and can cause personal injury or property damage.186 . Safety instructions

IMPORTANT SAFETY INSTRUCTIONS – READ CAREFULLY AND

KEEP FOR FUTURE REFERENCE! This appliance can be used by children of 8 years and older, and by people with reduced physical, sensory or mental ca- pacity, or with a lack of experience and/or knowledge, but only with proper supervision, or if they have been told how to use the appliance safely, and have understood the risks in- volved if they use it improperly. Children must not be allowed to play with the appliance. Children between the ages of 3 and 8 are allowed to load and remove items from refrigerating appliances. Cleaning and user maintenance must not be carried out by children unless they are supervised. Keep children away from the appliance inner. If the door is closed, there is a risk of choking and suffocation! .. General safety instructions WARNING! Risk of injury! The appliance’s refrigeration system contains R-600a refrigerant. If the refrigerant escapes, there is a risk of injuries. WARNING! Do not damage the refrigerant circuit. If the refrigeration system has nevertheless become dam- aged, ventilate the room. Avoid naked flames and ignition sources. Have the appliance repaired by a qualified technician before using it again. If refrigerant comes into contact with the skin or eyes, this can lead to injuries. If necessary, rinse the eyes with clean water and consult a doctor. WARNING! Do not operate electrical appliances inside the cooling chamber that do not conform to the design recom- mended by the manufacturer.187

Do not use any other electrical appliances (such as ice ma- chines) inside the refrigerating appliance unless they are ap- proved for this purpose by the manufacturer. Tampering with the refrigerant circuit is prohibited and will invalidate the warranty. WARNING! Risk of fire! There are flammable liquids in the coolant circuit and the compressor. Note the “Fire hazard” warning signs on the back of the appli- ance or the compressor. Avoid naked flames and ignition sources when using, main- taining and disposing of the appliance. .. Transport CAUTION! Risk of injury! The appliance is very heavy. There is a risk of injury from straining to lift the appliance. Seek the assistance of at least one other person in order to move the appliance. Do not transport the appliance alone. NOTICE! Possible material damage! Risk of damage to the appliance if transported incor- rectly Make sure that the packaging is not damaged. Carefully remove the packaging material and check the appli- ance for transport damage. Never connect a damaged appliance. In the event of damage, contact the Service Centre. Always transport the fridge freezer in its packaging and with the transport lock.188 Ensure that no part of the refrigerant circuit is damaged when transporting and installing the appliance. Where possible, always transport the appliance upright. If tilt- ed to an angle of more than 40° during transport, wait 4 hours before connecting it to the mains and switching it on to ena- ble the refrigerant circuit to return to normal after transport. Do not place the appliance on its side or back, as this can cause oil from the compressor to enter and block the refriger- ant circuit. Do not expose the appliance to rain or spray water. .. Installation and electrical connection ... Location NOTICE! Possible material damage! Risk of damage to the appliance due to improper han- dling Install the refrigerating appliance in a dry and ventilated room. The room should be approx. 4m² to ensure that suf- ficient air volume is available if the refrigeration system be- comes damaged. Take the space requirements into consideration when setting up the appliance (see ‘8.2. Setting up the appliance’ on page 200). The appliance is suitable for climate class N (see the type plate). The cooling performance of the appliance is guar- anteed at ambient temperatures from 16°C to 32°C. If tem- peratures deviate from this range, the appliance performance may be reduced. Do not use the appliance outdoors.189

Do not expose the device to extreme conditions. Avoid: – high humidity or wet conditions – extremely high or low temperatures – direct sunlight – open flames. WARNING! Risk of fire! Insufficient air circulation can lead to heat accumula- tion. WARNING! Make sure that the ventilation openings in the housing, around the appliance and in the installation niche are not blocked. The appliance is not designed to be an integrated appliance. To ensure adequate ventilation, a minimum clearance of 5cm to the top, to the sides and the back must be observed. Do not install near heat sources such as hobs, radiators, un- derfloor heating etc. If installation near a heat source cannot be avoided, use an appropriate insulation panel or maintain the following minimum clearances from the heat source: – from electric or gas ovens or similar: approx. 5cm – from oil or coal side cookers: approx. 30 cm. – If installed next to another refrigerating appliance, a mini- mum distance of 5cm from the side is required. ... Before connection WARNING! Risk of electric shock! There is a risk of electric shock due to live parts. After installing the appliance, check that the mains cable is not squashed or damaged. Do not operate the appliance if it has been visibly damaged or the mains cable or plug is defective. In the event of damage, contact the Service Centre.190 ... Mains connection WARNING! Risk of electric shock! There is a risk of electric shock due to live parts. Only connect the appliance to a properly installed and easily accessible earthed mains socket that is close to where you are using the appliance. The local mains voltage must match the voltage stated in the technical specifications for the appliance. The power socket must be easily accessible so that you can unplug the device from the mains quickly if necessary. WARNING! Ensure the mains cable is out of harm’s way and will not trip people up. Do not use an extension cable. WARNING! Do not allow the mains cable to become trapped or damaged during installation. WARNING! Do not connect portable multiple sockets or pow- er supplies to the back of the appliance. In order to disconnect the appliance completely from the electrical circuit, pull the mains plug out of the socket. ... Use of the appliance WARNING! Risk of explosion! Flammable gases and liquids can cause explosions if stored in the appliance. Do not store any explosive materials, e.g. aerosol containers containing propellant gas, in the appliance. Do not freeze any carbonated beverages. Expanding liquid can break the container.191

WARNING! Risk of injury/risk to health! Improper handling of the appliance can lead to injuries. Do not misuse the plinth, drawer compartments, doors etc. as a step or for support. The appliance may not work properly (temperature increase) if it is exposed to temperatures that fall below the specified intend- ed temperature range for a prolonged period of time (below 16°C). In case of power failure or a switched off appliance, stored food- stuffs may spoil. There is a risk of food poisoning. If there has been a power failure, check that the food which is stored in the appliance still looks and smells safe to eat. Do not store medicines, laboratory specimens or other tem- perature-sensitive products that are subject to the Medical Devices Directive 2007/47/EC inside the refrigerator. Ensure cleanliness and correct storage of food ‘11. Storing food in the refrigerator compartment’ on page 204 and ‘12. Deep-freezing food’ on page 205. If the door is left open for a long time, this can cause the tem- perature inside the appliance zones to increase significantly.192 . Package contents DANGER! Risk of choking and suffocation! There is a risk of choking and suffocation due to swal- lowing or inhaling small parts or plastic wrap. Keep all packaging materials used (bag, pieces of polystyrene etc.) out of the reach of children. Children must not be allowed to play with the pack- aging materials. Please check the package contents to ensure that all items are included and in perfect condition. If anything is missing or damaged, contact us within 14 days of purchase. The following items are supplied with your product:

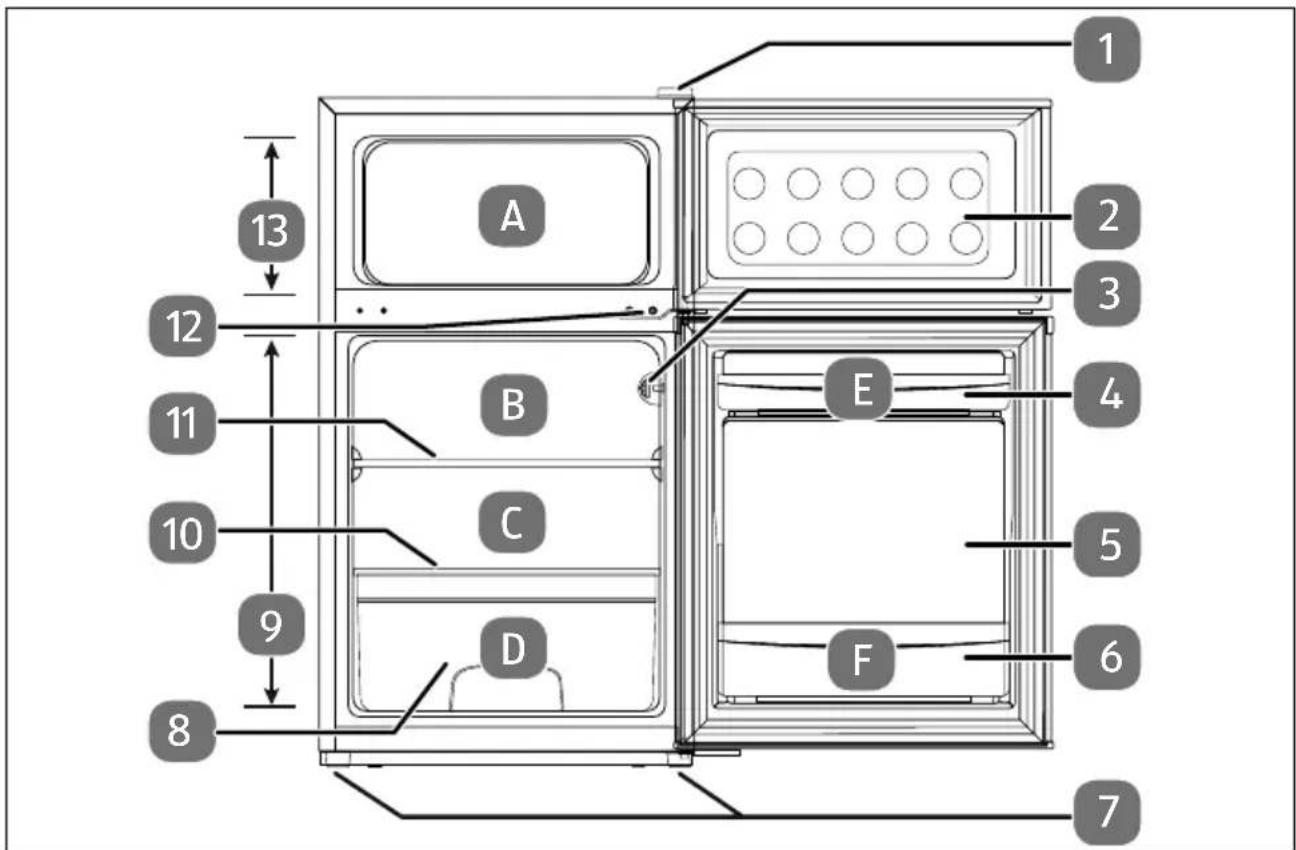

• Fridge freezer, including – 1 glass shelf – 1 transparent fruit/vegetable compartment with glass cover – 1 ice cube tray – 1 egg tray – Short manual193

6. Bottle compartment

8. Fruit/vegetable compartment

9. Refrigerator compartment

10. Glass cover for fruit/vegetable compartment

13. Freezer compartment194

. Recommended food storage See Fig. 1 Recommended for: A. food suitable for freezing in suitable containers B. Cheese, pastry C. Sausages, fish, meat and poultry D. Fruit and vegetables E. Eggs, butter, jam, tins, glass containers F. Milk, beverages The freezer compartment (13) is suitable for storing the follow- ing foods: Seafood (fish, prawns, shellfish), freshwater fish and meat products (rec- ommended for 3 months; the longer the storage time, the more likely that the taste and nutritional value will deteriorate), frozen fresh foods. Store the food in suitable containers (see also ‘12. Deep-freezing food’).195

• The appliance uses refrigerant R-600a (HCFC- and CFC-free) in the refrigerant circuit.

• The refrigerant circuit has been checked for leaks. This complies with the rele- vant safety regulations for electrical appliances.

• Energy efficiency class E

• Climate class N The different climate classes are explained in the following table. Climate class Meaning Ambient temperature

Appliances for subnormal cli- mate +10°C to +32°C N Appliances for normal climate +16°C to +32°C

Appliances for subtropical climate +16°C to +38°C T Appliances for tropical climate +16°C to +43°C .. Information regarding refrigerant R-a R-600a and cyclopentane are used as 100% HCFC-free refrigerant and insulating materials in this appliance. This helps to protect the ozone layer and reduces the so- called greenhouse effect. These appliances can be identified by the “Refrigerant R-600a” notice on the type plate. Ensure that the refrigerant circuit is not damaged, as small quantities of R-600a can contribute to the greenhouse effect if released. This applies both when transporting the appliance and throughout its service life. Also ensure that you dispose of this appliance correctly according to local regulations.196 . Preparations for use .. Changing the door hinges Required tools: – Slotted screwdriver – Phillips screwdriver – 6 mm spanner – 8 mm spanner – 10 mm spanner – 10 mm Allen key Set the temperature control (3) to position "0“. Pull the mains plug out of the socket. Remove all accessories such as shelves (10/11) and door compartments (4/6). Remove the hinge cover (1) on the right-hand side, for example using a flat-head screwdriver (see Fig. 3). Fig. 3 Loosen the two screws on the hinge (1) using an 8 mm spanner or a Phillips screwdriver (see Fig. 4). Fig. 4197

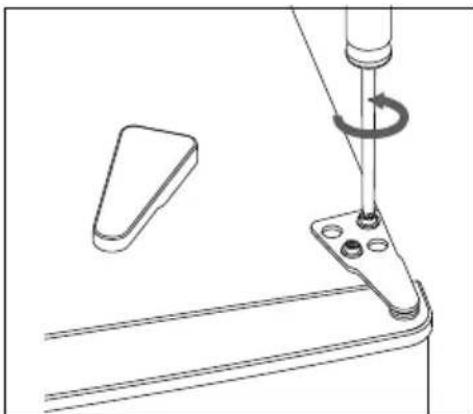

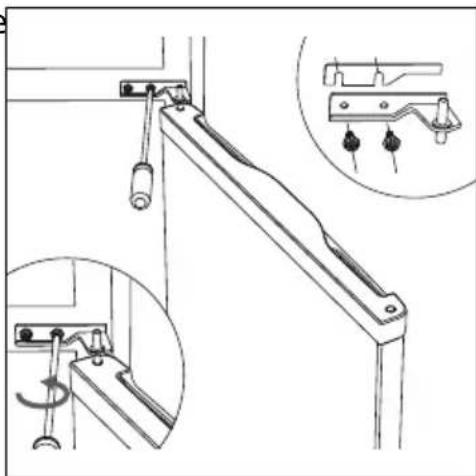

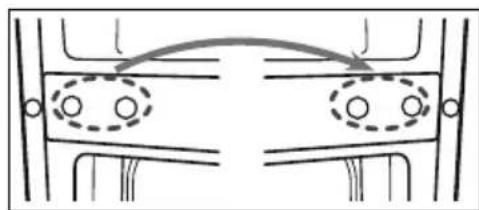

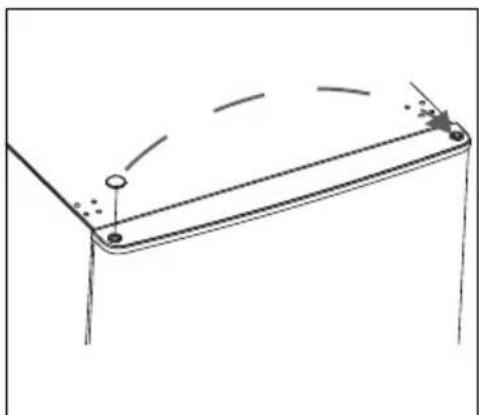

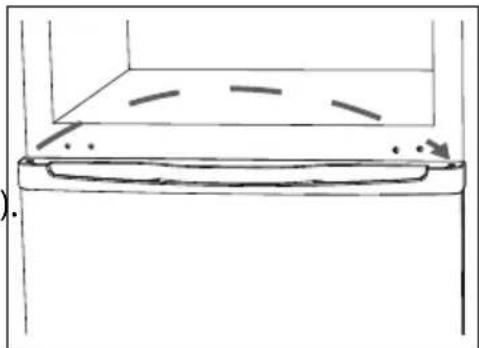

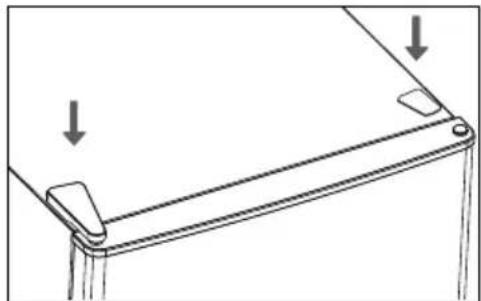

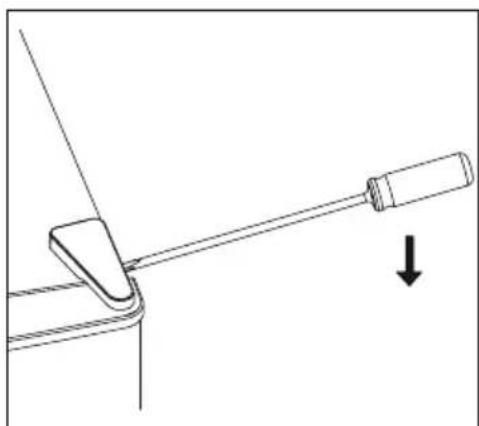

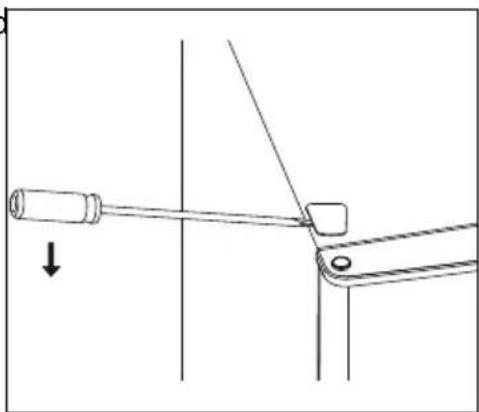

Remove the screw hole cover on the left-hand side, for example using an H5 hex-head screw- driver). Fig. 5 Remove the blind plug for the hinge pin from the left-hand side of the freezer door and in- sert it in the hole on the right-hand side (see Fig. 6). Then lift the freezer compartment door (2) to remove it. Place the door (2) on a soft surface to protect it from scratches. Fig. 6 Remove the centre hinge (12) by loosening the retaining screws (see Fig. 7). Keep the elongated plastic washer lo- cated between the centre hinge and the appliance in a safe place and re- place it in the same position when re- assembling. Also pay attention to the three additional round washers! Fig. 7 Remove the dummy plugs with a slotted screwdriver and place them on the opposite side (see Fig. 8). Fig. 8198 Remove the blind plug for the hinge pin from the left-hand side of the freezer door and in- sert it in the hole on the right-hand side (see Fig. 9). Remove the refrigerator compartment door (5). Tilt the refrigerator backwards (no more than 45°) so that you can move the bottom hinge. Fig. 9 Remove the adjustable foot from the hinge by hand or using a 10 mm Allen key. Loosen the two retaining screws of the lower hinge and remove it. Use an 8 mm spanner or a Phillips screwdriver (see Fig. 9). Also remove the adjustable foot on the oppo- site side (see Fig. 9). Fig. 10 Remove the screw on the left-hand side of the appliance housing using a Phil- lips screwdriver. Reinsert the screw into the vacated hole on the right-hand side of the appli- ance housing and tighten it. Mount the adjustable foot on the other side as well. Reposition the hinge pin on the perforated plate as shown in the illustration below, using a 10 mm spanner to loosen and tighten the nut (see Fig. 11). Fig. 11199

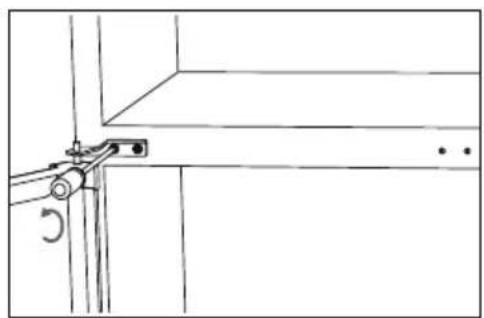

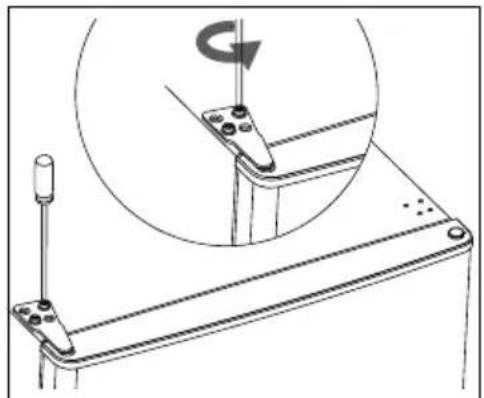

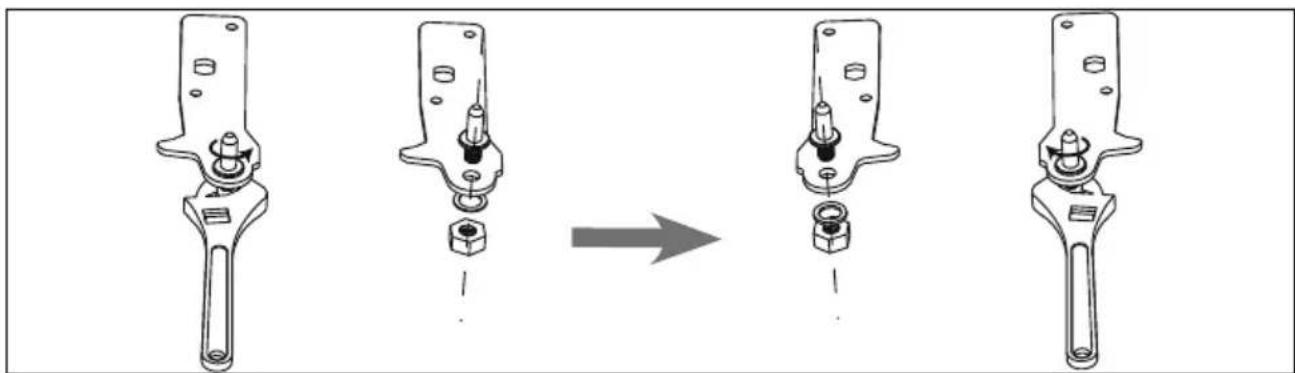

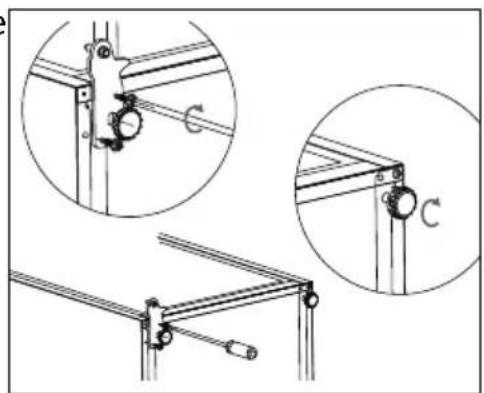

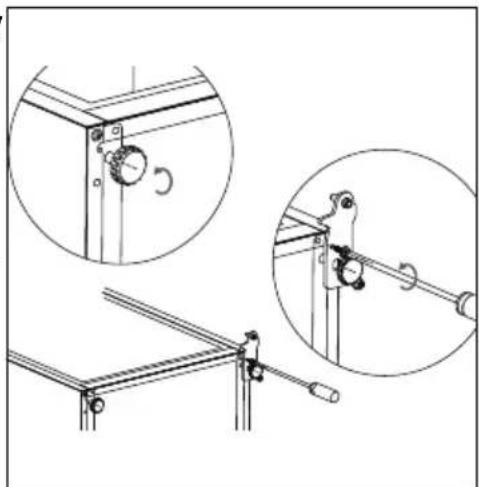

Rotate the perforated plate of the lower hinge so that the holes in the perforated plate match the holes in the appliance and screw the hinge to the opposite side of the appliance using the two retaining screws. Use an 8 mm spanner or a Phillips screwdriver to loosen and tighten the screws (see Fig. 12). Fit the adjustable foot (see Fig. 12). Fig. 12 Replace the refrigerator door (5) on the pin of the lower hinge. Before screwing the middle hinge (12) back on, ensure that the refrigerator compartment door (5) closes flush with the ap- pliance housing horizontally and vertically so that all seals close. Fig. 13 Place one washer on the upper hinge pin and two washers on the lower hinge pin. Insert the hinge pin of the centre hinge into the upper socket of the refrig- erator compartment door (5) and secure the hinge with the retaining screws and all washers (see Fig. 13). Do not tighten the screws completely yet so that you can still align the refrig- erator compartment door (5). Tighten the screws firmly only when it is possible to close the refrigerator compartment door (5) evenly. Stand the appliance upright again. Place the freezer compartment door (2) on the centre hinge (12). Then, with the freezer compartment door (2) closed, replace the top hinge (1) and screw it tight (see Fig. 14). If necessary, use a spanner to tighten the screw. Fig. 14200 Then place the hinge cover and screw cover back into position (see Fig. 15). Fig. 15 The door hinge has been changed. Please note: The door seal will adapt to the new door hinge after a few hours. If tilted to an angle of more than 40° during transport, wait 4 hours be- fore connecting the appliance to the mains and switching it on to ena- ble the refrigerant circuit to settle after transport. .. Setting up the appliance Remove the packaging material and all protective film. Before switching on the appliance for the first time, clean all parts of the appli- ance (see section ‘13. Cleaning and maintenance’ on page 206). Dry the appliance thoroughly after cleaning and before switching it on for the first time. Install the appliance in an appropriate location (see also section ‘3.3.1. Location’ on page 188). Align the appliance so it is level and compensate for any unevenness in the floor by screwing in the adjusta- ble feet (5) accordingly (see Fig. 16). Turn clockwise to wind the feet out, anti-clockwise to wind them in. Level the refrigerator with a spirit level. Fig. 16201

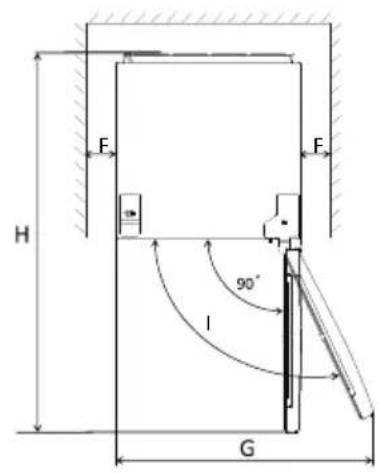

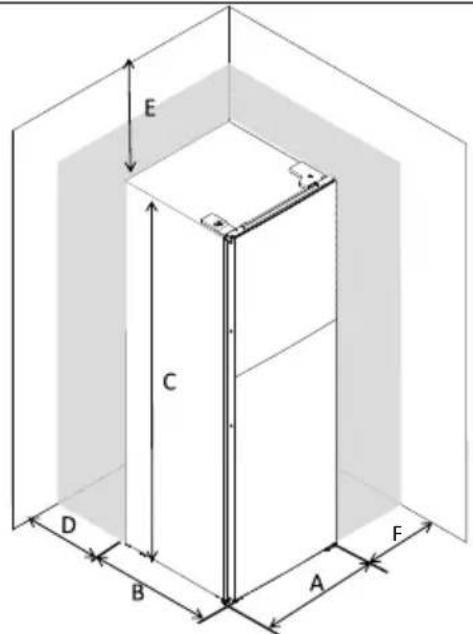

Fig. 17 To be able to open the door fully, the room dimensions shown in Fig. 17 and the fol- lowing table must be available. Room dimensions (Fig. 17) A 480mm B 520mm C 850mm D min. 50mm E min. 50mm F min. 50mm G 880mm H 1000mm I 135°202 .. Removing and reinserting shelves To remove the glass shelf (10/11), open the refrigerator compartment door (5) fully. Lift the glass shelf (10/11) slightly with both hands and remove the shelf from the refrigerator compart- ment (9). The glass shelf (10/11) is fitted as follows: Insert the glass shelf (10/11) into the guide rails and slide into the rear re- cesses of the refrigerator wall. Fig. 18 ... Removing/inserting door compartments Lift the door compartment (4/6) (see Fig. 19) to remove it. To fit a door compartment, slide the door compartment from top to bottom onto the door compartment guide until it is firmly in place. Fig. 19 . Operating the appliance Connect the appliance to an earthed mains socket. The local mains volt- age must match the voltage stated in the technical specifications for the appliance. Setting the temperature control (3) au- tomatically sets the temperature in the refrigerator and freezer compartments. There are 8 possible settings for the temperature control (3) (see Fig. 20): Fig. 20 0 The appliance is switched off203

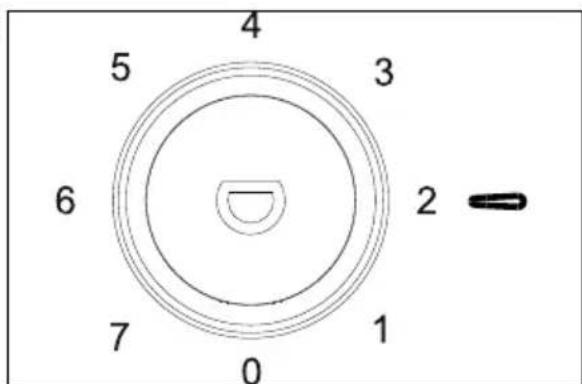

To de-energise the appliance, set the temperature control (3) to and unplug the mains plug from the socket. 1 Lowest level of cooling (warmest) 2–5 Intermediate position 7 Highest level of cooling (coldest) The internal temperatures can be influenced by factors such as the in- stallation location, ambient temperature and the number of times the door is opened. Take these factors into account when setting the tem- perature control (3). Do not load the refrigerator compartment (9) or freezer compartment (13) before the appliance has cooled. Before loading fresh food, set the temperature of the refrigerator or freezer compartment to the coldest level by selecting level . The maximum level of cooling on the temperature control (3) should only be set for short periods in the event of high external temperatures or when filling the refrigerator with food that must be cooled quickly. Once the required interior temperature has been reached, the tempera- ture control (3) should be readjusted again, otherwise temperatures in- side the appliance fall below 0°C and can damage the chilled goods. Check the temperatures in the compartments with a thermometer. Ideal tem- peratures are +8°C in the refrigerator compartment (9) and -18°C in the freezer compartment (13). Once the set temperatures have been reached, you can load the appliance with food. .. Switching off the appliance To de-energise the appliance, set the temperature control (3) to and unplug the mains plug from the socket. Wait approx. 10 minutes before switching on the appliance again. . Optimising energy consumption In order to achieve the best possible cooling performance with low energy con- sumption, observe the following: Do not position the appliance near a heat source (radiator or cooker etc.). The location should be not too warm, dry, dust-free and well ventilated. Ensure that air can circulate freely around the refrigerating appliance. Leave all shelves and the fruit/vegetable compartment (8) in the appliance dur- ing operation to minimise energy consumption. If the door is left open for a long time, this can cause the temperature inside the appliance zones to increase significantly. Only open the door briefly when204 loading and removing foodstuffs. Less cold can escape if the door is left open for only a short time and therefore the appliance requires less energy. Select the temperature setting according to how full the appliance is. Ensure that the door seals are undamaged and that the door closes properly. If the appliance is left empty for an extended period of time, switch it off. Allow the appliance to defrost, clean it and then allow it to dry. Leave the door open to prevent mould from forming in the appliance. .. Recommended temperature setting Ambient temperature Temperature setting up to 32°C Setting 2–4 Normal Setting 4 from 16°C Setting 4–6 Effects of storage on food At the recommended setting, the optimal storage time in the refrigera- tor compartment is no longer than 3 days. At the recommended setting, the optimal storage time in the freezer compartment is no more than 1 month. Other settings can shorten the optimal storage time. The optimal storage time varies depending on the food. Pay attention to the storage times recommended by the food manufacturers. . Storing food in the refrigerator compart- ment NOTICE! Possible material damage! Risk of damage to the door seal. Sensitive surfaces: Do not allow oil and grease to come into contact with the plastic parts and the door seal as the door seal can become porous and brittle. To avoid food from becoming contaminated, please observe the following instruc- tions: If the door is left open for a long time, this can cause the temperature inside the appliance zones to increase significantly. Regularly clean surfaces that may come into contact with food and accessible drain systems.205

Store raw meat and fish in appropriate containers in the refrigerator to ensure that they do not come into contact with or drip onto other food. Store food on plates, in appropriate containers. Distribute the food evenly throughout the appliance. Please note that food must not touch the rear wall of the cooling chamber, as this could cause frost and con- densation to form. Allow hot foods to cool down before placing them into the fridge to avoid in- creasing the energy consumption. Ensure that foods that take on other smells easily, such as butter, milk and quark, are well packaged. i.e. in tightly sealed containers. Store food in the correct cooling zone according to its type and sensitivity, see ‘6. Recommended food storage’ on page 194. Storing vegetables with a high water content causes condensation to form on the vegetable containers. This does not impair the proper function of the refrig- erator compartment (9). Dry vegetables thoroughly before placing them in the compartment (9). The storage time is reduced for vegetables with a high water content (e.g. leaf vege- tables, cucumbers). . Deep-freezing food Almost all types of food are suitable for freezing, except vegetables which are eaten raw, e.g. lettuce. Only high-quality food is suitable to be frozen. Freeze food in portions for single use and do not refreeze any products that have defrosted. Food to be frozen must not come into contact with food that has already been frozen. It may be necessary to reduce the quantity of food to be frozen if you in- tend to freeze food each day. Do not exceed the storage times recommended by the food manufacturers. Place the food in odourless, airtight, moisture-free, greaseproof and leach-resist- ant packaging. – Polythene bags and aluminium foil are the most suitable materials. – The food must be closely wrapped in airtight packaging. – Do not use glass packaging as the glass may shatter. Set the temperature control to position 2 to 3 hours before putting fresh food in the freezer. After inserting fresh food to be frozen, set the temperature control to one of positions . Take care not to overload the freezer compartment (13) otherwise optimal per- formance cannot be guaranteed and energy consumption will increase. – Signs of moisture or swelling of deep-freeze packaging indicates that the food has not been stored/transported correctly and may be spoiled. Check the condition of the food before eating. Fruit can be frozen in the freezer compartment (13) and ice cubes can be made.206 .. Using ice cube trays Clean the ice cube tray (14) thoroughly with water and a little washing-up liquid before using for the first time. Fill the ice cube tray (14) with drinking water. Place the ice cube tray (14) on the level in the freezer compartment (13). As soon as the ice cubes are frozen, remove the ice cube tray (14) from the freez- er compartment (13) and press the ice cubes out of the mould. .. Defrosting food Depending on the type and use, food can be defrosted in a refrigerator, in a contain- er filled with lukewarm water, in a microwave, at room temperature or in the oven. Fruit and vegetables which are going to be cooked do not need to be defrosted. Once defrosted, food is preferably to be eaten on the same day or stored in the re- frigerator compartment (9) until the next day at the latest. Food must not be refro- zen, even if it has not fully defrosted. . Cleaning and maintenance Regularly clean surfaces that may come into contact with food and accessible drain systems. WARNING! Risk of electric shock! There is a risk of electric shock from electrified parts. Before starting any cleaning work, always pull the mains plug out of the socket (pull on the plug, not the cable). If the plug is not accessible, the corre- sponding fuse for the mains electricity supply to the house needs to be switched off. Do not touch the mains plug with wet or damp hands.207

DANGER! RISK OF EXPLOSION AND FIRE! An accumulation of gas can lead to explosions. Do not use any flammable liquids to clean the appli- ance or its individual parts. Do not use defrosting sprays, as these can form ex- plosive gases. WARNING! Risk to health! Improperly handling foods can lead to food poisoning. Cooling is no longer sufficient if you switch off the appliance or in case of power failure. Frozen food can thaw or defrost completely. A rise in temperature of the frozen food during manual defrosting, maintenance or cleaning can shorten the storage life of the frozen products. Remove the frozen food from the appliance, wrap in several layers of newspaper and store in a sufficiently cool room or refrigerator. WARNING! Risk of injury! Risk of burns resulting from the low temperatures. Do not touch the freezer compartment’s frozen inner walls or frozen foodstuffs with your hands. Use a dry cloth, for example, to hold the frozen products. NOTICE! Possible material damage! Damage to the appliance caused by improper handling Do not operate any electronic appliances to assist in cleaning the interior. Both appliances may be dam- aged irreparably. Do not use any abrasive or harsh cleaning agents on208 the inside, door or housing of the appliance as these could damage the surfaces. Do not allow oil and grease to come into contact with the plastic parts and the door seal as the door seal can become porous and brittle. Do not use any mechanical equipment or artificial means to accelerate the defrosting process, e.g. elec- tric heaters, hot air blowers, hair-dryers or pointed or hard objects. The heat insulation and appliance inte- rior are sensitive to scratches and heat and can melt.... Defrosting the refrigerator and freezer compartment For thorough cleaning, you should defrost the appliance beforehand. Turn the temperature control (3) to position . The appliance switches off. Pull the mains plug out of the socket. If the plug is not accessible, the corre- sponding fuse for the mains electricity supply to the house needs to be switched off. A rise in temperature of the frozen food during manual defrosting, main- tenance or cleaning can shorten the storage life of the frozen products. It is advisable to defrost the appliance at least once a year. Take the frozen products out of the freezer compartment (13), wrap in a few lay- ers of paper and possibly a blanket and store in a cool location. Empty the refrigerating appliance and clean as described in the next section. After approx. half an hour after switching off, the frost coating can be easily re- moved from the smooth walls using a plastic or wooden spatula. The spatulas are not supplied as part of the package contents.... Cleaning the appliance Clean the drainage channel for con- densation water in the refrigerator compartment (9), e.g. with a cotton bud or a cleaning pin (see Fig. 21). Clean the refrigerator and freezer compartment with a mild cleaning agent (e.g. washing-up liquid) and allow to dry. Fig. 21209

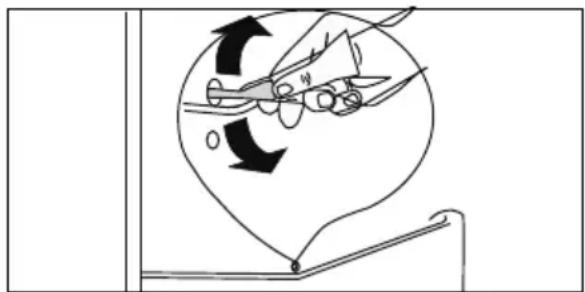

Clean all the fittings carefully with a mild detergent (e.g. washing-up liquid) (fruit/vegetable compartment (8), door compartments (4/6), glass shelves (10/11)). The glass shelves (10/11) are made of toughened safety glass and are dishwasher-safe. To prevent mould, vinegar (cleaning vinegar, household vinegar or vine- gar essence) can be added to the water for cleaning. Cleaning agents containing sand, soda and acid are not suitable. Clean the appliance surfaces, except the door seal, with a mild cleaning agent. Clean the door seal with clean water, wipe it off and allow to dry. Plug the mains plug back into the socket. As soon as the freezer compartment (13) has reached a temperature of -18°C, you can put the food back into the appliance. . Measures in case of power failure Food must not be refrozen, even if it has not fully defrosted. In case of a power failure, check the condition of food before eating (see also ‘3.3.4. Use of the appliance’ on page 190).210 . Troubleshooting WARNING! Risk of electric shock! There is a risk of electric shock due to live parts. Never try to open and/or repair an appliance compo- nent yourself. If there is damage to the mains connection cable on this appliance, it must be replaced by the manufac- turer, its customer service department, or another suitably quali ed person. This is necessary to avoid hazards. In the event of a fault, contact the Service Centre or another suitable professional repair workshop. The replacement of the LED interior light is the re- sponsibility of the manufacturer, its customer service or a similarly qualified person. Malfunctions may occur during operation. Please use the following table to check whether you can resolve the problem yourself. All other repairs carried out inde- pendently are prohibited and will invalidate the warranty. Therefore, in the event of a fault, contact our Service Centre or another suitable professional repair workshop. Fault Cause Solution The appliance is not working. Power supply inter- rupted Check whether the mains plug is plugged in. Check whether the mains sock- et is live by plugging in another electrical appliance (e.g. a bedside lamp). Have the mains socket repaired, if necessary. Check that the mains cable is not damaged. Contact custom- er services if necessary. The interior light is not working. LED interior light- ing is defective Contact the Customer Services department.211

Fault Cause Solution The temperature is not low enough. The door does not seal properly or is opened too often. Arrange food so that it does not prevent the door from closing properly. Open the door for less time. The ambient tem- perature is less than 16°C/higher than +32°C. The appliance is designed for a temperature range of +16°C to +32°C. Air circulation be- hind the appliance is impeded. Move the appliance away from the wall. The appliance has been set up in a location exposed to direct sunlight or next to a heat source. Place the appliance in a differ- ent position. Water collects on the bottom of the refrigerator com- partment (9). Food is touching the rear wall of the refrigerator com- partment (9). Move food and containers away from the rear wall. The appliance makes too much noise. The appliance has not been levelled correctly. Level the appliance by screwing the adjustable feet (5) in or out. . Longer periods without use If the appliance is not going to be used for a longer period of time, proceed as fol- lows to safely store and protect the appliance. Pull the mains plug out of the socket. Clear out the appliance. Wipe out the inside of the freezer and refrigerator compartments and allow to dry. Carefully clean and dry all fittings. Leave the refrigerator compartment (5) and freezer compartment (2) door open to avoid unpleasant odours and to prevent mould from forming.212 . Transport CAUTION! Risk of injury! The appliance is very heavy. There is a risk of injury from straining to lift the appliance. Seek the assistance of at least one other person in order to move the appliance. Do not transport the appliance alone. Disconnect the appliance plug from the mains socket. Remove all food and fittings from the refrigerator compartment (9). Fully screw in the adjustable feet (5). Tape the refrigerator and freezer compartment door (2) shut. To avoid damage during transport, we recommend that you use the original packaging. . Disposal DANGER! Risk of choking and suffocation! Risk of injury! To avoid risks to children, proceed as follows before dis- posing of the appliance: Remove the fridge and freezer doors and the seals or tape the fridge and freezer doors closed. Leave the fruit/vegetable compartment/shelves in the appliance so that no children or other persons can climb into the appliance. During disposal, please note that the appliance/insulation contains cyclopen- tane (a flammable expanded gas for insulation). The appliance/insulation must be disposed of correctly. PACKAGING Your appliance has been packaged to protect it from dam- age during transport. The packaging is made of materials that can be disposed of in an environmentally friendly man- ner and recycled properly.213

Observe the following labels on the labels on the packaging materials regarding waste separation with the abbreviations (a) and numbers (b): 1–7: plastics/20–22 : paper and cardboard/80–98: composite materials : paper and cardboard/80–98: composite materials (France only) The “Triman” symbol tells the consumer that the product can be recy- cled, is covered by an extended system of manufacturer’s responsibility and must be sorted by material type in France. APPLIANCE Old appliances that carry the symbol illustrated may not be disposed of in ordinary household waste. In accordance with Directive 2012/19/EU, the appliance must be disposed of correctly at the end of its service life. This involves separating the materials in the appliance for the purpose of recycling as well as minimising the environmental impact and nega- tive effects on human health. Take old appliances to an electrical scrap collection point or a recycling centre. Contact your local waste disposal company or your local authority for more information on this subject. . Technical specifi cations Model identifier MD 37689 Supplier’s address: MEDION AG Am Zehnthof 77 45307 Essen Germany Rated voltage: 220–240 V ~ Rated frequency: 50 Hz Rated current: 0.60 A Refrigerant: R-600a Refrigerant quantity: 31 g Insulation gas: Cyclopentane Weight: Approx. 24 kg Protection class I Storage time in case of fault 7hours .. Product data sheet Scan the QR Code shown to download the product data sheet or con- tact the service department at www.medion.com/contact to obtain a printed copy of the product data sheet. You will also find the QR code on the energy label. . EU declaration of conformity MEDION AG hereby declares that product MD complies with the following European directives:

• Ecodesign Directive //EC

• RoHS Directive //EU . Spare parts Please visit our MEDION Service Shop at www.medon.com/medonservceshop to order any spare parts you need. You will be able to find all suitable spare parts for your product there. All available spare parts can be purchased for a period of years, seals can be pur- chased for a period of years.

. Service information Please contact our Customer Service team if your device ever stops working the way you want or expect it to. There are several ways for you to contact us:

• In our Service-Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will find our Service-Community at communty.medon.com.

• Alternatively, use our contact form at www.medon.com/contact.

• You can also contact our Service team via our hotline or by post. Opening times Hotline number UK Mon – Fri: . – . Sat – Sun: . – .

Service address MEDION Electronics Ltd. 120 Faraday Park, Faraday Road, Dorcan Swindon SN3 5JF, Wiltshire United Kingdom You can download this and many other sets of operating instruc- tions from our service portal at www.medonservce.com. We have stopped providing printed copies of our warranty terms and conditions as part of our commitment to sustainability, but you can access the warranty terms and conditions on our service portal. You can also scan the QR code on the side of the screen, to download the operating instructions onto your mobile device from the service portal.216 . Legal Notice Copyright © 2024 Date: 07.06.2024 All rights reserved. These operating instructions are protected by copyright. Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer. Copyright is owned by the company: MEDION AG Am Zehnthof 77 45307 Essen Germany Please note that you cannot use the address above for returns. Please always con- tact our Customer Service team first.FR Prodo o in Cina
