YS540EU - Grill plate Vevor - Free user manual and instructions

Product Type	Commercial Electric Griddle Plate
Brand	Vevor
Model	YS540EU
Power Supply	220-240 V ~ 50 Hz
Power	3200 W
Plug Type	European Plug
Power Indicator	Green light (lights up when powered)
Heat Indicator	Orange light (on while heating, off when temperature reached)
Temperature Control	Rotary knob with continuous adjustment
Plate Material	Stainless Steel
Oil Drip Tray	Yes, removable
Usage	Indoor only
Maintenance and Cleaning	Clean while hot (150 °C) with brush or brick; do not use chemicals or soaps; apply vegetable oil after cleaning to prevent rust
Safety	Do not immerse; use on a grounded outlet; do not leave unattended; unplug after use
Compliance	CE
Manufacturer	Shanghai Muxin Muye Co., Ltd., Shanghai, China

Frequently Asked Questions - YS540EU Vevor

How to use the griddle for the first time?

Before first use, remove all films and packaging. Ensure the griddle is clean. Wipe it with a damp cloth, then dry. Apply a thin layer of vegetable oil on the surface. Plug the appliance into a suitable grounded outlet (220-240 V). Set the thermostat to a low temperature then gradually increase. A slight smoke or odor may occur initially; this is normal.

Why is there smoke during the first use?

During the first heating, it is normal for slight smoke or odor to be released. This is due to burning off manufacturing residues or protective oil. It does not affect the safety of the appliance and disappears after a few uses.

How to adjust the temperature?

Turn the temperature knob clockwise to increase heat. The orange light turns on while heating and turns off when the set temperature is reached. To turn off, turn the knob completely counterclockwise to the off position, then unplug the appliance.

How to clean the griddle after use?

Allow the griddle to cool slightly (around 150 °C) after use. Use a brush or cleaning brick to remove residues. Do not use chemicals or soaps, as they can seep in and affect food taste. If needed, use only clean water, oil, or a food-safe degreaser. Remove and empty the grease tray. Let it cool completely before storing.

Can I use chemicals to clean?

No, it is not recommended to use chemicals or soaps. They can be absorbed by the surface or seep into crevices and affect food flavor. Use only a brush, cleaning brick, clean water, oil, or a food-safe degreaser.

How to prevent rust on the griddle?

After each cleaning and complete drying, apply a thin layer of vegetable oil on the griddle surface. This forms a protective barrier against moisture and prevents rust.

What to do if the indicator light does not turn on?

First, check that the appliance is properly plugged into a working outlet. Ensure the cord is not damaged. If the light remains off, the appliance may be defective. Contact an authorized service for inspection. Do not attempt to repair yourself.

Can I leave the griddle unattended?

No, never leave the appliance unattended while operating. Risk of fire or burns. Always supervise cooking and unplug the appliance after use.

How to store the griddle?

Always unplug the appliance before storing. Let it cool completely. Clean and dry the griddle thoroughly. Apply vegetable oil to prevent rust. Cover it and store in a dry, safe place out of reach of children.

Where can I find spare parts?

For spare parts, contact the manufacturer via Vevor or its after-sales service. Use only parts recommended by the manufacturer. If the cord is damaged, have it replaced by a qualified professional.

USER MANUAL YS540EU Vevor

Affordable. Reliable. Home Improvement.

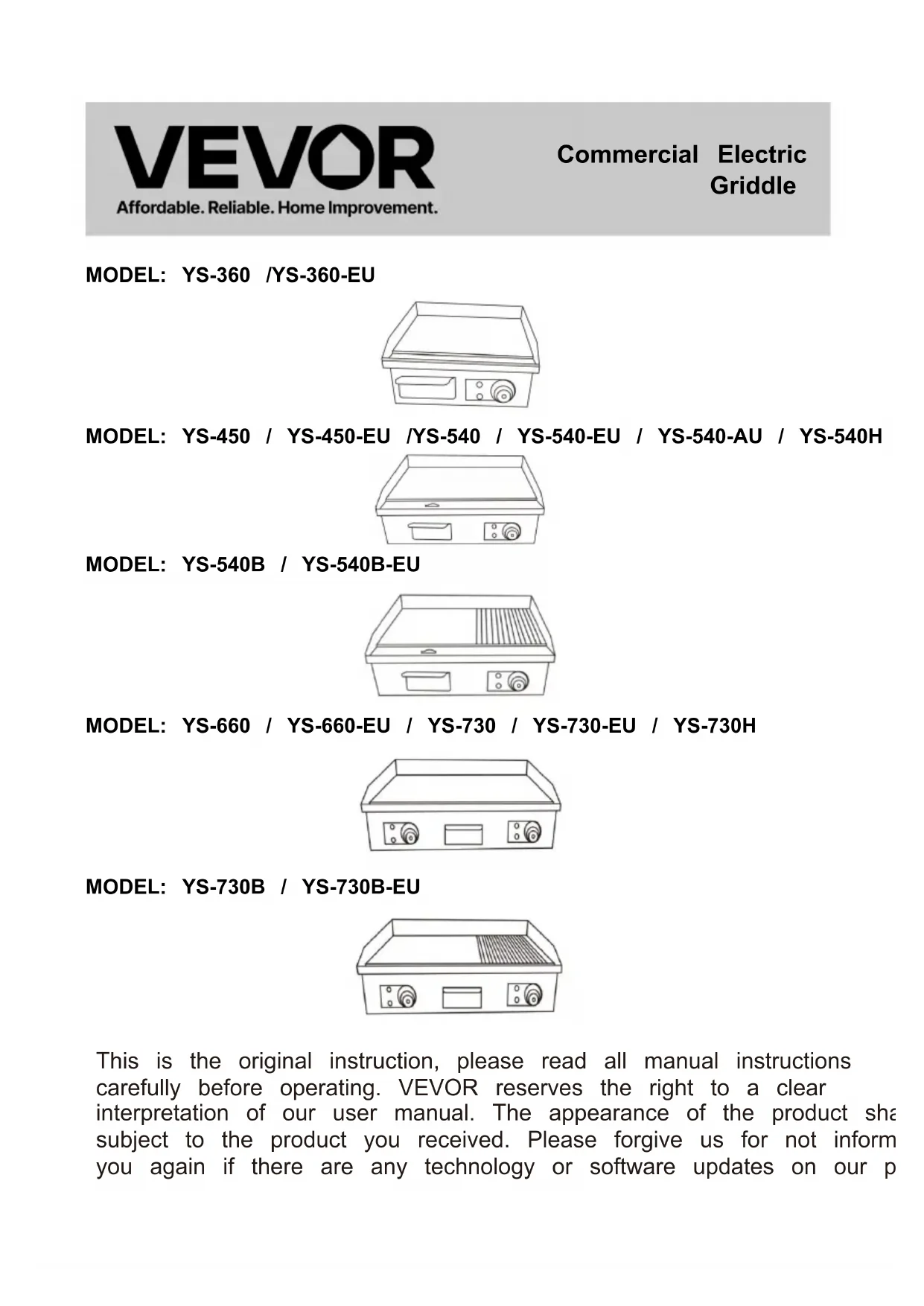

Commercial Electric Griddle

MODEL: YS-360 / YS-360-EU / YS-450 / YS-450-EU / YS-540 / YS-540-EU / YS-540-AU / YS-540B / YS-540B-EU / YS-540H / YS-6YS-660-EU / YS-730 / YS-730-EU / YS-730H / YS-730B / YS-730B-

MODEL: YS-360 /YS-360-EU

Line drawing of a rectangular appliance with lid, side panel, and circular button (no text or symbols)

MODEL: YS-450 / YS-450-EU /YS-540 / YS-540-EU / YS-540-AU / YS-540H

Line drawing of a rectangular appliance with lid, side panel, and button (no text or symbols)

MODEL: YS-540B / YS-540B-EU

Line drawing of a rectangular kitchen appliance with grilles and a side panel (no text or symbols)

MODEL: YS-660 / YS-660-EU / YS-730 / YS-730-EU / YS-730H

Line drawing of a rectangular electronic device with two side buttons and a top panel (no text or symbols)

MODEL: YS-730B / YS-730B-EU

Line drawing of a rectangular kitchen appliance with grilles and control buttons (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves the right to a clear interpretation of our user manual. The appearance of the product shall subject to the product you received. Please forgive us for not inform you again if there are any technology or software updates on our p

	Warning: To reduce the risk of injury, users must read the instructions manual carefully.
	Indoor use only.
	Pay attention to high temperatures to prevent burns.
	CORRECT DISPOSALThis product is subject to the provision of European Directi 2012/19/EC. The symbol showing a wheelie bin crossed thr indicates that the product requires separate refuse collection European Union. This applies to the product and all access marked with this symbol. Products marked as such may no discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices.
	Compliance is an EC & UK security certification.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please read the precautions and safety rules on page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance, and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since believe that the users will comply with these codes. Before starting a training program or engaging in strenuous endurance activity on the device, please contact a doctor.

Please read ALL the instructions before using your machine.

1. Make sure the voltage in your outlet is the same as the voltage indicated by appliance's rating label.
2. Do not let children, minors, and pets get close to or touch the machine.
3. Do not touch the hot surface directly with your hands. Always use the hat knob for operation.
4. To prevent electrical shock, do not immerse the cord or plug into water of liquids.
5. Do not immerse the appliance in water or any other liquid.
6. Unplug the machine from the outlet when not in use and before cleaning. the appliance before installing or removing parts and before cleaning.
7. Cool down the HOT parts before operation and cleaning.
8. Do not operate the device with damaged cord or plug, malfunction or with mechanical damage. Send it to your nearest authorized service centre for examination and repair (ONLY technicians should open up the unit).
9. Using any accessories or attachments that are not provided or recommend by the manufacturer may cause injury.
10. If the machine is not to be used for a long period of time, unplug it, cover it, and store it in a dry and safe place.
11. Do not leave the power cord hanging over the edge of table or counter come into contact with any hot surfaces.
12. Do not place the unit on or near hot air, electric burners or heaters.
13. Always switch off the power to the socket before plugging in or unpluggi Hold the plug instead of pulling on the cord.
14. Do not apply this unit to any other purposes than the indicated usage.
15. KEEP IT OUT OF CHILDREN'S REACH. Never leave it unattended while use.
16. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
17. Always check that this machine is plugged into a grounded outlet with the appropriate electrical supply. Ensure that the wall outlet being used is properly grounded. If not, you must install a grounded outlet. Have the work performed by a certified electrician who is properly qualified to meet local safety and el codes.
18. Ensure that the power outlet, plug, and cord being used are in good work condition. Damaged components should be repaired by a certified electrician with is qualified to meet local safety and electrical codes. Even if your power core functioning properly, keep it away from water and avoid letting it run over car or heating devices.
19. Avoid using it in the presence of flammable liquids, gases, dust or other explosive situations.
20. Do not move the machine before cooling and during heating
21. Do not operate the machine in an appliance garage or under a wall call. Always unplug the unit from the electrical outlet when storing it in an appliance garage. Otherwise, it would cause a risk of fire, especially if the machine took the garage wall or the door touches it as it closes.
22. Type Y attachment: If the supply cord is damaged, it must be replaced

manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

1. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Inspect before every use.
3. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
4. Never leave it unattended while in use. Never leave the child unattended
5. Pet urine and feces can damage the product, please keep away.

⚠ WARNING: This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they use the appliance safely. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product.

PRODUCT PARAMETERS

MODEL	Region	Voltage	Power	Plug Type
YS-360	North America	AC120 V 60Hz	1750W	America PLUG (5-15P)
YS-360-EU	Europe	AC220-240V 50Hz	2000W	Europe PLUG
YS-450	North America	AC120 V 60Hz	1750W	America PLUG (5-15P)
YS-450-EU	Europe	AC220-240V 50Hz	2800W	Europe PLUG
YS-540	North America	AC120 V 60Hz	1750W	America PLUG (5-15P)
YS-540-EU	Europe	AC220-240V 50Hz	3200W	Europe PLUG
YS-540-AU	Australia	AC220-240V 50Hz	3200W	Australia PLUG
YS-540B	North America	AC120 V 60Hz	1750W	America PLUG (5-15P)
YS-540B-EU	Europe	AC220-240V 50Hz	3200W	Europe PLUG
YS-540H	North America	AC220-240V 50Hz	3200W	America PLUG (6-15P)
YS-660	North America	AC120 V 60Hz	2800W	NO PLUG
YS-660-EU	Europe	AC220-240V 50Hz	4000W	NO PLUG
YS-730	North America	AC120 V 60Hz	2800W	NO PLUG
YS-730-EU	Europe	AC220-240V 50Hz	4400W	NO PLUG
YS-730H	North America	AC220-240V 50Hz	4400W	NO PLUG
YS-730B	North America	AC120 V 60Hz	2800W	NO PLUG
YS-730B-EU	Europe	AC220-240V 50Hz	4400W	NO PLUG

Attention:

1. Please use an appropriate external power supply according to the pro voltage.
2. Do not exceed the maximum load specified in the product manual.

ELECTRICAL CONNECTION

It is recommended that products use separate lines and sockets to avoid circuit breaker or time delay fuse overload.

The YS-660 / YS-660-EU / YS-730 / YS-730-EU / YS-730H / YS-730B / YS-730B-EU must connect to a separate, grounded wire, single-phase, AC-Only electrical supply with their own circuit breaker. These appliances must be installed in accordance with National Electrical Codes, as well as state, municipal, and local codes. This appliance must be supplied with proper voltage, frequency, and amperage, which is protected by a proper-sized circuit breaker or time delay fuse.

Instruments must be used to separate live wires, neutral wires, and grou wires. The power switch must be turned off during wiring to keep the v controllable and provide insulation protection.

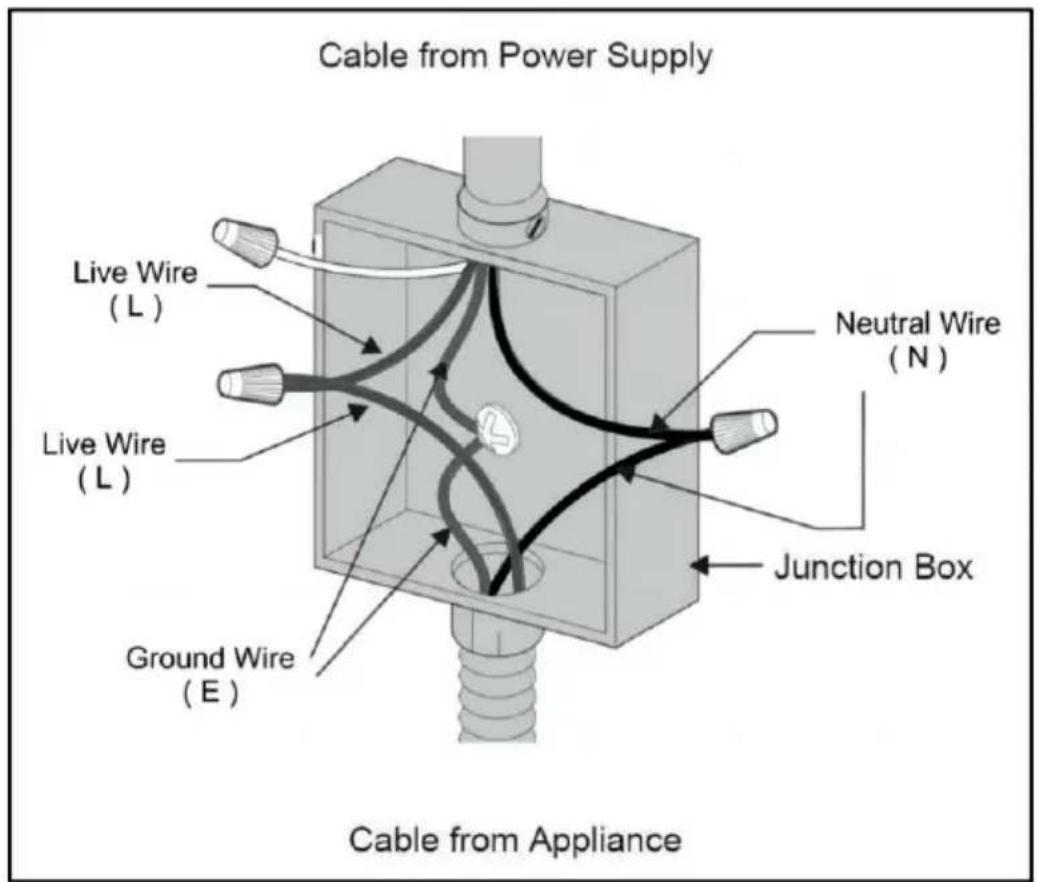

Cable from Power Supply Live Wire (L) Live Wire (L) Ground Wire (E) Neutral Wire (N) Junction Box Cable from Appliance

Region	Power cord	Live Wire(L)	Neutral Wire(N)	Ground Wire(E)
North America(Voltage AC 120V 60Hz)	cable from power supply	Black	White	Green
	cable from appliance	Black	White or Red	Green
North America(Voltage AC 220V 60Hz)	cable from power supply	Black	Red	Green
	cable from appliance	Black	White or Red	Green
Europe(IEC227)	cable from power supply	Brown	Blue	Yellow-Green
	cable from appliance	Brown	Blue	Yellow-Green

PRODUCT COMPONENTS

Green light: Power Indicator

- When the product is powered on, the green light turns on.

Note: The product does not have a power switch. The products are powered directly after plugging them into the socket.

Orange light: Heating indicator light

• When the product does not reach the set temperature, the product continues heat and lights up in orange.
• When the product reaches the set temperature, the product stops heating at the orange color goes out.

OPERATING INSTRUCTIONS

Before using the appliance for the first time, peel off any promotional material packaging materials, and check that the cooking plates are clean and free of If necessary, wipe them over with a damp cloth. Spread over with an absorb kitchen towel and wipe off any excess oil.

Note: When your appliance is heated for the first time, it may emit slight smoke or odor, which is normal for many heating appliances and will not affect the safety of your appliance.

Warning: Please make sure the oil pan is installed correctly.

1. Place the machine on a clean, dry, level surface near a plug base outlet
2. Adjust the temperature knob to the lowest temperature position, check again

whether the product and power cord are intact, and connect the plug to the

1. Adjust the temperature knob to the required temperature, the orange light turn on and the machine will start heating.
2. When the machine temperature reaches the set temperature, the orange ligs goes out. You can start making food.
3. After finished, for safety, please turn the temperature knob counterclockwise the limit position and cut off the power.

Note: It works in this way repeatedly in order to make sure the temperature within a range. During the machine's operation, the orange light will cycle on off.

TIPS

1. Food surfaces should be kept dry to avoid oil and water splashing.
2. The oil drip tray can be used to collect the remaining oil or grease. It is emptied frequently to avoid overflow.
3. After cleaning and drying the product, apply vegetable oil to the surface prevent rust.

CLEANING AND MAINTENANCE

1. After daily use, keep the griddle hot (at 300^ F), and rub it clean with a or grill brick. Do not use cleaning chemicals or soaps as these can be abs of the surface and/or seep into the gaps on the edges of the griddle and affected flavor of the food. If necessary, use only clean water, oil, and/or a food-grace degreaser for the cleaning process.

2. Remove and empty the grease container, clean the grease trough, and the unit's surface.

3. Turn the temperature knob to the lowest temperature, unplug, and wait for product to cool down.

Warning: Do not use liquid to rinse the product directly to avoid water damage to internal components.

Warning: Pay attention to the mold drop grip when cleaning.

STORAGE

1. Always unplug the machine before storage.
2. Always make sure the machine is clean, cool, and dry before staring.
3. Apply vegetable oil to the surface of the product to prevent rust.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.
