Product Type	Manual Donut Machine
Brand	Vevor
Model	SDM-01
Cylinder Capacity	Approximately 2.4 L
Recommended Oil Temperature	200 °C (392 °F)
Oil Level Distance	Approximately 5 cm
Material	Stainless steel and plastic
Power Supply	Electric (mains plug)
Main Functions	Molding and cooking donuts by immersion in oil
Usage	Push the top mold head to release the batter
Recommended Batter Formula	Donut mix : water : egg : oil = 1:0.5:0.33:0.1
Batter Resting Time	30 minutes to 1 hour after mixing
Cleaning	Wipe with a soft, dry cloth; do not use abrasive cleaner
Maintenance	Regularly clean oil residues
Safety	Do not touch hot surfaces; keep out of reach of children; unplug before cleaning
Included Accessories	Not specified
Repairability	Online technical support (www.vevor.com/support)
Country of Manufacture	China
Importer	Sanven Technology Ltd. (USA), SIHAO PTY LTD (Australia), E-CrossStu GmbH (Germany)

Frequently Asked Questions - SDM-01 Vevor

What is the type of this Vevor SDM-01 device?

It is a manual donut machine designed for molding and cooking donuts by immersion in hot oil.

What is the capacity of the batter cylinder?

The cylinder has a capacity of approximately 2.4 L, allowing multiple donuts to be prepared in one batch.

What oil temperature is recommended?

The recommended oil temperature is 200 °C (392 °F) for optimal cooking.

How to prepare the batter for donuts?

Use the following formula: 1 part donut mix, 0.5 part water, 0.33 part eggs, and 0.1 part cooking oil. Mix with an electric mixer to avoid lumps and let rest for 30 minutes to 1 hour.

Can I use the machine without unplugging it for cleaning?

No, it is imperative to unplug the machine before any cleaning or maintenance to avoid electrical hazards.

How to clean the device?

Wipe the exterior with a soft, dry cloth. Never use abrasive cleaner or hard sponge. Clean oil residues regularly.

Are there any important safety precautions?

Yes: do not touch hot surfaces, keep out of reach of children, do not leave the device unattended, and never add water or frozen objects to hot oil.

What to do if the batter does not form correctly?

Check the consistency of the batter: it should stick to your hand but fall slowly. Adjust the amount of water if necessary. Let the batter rest for 5 to 10 minutes in the cylinder before use.

Where to find technical support or warranty?

Visit www.vevor.com/support for technical support and the electronic warranty certificate.

Can I adapt the batter formula with standard flour?

The given formula is a suggestion based on specific donut mix. With standard flour, water proportions may vary; you need to experiment to get the right consistency.

USER MANUAL SDM-01 Vevor

Affordable. Reliable. Home Improvement.

HAND OPERATED

DOUGHNUT MACHINE

MODEL: SDM-01

Technical Support and E-Warranty Certificate

www.vevor.com/support

MODEL: SDM-01

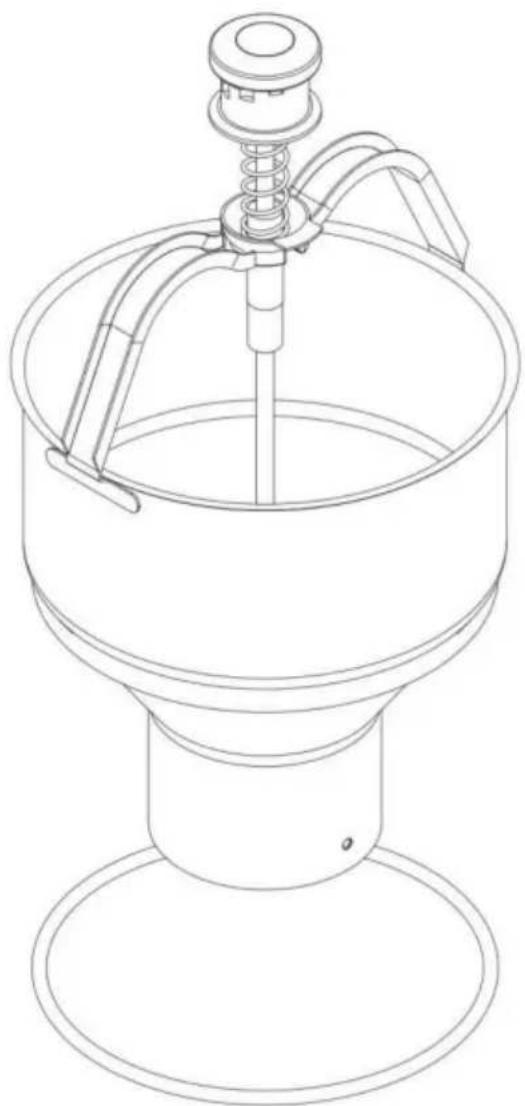

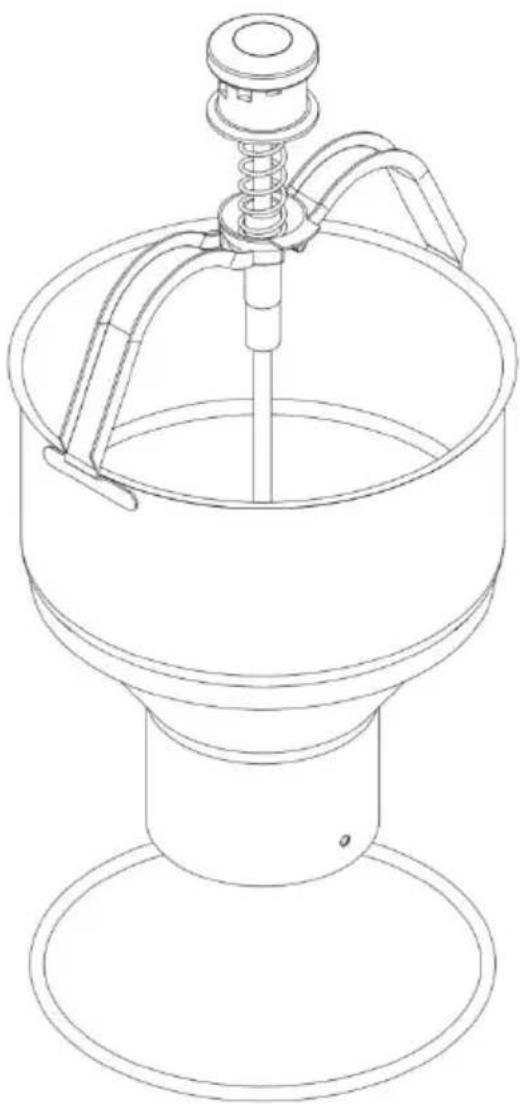

Line drawing of a laboratory apparatus with a central column and side arm (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product y received. Please forgive us that we won't inform you again if there are a technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	Pay attention to high temperatures to prevent burns.
	WARNING! The water in the product must be wiped dry a oil residue must be cleaned before use. It is prohibited to water or frozen objects to the oil during use, otherwise the will splash.

IMPORTANT SAFEGUARD

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operating it and keep it properly for future reference. Please read this page's precautions and safety rules to ensure your safe use. This manual will outline safety warnings, precautions, and operating, maintenance, and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product since the uses will comply with these codes. Please consult a doctor before starting a training program or engaging in strenuous endurance activity on the device.

Please read ALL the instructions before using your machine.

1. Do not let children and minors and pet get close to or touch the mac
2. Do not touch the hot surface directly with your hands.
3. Using any accessories or attachments that are not provided or recommended by the manufacturer may cause injury.
4. KEEP IT OUT OF CHILDREN'S REACH. Never leave it unattended while in use.
5. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
6. Avoid using it in the presence of flammable liquids, gases, dust or other explosive situations.
7. Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the machine alone. Cleaning and user maintenance shall not be made by children without supervision.Pets should stay away from the product.

OPERATING INSTRUCTIONS

Before using the appliance for the first time, peel off any promotional materials and packaging materials, and check that the cooking plates are clean and free of dust. If necessary, wipe them over with a damp cloth. Spread over with an absorbent kitchen towel and wipe off any excess oil. When your product is heated for the first time, it may emit slight smoke odor, which is normal for many product, and will not affect the safety of your product. Please dispose of all plastic bags carefully and keep them away from children and pets.

1. The product is approximately 5cm away from the oil level.
2. Grasp the product horizontally and press down on the top mold head
3. When the donut falls, move the product to another place to make a r donut.
4. The product can adjust the thickness of different donuts.

WARNING! The product should not be too high from the oil level, otherwise it may cause oil splashing.

WARNING! The water in the product must be wiped dry a oil residue must be cleaned before use. It is prohibited to water or frozen objects to the oil during use, otherwise the will splash.

FORMULA

- Ready mixed powder formula:

Doughnut specific powder: Water: Egg: Edible oil=1:0.5:0.33:0.1

The capacity of the material cylinder is about 2.4L

For example: 1500g donut powder+750g water+450g eggs+150g cooking oil (3.3 lb donut powder+1.65 lb water+1.0 lb eggs+0.33 lb cooking oil) The viscosity is about 87.52 mPa S (After the batter sticks to the hand, has good extensibility during the falling process, and the batter will not face too quickly)

NOTES: The formula ratio is based on experimental data with room

temperature of 20^ C ( 68^ F) and humidity between 40% and 60%. If there

are changes in temperature and humidity, please adjust the water ratio a let it stand for fermentation time.

NOTES: The formula we provided is a suggested data. The formula for different brands of flour is not consistent, and the proportion water can have an impact on the formation of donuts. Need to 1

TIPS & HINTSIONS

1. After adjusting the back powder, please let the batter ferment for 30 minutes to 1 hour, and then add the batter to the material bucket for better molding effect
2. When adding new material to the material bucket, please let it sit in the bucket for 5-10 minutes until the material is evenly distributed on the discharge mold.
3. When adding new ingredients to the material bucket, please clean the discharge port at the bottom of the bucket, and then brush an appropriate amount of cooking oil to achieve a better molding effect.
4. Recommended oil temperature is 200^ C ( 392^ F)
5. An electric mixer must be used, as manual mixing can result in uneve mixing of the flour and prevent it from forming.

CLEANING AND MAINTENANCE

1. User should clean residue in oil and filth on product in a regular time
2. For the exterior, wipe with a soft, dry cloth. dry cloth. Never use an abrasive cleanser or harsh pad.

STORAGE

1. Always unplug the machine before storage.
2. Always make sure the machine is cleaning cool and dry before string.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
