SPIT ROTISSERIE ROASTER GRILL

MODEL: JY-MY-KYLCG-46-120

JY-MY-KYLCG-46-220

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: JY-MY-KYLCG-46-120 / JY-MY-KYLCG-46-220

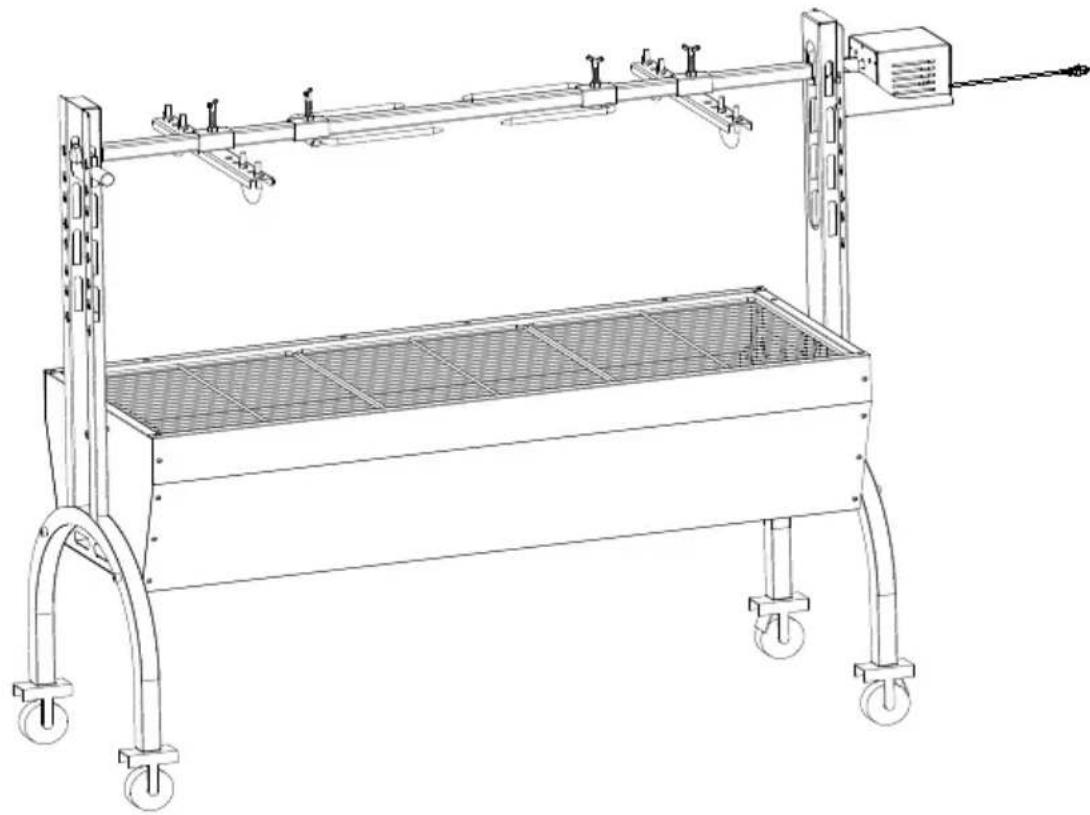

Technical line drawing of a portable electrical enclosure with wheels and a mounted device (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instruct manual carefully.
	Pay attention to high temperatures to prevent burns.
	CORRECT DISPOSALThis product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices
	Compliance is a EC & UK security certification.

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate product.

Note: This product has been tested and found to comply with the limits for B digital device pursuant to Part 15 of the FCC Rules, These limits are des provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

IMPORTANT SAFEGUARDS

Thank you for using this product. In order to make sure that you can operate machine correctly, read this instruction carefully before operating it and keep it properly for future reference. Please read this page's precautions and safety risks to ensure your safe use. This manual will outline safety warnings, precautions, operating, maintenance, and cleaning. The warnings and instructions reviewed this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product since the uses will comply with these codes. Please consult a doctor before starting a training program or engaging in strenuous endurance activity on the device.

Please read ALL the instructions before using your machine.

1. Make sure the voltage in your outlet is the same as the voltage indicated by appliance's rating label.
2. Do not let children and minors get close to or touch the machine.
3. Do not touch the hot surface directly with your hands. Always operate with handle or knob.
4. To prevent electrical shock, do not immerse the cord or plug into water of liquids.
5. Do not immerse the appliance in water or any other liquid.
6. Unplug the machine from the outlet when not in use and before cleaning. the appliance before installing or removing parts and before cleaning.
7. Cool down the HOT parts before operation.
8. Do not operate the device with damaged cord or plug, malfunction or with mechanical damage. Send it to your nearest authorized service centre for examination and repair (ONLY technicians should open up the unit).
9. Using any accessories or attachments that are not provided or recommend by the manufacturer may cause injury.
10. If the machine is not to be used for a long period of time, unplug it, cover it and store it in a dry and safe place.

11. Do not leave the power cord hanging over the edge of table or counter come into contact with any hot surfaces.

12. Do not place the unit on or near hot air, electric burners or heaters.

13. Always switch off the power before plugging in or unplugging. Hold the instead of pulling on the cord.
14. Do not apply this unit to any other purposes than the indicated usage.
15. Do not use it indoor.
16. KEEP IT OUT OF CHILDREN'S REACH.
17. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
18. Never leave it unattended while in use.
19. Always check that this machine is plugged into a grounded outlet with the appropriate electrical supply. Ensure that the wall outlet being used is properly grounded. If not, you must install a grounded outlet. Have the work performed by a certified electrician who is properly qualified to meet local safety and el codes.
20. Ensure that the power outlet, plug and cord being used are in good work condition. Damaged components should be repaired by a certified electrician with is qualified to meet local safety and electrical codes. Even if your power core functioning properly, keep it away from water and avoid letting it run over car or heating devices.
21. Avoid using it in the presence of flammable liquids, gases, dust or other explosive situations.
22. Extreme caution must be taken when moving an appliance containing hot other hot liquids.
23. Do not operate the machine in an appliance garage or under a wall call. Always unplug the unit from the electrical outlet when storing in an appliance garage. Otherwise, it would cause a risk of fire, especially if the machine took the garage wall or the door touches it as it closes.
24. Type Y attachment: If the supply cord is damaged, it must be replaced special cord or assembly available from the manufacturer or its service agent.
25. This appliance can be used by children aged from 8 years and above a persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the machine alone. Cleaning and user

maintenance shall not be made by children without supervision.Pets should stay away from the product.

ATTENTION!

This article is intended for outdoor use. Do not use indoors!

PRODUCT PARAMETERS

Model No.	Region	Voltage	Power	Plug Type
JY-MY-KYLCG-46-120	North America	AC120 60Hz	52W	American PLUG
JY-MY-KYLCG-46-220	Europe	AC220V 50Hz	52W	Europe PLUG
JY-MY-KYLCG-46-220	Australia	AC240V 50Hz	52W	Australia PLUG

ATTENTION!

1. The voltage used for this device must be the same as the power supply

LOADING CAPACITY

Model No.	Loading Capacity
JY-MY-KYLCG-46-120	Max 90 lb (40.8Kg)
JY-MY-KYLCG-46-220	Max 90 lb (40.8Kg)

ATTENTION!

1. Do not exceed the listed weight capacity. Be aware of dynamic loading! I sudden load movement may briefly create an excess load, causing product fa

PRODUCT COMPONENTS

1. Check all parts for completeness before beginning assembly.
2. To avoid accidents or sharp edges injuries please assemble and use care. For assembly you need a screwdriver and different screw wrenches. 2 person needed to assemble the product. Wear safety work gloves during assembly.
   Note: the quantity of parts shown in the manual is the actual usage and the unused parts are spare parts.

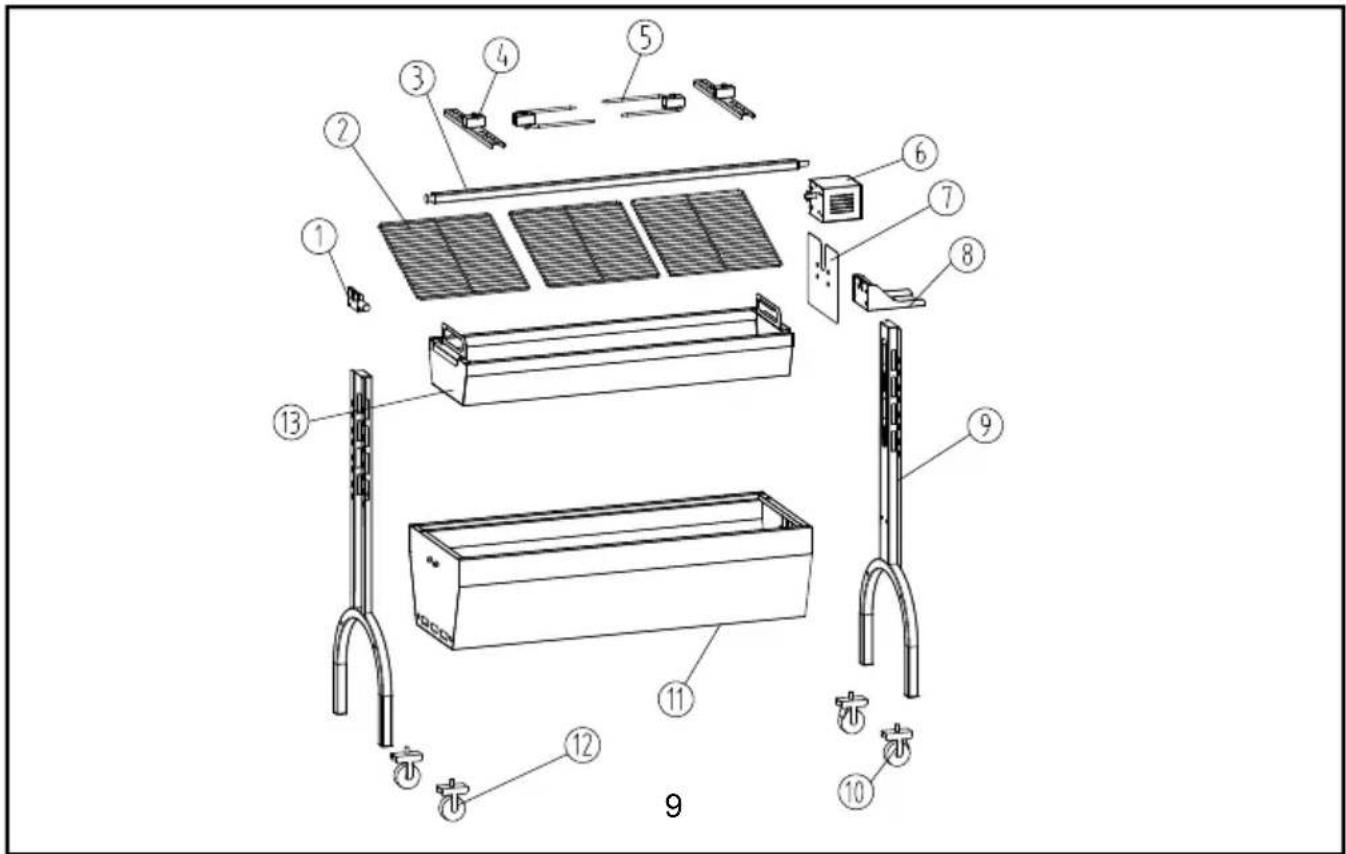

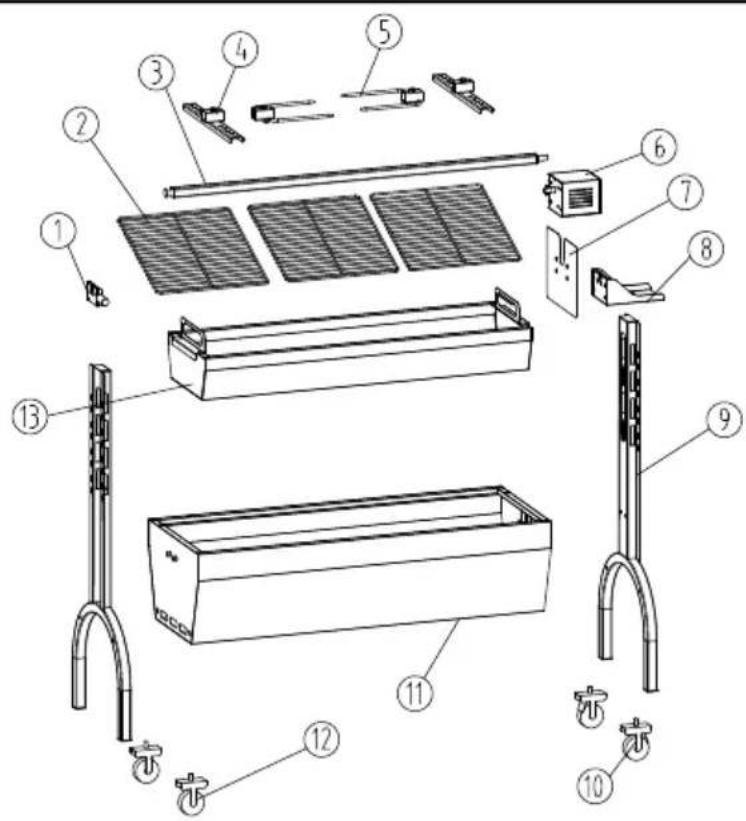

Exploded view diagram of a solar panel assembly with numbered components for identification

No.	Part name	Qty	No.	Part name	Qty
1	Spit bracket	1	8	Motor support plate	1
2	Grill	3	9	Support foot	2
3	Spit	1	10	Wheel w/ brake	2
4	Locating plate	2	11	Grill body	1
5	Roasting fork	2	12	Wheel w/o brake	2
6	Motor	1	13	Charcoal tray	1
7	Fire deflector	1

No.	Part name		Qty	No.	Part name	Qty
A	M8*51		4	H		2
B	M8*15		4	I		2
C	M8		8	J		1
D	M6*10		6	K		2
E	M8*15		4	L		1
F	M8*45		4	M		1
G	M8		8

STEP1

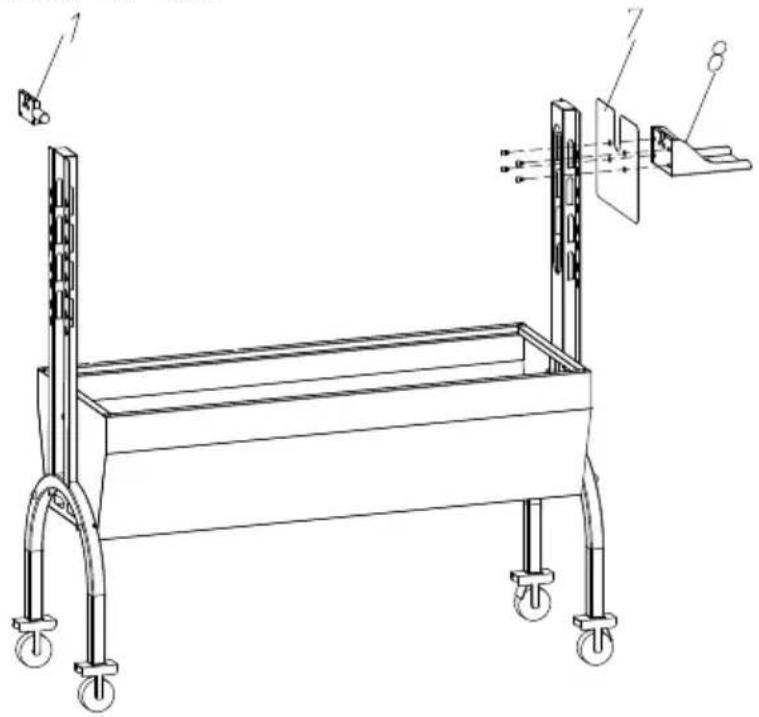

9 10 11 8

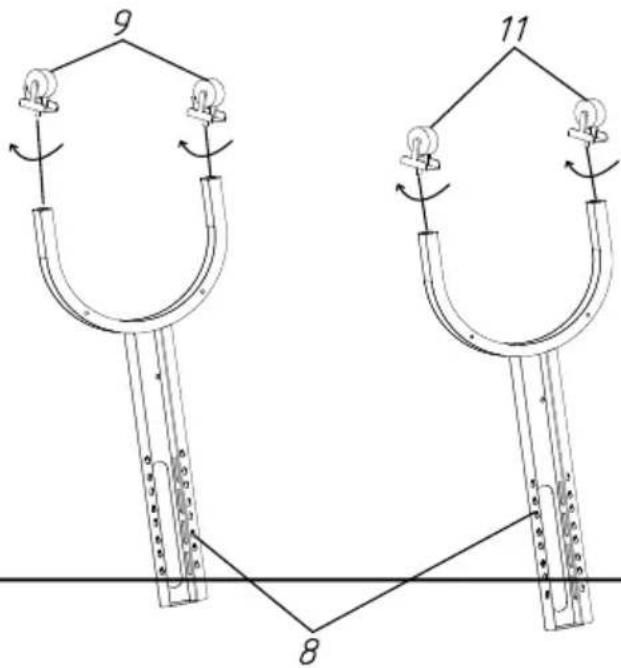

Install four casters on the support foot, rotate and tighten them in the di arrow, and install casters 2 (with brake) on the same support foot.

STEP2 E:M8*15-4PCS F:M8*45-4PCS G:M8-8PCS

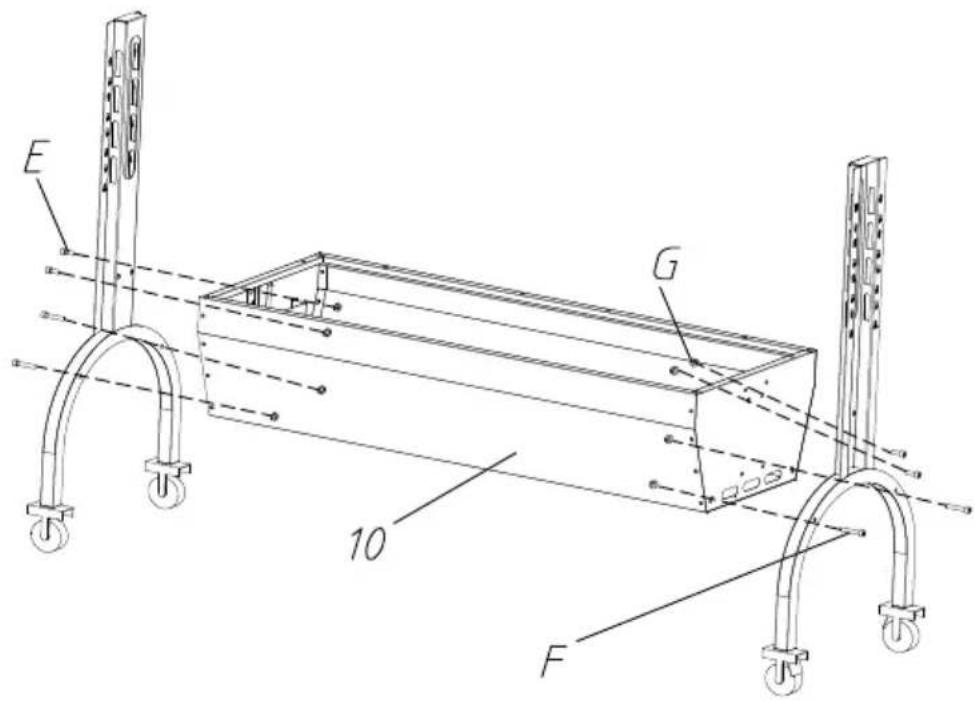

E G 10 F

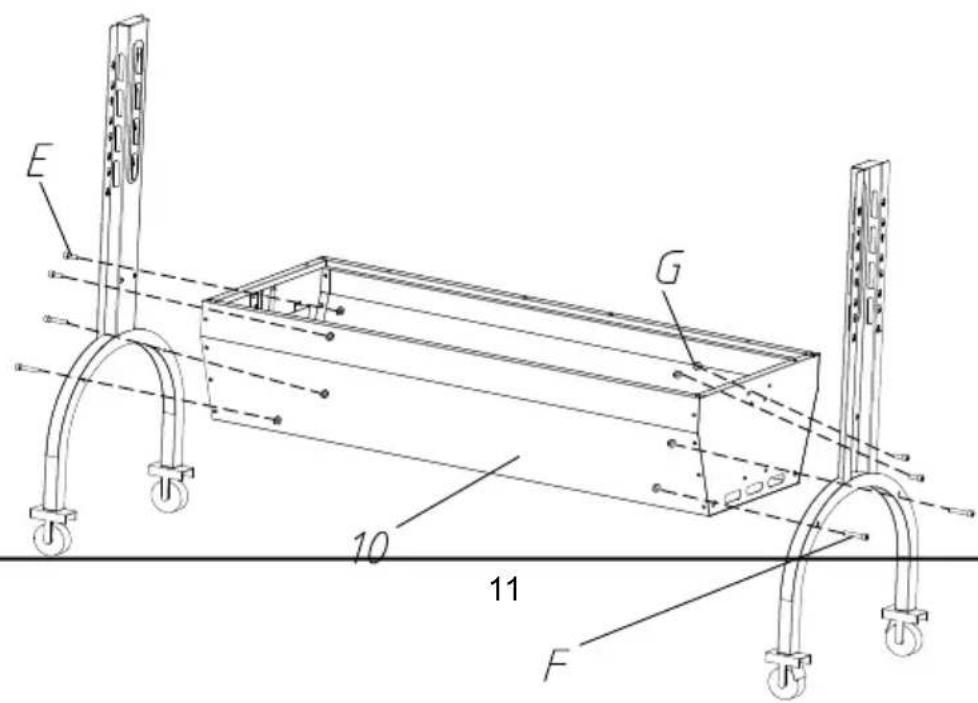

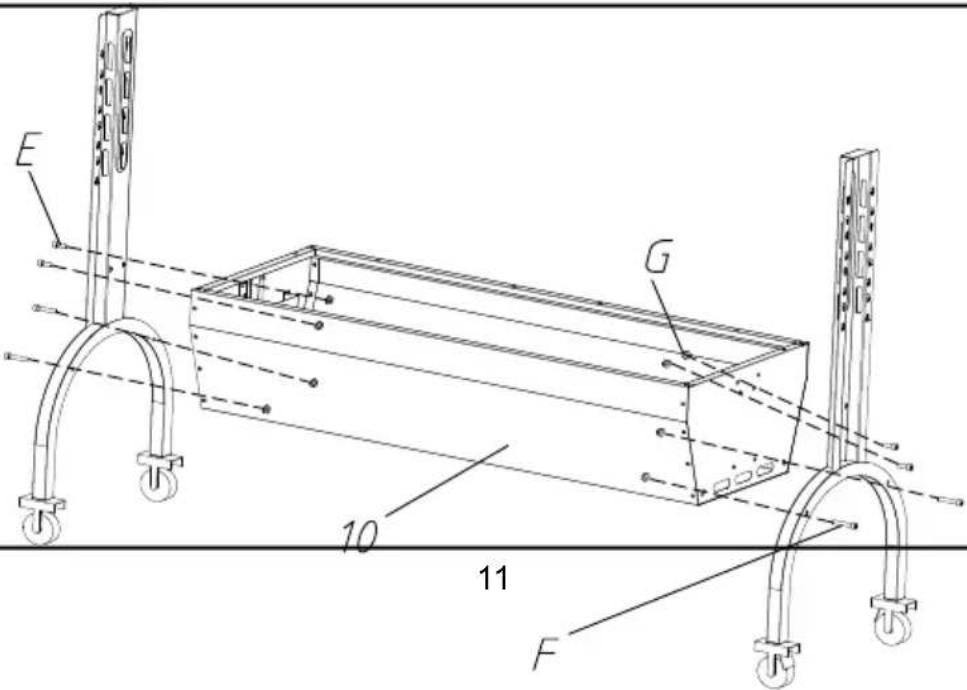

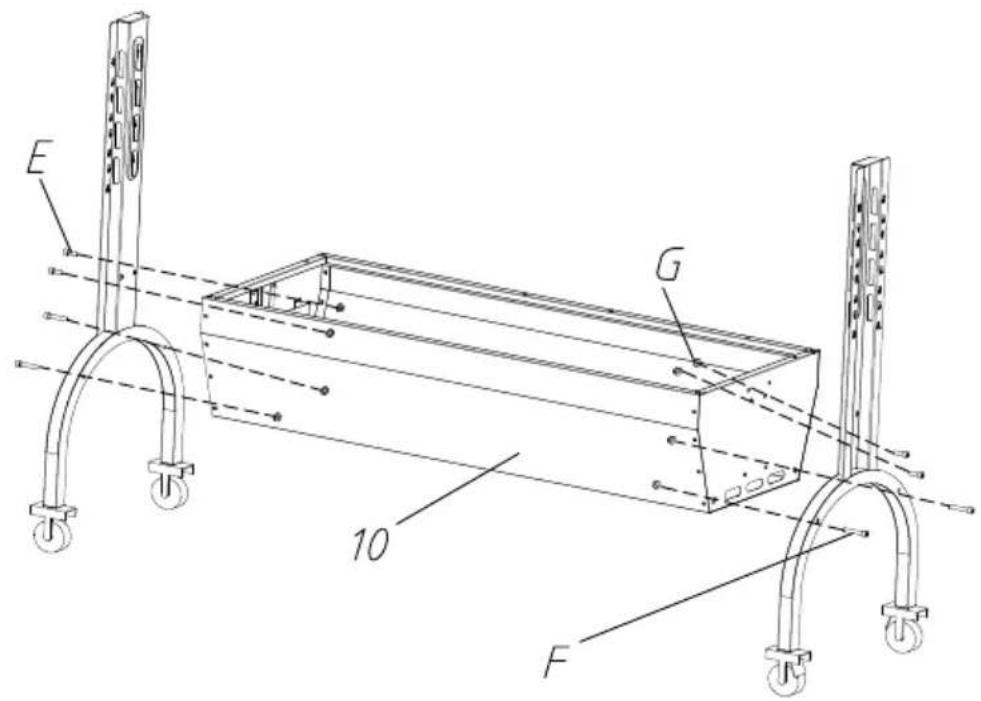

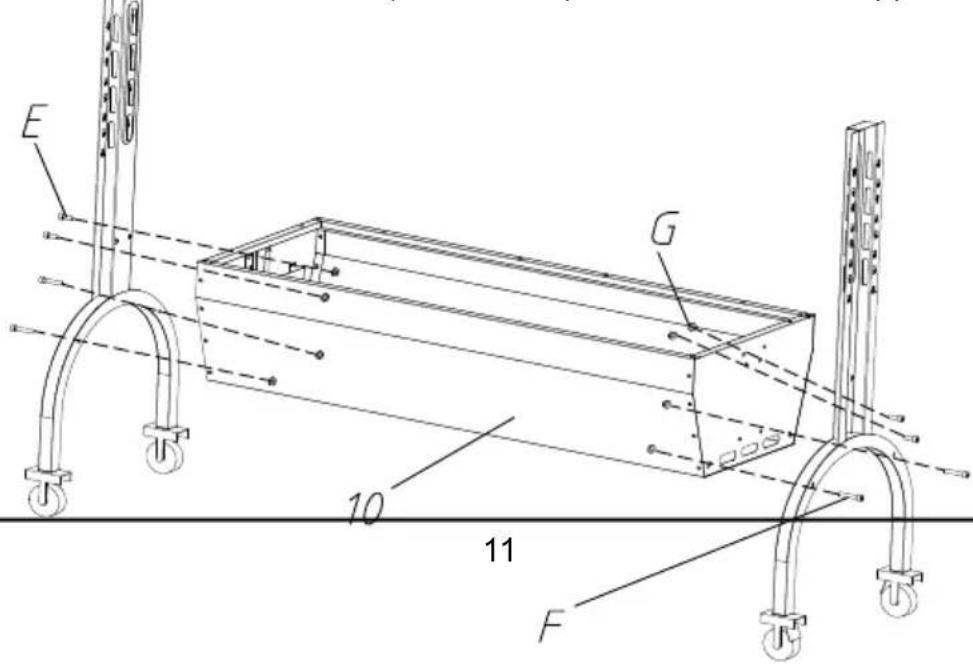

Fix the support foot and grill body with M8*45, M8*15 hexagon screws and nuts.

STEP3 D:M6*10-4PCS

Technical line drawing of a rectangular frame with wheels and a vertical support structure, no text or symbols present

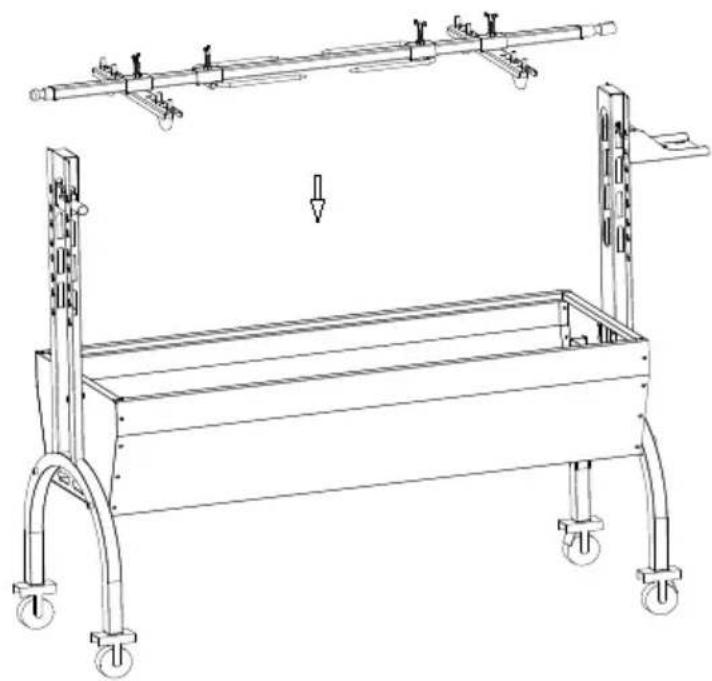

The motor support plate and fire baffle are aligned with the support foot h adjusted to the appropriate height, and fixed with M6*10 hexagon screws. A barbecue fork bracket in the corresponding position of the other support foc

STEP4

Technical line drawing of a mechanical support structure with wheels and a labeled component (no text or symbols present)

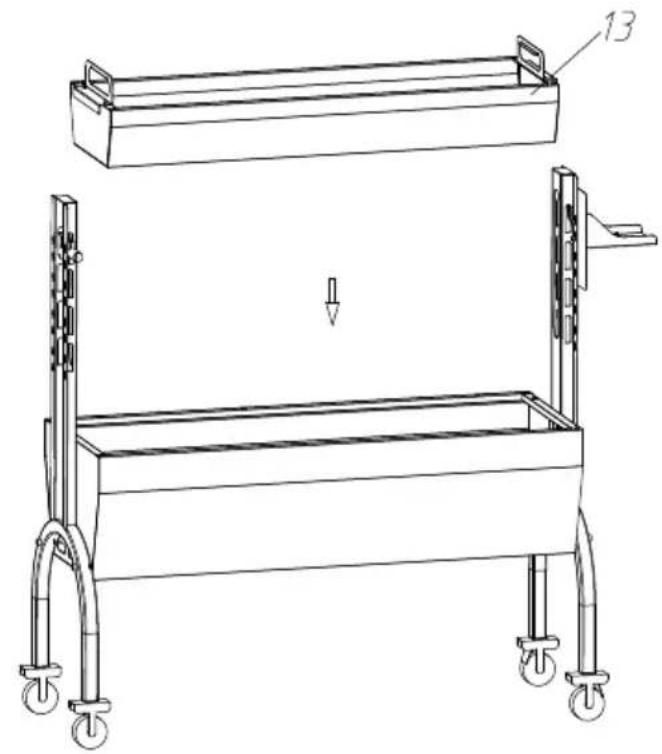

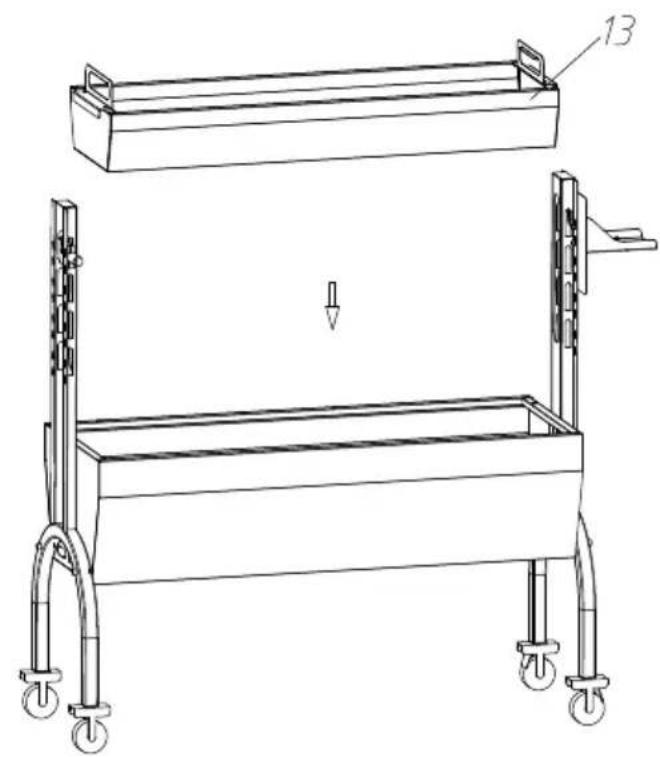

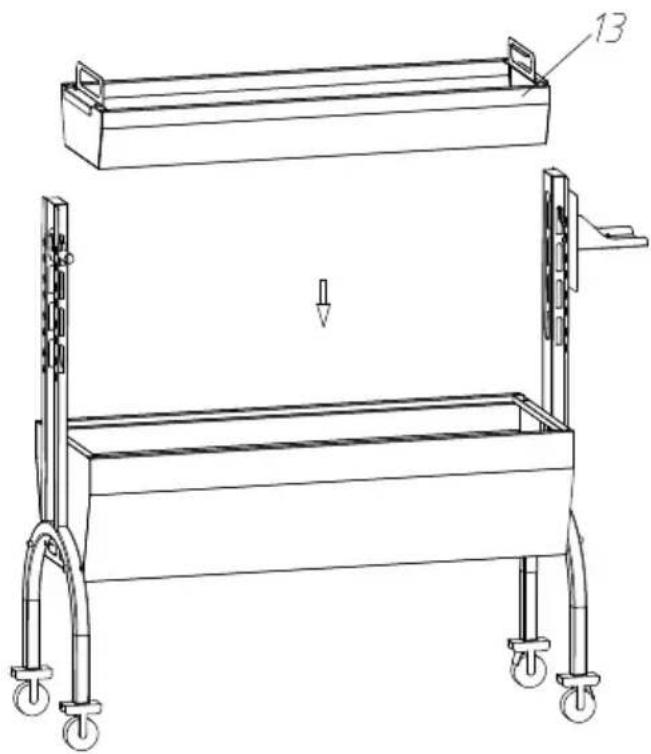

Place the charcoal tray on the grill body sup

STEP5 A:M8*51-4PCS B:M8*40-4PCS C:M8-8PCS

3 B 5 C 4 A'

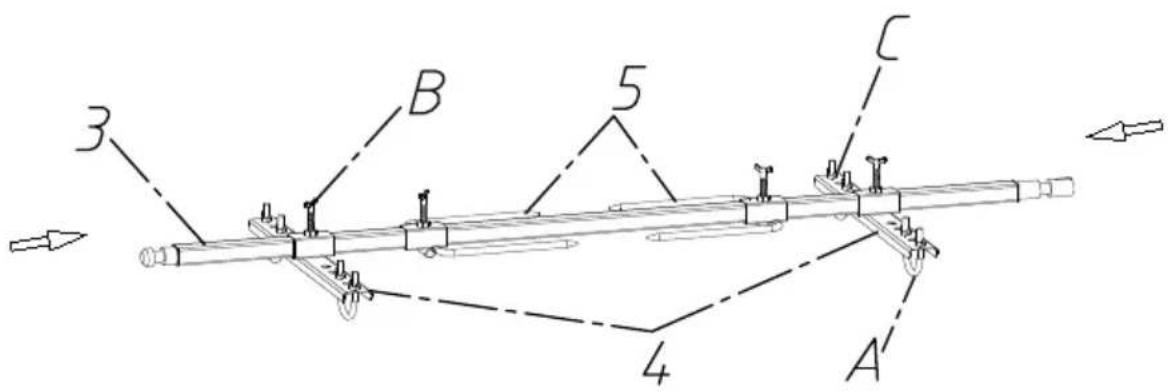

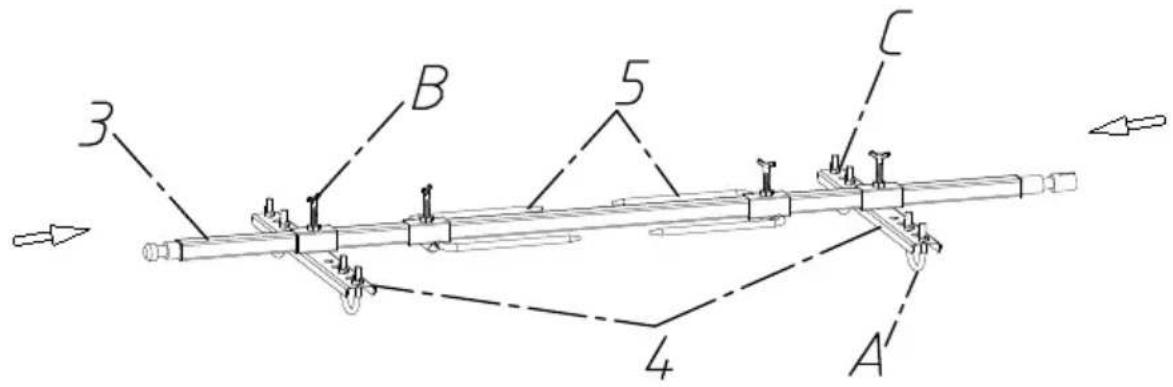

As shown in the above figure, fix the food on the barbecue fork or positio. When using the positioning plate, use U-bolts to fix the food and M8 butte fix it; Then use M8 * 15 butterfly screws to fix the barbecue fork or positio the barbecue fork rod.

STEP6

Technical line drawing of a mechanical support system with wheels and a horizontal bar (no text or symbols)

Put the food and barbecue fork together on the motor support plate bracket.

STEP7

D:M6*10-2PCS

Technical line drawing of a mechanical device with wheels and a labeled component (no text or symbols present)

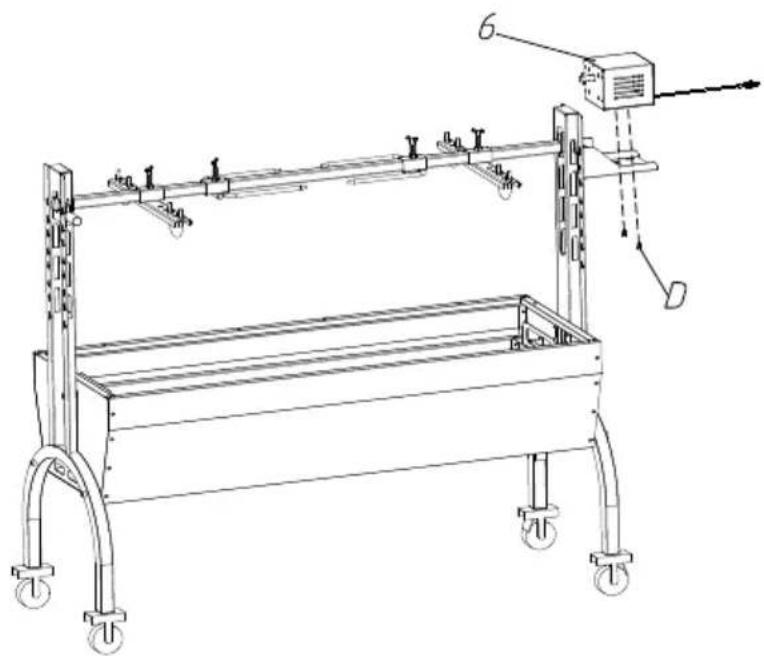

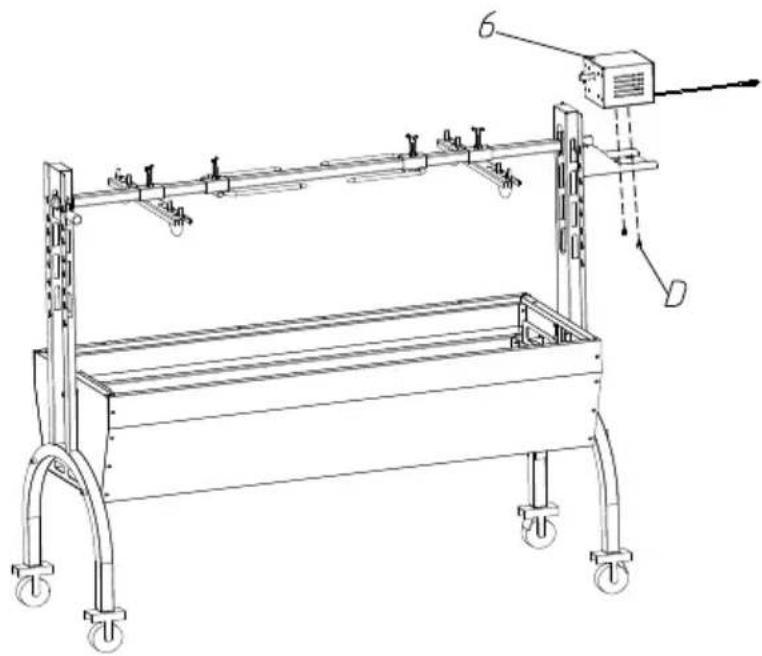

Place the motor on the motor support plate and lock it with M6*10 h screws. The installation is complete. Put charcoal on the charcoal tray, can roast sheep and other large pieces of food.

STEP8

Technical line drawing of a portable electrical enclosure with wheels and a mounted device (no text or symbols)

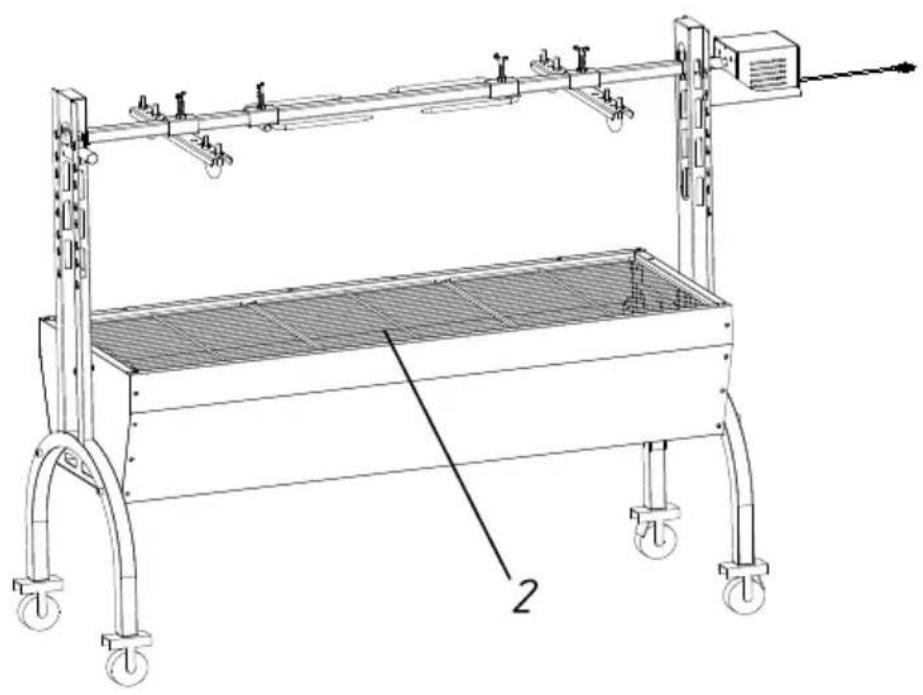

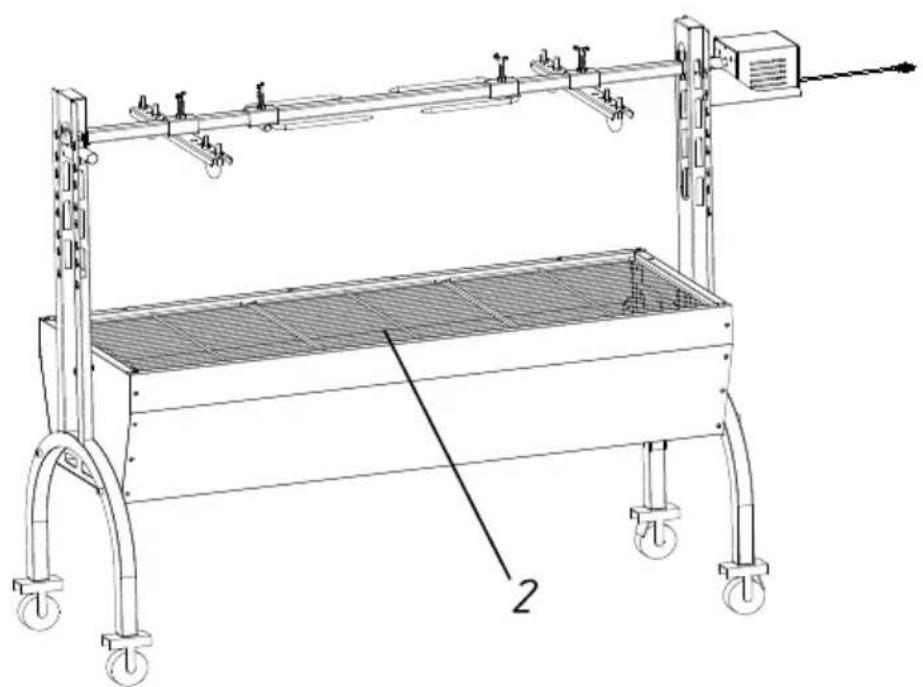

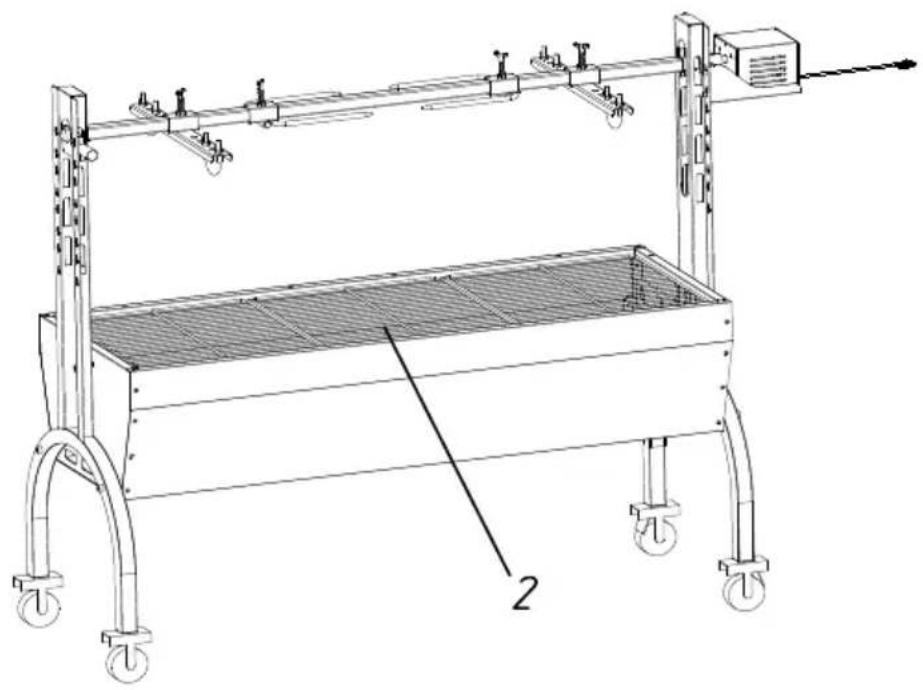

The grills are placed on the grill body to roast meat and other food at tl

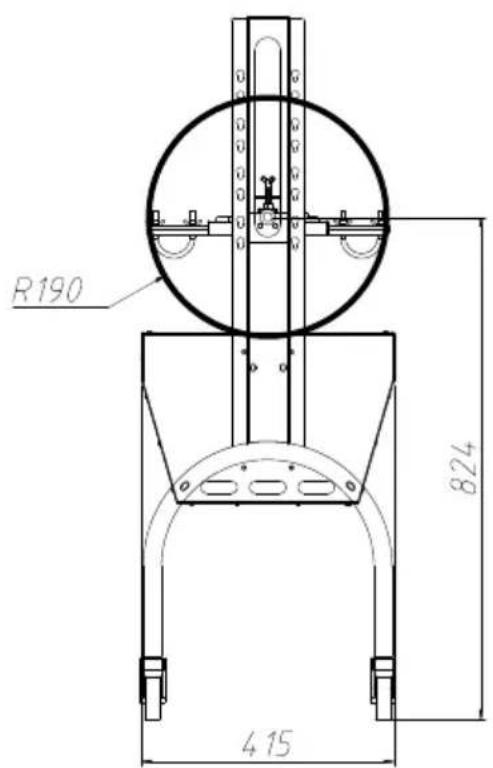

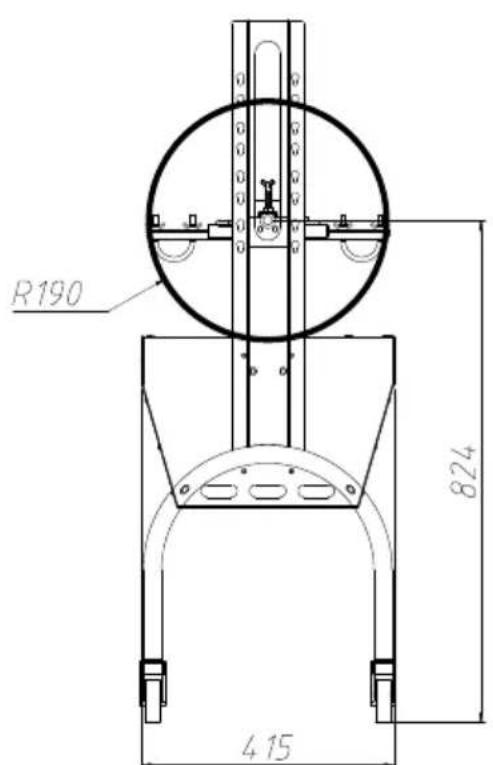

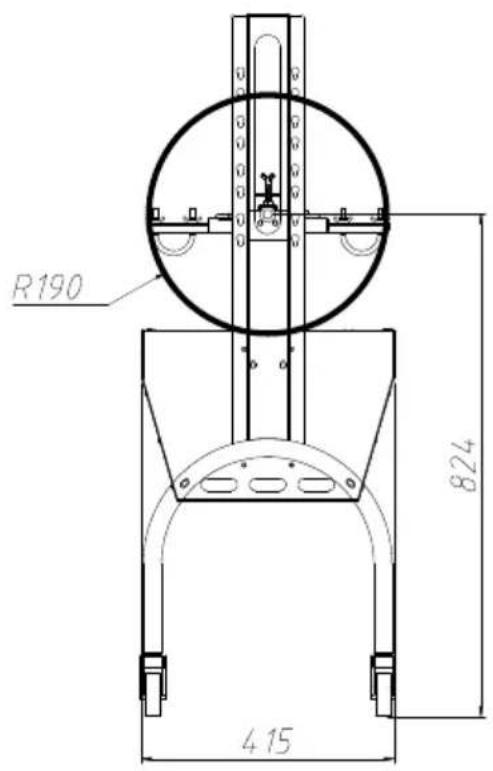

R190 824 415

First level:

Max diameter of food: 380mi

Max length of food: 1034mm

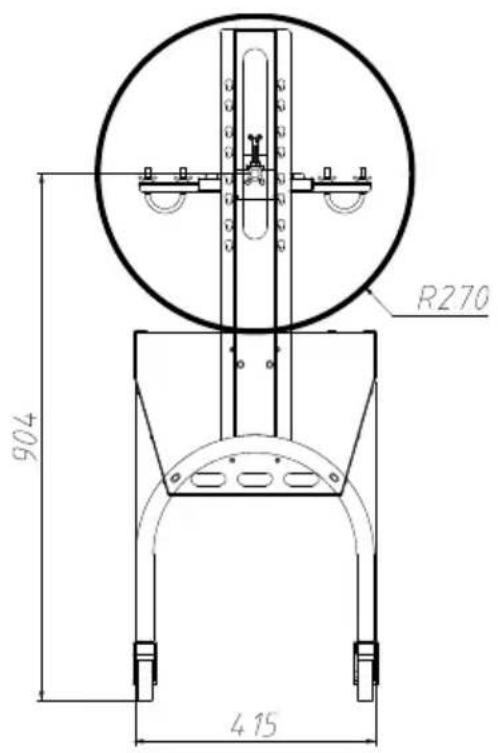

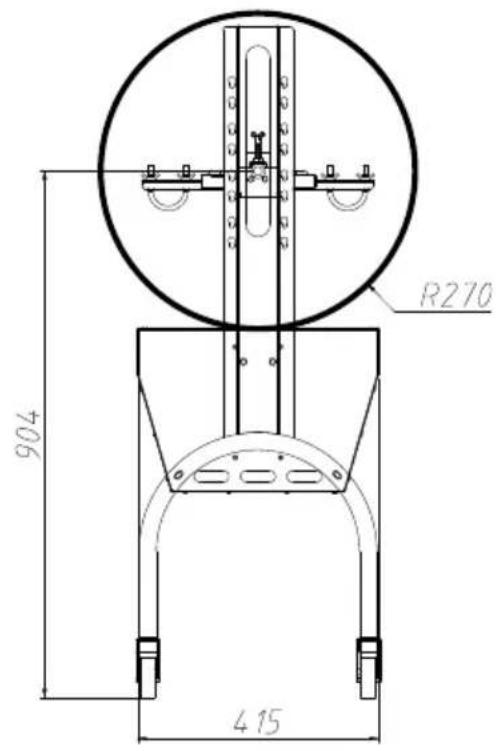

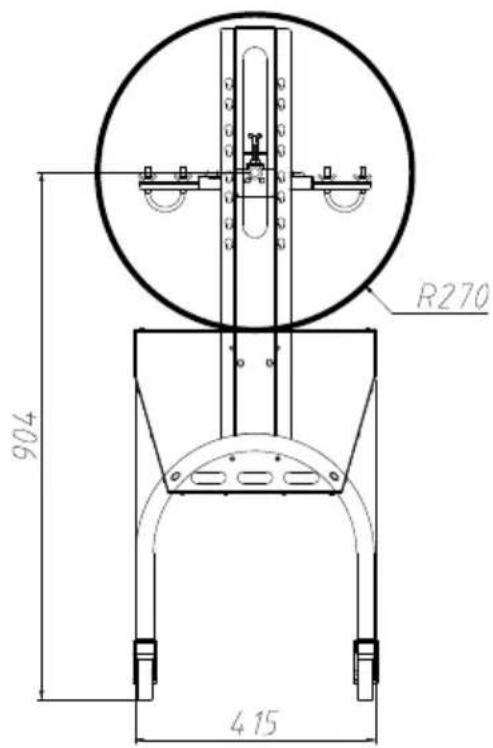

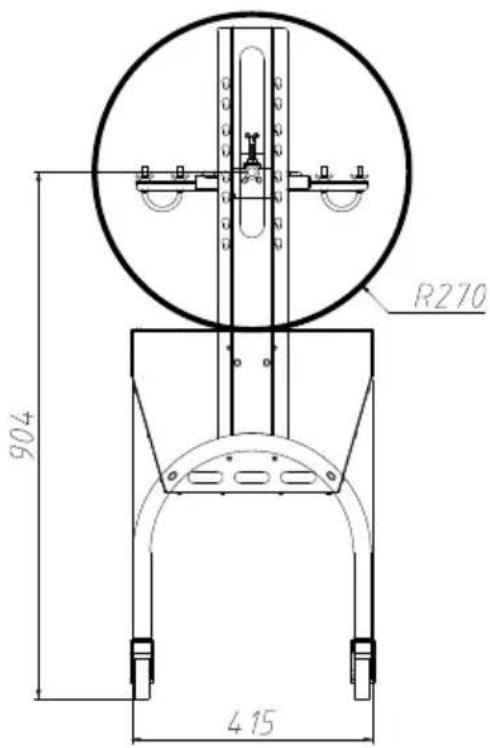

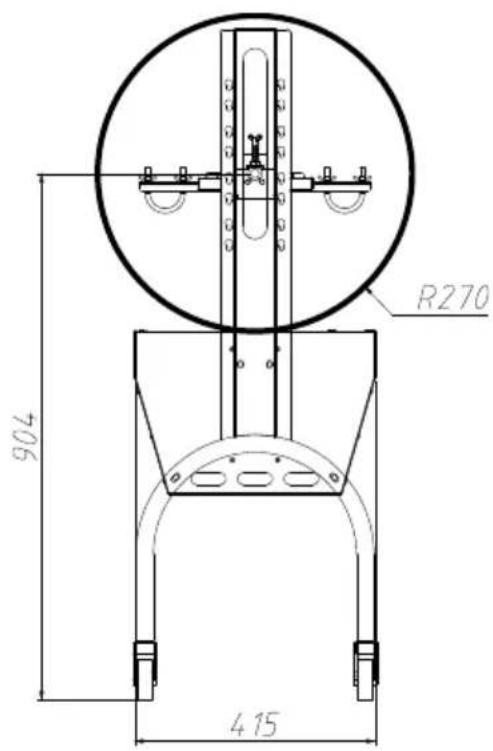

R270 904 415

Second level:

Max diameter of food: 540mi

Max length of food: 1034mm

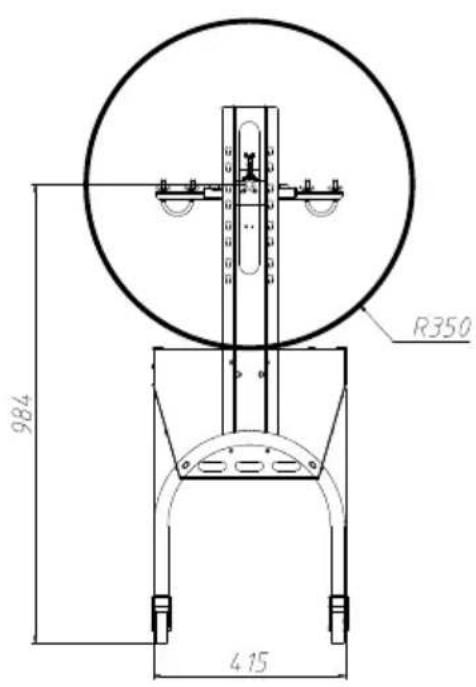

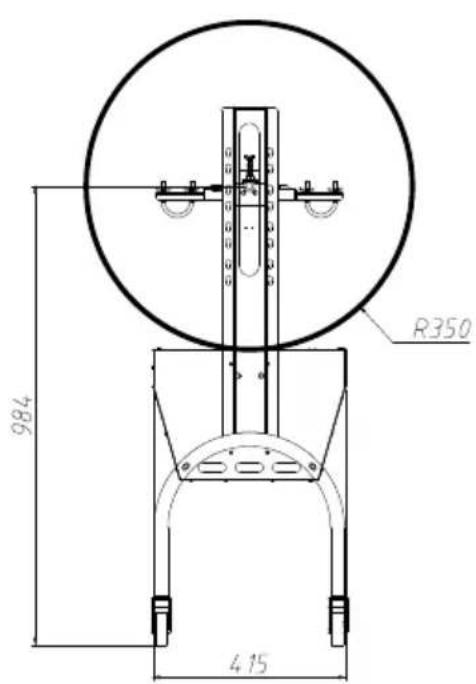

R350 984 415

Third level:

Max diameter of food: 700mi

Max length of food: 1034mm

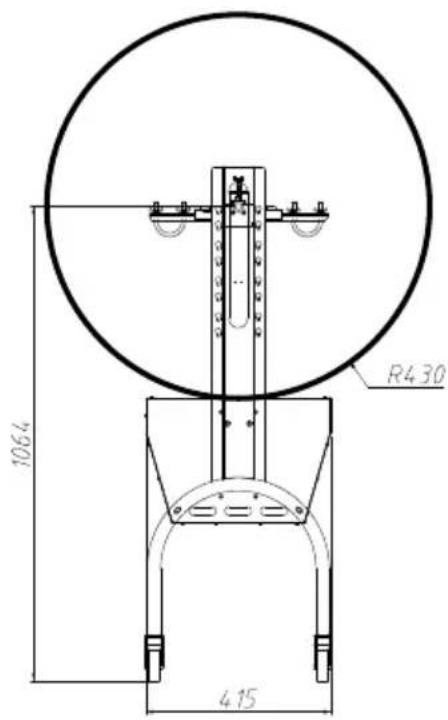

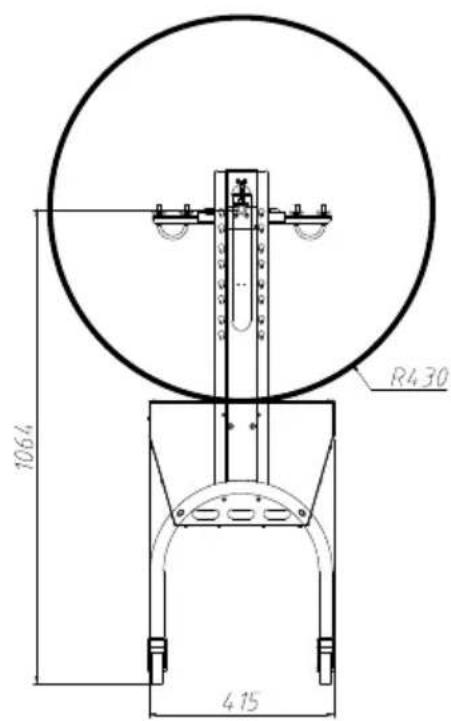

R4.30 1064 4.15

Fourth level:

Max diameter of food: 590mi

Max length of food: 1034mm

OPERATING INSTRUCTIONS

Before using the appliance for the first time, peel off any promotional material packaging materials, and check that the cooking plates are clean and free of. If necessary, wipe them over with a damp cloth. Spread over with an absorb kitchen towel and wipe off any excess oil. When your product is heated for time, it may emit slight smoke or odor, which is normal for many heating appliances, and will not affect the safety of your appliance.

1. Place the machine on a clean, dry, level surface near a plug base outlet
2. Distribute the solid firelighters in the center of the fire box.
3. Stack up the charcoal in a pyramid above the firelighters.
4. Light the solid firelighters with a match.
5. Grease the grill with some vegetable oil and start grilling.
6. Only place food on the grill after the fuel is covered with an ash layer.
7. Plug the cord into the wall outlet.
8. Use the ventilation slider to control the amount of air supplied to fuel from bottom.(Only applicable for appliance with ventilation slider)

ATTENTION!

1. Do not move while the appliance is hot.
2. Due to safety reasons do not use this appliance with liquid fuels.
3. We strongly recommend that the bbq rotisserie grill shall be heated up ar fuel kept red-hot for at least 30 min prior to the first cooking;
4. Do not leave the appliance unattended during use.
5. Do not use the appliance near flammable objects (keep at a safe distance least 3 meters).
6. Do not leave the appliance unattended during use.
7. Do not cook before the fuel has a coating of ash.
8. If the motor is suddenly stuck, abnormal noise, smoke and other undesirable phenomena are found during the barbecue process, immediately cut off the supply, and restart it after the maintenance is completed.
9. Always turn the rotisserie motor to "OFF" before opening the grill.

WARNING! This product rotisserie grill will become very hot, do not it during operation.

WARNING! Keep children and pets away.

WARNING! In case of the danger of carbon monoxide poisoning, do not use product rotisserie grill indoors.

WARNING! Do not use the barbecue in a confined and/or habitable space e houses, tents, caravans, motor homes, boats.

WARNING! Remove all packaging materials and keep them for future use. Packaging materials are not a toy.

WARNING! Don't let children play with the packaging materials. If they swallow the packaging materials, they will suffocate!

ATTENTION! Always wear gloves when adjusting the grill, the handles of the can become very hot during the grilling process.

IMPORTANT! Do not pour water into the appliance while it is still hot.

IMPORTANT! Close the ventilation slider to extinguish the appliance. (Only applicable for appliance with ventilation slider)

COOKING TIPS & HINTS

1. Always wash your hands before and after handling uncooked meat and be eating.
2. Always keep raw meat away from cooked meat and other foods.
3. Before cooking, ensure grill surfaces and tools are clean and free of old residues.
4. DO NOT use the same utensils to handle cooked and uncooked foods.
5. Ensure all meat is cooked thoroughly before eating.

CAUTION:

1. Eating raw or under cooked meat will cause food poisoning (e.g. bacteria strains such as Escherichia coli).
2. To reduce the risk of under cooked meat, cut the meat to ensure it is 1 cooked.
3. If the meat is fully cooked, its juice should be clear and there should be red juice or traces of meat color.
4. Cooking larger pieces of meat and joints is recommended before finally cc on the grill.
5. After cooking on your grill always clean the cooking surfaces and utensils.

CLEAING MAINTENANCE AND STORAGE

1. For cleaning, wipe the surface with a damp (not wet) cloth or wipe dry clean lint free cotton cloth.
2. Window cleaning liquid or a similar cleaning liquid can be used to clean surface.
3. Always unplug the machine before storage.
4. Always make sure the machine is cool and dry before string.
5. Store the appliance in a dry and clean area.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a portable electrical enclosure with wheels and a mounted device (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Exploded view diagram of a solar panel assembly with numbered components

Technical diagram of a U-shaped mechanical device with labeled components and directional arrows indicating motion or force.

Install four casters on the support foot, rotate and tighten them in the di arrow, and install casters 2 (with brake) on the same support foot.

2

E G 10 11 F

ÉTAPE

Fix the support foot and grill body with M8*45, M8*15 hexagon screws and nuts.

ÉTAPE 3D :M6*10-4PCS

Technical line drawing of a mechanical support structure with wheels and mounting components (no text or symbols)

The motor support plate and fire baffle are aligned with the support foot h adjusted to the appropriate height, and fixed with M6*10 hexagon screws. A barbecue fork bracket in the corresponding position of the other support foc

ÉTAPE 4

Technical line drawing of a mechanical support structure with wheels and a labeled component (no text or symbols present)

Place the charcoal tray on the grill body sup

As shown in the above figure, fix the food on the barbecue fork or positio. When using the positioning plate, use U-bolts to fix the food and M8 butte fix it; Then use M8 * 15 butterfly screws to fix the barbecue fork or positio the barbecue fork rod.

ÉTAPE6

Technical line drawing of a mechanical lifting device with wheels and a lever (no text or symbols)

Put the food and barbecue fork together on the motor support plate bracket.

ÉTAPE 7 [PIÈCES

M6*10-2

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

Place the motor on the motor support plate and lock it with M6*10 h screws. The installation is complete. Put charcoal on the charcoal tray, can roast sheep and other large pieces of food.

ÉTAPE8

Technical line drawing of a portable electrical enclosure with wheels and a mounted device (no text or symbols)

The grills are placed on the grill body to roast meat and other food at tl

R190 824 415

First level:

Max diameter of food: 380mi

Max length of food: 1034mm

R270 904 415

Second level:

Max diameter of food: 540mi

Max length of food: 1034mm

R350 984 415

Third level:

Max diameter of food: 700m Max diameter of food: 590m

Max length of food: 1034mm Max length of food: 1034mm

R430 1064 415

OPERATING INSTRUCTIONS

CLEAING MAINTENANCE AND STORAGE

www.vevor.com/support

SPIEß-ROTISSERIE-RÖSTER-GRILL

MODELL: JY-MY-KYLCG-46-120

JY-MY-KYLCG-46- 220

Technical line drawing of a portable electrical enclosure with wheels and a mounted device (no text or symbols)

www.vevor.com/support

Exploded view diagram of a solar panel assembly with numbered components for identification

Install four casters on the support foot, rotate and tighten them in the di arrow, and install casters 2 (with brake) on the same support foot.

SCHRITT 2 E: M8*15-4 STK. F: M8*45-4 STK. G: M8-8 STK.

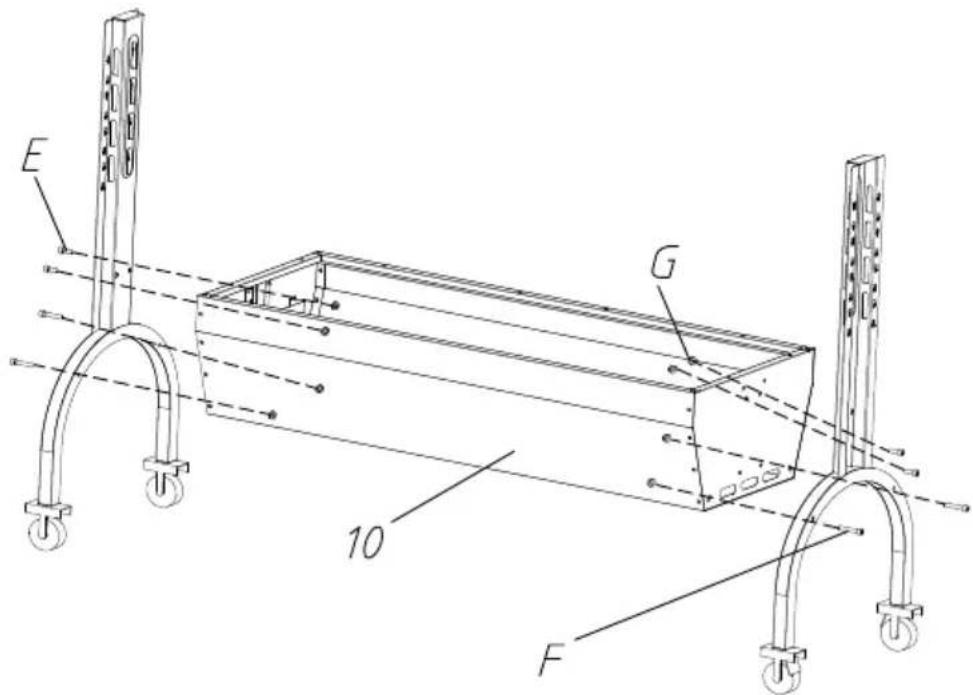

E G 10 F

Fix the support foot and grill body with M8*45, M8*15 hexagon screws and nuts.

SCHRITT 3 D: M6 * 10-4 STK

Technical line drawing of a rectangular frame with wheels and a vertical support structure, no text or symbols present

The motor support plate and fire baffle are aligned with the support foot h adjusted to the appropriate height, and fixed with M6*10 hexagon screws. A barbecue fork bracket in the corresponding position of the other support foc

SCHRITT 4

Technical line drawing of a mechanical support structure with wheels and a labeled component (no text or symbols present)

Place the charcoal tray on the grill body sup

SCHRITT 5 A: M8 * 51-4 STK. B: M8 * 40-4 STK. C: M8-8 STK.

3 B 5 C 4 A'

As shown in the above figure, fix the food on the barbecue fork or positio. When using the positioning plate, use U-bolts to fix the food and M8 butte fix it; Then use M8 * 15 butterfly screws to fix the barbecue fork or positio the barbecue fork rod.

SCHRITT6

Technical line drawing of a mechanical lifting frame with wheels and a lever, no text or symbols present

Put the food and barbecue fork together on the motor support plate bracket.

SCHRITT 7 STK

D: M6 * 10-2

Technical line drawing of a mechanical device with wheels and a labeled component (no text or symbols present)

Place the motor on the motor support plate and lock it with M6*10 h screws. The installation is complete. Put charcoal on the charcoal tray, can roast sheep and other large pieces of food.

Technical line drawing of a portable electrical enclosure with wheels and a mounted device (no text or symbols)

SCHRITT 8

The grills are placed on the grill body to roast meat and other food at tl

R190 824 415

First level:

Max diameter of food: 380mi

Max length of food: 1034mm

R270 904 415

Second level:

Max diameter of food: 540mi

Max length of food: 1034mm

Pure mechanical assembly diagram showing a central vertical component with mounting holes and a curved arc (no text or symbols)

16

Third level:

Fourth level:

Max diameter of food: 700m1 Max diameter of food: 590m1

OPERATING INSTRUCTIONS

CLEAING MAINTENANCE AND STORAGE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a portable electrical enclosure with wheels and mounting bracket (no text or symbols)

HO BISOGNO DI AIUTO? CONTATTACI!

www.vevor.com/support

Exploded view diagram of a solar panel assembly with numbered components for identification

Exploded view diagram of a solar panel assembly with numbered parts for identification

Install four casters on the support foot, rotate and tighten them in the di arrow, and install casters 2 (with brake) on the same support foot.

PASSO2 E:M8*15-4PZ F:M8*45-4PZ G:M8-8PZ

E G 10 F

Fix the support foot and grill body with M8*45, M8*15 hexagon screws and nuts.

PASSO3 D:M6*10-4PZ

11

Technical diagram showing labeled components of a mechanical or optical assembly with numbered parts 7 and 8.

The motor support plate and fire baffle are aligned with the support foot h adjusted to the appropriate height, and fixed with M6*10 hexagon screws. A barbecue fork bracket in the corresponding position of the other support foc

PASSO4

Technical line drawing of a two-tiered mechanical device with wheels and a handle, no text or symbols present

Place the charcoal tray on the grill body sup

3 B 5 C 4 A'

As shown in the above figure, fix the food on the barbecue fork or positio. When using the positioning plate, use U-bolts to fix the food and M8 butte fix it; Then use M8 * 15 butterfly screws to fix the barbecue fork or positio the barbecue fork rod.

PASSO6

Put the food and barbecue fork together on the motor support plate bracket. SO7 13 D:M6*10-2P 6 D

PASSO7

D:M6*10-2PZ

Place the motor on the motor support plate and lock it with M6*10 h screws. The installation is complete. Put charcoal on the charcoal tray, can roast sheep and other large pieces of food.

PASSO

Technical line drawing of a portable electrical enclosure with wheels and a mounted device (no text or symbols)

The grills are placed on the grill body to roast meat and other food at tl

R190 824 415

R270 904 415

Pure mechanical diagram showing a vertical assembly with supports and a curved arc (no text or symbols)

15

Third level:

Fourth level:

Max diameter of food: 700m1 Max diameter of food: 590m1

OPERATING INSTRUCTIONS

CLEAING MAINTENANCE AND STORAGE

Technical line drawing of a portable electrical enclosure with wheels and a mounted device (no text or symbols)

Exploded view diagram of a solar panel assembly with numbered components for identification

Install four casters on the support foot, rotate and tighten them in the d arrow, and install casters 2 (with brake) on the same support foot.

PASO

2

E G 10 11 F

11

Fix the support foot and grill body with M8*45, M8*15 hexagon screws and nuts.

PASO 3 D:M6*10-4PCS

Technical line drawing of a mechanical support structure with wheels and labeled components (no text or symbols)

The motor support plate and fire baffle are aligned with the support foot h adjusted to the appropriate height, and fixed with M6*10 hexagon screws. A barbecue fork bracket in the corresponding position of the other support foc

ETAPA 4

Technical line drawing of a mechanical support structure with wheels and a labeled component (no text or symbols present)

Place the charcoal tray on the grill body sup

PASO 5 A:M8*51-4PCS B:M8*40-4PCS C:M8-8PCS

3 B 5 C 4 A'

As shown in the above figure, fix the food on the barbecue fork or positio. When using the positioning plate, use U-bolts to fix the food and M8 butte fix it; Then use M8 * 15 butterfly screws to fix the barbecue fork or positio the barbecue fork rod.

PASO 6

Technical line drawing of a mechanical lifting device with wheels and a lever (no text or symbols)

Put the food and barbecue fork together on the motor support plate bracket.

PASO 7

D:M6*10-2PCS

Technical line drawing of a mechanical device with wheels and a labeled component (no text or symbols present)

Place the motor on the motor support plate and lock it with M6*10 h screws. The installation is complete. Put charcoal on the charcoal tray, can roast sheep and other large pieces of food.

PASO8

Technical line drawing of a portable electrical enclosure with wheels and a mounted device (no text or symbols)

The grills are placed on the grill body to roast meat and other food at tl

R190 824 415

First level:

Max diameter of food: 380mi

Max length of food: 1034mm

R270 904 415

Second level:

Max diameter of food: 540mi

Max length of food: 1034mm

R350 984 415

Third level:

Max diameter of food: 700mi

Max length of food: 1034mm

R4.30 1064 4.15

Fourth level:

Max diameter of food: 590mi

Max length of food: 1034mm

OPERATING INSTRUCTIONS

CLEAING MAINTENANCE AND STORAGE

Technical line drawing of a portable electrical enclosure with wheels and a mounted device (no text or symbols)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

www.vevor.com/support

Exploded view diagram of a solar panel assembly with numbered components

Technical diagram of a U-shaped mechanical device with labeled components and directional arrows indicating motion or force.

Install four casters on the support foot, rotate and tighten them in the di arrow, and install casters 2 (with brake) on the same support foot.

2

E G 10 11 F

KROK

Fix the support foot and grill body with M8*45, M8*15 hexagon screws and nuts.

KROK 3 D:M6*10-4szt

Technical line drawing of a mechanical support structure with wheels and mounting components (no text or symbols)

The motor support plate and fire baffle are aligned with the support foot h adjusted to the appropriate height, and fixed with M6*10 hexagon screws. A barbecue fork bracket in the corresponding position of the other support foc

KROK 4

Technical line drawing of a mechanical support structure with wheels and a labeled component (no text or symbols present)

Place the charcoal tray on the grill body sup

KROK 5 A:M8*51-4szt B:M8*40-4szt C:M8-8szt

3 B 5 C 4 A'

As shown in the above figure, fix the food on the barbecue fork or positio. When using the positioning plate, use U-bolts to fix the food and M8 butte fix it; Then use M8 * 15 butterfly screws to fix the barbecue fork or positio the barbecue fork rod.

KROK 6

Technical line drawing of a mechanical support system with wheels and a horizontal beam (no text or symbols)

Put the food and barbecue fork together on the motor support plate bracket.

KROK 7

D:M6*10-2 SZT

Technical line drawing of a mechanical device with wheels and a labeled component (no text or symbols present)

Place the motor on the motor support plate and lock it with M6*10 h screws. The installation is complete. Put charcoal on the charcoal tray, can roast sheep and other large pieces of food.

KROK 8

Technical line drawing of a portable electrical enclosure with wheels and a mounted device (no text or symbols)

The grills are placed on the grill body to roast meat and other food at tl

R190 824 415

First level:

Max diameter of food: 380mi

Max length of food: 1034mm

R270 904 415

Second level:

Max diameter of food: 540mi

Max length of food: 1034mm

R350 984 415

Third level:

Max diameter of food: 700ml

Max length of food: 1034mm

R4.30 1064 4.15

Fourth level:

Max diameter of food: 590mi

Max length of food: 1034mm

OPERATING INSTRUCTIONS

CLEAING MAINTENANCE AND STORAGE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

SPIT ROTISSERIE ROASTER-GRILL

MODEL: JY-MY-KYLCG-46-120

JY-MY-KYLCG- 46-220

Technical line drawing of a portable electrical enclosure with wheels and a mounted device (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Exploded view diagram of a solar panel assembly with numbered components for identification

E	M8*15		4	L		1
F	M8* 4		4	M		1
G	M8		8

STAP 1

9 11 8

Install four casters on the support foot, rotate and tighten them in the di arrow, and install casters 2 (with brake) on the same support foot.

E G 10 11 F

STAP2

Fix the support foot and grill body with M8*45, M8*15 hexagon screws and nuts.

STAP3 D:M6*10-4 STUKS

Technical line drawing of a mechanical support structure with wheels and labeled components (no text or symbols)

The motor support plate and fire baffle are aligned with the support foot h adjusted to the appropriate height, and fixed with M6*10 hexagon screws. A barbecue fork bracket in the corresponding position of the other support foc

STAP 4

Technical line drawing of a two-tiered mechanical device with wheels and a handle, no text or symbols present

Place the charcoal tray on the grill body sup

STAP5 A:M8*51-4STUKS B:M8*40-4STUKS C:M8-8STUKS

3 B 5 C 4 A

As shown in the above figure, fix the food on the barbecue fork or positio. When using the positioning plate, use U-bolts to fix the food and M8 butte fix it; Then use M8 * 15 butterfly screws to fix the barbecue fork or positio the barbecue fork rod.

STAP6

Technical line drawing of a mechanical lifting device with wheels and a lever (no text or symbols)

Put the food and barbecue fork together on the motor support plate bracket.

STAP7 STUKS

D:M6*10-2

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

Place the motor on the motor support plate and lock it with M6*10 h screws. The installation is complete. Put charcoal on the charcoal tray, can roast sheep and other large pieces of food.

STAP 8

Technical line drawing of a portable electrical enclosure with wheels and a mounted device (no text or symbols)

The grills are placed on the grill body to roast meat and other food at tl

R190 824 415

First level:

Max diameter of food: 380mi

Max length of food: 1034mm

R270 904 415

Second level:

Max diameter of food: 540mi

Max length of food: 1034mm

R350 984 415

Third level:

Max diameter of food: 700m Max diameter of food: 590m

Max length of food: 1034mm Max length of food: 1034mm

R430 1064 415

OPERATING INSTRUCTIONS

CLEAING MAINTENANCE AND STORAGE

Technical line drawing of a portable electrical enclosure with wheels and a mounted device (no text or symbols)

BEHÖVS HJÄLP? KONTAKTA OSS!

Exploded view diagram of a solar panel assembly with numbered components for identification

Technical diagram of a U-shaped mechanical device with labeled components and internal mechanisms

Install four casters on the support foot, rotate and tighten them in the di arrow, and install casters 2 (with brake) on the same support foot.

STEG2 E:M8*15-4PCS F:M8*45-4PCS G:M8-8PCS

E G 10 F

Fix the support foot and grill body with M8*45, M8*15 hexagon screws and nuts.

STEG 3 D:M6*10-4ST

Technical line drawing of a mechanical support structure with wheels and labeled components (no text or symbols)

The motor support plate and fire baffle are aligned with the support foot h adjusted to the appropriate height, and fixed with M6*10 hexagon screws. A barbecue fork bracket in the corresponding position of the other support foc

STEG 4

Technical line drawing of a mechanical lifting device with wheels and a labeled component (no text or symbols present)

Place the charcoal tray on the grill body sup

STEG5 A:M8*51-4PCS B:M8*40-4PCS C:M8-8PCS

3 B 5 C 4 A'

As shown in the above figure, fix the food on the barbecue fork or positio. When using the positioning plate, use U-bolts to fix the food and M8 butte fix it; Then use M8 * 15 butterfly screws to fix the barbecue fork or positio the barbecue fork rod.

STEG 6

Technical line drawing of a mechanical support structure with wheels and a horizontal bar, no text or symbols present

Put the food and barbecue fork together on the motor support plate bracket.

STEG7
D:M6*10-2ST

Technical line drawing of a mechanical device with wheels and a labeled component (no text or symbols present)

Place the motor on the motor support plate and lock it with M6*10 h screws. The installation is complete. Put charcoal on the charcoal tray, can roast sheep and other large pieces of food.

STEG 8

Technical line drawing of a portable electrical enclosure with wheels and a mounted device (no text or symbols)

The grills are placed on the grill body to roast meat and other food at tl

R190 824 415

First level:

Max diameter of food: 380mi

Max length of food: 1034mm

R270 904 415

Second level:

Max diameter of food: 540mi

Max length of food: 1034mm

R350 984 415

Third level:

R430 1064 415

Fourth level:

Max diameter of food: 700m Max diameter of food: 590m

Max length of food: 1034mm Max length of food: 1034mm

OPERATING INSTRUCTIONS

CLEAING MAINTENANCE AND STORAGE

www.vevor.com/support
