USER MANUAL All Cleaner XP ADVANCE

All Cleaner, All Cleaner XP Instructions for use and Parts List

Technical line drawing of a cleaning or cleaning industrial machine (no text or symbols)

Advance Models: 56381594

Obsolete Models: 56380772

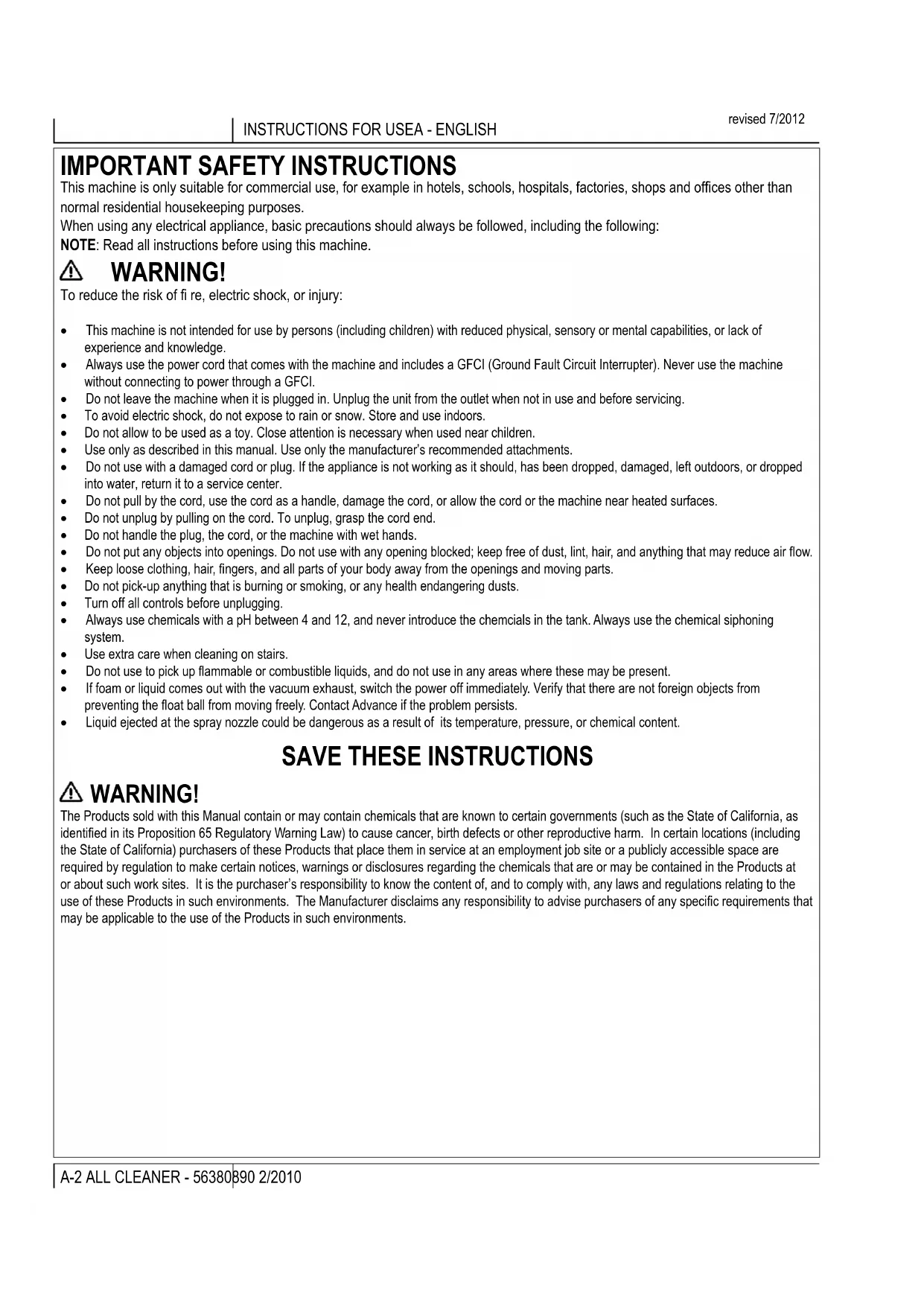

IMPORTANT SAFETY INSTRUCTIONS

This machine is only suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices other than normal residential housekeeping purposes.

When using any electrical appliance, basic precautions should always be followed, including the following:

NOTE: Read all instructions before using this machine.

WARNING!

To reduce the risk of fire, electric shock, or injury:

• This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
• Always use the power cord that comes with the machine and includes a GFCI (Ground Fault Circuit Interrupter). Never use the machine without connecting to power through a GFCI.
• Do not leave the machine when it is plugged in. Unplug the unit from the outlet when not in use and before servicing.
  • To avoid electric shock, do not expose to rain or snow. Store and use indoors.
• Do not allow to be used as a toy. Close attention is necessary when used near children.
• Use only as described in this manual. Use only the manufacturer's recommended attachments.
• Do not use with a damaged cord or plug. If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull by the cord, use the cord as a handle, damage the cord, or allow the cord or the machine near heated surfaces.
• Do not unplug by pulling on the cord. To unplug, grasp the cord end.
• Do not handle the plug, the cord, or the machine with wet hands.
• Do not put any objects into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep loose clothing, hair, fingers, and all parts of your body away from the openings and moving parts.
• Do not pick-up anything that is burning or smoking, or any health endangering dusts.
  • Turn off all controls before unplugging.
• Always use chemicals with a pH between 4 and 12, and never introduce the chemicals in the tank. Always use the chemical siphoning system.
  • Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, and do not use in any areas where these may be present.
• If foam or liquid comes out with the vacuum exhaust, switch the power off immediately. Verify that there are not foreign objects from preventing the float ball from moving freely. Contact Advance if the problem persists.
• Liquid ejected at the spray nozzle could be dangerous as a result of its temperature, pressure, or chemical content.

SAVE THESE INSTRUCTIONS

WARNING!

The Products sold with this Manual contain or may contain chemicals that are known to certain governments (such as the State of California, as identified in its Proposition 65 Regulatory Warning Law) to cause cancer, birth defects or other reproductive harm. In certain locations (including the State of California) purchasers of these Products that place them in service at an employment job site or a publicly accessible space are required by regulation to make certain notices, warnings or disclosures regarding the chemicals that are or may be contained in the Products at or about such work sites. It is the purchaser's responsibility to know the content of, and to comply with, any laws and regulations relating to the use of these Products in such environments. The Manufacturer disclaims any responsibility to advise purchasers of any specific requirements that may be applicable to the use of the Products in such environments.

INTRODUCTION

This manual will help you to get the most from your Advance All Cleaner. Read it thoroughly before operating the machine. This product is intended for commercial use only.

PARTS AND SERVICE

Repairs, when required, should be performed by Advance service personnel using original replacement parts and accessories. Call Advance for repair parts or service. Please specify the Model and Serial number when calling about your machine.

MODIFICATIONS

Modifications and additions to the cleaning machine which affect capacity and safe operation shall not be performed by the customer or user without prior written approval from Nilfisk-Advance Inc. Unapproved modifications will void the machine warranty and make the customer liable for any resulting accidents.

NAME PLATE

The model and serial number of your machine are shown on the Name Plate on the machine. This information is needed when ordering parts for the machine. Use the space below to note the model and serial numbers of your machine.

MODEL NUMBER/NAME:

SERIAL NUMBER:

UNPACKING

When the machine arrives, carefully inspect the shipping carton and the machine for damage. If damage is evident, save the shipping carton so that it can be inspected by the carrier. Contact the Advance customer service department immediately to file a freight damage claim.

DO NOT OPERATE THE MACHINE UNTIL YOU HAVE READ THIS SECTION

IMPROPER USE WILL VOID THE WARRANTY

• Always use a defoamer when foaming occurs to prevent vacuum motor damage.
• To keep fittings, pumps, and lines from damage during freezing conditions, use RV anti-freeze in the pump or keep the machine inside heated areas.
• Do not let the pump run dry.
• All chemicals should be added through the feed system and NOT in the tank.
- All extension cords must have a rating of at least 12/3 (12 gauge cord). Extension cords should be no longer than 50 feet. Replace the plug immediately if the ground prong becomes damaged or is broken off.
• DO NOT use water heated to greater than 120 °F (54 °C).

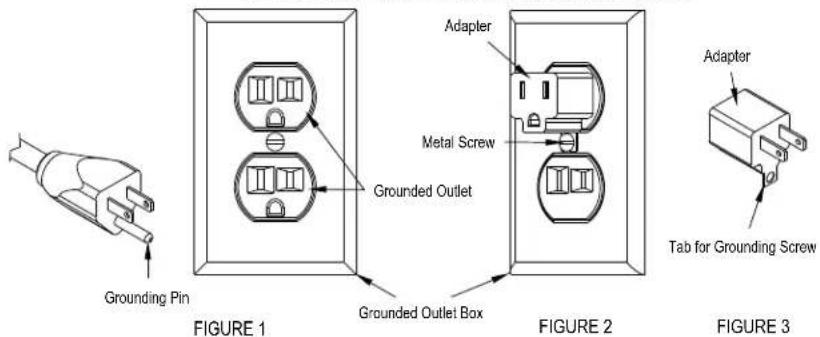

120VAC GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should electrically malfunction, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

DANGER!

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

This appliance is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in Figure 1 below. A temporary adapter illustrated in Figures 2 and 3 may be used to connect this plug to a 2-pole receptacle as shown in Figure 2 if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet (Figure 1) can be installed by a qualified electrician. The green-colored rigid ear, tab, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw. Grounding adapters are not approved for use in Canada.

Replace the plug if the grounding pin is damaged or broken.

The Green (or Green/Yellow) wire in the cord is the grounding wire. When replacing a plug, this wire must be attached to the grounding pin only. Extension cords connected to this machine should be 12 gauge, three-wire cords with three-prong plugs and outlets. DO NOT use extension cords more than 50 feet (15 m) long.

PLEASE NOTE: FOR NORTH AMERICA ONLY

Grounding Pin FIGURE 1 Grounded Outlet Box Adapter Metal Screw FIGURE 2 Adapter Tab for Grounding Screw FIGURE 3

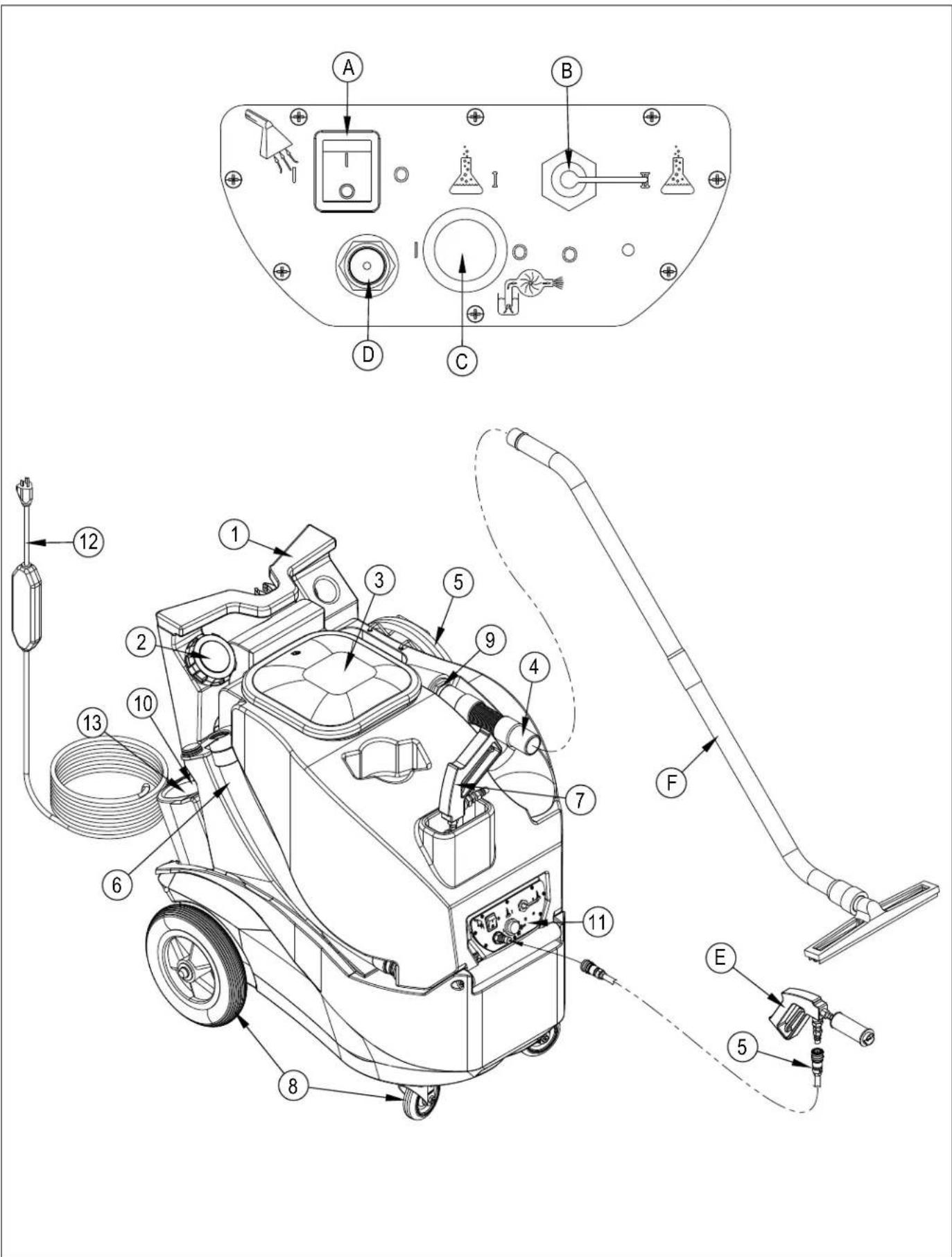

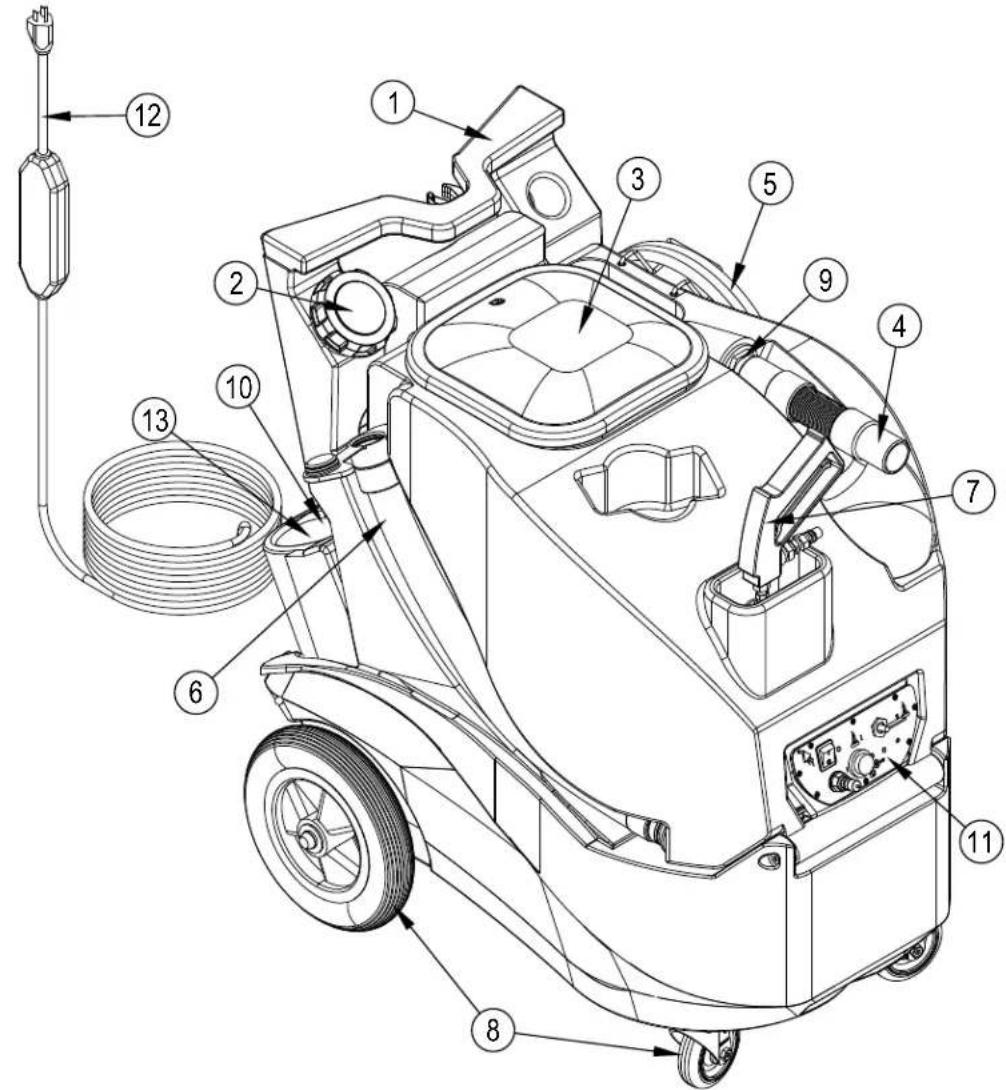

KNOW YOUR MACHINE DESCRIPTIONS

Operator Handle (1): Operator holds onto this handle to move the machine from one location to another.

Solution Tank Lid (2): This lid screws off so the tank can be filled. The solution fill hose is tethered to the lid, and hangs inside the arm of the Operator Handle.

Recovery Tank Lid (3): This lid covers the opening in the Recovery Tank. This is where the operator can access the tank to clean it and the ball float cage. The tank can be flushed out by running clean warm water into this opening and laying the open drain hose into a bucket or drain.

Recovery Hose (4): Waste water is picked-up through this hose.

Spray Hose (5): This hose delivers water from the machine to the cleaning tool.

Drain Hose (6): This hose is used to empty the recovery tank. NOTE: hold the end of the hose above the water level in the tank to avoid sudden, uncontrolled flow of waste water when you remove the cap, then lower the hose slowly to control the rate of discharge.

Tools & Accessories (7): Various accessories can be stored on the machine.

Castors and Wheels (8): Castors pivot for ease of steering, and large back wheels make it easy to roll the machine from location to location.

Recovery Hose Inlet (9): Point of attachment for the Recovery Hose (4).

Chemical Feed Lines (10): These clear tubes connect the cleaning chemical containers to the machine where the chemical can be siphoned into the outlet water from the pump. Metering tips -- used to change the ratio of water to chemical -- are installed here.

Switch Plate (11): The machine's on/off switches for the vacuum and for the pump are located here and this is where the valve to change chemical feeds is located.

Power Cord (12): The 25 ft. power cord connects to a power cord pigtail on the rear of the machine.

Chemical Container Holders (13): Two molded-in bottle holders for chemical jugs.

Technical diagram of a cleaning or cleaning device with numbered components and labeled parts

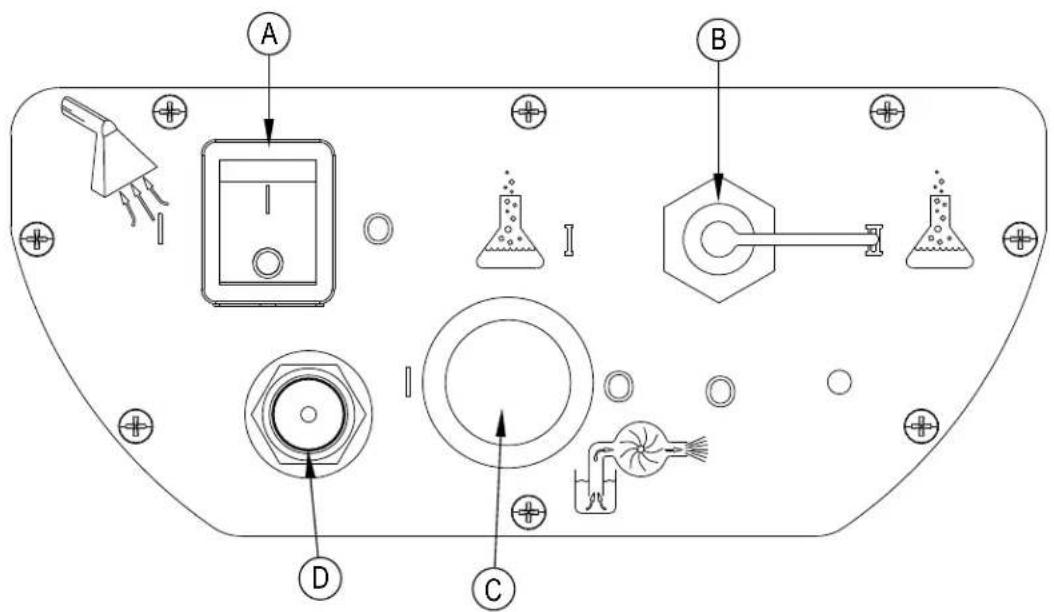

KNOW YOUR SWITCH PLATE

Vacuum Switch (A): turns on the vacuum motor.

Chemical Valve (B): switches between the two chemical containers. When the selector is pointed straight down, the valve is off and neither chemical is selected. When the selector is pointed directly towards one or the other symbols, that chemical is selected.

Solution Pump Switch (C): turns on the solution pump.

Quick Connect (D): this is where solution comes out of the machine and the attachment point for the solution hose.

METERING TIPS

Technical diagram of a device panel with labeled components including buttons, gauges, and control elements

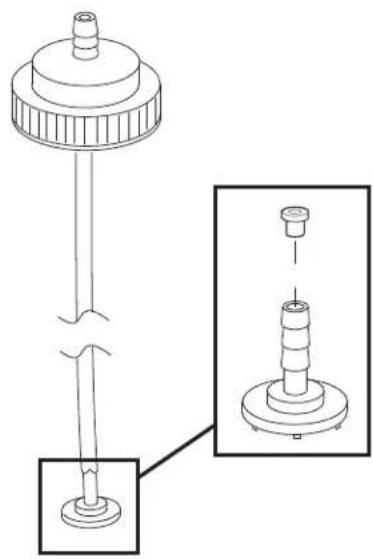

The chemical metering tips allow you to select the ratio of chemical to water, as the water flows out of the machine. Insert the correct metering tip for the desired mixture into the chemical siphon tube.

METERING TIPS
COLOR HOLE	SIZE MIX RATIO FLOW RATE
Orange 0.007 1 oz :	128 oz 1.0 oz/gal
Pink 0.012 1 oz : 64	oz 2.5 oz/gal
Dark Green 0.014 1	oz : 50 oz 3.0 oz/gal
Yellow 0.016 1 oz :	32 oz 5.0 oz/gal
Light Blue 0.020 1 oz :	20 oz 6.0 oz/gal
Burgundy	0.022 1 oz : 15 oz 9.0 oz/gal
Black	0.048	1 oz : 5 oz 20 oz/gal

Technical line drawing of a mechanical component with a base and pin assembly, shown in two views (no text or symbols)

OPERATION

1) Insert the appropriate metering tips into the chemical feed lines (see illustration, page 5).
2) Fill the holding tank (2) with warm water (not exceeding 120 °F). Do not add any chemical to the tank.
3) Prepare the area for cleaning by emptying waste receptacles, clearing debris, removing paper products, blowing out vents, and sweeping floors.
4) Connect the 25 ft power cord (12) to the pig-tail on the rear of the machine. Test the GFCI on the power cord before each use. Plug the GFCI protected power cord into an outlet.
5) PRIME THE PUMP: Attach the priming hose to the outlet quick disconnect (D) and place the open end of the hose into the recovery tank. Turn on the pump (C) and let it run until the pump is completely primed (no visible air in the water stream). Turn the pump off.

NOTE: Prime the machine before you place the chemical feed tubes into chemical containers.

6) Disconnect the priming hose and attach the solution hose (5) to the quick disconnect (D).

7) Attach the spray gun (E) to the other end of the solution hose (5).

8) Place chemicals in the molded-in chemical bottle containers (13) on the rear of the machine. Insert one of the feed lines into one of the chemical containers. Secure the line by screwing on the cap. The chemical will feed from which ever container the selector valve on the switch plate is turned towards and when the gun is used in the low pressure setting. Use chemicals with a pH of between 4 and 12. Never add chemicals to the clean water tank.

9) Set the spray gun (E) to low pressure by sliding the pressure selector forward (low pressure = forward; high pressure = back).

10) Turn on the pump switch (C) (push button) and spray through the gun for a few seconds to fill the line with solution.

11) Apply the chemical to the walls and fixtures from the bottom up. Spray the floor last as you work your way out of the room.

12) Allow the chemical to work for the proper amount of dwell time, according to the chemical manufacturer's directions. Agitate heavily soiled areas with a scrub brush.

13) Turn off the chemical injector valve (B) by turning the selector to the down position.

14) Set the spray gun (E) to high pressure and rinse the area from the top down.

15) Connect the vacuum hose (4), attach the squeegee (F), and turn on the vacuum (A) (rocker switch).

16) Squeegee off the mirrors, pick up the liquid off the floor with the floor tool. If you have the optional blow dry hose, use it to dry the fixtures.

17) Drain the recovered water into a utility sink or toilet. NOTE: Keep the top of the drain hose higher than the water level in the tank to avoid uncontrolled discharge of water when you open the cap on the hose.

CAUTION

To avoid vacuum motor damage, always use a defoamer any time foam is present.

Before you turn on the vacuum always make sure the filter screen on the ball float is clean and that the ball can travel freely.

RE-PRIMING THE PUMP

If the pump looses prime between jobs, follow the instructions to PRIME THE PUMP, above. If that doesn't get water flowing, put the priming hose into the vacuum inlet hose barb and cover the rest of the space around the priming hose with your hand. Turn on the vacuum (with the pump also running) and let the suction of the vacuum assist in getting water into the pump.

Technical diagram of a cleaning or dust cleaning device with numbered components and labeled parts

MAINTENANCE

1) Use only approved chemicals at the recommended mix ratios. All chemicals should be added through the feed system and NOT added directly to the water in the solution tank to prevent possible damage to the pump, seals, or other components.
2) For optimum performance, flush the Chemical Feed lines after every job by replacing the chemical containers with containers of clear water and spraying through the gun until the fluid stream is clear. See the Maintenance Schedule, below.
3) The pump seals and/or valves in the high pressure pumps may need to be replaced after about 1000 hours of use, if the pump begins to lose performance or to leak. The pressure regulator valve may need to be when a drop in the spraying pressure at the tool is apparent.
4) If the 4", clear lid is removed from the top of the base (solution tank), you will need to apply a silicone sealant to the threads when you reinstall the lid to seal for vacuum leaks.

MAINTENANCE SCHEDULE

ITEM DAILY WEEKLY QUARTELY YEARLY
Flush chemical lines X
Check/clean vac inlet fi Iter X
Clean solution fi Iter X
Check vacuum motor airways X
Check pump for leaks X
Check vacuum motor brushes* X

* Have Advance check the carbon brushes once a year or after about 500 hours of operation.

TECHNICAL SPECIFICATIONS (as installed and tested on the unit)

MODEL 56380772	56381594
VACUUM MOTOR:	2 stage, 8 amp	2 stage, 8 amp
WATER LIFT:	97"	97"
AIR FLOW:	100 CFM	100 CFM
TANK CONSTRUCTION:	Rotationally molded polyethylene Rotationally molded polyethylene
SOLUTION TANK CAPACITY:	20 gallon	20 gallon
RECOVERY TANK CAPACITY:	12 gallon	12 gallon
APPLICATION FLOW:	200 psi	400 psi
VAC & SOLUTION HOSE LENGTH: 15 feet	15 feet
POWER CORD:	25 feet 25 feet
HEIGHT:	38.5 inches	38.5 inches
WIDTH:	21.25 inches	21.25 inches
LENGTH:	34 inches	34 inches
WEIGHT	85 LBS	85 LBS

Technical diagram of a cleaning or cleaning device with numbered components and labeled parts

CONOZCA SU PLACA DE INTERRUPTORES

Technical diagram of a device panel with labeled components including buttons, gauges, and control elements

Technical line drawing of a mechanical component with an inset close-up showing its assembly (no text or symbols)

FUNCIONAMIENTO

Technical diagram of a cleaning or dust cleaning device with numbered components and labeled parts

MANTENIMIENTO

Technical diagram of a cleaning or cleaning device with numbered components and labeled parts

VOTRE PLAQUE DE COMMUTATEURS

Technical diagram of a device panel with labeled components including buttons, gauges, and control elements

EMBOUTS DE DOSAGE

Technical line drawing of a mechanical component with a close-up inset showing its assembly (no text or symbols)

UTILISATION

⚠️ RÉAMORCER LA POMPE

Technical diagram of a cleaning or dust cleaning device with numbered components and labeled parts

ENTRETIEN

Technical diagram of a car chassis with numbered components and labeled parts for assembly or maintenance reference.

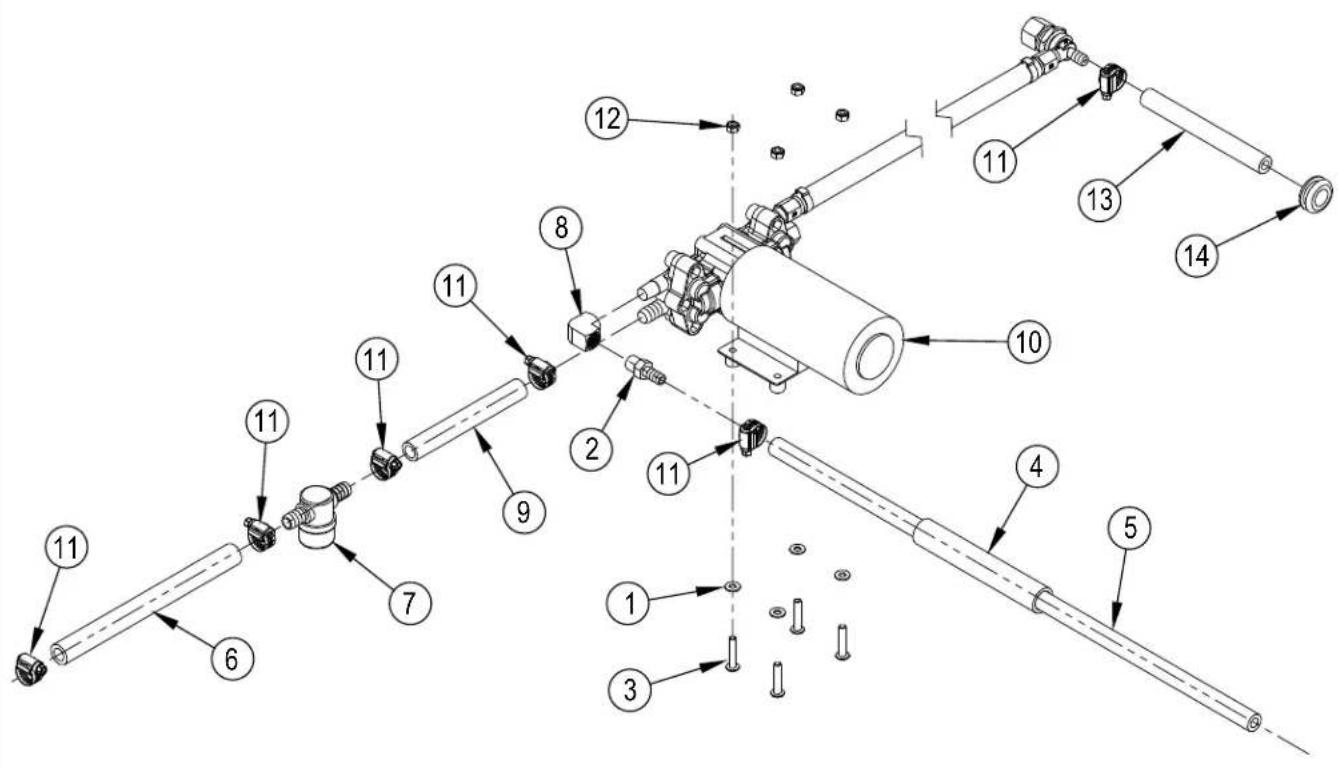

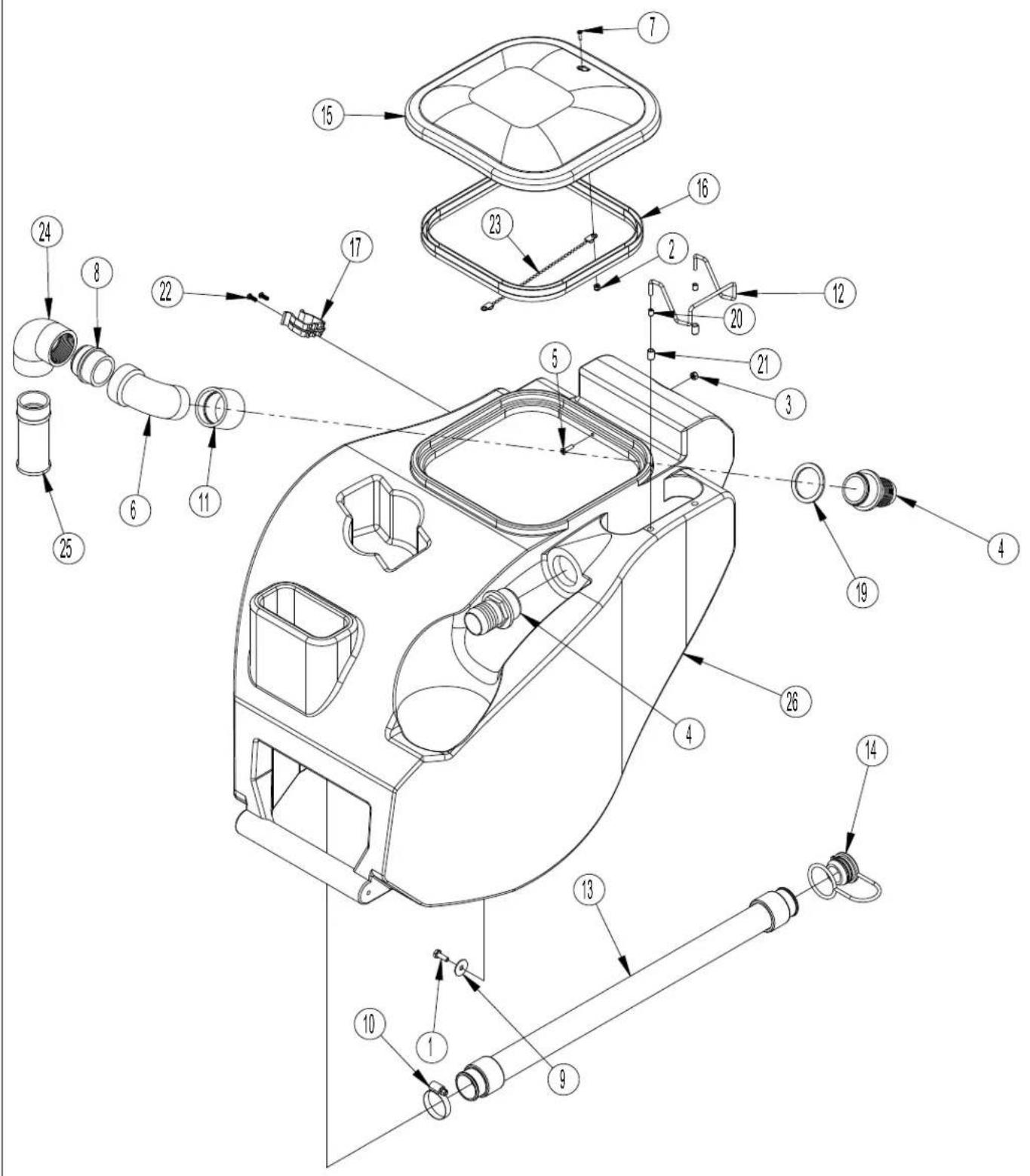

BASE ASSY

Item Ref. No. Qty Description

1	5	1	Bolt Hex 1/4-20 X 3/4 Full
2	14	9	Washer Flat 3/16 Zinc Plat
3	170	1	Elect Butt Conn 10-12 Ga Non-I
4		239	1 Fitting-Adapter-Brass-3-4x3-8
5		325	6 Nut-Nylon Lock-Ss-8-32
7	983	1	Lid and Ring 4 Lid Clear
8		1065	1 5' Hose Fill Apc
9		1097	1 Bolt-Hex-1/4-20 X 1/2-Ss
10		1345	1 Washer-Fender-1/4 Id-1 Od-Ss
11		1460	3 Washer Internal Tooth 10
12		1602	1 Clip Handle Black Vinyl Coated
13		1603	1 Strap/Buckle Cord Wrap W/Spur
14		1609	1 Grommet 3/4 Id X 3/16 Panel
15		1648	1 Cap Garden Hose 3/4 Fght N
16		2084	2 Wheel 10 Grey Plastic Insert
17		56380594	1 Caster-Plate-Orca
18		56380696	1 Foam Reticulated 20 Ppi 1/2 X
19		56380755	2 Plug Square Tube Smooth 3/4
20		56380942	1 Gasket For Apc Closed Cell B
21		56510442	1 Cap – Extra Vent TSB-FC-2015-031
22		1065A	1 Adapter Faucet Inside/Outsid
23		1645	1 Strap-0.75 x 13.75-Black-Poly Web
24		27AUSP	2 Axel Cap Black Pal Nut
25		325C	1 Bolt-Php-Ss-8-32x1/2
26		382C	6 Screw 8-32 X 7/8 Panhead Phi
27	5A		8 Screw 1/4-20 X 5/8 Hesx
28	79B		1 Tie Wire 8 w/Mounting Hole
29		801F	2 Hinge Pin 1/4 X 2.25 S/S
31		905USP	2 Caster Swivel 4 Gray Non Ma
32		910-2150	1 Axel Rod Zinc Plated 1/2
33		56380795	1 Holding Tank/Base Drilled And
[]		56380844	1 Labels Kit All Cleaner
[]#		56394259	1 Decal-Prop 65

[] = Not Shown
* = Optional, Not Included

= Revised or new since last update

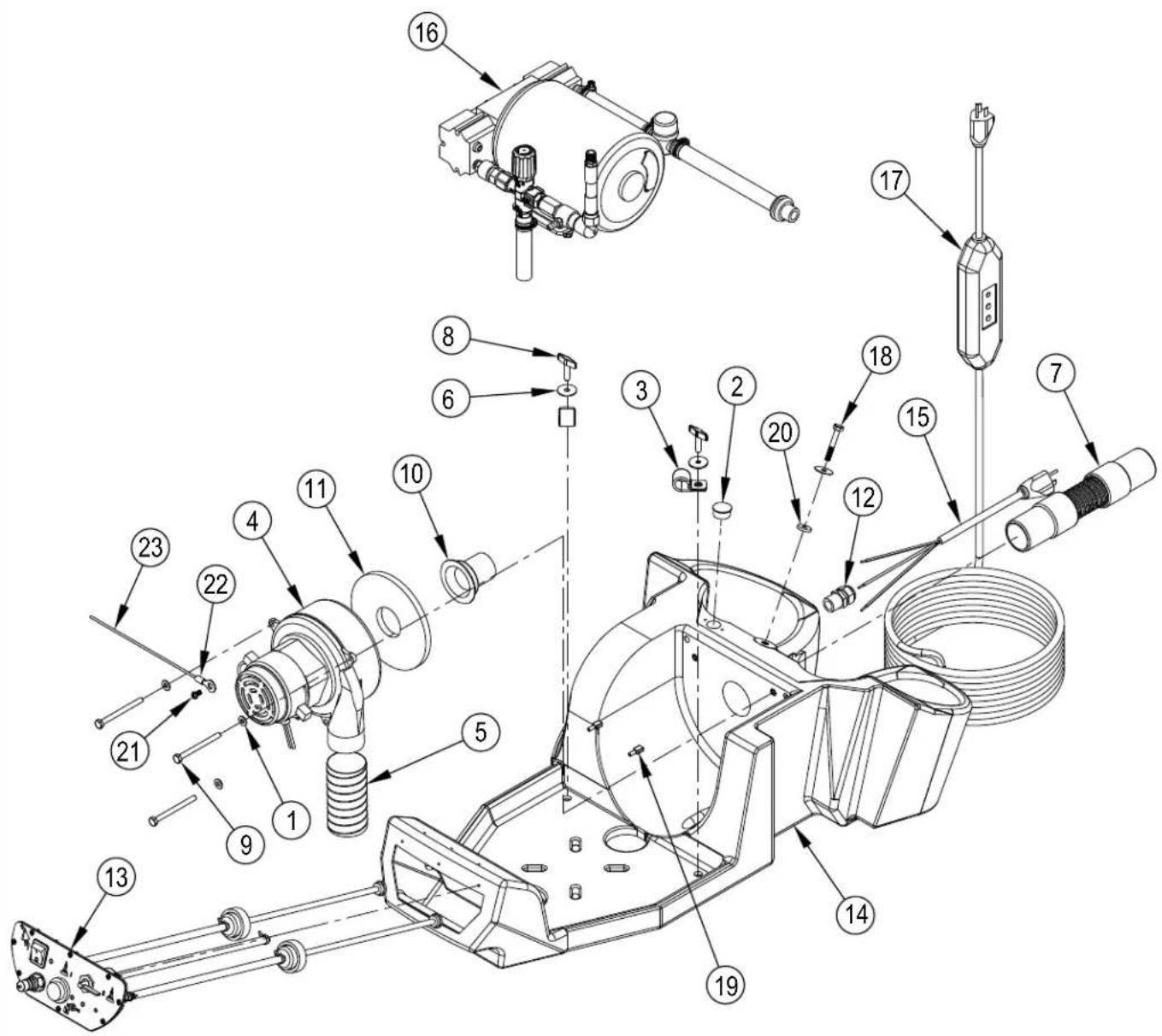

EQUIPMENT PALLET-STD

Technical diagram of a mechanical assembly with numbered components for identification and assembly reference.

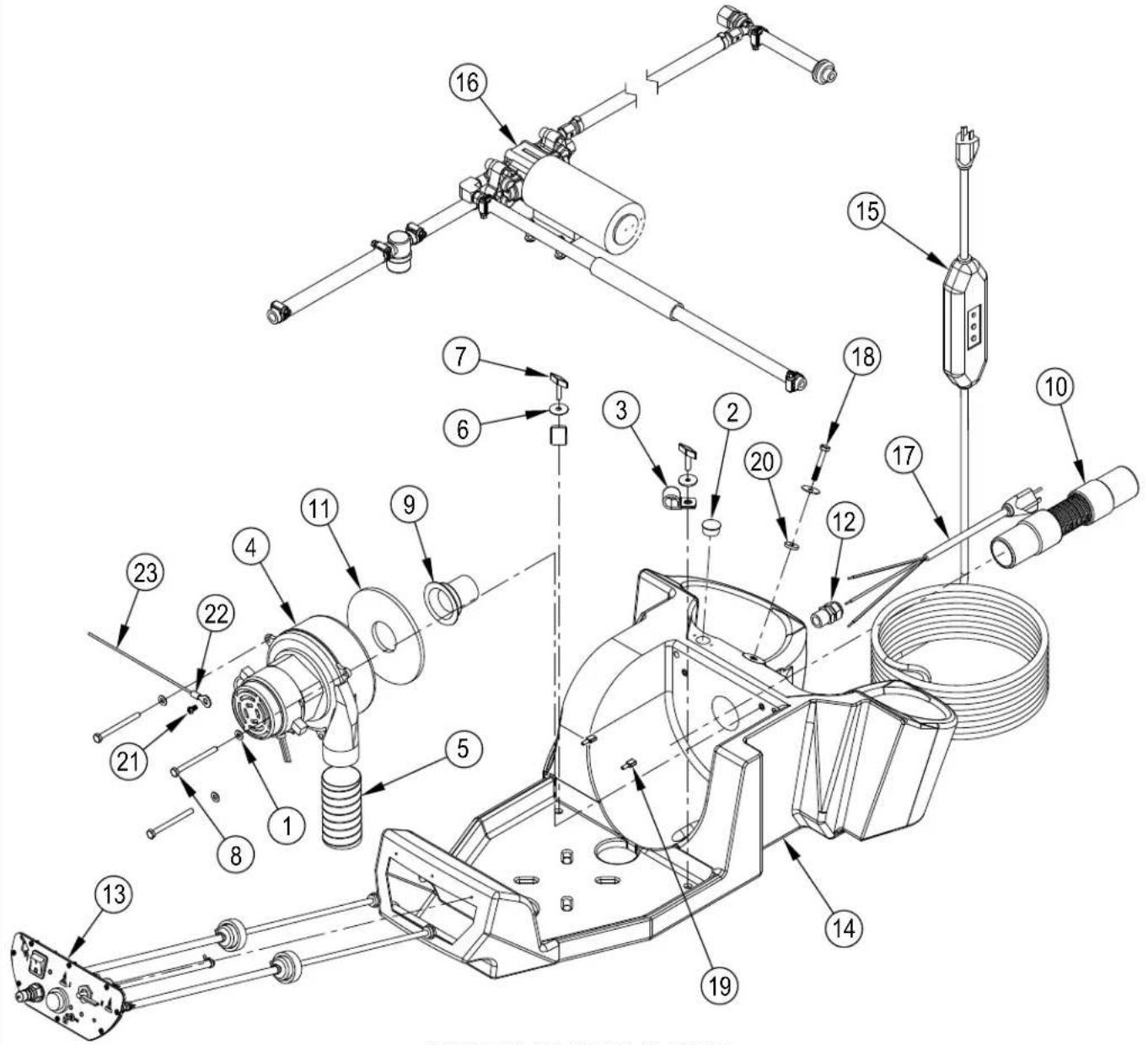

EQUIPMENT PALLET-STD

Item Ref. No. Qty Description

56380867 1 Pallet Kit Component Mounting

1 14 3 Washer Flat 3/16 Zinc Plat

2 183 1 Plug For A .875 Hole Used On

3 231 2 Hose Clamp 3/4 I.D. For Hhp

4 408 1 Vac Motor, 120v

5 56113132 1 Vac Hose Rubber 4.0 X 2.0 ID

6 1345 3 Washer 1/4 I.D. 1 O.D. F

7 1548 2 Screw Thumb 1/4-20 X 1 Type

8 1574 3 Bolt 1/4-20

9 1630 1 Sleeve Vacuum Outlet For Hos

10 1136 1 Hose Vacuum Clear 1-1/2 X

11 2013A 1 Gasket 1 Side Adhesive 5 1/2

12 230USP 1 Retainer Power Cord Water T

13 1 Switch Assembly Pump & Vac Onl NOTE 1

Item Ref. No. Qty Description

14	56380839	1	Pallet Drilled And Prepped. N
15	56380774	1	Power Cord/GFCI Assembly For M
16		1	Pump Assembly 200 Psi All Cle NOTE 2
17	2155	1	Power Cord Pigtail 12/3 SJTW
18	138A	1	Bolt Hex 1/4-20 X 1-3/4
19	56244138	2	Rec .250 Ins 16 – 14 AWG
20	218	1	Washer Rubber 1/4 Id X 3/4
21	33	1	Screw 10-32 X 3/8 Slotted
22	65	1	Electrical Connec. Ring 10 St
23	479	1	Wire Green 14 Gauge 500ft

NOTE 1: See SWITCH PLATE ASSY-STD.

NOTE 2: See PUMP ASSY-STD.

EQUIPMENT PALLET-XP

Technical diagram of a mechanical assembly with numbered components for identification and assembly reference.

EQUIPMENT PALLET-XP

Item Ref. No. Qty Description

1 14 3 Washer Flat 3/16 Zinc Plat

2 183 1 Plug For A .875 Hole Used On

3 231 2 Hose Clamp 3/4 I.D. For Hhp

4 408 1 Vac Motor, 120v

5 56113132 1 Vac Hose Rubber 4.0 X 2.0 ID

6 1345 3 Washer 1/4 I.D. 1 O.D. F

7 1136 1 Hose Vacuum Clear 1-1/2 X

8 1548 2 Screw Thumb 1/4-20 X 1 Type

9 1574 3 Bolt 1/4-20

10 1630 1 Sleeve Vacuum Outlet For Hos

11 2013 1 Gasket 1 Side Adhesive 5-1/2 O

12 230USP 1 Retainer Power Cord Water T

13 1 Switch Assembly Apc-12 Clarke. NOTE 1

14 56380839 1 Pallet Drilled And Prepped. N

Item Ref. No. Qty Description

15 2155 1 Power Cord Pigtail 12/3 SJTW

16 1 Pump Assembly For Apc 120v. W/ NOTE 2

17 56380774 1 Power Cord/GFCI Assembly For M

18 138A 1 Bolt Hex 1/4-20 X 1-3/4

19 56244138 2 Rec .250 Ins 16 - 14 AWG

[] 56384140 1 Harness-Orca 1

20 218 1 Washer Rubber 1/4 Id X 3/4

21# 30 1 Screw 10-24 X ½ HH

22 65 1 Electrical Connec. Ring 10 St

23 479 1 Wire Green 14 Gauge 500ft

[] = Not Shown

# = Revised or new since last update

NOTE 1: See SWITCH PLATE ASSY-XP.

NOTE 2: See PUMP ASSY-XP.

PUMP ASSY-STD

Technical diagram of a mechanical assembly with numbered components for identification and assembly reference.

PUMP ASSY-STD

Item Ref. No. Qty Description

1	14	4 Washer Flat 3/16 Zinc Plat
2	164	1 Hose Barb With Male 1/4 Pipe X 3/8 Hose Brass
3	204	4 Screw 12-24 X 1-1/4 Phill
4	460	4" Tube-Blk-3-4 Id X 1 X 100ft
5	925	20" Hose 3/8 Id 0.688 Od Red
6	946	8.75" Hose 1/2 Id 2 Braid 200 Psi
7	1050	1 Filter Water In-Line
8	1280	1 Elbow 90 Deg 1/4 Fpt X 1/4 F
9	1550	11" Hose 1/2 Id Wire Reinforced
10	56380789	1 Kit Pump And Motor 200 Psi Com
*	56380791	1 Motor Pump Drive 960d. All C (for 56380789)
*	960E	1 Valve Pressure Regulator 2 (for 56380789)
11	166USP	6 Hose Clamp-Ss-3/8-7/8
12	204A	4 Nut S/S Nylock 12-24
13	925	4" Hose 3/8 Id 0.688 Od Red
14	1609A	1 Grommet 11/16 Id X 1/4 Pane

* = Optional, Not Included

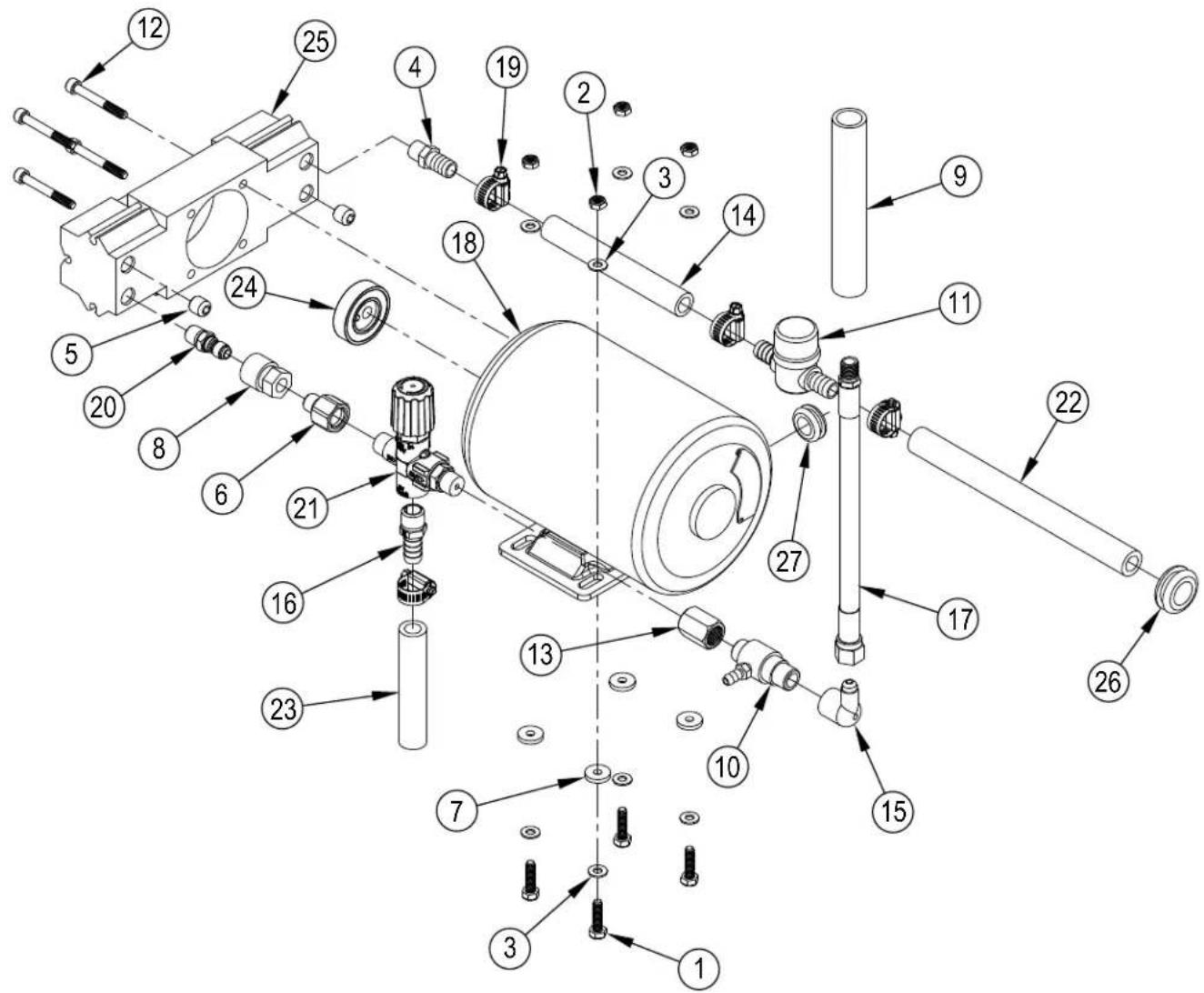

PUMP ASSY-XP

Exploded view diagram of a mechanical assembly with numbered components for identification

PUMP ASSY-XP
Item Ref. No. Qty Description

1	4	4	Bolt-Hex-Flthrd-Ss-Zp-1-4-20x1
2	8	4	Nut-Nylock-Zp-1-4-20
3 14 8 Washer Flat 3/16 Zinc Plat
4 165 1 Hose Barb 1/4 Pipe X 1/2 Hose Brass
5 211 2 Plug Brass Pipe 1/4 Pipe H
6 217 1 Reducer 3/8 Pipe Female To 1
7	218	4	Washer-Flat-1/4x3/4x1/8-60 Dur0
8 220 1 Qd-Brass-1/4 Fpt-Socket Straight
9 460 6" Tube-Blk-3-4 Id X 1 X 100ft
10	1049	1	Injector Chemical Brass 4500
11	1050	1	Filter Water In-Line
12	1147	4	Screw-Shcs-Ss-1/4-20x2x1
13	1517	1	Coupling-3-8 X 3-8-Brass

Item Ref. No. Qty Description

14	1550	6"	Hose 1/2 Id Wire Reinforced
15	1658	1	Flare Fitting Fm 90 Deg -6 X
16	1659	1	Hose Barb 1/2 Hose To 3/8 M
17	1660	1	Hose-21 In-1-4-Mpt-45-Fem-Flare-6
18	2060	1	Motor A/C 1/3 Hp For 300 Psi P
19	166USP	4	Hose Clamp-Ss-3/8-7/8
20	221USP	1	Qd-Plug-Brass-1/4 Mpt-St
21	945D	1	Unloader Valve For 500 Psi Pum
22	946	8.75"	Hose 1/2 Id 2 Braid 200 Psi
23	946	4"	Hose 1/2 Id 2 Braid 200 Psi
24	950A	1	Bearing & Cam Assembly .110
25	950F	1	Pump Piston Style 300-500 Ps
26	1609	1	Grommet 3/4 Id X 3/16 Panel
27	56050955	1	Grommet

Exploded view diagram of a mechanical assembly with numbered components for identification

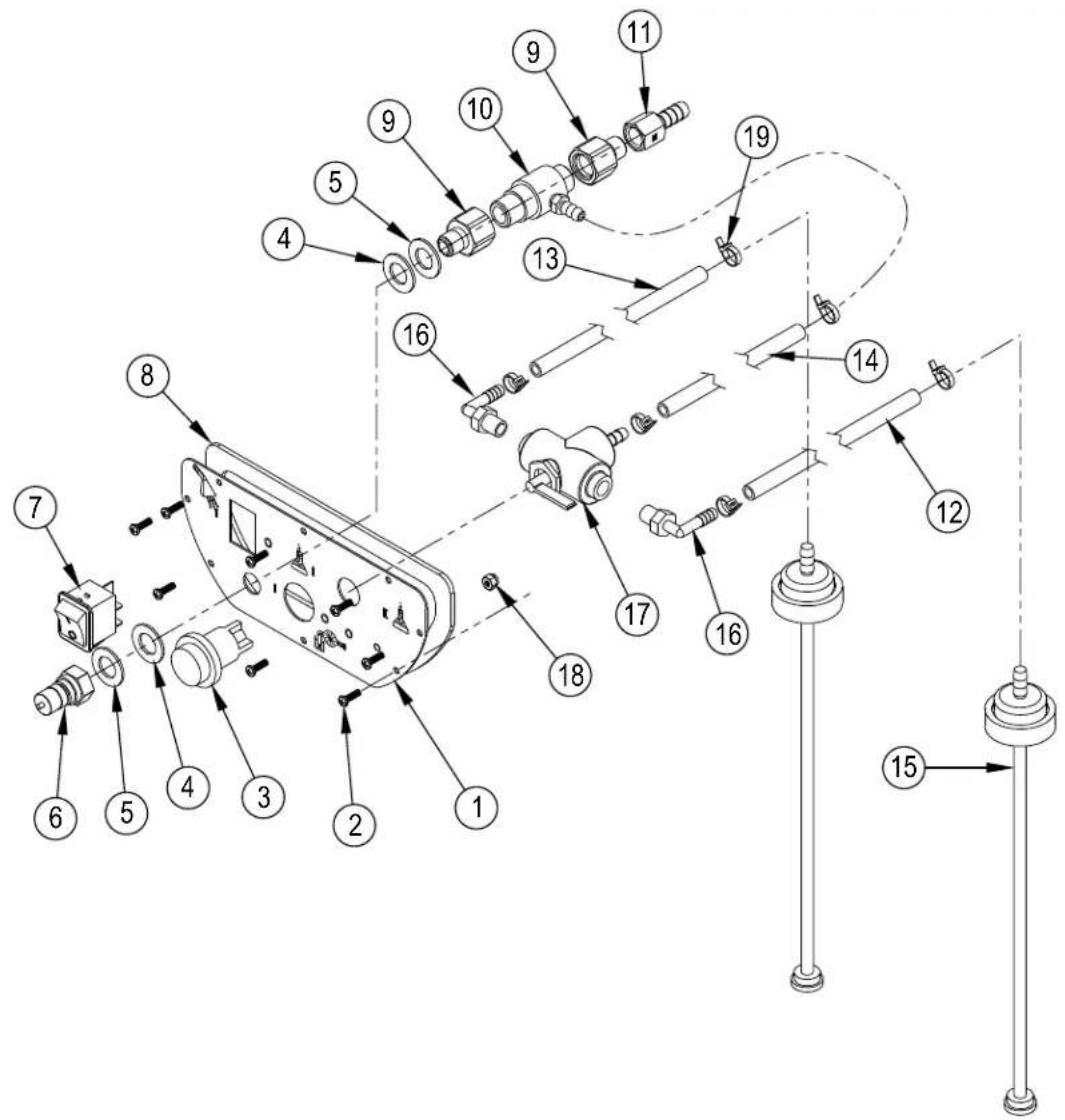

SWITCH PLATE ASSY-STD

Item Ref. No. Qty Description

1	1628	1	Switchplate
2	267	8	Screw-Php-Ss-6x1/2-Sms
3	1623R 1	Switch On-Off Illuminated Cle
4	115USP 2	Washer 1 Od X 9/16 Id X
5	31USP 2	Washer Brass Half Hard 1 X
6	45USP 1	Quick Disconnect Plug Male
7	2123	1	Switch Rocker Dpst W/Light 120
8	1628G	1	Gasket-Poron-Switchplate
9	217	2	Reducer 3/8 Pipe Female To 1
10	1049	1	Injector Chemical Brass 4500
11	318AB	1	Hose Barb Solution Tank Standa
12	FP277 1	Hose 1/4 ID X 61 Chemical
13	FP277 1	Hose 1/4 ID X 61 Chemical
14	FP280 1	Hose 1/4 X 30 Chem/Bottle
15	1079	2	Chemical Feed Cap & Tube W/Ff
16	1000	2	Hose Barb 90 Deg Nylon 1/8 Mpt
17	988B	1	Valve 3-Way For Spotter & Apc
18	16	1	Nut Nylon Lock 6/32 Z.P.
19	35	6	Tie 4 Black Weather Resis

Exploded view diagram of a mechanical assembly with numbered parts for identification

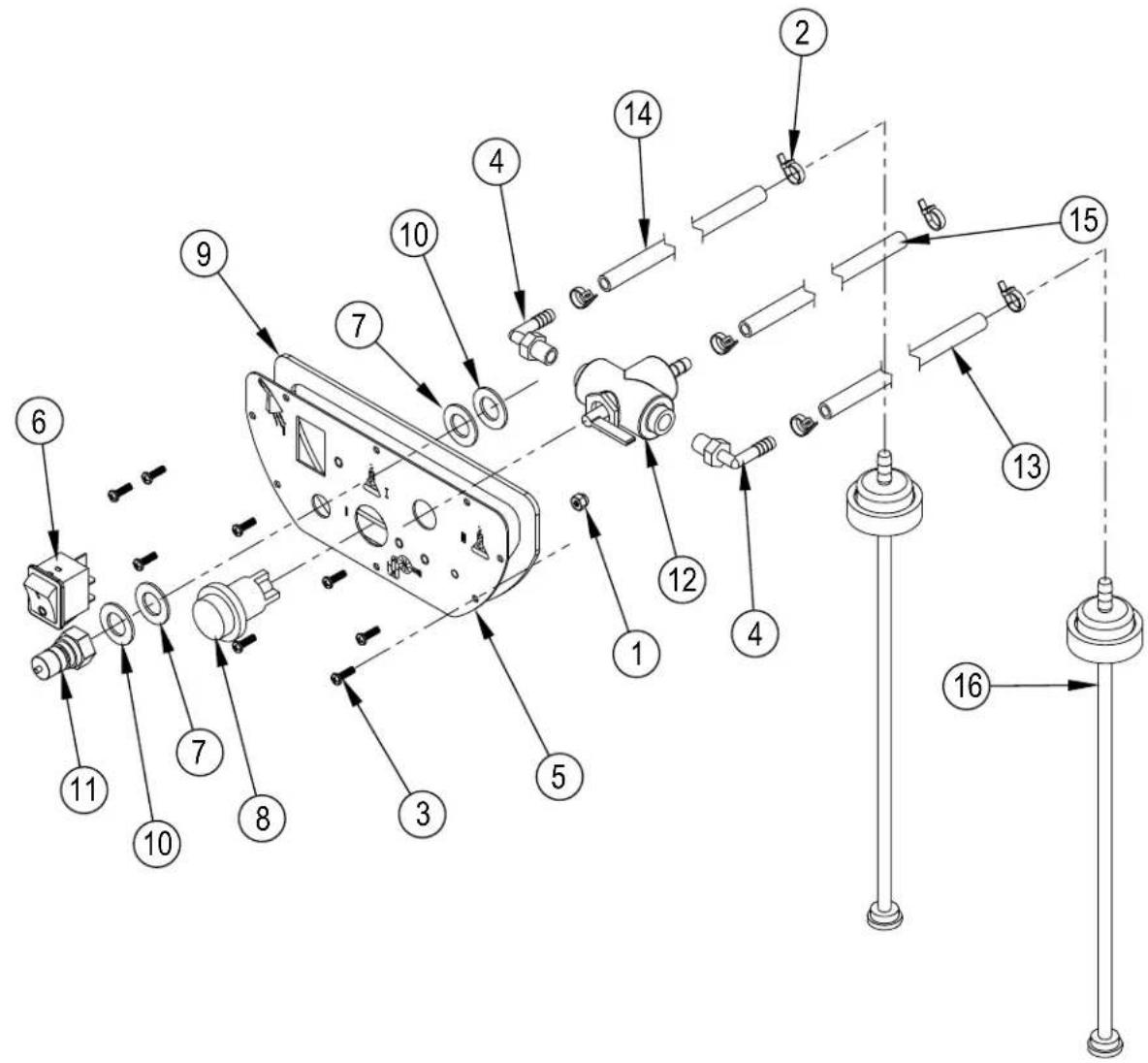

SWITCH PLATE ASSY-XP

Item Ref. No. Qty Description

1	16	1	Nut Nylon Lock 6/32 Z.P.
2	35	6	Tie 4 Black Weather Resis
3		267	8	Screw-Php-Ss-6x1/2-Sms
4	1000	2	Hose Barb 90 Deg Nylon 1/8 Mpt
5		1628	1	Switchplate
6	1644	1	Switch Rocker Dpst On/Off 20
7	115	USP 2	Washer 1 Od X 9/16 Id X
8	1623R	1	Switch On-Off Illuminated Cle
9		1628G	1	Gasket-Poron-Switchplate
10		31USP	2	Washer Brass Half Hard 1 X
11		45USP	1	Quick Disconnect Plug Male
12	988B		1 Valve 3-Way For Spotter & Apc
13		FP277	1 Hose 1/4 ID X 61 Chemical
14		FP277	1 Hose 1/4 ID X 61 Chemical
15		FP280	1 Hose 1/4 X 30 Chem/Bottle
16	1079	2	Chemical Feed Cap & Tube W/Ff

TANK ASSY

Technical diagram of a mechanical assembly with numbered components for identification

TANK ASSY

Item	Ref. No.	Qty	Description
1	5	1	Bolt Hex 1/4-20 X 3/4 Full
2	16	1	Nut Nylon Lock 6/32 Z.P.
3		17	1 Nut-Nylon Lock-Ss-10-32
4	907		2 Hose Barb Fitting Black Abs
5		1109	1 Screw 10-32 X 3/4 Ms Flath
6		1140	1 Elbow 90 Degree Abs 1-1/2 S
7		1152	1 Scr-Pan Phil 6-32 X .50
8		1154	1 Adapter Abs 1-1/2 Trap Sl
9		1345	1 Washer-Fender-1/4 Id-1 Od-Ss
10		1518	1 Hose Clamp 3/4 X 1 3/4 Ss
11		1528	1 Adapter Female 1 1/2
12		1647	1 Hanger-Wire-3/16-Ss
13		56262143	1 Hose Assembly
14		56383665	1 Plug-Drain Hose-1.5IN-LT Gray
15		56397045	1 Lid
*		56382778	1 Lid Assembly NOTE 2
16		56397151	1 Gasket
17		56407361	1 Clamp, Plastic
19		187B	1 Washer-Flat-Buna'n-1-3/4idx0.125
20		316AB	2 Cap Black .165 I.D. X 27/16 I
21		324AB	2 Cap .281 I.D. X 1/2 Long In B
22		325C	2 Bolt-Php-Ss-8-32x1/2
23		805USP	1 Chain-Cover
24		922USP	1 Elbow 90 Pvc 1-1/2 Slip X F
25		929B	1 Filter S/S Ball Float
26		56380785	1 Recovery Tank Complete NOTE 1

NOTE 1: Includes items (4, 6, 8, 10, 11, 13, 14, 17, 24, 25)
NOTE 2: Includes items (2, 7, 15, 16, 23)

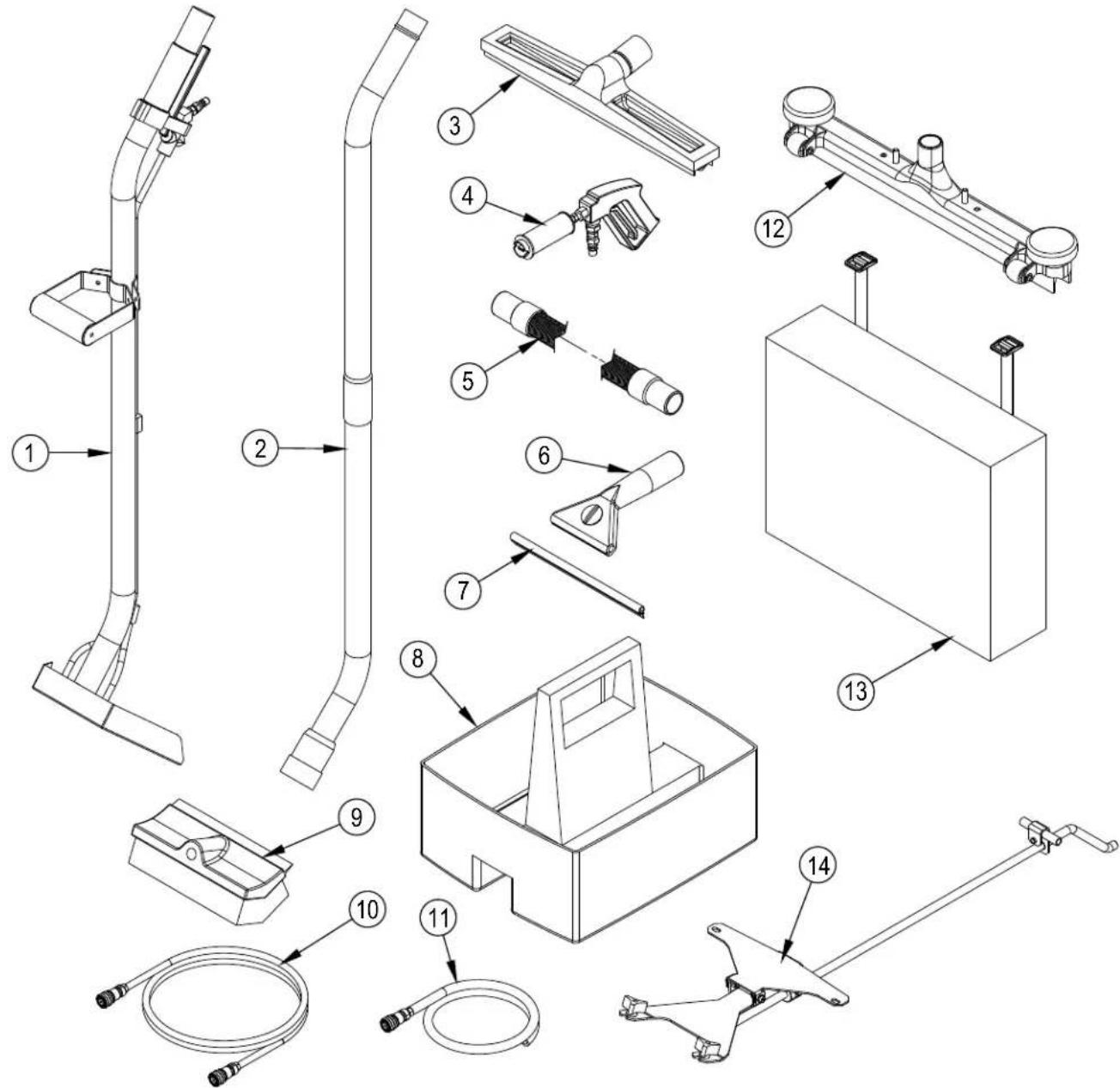

Technical diagram of a spray gun assembly with numbered components for identification and assembly reference.

ACCESSORIES
Item Ref. No. Qty Description
TOOLS

2 56108027 1 Wand 2 Piece Alum. Snap Fit

3 56108028 1 Floor Squeegee Tool 14

4 56108072 1 Spray Gun Complete

5 1059B 1 Hose Vacuum Black 1.6 X 15

6 56380853 1 Handle 12 for Hand Squeegee

7 56380854 1 Squeegee 12 Inch for Use With

9 56380855 1 Brush Dual Surface with Squeegee

11 SUBSYP1 1 Syphon Hose for HHP-12

[1] 56380802 1 Metering Tips Kit Two Each Of

[] 56380852 1 Handle 54 Black Metal for

Item Ref. No. Qty Description

OPTIONAL ACCESSORIES

1#	CSW-12HP	1	Carpet Scrub Wand 12head-Hp
8#	56380938	1	Maids Tote blue
10#	56380838	1	Pressure Line 25 ft Complete
#	56381617	1	Pressure Line 15 ft Complete
12	56209088	1	Squeegee Assembly 24
12	56209089	1	30 Squeegee Assy.
13	56315316	1	Tote Bag
14	56380871	1	Frame Assembly for Front Mount
[]	56380856	1	Frame Microfiber Mop Used Wit
[]	56380857	1	Mop Microfiber 6 per Kit
[]	56380877	1	Blower Hose and Nozzle Assembly
[]	56380913	1	Chemical Injector and Metering

[] = Not Shown

= Revised or new since last update

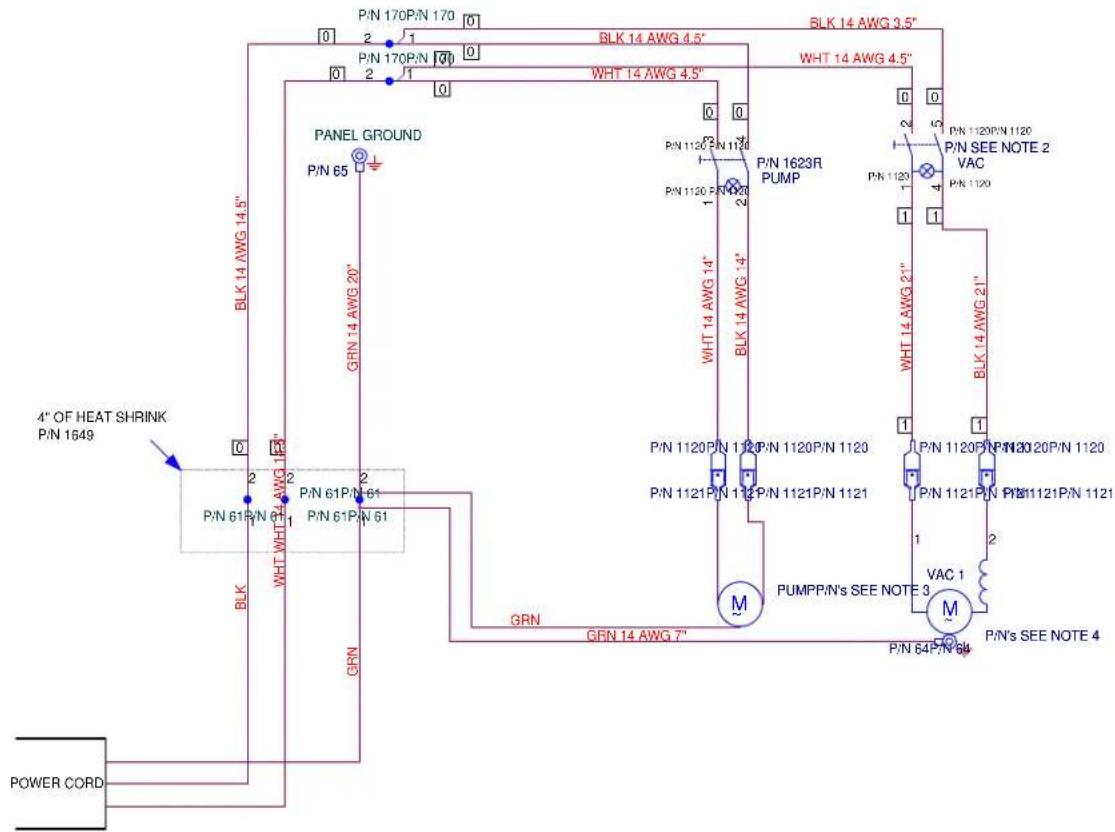

WIRING DIAGRAM BEFORE JUNE 2015

P/N 170P/N 170 0 2 1 BLK 14 AWG 4.5" P/N 170P/N 170 0 2 1 WHT 14 AWG 4.5" P/N 65 GRN 14 AWG 20" P/N 61P/N 61 P/N 61P/N 61 BLK 14 AWG 14.5" 4" OF HEAT SHRINK P/N 1649 GRN GRN GRN 14 AWG 7" BLK 14 AWG 3.5" WHT 14 AWG 4.5" P/N 1623R PUMP P/N 1120 P/N 1120 P/N 1120 P/N 1120 P/N 1120 P/N 1120 P/N 1120 P/N 1120 P/N 1120 P/N 1120 P/N 1120 P/N 1120 P/N 1120 P/N N S E E NOTE 2 VAC P/N 1120 P/N 1120 P/N 1120 P/N 1120 P/N 1120 P/N 1120 P/N 1120 P/N 1120 P/N 64P/N 64 GRN GRN PUMPP/N'S SEE NOTE 3 M M P/N'S SEE NOTE 4

1. NON-CSA MACHINE
2. VAC SWITCH
   ALL CLEANER - PIN 2123
   ALL CLEANER XP AND TFC 400 - P/N 1644
3. PUMPS
   ALL CLEANER - P/N 960
   ALL CLEANER AND TFC 400 - P/N 2060(120V)
   APC 328(400PSI) - P/N 2064-CE
4. VAC
   ALL CLEANER · P/N 408
   ALL CLEANER XP AND TFC 400 - P/N 408
   APC 328(400PSI) - P/N 407A
   ALL CLEANER XP AND TFC 400 - P/N 2060(120V)

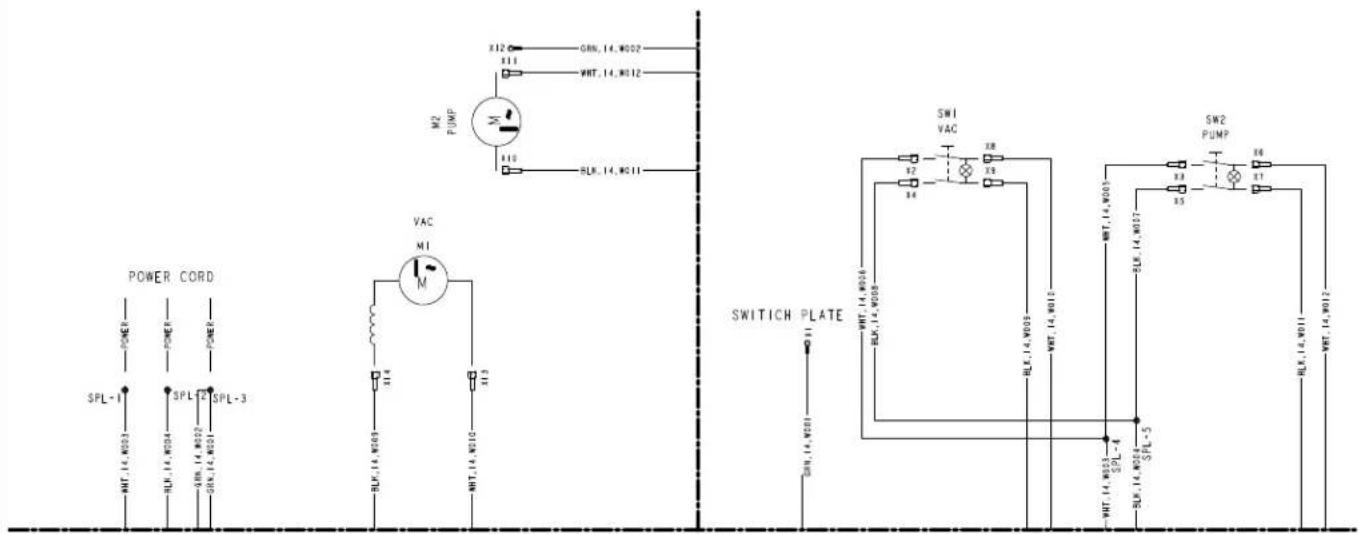

WIRING DIAGRAM AFTER MAY 2015

POWER CORD SPL-1 SPL-2 SPL-3 WMT.14.W003 WMT.14.W004 WMT.14.W005 WMT.14.W006 WMT.14.W007 WMT.14.W008 WMT.14.W009 WMT.14.W010 VAC M1 M X12 GRN.14.W002 X11 WMT.14.W012 X10 SLR.14.W011 SW1 VAC X2 X3 X4 X5 SW2 PUMP X6 X7 SWITCH PLATE WMT.14.W004 BLK.14.W005 BLK.14.W006 BLK.14.W007 BLK.14.W008 BLK.14.W009 BLK.14.W010 BLK.14.W011 BLK.14.W012
