INTRODUCTION 2

MANUAL PURPOSE AND CONTENTS 2
TARGET 2
HOW TO KEEP THIS MANUAL 2
IDENTIFICATION DATA 2
OTHER REFERENCE MANUALS 2
SPARE PARTS AND MAINTENANCE 2
CHANGES AND IMPROVEMENTS 2
OPERATION CAPABILITIES 2
CONVENTIONS 2

UNPACKING/DELIVERY 3

SAFETY 3

SYMBOLS 3
GENERAL INSTRUCTIONS 3

MACHINE DESCRIPTION 5

MACHINE STRUCTURE 5
CONTROL PANEL 7
BATTERY CHARGER DATA INSPECTION WINDOW 7
MACHINE STRUCTURE - DESCRIPTION 8
CONTROL AND SWITCH DESCRIPTION 9
WARNING LIGHT AND INDICATOR DESCRIPTION 10
BATTERY WARNING LIGHT DESCRIPTION 10
ACCESSIONS/OPTIONS 10
TECHNICAL DATA 11
WIRING DIAGRAM 12

USE 13

BATTERY CHECK/SETTING ON A NEW MACHINE 13
BATTERY INSTALLATION AND BATTERY TYPE SETTING (WET OR GEL) 14
BEFORE MACHINE START-UP 15
MACHINE START AND STOP 18
MACHINE OPERATION (SCRUBBING/DRYING) 18
TANK EMPTYING 20
AFTER USING THE MACHINE 20
MACHINE LONG INACTIVITY 20
FIRST PERIOD OF USE 20

MAINTENANCE 21

SCHEDULED MAINTENANCE TABLE 21
CHARGING THE BATTERIES 21
MACHINE WORKING HOUR CHECK 22
SQUEEGEE CLEANING 22
SQUEEGEE BLADE CHECK AND REPLACEMENT 23
BRUSH/PAD CLEANING 24
TANK AND VACUUM GRID WITH FLOAT CLEANING, AND COVER GASKET CHECK 24
VACUUM SYSTEM MOTOR FILTER CLEANING 25
SOLUTION FILTER CLEANING 25
CLEAN WATER FILTER CLEANING 26
FUSE CHECK/REPLACEMENT 27
BRUSH/PAD-HOLDER/CYLINDRICAL BRUSH DECK DISASSEMBLY/ASSEMBLY 28
DETERGENT TANK CLEANING 29
AXP DRAINING 29

TROUBLESHOOTING 30

SCRAPPING 30

INTRODUCTION

NOTE

The numbers in brackets refer to the components shown in Machine Description chapter.

MANUAL PURPOSE AND CONTENTS

The purpose of this Manual is to provide the operator with all necessary information to use the machine properly, in a safe and autonomous way. It contains information about technical data, safety, operation, storage, maintenance, spare parts and disposal.

Before carrying out any procedure on the machine, the operators and qualified technicians must read this Manual carefully.

Contact Nilfisk-Advance in case of doubts regarding the interpretation of the instructions and for any further information.

TARGET

This Manual is intended for operators and technicians qualified to perform the machine maintenance.

The operators must not carry out procedures reserved for qualified technicians. Nilfisk-Advance will not be answerable for damages coming from the non-observation of this prohibition.

HOW TO KEEP THIS MANUAL

The Instructions for Use Manual must be kept near the machine, inside an adequate case, away from liquids and other substances that can cause damage to it.

IDENTIFICATION DATA

The machine model and serial number are marked on the plate (34).

The machine model year is shown after the Date Code on the serial plate (A06 means January 2006).

This information is useful when requiring machine spare parts. Use the following table to write down the machine identification data.

MACHINE model

MACHINE serial number

OTHER REFERENCE MANUALS

Electronic battery charger Manual to be considered as integral part of this Manual
Moreover, the following Manuals are available:
Service Manual (that can be consulted at Nilfisk-Advance Service Centers)
- Spare Parts List (supplied with the machine)

SPARE PARTS AND MAINTENANCE

All necessary operating, maintenance and repair procedures must be carried out by qualified personnel or by Nilfisk-Advance Service Centers. Only original spare parts and accessories must be used.

Contact Nilfisk-Advance for service or to order spare parts and accessories, specifying the machine model and serial number.

CHANGES AND IMPROVEMENTS

Nilfisk-Advance constantly improves its products and reserves the right to make changes and improvements at its discretion without being obliged to apply such benefits to the machines that were previously sold.

Any change and/or addition of accessories must be approved and performed by Nilfisk-Advance.

These scrubber-dryers are used to clean (scrubbing and drying) smooth and solid floors, in civil or industrial environment, under safe operation conditions by a qualified operator.

The scrubber-dryer cannot be used for moquette and carpet cleaning.

CONVENTIONS

Forward and backward, front and rear, left and right references are intended with the operator in driving position with the hands on the handlebar (2).

UNPACKING/DELIVERY

To unpack the machine, carefully follow the instructions on the packing.

When the machine is delivered, check that the packing and the machine were not damaged during transportation. In case of visible damages, keep the packing and have it checked by the carrier that delivered it. Call the carrier immediately to fill in a damage claim.

Check that the machine is equipped with the following features:

1. Technical documents:

2. Scrubber-dryer Instructions for Use Manual
   Electronic battery charger Manual

3. Scrubber-dryer Spare Parts List

4. No. 2 lamellar fuses

SAFETY

The following symbols indicate potentially dangerous situations. Always read this information carefully and take all necessary precautions to safeguard people and property.

The operator's cooperation is essential in order to prevent injury. No accident prevention program is effective without the total cooperation of the person responsible for the machine operation. Most of the accidents that may occur in a factory, while working or moving around, are caused by failure to comply with the simplest rules for exercising prudence. A careful and prudent operator is the best guarantee against accidents and is essential for successful completion of any prevention program.

SYMBOLS

DANGER!

It indicates a dangerous situation with risk of death for the operator.

WARNING!

It indicates a potential risk of injury for people or damage to objects.

CAUTION!

It indicates a caution related to important or useful functions.

Pay careful attention to the paragraphs marked by this symbol.

NOTE

It indicates a remark related to important or useful functions.

CONSULTATION

It indicates the necessity to refer to the Instructions for Use Manual before performing any operation.

GENERAL INSTRUCTIONS

Specific warnings and cautions to inform about potential damages to people and machine are shown below.

DANGER!

• Disconnect the batteries before performing any maintenance/repair procedure.
  This machine must be used by properly trained and authorized personnel only. Children or disabled people cannot use this machine.
• Keep the battery far from sparks, flames and incandescent material. During the normal operation explosive gases are released.
• Do not wear jewelry when working near electrical components.
• Do not work under the lifted machine without supporting it with safety stands.
• Do not operate the machine near toxic, dangerous, flammable and/or explosive powders, liquids or vapors.
• Battery charging produces highly explosive hydrogen gas. Keep the tanks open during battery charging and perform this procedure in well-ventilated areas and away from bare flames.

WARNING!

Before using the battery charger, ensure that frequency and voltage values, indicated on the machine serial number plate, match the electrical mains voltage.
- Do not pull or carry the machine by the battery charger cable and never use the battery charger cable as a handle. Do not close a door on the battery charger cable, or pull the battery charger cable around sharp edges or corners. Do not run the machine on the battery charger cable. Keep the battery charger cable away from heated surfaces.
Do not charge the batteries if the battery charger cable or the plug are damaged. If the machine is not working as it should, has been damaged, left outdoors or dropped into water, return it to the Service Center.
To reduce the risk of fire, electric shock, or injury, do not leave the machine unattended when it is plugged in. Before performing any maintenance procedure, disconnect the battery charger cable from the electrical mains.
- Do not smoke while charging the batteries.
Always protect the machine against the sun, rain and bad weather, both under operation and inactivity condition. Store the machine indoors.
- Do not allow to be used as a toy. Close attention is necessary when used near children.
Use only as described in this Manual. Only Nilfisk-Advance recommended accessories must be used.
Take all necessary precautions to prevent hair, jewelry and loose clothes from being caught by the machine moving parts.
Do not leave the machine unattended without being sure that it cannot move independently.
- Do not use the machine on slopes with a gradient exceeding the specifications.
- Do not use the machine in particularly dusty areas.
- While using this machine, take care not to cause damage to people or objects.
Do not bump into shelves or scaffoldings, especially where there is a risk of falling objects.
- Do not put any can containing fluids on the machine.
- The machine operating temperature must be between +32^ and +104^ ( 0^ and +40^ ).
- The machine storage temperature must be between +32^ and +104^ ( 0^ and +40^ ).
The humidity must be between 30% and 95% .
- Do not use the machine as a means of transport.
- Do not use the machine on slopes with an inclination higher than 2% .
- Do not allow the brushes to operate while the machine is stationary to avoid damaging the floor.
- In case of fire, use a powder fire extinguisher, not a water one.
Do not tamper with the machine safety guards and follow the ordinary maintenance instructions scrupulously.
Do not allow any object to enter into the openings. Do not use the machine if the openings are clogged. Always keep the openings free from dust, hairs and any other foreign material which could reduce the air flow.
- Do not remove or modify the plates affixed to the machine.
If the machine is used according to the instructions, the vibrations are not dangerous. The machine vibration level is less than 98.4 in/s² (2.5 m/s²) (98/37/EEC-EN 1033/1995).
- This machine cannot be used on roads or public streets.
Pay attention during machine transportation when temperature is below freezing point. The water in the recovery tank or in the hoses could freeze and seriously damage the machine.
Use the brushes and pads supplied with the machine and those specified in the Instructions for Use Manual. Using other brushes or pads could reduce safety.
In case of machine malfunctions, ensure that these are not due to lack of maintenance. Otherwise, request assistance from the authorized personnel or from an authorized Service Center.
If parts must be replaced, require ORIGINAL spare parts from a Dealer or Authorized Retailer.
To ensure the proper and safe operation of the machine, have the scheduled maintenance, detailed in the relevant chapter of this Manual, performed by the authorized personnel or an authorized Service Center.
- Carefully read all the instructions before carrying out any maintenance/repair procedure.
Do not wash the machine with direct or pressurized water jets, or with corrosive substances.
The machine must be disposed of properly, because of the presence of toxic-harmful materials (batteries, etc.), which are subject to standards that require disposal in special centers (see Scrapping chapter).

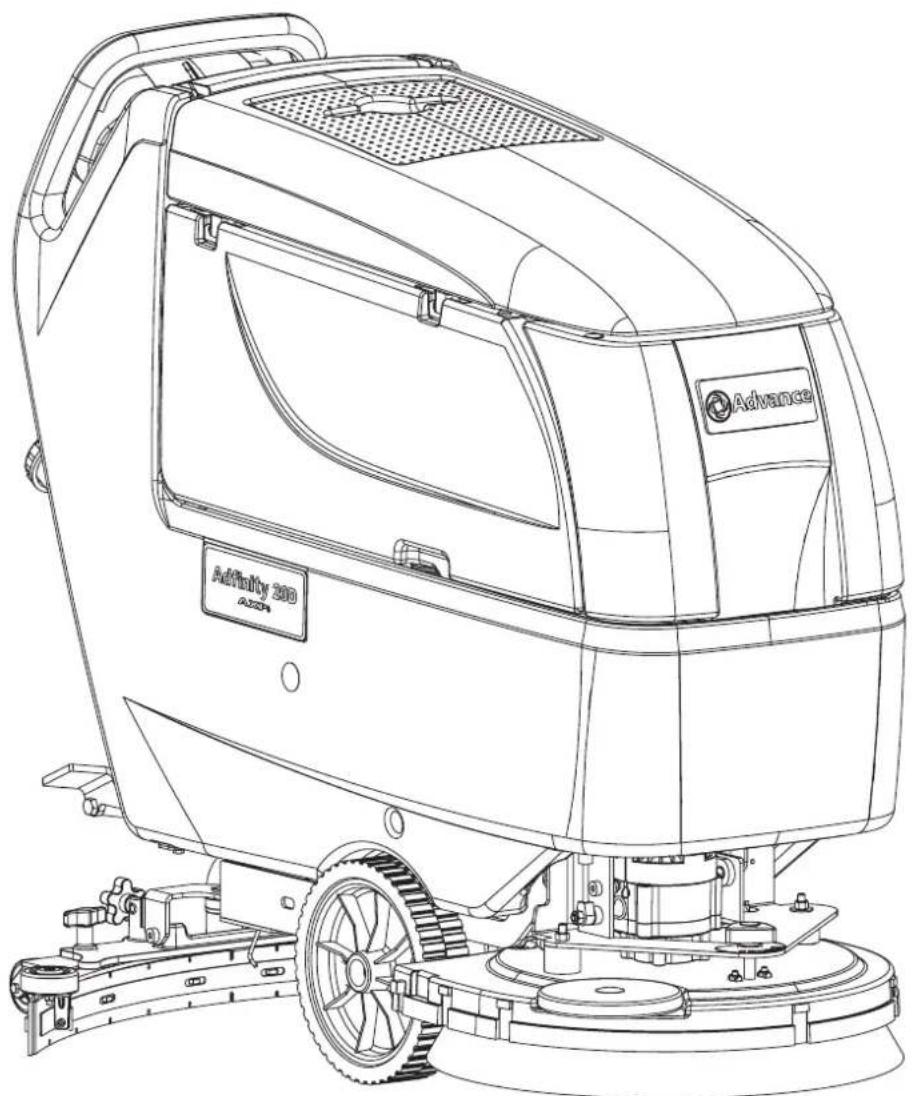

MACHINE DESCRIPTION

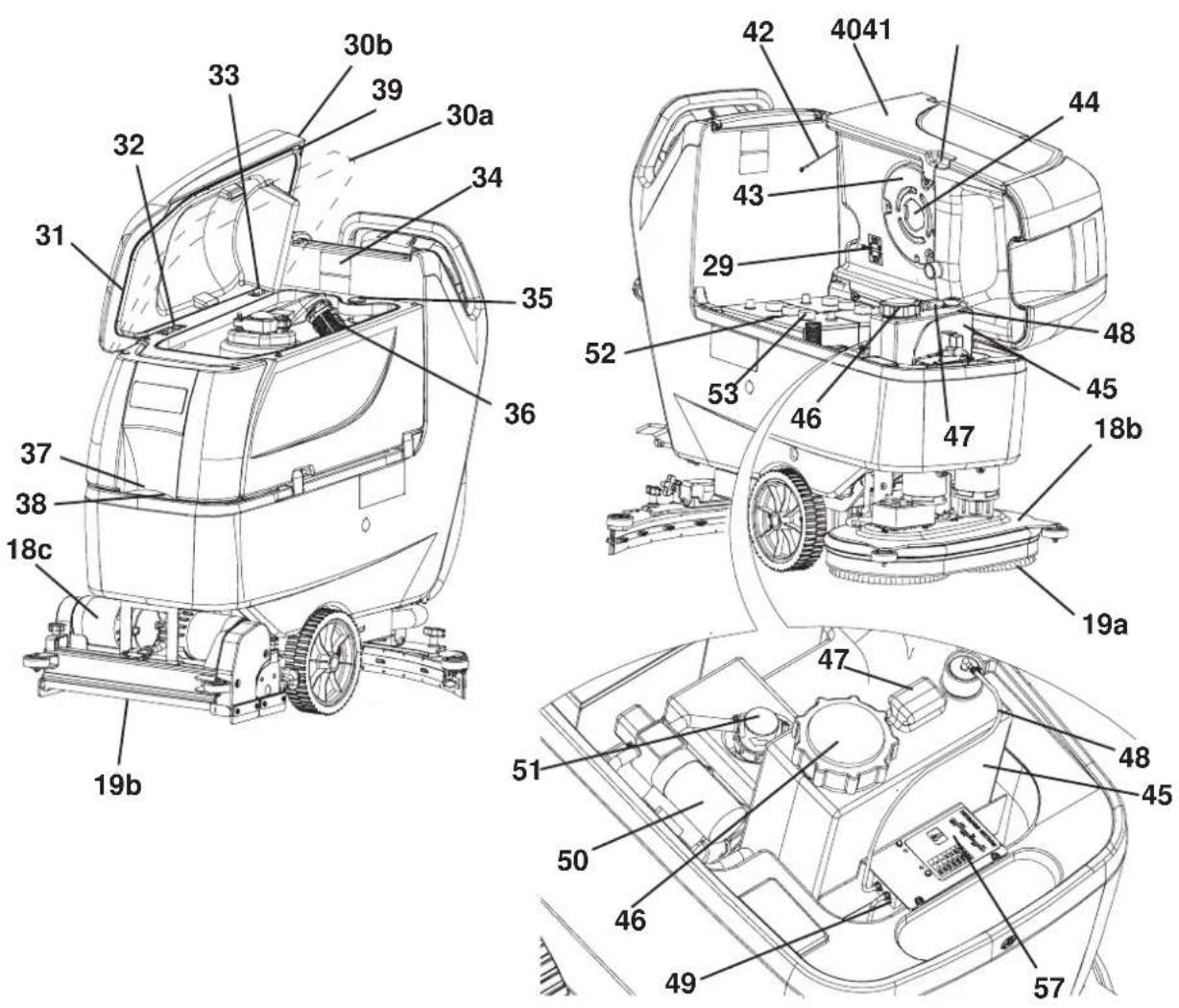

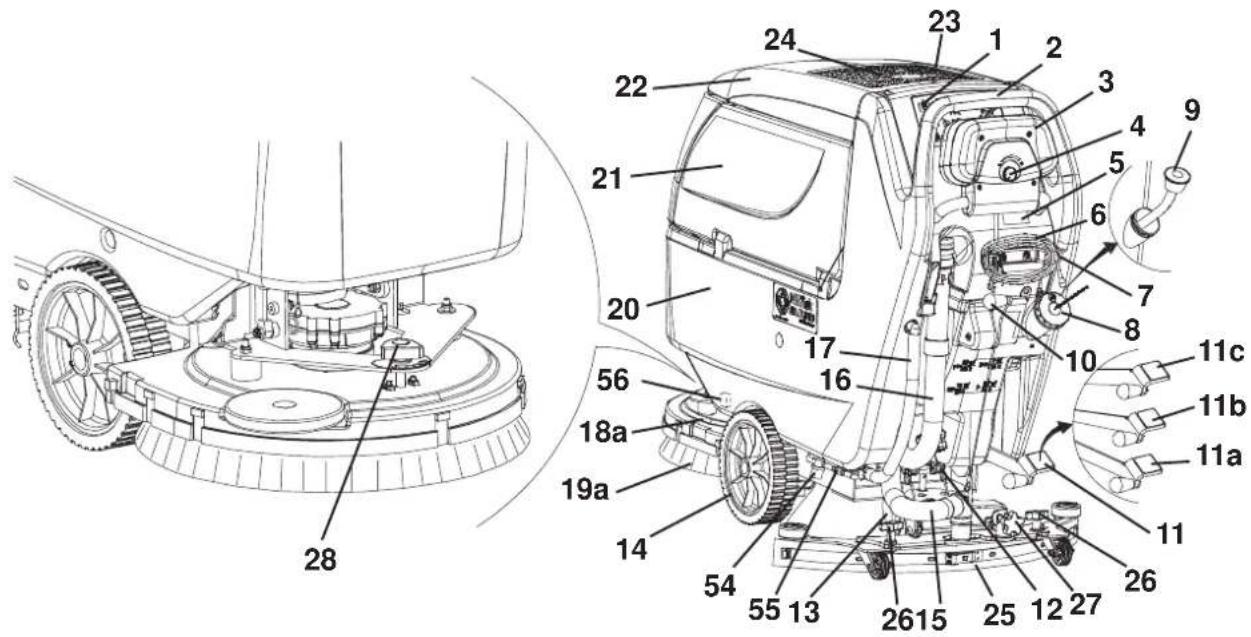

MACHINE STRUCTURE

1. Control panel
2. Handlebar
3. Drive paddle
4. Speed adjuster
5. Battery charger data inspection window
6. Battery charger cable
7. Battery charger cable holder
8. Solution/clean water rear filler neck
9. Water removable filler hose (optional)
10. Squeegee lifting/lowering lever
11. Deck lifting/lowering pedal
    11a. Deck lifting
    11b. Deck lowering
    11c. Extra pressure activation (optional)
12. Battery connector (red) This connector also works as EMERGENCY switch, to stop immediately all functions.
13. Rear steering wheel
14. Front wheels on fixed axle
15. Squeegee vacuum hose
16. Recovery water drain hose
17. Solution/clean water drain and level check hose
    18a. Deck with one brush/pad-holder
    18b. Deck with two brushes/pad-holders
    18c. Deck with two cylindrical brushes
    19a. Brush/pad-holder
    19b. Cylindrical brushes
18. Solution/clean water tank
19. Recovery water tank
20. Recovery water tank cover
21. Can holder
22. Pocket (optional)
23. Squeegee
24. Squeegee mounting handwheels
25. Squeegee balance adjusting handwheel

26. Machine straight forward movement adjusting handwheel

27. Battery connection diagram
    30a. Recovery water tank cover (opened to be cleaned)
    30b. Recovery water tank cover (completely opened)

28. Tank cover gasket
29. Cover movable retaining plate
30. Cover fixed retaining plate
31. Serial number plate/technical data
32. Plug for squeegee vacuum hose cleaning
33. Vacuum grid with automatic shut-off float
34. Solution front filler neck
35. Foam filter
36. Compensation hole
37. Recovery water tank (open)
38. Tank lifting handle
39. Tank safety cable
40. Vacuum system motor cover
41. Vacuum system motor sound-deadening filter
42. Detergent tank (*)
43. Detergent tank filling cap (^*)
44. Detergent tank handle (^*)
45. Detergent supply hose to brushes (^*)
46. Detergent pump (^*)
47. Water pump (*)
48. Clean water filter (*)
49. Batteries
50. Battery caps
51. Solution filter (*)
52. Solution/clean water tap
53. Solenoid valve
54. Reference table for detergent proportioning (^*)

(*) Only for X20D, X20C, X24D.

S311310

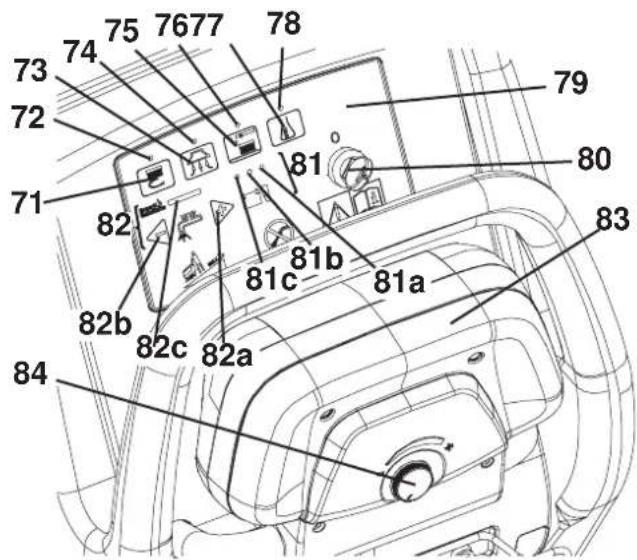

CONTROL PANEL

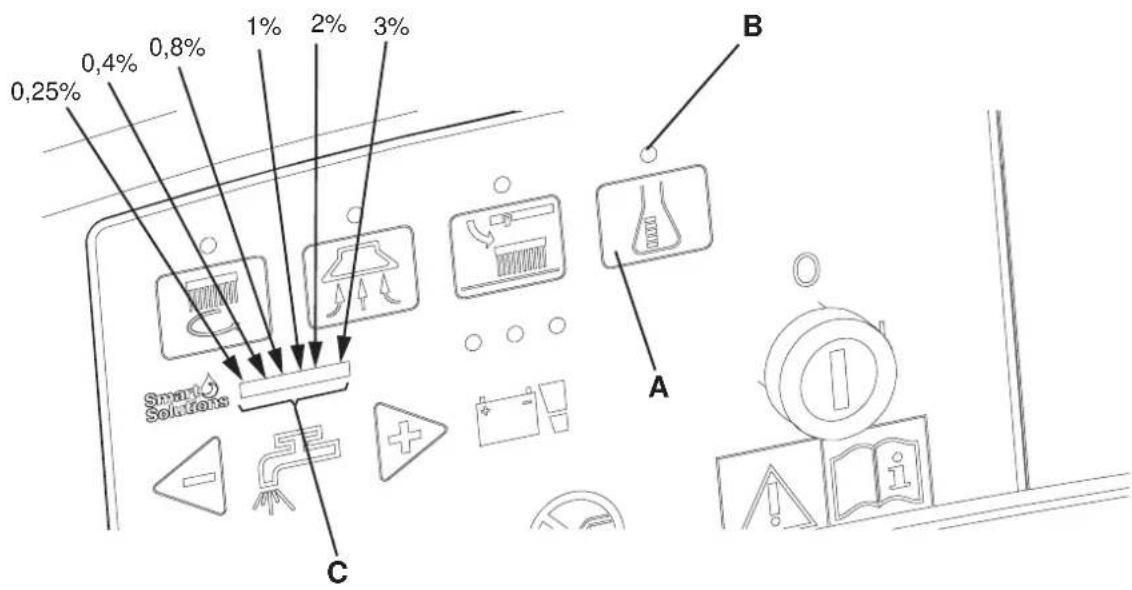

1. Brush/pad-holder and vacuum system switch
2. Brush/pad-holder and vacuum system switch warning light
3. Vacuum system switch
4. Vacuum system switch warning light
5. Brush/pad-holder release switch
6. Brush/pad-holder release switch warning light
7. Detergent flow control switch (*)
8. Detergent flow control switch warning light (^*)
9. Hour counter (optional)
10. Ignition key (0 - 1)
11. Battery charge indicator

81a. Charged battery warning light (green)
81b. Semi-discharged battery warning light (yellow)
81c. Discharged battery warning light (red)
82. Washing water flow control switches
82a. Flow increase switch
82b. Flow decrease switch
82c. Washing water flow indicator
83. Forward/reverse gear drive paddle
84. Forward/reverse speed adjuster

(*) Only for machines with AXP

S311312

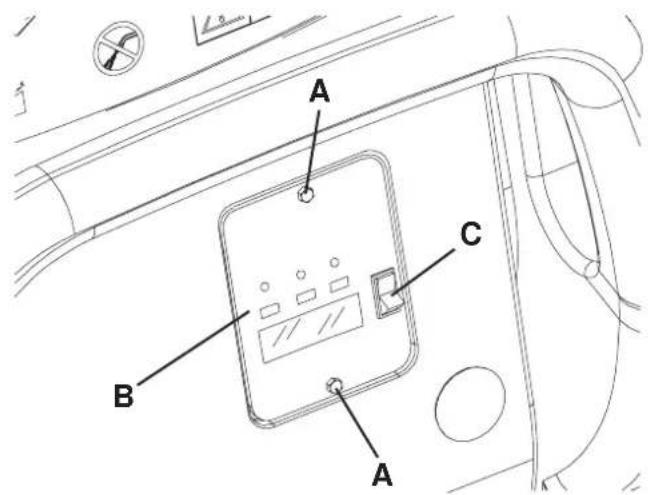

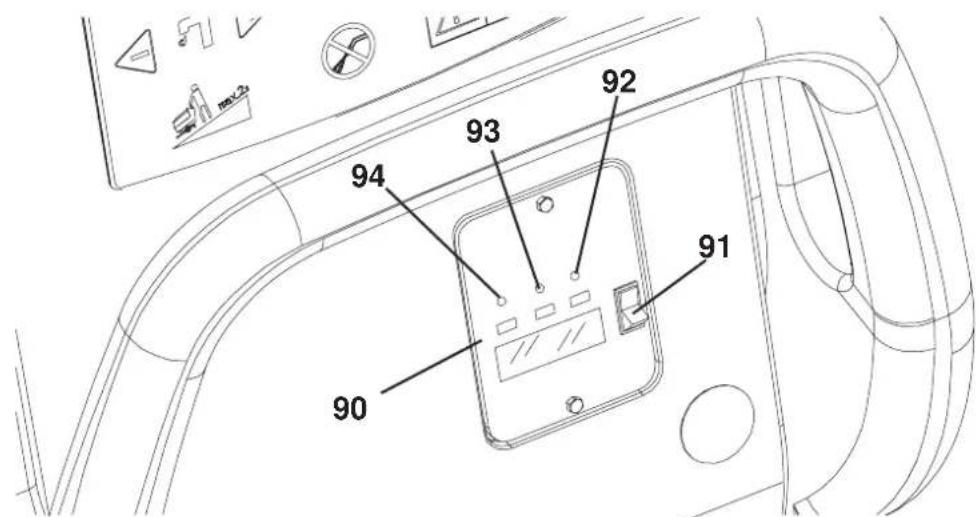

BATTERY CHARGER DATA INSPECTION WINDOW

1. Electronic battery charger
2. Lead (WET) or gel (GEL) battery selector

3. Green warning light (the battery charger is on and batteries are charged)

4. Yellow warning light (the battery charger is on and batteries are semi-discharged)

5. Red warning light (the battery charger is on and it is charging the batteries)

S311313

MACHINE STRUCTURE - DESCRIPTION

Control panel (1) - It is the area where machine controls are located, see Control and Switch Description paragraph.

Handlebar (2) - Grasp it and use it to maneuver the machine.

Drive paddle (3) - See Control and Switch Description paragraph.

Speed adjuster (4) - See Control and Switch Description paragraph.

Battery charger data inspection window (5) - See Battery Warning Light Description paragraph.

Battery charger cable (6) - Connect it to the electrical mains to charge the batteries.

Battery charger cable holder (7) - Use it to roll up the battery charger cable when it is not in use. Fasten the cable safely.

Solution rear filler neck (8) - Open it to pour the solution/clean water (^**) in the tank. Use only low-foam detergents.

Water removable filler hose (optional) (9) - For easily filling the tank with water (^**)

Squeegee lifting/lowering lever (10) - To lift or lower the squeegee.

Deck lifting/lowering pedal (11) - It has the following functions:

(11a) Deck lifting
(11b) Deck lowering
(11c) Extra pressure activation for 20D e X20D (optional for X24D).

This function cannot be used for 20D, X20D and X24D when equipped with cylindrical brush deck.

Battery connector (red) (12) - It connects the batteries to the machine electrical system. It must be connected to the external battery charger, when the machine is not equipped with on-board battery charger. This connector also works as EMERGENCY switch, to stop immediately all functions. If necessary, grasp the handle and disconnect the connector by pulling it strongly.

Rear steering wheel (13) - It allows the machine to steer.

Front wheels on fixed axle (14) - They bear the machine weight. Driving wheels (^*)

Squeegee vacuum hose (15) - It conveys the recovery water from the squeezegee to the recovery water tank. To easily clean it, remove the plug (35).

Recovery water drain hose (16) - It drains the recovery water from the tank.

Solution/clean water drain and level check hose (^**) (17) - It is equipped with level marks to check the solution/water level in the tank. Disconnect the upper end to drain the tank.

Brush/pad-holder deck (18a, 18b, 18c) - On the deck, brushes or pad-holders and the relevant motors are installed. Decks are easy to remove (with tools) and can be replaced with other types of deck. Three types of deck are available: with one

brush/pad-holder, with two brushes/pad-holders, with two cylindrical brushes (for instructions, see the relevant paragraphs).

Brushes/pads (19a, 19b) - According to the type of deck, the machine can be equipped with: brushes, pad-holders or cylindrical brushes.

Solution/clean water tank (20) - It contains the solution/clean water (^**)

Recovery water tank (21) - It contains the recovery water collected by the squeegee and vacuumed.

Recovery water tank cover (22) - It hermetically closes the recovery water tank.

Can holder (23) - Compartment to store a can or small objects.

Pocket (optional) (24)-Elastic retainer for documents.

Squeegee (25) - It collects the solution after scrubbing. Choose the squeezegee according to the type of deck (see the relevant paragraph).

Squeegee mounting handwheels (26) - They fasten the squeezegee to the machine.

Squeegee balance adjusting handwheel (27) - To adjust the squeegee blade position.

Machine straight forward movement adjusting handwheel (^**) (28) - Turn it clockwise or counter-clockwise for machine straight forward movement.

Battery connection diagram (29) - It shows how to connect the batteries.

Recovery water tank cover (opened) - By turning the retaining plate (32), it can be removed.

It can be opened in one of the following positions:

(30a) Opened to be cleaned.

(30b) Completely opened.

Tank cover gasket (31) - The gasket must be integral for an efficient vacuuming of the recovery water.

Cover retaining plates (32) and (33)-Turn the retaining plate (32) to remove the tank cover.

Serial number plate/technical data/conformity certification (34) - It contains the machine data.

Plug for squeegee vacuum hose cleaning (35) - Remove it to clean the vacuum hose.

Vacuum grid with automatic shut-off float (36) - Keep it clean, to avoid a stuck in the vacuum system.

Solution front filler neck (37) - For easily filling the tank with solution.

Foam filter (38) - It prevents debris or foreign materials from entering into the tank.

Compensation hole (39) - Keep it clean, for an efficient vacuuming of the recovery water.

Recovery water tank (open) (40) - Empty and lift it to reach the batteries and the detergent tank.

Tank lifting handle (41) - Grasp it to lift the tank, only when it is empty.

Tank safety cable (42) - It keeps the tank opened.

Vacuum system motor cover (43) - It retains the sound-deadening filter and protects the vacuum system motor.

Vacuum system motor sound-deadening filter (44) - It protects the motor from debris and foreign material, and it deadens the vacuum system motor noise.

Detergent tank (*) (45) - It contains the detergent that will be mixed with the clean water.

Detergent tank filler plug (*) (46) - Open it to pour the detergent in the tank. Use only low-foam detergents.

Detergent tank handle (^*) (47) - Use it to lift/lower the tank.

Detergent supply hose to brushes (*) (48) - It supplies the detergent to the brushes.

Detergent pump (*) (49) - It vacuums the detergent from the tank and supplies it, together with the clean water, to the brushes.

Water pump (*) (50) - It vacuums the water from the tank and supplies it to the brushes.

Clean water filter (*) (51) - It filters clean water before supplying it to the pump and to the brushes.

Batteries (52) - They supply current for machine operation. The machine can be equipped with lead (WET) or gel (GEL) batteries.

Battery caps (53) - WET batteries are equipped with caps for maintenance purposes.

Solution filter (54) - It filters the solution before supplying it to the solenoid valve and to the brushes.

Solution/clean water tap (55) - It closes the solution/clean water flow.

Solenoid valve (56) - It controls the water flow. If the machine is equipped with AXP it works as a tap.

Reference table for detergent proportioning (*) (57) - It indicates the percentages of detergent in the washing water. The same percentages are shown by the flow indicator (82c).

(*) Only for X20D, X20C, X24D

(^**) If the machine is equipped with AXP [switch (77) (optional) enabled] pour clean water in the tank, otherwise pour solution.

(^**) Only for deck with one brush/pad-holder.

CONTROL AND SWITCH DESCRIPTION

Brush/pad-holder and vacuum system switch (71) - It turns on the brushes/pad-holders and the vacuum system. When pressed twice, it turns off the brushes/pad-holders. To turn off the vacuum system, press the switch (73).

Vacuum system switch (73) - It turns the vacuum system on and off.

Brush/pad-holder release switch (75) - It releases the brushes/pad-holders, and it can be pressed only when the brushes/pad-holders are off.

Detergent flow control switch (*) (77) - It turns the AXP on and off and it allows to change the detergent concentration. Ignition key (80) - It turns the control panel on and off.

Washing water flow control switches (82) - To control the detergent quantity supplied to the brushes.

Flow increase switch (82a) - It increases the water quantity supplied to the brushes.

Flow decrease switch (82b) - It decreases the water quantity supplied to the brushes.

Washing water flow indicator (82c) - It shows the water quantity supplied to the brushes.

Drive paddle (83) - Push it forward to move the machine forward, push it backwards to move the machine in reverse. The brushes/pad-holders and the water flow turn on only when the paddle is pushed in either directions. When the paddle is released, the brushes/pad-holders turn off.

Forward/reverse gear speed adjuster (84) - It adjusts the machine maximum speed, when the drive paddle is pushed to the end of stroke.

(*) Only for machines with AXP

WARNING LIGHT AND INDICATOR DESCRIPTION

Brush/pad-holder and vacuum system switch warning light (72) - When the warning light turns on, it means that the relevant function is activated.

Vacuum system switch warning light (74) - When the warning light turns on, it means that the relevant function is activated. Brush/pad-holder release switch warning light (76) - When the warning light turns on, it means that the relevant function is activated.

Detergent flow control switch warning light (78) (*) - When the warning light turns on, it means that the relevant function is activated.

Hour counter (optional) (79) - It shows the machine working hours.

(*) Only for machines with AXP

BATTERY WARNING LIGHT DESCRIPTION

Battery charge indicator (81) - It shows battery autonomy.

Green warning light (81a) - When it is on, the battery are charged (residual autonomy depends on battery capacity and working conditions.).

Yellow warning light (81b) - When it is on, the battery are semi-discharged (residual autonomy is 10 minutes approximately).

Red warning light (81c) - When it is on, the battery are discharged (the autonomy is over, the batteries must be recharged (see the procedure in the relevant paragraph)).

ACCESSIONS/OPTIONS

In addition to the standard components, the machine can be equipped with the following accessories/options, according to the machine specific use:

1. GEL batteries
2. Brushes and cylindrical brushes of different materials
3. Pads of different materials
4. Polyurethane squeegee blades
5. Front and rear wheels of different materials
6. Hour counter
7. Solution/clean water removable filler hose
8. Pocket

For further information concerning the above-mentioned optional accessories, contact an authorized Retailer.

TECHNICAL DATA

General technical data

Model	20D(1 brush/pad-holder,with drive system)	X20D(1 brush/pad-holder,with drive system)	X20C(2 cylindrical brushes,with drive system)	X24D(2 brushes/pad-holders, with drive system)
	)mm 880,1( ni 9.24thgieh enihcaM
Solution/clean water tank capacity	15.3 US gal (58 liters)
Recovery water tank capacity	15.8 US gal (60 liters)
	retemaid leaftnorF	)mm 052( ni 8.9
vnorF	duorg eht no erusserpifepseeh	nfa(14Z N/mm2)
Rear wheel diameter	3.9 in (100 mm)
Vacuum system motor power	0.4 hp (330 W)
Drive system motor power	0.26 hp (200 W)
Drive speed (variable)	0 to 3.5 mph (0 to 5.6 km/h)
Gradeability	2 %
Sound pressure level (at the operator's position)	65.8 dB(A)
Standard batteries	WET (2 x 12 V) 24 V 130 Ah
Battery compartment size (width x length x height)	13.8 x 13.8 x 11.8 in (350 x 350 x 300 mm)
Vacuum system circuit capacity	41.5 in H2O (1,055 mm H2O)

Technical data for machines with brush/pad-holder deck

Model	20D(1 brush/pad-holder,with drive system)	X20D(1 brush/pad-holder,with drive system)	X24D(2 brushes/pad-holders, with drive system)
	htdiw gninaelC		)mm 036(mm)
Squeezeeep width	29.9 in (760 mm)		31.9 in (810 mm)
Machine maximum length	52.1 in (1,323 mm)		51.6 in (1,311 mm)
Machine width without squeezeee	21.3 in (541 mm)		25.4 in (646 mm)
Brush diameter	20.9 in (530 mm)		12.0 in (305 mm)
Weight without batteries and with empty tanks	229.3 lb (104 kg)	231.5 lb (105 kg)
Maximum weight with batteries and full tanks	555.6 lb (252 kg)	557.8 lb (253 kg)
Brush motor power	0.6 hp (480 W)		0.46 hp (350 W)
Brush speed	153 rpm		230 rpm
Brush/pad-holder pressure with extra-pressure deactivated	45.2 lb (20.5 kg)
Brush/pad-holder pressure with extra-pressure activated	61.3 lb (27.8 kg)

Technical data for machines with cylindrical brush deck

Model	X20C (2 cylindrical brushes, with drive system)
Cleaning width	20.1 in (510 mm)
Squeezeeep width	29.9 in (760 mm)
Machine maximum length	49.3 in (1,253 mm)
Machine width without squeezeeep	22.6 in (575.5 mm)
Cylindrical brush size (diameter x length)	4.3 x 19.1 in (110 x 485 mm)
Weight without batteries and with empty tanks	253.5 lb (115 kg)
Maximum weight with batteries and full tanks	579.1 lb (263 kg)
Brush motor power	0.54 hp (400 W)
Cylindrical brush rotation speed	570 rpm
Cylindrical brush pressure	58.4 lb (26.5 kg)

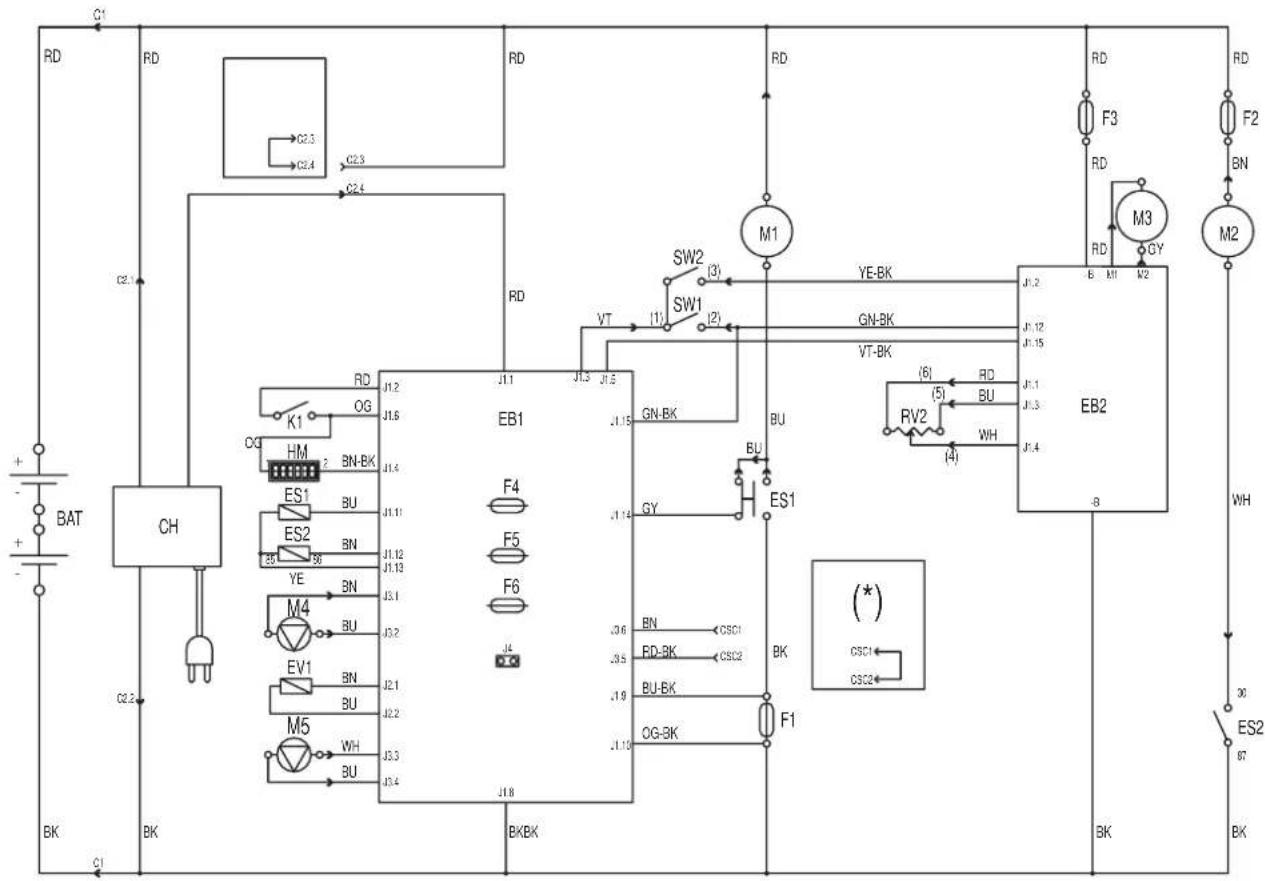

WIRING DIAGRAM

BAT: 24 V battery
C1: Battery connector
C2: Battery charger connector
CH: Battery charger
CSC: Cylindrical brush deck secondary connector
EB1: Function electronic board
EB2: Drive system electronic board
ES1: Brush electromagnetic switches
ES2:Vacuum system relay
EV1: Solenoid valve
F1: Deck fuse
F2: Vacuum system fuse
F3: Drive system fuse
F4: Signal circuit fuse
F5: Brush/pad-holder release fuse
F6: Pump fuse
HM: Hour counter (optional)
K1: Ignition key
M1: Brush/pad-holder motor
M2:Vacuum system motor
M3: Drive system motor

M4: Water pump (^)
M5: Detergent pump (^)
RV2: Maximum speed potentiometer
SW1: Brush/drive system enabling microswitch
SW2: Reverse gear microswitch

() Only for machines with cylindrical brush deck
(^*) Only for machines with AXP

Color code

BK: Black
BU: Blue
BN: Brown
GN:Green
GY: Grey
OG: Orange
PK: Pink
RD: Red
VT: Violet
WH:White

USE

WARNING!

On some points of the machine there are some adhesive plates indicating:

DANGER

-WARNING

-CAUTION

• CONSULTATION

While reading this Manual, the operator must pay particular attention to the symbols shown on the plates. Do not cover these plates for any reason and immediately replace them if damaged.

BATTERY CHECK/SETTING ON A NEW MACHINE

WARNING!

The electric components of the machine can be seriously damaged if the batteries are either improperly installed or connected. The batteries must be installed by qualified personnel only. Set the function electronic board and the built-in battery charger according to the type of batteries used (WET or GEL). Check the batteries for damage before installation.

Disconnect the battery connector and the battery charger plug.

Handle the batteries with great care.

Install the battery terminal protection caps supplied with the machine.

The machine requires two 12V batteries, connected according to the diagram (29).

The machine can be supplied in one of the following modes:

a) Batteries (WET or GEL) already installed and ready to be used

1. Check that the batteries are connected to the machine with the connector (12).
2. Insert the ignition key (80) and turn it to "I" position.

If the green warning light (81a) turns on, the batteries are ready to be used.

If the yellow or red warning light (81b) or (81c) turns on, the batteries must be charged (see the procedure in the Maintenance chapter).

b) Batteries (WET) installed on the machine, but without electrolyte

1. Open the cover (22) and check that the recovery water tank (21) is empty, otherwise empty it with the drain hose (16).
2. Grasp the handle (41) and carefully lift the tank (40).
3. Remove the caps (53) of the batteries (52).

WARNING!

Pay attention when using sulphuric acid, as it is corrosive. If it comes in contact with skin or eyes, rinse thoroughly with water and consult a physician.

Batteries have to be filled in a well-ventilated area. Wear protective gloves.

1. Fill up the battery elements with sulphuric acid for batteries [density from 2.79 to 2.84 lb at 77^ (1.27 to 1.29 kg at 25^)] in accordance with the instructions specified in the Battery Manual. The correct quantity of sulphuric acid is shown in the Battery Manual.
2. To avoid damaging the floor, dry with a cloth both acid and water on the top of the batteries after charge.
3. Let the batteries rest and fill in with sulphuric acid in accordance with the instructions shown in the Battery Manual.
4. Charge the batteries (see the procedure in the Maintenance chapter).

c) Without batteries

1. Buy appropriate batteries (see the Technical Data paragraph).
   For battery choice and installation, apply to qualified battery Retailers.
2. Set the machine and the battery charger (if equipped) according to the type of batteries (WET or GEL).

BATTERY INSTALLATION AND BATTERY TYPE SETTING (WET OR GEL)

According to the type of batteries (WET or GEL), set the electronic board of the machine and of the battery charger, according to the following procedure:

Machine setting

1. Turn the ignition key (80) to "I" and pay attention to the following in the very first seconds of machine operation:
2. If the green warning light (81a) is flashing, the machine is set to GEL.
3. If the red warning light (81c) is flashing, the machine is set to WET.
4. If the setting is to be changed, perform the following procedure.
5. Turn off the machine by turning the ignition key (80) to "0" position.
6. Press and hold the switches (71) and (73) at the same time, then turn the ignition key (80) to "I".
7. Release the switches (71) and (73) at least 8 seconds after starting the machine.
8. Within 3 seconds, press the switch (73) again for a few seconds and check that the warning light for the required setting is flashing (as shown in step 1).

Battery charger setting

1. Remove the battery charger data inspection window screws (A, Fig. 1).
2. Remove the window (B).
3. Turn the battery charger selector (C) to WET position for lead batteries, or to GEL position for gel batteries.
4. Install the window (B) and tighten the screws (A).

Battery installation

1. Open the cover (22) and check that the recovery water tank (21) is empty, otherwise empty it with the drain hose (16).
2. Grasp the handle (41) and carefully lift the tank (40).
3. Install the batteries.

Battery charging

1. Charge the batteries (see the procedure in the Maintenance chapter).

Figure 1

S311316

BEFORE MACHINE START-UP

Deck installation/removal

The machine can be equipped with either the brush/ pad-holder deck (18a and 18b) or the cylindrical brush deck (18c). For deck installation/removal see the procedure in the Maintenance chapter.

NOTE

When the deck is installed/removed, it may be necessary to change the squeegee too, because they must have the same width. For correct matching of deck and squeegee, see the Squeegee Installation paragraph.

Brush/pad-holder installation/removal

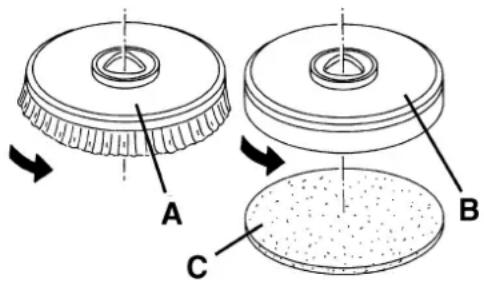

1. According to the kind of cleaning to be carried out, the machine can be equipped either with brushes (A, Fig. 2) or pad-holders (B) with pads (C) together with the appropriate deck.
2. Turn the ignition key (80) to "0" position. If equipped, turn the speed adjuster (84) to idle by turning it counter-clockwise.
3. Place the brushes (A) or the pad-holders (B) under the appropriate deck (18a) or (18b).
4. Lower the deck on the brushes/pad-holders by pressing the pedal (11).
5. Turn the ignition key (80) to "l" position.
6. Press the brush/pad-holder and vacuum system switch (71).
7. Slightly press the paddle (83) forward to engage the brushes/pad-holders, then release it. If necessary, repeat the procedure until the brushes/pad-holders are engaged.

Figure 2

S311317

WARNING!

Do not press the paddle (83) completely, otherwise the machine will start.

A light pressure on the paddle (83) is enough to engage the brushes/pad-holders and activate the brush/pad-holder motors.

1. To remove the brushes/pad-holders, the deck must be lifted by pressing the pedal (11), then press the switch (75) and wait for the brushes/pad-holders to fall on the floor.

Turn the ignition key (80) to "0" position.

Types of brushes available

12.0 in (305 mm) models 20.9 in (530 mm) models
08603842 - Prolene 08837025 - Prolene
08603872 - Midlite Grit 180 08837028 - Midlite Grit 180
08603873 - Midgrit 240 08837029 - Midgrit 240
08603874 - Prolite 08837026 - Prolite
08603875 - Union Mix 08837027 - Union Mix

Brush/pad application guide (suggestions only)

Models	Midlite Grit 180	Midgrit 240	Prolene	Prolite	Union Mix
General cleaning:
Concrete
Terrazzo floor
Ceramic tiles/quarrystones
Marble
Vinyl tiles
Rubber tiles
Polishing:
Rubber tiles
Marble
Vinyl tiles

Cylindrical brush installation/removal

1. Turn the ignition key (80) to "0" position.
2. Lift the cylindrical brush deck by pressing the pedal (11).

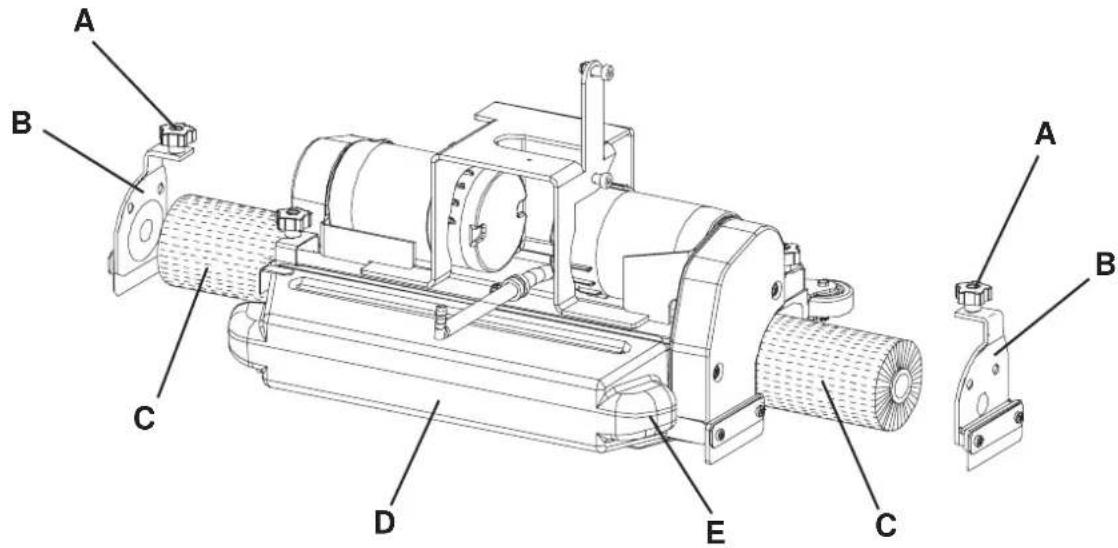

3. Remove the handwheels (A, Fig. 3) and the lids (B) by pushing them downwards and pressing on the handwheels.
4. Install the cylindrical brushes (C).

The cylindrical brushes can be installed on either sides.

1. Install the lids (B) and fasten them with the handwheels (A).
2. To remove the cylindrical brushes, carry out steps 1 to 5 in the reverse order.

Figure 3

5311318

Types of cylindrical brushes available

19.1 in (485 mm) models

909 5823 000 - Polypropylene 0.40

909 5825 000 - Hard nylon 0.60

909 5824 000 - Soft nylon 0.45

Cylindrical brush application guide (suggestions only)

Models Polypropylene 0.40 Hard nylon 0.60 Soft nylon 0.45
General cleaning:
Concrete
Terrazzo floor
Ceramic tiles/quarrystones
Marble
Vinyl tiles
Rubber tiles

Squeegee installation

1. Install the squeegee (25) and fasten it with the handwheels (26), then connect the vacuum hose (15) to the squeegee.
2. With the handwheel (27), adjust the squeegee so that the rear blade - in all its length - touches the floor and the front blade is slightly detached from the floor.

Guide to match squeezegees and brush/pad-holder decks

Deck model Squeegee model
Deck with one brush (18a), brush diameter: 20.9 in (530 mm) Aluminum (Fig. 6), width 29.9 in (760 mm)
Deck with two brushes (18b), brush diameter: 12.0 in (305 mm)	Steel (Fig. 5), width 31.9 in (810 mm)
Deck with two cylindrical brushes (18c), brush length: 19.1 in (485 mm) Aluminum (Fig. 6), width 29.9 in (760 mm)

Solution or washing water tank filling

NOTE

For X20D, X20C, X24D: [switch (77) (optional) enabled] pour clean water in the tank.

Fill the tank (20) with a solution suitable for the work to be carried out.

Do not fill the solution tank completely, leave few inches from the edge.

Always follow the dilution instructions on the label of the chemical product used to prepare the solution.

The solution temperature must not exceed +104^ (+40^)

CAUTION!

Use only low-foam and non-flammable detergents, intended for automatic scrubber applications.

(For X20D, X20C, X24D)

Fill the tank (20) with clean water.

Do not fill the clean water tank completely, leave a few inches from the edge.

The water temperature must not exceed +104^ (+40^) .

Detergent tank filling (for X20D, X20C, X24D)

1. Open the cover (22) and check that the recovery water tank (21) is empty, otherwise empty it with the drain hose (16).
2. Grasp the handle (41) and carefully lift the tank (40).
3. Open the plug (46).
4. Fill the tank (45) with a detergent suitable for the work to be carried out (highly concentrated detergents).

Do not fill the detergent tank completely, leave a few inches from the edge.

CAUTION!

Use only low-foam and non-flammable detergents, intended for automatic scrubber applications.

NOTE

If the detergent hose (48) is empty (in case of new system, system emptied for cleaning, etc.), in order to fill the hose quickly, it may be useful to drain the AXP once or several times (see the procedure in the Maintenance chapter).

MACHINE START AND STOP

Starting the machine

1. Prepare the machine as shown in the previous paragraph.
2. Turn the ignition key (80) to "l" position.

Check that the green warning light (81a) turns on (charged batteries).

If the yellow or red warning light (81b or 81c) turns on, turn the ignition switch back to "0" position and charge the batteries (see the procedure in the Maintenance chapter).

1. Drive the machine to the working area, by keeping the hands on the handlebar (2) and pressing the paddle (83) forward to move forward, and backwards to move in reverse.

The maximum forward speed can be adjusted with the adjuster (84).

1. Lower the squeegee (25) with the lever (10).

2. Lower the brush/pad-holder deck by pressing the pedal (11).

3. Press the brush/pad-holder and vacuum system switch (71).
4. Press the washing water flow control switches (82) as necessary, depending on the type of cleaning to be carried out.
5. Start cleaning, by moving the machines as shown in step 3. If necessary, adjust the maximum speed with the adjuster (84).

Stopping the machine

1. Stop the machine by releasing the paddle (83).
2. Turn off the brushes/pad-holders and the vacuum system by pressing the switches (71) and (73).
3. Lift the brush/pad-holder deck by pressing the pedal (11).
4. Lift the squeegee (25) with the lever (10).
5. Make sure that the machine cannot move independently.

MACHINE OPERATION (SCRUBBING/DRYING)

1. Start the machine as shown in the previous paragraph.
2. If necessary, press the washing water flow control switches (82) as necessary, depending on the type of cleaning to be carried out.
3. If necessary, stop the machine and adjust the balancing handwheel (27) of the squeegee (25).

CAUTION!

To avoid any damage to the floor surface, turn off the brushes/pad-holders when the machine stops in one place, especially when the extra pressure function is on.

Detergent flow adjustment

(For X20D, X20C, X24D)

To check the actual setting of the detergent percentage to be added to the washing water, perform the following procedure:

1. Turn off the flow control switch (A, Fig. 4) [the warning light (B) must be off].
2. Press and hold the flow control switch (A). 3 seconds after pressing the switch, the indicator (C) turns on, thus indicating the percentage, as shown in the figure.

To change the actual setting of the detergent percentage to be added to the washing water, perform the following procedure:

1. Turn off the flow control switch (A, Fig. 4) [the warning light (B) must be off].
2. Press and hold the flow control switch (A) until the warning light (B) flashes.
3. Release the switch (A). Press it again shortly, to go to the next percentage shown by the indicator (C); repeat the procedure until the desired setting is reached.
4. Wait for the warning light (B) to turn off and for the indicator (C) to show the washing water flow: the new percentage value is now set.

NOTE

Detergent percentage setting is stored into memory, even if the machine is turned off.

Figure 4

S311319

Working with brush/pad-holder extra pressure function turned on

1. If the floor proves to be particularly difficult to clean, it is possible to turn on the brush/pad-holder extra pressure function by pressing the pedal (11) to position (11c).

CAUTION!

When the cylindrical brush deck (18c) is installed, the extra pressure function is not enabled.

Battery discharge during operation

1. Until the green warning light (81a) stays on, the batteries allow the machine to work normally.

When the green warning light (81a) turns off, and the yellow warning light (81b) turns on, it is advisable to charge the batteries, because the residual autonomy will last for a few minutes (depending on battery characteristics and work to be performed).

When the red warning light (81c) turns on, the autonomy is over. After a few seconds, the brushes/pad-holders are automatically tuned off, while the vacuum system and the drive system stay on, to finish drying the floor and drive the machine to the appointed recharging area.

CAUTION!

Do not use the machine with discharged batteries, to avoid damaging the batteries and reducing the battery life.

TANK EMPTYING

An automatic float shut-off system (36) stops the vacuum system when the recovery water tank (21) is full.

The vacuum system deactivation is signaled by a sudden increase in the vacuum system motor noise frequency.

CAUTIONI

If the vacuum system turns off accidentally (for example, when the float is activated because of a sudden machine movement), to resume the operation: turn off the vacuum system by pressing the switch (73), then open the cover (22) and check that the float inside the grid (36) has gone down to the water level. Then close the cover (22) and turn on the vacuum system by pressing the switch (73).

When the recovery water tank (21) is full, empty it according to the following procedure.

Recovery water tank emptying

1. Stop the machine.
2. Lift the brush/pad-holder deck by pressing the pedal (11).
3. Lift the squeezegee (25) with the lever (10).
4. Drive the machine to the appointed disposal area.
5. Empty the recovery water tank by means of the hose (16). After working, rinse the tank with clean water. Use the removable hose (9) (if equipped).

Solution/clean water tank emptying

1. Perform steps 1 to 4.
2. Empty the solution tank with the hose (17). After working, rinse the tank with clean water.

Cylindrical brush debris container emptying (only for cylindrical brush deck)

1. Stop the machine.
2. Lower the cylindrical brush deck and remove the debris container (D, Fig. 3) by pulling it on one side with the handle (E).
3. Empty and wash the debris container (D), and then install it by engaging it on the retainers.

AFTER USING THE MACHINE

After working, before leaving the machine:

1. Remove the brushes/pad-holders according to the procedure shown in the relevant paragraph.
2. Empty the tanks (20 and 21) and the debris container (D, Fig. 3) as shown in the relevant paragraph.
3. Perform the daily maintenance procedures (see the Maintenance chapter).
4. Store the machine in a clean and dry place, with the brushes/pad-holders and the squeegee lifted or removed.

MACHINE LONG INACTIVITY

If the machine is not going to be used for more than 30 days, proceed as follows:

1. Perform the procedures shown in After Machine Use paragraph.
2. Disconnect the battery connector (12).

FIRST PERIOD OF USE

After the first 8 hours, check the machine fastening and connecting parts for proper tightening and check the visible parts for integrity and leakage.

MAINTENANCE

The lifespan of the machine and its maximum operating safety are ensured by correct and regular maintenance.

The following table provides the scheduled maintenance. The intervals shown may vary according to particular working conditions, which are to be defined by the person in charge of the maintenance.

WARNING!

The procedures must be carried out with the machine off and the battery disconnected.

Moreover, read carefully the instructions in the Safety chapter before performing any maintenance procedure.

All scheduled or extraordinary maintenance procedures must be performed by qualified personnel, or by an authorized Service Center.

This Manual describes only the easiest and most common maintenance procedures.

For other maintenance procedures shown in the Scheduled Maintenance Table, refer to the Service Manual that can be consulted at any Service Center.

SCHEDULED MAINTENANCE TABLE

Procedure	Daily, after machine use	Weekly Every	six months Yearly
Battery charging
Squeegee cleaning
Brush/pad cleaning
Tank and vacuum grid with float cleaning, and cover gasket check
Squeegee blade check and replacement
Solution/clean water filter cleaning
Vacuum system motor cleaning
WET battery fluid level check
Screw and nut tightening check (1)
Brush/pad-holder motor carbon brush check or replacement				(2)
Vacuum system motor carbon brush check or replacement				(2)
Drive system motor carbon brush check or replacement				(2)

(1): And after the first 8 working hours.
(2): This maintenance procedure must be performed by an authorized Nilfisk-Advance Service Center.

CHARGING THE BATTERIES

NOTE

Charge the batteries when the yellow or red warning light (81b or 81c) turns on, or at the end of every working cycle.

CAUTION!

Keeping the batteries charged make their life last longer.

CAUTION!

When the batteries are discharged, charge them as soon as possible, as that condition makes their life shorter. Check for battery charge at least once a week.

WARNING!

WET battery charging produces highly explosive hydrogen gas. Charge the batteries in well-ventilated areas and away from bare flames. Do not smoke while charging the batteries.

Keep the tank assembly open while charging the batteries.

WARNING!

Pay careful attention when charging the batteries as there may be battery fluid leakages. The battery fluid is corrosive. If it comes in contact with skin or eyes, rinse thoroughly with water and consult a physician.

Preliminary procedures

1. Open the cover (22) and check that the recovery water tank (21) is empty, otherwise empty it with the drain hose (16).
2. Drive the machine to the appointed recharging area.
3. Turn the ignition key (80) to "0" position.
4. Grasp the handle (41) and carefully lift the tank (40).

5. For WET batteries only.

6. Check the level of electrolyte inside the batteries (52); if necessary, top up through the caps (53).

7. Then leave all the caps (53) open for battery charging.

8. If necessary, clean the upper surface of the batteries.

9. Charge the batteries according to one of the following procedures, depending on the presence of the battery charger (90).

Battery charging

1. Connect the battery charger cable (6) to the electrical mains (the electrical mains voltage and frequency must be compatible with the battery charger values shown on the machine serial number plate (34)).

When the battery charger is connected to the electrical mains, all machine functions are automatically cut off.

If the red warning light (94) on the battery charger control panel stays on, the battery charger is charging the batteries.

1. When the green warning light (92) turns on, the battery charging is completed.
2. When the battery charging is completed, disconnect the battery charger cable (6) from the electrical mains and wind it round its housing (7).
3. Grasp the handle (41) and carefully lower the tank (40).

NOTE

For further information about the operation of the battery charger (90), see the relevant Manual.

MACHINE WORKING HOUR CHECK

(Only if the machine is equipped with hour counter)

1. Turn the ignition key (80) to "l" position.
2. Press the switch (73) and read on the hour counter (79) the total number of working hours (scrubbing/drying) performed by the machine.
3. Press the switch (73) again.
4. Turn the ignition key (80) to "0" position.

SQUEEGEE CLEANING

NOTE

The squeegee must be clean and its blades must be in good conditions in order to get a good drying.

CAUTION!

It is advisable to use protective gloves when cleaning the squeegee because there may be sharp debris.

1. Drive the machine on a level floor.
2. Turn the ignition key (80) to "0" position.
3. Lower the squeegee (25) with the lever (10).
4. Loosen the handwheels (26) and remove the squeegee (25).
5. Disconnect the vacuum hose (15) from the squeegee
6. Clean the steel squeezegee (Fig. 5) or the aluminum squeezegee (Fig. 6). Clean the compartments (A, Fig. 5 or 6) and the hole (B) especially. Check the front blade (C) and the rear blade (D) for integrity, cuts and tears; otherwise replace them (see the procedure in the following paragraph).
7. Assemble the squeegee in the reverse order of disassembly.

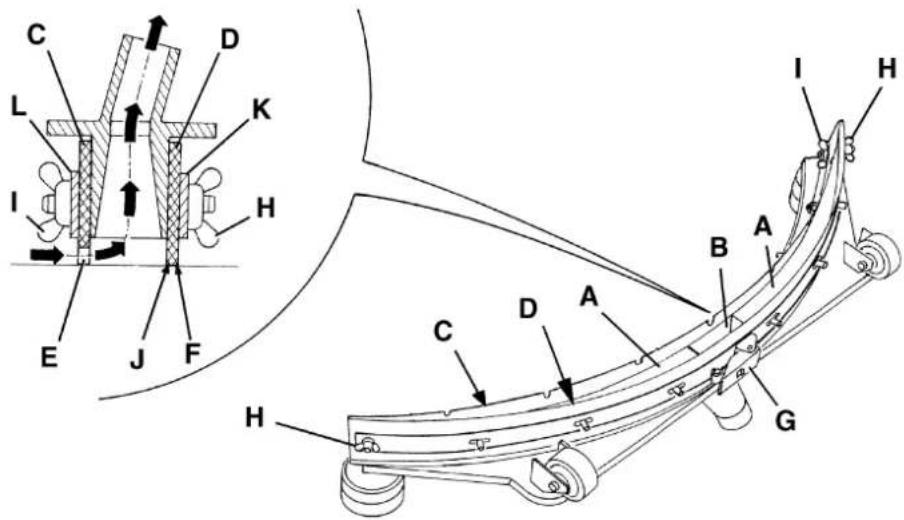

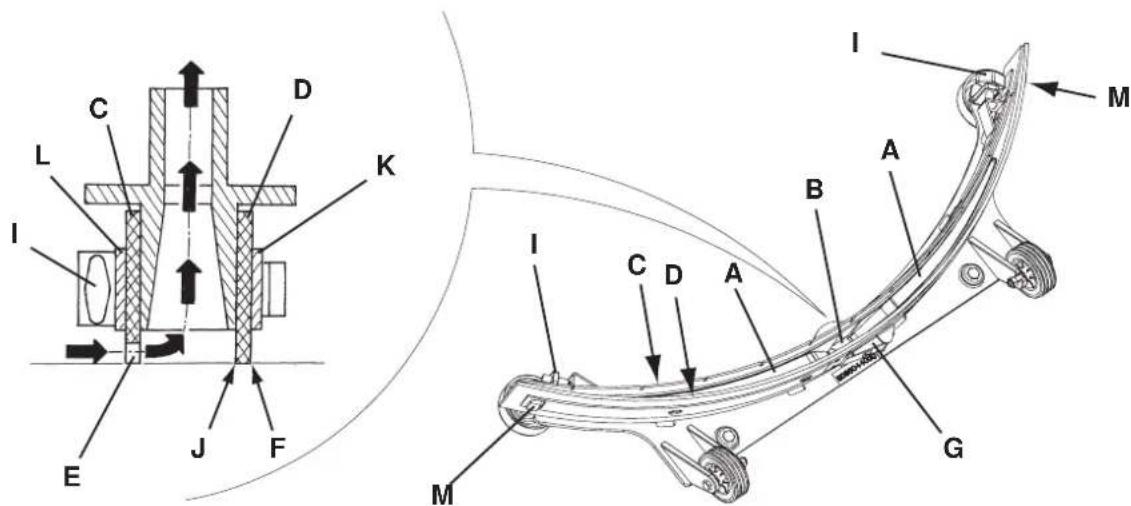

SQUEEGEE BLADE CHECK AND REPLACEMENT

1. Clean the steel squeegee (Fig. 5) or the aluminum squeegee (Fig. 6), according to the procedure shown in the previous paragraph.

2. Check that the edges (E, Fig. 5 or 6) of the front blade (C) and the edges (F) of the rear blade (D) lay down on the same level, along their length; otherwise adjust their height according to the following procedure:

Release the tie rod (G, Fig. 5 or 6) and loosen the wing nuts (H, Fig. 5), or disengage the retainers (M, Fig. 6) and adjust the rear blade (D, Fig. 5 or 6), then tighten the wing nuts or engage the retainers, and engage the tie rod.

Loosen the handwheels (I) and adjust the front blade (C, Fig. 5 or 6), then tighten the handwheels.

1. Check the front blade (C, Fig. 5 or 6) and rear blade (D) for integrity, cuts and tears; otherwise replace them according to the following procedure. Check that the front corner (J) of the rear blade is not worn; otherwise, overturn the blade to replace the worn corner with an integral one. If the other corners are worn too, replace the blade according to the following procedure:

Disengage the tie rod (G), remove the wing nuts (H) or disengage the retainers (M), remove the retaining strip (K) and replace/overturn the rear blade (D).
Assemble the blade in the reverse order of disassembly.
- Unscrew the handwheels (I) and remove the retaining strip (L), then replace the front blade (C). Assemble the blade in the reverse order of disassembly.

After the blade replacement (or overturning), adjust the height as shown in the previous step.

1. Connect the vacuum hose (15) to the squeegee.
2. Install the squeegee (25) and screw down the handwheels (26).
3. If necessary, adjust the squeegee balance adjusting handwheel (27).

Figure 5

S311320

Figure 6

S311326

BRUSH/PAD CLEANING

CAUTIONI

It is advisable to use protective gloves when cleaning the brushes/pads/cylindrical brushes because there can be sharp debris.

1. Remove the brushes/pads from the machine, as shown in the Use chapter.
2. Clean and wash the brushes/pads with water and detergent.
3. Check that the brushes/pads are integral and not excessively worn; otherwise replace them.
4. On the machines equipped with the cylindrical brush deck, remove the debris container (D, Fig. 3) by pulling it on one side with the handle (E).

Empty and wash the debris container (D), and then install it by engaging it on the retainers.

TANK AND VACUUM GRID WITH FLOAT CLEANING, AND COVER GASKET CHECK

1. Drive the machine to the appointed disposal area.
2. Turn the ignition key (80) to "0" position.
3. Open the cover (A, Fig. 7) to washing position (L).
4. Wash with clean water the cover (A), the tanks (B and C) and the vacuum grid with automatic shut-off float (D). Drain the water from the tanks with the hoses (16 and 17).
5. If necessary, release the retainers (E) and open the grid (D), recover the float (F), clean all the components and then reinstall them.
6. Check the tank cover gasket (G) for integrity.

NOTE

The gasket (G) creates vacuum in the tank that is necessary for vacuuming the recovery water.

If necessary replace the gasket (G) by removing it from its housing (H). When assembling the new gasket, install the joint (I) in the rear central area, as shown in the figure.

1. Check that the bearing surface (J) of the gasket (G) is integral and adequate for the gasket itself.
2. Check the compensation hole (K) for clogging, and clean it if necessary.

NOTE

The hole (K), allowing to compensate the air in the cover interspaces, contributes to create vacuum in the tank.

1. Close the cover (A).

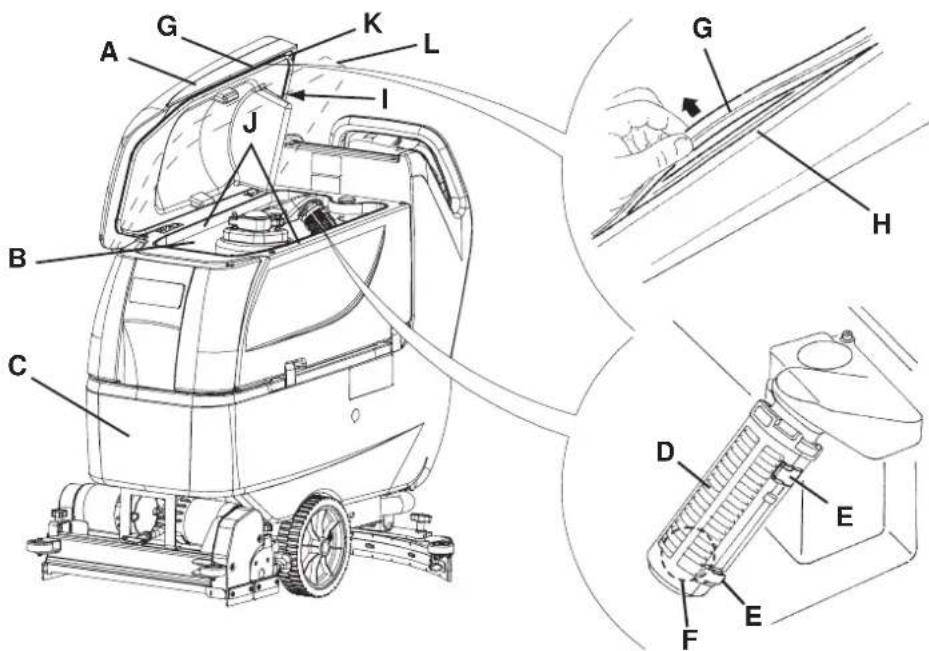

Figure 7

S311321

VACUUM SYSTEM MOTOR FILTER CLEANING

1. Drive the machine on a level floor.
2. Turn the ignition key (80) to "0" position.
3. Open the recovery water tank.
4. If necessary, drain the water from the tank in order to make the filter visible.
5. Check that the pre-filter is clean. If necessary clean it with water and compressed air, then install it.
6. Carry out steps 1, 2 and 3 in the reverse order.

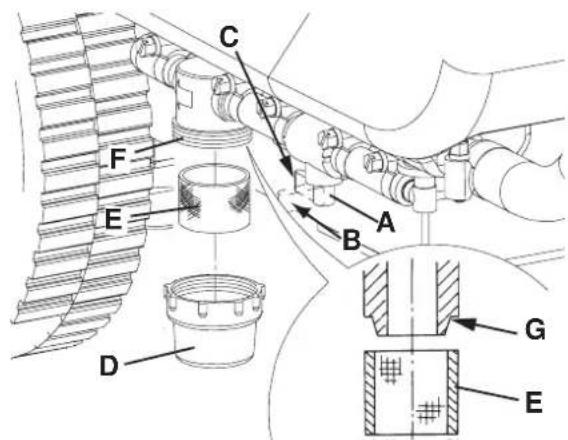

SOLUTION FILTER CLEANING

(For 20D)

1. Drive the machine on a level floor.
2. Turn the ignition key (80) to "0" position.
3. Close the solution tap (A, Fig. 8) under the machine, behind the right rear wheel. The tap (A) is closed when it is on the position (B) and it is open when it is on the position (C).
4. Remove the transparent cover (D), then remove the filter strainer (E). Clean and install them on the support (F).

NOTE

The filter strainer (E) must be correctly positioned on the housing (G) of the support (F).

1. Open the tap (A).

Figure 8

S311322

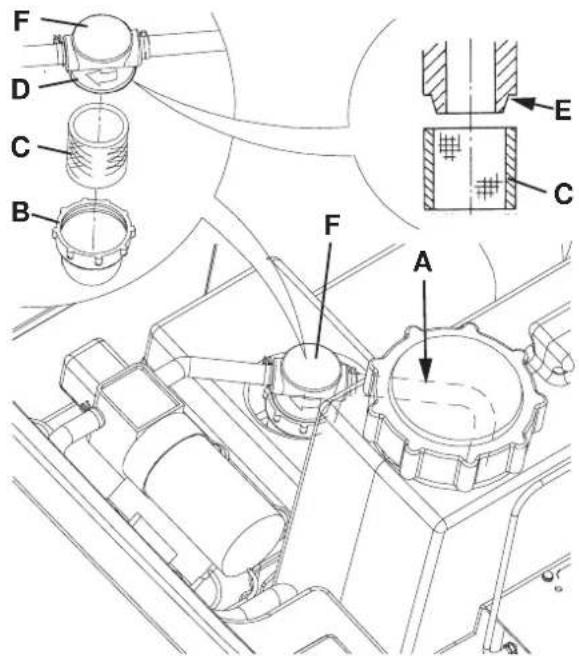

CLEAN WATER FILTER CLEANING

(For X20D, X20C, X24D)

1. Drive the machine on a level floor.
2. Turn the ignition key (80) to "0" position.
3. Open the cover (22) and check that the recovery water tank (21) is empty, otherwise empty it with the drain hose (16).
4. Grasp the handle (41) and carefully lift the tank (40).
5. Slightly lift the hoses (A, Fig. 9), then, operating on the clean water filter assembly (F) unscrew the transparent cover (B) and remove the filter strainer (C). Clean and install them on the support (D).

NOTE

The filter strainer (C) must be correctly positioned on the housing (E) of the support (D).

1. Lower the hoses (A) and the filter strainer (F).

Figure 9

S311323

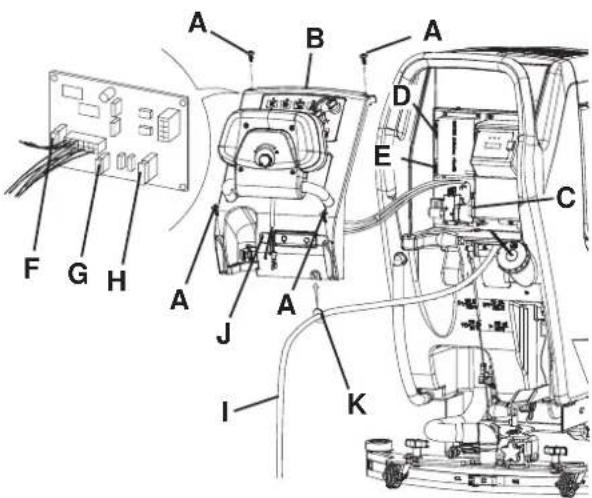

FUSE CHECK/REPLACEMENT

1. Disconnect the battery connector (12).
2. Move aside the recovery water drain hose (16).
3. Remove the battery charger cable (I, Fig. 10) from the holder (J).
4. Remove the screws (A) and carefully move aside the panel (B) by disengaging the grommet (K) from its housing on the panel (B).

5. Check/replace the following fuses:
   (C)F1 fuse, deck: (40 A)
   (D)F2 fuse, vacuum system: (30 A)
   (E)F3 fuse, drive system: (30 A)
   (F)F4 fuse, signal circuits: (3 A)
   (G)F5 fuse, brush/pad-holder release: (20 A)
   (H)F6 fuse, pump: (3 A)

6. Perform steps 1 to 4 in the reverse order.

Figure 10

S311324

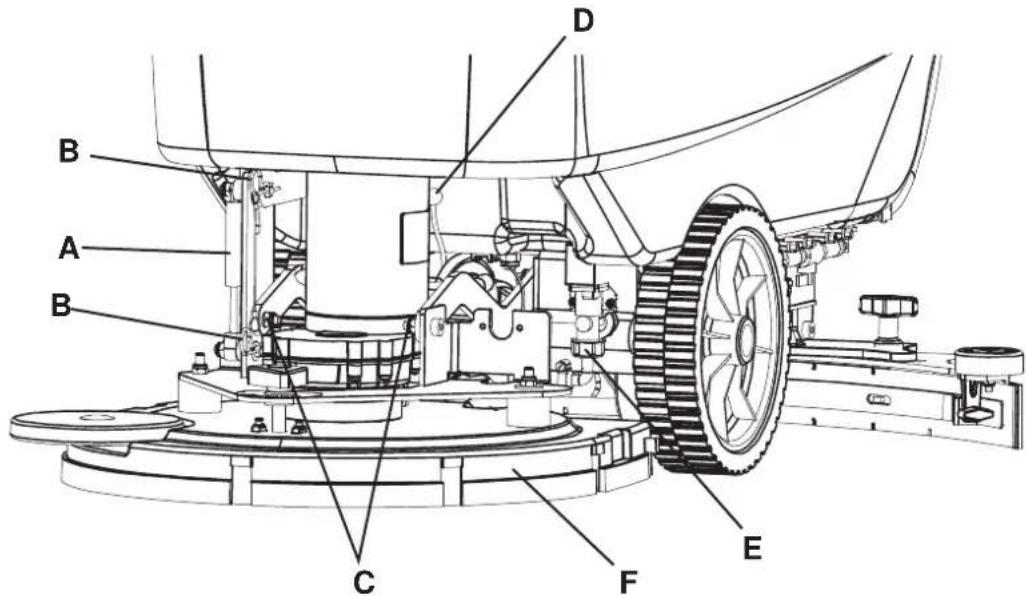

BRUSH/PAD-HOLDER/CYLINDRICAL BRUSH DECK DISASSEMBLY/ASSEMBLY

The machine can be equipped with either the brush/pad-holder deck (18a and 18b) or the cylindrical brush deck (18c).

NOTE When the deck is installed/removed, it may be necessary to change the squeegee too, because they must have the same width. For correct matching of deck and squeegee, see the Squeegee Installation paragraph.

Disassembly

1. Drive the machine on a level floor.
2. Remove the brushes/pad-holders according to the procedure shown in the relevant paragraph. Do not remove the cylindrical brushes.
3. Lower the brush/pad-holder deck by pressing the pedal (11).
4. If equipped, remove the cotter pins (B, Fig. 11) and the gas spring (A).
5. Disconnect the brush/pad-holder motor electrical connection (D).
6. Disconnect the solution hose (E) from the solenoid valve (F)
7. Remove the screws (C), then remove the brush/pad-holder deck (F).

Assembly

1. Assemble the components in the reverse order of disassembly, and note the following:

2. When the machine is equipped with the cylindrical brush deck (18c), the gas spring (A) must not be installed.

Figure 11

S311325

DETERGENT TANK CLEANING

(For X20D, X20C, X24D)

Clean the detergent tank (45) according to the following procedure:

1. Drive the machine to the appointed disposal area.
2. Open the cover (22) and check that the recovery water tank (21) is empty, otherwise empty it with the drain hose (16). Close the cover (22).
3. Grasp the handle (41) and carefully lift the tank (40).
4. Unscrew the plug and disconnect the hose (48) from the tank (45).
5. Remove the tank by releasing it from the retainers.
6. Wash the tank in the appointed disposal area.
7. Install the tank (45) and connect it to the hose (48).
8. When the detergent tank has been drained, the AXP must be drained too (see the procedure in the following paragraph).

AXP DRAINING

(For X20D, X20C, X24D)
1. Clean the detergent tank according to the procedure shown in the previous paragraph. To remove the detergent remained in the hoses and in the pump, perform the following procedure.
2. Grasp the handle (41) and carefully lower the tank (40).
3. Turn on the machine by turning the ignition key (80) to "l" position.
4. Turn on the AXP by pressing the switch (77). Check that the switch warning light (78) turns on.
5. Simultaneously press the switches (77 and 82a), until the switch warning light (78) starts flashing (after about 5 seconds).
6. Release the switches and wait for the warning light (78) to stop flashing and for the vacuum system to turn on.
7. Collect the detergent remained on the floor.
8. Turn the ignition key (80) to "0" position.
9. Grasp the handle (41) and carefully lift the tank (40), then check that the hose (48) is empty, otherwise perform the steps 3 to 9 again.

NOTE

The drain cycle lasts about 30 seconds; then the vacuum function automatically activates to eliminate all solution traces.

The draining cycle can also be performed with the detergent tank (45) full of water, thus cleaning the system thoroughly.

It is advisable to perform the draining cycle when the AXP is really dirty/encrusted because the machine has not been used/cleaned for a long time.

The draining cycle can be performed also to quickly fill the detergent hose when the tank (45) is full but the system is still empty.

If necessary, the discharge can be repeatedly performed.

TROUBLESHOOTING

Trouble Possible Cause Remedy
The motors do not work; no warning light turns on.	The battery connector (12) is disconnected. Connect.
	The batteries are completely discharged. Charge the batteries.
The machine does not move	The machine has been turned on by using the ignition key (80) and by keeping the paddle (83) pressed.	Turn the ignition key (80) to "0" position, then try to start the machine without pressing the paddle (83).
The brushes do not work, the red warning light (81c) is on.	The batteries are discharged. Charge the batteries.
Insufficient recovery water vacuuming.	The recovery water tank (21) is full. Empty the tank.
	The hose (15) is disconnected from the squeezegee. Connect.
	The vacuum grid (36) is clogged or the float is stuck closed. Clean the grid or check the float.
	The squeezegee (25) is dirty or the squeezegee blades are worn or damaged. Clean and check the squeezegee.
	The tank cover is not correctly closed, or the gasket (31) is damaged, or the compensation hole (33) is clogged. Close the cover correctly, or replace the gasket or clean the compensation hole.
Insufficient solution flow to the brushes.	The solution filter (54) or the clean water filter (51) is dirty. Clean the filter.
	The tank (21) is dirty (the drain hole is clogged). Clean.
Marks caused by the squeezegee.	There are debris under the squeezegee blades. Remove the debris.
	The squeezegee blades are worn, chipped or torn. Replace the blades.
	The squeezegee has not been balanced with the handwheel (27). Balance.

NOTE

The machine cannot operate without the battery charger.

In case of battery charger malfunction, contact an authorized Service Center.

For further information, refer to the Service Manual, available at any Nilfisk-Advance Service Center.

SCRAPPING

Have the machine scrapped by a qualified scraper.

Before scrapping the machine, remove and separate the following materials, which must be disposed of properly according to the Law in force:

Batteries
Brushes/pads
- Plastic hoses and components
- Electrical and electronic components (*)

(^*) : Refer to the nearest Nilfisk-Advance Center especially when scrapping electrical and electronic components.

INTRODUCTION 2

BUT ET CONTENU DU MANUEL 2
DESTINATAIRES 2
CONSERVATION DU MANUEL 2
DONNEES D'IDENTIFICATION 2
AUTRES MANUELS DE REFERENCE 2
PIECES DE RECHANGE ET ENTRETIEN 2
MODIFICATIONS ET AMELIORATIONS 2
CAPACITES OPERATIONNELLES 2
CONVENTIONS 2

CONSERVATION DU MANUEL

STRUCTURE DE LA MACHINE

ACCESSIONS / OPTIONS

(Pour X20D, X20C, X24D)

(Pour X20D, X20C, X24D)

(Pour X20D, X20C, X24D)

(Pour X20D, X20C, X24D)

(Para X20D, X20C, X24D)

(Para X20D, X20C, X24D)

(Para X20D, X20C, X24D)

(Para X20D, X20C, X24D)

CONSERVACAO DO MANUAL

• ADVERTÉNCIA

• C O N S U L T A

(Para X20D, X20C, X24D)

(Para X20D, X20C, X24D)

(Para X20D, X20C, X24D)

(Para X20D, X20C, X24D)

14600 21st Avenue North

Plymouth, MN, 55447-3408

www.nilfisk-advance.com

Phone: [phone]

Fax: [phone]

©2005 Nilfisk-Advance, Inc.

Plymouth, MN 55447-3408

Printed in Italy
