Product Type	Charcoal Barbecue
Brand	Char-Griller
Model	CG30040725
Intended Use	Outdoor, domestic use only
Fuel	Charcoal (briquettes or lump)
Maximum charcoal capacity	1 kg (approx. 30-35 briquettes)
Maximum cooking temperature	204 °C (400 °F)

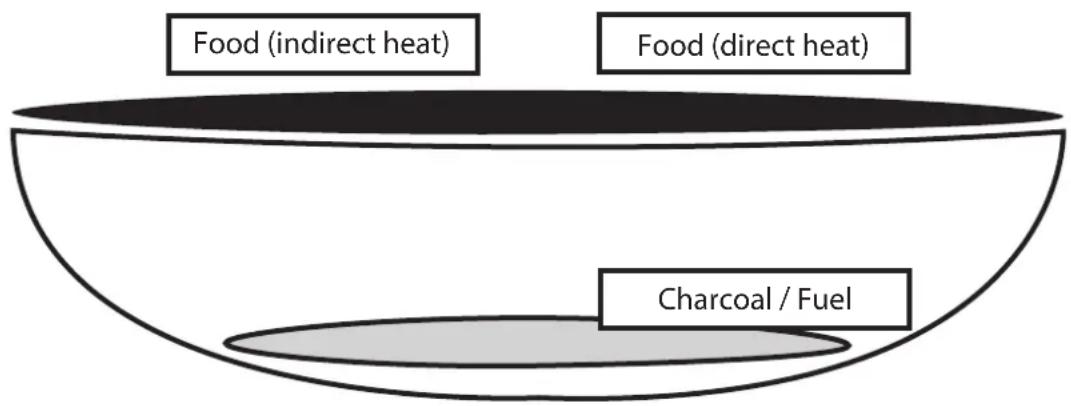

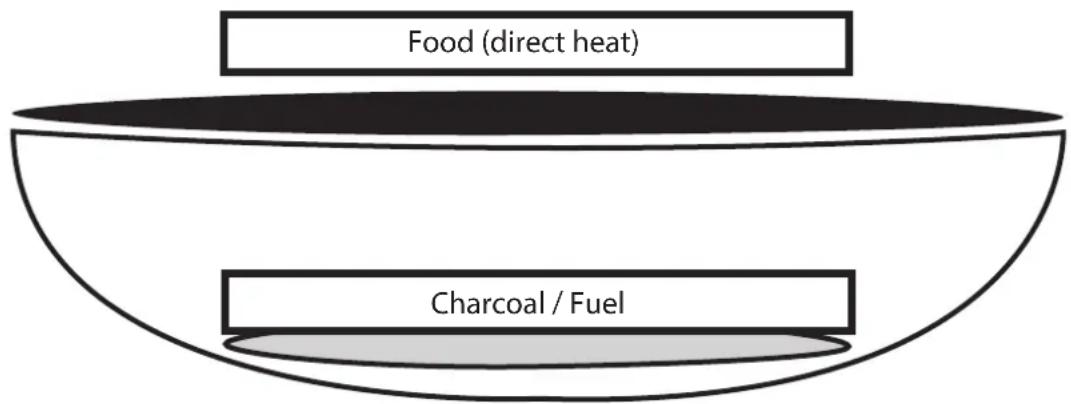

Cooking methods	Direct grilling, indirect grilling, smoking, searing
Main material	Steel
Temperature control system	Top and side air dampers
Charcoal grate position	Adjustable height (3 positions)
Minimum safety distance	3 m (10 ft) from combustible structures
Installation surface	Stable, flat, non-combustible (concrete, stone, packed earth)
Assembly	Recommended for two people, about 30 minutes
Tools required for assembly	Phillips screwdriver, adjustable wrench
Cleaning	Soft bristle brush, soapy water (no oven cleaner)
Rust maintenance	Sandpaper or steel wool, then heat-resistant paint (exterior only)
Warranty (lid and body)	5 years against rust-through or burn-through
Warranty (ash pan and other parts)	1 year
Customer service countries	Australia and New Zealand: contact retailer; others: Char-Griller service

Frequently Asked Questions - CG30040725 Char-Griller

What are the risks of carbon monoxide with this barbecue?

The barbecue produces carbon monoxide (CO), an odorless and deadly gas. Always use the barbecue outdoors in a well-ventilated area, away from windows, doors, and air intakes. Never use it in a garage, tent, house, or vehicle. Symptoms of poisoning (headache, dizziness, nausea) may be mistaken for a cold.

How to safely light the barbecue?

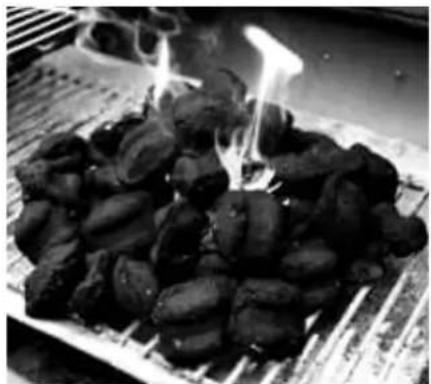

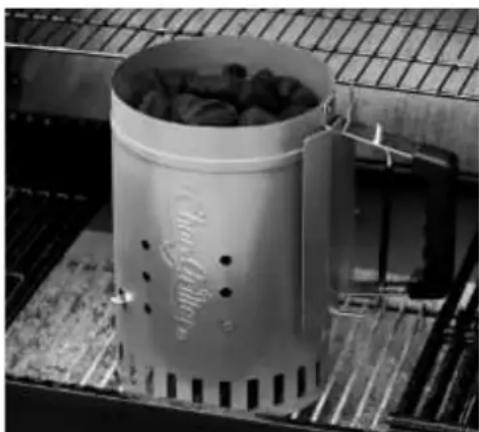

Never use gasoline, alcohol, or lighter fluid. Use a charcoal chimney or firelighters compliant with EN 1860-3. Place the firelighter under the chimney or in the middle of the charcoal pile. Do not exceed 1 kg of charcoal. Wait until the coals are covered with ash before cooking.

Do I need to prepare the barbecue before first use?

Yes, you need to season the barbecue. Build a medium fire with 1 kg of charcoal, close the lid and heat to 121 °C (250 °F) for 2 hours. This burns off manufacturing residues. After cooling, brush the grate.

How to control the cooking temperature?

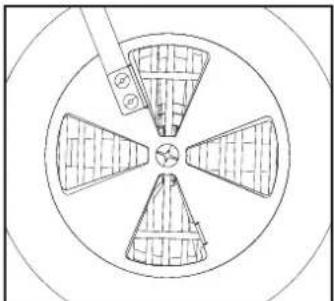

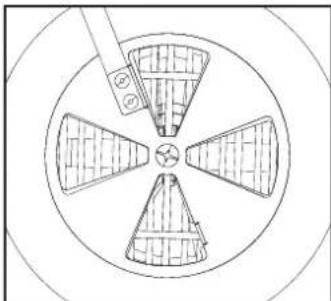

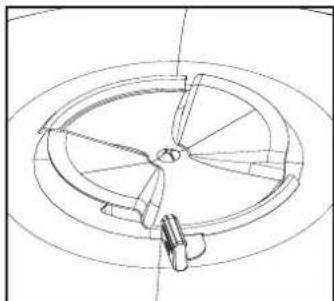

The temperature is regulated by the air dampers: more air = more heat, less air = less heat. The amount of charcoal also affects it: more charcoal = more heat. For smoking, open dampers a quarter; for searing, open fully. Never exceed 204 °C (400 °F).

What safety distances should be observed?

Place the barbecue at least 3 m (10 ft) from any elevated structure, wall, railing, combustible material (wood, plants, paper, gasoline). Do not use under an awning or cover. The ground must be stable and non-combustible (concrete, stone).

Can this barbecue be used in windy weather?

No, it is not recommended to use the barbecue in strong wind. Wind can fan the flames, cause burns, or damage the appliance. Choose a sheltered location.

How to clean and maintain the barbecue?

Wait until the appliance is completely cold. Empty ashes into a metal container and wet them. Clean grates with a soft bristle brush and soapy water. Do not use oven cleaner. Brush the ceramic interior with a soft brush. For rust, sand and apply heat-resistant paint on the exterior only.

How to extinguish the barbecue after use?

Let the temperature drop below 177 °C (350 °F), then close all dampers and the lid. The lack of air will smother the coals. Let cool completely (below 45 °C) before moving or storing the appliance. Never store the barbecue with hot ashes or charcoal.

What if parts are missing or damaged?

Do not return the appliance to the store. Contact Char-Griller customer service (contact details in the manual). For Australia and New Zealand, contact your retailer. Keep proof of purchase for any warranty claims.

What is the warranty for the Char-Griller CG30040725 barbecue?

The lid and body are warranted for 5 years against rust-through or burn-through. The ash pan and other parts are warranted for 1 year. Surface rust, paint, heat damage, or misuse are not covered. Proof of purchase is required.

USER MANUAL CG30040725 Char-Griller

Black Char-Gastler portable grill with a metal grate and wheels, no visible text or symbols on the main body.

CG30040725

22 inch Charcoal Kettle Grill and Smoker, Barbecue rond et fumoir au charbon de bois de 55,9 cm (22 po), Parrilla y ahumador a carbón con tapa de 22 pulgadas (56 cm),

Ketelgrill met roker op houtskool, 55 cm, 22-Zoll-Holzkohle-Kugelgrill und Räucherofen, Grill e affumicatore a carbone da 22 pollici, 22 tums träkolsgrill och rök

Welcome | Bienvenue | Bienvenido | Welkom Willkommen | Benvenuti | Välkommen

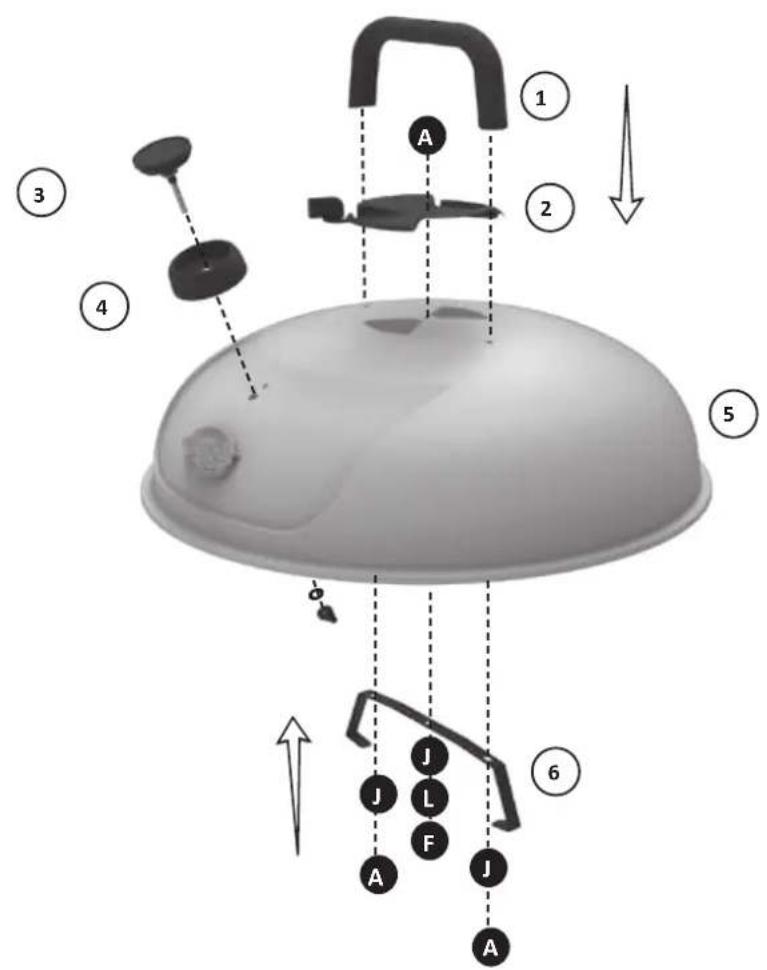

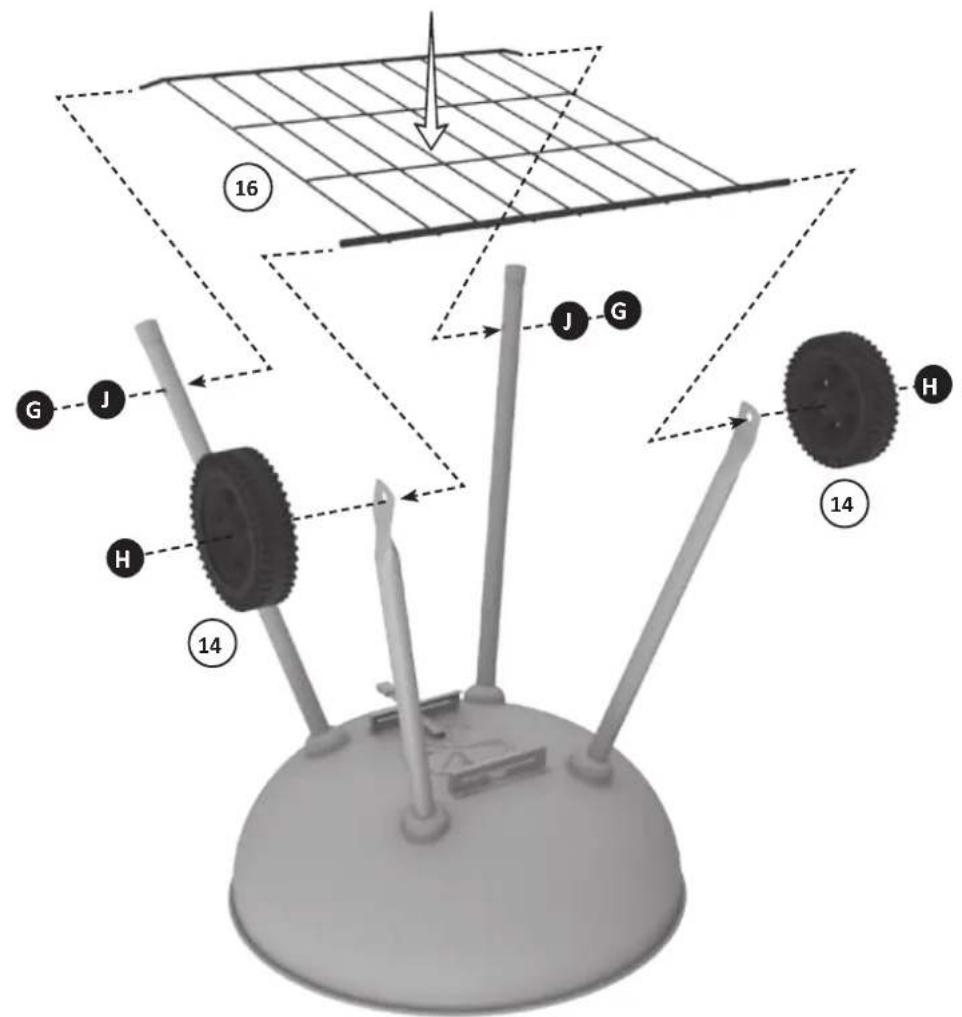

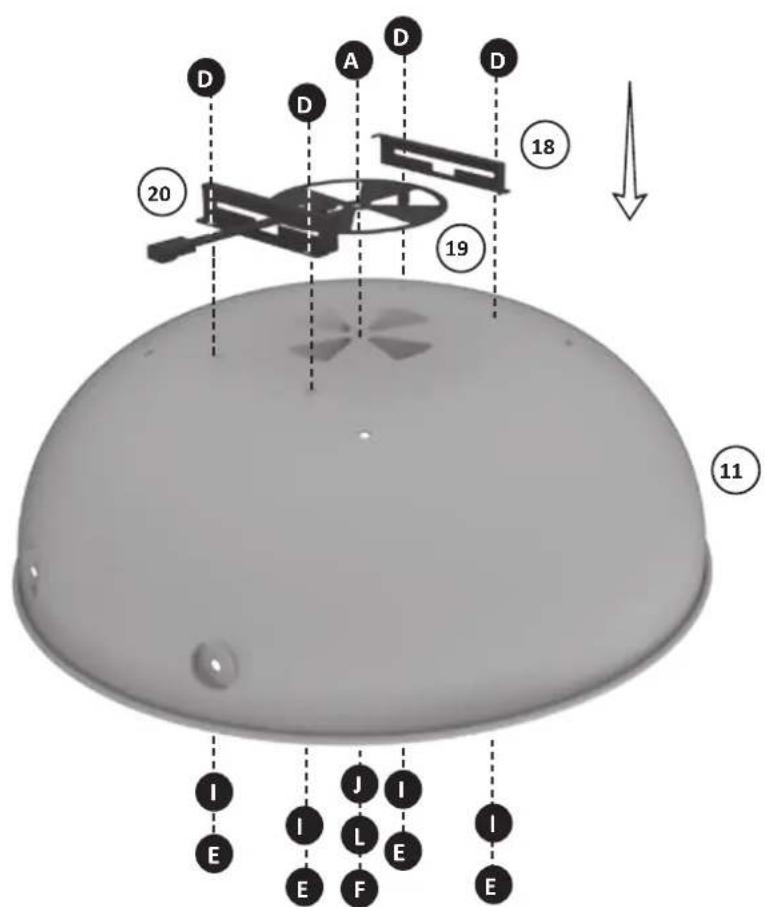

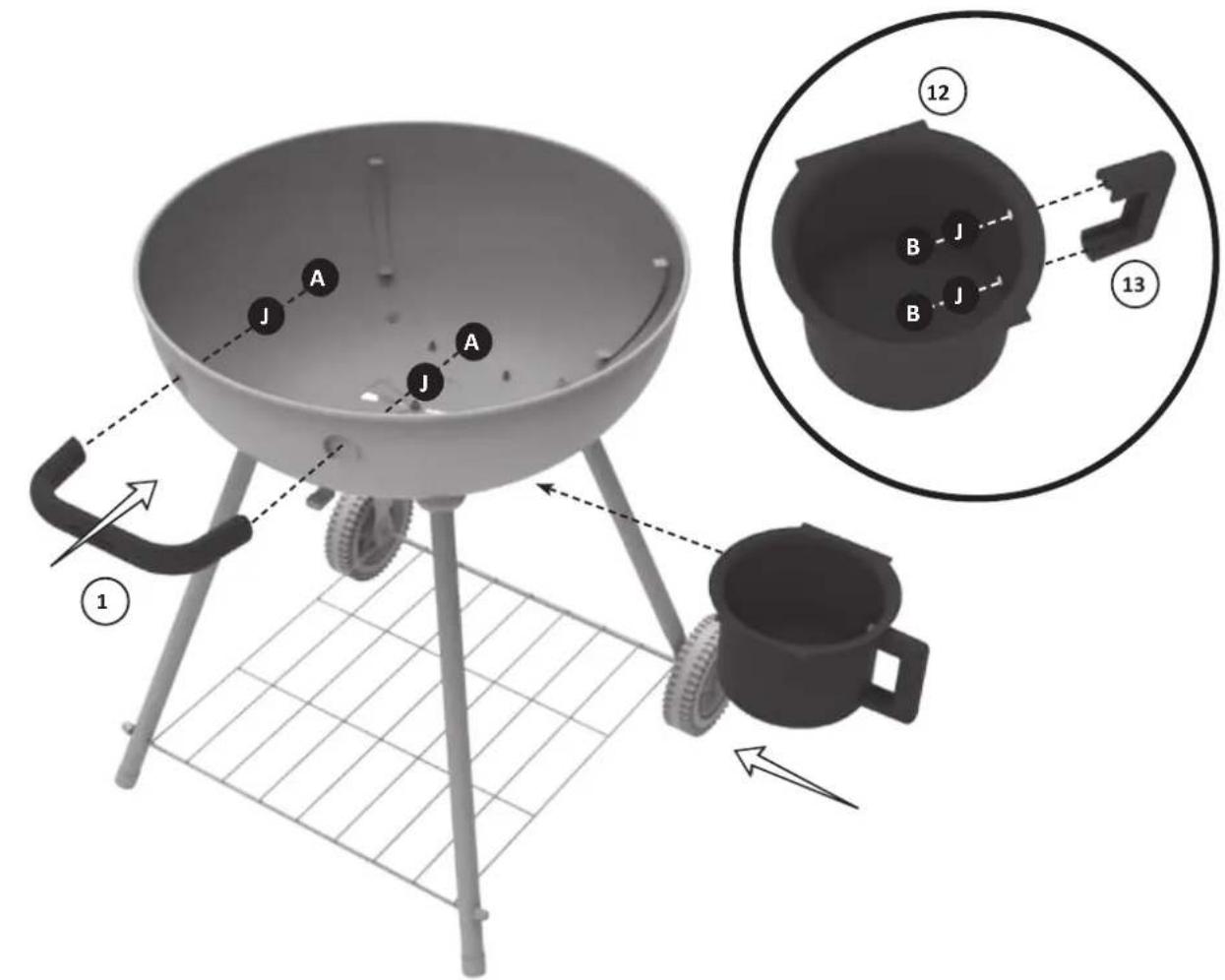

Assembly Images are shown first. Please read and follow all warnings and instructions before assembling and using the appliance.

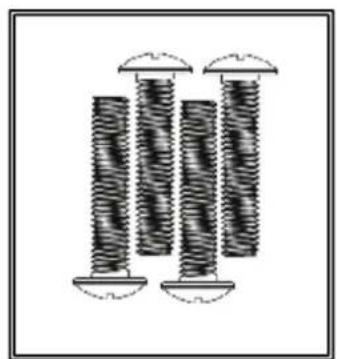

Six identical diagrams of a screw with two hemispherical heads, arranged in a grid (no text or symbols)

A QTY:6

Two identical diagrams of a screw with a flat top, showing different mechanical configurations (no text or symbols)

B QTY:2

D QTY:4

E QTY:4

Three identical spiral screw-like structures with flanged ends, shown in grayscale without any text or symbols.

C QTY:4

G QTY:2

K QTY:4

H QTY:2

L QTY:2

F QTY:2

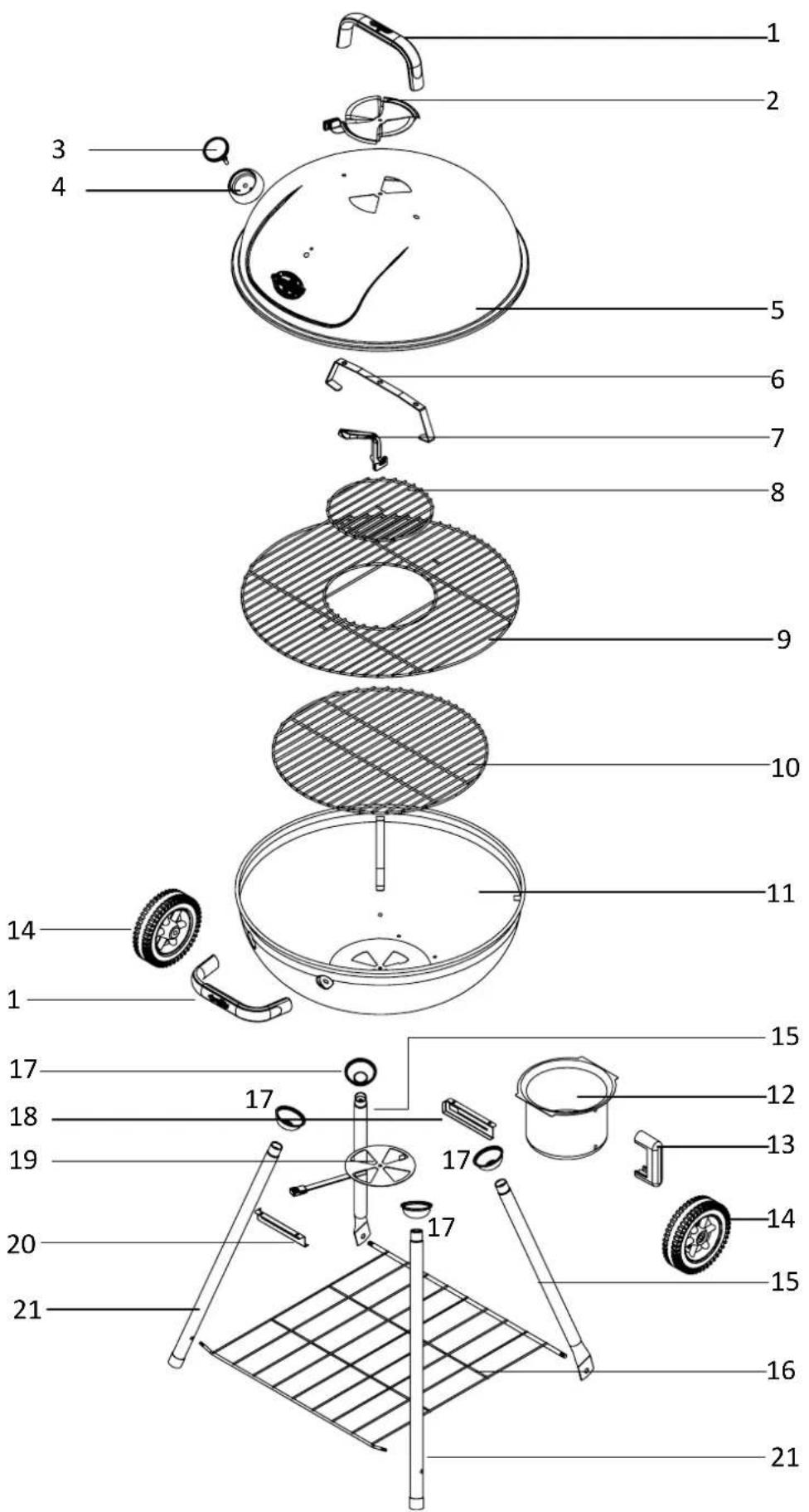

Parts List

NO. QTY.		DESCRIPTION	NO. QTY.		DESCRIPTION
1	2	GRILL HANDLE	12 1	ASH BUCKET
2	1	TOP VENT ASSEMBLY	13 1	ASH BUCKET HANDLE
3	1	THERMOMETER WITH WING NUT	14	2	WHEELS
4	1	BEZEL, THERMOMETER	15	2	BACK LEGS
5	1	GRILL LID	16	1	BOTTOM SHELF
6 1	GRILL LID H	ANGER	17	4	LEG BEZELS
7	1	GRATE TOOL	18	1	RIGHT ASH TRAY BRACKET

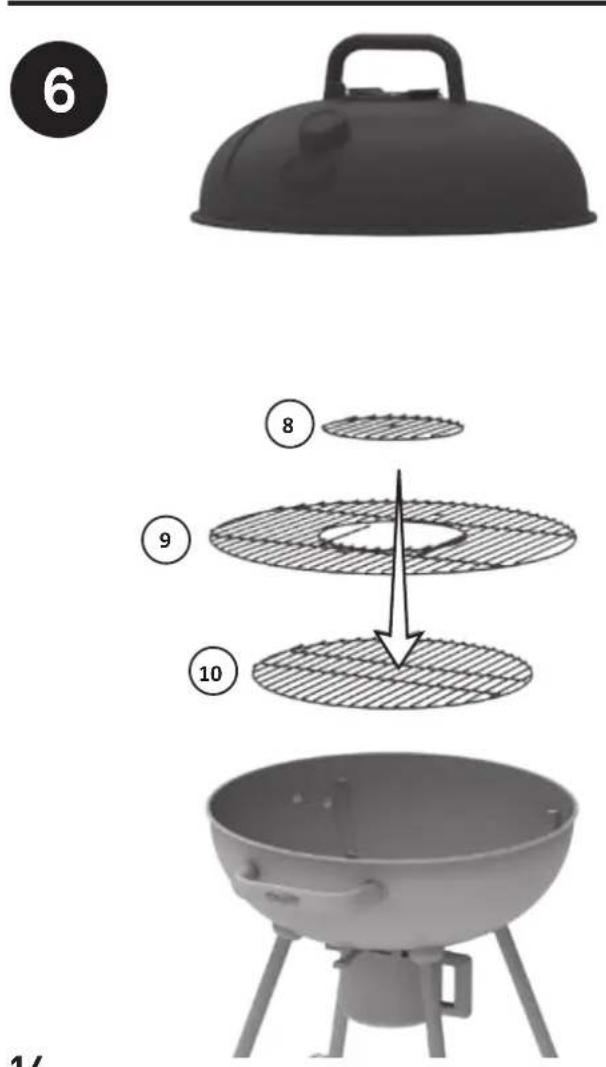

8	1	CHARCOAL LOADING GRATE	19	1	BOTTOM VENT ASSEMBLY
9	1	COOKING GRATE	20	1	LEFT ASH TRAY BRACKET
10	1	CHARCOAL RACK	21	2	FRONT LEGS
11	1	GRILL BASE ASSEMBLY

BEFORE ASSEMBLY READ ALL INSTRUCTIONS CAREFULLY

• Assemble on a clean flat surface.
• Recommend assembling on cardboard to avoid residue on floors or scratches.
• Gloves recommended for assembly.
• Tools needed: Phillips head screwdriver and adjustable wrench.
• Approximate assembly time: 30 minutes.
• Recommend two people assemble to increase ease and reduce assembly time.
• Actual product may differ from picture shown.
• It is possible that some assembly steps have been completed in the factory.
• Remove all advertisement stickers before use.

DO NOT RETURN TO RETAILER!

For assembly assistance, missing or damaged parts, please contact Char Griller Customer Service.

Char Griller ^® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341

Char Griller ^® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, Den Haag, Netherlands

Char Griller ^® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ

Australia & New Zealand: Please contact your retailer

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

Liste des pièces

N°	QTÉ	DESCRIPTION	N°	QTÉ	DESCRIPTION
1	2	POIGNÉE DU BARBECUE	12 1	SEAU À CENDRES
2	1	ASSEMBLAGE DE L'ÉVENT SUPÉRIEUR	13 1	POIGNÉE DU SEAU À CENDRES
3	1	THERMOMÈTRE AVEC ÉCROU À OREILLES	14	2	ROUES
4	1	COLLERETTE DE THERMOMÈTRE	15	2	PIEDS ARRIÈRE
5	1	COUVERCLE DU BARBECUE	16	1	ÉTAGÈRE INFÉRIEURE
6 1	CROCHET	POUR COUVERCLE DE BARBECUE	17	4	COLLERETTES DES PIEDS
7	1	PINCE POUR GRILLE	18	1	SUPPORT DE DROITE DU BAC À CENDRES
8	1	GRILLE DE CHARGEMENT DU CHARBON DE BOIS	19	1	ASSEMBLAGE DE L'ÉVENT INFÉRIEUR
9	1	GRILLE DE CUISSON	20	1	SUPPORT DE GAUCHE DU BAC À CENDRES
10	1	PLATEAU À CHARBON DE BOIS	21	2	PIEDS AVANT
11	1	ASSEMBLAGE DE LA BASE DU BARBECUE

AVANT L'ASSEMBLAGE, LIRE ATTENTIVEMENT TOUTES LES INSTRUCTIONS

Char Griller® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341

Char Griller® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, La Haye, Pays-Bas

Char Griller® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

Char Griller ^® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341, VS

Char Griller ^® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ Den Haag, Nederland

Char Griller ^® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ, VK

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

Teileliste

Char Griller ^® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341

Char Griller ^® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, Den Haag, Niederlande

Char Griller ^® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

Elenco delle parti

N. Q.TÀ. DESCRIZIONE			N. Q.TÀ. DESCRIZIONE
1 2	MANIGLIA GRILL		12 1	CONTENITORE PER LA RACCOLTA DELLA CENERE
2 1	BLOCCO FRESA D'ARIA SUPERIORE		13	1	MANIGLIA DEL CONTENITORE PER LA RACCOLTA DELLA CENERE
3 1	TERMOMETRO CON DADO AD ALETTE		14 2	ROTELLE
4 1	GHIRA, TERMOMETRO		15 2	GAMBE POSTERIORI
5 1	COPERCHIO DEL GRILL		16 1	RIPIANO INFERIORE
6 1	SISTEMA DI REGOLAZIONE DEL COPERCHIO DEL GRILL		17 4	GHIRA DELLE GAMBE
7 1	UTENSILE PER GRIGLIA		18 1	STAFFA DESTRA VASSOIO PER LA CENERE
8 1	GRIGLIA CARICAMENTO CARBONE		19 1	BLOCCO PRESA D'ARIA INFERIORE
9 1	GRIGLIA DI COTTURA		20 1	STAFFA S NISTRA VASSOIO PER LA CENERE
10 1	RIPIANO CARBONELLA		21 2	GAMBE ANTERIORI
11 1	BLOCCO BASE DEL GRILL

PRIMA DEL MONTAGGIO LEGGERE ATTENTAMENTE LE ISTRUZIONI

Char Griller ^® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341

Char Griller ^® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, Den Haag, Netherlands

Char Griller ^® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

Char Griller ^® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341

Char Griller ^® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, Den Haag, Netherlands

Char Griller ^® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

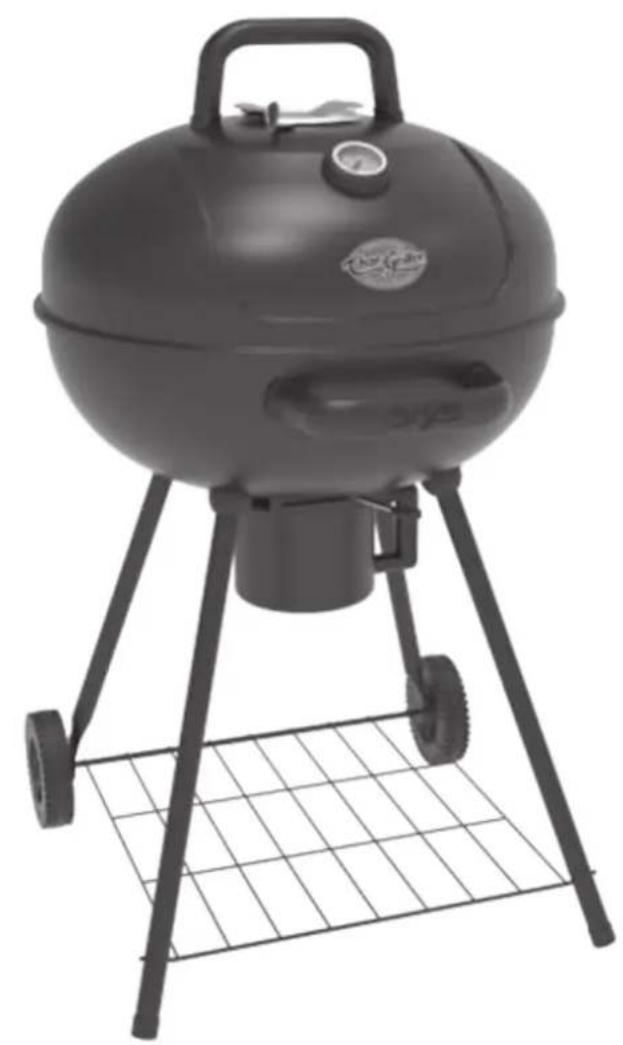

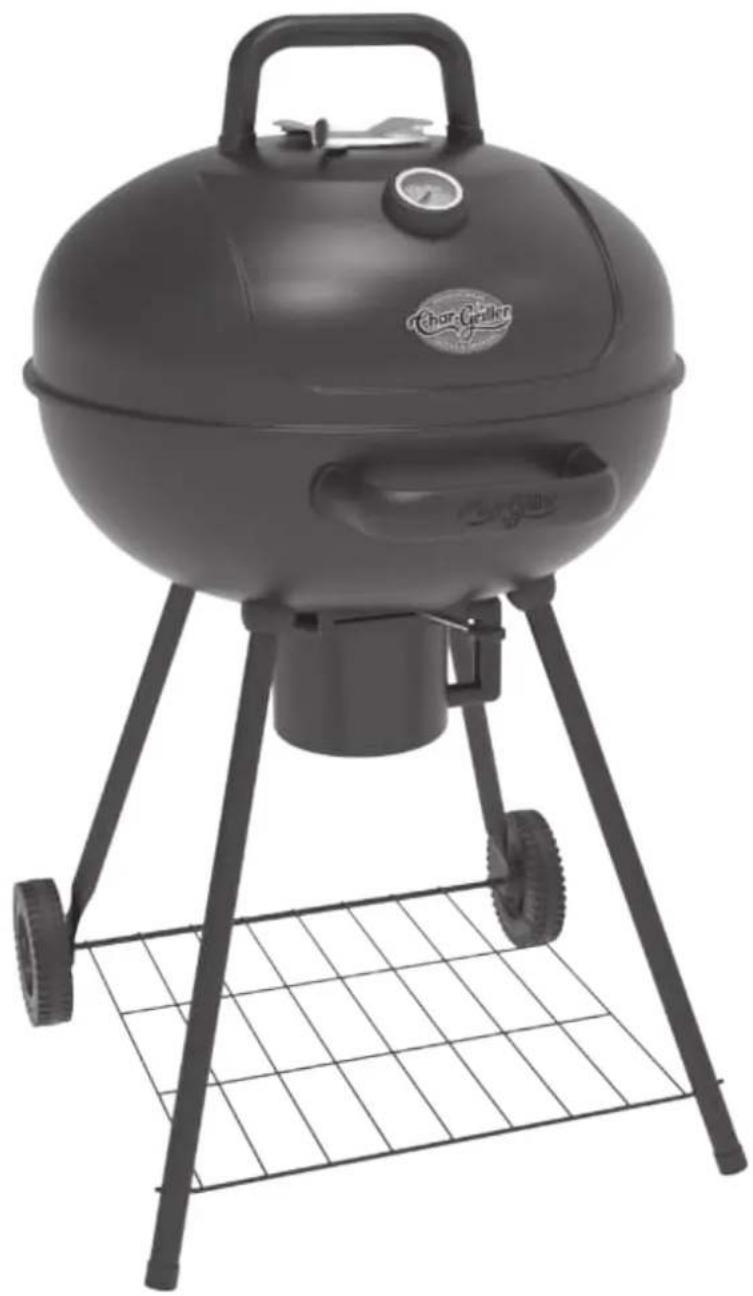

Black outdoor grill with a large dome-shaped body and handle, mounted on a metal stand with wheels (no visible text or symbols)

ENGLISH

FOR OUTDOOR USE ONLY. NOT FOR COMMERCIAL USE.

WARNING

• This manual contains important information necessary for the proper assembly and safe use of the appliance.
- Read and follow all warnings and instructions before assembling and using the appliance.
- Keep this manual for future reference.

CARBON MONOXIDE HAZARD

Failure to follow these instructions could result in fire, explosion or burn hazard which could cause property damage, personal injury, or death.

• Burning wood chips, wood chunks, wood pellets, charcoal and propane gives off carbon monoxide, which has no odor and can cause death.
• DO NOT burn wood chips, wood chunks, wood pellets, charcoal or propane inside homes, vehicles, tents, garages or any enclosed areas.
• Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality.
• USE ONLY OUTDOORS where it is well ventilated.

• FOLLOW THESE GUIDELINES TO PREVENT THIS COLORLESS, ODORLESS GAS FROM POISONING YOU, YOUR FAMILY OR OTHERS.

• Know the symptoms of carbon monoxide poisoning: headache, dizziness, weakness, nausea, vomiting, sleepiness, and confusion. Carbon monoxide reduces the blood's ability to carry oxygen. Low blood oxygen levels can result in loss of consciousness and death.

• See a doctor if you or others develop cold or flu-like symptoms while cooking or in the vicinity of this appliance. Carbon monoxide poisoning, which can easily be mistaken for a cold or flu, is often detected too late.
• Alcohol consumption and drug use increase the effects of carbon monoxide poisoning.
• Carbon monoxide is especially toxic to mother and child during pregnancy, infants, the elderly, smokers, and people with blood or circulatory system problems, such as anemia, or heart disease.

WARNINGS AND IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS

• Do not leave grill unattended.
• Grill is for OUTDOOR HOUSEHOLD USE ONLY.
• Do not use indoors!
• Use charcoal for fuel only.
• Do not use grill in high winds!
• Close lid and dampers to help suffocate flame.
• Do not alter this grill in any manner.
• Do not exceed a temperature of 204^ (400°F) or more.
  • Always use grill in accordance with all applicable local, state and federal fire codes.
• Potential damage to grill or harm to user may result from failure to follow warnings.
• Never use inside enclosed areas such as patios, garages, buildings, or tents.
• Never use inside or on recreational vehicles or boats.
• Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality.

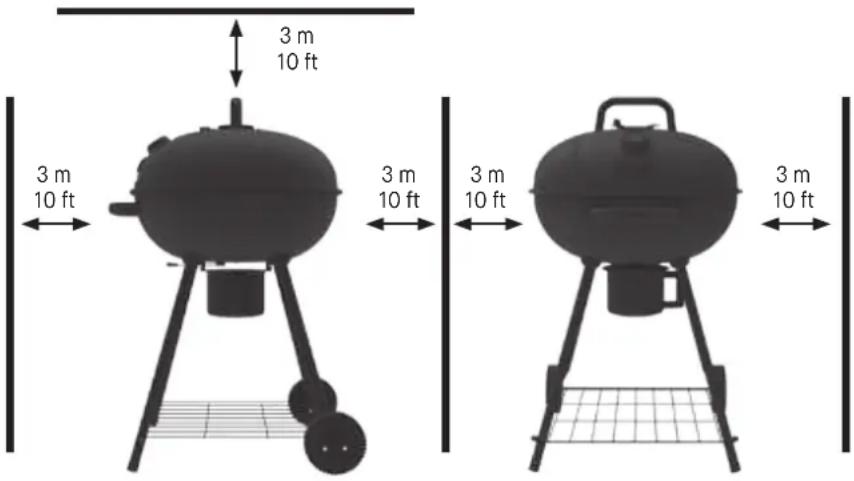

• Maintain a minimum distance of 3m (10ft) from overhead construction, walls, rails or other structures.
• Keep a minimum 3m (10ft) clearance of all combustible materials such as wood, dry plants, grass, brush, paper.
• Never operate grill under overhead construction such as roof coverings, carports, awnings, or overhangs. (SEE STRUCTURAL PROXIMITY REQUIREMENTS).
• Keep grill clear and free from combustible materials such as gasoline and other flammable vapors and liquids.
• Use grill on a level, non-combustible, stable surface such as dirt, concrete, brick, or rock. An asphalt surface (blacktop) may not be acceptable for this purpose.
• Do not use grill on wooden or flammable surfaces.
• Grill MUST be on the ground. Do not place grill on tables or counters. Do NOT move grill across uneven surfaces.

WARNINGS AND IMPORTANT SAFEGUARDS

• Grill should only be rolled on smooth surface.
• Grill should never be rolled up/down stairs or uneven surface.
• Never use grill as a heater (READ CARBON MONOXIDE HAZARD).
• Never use grill for anything other than its intended use. This grill is NOT for commercial use.
• Keep a fire extinguisher accessible at all times while operating grill.
• When cooking with oil or grease, have a type BC or ABC fire extinguisher readily available.
• In the event of an oil or grease fire do not attempt to extinguish with water. Immediately call the fire department. A type BC or ABC fire extinguisher may, in some circumstances, contain the fire.
• Before each use check all nuts, screws, and bolts to make sure they are tight and secure.
• Use of alcohol, prescription, or non-prescription drugs may impair user's ability to properly assemble or safely operate grill.
• Keep children and pets away from grill at all times. Do NOT allow children to use grill. Close supervision is necessary when children or pets are in the area where grill is being used.
• Do NOT allow anyone to conduct activities around grill during or following its use until it has cooled.
• DO NOT bump or impact the grill to prevent personal harm, damage to grill, or spillage/splashing of hot cooking liquid.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Never move grill when in use. Allow grill to cool completely (45°C (below 115°F)) before moving or storing.
• The grill is HOT while in use and will remain HOT for a period of time afterwards and during cooling process. Use CAUTION. Wear protective gloves/mitts.
• Do not touch HOT surfaces. Use handles or knobs.
• Never use glass, plastic, or ceramic cookware in grill. Never place empty cookware in grill while in use.
• Accessory attachments not supplied by Char-Griller® are not recommended and may cause injury.
• Do not store grill with hot ashes or charcoal inside grill. Store only when fire is completely out and all surfaces are cold.
• Be careful when removing food from grill. All surfaces are HOT and may cause burns. Use protective gloves/mitts or long, sturdy, cooking tools for protection from hot surfaces or splatter from cooking liquids.
• Grill is hot during use. Keep face and body away from door(s) and vents. Steam and hot air are expelled during use.
  • DO NOT obstruct flow of combustion and ventilation.
• Do not cover cooking racks with metal foil. This will trap heat and may cause damage to the grill.
• Never leave HOT coals or ashes unattended.
• Do not remove ash can while ashes and charcoal are HOT.
• Make sure to empty grease can after every use once completely cooled.
• Grill has an open flame. Keep hands, hair, and face away from flame. Do NOT lean over grill when lighting. Loose hair and clothing may catch fire.
• Use protective gloves when handling this grill or working with fire. Use protective gloves or long, sturdy fireplace tools when adding wood or charcoal.
  • Air dampers are HOT while the grill is in use and during cooling; wear protective gloves when adjusting.
• Cooking grate is HOT while the grill is in use and during cooling; use extreme caution, if you touch the cooking grate, wear protective gloves
• Do not cook before the charcoal has a coating of ash.
• The barbecue should be heated up and the fuel should be kept red hot for at least 30mins prior to the first cook.
• Never use charcoal lighting fluid, gasoline, alcohol or other highly volatile fluids to ignite charcoal. These fluids can explode and cause injury or death.
• Never overfill charcoal grate. This can cause serious injury as well as damage to the grill.
• Never use more than the recommended amount of charcoal (see below).
• WARNING! This barbecue will become very hot, do not move it during operation.
  • WARNING! Keep children and pets away.
• WARNING! Do not use spirit or petrol for lighting or re-lighting!
• WARNING! Do not use spirit or petrol for lighting or re-lighting! Use only firelighters complying to EN 1860-3!
• Never add additional lighter fluid once charcoal has ignited. Follow directions on lighter fluid container.
• Dispose of cold ashes by placing them in aluminum foil, soaking with water, and discarding in a non-combustible container.
• Keep lid open during the lighting process. Do not close the lid until the flames have burned down. Failure to follow this instruction may result in damage to painted surfaces due to excessive heat.

DO NOT EXCEED A TOTAL OF 1 KGS / 2 LBS OF CHARCOAL FOR MAIN FIREBOX

STRUCTURAL PROXIMITY REQUIREMENTS

Maintain a minimum distance of 3 m (10 ft) from rear, sides and top of grill to all overhead construction, walls, rails or other combustible construction materials.

Maintain a minimum distance of 3 m (10 ft) from all combustible and flammable materials such as, wood, plants, grass, brush, paper, gasoline, or canvas.

This clearance provides adequate space for proper combustion, air circulation and venting. Grill should not be used on combustible materials like wood decks or other combustible materials.

SAVE THESE INSTRUCTIONS

This product does not come with charcoal or wood chunks.

Operating Instructions

SETTING UP

Set grill up on solid, flat surface with adequate wind shelter.

Do not move grill while hot, and do not leave unattended during operation.

This appliance is designed for use outdoors, away from any flammable materials. It is important that there are no overhead obstructions and that there is a minimum distance of 3 m (10 feet) from the side or rear of the appliance. It is important that the ventilation openings of the appliance are not obstructed. The barbecue must be used on a level, stable surface. The appliance should be protected from direct drafts and positioned or protected against direct penetration by any trickling water (e.g. rain).

PRE-SEASONING

IMPORTANT! Pre-Seasoning will rid your grill of chemicals and oils left over by the manufacturing process, allowing them to burn off. PRE-SEASON GRILL PRIOR TO FIRST USE.

1. Start grill by following the LIGHTING instructions. Build a medium sized fire.

2. Do not use more than 1 KGS / 2 LBS of charcoal.
   • Always put charcoal on charcoal tray.

3. Never put charcoal directly into the bottom of the grill.

4. After coals ash over, spread out coals, replace cooking grates, close lid and heat to 121^ C ( 250^ F) for two hours. This process will burn off any unwanted residue from the inside of your grill. Before cooking again, brush the cooking grate with a standard grill brush. Use a soft bristle brush on the ceramics to remove any residue.

Once or twice a year, you should do a more thorough cleaning of the inside of the grill. Remove the internal components and remove any residual ash or debris that has collected between the grill body and the internal components. Use a plastic bristle brush to clean the inside ceramic surface and scoop or vacuum debris from the bottom of the grill before replacing the internal components.

NOTE: NEVER EXCEED A COOKING TEMPERATURE OF 204°C (400°F) BECAUSE THIS WILL DAMAGE THE FINISH AND CONTRIBUTE TO RUST. PAINT IS NOT WARRANTED AND WILL REQUIRE TOUCH-UP. THIS UNIT IS NOT WARRANTED AGAINST RUST.

LIGHTING INSTRUCTIONS

There are a few different methods that can be used to light the charcoal in your charcoal grill depending on personal preference. Below the charcoal chimney and fire starter methods are described.

DO NOT EXCEED A TOTAL OF 1 KGS / 2 LBS OF CHARCOAL FOR MAIN FIREBOX

CHARCOAL CHIMNEY

1. Remove the grill grates and set them to the side.
2. Fill the charcoal chimney 34 of the way full with briquettes or lump charcoal
3. Set a fire starter on charcoal grate, light and then place the charcoal chimney directly on top of the fire starter. This step is done INSIDE the grill.
4. Coals will fire upward from bottom to top.
5. USE EXTREME CAUTION! After the coals on the top of the chimney are ignited (usually 10-15 minutes) pour the coals onto the charcoal grate, spread coals out with tongs, and replace your grill grates.

Black-and-white photo of a cooking pot with visible contents, placed on a metal grater (no text or symbols)

Operating Instructions

LIGHTING INSTRUCTIONS CONT.

FIRE STARTERS

1. Remove the grill grates and set them to the side.
2. Pour approximately 1 kgs (2 lbs) (approx. 30-35 briquettes) of charcoal directly on to your charcoal grate and stack together in a pile.
3. Insert fire starter into the middle of the charcoal pile so that it is slightly covered and light.
4. USE EXTREME CAUTION! After the charcoal has thoroughly ignited (typically glowing red or gray in color) use tongs to spread them out and replace your grill grates.

Black-and-white photo of dark, irregularly shaped objects on a metal grater with visible flames (no text or symbols)

NOTE:

• Always follow the charcoal manufacturer's instructions and warnings.
• Do not use lighter fluid, gasoline, kerosene, alcohol or other accelerant for lighting charcoal.
• If necessary, USE EXTREME CAUTION and use tongs or a long handled tool to move coals.
  • Always wear heat resistant gloves when handling grill grates, charcoal grate, or adjusting coals.

MAINTAINING TEMPERATURE

In order to control the temperature of your grill, you need to control the amount of air flow to the fire. By opening and closing the top and side dampers, you can adjust the temperature of your grill.

• MORE AIR = MORE HEAT
• LESS AIR = LESS HEAT

The amount of charcoal used when grilling can also greatly impact your ability to control temperature. The more charcoal that ignites, the hotter the grill can be.

• MORE CHARCOAL = MORE HEAT
• LESS CHARCOAL = LESS HEAT

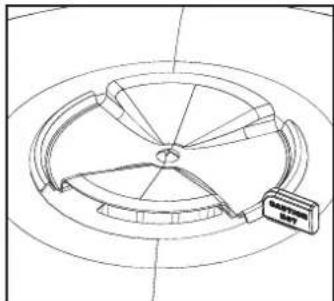

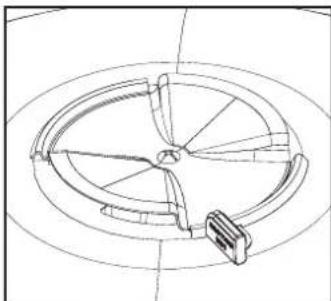

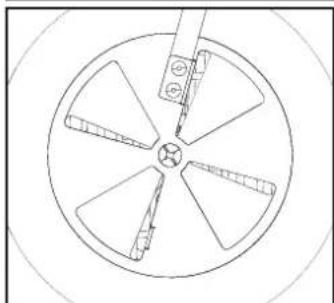

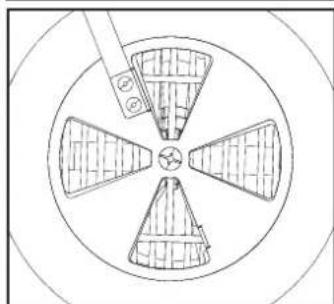

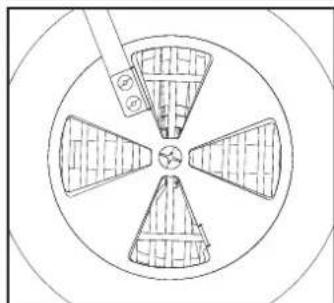

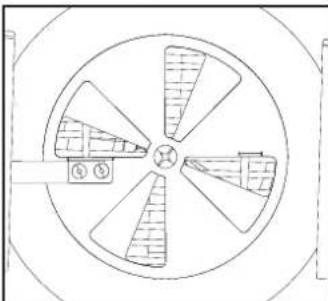

SMOKE
Low Temperatures

Technical line drawing of a circular mechanical component with radial arms and central hub (no text or symbols)

GRILL
Med. Temperatures

Technical line drawing of a circular mechanical component with radial blades and a central hub (no text or symbols)

SEAR
High Temperatures

Technical line drawing of a circular mechanical component with radial blades and a small labeled component (no text or symbols)

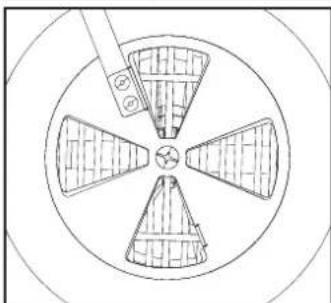

Top-down schematic of a circular mechanical component with four blades and a central hub (no text or symbols)

• Place dampers 1/4 or less of the way open.
• Start with 1 KGS / 2 LBS of charcoal and/or wood fuel.
• Hang the charcoal grate in its lowest setting / farthest from the cooking grates.

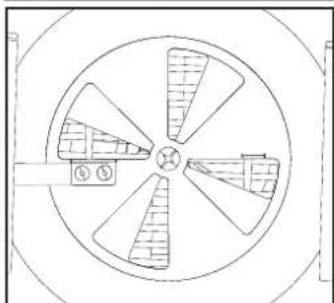

Diagram of a circular fan with six blades, no text or symbols present

• Adjust dampers from 1/3 - 2/3 of the way open.
• Start with 1 KGS / 2 LBS of charcoal and/or wood fuel.
• Hang the charcoal grate in its middle setting from the cooking grates.

Diagram of a four-petal fan or horn-like structure with a central hub and surrounding blades, enclosed in a circular frame (no text or symbols)

• Place dampers completely open. Allow maximum airflow.
• Start with 1 KGS / 2 LBS of charcoal and/or wood fuel.
• Hang the charcoal grate in its highest setting / closest to the cooking grates.

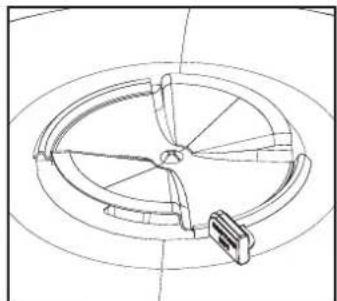

NOTE:

Upper and lower dampers may look different on your grill.

Use this drawing only as a reference to indicate the amount of air passing through the dampers.

Cooking Styles

OVERVIEW

Your charcoal grill can be used to smoke, grill or sear your food with direct or indirect heat.

By creating temperature zones and adjusting the charcoal placement, you can customize your culinary experience as desired. We have listed a few different cooking styles that you can utilize.

TRADITIONAL SMOKE

NOTE: charcoal placement is key for this method.

1. Cook with indirect heat at low temperatures (65°-121°C) (150°-250°F).
2. Use split wood logs, chips, chunks, or pellets to add smoke flavor.
3. Prepare the charcoal or fuel in the main cook chamber. Only utilize 1/2 or 1/3 of the charcoal grate.

- Never put charcoal directly into the bottom of the grill.

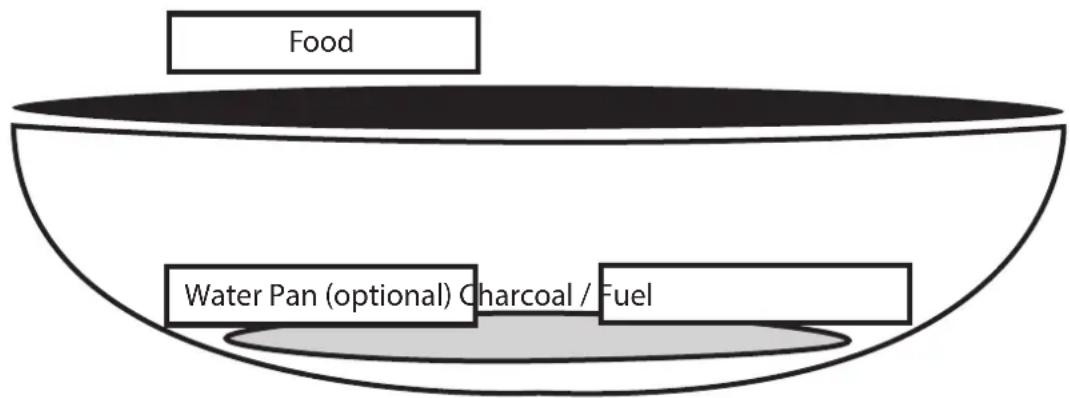

1. Create 2 "zones" with the placement of the fuel.
2. Food should be placed in the cool zone / the area not directly above the fuel.
3. Hang the charcoal grate in its lowest setting / farthest from the cooking grates.

GRILLING (direct or indirect heat)

Note: Placement of the food above or next to the charcoal zone will create the direct or indirect heat

1. Cook with direct or indirect heat at medium to high temperatures (149°C +) (300°F +).
2. Use split wood logs, chips, chunks, or pellets to add smoke flavor.
3. Prepare the charcoal or fuel in the main cook chamber. Only utilize 1/2 of the charcoal grate.

4. Never put charcoal directly into the bottom of the grill.

5. Create 2 "zones" with the placement of the fuel.

6. Food can be placed in the "indirect" zone for lower temperatures. The indirect zone is the area not directly above the fuel.

7. Food can be placed in the "direct" zone for higher temperatures. The direct zone is the area directly above the fuel.

8. Hang the charcoal grate in the medium setting from the cooking grates.

SEAR (direct heat)

Note: This style is best for short cooks. Use caution, cooking at high temperatures like this can dry out the food.

1. Quickly cook with direct heat at high temperatures (204°C) (400°F).
2. Smoke flavor will not be added at this temperature. The wood will burn too hot to infuse flavor.
3. Prepare the charcoal or fuel in the main cook chamber.
4. Never put charcoal directly into the bottom of the grill.
5. Food can be is in the "direct" zone for searing temperatures. The direct zone is the area directly above the fuel.
6. Hang the charcoal grate in the highest setting / closest to the cooking grates.
7. Food will cook very quickly at this temperature. Use caution.
8. Always cook with the lid open when using this method to prevent damage to the exterior of the grill.

Operating Instructions

RELOAD

If planning to cook for more that 30 to 40 minutes, additional charcoal should be added. Once briquettes become 80% ashed over, remove the center charcoal grate and add additional charcoal (10 to 20 briquettes). Read all instructions and warnings on the charcoal bag.

NOTE: To avoid ignition smoke use a charcoal chimney to pre start your briquettes.

SHUT DOWN

Allow the temperature to drop to below 177^ C ( 350^ F). Once the temperature is below 177^ C ( 350^ F) close all lids and dampers. This will help extinguish the charcoal. Allow time for the grill to cool completely before moving on to the cleaning and care section.

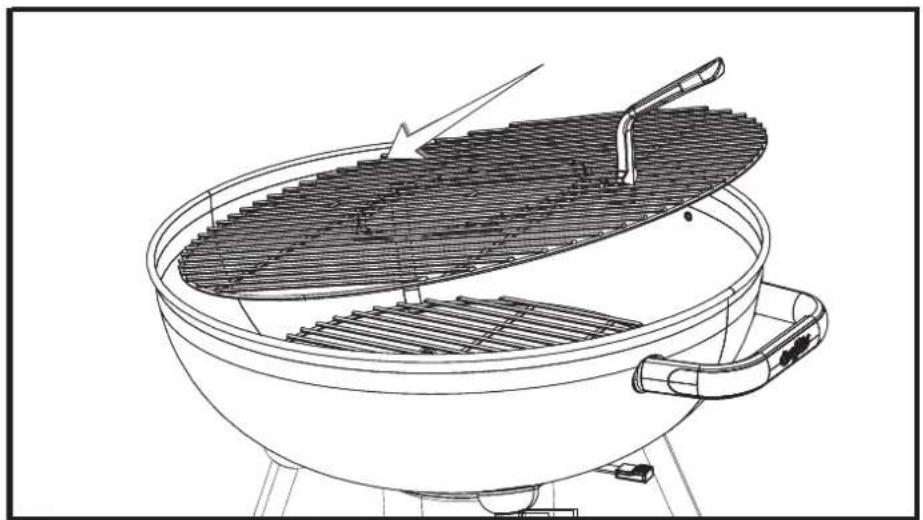

GRATE LIFTER

Use your grate lifter to handle your cooking grates.

CAUTION! Cooking grates can be HOT! Use the grill gripper to re-position the cooking grates throughout your cook.

Line drawing of a portable grill with grating and side-mounted dish (no text or symbols)

Cleaning and Care

REGULAR MAINTENANCE

In order to keep your grill in the best shape regular cleaning and maintenance is required. The best way to protect your grill from the elements is with a grill cover.

• ALWAYS MAKE SURE UNIT IS COOL TO THE TOUCH BEFORE CLEANING AND STORING.
• Inspect hardware and assembled parts on a regular basis to ensure grill is in safe working condition.
• Always empty the ash tray after each use once ashes have completely cooled. Empty the ashes into a metal container and cover with water to ensure there are no lit coals.
• Clean grill and cooking grids with mild cleaning agents. Wipe outside of grill with a damp rag. DO NOT use oven cleaner.
  • Always cover and store cold grill in a protected area.
• Indoor storage of grill is permissible only if the charcoal has burned to a complete ash and is cold.
• Remember to remove cold ashes before storing.
• Your grill is made of steel and some rust may appear over time. If rust occurs clean the area with fine sandpaper or steel wool, then cover with heat resistant paint.
  • NEVER USE PAINT ON INSIDE SURFACES OF GRILL.
• Frequent seasoning prevents rusting. If rusting occurs, clean with a steel brush, apply cooking oil or vegetable shortening and heat as indicated in the pre-seasoning steps.

WARRANTY INFORMATION

A COPY OF THE DATED PROOF OF PURCHASE (RECEIPT) IS REQUIRED WHEN REGISTERING OR SUBMITTING A WARRANTY CLAIM. PLEASE RETAIN A COPY OF THE RECEIPT FOR YOUR RECORDS.

Char-Griller® will replace any defective part of its grillers/smokers, under warranty, as outlined below.

Charcoal / Pellet / Kamado Grills
Grill - Hood AND Bottom(excludes removable Ash Pan)	5 years from date of purchase for rust through / burn through
Ash Pan AND Defective Parts 1 year from date of purchase
Gas Grills
Grill Hood (TOP half) AND Main Burner Tubes(excludes Side Burner)	5 years from date of purchase for rust through / burn through
Grill Body (BOTTOM half) AND Side BurnerAND Defective Parts	1 year from date of purchase
Dual Fuel Grills (Gas & Charcoal)
Charcoal Grill - Hood AND Bottom ANDGas Grill - Hood (TOP half) AND Main Burner Tubes(excludes Ash Pan and Side Burner)	5 years from date of purchase for rust through / burn through
Ash Pan AND Defective Parts AND Gas GrillBody (BOTTOM half) AND Side Burner	1 year from date of purchase
Griddles
All defective parts 1 year from date of purchase
MISC
Parts, Accessories, and Grill Covers 1 year from date of purchase	(seam tears only for covers)

SURFACE RUST IS NOT CONSIDERED A MANUFACTURING OR MATERIALS DEFECT

Char-Griller® grills are made of steel and if exposed to the elements rust will occur naturally. Please refer to the manual to review how to care for your grill properly.

Surface issues such as scratches, dents, corrosion or discoloring by heat, abrasive and chemical clearers, surface rust or the discoloration of steel surfaces are NOT covered under these warranties.

Warranties are for the replacement of defective parts only. Char-Griller ^® is not responsible for damage resulting from accident, alteration, misuse, abuse, hostile environments, improper installation, and installation not in accordance with local codes of service of unit.

AUSTRALIA AND NEW ZEALAND RESIDENTS ONLY: Our goods come with guarantees that cannot be excluded under the Australian or New Zealand Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

EUROPEAN RESIDENTS ONLY: Char-Griller® warrants all of its products to be free from defects in material and workmanship under proper assembly, normal use and recommended care for 2 years from the date of original retail purchase.

Excluded Under ALL Warranties

Paint; Surface Rust; Heat Damage; Incorrect Parts ordered by customer, including shipping; Worn Parts; Missing or damaged parts not reported within two (2) months of purchase date; Defective parts not reported within one (1) year of purchase date; Fading grill cover.

*NOTE: For warranty claims, photos and prepaid return of the item in question may be required. Misuse, abuse or commercial use nullifies all warranties.

PLEASE READ THIS INFORMATION IN DETAIL AND IF YOU HAVE ANY QUESTIONS CONTACT CUSTOMER SERVICE AT:

DO NOT RETURN TO RETAILER!

For assembly assistance, missing or damaged parts, please contact Char Griller Customer Service.

Char Griller ^® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341

Char Griller ^® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, Den Haag, Netherlands

Char Griller ^® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ

Australia & New Zealand: Please contact your retailer

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

FRENCH

POUR UNE UTILISATION EN EXTÉRIEUR SEULEMENT. NE PAS UTILISER À DES FINS COMMERCIALES.

AVERTISSEMENT

AVERTISSEMENTS ET MISES EN GARDE IMPORTANTES

LISEZ TOUTES LES INSTRUCTIONS

INSTRUCTIONS D'ALLUMAGE

Black-and-white photo of a portable stove burner with contents, placed on a metal grater (no visible text or symbols)

Mode d'emploi

INSTRUCTIONS D'ALLUMAGE (SUITE)

ALLUME-FEU

Black-and-white photo of dark, irregularly shaped objects on a metal grater with visible flames (no text or symbols)

REMARQUE :

Technical line drawing of a circular mechanical component with radial grooves and central hub (no text or symbols)

Technical line drawing of a circular mechanical component with radial blades and a central hub (no text or symbols)

Technical line drawing of a circular mechanical component with radial segments and a small rectangular component on the right (no text or symbols)

Technical line drawing of a circular mechanical component with four blades and a central hub (no text or symbols)

Diagram of a circular fan with six blades, no text or symbols present

Diagram of a circular fan with five blades, one blade inserted into the center (no text or symbols)

Char Griller® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341

Char Griller® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, La Haye, Pays-Bas

Char Griller® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

ESPAÑOL

SÓLO PARA USO EN EXTERIORES. NO PARA USO COMERCIAL.

! ADVERTENCIA !

Black-and-white photo of a small white container with engraved text inside, placed on a metal grater (no readable signage or symbols)

Black and white photo of dark, irregularly shaped objects on a grating tray with visible flames (no text or symbols)

NOTA:

Technical line drawing of a circular mechanical component with radial arms and central hub (no text or symbols)

ASAR
Temperaturas medias

Technical line drawing of a circular mechanical component with radial blades and a central hub (no text or symbols)

SELLAR
Temperaturas altas

Technical line drawing of a circular mechanical component with radial blades and a small labeled component (no text or symbols)

Top-down schematic of a circular mechanical component with four blades and a central hub (no text or symbols)

Diagram of a circular fan with six blades, no text or symbols present

Diagram of a circular fan with four blades and a pointer, no text or symbols present

Line drawing of a portable grill with grating and side-mounted dish (no text or symbols)

Char Griller ^® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341

Char Griller ^® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, Den Haag, Netherlands

Char Griller ^® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

NEDERLANDS

UITSLUITEND VOOR GEBRUIK BUITENSHUIS. NIET VOOR COMMERCIEEL GEBRUIK.

WAARSCHUWING

WAARSCHUWINGEN EN BELANGRIJKE BEVEILIGINGEN

LEES ALLE INSTRUCTIES.

Black-and-white photo of a cooking pot with visible contents, placed on a metal grater (no text or symbols)

Black and white photo of dark, irregularly shaped objects on a grating tray with bright light trails (no text or symbols visible)

NB:

Technical line drawing of a circular mechanical component with radial arms and central hub (no text or symbols)

Technical line drawing of a circular mechanical component with radial blades and a central hub (no text or symbols)

Technical line drawing of a circular mechanical component with radial blades and a small labeled component (no text or symbols)

Top-down schematic of a circular mechanical component with four blades and a central hub (no text or symbols)

Diagram of a circular fan with five blades, no text or symbols present

Diagram of a circular fan with four blades, one blade inserted into the center (no text or symbols)

Line drawing of a portable grill with grating and side-mounted dish (no text or symbols)

Char Griller ^® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341, VS

Char Griller ^® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ Den Haag, Nederland

Char Griller ^® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ, VK

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

DEUTSCH

Black-and-white photo of a coffee maker with visible contents, placed on an oven (no text or symbols)

Betriebsanweisungen

Black-and-white photo of dark, irregularly shaped objects on a metal grater with visible flames (no text or symbols)

HINWEIS:

Technical line drawing of a circular mechanical component with radial arms and central hub (no text or symbols)

GRILL
Mittlere Temperaturen

Technical line drawing of a circular mechanical component with radial blades and a central hub (no text or symbols)

ANBRATEN
Hohe Temperaturen

Technical line drawing of a circular mechanical component with radial blades and a small labeled component (no text or symbols)

Top-down schematic of a circular mechanical component with four blades and a central hub (no text or symbols)

Diagram of a circular fan with six blades, no text or symbols present

Diagram of a circular fan with four blades and a pointer, no text or symbols present

ANBRATEN (direkte Hitze)

Betriebsanweisungen

NEU LADEN

Technical line drawing of a bent mechanical component (no text or symbols)

ROSTHEBERWERKZEUG

Line drawing of a portable grill with grating and side-mounted dish (no text or symbols)

Char Griller ^® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341

Char Griller ^® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, Den Haag, Niederlande

Char Griller ^® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

ITALIAN

SOLO PER USO ALL'APERTO. NON PER USO COMMERCIALE.

AVVERTIMENTO

Black-and-white photo of a small container with contents inside, placed on a metal grater (no visible text or symbols)

Black and white photo of dark, irregularly shaped objects on a grating with visible flames (no text or symbols)

NOTA:

Technical line drawing of a circular mechanical component with radial arms and central hub (no text or symbols)

GRIGLIATURA
Medie temperature

Technical line drawing of a circular mechanical component with radial blades and a central hub (no text or symbols)

ROSOLATURA
Alte temperature

Technical line drawing of a circular mechanical component with radial blades and a small labeled component (no text or symbols)

Top-down schematic of a circular mechanical component with four blades and a central hub (no text or symbols)

Diagram of a circular fan with six blades, no text or symbols present

Diagram of a circular fan with four blades and a pointer, no text or symbols present

Technical line drawings of a portable grill with a flat support bracket and its internal grating (no text or symbols)

Char Griller ^® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341

Char Griller ^® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, Den Haag, Netherlands

Char Griller ^® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

SVENSKA

! VARNINGAR OCH VIKTIGA SÄKERHETSÅTGÄRDER!

LÄS ALLA INSTRUKTIONER

Black-and-white photo of a small ceramic stove burner with contents, placed on a metal grater (no visible text or symbols)

Driftsanvisningar

INSTRUKTIONER FÖR TÄNDNING FORTS.

BRASSTARTARE

Black and white photo of dark, irregularly shaped objects on a grating tray with bright light trails (no text or symbols visible)

OBS:

Technical line drawing of a circular mechanical component with radial arms and central hub (no text or symbols)

GRILL
Med. Temperaturer

Technical line drawing of a circular mechanical component with radial blades and a base clip (no text or symbols)

BRYNA
Höga temperaturer

Technical line drawing of a circular mechanical component with radial blades and a small labeled component (no text or symbols)

Top-down schematic of a circular mechanical component with four blades and a central hub (no text or symbols)

Diagram of a circular fan with six blades, no text or symbols present

Diagram of a circular fan or fan with four blades, no text or symbols present

BRYN (direkt värme)

Driftsanvisningar

PÅFYLLNING

Line drawing of a portable grill with grating and side-mounted dish (no text or symbols)

Char Griller ^® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341

Char Griller ^® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, Den Haag, Netherlands

Char Griller ^® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support
