Product Type	Charcoal Barbecue
Brand	Char-Griller
Model	E2197
Main Material	Steel
Number of Cooking Grates	3
Charcoal Grate	Yes, height adjustable
Thermometer	Yes, on the lid
Air Vents	2 (top and side), adjustable
Wheels	2 wheels of 8"
Side Firebox	Optional (sold separately)
Usage	Outdoor only
Fuel	Charcoal (briquettes or lump)
Max Charcoal Capacity	1.4 kg (3 lb) in the main firebox
Cooking Modes	Smoking, grilling, searing
Max Temperature	204 °C (400 °F)
Maintenance	Cleaning grates, emptying ash pan, regular seasoning
Safety	Minimum distance of 3 m from structures, do not use in enclosed space, risk of carbon monoxide
Warranty	5 years on the body against perforating rust, 1 year on other parts
Assembly	Recommended for two people, estimated time 1 hour
Required Tools	Phillips screwdriver or 7/16" socket wrench

Frequently Asked Questions - E2197 Char-Griller

What type of fuel to use with the Char-Griller E2197 barbecue?

Use only charcoal (briquettes or lump). Do not exceed 1.4 kg (3 lb) in the main firebox and 1 kg (2 lb) in the optional side firebox.

How to assemble the E2197 barbecue?

Follow the provided instructions. Assembly is easier with two people and takes about 1 hour. Required tools: Phillips screwdriver or 7/16" socket wrench. Wear gloves and work on a flat surface.

How to safely light the charcoal?

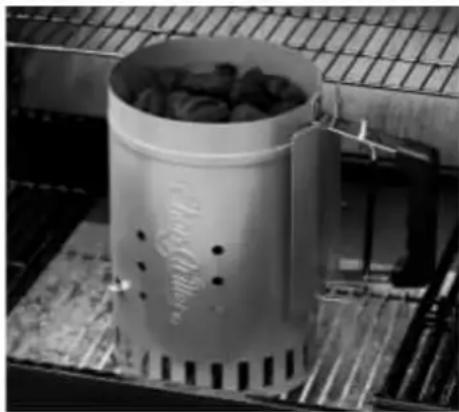

Use a chimney starter or fire starter. Never use gasoline, alcohol, or other accelerants. Keep the lid open during lighting and close only after flames have died down.

How to regulate cooking temperature?

Temperature is controlled via the air vents: more air = more heat, less air = less heat. You can also adjust the amount of charcoal and the height of the charcoal grate.

Can I use the barbecue indoors or in a garage?

No, it is very dangerous. This barbecue is designed for outdoor use only. Combustion produces carbon monoxide, an odorless and deadly gas.

How to clean and maintain the barbecue?

After each use, empty cold ashes into a metal container. Clean the grates with a mild detergent. To prevent rust, perform a seasoning: oil the interior surfaces and heat to 121 °C for 2 hours.

What is the safety distance from structures?

Keep a minimum distance of 3 meters (10 feet) between the barbecue and walls, overhead structures, combustible materials like wood or dry grass.

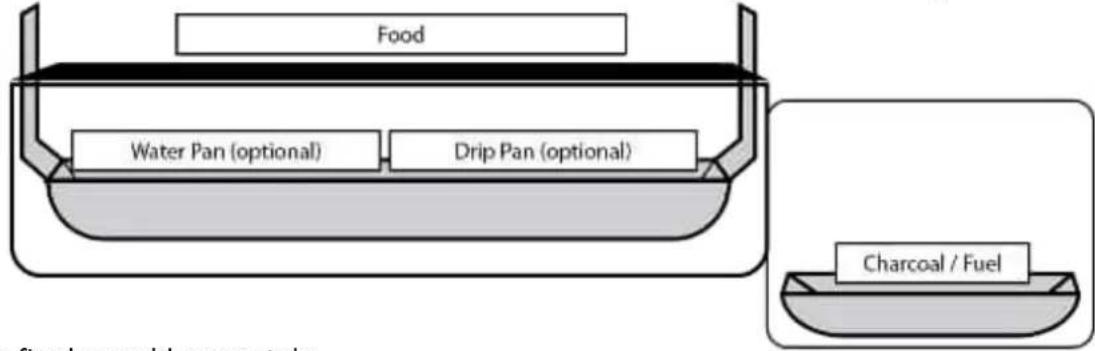

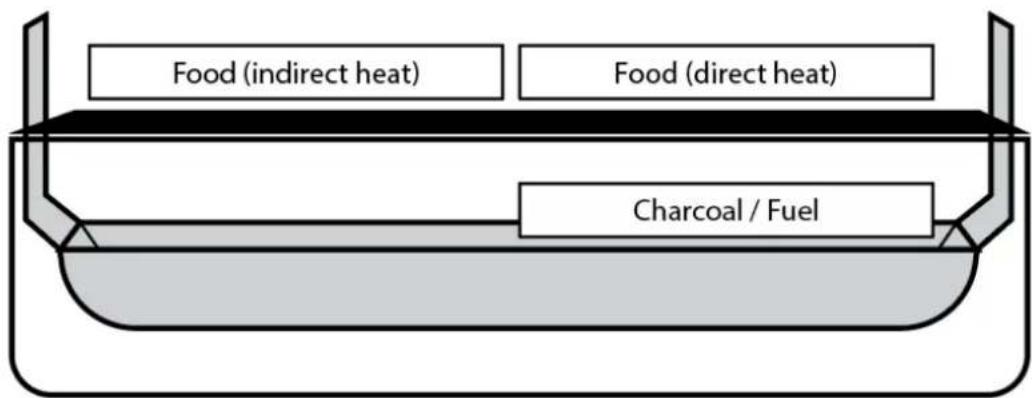

How to smoke food with this barbecue?

For indirect smoking, place charcoal on one side and food on the other. Use wood chips for smoke. Set air vents to 1/4 or less, maintain low temperature (65-121 °C). A side firebox can be added.

What to do if parts are missing or damaged?

Contact Char-Griller customer service directly. Do not return the product to the retailer. Have your proof of purchase and part references ready.

What is the warranty of the Char-Griller E2197 barbecue?

The body (lid and bottom) is warranted for 5 years against perforating rust. Other parts are warranted for 1 year. Surface rust and cosmetic damage are not covered.

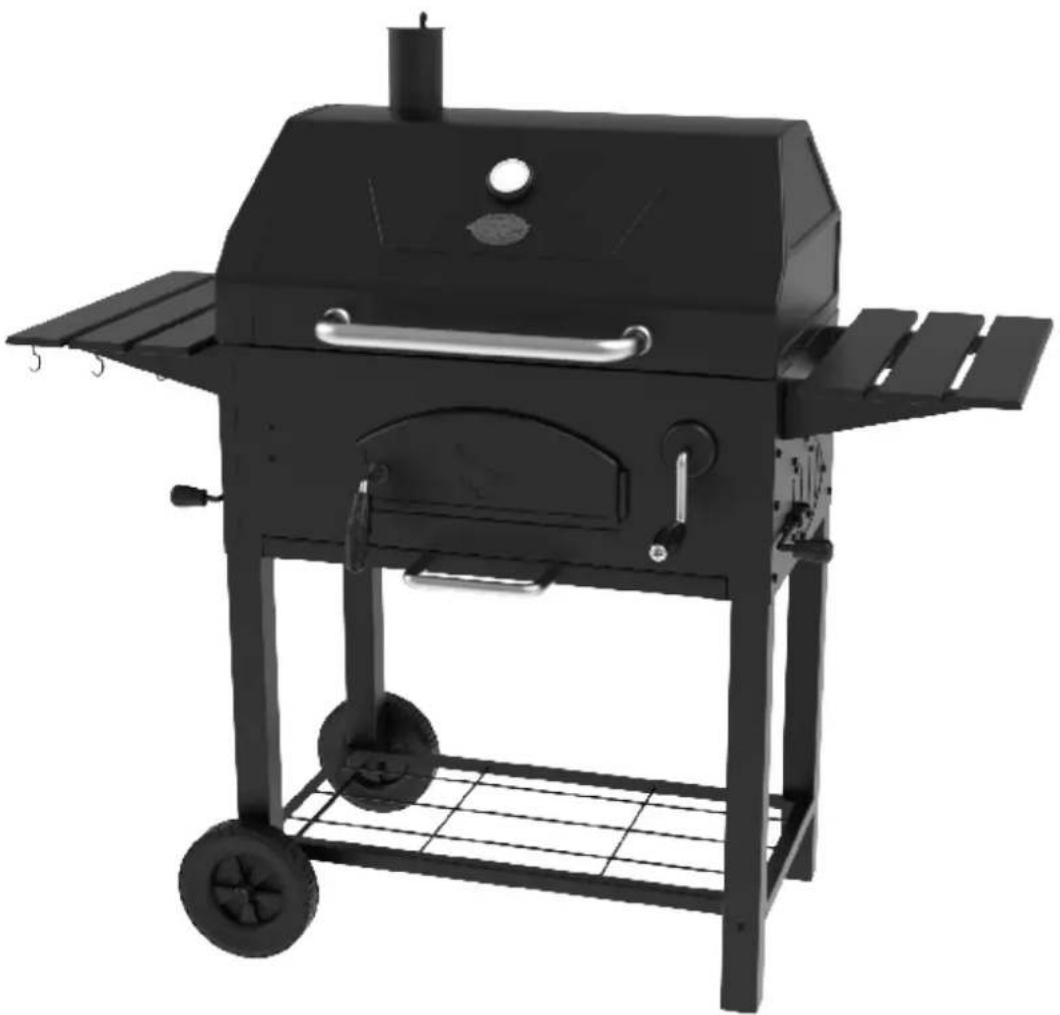

USER MANUAL E2197 Char-Griller

Black outdoor grill with open lid and wheels, no visible text or symbols

E2197 + 2197 + 12197

Traditional Charcoal Grill

Welcome | Bienvenue | Bienvenido | Welkom! Willkommen | Benvenuti | Välkommen

Assembly Images are shown first. Please read and follow all warnings and instructions before assembling and using the appliance.

Diagram of two parallel rows of rectangular blocks with hatched patterns, enclosed in a dashed border (no text or symbols)

A QTY:32

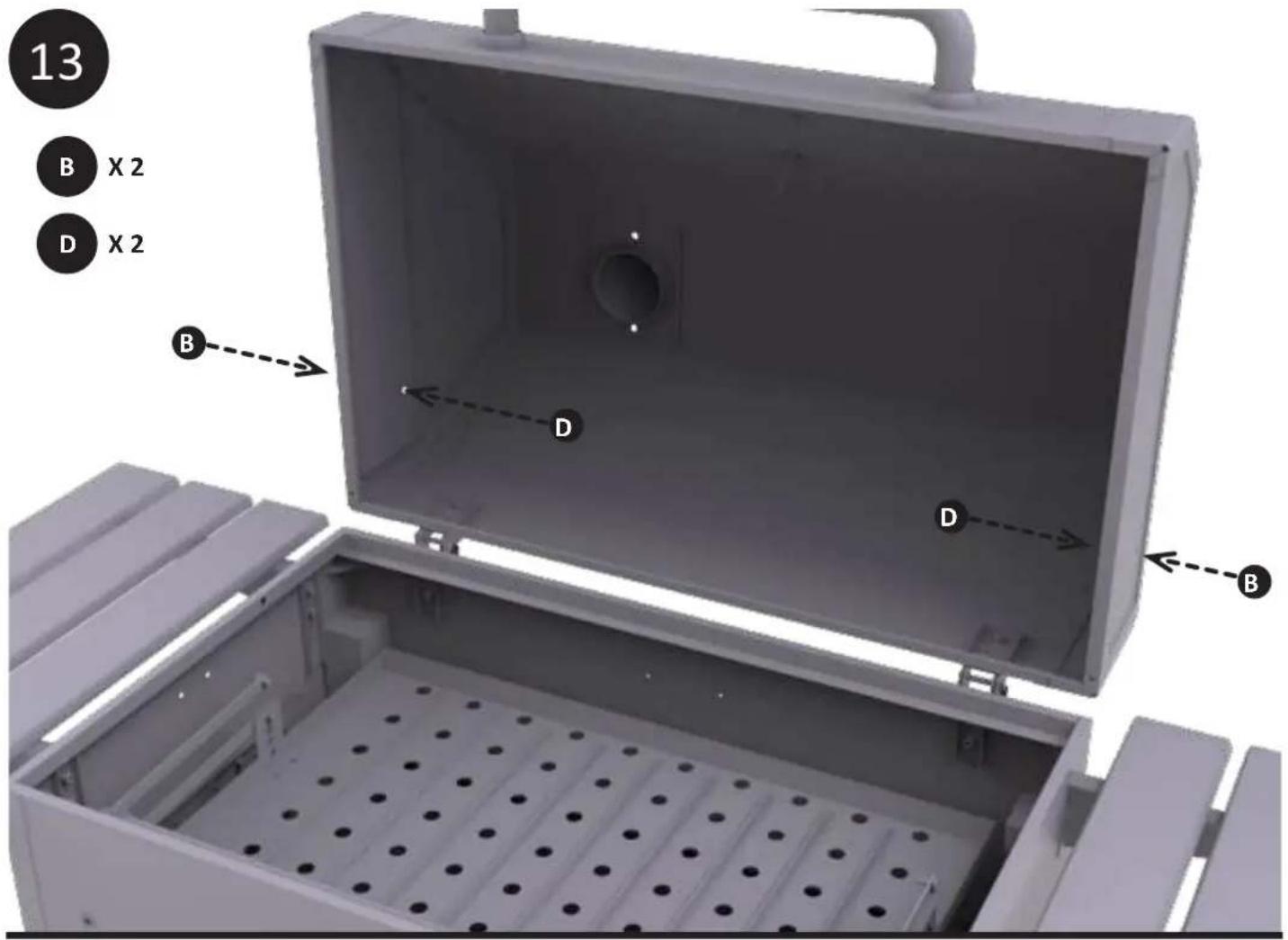

Diagram of two bolts with a dashed border (no text or symbols)

B QTY:2

C QTY:2

Six identical bolt-shaped diagrams arranged in a 2x2 grid within a dashed border (no text or symbols)

D QTY:6

Pure diagram of five identical vertical cylindrical objects with black and white segments, no text or symbols present.

E QTY:8

F QTY:3

Simple line drawing of a curved pipe or tube with a flanged end, enclosed in a dashed border (no text or symbols)

G QTY:3

H QTY:2

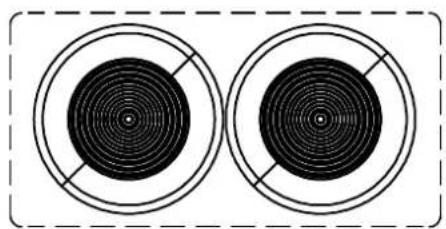

Two identical circular diagrams with concentric rings and crosshairs, no text or symbols present.

I QTY:2

Parts List

Item DESCRIPTION QTY
1 LID 1

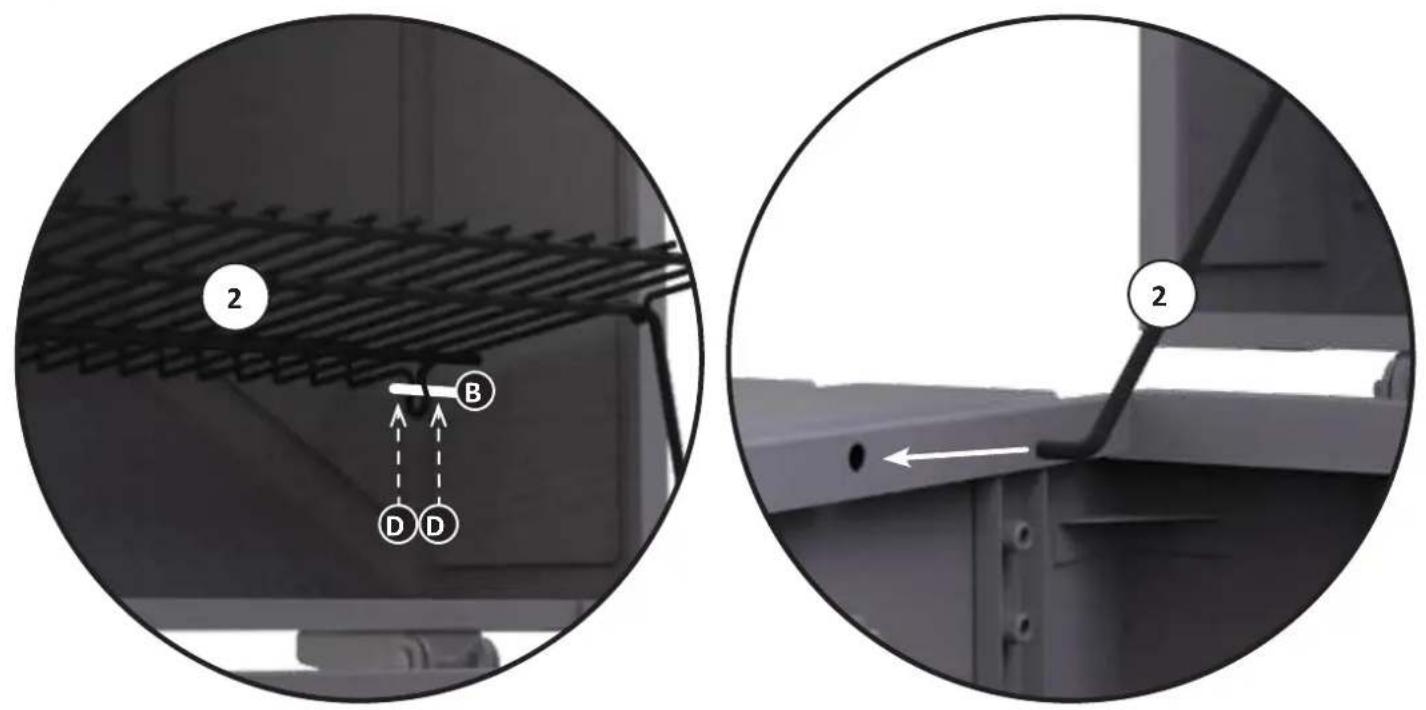

2 WARMING RACK 1
3 LID HINGES 2

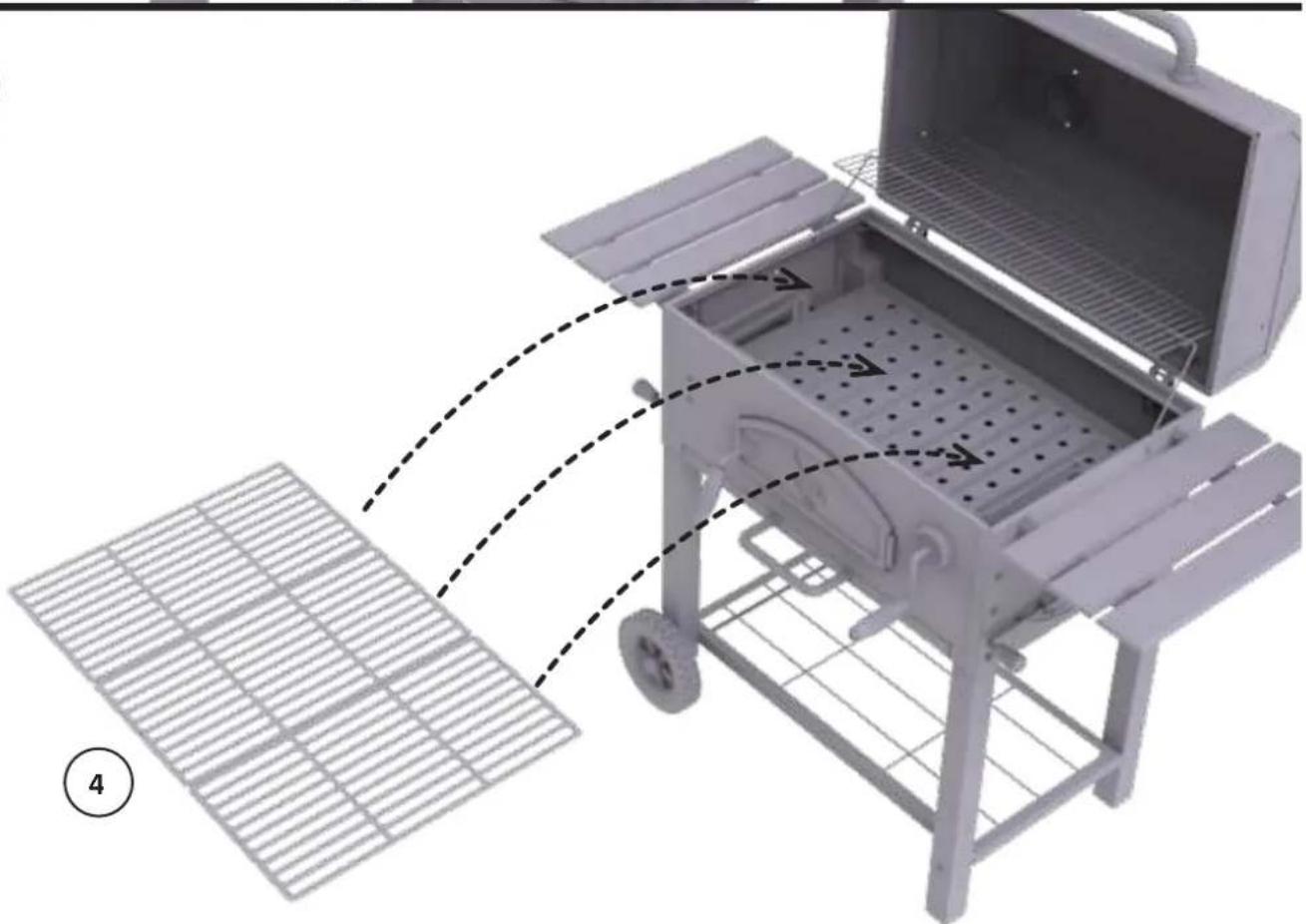

4 COOKING GRATES 3
5 CHARCOAL TRAY 1
6	SIDE FIRE BOX FILLER PANEL	1
7	GRILL BODY	1
8	SIDE SHELF	2
9	RIGHT DAMPER 1

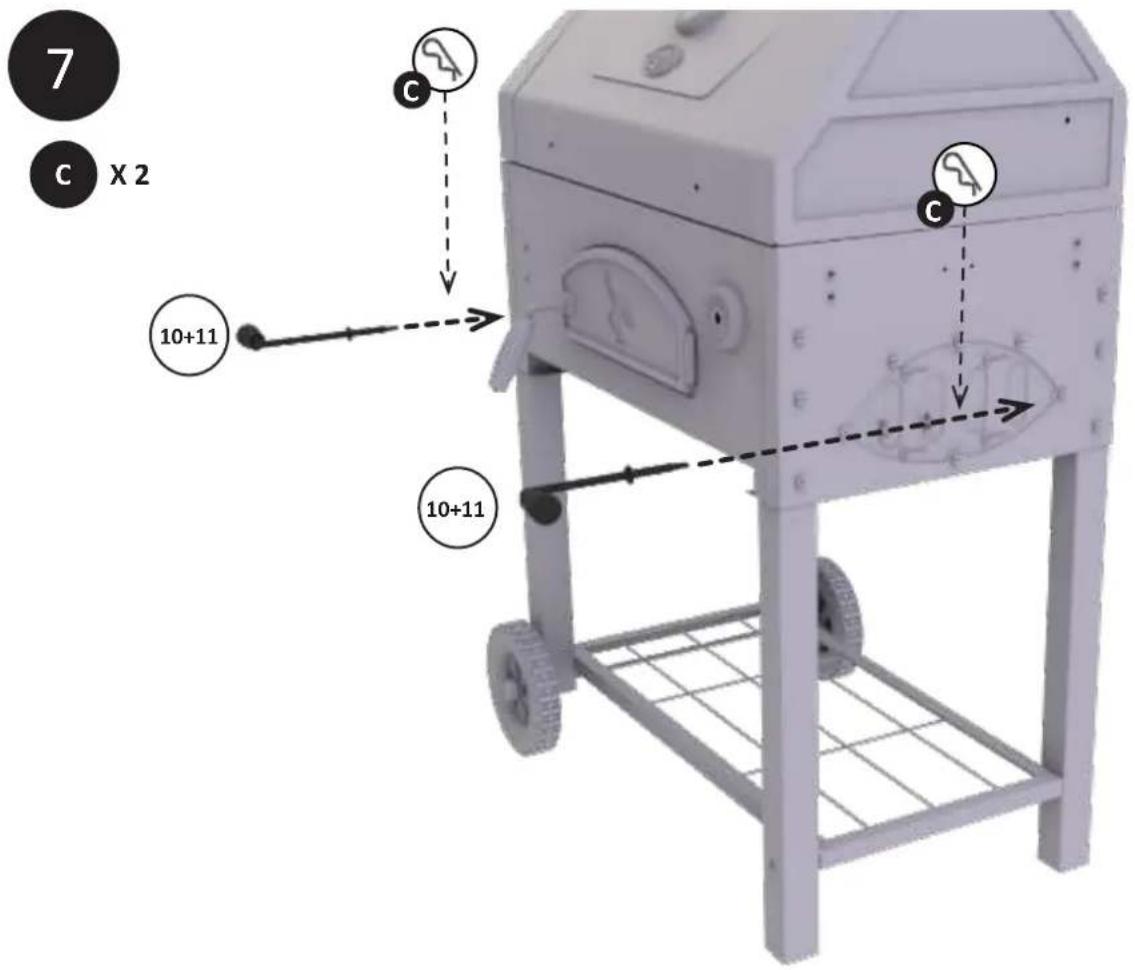

10	DAMPER HANDLE KNOB	2
11 DAMPER HANDLE 2
12	CHARCOAL GRATE:LIFTER BEZEL	1
13	CHARCOAL GRATE:LIFTER HANDLE	1
14	RIGHT LEGS	2
15	FOOT	2
16	BOTTOM SHELF	1

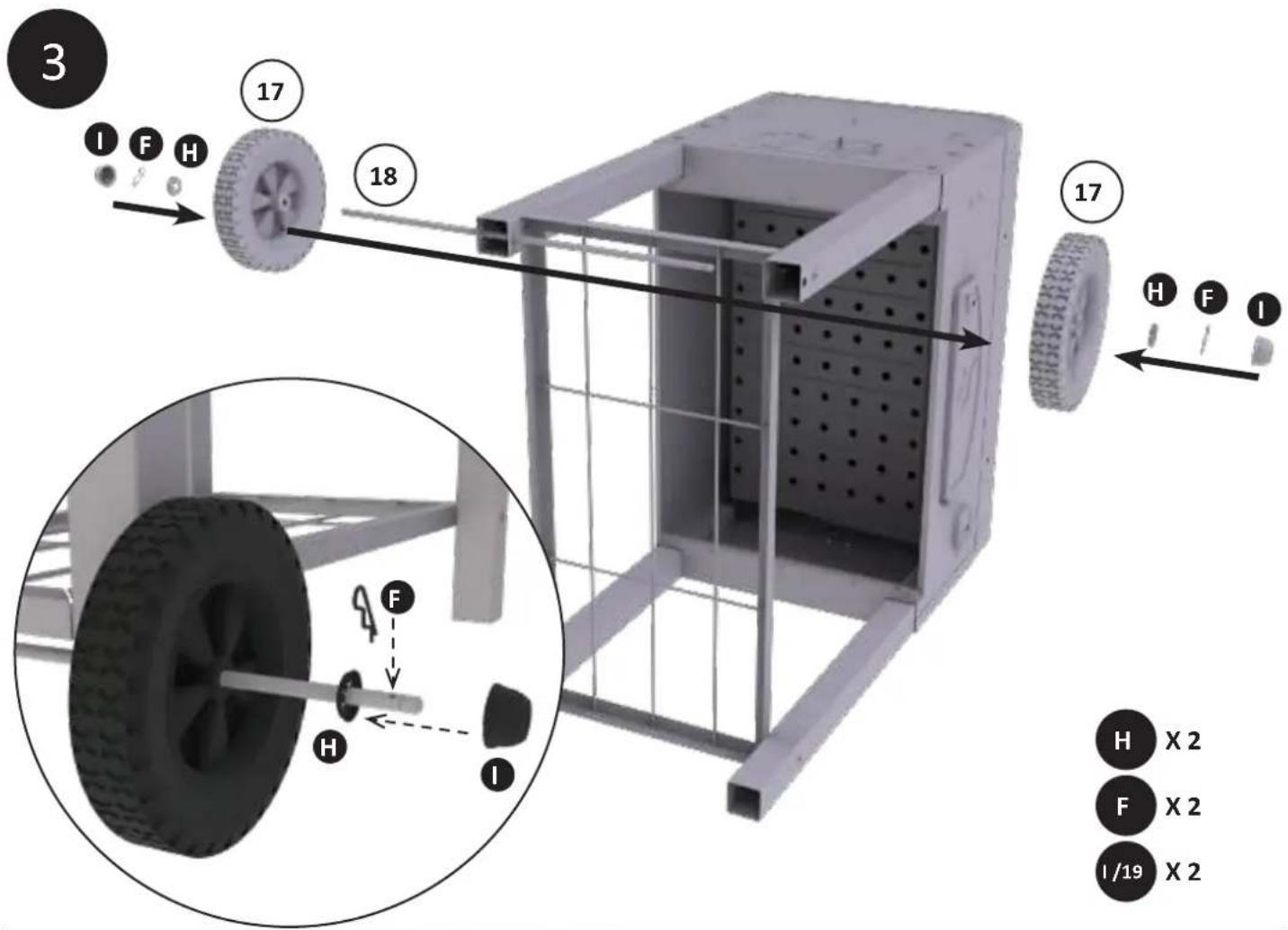

17 8” WHEEL 2
18	AXLE ROD	1

Item	DESCRIPTION QTY
19	HUB CAP (part I)	2
20	LEFT LEGS	2

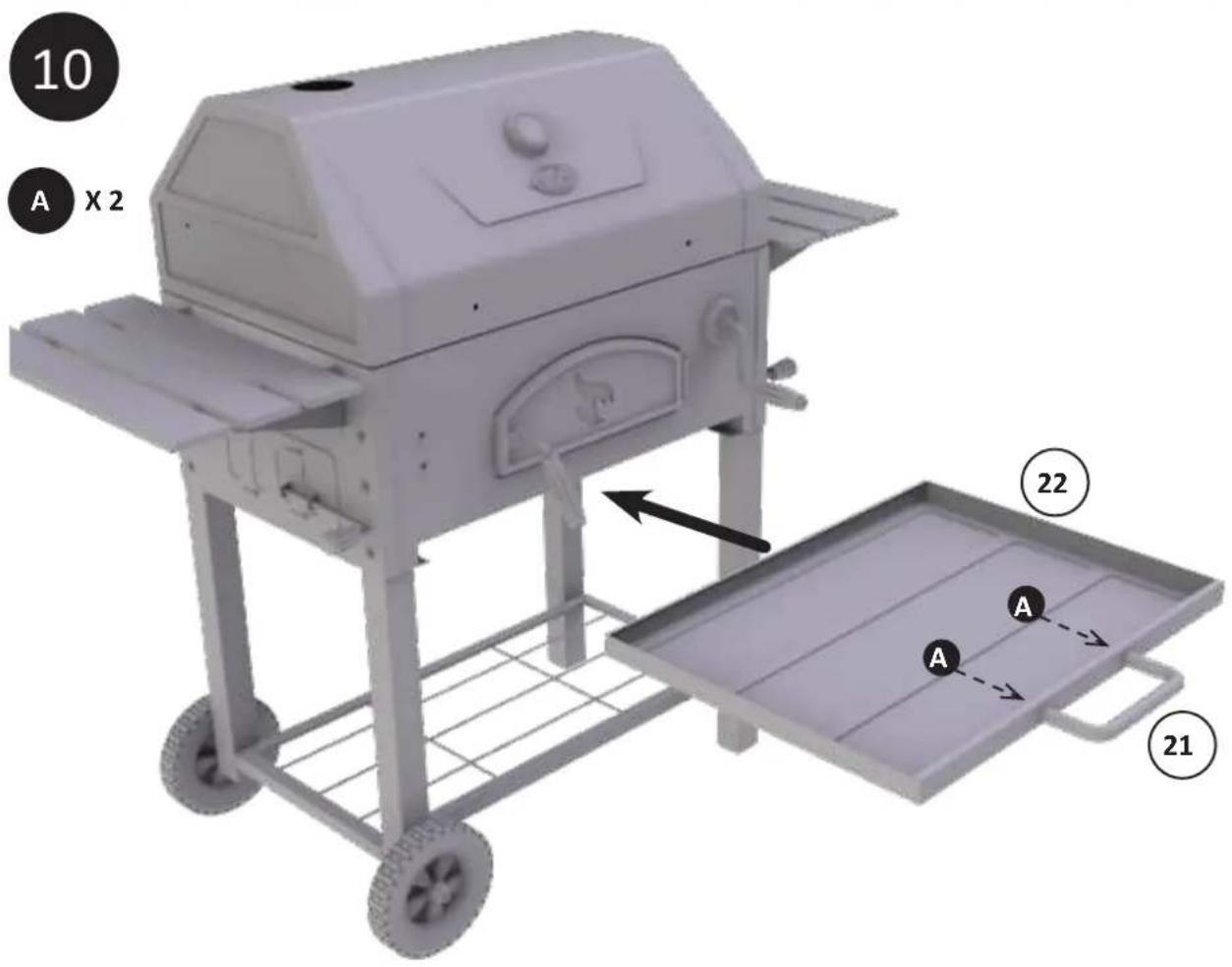

21	GREASE TRAY HANDLE	1
22	GREASE TRAY	1
23	FRONT DOOR HANDLE	1
24	FRONT DOOR HANDLE BEZEL	1
25	FRONT DOOR	1
26	DOOR LOCK	1
27	BOTTLE OPENER	1
28	LEFT DAMPER	1
29	UTENSIL HOOKS (part G)	3
30	CHARCOAL GRATE: LIFTER CRANK (lower)	2
31	CHARCOAL GRATE: LIFTER ASSEMBLY	1

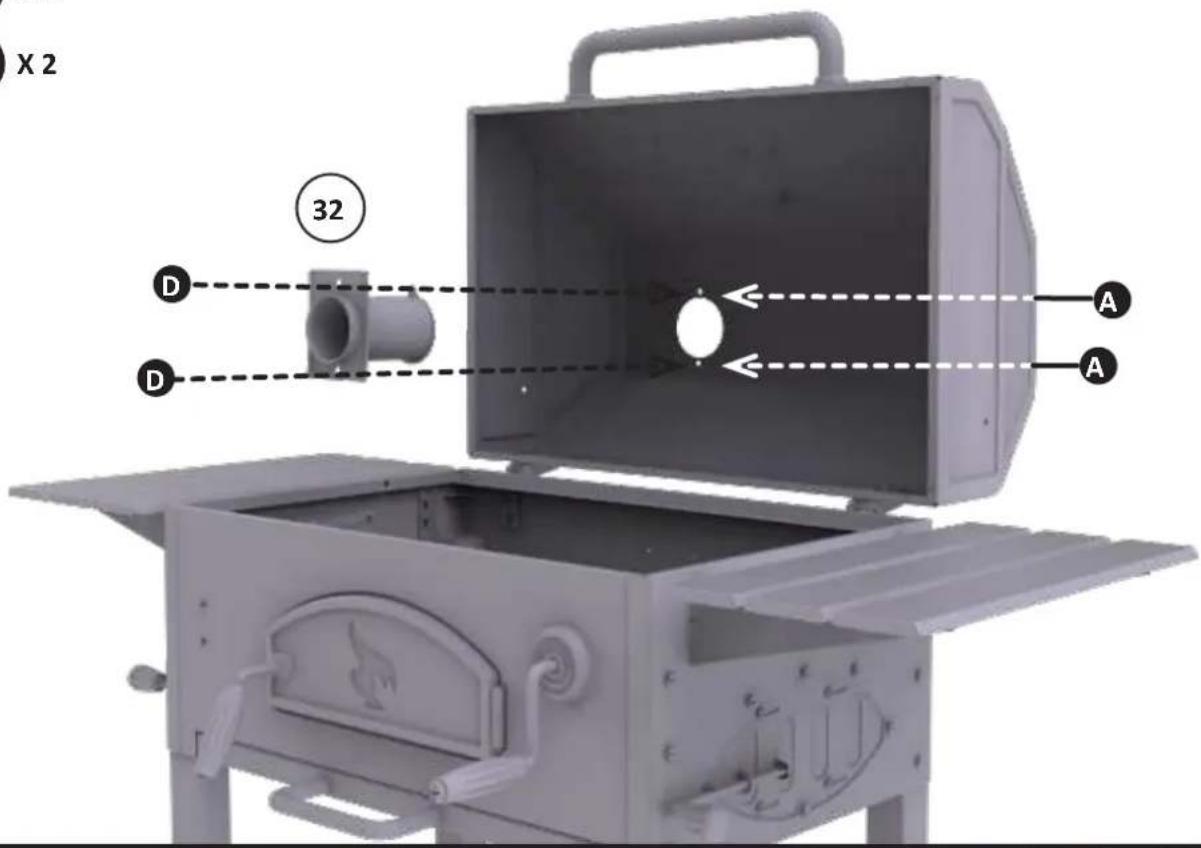

32	SMOKESTACK	1

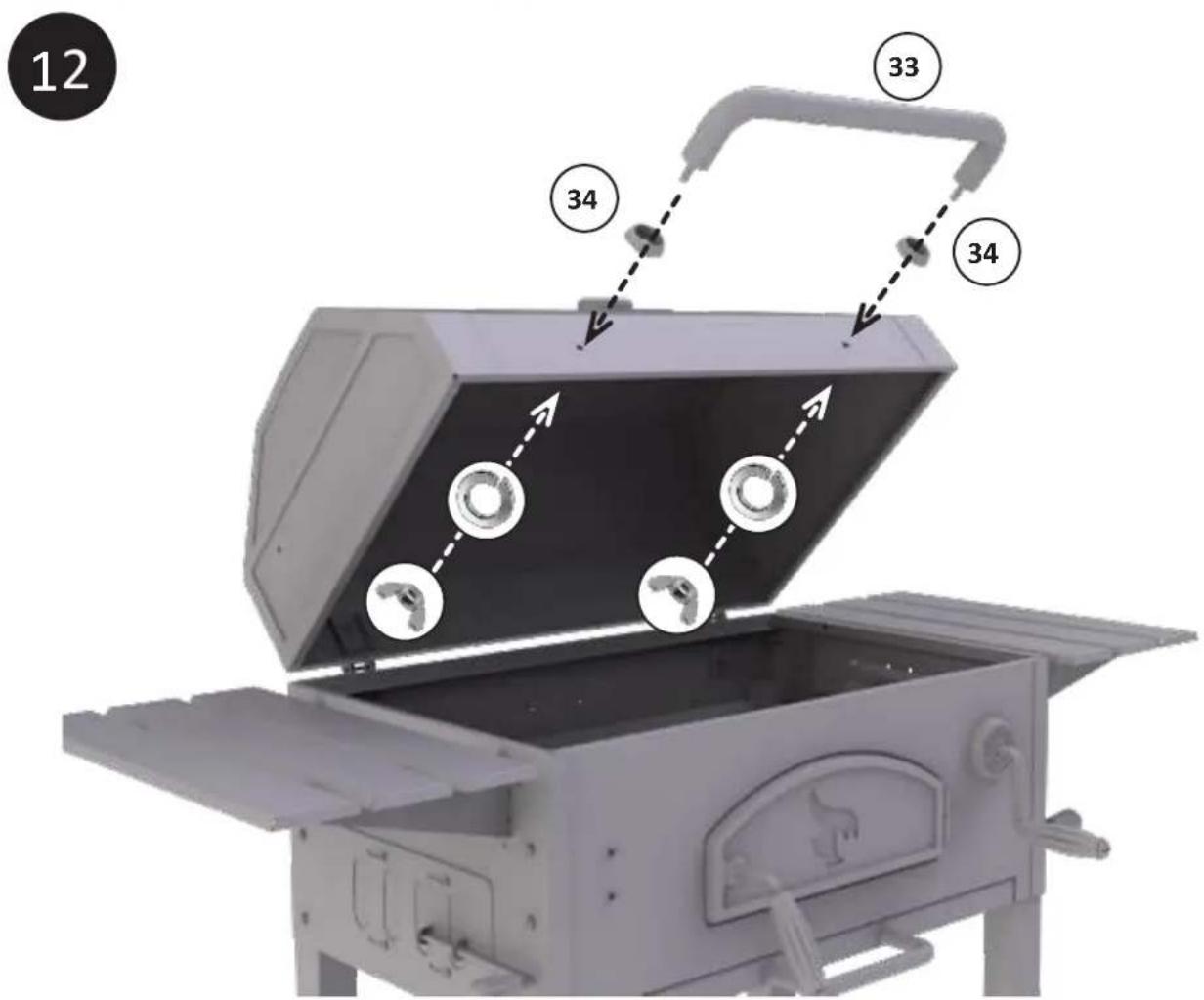

33	LID HANDLE	1
34	LID HANDLE BEZELS	2
35	LOGO PLATE	1

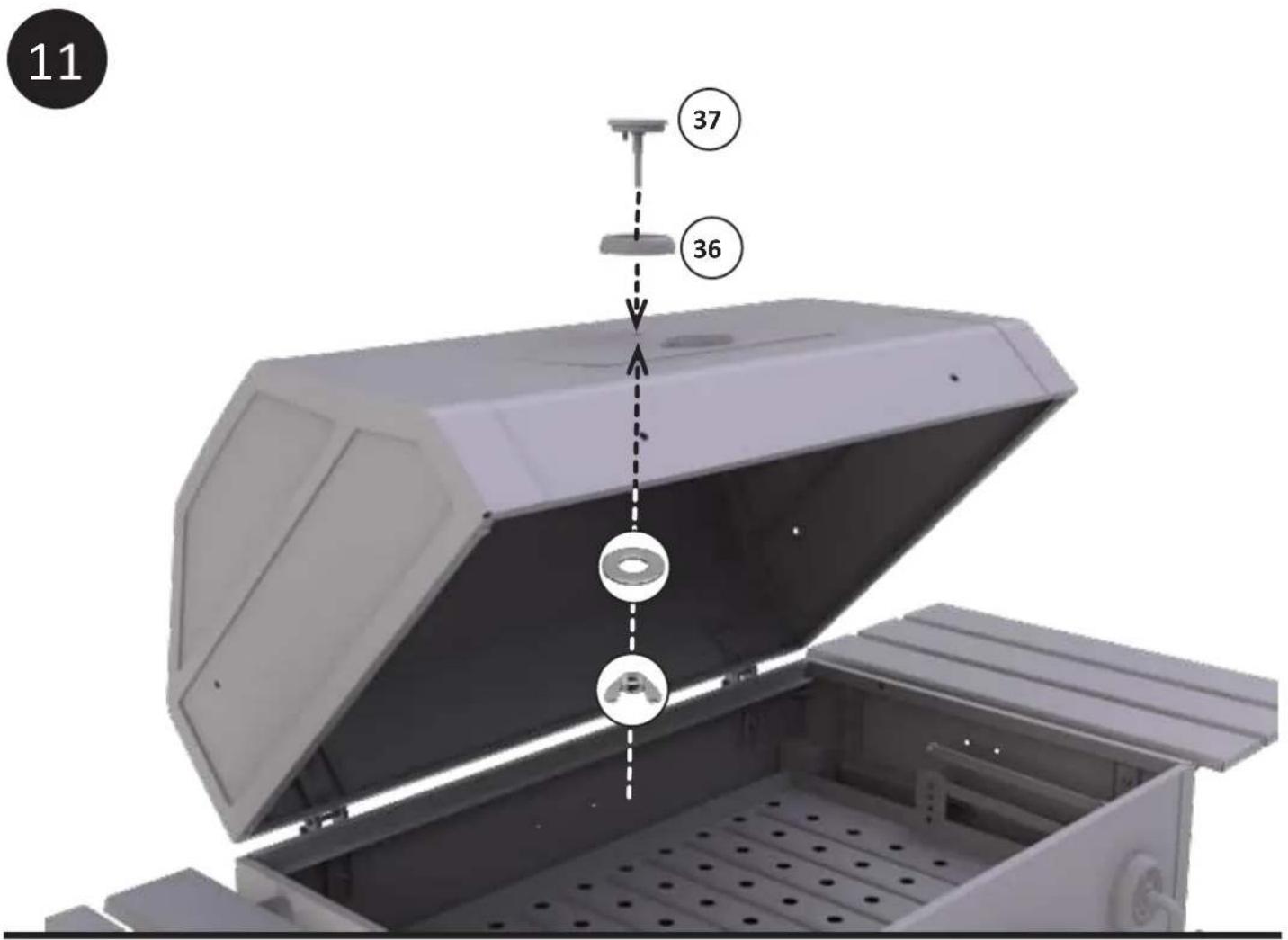

36	THERMOMETER BEZEL	1
37	THERMOMETER 1

BEFORE ASSEMBLY READ ALL INSTRUCTIONS CAREFULLY

• Assemble on a clean flat surface.
• Recommend assembling on cardboard to avoid residue on floors or scratches.
• Gloves recommended for assembly.
• Tools needed: Phillips head screwdriver or 7/16" nut driver.
• Approximate assembly time: 1 hour
• Recommend two people assemble to increase ease and reduce assembly time.
• Actual product may differ from picture shown.
• It is possible that some assembly steps have been completed in the factory.
• Remove all printed labels before use.

DO NOT RETURN TO RETAILER!

For assembly assistance, missing or damaged parts, please contact Char Griller Customer Service.

Lista de partes

2

A X4

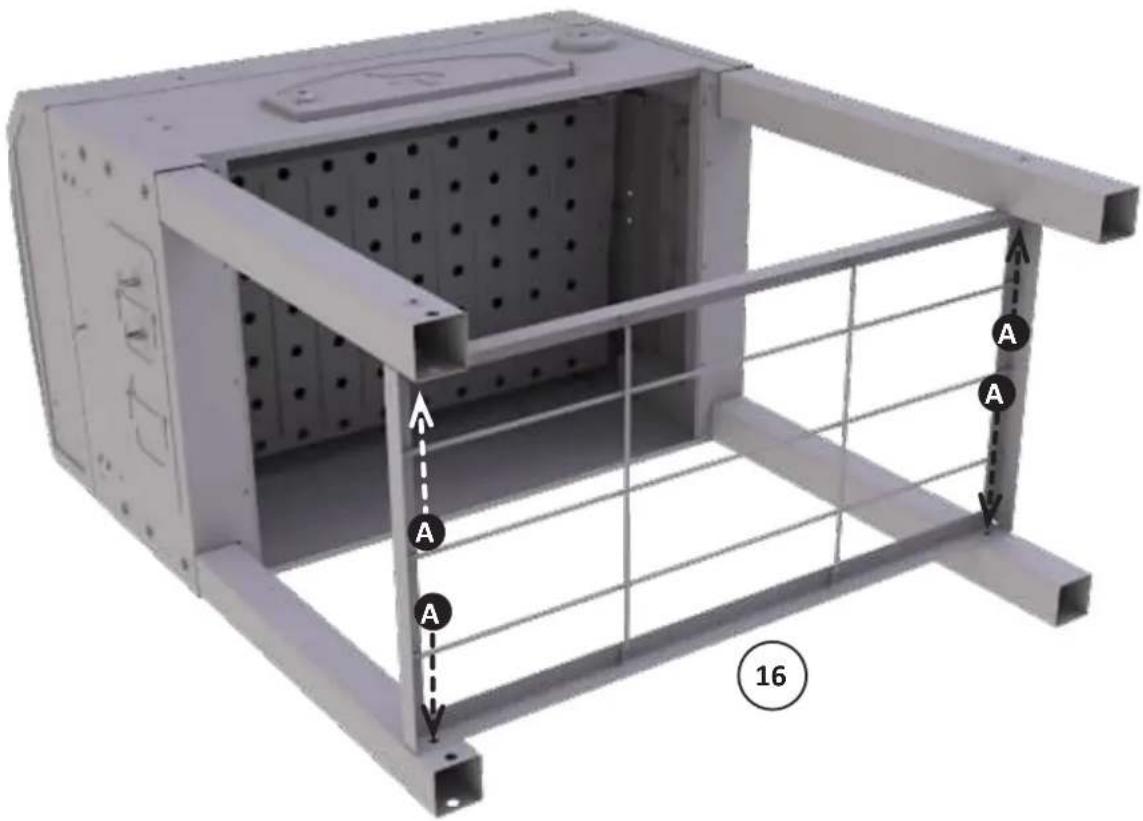

3D diagram of a metal enclosure with internal grid structure and labeled points A, showing structural elements (no text or symbols beyond labels)

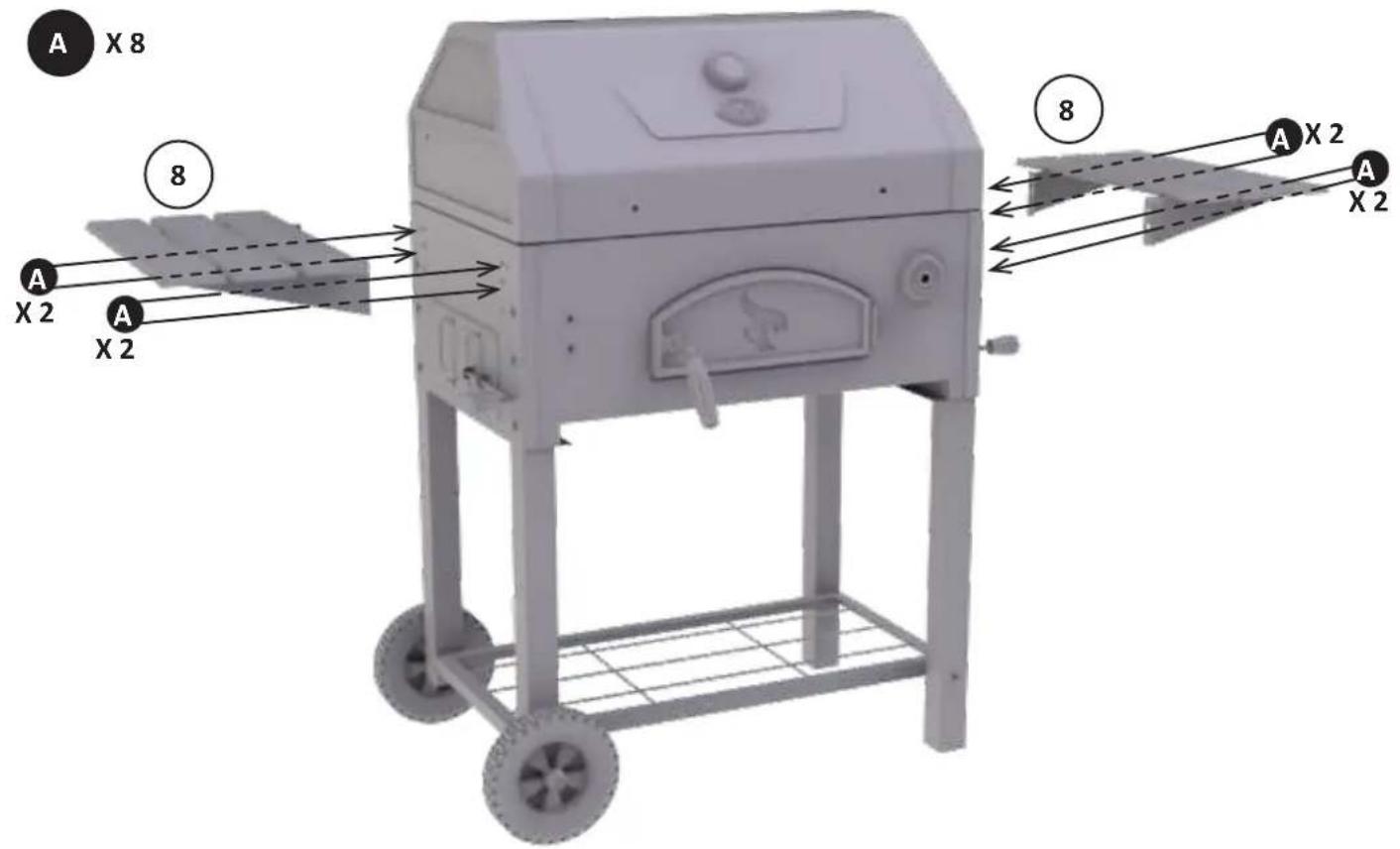

8

14

15

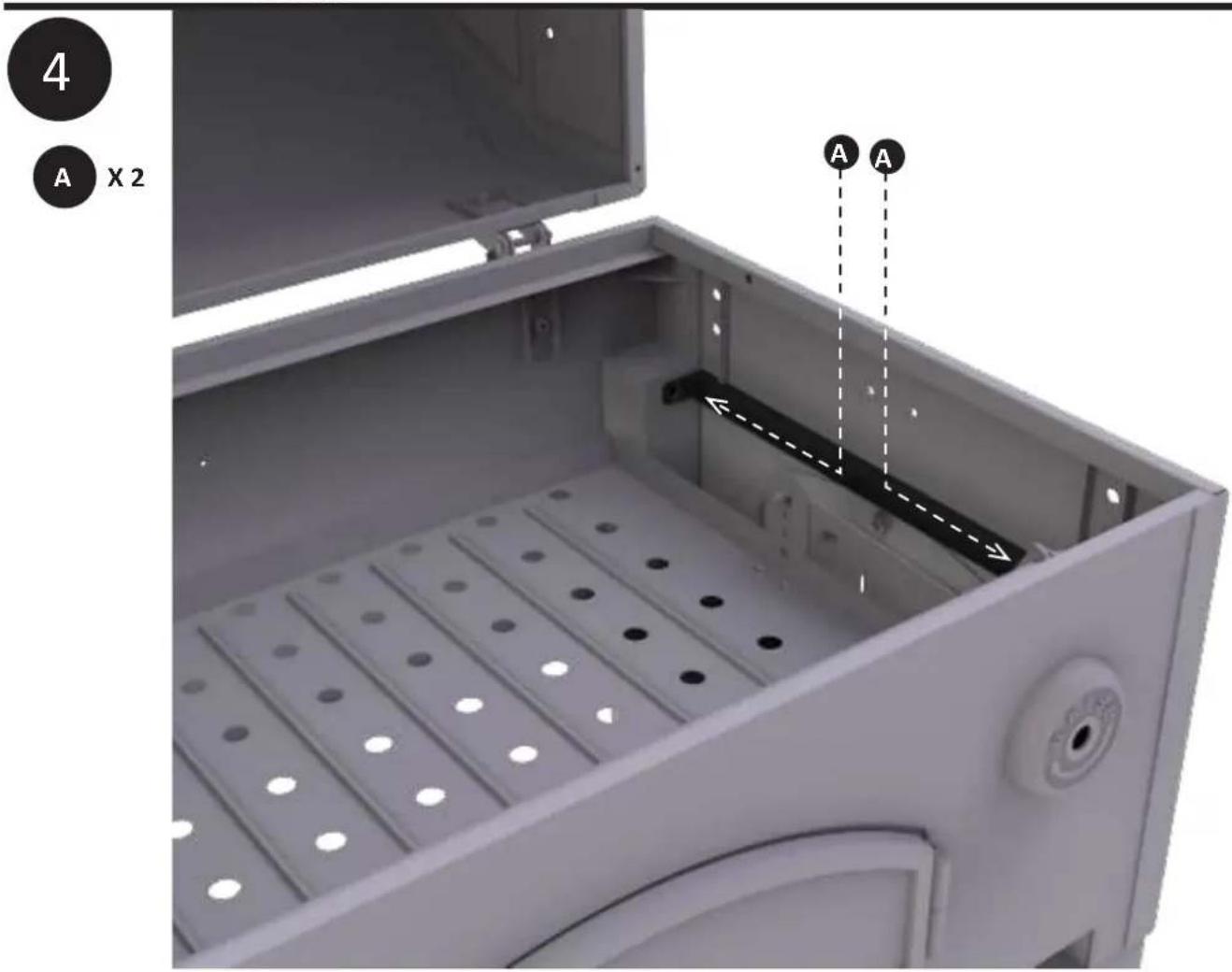

A X 2
D X2

16

Illustration of a portable grill with open trunk, showing internal seating and metal grating (no text or symbols)

17

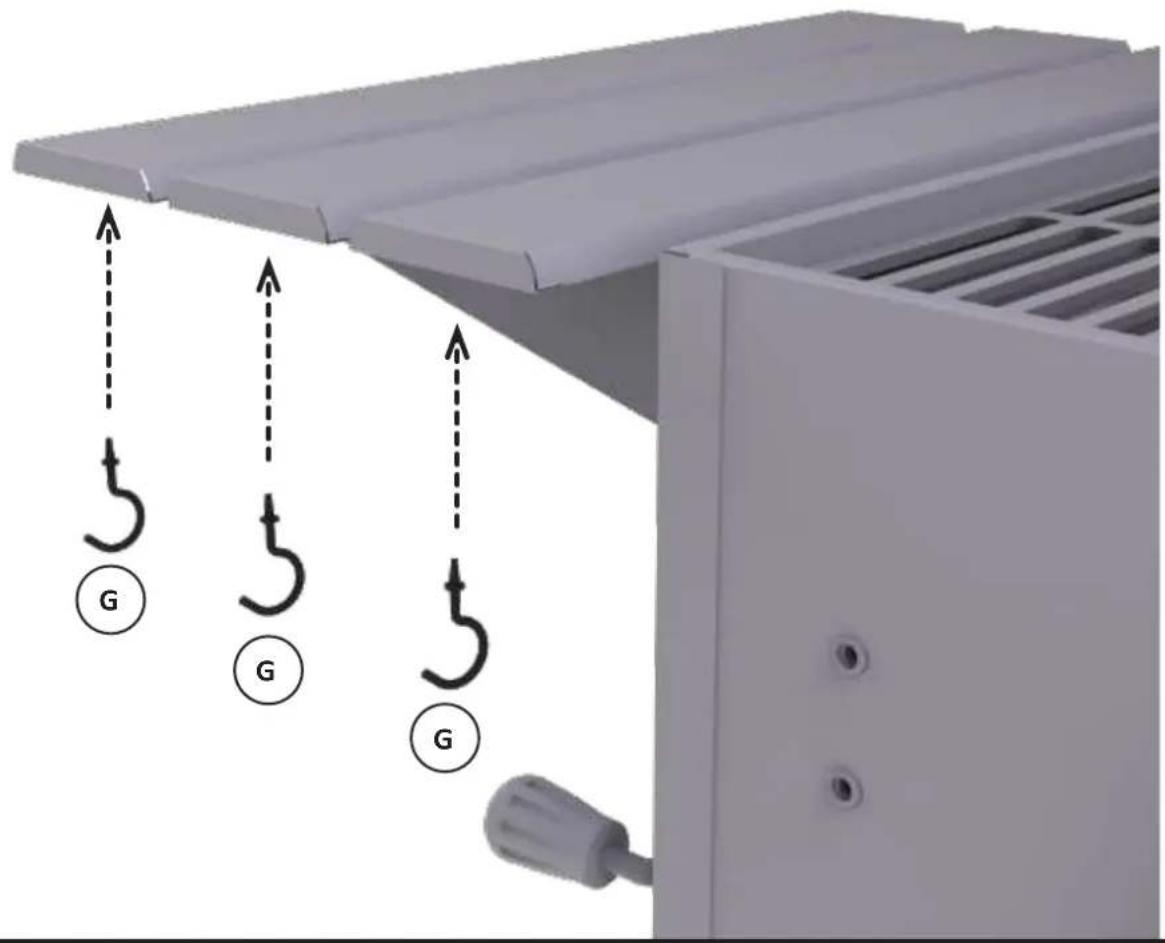

G

X3

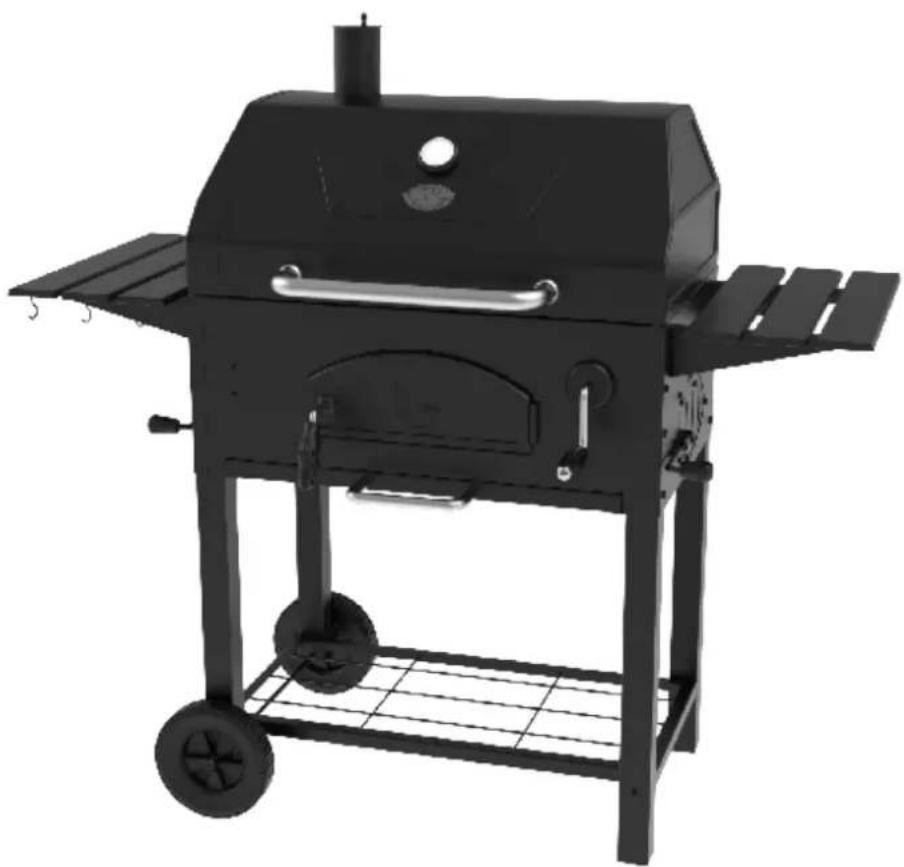

Black outdoor grill with open lid and wheels, no visible text or symbols

ENGLISH

FOR OUTDOOR USE ONLY. NOT FOR COMMERCIAL USE.

WARNING

• This manual contains important information necessary for the proper assembly and safe use of the appliance.
• Read and follow all warnings and instructions before assembling and using the appliance.
• Keep this manual for future reference.

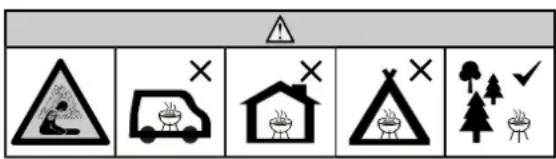

CARBON MONOXIDE HAZARD

Failure to follow these instructions could result in fire, explosion or burn hazard which could cause property damage, personal injury, or death.

• Burning wood chips, wood chunks, wood pellets, charcoal and propane gives off carbon monoxide, which has no odor and can cause death.
  • DO NOT burn wood chips, wood chunks, wood pellets, charcoal or propane inside homes, vehicles, tents, garages or any enclosed areas.
• Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality.
  • USE ONLY OUTDOORS where it is well ventilated.

- FOLLOW THESE GUIDELINES TO PREVENT THIS COLORLESS, ODORLESS GAS FROM POISONING YOU, YOUR FAMILY OR OTHERS.

• Know the symptoms of carbon monoxide poisoning: headache, dizziness, weakness, nausea, vomiting, sleepiness, and confusion. Carbon monoxide reduces the blood's ability to carry oxygen. Low blood oxygen levels can result in loss of consciousness and death.
• See a doctor if you or others develop cold or flu-like symptoms while cooking or in the vicinity of this appliance. Carbon monoxide poisoning, which can easily be mistaken for a cold or flu, is often detected too late.
• Alcohol consumption and drug use increase the effects of carbon monoxide poisoning.
• Carbon monoxide is especially toxic to mother and child during pregnancy, infants, the elderly, smokers, and people with blood or circulatory system problems, such as anemia, or heart disease.

WARNINGS AND IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS

• Do not leave grill unattended.
• Grill is for OUTDOOR HOUSEHOLD USE ONLY.
• Do not use indoors!
• Use charcoal for fuel only.
• Do not use grill in high winds!
• Close lid and dampers to help suffocate flame.
• Do not alter this grill in any manner.
• Do not exceed a temperature of 400^ (204°C) or more.
  • Always use grill in accordance with all applicable local, state and federal fire codes.
• Potential damage to grill or harm to user may result from failure to follow warnings.
• Never use inside enclosed areas such as patios, garages, buildings, or tents.
• Never use inside or on recreational vehicles or boats.
• Maintain a minimum distance of 3m (10ft) from overhead construction, walls, rails or other structures.
• Do not use grill on wooden or flammable surfaces.

- Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality.

- Keep a minimum 3m (10ft) clearance of all combustible materials such as wood, dry plants, grass, brush, paper.

- Never operate grill under overhead construction such as roof coverings, carports, awnings, or overhangs. (SEE STRUCTURAL PROXIMITY REQUIREMENTS).

- Keep grill clear and free from combustible materials such as gasoline and other flammable vapors and liquids.

- Use grill on a level, non-combustible, stable surface such as dirt, concrete, brick, or rock. An asphalt surface (blacktop) may not be acceptable for this purpose.

- Grill MUST be on the ground. Do not place grill on tables or counters. Do NOT move grill across uneven surfaces.

WARNINGS AND IMPORTANT SAFEGUARDS

• Grill should only be rolled on smooth surface.
• Grill should never be rolled up/down stairs or uneven surface.
• Never use grill as a heater (READ CARBON MONOXIDE HAZARD).
• Never use grill for anything other than its intended use. This grill is NOT for commercial use.
• Keep a fire extinguisher accessible at all times while operating grill.
• When cooking with oil or grease, have a type BC or ABC fire extinguisher readily available.
• In the event of an oil or grease fire do not attempt to extinguish with water. Immediately call the fire department. A type BC or ABC fire extinguisher may, in some circumstances, contain the fire.
• Before each use check all nuts, screws, and bolts to make sure they are tight and secure.
• Use of alcohol, prescription, or non-prescription drugs may impair user's ability to properly assemble or safely operate grill.
• Keep children and pets away from grill at all times. Do NOT allow children to use grill. Close supervision is necessary when children or pets are in the area where grill is being used.
• Do NOT allow anyone to conduct activities around grill during or following its use until it has cooled.
• DO NOT bump or impact the grill to prevent personal harm, damage to grill, or spillage/splashing of hot cooking liquid.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Never move grill when in use. Allow grill to cool completely (45°C (below 115°F)) before moving or storing.
• The grill is HOT while in use and will remain HOT for a period of time afterwards and during cooling process. Use CAUTION. Wear protective gloves/mitts.
• Do not touch HOT surfaces. Use handles or knobs.
• Never use glass, plastic, or ceramic cookware in grill. Never place empty cookware in grill while in use.
• Accessory attachments not supplied by Char-Griller® are not recommended and may cause injury.
• Do not store grill with hot ashes or charcoal inside grill. Store only when fire is completely out and all surfaces are cold.
• Be careful when removing food from grill. All surfaces are HOT and may cause burns. Use protective gloves/mitts or long, sturdy, cooking tools for protection from hot surfaces or splatter from cooking liquids.
• Grill is hot during use. Keep face and body away from door(s) and vents. Steam and hot air are expelled during use.
• DO NOT obstruct flow of combustion and ventilation.
• Do not cover cooking racks with metal foil. This will trap heat and may cause damage to the grill.
• Never leave HOT coals or ashes unattended.
• Do not remove ash can while ashes and charcoal are HOT.
• Make sure to empty grease can after every use once completely cooled.
• Grill has an open flame. Keep hands, hair, and face away from flame. Do NOT lean over grill when lighting. Loose hair and clothing may catch fire.
• Use protective gloves when handling this grill or working with fire. Use protective gloves or long, sturdy fireplace tools when adding wood or charcoal.
  • Air dampers are HOT while the grill is in use and during cooling; wear protective gloves when adjusting.
• Handles can be HOT while the grill is in use and during cooling; use extreme caution, if you touch the any handles, wear protective gloves.
• Do not cook before the charcoal has a coating of ash.
• The barbecue should be heated up and the fuel should be kept red hot for at least 30mins prior to the first cook.
• Never use charcoal lighting fluid, gasoline, alcohol or other highly volatile fluids to ignite charcoal. These fluids can explode and cause injury or death.
• Never overfill charcoal grate. This can cause serious injury as well as damage to the grill.
• Never use more than the recommended amount of charcoal (see below).
• WARNING! This barbecue will become very hot, do not move it during operation.
• WARNING! Keep children and pets away.
• WARNING! Do not use spirit or petrol for lighting or re-lighting!
• WARNING! Do not use spirit or petrol for lighting or re-lighting! Use only firelighters complying to EN 1860-3!
• Never add additional lighter fluid once charcoal has ignited. Follow directions on lighter fluid container.
• Dispose of cold ashes by placing them in aluminum foil, soaking with water, and discarding in a non-combustible container.
• Keep lid open during the lighting process. Do not close the lid until the flames have burned down. Failure to follow this instruction may result in damage to painted surfaces due to excessive heat.

ALL WARNINGS ALSO APPLY TO SIDE FIRE BOX (side fire box sold separately)

DO NOT EXCEED A TOTAL OF 3 LBS / 1.4 KGS OF CHARCOAL FOR MAIN FIREBOX DO NOT EXCEED A TOTAL OF 2 LBS / 1 KGS OF CHARCOAL IN SIDE FIREBOX

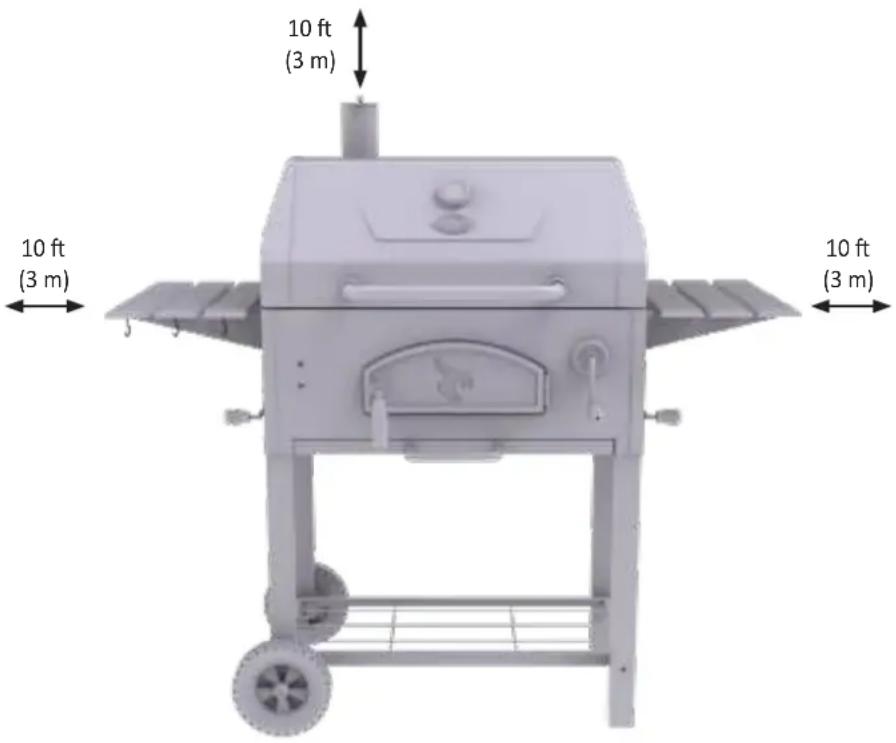

STRUCTURAL PROXIMITY REQUIREMENTS

Maintain a minimum distance of 10 ft (3 m) from rear, sides and top of grill to all overhead construction, walls, rails or other combustible construction materials.

Maintain a minimum distance of 10 ft (3 m) from all combustible and flammable materials such as, wood, plants, grass, brush, paper, gasoline, or canvas.

This clearance provides adequate space for proper combustion, air circulation and venting. Grill should not be used on combustible materials like wood decks or other combustible materials.

SAVE THESE INSTRUCTIONS

This product does not come with charcoal or wood chunks.

Operating Instructions

SETTING UP

Set grill up on solid, flat surface with adequate wind shelter.

Do not move grill while hot, and do not leave unattended during operation.

This appliance is designed for use outdoors, away from any flammable materials. It is important that there are no overhead obstructions and that there is a minimum distance of 10 feet (3 m) from the side or rear of the appliance. It is important that the ventilation openings of the appliance are not obstructed. The barbecue must be used on a level, stable surface. The appliance should be protected from direct drafts and positioned or protected against direct penetration by any trickling water (e.g. rain).

PRE-SEASONING

IMPORTANT! Pre-Seasoning will rid your grill of chemicals and oils left over by the manufacturing process, allowing them to burn off. PRE-SEASON GRILL PRIOR TO FIRST USE.

1. Lightly coat ALL INTERIOR SURFACES (including grates, and inside of barrel) with cooking oil.

2. Start grill by following the LIGHTING instructions. Build a medium sized fire.

3. Do not use more than 3 LBS / 1.4 KGS of charcoal.
   • Always put charcoal on charcoal tray.

4. Never put charcoal directly into the bottom of the grill.

5. After coals ash over, spread out coals, replace cooking grates, close lid and heat to 250^ F ( 121^ C) for two hours.

6. USE CAUTION! Grates will be extremely HOT! Remove cooking grates from the grill with oven mitts, allow to cool, then re-coat grates and return to grill at approximately 200^ F ( 93^ C) for two hours.
7. You can lightly coat the exterior of the grill body (while warm) with cooking oil. This will extend the life of the grill body.
8. Frequent seasoning prevents rusting. If rusting occurs, clean with a steel brush, apply cooking oil or vegetable shortening and heat as indicated above.

NOTE: GRILL WILL DRIP OIL DURING THIS PROCESS AND FOR SEVERAL USES AFTERWARDS. THIS IS NORMAL.

NOTE: NEVER EXCEED A COOKING TEMPERATURE OF 400°F (204°C) (ITEM SPECIFIC) BECAUSE THIS WILL DAMAGE THE FINISH AND CONTRIBUTE TO RUST. PAINT IS NOT WARRANTED AND WILL REQUIRE TOUCH-UP. THIS UNIT IS NOT WARRANTED AGAINST RUST.

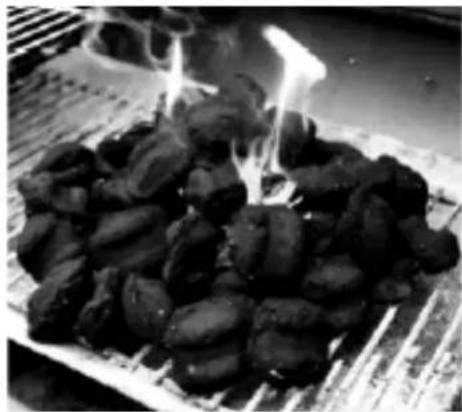

LIGHTING INSTRUCTIONS

There are a few different methods that can be used to light the charcoal in your charcoal grill depending on personal preference. Below the charcoal chimney and fire starter methods are described.

DO NOT EXCEED A TOTAL OF 3 LBS / 1.4 KGS OF CHARCOAL FOR MAIN FIREBOX

DO NOT EXCEED A TOTAL OF 2 LBS / 1 KGS OF CHARCOAL IN SIDE FIREBOX

CHARCOAL CHIMNEY

1. Remove the grill grates and set them to the side.
2. Fill the charcoal chimney 34 of the way full with briquettes or lump charcoal
3. Set a fire starter on charcoal grate, light and then place the charcoal chimney directly on top of the fire starter. This step is done INSIDE the grill.
4. Coals will fire upward from bottom to top.
5. USE EXTREME CAUTION! After the coals on the top of the chimney are ignited (usually 10-15 minutes) pour the coals onto the charcoal grate, spread coals out with tongs, and replace your grill grates.

Black-and-white photo of a portable stove burner with gravel inside, placed on a metal grating (no visible text or symbols)

Operating Instructions

LIGHTING INSTRUCTIONS CONT.

FIRE STARTERS

1. Remove the grill grates and set them to the side.
2. Pour approximately 2 lbs (1 kgs) (approx. 30-35 briquettes) of charcoal directly on to your charcoal grate and stack together in a pile.
3. Insert fire starter into the middle of the charcoal pile so that it is slightly covered and light.
4. USE EXTREME CAUTION! After the charcoal has thoroughly ignited (typically glowing red or gray in color) use tongs to spread them out and replace your grill grates.

Black-and-white photo of dark, irregularly shaped objects on a griddle with visible flames (no text or symbols)

NOTE:

• Always follow the charcoal manufacturer's instructions and warnings.
• Do not use lighter fluid, gasoline, kerosene, alcohol or other accelerant for lighting charcoal.
• If necessary, USE EXTREME CAUTION and use tongs or a long handled tool to move coals.
  • Always wear heat resistant gloves when handling grill grates, charcoal grate, or adjusting coals.

MAINTAINING TEMPERATURE

In order to control the temperature of your grill, you need to control the amount of air flow to the fire. By opening and closing the top and side dampers, you can adjust the temperature of your grill.

• MORE AIR = MORE HEAT
• LESS AIR = LESS HEAT

The amount of charcoal used when grilling can also greatly impact your ability to control temperature. The more charcoal that ignites, the hotter the grill can be.

• MORE CHARCOAL = MORE HEAT
• LESS CHARCOAL = LESS HEAT

SMOKE
Low Temperatures

Simple line drawing of a cylindrical object with a small protrusion on top (no text or symbols)

GRILL
Med. Temperatures

Simple line drawing of a cylindrical object with a small protrusion on top (no text or symbols)

SEAR
High Temperatures

Simple line drawing of a cylindrical container with a lid and a small object on top (no text or symbols)

Simple line drawing of a four-blade fan or impeller with no text or symbols

• Place dampers 1/4 or less of the way open.
• Start with 2 lbs (1 kg) of charcoal and/or wood fuel.
• Hang the charcoal grate in its lowest setting / farthest from the cooking grates.

Symmetrical four-blade fan or propeller diagram with no text or symbols

• Adjust dampers from 1/3 - 2/3 of the way open.
• Start with 2 lbs (1 kg) of charcoal and/or wood fuel.
• Hang the charcoal grate in its middle setting from the cooking grates.

Symmetrical four-blade fan or propeller diagram with no text or symbols

- Place dampers completely open. Allow maximum airflow.

- Start with 3 lbs (1.36 kgs) of charcoal and/or wood fuel.

- Hang the charcoal grate in its highest setting / closest to the cooking grates.

NOTE:

Upper and lower dampers may look different on your grill.

Use this drawing only as a reference to indicate the amount of air passing through the dampers.

Cooking Styles

OVERVIEW

Your charcoal grill can be used to smoke, grill or sear your food with direct or indirect heat.

By creating temperature zones and adjusting the charcoal placement, you can customize your culinary experience as desired. We have listed a few different cooking styles that you can utilize.

OFFSET SMOKING

NOTE: a side firebox is required for this style of cooking

1. Cook with indirect heat from the side fire box at low temperatures (150°-250°F) (65°-121°C).
2. Use split wood logs, chips, chunks, or pellets to add smoke flavor.
3. Prepare the charcoal or fuel in the side fire box. Indirect heat will flow from the side firebox into the main barrel.
4. No charcoal or fuel will be added to the main cook chamber.
5. Food placed closer to the side fire box will cook faster than food placed on the opposite side of the grill

NOTE: Side fire box sold separately

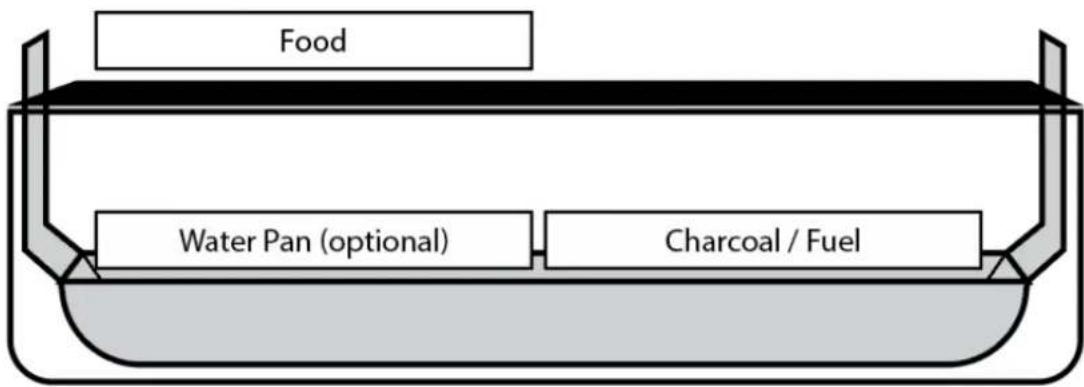

TRADITIONAL SMOKE

NOTE: charcoal placement is key for this method.

1. Cook with indirect heat at low temperatures ( 150^-250^ ) ( 65^-121^ ).
2. Use split wood logs, chips, chunks, or pellets to add smoke flavor.
3. Prepare the charcoal or fuel in the main cook chamber. Only utilize 1/2 or 1/3 of the charcoal grate.
4. Never put charcoal directly into the bottom of the grill.
5. Create 2 or 3 "zones" with the placement of the fuel.
6. Food should be placed in the cool zone / the area not directly above the fuel.
7. Hang the charcoal grate in its lowest setting / farthest from the cooking grates.

Cooking Styles

GRILLING (direct or indirect heat)

Note: Placement of the food above or next to the charcoal zone will create the direct or indirect heat

1. Cook with direct or indirect heat at medium to high temperatures (300°F +) (149°C +).
2. Use split wood logs, chips, chunks, or pellets to add smoke flavor.
3. Prepare the charcoal or fuel in the main cook chamber. Only utilize 1/2 of the charcoal grate.

4. Never put charcoal directly into the bottom of the grill.

5. Create 2 "zones" with the placement of the fuel.

6. Food can be placed in the "indirect" zone for lower temperatures. The indirect zone is the area not directly above the fuel.

7. Food can be placed in the "direct" zone for higher temperatures. The direct zone is the area directly above the fuel.

8. Hang the charcoal grate in the medium setting from the cooking grates.

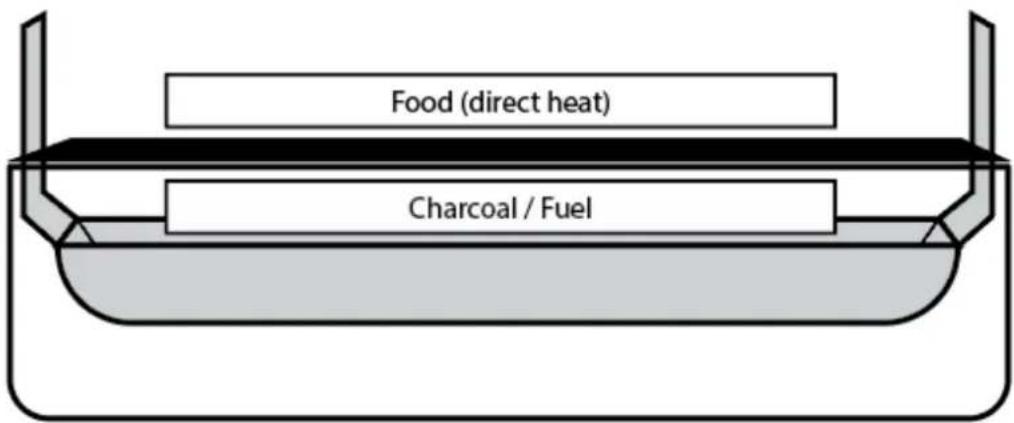

SEAR (direct heat)

Note: This style is best for short cooks. Use caution, cooking at high temperatures like this can dry out the food.

1. Quickly cook with direct heat at high temperatures (400°F) (204°C).
2. Smoke flavor will not be added at this temperature. The wood will burn too hot to infuse flavor.
3. Prepare the charcoal or fuel in the main cook chamber.
4. Never put charcoal directly into the bottom of the grill.
5. Food can be is in the "direct" zone for searing temperatures. The direct zone is the area directly above the fuel.
6. Hang the charcoal grate in the highest setting / closest to the cooking grates.
7. Food will cook very quickly at this temperature. Use caution.
8. Always cook with the lid open when using this method to prevent damage to the exterior of the grill.

Operating Instructions

RELOAD

If planning to cook for more that 30 to 40 minutes, additional charcoal should be added. Add 10 to 20 briquettes to the outer edge of the fire immediately after initial briquettes have been spread on grate. Once these briquettes become 80% ashed over, add them to the center of the fire as needed to maintain constant cooking temperature. Read all instructions and warnings on the charcoal bag.

SHUT DOWN

When finished cooking, clean your cooking grates with a cooking grate scraper.

Allow the temperature to drop to below 350F (177C). Once the temperature is below 350F (177C) close all lids and dampers. This will help extinguish the charcoal. Allow time for the grill to cool completely before moving on to the cleaning and care section.

Cleaning and Care

REGULAR MAINTENANCE

In order to keep your grill in the best shape regular cleaning and maintenance is required. The best way to protect your grill from the elements is with a grill cover.

• ALWAYS MAKE SURE UNIT IS COOL TO THE TOUCH BEFORE CLEANING AND STORING.
• Inspect hardware and assembled parts on a regular basis to ensure grill is in safe working condition.
• Always empty the ash tray after each use once ashes have completely cooled. Empty the ashes into a metal container and cover with water to ensure there are no lit coals.
• Clean grill and cooking grids with mild cleaning agents. Wipe outside of grill with a damp rag. DO NOT use oven cleaner.
  • Always cover and store cold grill in a protected area.
• Indoor storage of grill is permissible only if the charcoal has burned to a complete ash and is cold.
• Remember to remove cold ashes before storing.
• Your grill is made of steel and some rust may appear over time. If rust occurs clean the area with fine sandpaper or steel wool, then cover with heat resistant paint.
• NEVER USE PAINT ON INSIDE SURFACES OF GRILL.
• Frequent seasoning prevents rusting. If rusting occurs, clean with a steel brush, apply cooking oil or vegetable shortening and heat as indicated in the pre-seasoning steps.

WARRANTY INFORMATION

A COPY OF THE DATED PROOF OF PURCHASE (RECEIPT) IS REQUIRED WHEN REGISTERING OR SUBMITTING A WARRANTY CLAIM. PLEASE RETAIN A COPY OF THE RECEIPT FOR YOUR RECORDS.

Char-Griller ^® will replace any defective part of its grillers/smokers, under warranty, as outlined below.

Charcoal / Pellet / Kamado Grills
Grill - Hood AND Bottom(excludes removable Ash Pan)	5 years from date of purchase for rust through / burn through
Ash Pan AND Defective Parts 1 year from date of purchase
Gas Grills
Grill Hood (TOP half) AND Main Burner Tubes(excludes Side Burner)	5 years from date of purchase for rust through / burn through
Grill Body (BOTTOM half) AND Side BurnerAND Defective Parts	1 year from date of purchase
Dual Fuel Grills (Gas & Charcoal)
Charcoal Grill - Hood AND Bottom ANDGas Grill - Hood (TOP half) AND Main Burner Tubes(excludes Ash Pan and Side Burner)	5 years from date of purchase for rust through / burn through
Ash Pan AND Defective Parts AND Gas GrillBody (BOTTOM half) AND Side Burner	1 year from date of purchase
Griddles
All defective parts 1 year from date of purchase
MISC
Parts, Accessories, and Grill Covers 1 year from date of purchase	(seam tears only for covers)

SURFACE RUST IS NOT CONSIDERED A MANUFACTURING OR MATERIALS DEFECT

Char-Griller® grills are made of steel and if exposed to the elements rust will occur naturally. Please refer to the manual to review how to care for your grill properly.

Surface issues such as scratches, dents, corrosion or discoloring by heat, abrasive and chemical clearers, surface rust or the discoloration of steel surfaces are NOT covered under these warranties.

Warranties are for the replacement of defective parts only. Char-Griller ^® is not responsible for damage resulting from accident, alteration, misuse, abuse, hostile environments, improper installation, and installation not in accordance with local codes of service of unit.

AUSTRALIA AND NEW ZEALAND RESIDENTS ONLY: Our goods come with guarantees that cannot be excluded under the Australian or New Zealand Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

EUROPEAN RESIDENTS ONLY: Char-Griller® warrants all of its products to be free from defects in material and workmanship under proper assembly, normal use and recommended care for 2 years from the date of original retail purchase.

Excluded Under ALL Warranties

Paint; Surface Rust; Heat Damage; Incorrect Parts ordered by customer, including shipping; Worn Parts; Missing or damaged parts not reported within two (2) months of purchase date; Defective parts not reported within one (1) year of purchase date; Fading grill cover.

*NOTE: For warranty claims, photos and prepaid return of the item in question may be required. Misuse, abuse or commercial use nullifies all warranties.

PLEASE READ THIS INFORMATION IN DETAIL AND IF YOU HAVE ANY QUESTIONS CONTACT CUSTOMER SERVICE AT:

DO NOT RETURN TO RETAILER!

For assembly assistance, missing or damaged parts, please contact Char Griller Customer Service.

Char Griller ^® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341

Char Griller ^® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, Den Haag, Netherlands

Char Griller ^® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ

Australia & New Zealand: Please contact your retailer

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

SPANISH

SÓLO PARA USO EN EXTERIORES. NO PARA USO COMERCIAL.

ADVERTENCIA

Black-and-white photo of a Coca-Cola waste bin on a metal grating (no visible text or symbols)

Black-and-white photo of dark, irregularly shaped objects on a metal grater with visible flames (no text or symbols)

NOTA:

Simple line drawing of a cylindrical object with a lid and a small protrusion (no text or symbols)

ASAR
Temperaturas medias

Simple line drawing of a cylindrical object with a lid, resembling a container or lamp (no text or symbols)

SELLAR
Temperaturas altas

Simple line drawing of a cylindrical container with a lid, no text or symbols present

Symmetrical four-petal fan diagram with no text or symbols

Symmetrical four-petal fan or impeller diagram with no text or symbols

Symmetrical four-blade fan or impeller diagram with no text or symbols

Estilos de cocción

ASAR (calor directo o indirecto)

SELLAR (calor directo)

Char Griller ^® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341

Char Griller ^® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, Den Haag, Netherlands

Char Griller ^® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

FRENCH

AVERTISSEMENTS ET INFORMATIONS RELATIVES À LA SÉCURITÉ

LISEZ TOUTES LES INSTRUCTIONS

Black-and-white photo of a portable stove burner with contents, placed on a metal grater (no visible text or symbols)

Mode d'emploi

INSTRUCTIONS D'ALLUMAGE (SUITE)

ALLUME-FEU

Black-and-white photo of dark, irregularly shaped objects on a griddle with visible flames and smoke (no text or symbols)

REMARQUE :

Simple line drawing of a cylindrical object with a lid and a small protrusion (no text or symbols)

Simple line drawing of a cylindrical container with a lid, no text or symbols present

Simple line drawing of a cylindrical object with a small protrusion on top (no text or symbols)

Symmetrical four-petal fan diagram with no text or symbols

Symmetrical diagram of a four-blade fan or propeller with no text or symbols

Symmetrical four-blade fan or propeller diagram with no text or symbols

Char Griller ^® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341

Char Griller ^® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, La Haye, Pays-Bas

Char Griller ^® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

GERMAN

Illustration of a portable outdoor grill with 3-meter height dimensions and no visible text or symbols

Black-and-white photo of a Coca-Cola portable stove burner with open lid, placed on a metal grater (no visible text or symbols)

Bedienungsanleitung

Black-and-white photo of dark, irregularly shaped objects on a metal grater with visible flames and smoke (no text or symbols)

HINWEIS:

Simple line drawing of a cylindrical object with a lid and a small protrusion (no text or symbols)

Simple line drawing of a cylindrical object with a lid, resembling a container or container (no text or symbols)

Simple line drawing of a cylindrical object with a small protrusion on top (no text or symbols)

Symmetrical four-petal fan diagram with no text or symbols

Symmetrical diagram of a four-blade fan or impeller with a central hub, enclosed in a circular frame (no text or symbols)

Symmetrical four-blade fan or propeller diagram with no text or symbols

ANBRATEN (direkte Hitze)

Bedienungsanleitung

NEU LADEN

Char Griller ^® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341

Char Griller ^® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, Den Haag, Niederlande

Char Griller ^® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

SWEDISH

VARNINGAR OCH VIKTIGA SÄKERHETSFÖRESKRIFTER

LÄS ALLA INSTRUKTIONER

Black-and-white photo of a Coca-Cola portable stove burner with open lid, placed on a metal grater (no visible text or symbols)

Driftsanvisningar

INSTRUKTIONER FÖR TÄNDNING FORTS.

BRASSTARTARE

Black and white photo of dark, irregularly shaped objects on a griddle with visible flames (no text or symbols)

OBS:

Simple line drawing of a cylindrical object with a lid and a small protrusion (no text or symbols)

GRILL
Med. Temperaturer

Simple line drawing of a cylindrical container with a lid (no text or symbols)

BRYNA
Höga temperaturer

Simple line drawing of a cylindrical object with a lid, resembling a container or mechanical part (no text or symbols)

Symmetrical four-petal fan diagram with no text or symbols

Symmetrical four-blade fan diagram with no text or symbols

Symmetrical four-blade fan or propeller diagram with no text or symbols

Matlagningsstilar

BRYN (direkt värme)

Driftsanvisningar

PÅFYLLNING

Char Griller ^® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341

Char Griller ^® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, Den Haag, Nederländerna

Char Griller ^® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

DUTCH

UITSLUITEND VOOR GEBRUIK BUITENSHUIS. NIET VOOR COMMERCIEEL GEBRUIK.

WAARSCHUWING

WAARSCHUWINGEN EN BELANGRIJKE BEVEILIGINGEN

LEES ALLE INSTRUCTIES.

Illustration of a 3-meter outdoor grill with wheels and side-mounted top panel (no text or symbols)

BEWAAR DEZE INSTRUCTIES.

Black-and-white photo of a portable stove burner with contents inside, placed on a metal grating (no visible text or symbols)

Black-and-white photo of dark, irregularly shaped objects on a griddle with visible flames (no text or symbols)

NB:

Simple line drawing of a cylindrical object with a small protrusion on top (no text or symbols)

Simple line drawing of a cylindrical object with a small protrusion on top (no text or symbols)

Simple line drawing of a cylindrical container with a lid and a small object on top (no text or symbols)

Symmetrical four-blade fan or propeller diagram with no text or symbols

Symmetrical four-blade fan or propeller diagram with no text or symbols

Symmetrical four-blade fan or propeller diagram with no text or symbols

Char Griller ^® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341, VS

Char Griller ^® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ Den Haag, Nederland

Char Griller ^® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ, VK

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

ITALIAN

SOLO PER USO ALL'APERTO. NON PER USO COMMERCIALE.

AVVERTIMENTO

Technical illustration of a portable grill with 3-meter height dimensions and no visible text or symbols

CONSERVARE QUESTE ISTRUZIONI

Black-and-white photo of a portable stove burner with open lid and perforated contents, placed on a metal grater (no visible text or symbols)

ISTRUZIONI DI ACCENSIONE, CONT.

ACCENDIFUOCO

Black-and-white photo of dark, irregularly shaped objects on a griddle with visible flames and smoke (no text or symbols)

NOTA:

Simple line drawing of a cylindrical object with a lid and a small protrusion (no text or symbols)

GRIGLIARE
Medie temperature

Simple line drawing of a cylindrical container with a lid (no text or symbols)

ROSOLARE
Alte temperature

Simple line drawing of a cylindrical object with a lid, no text or symbols present

Symmetrical four-petal fan diagram with no text or symbols

Symmetrical four-petal fan diagram with no text or symbols

Symmetrical four-petal diagram with no text or symbols

Char Griller ^® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341

Char Griller ^® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, Den Haag, Netherlands

Char Griller ^® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support

www.chargriller.com/pages/customer-support
