LBN1300TV - Wine cellar LE CHAI - Free user manual and instructions
Find the device manual for free LBN1300TV LE CHAI in PDF.
| Product type | Wine cellar |
| Brand | Le Chai |
| Model | LBN1300TV |
| Maximum capacity | 123 bottles (0.75 L standard Bordeaux) |
| Dimensions (W x D x H) | 630 x 716 x 1797 mm |
| Weight | 111 kg |
| Power supply | 220-240 V~ 50 Hz |
| Climate class | N/ST (16 °C to 38 °C) |
| Defrost | Automatic (No Frost) |
| Installation type | Built-in or freestanding |
| Temperature range upper zone | 5 °C to 10 °C (adjustable, default 6 °C) |
| Temperature range lower zone | 10 °C to 18 °C (adjustable, default 12 °C) |
| Interior lighting | LED (auto-off after 10 minutes or continuous mode) |
| Anti-vibration system | Silent blocks on compressor |
| Charcoal filter | Passive (in lower position) |
| Door | UV-treated glass |
| Humidification tray | Yes (on shelf under fan) |
| Refrigerant | R600a (isobutane) |
| Manufacturer warranty | 5 years |
| Spare parts availability | 7 years from date of purchase |
| Certifications | European Directives 2014/35/EU and 2014/30/EU |
| Energy reference | https://eprel.ec.europa/qr/436253 |
Frequently Asked Questions - LBN1300TV LE CHAI
User questions about LBN1300TV LE CHAI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Wine cellar in PDF format for free! Find your manual LBN1300TV - LE CHAI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LBN1300TV by LE CHAI.
USER MANUAL LBN1300TV LE CHAI
LBN1300TV - 123 bottles
TABLE OF CONTENTS
Introducing the wine cabinet Page 52
Important warnings and tips Page 53
Setting up the cabinet Page 57
Specific information Page 58
Usage Page 61
Care of your cabinet Page 62
Troubleshooting Page 63

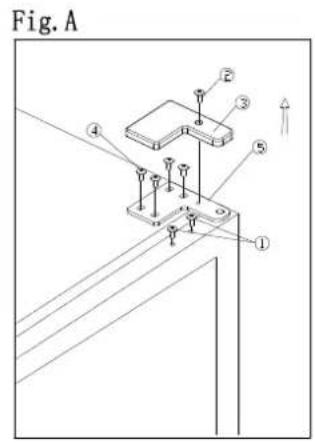

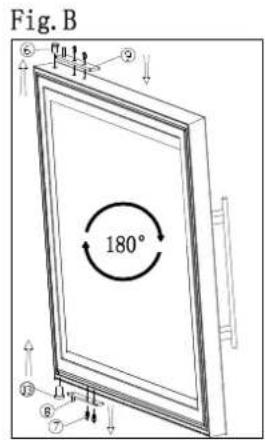

Changing door opening side
TECHNICAL AND ENERGY CHARACTERISTICS
| Brand: LE CHAI Household refrigeration device class: 2 | Model LBN1300TV (123 bottles max) |
| Foodstuffs | 220-240V~ 50Hz |
| Size (L*W*H) (mm) | 630 x 716 x 1797 |
| Weight | 111kg |
| Defrosting | No-Frost |
| Climate class | N/ST |
| This device is designed for use at ambient temperatures between | 16°C and 38°C |
| Installation type | Built under or freestanding |
The cabinet is exclusively designed for storing wine.
The product information fiche according to regulation 2019/2016 / EU is available via
| Model | Website | QR-code |
| LBN1300TV | https://eprel.ec.europa/qr/436253 |
This device complies with European Directive requirements:
2014/35/UE pertaining to electrical safety
2014/30/UE pertaining to electromagnetic compatibility
C

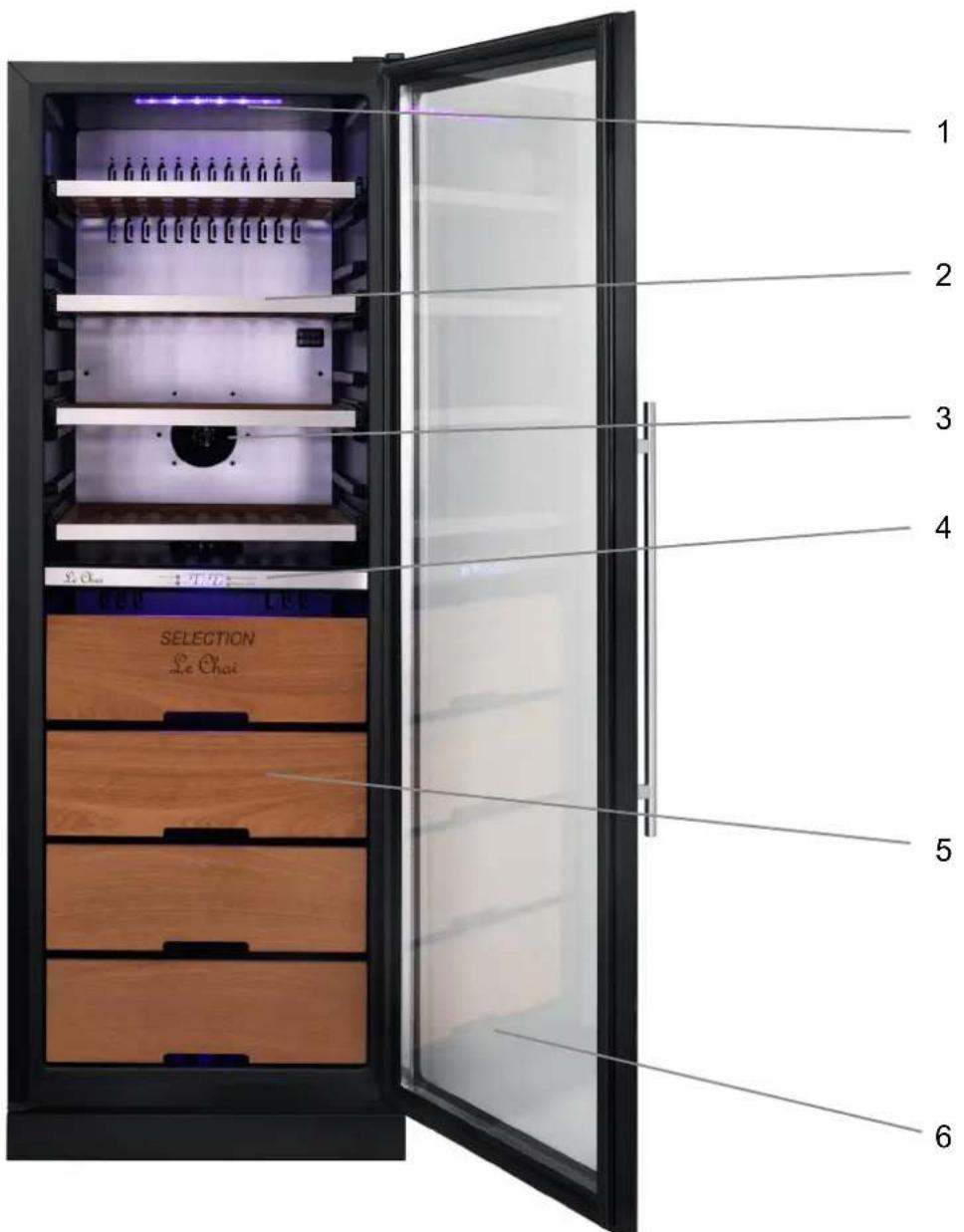

INTRODUCING THE WINE CABINET
1 - Light (LED)
2 - Shelves
3 - Ventilation
4 - Control Panel
5 - Drawers
6 - Glass door

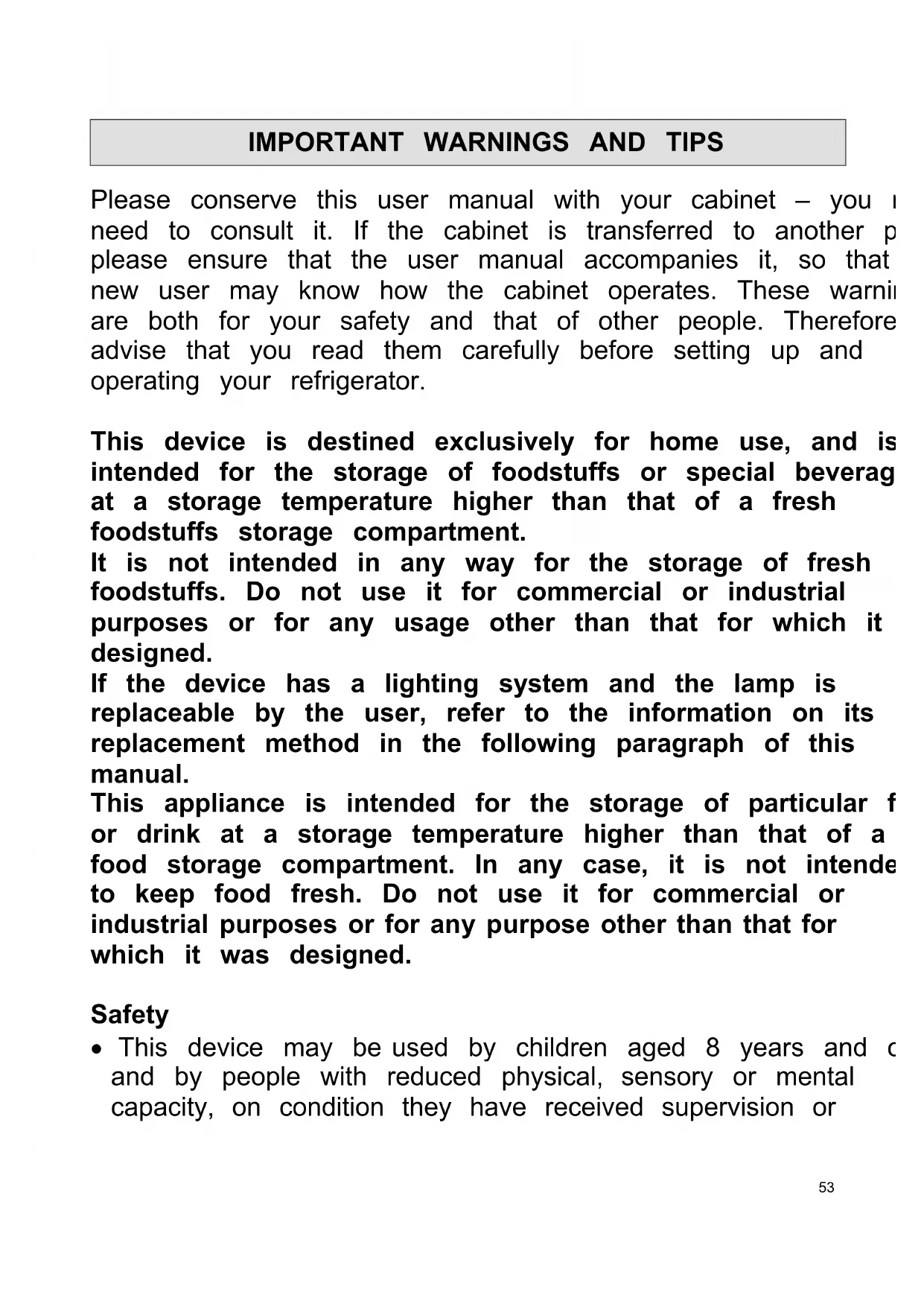

IMPORTANT WARNINGS AND TIPS
Please conserve this user manual with your cabinet - you need to consult it. If the cabinet is transferred to another please ensure that the user manual accompanies it, so that new user may know how the cabinet operates. These warnings are both for your safety and that of other people. Therefore advise that you read them carefully before setting up and operating your refrigerator.
This device is destined exclusively for home use, and is intended for the storage of foodstuffs or special beverages at a storage temperature higher than that of a fresh foodstuffs storage compartment.
It is not intended in any way for the storage of fresh foodstuffs. Do not use it for commercial or industrial purposes or for any usage other than that for which it designed.
If the device has a lighting system and the lamp is replaceable by the user, refer to the information on its replacement method in the following paragraph of this manual.
This appliance is intended for the storage of particular foods or drink at a storage temperature higher than that of a food storage compartment. In any case, it is not intended to keep food fresh. Do not use it for commercial or industrial purposes or for any purpose other than that for which it was designed.
Safety
- This device may be used by children aged 8 years and c and by people with reduced physical, sensory or mental capacity, on condition they have received supervision or
instruction concerning use of the device in all safety, and they understand the risks.
- Children should not be allowed to play with the device.
- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
- Always disconnect the device's electricity supply before cleaning it; before defrosting it, before changing the illuminating lamp; before moving the device or before clean the floor underneath it. Cleaning and care by the user should not be done by children unless under supervision.
- WARNING: Do not damage the refrigeration circuit.
- WARNING: Do not use electrical equipment inside the foodstuffs storage compartment, unless it is of a type recommended by the manufacturer.
- WARNING: Do not use mechanical tools or other means to speed up defrosting, unless they are recommended by the manufacturer.
- WARNING: Keep the cabinet's ventilation openings clear in the enclosure or the built-in space around the cabinet.
- WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
- Do not connect the device to a power supply without over protection (protected by an electrical fuse).
- Never use power-strips or extension cords to connect the device to the mains.
- This device is not destined for use with an outside timer remote control system or any device that switches it on automatically.
- Do not use the device to store explosive substances such as aerosols that contain flammable propulsion gas.
-
After installing the cabinet, ensure that it is not resting or power cord.
-
If the power cord is damaged, it must be replaced by the manufacturer, by customer care service, or by similarly qualified personnel in order to prevent electrical hazards.
- The device is heavy; be careful when moving it.
- If your cabinet was laid down in a horizontal position during transportation, wait 48 hours before operating it.
- In the event of accidental liquid spillage (broken bottles or other) on electrical components (motor or other), immediately unplug the device from the mains.
- Ensure that you put your cabinet in a place that can sup its weight when loaded (1 bottle containing 75 cl weighs approximately 1.3 kg ).
- Your cabinet must be placed on a level surface. If you have to be placed it on a rug or on carpeting, insert a support beneath
- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
- Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
- This refrigeration appliance is not suitable for freezing foodstuffs.
Servicing - repairs
- It is dangerous to modify or attempt to modify the characteristics of the device.
- If it breaks down, do not try to repair the device yourself. Repairs made by unqualified personnel can cause damage. Contact your dealer's Customer Care Service.
Refrigerant
Warning; Risk of fire / flammable materials. The refrigerant gas contained in this device is isobutane (R 600a), it is low-polluting but is
flammable.
- When transporting and installing the device, take care not damage any part of the refrigerating circuit.
- Do not use a pointed or sharp edged tool to defrost the device.
-
Do not use any electrical devices inside the cabinet. If the refrigerating circuit is damaged:
-
Do not allow any open flame near the device.
- Avoid sparks - do not switch on any electrical appliances lamps nearby.
- Immediately ventilate the room.
Disposal
This device carries the selective waste sorting symbol for electrical and electronic equipment disposal. This means that the product must be picked up by a selective collection system in compliance with European Directive 2012/19 EU so that it will either be recycled or dismantled in an environment-friendly way.
For more information please contact your local or regional government.
Electronic products that are not properly and selectively recycled are potentially dangerous for the environment and for human health because they contain dangerous substances. This device contains flammable foaming agents. When the refrigerator reaches the end of its life cycle, it must be disposed of in a suitable place, where refrigerators can be recycled. For this purpose please contact your town hall or municipality. Under no circumstances must the refrigerator be disposed of in public areas.
SETTING UP THE CABINET
If this device, which uses magnetic door closing, replaces a device equipped with a spring closing system, we advise you to destroy the spring closing system before disposing of the old device. To prevent children from locking themselves inside it and endangering their lives.
Location
Place your cabinet well away from heat sources (heater, cooker, direct sunlight). For proper operation of the device, the ambient room temperature should be between +16^ and +38^ (class N/ST). Out of these limits, the device will not operate properly.
- Ensure that air can circulate freely behind the device: do not place it too close to a wall, in avoid noise from vibration. Ensure that air can circulate freely all around the device. Insufficient ventilation will lead to poor operation and increased energy consumption.
Leave at least 2 cm between the walls and the wine cabinet and 3 cm minimum between the r wine cabinet and the wall. Leave at least 10 cm free space above the device.
-
The device must be installed in such a way that the electric plug is accessible. After in the cabinet, make sure that it is not resting on the power cord.
-
Level the device by using the 2 adjustable feet.

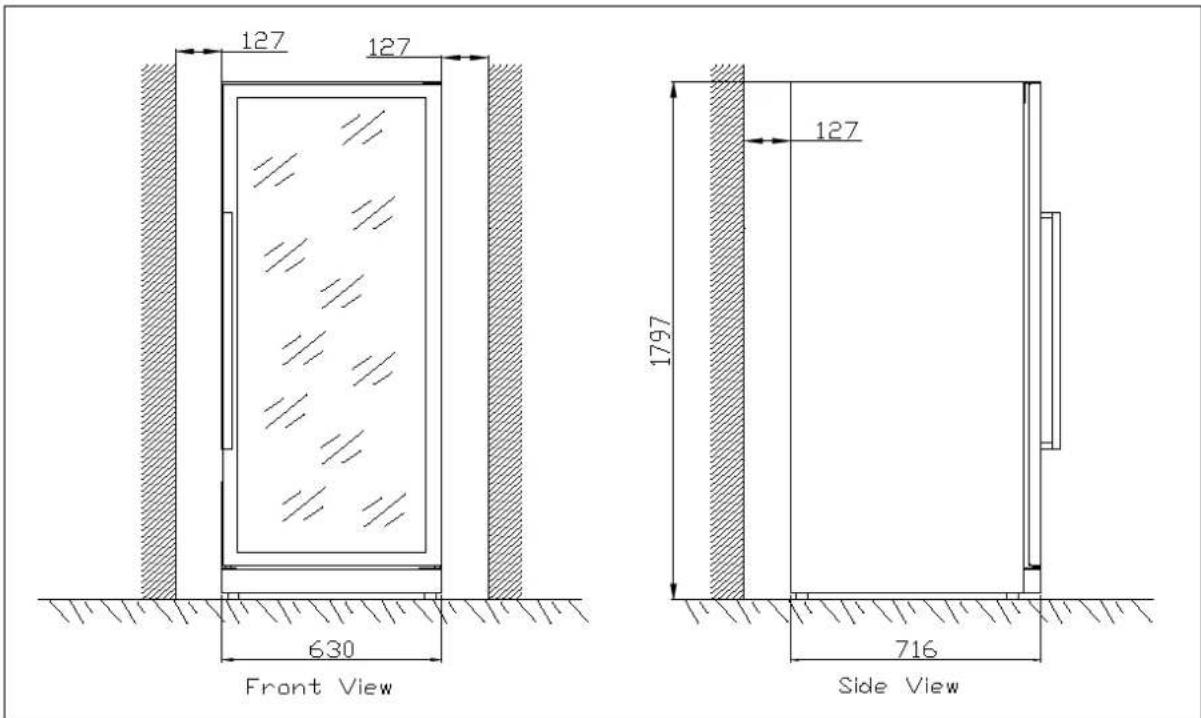

Built-in
Below the built-in dimensions to use before installing in the best condition this appliance

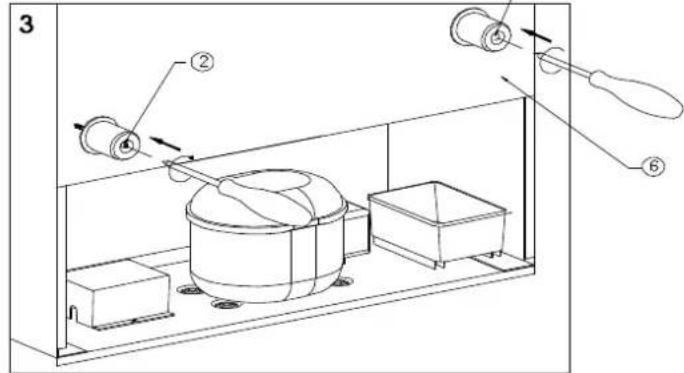

Installation of shims
① and ④ : screw
② and ⑤ : shims
③ Phillips screwdriver
⑥: back of the cellar
1- Take the 2 shims (2 and 5) and the long screws (1 and 4)
2- Insert the screws (1 and 4) in the shims (2 and 5) as in diagram 2; wide base at outside.
3- At the back of the cellar (6) there are 2 stickers black, using a screwdriver (3) tighten the screws (1 and 4) directly through the stickers.
Connecting the power supply
Your cabinet is designed for operation with 230V single-phase.
It must be connected to a wall socket equipped with earthing and protected by a 10 A fus compliance with the standard NF C15-100 and in compliance with your electricity supplier's prescriptions.
SPECIFIC INFORMATION
- We recommend that you install your wine cabinet in a temperate room.
- If the inside light remains on, please note that the inside temperature will be higher.
- Temperature inside the wine cabinet may vary depending on the type and the number of bottles contained.
In order to keep your wines at a stable temperature, avoid leaving the door open for long periods. - Do not install your wine cabinet close to a heat source; avoid direct sunlight.
In order to guarantee your safety, and to prevent your wine being spoilt, do not place the cabinet in humid locations. -
Do not store perishable foodstuffs inside your wine cabinet.
The wine cabinet is not designed for use in a garage, outside, or in the open air. -
The following (approximate) temperatures are recommended for wine drinking:
Great Bordeaux wines - Red 16-17°C
Great Burgundy wines - Red 15-16°C
Great vintages dry white wines 14-16°C
Red wines, fruity wines, young wines 11-12°C
Rose wines from Provence, early-to-market wines 10-12°C
Dry white wines and local red wines 10-12°C
Local white wines 8-10°C
Champagnes 7-8°C
Liqueur wines 6^
- Temperature stability is of the greatest importance when storing wine.
- Exposure to light, vibrations, temperature variations or humidity can spoil the wine.
The cooling system
According to specialists, the ideal temperature for wine storage is around 12^ , in the range of 14^ . Do not confuse with the operating temperature, which varies depending on the specificity type of wine from 5 to 18^ . It is especially important to avoid sudden temperature changes. Designed by specialists, for wine I this device, unlike the single refrigerator, electronically ensures constant average temperature control
The anti-vibration system:
The compressor is equipped with special shock (silent-blocks) and the inner tank is isolated from body by a thick layer of polyurethane foam. These features can prevent the transmission of vibrat the wines.
The humidification system:
This device is equipped with a tray (depending on model) which maintains the correct level of hu the humidity is too low, fill the tank level to 3 / 4 of its capacity. Check the water level time to tir water if necessary. Make sure the tank always contains water.
The tray is placed on the shelf under the fan at the bottom to provide a minimum humidity. Be careful to control the water level if you store your wines for a long time and you do not de unit to their implementation at operating temperature only (with rapid rotations of your bottles).
The UV system:
The light accelerates aging of your wines. In full doors cellars, the wines are naturally immune so course limited openings). This model glass door was subject of a particular treatment, which filters harmful ultraviolet rays; the wines are perfectly safe.
Defrost:
This product does not produce frost (No-Frost). There is no frost or ice; so, no operation is required to remove it.
Shelves
To prevent damage to the door seal, make sure the door is open before pulling the shelves to remove the bottles.

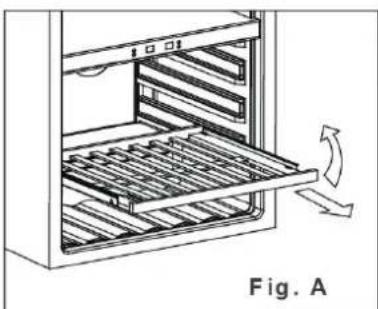

For easier access to the contents of shelves you need to slide the shelf outward about 1/3 (fig) however they are designed with a stop on each side to prevent the bottles from falling.

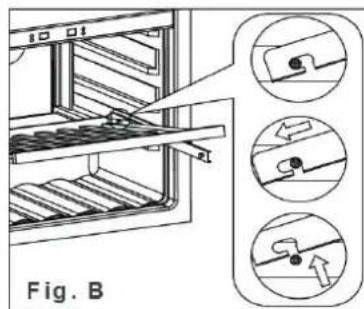

To remove or position the shelves, tilt the shelf as shown in the diagram and pull or push as n B).
LOADING
The maximum number of bottles that can be loaded into the cabinet are for information only; this information is not contractual; it provides a means for rapidly estimating the size of the device.
The information comes from tests carried out using standard bottles; in reality, in extreme condition would be possible to load a greater number of bottles without racks, but a "diverse wine cellar" many different ways; the daily use of a wine cabinet means that it must carry fewer bottles. The you will probably load fewer bottles then the given maximum numbers.
For better conservation and avoid food waste
To avoid spoiling the wine, it is important that the temperature remains stable in the cavity, avoid frequently opening the door and blocking the interior vents.
To avoid the appearance of mold, please avoid having too much humidity in the cavity.
How to load and care for your wine cabinet:

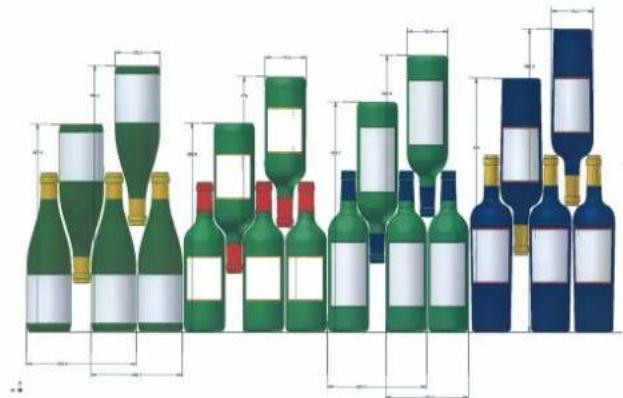

Here we see 4 types of 75 cl bottles, Burgundy and Bordeaux, of different sizes.
There are many other types, with various volumes and of all shapes.
Note the different ways they are stored depending on the height and diameter of the bottles as the interleaving method used.

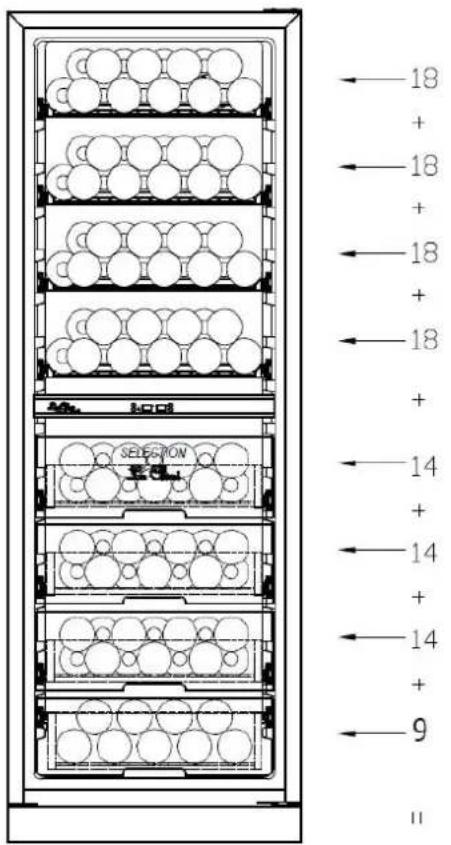

Loading for Max capacities
The maximum number of stored bottles is based on standard Bordeaux bottles containing 0.75 L.
123
USAGE
Starting up the device
Once the wine cabinet is properly installed, we advise that you clean the inside using warm water. Low concentration of dishwashing liquid. Do not use abrasives or scouring powder; they may scratch surface finish.
USAGE
CAUTION! Wine cabinets are intended only for storing and preserving wine.
IMPORTANT: Your wine cabinet is ideally suitable for holding Bordeaux type bottles of 0.75 L cap can contain larger bottles; however care must be taken that they do not prevent the door from c properly.
- When closing the door ensure that it does not touch any of the bottles.
If you load several bottles at a time, it will take longer before the cabinet reaches the desired temperature.
In order to avoid damaging the door seal, ensure that the door is fully open before moving the racks along the compartment rails.

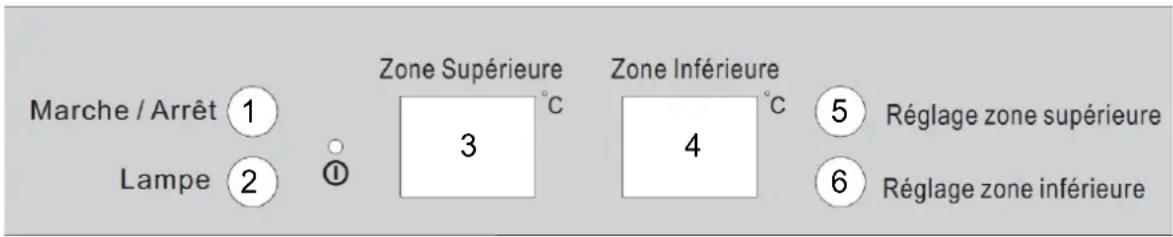

Adjusting the temperature
1 - Start/Stop button
2 - Light button
3 - Digital display of the temperature in the upper zone
4 - Digital display of the temperature in the lowe zone
5 - Setting button for the upper zone
6 - Setting button for the lower zone
Starting the appliance
Press the start/stop button for about 3 seconds
Do the same to turn it off.
Temperature control
The internal temperature is regulated by the electronic thermostat controlled by the buttons inside appliance.
Each time the "upper zone" or "lower zone" key is pressed, the selected zone is incremented by degree. To obtain a temperature lower than the one indicated,
You can adjust the temperature degree by degree. The temperature is set using the arrows 5 or right of the temperature indicator.
After the temperature is selected, the display will flash for 5 seconds and display the set-point temperature. If you want to know the actual temperature in the cellar, you must press the arrows at the same time for 3 seconds; after 5 seconds, the set-point temperature will be displayed again
NOTE: The default temperature is 6^ in the upper zone and 12^ in the lower zone.
NOTE: The range of temperature of this wine cellar is between 5^ and 10^ in the upper zone and between 10^ and 18^ in the lower zone.
To avoid too much condensation when the ambient temperature is higher than 28^ , do not lower temperature below 7^ .
Control of the light
To turn on or off the internal light, press the button.
The (LED) light is suitable for the conservation of wine.
In order to reduce energy consumption, the LED light goes off automatically after 10 minutes. How we recommend turning off the light under normal use or after each use. However, if you wish to light on, the procedure is as follows; press button 2 for at least 5 seconds; the display will then After a few seconds, the display comes back to the temperature indication and the light stays on continually. To return to the light turning off automatically after 10 minutes, press button 2 for at seconds; the display will then show "LF". After a few seconds, the display comes back to the temperature indication and the light goes off automatically.
Note
- If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the Wine cooler will not start.
- When you use the Wine cooler for the first time or restart the Wine cooler after having been off for a long time, there could be a few degrees variance between the temperature you select the one indicated on the LED readout. This is normal and it is due to the length of the act. Once the Wine cooler is running for a few hours everything will be back to normal.
CARE OF YOUR CABINET
DEFROSTING
Defrosting of your wine cabinet is fully automatic. It requires no action on your part.
During operation, you may notice condensation drops forming on the rear inside wall of the cabinet will be eliminated during automatic defrosting.
CLEANING
Before any cleaning, unplug the device from the mains.
Never use abrasives or a scraper sponge when cleaning the inside or the outside of your cabinet.
- Remove all accessories (racks, etc.). Wash them using lukewarm water to which has been adc gentle unscented detergent (dishwashing liquid for example); rinse with bleach water and careful dry off.
- Wash the inside walls in the same way; pay particular attention to the rack supports
- Wash the door seal as well as under the seal.
- Plug the wine cabinet into the mains.
From time to time, dust off the condenser behind the device; accumulated dust may reduce the e of your wine cabinet.
In the event of a prolonged absence, empty and clean out the device; maintain the door slightly during the period of non-use.
REPLACING THE ILLUMINATING LAMP
The device uses light emitting diodes (LEDs). This type of diode cannot be changed by the user. cycle of the LEDs is long enough so that they do not need to be changed. If however, in spite taken by the manufacturer, the LEDs do fail, please contact your Customer Care Service for any
TROUBLESHOOTING
You can resolve many of the problems that may arise without having to call Customer Care Service. Please try the suggestions below.
| PROBLEM | POSSIBLE CAUSE |
| No operation | ·Check your installation's power supply ·Check your circuit breaker ·A fuse has blown |
| Not cold enough | ·Check the setting temperature Ambient temperature requires readjustment of the temperatures ·The door is open too often ·The door is not closed properly ·The door seal is not air-tight ·There is not enough space around the device |
| No interior light No display on the LCD screen | ·Contact your Customer Care Service |
| There appears to be a loud noise | ·Check the device levelling ·Verify that a piece of paper or part of packaging has not remained stuck in the device. |
| The door does not close properly | ·Check the device levelling ·The seal is in poor repair ·The feet have "moved" |
| The light (LED) does not come on | ·The control panel is not working ·Printed circuit problem ·Mains plug problem ·Contact your Customer Care Service |
| LED display error | ·Poor display ·The temperature value is not shown ·Contact your Customer Care Service |
| The fans are not working | ·Control Panel to be replaced by your Customer Care Service |
CHANGING DOOR OPENING SIDE
This appliance has reversible doors but is delivered with a right hinged door. The left hand hinge comes with the unit (in the box), should you wish to reverse the hinge on your unit.
For your safety, please unplug appliance before doing this operation.
Parts
① Door screws
② Hinge cover screw
③ Right hinge cover
④ Hinge screw
⑤ Right hinge
⑥ Axle hole cover
Fixing screw
Right hinge pin
Left hinge pin
Lower hinge left
① Door support
12 Lower right hinge
⑬ Hole cover
Upper hinge. left
⑤ Left hinge cover
- Loosen screws ① and screws ② , remove the right hinge cover ③ .
Then remove the screws and remove the upper right hinge and the door. (Fig.A) - Place the door in a safe place, remove the pin hole cover ⑥ , loosen the screws ⑦ under the door and take out the right pin (Figure B)
- Take the axle hole cover 13 and the left axle 9 from the spare parts bag, install the axle hole cover 13 in the bottom of the door and install the left axle 9 in the upper right side Door. (Figure B)

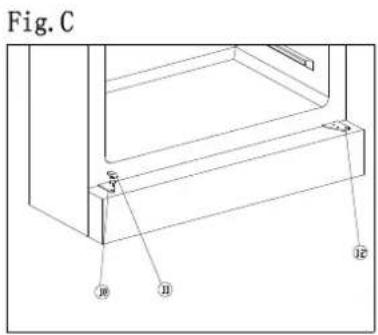

- Take the door support ⑪ from the lower left hinge ⑩ and install it on the lower right hinge ⑫. (Figure C)
- Turn the door 180 degrees and place the ⑨ left this lower left hinge close the door.
- Remove the upper hinge 14 from the spare bag, install the upper left hinge 14 on the upper left side of the cellar with the screws 4, adjust the door and place the upper left hinge 15 on the upper left hinge 14 with the screw 2. Finally fix the fixing screws 1 on the door. (Fig.D)
Finally replace the upper right hinge cover ③
GUARANTEE
Repairs and spare parts available
The manufacturer's warranty is applicable for this device for a period of 2 years.
In the event of a malfunction during this period, any request for support must be made to the a service of your dealer.
Outside the warranty period, any information regarding professional repair services or ordering origin spare parts may be obtained by contacting your dealer.
Imported by SIDEME SA / BP200 - 92306 Levallois-Perret cedex - France
GEBRUIKSHANDLEIDING
INBOUWBARE WIJNKAST
LBN1300TV - 123 flessen
