Product type	Ride-on floor scrubber
Brand	Ghibli & Wirbel
Model	RACER R 85 FD 75 BC PLUS
Dimensions (L x W x H)	1470 x 770 x 1365 mm
Brush head width	785 mm
Squeegee width	950 mm
Empty weight	213 kg
Operating weight (with Gel batteries 12V 105Ah)	285 kg
Power supply	24 V batteries (Gel, AGM, acid or lithium)
Standard battery capacity	2 x 12V 105Ah (C5) or 4 x 6V 180Ah (C5)
Working autonomy	4 h (180Ah C5 batteries)
Maximum forward speed	6 km/h
Washing width	750 mm
Suction width	950 mm
Theoretical / actual performance	4500 m²/h / 2700 m²/h
Solution tank capacity	110 l
Recovery tank capacity	115 l
Specific brush pressure (normal / extra)	21 gr/cm² / 43 gr/cm²
Main functions	Washing, scrubbing, drying, ECO mode, silent mode
Safety devices	Emergency stop, operator presence sensor, electromagnetic brake, anti-slip system
Routine maintenance	Daily emptying and cleaning of tanks, squeegee cleaning, steering chain check every 3 months
Wear parts	Brushes, squeegees (para rubber or polyurethane), filters, fuses
Repairability	Contact technical support for component replacement

Frequently Asked Questions - RACER R 85 FD 75 BC PLUS Ghibli & Wirbel

How to charge the batteries of the RACER R 85 FD 75 BC PLUS scrubber?

Charging is done by connecting the charger (external or onboard) to a mains socket. Make sure the recovery tank is empty before lifting the hood. The external charger must be SELV 24 V type. For gel batteries, avoid partial recharges; a full cycle takes about 10 hours.

What to do if the machine does not start after turning the key?

First check the battery charge level. If they are discharged, recharge them. If the problem persists, check the main fuse on the battery cable. As a last resort, replace the ignition key or contact technical support.

How to replace the scrubbing brushes?

Place the machine at a standstill, key in ON position, speed at 0. Press the brush button (46) to lower the head, then press the accelerator pedal to rotate the flanges. The brushes engage automatically. To remove them, twist them sharply in the opposite direction of rotation. To install new ones, follow the reverse procedure.

How to clean the squeegee?

Disconnect the suction hose (16) from the squeegee, unscrew the clamping knobs (36) and remove the squeegee assembly. Wash the rubbers (60 and 61) with running water. Check their wear condition; if damaged, turn them over or replace them. Reassemble in reverse order.

Why does the machine leave water marks after washing?

Possible causes are: worn squeegees (turn over or replace), full recovery tank (empty it), clogged suction hose (clean it), or incorrect squeegee incidence adjustment. Adjust the ground pressure adjustment screw if necessary.

How to empty the recovery water tank?

Place the machine near a drain. Unhook the drain hose (15) from its clips, lower it to the ground, unscrew the cap (56) and drain completely. Then close the cap and replace the hose.

What type of detergent to use with this scrubber?

Use only non-foaming detergents. Follow the dosages indicated by the manufacturer. The machine is equipped with an optional chemical dosing system adjustable from 0.2% to 3%. For filling, mix the product in the clean water tank.

How to adjust the brush pressure on the floor?

Press the extra pressure button (47) to switch between normal and extra pressure. The corresponding icon appears on the display. The pressure is automatically adjusted; a safety system adjusts the force in case of overcurrent. There is no manual adjustment.

What does the alarm AL_1 on the screen mean and how to resolve it?

The AL_1 alarm indicates a memory error. The recommended solution is to restart the machine (turn off and on again). If the alarm persists, contact technical support.

What are the recommended daily maintenance tasks?

After each use, empty and clean the clean water tank and the recovery tank. Clean the squeegee and check the condition of the rubbers. Check the battery charge level. For lead-acid batteries, check for leaks.

USER MANUAL RACER R 85 FD 75 BC PLUS Ghibli & Wirbel

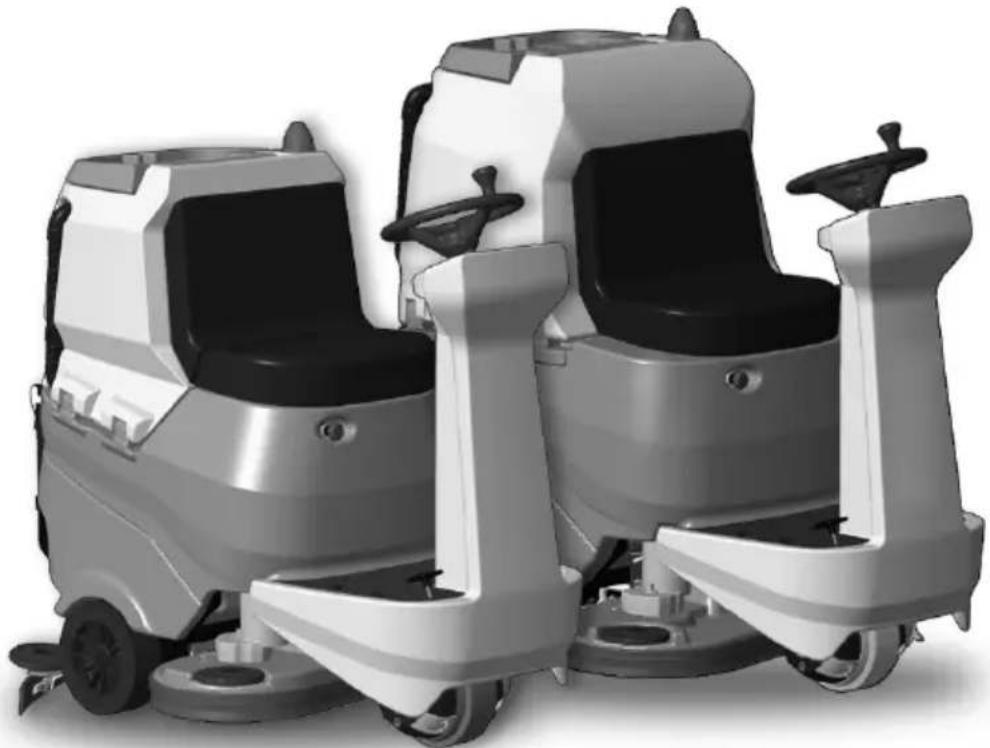

RACER R 85 FD 65 R 85 FD 75

RANGER R 115 FD 75 R 115 FD 85

C E

49.0296.00 ed. 09/2023

Uso e Manutenzione
EN Use and Maintenance
FR Utilisation et Entretien
DE Gebrauch und Wartung
ES Uso y Mantenimiento
PT Uso e manutenção
NL Gebruik en Onderhoud
CS Použitá Udržba
RU 3Kcnpnyataun no6cnyxnbHne
PL Obstuga i Konserwacja
AR

	1 2 3

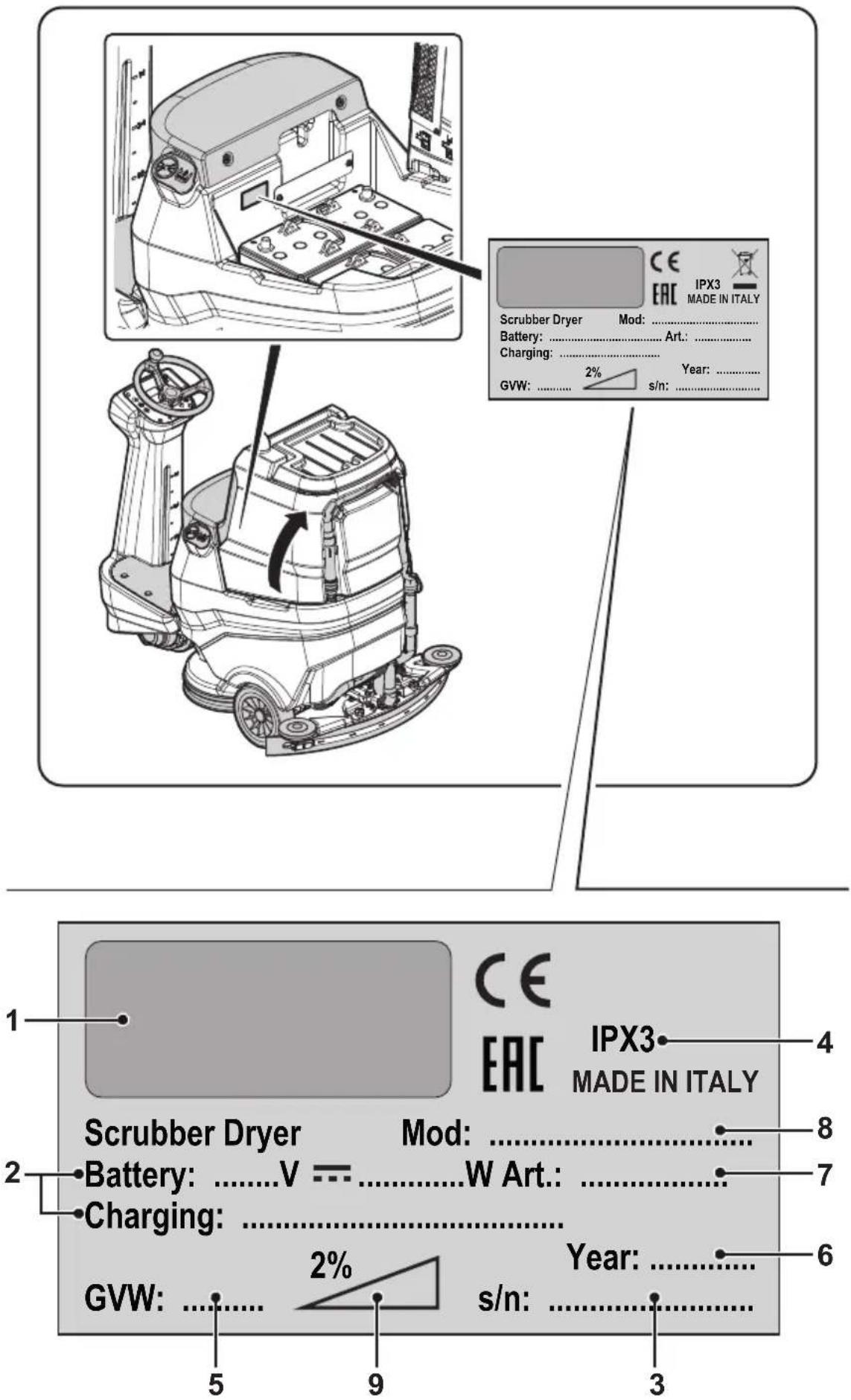

IT	Produttore Caratteristiche elettriche N° Matricola
EN	Manufacturer Electrical characteristics Serial N°
FR	Producteur Caracteristicques électriques N° Matricule
DE	Hersteller Elektrische Eigenschaften Serien-Nr.
ES	Fabricante Caracteristicas électricas N° Matricola
PT	Productor Caracteristicas électricas Número de série
NL	Producent Elektrische eigenschappen Serienummer
CS	Výrobce Elektrické udaje Výrobní Č.
RU	Изrobotvitель	Злес triческехарakтеристоки	ЗавODскоу №
PL	Producent Specyfikacja elektryczna Numer seryjny
AR	all	all	all

	4 5 6
IT	Grado di protezione	Peso in ordine di marcia	Anno di costruzione
EN	Degree of protection	Weight in running order	Year of manufacture
FR	Degré de protection	Poids en ordre de marche	Année de construction
DE	Schutzgrad	Gewicht bei Betrieb	Baujahr
ES	Grado de protección	Peso en orden de marcha	Año de fabricación
PT	Grau de proteção	Peso em ordem de marcha	Ano de Construição
NL	Beschermingsgraad	Gewicht in rijklare toestand	Bouwjaar
CS	Ároveñ ochrany	Hmotnost v provoznim stavu	Rok vyroby
RU	Ваθμός προστασίας	Βάρος στην λεῖουργία ἐτος κατασκεύης
PL	Stopién zabezpieczenia	Cieźar podczas eksploatazioni	Rok produktcjji
AR	الإستعمال dlhyddرية الحرفية بعسفificي

	7	8 9
IT	Codice articolo Modello	Massima pendenza superabile
EN	Item code	Model	Maximum superable slope
FR	Référence de l'article	Modèle Pente maximum surmontable
DE	Artikelnummer	Modell Maximal befahrbare Steigung
ES	Código del articulo Modelo	Máxima pendiente que se pueda superar
PT	Código do artigo	Modelo Málimo declive transponível
NL	Artikelcode	Model Maximaal berijdbare hellingsgraad
CS	Kód položky	Model Maximálípřekonatelný sklon
RU	Kód uzdejenia	Modélb	Мakсимальный predecessorннайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайнайн Rai
PL	Kod artykułu	Model	Maksymalne superable stoku
AR	Rozvjithiţaj	jLl	Biliiill iLl

IT Italiano.. IT-1

Translation of original instructions)

FR Francais FR-1

NL Netherlands.. NL-1

(42) Pulsante "Ready to go"

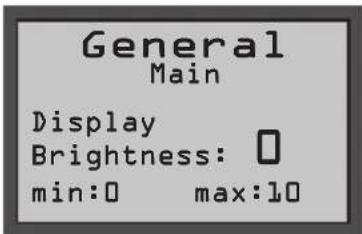

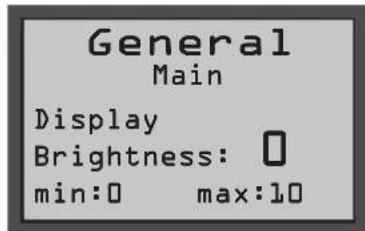

Display Brightness Luminosity display

Display Brightness Luminosity display

Dear Customer,
Thank you for choosing one of our cleaning products.

The floor scrubber dryer that you have purchased has been designed to satisfy the user in terms of ease of use and reliability over time.

We are aware that in order for a good product to stay that way, over time, it requires continuous updates aimed at meeting the expectations of those who use it on a daily basis. For this reason, we hope that you will not only be a satisfied customer but also a partner who does not hesitate to give us your opinions and ideas originating from your personal day-to-day experience.

INDEX

INDEX 2

TECHNICAL DATA 3

1.1 - INTRODUCTION 5

1.1.a -Operator position 5
1.1.b - General warnings while using the machine 5

1.2 - NON-INTENDED MACHINE USE 5

2.1 - GETTING TO KNOW THE MACHINE (Fig. A) 5

3.1 - UNPACKING (Fig. B) 5

3.1.a - Battery installation (Fig. A). 6
3.1.b - Unloading the machine from the wooden pallet (Fig. B). 6

4.1 - ASSEMBLY COMPONENTS 6

4.1.a - Squeegee installation (Fig. C) 6
4.1.b -Brushes installation 6

5.1- CHARGING THE BATTERY 6

5.1.a - Charging the battery with an external battery charger (Fig. G) 7
5.1.b - Battery charging with on-board battery charger (if present) (Fig. G). 7

6.1 - MACHINE CONTROLS 7

6.1.a - Control panel (Fig. F) 7
6.1.b - Accelerator pedal (Fig. A) 10

7.1 - DISPLAY (Fig. F) 10
8.1 - EMERGENCY 11
9.1 - SAFETY DEVICES (Fig. A) 11
10.1 - FILLING THE TANK (Fig. D) 12
10.2 - DETERGENT CHEMICAL TANK (if present) (Fig. E). 12
11.1 - OPERATION (Fig. A-F) 12

11.1.a - Checks before use 12
11.1.b - Preparing the machine and choosing the cycle 12
11.1.c - Using the machine 13
11.1.d - End of use and shutdown 14

12.1 - DRAINING THE RECOVERY WATER (Fig. H) 14
13.1 - MAINTENANCE AND CLEANING 14
13.2 - OPERATIONS TO PERFORM DAILY 14

13.2.a - Emptying and cleaning the clean water tank (Fig. I). 14
13.2.b - Cleaning the recovery water tank (Fig. J) 15
13.2.c - Squeegee cleaning (Fig. K) 15

13.3 - OPERATIONS TO BE PERFORMED EVERY 3 MONTHS 15

13.3.a - Check the wear status of the steering chain (Fig. L) 15

13.4 - OPERATIONS TO PERFORM WHEN NECESSARY 15

13.4.a - Brushes replacement (Fig. M) 15
13.4.b - Splash guard rubber adjustment (Fig. M) 16
13.4.c - Replacing the squeegee rubber blades (Fig. K) 16
13.4.d - Squeegee incidence adjustment (Fig. N) 16
13.4.e - Squeegee pressure adjustment (Fig. O) 17
13.4.f - Cleaning the clean water filter (Fig. P) 17
13.4.g - Battery compartment drain tap (Fig. A). 17
13.4.h - Checking the wear status of the three wheels (Fig. A) 17

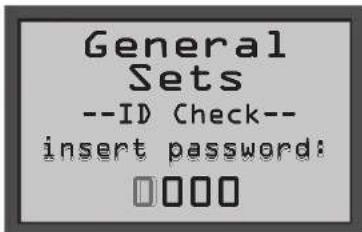

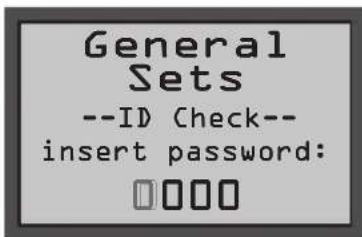

14.1 - PARAMETER SETTING (Fig. F) 18

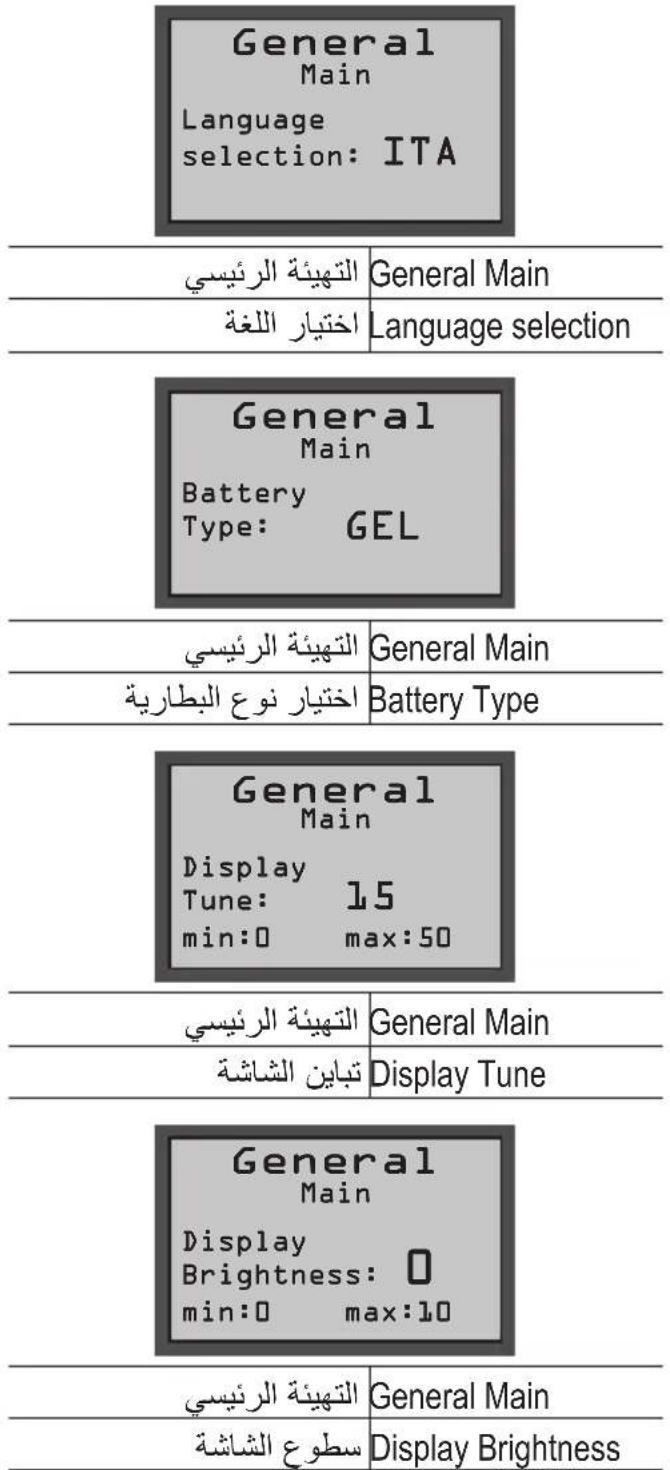

14.1.a - OPERATOR parameters 18
15.1-FUSE CHECK/REPLACEMENT 20
16.1 - ALARMS DURING THE FUNCTIONING (Fig. F) 20
17.1 - TROUBLESHOOTING 23
18.1 - DEMOLITION OF THE MACHINE 24

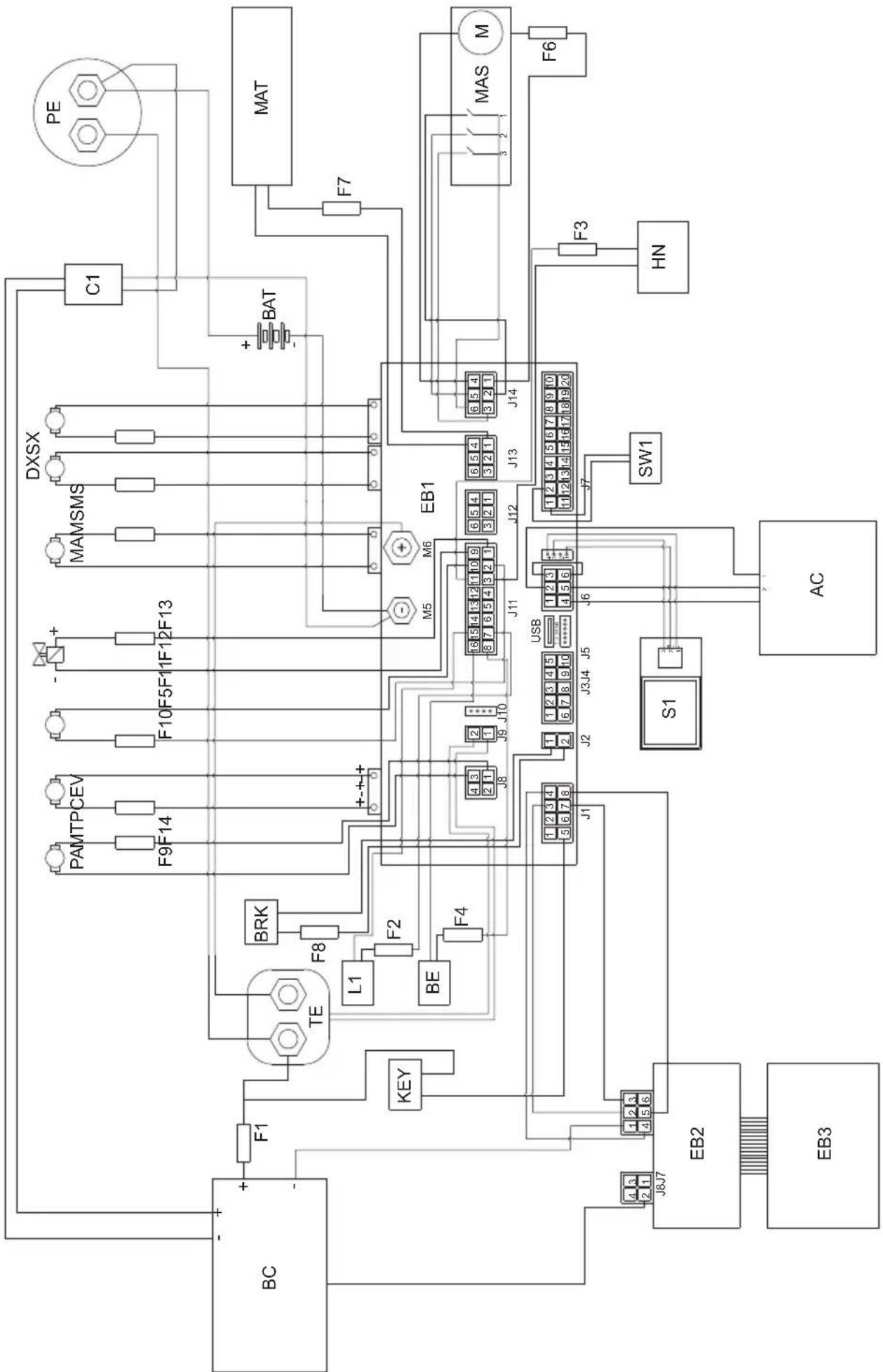

19.1 - WIRING DIAGRAM 25

TECHNICAL DATA

	RACER R 85 RAN FD 65 FD 75 FD 75 FD 85
Driving type Ride-on
Features
Operation and Supply Battery 24 V
Type of batteries	N° 2 - 12V 105Ah (C5)		N° 4 - 6V 240Ah (C5)
	N° 4 - 6V 180Ah (C5)		N° 1 - 24V 320Ah (C5)
	N° 1 - 24V 100Ah (Li)		N° 1 - 24V 150Ah (Li)
Installed power 2160 W 2210 W
Running time	2 h (105Ah C5) 5 h		(240Ah C5)
	4 h (180Ah C5) 7 h		(320Ah C5)
	2 h (100Ah Li) 3 h		(150Ah Li)
Advancement Forward / reverse drive
Washing track width 650 mm 750 mm 750 mm 850 mm
Suction width 850 mm 950 mm 950 mm 1050 mm
Productivity theoretical	4000 m²/h	4500 m²/h	4500 m²/h	5000 m²/h
Productivity practical	2400 m²/h	2700 m²/h	2700 m²/h	3000 m²/h
Hand-arm vibration system (ISO 5349-1)	< 2,5 m/s²
Whole body vibration (ISO 2631-1)	< 0,5 m/s²
Sound pressure (ISO 11203) (LpA)	63 dB(A)
Sound pressure in silent mode (LpA)	57 dB(A)
IP code	IPX3
Brushes
Diameter / pad / number	330 mm / 13" / 2	380 mm / 15" / 2	380 mm / 15" / 2	430 mm / 17" / 2
Motor power / number	500 W / 2
Brush speed	165 rpm
Specific pressure	30 gr/cm²	21 gr/cm²	21 gr/cm²	17 gr/cm²
Specific pressure (extra pressure) 46 gr/cm²	2	32 gr/cm²	43 gr/cm²	34 gr/cm²
	RACER R 85 RAN FD 65 FD 75 FD 75 FD 85		GER R 115 FD 85
Traction
Maximum slope of use during work 2 %
Maximum slope when empty (*) 12 %
Drive motor power 600 W
Maximum forward speed 6 km/h
Suction
Motor power 550 W
Depression (water column) 125 mbar / 125 mmH 2O
Air flow 30 l/sec
Tank
Typology Double tank
Solution capacity 80 l 110 l
Recovery capacity 85 l 115 l
Dimensions
Machine dimensions (length x width x height)	1375 x 705 x 1230 mm		1470 x 770 x 1365 mm
Machine width - Brushes deck	715 mm	785 mm	785 mm	890 mm
Machine width - squeezegee	885 mm	950 mm	950 mm	1055 mm
Battery compartment dimensions (length x width x height)	380 x 540 x 310 mm		380 x 625 x 440 mm
Weight
Empty weight	213 kg		246 kg
Weight with Gel 12V 105Ah batteries	285 kg		-
Weight with Gel 6V 180Ah batteries	333 kg		-
Weight with Lithium 24V 100Ah battery	249 kg		-
Weight with Gel 6V 240Ah batteries	-		432 kg
Weight with Pb Wet 24V 320Ah battery	-		506 kg
Weight with Lithium 24V 150Ah battery	-		288 kg
Gross vehicle weight (GVW)	490 kg		691 kg

(*) The machine was tested under the following conditions:

• Standard battery
  Empty tanks
• Raw concrete ramp
  Ramp length 15m
• 75 kg of operator

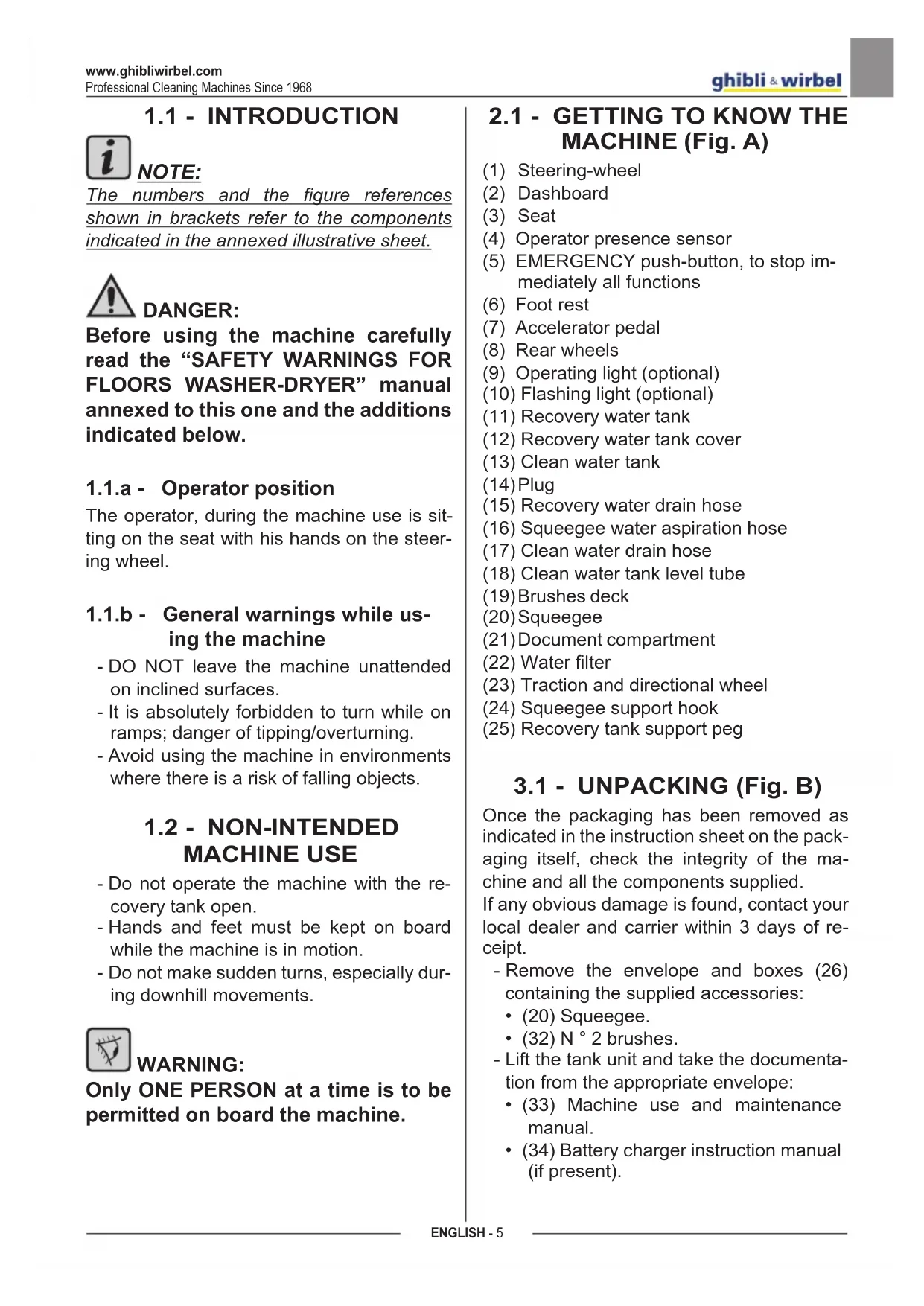

1.1 - INTRODUCTION

NOTE:

The numbers and the figure references shown in brackets refer to the components indicated in the annexed illustrative sheet.

DANGER:

Before using the machine carefully read the "SAFETY WARNINGS FOR FLOORS WASHER-DRYER" manual annexed to this one and the additions indicated below.

1.1.a - Operator position

The operator, during the machine use is sitting on the seat with his hands on the steering wheel.

1.1.b - General warnings while using the machine

• DO NOT leave the machine unattended on inclined surfaces.
• It is absolutely forbidden to turn while on ramps; danger of tipping/overturning.
• Avoid using the machine in environments where there is a risk of falling objects.

1.2 - NON-INTENDED MACHINE USE

• Do not operate the machine with the recovery tank open.
• Hands and feet must be kept on board while the machine is in motion.
• Do not make sudden turns, especially during downhill movements.

WARNING:

Only ONE PERSON at a time is to be permitted on board the machine.

2.1 - GETTING TO KNOW THE MACHINE (Fig. A)

(1) Steering-wheel
(2) Dashboard
(3) Seat
(4)Operator presence sensor
(5) EMERGENCY push-button, to stop immediately all functions
(6) Foot rest
(7) Accelerator pedal
(8) Rear wheels
(9) Operating light (optional)
(10) Flashing light (optional)
(11) Recovery water tank
(12) Recovery water tank cover
(13) Clean water tank
(14) Plug
(15) Recovery water drain hose
(16) Squeegee water aspiration hose
(17) Clean water drain hose
(18) Clean water tank level tube
(19)Brushes deck
(20) Squeegee
(21)Document compartment
(22) Water filter
(23) Traction and directional wheel
(24) Squeegee support hook
(25) Recovery tank support peg

3.1 - UNPACKING (Fig. B)

Once the packaging has been removed as indicated in the instruction sheet on the packaging itself, check the integrity of the machine and all the components supplied. If any obvious damage is found, contact your local dealer and carrier within 3 days of receipt.

• Remove the envelope and boxes (26) containing the supplied accessories:

(20) Squeegee.
(32) N° 2 brushes.

• Lift the tank unit and take the documentation from the appropriate envelope:

(33) Machine use and maintenance manual.
(34) Battery charger instruction manual (if present).

3.1.a - Battery installation (Fig. A)

• Lift the recovery tank carefully (11).
  Depending on the configuration (4 6 V batteries, 2 12 V batteries, 1 package of 24 batteries), position and connect the batteries as shown in figure, using the cables and plugs provided.
• Lower the recovery water tank carefully (11).

NOTE:

The batteries must be installed and connected by qualified personnel.

3.1.b - Unloading the machine from the wooden pallet (Fig. B)

• Remove the wooden block (27) positioned in front of the front wheel.
• Place the ramp (28) in front of the wooden pallet as indicated in the instruction sheet on the packaging.
• Sit on the seat (3) in driving position.
• Turn the key (29) on "ON".
• Press the travel direction button (31a)

forward travel), then press the accelerator pedal (7) and step off the pallet carefully.

4.1 - ASSEMBLY COMPONENTS

4.1.a - Squeegee installation (Fig. C)

• Insert the squeezegee (20) into its support plate (35) and fasten it by tightening the two knobs (36).
• Connect the suction tube (16) to the squeezegee's intake opening (37).

4.1.b - Brushes installation

• See procedure in the "13.4.a - Brushes replacement (Fig. M)" paragraph.

5.1 - CHARGING THE BATTERY

DANGER:

Charge the batteries in rooms which are well-ventilated and comply with applicable regulations in the country of use.

For safety-related information, follow what is described in chapter 1 of this manual.

WARNING:

For information and warnings about the battery and on board battery charger (if present) follow what is described in the battery charger manual enclosed with this document.

When the machine leaves the factory, it is calibrated to operate with gel batteries. If other types of batteries are installed, see the paragraph "Parameter setting".

The use of gel batteries with calibration for acid or other batteries is prohibited.

(Only for without on-board battery charger versions) The appliance must only be supplied at SELV (safety extra-low voltage) external battery chargers.

NOTE:

(For GEL batteries only) 10 hours are needed for complete battery charging. Avoid partial recharges.

(For lithium batteries only) It is possible to recharge partial.

Charge the batteries at the end of each job or at least when the battery symbol "on the display (41 Fig. F) starts flashing.

• Drive the machine to the battery charging station.

• Lift the recovery water tank (11) making sure it is empty.

5.1.a - Charging the battery with an external battery charger (Fig. G)

• Check the function of the battery charger consulting the corresponding Manual.
• The nominal voltage of the battery charger must be equal to 24V
• Take connector (39) from the appropriate housing (38) and connect it to the external battery charger.
• Connect the battery charger to the electrical network.
• When the recharging is finished, disconnect the battery charger from the network and from connector (39).
• Lower the recovery water tank carefully (11).

5.1.b - Battery charging with onboard battery charger (if present) (Fig. G)

• From the appropriate housing (38), take and connect the plug of the battery charger cable (40) to the electrical network (the network voltage and frequency must be the same as the corresponding values of the battery charger, shown in the machine's registration plate).

NOTE:

When the battery charger is connected to the electrical mains, all machine functions are automatically disabled.

• On the display (41 Fig. F), when the segments light up in sequence on the battery symbol, this means that the battery charger is charging the batteries.
• When all the segments in the battery symbol are lighted up steadily, the battery charging cycle has ended.

• Disconnect the battery charger cable (40) from the electrical network and insert it into the appropriate housing (38).

• Lower the recovery water tank carefully (11).

6.1 - MACHINE CONTROLS

6.1.a - Control panel (Fig. F)

(29) Ignition key

• Turned in a clockwise direction to "ON" it powers the circuits, enabling machine operation.
• Turned in an anti-clockwise direction to "OFF" it disconnects power to the circuits and can be removed.

(30) Buttons for maximum speed adjustment

It is possible to adjust the maximum travel

speed using buttons (30a) and (30b)

• Pressing the accelerator pedal (7) completely, the speed will be adjusted proportionally to the maximum set value.
• When all speed symbols " are lighted on the display (41), the accelerator pedal (7) is inhibited and the machine remains stopped.

(31) Travel direction buttons

• When the forward button (31a) “”1s pressed, the machine travels forward; the icon “↑”shows up on the display.
• When the backward button (31b) " is pressed, the machine travels backward and the backward motion buzzer is actuated; the icon " shows up on the display.

NOTE:

The maximum backward speed can be set, as in the forward travel, with buttons (30).

(41) Display

• See the specific chapter.

(42) Ready to go" button

• Pressing the button (42) on the display,

the icon " shows up and the following functions are started according to a standard setting:

• Lowering of the brushes deck and rotation of the brushes.
• Lowering of the squeezegee and starting of the suction device.
  Work speed = 3^ notch (3,6km / h)
  Water flow = 3^ notch.
  Chemical agent = 3^ notch (1%)
• Suction = normal (100%).

• Brushes pressure = normal.

• With this standard function activated it is possible to press any work button for any modification or adjustment.

If necessary, when a modification is set in the work functions, it is possible to save it acting as indicated below:

• Press and keep pressed the button (42) for 3 seconds; the saving confirmation is indicated on the display (41) by the flashing of "UPDATED".
• To deactivate the new setting and return to the standard setting values, press again and keep pressed the button (42) for 3 seconds; the confirmation is indicated on the display (41) by the flashing of "RESET".

(43) ECO button

• When pressing the button (43) on the display in the work phase, the icon "ECO shows up, the parameters of water, chemical agent, suction and holder pressure assume the following values:

Water flow = 3^ notch.
Chemical agent = 3^ notch (1%)
- Suction = silent (50%).
- Brushes pressure on the floor = normal.

(44) Suction button

• Pressing the button (44) the suction device turns on and the icon "s" shows up on the display and, if the forward gear is engaged or if the machine is in neutral, the squeegee lowers.
• Press the button (44) again and the suction will stop and the squeezegee lifts.
• If the machine is still, the squeegee is lowered and the key (29) is on "ON" after a certain period of inactivity the squeegee will automatically lift.

(45) silent operation button

• Pressing the button (45) reduces the speed of the suction turbine, significantly reducing the noise emitted by the machine; with the function enabled, the icon appears on the display.
• Pressing the button (45) again disables the function and the machine resumes operating in standard mode, the "icon turns off and the icon appears on the display.

i NOTE:

When turning off the aspiration turbine with "silent operation" mode enabled, the operation of the turbine will automatically switch to "standard operation" mode for the entire shut-off delay time.

(46)Brushes button

• Pressing the button (46), the brushes deck lowers and the icon "..." shows up on the display.
• The brushes start rotating when the accelerator pedal is pressed, they stop when the accelerator pedal is raised.

NOTE:

The brushes rotate both in forward and reverse mode and with speed adjustment (30) at "0".

• When the machine is still, with the head lowered, the brushes still and the key (29) on "ON" position, after a certain period of inactivity the head will automatically lift.
• If you press the button (46) while the brushes are rotating, they'll stop, the unit lifts and the symbol "on the display turns off.

(47) Brushes extra pressure button

With the brush deck lowered it is possible to adjust the pressure of the brush on the floor.

• Pressing the button (47) activates the extra pressure; with the function enabled, the icon " shows up on the display.
• By pressing the button (47) again the pressure on the floor returns to normal and the icon " shows up on the display.

NOTE:

Each time the brushes deck lifts (rest position), the brushes pressure sets at the minimum value.

NOTE:

The extra pressure function is equipped with a safety system that automatically recognises an excessive current absorption of the brushes motors and it's able to automatically change the lowered brushes pressure taking it to the most useful position.

(48) Chemical agent dosing button (if present)

• Pressing the button (48) the icon " shows up on the display, and the dosing of the chemical agent is prepared. The dosing pump operation is commanded by the accelerator pedal pressed.
• Pressing the button (48) repeatedly, the quantity of chemical agent increases; up to the maximum quantity viewed on the display of icon "By pressing the button (48) the function is deactivated and the icon turns off on the display.

NOTE:

In case of emptying of the chemical agent dosing system, after replacing the tank, hold and hold the button (48) pressed for at least 5 seconds to activate the air purge procedure lasting about 40 seconds; this function is activated only with the machine stopped, the key (29) in the "ON" position and with the speed adjustment (30) at "0".

Wa

• Pressing the button (49), the icon "3" shows up on the display and the opening of the water solenoid valve is prepared. The operation of the same is commanded by the accelerator pedal pressed.
• Repeatedly press the button (49) to increase the water quantity; when the maximum quantity is reached, it'll be shown on the display by the icon "If the button (49) is pressed again the function will be disabled.

Acoustic warning button

tating flashing light but

(52) operating light button

6.1.b - Accelerator pedal (Fig. A)

• Pressing the accelerator pedal (7), the machine moves either forward or backward, according to the travel direction button that was pressed.
• The speed can be adjusted by a higher or lower pressure on the accelerator pedal.
• Release the accelerator pedal (7) to slow down the machine until it stops. After a few seconds after the machine is still the parking brake automatically activates; this brake will be disabled when the accelerator pedal (7) is pressed with forward or reverse motion on.

7.1 - DISPLAY (Fig. F)

With the machine running, the following icons show up on the display (41):

Battery

Indicates the charge status of the batteries:

Battery charged

Battery discharged

Maximum advance speed

With buttons (30a) "and (30b) " the maximum speed attainable by the machine is set with the accelerator pedal (7) completely pressed:

The travel direction arrow indicates the selected advance function by acting on buttons

(31a)“and (31b)”.

"Ready to go"

It is viewed on the display when the button

(42) "pressed.

ECO mode

Is shown when the ECO function is active

through the button (43)

Suction device working

Is viewed on the display when the button (44)

" is pressed, indicating that the suction device is on and the squeegee is low.

Silent operation

With the suction device on. Is viewed on the display when the button (45)

pressed, indicating that the suction device is working with a reduced rotation regime.

Preparation of brushes rotation

Is viewed on the display when the button (46)

pressed, indicating that the brush rotation is enabled.

Extra-pressure

Is viewed on the display indicating the brush operation pressure.

Press the button (47) "to change the work pressure.

Detergent dispenser (if present)

Is viewed on the display when the button (48)

ressed.

Press the button to increase or reduce the percentage of detergent being dosed:

0,2%	0,5% 1%	2% 3%

Preparation of the water flow

Is viewed on the display when the button (49)

pressed, indicating that the water olenoid valve is enabled.

When the water level in the tank is at a minimum, the icon " 2 " is viewed in full screen combined with the acoustic signal.

Replenish the water tank (13) as indicated in the specific paragraph, then turn off and restart the machine

Absence of the operator on the driver's seat

This icon warns when the operator is not correctly seated on the driver's seat and blocks all the machine functions.

Maximum liquid level in recovery tank

This displays when the fluid in the recovery tank has reached the maximum level.

Accelerator pedal pressed

This icon inserts when the machine starts indicating a wrong starting operation sequence, to remove the alarm release the accelerator pedal (7 Fig. A).

8.1 - EMERGENCY

The emergency button (5 Fig. A) is located in an easily accessible position for the operator. It must be firmly pressed in case of an immediate need to stop the machine in all its functions.

To reactivate the machine functionality, pull the emergency button until it disengages and resets.

WARNING:

Only press the emergency button (5) with the machine running in case of a real need, do not use this procedure to stop the machine, this may cause also serious faults in the same.

9.1 - SAFETY DEVICES (Fig. A)

The machine is equipped with the following safety functions:

Operator presence sensor (4)

It blocks all the machine functions when the operator is not present in the driving seat.

Anti-skid safety system

This system reduces the speed when turning and when the machine tilts laterally to avoid sudden skids, this increasing the machine stability in any condition.

Electromagnetic brake

It is built-in the rear driving wheels (23) and keeps the machine braked when the machine is off or stopped.

10.1 - FILLING THE TANK (Fig. D)

WARNING:

Only add clean mains water to the tank at a temperature no greater than 50^ .

• Using the extractable pipe (52) fill water into the tank (13) until it is replenished.
• Do not fill the tank completely, use the level tube (18) as a reference.
• Or, if available, open cap (14) and use the waterstop intake (53, if present).

WARNING:

Always visually check the fill level to avoid the risk of floor wetting.

• At the end of the tank replenishment close the cap (14).

NOTE:

For machines without the chemical kit, fill the tank (13) with clean water and mix it with the chemical detergent.

Always follow the dilution instructions indicated in the label of the chemical product packaging, to prepare the detergent solution.

10.2 - DETERGENT CHEMICAL TANK (if present) (Fig. E)

NOTE:

Use non-foamy detergents only. For the quantities, follow the instructions provided by the detergent manufacturer according to the type of dirt.

• Raise the recovery tank (11).
• Check that in the tank (54) there's the product necessary for the working day.

In case of tank replacement work as indicate below:

• Remove the cap (55), extract the tank (54) and insert a new 5 litres one then insert the cap (55) using the small suction pipe.

DANGER:

In case of contact of the detergent with the eyes and skin, or in case of ingestion, please refer to the safety and application bulletin of the detergent manufacturer.

NOTE:

The tanks (54) to use are the standard 5 litres type which can be found on the market.

• Lower the recovery water tank carefully (11).
• Carry out the air purge (see the procedure on item "Chemical agent dosing button").

11.1 - OPERATION (Fig. A-F)

11.1.a - Checks before use

• Check that the recovery tank's drainage tube (15) is properly connected and sealed.
• Check that the squeezegee's water suctioning tube (16) is properly inserted into the recovery tank.
• Check that the coupling (37) on the squeezegee (20) is not obstructed and that the tube (16) is properly connected.
• Check the charge status of the batteries by turning the key (29) to its "ON" position and checking the charge indication on the display (41).

11.1.b - Preparing the machine and choosing the cycle

• Sit on the driving position.
• The machine can perform 4 working cycles:

Washing, brushing, drying cycle:

• Press the button "Ready to go" (42) "READY TO to prepare the detergent flow, the brushes rotation and the start of the suction device.

Drying only cycle:

• To perform only the drying cycle press the button (44) "the aspirator activates.

Brushing only cycle:

• To perform only the brushing cycle press

the button (46) "the brushes rotation is prepared.

-Brushes rotation starts when the machine, with the accelerator (7) pressed, starts moving forward or backward, or with the accelerator pressed and setting the forward speed to "0".

Washing, brushing cycle:

• Press the button (46) "prepare brushes rotation and press the button (49)

prepare water supply.

• The brush rotation and the water flow start when the accelerator pedal is pressed with the forward or backward gear, or with the setting of the advance speed at least on the 1st notch.

11.1.c - Using the machine

DANGER:

Be extremely careful when using the machine on ramps in order to avoid roll over or situations which may cause the machine to lose its balance.

DANGER:

Avoid sudden sharp turns. Turn the wheel from lock to lock only at low speed, always considering ground conditions.

• Turn the key (29) to "ON"; in the first 2 second after turning on, the display (41) indicates the type of batteries installed and the machine work time.

• Select the type of work cycle to be followed.

• Insert the desired work speed acting on buttons (30).

• Activate the flashing light (10, optional) and the work light (9, optional).

• Use the accelerator (7) to begin the cleaning operations.

NOTE:

Release the accelerator to stop the rotation of the brushes and the dispensing of water.

NOTE:

Proper floor cleaning and drying is performed by driving the machine forwards. When driving in reverse, the squeezegee is raised and the suction unit, for removing the water from the floor, is deactivated.

• Adjust the washing solution quantity with the button (49) if its necessary.

• Check the charge status of the batteries on the display (41).

11.1.d - End of use and shutdown

• Once all of the cleaning operations have been completed, shut off, in sequence, the rotation of the brushes and the suction unit, using the relative controls according to the type of cycle being employed.

• Turn the key (29) to its "OFF" position.

• The parking brake automatically activates.
• Empty and wash out the recovery tank and the solution tank as indicated in the relative sections.

NOTE:

When the operator gets out of the machine the parking brake automatically activates.

DANGER:

It is forbidden to park the machine on ramps.

12.1 - DRAINING THE RECOVERY WATER (Fig. H)

DANGER:

Before lifting the recovery water tank (11) make sure it is empty.

At the end of the washing cycle or when the recovery water tank (11) is full, it is necessary to empty the tank by proceeding as follows:

NOTE:

To dispose of the recovery water, comply with the standards in force in the country in which the machine is used..

• Position the machine near to a drain outlet.
• Detach the pipe (15) from its proper hook, descending it to the floor over the discharge drain.
• Unscrew the cap (56) and discharge completely the recovery water contained in the tank.

NOTE:

The amount of water that comes out can be modulated by pressing on the end of the tube (15).

• Tighten the cap (56) and replace the pipe (15) on its corresponding support.

13.1 - MAINTENANCE AND CLEANING

WARNING:

For information and warnings related to maintenance and cleaning operations please follow what is indicated in the "SAFETY WARNINGS FOR FLOORS WASHER-DRYER" annexed to this one.

13.2 - OPERATIONS TO PERFORM DAILY

13.2.a - Emptying and cleaning the clean water tank (Fig. I)

WARNING:

At the end of the washing operations, it is compulsory to drain and clean the clean water tank (13) to prevent deposits or scaling.

After draining the recovery water tank, drain the clean water tank (13) as follows:

• Position the machine over a drain outlet.
• Remove the hose (17) from the holding hooks and lay it down on the drain outlet; remove the cap (57) and drain all the water contained in the tank.

• Wash the inside of the tank, leaving the drain hose open and adding clean water through the top opening.

• Once finished cleaning, lift the tube (17), close it with its appropriate cap (57) and position it within its appropriate lodgings.

13.2.b - Cleaning the recovery water tank (Fig. J)

WARNING:

At the end of the washing operations, it is compulsory to clean the recovery water tank to prevent deposits or scaling and the proliferation of bacteria, odours or mould.

• Lift the cover (12).
• Remove the dirt collection basket (58) and open its cover, then clean with running water, also removing eventual pieces of paper, wood, etc... that are clogging it.
• Remove and clean the suction filter (59) with running water.
• Leaving the discharge pipe (15 Fig. H) low and the cover removed, fill with water through the upper opening (60), then flush inside the tank until clean water flows out of the discharge pipe.
• Reassemble all parts working in the reverse order.

13.2.c - Squeegee cleaning (Fig. K)

In order to clean the squeegee correctly (20), it is necessary to remove it as follows:

• Disconnect the hose (16 Fig. C) from the squeegee (20).
• Loosen the knobs (36 Fig. C) and remove the squeegee (20).
• Wash the squeezegee and in particular the rubber blades (60) and the inside of the aspiration connector (56).

NOTE:

Slf, during washing, it is clear that the rubber blades (60) and (61) are damaged or worn, it is necessary to replace them or turn them over.

• Replace all the components in reverse order.

13.3 - OPERATIONS TO BE PERFORMED EVERY 3 MONTHS

13.3.a - Check the wear status of the steering chain (Fig. L)

• Check the wear and corrosion status of the chain (63) found beneath the machine near the front wheel.
• If the chain appears corroded, it must be replaced.
• Contact the technical assistance service.

13.4 - OPERATIONS TO PERFORM WHEN NECESSARY

13.4.a - Brushes replacement (Fig. M)

The brushes must be replaced whenever they appear worn or whenever their bristles are shorter than 2cm . They must also be replaced based on the type of flooring to be cleaned; in order to replace them, perform the following operations:

• Insert a hand beneath the brush support unit (19). In order to detach the brush, turn it quickly and forcefully in the opposite direction from that in which it rotates during normal function.
• Place the new brushes beneath the brush support unit (19).
• Get into the driver's seat and turn the key (29 Fig. F) to its "ON" position.

• Position the advance speed on value "0".

• Press the button (46 Fig. F) enable the brush rotation; the brush group descends.

• Pressing the accelerator pedal (7 Fig. A), the brushes hub starts to rotate gripping the brushes, then release the pedal.

• Press the button (46 Fig. F) again "and turn the key (29 Fig. F) to the position "OFF".

13.4.b - Splash guard rubber adjustment (Fig. M)

Depending on the type of floor to be treated or after replacing the brushes, it may be necessary to adjust the height of the splash guard rubber (64).

To adjust it, act as follows:

• Turn the key (29 Fig. F) to the "ON" position.

• Press the button (46 Fig. F) "on/off" to lower the brush head (19), then turn the key (29 Fig. F) to "OFF".

• Check the correct height of the splash guard rubber as shown in the figure.
• If necessary, manually act on the splash guard rubber to restore the correct height.

NOTE:

The correct height of the splash guard rubber is when, during operation and the brush head is lowered, the rubber itself is flush with the floor.

• At the end of the adjustment, restart the machine and press the button (46 Fig.

F) " Then turn the key (29 Fig. F) to "OFF".

13.4.c - Replacing the squeezegee rubber blades (Fig. K)

When it becomes clear that drying the floor is difficult or traces of water remain on the floor, it is necessary to check the wear on the squeegee rubber blades (20):

• Remove the squeegee unit (20) as indicated in the "Cleaning the squeegee" paragraph.
• Press the locking device (65) and open the handle (66).
• Remove the two rubber mounting strips (67) and remove the outer rubber (60).
• Loosen the two turnbuckles (68) and remove the locking bar (69) and the inside rubber (61).

NOTE:

When the rubber blades (60) or (61) are worn on one side, on one occasion they may be turned over.

• Replace or turn over the rubber blades (60) or (61) without inverting them.
  -Replace all the components in reverse order.

NOTE:

Two types of rubber are available:

Para rubber for all types of flooring and polyurethane rubber for workshop floors with oily residues.

13.4.d - Squeegee incidence adjustment (Fig. N)

• Start the machine and press the button

(44 Fig. F)

• Adjust the speed to maximum on the 1^ notch with the buttons (30 Fig. F), press the accelerator pedal (7 Fig. A) and step away a few metres, then turn the machine off and on again.
• Use the threaded bar (70) to adjust the squeezegee blades (60) and (61) contact with the floor. Turn it clockwise for increased contact and counter clockwise for less contact.

NOTE:

When the squeegee is making proper contact with the floor, there will be no streaking on the floor during machine function and the entire length of the squeegee will be in contact with the floor.

13.4.e - Squeezegee pressure adjustment (Fig. O)

Depending on the type of floor to be treated or after replacing the squeegee rubbers, it may be necessary to adjust the squeegee floor pressure.

To adjust it, act as follows:

• Lift the recovery water tank (11) making sure it is empty.

• Act on the adjustment screw (71) taking into account that:

• Turning clockwise decreases the squeezegee floor pressure.

• Turning counterclockwise increases the squeegee floor pressure.
• At the end of the adjustment, carefully lower the recovery water tank (11).

13.4.f - Cleaning the clean water filter (Fig. P)

• Make sure that the tank (13 Fig A) is empty.
• Remove the cap (22) and take out the filter cartridge (72).
• Clean the filter cartridge (72) using running water.
• Reassemble everything proceeding in reverse making sure that the gasket (73) is placed correctly.

13.4.g - Battery compartment drain tap (Fig. A)

• Periodically check that there are no stagnations of water in the battery compartment.
• If necessary, position the machine near a drain, unhook the tube and open the tap (74), then drain the liquids.

WARNING:

Where the use of lead-acid batteries is foreseen, pay close attention to any leakage of liquid from the batteries themselves, the associated risks and the regulations for the disposal of liquids hazardous substances.

13.4.h - Checking the wear status of the three wheels (Fig. A)

• Check the wear status of the three wheels (8) and (23) periodically; if they appear worn or damaged, contact a technical service centre in order to have them replaced.

DANGER:

Operating the machine with worn or damaged wheels poses a danger to the operator as the machine could have less traction when turning.

14.1 - PARAMETER SETTING (Fig. F)

14.1.a - OPERATOR parameters

It is possible for the operator to have access to the menu to set the following parameters:

Language
Type of batteries
- Display - Contrast
- Display - Luminosity

To have access to the menu act as follows: Press and keep pressed the buttons (31a)

(31b) “, then turn the

start key (29) to "ON" to view the following screens:

General Sets General Sets
ID Check Check
Insert password Insert password

• Release the buttons pressed.
• Insert the 4-digit Password "0010" press

ing the buttons (30a) "br (30b)" to change the number of the flashing digit.

• Press the button (43) "to confirm and go to the next digit, to finally confirm the password and have access to the parameters list.
• Press the button (31a) “ A ” (31b) “ B ” to scroll along the following screens:

General Main

Language selection: ITA

General Main Principal configurations

Language selection Language selection

General Main

Battery Type: GEL

General Main Principal configurations Battery Type Battery type selection

General Main Principal configurations Display Tune Display contrast

General Main Principal configurations
Display Brightness	Display brightness

Language setting:

General Main Principal configurations

Language selection Language selection

• Select the language acting on buttons (30a) “ or (30b) “”, then press

the button (43) "to confirm the selection;

-ITA = Italian
-ENG = English

Setting the type of battery:

General Main Principal configurations

Battery Type Battery type selection

• Select the type of battery acting on buttons (30a) “+” or (30b) “”, then

press the button (43) "Eco to confirm the selection;

• GEL = Gel battery
• AGM = AGM battery
  WET = ACID battery

Display setting - Contrast:

General Main Principal configurations

Display Tune Display contrast

• Select the type of display contrast setting a value from "0 to 50" acting on buttons (30a) "for (30b) ", then press the button (43) "to confirm the selection.

Display setting - Brightness:

General Main Principal configurations

Display Brightness Display brightness

• Select the type of display brightness by setting a value from "0 to 10" acting on the

buttons (30a) “+br(30b) “, then

press the button (43) to confirm the selection.

NOTE:

When the selected setting is confirmed, the machine restarts and the display (41) lights up in the work operation mode.

15.1 - FUSE CHECK/REPLACEMENT

NOTE:

All machine electrical circuits are protected by auto-resettable electronic devices. The safety fuses activates only in case of serious damage.

It is recommended to have the fuses replaced by qualified personnel only.

16.1 - ALARMS DURING THE FUNCTIONING (Fig. F)

When a machine malfunction takes place, the display (41) indicates the type of alarm according to the list shown below.

Consult the list and put in place the solution recommended to restore the correct functioning of the machine.

Should the recommended remedy fail to solve the problem, get in contact with the Technical Assistance Service.

ALARM MEANING SOLUTION
AL_1: General	Memory error Restart the machine.
AL_2: General	Key malfunction	Turn off the machine for at least 10 seconds, then restart.
AL_3: General	Low voltage	Turn off the machine, check the status of the battery charge, fuses, contacts, cabling and connections, then restart the machine.
AL_4: General	Excessive voltage	Turn off the machine, check the fuses, contacts, cabling and connections, then restart the machine.
AL_6: General	Absence of communication with the command dashboard or display	Turn off the machine, check the contacts, cabling and connections, then restart the machine.
AL_7: General	Ffm communication	Turn off the machine, check the contacts, cabling and connections with the communication module and the functioning of the later, then restart the machine.
AL_8: General	Communication Internal 1 and 2	Restart the machine.
AL_9: General
AL_10: General	Insert tag Visualisation of missing "Tag" key: insert key.
AL_11: General	Invalid tag	Visualisation of wrong "Tag" key: change key or damaged key.
AL_12: General	Updating in progress...	Visualisation of remote parameter updating in progress: wait for the end of the updating.
AL_13: General	Turn off	Visualisation of parameter updating completed: restart the machine.
AL_41: Function	Overheating	Turn off and wait for the machine to cool down. Check the consumption of the brush and suction device motors, the status of the ambient ventilation and restart.
AL_42: Function	Power damaged	Turn off the machine for at least 10 seconds, then restart.
AL_44: Function	Relay fault	The Relay/Remote switch does not close. Check the remote switch operation. In case of relay on board, if persists replace the board.
AL_45: Function	Relay fault dc	Detection of Relay/Remote switch closed at start. Check the status of the remote switch contacts. In case of relay on board, if persists replace the board.
AL_46: Function	Over-currentBrushes	Turn off the machine, check the load (motor), the mechanics, the cabling and the connections, then look for the presence of a short circuit on the outlet, than restart.
AL_47: Function	Over-currentSuction device	Turn off the machine, check the load (motor), the mechanics, the cabling and the connections, then look for the presence of a short circuit on the outlet, than restart.
AL_48: Function	Over-currentWater pump	Turn off the machine, check the load (motor), the mechanics, the cabling and the connections, then look for the presence of a short circuit on the outlet, than restart.
AL_49: Function	Current measurementBrush 1 and 2	Check the consumption and the kind of application of the brush function, then restart the machine.
AL_50: Function
AL_52: Function	Current measurementSuction device 1	Check the consumption and the suction device function, then restart the machine.
AL_54: Function	FunctionConnectionsBrush 1 and 2	Check the brush motors connection.
AL_55: Function
AL_57: Function	ConnectionsSuction device 1	Check the suction device motor connection.
AL_59: Function	Unbalance Check the consumption of the brush motors.
AL_61: Function	Current measurementBrush actuator	Check the consumption of the actuator motor and the status of the mechanical moving parts.
ALARM MEAN	ING SOLUTION
AL_62: Function	Over-currentBrush actuator	Turn off the machine, check the load (motor),the mechanics, the cabling and the connections,then look for the presence of a short circuit on the outlet.
AL_63: Function	Limit switchBrush actuator	Check the limit switch connections / status.Active control only for BTO version.
AL_65: Function	Current measurementSqueegee actuator	Check the consumption of the actuator motor and the status of the mechanical moving parts.
AL_66: Function	Over-currentSqueegee actuator	Turn off the machine, check the load (motor),the mechanics, the cabling and the connections,then look for the presence of a short circuit on the outlet.
AL_80: Traction	OverheatingTraction motor	Turn off and wait for the machine to cool down.Check the consumption and the kind of application of the traction, the status of the ambient ventilation, then restart.
AL_85: Traction	Over-currentTraction motor	Turn off the machine, check the load (motor),the mechanics, the cabling and the connections,then look for the presence of a short circuit on the outlet, than restart.
AL_86: Traction	Current measurementTraction motor	Check the consumption and the kind of application of the traction function, then restart the machine.
AL_87: Traction	Reading of Traction Motor	Restart the machine.
AL_88: Traction	Electric brake fault	Turn off the machine, check the brake cabling, then restart.
AL_89: Traction	FaultAccelerator Pedal	Turn off the machine, check the connections and cabling, then restart.
AL_90: Traction	Accelerator PedalPressed	Release the pedal and restart the machine.
AL_91: Traction	Encoder fault	Turn off the machine, check the connections and cabling and restart.

17.1 - TROUBLESHOOTING

PROBLEM CAUSE	SOLUTION
The machine does not start up when the key is turned.	Low battery. Check that the	battery is charged.
	Main fuse blown. Replace the	fuse found on the battery cable. (*)
	Defective key. Change the key.	(*)
The brush doesn't turn. Gear	motor fault. Replace gearmotor.	(*)
	Faulty Electronic board. Replace the electronic board.
The suction unit does not function.	Recovery tank full. Empty the tank.
	Defective turbine motor. Replace the turbine motor. (*)
	Faulty Electronic board. Replace the electronic board. (*)
The machine does dry prop-erly, leaving traces of water on the floor.	Aspirator off. Start up the aspirator.
	Aspiration tube blocked. Check	and if necessary clean the aspiration tube that connects the squeezegee to the recovery tank.
	Recovery tank full. Empty the	recovery tank.
	Squeezegee rubber blades worn.	Replace or turn over the squeezegee rubber blades.
No water comes out.	Empty tank.	Fill the tank.
	Filter clogged.	Clean the filter.
	Pump solenoid valve not functioning.	Replace the solenoid valve pump. (*)
	Defective water pump.	Replace the water pump. (*)
	Faulty Electronic board. Replace the electronic board. (*)
The machine does not move in working conditions.	Operator not properly seated in the driver's seat.	Sit properly in the driver's seat.
	Defective motorwheel. Replace the motorwheel. (*)
	Faulty Electronic board. Replace the electronic board. (*)
	Operator presence sensor malfunction.	Replace the operator presence sensor. (*)
Insufficient floor cleaning. Unsuitable brushes or deter- gent.		Use brushes or detergents which are suitable for the type of floor or dirt to be cleaned.
Brushes worn. Replace the brushes.
The empty solution tank icon “&” keeps flashing.	Empty tank. Fill the tank.
	Tap closed. Open the tap.
	Faulty flowmeter. Replace the flowmeter. (*)
There is stagnation of water in the battery compartment.	Faulty recovery tank level sensor.	Drain the water in the battery compartment with the appropriate pipe and tap.
		Check or replace the level sensor. (*)

(*) Call customer service to request replacement.

18.1 - DEMOLITION OF THE MACHINE

DANGER:

Batteries and electrical parts are to be considered as special waste and must therefore be disposed of at appropriate collection facilities, as prescribed by the current regulations in the country of use.

19.1 - WIRING DIAGRAM

Legend:

AC Accelerator

BAT Batteries

BC Battery charger

BE Flashing light (optional)

BRK Electromagnetic brake

C1 Battery connector

EB1 Functions table

EB2 Display

EB3 Command panel

EV Solenoid valve

F1 Battery charger fuse (1A)

F2 Illumination fuse (if present) (3A)

F3 Horn fuse (1A)

F4 Flashing light fuse (if present) (1A)

F5 Solenoid valve fuse (5A)

F6 Brush deck actuator fuse (10A)

F7 Squeegee actuator fuse (10A)

F8 Electric brake fuse (7.5A)

F9 Water pump fuse (5A)

F10 Chemicals pump fuse (if present) (5A)

F11 Suction motor fuse (40A)

F12 Right brush motor fuse (40A)

F13 Left brush motor fuse (40A)

F14 Traction motor fuse (100A)

HN Horn

KEY Start key

L1 Work light (optional)

MA Suction motor

MAS Brush deck actuator motor

MAT Squeegee actuator motor

MS-DX Right brush motor

MS-SX Left brush motor

MT Traction motor

PA Water pump

PC Chemicals pump

PE Emergency button

S1 Recovery water level sensor

SW1 Seat microswitch

TE External remote switch

Colour codes:

BK Black

BU Blue

BN Brown

GN Green

GY Grey

OG Orange

PK Pink

RD Red

VT Violet

WT White

YE Yellow

Cher client,

1.1 - INTRODUCTION 5

(44) Bconut aspirateur

(47) Bouton extra pression brosses

F5 Fusible electrodevanne (5A)

F6 Fusible actioneur tete brosses (10A)

(42) Botón “Ready to go”

-Presione el boton "Ready to go" (42)

Language selection: ITA

17.1 - BUSQUEDA AVERIAS

F5 Fusible electrovalvula (5A)

F6 Fusible act. cabezal escobillas (10A)

F7 Fusible actuator secador (10A)

F8 Fusible electrofreno (7.5A)

F9 Fusible bomba de agua (5A)

F10 Fusible bomba chem (si está pres.) (5A)

F11 Fusible motor de aspiracion (40A)

F12 Fusible motor escobilla derecha (40A)

• Premindo o botão deavanço (31a) “a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, aboa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa, a boa

Language selection: ITA

F8 Fusivel do eletrotravao (7.5A)

F14 Fusivel motor traçao (100A)

HN Buzina

KEY Chave de ignicao

Language selection: ITA

Language selection Taakeuze

pen (30a) “+of (30b) “ , druk

F1 Zekering acculader (1A)

F3 Zekering claxon (1A)

F4 Zekering knipperend lampje (1A)

F5 Zekering elektromagnetische klep (5A)

F9 Zekering waterpomp (5A)

General Main Language selection: ITA

General Main	Hlavné nastavení
Language selection	Volba jazyka

(42) Khonka "Ready to go"

• PnHaxKATN KHOKN (42) Ha dncnnee

OTobpaKaTeCnKToPamMa "0a-nyckaHcTc CJeDyUoune yHKnnn npnCTaHApTHbIX HAcTpOikax:

OnyckaHne TeOHoro y3na n BpaueHne TcTOK.
OnyckaHne BCacbIbAHOuei 6aJIKN 3aNvCK CnCTeMbI BCacbIBaHn.
Pa6ooua ckopocTB: 3-e JeIeHne (3,6 KM/4).
PacxOJ BOJbI:3-e JeJIeHHe.
XIMNUeCKoeBEUeCTBO:3-eJeHHe (1%)
- BcacbBaHHe: HopMaJIbHoe (100%).
- PnIXM UeTOK: HOpMaJIbHbI.
-Korda 3Ta cTaNapTHaФyHKnraakTNBnpoBaHa,MOxHO HaxKaTb JIO6yIO pa6OuyIO KHONkyIINIOBOrO N3MeHeHnRAJN Ha-CTPOKn.

Ipn Heo6xOaHmocTn, KOrDa B pa6oynx 6bIIIN BHeceHbI n3MeHeHn, IN MOxHO COxpaHnTb, BblONHnB CNeyUuNe DeiCTBn:

-HaXMMTe uYdePjKBaIte KHONky (42) B TeueHne 3 cekyH; NOITBepXdEHe coXpaHEnr OTO6paxKaETcH Na DnCnJee (41) MrrHnem HauPiNCN «UPLOADED»

• YTO6bl OTMeHnTb HOByo HAcTpOmy BepHyTbCRA K CTaHdapTHbIM 3HaueHnM, CHOBA HaxMITE KHOKNy (42) n ydePknBaIte ee B TeueHne 3 cekyH; NOdTBepxDeHne OTo6paXkaeTcra Ha dncnlee (41) MrraIOSeH NaINCbIO «RESET».

(43) ECO Khoonka ECO

-BoBpempa60tbl, npn HaxaTn KhoNk (43)Ha dncnlee nOraBnaTeCnKToPamMa“ECO”,napaMeTpbl BOdbI,XIMNUeCKOro BeueCTBa,BCacbIBAHn IN pnxkma ToCHoro y3la npHmAmOT cJeDyUOune 3HaueHnra:
- PacxoI BObl: 3-e IeIeHne.
XIMNUeCKoe BeueCTBO:3-e DeJeHne (1%).
- BcacbibaHne: 6ecwymhoe (50%).

• PnIXHM ⅢeTOK K NOJy: HopMaJIbHbIi.

(44) Kmonka nbinecoca

-Пин haжати Кногк (44) 3aynyckaetc nblncoc,Ha dincnlee noBnreTc nK- TOrpamMa "” n,ecn BkIIOueH XoD Bnpeed nnn ecn MaunHa HaxOOnTCB HeITpaIbHOM NOLOXeHN, ONyckaetc BCacbIBaIOUa86aJIka.
-Haxatne KhoNk (44) eue pa3 ocTaHaBJIbAeT nbIeCoc n paKeTKa NOHMaetcra.
- Pn octaHOBJIeHHoMaHHe,OnuIeHNOMCKpe6Ke n KIOUe (29) B noIooKeHN "ON"nocne nepnoDa HeaKTINBHOCTN, CKpe6OK NOHMAeTcA ABTomATueeKn.

(45) Honka Tnxo pa60Tbi

-Пи Нжати Ha KHonky (45) cna BcaCbIBaHn Typ6uHbI 6ydet yMeHbTaBcR,3TO N03BOJnEe 3HaHTeNbHO CHN3NTbUYM MaunHbI; ecn 3TaФyHKnA kTN-BnpOBaHa, HaДncnnee OTo6paXaETcR CmBOJI "
- IOBTOPOHoe HaxaTne KhoNKn (45) OTKIOuHaET cyHKUIO, mMaUNHa BO3O6HOBnAreT pa6Oy B CTAHApTHOM peXnme, 3HaQOK "rachet, a 3HaQK " NOBnEeTa Ha DnCnnee

i IPNMEUAHNE:

OcTaHOBKa BCaCbIBaHOSeI Typ6nHOc KHOJIKOJ «TnxOpa6oTbI» aKTINBnPOBaHHoJ, Typ6nHa 6yJeT aBTOMaTHueCKn nepeiDeT B CTAHdApTHbI peKIM pa6oTbI, BCE Bpemr 3aJePJKN BblKnUoyEHHa.

(46) KnoKa uetok

-Пинхкатин Khonkn（46）onyckaetcnyeTOUHbIy3eIHaДINCnPee NOBnEETcYNIKTOrpamMa“
- ΜιεΤΚ ὅύνηλοτ BραψαΤβκγ πρι ḤαχΑ-Tιν Ḍα πεδαήν yckopιθέλη, έΟς ḤανΑΒ-πυBaIoTÇ, KOrДa ἀροςζβΗγ 3açΠΟΗΚα ΠΟΥΜαEΤÇ.

ПРИМЕЧАНЕ:

UeTKn BpaaHTcKaK B nprMOM, TaK N O6paTHOM pexmE n c perylnpOBkO CKopoCTN (30) Ha «0».

-Прн OCTaHOBJIeHHoMaJINHe, OCTaHOBJIeHHoI rOJOBKe IeTOK n KJIIOUcOM (29)В NOJIOXeHnN "ON", NocNe nepNoJa He DeTeJIbHOCTN, rOJOBKa nOdHmAeTcra ABToMaTHuYeCKn.
- Ecni Bbl HaxMeTe KHONky (46) BO BpeMBApaueHnIeTOK, OHN OCTaHOBATCyrCTPOINCTBO NOHNMeTcR, IN CmBOJ " Ha DnCnnee NorachET.

(47) KhoNka dONoJIHnTeJbHOro npXIMa uTeOK

COnyueHHbIM uTeOuHbIM y3JOM MOxHO peTnynpOBaT npXkIM uTeOK K NOv.

-Прн Нжати Кногн (47) akTNBnpyeTcdoNOLHHTeJIbHbI npJxIM n Ha DnCnnee NORBnETCr NIKTORpAMMa
-Прин fixatni KhoNk (47) eue pa3 ycnIJIne npixmBa BO3BpaJaaetcK NcXoHOMy 3HaueHIO n Ha dncnnee NOBnEeTcR nnKTOrpamMa

ПРИМЕЧАНЕ:

Pn BkJIIOeHHOM nbIIEcoce.

IIOABnIeTcHa DnCnIee np HaxKATN KHOKN

(45) “ГИЗДАЛСИРУ O TOM, YTO ПБИЕ-COC pa6OtaeT C NOHIXEHHbIM YIcIOM O6oPOTOB.

AKTINBaCnBpaSeHnIeTKN

IoiBnIeTcHa Iucnnee npHaxaTuN KhoN- KN (46) "CirHaJIu3npyo TOM, yTo aK-TNBnPoBaHO BpaueHne uteKN.

Дононтелови npnxm

IoiBnIeTcHa DnCnIee, yKa3bIbA Ha pa-bOoyee DaBHeHne 5eTOK. HaxMnte KhoNky (47)“TO6bI N3MeHnTb pa6oyee daBJIeHne.

HanoHnTe pe3epByap YnCToB BoDOn C MaKcImaJIbHOJ TempepaTpoi 50^

• IcnoIb3yra cbeMhBn IaHr (52), HanoJIHnte 6ak (13) Bdoi.
• He 3aNoHnAte 6ak NOnHOCTbIO, NcNoIb3yIe Tpy6ky ypOBHr (18) B KaueCTBe opneHTnpa.
• Ил, ecn BO3MOxHo, OTKpoIe KpbIuKy (14) n BocnoJb3yIteCb pa3beMOMacquastop (53, ecn ecTb).

OCTOPOXHO:

Bcerda Bn3yaIbHo npOBepaTe ypoBeHb 3aNoJIHeHn, YTO6bl n36eXaTb HamOKaHn NOJa.

-После habоненябaka 3akpoTe KpbiKhv (14).

ПРИМЕЧАНЕ:

Длmaин 6e3 xHmUeCKOro Ha6opa HahonHnte 6ak (13) uHcToB BODOn n CMeuAnTe C XHMueckM MOUzIM CpeDCTBOM. O6aTeIbHo cIeMyTe NHCTpyKzIyM no pa36abJeHIO, npNBeDeHHbIM Ha 3TNKeTKe yNaKOBKn XHMueCKOrO BeSeCTBa, nCNoJIb-3OBaHHoro dIЯ npIrTOBHeHn MoUoIero pactBopa.

10.2 - БИДОH MOJOUSEO CPLECTBA/XIMNUECKOFO BEIECTBA (при по нали-чи) (Pnc. E)

ПОНМЕЧАНО:

IcnoJb3yIte TOnbKO HeNeHuaNecr MoIOuIe CpeDCTBa.ДЯ BbInOpHeHnCneDuIte HnCTpyKUaM N3roTOBHTeJIa MOUeO CpeDCTBa n Ttna 3aqrpa3HeHnA.

-Поднмпгебачokутллзauи(11).
-ПроверьтейтбыВбидонe（54）суц ectByetdoctaTOUHNO npOdykTaДЯцenoro pa6oeryd.

Pn 3ame He 6nOHa, nocTynaTe cNeDyUoIIM o6pa30M:

• YdaJInte KpbIuKy (55), BbITaUNTe 6nDoH (54) n BBeJnte HOBbI 6nDoH Ha 5 JInTPOB, 3aTEM NOCTaBbTe Ha MeTo KpbIuKy C 3acacbIbaIOSe Tpy6KoN (55)..

ONACHO:

B cnyae nonadHnma MOoJero cpeDCTBa B rna3a Hn Ha Koxy nn B cnyae nporlaTbIBAHn Cm. INHcTpkyuIN npOn3BOdnteJI MaOoJero cpeDCTBa nO 6e30NaChOCTN NcNoIb3OBaHnIO.

ПРИМЕЧАНЕ:

TaNKn (54), KOtOpbIe 6ydyT nCNOJb3OBaHbl, YBJIHOTCr CTAHdAPTHORO Tnna 5 JNITPOB, KO-TOpbl NocTyneH BnpoJaKe.

• Octopoxho onyctnte 6ak dЯ rpa3HOI BOdbl (11).
• YdaJInte BO3dUx (cM. npOceDpy B pa3deIe «KhONka Do3npoBaHnXmNueckoro BeIecTBA»).

11.1 - 3KcPJIyATAUmaI MAuHbI (Pnc. A-F)

11.1.a - KoHTpoJIb npn HcNoJIb3OBAHnN

-Проверьт,чTo cInBHOJшlaHr (15) pe3epByapaДЯ Otpa6OtaHHo BOdbl npabNbHo NOcOeDINHe N npabNbHO NOdkIIOyeH.
- PpOBepbTe YTO BCaCbIBaHOuN MJIaHr (16) npaBnIbHo NODcoEINHe N pe3epByapy dIy OTPa6OtaHHo BObl.
-ПроверъчTO coeINHTeNB (37) cKpe6ka (20) He 3a6nT n BCacbIBaIOuN mIJaHr (16) nOdkIIOUeH npabInbHo.
-Проверъуразьдзарядбатаренпи повороTeКлюа(29)Ha“ON"ИнДикатор уразьдakKKymлтopaHaДиспjee(41).

-HaxMMTe KhoNky《Ready to go》(42)

ДЯakTnBaCnДоЗиPoBaHnMoO CpeDcTBa,ВpaScheHnI ΜeTOK NHeHnIbIneCoca.

UHKTOLbKOdyauchk:

-ДЯ BBINOJIHHeHЯФyHKUIN JINb cyuKIn

HaxMMTe KhoNky(44) “”,tanyckaetc np6ota nblncoca.

LHKI TOJbKO dJa YnCTKN:

-ДЯ BBINOJIHHeHЯФУHKUIMЛИшь OYNCTKI

IeTKoHaxMITE KHOKky (46) 38 NyckaetcBpaueHne IeTOK.

• ΚeTkn HauHnAOT BpaaTaBcra, KOrda Ma- uHa nC HaxKaToI neJaIbIO yCKOpEHHa (7) HauHnaet DnBraTbcRA Bnepei Ha3aI, Inn npn HaxKaToI neJaII akCeJIepaTopa I yCTaHOBKe CKOpOCTN DBNXeHHa «0».

LuknCTnpK, nctkn:

--HaxmTe KhoNky (46) 3anycka BpaueHnI uetOK, HaxmTe KhoNky (49)

aKTHBnPoBAHnNcNoNb3OBA-0Dbl.

• BpaueHne 7eTOK n noaay BODbI NaHnHaOTc npn Haxatnn neaJn akcepePaTopa npn DvXKeHn BnpeD nn Ha3ad, nn npn yCTaHOBke ckopocTn nepemeueHnBnpeD He Hxke 1-ro DeJeHn.

11.1.c - Истороб Avenue annapata

ONACHO:

YdJIb MaKcMaJIbHoe BHMaHne npNcNoB3OBAHHMaUNHbI Ha

pamne, TaKIM o6pa3OM uTo6bl
npedOTbpaNTb cNtyaun, KOtOpbie
MOryT BnAaTb Ha yCTOnuHBOcTb Ma-
ShnHbl.

ONACHO:

N36eraTe pe3Knx NOBOPOTOB n DeIaTb KpyTbie NOBOPOtbl npn NOBOPote pyJHa MaIbIX CKOpocTAX, pRHHMaBo BVHMaHHe NOUBeHHbIe ycNoBn.

• NOBEPHNTe KIIOU (29) B NOJIOXeHne «ON»; B nepBbIe 2 cekyHdbI nocNe BkJIIOu-yeHnA DnCpIeN (41) noka3bIbAeT TnYcTaHOBJIeHHbIX aKKymyIaTOPOB I BpeMpa6Otbl MaunHbl.
• BbIbePte TnBbINOJIHReMOro pa6Oyeo UIKna.
  -BBeIte Tpe6yEmyipo6oyuO cKOpocTb C NOMOUBIO KHOJOK (30).
  -BkHouHTe npo6neckOBbIM MaYOK (10, onu) npaboyee ocBeueHne (9, onu).
• BbINOJIHnTe OuNCTKy npn nCNoIb3OBaHnAkceIepaTopa (7).

ПРИМЕЧАНЕ:

Pn OTnyckaHn neaJn akcelepaTopa,poTauNoHHbIe IETKN I NOTOK BOdbl OHN OCTa-HaBnBaOTcA.

ПОНМЕЧАНЕ:

Для павильноюпдметанг/cушкno- loBBbIIOJIHЯOTc npn DBNXKeHn Bpepei; npn obpaTHOM HanpaBJIeHn, cKpe6OK noJHIMaETcN BCacbIBaHn BObl C NOla OT-KIIOUyeHa.

-Bo3MOxH0 OtperynpyyTe KOJnueCTBO MOUeRo pactbopa C NOMOu bHO KHONK (49)
-Проверъе уровьи 3араза 6атaperи на диспee (41).

11.1.d - OkohuaHne nCnoJb3ObaHnI OCTaHOBka

• Pocne OKOHuaHnO uNCTKn BbIKIOUHTe B NocJeIOBATEJIbHOCTn, POtaUNOHbIe UTeKN I NblIEOCOC BbIKIOUaTEJEMc NCNOJIb3OBaHHeM OTHOCNTeJIbHbIX 3JIeMeHTOB ynpabJIeHnR B 3aBNCIMOCTn OT Tnna ZUKJa.
  -Повернite Клоч (29) К поожене "OFF".
  -TopMo3 OCTaHOBKn aKTbNbpyeTcra aBTOMaTuYeCKn.
• Onopoxhnte pe3epByap dJa oTpa6oTaHnOH BOdbI n pe3epByap dJa pactBopa cNOMOuKak yka3aHO B OTHOCHTbHbIXceueHn.

ПОНМЕЧАНЕ:

TOrda, KOrda onepaTop BbIXOHT n3 MaunHbl, aBTOMaTnueckn aKTbBnpyetcT TOPMO3OCTaHOBKn.

ONACHO:

3anpeuaeTcnapkoBaTb MaunHy Ha naHdyc.

12.1 - CЛИВ BОДы IN BOCCTAHOBJIECHNE (Pис. H)

ONACHO:

Y6eIntecb, yTo pe3epByap dIra OTpa6oTahHO BODbl (11) npct npexde Yem NODHMaTb.

B KOHcE ZIKNa CTrpKn, INN KOrDa pe3epByap (11)IIN OTPa6oTaHHoB BObI 3aONHeH, He- o6xOIMo ONOpOJHnTb pe3epByapa, cJeDyUOuM o6pa3OM:

ПРИМЕЧАНЕ:

IJIa CnIBaOTpa6oTaHHoB OdbI, DeiCTBOBaTb B COOTBeTCTBmC HAcTOaUMn IpaBNJaMn B CTpaHe NcNoJIb3OBaHm YCTPOJCTBa.

-ПocтавытmaшинуВ6лпзиСпИВHorOka-hana.
- OToeDHHTe 7JNaHr (15) ot cneuaJIb-HbIX KpOuKOB, onyCTnTe ero Ha cIINBHOI Tpan.
-OTBnHTnte KpbIuKy (56) IN NOJIHOCTbIO CneIte rpa3HyIO BDOy, COepeXaUyOcR B 6ake.

ПРИМЕЧАНЕ:

• 3aMeHnTb BCE KOMNoHeHTbl B nopAKe, o6paTHOM onNcaHHoBblIe npOceDype.

13.3 - ONEPAUIN BbINOJIHЯEMbIE KAXKdIe 3 MEcra

13.3.a - Пюверпь стенин ззнося руневоцenv (Pnc. L)

-Проверъпесъгнue ИЗюса И Крposьицeni (63) расноюжен по машуну BOЗп лпешдиму колесa.
- Ecnn cenb noka3bIbae npn3HaKn Koppo3nn DoJxKeH 6bTb 3aMeHeH, o6paueHneM B cnyK6y TexHnuecko noDnepKKn.

13.4 - ONEPAÇU N BbIPOJHЯEMbIE B HEOBXODIMOCTN

13.4.a - 3aMeHa ①eTkn (Pnc. M)

UeTKn HxkaIOTcB 3aMeHe KOrda OHN IMeOT HNTb MeHee 2 CM IIN 3aMeHeHbIB 3aBNCIMOCTN OT TnPa NOna DnA CTnPKn DnA 3aMeHbI, DeiCTByTe CneDyOuIm O6pa3OM:

• TaBbTe OndHy pyKu NOD ⅢeTKoOepXaTeJIa (19), UTo6bl OCB0bOuNTb ⅢeTKy C pe3KIM NOBOPOTOM B IpoTINBOIOnIOxHOM HAnpaBJIeHIn.
• YctaHOBNTe HOBbIe ⅢeTKN NOd ⅢeTKO-depXaTeJ (19).
• Caɪntecb B cndeHbe BoDnteJIy n nobepHnTe KIIou (29 pnc. F) B noIooKeHH "ON"

• Posizione are la velocità di avanzamento sul YctaHOBnTe ckopocTb nepemeueHna 3NaueHne «0».

• Haxmte KhoNky (46 pnc. F) " 6bl aKTHBnPoBaTb BpaueHne uTeOK; UeTOuHbI 6JOK ONyCTNTcra.
  -Пи Нжати Ha NeДаь akcelepaTopa (7 pnc. A) Фланцbl ueTKoDEpXaTeNei HauHHaOT BpaAaTbCra, 3auePnla YeTKN, 3aTEM OTnyCTNTe NeДaNb.

• CHOBA HaxMnte KhoNky (46 pnc. F) " "и NOBepHnte KJIou (29 pnc. F) B noNoJxKeHne «OFF».

13.4.b - PeruInpoBka pe3HHbI 6pbI3-roBnKa (Pnc. M)

B 3aBnCmOCTN OT Tnna 06pa6aTbIbAemor Onla NIN NocNe 3aMeHbI DnCKOBbIX UeTOK MoKet NOTpe6oBaTbCra OTpeRyInuPoBaTb BblCOTy pe3HHOBOrO 6pbI3ROvka (64). YTo6bI OTpeRyInuPoBaTb erO, DeiCTBynte CneDyUoUIM 06pa3OM:

-ПовернITEКИЧ (29 рис. F) в пооженке «ON».
- Haxmnte KhoNky (46 pnc. F) " 6bI onyctntb rOIOBky uetkn (19), 3aTeM noBepHnte kIou (29 pnc. F) B noIooKeHne «OFF».
-Проверъпразвиьнocь ВсOTь pe3HbI 6pbI3roBnka,Κak nOKa3aHo Ha pncyHKe M.
- Pn Heo6xOaHMOCTn BpyHyo BO3JeNCTByIte Ha pe3nHy, YTObI BOCCTaHOBNTb npabNJbHyIO BbICOTy.

ПРИМЕЧАНЕ:

IpaBnIbHa BbICota pe3INbI 6pbI3ro3aunT Horo Koxyxa - 3TO KOrda BO BpeMraPboTbI Iprn OpyckAHn HacaKn 5eTKn cama pe3HnHa HaxoINTcraNoDnIO C NOlOM.

-ПО OKOHuaHnpeRyInpOBKn CHOBa BKNIO- YNTE MaunHy n HaxMnte KHOkY (46 pnc.

F)“ Satem NOBepHnTe KJIou (29 pnc.F) B noJoxKeHne «OFF».

13.4.c - 3aMeHa pe3nHOBOrO ckpe6ka (Pnc. K)

EcnBbl3aMeTnH,HTO non cnoXhui cyxoi,HTO CneDbI BODbIOCTaOTc,IOnXhbl npOBepntb COCToHHe n3HOca uHH ckpe6ka (20):

-Удалпь Гушиу сонno(20)，уkaЗанная В понкт«Очирка ckpeбka».
-HaXMMTe Ha KhoNky 6IoknpyuOJero Me- xAHn3Ma (65) n OTKpoIe pyKy (66).
- CHNMTe 3aXnMa 5HHbI (67) n CHNMTe HApxKHyIO 5HHy (60).
- OcnaabTe Dba TaIpenbI (69) n ydaJInte 0nkCnpyIOuI cTepeKeHb (69) n BHyTpEHHeIO uINHy (61).

ПРИМЕЧАНЕ:

Ecnn uHbI (60) nnn (61) n3HoWeHbHa od- HoN CTOpOHe TOnbKO OOnH pa3, MoXHO NoCTaBnTb HAO6OpOT.

-3aMeHnTb nnn noBepHyTb uHH (60) nnn (61) 6e3 pa3Bopota.
-Co6epnte BCE B o6paTHOM npraKe.

ПРИМЕЧАНЕ:

BbIMoXeTe HMeTb DBa TnPa UINH;
IpoCTbIe pe3INHOBbI eINHbI DJIa BCEx TUNOB
IOJOB N IINHbI NOJNHyPeTaHOBbI B CeMHaPax C HeOpTЯHOH rpa3n.

13.4.d - PeruInpoBka yrna haKloHa cKe6ka (Pnc. N)

• 3anycntte MaunHy n Haxmnte KhONKy

(44 pnc. F)

-YcTaHOBnTe MaKcHMaJIbHyU CKOpocTb Ha 1-e DeJeHHe c NOMOuBIO KHONoK (30 pnc.F), HaxMnte neaIb akceIepaTopa (7 pnc.A) n npoeDbTe HeCKoNbKO MeTpOB, 3aTeM BbIKIOHTe N BblnTe N3 MaunHbl.

• Perynipobka pe3b6oBoi 70) IJpeynipOBu yrna naeHnA cKe6ka Ha 3emne (60) n (61), Pn noBopote no Yacobov cTpeJIke, ecn yroI naeHnY BbiSe, n HAO6OpOT, ecn ecTb 6OJIee Hn3-Kn yPOBeHb.

ПРИМЕЧАНЕ:

yrol nadeHnry cHTaETc npabnlbHbIM, ecnB 3KcNlyaTauu HET yTeUKN KNDKOCTn Ha noJ,N KOrda CKpe6Kn IMeOT NOCTOHNbIy rrol nadeHnry nO BceN dJIHe.

13.4.e - Perynnpobka daBleHna cTeKNoOuNCTnTeTn (Pnc.O)

B 3aBnCmOCTn OT Tnna 6pa6aTbIbAemoro nona nn Nocne 3aMeHbI pe3NHObIX pe3NHObIX WBa6p MoKet Notpe6oBaTbcr peryInpOBka DaBHeHn Ha non WBa6pbI.

UTo6bl OtperynipoBaTb erO, DeiCTBynte CneDyUoIIM o6pa30M:

-ПоднIMITE pe3epByap BO3BpaTHOИ BODbl (11), y6eINBwInCb, уTO OH nycToI.
-ПовернiteperуларовныВИNT(71), yHTbIBa, YTO:

• Пи повороTe no уасовоI CTpeлke daBJIeHne paKeJЯ Ha dHO yMeHbSha-etcra.
  BpaueHne npotNB yacobOn cTpeJIkyBeJIuYBaET daBJIeHne paKeJIaHaIoi.

• No okohuaHn peRyInpOBKn octopoXHo onyCTnte 6ak BO3BpaTHo BODbl (11).

13.4.f - OuncTkα ΦиьтpaЧистоь BoДы (Pис. P)

• YdOCTOBePbTecb, yTo pe3epByap (13 Pnc. A) nyctoI.
• CHIMITE KpbIshky (22) n CHIMITE KapTprnIX φиньтpa (72).
• OuHCTnTe KapTpndxФnIbTppa (72) npoTouHO BODO.
• YctaHOBnte CHOBA BCE B O6paTHOM Ha-npabHeHne n ydoCTOBepbTecb, YTO npokna (73) 6bIa yCTaHOBHeHa npabnblHo.

13.4.g - CInBHOJ KpaH 6aTapeHoro oTceKa (Pnc.A)

-Периончески поверягte，чтобьВба-tapeиHomOTceke He6blIO 3aCTOeB BODbl.
-При Heo6xOdHMoCTn paCNoJoxNte MaShHy pAdom CO cIINBOM,OTcEInTe Tpy6-Ky n OTKpoIe KpaH (74), 3aTeM cIeNTeKNDKOCTn.

OCTOPOXHO:

B Tex clyuayx, kOrda npedycmaTpnbAeTcra nCNoJb3ObaHne CBnHcOBO-KncIOTHbIX 6aTapei, o6paTnte npictaJIbHoe BnImaHne Ha IIO6yUO yTeU Ky XnDkoCTn H3 camix 6aTapei, CBraHHbIe C 3Tm PNCKN IN PpaBnlaYtINn3aunn XnDkNx ONaCHbIX Be-ueCTB.

13.4.h - Поберка Изюca 3 Кoleca (Pnc. A)

• Perylnpno npOBepaTe n3Hoc Tpex KOle-cax (8) a TaKke (23), ecn OHn n3HOWehblnn NOBpeXdEhbl DOJXHbI 6bITb 3aMeHeHbI B cnyk6y TexHnuecko nOndepxKn.

ONACHO:

ДВИЖЕНе Ha ИЗHOWEHнБIX, NOВPEЖ-DEHHbIX WINHax,прдCTaBnЯET onac-HocTb ДЯ ONEpaTopa, рибop мoxKet IMeTb NOHIXEHHyO cUeJIpeHne B NOBOPOTax.

14.1 - HACTPOIKNIAPAMETPbI (Pnc.F)

14.1.a - Паметры ONEPATOPA

OnepaTop HmeeT BO3MOXHOCtB nepeHTN K MeHIO IJIy yCTaHOBKn CJIeDyUOxN npaMeTPOB:

• 3b1K
  Tun 6atapei
  -Диспел -КонтpacTHOCtB
  -Диспел -Ярков.

ДяdoctynaK MeHOBbINOJHInTe CneDyO- Ⅲe DeIcTBnA:

• HaxmTe u yepKnBaTKe KhoNk (31a)

n (31b)

”,3aTEM NOBepHN-

Te KIIOU BKNIOUeHnA (29)B NOIOXKeHne «ON》，TO6bI OTo6pa3NtB cJeNyOuSyo CTpaHnUy:

General Sets O6uine HacrpoKn

ID Check kontrpoJia

Insert password BveuTe napoiB

• OTnyctnte HaxkTaIe KHONK.
  -BVeInte 4-3NaHbI npoJIb «0010», Ha-

KHMa KhoNk (30a) +" nIe (30b)

ДЯИЗМЕHENNA MIRAOUSEI ZINФрbl.

• Haxmte KhoNky (43) " ECO TTo6bI NOtBepNTb INpeeTN K cNeDyUoSei UPe, 3aTeM NODTBePnTe npOJIb I BOITN B CnncOK napaMeTpOB.
• HaxmTe KhoNky (31a) " 31b

"Дпя npocMOTpa cNeedyuOuX cTpa-

HNU:

General Main	Основая конфicientsурацья
Language selection	Быбор язblaкa

Language selection BbIop a3bika

• BbI6epnte y3bIK c nOmoU bIO KhoNOK (30a)

(30b)“”, 3aTeM HaKMnTe

KHOPIKY (43)

TobI IOaTBepdntb

Bbl6op.

• RU = pycckn
  -ENG = aHrIiNckn

YcTaHOBka Tnna aKKymyIaTopa:

General

Main

Battery

Type:

GEL

General Main OchOBHae KOHpyaun

Battery Type BbIbop Tura akkymyIaTopa

• BbI6epnTe TIN aKKymyJrTopa c nOMouIbIO
  KHOPOK (30a) “(30b) ”, 3a-
  TeMaXmIe KHOJky (43) “TO6bI NOdTBepnTb BbI6Op.
• GEL = relebeiakkymnyTop
• AGM = akkymyЯTop AGM
  -WET = KNCNOTHbI aKKMyJrTOp

HactpoKa DnCpIeR - KoHTpactHOCTb:

General

Main

Display

15

Tune:

max:50

General Main OchOBnKa KOHpypaun

Display Tune KohtpactHoctb ducnner

• BbI6epnte 3HaueHne KOHTpactHOCTn IINnnpe, yCTaHOVB 3HaueHne ot O do 50 c

"TO6bI NOITBepdNtB BbI6Op.

Hactpoika dincpnpe - Apkoctb:

General

Main

Display

Brightness:

min:0

max:10

General Main OchOBnKa KOHpypaun

Display Brightness Apkctb dncnne

-BbI6epnte 3HaueHne npKocTn dncnpe, yctahOBuB 3HaueHne ot 0 do 10 c nomo

13.3 - CZYNNOSCI, KTÖRE NALEZY WYKONYWAC CO 3 MIESIACE

Language selection: ITA

• GEL = Akumulator zelowy

• AGM = Akumulator AGM

-WET = Akumulator KWASOWY

a a a a a a a a a a a a a a a a a a a a a a a a

17.1

General Main Language selection

30a)

" (43) 15 b i a 30b)

Eco

$$ \therefore \angle B A C = 1 8 0 ^ {\circ} $$

$$ \lambda_ {j} j _ {i} k _ {i} k _ {j} = - E N G $$

：山

General Main

Battery

Type: GEL

General Main

Battery Type

+”(30a)

"43) 10b

Eco

$$ \mathrm {J} _ {\mathrm {B}} \mathrm {a l p h a} = \mathrm {G E L} $$

$$ A G M \text {四} = A G M $$

$$ \text {a} \cdot \text {a} \cdot \text {a} \cdot \text {a} \cdot \text {a} \cdot \text {a} \cdot \text {a} \cdot \text {a} \cdot \text {a} \cdot \text {a} \cdot \text {a} \cdot \text {a} \cdot \text {a} \cdot \text {a} \cdot \text {a} = - W E T $$

-14.1

Jiaaii Cai

ylll lal aal 1 Jgssd al 5

:

4

-

gul -

:lll gill lcl Joc Aalll

(31a)

(31b)

"ON" (29)

General Sets

--ID Check--

insert password:

000

General Sets

D Check

Insert password

1gale bgeacall jj21 jz

"0010" 4 4

30a)

.（30b）

（43）

JgDgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRgRg

yall

"31b) 13a) jla

Jai

-13.4

-13.4

A

(23)8 1234567890

j 1111111111111111

山

aillllg lallllglc gao lae aol
jlg jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn j

0 -

a 100000000000000000000000000000000000000000000

sill gill 1e juill p aabulai
aif no sll (11) 15i1yoln jzjg 1

（71）jll jll 0gla - jl jicy
Jbizn aclll Jgai Jia

b2a 1000

J11

9-13.4

P JSL-elljia

.（72）j（72）（73）

j-13.4

A

clll 25 200000000000000000000000000000000000000000000000000000000000000

：

aallll lalil g aagg laaiy

aillll 0hail gall

45^ 2x = 10^

（61）（60）

(60) 1 (61)

:

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

-13.4

N

44)

m = 311 ;

abwJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJ

J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J 2 J

aaiiia aia 8 g Juaill lalae

J 1

a

(12)

（58）

g j 1 1 1 1 1 1 1 1 1 1 1

J 59)

15 15

（60）

all jill clll

Jaaal jzj 15

$$ \text {C} - 1 3. 2 $$

KJ-aaee

（20）

1

.(20)aa (C 16) jyj y - aaaa (C 36) .(20)

(61) (60)

(62)

S OBC = S COD + S_ BOC

(61) (60)

-

45^ 2x = 10^

biinll jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie

(15)

(15) 56

A

aalil 13.1

：

g 100

1. i.e.

-13.2

p

-13.2

1

LgIaJg. (13) 000000000000000000000000000000000000000000

aai jj jiiu w g aaiy i j j

:glie (13)

i j 1

（17）

alil all jIgai jiiulge aJgai

.0111 1 j 2 1 (57)

yail 1 jj

e jll 1n no aie bill oall lal g gia

S AOB = S AOB + S_ AOB

（17）

.（57)

-11.1

1 1

J 1

yolg y

a.oisunll o g 2 gil lab g cill

"OFF, (29)

Lalali jol jbjui

gLoLJzjzjzjzjzjzj

aall d jai

S OBC = S COD + S_ BOC

slll lal g jie Lalic

aaiiie

H Js - 12.1

（11）

.

(11) jzj 1

1

S OBC = S COD + S_ BOC

Let Jgazoll 与 Jgill 与 J_gill coall jolli

1

jiiu jia jao jie jie jie jie -

S OBC = S COD + S_ BOC

（15）

a a

（56）

laai jjg gall

山

aal labeiaall g slal cabeiaial i

ie laaag laai aai gaaia dlaai iae

y

a

“ON” (29) 2

（41）

iiSoll Joc cIe Iomega 5 joll

laiaaagall aalggej j

Jzll Jg jgl Jzll Jzjj

(30)

Jall 10)

(4)

aolgl Jaoill Jdo aolil laloc

(7)

45^ 2x = 10^

i

an = 12( an - 1 + an - 2) + ·s + 12( a1 + a2 + a3)

OE BC

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Jg 1

-11.1

jglg 1

：

jglal plaiiui i jaiil plia

ylll jgai g

i

.

：

g j g j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

:

i

5 55

(11)

j>> 21 jgll jgl jgl) gll

（4）

F-A -11.1

-11.1

aal

15

J 1

(16) 1

i 1

(20) 4 (37)

(16)

.

Lia Lioie 111111111111111 000000000000000000000000000000000000000000000000

(41)

-11.1

#

Jlll 2000

4 4 4

-10.1 D

：

50 50

（52）

（13）j

(18)

c > 2 < 0

14

（53）

：

i j 1 i j

a

.(14)

S OBC = S COD + S_ BOC

S_ L = 12 · CD · CM = 12 × CD × 5

(13)

8gucu (c) 6j gll aaii ciuiy lai j

aiaaii jglalil

1) 10.2

EJ -（）

S OBC = S COD + S_ BOC

Cilalj Eulj Aasj Ebad Oocj Uc Cllabial al adiul

J 1

(11)

54

JooJI

:lll gill lloa g aalg ll

（54）（55）

（55）15

baai

biaiy

J 7)

sJ8-8.1

J 5) 5
J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J

Jai slalg (5) jj 1000

A J5-4x11 9.1

aaiiiaeae aiee eae eae eae eae

(4)

Jie Jie wall 105ic ailll 8iS jai

y j 1

g g jnll aie jnnae g 111 111 111 111 111 111

a

Jolj 23) aolal alal lgeo pia

#

Jll Jll I 1

biu juii jiu jiu 147) jll biai

（）

4k = 3

（29）jll jyw y 5d 5040 40 40

. 《0》(30)

#

（49）

111 111 111 111

e 1

2xy - 5x = 0

（49）1JrJrJz

111 111 111 111 111 111 111 1

（49）

0

Egaa jii (50)

（51）

J52)

S_ OBC = S_ COD + S_ BOC

a1 = 2,an + 1 = 2( 3n + 1) ( 3n + 2) > 0

.《0》(30)

2

“ON" (29)

yjai j

（46）

"J 1

auiie 1e

（47）

1 1

S OBC = S COD + S_ BOC

biuill bii (47) 2j1iie biuill

aaii jn nn nnnn

“

biail (47) jilde biail oic! iie

a

“

45^ 2x = 10^

a1 = 2,a2 = - 4, b_1^2 = 4a + 8 = 8a^2

1

:

Jallblal (44) jll bally

1

aai 1

Jj

（44）

aannn 1

(29) 4

gaaag glll j0 00 "ON"

#

baaiiaieae 45)

aill 1 aii 1i 1 1 1 1 1 1

e 1

“山”

alililglgaggl (45) jill pllaol ole

aai 1

“”

:

Jiaill" a, j, 1c aiiy jgill baill aic gaiy

y

#

（46）

“gai jiu li jiie

a

aaii

(41)

Jdall Jdill

«Ready to go»

（42）j（42）

i

J

(43) jll bbiill (Jaaal

aollgclll jieoo i, 1

ailll jll lal baiil g baiil g aill

1111 111

.1%） 4

( 50% )

.5e= 1

a.slaia 6.1

-6.1

F

(29)

gagacawlljlaocolgl “ON”gjj

J 1

j 1( mod 2)

"OFF" 11 aclll b joc aljg -

a 1

1

gaae aee

jnnnnaaee

（30b）+ (30a)

S木弟形 COBD = S COD + S BDO = S COD + S_ BDO

abgssall gssll aagaae aee

(41)

（7）gglgaoaiaai

aàà gao jiāi<5olai

(31)

"13a) aU uu J 1e biually

aaii iiaii aaii iiaai iiaai

（31b）

"

1

:

gaa Laolalil gaaalil

(30)

a 1

i

（11）

.

-5.1

G -

1

y 1

24

Jusall 39)

（38）

y

i 1

(39)

.(11)

-5.1

n nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

G -（）

（40）

y 11 (38)

aaii 22 jg y slw

Jauuuaa aai g iie 100

( a + b) ( a^2 - ab + b^2) = a^3 + b^3

AS OBC = S BOC

S APQ = S AQP + S QPQ = S AQP + ( S AQP) ( Q - QP)

i jil g j ai slal ai b

（F-41）

12a jia jilbail jorjie Jusilllll

.

jor jodjogall cd jdl gaoe gei lioie

a

法一

（40）JL

(38)

.(11)

-5.1

-3.1

山

J 1 J 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

：

J 1

y 1

dulal d gds a (b) b (a) 100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

i

1111 1111 1111 (GEL 1111 111)

1

Lioic JyI 10J Laii Aia jS i yjll (F J,41) auiuie

A

(11) jzj 6 6 4) 12 12 12
(24) 1 1
.
(11)

i

-3.1

B 2017
p 27) a 11111111111
yolal yolall
JgLoLsIi I (28) Jiaai all
.ogll cilal g
.qlal (3) alall g wgl
"ON" (29) clao jzhi p
(1) oJr "431a) 1c Jaa
(7) jj jwgl 1 (pa)
.

aie 4.1

-4.1

C

(35) (20) 1
.36) 1
(16) .37

4-4.1

a

J 1

A Js -Jzjz-2.1

(1)

（2）

(3)

Jzoll 2g jn (4)

（5）

Auaia yaojoll iina (6)

1. ( 7)

(8)

.（s）Jg（9)

.（s）（10）

11)

. 12)

aill oall j (13)

. g is y . Lb 14

la yjg jz aleall olalld jyglu (15)

4k = 3

1

a a a a a a a a a a a a a a a a a a a

1

g.

.

-1.1

Jaaal aag

J 1

a 100

-1.1

jglal plaiuol lai aalea 1bla2y

ii .1 = ii

.

jolilizclici jlll 1

aibolwll plw

Jgnaalgaia 1.2

jies

aaii 1 jia jia jia jia

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

Professional Cleaning Machines Since 1968

DEALER

GHIBLI & WIRBEL S.p.A.

Registered office:

Via Enrico Fermi, 43 - 37136 Verona (VR) - Italy

Headquarters:
