1. Control panel
2. Identification plate (do not remove)
3. Door
4. Upper heating element/grill
5. Light
6. Turntable

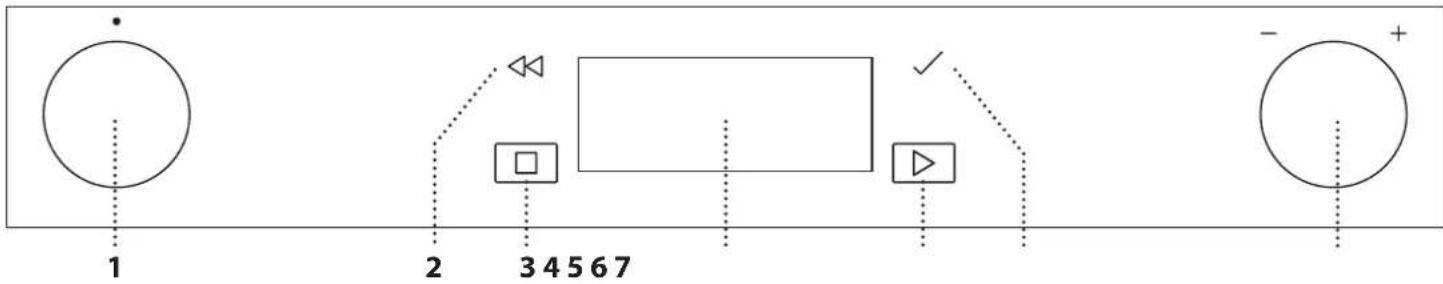

CONTROL PANEL DESCRIPTION

1. SELECTION KNOB

For switching the oven on by selecting a function. Turn to the "0" position to switch the oven off.

2. BACK

For returning to the previous screen. During cooking, allows settings to be changed.

3. STOP

For stopping the function that is currently active at any time

1. DISPLAY

5. START

For immediately starting a function.

6. CONFIRM

For confirming a selected function or a set value.

7.ADJUSTMENT KNOB

For scrolling through the menus and applying or changing settings.

Please note: The knobs are retractable. Press the knobs in the middle and they pop up.

ACCESSIONS

TURNTABLE

Placed on its support, the glass turntable can be used with all cooking methods.

The turntable must always be used in containers or accessories.

TURNTABLE SUPPORT

Only use the support for the glass turntable.

Do not rest other accessories on the support.

CRISP PLATE

Only for use with the designated functions.

The Crisp plate must always be placed in the centre of the glass turntable and can be pre-heated

when empty, using the special function for this purpose only. Place the food directly on the Crisp plate.

HANDLE FOR CRISP PLATE

Useful for removing the hot Crisp plate from the oven.

The number and the type of accessories may vary depending on which model is purchased.

There are a number of accessories available on the market. Before you buy, ensure they are suitable for microwave use and resistant to oven temperatures.

Metallic containers for food or drink should never be used during microwave cooking.

WIRE RACK

This allows you to place food closer to the grill, for perfectly browning your dish.

Place the wire rack on the turntable, making sure that it does not come

into contact with other surfaces.

STEAMER

To steam foods such as fish or 1 vegetables, place these in the basket (2) and pour drinking

water (100 ml) into the bottom of the steamer (3) to achieve the right amount of steam.

3 To boil foods such as potatoes, pasta, rice or cereals, place these directly on the bottom of the steamer (the basket is not

required) and add an appropriate amount of drinking water for the amount you are cooking.

For best results, cover the steamer with the lid (1) provided.

Always place the steamer on the glass turntable and only use it with the appropriate cooking functions, or with microwave function.

The steamer bottom has been designed also to be used in combination with the special Smart clean function.

Other accessories that are not supplied can be purchased separately from the After-sales Service.

Always ensure that foods and accessories do not come into contact with the inside walls of the oven.

Always ensure that the turntable is able to turn freely before starting the oven. Take care not to unseat the turntable whilst inserting or removing other accessories.

FUNCTIONS

MICROWAVE

For quickly cooking and reheating food or drinks.

1000	Quickly reheating drinks or other foods with a high water content.
800 Cooking vegetables.
650 Cooking meat and fish.
500	Cooking meaty sauces, or sauces containing cheese or egg. Finishing off meat pies or pasta bakes.
350	Slow, gently cooking. Perfect for melting butter or chocolate.
160	Defrosting frozen foods or softening butter and cheese.

90 Softening ice cream.

ACTION FOOD POWER (W) DURATION (min.)

Reheat 2 cups	1000 1 - 2
Reheat	Mashed potatoes (1 kg)	1000 9 - 11
Defrost	Minced Meat (500 g)	160	13 - 14
Cook	Sponge cake	800	6 - 7
Cook	Egg custard	650	11 - 12
Cook	Meat loaf	800	18 - 20

CRISP

For perfectly browning a dish, both on the top and bottom of the food. This function must only be used with the special Crisp plate.

FOOD	DURATION (min.)
Leavened cake	7 - 10
Hamburger	8 - 10*

• Turn food halfway through cooking.

Required accessories: Crisp plate, handle for the Crisp plate

GRILL

For browning, grilling and gratins. We recommend turning the food during cooking.

FOOD	DURATION (min.)
Toast	10 - 12
Prawns	18 - 22

Recommended accessories: Wire rack

GRILL+ MW

For quickly cooking and gratinating dishes,

combining the microwave and grill functions.

FOOD	POWER (W)	DURATION (min.)
Potatoes gratin	650	20 - 22
Roast chicken	650	40 - 45

Recommended accessories: Wire rack

6THSENSEDEFROST

sens For quickly defrosting various different types of food simply by specifying their weight. Food should be placed directly on the glass turntable, except for Crisp Bread Defrost. Turn the food when prompted

CRISP BREAD DEFROST

This exclusive function allows you to defrost frozen bread. Combining both Defrost and Crisp technologies, your bread will taste and feel as if it were freshly baked. Use this function to quickly defrost and heat frozen rolls, baguettes & croissants. The Crisp Plate must be used in combinaton with this function, directly placed on wire shelf.

	FOOD	WEIGHT (g)
	TIMED DEFROST	-
	MEAT	100 - 2000
	POULTRY	100 - 2500
	FISH	100 - 1500
	CRISP BREAD DEFROST	50 - 500

6TH SENSE REHEAT

For reheating ready-made food that is either frozen or at room temperature. The oven automatically calculates the settings required to achieve the best results in the shortest amount of time. Place food on a microwave-safe and heatproof dinner plate or dish.

	FOOD	WEIGHT (g)
1	PLATED MEAL	250 - 500
2	FROZEN LASAGNA	250 - 500
3	SOUP	200 - 800
4	WATER	100 - 500

6THSENSE MENU

These functions automatically select the best temperature and cooking method for all types of food. CRISP

For quickly reheating and cooking frozen foods and giving them a golden, crunchy top. Only use this function with the crisp plate provided. Turn the food when prompted.

FOOD WEIGHT (g)
PIZZA [FROZEN] 200 - 800
BURGER PATTIES 200 - 600
POTATOES FRIED [FROZEN] 200 - 500
CHICKEN NUGGETS [FROZEN] 100 - 500
FISH FINGERS [FROZEN] 100 - 500

Required accessories: Crisp plate, handle for crisp plate

COOK

For cooking foods quickly and achieving optimal results. Use a heatproof container suitable for microwave use.

FOOD WEIGHT (g)
ROAST CHICKEN 800 - 1500
POTATOES GRATIN 200 - 1000
STUFFED VEGETABLES 200 - 800
PORK RIBS 200 - 800
SCRAMBLED EGGS 100 - 500
POPCORN 90

STEAM

For steam-cooking foods such as vegetables or fish, using the steamer provided. Distribute evenly the food into the steamer basket and and pour drinking water (100ml) into the bottom of the steamer. The oven automatically calculates the settings required to achieve perfect results. During the initial part of the cooking, microwaves generate steam, bringing the water add into the bottom of the steamer to boil.

FOOD WEIGHT (g)
1	ROOTS VEGETABLES STEAMED	150 - 500
2	SOFT VEGETABLES STEAMED	150 - 500
3	VEGETABLES STEAMED [FROZEN]	150 - 500
4	FISH FILLETS STEAMED	150 - 500
5	POULTRY BREAST STEAMED	150 - 500

Required accessories: Steamer

RICE & PASTA

To quickly cook rice or pasta. This function must only be used in combination with the steamer.

Set recommended cook time for rice or pasta accordingly.

FOOD	PORTIONS	WEIGHT (g)
RICE	↑	100
	↓↓	200
	↓↓↓	300
	↓↓↓↓	400
PASTA	↑	70
	↓↓	140
	↓↓↓	210

Required accessories: Steamer bottom and lid

HYDRO SELF CLEAN

The action of the steam released during this special cleaning cycle allows dirt and food residues to be removed with ease. Pour a cup of drinking water into the supplied steamer bottom (3) only or on a microwave proof container and activate the function.

SETTINGS

For adjusting the oven settings.

When "ECO" mode is active the brightness of the display will be reduced to save energy and lamp switches off after 1 minute.

When "DEMO" is "On" all commands are active and menus available but the oven doesn't heat up. To deactivate this mode, access "DEMO" from " SETTINGS" menu and select "Off". By selecting "FACTORY RESET", the product switches off and then it returns to first switch on. All settings will be deleted.

FAVORITES

For retrieving the list of 10 favorite functions.

FIRST TIME USE

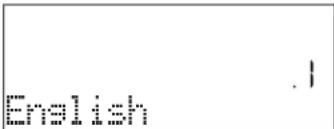

1. SELECT THE LANGUAGE

You will need to set the language and the time when you switch on the appliance for the first time: "English" will show on the display.

Turn the adjustment knob to scroll through the list of available languages and select the one you require. Press to confirm your selection.

Please note: The language can subsequently be changed by selecting "LANGUAGE" in "SETTINGS" menu.

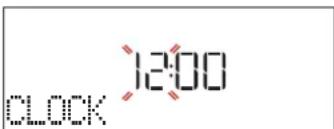

2. SET THE TIME

After selecting the power, you will need to set the current time: The two digits for the hour will flash on the display.

Turn the adjustment knob to set the current hour and

DAILYUSE

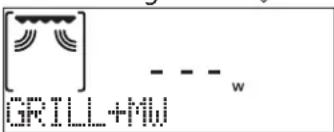

1. SELECT A FUNCTION

Turn the selection knob to switch on the oven and show the function you require on the display.

To select an item from a menu (the display will show the first available item), turn the adjustment knob until the item you require is shown.

The display will show the name of the function and its basic settings: Press to confirm.

2. SET THE FUNCTION

After having selected the function you require, you can change its settings. The display will show the settings that can be changed in sequence. Pressing allows you to change the previous setting again.

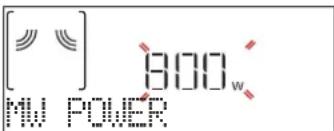

POWER

When the value flashes on the display, turn the adjustment knob to change it, then press to confirm and continue with the settings that follow (if possible).

press: The two digits for the minutes will flash on the display. Turn the adjustment knob to set the minutes and press to confirm.

Please note: You may need to set the time again following lengthy power outages. Select "CLOCK" in " SETTINGS" menu.

3. CLEAN THE OVEN

A new oven may release odours that have been left behind during manufacturing: this is completely normal. Before starting to cook food, we therefore recommend cleaning the oven with it empty in order to remove any possible odours.

Remove any protective cardboard or transparent film from the oven and remove any accessories from inside it.

Activate the "Smart Clean" function. Follow the instructions for setting the function correctly.

Please note: It is advisable to air the room after using the appliance for the first time.

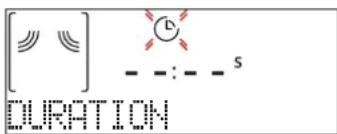

DURATION

When the icon flashes on the display, turn the adjustment knob to set the cooking time you require and then press to confirm.

Please note: You can adjust the cooking time that has been set during cooking by pressing turn the adjustment knob to amend it and then press to confirm.

In non-microwave functions you do not have to set the cooking time if you want to manage cooking manually (untimed): Press or confirm and start the function.

By selecting this mode, you cannot program a delayed start.

.6 ^th SENSE

These functions automatically select the best cooking mode, power and duration for all the dishes available. When required, simply indicate the characteristic of food to obtain an optimal result.

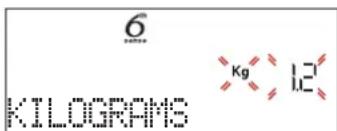

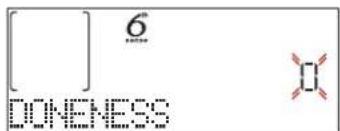

WEIGHT / PORTIONS

To set the function correctly, follow the indications on the display, when prompted, and turn the adjustment

knob to set the required value then press to confirm. DONENESS

In 6^th Sense functions it is possible to adjust the doneness level.

When prompted, turn the adjustment knob to select the desired level between Light/Low (-1) and Extra/High (+1). Press or confirm and start the function.

3. ACTIVATE THE FUNCTION

At any time, if the default values are those desired or once you have applied the settings you require, press to activate the function.

Every time the is pressed again, the cooking time will be increased by a further 30 seconds (5 minutes steps In functions which do not activate the microwave).

During the delay phase, by pressing the oven will ask if you want to skip this phase, starting immediately the function.

Please note: At any time you can stop the function that has been activated by pressing

JET START

When the oven is switched off, press to activate cooking with the microwave function set at full power (1000 W) for 30 seconds.

4. PAUSE COOKING / TURN OR STIR FOOD

PAUSE

By opening the door, the cooking will be temporarily paused through deactivating heating elements.

To resume the cooking, close the door and press.

Please note: During "6h Sense" functions open the door only when prompted.

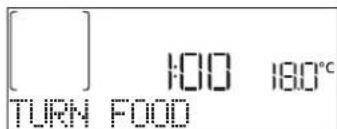

TURN OR STIR FOOD

Some 6^th Sense Cook recipes will require to turn or stir the food during cooking.

An audible signal will sound and the display shows the action to be done.

Open the door, do the action prompted by the display and close the door, then press to continue cooking.

Please note: When turning or stirring is needed, after 2 minutes, even if no action is performed, the oven will resume the cooking.

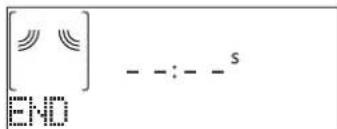

5.END OF COOKING

An audible signal will sound and the display will indicate that cooking is complete.

Press to continue cooking in manual mode adding time in steps of 30 seconds (in microwave functions) or 5 minutes (without microwave) or turn the adjustment knob to extend the cooking time by setting a new duration. In both cases, the cooking parameters will be retained.

By pressing or the cooking starts again.

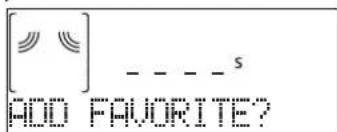

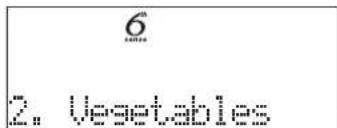

.FAVORITES

To make the oven easier to use, it can save up to 10 of your favorite functions.

Once cooking is complete the display will prompt you to save the function in a number between 1 and 10 on your list of favorites.

If you would like to save a function as a favorite and store the current settings for future use, press otherwise, to ignore the request press

Once has been pressed, turn the adjustment knob to select the number position, then press to confirm.

Please note: If the memory is full or the number chosen has already been taken, the oven will ask you to confirm overwriting the previous function.

To call up the functions you have saved at a later time, turn the selection knob on "FAVORITE": The display will show your list of favorite functions.

Turn the adjustment knob to select the function, confirm by pressing and then press to activate.

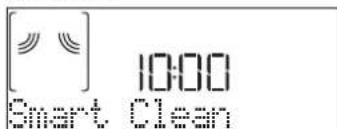

SMART CLEAN

Remove all accessories (with the exception of the glass turntable) from the microwave oven before activating the function.

Turn the selection knob to access the "Smart clean" function.

Press to activate the cleaning function: the display will prompt in sequence actions to be performed before starting the cleaning. Press anytime when done.

When required, pour a cup of drinking water into the supplied steamer bottom or in a microwave resistant container, then close the door.

After the last confirmation, press to start the

cleaning cycle.

Once finished, remove the container, finish the cleaning with the help of a smooth cloth and then dry the oven cavity using a damp microfibre cloth.

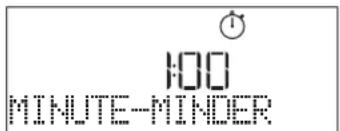

. MINUTEMINDER

When the oven is switched off, the display can be used as a timer. To activate this function, make sure that the oven is switched off and turn the adjustment knob: The icon will flash on the display.

Turn the adjustment knob to set the length of time you require and then press to activate the timer.

An audible signal will sound and the display will indicate once the minuteminder has finished counting down the selected time.

Once the minuteminder has been activated, you can also select and activate a function. Turn the selection knob to select the function you require.

Once the function has started, the timer will continue to count down independently without interfering with the function itself.

During this phase, it isn't possible to see the minuteminder (only the icon will be displayed), that will continue counting down in background. To retrieve the minuteminder screen press to stop the function that is currently active.

. KEYLOCK

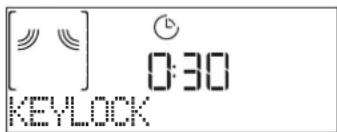

To lock the keypad, press and hold for at least five seconds. Do this again to unlock the keypad.

Please note: This function can also be activated during cooking. For safety reasons, the oven can be switched off at any time.

CLEANING

Make sure that the appliance has cooled down before carrying out any maintenance or cleaning.

Never use steam cleaning equipment.

Do not use wire wool, abrasive scourers or abrasive/ corrosive cleaning agents, as these could damage the surfaces of the appliance.

INTERIOR AND EXTERIOR SURFACES

• Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.
• Clean the glass in the door with a suitable liquid detergent.
• At regular intervals, or in case of spills, remove the turntable and its support to clean the bottom of the oven, removing all food residue.
• Activate the "Smart Clean" function for an optimum cleaning of the internal surfaces.
• The grill does not need to be cleaned as the intense heat burns away any dirt. Use this function on a regular basis.

ACCESSIONS

All accessories are dishwasher safe with the exception of the Crisp plate.

The Crisp plate should be cleaned using water and a mild detergent. For stubborn dirt, rub gently with a cloth. Always leave the Crisp plate to cool down before cleaning.

TROUBLESHOOTING

Problem Possible cause Solution
The oven is not working.	Power cut.	Check for the presence of mains electrical power and whether the oven is connected to the electricity supply. Turn off the oven and restart it to see if the fault persists.
	Disconnection from the mains.
The oven makes noises, even when it is switched off.	Cooling fan active.	Open the door or hold or wait until the cooling process has finished.
The display shows the letter “F” followed by a number.	Software fault.	Contact the Call Center and state the number following the letter “F”.

Policies, standard documentation and additional product information can be found by:

Using the QR on your product
- Visiting our website docs.whirlpool.eu
- Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

2. CÓMOCONFIGURARLA HORA

TAK FORDI DU HAR KØBT ET WHIRLPOOL PRODUKT

Registrar venligst dit produit pa www.registerier10.eu, for at modtage en mere komplet assistance

CINNOST JEDLOVYKON (W) TRVANIE (min)

Ohrev 2 šáky	1000 1 - 2
Ohrev	Zemiaková kaša(1 kg)	1000 9 - 11
Rozmrazovanie	Mleté mäso (500 g) 160	13 - 14
Varenie	Piškótoy kolac	800	6 - 7
Varenie	Vaječný krém	650	11 - 12
Varenie	Sekaná	800	18 - 20

CRISP

Na dokonalé zhnednutie jegla zvrchu i zospodu.

HYDRO SJALVRENGORING
