Product type	Built-in microwave oven
Brand	Whirlpool
Model	WMMF5930PW
Overall dimensions (W x H x D)	76 x 45.4 x 32.4 cm
Cavity dimensions (W x H x D)	46 x 23 x 27.9 cm
Capacity	Approximately 30 L
Weight (approx)	20 kg
Power supply	120 V, 60 Hz, 15-20 A
Microwave power	1000 W (estimated)
Main functions	Cooking, defrosting, reheating, multiple power levels
Ventilation	Recirculation or exhaust (configurable)
Installation type	Built-in under cabinet or on shelf
Turntable	Yes (default)
Care and cleaning	Clean with a damp cloth and mild detergent
Safety	Child lock (likely)
Available spare parts	Optional trim mounting kit (W11630300)
Repairability	Repairability index not provided
Certifications	UL, CUL, CSA
General information	User manual available in PDF at notice-facile.com

Frequently Asked Questions - WMMF5930PW WHIRLPOOL

What are the exact dimensions of the Whirlpool WMMF5930PW microwave oven?

Overall dimensions: width 76 cm, height 45.4 cm, depth 32.4 cm. Interior cavity dimensions: 46 x 23 x 27.9 cm.

Can this microwave be built-in?

Yes, it is designed for built-in installation under a cabinet or on a shelf. It requires an opening at least 76.2 cm wide and sufficient clearance height. Refer to the provided installation guide.

What are the electrical requirements?

The appliance requires a power supply of 120 V AC, 60 Hz, protected by a 15 A or 20 A fuse. A dedicated circuit is recommended.

How to clean the microwave oven?

Use a soft damp cloth with mild detergent. Avoid abrasive cleaners. For stubborn stains, heat a cup of water for a few minutes to soften residues.

Can I use metal containers in this microwave oven?

No, metal containers must not be used in a microwave oven as they can cause arcing. Use suitable containers (glass, ceramic, microwave-safe plastic).

How to defrost food with this model?

Use the defrost function. Place food in a suitable dish, select the weight and appropriate program. Turn food halfway through for even defrosting.

What is the microwave power of this appliance?

The power is approximately 1000 W, providing quick and efficient cooking for most dishes.

Does the microwave oven have a child lock?

Yes, most Whirlpool models include a child lock function to prevent unsupervised use. Refer to the manual to activate it.

Where to find the model number on the appliance?

The model number is usually on a label inside the door or on the back of the appliance. For the WMMF5930PW, it also appears on the mounting plate.

What is the warranty of this Whirlpool microwave oven?

The standard warranty is 1 year for parts and labor. Some components may have a longer warranty. Check with your retailer or on the Whirlpool website.

USER MANUAL WMMF5930PW WHIRLPOOL

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030P/KMMF330P/YKMMF330P/WMMF7330R/YWMMF7330R/WMMF7530R/MMMF8030P/YMMMF8030P/KMMF530P/YKMMF530P/KMMF730P/YKMMF730P/JMHF730R/YJMHF730R/JMHF930R/YJMHF930R
Unit of Measurement in cm
Overall Width (A) 30 76
Overall Height (B) 17	78	45.4
Height of the door (C) 15 38.2
Depth with door (D) 12 34 32.4
Depth with door open 90° (E) 41.4 105.3
Depth with door with Bump Out Kit (L hook) (F1) 13.8 35.0
Depth with door with Bump Out Kit (M hook) (F2) 14.3 36.3
Depth with door with Bump Out Kit (N hook) (F3) 14.8 37.6
Depth with door with Bump Out Kit (P hook) (F4) 15.3 38.9
Depth with door with Bump Out Kit (R hook) (F5) 15.8 40.2
Depth with door open 90° with Bump Out Kit (L hook) (G1)	42.5 107.8
Depth with door open 90° with Bump Out Kit (M hook) (G2)	43.0 109.1
Depth with door open 90° with Bump Out Kit (N hook) (G3)	43.5 110.4
Depth with door open 90° with Bump Out Kit (P hook) (G4)	44.0 111.7
Depth with door open 90° with Bump Out Kit (R hook) (G5)	44.5 113.0

A C B

FRONT VIEW

E D Back of Cabinet

SIDE VIEW

Mounting Plate A D E

TOP VIEW

Bump Out Kt A F1~5 G1~5

TOP VIEW WITH BUMP OUT KIT
IMPORTANT: Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

MICROWAVE INTERIOR CAVITY DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030PKMMF330P/YKMMF330P/WMMF7330R/YWMMF7330RWMMF7530R/MMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730P/JMHF730RYJMHF730R/JMHF930R/YJMHF930R
Unit of Measurement in cm
Cavity Height (A) 9.1 23
Cavity Width (B) 18.1 46
Cavity Depth (C) 11 27.9

B A

C Back of Cabinet

CAVITY INTERIOR FRONT VIEW CAVITY INTERIOR SIDE VIEW

MICROWAVE OVEN

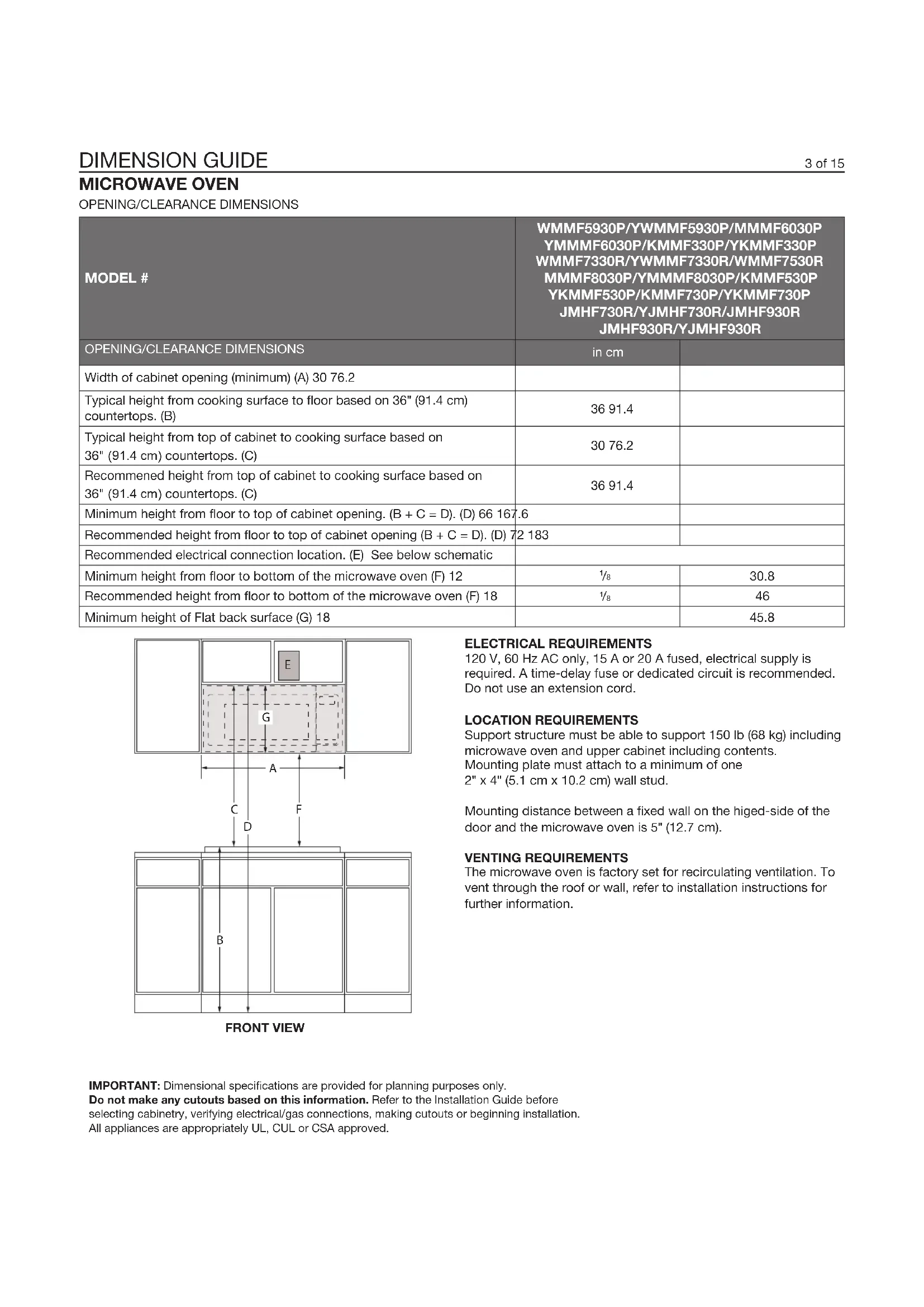

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030PYMMMF6030P/KMMF330P/YKMMF330PWMMF7330R/YWMMF7330R/WMMF7530RMMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730PJMHF730R/YJMHF730R/JMHF930RJMHF930R/YJMHF930R
OPENING/CLEARANCE DIMENSIONS	in cm
Width of cabinet opening (minimum) (A) 30 76.2
Typical height from cooking surface to floor based on 36" (91.4 cm) countertops. (B)	36 91.4
Typical height from top of cabinet to cooking surface based on 36" (91.4 cm) countertops. (C)	30 76.2
Recommended height from top of cabinet to cooking surface based on 36" (91.4 cm) countertops. (C)	36 91.4
Minimum height from floor to top of cabinet opening. (B + C = D). (D) 66 167.6
Recommended height from floor to top of cabinet opening (B + C = D). (D) 72 183
Recommended electrical connection location. (E) See below schematic
Minimum height from floor to bottom of the microwave oven (F) 12	18	30.8
Recommended height from floor to bottom of the microwave oven (F) 18	18	46
Minimum height of Flat back surface (G) 18		45.8

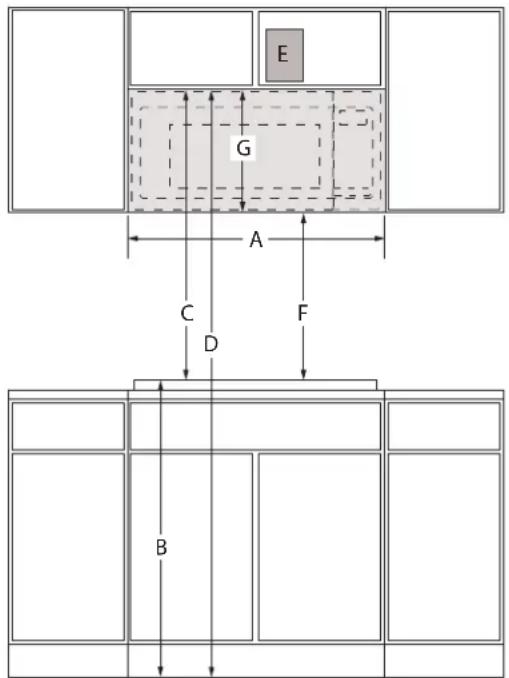

E G A C D F B

FRONT VIEW

ELECTRICAL REQUIREMENTS

120 V, 60 Hz AC only, 15 A or 20 A fused, electrical supply is required. A time-delay fuse or dedicated circuit is recommended. Do not use an extension cord.

LOCATION REQUIREMENTS

Support structure must be able to support 150 lb (68 kg) including microwave oven and upper cabinet including contents. Mounting plate must attach to a minimum of one 2" x 4" (5.1 cm x 10.2 cm) wall stud.

Mounting distance between a fixed wall on the higed-side of the door and the microwave oven is 5" (12.7 cm).

VENTING REQUIREMENTS

The microwave oven is factory set for recirculating ventilation. To vent through the roof or wall, refer to installation instructions for further information.

IMPORTANT: Dimensional specifications are provided for planning purposes only. Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation. All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030PKMMF330P/YKMMF330P/WMMF7330R/YWMMF7330RWMMF7530R/MMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730P/JMHF730RYJMHF730R/JMHF930R/YJMHF930R
Opening/Clearance Measurement in cm
Depth of upper cabinet (minimum-maximum) Stand Out* (A)	12~12.75 30.5~32.4
Depth of upper cabinet (minimum-maximum) Flush* (B)	12.75~13 32.4~33
Depth of upper cabinet (minimum-maximum)* (C)	0.5 1.27
Can this product be installed flush? Flush refers to there appliance not protruding past the cabinet depth. (Y/N)	(A) N(B) Y

*This microwave oven is factory set for 12" (30.5 cm)\~13" (33.02 cm) depth of upper cabinet, install with the provided mouting plate.

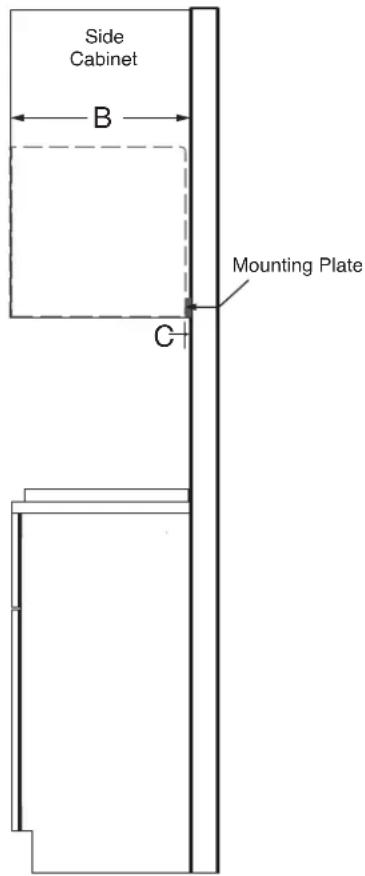

Side Cabinet B Mounting Plate C

SIDE VIEW SIDE VIEW

Mounting Plate

BACK VIEW

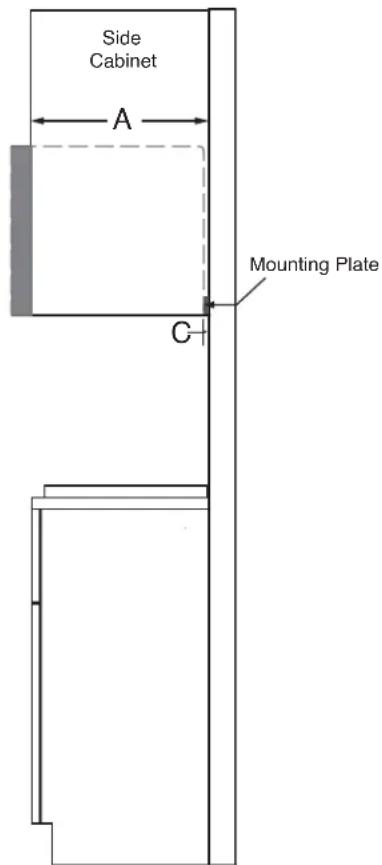

Side Cabinet A Mounting Plate C

IMPORTANT: Dimensional specifications are provided for planning purposes only.

Do not make any cutouts based on this information. Refer to the Installation Guide before

selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.

All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030PYMMMF6030P/KMMF330P/YKMMF330PWMMF7330R/YWMMF7330R/WMMF7530RMMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730PJMHF730R/YJMHF730R/JMHF930R/YJMHF930R
OPENING/CLEARANCE DIMENSIONS	in cm
Depth of upper cabinet (minimum-maximum) Flush* (A1) 13 34 ~14	35~35.6
Depth of upper cabinet (minimum-maximum) Stand out* (A2) 13~	13 34 33~35
Depth of upper cabinet (minimum-maximum) Flush* (B1) 14 14 ~14	12 36.2~36.8
Depth of upper cabinet (minimum-maximum) Stand out* (B2) 14~	14 14 35.6~36.2
Depth of upper cabinet (minimum-maximum) Flush* (C1) 14 34 ~15	37.5~38.1
Depth of upper cabinet (minimum-maximum) Stand out* (C2) 14 12 ~	14 34 36.8~37.5
Depth of upper cabinet (minimum-maximum) Flush* (D1) 15 14 ~15	12 38.7~39.4
Depth of upper cabinet (minimum-maximum) Stand out* (D2) 15~	15 14 38.1~38.7
Depth of upper cabinet (minimum-maximum) Flush* (E1) 15 34 ~16	40~40.6
Depth of upper cabinet (minimum-maximum) Stand out* (E2) 15 12 ~	15 34 39.4~40
Back of the microwave oven to back of the cabinet or Wall (F) 1.5~	3.5 3.8~8.9
Can this product be installed flush? Flush refers to the appliance not protruding past the cabinet depth. (Y/N)	(A1, B1, C1, D1, E1) Y(A2, B2, C2, D2, E2) N

D-Depth of upper cabinet

*For the depth of upper cabinet larger than 13" (33.02 cm), and less than or equal to 16" (40.64 cm) depth of upper cabinet, install with the optional bump out mounting kit W11630300, the bump out mounting kit is not provided, but can purchased from Whirlpool®.

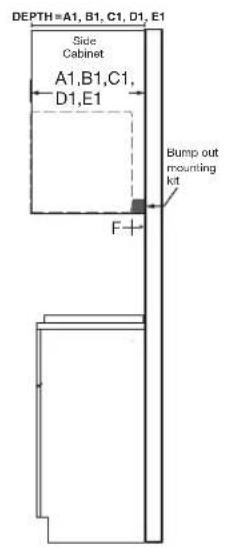

DEPTH=A1, B1, C1, D1, E1 Side Cabinet A1,B1,C1, D1,E1 Bump out mounting kit F

SIDE VIEW

Bump Out Mounting Plate

BACK VIEW

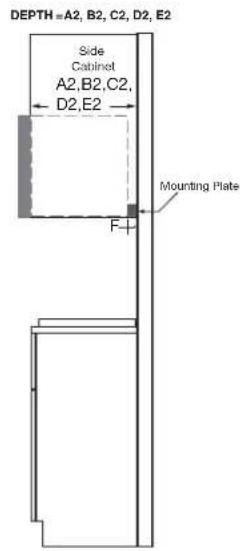

DEPTH=A2, B2, C2, D2, E2 Side Cabinet A2,B2,C2, D2,E2 Mounting Plate F

SIDE VIEW

IMPORTANT: Dimensional specifications are provided for planning purposes only.

Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation. All appliances are appropriately UL, CUL or CSA approved.

FOUR À MICRO-ONDES

DIMENSIONS DU PRODUIT

E G A C D F B

VUE DE FACE

DIMENSIONES DEL PRODUCTO

E G A C D F B

VISTA FRONTAL
