WMMF5930PV - Microwave WHIRLPOOL - Free user manual and instructions

Product Type	Built-in Microwave Oven
Brand	Whirlpool
Model	WMMF5930PV
Total Width	76 cm (30 in)
Total Height	45.4 cm (17 7/8 in)
Depth with Door	32.4 cm (12 3/4 in)
Cavity Dimensions (H x W x D)	23 x 46 x 27.9 cm (9.1 x 18.1 x 11 in)
Approximate Capacity	1.1 cu ft (31 L)
Power Supply	120 V, 60 Hz, 15-20 A
Microwave Power	1000 W (estimated)
Ventilation Type	Recirculation or Top/Wall Exhaust
Approximate Weight	22.7 kg (50 lb)
Color	Stainless Steel
Certifications	UL, CUL or CSA
Installation	Built-in under cabinet or on shelf
Main Functions	Microwave, ventilation, lighting
Maintenance	Clean with a damp cloth and mild detergent
Safety	Child lock, automatic shut-off
Spare Parts	Available on Whirlpool website
Repairability	Repairability index not communicated

Frequently Asked Questions - WMMF5930PV WHIRLPOOL

What are the exact dimensions of the Whirlpool WMMF5930PV microwave oven?

The dimensions are: width 76 cm, height 45.4 cm, depth with door 32.4 cm. The interior cavity measures 23 x 46 x 27.9 cm.

What is the capacity of this microwave oven?

The approximate capacity is 1.1 cu ft (31 liters), which is suitable for standard dishes.

What power supply is required?

The oven requires a 120 V, 60 Hz outlet on a dedicated 15 or 20 amp circuit. Do not use an extension cord.

Can I install this microwave above a range?

Yes, it is designed for installation above a range with a typical cooking surface height of 91.4 cm. The recommended distance from the floor to the bottom of the microwave is 46 cm.

Can the microwave exhaust air to the outside?

Yes, it is configurable for recirculation or top or wall exhaust. Consult the installation guide for adaptations.

How to clean the interior of the microwave?

Use a damp cloth with a mild detergent. Avoid abrasive products. For odors, place a bowl of lemon water and heat for 2 minutes.

Is there a child lock?

Yes, most Whirlpool models include a child lock function to prevent unsupervised use.

What is the microwave power?

The power is estimated at 1000 W (not specified in the manual, typical value for this range).

Where to find spare parts?

Spare parts are available on the official Whirlpool website or from authorized dealers.

What to do if the microwave does not heat?

First check the power supply and fuse. Make sure the door is properly closed. If the problem persists, contact customer service.

USER MANUAL WMMF5930PV WHIRLPOOL

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030P/KMMF330P/YKMMF330P/WMMF7330R/YWMMF7330R/WMMF7530R/MMMF8030P/YMMMF8030P/KMMF530P/YKMMF530P/KMMF730P/YKMMF730P/JMHF730R/YJMHF730R/JMHF930R/YJMHF930R
Unit of Measurement in cm
Overall Width (A) 30 76
Overall Height (B) 17	78	45.4
Height of the door (C) 15 38.2
Depth with door (D) 12 34 32.4
Depth with door open 90° (E) 41.4 105.3
Depth with door with Bump Out Kit (L hook) (F1) 13.8 35.0
Depth with door with Bump Out Kit (M hook) (F2) 14.3 36.3
Depth with door with Bump Out Kit (N hook) (F3) 14.8 37.6
Depth with door with Bump Out Kit (P hook) (F4) 15.3 38.9
Depth with door with Bump Out Kit (R hook) (F5) 15.8 40.2
Depth with door open 90° with Bump Out Kit (L hook) (G1)	42.5 107.8
Depth with door open 90° with Bump Out Kit (M hook) (G2)	43.0 109.1
Depth with door open 90° with Bump Out Kit (N hook) (G3)	43.5 110.4
Depth with door open 90° with Bump Out Kit (P hook) (G4)	44.0 111.7
Depth with door open 90° with Bump Out Kit (R hook) (G5)	44.5 113.0

A C B

FRONT VIEW

E D Back of Cabinet

SIDE VIEW

Mounting Plate A D E

TOP VIEW

Bump Out Kf A F1~5 G1~5

TOP VIEW WITH BUMP OUT KIT
IMPORTANT: Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

MICROWAVE INTERIOR CAVITY DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030PKMMF330P/YKMMF330P/WMMF7330R/YWMMF7330RWMMF7530R/MMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730P/JMHF730RYJMHF730R/JMHF930R/YJMHF930R
Unit of Measurement in cm
Cavity Height (A) 9.1 23
Cavity Width (B) 18.1 46
Cavity Depth (C) 11 27.9

B A

C Back of Cabinet

CAVITY INTERIOR FRONT VIEW CAVITY INTERIOR SIDE VIEW

MICROWAVE OVEN

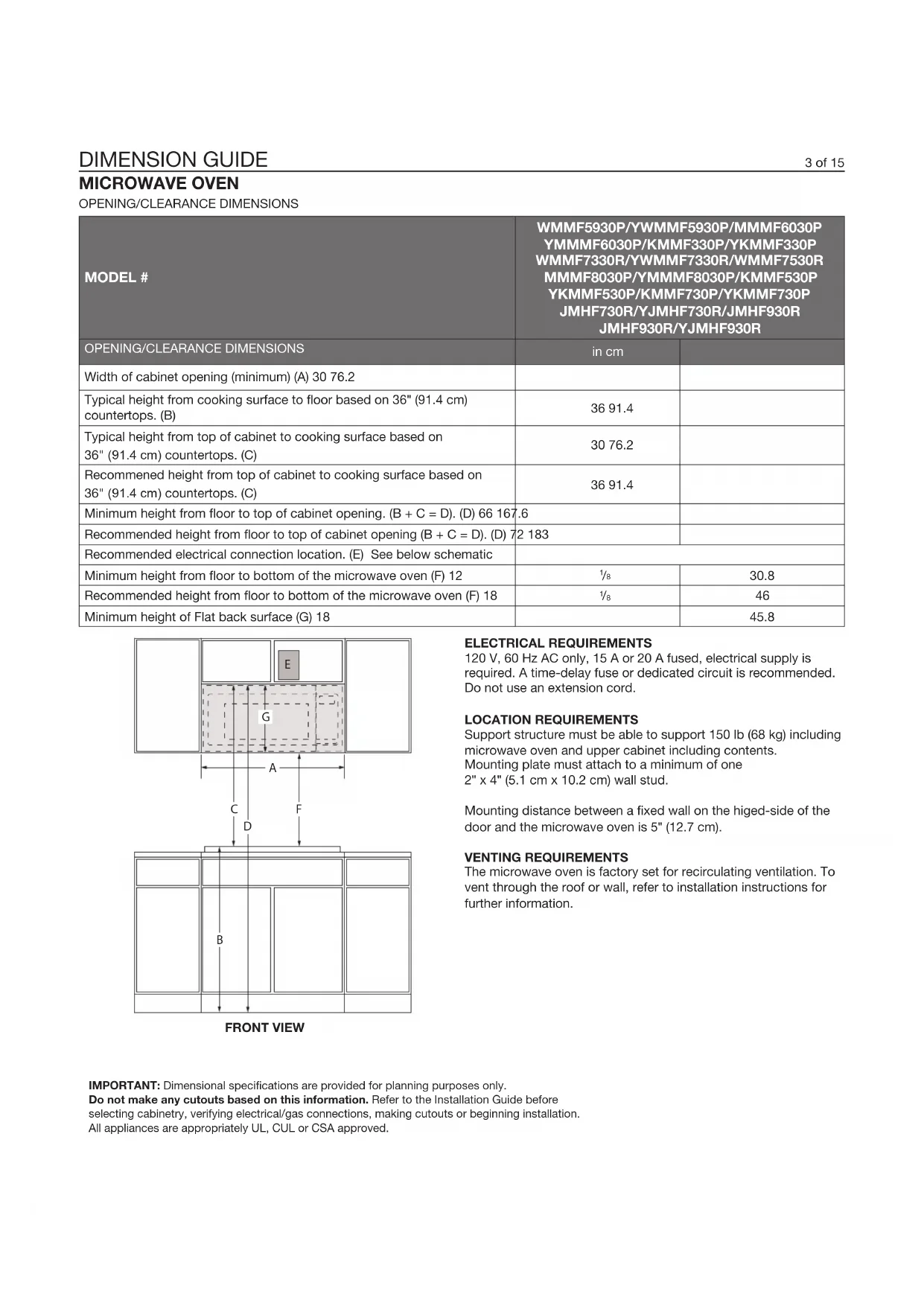

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030PYMMMF6030P/KMMF330P/YKMMF330PWMMF7330R/YWMMF7330R/WMMF7530RMMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730PJMHF730R/YJMHF730R/JMHF930RJMHF930R/YJMHF930R
OPENING/CLEARANCE DIMENSIONS	in cm
Width of cabinet opening (minimum) (A) 30 76.2
Typical height from cooking surface to floor based on 36" (91.4 cm) countertops. (B)	36 91.4
Typical height from top of cabinet to cooking surface based on 36" (91.4 cm) countertops. (C)	30 76.2
Recommended height from top of cabinet to cooking surface based on 36" (91.4 cm) countertops. (C)	36 91.4
Minimum height from floor to top of cabinet opening. (B + C = D). (D) 66 167.6
Recommended height from floor to top of cabinet opening (B + C = D). (D) 72 183
Recommended electrical connection location. (E) See below schematic
Minimum height from floor to bottom of the microwave oven (F) 12	18	30.8
Recommended height from floor to bottom of the microwave oven (F) 18	18	46
Minimum height of Flat back surface (G) 18		45.8

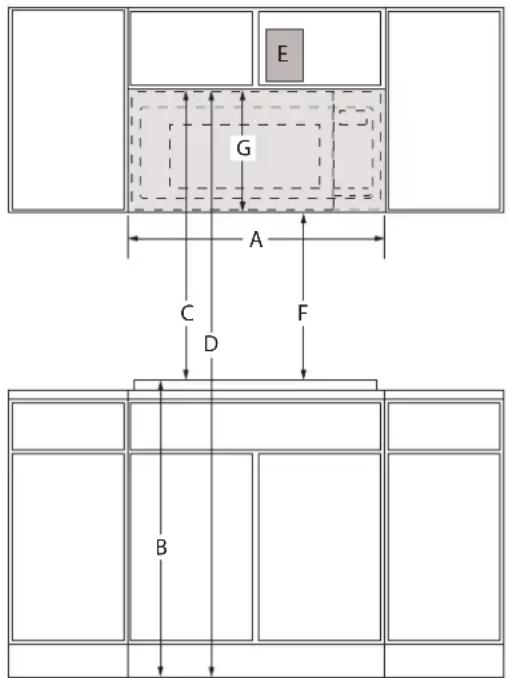

E G A C D F B

FRONT VIEW

ELECTRICAL REQUIREMENTS

120 V, 60 Hz AC only, 15 A or 20 A fused, electrical supply is required. A time-delay fuse or dedicated circuit is recommended. Do not use an extension cord.

LOCATION REQUIREMENTS

Support structure must be able to support 150 lb (68 kg) including microwave oven and upper cabinet including contents. Mounting plate must attach to a minimum of one 2" x 4" (5.1 cm x 10.2 cm) wall stud.

Mounting distance between a fixed wall on the higed-side of the door and the microwave oven is 5" (12.7 cm).

VENTING REQUIREMENTS

The microwave oven is factory set for recirculating ventilation. To vent through the roof or wall, refer to installation instructions for further information.

IMPORTANT: Dimensional specifications are provided for planning purposes only. Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation. All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030PKMMF330P/YKMMF330P/WMMF7330R/YWMMF7330RWMMF7530R/MMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730P/JMHF730RYJMHF730R/JMHF930R/YJMHF930R
Opening/Clearance Measurement in cm
Depth of upper cabinet (minimum-maximum) Stand Out* (A)	12~12.75 30.5~32.4
Depth of upper cabinet (minimum-maximum) Flush* (B)	12.75~13 32.4~33
Depth of upper cabinet (minimum-maximum)* (C)	0.5 1.27
Can this product be installed flush? Flush refers to there appliance not protruding past the cabinet depth. (Y/N)	(A) N(B) Y

*This microwave oven is factory set for 12" (30.5 cm)\~13" (33.02 cm) depth of upper cabinet, install with the provided mouting plate.

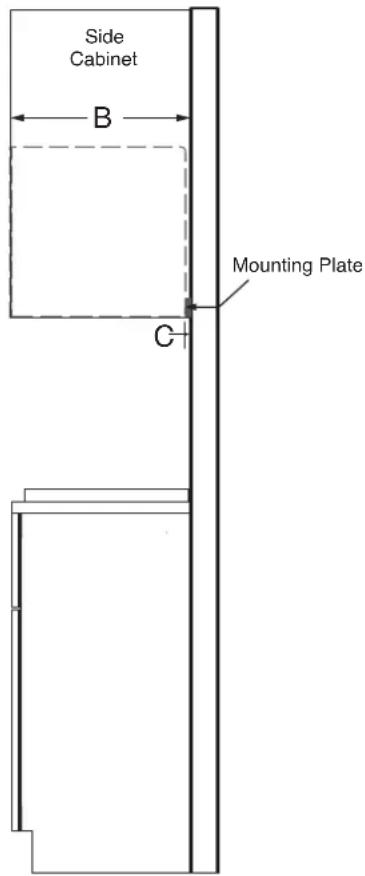

Side Cabinet B Mounting Plate C

SIDE VIEW SIDE VIEW

Mounting Plate

BACK VIEW

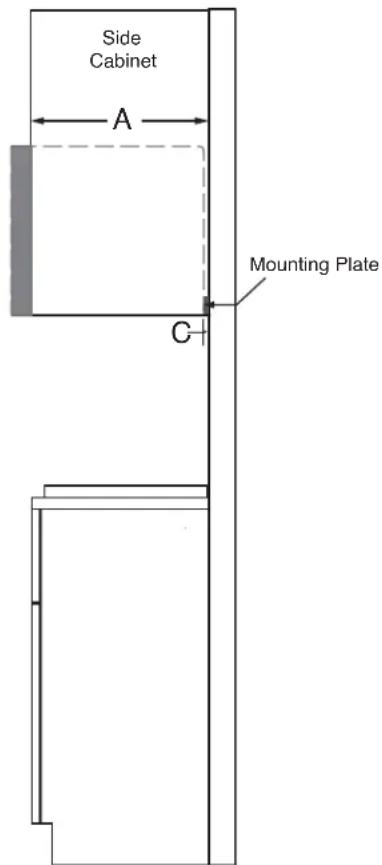

Side Cabinet A Mounting Plate C

IMPORTANT: Dimensional specifications are provided for planning purposes only.

Do not make any cutouts based on this information. Refer to the Installation Guide before

selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.

All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030PYMMMF6030P/KMMF330P/YKMMF330PWMMF7330R/YWMMF7330R/WMMF7530RMMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730PJMHF730R/YJMHF730R/JMHF930R/YJMHF930R
OPENING/CLEARANCE DIMENSIONS	in cm
Depth of upper cabinet (minimum-maximum) Flush* (A1) 13 34 ~14	35~35.6
Depth of upper cabinet (minimum-maximum) Stand out* (A2) 13~	13 34 33~35
Depth of upper cabinet (minimum-maximum) Flush* (B1) 14 14 ~14	12 36.2~36.8
Depth of upper cabinet (minimum-maximum) Stand out* (B2) 14~	14 14 35.6~36.2
Depth of upper cabinet (minimum-maximum) Flush* (C1) 14 34 ~15	37.5~38.1
Depth of upper cabinet (minimum-maximum) Stand out* (C2) 14 12	~14 34 36.8~37.5
Depth of upper cabinet (minimum-maximum) Flush* (D1) 15 14 ~15	12 38.7~39.4
Depth of upper cabinet (minimum-maximum) Stand out* (D2) 15~	15 14 38.1~38.7
Depth of upper cabinet (minimum-maximum) Flush* (E1) 15 34 ~16	40~40.6
Depth of upper cabinet (minimum-maximum) Stand out* (E2) 15 12	~15 34 39.4~40
Back of the microwave oven to back of the cabinet or Wall (F) 1.5	~3.5 3.8~8.9
Can this product be installed flush? Flush refers to the appliance not protruding past the cabinet depth. (Y/N)	(A1, B1, C1, D1, E1) Y(A2, B2, C2, D2, E2) N

D-Depth of upper cabinet

*For the depth of upper cabinet larger than 13" (33.02 cm), and less than or equal to 16" (40.64 cm) depth of upper cabinet, install with the optional bump out mounting kit W11630300, the bump out mounting kit is not provided, but can purchased from Whirlpool®.

DEPTH=A1, B1, C1, D1, E1 Side Cabinet A1,B1,C1, D1,E1 Bump out mounting kit F+

SIDE VIEW

Bump Out Mounting Plate

BACK VIEW

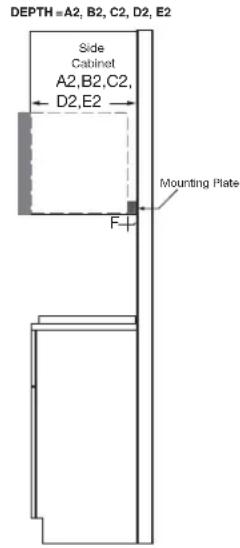

DEPTH=A2, B2, C2, D2, E2 Side Cabinet A2,B2,C2, D2,E2 Mounting Plate F

SIDE VIEW

IMPORTANT: Dimensional specifications are provided for planning purposes only.

Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.

All appliances are appropriately UL, CUL or CSA approved.
