USER MANUAL RCHI02 Royal Catering

Manufacturer Address

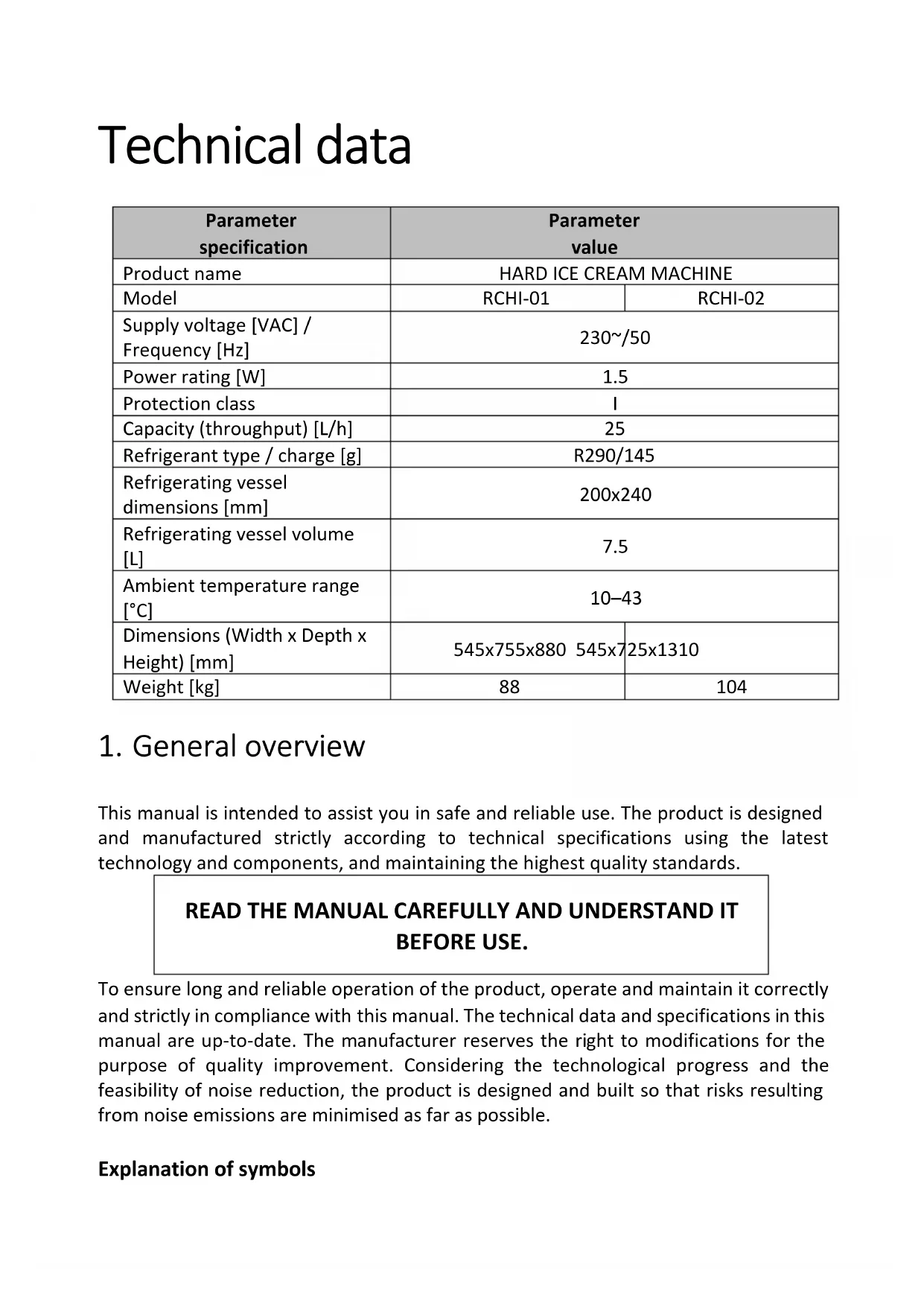

Model RCHI-01 RCHI-02 Supply voltage [VAC] / Frequency [Hz] 230~/50 Power rating [W]

Capacity (throughput) [L/h]

Ambient temperature range [°C] 10–43 Dimensions (Width x Depth x Height) [mm] 545x755x880 545x725x1310 Weight [kg]

This manual is intended to assist you in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components, and maintaining the highest quality standards. READ THE MANUAL CAREFULLY AND UNDERSTAND IT BEFORE USE. To ensure long and reliable operation of the product, operate and maintain it correctly and strictly in compliance with this manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to modifications for the purpose of quality improvement. Considering the technological progress and the feasibility of noise reduction, the product is designed and built so that risks resulting from noise emissions are minimised as far as possible. Explanation of symbolsThe product meets the requirements of relevant safety standards. Read the manual before use.

CAUTION! or WARNING! or REMEMBER! indicates a specific instruction General warning sign.

CAUTION! Risk of electric shock!

For indoor use only. NOTE! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

The original version of the manual is in German language. Other language versions are translations from German

CAUTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or death.

The term “appliance” or “product” in the warnings and instructions refers to the HARD ICE CREAM MACHINE.2.1. Electrical safety a) The appliance power cord plug must fit into the mains outlet. Do not modify the plug in any way. Original power cord plugs and matching mains outlets reduce the risk of electric shock. b) Avoid touching earthed objects, like piping, radiators, heaters, and refrigerators. There is an increased risk of electric shock if your body is earthed and touching the appliance exposed to direct rain, a wet floor or while operating in a humid environment. If water penetrates into the appliance, there is an increased risk of damage to the appliance and electric shock. c) Do not use the power cord in any unintended way. Never use it to carry the appliance or to unplug it from the mains outlet. Keep the power cord away from sources of heat, oil, sharp edges or moving parts. Damaged or tangled cords increase the risk of electric shock. d) If you cannot avoid using the appliance in a wet environment, use a residual current device (RCD) to connect the appliance to electrical mains. Using an RCD reduces the risk of electric shock. e) Do not use the appliance if the power cord is damaged or shows evidence of wear. Have a damaged power cord replaced by a qualified electrician or the manufacturer’s technical service. f) To avoid electric shock, do not immerse the power cable, its plug or the appliance itself in water or other liquid. Do not use the appliance on wet surfaces. 2.2. Workplace safety a) Keep the workplace tidy and well lit. Disorder or poor lighting can lead to accidents. Be careful, watch what you are doing and use common sense when working with the appliance. b) In the event of damage or malfunction of the appliance, turn it off immediately and report the incident to authorised personnel. c) If in doubt as to whether the appliance is working, contact the manufacturer’s technical service. d) Repairs to the appliance may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own! e) In the event of ignition or a fire, use dry powder or CO2 extinguishers only to suppress the fire of the appliance if live with electrical voltage. f) No children or unauthorised individuals shall be allowed at the workplace. g) Check the condition of the safety warning stickers regularly. Replace them if they are illegible. h) Keep this manual for future reference. If the product is to be handed over to a third party, hand it over with this user manual.

i) Keep packaging components and small installation parts out of the reach of

children.Remember! Keep children and other bystanders safe while operating this product.

2.3. Personal safety a) Do not operate the product if you are tired, ill or under the influence of alcohol, drugs or medication which might significantly impair your ability to operate the product. b) The product is not intended to be used by individuals (including children) with reduced mental, sensory or intellectual capacity or lack of experience and/or knowledge, unless they are supervised by an individual responsible for their safety or have been given instructions by the responsible individual on how to operate the product. c) The appliance may only be operated by individuals who are physically fit, capable of handling the appliance and who have been adequately trained, have read this manual and have received training in health and safety. d) To prevent accidental operation, make sure the power switch is OFF before connecting the appliance to mains power. e) The appliance is not a toy. Children must be supervised to ensure that they do not play with it. 2.4. Safe use of the product a) Do not use the appliance if the power switch does not function properly (does not switch on or off). Appliances which cannot be controlled with their power switches are dangerous, shall not be operated and must be repaired. b) Before adjustment, replacement of any accessories or storing the appliance, unplug it from the mains. This safety precaution reduces the risk of accidental operation. c) Keep unused appliances out of the reach of children and anyone unfamiliar with the appliance or this manual. Appliances are dangerous in the hands of inexperienced users. d) Keep the product in good working order. Before each use, check for generally evident damage and damage to any of the moving parts (inspect for cracks in parts and components or any other condition that may affect the safe operation of the product). If damaged, have the product repaired before use. e) Keep the product out of the reach of children. f) The product shall be repaired and maintained by qualified personnel using original spare parts only. This will ensure safe operation of the product. g) To ensure the designed operational integrity of the product, do not remove the factory-installed covers or loosen any bolts.h) When transporting and handling the appliance from storage to the place of use, follow the health and safety regulations for manual handling that apply in the country of operation of the appliance.

i) Avoid stopping the appliance with heavy loads. This can cause overheating of

the drive elements and result in damage to the appliance. j) Clean the appliance regularly to prevent permanent deposits of dirt. k) The appliance is not a toy. Cleaning and maintenance shall not be performed by children without adult supervision. l) Never attempt to tamper with the appliance to change its parameters or structure. m) Keep the appliance away from sources of fire and heat. n) Do not cover the vents of the appliance! o) o) Caution! Do not leave any water in the vessel after cleaning. Otherwise, ice may form and cause the motor to stall and fail. p) p) Operate, handle, and transport this appliance in upright orientation only. Do not tilt the appliance sideways by more than 45°. q) Do not operate any electric appliances not provided for by the manufacturer in any of the compartments of this appliance. r) Do not operate any mechanical tools to remove ice from the the refrigerating compartment interior or other implements, appliances or chemicals to accelerate the defrosting. s) Once the appliance has been delivered to its destination and before plugging it into the mains, leave it upright for 24 h, until the refrigerant gas inside becomes stable. t) Connect the power cord plug directly to an mains outlet. Do not connect to mains power via any extension cords. u) CAUTION! The R290 refrigerant is a flammable and explosive gas. Maintenance of this appliance shall only be done by qualified professionals!

CAUTION! Although the appliance has been designed to be safe and has been provided with adequate safeguards, and despite the use of additional safety measures, there is still a low, residual risk of accident or injury during its operation. Caution and common sense are advised when using the product.

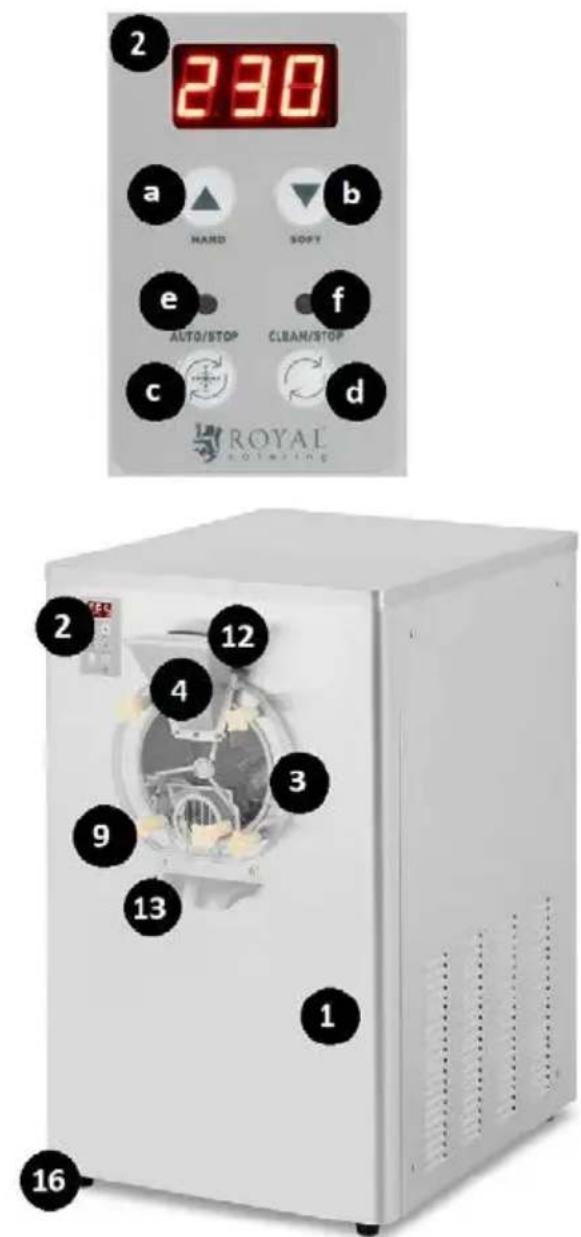

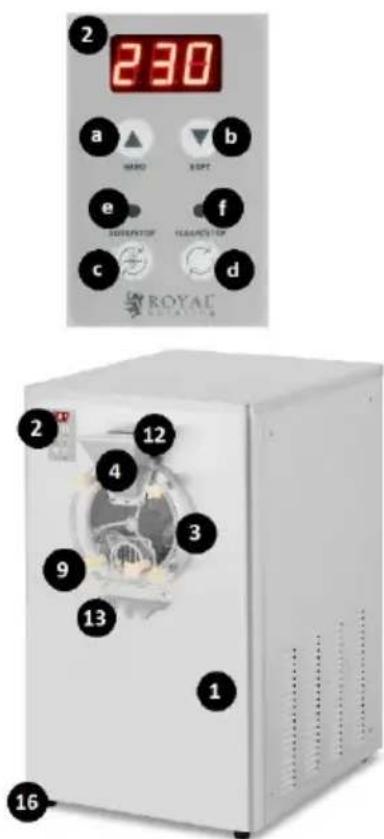

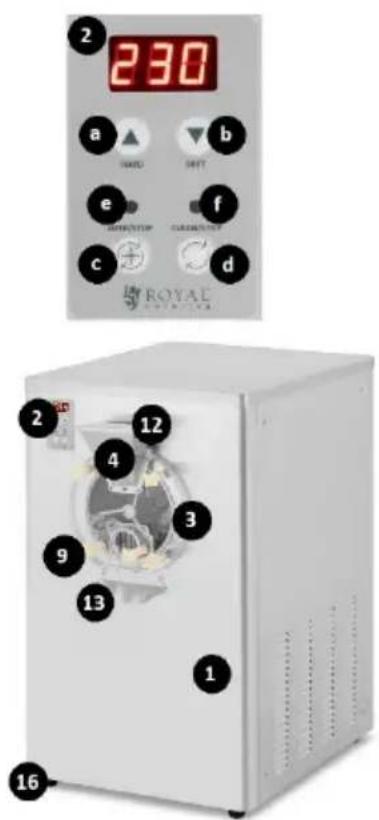

This appliance is intended to make ice cream from a suitably prepared input batch of products. The user is responsible for any damage caused by non-intended use.3.1. Appliance overview

1 – Housing 2 – Control panel: a) Increase setting key (“HARD”) b) Reduce setting key (“SOFT”)

Batch cooling on/off key (“AUTO/STOP”)

Compartment cleaning on/off key (“CLEAN/STOP”) e) Cooling run LED indicator f) Cleaning run LED indicator 3 – Refrigerating compartment door 4 – Feeder chute 9 – Thumb screws 12 – Feeder chute guard 13 – Dispenser 14 – Base (Model RCHI-02) 15 – Handling wheels (Model RCHI-02) 16 – Non-slip base (Model RCHI-01)3.2. Preparations for operation

POSITIONING THE APPLIANCE

The ambient temperature shall be within +10 – +43°C at the place of operation. Position the appliance where good air circulation is ensured. Maintain a minimum clearance of 50 cm from all sides of the appliance. Keep the appliance away from any hot surfaces. Always operate the appliance on a level, firm, clean, fireproof, and dry surface and out of the reach of children and individuals with reduced mental, sensory and intellectual capacities. Position the appliance where the mains plug can be reached at any time. Make sure that the mains power ratings match the data on the rating plate! Prior to first use disassemble all elements and wash them.

INSTALLING THE APPLIANCE

5 – Stirrer 6 – Refrigerating compartment door gasket 7 – Dispensing port gasket 8 – Dispensing port guard 9 – Thumb screws 10 – Stirrer gasket (x5) 11 – Refrigerating compartment

a) Place the dedicated gaskets (10 – set of 5 pcs. is included) over the stirrer (5) arms. b) Install the stirrer (5) inside the refrigerating compartment. c) Install the door gasket (6) in the recess of the refrigerating compartment door (3) and mount the door on the front of the appliance. Do this by passing the integrated locating pins through the holes in the refrigerating compartment door (3). Secure the assembly with the thumb screws (9). d) Set the dispensing port gasket (7) inside of the dispensing port (8). Attach the assembly to the refrigerating compartment door (3). Do this by passing the integrated locating pins through the holes in the dispensing port guard (8). Secure the assembly with the thumb screws (9). e) Disassembly is done in reverse order of assembly.3.3. Operating the appliance Before operating this appliance, verify the installation process has been correctly done and connect the power cord plug to a mains outlet. Refer to the device parameters and functions. Turn on the appliance and set the desired parameters as described below. Start the operation by running the stirrer drive unit: you can switch the compartment cleaning on/off key (“CLEAN/STOP”) (d) to “CLEAN” or start the stirrer drive unit with refrigeration by switching the batch cooling on/off key (“AUTO/STOP”) (c) to “AUTO”. When done, unplug the appliance from the mains. CAUTION! This appliance features an overcurrent trip. If the current load of the appliance reaches its trip limit, the the drive unit will automatically stop to ensure safety.

3.3.1. RUNNING TIME SETTINGS

The default running time is set to 30 minutes. Modifying the running time setting: a) Press and hold the increase setting key (“HARD”) (a) for approx. 5 seconds. The appliance control system enters the setting mode. b) The LCD display will cycle through the parameters. c) Operate the setting keys (a) and (b) to specify the desired running time. Each selection of the value returns a beep. d) CAUTION! The user can enter the setting in 1-minute increments. A single press of either of the setting keys changes the value by 1 minute. Pressing and holding a setting key scrolls through the setting values. e) You can set the running time anywhere from 5 minutes to 50 minutes. f) CAUTION! A longer running time setting results in a harder batch.

3.3.2. CLEANING THE REFRIGERATING COMPARTMENT

Before operating the appliance and finishing the operation, always clean the refrigerating compartment and its parts. The procedure: a) Fill the refrigerating compartment (11) with water. Lift the feeder chute guard (12) and feed the required volume of cleaning detergent through the inlet. Secure the feeder chute by replacing the guard (12). b) Switch the compartment cleaning on/off key (“CLEAN/STOP”) (d) to “CLEAN”. The LED indicator (f) comes on. c) A correct cleaning cycle needs at least 3 minutes to run. d) When done cleaning, stop the cleaning mode by switching the compartment cleaning on/off key (“CLEAN/STOP”) (d) to “STOP”. The LED indicator (f) will go off. e) Remove the dispensing port guard (8). Allow the wash water to drain from the compartment. Once empty, reinstall the dispensing port guard (8). f) Repeat the cleaning steps above 2-3 times. g) Remove the refrigerating compartment door (3) and the stirrer (5). Clean the parts with a dedicated food-approved detergent.h) Once the parts are dry and reinstalled, you can operate the appliance again.

3.3.3. APPLIANCE OPERATION

a) Set the running time as explained in Section 3.3.1. b) Prepare the product batch and charge it through the feeder chute (4) into the refrigerating compartment (11). c) Keep the batch level between the MIN and MAX marks. Never attempt to operate the appliance if the batch level is below MIN or above MAX, both shown on the refrigerating compartment door (3). d) With the refrigerating compartment (11) filled to a correct level, secure the feeder chute (4) by replacing its guard (12). e) CAUTION! Do not operate the refrigerating system of this appliance with the refrigerating compartment (11) empty. Risk of failure! f) Start the stirrer drive unit to mix the batch. Switch the compartment cleaning on/off key (“CLEAN/STOP”) (d) to “CLEAN”. The LED indicator (f) comes on. g) The batch should be mixed for approx. 1 minute. h) Run the refrigerating system. Switch the batch cooling on/off key (“AUTO/STOP”) (c) to “AUTO”.

i) CAUTION! When in “AUTO” the batch cooling on/off key (“AUTO/STOP”) (c)

first starts the stirrer drive unit; after 30 seconds, the refrigerating system comes on. j) Place a container below the dispensing port to collect the ice cream. Unlock the dispensing port guard (8) to let the product flow out freely. 3.4. Cleaning and maintenance a) Before cleaning and when the appliance is not in use, unplug it from the mains. b) Only mild cleaning agents intended for surfaces in contact with food shall be used to clean the appliance. c) After each cleaning, dry all components well before the appliance is used again. d) Store the appliance in a dry and cool place, protected from moisture and direct sunlight. e) Do not spray the appliance with a stream of water and do not immerse it in water. f) Ensure that water will not enter through the ventilation ports in the housing. g) Clean the ventilation ports with a brush and compressed air. h) Regularly inspect the appliance for technical defects and damage.

i) Use a soft cloth for cleaning.

j) Do not clean with any sharp and/or metal implements (e.g. a wire brush or a metal scraper) as these may damage the surface of the appliance. k) Do not clean the appliance with acidic substances, medical products, thinners, fuel, oil or other chemicals as they may damage it. DISPOSAL OF WASTE APPLIANCESAt the end of its service life, this product must not be disposed of with mixed household waste; return it to a collector/recycler of waste electrical and electronic equipment. This is shown by the symbol placed on the product, the user manual or the packaging. The materials used in the appliance can be reused according to their classification identifications. By reuse, recycling or applying other forms of use of waste appliances, you make a significant contribution to the protection of our environment. Local administration will provide you with the information about the nearest disposal locations for the appliance. TROUBLESHOOTING Problem Possible cause Action The display reads “UH” Incorrect supply voltage. Verify the supply voltage is correct. The display reads “UL”Dane techniczne Opis parametru Wartość parametru Nazwa produktu
