Product type	Passive line splitter
Number of channels	2
Inputs	2 x XLR female balanced (INPUT 1, INPUT 2)
Outputs	4 x XLR male balanced (OUTPUT 1A, 1B, 2A, 2B)
THRU returns	2 x XLR female (THRU 1, THRU 2)
Galvanic isolation	Yes, by audio transformers
Ground Lift switch	Yes, LIFT/GND switch
Housing	Die-cast aluminium monoblock
Dimensions (H x W x D)	140 x 50 x 128 mm
Weight	0.805 kg
Max input level (20 Hz, <1% THD)	+20 dBu
Max input level (1 kHz, <1% THD)	+32 dBu
Frequency response (±2 dB)	10 Hz - 30 kHz
Input impedance (1 kHz)	6.8 kΩ
Output impedance (1 kHz)	500 Ω
THD (30 Hz, +4 dBu)	< 1 %
THD (1 kHz, +4 dBu)	< 0.02 %
IMD (SMPTE)	< 0.01 %
Transformation ratio	1:1:1
Operating temperature	-20°C to +70°C
Relative humidity	< 80% non-condensing
Included accessories	Rubber feet, identification label

Frequently Asked Questions - Peene Palmer

How to connect the Palmer Peene?

Connect your audio source to the INPUT 1 and 2 inputs (XLR female). Use the OUTPUT 1A/1B and 2A/2B outputs (XLR male) to feed your amplifiers or speakers. The THRU 1 and THRU 2 returns allow you to link the source to other devices without alteration.

What is the Ground Lift switch (LIFT/GND) for?

The Ground Lift switch interrupts the ground connection between input and output. In case of hum (ground loop), activate it to eliminate noise. Depending on the configuration, either the up or down position may solve the issue.

Is this splitter active or passive?

The Palmer Peene is a passive splitter; it does not require power. It uses high-quality isolation transformers to ensure clean audio transmission.

Can I use microphone cables for connections?

Yes, use balanced audio cables (such as microphone cables) to connect the splitter to the balanced inputs of your amplifiers or other devices.

What is the maximum input level?

The maximum input level is +20 dBu at 20 Hz (THD < 1%) and +32 dBu at 1 kHz (THD < 1%). This allows handling strong line signals without distortion.

How to avoid hum?

Avoid placing the splitter near strong magnetic fields (power transformers, etc.). Use the Ground Lift switch to eliminate ground loops. Ensure all cables are in good condition and balanced.

Is the Palmer Peene suitable for home use?

No, this product is designed for professional use in studio, stage, radio and TV. It is not intended for home use and should be handled by qualified users.

What accessories are included?

The product comes with non-slip rubber feet and identification labels to mark connections.

How to maintain the splitter?

No special maintenance is required. Do not open the device. Clean the exterior with a dry, soft cloth. Protect it from moisture and shocks.

What to do in case of failure?

Contact your dealer or the manufacturer (Adam Hall GmbH) using the contact information provided in the manual. Check warranty conditions at www.adamhall.com.

USER MANUAL Peene Palmer

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation

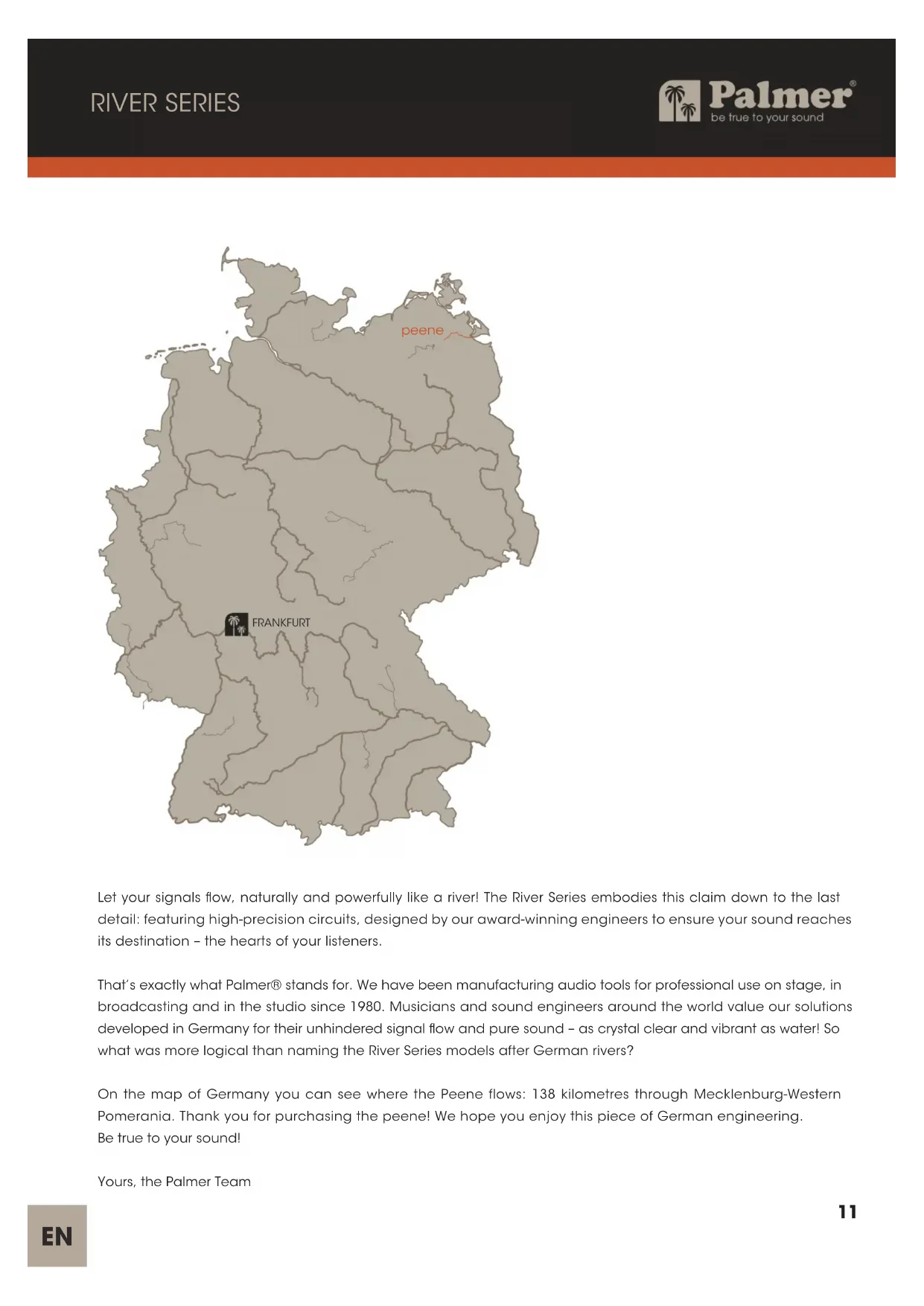

Let your signals flow, naturally and powerfully like a river! The River Series embodies this claim down to the last detail: featuring high-precision circuits, designed by our award-winning engineers to ensure your sound reaches its destination - the hearts of your listeners.

That's exactly what Palmer® stands for. We have been manufacturing audio tools for professional use on stage, in broadcasting and in the studio since 1980. Musicians and sound engineers around the world value our solutions developed in Germany for their unhindered signal flow and pure sound - as crystal clear and vibrant as water! So what was more logical than naming the River Series models after German rivers?

On the map of Germany you can see where the Peene flows: 138 kilometres through Mecklenburg-Western Pomerania. Thank you for purchasing the peene! We hope you enjoy this piece of German engineering. Be true to your sound!

Yours, the Palmer Team

peene

2-channel line splitter passive

INTENDED USE

This product is a device for event technology, as well as studio, TV and broadcast!

This product has been developed for professional use in the fields of event technology, studio, TV and broadcast. It is not suitable for household use!

Furthermore, this product is only intended for qualified users with specialist knowledge of event technology, as well as studio, TV and broadcast!

Use of the product outside the specified technical data and operating conditions is considered inappropriate! Liability for damage and third-party damage to persons and property due to inappropriate use is excluded!

The product is not suitable for:

Persons (including children) with limited physical, sensory or mental abilities or lack of experience and knowledge.
Children (children must be instructed not to play with the device).

SAFETY INSTRUCTIONS

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Use the device in the prescribed manner only.
5. Do not open the device and do not perform any modifications.

CHOKING HAZARD! KEEP OUT OF THE REACH OF CHILDREN! THE PRODUCT CONTAINS SMALL PARTS AND PACKAGING MATERIAL THAT CAN BE SWALLOWED! PLASTIC BAGS MUST BE KEPT OUT OF THE REACH OF CHILDREN!

INTRODUCTION

A line splitter is used when a signal source is to be split to several outputs, for example to control several power amplifiers or active speakers in different rooms. By using generously dimensioned isolating transformers, the sound remains unaffected, but hum loops are safely excluded.

peene

2-channel line splitter passive

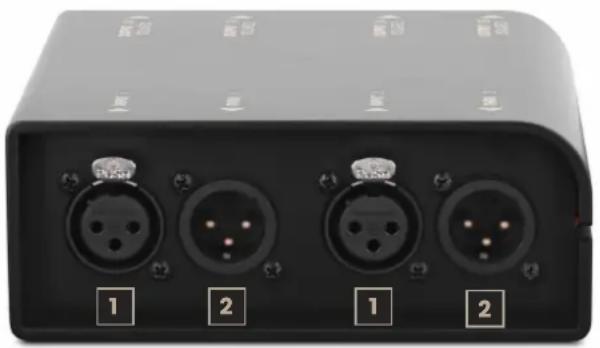

CONNECTIONS AND OPERATING ELEMENTS

1. INPUT 1 / INPUT 2

Balanced line inputs with female 3-pin XLR sockets for channel 1 and 2.

2. THRU 1 / THRU 2

Balanced line outputs with male 3-pin XLR connectors. THRU 1 is wired directly to INPUT 1 and THRU 2 is wired directly to INPUT 2.

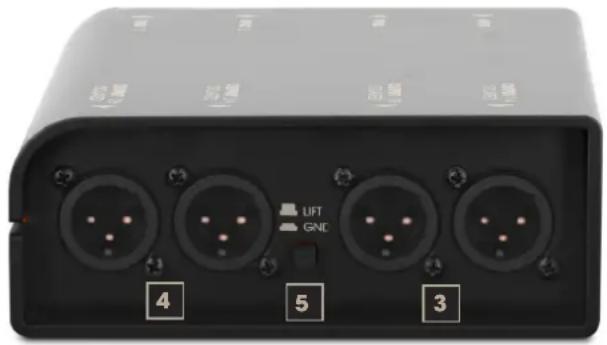

3. OUTPUT 1A / 1B

Balanced line outputs with male 3-pin XLR sockets for channel 1. Output A and output B are each decoupled from the line input by the use of high-quality isolating transformers. Use balanced audio cables (e.g. microphone cables) to connect the line splitter to a balanced input of a power amplifier or similar.

4. OUTPUT 2A / 2B

Balanced line outputs with male 3-pin XLR sockets for channel 2. Output A and output B are each decoupled from the line input by the use of high-quality isolating transformers. Use balanced audio cables (e.g. microphone cables) to connect the line splitter to a balanced input of a power amplifier or similar.

5.LIFT/GND

Switch for disconnecting the ground connection of the inputs and outputs (ground lift). In the non-pressed position, the ground connection is disconnected; the connection is established when the switch is pressed. The ability to prevent a humming loop using the ground lift switch depends on the grounding of the connected device. It is therefore possible that the switch is able to effectively reduce or eliminate humming when it is either up or down, depending on circumstances.

CAUTION: Connecting signal cables can cause considerable noise. Pay attention to this, and make sure that input channels (mixer, audio interface, etc.) are muted when plugged in. Otherwise, noise levels can cause damage.

NOTE: Strong magnetic fields can cause humming. Therefore, do not position the line splitter near strong magnetic fields (e.g. mains transformer).

WIRING EXAMPLE

TECHNICAL DATA

GENERAL

Product number PPEENE
Product type Line Splitter
No. of channels 2
Type passive
Transformer isolated yes
No. of inputs 2
Input type balanced
Input connections XLR
No. of outputs 4
Output type balanced
Output connections XLR
Ground/lift switch yes
Housing Aluminium continuous casting
Dimensions (H/W/D) 140 x 50 x 128 mm
Weight 0.805 kg
Ambient temperature for operation	-20°C...70°C
Relative air humidity	<80%, non-condensing
Included accessories	Rubber feet, inscription label
AUDIO
Max. Input level (< 1%THD, 20 Hz)	+20 dBu
Max. Input level (< 1%THD, 1 kHz)	+32 dBu
Frequency response (±1dB, relative 1kHz)	10 Hz - 30 kHz
Input impedance (1 kHz)	6.8 kΩ
Output impedance (1 kHz)	500 Ω
THD (30 Hz, +4 dBu, unity, unweighted)	< 1 %
THD (1 kHz, +4 dBu, unity, unweighted)	< 0.02 %
IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu)	< 0.01 %
Transformer ratio	1:1:1

All measurements were performed with a generator with 600 output impedance and 1k balanced load.

DISPOSAL

PACKAGING:

1. Packaging can be fed into the reusable material cycle using the usual disposal methods.
2. Please separate the packaging in accordance with disposal laws and recycling regulations in your country.

DEVICE:

1. This device is subject to the European Waste Electrical and Electronic Equipment Directive in the currently valid version. WEEE Waste Electrical and Electronic Equipment Directive. Old appliances do not belong in household waste. The old device must be disposed of via an approved disposal company or a municipal disposal facility. Please observe the applicable regulations in your country!
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or the appropriate regional authorities.

BATTERIES:

1. Batteries should not be disposed of in household waste. Batteries and rechargeable batteries must be disposed of via an approved disposal company or a municipal disposal facility.
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or through the relevant regional authorities.
4. Devices with batteries that cannot be removed by the user must be taken to a collection point for electrical appliances.

MANUFACTURER'S DECLARATIONS

Manufacturer's warranty & limitation of liability Adam Hall GmbH Adam-Hall-Str.1 61627, Neu-Anspach, Germany

Email: [e-mail] / +49 (0)6081 / 9419-0.

Our current warranty conditions and limitation of liability can be found at: https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-PALMER_DE_EN_ES_FR.pdf

Contact your distribution partner for service.

CE CONFORMITY

Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applicable): Low-Voltage Directive (2014/35/EU) EMC Directive (2014/30/EU) RoHS (2011/65/EU) RED (2014/53/EU)

EC DECLARATION OF CONFORMITY

Declarations of conformity for products that are subject to the LVD, EMC, RoHS Directives, can be requested at [e-mail]. Declarations of conformity for products that are subject to the RED Directive can be downloaded at www.adamhall.com/compliance/

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation

UKCA-CONFORMITY

Hereby, Adam Hall Ltd. declares that this product meets the following guidelines (where applicable)
Electrical Equipment (Safety) Regulations 2016
Electromagnetic Compatibility Regulations 2016 (SI 2016/1091)
The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation 2012 (SI 2012/3032) Radio Equipment Regulations 2017 (SI 2016/2015)

UKCA-DECLARATION OF CONFORMITY

Products that are subject to Electrical Equipment(Safety) Regulation 2016, EMC Regulation 2016 or RoHS Regulation can be requested at [e-mail].

Products that are subject to the Radio Equipments Regulations 2017 (SI2017/1206) can be downloaded from www.adamhall.com/compliance/

Be true to your sound!
