ICD2060 - Hi-fi system Soundmaster - Free user manual and instructions

Product type	Hi-fi system
Brand	Soundmaster
Model	ICD2060
Power supply	100-240V~50/60Hz, DC output 18V 1.2A (adapter included)
Standby consumption	<2 W (with "Keep network connected" option)
Audio power	2 x 15 W
Connectivity	Dual-band Wi-Fi 2.4 and 5 GHz, Bluetooth 5.0
Radio	DAB/DAB+, FM, Internet
Integrated players	CD, USB (front port), AUX input (RCA)
Main functions	Internet radio, Spotify Connect, podcasts, media player, dual alarm, sleep timer, preset and customizable equalizer
Control	Front panel, infrared remote, UNDOK app (iOS/Android)
Display	LCD screen with brightness adjustment
Headphone jack	Yes, 3.5 mm jack on front
Care and cleaning	Dry cloth only, no detergents or abrasives
Safety	Do not open (risk of electric shock), Class 1 laser, do not expose to moisture or naked flames
Spare parts and repairability	Have any repairs carried out by an approved service centre; no user-serviceable parts supplied
General information	Operates in moderate climates; OTA software update; factory reset possible

Frequently Asked Questions - ICD2060 Soundmaster

How do I connect my smartphone via Bluetooth?

Select Bluetooth mode on the ICD2060. On your smartphone, enable Bluetooth and search for the device named ICD2060. Select it to pair. Once connected, the Bluetooth icon stops flashing.

How do I set the alarm?

From the main menu, select Alarm. Choose alarm 1 or 2. Set the frequency (Daily, Once, etc.), time, mode (Buzzer, Internet Radio, DAB or FM), volume and preset. Confirm with Save. An active alarm icon appears at the bottom of the screen.

What should I do if the device does not turn on?

Check that the power adapter is properly connected to the socket and the device. If the problem persists, try a different socket. The device may also go into standby automatically after 15 minutes without music (ErP2 compliance).

How do I perform a DAB station search?

In DAB mode, the device automatically searches for stations on first use. For a manual search, go to the DAB menu and select Full scan. You can also choose Strong signals only to filter out weak stations.

How do I program a CD playlist?

Stop the CD. Press PROGRAM on the remote control. Select the desired track using the navigation keys or numeric keypad, then press PROGRAM again to store it. Repeat for other tracks. Press ▶II to start programmed playback.

How do I reset the device to factory settings?

In the main menu, go to Settings then Reset (or follow the procedure in the manual). Confirm to erase network configuration, alarms and presets. The software version and internet radio favourites are kept.

Why is there no sound?

Check the volume and that it is not muted (Mute button). Make sure no headphones are plugged in, as they mute the speakers. If the problem persists, change source or restart the device.

How do I use the sleep timer?

Press the SLEEP button on the device or remote. Select the duration: 15, 30, 45 or 60 minutes, or disable it. The device will turn off automatically after the chosen delay.

Can I use the UNDOK app to control the device?

Yes, download the UNDOK app from the App Store (iOS) or Google Play (Android). Connect your device to the same Wi-Fi network as the ICD2060. The app allows control of all sources, volume, alarms, equalizer and to create multi-room groups.

What should I do if the Wi-Fi connection fails?

Check that the router is on and the network is available. Place the ICD2060 closer to the router. Make sure you enter the correct WEP/WPA password. You can also use WPS (push button) if your router supports it. Restart the router if necessary.

USER MANUAL ICD2060 Soundmaster

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging

The materials are recyclable according to their labeling. By reusing materials or other forms of recycling old devices and packaging, you are making an important contribution to protecting our environment. If necessary, remove batteries and personal data before disposal free of charge and ask your local authority about the responsible disposal point.

3	WARNING Risk of electric shock Do not open!	1
Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling - no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind. Only return fully discharged batteries *) marked Cd = cadmium, Hg = mercury, Pb = lead

• Only use mercury and cadmium-free batteries.
• Used batteries are hazardous waste and NOT to be disposed of with the household waste!!!
• Keep batteries away from children. Children might swallow batteries.
• Contact a physician immediately if a battery was swallowed.
• Check your batteries regularly to avoid battery leakage.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION: Danger of explosion if battery is incorrectly replaced
• Replace only with the same or equivalent type

CAUTION - INVISIBLE LASER RADIATION WHEN OPENING THE COVER OR PRESSING THE SAFETY INTERLOCK. AVOID EXPOSURE TO THE LASER BEAM.

To prevent possible hearing damage, do not listen at high volume levels for long periods

• Use the device in dry indoor environments only.
• Protect the device from humidity.
• This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.

Safety, Environmental and Setup Instructions

• No objects filled with liquids, such as vases, shall be placed on the apparatus.
• The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable.
• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.
• Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.
• A damaged mains cable or plug must immediately be replaced by an authorized service center.
• In case of lightning, immediately disconnect the device from the mains supply.
  Children should be supervised by parents when using the device.
• Clean the device with a dry cloth only.
• Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!
• Do not expose the device to direct sunlight or other heat sources.
• Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
• Do not cover the ventilation openings!
• Install the device at a safe and vibration-free location.
• Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.
• Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.
• No naked flame sources, such as lighted candles, should be placed on the unit.
• When you are necessary to ship the unit store it in its original package. Save the package for this purpose.
• In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply.
• If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.

TABLE OF CONTENT

LOCATIONS OF CONTROLS 2
REMOTE CONTROL 3
OPERATION YOUR REMOTE CONTROL 4
GETTING STARTED / SET UP 5
GET THE NETWORK ENVIRONMENT READY. 5
MAIN MENU 5
SYSTEM SETTINGS 5
EQUALISER 8
NETWORK 8
TIME/DATE 9
BRIGHTNESS 9
LANGUAGE 9
SOFTWARE UPDATE 9
INFO 9

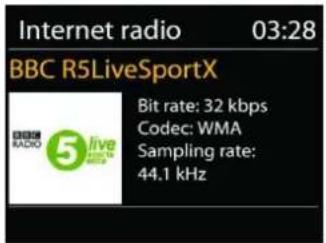

INTERNET RADIO 10
SPOTIFY 11
USB 11
DAB 11
FM 13

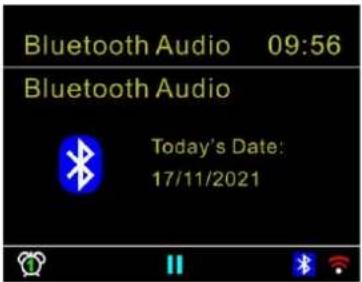

BLUETOOTH 15
AUX IN 15
CD MODE 16
SLEEP 17
ALARM. 17
UNDOK 18
HEADPHONE 18
FACTORY RESET 18
TROUBLESHOOTING 19
TECHNICAL SPECIFICATIONS 20

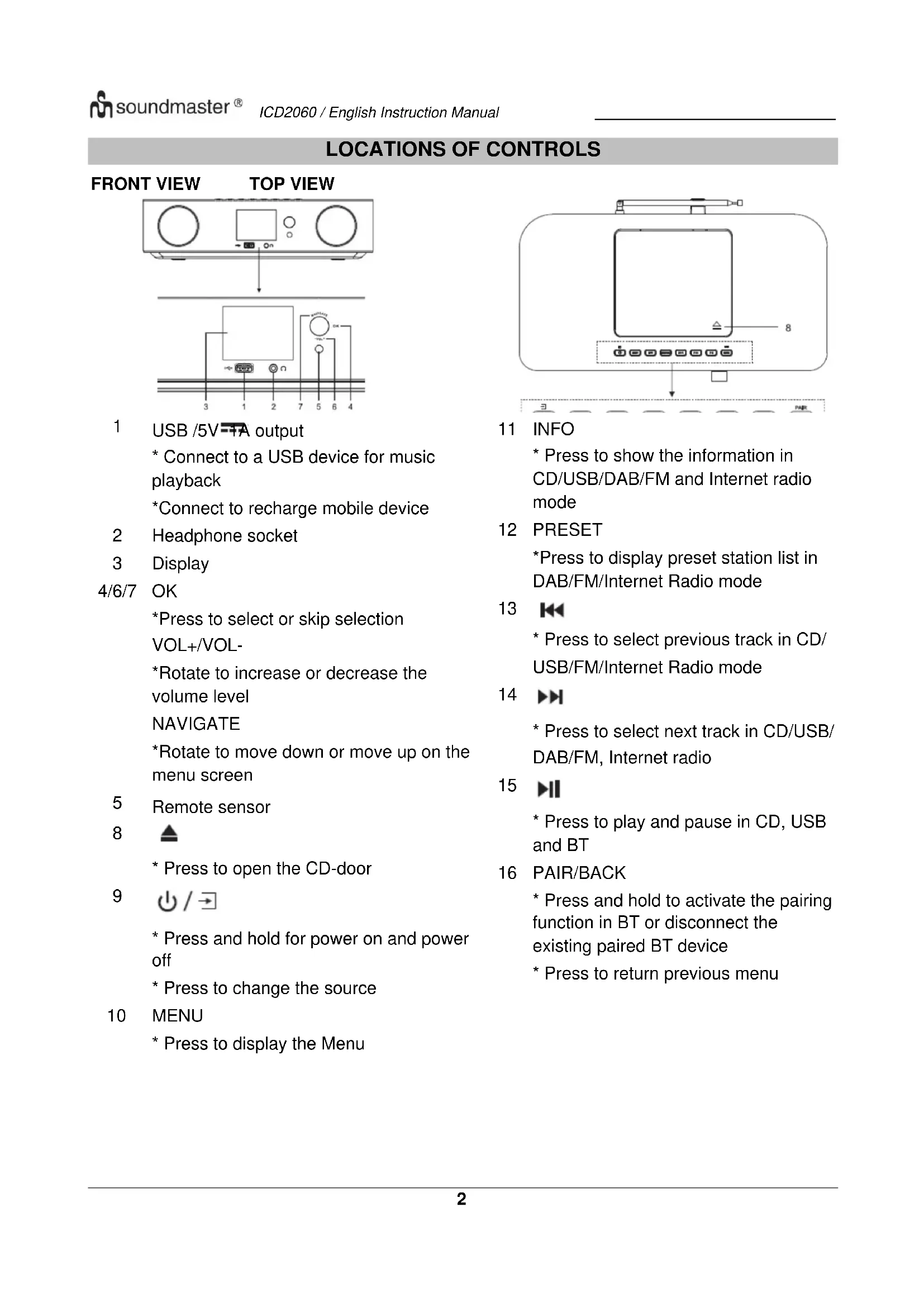

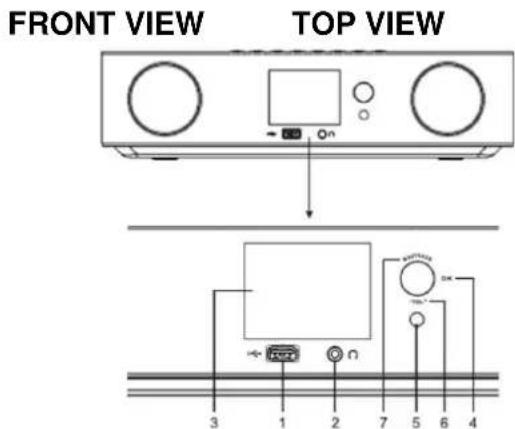

LOCATIONS OF CONTROLS

1 USB/5V-A output

• Connect to a USB device for music playback
  *Connect to recharge mobile device
  2 Headphone socket
  3 Display

4/6/7 OK

Press to select or skip selection VOL+/VOL-
Rotate to increase or decrease the volume level

NAVIGATE

*Rotate to move down or move up on the menu screen

5 Remote sensor
8

• Press to open the CD-door

9 1/

• Press and hold for power on and power off
• Press to change the source

10 MENU

• Press to display the Menu

11 INFO

• Press to show the information in CD/USB/DAB/FM and Internet radio mode

12 PRESET

*Press to display preset station list in DAB/FM/Internet Radio mode

13

• Press to select previous track in CD/USB/FM/Internet Radio mode

14

• Press to select next track in CD/USB/DAB/FM, Internet radio

15

• Press to play and pause in CD, USB and BT

16 PAIR/BACK

• Press and hold to activate the pairing function in BT or disconnect the existing paired BT device
• Press to return previous menu

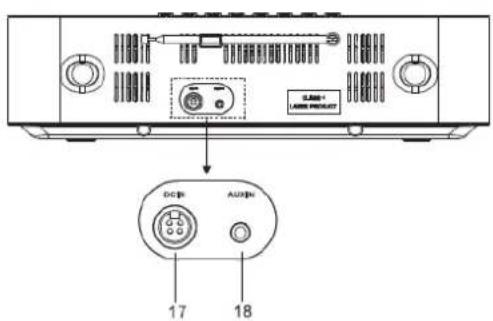

BACK VIEW

17 DC IN
18 AUX IN

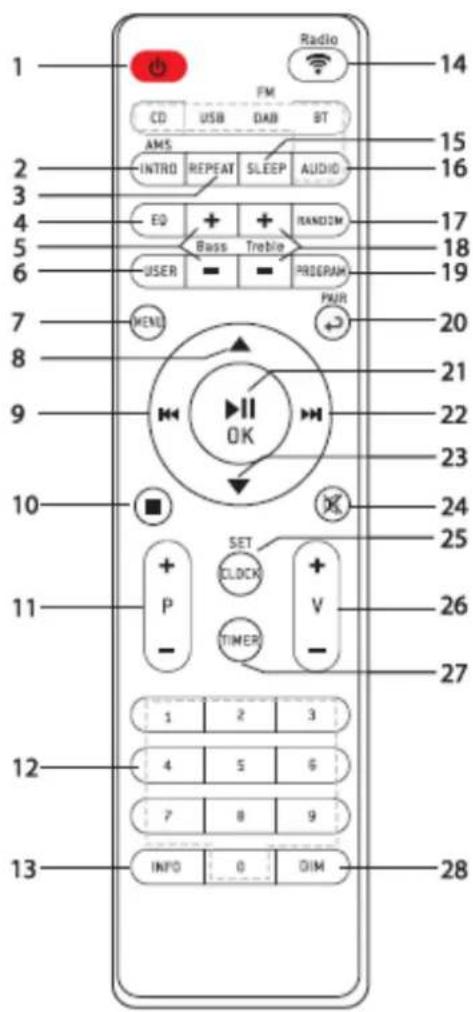

REMOTE CONTROL

1

• Turn the unit ON or in STANDBY mode

2 INTRO/AMS

• Press to start browsing of all tracks in CD
• Press to automatically search for channel in DAB and FM; when in searching, press again can stop it.

3 REPEAT

• Press to select a repeat playback mode in CD

4 EQ

• Press to select sound characteristics: Normal/Jazz/Rock/Classic/Pop/My EQ

5 BASS+/-

• Press to adjust the BASS in USER mode

6 USER

*Press to allow you to adjust the Bass and Treble in USER mode

7 MENU

• Press to display the Menu

*Press to move up on the menu screen

• Press and hold for fast backward in CD and USB
• Press to select previous track in CD and USB
• Press to display the channel list in DAB, FM and internet radio
• Press for fine tuning in FM
• Press and hold for manual tuning in FM

10

• Press to stop playing in CD/USB mode

• Press to skip the beginning of current/previous/subsequent album

• Press to select previous/next preset channel in FM and DAB

12 0-9 numeric

13 INFO

• Press to show the information in CD/USB/DAB/FM and Internet radio mode

14 RADIO/

• Press to select the internet radio/Podcast/Spotify

15 SLEEP

• Press to set sleep timer

16 CD/USB/DAB/FM/BT/AUDIO

• Press to select the corresponding AUDIO source.
  (CD/USB/DAB/FM/BT/AUDIO)

17 RANDOM

• Press to play tracks randomly in CD

18 TREBLE+/-

• Press to adjust the TREBLE in USER mode

19 PROGRAM

• Press to program in CD and preset channel in DAB, FM and internet radio

• Long press to save preset channels

20 PAIR

• Press to return to previous menu
• Press and hold to activate the pairing function in BT or disconnect the existing paired BT device

21 II/OK

• Press to play/pause in BT/CD/USB and internet radio
• To select or skip to subsequent menu in BT/CD/USB and internet radio

22

Press and hold for fast forward in CD and USB
Press to select the next track in CD and USB
Press to display channel list in DAB/FM and internet radio
Press for fine tuning in FM
*Press and hold for manual tuning in FM

23

• Press to move down on the menu screen

24
Press to mute or resume the sound
25 CLOCK
Press and hold to set clock
26 V+/-
Press to increase/ decrease the volume level
27 TIMER
Press to set the Timer
28 DIM
*Press to select different levels of brightness for the display screen

1. Press and slide the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries. Make sure the (+) and (-) ends of the batteries match the (+) and (-) ends indicated in the battery compartment.
3. Close the battery compartment cover.

GETTING STARTED / SET UP

Connect the unit to a suitable power source using the power supply provided. After showing a starting screen, it will enter the last used listening mode. When the unit is started for the first time, the setup wizard will be launched automatically.

GET THE NETWORK ENVIRONMENT READY

Make sure you have setup the wireless network and you have the WEP, WPA or WPA2 security password to activate the connection.

You may also use the WPS (WiFi Protected Setup) function for easy pairing between the network device and ICD2060. Check if the light indicators on the network device are in appropriate status.

MAIN MENU

Under the main menu, you can select the following modes:
Internet Radio, Podcast, Spotify, USB, DAB, FM, Bluetooth® CD, AUX-In, Sleep and Alarm.

SYSTEM SETTINGS

At the first time operation, system asks if you want to start the Setup Wizard. The Setup wizard guides you through the basic setup parameters for Time/Date and Network connection. To change any settings later all setting functions are accessible from the Settings Menu.

Note: If the setup wizard is terminated prematurely without a network setup, the device generates its own WiFi access so that the device can be configured using the UNDOK APP.

Network connection indicator:

= Network connection established.
= Network connection not established.

1. Language

Select English/Finnish/French/Italian/Danish/Dutch/German/Norwegian Polish/Portuguese/Spanish/Swedish/Turkish as menu language

2. Time/Date Display format

Select 12 or 24 as the time format.

3. Auto update

The time and date can be updated manually or automatically from DAB, FM or network.

Auto update works with data sent over DAB, FM or the Internet. The clock is only updated when it is in a corresponding mode, so it is suggested to select a mode you use regularly.

DAB and FM use time signals broadcast with radio transmissions. Network uses a time signal sent from the Internet radio portal when in any network connected mode.

4. Time zone/daylight

Set your time zone. If your country uses daylight saving and it is in effect, turn on the Daylight saving option. (only available when Auto update from Internet is selected)

5. Manual update

If you set No update, the wizard prompts you to set the time and date manually. The date and time are displayed as dd-mm-yyyy and hh:mm.

The active value appears as flashing. Adjust each value with the "NAVIGATE" knob.

Once the value is set, press the knob to continue setting with next value.

6. Network

Keep Network connected

Select this option when the unit should the network connection in standby keep, when the function is confirmed, the unit wills faster connecting the internet and it is possible to switch on the unit with the "UNDOK" app.

Note: The standby power consumption is slightly increased with this function.

WLAN region

Select the WLAN region to obtain the optimal WLAN connectivity: Europe.

Scanning for the network

ICD2060 is compatible with all common network protocols and encryption methods. It searches for the available networks and list them out for you.

There will be hints for the type of network - if your network devices support WPS function, it will be [WPS] before the SSID (the name of the network device). Select the one you want to connect.

For the wireless connection, you will be asked for input the encryption in the next step. To enter the network's key, use the "NAVIGATE" knob to move the cursor through the characters and press "OK" to confirm. As each character is selected, the key is built up near the top of the display.

There are three options accessible by tuning the navigate reel back before the first characters - Backspace, OK and Cancel.

WPS encrypted network

WPS encrypted networks are identified by WPS at the start of the network name when the

ICD2060 searches the available AP. Use one of the following methods of connection: There is the shortcut WPS key on the unit.

Push button

ICD2060 prompts you to press the connect button on the router. It then scans for a ready Push Button Connect network and connects.

WPS Setup

Push WPS button at the other end

Press SELECT to continue

Pin

ICD2060 generates an 8-digit code number which you enter into the wireless router, access point, or an external registrar.

WPS Setup

Enter PIN 98467583 at the other end

Press SELECT to continue

Skip WPS

Enter key as for a standard encrypted network.

For more information on setting up a WPS encrypted network, see your WPS router's instructions.

Completion

ICD2060 attempts to connect to the selected network.

Network settings

Please wait Connecting ..

It will show connected if the setup is successful. If connecting fails,

ICD2060 returns to a previous screen to try again.

Press "OK" to quit the setup wizard.

EQUALISER

Several preset EQ modes are available: Normal, Jazz, Rock, Classic, Pop and My EQ.

In the My EQ settings, you can create your own EQ with custom bass and treble settings.

NETWORK

Network wizard

Enter to search AP SSD, then input the WEP / WPA key or choose Push Button/Pin/Skip WPS to connect to the wireless network.

PBC Wlan setup

Push Button Configuration, it is to connect the AP that supports WPS (Wi-Fi Protected Setup).

View settings

View the information of current connected network: Active connection, MAC address, Wlan

region, DHCP, SSID, IP address, Subnet mask, Gateway address, Primary DNS and Secondary DNS.

- Manual settings

Choose wireless network connection and enable or disable DHCP (Dynamic Host Configuration Protocol).

Network profile

ICD2060 remembers the last four wireless networks it has connected to, and automatically tries to connect to whichever one of them it can find. From here you can see the list of registered networks. You can delete unwanted networks by turning and pressing then choosing YES to confirm delete.

- Keep network connected

If you choose to keep network connected, the WiFi will not disconnect even you are in standby mode. Otherwise, the connection will only available in internet radio and music player modes.

When Keep network connected is selected the standby power consumption is raised.

TIME/DATE

Set the time manually or automatically update, time format, time zone and daylight.

BRIGHTNESS

You may change the backlight of each environment (Normal or standby) to High, Medium High, Medium, Medium Low, Low or Off

LANGUAGE

Change it as your preference.

SOFTWARE UPDATE

From time to time, software upgrades may be created with bug fixes and/or additional features. You can either check manually or set ICD2060 to check periodically automatically (this is the default). If newer available software is detected, you will be asked if you want to go ahead with an update. If you agree, the new software is then downloaded and installed. After a software upgrade, all user settings are maintained.

NOTE: Before starting a software upgrade, ensure that ICD2060 is plugged into a stable main power connection. Disconnecting power during an upgrade may permanently damage the unit.

INFO

View the firmware version and the radio ID.

INTERNET RADIO

ICD2060 can play thousands of radio stations and podcasts from around the world though a broadband Internet connection.

When you select Internet radio, ICD2060 directly contacts the Frontier Silicon Internet radio portal (which is supported by Airable) to get a list of stations.

The portal also enables multiple lists of favorite stations that you can personalize.

If you are already listening to an Internet radio station, you can press "BACK" button to quickly return to the last visited branch of the menu tree, rather than "MENU" to go to the first menu of Internet radio mode.

- Last listened

When Internet radio mode restarts, the last-listened station is selected. To select another recently used station, enter here to select the listed station. Most recent stations appear at the top of the list.

Station list

Browse Internet broadcasts that organized into different categories, Location, Genre, Popular and New. You can also find the station with Search by keyword.

- Presets

To store an Internet radio preset, press and hold the "PROGRAM" key on Remote Control until the display shows the "Save preset" screen. Select one of the 20 presets to save the current station and press "OK" to confirm.

To select a preset, press briefly the "PRESET" button or "PROGRAM" on Remote Control, then select one of the listed preset stations and press "OK" to confirm. Or press 0 to 9 on the Remote Control to directly recall the presets.

- Now playing information

While the stream is playing, the screen shows its name and description. To view further information, press "INFO" button on the radio or Remote Control. Each time you press "INFO" button, another set of information is displayed, cycle through name/description, genre/location, reliability, codec/sampling rate, playback buffer and today's date.

SPOTIFY

Use your phone, tablet or computer as a remote control for Spotify.

Go to Spotify.com/connect to learn how

The Spotify Software is subject to third party licenses found here:

https://www.spotify.com/connect/third-party-licenses

USB

In USB mode, files in MP3 format can be played back from a USB storage device.

You can use the “or” buttons to play the previous or next track.

Press the "OK" button or use the "UNDOK APP" to start playback

- REPEAT / SHUFFLE

You can play tracks repeatedly or in random order by pressing the "RANDOM" button on your remote control.

Press the "REPEAT" button to repeat the playlist or a song.

DAB

DAB mode receives DAB or DAB plus digital radio signal and displays information about the station, streaming audio and the program details.

• Scanning for stations

The first time you select DAB radio mode, or if the station list is empty, ICD2060 automatically performs a full scan to see what stations are available. You may also need to start a scan manually to update the list of stations for one of the following reasons:

• Available stations change from time to time.
• If reception was not good for the original scan, this may result in an empty or incomplete list of available stations.
• If you have poor reception of some stations (burbling), you may wish to list only stations with good signal strength.

To start a scan manually, choose Full scan. To scan only stations with good signal strength, select Local scan.

Once the scan is complete, the radio shows a list of available stations.

To remove stations that are listed but not unavailable, choose Prune invalid.

Press the "BACK" button to view a list of stations and press "OK" to select. Once selected, the station plays and the screen shows information about station, track or show as broadcast.

- Presets

To store an Internet radio preset, press and hold the "PROGRAM" on Remote Control until the display shows the "Save preset" screen. Select one of the 40 presets to save the current station and press "OK" to confirm. Or press 0 to 9 on the Remote Control to store the current playing station into the preset directly.

To select a preset, press briefly the "PRESET" button on the unit or "PROGRAM" on Remote Control, then select one of the listed preset stations and press "OK" to confirm. Or press 0 to 9 on the Remote Control to directly recall the presets.

Now playing information

While the stream is playing, the screen shows its name and DLS (Dynamic Label Segment) information broadcast by the station giving real-time information such as program name, track title and contact details. Stereo broadcasts are indicated with an icon at the bottom of the screen. To view further information, press "INFO" button on the radio.

Each time you press "INFO" button on the radio, another set of information is displayed, cycling through DLS text, program type, ensemble name/frequency, signal strength/errror rate, bite rate/codec/channels and today's date.

SETTINGS

- Dynamic range compression (DRC)

If you are listening to music with a high dynamic range in a noisy environment, you may wish to compress the audio dynamic range. This makes quiet sounds louder, and loud sounds quieter. You can change DRC as off, low or high.

- Station order

You can choose the order of the DAB station list to be either Alphanumeric, Ensemble or Valid.

Ensemble lists groups of stations that are broadcast together on the same ensemble. Valid lists valid stations first, alphabetically, then off-air stations.

FM

FM radio mode receives analogue radio from the FM band and displays RDS (Radio Data System) information about the station and where broadcast.

To full scan, press "INTRO" remote key. The frequency display starts to run and scans the FM full band.

To manual scan, press and hold "Nor" button on panel or "P+or P-remote key. The frequency display starts to run and scans the FM band and stops at the next station.

To fine tune press the "or" remote key. The unit search in 0.05 MHz steps.

- Preset

To store an Internet radio preset, press and hold the "PROGRAM" button on Remote Control until the display shows the "Save preset" screen. Select one of the 40 presets to save the current station and press "OK" to confirm. Or press 0 to 9 on the Remote Control to store the current playing station into the preset directly.

To select a preset, press briefly the "PRESET" button or "PROGRAM" button on Remote, then select one of the listed preset stations and press "OK" to confirm. Or press 0 to 9 on the Remote Control to directly recall the presets.

- Now playing information

While the stream is playing, the screen shows its frequency, or if RDS signal is available, station name and any further RDS information such as program name, title and other details. Stereo broadcasts are indicated with an icon at the bottom of the screen. To view further information, press Info button on the radio.

Each time you press "INFO" button on the radio, another set of information is displayed, cycling through Radio text, program type, frequency and today's date.

SETTINGS

- Scan settings

Choose FM at first, it will go to a specific station playing. Then press "MENU" on the radio to get above table.

By default, FM scans stop at any available station. This may result in a poor signal-to-noise ratio (hiss) from weak stations. To change the scan settings to stop only at stations with good signal strength, select "Yes" after choosing Strong station only.

Audio settings

All stereo stations are reproduced in stereo. For weak stations, this may result in a poor signal-to-noise ratio (hiss). To play weak stations in mono, select FM weak reception: Listen in mono only and then YES.

BLUETOOTH®

When you select the Bluetooth mode, the device is entering to pairing and the BT icon at the bottom of the screen will flash.

Turn on your smartphone, tablet or other Bluetooth devices to search for the device.

The Bluetooth pairing name is "ICD2060".

When pairing is successful, the Bluetooth indicator will light up and stop flashing.

To release BT pairing, turn off or unpair your smartphone, table or other Bluetooth devices.

Press “ ” on the radio or Remote Control to start or pause the playback. You can press “ ” or “ ” on the radio or Remote Control to play the previous or next track.

AUX IN

Connecting DVD player / Set-Top Box / TV outputs to analogue inputs from the sound board.

Use a RCA audio cable to connect the DVD player/TV outputs with the AUX (L/R) input socket from the sound board.

CD MODE

Notice!

Improper operation can result in material damages!

Do not insert any recording media that deviate from the standard CD format (eg: mini-discs) into the CD player. These may not be played and ejected correctly. Insert only one disc at a time into the CD player.

1. Press button on the unit and press till "CD" displayed, then press "OK" on the knob or press the "CD" button on remote control to choose CD.

2. Put a disc (with printing side facing up) inside. The display will say "Loading" and the disc functions will not work while the disc is loading. After Reading the display shows the following information in CD mode:

3. CD mode
   Time

4. Elapsed playback time in minutes
5. Track number
6. Playback status (playing/pause)

The Playback will begin automatically once the table of contents is read. The display will show "No Disc" when the unit is set to CD mode and there is no CD inside.

To pause/resume playback of the CD, press the " " button
To switch to the next track, press the " " button once
To fast forward through a track, press and hold the " button.
To switch to the previous track, press the " " button twice
To fast backward through a track, press and hold " " button.
- To stop CD playback, press the " " button on the remote control.
To eject the disc press in stop mode the " " button on the unit.

CD Program

1. Set the unit in Stop mode
2. Press the "PROGRAM" button on the Remote Control. The display will show "T01 P01" and "T01" flash.
3. Choose with "or" or "or 0 to 9 on the Remote Control, the track which should be programmed and confirm the track by pressing the "PROGRAM" button on the Remote Control. The display changes to "P02".
4. To choose more tracks do step 3 again.
5. If all tracks are programmed press the “▶” button on the unit or Remote Control to start the programmed playback.

Shuffle mode

Press the "RANDOM" button on the Remote Control. The display will show the Shuffle indicator.

Repeat one track

During playback press the "REPEAT" button on the Remote Control once to repeat playback of the song you are listening to.

Repeat all tracks

During playback press the "REPEAT" button on the Remote Control twice to repeat all songs from the CD. To cancel the Repeat mode press the "REPEAT" button on the Remote Control until all symbols in the display disappear.

SLEEP

To set the sleep timer, press "SLEEP" on the unit or Remote Control. Choose from Sleep OFF, 15mins, 30mins, 45mins or 60mins.

Once you select a sleep period, the system returns to the "Now playing" screen.

If you go under Main Menu to Sleep press "MENU" on the unit or Remote Control to return to the "Now playing" screen.

ALARM

There are two versatile wake-up alarms with snooze facility, and a sleep function to turn the system off after a set period. Each alarm can be set to start in a particular mode.

Select Alarm under Main menu to set or change an alarm.

Alarm 1

Enable: Daily

Time: 07:30

Mode: Internet Radio

Preset: Last listened

Volume: 10

Select the alarm number (1 or 2) then configure the following parameters:

• Enable: on/off, Frequency: Daily, Once, Weekends or Weekdays,
  Time
  Mode: Buzzer, Internet Radio, DAB or FM,
• Preset: Last listened, 1 - 40,
  Volume:0-32

To activate the new settings, scroll down and select Save.

The screen shows active alarms with an icon at the bottom left.

UNDOK

The ICD2060 supports remote control from Apple iPhone, iPad and Android using the UNDOK app. The apps are available in Apple's app store and Google's android play.

The UNDOK app allows you to:

Create a group
- Rename a group
- Edit a group - add or remove one or more products
- Delete a group
Control a group - choose operating mode and browse for content
- Adjust volume for an entire group or for individual products within a group
Control products which have not been assigned to any group
Control all the modes of the ICD2060, including Internet Radio, Media Player, USB playback, DAB, FM, Bluetooth, CD and AUX-In
- Adjust the volume level of current playback
- Setting EQ for various audio presets
- Setting Sleep timer
- Editing the displayed name of the radio

HEADPHONE

To listen to music privately, use headphones with a 3.5 stereo jack plug and connect it to the headphones socket. The speakers will then be muted.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

FACTORY RESET

TROUBLESHOOTING

Error	Remedy
The device does not switch on.	Check it the power adaptor is connected properly.
Switch automatically off	Due to ErP2 requirements and environmental protection, the unit automatically switches to standby mode when no music is played for more than 15 minutes.
No sound.	1. Turn on the sound as it may be muted 2. Increase the volume. 3. Pull any connected headphone or speaker from the connector jack.
No network connection can be established.	1. Check the WLAN function. 2. Try to set an IP address at the device. 3. Activate the DHCP function on the router and make the connection again at the device. 4. A firewall is activated on the network – set the respective program in such a way that access is possible. 5. Reboot the router
WiFi connection cannot be established.	1. Check the availability of WLAN network on the router. 2. Place the device closer to the router. 3. Make sure the password is correct.
No station is found.	1. Check the network as well as the access point and firewall. 2. The station may not be available currently, try it again later or select another station. 3. The link of the station is changed or the station no longer transmits – ask the provider for information. 4. The link of manual added station is not correct, make sure it is correct and re-enter.
Hiss in FM mode	Check/move the FM antenna or move the radio
No stations available / burbling / intermittent in DAB mode.	1. Move the radio. 2. Rescan local stations only (high-strength). 3. Check the local DAB coverage.
Alarm does not work.	1. Switch on the alarm. 2. Due to the volume setting, refer to the solutions of “No sound”. 3. The source of alarm was set to be station but there is no network connection. Change the source of alarm or reconfigure the connection.
USB driver or MP3 player is not detected.	1. Check if the USB driver or MP3 player is plugged properly. 2. Some USB hard disks need external power supply, make sure it is connected to the power. 3. Not all MP3 players can be read directly on the device – use an USB drive instead.
NetRemote does not show or connect to ICD2060	1. Reopen the App. 2. If you have several streaming from several devices at the same time, it may cause crash, reboot ICD2060 and/or your device.
All other undetermined cases.	ICD2060 may process large amount of data after a period of operation, no matter in which mode, it will cause the system freeze or malfunction. Reboot ICD2060 if necessary.
	The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.
	The device may malfunction when used in areas with strong radio interference. The device will work properly again once there is no more interference.
	Under the environment with Conducted Immunity disturbance, the sample may malfunction. It will automatically recover to normal when the Conducted Immunity disturbance stopped.

TECHNICAL SPECIFICATIONS

Power supply	: Use only the supplied adapter
Power input	: 100-240V~50/60Hz
Power output	: DC 18V ±2A
DAB+ range	: Band III 174.928 - 239.200 MHz
FM range	: 87.5 - 108MHz
Bluetooth® Version	: Version 5.0
Connectivity	: WiFi Dual modes to support 2.4GHz and 5GHz WiFi system
Audio power output	: 2×15 W
Standby consumption	: < 2W
with setting “Keep network in standby”

The current instruction manual can be downloaded from www.soundmaster.de

Technical changes and misprints reserved

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Duplication only with the permission of Woerlein GmbH.

PROTECTION DE L'ENVIRONNEMENT

Internet radio
Germany	>
Search	>
Location	>
Popular	>
Discover	>

Mode: Radio Internet

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KCLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1

WAARSCHUWING-ONZICTBARE LASERSTRALING WANNEER DE BEHUIZING GEOPEND WORDT OF DE INTERNE BEVEILIGING UITGESCHAKELD. VERMIJD BLOOTSTELLING AAN DE LASERSTRAAL.

Scannenaarhetnetwork

Setup wizard voltooid

- Scannenaar stations

network in stand-by"

https://www.spotify.com/connect/third-party-licenses

USB

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KCLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1

PRECAUCION - RADIACION INVISIBLE DE LASER AL ABRIR LA TAPA O PULSAR EL INTERBLOQUEO DE SEGURIDAD. EVITE LA EXPOSICION AL HAZ DE LASER.

Enter PIN 98467583 at the other end

Press SELECT to continue

Omitir una red WPS

Please wait Connecting..

Setup wizard completed

Press SELECT to exit

ECUALIZADOR

https://www.spotify.com/connect/third-party-licenses

USB

Internet radio
Germany	>
Search	>
Location	>
Popular	>
Discover	>

- Predefinições

Mode: Internet Radio

Preset: Last listened

Volume: 10

• Tryk for at Åbne menuen

11 INFO

• Tryk for at abne menuen

8

• Tryk for at gå op og ned i menuen på displayet

9

• Tryk og hold for at gå hurtigt tilbage i tilstandene CD og USB
• Tryk for at springe til forrige musiknummer i tilstandene CD og USB
• Tryk for at vise kanallisten i tilstandene

Vaelg English/Finnish/French/Italian/Danish/Dutch/German/Norwegian

Polish/Portuguese/Spanish/Swedish/Turkish som menusprog.

2. Tids-/dtoformat

Vaelg mellem 12- og 24-timers tidsformat.

3. Auto opdater

Push WPS button at the other end

Press SELECT to continue

WPS Setup

Enter PIN 98467583 at the other end

Press SELECT to continue

Brug ikke WPS

Please wait Connecting ..

Setup wizard completed

Press SELECT to exit

EQUALISER

Spotify-softwareer underlagt tredjepartslicensor, der findes her: https://www.spotify.com/connect/third-party-licenses

USB

- Søgning after stationer

: WiFi Dual modes to support 2.4GHz and 5GHz WiFi system

Lydudgang

:2x15W RMS

Standby forbrug

: < 2W

med "Hold netværk i

standby" indstilling

*) markerade Cd = kadmium, Hg = kvicksilver, Pb = bly

VARNING-OSYNLIG LASERSTRALNING NAR DU ÖPPNAR LOCKET ELLER TRYCKER PÄ SÄKERHETSSPÄRREN. UNDVIK EXPONERING FÖR LASERSTRÄLEN.

Push WPS button at the other end

Press SELECT to continue

Pin

Enheten skapar en 8-siffrig kod som du skriver in i den tradlosa routern, atkomstpunkten, aller pa den externa registraringsenheten.

WPS Setup

Enter PIN 98467583 at the other end

Press SELECT to continue

Skippa WPS

Angekodenforettstandardkrypteratnatverk.

Please wait Connecting ..

Setup wizard completed

Press SELECT to exit

EQUALIZER

Forinstalld station: Senast avly

Volym:10

Enter PIN 98467583 at the other end

Press SELECT to continue

Přeskočit WPS

Zadejte klic jaku standardni sifrované site.

Please wait Connecting..

Setup wizard completed

Press SELECT to exit

EKVALIZER

Cadolzburg, www.soundmaster.de

Enter PIN 98467583 at the other end

Press SELECT to continue

Preskočit' WPS

Zadajte k'uc akopre standardnu sifrovanu siet'.

Viac informaci o nastaveni šifrovanej siete WPS si prečitate v námode na použivanie routera WPS.

Dokončenie

Zariadenie ICD2060 saPokusi pripojit k vybranej sieti.

Network settings

Please wait Connecting...

Ak je nastavenie uspesne, zobrazi sa ako pripojena. Ak pripojenie zlyha, zariadenie ICD2060 prejde spat na predchadzajucu obrazovku, aby sa pokus uskutochnil znova.

Setup wizard completed

Press SELECT to exit

EKVALIZER

K dispozífii je niedkol'ko predvolen'ych režimov EQ: Normal, Jazz, Rock, Classic, Pop a My EQ. (zmeneny obrazok)

https://www.spotify.com/connect/third-party-licenses

USB

D 90556 Cadolzburg, Germany

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

Internet: www.soundmaster.de

Hereby, Wörlein GmbH declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

A copy of the declaration of conformity can be obtained from the above address.
