USER MANUAL Cleantec CTMC SYS FESTOOL

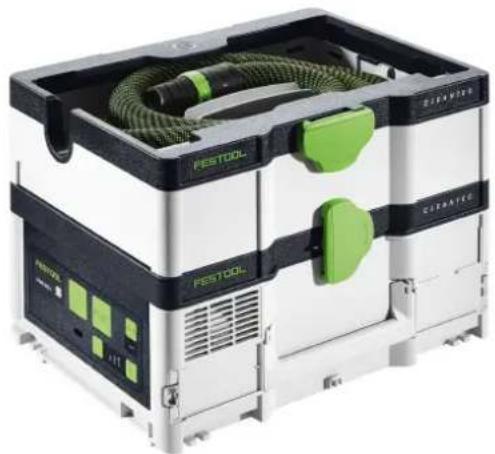

CTLC SYS I CTMC SYS I

Festool GmbH

Wertstraße 20

73240 Wendlingen

Germany

+49 (0)70 24/804-0

www.festool.com

2a

2b

3a

3b

3c

4a

Declaration of Conformity

We as the manufacturer Festool GmbH, Wertstraße 20, 73240 Wendlingen, Germany declare under our sole responsibility that the product(s):

Designation:

Cordless mobile dust extractor

(in combination with remote control CT-F I (serial number 10029918))

Designation of Type(s): Serial number(s) 1:

CTMC SYS I; CTLC SYS I 10037419; 10419326

fulfills all the relevant provisions of the following UK Regulations:

S.I. 2008/1597

Supply of Machinery [Safety] Regulations 2008

S.I. 2016/1091

Electromagnetic Compatibility Regulations 2016

S.I.2017/1206

Radio Equipment Regulations 2017

S.I. 2012/3032

Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

and are manufactured in accordance with the following designated standards:

BS EN 60335-1:2012 + A2:2019
BS EN EN 60335-2-69:2012
BS EN 55014-1:2017 + A11:2020
BS EN 55014-2:2015
EN301489-1V2.2.3
EN301489-17V3.2.4
EN300328V2.2.2
BS EN 62479:2010
BS EN IEC 63000:2018

Place and date of declaration: Wendlingen, 08.07.2021

Signed on behalf of and in name of Festool GmbH

i.v.Q. C

Ralf Brandt

Head of Productconformity

Akku-Absaugmobil	Seriennummer1)
Cordless mobile dust extractor	Serial number1)
	N° de série1)
Aspirateur sans fil	(T-Nr.)

CTMC SYS I 10037419

CTLC SYS I 10419326

Head of Product Development

Ralf Brandt

Head of Product Conformity

12.5 Software Update

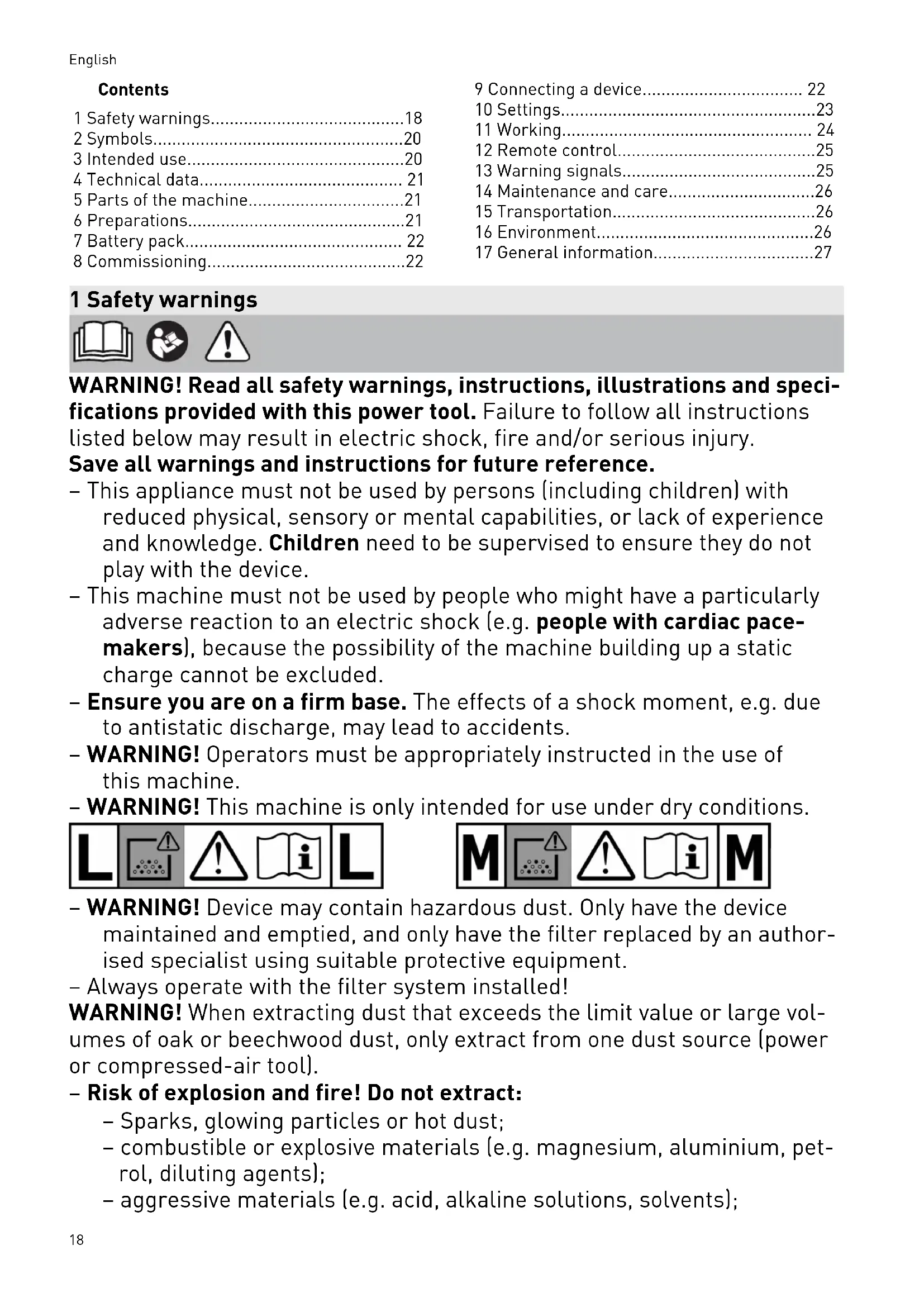

1 Safety warnings. 18
2 Symbols. 20
3 Intended use 20
4 Technical data. 21
5 Parts of the machine. 21
6 Preparations. 21
7 Battery pack. 22
8 Commissioning. 22

9 Connecting a device 22
10 Settings. 23
11 Working. 24
12 Remote control. 25
13 Warning signals. 25
14 Maintenance and care. 26
15 Transportation. 26
16 Environment. 26
17 General information. 27

1 Safety warnings

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

• This appliance must not be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Children need to be supervised to ensure they do not play with the device.
• This machine must not be used by people who might have a particularly adverse reaction to an electric shock (e.g. people with cardiac pacemakers), because the possibility of the machine building up a static charge cannot be excluded.
• Ensure you are on a firm base. The effects of a shock moment, e.g. due to antistatic discharge, may lead to accidents.
• WARNING! Operators must be appropriately instructed in the use of this machine.
• WARNING! This machine is only intended for use under dry conditions.

• WARNING! Device may contain hazardous dust. Only have the device maintained and emptied, and only have the filter replaced by an authorised specialist using suitable protective equipment.

• Always operate with the filter system installed!

WARNING! When extracting dust that exceeds the limit value or large volumes of oak or beechwood dust, only extract from one dust source (power or compressed-air tool).

- Risk of explosion and fire! Do not extract:

• Sparks, glowing particles or hot dust;
• combustible or explosive materials (e.g. magnesium, aluminium, petrol, diluting agents);

• aggressive materials (e.g. acid, alkaline solutions, solvents);

• chemically reactive materials which lead to the generation of heat, acids/bases, gases, etc. (e.g. reactive two-component materials, aluminium and water).

• Observe all national safety regulations as well as the material manufacturer's specifications!

• Always use suitable protective equipment!

• If intact following a visual inspection, work in a dry environment according to instructions!

• Check the battery interface and the filter regularly in order to prevent a hazard. In the event of damage, the battery interface must be replaced by an authorised service workshop only.

• Do not lift or transport using a crane hook or lifting gear.

• Only carry the machine using the handle, front handle or shoulder strap provided.

• Risk of tilting, do not place on sloped areas!

NOTE

This machine is only intended for indoor use.

This machine must only be stored indoors.

• Use only the original Festool suction hose.

• Pay attention to the work environment and watch out for your own safety and the safety of others when transporting or working with the machine.

In this way, you can for example prevent tripping hazards caused by the suction hose or mains cable.

• Keep packaging film away from children.

There is a risk of suffocation.

• Follow the operating manual for the charger and the battery pack.

• Do not use power supply units or third-party battery packs to operate cordless devices. Do not use third-party chargers to charge the battery pack. The use of accessories not expressly authorised by the manufacturer can result in electric shocks and/or serious accidents.

• Keep the unused battery pack away from metal objects (e.g. nails, screws, keys, paper clips, etc.) that could cause bridging of the contacts. A short circuit between the battery contacts can cause burns or fire.

• Only use the battery pack in combination with your Festool device.

This is the only way to protect the battery pack from dangerous overload. Use of another device can lead to injury and fire hazard.

• Do not use battery packs that are damaged or have been modified.

Damaged or modified battery packs can lead to fire, explosion or injuries.

English

• Disconnect the battery pack from the device before you change the accessory parts/consumables, or place the device in storage. Such preventative safety measures reduce the risk of unintentionally starting the device.

2 Symbols

Warning of general danger

Warning of electric shock

Read the operating manual and safety warnings.

Read the operating instructions and safety instructions.

Wear a dust mask.

Suitable for separation of dust with an exposure limit value greater than 1mg / m^3

Suitable for separation of dust with an exposure limit value greater than 0.1mg / m^3

WARNING! The machine may contain hazardous dust!

Do not climb on the unit

Do not absorb any water or liquids!

Do not leave in the rain!

Risk of tilting!

Inserting the battery pack

Removing the battery pack

Tip or advice

Handling instruction

CE marking: Confirms the conformity of the power tool with the European Community directives.

UKCA marking: The United Kingdom Conformity Assessed symbol is a marking for products being placed on the market in the United Kingdom. It is a manufacturers indication that the product is in conformance with the relevant regulations in the UK.

Do not dispose of it with domestic waste.

Tool contains a chip which stores data. See section 17.2

3 Intended use

CTLC SYS I

Cordless mobile dust extractor suitable

• for extracting dust with limit values up to 1 mg/m³ corresponding to dust class L,
  for increased loads during commercial use in accordance with IEC/EN 60335-2-69,
• for use with BP Festool battery packs of the same voltage class which have been approved for this cordless mobile dust extractor.

CTMC SYS I

Cordless mobile dust extractor suitable

• for extracting dust up to 0.1mg / m^3 according to dust class M including wood and mineral quartziferous dust,
• for increased loads during commercial use in accordance with IEC/EN 60335-2-69,
• for use with BP Festool battery packs of the same voltage class which have been approved for this cordless mobile dust extractor.

The cordless mobile dust extractor is not recommended for continuous extraction of fine dust, such as cement dust or filler.

The user is liable for improper or non-intended use.

4 Technical data
5 Parts of the machine
5.1 Cordless mobile dust extractor

Cordless mobile dust extractor
Motor voltage 36 V (2x 18 V)	---
Compatible battery packs [2]	BP18 Li 4.0 HPC-AS BP18 Li 4.0 HPC-ASI BP18 Li 3.1 C BP18 Li 3.1 CI
Max. suction capacity (air), extractor/turbine 93.6 m³/h / 147 m³/h
Max. vacuum, turbine 180 hPa
Filter surface area 5357 cm²
Suction hose D 27x3m-AS-90°/CT
Sound pressure level as per EN 60335-2-69/uncertainty K 63 dB(A)/3 dB
Hand-arm vibration value as per EN 60335-2-69/uncertainty K < 2.5 m/s² / 1.5 m/s²
Frequency (cordless mobile dust extractor/remote control)	2402-2480 Mhz
Equivalent Isotropically Radiated Power (EIRP)	< 10 dBm
(cordless mobile dust extractor/remote control)
Container capacity 4.5 l
Dimensions L x W x H With storage box 396 x 297 x 307 mm
Only CTL/MC SYS I 396 x 297 x 187 mm
Weight With storage box (without battery packs) 7.1 kg

[1-1] Cordless mobile dust extractor
[1-2] Storage box
[1-3] Extraction sleeve
[1-4] Suction hose
[1-5] Handle
[1-6] T-Loc lock for Systainers
[1-7] Front handle
[1-8] Exhaust air opening
[1-9] Connection button
[1-10] Connection display
[1-11] Suction power adjustment
[1-12] Status display (suction power/warning signals)
[1-13] MAN button

[1-14] On/off button
[1-15] Remote control CT-F I *

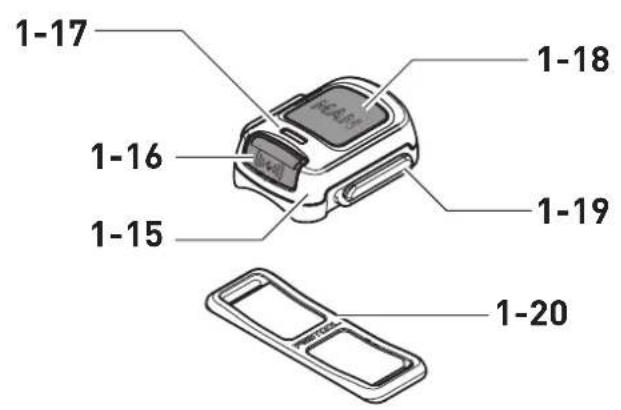

5.2 Remote control CT-F I

[1-16] Connection button
[1-17] LED indicator
[1-18] MAN button (for manually switching on)
[1-19] Attachment point for the fastening straps
[1-20] Fastening strap

The specified illustrations appear at the beginning of the Operating Instructions.

• Accessories shown or described are not always included in the scope of delivery.

6 Preparations

After removal from the packaging, the cordless mobile dust extractor is ready for use.

7 Battery pack

Before using the battery pack, check that the battery interface is clean. Any contamination of the battery interface may impair correct contact and lead to the contacts being damaged.

A faulty contact may result in the machine overheating or being damaged.

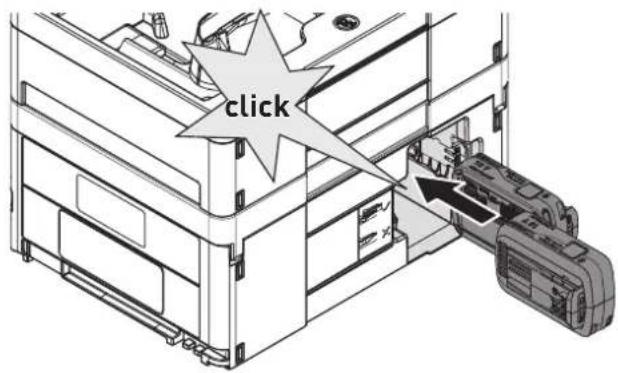

[2a]

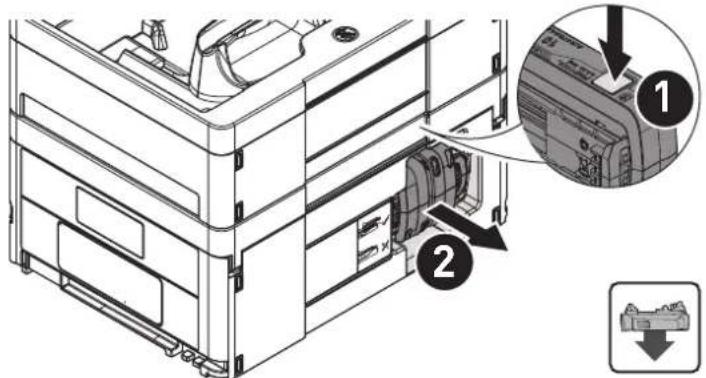

Remove the battery pack.

Insert the battery pack - until it clicks into place.

The cordless mobile dust extractor can only be operated with two battery packs. Compatible battery packs (see section 4).
Further information about the charger and battery pack with capacity indicator can be found in the corresponding operating manual.

8 Commissioning

Standby mode

Press the on/off button [1-14].

The green LEDs on the status display [1-12] indicate standby mode.

Pressing the on/off button again will switch off the cordless mobile dust extractor.

Starting/stopping the cordless mobile dust extractor manually

The cordless mobile dust extractor is in standby mode.

Directly on the cordless mobile dust extractor:

Press the MAN button [1-13] to start/stop.
Alternatively, use the connected remote control CT-F I (see chapter 9.2):
Press the MAN button [1-18] on the remote control to start/stop.

Starting/stopping the cordless mobile dust extractor automatically

The cordless mobile dust extractor is in standby mode.

To start/stop the cordless mobile dust extractor automatically: Switch the connected battery-powered power tool on/off (see chapter 9.1).

9 Connecting a device

WARNING

Risk of injury from a cordless mobile dust extractor starting up unsupervised

Before performing any work with the cordless mobile dust extractor, check which remote control and which cordless power tool are connected to the cordless mobile dust extractor.
A battery-powered power tool must always be connected to the cordless mobile dust extractor via the suction hose. After finishing work, the connection to the cordless mobile dust extractor must be disconnected.
The remote control must only be attached to the suction hose.

9.1 Connecting a battery-powered power tool

In standby mode, press the connection button [1-9].

The connection display [1-10] slowly flashes blue. For a period of 60 seconds, the cordless mobile dust extractor is ready for connection.

• Switch on the power tool.

The cordless mobile dust extractor starts up.

The cordless mobile dust extractor is connected until the on/off button [1-14] is pressed or a battery pack is removed (from the cordless mobile dust extractor). The power tool must then be connected again.

Connecting a new power tool overwrites the previous connection.
This function is only possible on Festool power tools with a Bluetooth® battery pack.

9.2 Connecting the CT-F I remote control

To be able to connect a remote control to a cordless mobile dust extractor, the remote control must be reset (see "Reset on the remote control").

Remote controls that have not been connected previously can be connected directly.

A connection that has been created between remote controls and the cordless mobile dust extractor will persist even after pressing the on/off button or removing a battery pack (from the cordless mobile dust extractor).

The cordless mobile dust extractor can be connected to as many as five remote controls at the same time. The cordless mobile dust extractor can only be connected to one battery-powered power tool at a time.
i If a cordless mobile dust extractor which was initially switched on using the battery pack is switched off using the remote control, the temporary connection between the connected battery pack and the cordless mobile dust extractor will be lost. The battery pack can then be connected again.

• Hold down the connection button [1-9] on the cordless mobile dust extractor for three seconds in standby mode.

The connection display [1-10] rapidly flashes blue. For a period of 60 seconds, the cordless mobile dust extractor is ready for connection.
Press the MAN button [1-18] on the remote control.

The remote control is permanently stored in the cordless mobile dust extractor.

Resetting on the remote control

Resetting deletes the connection between a remote control and the cordless mobile dust extractor.

Press and hold the connection button [1-16] and the MAN button [1-18] for 10 seconds.
The LED indicator [1-17] lights up purple, if the reset has taken place.

9.3 Connecting a mobile device

The cordless mobile dust extractor can be connected to a mobile device (e.g. for a software update) using the Festool Work app.

Hold down the connection button [1-9] on the cordless mobile dust extractor for three seconds in standby mode.
The connection display [1-10] rapidly flashes blue. For a period of 60 seconds, the cordless mobile dust extractor is ready for connection.
- Follow the instructions provided in the Festool Work app to authorise the secure connection.

10 Settings

10.1 Adjusting the suction power

Press the plus or minus button for the suction power adjustment [1-11] while extracting.

The green LEDs on the status display [1-12] indicate the current performance level.

10.2 Connecting sleeve

The bypass function of the connecting sleeve [1-3] prevents strong suction from sanding machines and floor nozzles on smooth surfaces.

Open

• Turn the adjusting ring to the "OPEN" position.

Close

• Turn the adjusting ring to the "CLOSE" position.

10.3 Volumetric flow monitoring (only for dust class M)

CAUTION

Hazardous dust

Damage to the respiratory passage

• Correct functioning of volumetric flow monitoring is only ensured with the suction hose D 27x3m-AS-90°/CT.

For safety reasons, an acoustic warning signal sounds if the air speed in the suction hose falls below 20m / s

Possible causes Solution

Filter bag full. Insert a new filter bag (see section 14.1).

Dirty main filter. Change the main filter (see section 14.2).

Suction hose is eliminate the block or blocked or kinked. straighten the hose. Value set on the Set the suction power to a higher value (see suction power ad- justment [1-11] is section 10.1). too low.

Battery charge level - Charge battery low. packs.

• Use new battery packs.

Electronic monitor- Have the fault rectified ing malfunction. by a Festool service workshop.

Working with sanders. Activate the bypass function (see section 10.2).

10.4 Temperature cut-out

To protect against overheating, the temperature cut-out switches off the cordless mobile dust extractor before it reaches the critical temperature. The status display LED [1-12] indicates a fault.

LED lights up red Excessive temperature

• Switch off the cordless mobile dust extractor, let it cool down.
• Switch the cordless mobile dust extractor on again after approx. ten minutes.

10.5 Connecting with the T-Loc

The cordless mobile dust extractor can be closed, opened and connected by turning the T-Loc:

• Close the cordless mobile dust extractor [3a].
• Open the cordless mobile dust extractor [3b].
• Connect the cordless mobile dust extractor to the storage box [3c].

Before lifting, always close the T-Loc at the cordless mobile dust extractor or connect to the storage box and check for secure holding.

Max. load for connection to other Systainers: 20 kg

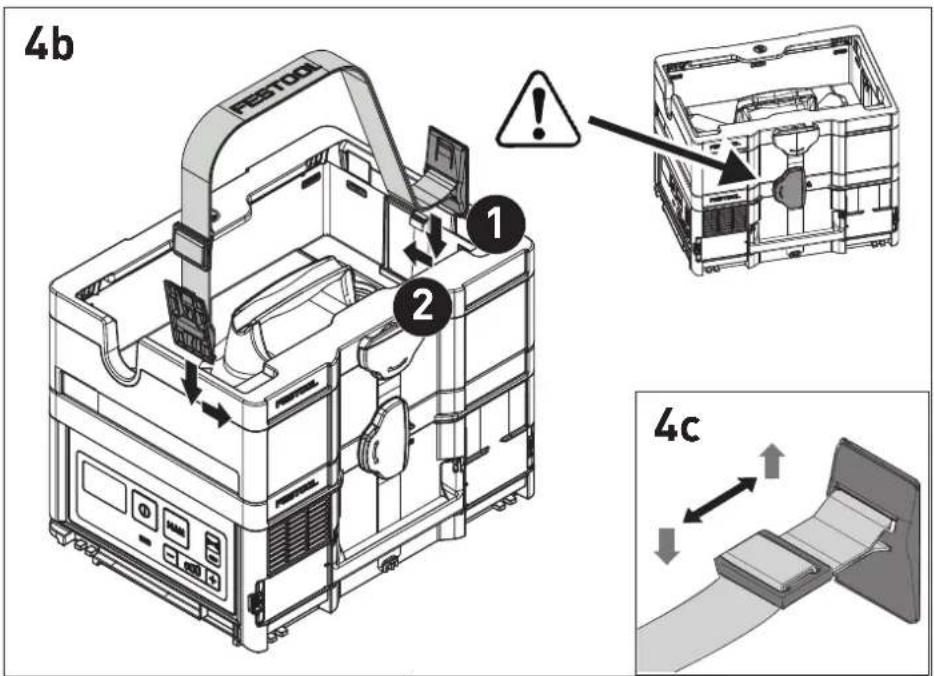

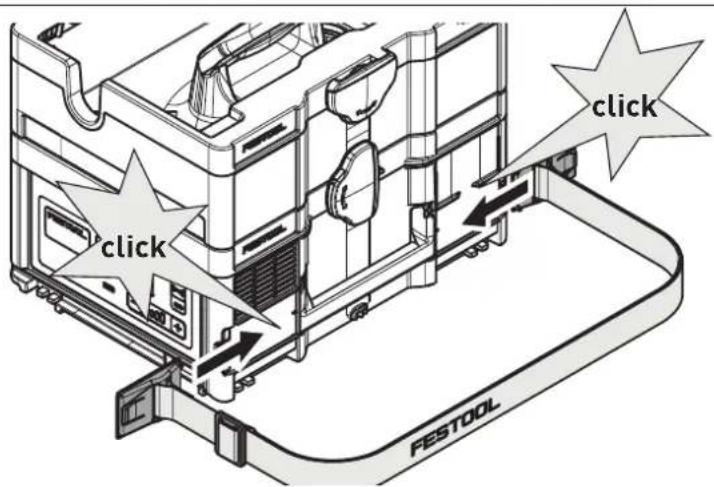

10.6 Use/Adjust shoulder strap [4]

Max. permissible load of shoulder strap: 20kg The shoulder strap can be attached in two different positions:

• Carrying the cordless mobile dust extractor: Shoulder strap on the cordless mobile dust extractor [4a]
• Carrying the storage box with the cordless mobile dust extractor: Shoulder strap on the storage box [4b]

Before lifting, check the shoulder strap for proper functionality and put the T-Loc on the cordless mobile dust extractor into the corresponding position.

Adjust the length of the shoulder strap at the adjusting tab [4c].

11 Working

11.1 Extracting dry materials

CAUTION

Hazardous dust

Damage to the respiratory passage

Always use a filter bag!
- Check that the main filter is undamaged before extracting.

When extracting dust that exceeds the limit value, only extract from one dust source (power or compressed-air tool).

Observe the following when extracting dust generated by operating power tools:

Ensure there is adequate ventilation! Observe regional regulations!

Limit values: Exhaust air max. 50% of the fresh air volume

Equation: Room volume V_R x air renewal rate L_W

Observe the following information:

• Keep the area around the exhaust air opening [1-8] clear.
• The cordless mobile dust extractor is a stationary system and not suitable for pulling at the suction hose. Use the handle [1-5], front handle [1-7] or shoulder strap [4].

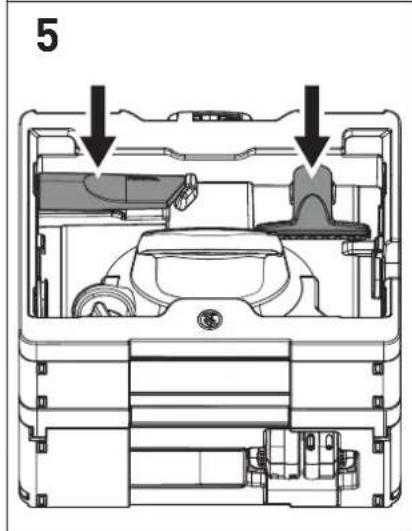

Two cleaning nozzles [5] are stored inside the storage box.

11.2 After finishing work

• Switch off the cordless mobile dust extractor.
  Remove the battery pack.

Note: Keep the unused battery pack away from metal objects (e.g. nails, screws, keys, paper clips, etc.) as these may cause bridging of the contacts.

Empty the dirt trap.

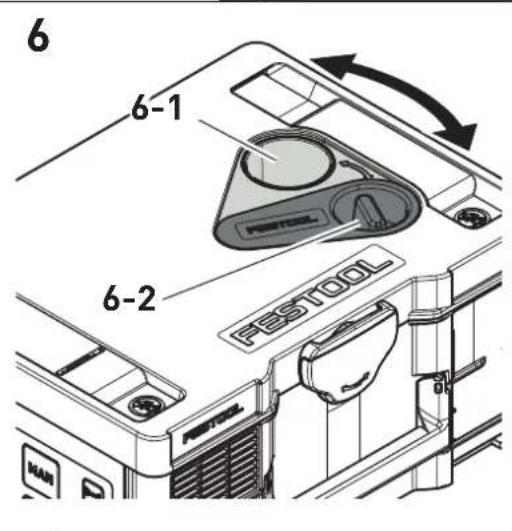

- Use the plug [6-2] to seal the suction opening [6-1].

When commissioning the cordless mobile dust extractor again, put the plug back into the parked position.

• Place the suction hose [1-4] in the storage box [1-2].
  Vacuum and wipe the inside and outside of the cordless mobile dust extractor to clean it.

• Place the cordless mobile dust extractor in a dry room inaccessible to unauthorised users.

12 Remote control

12.1 Intended use of remote control CT-F I

The remote control can manually start / stop a connected cordless mobile dust extractor.

The user is liable for improper or non-intended use.

12.2 Assembly

Attach the remote control [1-15] to the suction hose [1-4] using the corresponding fastening strap [1-20].

To connect the remote control and the cordless mobile dust extractor, see section 9.2.

12.3 LED indicator [1-17]

The remote control's LED indicator displays, the charge status of the remote control in addition to the Bluetooth® functionality:

Flashes blue once

Confirmation of the connection button [1-16] or MAN button [1-18] having been pressed.

Flashes purple once

The remote control has been reset.

Flashes red

The remote control's battery is nearly empty and must be replaced.

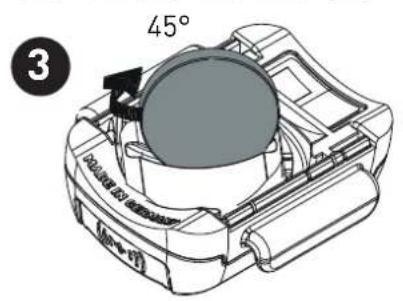

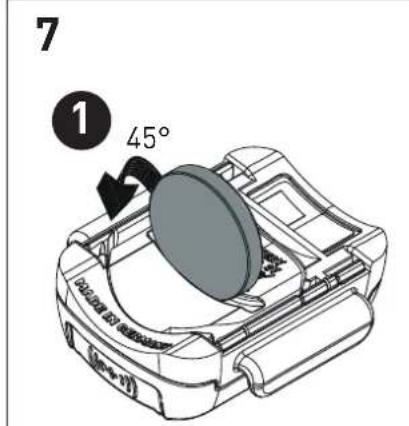

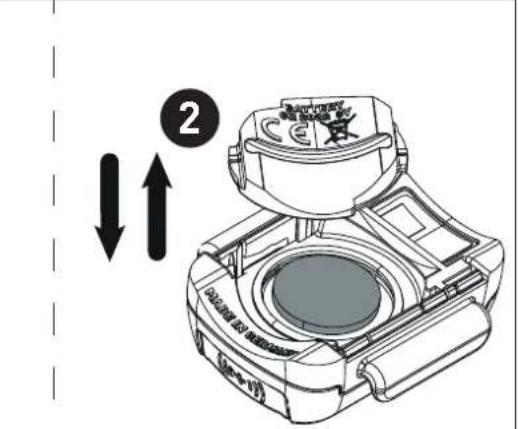

12.4 Changing the remote control's battery [7]

The remote control is operated using a CR 2032 battery.
If the battery compartment is opened, we recommend that you replace the seal (20 x 1.3 mm).

Open the battery compartment closure.

place the battery.
se the battery compartment.

12.5 Software update

To check whether a software update that will enhance the functions of the remote control or improve existing functions is available, a Bluetooth® connection to the Festool Work App can be established.

Press the connection button on the remote control [1-16] until the LED indicator [1-17] flashes blue.
The remote control is ready for connection for 60 seconds.
- Follow the instructions provided in the Festool Work App to authorise the secure connection.

13 Warning signals

Warning signal	Description of warning signal Cause Action
Visual	LED [1-12]	Flashes green Battery pack empty. Charge the battery pack.
		Incorrect battery pack.	Use correct battery pack (see section 4).
		Battery pack under-cooling.	Operating temperature, see battery pack operating manual.
		Flashes red Battery pack faulty. - Change the battery pack.
			- Use the charger to check that the battery pack is fully functional once it has cooled down.
		Lights up red Cordless mobile dust extractor overheating.	See section 10.4.
		Battery pack overheating.	Leave the battery pack to cool for approx. ten minutes.

Warning signal

Description of warning signal Cause Action

Acoustic Signal Regular Volume flow below

20 m/s.

Only for dust class M (see section 10.3).

Increasing, beginning with two short

Battery pack charge low.

• Charge the battery pack.
• Use the newly charged battery pack.

14 Maintenance and care

WARNING

Risk of injury, electric shock

Before all maintenance and care work, always remove the battery pack from the cordless mobile dust extractor.
All maintenance and repair work which requires the motor housing to be opened must always be carried out by an authorised service workshop.

Customer service and repairs must only be carried out by the manufacturer or service workshops. Find the nearest address at: www.festool.co.uk/service

Always use original Festool spare parts. Order no. at: www.festool.co.uk/service

Observe the following information:

• Dust-related inspection (e.g. for filter damage, tightness of the machine and function of the control devices) by the manufacturer or an instructed person at least once a year.
• Dispose of components that cannot be cleaned. Use impermeable bags to do so. Observe the applicable disposal provisions!
• Keep the contacts on the cordless mobile dust extractor, charger and battery pack clean.

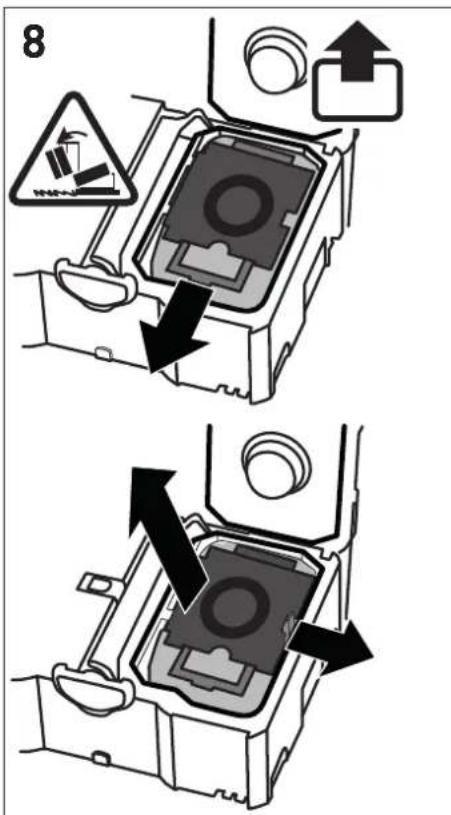

14.1 Changing the filter bag

• Open the cordless mobile dust extractor with T-Loc. Attention: Risk of tilting!
• Changing the filter bag:
  • Remove the filter bag [8].

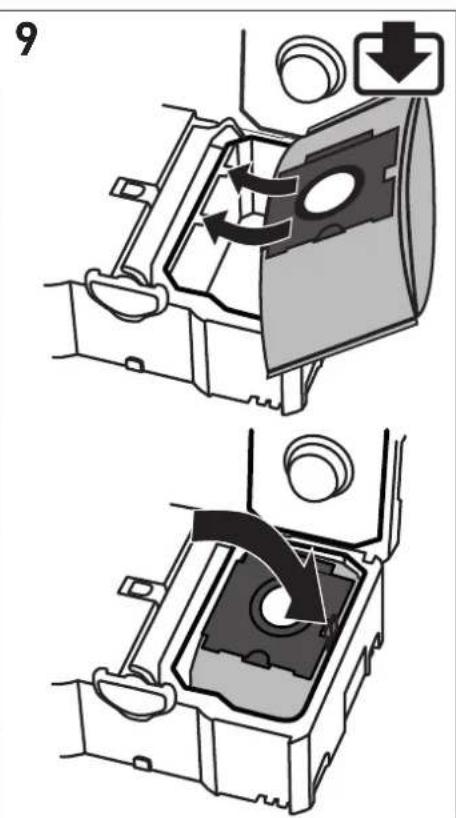

  • Insert a filter bag [9].
• Close the cordless mobile dust extractor with T-Loc.

An additional filter bag can be stored on the base of the housing [10].

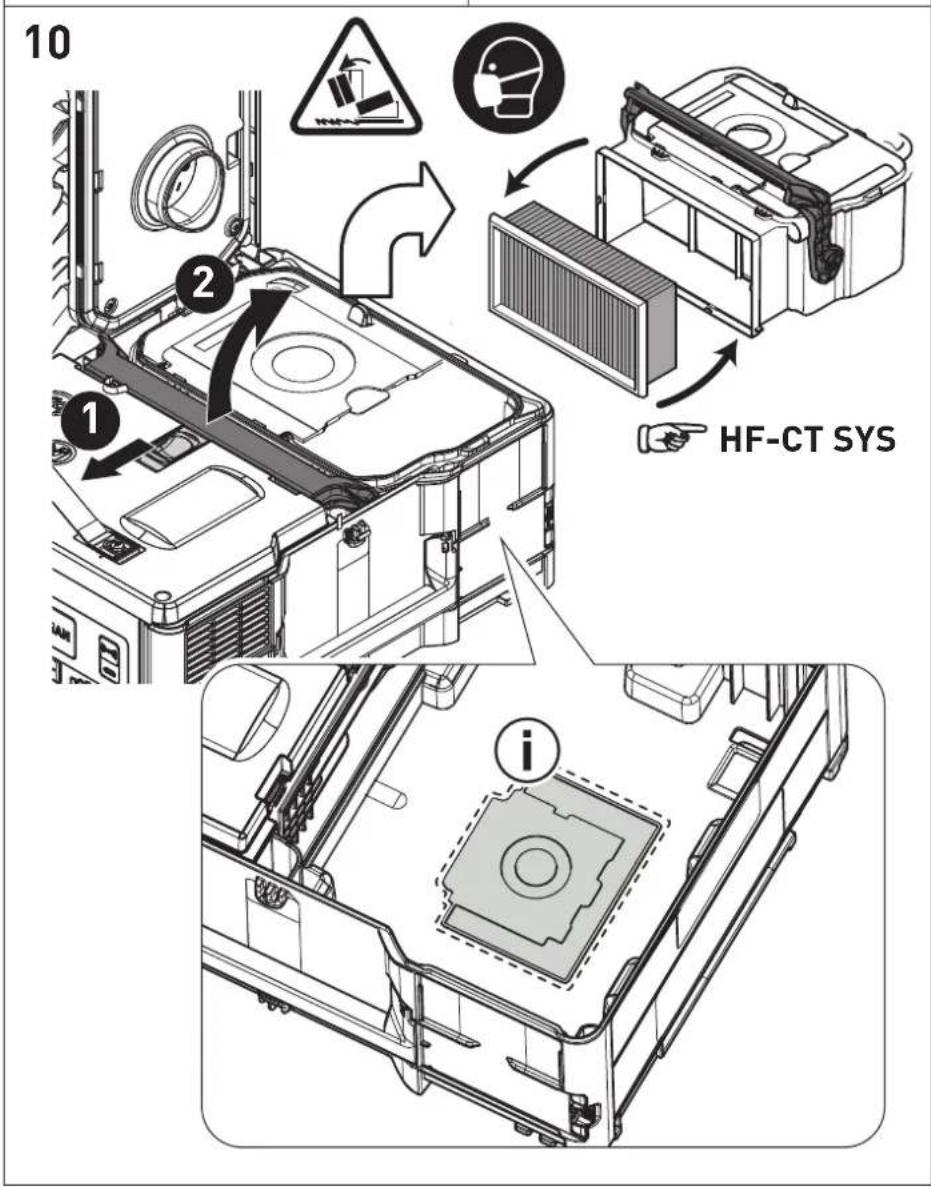

14.2 Changing the main filter [10]

NOTICE

Damage to the motor

• Never extract material without a main filter, as this can damage the motor.
• Open the cordless mobile dust extractor with T-Loc. Attention: Risk of tilting!
  Unlock and fold down lever.
• Remove container upwards.
• Remove the used main filter and replace with a new one.
• Dispose of the used main filter in accordance with statutory regulations.
  Clean container and seals.
  Insert container. Fold up and lock lever.
• Close the cordless mobile dust extractor with T-Loc.

Refer to the Festool catalogue for the order numbers of accessories and tools or find them online at www.festool.co.uk.

15 Transportation

Observe the following information:

• Before transportation, always close the T-Loc at the cordless mobile dust extractor or connect to the storage box.
• For transportation in vehicles, secure the cordless mobile dust extractor against slipping and tilting in accordance with the valid guidelines.

16 Environment

Do not dispose of the device in the household waste! Recycle devices, accessories and packaging. Observe appli-national regulations.

EU only: In accordance with the European Directive on waste electrical and electronic equipment and implementation in national law, used power tools must be collected separately and handed in for environmentally friendly recycling.

17 General information

Imported into the UK by

Festool UK Ltd

1 Anglo Saxon Way

Bury St Edmunds

IP30 9XH

Great Britain

17.1 Information about Bluetooth®

As soon as the tool is connected to the Festool Work app via Bluetooth® and the secure connection has been authorised, the tool will connect automatically to the Festool Work app from this point onwards. The tool then regularly sends status information (ID, operating status, etc.) via Bluetooth®.

The Bluetooth® word mark and the logos are registered trademarks of Bluetooth SIG, Inc.; they are used by TTS Tooltechnic Systems AG & Co. KG, and therefore by Festool, under licence.

17.2 Information on data privacy

The tool contains a chip which automatically stores machine and operating data. The data saved cannot be traced back directly to an individual.

The data can be read in a contactless manner using special devices and shall only be used by Festool for fault diagnosis, repair and warranty processing and for quality improvement or enhancement of the device. The data shall not be used in any other way without the express consent of the customer.

Sommaire

Causes possibles Solution

Mobiele accu-stofzuiiger is in de stand-by-modus.

Direct op de mobiele accu-stofzuiiger:

Mobiele accu-stofzuiiger is in de stand-by-modus.

Varning for allman risk

Varning for elstotar

12.5 Programupppatering

Motorspenning 36 V [2x 18 V]

Legg inn filterposen [9].

Lukk den batteridrevne stovsugeren med TLoc.
i Det kan oppbevares en ekstra filterpose i bunnen av apparathuset [10].

14.2 Skifte hovedfilteret [10]

Merk

Skader pà motoren

He BcacbBaIte BoNy n Hhble KnKo-CTn!

He octabnIte annapaT noIdoKdEm!

Onacnoctb onpoknDbBaHna!

YcTaHOBKa aKKyMyJrTopa

OToeDnHeHne aKKyMylTopa

HCTpyKzna,pekomeHaazna

HCTpyKuaNo NcnoJb3ObaHnIO

MapknpoBka CE: NodTbePxxdaet cooTBeCTBnE 3JIeKTPoHnHCTpyMeHTa OCHOBHbIM Tpe6OBAHNm INpeKtNB EC.

He BbIbpaBbAaTe BMeCTe C 6bITOBbIMN OTXoJaMn.

BnHcTpymHeTe yctaHObnen qnn dny coxpaHenn daHHbIX. Cm. pa3dien 17.2

MapknpoBkaEAC:IoTBePxJaet co-OTBeTCTBnE 3JIeKTPoHnHcTpymEnTa OC-HOBhIM Tpe6ObaHnM dInpeKTnB EbpA3NCKOrO 3KOHOmUeCKOrO c0H3a.

YKpaHnckn CmBBoJ SEPRO noTBeP- Xdaet COOTBeTCTBne 3JeKTponHCTpyMeHTa OCHOBHbIM Tpe6oBaHnM DnpeKTNb YKpaHnbl.

AkkymyIaTophI nbIeYdaIaIouIaI annapaT npirodeH

-ДЯ ydaJIeHnI pbln Do 0,1 Mr/M3 (Klacca M'), BkIIOuAЯ dpeBecHyIO pblb, MnHepaJIb-HyIO N KBaPcEByIO pblb,
-Дя npoфeccnoHaJIbHOrO nCNoIb3OBaHnB BycNoBnx NOBblSeHHbIX HaRpy3OK CoIaCHO IEC/EN 60335-2-69,
-ДЯИСПОЛБ3OBaHЯс AkKуЛЯTOpAmi Festool cepu BP OdHoro Klnacca no Hapry-JKeHIO,ДоушeHHbIMДЯ pa60TbI C 3TUM aKKyMЛЯTOpHbIM nbIJIeUdAJIYIOUm anPnApaTOM.

AkkymyTophnynbIbIeYdaJauu annapaT He peKomeHdyetcNcNoIb3OBA TbJn HnpepbB-Horo c6opa/BCacbIBaHn TOHKoNbIi,Ha npmep zemeHTHO nn WnatLeBOOH.

OTBETCTBeHHoCTb 3a NcNoJIb3OBAHHe He NO Ha3HaueHnIO HecET NOpIb3OBATeJIb.

4 TexHnueckne daHHbIe

5.1 AkkymyIaTOpHbI nbIeYdaIaIoun annapaT

[1-1] AKKymyIaTOPbI NblJeYdaJIaIoun annapaT

[1-2] OTeckДЯХpaHeHnA

[1-3] BcabsbBaIOUaMyΦTa

[1-4] BcabsBaIoun mJaaHr

[1-5] Puyka Дяпегенockи

[1-6] 3amok T-Loc dIy cIcTeiHepa

[1-11] PerylnpoBka nHTeHcNBHOCTN BCacblBaHn

[1-12] HndkaTop coctoHnna (cnla BcacblBaHnra / npedynpekdaioune cnHaJIbI)

[1-13] Khonka MAN

[1-14] KhoNka BkIoueHn/ByIKIoueHn

[1-15] NylbTДYCT-FI*

5.2 NyIbT Dy CT-F I

[1-16] Khoŋka coeɪnHeHЯ
[1-17] CBeToIIOHbI INHdNkATOp
[1-18] Khoŋka MAN (pyuHoe BkJIoueHne)
[1-19] BbIcTyn noi 6paCteBtI dIy KpePJIeHnnyIbTa DY
[1-20]Бpacnetдякpenlenny npьтаду

HJIIOCTpaun HaxoJrTcB Haayane pyKOBoDCTBa no 3KcNpyaTu.

• HeKoToPbIe n3o6paXkEHHbIe nIIN oNcblBaemblie 3JIeMeHTbl OChAcTkn He BXOJrT B KOMJIeKTNoCTaBKn.

6 PnodrotobntbHbIe pa60tbl

AkkymyTophni nbileydaIauu annapaT roTOB K pa6oTe cpa3y nocne n3BleueHn 13 ynaKOBKn.

7 AkkymyIaTOp

Ipepe yctaHOBkoAkkymyIaTopa npOBepbTe, He 3aqr3HeHbI JN KJIeMMbl. 3aqr3HcHHbIe KJIeMMbl He o6ecneuBaOT xopoWNI KOHTaKT N MOryt NOJyUHTb NOBpeXdEHNr.

HeicnpaBbI KOHTaKT MoKeT npNBecTu K nepe- rpeBy N NobpeXdEHNIO HcTpymeHTa.

[2a] OToeHNHe aKkyMnyTOp.
[2b] BcTaBbTe aKKyMnyTOp -do kick 0nKcaun.

i AkKymyIaTOPHbI nbIeYdaJIaIOuNn anna-paT MoKHO 3KcIIyaTnpOBaTB TOnbKO c 2 aKKymyIaTOPaMn.
CoBmecTmblte aKKymyIaTOpbl,cm.pa3-4.
i Ioppo6nHa HOpMaun O 3apAnHom ycTPOINCTBe n aKKyMylTope C INHnKaTopoM EMKoCTn CoepXHTcB COOTBeTCTByIOx npKOBODTBax NO 3KcnIyatauN.

8 PndroToBka K pa6ote

PexnM OxndaHna

HaxmTe KhoNky BkIIOueHnry/BbIKIOue-Hnry [1-14].

3eIeHbIe CBeToIONoBbl HnDnKaTopa CoCTOHN [1-12]yKa3bIBaIoT Ha peXIM OxNJaHIn.

Pn NOBTOPHOM HaxaTN KHOKN BKNIOueHn/ BbIKNoueHnaAkkymyIaTOpHbI NblJeUdaJIHO- Unn annapaT OTKNUOaETc.

PyuHoi nysck/ocTaHOB aKKyMylrTopHOro nbIeUdAJaIooJero annapata

Пыileудаляюши annapat haxoДNTcB peЖиMe OЖиДанЯ.

HenocpeDCTBeHHo Ha aKKymyIaTOPHom nbIeY-danlaouem annapate:

Для зауcke/octaHOBa HaXmTe KhoNky MAN [1-13].

Pycckn

B kauectBe aIbTepHaTnBbl c noDcoeHHeHHoro nyIbTa DY CT-F I (cM. pa3d9 9.2):

ДляЗanycka/OcTaHOBaHaXMMTe KhoNky MAN[1-18]Ha npIbTe DY.

A B T O M A T N U C E C K N N y c k / o c t a H O B a K K y M y J T O P H O R O n b l e y d a n a l y o u s e r o a n n a p a T a

AkkymyIaTOPbI NblneUdaJIaIuIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaa

AkkymyTopHbI nbIeYdaJIoUuI annapaT NOcOeHNHeH Do NOBtOpHOro HaxaTnK KHOKN BkJIoueHHr/BbIKJIoueHHra [1-14] nII I Do N3BLe-ueHHra aKKMyJrToPA n3 nbIeYdaJauIeero annapaTa. Pocne BBIKJIoueHHra TaKIM cNoCo6oM Heo6xOdImo 3aHOBO BblONHrTb cOprrKeHne 3JIeKTPoHnHCTpyMeHTa.

i PnpnoDcoeHHeHHHOBOro 3JeKtpOnHCTpyMeHTa npedbIyUee noDcoeHHeHne CTnpaetcN3 NaMRTN.
i 3TaФункцЯДOCtУпнHaToьКоДЯ 3JIeKTpOuHcTpyMeHTOB Festool cakkyMnya-TopoMcBluetooth®.

9.2 PocoeHHeHne npIbTa Dy CT-FI

Дя coeHHeHЯ nIbTa Dc aKkMyJrToPbHIM NJIeYdAJIaIOUm aAnnapaTOM HxKHO BbIOnHHTb C6poc hAcTroKn nIbTa Dy [cm. pa3delen «C6poc HacTroKn nIbTa Dy]

NylbIy, eue He pa6oTaBwne Hn cOnHm aannapaTOM, MoKHO nOcOeHNrTa Cpa3y.

i YcTaHOBJIeHHoe coeINHeHne MeJy NylbTOM Dn aKKymJrTopHbIM nbJIeydAJIIOuIuM annapaTOM COxpaHReTcN I NOcNe HaXaTHNA KHOKN BKLIOUeHNRA/BbIKIOUeHNr INn n3BJeueHna AKKymJrTopa N3 nbJIeyDaJIauOeTo annapata.
K nbIeYdaIaIooIeMy aannapaty moXHO O-HOBpeMeHNO IOdcoEINHTb DO IaTI Nylb-TOB DY. NblEydaIaIooIu annapaT moXETnMetb coeINHeHne TOLbKO C Odnm aKKy-MyJIaTOPHBIM IHCTpyMeHToM.
Ecnn nbineydaJauoun annapat 6bln BkHoueH no cnHaIy ot aKKymyJrTopa, a BbIKJIOaETcC nylbTa DY,TO npn 3TOM OTMeHReTcBpeMeHHoe coeHNHeHne aKKymyJrTopa c annapatom. N0dHee 3To coeHNHeHne MOxHO BOCCTaHOBNTb.
BpeKIme OxuaHnHaXkMaITe KHOKnky coeINHeHn [1-9] Ha nbileydaJraIOuE m annapaTe BteueHne 3ceKyn.

HndnkaTOp coeHHeHna [1-10]HaunHaet yacto MNrTaB cHnM UBeTOM. IbIeYdAraUOuN aannapat rOtOB K COeHHeHIO B TeueHne 60 ceKyHn.
Haxmnte KhoNky MAN [1-18] Ha nyIbTe Dy. NytB TY 3auncaH B namrTaAkkymyTOpHoro nbIeYdaJnroo annapata.

C6poc hactpoKn npybTa DY

YCTAHOBJIeHHoe coeINHeHne nyIbTa DY cAKKyMyJIaTOpHBIM nbIeUdAIAJIOUIm aannapatom MOxHO c6pocntb.

HaxmaiTe KhoNky coeHHeHn [1-16] n KhoNky MAN [1-18] B TeueHne 10 cekynd. YcneHbIcbpoc HacTpoEKnOaepKdaetc npynpHbIM CBETOIOIDhIM INDnKATOpom [1-17].

9.3 PoiocoeiHHeHne Mo6nIbHbIX ycTpoiCTB

CoedHnTe aKKymJyTophBn nbJeYdaJIoUnn annapat yepe3 npNoXeHne Festool Work c MObNbHbM yCTpoiCtBOM (HaNPmep, nla 06HO BLeHnI PO.

Bpexime oxuandaHnnaHXmMaTe KhoNky coeunHeHn [1-9]Ha nIleydaJauoUeM annapaTe BteueHne 3ceKyHd.
HnKatop coeHHeHna [1-10]HaunHaet yacto Mntb cHnM uBcTOM. TbIeYdAaIouu anPa-paT rOToB K coeHHeHNo B TeueHne 60 ceKyHd.
ДябетониabTOpn3auncoeHHeNn BbIOnHЯTe yka3aHn npInOxHnFa Festool Work.

10 Hac tropon

10.1 PerylnpobKa cnIbI BCacbBaHn

HaxmMaTe KHOJKN «JIIOC» NIN «Mn-Hyc》[1-11]Ha peYJIATope INHTeHCNBHOCTN BCacbIBaHnB peXmE BCacbIBaHn.

3eJIeHbIe CBetOIOJbI INHnKaTopa COCTOHN [1-12] NOKa3bIBaIOT TeKyuN yPOBeHb HHTeHCNBHOCTN.

10.2 BcabsBaioaMyfTa

Функцябайпаса на BCacbBaIOошeMyΦ-Te[1-3]npedotBpaaet npincacbBaHne WlnΦ-MaUNHOKи HacaOkДЯ NOJa K rJaIcKIM NOBepxHOCTaM.

OTKpbBaHne

• NobepnTe peryInpoBouHoe KoIecuKo B noJIoXeHne «OPEN» [OTKpbITo].

3aKpbBaHne

Ko HEnocpeDCTBeHHbIe NCTOuHNKn nbIIn (3JeK- Tpo- nII INHeBMOHnCtpyMeHT).

C6bIouaTe cJeDyUoUne npabuHa npn c6ope nbln, o6pa3yUoUeJc npn pa6Ote 3NeKtpOnH-CTpyMeHTOB:

Obecneyte doctaToHyo BeHTnlauio! Co6IIO-daTe pernoHaBhble npednncanna!

BbIKIOHTe nbIeYdAaIoun annpaT.
- N3BneKeNTe aKKyMnyTOp.

BHHMaHHe: DepKHTe HeNCNoJIb3YeMbI aK-KyMylrTop Ha 6e30nacHom pacCToHn OMeTaNuecknx PpeMToB, HAnpImepTB03dEi, BnHTOB, KJIouey, KaHcJIeRpCKNXCKpeNOK I T. I., KOToPbIE MoYr CTaTb IpnuHOn NepEmbIKaHnA aKKMyJIrTOphbIX KOHTAKTOB.

OnopoxKHTe pe3epByap IJRAI3N.
-ПepeкpoITe BCacbIbAIOuIee OTBepcTne [6-1] 3aflnykoI [6-2].

Ipn noceyuopei Kcnpyaataa n aKKymyJIaTOpHOro nbIeUdAJaUoJero annapata nepeBedeTe 3arLyuKv B Hepa6Ouee noLoKeHne.

-ПоложиTe BCacbIbAIOuNIM ShlaHr [1-4]ВOT-ceKДЯХpaHeHnra[1-2].
OuHCTnTe nbIeYdaIaIouIi annapaT n3HyTpNI cHapxN C NOMoUbIO nbIeCocaN TpIKN.
Y6epnte nbIeuydaJIoUnn aannapTaHa xpaHHeHne B cyXoe NomeJeHne, 3aunueHHoe OTHenpaBOMOuHOro nCNoJIb30BaHn.

Kpome HndnKaun cTaTyca Bluetooth-coeHnHeHn CBeToNDnOHyn HndNKaTOp DOnoHnTeNb-Ho NOKa3bIbAet yPOBeHb 3apra 6aTapeKu B nyIbTe DY:

1-KpaTHoe MnraHne cHero CBeToOnoJa

3aΦnKcnpoBaHo HaxKaTne KhoNk CoeHnHeHn [1-16] nJn KhoNk MAN [1-18].

1-KpaTHoe MrraHne npnpHoro cBeTo- dnoDa

BbnoHHe n6poc HacTpoKn nyIbTa dy.

MuraHne KpacHoro CBeToNDnOda

BatapeKa B nyIbTe Dy noTu pa3pAnIaacb N Tpe6Byet 3aMeHbl.

12.4 3aMeHa 6aTapeiKn B nyIbTe y [7]

① Пульт Ду pa6oTaet Ha 6aTapeикax CR 2032.

i Pocne oTKpbBaHnO TceKa IJy 6aTapeKn peKOMeHNyEtCra 3aMeHHTb yNIOTHHTeJIbHyIO npoknaKy (20x1,3 MM).

PcKcnpyTe KpbIuKy OToceKa Ina 6aTapeiKn.
3MeHnTe 6aTapeuKy.
3kpOteOTceK.

12.5 06HOBJIeHne IIO

Дляnpobepkn BbixoDa HOBbIX 6HOBJIeHnIIO, NOBbIshaOuX INN yIyUwAIOxN x OYHKUHOHaNb-HocTb NylTa Dy, MoKHO yCTaHOBNTb

Bluetooth®-coeHHeHne c npNoXeHnem Festool Work.

Haxmte KhoNky coeHHeHna nyIbTe 1y [1-16], noka He 3aMnraet cHn CBeToDIOd [1-17].

IyIbT IY roTOB K coeINHeHIO B TeueHne 60 ceKyuHd.

Дя 6e30aCHO ABTOpH3aUN COeHNHeHn BbINOJIyTe yKa3aHn npNIOxKeHn Festool Work.

13 Празурацьпсгнавы

10.1 Regulace sily sani

V sacim rezimu stisknete tlacitko plus nebo minus regulace sily sani [1-11].

Zelené LED ukazatele stavu [1-12] signalizuji aktuálni stupen vykonu.
