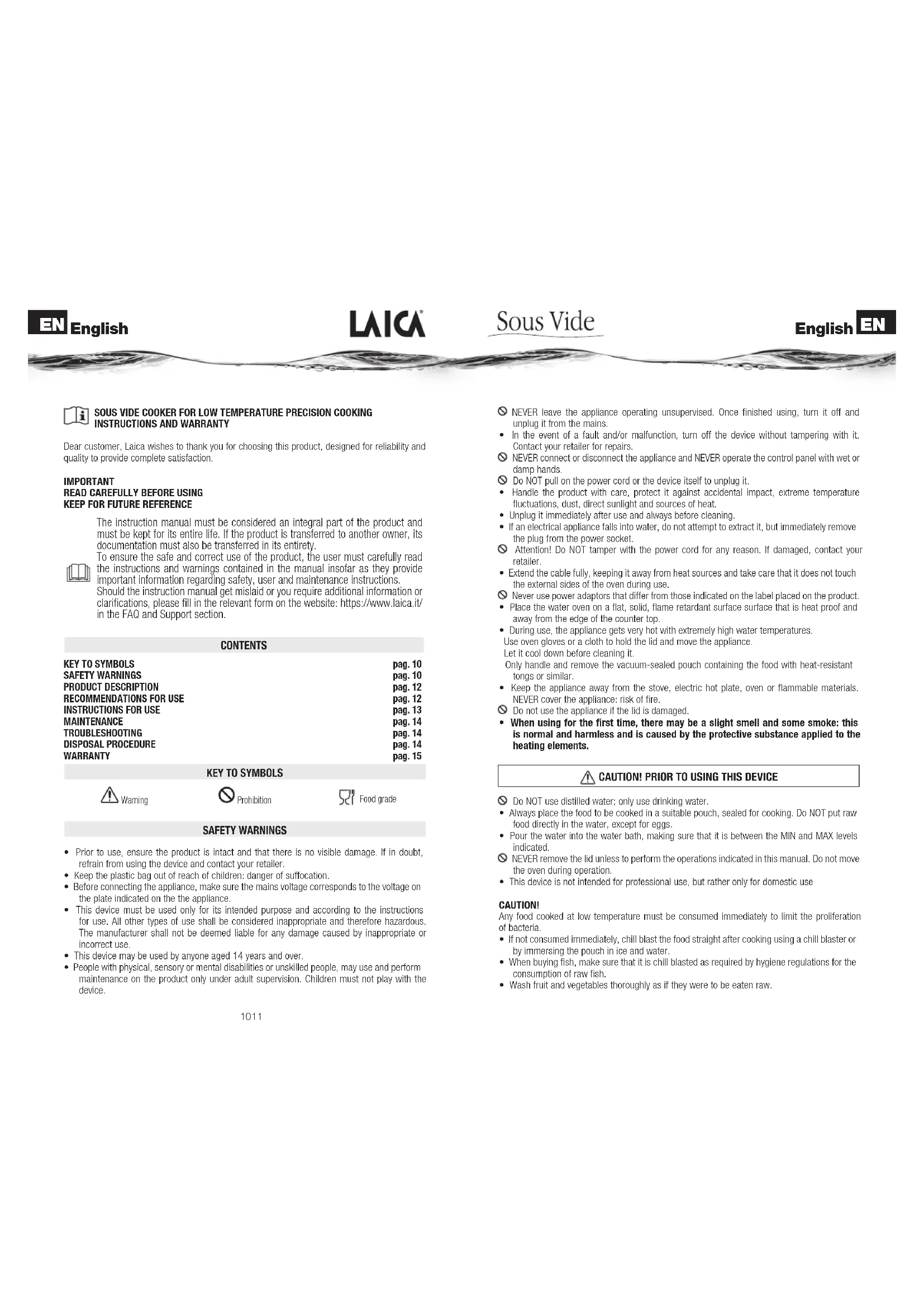

USER MANUAL SVC200 LAICA

INSTRUCTIONS AND WARRANTY

Dear customer, Laica wishes to thank you for choosing this product, designed for reliability and quality to provide complete satisfaction. IMPORTANT

READ CAREFULLY BEFORE USING

KEEP FOR FUTURE REFERENCE

The instruction manual must be considered an integral part of the product and must be kept for its entire life. If the product is transferred to another owner, its documentation must also be transferred in its entirety. To ensure the safe and correct use of the product, the user must carefully read the instructions and warnings contained in the manual insofar as they provide important information regarding safety, user and maintenance instructions. Should the instruction manual get mislaid or you require additional information or clarifications, please fill in the relevant form on the website: https://www.laica.it/ in the FAQ and Support section. CONTENTS

Warning Prohibition Food grade SAFETY WARNINGS

• Prior to use, ensure the product is intact and that there is no visible damage. If in doubt, refrain from using the device and contact your retailer.

• Keep the plastic bag out of reach of children: danger of suffocation.

• Before connecting the appliance, make sure the mains voltage corresponds to the voltage on the plate indicated on the the appliance.

• This device must be used only for its intended purpose and according to the instructions for use. All other types of use shall be considered inappropriate and therefore hazardous. The manufacturer shall not be deemed liable for any damage caused by inappropriate or incorrect use.

• This device may be used by anyone aged 14 years and over.

• People with physical, sensory or mental disabilities or unskilled people, may use and perform maintenance on the product only under adult supervision. Children must not play with the device. NEVER leave the appliance operating unsupervised. Once finished using, turn it off and unplug it from the mains.

• In the event of a fault and/or malfunction, turn off the device without tampering with it. Contact your retailer for repairs. NEVER connect or disconnect the appliance and NEVER operate the control panel with wet or damp hands. Do NOT pull on the power cord or the device itself to unplug it.

• Handle the product with care, protect it against accidental impact, extreme temperature fluctuations, dust, direct sunlight and sources of heat.

• Unplug it immediately after use and always before cleaning.

• If an electrical appliance falls into water, do not attempt to extract it, but immediately remove the plug from the power socket. Attention! Do NOT tamper with the power cord for any reason. If damaged, contact your retailer.

• Extend the cable fully, keeping it away from heat sources and take care that it does not touch the external sides of the oven during use. Never use power adaptors that differ from those indicated on the label placed on the product.

• Place the water oven on a flat, solid, flame retardant surface surface that is heat proof and away from the edge of the counter top.

• During use, the appliance gets very hot with extremely high water temperatures. Use oven gloves or a cloth to hold the lid and move the appliance. Let it cool down before cleaning it. Only handle and remove the vacuum-sealed pouch containing the food with heat-resistant tongs or similar.

• Keep the appliance away from the stove, electric hot plate, oven or flammable materials. NEVER cover the appliance: risk of fire. Do not use the appliance if the lid is damaged.

• When using for the first time, there may be a slight smell and some smoke: this is normal and harmless and is caused by the protective substance applied to the heating elements.

CAUTION! PRIOR TO USING THIS DEVICE

Do NOT use distilled water; only use drinking water.

• Always place the food to be cooked in a suitable pouch, sealed for cooking. Do NOT put raw food directly in the water, except for eggs.

• Pour the water into the water bath, making sure that it is between the MIN and MAX levels indicated. NEVER remove the lid unless to perform the operations indicated in this manual. Do not move the oven during operation.

• This device is not intended for professional use, but rather only for domestic use CAUTION! Any food cooked at low temperature must be consumed immediately to limit the proliferation of bacteria.

• If not consumed immediately, chill blast the food straight after cooking using a chill blaster or by immersing the pouch in ice and water.

• When buying fish, make sure that it is chill blasted as required by hygiene regulations for the consumption of raw fish.

• Wash fruit and vegetables thoroughly as if they were to be eaten raw.12 13

• Vacuum sealing does not reduce the presence of micro-organisms: cook the food immediately after sealing it in the pouch.

• The quality of the food, which must be fresh, is very important PRODUCT DESCRIPTION (see fig.1)

• Programmable temperature: from 40°C to 90°C

• Timer setting: from 1 minute up to 72 hours

• Unit of measurement °C and °F

• Environmental storage conditions: +5°C +45°C; relative humidity ≤RH 95%

RECOMMENDATIONS FOR USE

• The sous vide cooking system is for use with pouches suitable for food and cooking. Pouches must be sealed. Laica recommends vacuum-sealed pouches which guarantee the best results.

• Put the seasoned food in the pouch and vacuum seal with a LAICA vacuum machine.

• When preparing food with liquid content, expel as much air as possible from the pouch before sealing it.

• Cook the food as soon as it has been vacuum sealed.

• During cooking, check that the pouch is always immersed in the water to ensure the food is cooked evenly.

• When setting the cooking time, consider the thickness of the food that you want to cook: the thicker it is, the longer it will take to cook.

• When inserting more that one piece of food in the same bag, distribute the pieces well so as to not create overlapping that can lead to uneven cooking.

• In the case of overcooking, low-temperature cooking prevents you from spoiling the dishes: the food does not burn, does not become stringy and does not dry out.

• Cooking times and temperatures may vary depending on personal taste preference and the style of preparation of the dish. There is an extensive section on the www.laica.it website dedicated to easy-to-prepare recipes to make in your own kitchen with LAICA Sous Vide cooking appliances.

INSTRUCTIONS FOR USE

1. Before using for the first time, wash the lid with hot water and washing up liquid, rinse

thoroughly and dry with a soft, dry cloth. Rinse the protection grille and stirrer under running water. Clean the inner bath with a warm, damp cloth and washing up liquid. Do not rinse the oven under running water. Dry with a dry cloth.

2. Place the water oven on a flat, solid, flame retardant surface surface that is heat proof and

away from the edge of the counter top.

3. Place the stirrer in the centre of the bath and cover it with the protection grille which should

be inserted as shown in figure A.

4. Plug the device in: it will give an audible signal and the “ ” key will light up.

5. Fill the water bath with water to a level between the MIN and MAX levels indicated.

Remember that the water level will rise when the pouch is immersed in the water. The water level must be between MIN and MAX. Using warm water to fill the water bath is recommended to speed up the water heating phase. The sous vide rack can be placed in the water bath to maintain the ideal distance between the pouches during cooking.

6. Place the lid on the water bath.

7. Press the “ ” key: the display will show the temperature and the pre-set time of 56°C and

8 hours. The device is factory set to display °C; to change from °C to °F (56.0°C - 130°F), press and hold the "

" key for about 3/5 seconds.

8. To change the factory settings, adjust the temperature by pressing the " " and " "

keys. Every time you press the key, the temperature changes by 0.1°C. Hold one of the keys to scroll through the numbers more quickly. The temperature changes by 1°C when scrolling rapidly. Confirm by pressing the "

9. The time will flash: change the time by pressing the " " and " " keys. Every time you

press the keys, the time changes by one minute up to 2 hours, by 30minutes from 2 to 72 hours.

10. When the data has been set, press the "

" key to start the device: the water heating phase starts and the display will alternately show the word “PRE” and the actual water temperature.

11. When the water reaches the temperature set for cooking, it will be shown on the display, the

device will emit three audible beeps and the cooking phase will start. Remove the lid with oven gloves and immerse the vacuum-sealed food in the water bath using tongs. Place the lid on the water bath. The device displays the set time as it decreases. You can interrupt cooking at any time by pressing the "

" key: the display shows the pre-set data. To restart cooking, you must reset the temperature and time.

12. When the set time expires, the device will emit 3 audible beeps and switch off (the “ ” key

will stay on and flash).

13. Unplug the appliance, lift the lid with oven gloves and remove the pouch containing the

cooked food with heat-resistant tongs. If the food is to be eaten immediately, it can be seared to finish it a pan for a few minutes after removing it from the vacuum pouch. If not consumed immediately, chill blast the food straight after cooking using a chill blaster or by immersing the pouch in ice and water. If the water temperature is lowered to a level below the set temperature (to insert the vacuum pouch or when topping up with cold water), the oven will automatically raise the temperature to the one pre-set at the start. The actual temperature is displayed constantly. Take this into account and adjust cooking times accordingly. EN EN English English14 15 MAINTENANCE

• Wash your hands thoroughly before cleaning the appliance.

• Let the appliance cool down completely before cleaning it.

• Wash the lid with hot water and washing up liquid, rinse thoroughly and dry with a soft, dry cloth. Place it on a dry cloth so that it dries completely.

• Empty the water in the water bath and clean it with a warm, damp cloth and washing up liquid. Dot not rinse the oven under running water. Dry it with a dry cloth.

• Never use chemicals or abrasives.

• You can clean the water bath by pouring water and vinegar into it up to the MAX level and leaving it for up to one hour. Empty and dry it with a soft, dry cloth. Leave it to dry completely in the air. This operation should be carried out about once a month or whenever necessary.

• Store the appliance in a cool, dry area. TROUBLESHOOTING Problem Possible cause Solution The appliance is not working. The appliance is not plugged in. Plug it into the electrical socket. The display shows “E1”. Faulty temperature sensor. The appliance cannot be used. Unplug it and contact your retailer. The display shows “E2” Faulty temperature sensor. The appliance cannot be used. Unplug it and contact your retailer. The appliance switches off automatically, emits five audible beeps and the display shows “E3”. There is no water in the water bath. Make sure the water level in the water bath is between the MIN and MAX levels indicated on the appliance. Top up the appliance with water. The appliance has been topped up with boiling water. Switch off the appliance, empty the water bath and pour in warm water. DISPOSAL PROCEDURE (Dir.2012/19/EU-WEEE) The symbol on the base of the appliance recommends the separate collection of electrical and electronic equipment. At the end of the useful life of the appliance, do not dispose of it as mixed solid municipal waste but dispose of it at a specific collection centre located in your area or return it to the distributor at the time of purchasing a new appliance of the same type and intended for the same functions. Where the size of the appliance to be disposed of is less than 25 cm, it is possible to return it to a point of sale with length greater than 400 square meters without the requirement to purchase a new similar appliance. This procedure of separate collection of electrical and electronic equipment is carried out within the context of a Community environmental policy with the aim of preserving, protecting and improving the quality of the environment and to avoid potential effects to human health due to the presence of hazardous substances contained in these appliances or to misuse of the same or parts of them. Attention! The improper disposal of electrical and electronic equipment may result in penalties. This product is meant for domestic use. The conformity, certified by the CE-marking on the device, refers to the Directive 2014/30/Eu on electromagnetic compatibility, to the Directive 2014/35/Eu on electric material destined to be used within given voltage limits and on Directive 2011/65/Eu on the restriction of the use of certain hazardous substances in electrical and electronic equipment. This product is an electronic device that was tested to assure, according to the current technical knowledge, that it does not interfere with other nearby located equipment (electromagnetic compatibility) and that it is safe if used according to the advices given in the instructions for use. In case of operation anomalies, do not keep using the device and, if necessary, refer to the manufacturer directly. WARRANTY This appliance is guaranteed for 2 years from the time of delivery of the goods, or another longer term envisaged by the national legislation of the consumer's residence. This provision complies with Italian and European legislation. The Laica products are designed for home use and must not be used in public venues. The warranty only covers manufacturing defects and does not apply if the damage is caused by an accidental event, incorrect use, negligence or misuse of the product. Use only the accessories supplied; the use of different accessories may result in invalidity of the warranty. Do not open the unit for any reason; in the case of opening or tampering, the warranty is definitively voided. This warranty does not apply to parts subject to wear or to the batteries when supplied. After 2 years from delivery, or another longer term envisaged by the national legislation of the consumer's residence, the warranty expires; in this case, the technical assistance interventions will be carried out against a fee. Information on technical assistance, whether under warranty or for a fee, can be requested by contacting [e-mail]. No payment will be due for repairs or replacements of products that fall within the terms of the warranty. In the event of faults, contact the retailer. Do NOT send the appliance directly to LAICA. All the operations under warranty (including those of replacement of the product or part thereof) will not prolong the duration of the original period of warranty of the product replaced. The manufacturer declines any liability for any damage that may, directly or indirectly, be caused to persons, property or animals as a result of the non-observance of all the requirements established in the relevant instructions manual and concerning, especially, warnings relating to installation, use and maintenance of the appliance. Laica, in its constant commitment to improving its products, is entitled to changing without any notice, in whole or in part, its products in relation to production requirements, without this entailing any liability for Laica towards its dealers. For further information: www.laica.it. EN EN English English16 17 HORNO DE AGUA PARA LA COCCIÓN AL VACÍO A BAJA TEMPERATURA –
