USER MANUAL WS 8038 TECHNOLINE

B1: "ALARM SET" Taste

B4: “▲/AL 1-2 ON/OFF” Taste

B2: "SNOOZE "Taste

B5: "RESET" Taste

B3: "TIME SET" Taste

B6:“▼/AL 3-4 ON/OFF/！”Taste

Teil C - Gehäuse

C1: Aufhängse

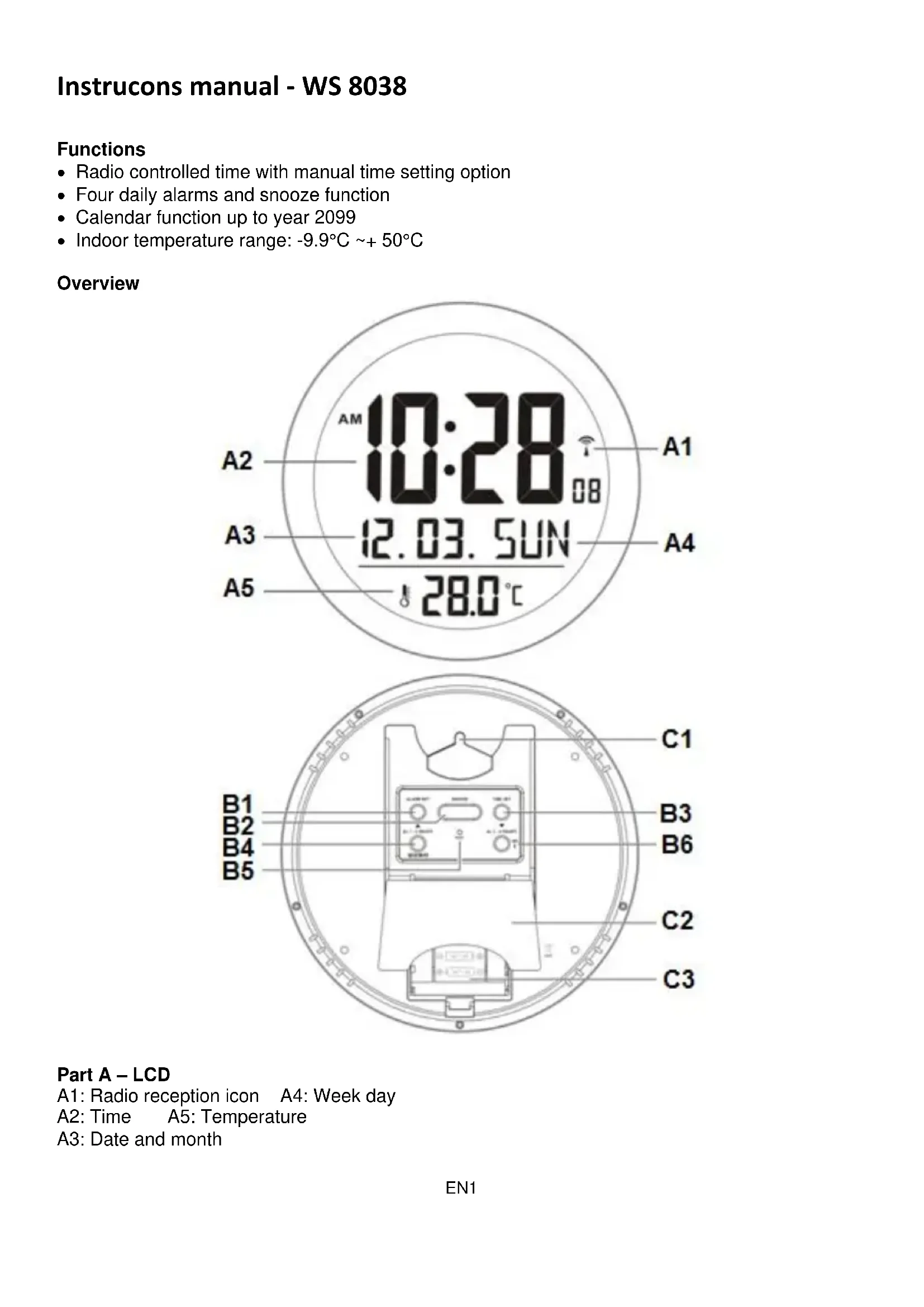

A1: Radio reception icon A4: Week day

A2: Time A5: Temperature

A3: Date and month

Part B - Buttons

B1: "ALARM SET" button

B4: “▲/AL 1-2 ON/OFF” button

B2:“SNOOZE"button

B5:“RESET” button

B3: "TIME SET" button

B6:“▼/AL 3-4 ON/OFF/ ”button

Part C - Structure

C1: Hanging hole

C3: Battery compartment cover

C2: Stand

Getting started:

• Open the battery compartment cover
• Insert 3 x AA size batteries(not included) while observing correct polarity [^+^+ and “-” marks]
• Replace the battery compartment cover
• The unit can be placed onto any flat surface by stand; or wall mounted by the hanging hole at the back of the unit.

Time and alarm setting

Radio-controlled time:

After batteries inserted, the clock automatically starts to scan the DCF time signal. Radio Control Icon " flashes on the LCD.

flashes, Indicating now is receiving DCF signal

turns on, Indicating signal received successfully

disappear, Indicating signal reception failed

• The clock automatically receives the time signal at 2.00am & 3.00 a.m. every day to maintain accurate timing. If reception stops if no signal was received successfully (“ 串 on LCD disappear)
• The clock can be set to scan the time signal manually by holding “ ” button (B6) for 3 seconds. Each reception takes about 5 minutes.

• Stop scanning by holding the " " button (B6) for 3 seconds.

• “DST” shown on the LCD if it is in Daylight Saving Time Mode

Manual time setting:

• In time display, hold the "TIME SET" button for around 2 seconds to enter to clock/calendar setting mode.
• Press “▲” or “▼” button to adjust the setting and press “TIME SET” button to confirm each setting. Keep the “▼” or “▲” button pressed to accelerate the setting process and reach the desired value more quickly.

• The setting sequence is: 12/24 hour time format -> time zone -> hour -> minute -> second -> year -> month -> date -> temperature unit -> weekday language
  8 languages can be selected as weekday, they are: German, English, French, Spanish, Italian, Dutch, Danish and Russian

• The languages and their selected abbreviations for each day of the week are shown in the following table:

Language	Sunday	Monday	Tuesday	Wednesday	Thursday	Friday	Saturday
German, GER	SON	MON	DIE	MIT	DON	FRE	SAM
English, ENG	SUN	MON	TUE	WED	THU	FRI	SAT
Danish, DAN	SON	MAN	TIR	ONS	TOR	FRE	LOR
Dutch, DUT	ZON	MAA	DIN	WOE	DON	VRI	ZAT
Italian, ITA	DOM	LUN	MAR	MER	GIO	VEN	SAB
Spanish, SPA	DOM	LUN	MAR	MIE	JUE	VIE	SAB
French, FRE	DIM	LUN	MAR	MER	JEU	VEN	SAM
Russian, RUS	BC	NH	BT	CP	YT	NT	CY

Notes:

• The time zone feature is used for the countries where can receive the DCF-77 time signal but the time zone is different from the German time.
• When the country time ahead of the German time by 1 hour, the zone should be set to +1 . Then the clock will automatically set 1 hour faster from the signal time received.
  Second adjusted to zero only.

Alarm setting:

• Press the "ALARM SET" button to select to view the alarm time (AL1, AL2, AL3, AL4) the corresponded alarm icon " ” or “ ” or “ ” or “ ” would flash.
• When viewing the alarm time, hold "ALARM SET" button to enter the setting of alarm time, press "▲" or "▼" button to adjust the alarm time, press "ALARM SET" button to confirm the setting. Setting sequence is alarm hour, alarm minute.
• Press "AL 1 2 ON/OFF "button to activate the alarm 1 or 2. When alarm is activated, alarm icon " " or " " shown on the display
• Press "AL 3 4 ON/OFF "button to activate the alarm 3 or 4. When alarm is activated, alarm icon " " or " " shown on the display
• Press "SNOOZE" button when alarm alerts. The alarm snoozes for around 5 minutes, then it alerts again. Alarm icon flashes on the LCD during the snooze time. This process can be repeated 7 times.
  Except "SNOOZE" button, press any buttons to stop the alarm. Otherwise, the alarm signal sounds for about 2 minutes, then stops automatically.

Temperature

After start-up the clock will measure the current temperature automatically.
- The temperature measurement range is -9.9^ to +50^ . If the temperature is out of the measurable range, LL.L (beyond the minimum temperature) or HH.H (beyond the maximum

temperature) will be shown on the LCD.

Reset

• If the unit shows values that are obviously incorrect, you can reset it the unit.
• To reset the unit, take a pointed object and insert it into the RESET opening.

Hereby, Technotrade declares that this product WS8038 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665080383

Environmental reception effects

The clock obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
• nearby mountains and valleys
• near freeway, railway, airports, high voltage cable etc.
• near construction site
  among tall buildings
• inside concrete buildings
• near electrical appliances (computers, TV's, etc) and metallic structures
• inside moving vehicles

Place the clock at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Precautions

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
  Install batteries correctly by matching the polarities (+ / - )
• Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.
