Brand	Livarno Lux
Model	IAN 300250
Product type	Adjustable LED ceiling light
Use	Indoor, dry and enclosed rooms
Service voltage	230-240 V~, 50 Hz
Nominal power	3 × 3 W (LED bulbs E14)
Bulb type	LED E14, max. 3 W
Number of spots	3
Spot orientation angle	Approx. 320°
Protection class	I
Package contents	1 ceiling light, 2 screws, 2 wall plugs, 2 protective sleeves, 3 glass covers, 3 LED bulbs, 1 tool, 1 manual
Assembly	Ceiling mounting with bracket, drill and Ø 6 mm drill bit required
Electrical connection	By a professional electrician, external power supply cable
Maintenance	Dry lint-free cloth, do not use water or solvents
Bulb replacement	LED bulb E14 max. 3 W, unscrew counterclockwise
Warranty	36 months from date of purchase
After-sales service	Phone [phone], Email: [e-mail]
Standards	Complies with European and national regulations
Safety	Risk of electric shock and burns, read the manual carefully
Pictograms	Read instructions, heed warnings, indoor use, hot surfaces

Frequently Asked Questions - IAN 300250 Livarno Lux

Which type of bulb should be used to replace a defective bulb?

Only use an LED bulb of type E14 with a maximum power of 3 W as specified in the technical specifications.

Can I use a dimmer with this lamp?

No, the supplied bulbs are not suitable for dimmers and electronic switches.

How to safely clean the lamp?

First, cut off the mains power by removing the fuse or switching off the circuit breaker. Let the lamp cool down, then use a dry, lint-free cloth. Never use water or solvents.

What to do if a bulb blows or does not work?

Check that the bulb is screwed in properly and is of the correct type (LED E14, max. 3W). If defective, replace it following the safety instructions: cut off the power, let it cool down, then replace the bulb.

Can I adjust the spots while the lamp is on?

No, you must turn off the lamp and let it cool down completely before adjusting the spots. The spots can rotate up to approximately 320°.

What tools are required for assembly?

Tools not supplied include: a pencil/marker, a voltage detector, a screwdriver, a drill with a 6 mm drill bit, diagonal cutting pliers, and a step ladder.

Who can perform the electrical installation?

The electrical installation must be carried out by a professional electrician or a duly trained person. Do not connect the lamp yourself if you are not qualified.

How to replace a bulb safely?

1. Cut off the power (fuse or circuit breaker). 2. Let the lamp cool down. 3. Unscrew the defective bulb counterclockwise. 4. Screw in the new bulb clockwise. 5. Restore power.

Can the lamp be used in a bathroom?

No, this lamp is exclusively designed for indoor use in dry, enclosed rooms. It is not suitable for damp rooms such as bathrooms.

What to do in case of malfunction or defect under warranty?

Contact the after-sales service at the address indicated in the manual, mentioning the article number 14131702L and attaching the receipt. The warranty is 36 months from the date of purchase.

USER MANUAL IAN 300250 Livarno Lux

STROPNI LED SVITIDLO

Assembly, operating and safety instructions

NL BE

LED-PLAFONDLAMP

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

List of pictograms used

Introduction

Intended use Page 12

Scope of delivery.. Page 12

Parts description.. Page 12

Technical data.. Page 13

Safety

Safety notices.. Page 13

Preparation Page 14

Required tools and material Page 14

Prior to installation

Start-up Page 14

Mounting the light. Page 14

Directing the spotlight. Page 15

Changing the bulb. Page 15

Maintenance and cleaning.. Page 15

Disposal

Warranty and service.. Page 15

Warranty declaration.

Service address.. Page 16

Declaration of conformity. Page 16

Manufacturer.. Page 16

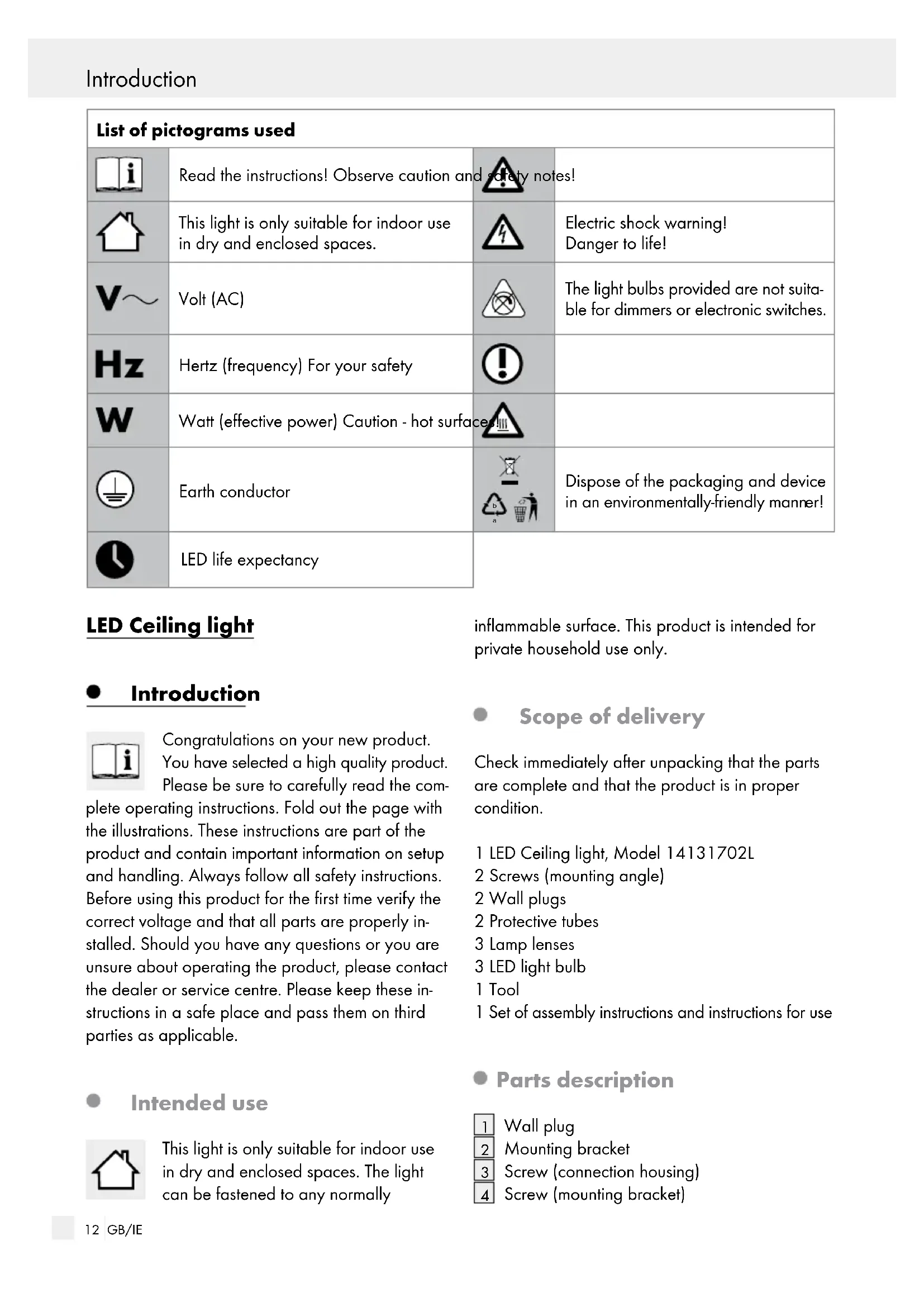

List of pictograms used
i	Read the instructions! Observe caution and safety notes!
	This light is only suitable for indoor use in dry and enclosed spaces.		Electric shock warning! Danger to life!
V~	Volt (AC)		The light bulbs provided are not suitable for dimmers or electronic switches.
Hz	Hertz (frequency) For your safety
W	Watt (effective power) Caution - hot surface
	Earth conductor		Dispose of the packaging and device in an environmentally-friendly manner!
	LED life expectancy

LED Ceiling light

Introduction

Congratulations on your new product.

You have selected a high quality product.

Please be sure to carefully read the com

plete operating instructions. Fold out the page with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on third parties as applicable.

- Intended use

This light is only suitable for indoor use in dry and enclosed spaces. The light can be fastened to any normally

inflammable surface. This product is intended for private household use only.

Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 LED Ceiling light, Model 14131702L
2 Screws (mounting angle)
2 Wall plugs
2 Protective tubes
3 Lamp lenses
3 LED light bulb
1 Tool
1 Set of assembly instructions and instructions for use

- Parts description

1 Wall plug
2 Mounting bracket
3 Screw (connection housing)
4 Screw (mounting bracket)

5 Terminal housing
Lightbulb
7 | Tool
Threaded ring
9 Lamp glass
10 Socket
11 Spotlight
12 Protective tube
13 Mains connection cord (external)
14 Terminal block

Technical data

Item no.: 14131702L

Operating voltage: 230 - 240V 50Hz

Rated output: LED E14, 3 x max. 3 W

Lamps: LED E14, max. 3 W

Protection class: I

Safety

Safety notices

Damage due to failure to comply with these operating instructions will invalidate the guarantee! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

Avoid the risk of fatal injury from electric shock

Ensure that a qualified electrician, or a person trained to carry out electrical installations, performs the electrical installation.
Iways check the light, power supply, and mains cable for damage before plugging it in. Never use the light if it shows any signs of damage.

WARNING!

A damaged mains cable indicates a life-threatening danger due to electric shock. In the event of damage, repairs or other problems with the light please contact the service centre or a qualified electrician.

Prior to installation, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box.
Prior to installation verify the mains voltage on site corresponds with the operating voltage required for the light (see chapter "Technical data").
Ensure that the light does not come into contact with water or other liquids under any circumstances.
Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
Do not install the light on a wet or conductive substrate!

Prevent fire and injury hazards

RISK OF INJURY!

Check each lamp and lamp glass for damage immediately after unpacking.

Do not mount the light with defective lamps and/or lamp lenses. In this case contact the service centre for a replacement.

CAUTION! RISK OF BURNS - HOT SURFACES!

Ensure that the luminaire has been switched off and has cooled before touching it, to avoid burn injuries. Lamps develop a lot of heat in the area of the lamp head.

Allow the lamp to cool off completely.
Replace defective bulbs with new ones immediately. Before changing bulbs, always first remove the fuse or switch off the circuit breaker.
Do not leave the light or packaging material lying unattended. Plastic film or bags, plastic parts, etc. can be dangerous for children to play with.

The light bulbs provided are not suitable for dimmers or electronic switches.

Safe working

Only use lamps as specified in chapter "Technical data".
Mount the light so that it is protected from moisture and dirt.
Carefully prepare for assembly and allow yourself adequate time. Organise all parts and any necessary additional tools or materials before starting so they are easy to reach.
Always be attentive! Always pay attention to what you are doing and use common sense. Never install the light if you are having difficulty concentrating or do not feel well.

Preparation

- Required tools and material

The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions.

• Pencil/making tool
  Voltage tester
• Screwdriver
• Electric drill
• Bit (0 approx. 0.6 cm)
• Side cutting pliers
• Ladder

Prior to installation

Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the light and the connection regulations.

Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it.

Before installation ensure that the circuit, to which the light will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (O position).
Use the voltage tester to verify the de-energised status.

- Start-up

- Mounting the light

Remove the screw visible at the side of the connection housing 5 and remove the mounting angle 2 from the back.
Use the slotted holes in the mounting bracket intended for the screws to mark the bores.
Now drill the fixing holes (approx. 6 mm, depth approx. 40 mm). Be careful not to damage the supply line.
Insert the dowels into the bores.
asfen the mounting bracket 2 with the provided screws 4.
Feed the power cord (external) through the cable guides 12.
Now connect the external lead of the light to the mains cable (external) using the terminal block 14.

Note:Be sure to correctly connect each of the individual wires of the mains connection cable (external):live wire,black or brown = symbol L, neutral wire, blue = symbol N, earth wire, green-yellow = symbol +

Now use the screw to screw the light to the mounting bracket 2.
Loosen the threaded ring 8 from the socket 10.
Place the bulb 9 carefully over the fitting and fasten it in place by tightening the threaded ring using the supplied tool. Be sure it is correctly positioned.
Use a clean, lint-free cloth to insert the light bulbs.
Insert the E14 light bulb by carefully screwing it in a clockwise direction. Check it is correctly positioned.

Your light is now ready to use.

Reinsert the fuse or switch the circuit breaker back on.

- Directing the spotlight

Only change the direction of the spotlight when the light is switched off.
Allow the lamp to cool off completely.
Position the individual spotlight by their base. The spots can be turned by approx. 320^ .

- Changing the bulb

WARNING! RISK OF ELECTRIC SHOCK!

First disconnect the light from the mains when replacing the lamp. To do so, remove the fuse or switch off the circuit breaker in the fuse box (position 0).

Only use lamps as specified in chapter "Technical data".
Allow the light bulb to cool off completely.
Use a clean, lint-free cloth to replace a bulb.
Remove the defective light bulb by carefully unscrewing the E14 light bulb in an anticlockwise direction.
Insert the new E14 light bulb by carefully screwing it in a clockwise direction. Check it is correctly positioned.
Reinsert the fuse or switch the circuit breaker back on.

- Maintenance and cleaning

WARNING! RISK OF ELECTRIC SHOCK!

Disconnect the light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).

WARNING! RISK OF ELECTRIC SHOCK!

For electrical safety, never clean the light with water or other liquids, or immerse it in water.

CAUTION! RISK OF BURNS - HOT SURFACES!

Allow the light to cool completely.

Do not use solvents, benzene or similar substances. They could damage the light.
Only use a dry, lint-free cloth for cleaning.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty and service

Warrantydeclaration

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect during the warranty period, please send the appliance to the listed Service Centre address, referencing the following item number: 14131702L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observation of the operating instructions or unauthorised interference are excluded from the warranty. The performance of

Warranty and Service

services under the warranty does not extend or renew the warranty period.

-Serviceaddress

Briloner Leuchten GmbH
Im Kissen 2
DE-59929 Brilon
GERMANY
Tel.: [phone]
Fax: [phone]
E-mail: [e-mail]
www.briloner.com

IAN 300250

Please have your receipt and the article number (e.g. IAN 12345) ready as your proof of purchase when enquiring about your product.

Declaration of conformity (C)

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer
