Snuutje SNU 1900 - Baby products ADE - Free user manual and instructions

Product type	Baby sleep aid
Brand	ADE
Model	Snuutje SNU 1900
Power	Built-in lithium-ion battery 3.7 V / 500 mAh, rechargeable via USB (5 V DC / 500 mA)
Battery life	Approximately 6 hours with full battery
Charging time	Approximately 1.5 hours for initial charge
Power consumption	Approx. 0.4 W max.
Sound functions	6 nature sounds: rustling, fan, ocean, rain, water, summer night
Night light function	Blue light projection on ceiling simulating human breathing
Sleep timer	Adjustable auto-off: 10, 30 or 60 minutes
Settings	Adjustable volume, sound selection, timer, on/off for night light and sounds
Charge indicator	Red LED (flashes during charging, solid when charged)
Cleaning and maintenance	Wipe with a slightly damp cloth; do not immerse in water
Child safety	Do not let children play with the device; choking hazard from packaging
Battery	Built-in non-removable lithium-ion battery; do not attempt to replace it yourself
Warranty	2 years against material and manufacturing defects
Materials	Rubber feet; plastic housing (not specified)
Included accessories	USB charging cable, instruction manual

Frequently Asked Questions - Snuutje SNU 1900 ADE

How to recharge the Snuutje SNU 1900 sleep aid?

Use the provided USB cable. Plug it into the device's USB port and into a USB charger (5 V / 500 mA) or a computer. The red LED flashes during charging and stays on when the battery is full.

What nature sounds are available?

The device offers 6 sounds: rustling, fan, ocean, rain, water and summer night. You can select them by pressing the corresponding symbol after turning on the sound function.

How to use the breathing night light?

Turn on the device, then press the night light button for 2 seconds. A wavy blue light is projected onto the ceiling. Breathe in as the light intensifies, breathe out as it fades. Press again for 2 seconds to turn off.

How to set the sleep timer?

After activating the desired functions (sound and/or light), press the timer button to choose 10, 30 or 60 minutes. The device turns off automatically after the selected time. Reactivate the timer each time you turn it on.

What to do if no sound is audible?

Check that the main switch under the device is set to ON, that the battery is charged, and that the volume is not too low. Increase the volume with the dedicated buttons.

How to clean the device?

Use a clean, slightly damp cloth to wipe the surface. Never immerse the device in water and do not use abrasive or aggressive products.

Is the device safe for babies?

The sleep aid is not a toy. Do not let children play with it. The device must be used under adult supervision. Packaging poses a choking hazard.

Can I replace the battery myself?

No, the lithium-ion battery is built-in and non-removable. Do not attempt to open it. In case of malfunction, contact customer service or a specialized workshop.

What is the warranty period?

Waagen-Schmitt GmbH offers 2 years warranty against material and manufacturing defects from the date of purchase. Keep the proof of purchase.

How to dispose of the device at end of life?

Do not throw the device with household waste. Dispose of it at an electronic waste collection point or recycling center. The non-removable battery will be treated according to regulations.

USER MANUAL Snuutje SNU 1900 ADE

22089 Hamburg, Germany

[e-mail]

You have chosen to buy a high-quality snuutje brand product - smart functions and fresh design for a home full of happy moments.

We wish you much pleasure!

Your snuutje team

GENERAL INFORMATION

ABOUT THIS OPERATING MANUAL

This operating manual describes how to operate and maintain your product safely. Keep this operating manual in a safe place for future reference. If you pass this product on to someone else, pass on this operating manual as well.

Failure to observe this operating manual may result in injuries or damage to your product.

EXPLANATION OF SYMBOLS

This symbol combined with the word DANGER warns of serious injuries.

This symbol combined with the word WARNING warns of moderate and mild injuries.

This symbol combined with the word NOTE warns of material damage.

This symbol indicates additional information and general notes.

SCOPE OF DELIVERY

• Sleeping aid
  USB cable
• Operating Manual

TABLE OF CONTENTS

General information 16
Scope of delivery 17
Intended use 18
Safety 19
Warranty. 21
Declaration of Conformity 21
Overview 22
Charging the battery 23
About the sleeping aid. 24
Use 24
Cleaning. 27
Fault/Remedy 27
Technical data 28
Disposal 28

INTENDED USE

This device is designed as a sleeping aid and is only suitable for private use indoors.

The device is not suitable for commercial use in practices or therapies. The sleeping aid is not a medical device.

SAFETY

• Children must not play with the device.
• The device contains a lithium-ion battery. Avoid dismantling, throwing into fire or short-circuiting the battery. Risk of explosion! Protect the built-in battery from excessive heat. The battery is firmly installed in the device and cannot and must not be replaced or removed. Improper removal of the battery may result in a risk of explosion. If the battery is defective, contact the service centre or a specialist workshop.

DANGER FOR CHILDREN

• Keep packaging material away from children. There is a risk of choking if swallowed.

DANGER FROM ELECTRICITY

• Do not make any modifications to the item. Only allow repairs to be carried out at a specialist workshop, since inexpertly repaired devices can present hazards to the user.

• Do not open the housing and do not insert any objects into the housing apertures.

• Do not place any containers filled with liquids on or near the device. The container may tip over and the leaking fluid may adversely affect the electrical safety.

BEWARE OF MATERIAL DAMAGE

• Protect the sleeping aid from strong impacts, shocks, direct sunlight, dirt and high humidity.
• Do not make any changes to the item. Only allow repairs to be carried out by a specialist workshop. Repairs carried out improperly can considerably endanger the user.
• Never place the sleeping aid on or near hot surfaces (for example, hot plates, etc.).
• Never expose the sleeping aid to a high temperature (heating, etc.) or adverse weather conditions (rain, etc.).
• Do not place any objects on the device.
• The device has rubber feet. Since surfaces are made from different materials and treated with different care products, it cannot be completely ruled out that some of these substances contain ingredients that may adversely affect and soften the material of the rubber feet. If necessary, place a non-slip pad underneath the device.
  Use only original accessories.
• Do not use aggressive chemical cleaning agents, abrasives, hard sponges, etc. for cleaning.

WARRANTY

The company Waagen-Schmitt GmbH guarantees for 2 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange.

In the event of a warranty claim, please return the product with the proof of purchase (specifying the reason for claim) to your dealer.

DECLARATION OF CONFORMITY

Waagen-Schmitt GmbH hereby declares that the SNU 1900 sleeping aid complies with EU directives 2014/30/EU and 2011/65/EU.

This declaration will lose its validity if any modification is made to the scale without our consent.

Hamburg, March 2020
Waagen-Schmitt GmbH

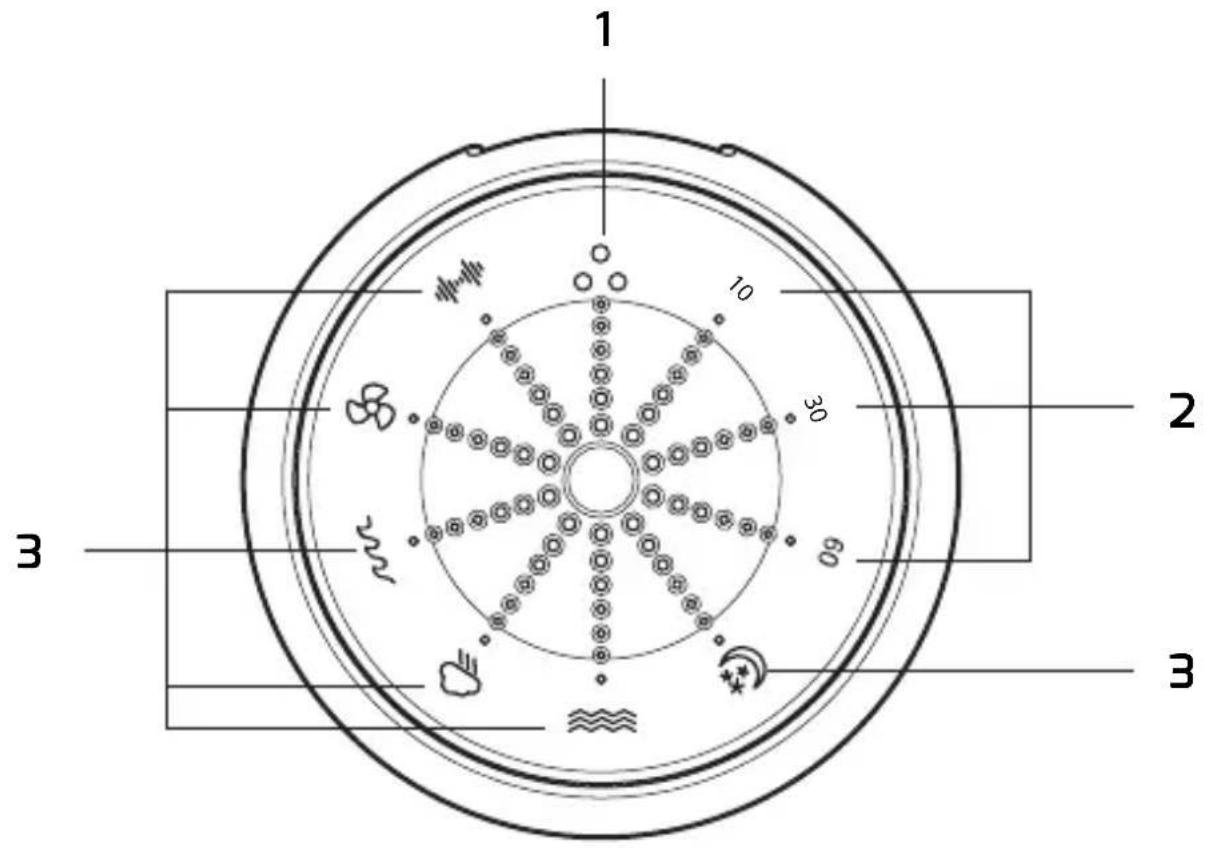

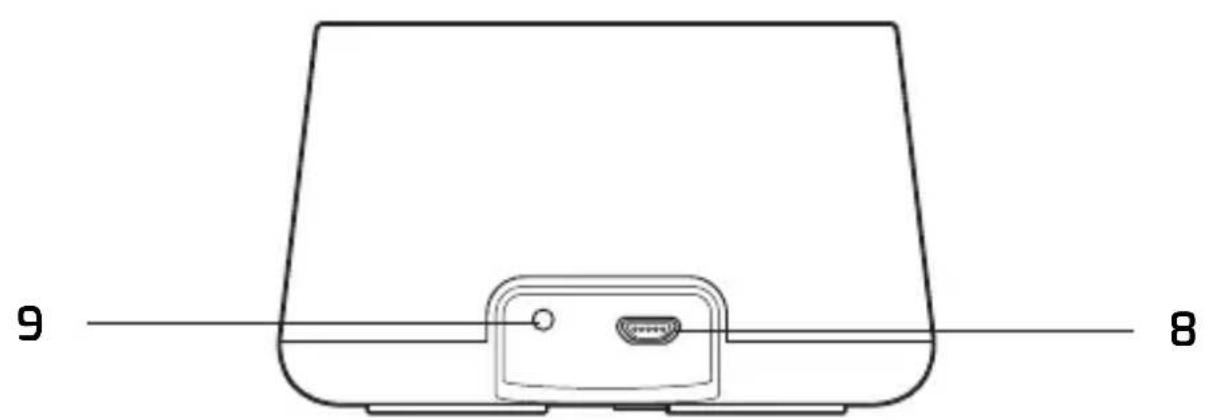

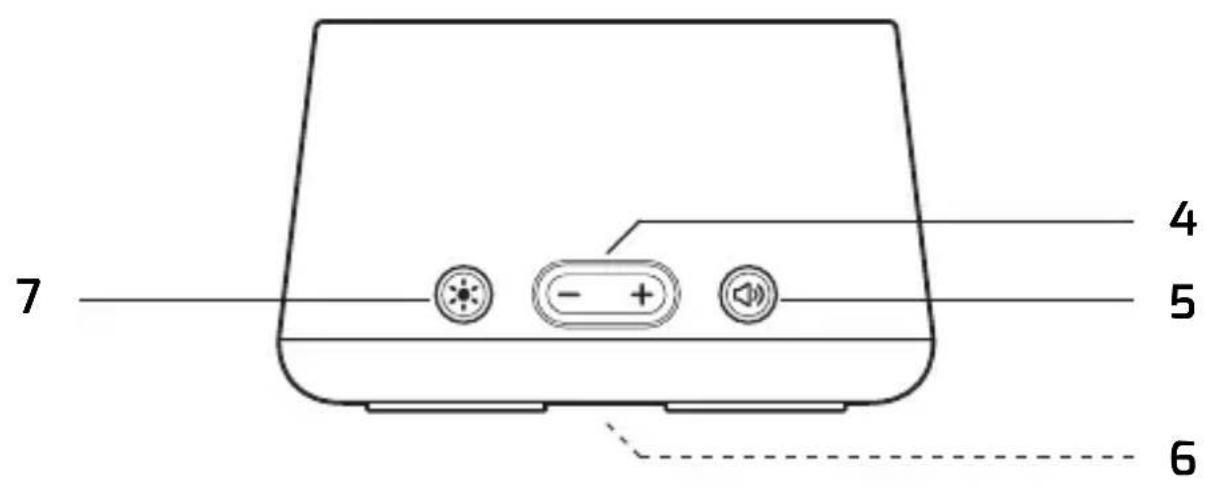

OVERVIEW

1 Fall-asleep light
2 Sleep timer options
3 Natural sounds and noises
4 Volume control
5 On/off switch for natural sounds and noises
6 ON/OFF main switch (on the underside)
7 On/off switch for fall-asleep light
8 USB socket
9 Charging control light

Not depicted: USB charging cable

CHARGING THE BATTERY

• Connect the supplied USB charging cable to the USB socket on the device and to the USB socket on a computer (PC, tablet, laptop) or a USB charger.

The red control light indicates the charging process:

Flashes: Battery is charging

Glows steadily: Battery is fully charged

Pay attention to the following:

• The charging time during initial operation is approx. 1.5 hours.
• When the battery is fully charged, an operating time is approx. 6 hours.

ABOUT THE SLEEPING AID

The device has functions that can help you relax and fall asleep:

Different natural sounds and noises.
- A light that is projected onto the ceiling and visually simulates the human breath. Adjust your breath to the light to calm down and relax.
- Both functions can be combined.

USE

POWER ON/OFF

The main switch is located on the underside of the device.

• Use the on/off switch to switch the sleeping aid on (ON) and off (OFF).

PLAYING DOWN NATURAL SOUNDS AND NOISES

1. Switch on the device.
2. Press and hold down for approx. 2 seconds.
3. Select the desired sound icon.

White noise

Fan

Ocean

雨

Water

Summer night

4.Use to set the desired volume.

1. To stop sound playback, press and hold down for approx. 2 seconds.

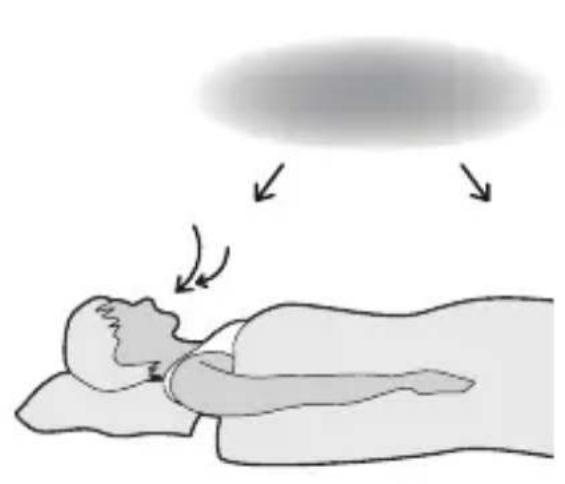

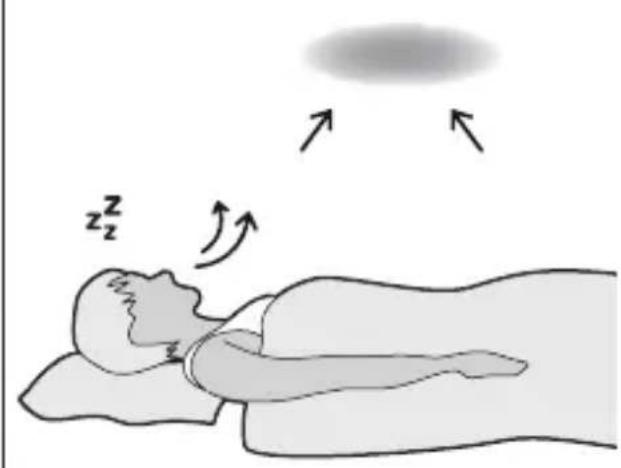

USING THE FALL-ASLEEP LIGHT

For this function, it must be as dark as possible in the room.

1. Switch on the device.
2. Press and hold down for approx. 2 seconds.

-A blue and slightly quaking image will be projected onto the ceiling.
- The rhythm in which the light fades in becomes increasingly longer.

1. Keep your eyes open and try to inhale and exhale in time with the light.

The light fades in.
-Inhale.

The light fades out.
—Exhale.

1. To switch off the light, press and hold down for approx. 2 seconds.

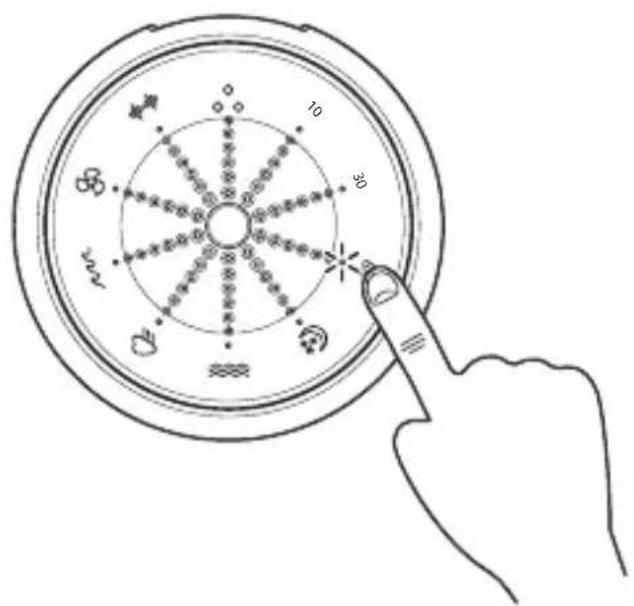

USING THE SLEEP TIMER (AUTO OFF)

The natural sounds/noises or the light or both will switch off automatically after a selected time period.

1. Switch on the desired functions (sound and/or light).

1. Select the desired time period: 10, 30 or 60 (minutes).
2. After the set time has elapsed, the device switches off automatically.

• To switch off the device before the selected time has elapsed, press ⑥ or ⑧ or both buttons (depending on the selected function).

• Please note: Activate the sleep timer AGAIN by brief tapping each time you switch on the sleep aid, even if the timer display is already lit.

CLEANING

NOTE on material damage

• Do not immerse the device in water or other liquids.

• Do not under any circumstances use harsh, scouring or abrasive cleaning agents or the like to clean the scale. Otherwise, the surface could be scratched.

-Wipe clean the device with a slightly damp cloth, if necessary.

FAULT/REMEDY

Fault Possible cause
No function. • Is the main switch set to ON? • Is the battery sufficiently charged?	• Is the volume set too low?

TECHNICAL DATA

Model: SNU 1900 sleeping aid

Battery: 3.7 V / 500 mAh

lithium-ion battery

USB socket: Input voltage:

5 V DC / 500 mA

Max. power consumption: approx. 0.4 W

Distributor

Waagen-Schmitt GmbH

(no service address):

Hammer Steindamm 27-29

22089 Hamburg, Germany

[e-mail]

Our products are constantly being developed and improved.

For this reason, design and technical modifications are possible at any time.

DISPOSAL

DISPOSING OF THE PACKAGING

Dispose of the packaging with similar materials. Dispose of cardboard with waste paper and of films with recyclable materials.

DISPOSING OF THE PRODUCT

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste

At the end of its life, the product must be disposed of in an appropriate way.

In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Bring the old device to a collection point for electronic waste or to a recycling depot. For more information, contact your local waste disposal firm or your local administrative body.

Standard and rechargeable batteries should not be disposed of along with household waste

All standard and rechargeable batteries must be brought to a local or district collection point or to the retailer.

Such standard and rechargeable batteries can thus be disposed of in an environmentally friendly way.

Attention!

This device contains a battery that is permanently installed for safety reasons and cannot be removed without destroying the housing. Improper dismantling entails a safety risk. Therefore, you should return the device unopened to the collection point, and the device and the battery should be disposed of properly.

Information on collection points receiving used equipment free of charge can be obtained from your local authority or municipal administration.
