Snuutje SNU 1701 - Baby products ADE - Free user manual and instructions

Product Type	Suspended hammock nest for children
Brand	ADE (Snuutje)
Model	Snuutje SNU 1701
Recommended age	From 3 years
Maximum load	80 kg (one child at a time)
Main material	Cotton
Use	Indoor, sitting position only
Max suspension height	30 cm from floor
Safety distance	1 meter around without obstacles
Package contents	Seat cushion, hook with swivel
Assembly	By an adult, requires hook/chain (not included)
Care	Machine wash 30°C delicate program, no chlorine, no tumble dryer, low temperature ironing, no dry cleaning
Safety	Adult supervision required, check condition regularly
Warranty	2 years (material/manufacturing defects)
Distributor	Waagen-Schmitt GmbH, Hamburg, Germany

Frequently Asked Questions - Snuutje SNU 1701 ADE

From what age can my child use the Snuutje SNU 1701 hammock nest?

The hammock nest is designed for children from 3 years. Babies and toddlers should not sit or lie in it.

What is the maximum supported weight?

The maximum load is 80 kg. The hammock nest can only be used by one child at a time.

How to install the hammock nest on the ceiling?

Assembly must be done by an adult. You must attach a sturdy hook or U-piece to the ceiling, then hang the hammock nest using the provided swivel hook. Fixing materials (screws, rope, chain) are not included.

What should be the height between the hammock nest and the floor?

The bottom of the hammock nest should not be more than 30 cm from the floor.

Can I machine wash the hammock nest?

Yes, you can wash the entire hammock nest (without the cushion or swivel) in the machine at 30°C with a delicate cycle. Do not use chlorine, do not tumble dry, iron at low temperature, and do not dry clean. The hammock nest must be completely dry before reuse.

What safety precautions should be taken?

Never leave a child unattended. Regularly check the condition of the hammock nest and fittings. Ensure no hard or sharp objects are within a 1 meter radius. Do not use near open flames or heat sources.

Can the hammock nest be used as a swing or bed?

No, the hammock nest is not a swing or a bed. It is designed only for a sitting position and should not be used as a gymnastics accessory.

What to do if a part is damaged?

If the hammock nest or any of its suspension parts is damaged, have it repaired or replaced by a specialist workshop. Do not use the item until it is in perfect condition. Do not attempt to modify it.

Is the cushion removable and washable?

Yes, the cushion is removable with a zipper. You can inflate it using a pump or your breath. The cushion cover can be cleaned with a damp cloth or in the machine according to care symbols.

What is the product warranty?

Waagen-Schmitt GmbH offers a 2-year warranty from the date of purchase, covering material or manufacturing defects. To exercise it, return the item with proof of purchase to your retailer.

USER MANUAL Snuutje SNU 1701 ADE

22089 Hamburg, Germany

GARANTIE

You have chosen to buy a high-quality snoutje brand product - smart functions and fresh design for a home filled with happy moments.

We wish you much pleasure!

Your snoutje team

GENERAL INFORMATION

ABOUT THIS MANUAL

This manual describes the safe handling and maintenance of the item.
IMPORTANT: Please keep this manual for future reference. If you pass this item on to someone else, pass on this manual as well.

Failure to observe this manual may result in injury or damage to the item.

EXPLANATION OF SYMBOLS

This symbol, combined with the word DANGER, warns against serious injury.

This symbol, combined with the word WARNING, warns against moderate and mild injuries.

This symbol, combined with the word NOTE, warns against material damage.

This symbol signifies additional information and general advice.

TABLE OF CONTENTS

GENERAL INFORMATION 12
INTENDED USE 14
SAFETY 14
CARE SYMBOLS 15
SCOPE OF DELIVERY 16
ASSEMBLY INSTRUCTIONS - BEFORE YOU START 17
PUMPING UP THE SEAT CUSHION 17
ASSEMBLING 18
CHECKING 19
CLEANING. 19
STORING 19
TECHNICAL DATA 20
DECLARATION OF CONFORMITY 20
WARRANTY 20
DISPOSAL 21

INTENDED USE

This hanging nest is a living and seating accessory for children from 3 years and older. The maximum load capacity is 80kg .

The hanging nest may only be used by one child at a time.

The hanging nest is designed exclusively for private use in a dry place and is not suitable for commercial purposes.

The hanging nest...

... is not a substitute for a crib or any other infant bed. The hanging nest is not intended for infants and babies.

... is not a swing. The item is not designed for that purpose.

... may only be used sitting. For example, the hanging nest may not be used as a gymnastic apparatus.

SAFETY

• This item may be used by children from 3 years and older, as well as by persons with reduced physical, sensory, or mental abilities, or lack of experience and knowledge, provided they have been given supervision or instruction concerning the use of the item in a safe way and understand the hazards involved.
• Do not allow children or needy people to use this item unattended. The hanging nest is not a toy for children.
• Keep children away from packaging material. Risk of choking if swallowed.

RISK OF INJURIES

• Do not allow your child to use the hanging nest unattended. Help your child with getting in and out of it, if necessary.
• Check the condition of the hanging nest each time before your child uses it.

• Observe the max. load capacity of 80kg .

• If the hanging nest or other parts used for the suspension are damaged or missing (even partially), they must be repaired or replaced and/or exchanged by a specialist workshop. Only then may the hanging nest be used again.

• Do not make any changes to the item.
• There must be no sharp or hard object within 1 meter. There must be no sharp, hard or pointed edges under the hanging nest.
• The distance between the bottom and the floor must not exceed 30~cm .
• Use only accessories and replacement parts approved by the manufacturer.

BEWARE OF MATERIAL DAMAGE

• Do not use the hanging nest near an open flame and protect it from strong heat sources.
• The hanging nest must not be impregnated, bleached or dyed. These processes damage the fabric and reduce the load capacity. Observe the care symbols, see "Care symbols".
• Protect the hanging nest from weather effects, e.g. by not exposing it to direct sunlight and protecting it from moisture.
• Do not use the hanging nest to lift loads.
• Protect the seat cushion from sharp or pointed objects. Otherwise, it could be damaged.

CARE SYMBOLS

Delicate wash at max. 30^

No bleaching

No tumble drying

Ironing at a low temperature

No dry cleaning

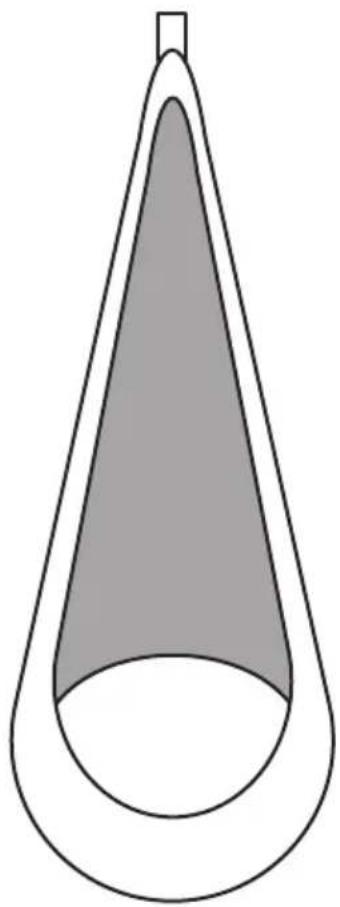

SCOPE OF DELIVERY

Hook with swivel

Seat cushion Hanging nest

ASSEMBLY INSTRUCTIONS - BEFORE YOU START

• The assembly or suspension of the hanging nest must be carried out by an adult. Keep children away from the assembly area. The assembly or suspension carried out unprofessionally may cause a risk of serious injury.
• Before assembly, make sure that the ceiling has the required load capacity. This also applies to the corresponding parts or fasteners (ceiling latch hooks and, for example, a rope or chain). Seek advice from your specialist dealer, if necessary.
• If you need to drill: before drilling, check the surface for piping.
• Check that the planned location is really suitable. At the planned location, check that ...

... the ceiling has sufficient load capacity,

... there are no obstacles around: minimum distance is 1 metre,

... no doors protrude into the area of the hanging nest when opening,

... the ground under the hanging nest is ideally "soft", for example a carpet.

• In most cases, you also need a suitable rope or chain with sufficient load capacity (min. 80kg ) depending on the ceiling height.
  Assembly material such as screws, dowels, rope or chain are not included.

1. Turn the seat inside out and open the zip.
2. Place the seat cushion in the fabric cover with the valve in the front and pump it up with a pump or your breathing air.
3. Close the zip and turn the seat back to normal.

ASSEMBLING

HAZARD due to incorrect assembly

Electric shock HAZARD

• If you need to drill: make sure that there are no pipes or piping at the drilling site.

1. Attach a latch hook or U-profile piece with sufficient strength to the ceiling. Latch hooks must only have a small opening so that the hanging nest cannot slip out of the latch hook during later use.

If you wish to use an already existing suspension device, check that it has sufficient load capacity.

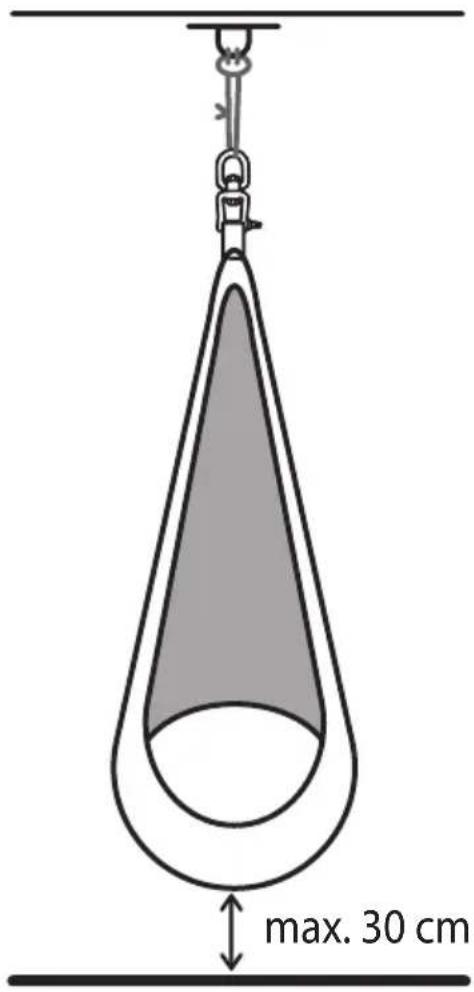

1. Hang up the hanging nest.
2. Check that the hanging nest is really safe and has sufficient load capacity.
3. Check the distance to the floor.

Pay attention to the following:

• The above figure shows an attachment option. Other attachment options are possible, for example, with a chain instead of a rope.
• Never hang up the hanging nest without the hook with swivel. It prevents twisting of the suspended hanging nest.

CHECKING

-Check regularly ...

...the condition of the hanging nest and other parts used. If the rope is worn or brittle, it must be replaced immediately. The hanging nest and all fasteners may be used again only when they are in perfect and safe condition,

... that the swivel bolt is fully tightened.

CLEANING

• Minor stains on the hanging nest and seat cushion cover can be removed with a cloth and some water.

Use a mild detergent, if necessary.

• In case of major soiling, you can clean the entire hanging nest (without seat cushion, swivel, etc.) in the washing machine. Observe the care instructions on the label (see chapter "Care symbols").
• The hanging nest may only be hung up again and used when it is completely dry.

STORING

• Clean the hanging nest before storing it. Afterwards, let it dry completely.
• Store it in a dry and frost-free place.

TECHNICAL DATA

Model: Hanging nest SNU 1701 Penguin,

SNU 1702 Frog, SNU 1703 Duck

Max. load capacity: 80kg

Material: Cotton

Distributor

Waagen-Schmitt GmbH

(no service address):

Hammer Steindamm 27-29, 22089 Hamburg

[e-mail]

Our products are constantly being refined and improved.

For this reason, design and technical modifications are possible at any time.

DECLARATION OF CONFORMITY

Waagen-Schmitt GmbH hereby declares that this product complies with the requirements of the Product Safety Act (ProdSG).

This declaration loses its validity if any modification is made to the item that was not agreed to by us in advance.

Hamburg, February 2018

Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

WARRANTY

The company Waagen-Schmitt GmbH guarantees for 2 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange.

In the event of a warranty claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer.

DISPOSAL

• Dispose of the packaging with similar materials. Put cardboard with waste paper, foil with recyclable materials.
• Dispose of the hanging nest in accordance with disposal regulations applicable in your country. For more details about the disposal options, contact your public waste disposal provider.
