Snuutje SNU 1700 - Baby products ADE - Free user manual and instructions

Product type	Hanging nest hammock for children
Brand	ADE (Snuutje)
Model	SNU 1700 (whale), SNU 1704 (unicorn)
Recommended age	From 3 years old
Maximum weight capacity	80 kg
Main material	Cotton
Dimensions (diameter)	Approximately 90 cm
Maximum height from ground	30 cm
Weight (approx.)	Approximately 2 kg
Use	Seating only, not a swing
Care	Machine wash at 30°C delicate cycle, no bleach, no tumble dry, low iron
Safety	Adult supervision required, check regularly, do not use for babies
Package contents	Inflatable seat cushion, swivel hook with pivot
Certification	GS (SGS TÜV SAAR), free from harmful substances
Warranty	2 years (material/ manufacturing defects)

Frequently Asked Questions - Snuutje SNU 1700 ADE

From what age can my child use this nest hammock?

From 3 years old, under adult supervision. Not suitable for babies.

What is the maximum weight capacity?

80 kg, for one child at a time.

Can I use this nest hammock as a swing?

No, it is designed only for sitting and must not be used as a swing or gymnastics accessory.

How to clean the nest hammock?

Remove the cushion and wash the cover in machine at 30°C delicate cycle. Do not use bleach, do not tumble dry, iron at low temperature. The nest hammock must be dry before reuse.

Can I hang it from an existing ceiling hook?

Yes, provided the hook has sufficient load capacity (min. 80 kg) and its opening is reduced to prevent unhooking.

What height should there be between the ground and the nest hammock?

The maximum distance between the bottom of the nest hammock and the ground is 30 cm.

Is the cushion inflatable?

Yes, the seat cushion is inflated via a valve. Open the zipper, place the cushion in the cover with the valve facing forward, inflate and close.

Can I use it for a baby or as a bed?

No, this nest hammock does not replace a cradle or bed. It is prohibited for babies and young children.

What mounting accessories are included?

The swivel hook with pivot and the cushion. The rope or chain and ceiling mountings (screws, anchors) are not included.

How to check that the nest hammock is safe?

Check the condition of the fabric, rope, and hook regularly. Ensure the swivel bolt is tightened properly. If any component is damaged, do not use.

USER MANUAL Snuutje SNU 1700 ADE

Simple line drawing of a round object with a curved line inside (no text or symbols)

Simple line drawing of a conical container with a central hole and a circular base (no text or symbols)

MONTAGE-HINWEISE - BEVOR SIE ANFANGEN

22089 Hamburg, Germany

GARANTIE

You have chosen to buy a high-quality snuutje brand product - smart functions and fresh design for a home filled with happy moments.

We wish you much pleasure!

Your snuutje team.

GENERAL INFORMATION

ABOUT THIS MANUAL

This manual describes the safe handling and maintenance of the item.

IMPORTANT: Please keep this manual for future reference. If you pass this item on to someone else, pass on this manual as well.

Failure to observe this manual may result in injury or damage to the item.

EXPLANATION OF SYMBOLS

This symbol, combined with the word DANGER, warns against serious injury.

This symbol, combined with the word WARNING, warns against moderate and mild injuries.

This symbol, combined with the word NOTE, warns against material damage.

This symbol signifies additional information and general advice.

TABLE OF CONTENTS

GENERAL INFORMATION....12

INTENDED USE....14

SAFETY 14

CARE SYMBOLS 15

SCOPE OF DELIVERY....16

ASSEMBLY INSTRUCTIONS - BEFORE YOU START 17

PUMPING UP THE SEAT CUSHION.... 17

ASSEMBLING....18

CHECKING 19

CLEANING....19

STORING....19

TECHNICAL DATA 20

DECLARATION OF CONFORMITY 20

WARRANTY....20

DISPOSAL 21

INTENDED USE

This hanging nest is a living and seating accessory for children from 3 years and older. The maximum load capacity is 80 kg.

The hanging nest may only be used by one child at a time.

The hanging nest is designed exclusively for private use in a dry place and is not suitable for commercial purposes.

The hanging nest...

... is not a substitute for a crib or any other infant bed. The hanging nest is not intended for infants and babies.

... is not a swing. The item is not designed for that purpose.

... may only be used sitting. For example, the hanging nest may not be used as a gymnastic apparatus.

SAFETY

• This item may be used by children from 3 years and older, as well as by persons with reduced physical, sensory, or mental abilities, or lack of experience and knowledge, provided they have been given supervision or instruction concerning the use of the item in a safe way and understand the hazards involved.
• Do not allow children or needy people to use this item unattended. The hanging nest is not a toy for children.
• Keep children away from packaging material. Risk of choking if swallowed.

RISK OF INJURIES

• Do not allow your child to use the hanging nest unattended. Help your child with getting in and out of it, if necessary.
• Check the condition of the hanging nest each time before your child uses it.

• Observe the max. load capacity of 80 kg.

• If the hanging nest or other parts used for the suspension are damaged or missing (even partially), they must be repaired or replaced and/or exchanged by a specialist workshop. Only then may the hanging nest be used again.

• Do not make any changes to the item.
• There must be no sharp or hard object within 1 meter. There must be no sharp, hard or pointed edges under the hanging nest.
• The distance between the bottom and the floor must not exceed 30 cm.
• Use only accessories and replacement parts approved by the manufacturer.

BEWARE OF MATERIAL DAMAGE

• Do not use the hanging nest near an open flame and protect it from strong heat sources.
• The hanging nest must not be impregnated, bleached or dyed. These processes damage the fabric and reduce the load capacity. Observe the care symbols, see “Care symbols”.
• Protect the hanging nest from weather effects, e.g. by not exposing it to direct sunlight and protecting it from moisture.
• Do not use the hanging nest to lift loads.
• Protect the seat cushion from sharp or pointed objects. Otherwise, it could be damaged.

CARE SYMBOLS

Delicate wash at max. 30 °C

No bleaching

No tumble drying

Ironing at a low temperature

No dry cleaning

SCOPE OF DELIVERY

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

Hook with swivel

Simple line drawing of a round object with a curved line inside (no text or symbols)

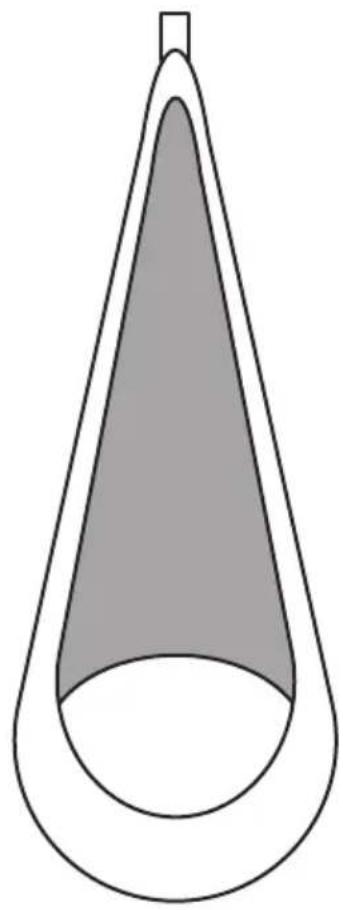

Seat cushion Hanging nest

Simple line drawing of a conical container with a circular base and top handle (no text or symbols)

ASSEMBLY INSTRUCTIONS - BEFORE YOU START

• The assembly or suspension of the hanging nest must be carried out by an adult. Keep children away from the assembly area. The assembly or suspension carried out unprofessionally may cause a risk of serious injury.
• Before assembly, make sure that the ceiling has the required load capacity. This also applies to the corresponding parts or fasteners (ceiling latch hooks and, for example, a rope or chain). Seek advice from your specialist dealer, if necessary.
• If you need to drill: before drilling, check the surface for piping.
• Check that the planned location is really suitable. At the planned location, check that ...
  ... the ceiling has sufficient load capacity,
  ... there are no obstacles around: minimum distance is 1 metre,
  ... no doors protrude into the area of the hanging nest when opening,
  ... the ground under the hanging nest is ideally "soft", for example a carpet.
• In most cases, you also need a suitable rope or chain with sufficient load capacity (min. 80 kg) depending on the ceiling height.
• Assembly material such as screws, dowels, rope or chain are not included.

1. Turn the seat inside out and open the zip.
2. Place the seat cushion in the fabric cover with the valve in the front and pump it up with a pump or your breathing air.
3. Close the zip and turn the seat back to normal.

ASSEMBLING

HAZARD due to incorrect assembly

Electric shock HAZARD

- If you need to drill: make sure that there are no pipes or piping at the drilling site.

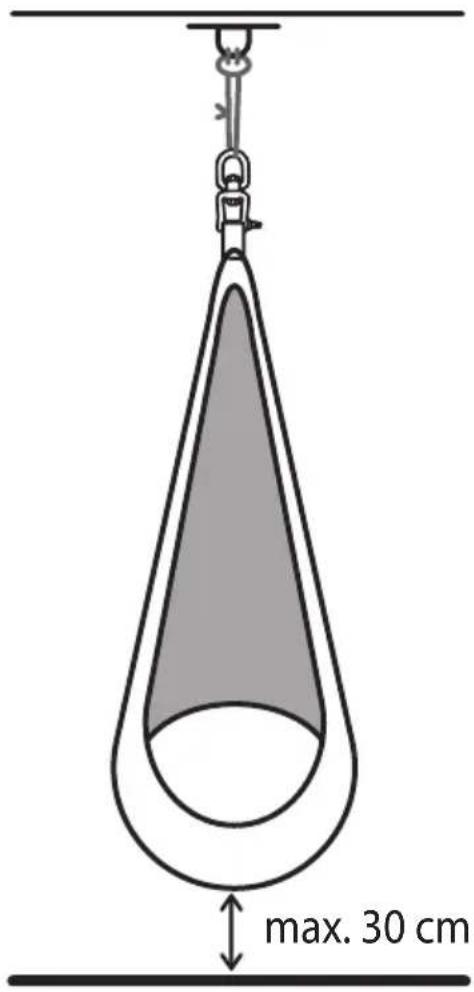

max. 30 cm

1. Attach a latch hook or U-profile piece with sufficient strength to the ceiling. Latch hooks must only have a small opening so that the hanging nest cannot slip out of the latch hook during later use. If you wish to use an already existing suspension device, check that it has sufficient load capacity.

2. Hang up the hanging nest.

3. Check that the hanging nest is really safe and has sufficient load capacity.

4. Check the distance to the floor.

Pay attention to the following:

• The above figure shows an attachment option. Other attachment options are possible, for example, with a chain instead of a rope.
• Never hang up the hanging nest without the hook with swivel. It prevents twisting of the suspended hanging nest.

CHECKING

-Check regularly ...

...the condition of the hanging nest and other parts used. If the rope is worn or brittle, it must be replaced immediately. The hanging nest and all fasteners may be used again only when they are in perfect and safe condition,

... that the swivel bolt is fully tightened.

CLEANING

- Minor stains on the hanging nest and seat cushion cover can be removed with a cloth and some water.

Use a mild detergent, if necessary.

• In case of major soiling, you can clean the entire hanging nest (without seat cushion, swivel, etc.) in the washing machine. Observe the care instructions on the label (see chapter “Care symbols”).
• The hanging nest may only be hung up again and used when it is completely dry.

STORING

• Clean the hanging nest before storing it. Afterwards, let it dry completely.
• Store it in a dry and frost-free place.

TECHNICAL DATA

Model: Hanging nest SNU 1700 Whale, SNU 1704

Unicorn

Max. load capacity: 80 kg

Material: Cotton

Distributor

(no service address):

Waagen-Schmitt GmbH

Hammer Steindamm 27-29, 22089 Hamburg

[e-mail]

Our products are constantly being refined and improved.

For this reason, design and technical modifications are possible at any time.

DECLARATION OF CONFORMITY

Waagen-Schmitt GmbH hereby declares that this product complies with the requirements of the Product Safety Act (ProdSG).

This declaration loses its validity if any modification is made to the item that was not agreed to by us in advance.

Hamburg, February 2018

Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

WARRANTY

The company Waagen-Schmitt GmbH guarantees for 2 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange.

In the event of a warranty claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer.

DISPOSAL

• Dispose of the packaging with similar materials. Put cardboard with waste paper, foil with recyclable materials.
• Dispose of the hanging nest in accordance with disposal regulations applicable in your country. For more details about the disposal options, contact your public waste disposal provider.

The “Tested Safety” seal (GS mark) certifies that a product meets the requirements of the German Product Safety Act (ProdSG).

The GS mark indicates that the proper intended use and foreseeable misuse of the marked product do not endanger the safety and health of the user.

This involves a voluntary safety mark issued by SGS TÜV SAAR.

SGS TÜV SAAR SCHADSTOFF GEPRÜFT www.sgs-tuev-saar.com TSG171186

Pollutant-free materials

The materials used in the snuutje hanging nest pose no health risk to children. They have been tested and certified according to the latest chemical and mechanical test criteria of SGS TÜV SAAR.
