4-in-1 Radio BR 1704 | 1705 Dear Customer! You have chosen to purchase a high-quality product from the ADE brand, which combines intelligent functions with an exceptional design. This compact radio is your versatile companion throughout the day. The many years of experience of the ADE brand ensure a high technical standard and proven quality. We wish you much pleasure with this product! Your ADE Team General Information About this manual This operating manual describes how to safely use and care for your products. Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well. Failure to observe the recommendations in this operating manual can lead to injuries or damage to your product. Explanation of symbols This symbol, combined with the word DANGER, warns against serious injury. This symbol, combined with the word WARNING, warns against moderate and mild injuries. This symbol, combined with the word NOTE, warns against material damage. This symbol signifies additional information and general advice.Table of Contents

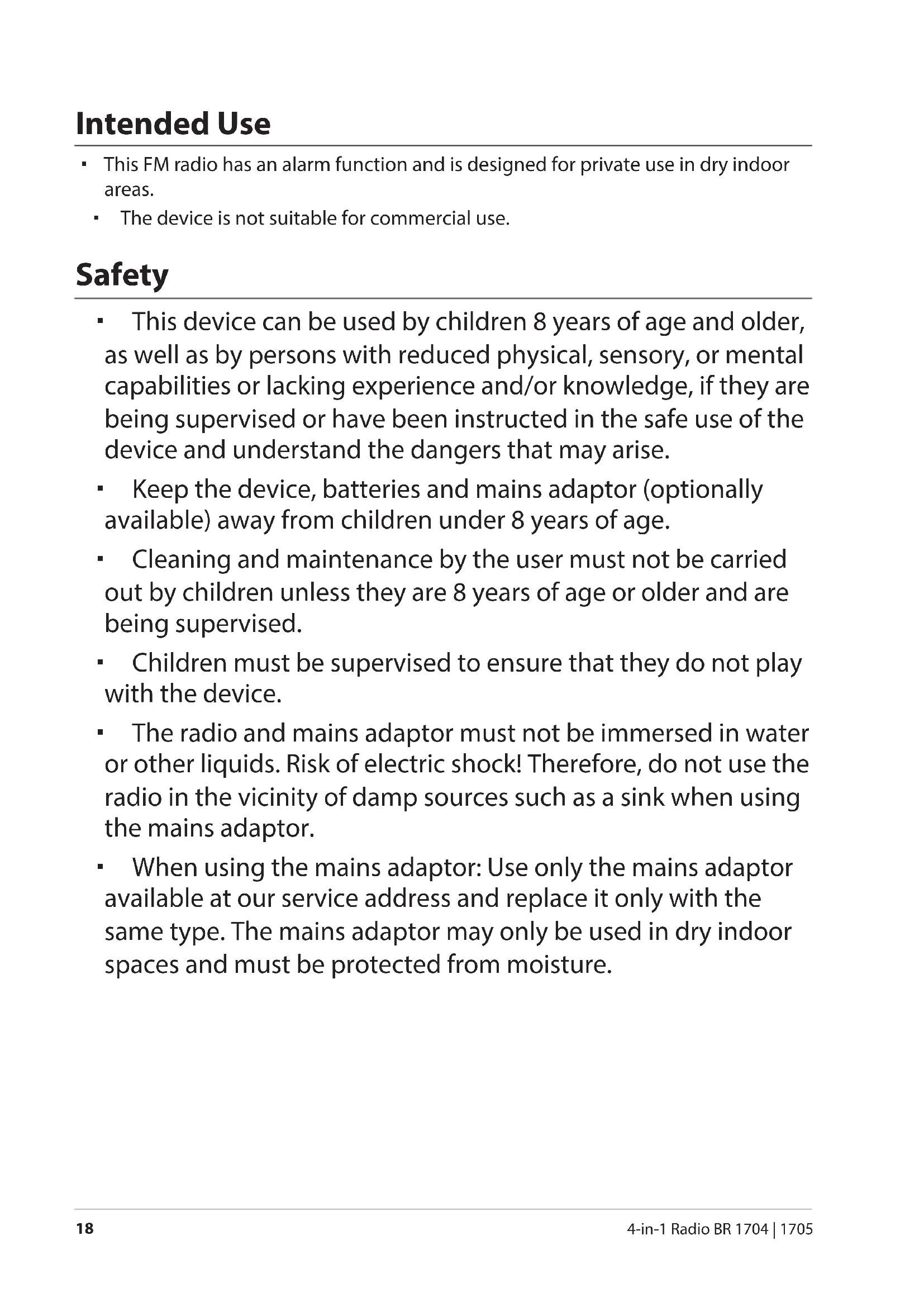

4-in-1 Radio BR 1704 | 1705 Intended Use This FM radio has an alarm function and is designed for private use in dry indoor areas. The device is not suitable for commercial use. Safety This device can be used by children 8 years of age and older, as well as by persons with reduced physical, sensory, or mental capabilities or lacking experience and/or knowledge, if they are being supervised or have been instructed in the safe use of the device and understand the dangers that may arise. Keep the device, batteries and mains adaptor (optionally available) away from children under 8 years of age. Cleaning and maintenance by the user must not be carried out by children unless they are 8 years of age or older and are being supervised. Children must be supervised to ensure that they do not play with the device. The radio and mains adaptor must not be immersed in water or other liquids. Risk of electric shock! Therefore, do not use the radio in the vicinity of damp sources such as a sink when using the mains adaptor. When using the mains adaptor: Use only the mains adaptor available at our service address and replace it only with the same type. The mains adaptor may only be used in dry indoor spaces and must be protected from moisture.Safety

4-in-1 Radio BR 1704 | 1705 English DANGER for Children Batteries, when swallowed, can be life-threatening. Thus, keep your radio and batteries out of reach of small children. If a battery is swallowed, medical assistance must be sought immediately. Keep packaging material away from children. Risk of choking if swallowed. Danger from electricity (for mains adapter operation) If you operate the device with the mains adaptor available at our service address: Connect the device to a correctly installed socket that has a voltage corresponding to that described under “Technical Data”. Ensure that the socket is easily accessible, so that the mains adaptor can be pulled out quickly if necessary. Do not use the radio if the mains adaptor or mains adaptor cable is damaged. Do not cover the mains adaptor with curtains, newspapers, etc., and ensure sufficient ventilation. The mains adaptor can become hot. Completely uncoil the mains adaptor cable before connecting it. In doing so, take care to keep the cable from being damaged by sharp corners or hot objects. Pull the mains adaptor out of the socket: − before you clean the radio, − if, during operation, there appears to be interference, − during a storm. When doing so, always pull on the plug, not on the cable. Do not make any modifications to the item or to the connection cable. Only allow repairs to be carried out at a specialist workshop, since inexpertly repaired devices can present hazards to the user. Do not replace the mains adaptor cable. When the cable or mains adaptor is damaged, it must be scrapped and replaced with a mains adaptor of the same type. Risk of injuries Attention: Risk of explosion if batteries are improperly used. Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Avoid contact of the battery fluid with skin, eyes, and mucosa. If you do come into contact with the fluid, you must immediately flush the affected areas thoroughly with clean water and promptly see a doctor. Note on material damage Protect the radio from moisture, dust, shocks, extreme temperatures and direct sunlight. Place the radio only in a dry indoor area.The 4-in-1 radio offers

4-in-1 Radio BR 1704 | 1705 Remove the batteries from the radio when they are depleted or when the radio is not used for a long time. You will thus avoid damage that may result from the leakage of battery acid. Do not expose the batteries to any extreme conditions, e.g. by storing them on heaters or under direct sunlight. Increased risk of leakage! Clean the battery and device contacts, as needed, before inserting the battery. Always exchange all of the batteries at the same time. Only insert batteries of the same type; do not use different types or used and new batteries with each other. Do not make any modifications to the device. Only allow repairs to be carried out at a specialist workshop and pay attention to the guarantee conditions. Never use harsh, scouring or abrasive cleaning agents or the like to clean the radio. Doing so may scratch the surfaces. The 4-in-1 radio offers FM reception Alarm function with different alarm sources (radio or alarm sound) Perpetual calendar Indoor temperature display Scope of Delivery Radio 2 batteries LR6 (AA) / 1.5 V Operating ManualOverview

4-in-1 Radio BR 1704 | 1705 English Overview Front view

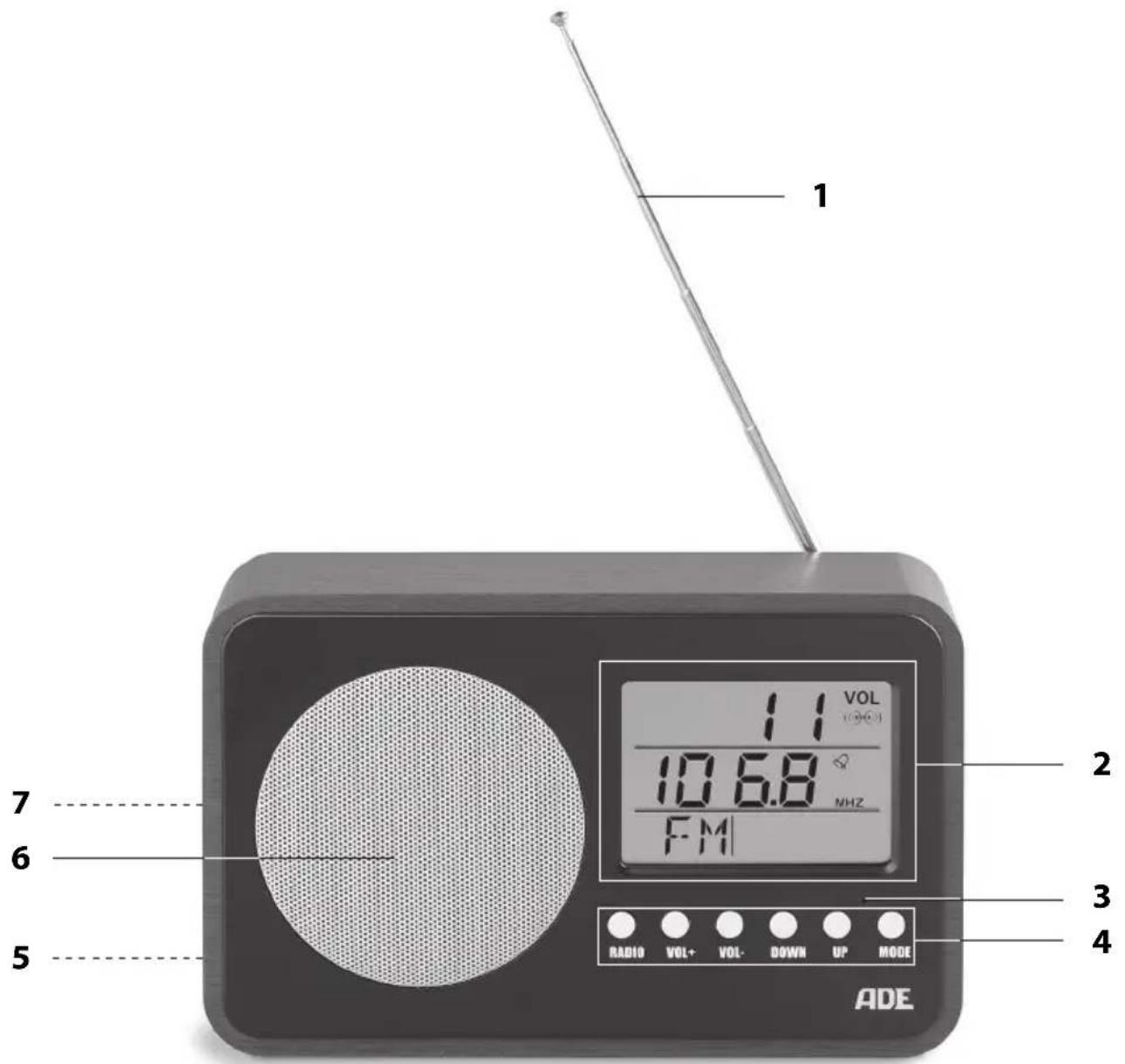

1 Telescopic antenna 2 Display 3 Temperature sensor 4 Operating buttons (see next page) 5 Connection socket DC 3V for optional mains adaptor (back) 6 Speaker 7 Battery compartment, 2x LR6 (AA), 1.5 V (back)Start-up

4-in-1 Radio BR 1704 | 1705 Operating buttons Left to right: Button Function RADIO Turn the radio on and off VOL+ Increase the volume VOL- Decrease the volume DOWN Decrease displayed values Set frequency UP Increase displayed values Set frequency Switching the alarm function on/off Change temperature unit MODE Call up setting mode for device and alarm setting Save changed settings Start-up Inserting/changing batteries For use, you need 2 batteries of type LR6 (AA), 1.5 V. The battery compartment is located on the back of the device.

1. Push the locking tab of the battery compartment cover towards the battery

compartment cover and remove it.

2. Insert the batteries as depicted on the bottom of the battery compartment. Pay

attention to the correct polarity (+/-).

3. Put the battery compartment cover back in place.

Tips for operating the mains adaptor: To operate the radio, you can also use a mains adaptor instead of batteries. For more information or priced order please use the following email address: [e-mail]. Connection:

1. Plug the mains adaptor into the connection socket DC 3V on the back of the radio.

2. Plug the mains adaptor into a socket that has a voltage corresponding to that

described under “Technical Data”.Radio

4-in-1 Radio BR 1704 | 1705 English Observe the safety instructions in the section “Danger from electricity”. When the mains adaptor is connected, the power is supplied from the mains even if the batteries are inserted. If necessary, remove the already inserted batteries to prevent battery acid from leaking if they are not used for a long time. Making basic settings As soon as the device is supplied with power (battery or mains), a beep will sound and the display will show the default values and measured indoor temperature.

1. Press and hold the MODE button until "12 Hr" or "24 Hr" flashes in the display.

2. Use the DOWN or UP button to select the desired time format. In the 12-hour

format, the display shows afternoon hours as “PM”.

3. Press MODE to save the selected setting.

4. Proceed as described:

− Use DOWN or UP to set the values. − Use MODE to save the setting.

5. Make the following settings one after another:

− Year − Month − Day − Hour − Minute After that, the settings are completed. Radio Listening to the radio

1. Pull out the telescopic antenna completely. It is located in a lock on the back of the

The device will automatically search for the next frequency received with sufficient strength and play it back. Note the display.

4. Use the VOL+ and VOL- buttons to set the desired volume.

5. Press RADIO to turn off the radio.Alarm

4-in-1 Radio BR 1704 | 1705 Improving reception − Always pull out the telescopic antenna completely and adjust it until the best reception is achieved. − Check whether the radio receives the station on a different frequency. − If necessary, change the location of the device. Selecting a station manually

1. Pull out the telescopic antenna completely. It is located in a lock on the back of the

3. Press and hold down the DOWN or UP button until “SCN” appears on the display.

4. Press repeatedly DOWN or UP in 0.1 MHz increments to set the desired frequency.

This manual setting function is active for approx. 5 seconds. As soon as “SCN” is no longer shown on the display, the function is automatically disabled again. Alarm You can wake up to a radio station or a default alarm sound. Press and hold down UP or DOWN to speed up the progress of the displayed values. Setting the alarm time You can wake up to a radio station or a default alarm sound. Waking up to a radio station First of all, you have to decide to which radio station you want to wake up.

1. Turn on the device and select the radio station to which you want to wake up.

2. Press and hold down MODE until the frequency flashes a few times and the upper

part of the display shows two speaker symbols.

3. Press RADIO to turn off the device.Alarm

4-in-1 Radio BR 1704 | 1705 English After that:

1. Press the MODE button twice.

The display will show “RDO”.

2. Use the UP button to switch the alarm function on or off.

− On: The upper part of the display shows the selected frequency and two speaker symbols. − Off: the display shows - - -.

3. Press and hold down MODE for a few seconds until the hour digit of the alarm time

4. Use UP and DOWN to set the desired alarm hour.

6. Use UP and DOWN to set the desired alarm minute.

7. Finally, press MODE.

Waking up to a default alarm sound For this purpose, the device must be turned off (the display shows the temperature, day and date).

1. Press the MODE button.

The display will show “ALM”.

2. Press the UP button.

The display will show a bell symbol and the alarm function is enabled.

3. Press and hold down MODE for a few seconds until the hour digit of the alarm time

4. Use UP and DOWN to set the desired alarm hour.

6. Use UP and DOWN to set the desired alarm minute.

4-in-1 Radio BR 1704 | 1705 Being awakened At the set time, you will wake up to the selected alarm source (radio or default alarm sound). If you have selected the radio as the alarm source, the sound will be getting louder with increasing alarm time until the max. alarm volume “12” is reached. Auto-stop function If you do not press any button, the alarm or radio will turn off automatically after approx. 30 minutes. Interrupting an alarm function for 24 hours Wake up to radio: Press the RADIO button to interrupt the alarm signal. The next day, you will be woken up at the same time (the bell symbol will continue to appear on the display). Wake up to an alarm sound: Press any button to interrupt the alarm signal. The next day, you will be woken up at the same time (the bell symbol will continue to appear on the display). Turning the alarm off completely For this purpose, the device must be turned off (the display shows the temperature, day and date).

1. Press MODE for “ALM” to appear on the display.

2. Press UP to remove the bell symbol.

The default alarm function (“Wake up to an alarm sound”) is switched off.

3. Press MODE once again.

The loudspeaker symbols will be removed and - - - will appear on the display. The radio alarm function is also switched off.

5. Finally, press MODE once or twice to enter the normal mode.

Tips for the alarm function You can combine different alarm sources. For example, you may wake up to both alarm and radio at 07:00 and 07:30, respectively. If the radio is turned off, press MODE repeatedly to check the set alarm times. You can also wake up to both alarm sources by setting the same alarm time.Other functions

4-in-1 Radio BR 1704 | 1705 English Other functions Resetting the radio Reset the radio to its default settings if the device won't respond or responds incorrectly to keystrokes or the display shows unusual indication.

1. Remove the batteries from the battery compartment and wait a moment.

2. Reinsert the battery.

Pay attention to the correct polarity of the batteries (+/-). In case of using the mains adaptor, disconnect the mains adaptor from the mains for a moment and plug it in again. Change temperature measuring unit − With the radio turned off, press the UP button briefly to select degrees Celsius (°C) or degrees Fahrenheit (°F). Cleaning − If necessary, remove dust from the casing with a dry and soft cloth. Fault/Remedy Fault Possible Cause No function. The batteries are empty. The batteries are inserted incorrectly. The temperature indication in the display appears too high. Check if the radio is exposed to direct sunlight. The indicator is illegible, the function is unclear, or the values are obviously false. Remove the batteries for a few moments. The radio turns off suddenly. The snooze function was active. The snooze function is active if the radio display shows a bed symbol and “z

In this case, the radio will turn off automatically after 30 minutes. No fault.Technical Data

4-in-1 Radio BR 1704 | 1705 Technical Data Model: 4-in-1 Radio BR 1704 (dark wood), BR 1705 (light wood) Power supply Battery: Battery: 2x LR6 (AA), 1.5 V Mains adaptor (optional): Mains adaptor (optionally available) Input: 100-240 V~, 50/60 Hz Output: 3 V / 1 A Protection class: II Maximum power consumption: 1.5 W Standby: 0.1 mW Radio Frequency range: 87.5 -108 MHz Audio output power: 0.5 W RMS Temperature range 0 °C - 50 °C (32 °F - 122 °F) Radio dimensions: approx. 184 x 115 x 58 mm Distributor: Waagen-Schmitt GmbH Hammer Steindamm 27-29 22089 Hamburg, Germany Our products are constantly being developed and improved. For this reason, design and technical modifications are possible at any time. Declaration of Conformity Waagen-Schmitt GmbH hereby declares that the Radio BR 1704 / BR 1705 complies with EU directives 2014/35/EU and 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: www.ade-germany.de/doc This declaration loses its validity if any modification is made to the item that has not been agreed with us in advance. Hamburg, February 2018 Waagen-Schmitt GmbH Hammer Steindamm 27-29 22089 Hamburg, GermanyWarranty

4-in-1 Radio BR 1704 | 1705 English Warranty The company Waagen-Schmitt GmbH guarantees for 2 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange. In the event of a warranty claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer. Disposal Disposing of the packaging Dispose of the packaging with similar materials. Put cardboard with waste paper, foils with recyclable materials. Disposing of the product Dispose of the product in accordance with the regulations that apply in your country. Devices must not be disposed of in normal household waste At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot. For more information, contact your local waste disposal firm or your local administrative body. Recyclable and disposable batteries do not belong in household waste All batteries must be handed in at a collection point in your community, suburb, or at the retailer. Such batteries can thus be disposed of in an environmentally friendly way.Información general
