2. MILJØMÆssIG sIkkERHED

• Bewahren Sie das Gerät an einem möglichst kühlen und trockenen Ortauf.18 EnGLIsH EC‑Declaration of Conformity Machinery Directive Drywall Sander DWE7800 DeWALT declares that these products described under Technical Data are in compliance with: 2006/42/EC, EN60745‑1:2009+A11:2010, EN60745‑2‑3:2011+ A2:2013+A11:2014+A12:2014+A13:2015. These products also comply with Directive 2014/30/EU and 2011/65/EU. For more information, please contact DeWALT at the following address or refer to the back of themanual. The undersigned is responsible for compilation of the technical file and makes this declaration on behalf ofDeWALT. Markus Rompel Vice‑President Engineering, PTE‑Europe DeWALT, Richard‑Klinger‑Straße 11, 65510, Idstein, Germany

DECLARATION OF CONFORMITY

THE SUPPLY OF MACHINERY (SAFETY) REGULATIONS 2008 Drywall Sander DWE7800 DeWALT declares that these products described under Technical Data are in compliancewith: The Supply of Machinery (Safety) Regulations, 2008, S.I. 2008/1597 (as amended), EN60745‑1:2009+A11:2010, EN60745‑2‑3:2011+A2:2013+ A11:2014+A12:2014+A13:2015. These products conform to the following UK Regulations: Electromagnetic Compatibility Regulations, 2016, S.I.2016/1091 (asamended). The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012, S.I. 2012/3032 (as amended). For more information, please contact DeWALT at the following address or refer to the back of the manual. The vibration and/or noise emission level given in this information sheet has been measured in accordance with a standardised test given in

60745 and may be used to compare one tool with another. It may be used for a preliminary assessment ofexposure.

WARNING: The declared vibration and/or noise

emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or is poorly maintained, the vibration and/or noise emission may differ. This may significantly increase the exposure level over the total workingperiod. An estimation of the level of exposure to vibration and/or noise should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total workingperiod. Identify additional safety measures to protect the operator from the effects of vibration and/or noise such as: maintain the tool and the accessories, keep the hands warm (relevant for vibration), organisation of workpatterns. DWE7800 Voltage V

(emission sound pressure level) dB(A) 77

(sound power level) dB(A) 88 K (uncertainty for the given sound level) dB(A) 2 Vibration emission value a

< 2.5 Uncertainty K = m/s

Congratulations! You have chosen a DeWALT tool. Years of experience, thorough product development and innovation make DeWALT one of the most reliable partners for professional power toolusers. Technical Data English (original instructions) DRYWALL SANDER DWE780019 EnGLIsH

2) Electrical Safety

a ) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electricshock. b ) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed orgrounded. c ) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electricshock. d ) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electricshock. e ) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock. f ) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electricshock.

a ) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personalinjury. b ) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personalinjuries. c ) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invitesaccidents. d ) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personalinjury. e ) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpectedsituations. f ) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in movingparts. g ) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-relatedhazards.

WARNING: Read all safety warnings, instructions,

illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or seriousinjury.

SAVE ALL WARNINGS AND INSTRUCTIONS

FOR FUTUREREFERENCE The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) powertool.

a ) Keep work area clean and well lit. Cluttered or dark areas inviteaccidents. b ) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust orfumes. c ) Keep children and bystanders away while operating a power tool. Distractions can cause you to losecontrol.

WARNING: To reduce the risk of injury, read the

instructionmanual. Definitions: Safety Guidelines The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to thesesymbols.

DANGER: Indicates an imminently hazardous

situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation

which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.

Denotes risk of electricshock.

Denotes risk offire. The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of DeWALT. Karl Evans Vice President Professional Power Tools EANZ GTS DeWALT UK, 270Bath Road, Slough SL1 4DX England

EnGLIsH performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personalinjury. c ) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safeoperation. d ) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and flyapart. e ) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded orcontrolled. f ) Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss ofcontrol. g ) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheel for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no‑load speed for one minute. Damaged accessories will normally break apart during this testtime. h ) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearingloss. i ) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area ofoperation. j ) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinningaccessory. k ) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of yourcontrol.

ADDITIONAL SPECIFIC SAFETY RULES

Safety Warnings Common for Sanding Operations a ) This power tool is intended to function as a sander. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or seriousinjury. b ) Operations such as polishing, grinding, wire brushing or cutting‑off are not recommended to be h ) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of asecond.

4) Power Tool Use and Care

a ) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it wasdesigned. b ) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must berepaired. c ) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power toolaccidentally. d ) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrainedusers. e ) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained powertools. f ) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier tocontrol. g ) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardoussituation. h ) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpectedsituations.

a ) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool ismaintained.21 EnGLIsH Residual Risks

WARNING: We recommend the use of a residual current

device with a residual current rating of 30mA orless. In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:

• Impairment ofhearing.

• Risk of personal injury due to flyingparticles.

• Risk of burns due to accessories becoming hot duringoperation.

• Risk of personal injury due to prolongeduse.

SAVE THESE INSTRUCTIONS

WARNING: Observe the applicable regulations for

sanding paint. Pay special attention to the following:

• Whenever possible, use a vacuum extractor for dustcollection.

• Take special care when sanding paint which is possibly leadbased: ‑ Do not let children or pregnant women enter the work area. All persons entering the work area should wear a mask specially designed for protection against lead paint dust and fumes. Do not eat, drink or smoke in the workarea.

• Dispose of dust particles and any other removal debrissafely. Additional Specific Safety Rules for Sanders

WARNING: Contact with or inhalation of dusts arising

from sanding applications may endanger the health of the operator and possible bystanders. Wear a dust mask specifically designed for protection against toxic dust and fumes and ensure that persons within or entering the work area are alsoprotected. Do not operate the unit without a dust collectionsystem.

WARNING: Use this tool in a well-ventilated area when

sanding ferrous metals. Do not operate the tool near flammable liquids, gases or dust. Sparks or hot particles from sanding or arcing motor brushes may ignite combustiblematerials.

WARNING: Do not use the dust filter cassette or the dust

extraction adaptor to storeobjects. Additional Safety Instructions for Sanding Operations a ) Do not use excessively oversized sanding disc paper. Follow manufacturer’s recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc orkickback.

FURTHER SAFETY INSTRUCTIONS FOR ALL

OPERATIONS Kickback and Related Warnings Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of thebinding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel’s movement at the point of pinching. Abrasive wheels may also break under theseconditions. Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below: a ) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start up. The operator can control torque reaction or kickback forces, if proper precautions aretaken. b ) Never place your hand near the rotating accessory. Accessory may kickback over yourhand. c ) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel’s movement at the point ofsnagging. d ) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control orkickback. e ) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss ofcontrol. l ) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into yourbody. m ) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electricalhazards. n ) Do not operate the power tool near flammable materials. Sparks could ignite thesematerials. o ) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution orshock.22 ENGLISH Slider Switch (Fig. C)

CAUTION: Hold the side handle and body of the tool firmly to maintain control of the tool at start up and during use and until the wheel or accessory stops rotating. Make sure the wheel has come to a complete stop be fore laying the tooldown. Attaching Sanding Discs (Fig. B) Your DWE7800 drywall sander is designed to use 225mm sanding discs

. Sanding discs for the DWE7800 attach with hook andloop. The recommended sanding discs are available at extra cost from your local dealer or authorised DeWALT servicecentre. To Attach Sanding Disc to the Sanding Pad (Fig.B)

1. Turn the sander over so that the sanding pad

2. Clean the dust from the sanding padface.

3. Hold the pad with one hand to keep it fromrotating.

4. With the other hand, center and place the sanding disc

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal

injury, turn tool off and disconnect tool from power source before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury.

Dust extraction port

Date code Intended Use This drywall sander is designed for professional sanding applications like drywall constructions of ceilings and walls as well as for removing paint, coverings, wallpaper residue and looseplaster. Do not use under wet conditions or in the presence of flammable liquids orgases. This drywall sander is a professional powertool. Do not let children come into contact with the tool. Supervision is required when inexperienced operators use thistool.

• Young children and the infirm. This appliance is not intended for use by young children or infirm persons withoutsupervision.

• This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities; lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone with thisproduct. Description (Fig. A)

WARNING: Never modify the power tool or any part of it.

Damage or personal injury couldresult.

Main handle Date Code Position (Fig.A) The production date code

consists of a 4‑digit year followed by a 2‑digit week and is extended by a 2‑digit factorycode. Markings on Tool The following pictograms are shown on the tool:

• Check for damage to the tool, parts or accessories which may have occurred duringtransport.

• Take the time to thoroughly read and understand this manual prior tooperation. Electrical Safety The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the ratingplate. If the supply cord is damaged, it must be replaced only by DeWALT or an authorised serviceorganisation. Mains Plug Replacement (U.K.& Ireland Only) If a new mains plug needs to be fitted:

• Safely dispose of the oldplug.

• Connect the brown lead to the live terminal in theplug.

• Connect the blue lead to the neutralterminal.

• Connect the green/yelow lead to the earthterminal.

WARNING: We recommend the use of a residual current

device with a residual current rating of 30mA orless. Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 13A. Using an Extension Cable If an extension cable is required, use an approved 3–core extension cable suitable for the power input of this tool (see Technical Data).The minimum conductor size is 1.5mm

; the maximum length is 30m. When using a cable reel, always unwind the cablecompletely.23 EnGLIsH Precautions to Take When Sanding Paint Sanding of lead‑based paint is NOT RECOMMENDED due to the difficulty of controlling the contaminated dust. The greatest danger of lead poisoning is to children and pregnantwomen. Sanding Drywall (Fig. E)

WARNING: To reduce the risk of personal injury, ALWAYS

wear a respirator approved for “Dust andMist” and connect the drywall sander to a suitable dustextractor. The drywall sander has an articulating sanding head. The head can swivel in multiple directions, allowing the abrasive pad to conform to the work surface. This action enables you to sand the top, middle, and bottom of a wall or ceiling joint without changingposition.

1. Turn the vacuum cleaner switch ON (I).

2. Turn drywall sander switchON.

3. Position the drywall sander lightly against the work surface.

Apply just enough pressure to align the sanding head with the worksurface.

4. Apply additional pressure to engage the abrasive pad on the

work surface. Move the sander in an overlapping pattern to smooth the drywall compound down to a“featheredge”.

5. Apply ONLY enough pressure to keep the abrasive pad flat

6. Keep the sander in constant motion while the abrasive pad is in

contact with the work surface. Use a steady, sweeping motion. Excessive pressure, stopping the sander on the work, or moving the sander erratically can cause unacceptable swirl marks and unevenness in the worksurface. nOTE: Do not allow rotating abrasive pad to contact sharp protrusions. Contact with protruding objects (nails, screws, electrical boxes, etc.) can severely damage the abrasivepad. Proper hand position requires one hand on the main handle

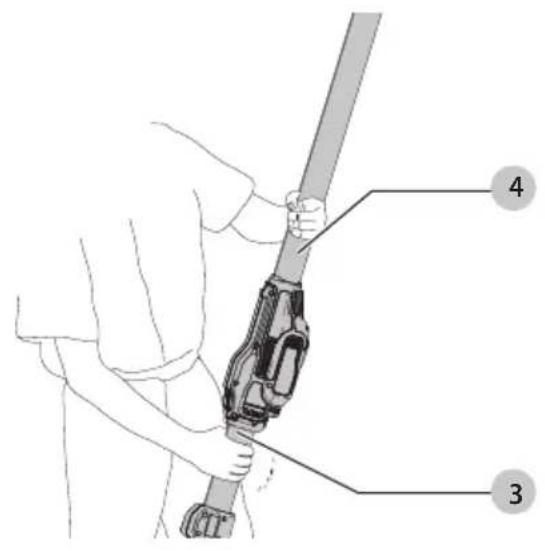

and one hand on the main tube

WARNING: To reduce the risk of serious personal injury,

WARNING: To reduce the risk of serious personal

injury, ALWAYS hold securely in anticipation of a suddenreaction. OPERATION Instructions for Use

WARNING: Always observe the safety instructions and

applicableregulations.

WARNING: To reduce the risk of serious personal

injury, turn tool off and disconnect tool from power source before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury. Attaching an AirLock™ Compatible Dust Extractor (Fig. D) Your drywall sander is compatible with the DeWALT AirLock™ connection system. The AirLock™ allows for a fast, secure connection between the AirLock™ connector

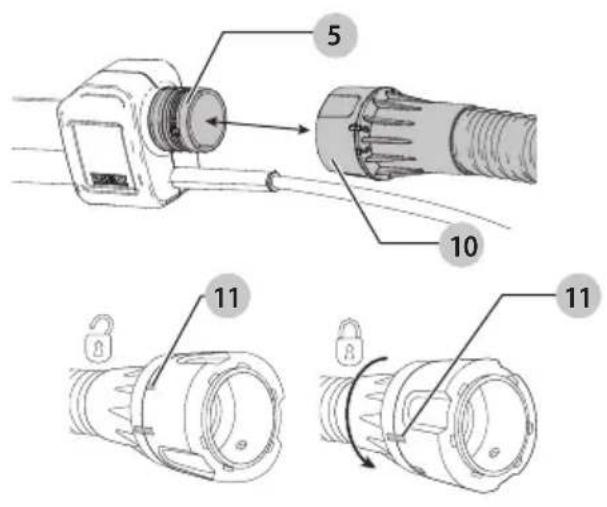

and sander's dust extraction port

1. Ensure the collar on the AirLock™ connector is in the unlock

position. (Refer to Fig.D.) Align notches

on collar and AirLock™ connector as shown for unlock and lockpositions.

3. Rotate the collar to the lockedposition.

nOTE: The ball bearings inside collar lock into slot and secure the connection.The power tool is now securely connected to the dustextractor. nOTE: The sleeve of the dust extraction port can be Brush‑Type Skirt (Fig. B) A brush‑type skirt

surrounds the abrasive pad on the DWE7800. This skirt serves two purposes:

• It extends below the surface of the abrasive pad to prevent the abrasive from “gouging” thework.

• It helps contain the drywall dust until the vacuum cleaner pulls itaway. If the skirt is damaged or if it is worn excessively it should be replaced by a DeWALT authorised servicecentre. Speed Control Dial (Fig. A) The DWE7800 sander is equipped with a variable speed control. Adjust the speed by turning the speed control dial

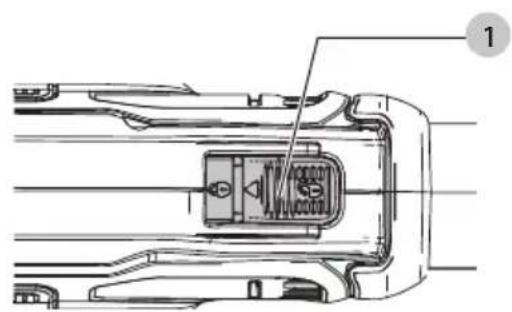

. The speed control dial is numbered “1” through “5”. The setting “1” is the slowest speed (approximately 1200RPM) and “5” is the fastest speed (approximately 2400RPM). Use the higher speed settings for fast stock removal. Use the lower speed setting to reduce removal rate for more precisecontrol. nOTE: To reduce unexpected tool movement, do not switch the tool on or off while under load conditions. Allow the sander to run up to full speed before touching the work surface. Lift the tool from the surface before turning the tool off. Allow the tool to stop rotating before putting itdown.

WARNING: Before connecting the tool to a power supply,

be sure the slider switch is in the off position by pressing the rear part of the switch and releasing. Ensure the slider switch is in the off position as described above after any interruption in power supply to the tool, such as the activation of a ground fault interrupter, throwing of a circuit breaker, accidental unplugging, or powerfailure. To start the tool, slide the ON/OFF slider switch

toward the front of the tool. To stop the tool, release the ON/OFF sliderswitch. For continuous operation, slide the switch toward the front of the tool and press the forward part of the switch inward. To stop the tool while operating in continuous mode, press the rear part of the slider switch andrelease. removed if damaged and replaced by the user. The sleeve is available as an optional accessory and can be replaced using ascrewdriver.24 ENGLISH Protecting the Environment

Separate collection. Products marked with this symbol must not be disposed of with normal householdwaste. Products contain materials that can be recovered or recycled, reducing the demand for raw materials. Please recycle electrical products according to local provisions. Further information is available at www.2helpU.com. Transport

CAUTION: Accidental starting during transport!

• Always transport your products disconnected from powersupply!

• Check the tool for damage before use aftertransport. Storage

• Switch off the tool.

• Always store your products disconnected from power supply!

• Store the tool in a place that is as cool and dry aspossible.

• Store the tool in a place where they cannot be accessed by children or unauthorisedpersons.

• Do not place the power tool with the grinding head down - always place it on the floor so that it is on its side with the brush ring facing down. Otherwise the sanding pad coulddeform.

• Check the tool for damage before use after long periods ofstorage. Optional Accessories

WARNING: Since accessories, other than those offered

by DeWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DeWALT-recommended accessories should be used with thisproduct. Consult your dealer for further information on the appropriateaccessories. Cleaning

WARNING: Electrical shock and mechanical hazard.

Disconnect the electrical appliance from the power source beforecleaning.

WARNING: To ensure safe and efficient operation,

always keep the electrical appliance and the ventilation slotsclean.

WARNING: Never use solvents or other harsh chemicals

for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. Ventilation slots can be cleaned using a dry, soft non‑metallic brush and/or a suitable vacuum cleaner. Do not use water or any cleaning solutions. Wear approved eye protection and an approved dustmask. Lubrication Your power tool requires no additionallubrication. MAINTENANCE Your power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regularcleaning.

WARNING: To reduce the risk of serious personal

injury, turn tool off and disconnect tool from power source before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury. Since it is difficult to identify whether or not a paint contains lead without a chemical analysis, we recommend the following precautions when sanding any paint:

- No children or pregnant women should enter the work area where the paint sanding is being done until all clean‑up iscompleted. - A dust mask or respirator should be worn by all persons entering the work area. The filter should be replaced daily or whenever the wearer has difficulty breathing. See your local hardware store for the proper NIOSH‑approved dustmask. - Connect a suitable dustextractor. - NO EATING, DRINKING or SMOKING should be done in the work area to prevent ingesting contaminated paint particles. Workers should wash and clean‑up BEFORE eating, drinking or smoking. Articles of food, drink, or smoking should not be left in the work area where dust would settle onthem.

2. ENVIRONMENTAL SAFETY

- Paint should be removed in such a manner as to minimize the amount of dustgenerated. - Areas where paint removal is occurring should be sealed with plastic sheeting of 4milsthickness. - Sanding should be done in a manner to reduce tracking of paint dust outside the workarea.

3. CLEANING AND DISPOSAL
