Product Type	Top-fill Ultrasonic Humidifier
Brand	Qlima
Model	H824
Dimensions (L x W x H)	265 x 287 x 659 mm
Weight	Approximately 5 kg
Power Supply	AC 100-240 V ~ 50/60 Hz, 105 W
Tank Capacity	20 liters
Mist Output	700 - 1000 ml/h
Noise Level	Less than 35 dB
Main Functions	Humidification, 1-12h timer, automatic mode, anionic ionization, LED light, remote control
Adjustable Humidity Range	45% - 95% RH
Usage Area	Indoor, room up to approx. 60 m²
Maintenance and Cleaning	Empty and clean the tank every 3 days; descale the drain and vibrating plate weekly; replace the water filter every 6 months
Safety	Automatic shut-off when water is low; overheat protection; unplug before filling and cleaning
Remote Control Battery	1 CR2025 lithium battery
Warranty	2 years against manufacturing defects

Frequently Asked Questions - H824 QLIMA

How to fill the water tank?

Two methods: remove the body and pour water directly into the basin (recommended method) or open the lid to add water into the basin. Never exceed the MAX line and add water slowly while monitoring the level.

What to do if the humidifier does not produce mist?

First check that the tank has enough water. If water is present, clean the vibrating plate and atomizer to remove scale. Ensure the water temperature is not too low. If the problem persists, contact after-sales service.

How often should I clean the humidifier?

Empty and rinse the tank every three days. Descale the basin and vibrating plate weekly. Replace the water filter every six months. Use fresh water and vinegar or a suitable descaling agent.

Can I use essential oils in the humidifier?

No, never add aromatic oils or other liquids to the water. This could damage the product. Using additives voids the warranty.

Why is the humidifier making an abnormal noise?

An abnormal noise may be due to a lack of water in the tank (the pump running dry) or resonance with the surface. Fill the tank or place the unit on a stable, flat surface.

How to set the desired humidity?

Press the HUMIDITY button to increase the target humidity in steps of 5% RH (from 45% to 95% RH). When the ambient humidity reaches the set value, the machine stops automatically and resumes when humidity drops by 5%.

What does the flashing red light mean?

The red light indicates a lack of water in the tank. Turn off the unit, unplug it, and fill the tank to the recommended level (without exceeding the MAX line). The machine will automatically resume operation once filled.

What type of water should I use?

Use tap water with a hardness between 40 and 75 mg of calcium carbonate per liter. If the water is too hard, use demineralized water to avoid scale buildup. The water temperature should not exceed 45°C.

How to use the remote control?

Insert a CR2025 lithium battery into the remote control by removing the battery ring. The remote works within 5 meters and at an angle of about 45 degrees. It allows access to all functions of the unit.

What to do if water flows out of the overflow space?

This means the tank is overfilled. Drain some water so it is below the MAX line. Also check that the unit is level and the lid is properly closed.

USER MANUAL H824 QLIMA

m = 311 ;

Congratulations with the purchase of your humidifier. You have acquired a high quality product which will give you many years of pleasure, if you use it responsibly. Please read the user's manual first in order to ensure the optimum life span of your humidifier. On behalf of the manufacturer, we provide a two-year warranty on material- or manufacturing defects.

Enjoy your humidifier.

Yours sincerely,

PVG Holding B.V.

Customer Service Department

1 PLEASE READ THE USER'S MANUAL FIRST.

2 IF YOU HAVE ANY DOUBTS, CONSULT YOUR DEALER.

GB

42

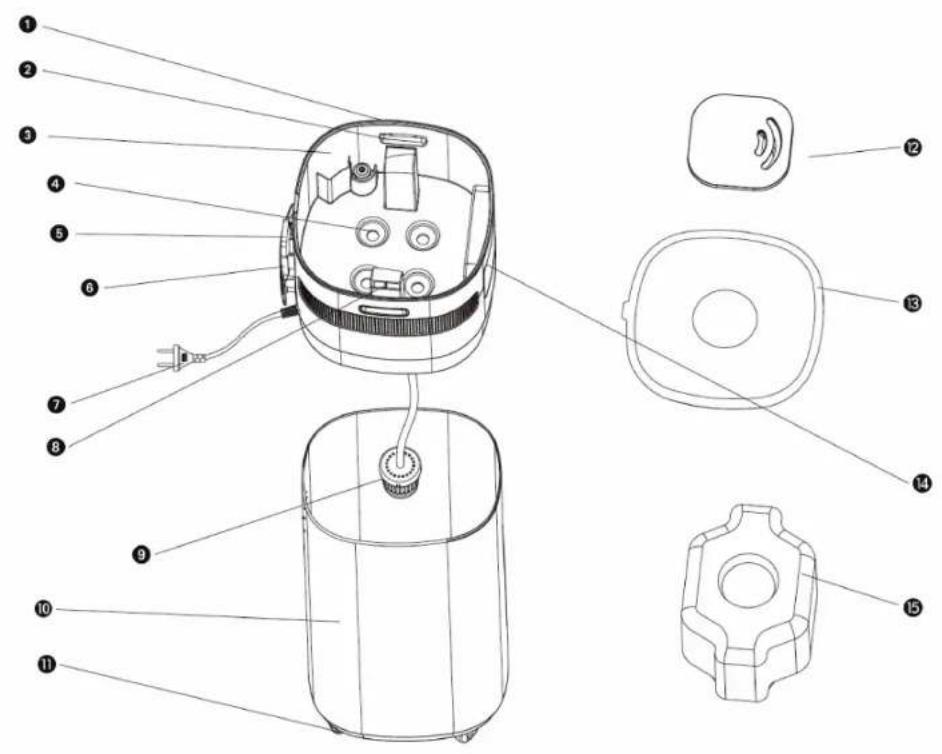

IMPORTANT COMPONENTS

Body
2 Handle
3 Sink
4 Atomizer
Remote Control
Remote Control Holder
Power Line
Air Outlet
Water Filter
Water Tank
10 Wheels
12 Nozzle
18 Cover
14 Display
15 Mist Cover

ATTENTION

Before use please check ultrasonic transducer first. When ultrasonic transducer is damaged do not use this machine.

GB

43

1. SAFETY

• Read this user manual carefully before you using the appliance and keep it for future reference.
• The installation must be completely in accordance with local regulations, ordinances and standards.
• This product is only suitable for use a humidifier in normal indoor household operations.
• The appliance is suitable for mains voltages ranging from 220-240 V ~ 50/60 Hz.
• The capacity of the humidifier depends on the temperature and the humidity in the room.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• The electricity supply to the device must be checked by a recognized professional if you have any doubts regarding the compatibility.
  Always take the plug out of the socket when the device is not in use.
• Do not insert objects into the openings of the device.
• Keep the spraying mouth from directly facing furniture or electronic equipment to avoid damage.
• Never turn on when waterless.
• Never move the appliance when there's water inside.
• Never submerge the product in water or other fluids.

• Due to the emission of steam care should be taken when using the appliance.

• Tap water can only be used when the hardness of the water is between 40 and 75mg of Calcium Carbonate per litre. Water with a higher level of Calcium Caronate will likely cause scaling inside the product and/or on surfaces or items surrounding the product (f.e. furniture). Hard water can cause the product to be damaged and to break. This is not covered by the warranty.

• Use a de-scaling fluid to remove scaling.
• To prevent legionella infections, it is necessary to replace the water in the water tank at least once a week.
• Never turn on the unit, when the water in the water tank is in there for over a week.
• Do not add other fluids to the (demineralised) water to the water container. Fluids like aroma oils could cause damage to the product.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Unplug the appliance during filling and cleaning.
• The appliance should always be placed on a firm, flat, waterproof surface at least 1.2 ~m away from bedside and 30 ~cm from the wall.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  WARNING: Micro-organisms that may be pre

sent in the water or in the environment where the appliance is used or stored, can grow in the water reservoir and be blown in the air causing very serious health risks when the water is not renewed and the tank is not cleaned properly every 3 days.

2. INSTALLATION

ATTENTION BEFORE USE

1. Do not place this machine near human body to avoid discomfort of human body.
2. Do not place this machine near wooden furniture to prevent furniture become damp and damaged.
3. Do not permit the area around the humidifier to become damp or wet. If dampness occurs, turn the output of the humidifier down. If the humidifier output volume cannot be turned down, use the humidifier intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes, or tablecloths, to become damp.
4. Be aware that high humidity levels may encourage the growth of biological organisms in the environment.
5. Place this machine evenly and keep a distance to walls for at least 30cm to keep it running normally.

ATTENTION

Before use please check ultrasonic transducer first. When ultrasonic transducer is damaged do not use this machine.

USAGE METHOD

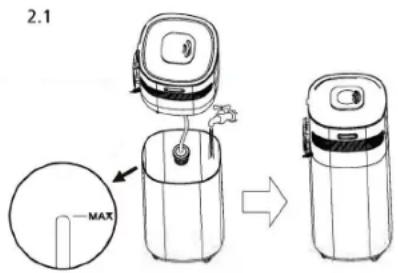

2.1

2.2

1. Place the unit on a solid and flat surface (to prevent tilting).
2. Two ways for adding water:

2.1. Take out the body, adding water into the sink. This way is more recommended to use! DO NOT FILL IT OVER THE MAX LINE!
2.2. Open the cover, add the water directly into the sink, water will go down to the tank.

DO NOT FILL IT OVER THE MAX LINE!

ATTENTION

Adding water must be done slowly and have an eye on the water level on the tank!

1. When the water tank is empty, the device switches off automatically, at the same time the indicator light turns blue.
2. Add water after unplugging the power plug.
3. Turn off and unplug the humidifier before moving it otherwise the unit may not function properly.

3. OPERATION

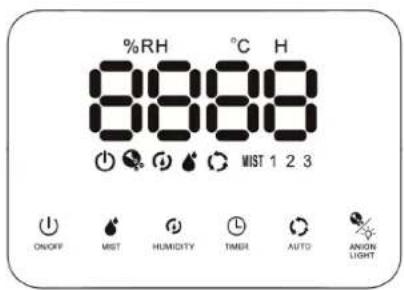

Plugging the device for the first time into the socket, LCD display will light up 1 second, then only left " ", the machine enter standby mode.

When the machine is out of water, it will emit a tone for 5 seconds, then the water shortage icon in the display will light up in red color.

ON/OFF

Press it to turn on the machine, led display shows the current humidity and temperature. Atmosphere lamp light up, the pump starts to draw water from the tank up to the sink. It will take 2.5 minute for drawing up water, in this time, all functions can not be operated. When the process of drawing water is finished, machine will start to spray mist in level 2, other functions can be operated normally.

MIST

Press it to select the fog spray level 1-3, keep pressing for different gear positions. Led show the selected level.

HUMIDITY

Press it to set up a constant humidity. Each time the constant humidity function key is pressed, the humidity is 5% RH increased, after reaching the maximum humidity level, this function will be turned off. Humidity adjustment range: 45% - 95% RH. In the constant humidity state, the machine stops working when the ambient humidity reaches the set humidity. If the ambient humidity is less than the set up date of 5% RH or more, the machine will resume working.

TIMER

Press it to set up 1-12 hour mist spray, LED display shows the set up timer. Machine will stop spraying after the set time. Timer function can not set up when the machine is out of water.

AUTO

Press it to enter the auto mode, this mode is used as a sleep mode. Fog level will adjust automatically according to the ambient humidity, the display brightness will reduce 50% . Press any key beside ON/OFF to light up the display again and turn off the mode.

In this mode:

• The ambient humidity is less than 40% RH , mist spray the max level 3
• The ambient humidity is 41 60% RH , mist spray the middle level 2
• The ambient humidity is 61 - 70% RH , mist spray the minimum level 1
• The ambient humidity over 70% RH , mist spray will stop working automatically.

ANION

Short Press this button to turn on Anion function, LED screen will display "An"indicate the anion function work. Press it again to turn off Anion function.

LIGHT

Long press it 5 seconds to turn on and off the water level indicator light

Waterless: When the water level is too low, the machine will automatically stop working. At the same time, the water shortage indicator will light up red. Please turn off the power switch, unplug the power plug and refill the water tank.

When the level of the sink is too low to work normally, the machine will shut off automatically, all the selected functions will be turn off together. Led display will close only left the icon in red color. When the water in the tank is not enough to be drawn up, the pump will be spin, there will be around 3-5 seconds noise from the pump. It is better to turn off the power and refill water again.

GB

48

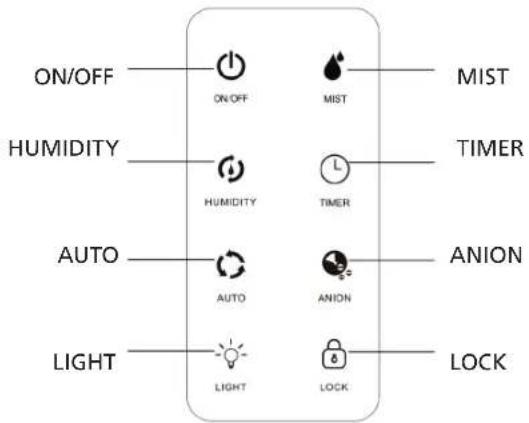

REMOTE CONTROL

1. Replace batteries: Press 1 and pull out the battery ring. Put Lithium battery CR2025 + on the top.
2. Remote control operation: The remote control is within 5M, about 45 degrees.

4. WARNINGS

1. Do not disassemble, repair or modify this product without authorization.

1. Keep this product out of the reach of children, and do not allow children to use or operate this product to avoid any accidents

1. If there is any fault happening, please unplug it immediately and contact the manufacturer or after-sales customer service.

1. Unplug the power plug when filling and cleaning.

1. Power cord with damage or when the product falls or drops, please call the professional guy torepair and detect before using.

1. Please cut the power cord when disposing this product; also any component that may.

1. Be sure the plug is intact before using, in case of any accident.

1. Be sure the power supply voltage must be the same as the rated voltage of this product.

1. Do not drop the machine into the water and do not operate it with wet hands.

1. Keep away from any heat source.

GB

49

5. MAINTENANCE

1. Before cleaning, please be sure the machine is stop working and unplugged.
2. Empty the tank and refill every third day. Before refilling, clean it with fresh tap water or cleaning agents if required by the manufacturer. Remove any scale, deposits, or film that has formed on the sides of the tank or on interior surfaces, and wipe all surfaces dry.
3. Clean all the parts with a soft cloth, never use any hard objects to avoid any damage.
4. Rechange the water in the tank and sink every day to prevent bacterial growth.
5. Do not use chemical detergent for cleaning.
6. Never leave water in the reservoir when the appliance is not in use. Empty and clean the humidifier before storage. Clean the humidifier before next use.
7. Water filter is suggested to changed after use for 6 months. (If your product with a filter element)

ATTENTION:

1. This machine require to use pure water below 45^ only, and room temperature between 5 to 40^
2. Do not add water from the air outlet and nozzle.
3. Water level do not over the MAX line in the tank
4. Avoid the air outlet when pouring out the water from the sink.
5. When the machine is working, please do not take up the cover. Do not touch the water in the sink to avoid accidents.
6. This machine is for indoor use only. Please place it on a flat floor. Wooden floor is not suggested to use this machine in case any damaged by moisture.
7. The power cord should not be scratched, damaged, knotted, or pressed against heavy objects or clamped or processed. Otherwise, it may cause electric shock, short circuit or fire.
8. Under thunderstorm weather or no using for long time, please unplug the power supply.
9. When an accident happens, such as machine fall down, water goes inside the body, please unplug the machine and let it dry, then contact with the after sales service.
10. Keep this machine out of reach of children.
11. Please place the humidifier 0.5M away from the furniture, electrical appliances, wall or any heat source.
12. When you take up the sink from the tank, please be careful the water go out from the overall gap.
13. When you refill water to the tank, please do not exceed the MAX line. Otherwise water will go out from the overall gap on the back side of the tank.
14. When you move the machine, please also be careful in case that the water flows out from the overall gap.

ATTENTION

Be careful can the water can come out from the overall gap when moving.

GB

50

Overfall gap

Overfall gap

SCALE REMOVAL METHOD:

For long-term use, there will be scale deposit on the mechanical sink and vibrating piece, the scale will reduce the atomization effect. Therefore, it is recommended to clean the scale in the sink and the vibration piece every week.

1. Pour the disincrustant into the water tank, add warm water of about 60^ , let the disincrustant completely dissolve and soak for 5-10 minutes.
2. Clean the dirt on the sink wall and the vibrating plate with a brush or a clean soft cloth.
3. Pour out the water. Be careful to avoid the location of the air outlet to prevent water enter the base, cause the circuit board to short-circuit and damage.

1. FAULTS

Problem Possible Causes Solution
No power Power is not connected Replace the power jack
The spray of water has an odor	The new machine is dosed tightly	Replace to clean water
	The water in the water tank has been placed lor too long time	Clean the atomizing sheet
Small amount of log	The atomizing sheet has scale Clean the atomizing sheet
	The water is dirty or has been storaged lor too long time	Replace to clean water
	Water temperature is too low	Add a small amount of warm water
	Fog amount is set at the minimum gear	Reset the fog amount gear
Abnormal noise	Water shortage in the tank, noise from the pump be spin	Add water to the tank
	Resonate with the placed oountertop	Place it on a solid and stable surface

ATTENTION

If the fault can not be eliminated after the above phenomenon analysis, please contact our after sales customer service or dealer.

1. TECHNICAL SPECIFICATIONS

Product Name Top fill ultraosnic humidifier
Model No. H 824
Product size L x W x H (mm) 265 x 287 x 659
Voltage (V) AC100-240
Frequency (Hz) 50/60
Power (W) 105
Capacity (L) 20
Mist output (ml/H) 700 - 1000
Noise (dB) < 35
Function	Humidity, colorful led night light, 1-12H timer

GB

52

8. CONDITIONS OF WARRANTY

There is a two-year warranty on your humidifier from the date of purchase. All material or manufacturing defects will be repaired free of charge. The following applies:

• All claims for compensation, including consequential damage, will not be entertained.
• Any repairs or replacement of components during the warranty period will not result in an extension of the warranty period.
• The warranty will expire if any alterations have been made, not genuine components have been fitted or if the humidifier has been repaired by a third party.
• Components subject to normal wear and tear, such as the air filter, are not covered by the warranty.
• The warranty is only valid on presentation of the original, unaltered, and date stamped purchase receipt.
• The warranty does not cover damage caused by actions that deviate from those as described in the user's manual or by neglect.
• Transportation costs and the risks involved during the transportation of the humidifier or components shall always be for the account of the purchaser.

To prevent unnecessary expenses, we recommend that you always carefully read the user's manual first. If this does not provide a solution, take the humidifier to your distributor for repair.

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new once, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge.

INTERNET

In order to better be able to be of service to you the most recent version of the user, installation and/or service guide can be downloaded from www.qlima.com.

Egregio signore, gentile signora,

ACCESO/SPENTO (ON/OFF)

Distributed in Europe by PVG Holding B.V.

Benotigen Sie wetere Informationen oder treten Probleme auf, besuchen Sieitte unsere Website wwwqlma.com, oder setzen sie sich mit unserem Kundendienst in Verbindung (T: [phone]).
For alle yderligere oplysninger erer ved eventuelle probleme mer med apparatet herwises til www.qlma.com ellert lokale Kundecenter (T. [phone]).
Si necesa informacion o si tene algo problema, visite ourstra pagina Web www.qlima.es, o pongase en contacto con el service客户提供 (T: [phone]).
Si yous souhaitez obtenir des informations supplémentaires ou si vous rencontrez un probleme, rendez-vous sur notre site Web (www.qlima.fr / www.frqlima.be) ou contactez notre service client (T: [phone] / [phone]).
Jos hualu huoiaopua, liatietoja tai laitten kansa tulee ongelma, tutustu verkkosivustoon ospitteesssa www.qlima.com tai ksy neuva PVG kuluttajapalvelukesukkesesta (T: [phone]).
If you need information or if you have a problem, please visit the our website (www.qlima.com) or contact our sales support (T: [phone]).
Per informazioni e in caso di problemi, visitate the Web www.qima.it, oppure contattate il Centro Assistenza Clienti (T [phone]).
Hvi med PVG' forbrukerteneste (T: [phone]).
Alu inmatie nodig hebt of al u en problemn hebt, bezok dan de onze weibsite (ww.qlima.nl / www.qlima.be) of neem contact op met de afding sales support (T; [phone] / [phone]).
Se necessitar de informacoes ou se tiver problemas, visite o Web site www.quima.es ou contacte o Centro de Assistance (T: [phone]).
W przypadku problemow i w celu szegolowych informaci odwiedz strone internetowa Qlma dostepna pod adressem www.qlima.com lub kontaktuj zie Z Centrum kontaktoq Ola mta (T: + 484 613 0070
O Mu do behov service ell information ell har problem med apparaten kan du besoka www.qlima.com ell kontakta Qllima kundtjansf ([phone])
Ce ze zelte doatne informacje, obicie splte no mesto podjetja na naslovu wwwqlima.si ai pokiite na telefonsko (T: [phone]).

PVG Holding BV - Kanaalstraat 12 C - 5347 KM Oss - the Netherlands P.O. Box 96 - 5340 AB Oss - the Netherlands
