USER MANUAL H609 QLIMA

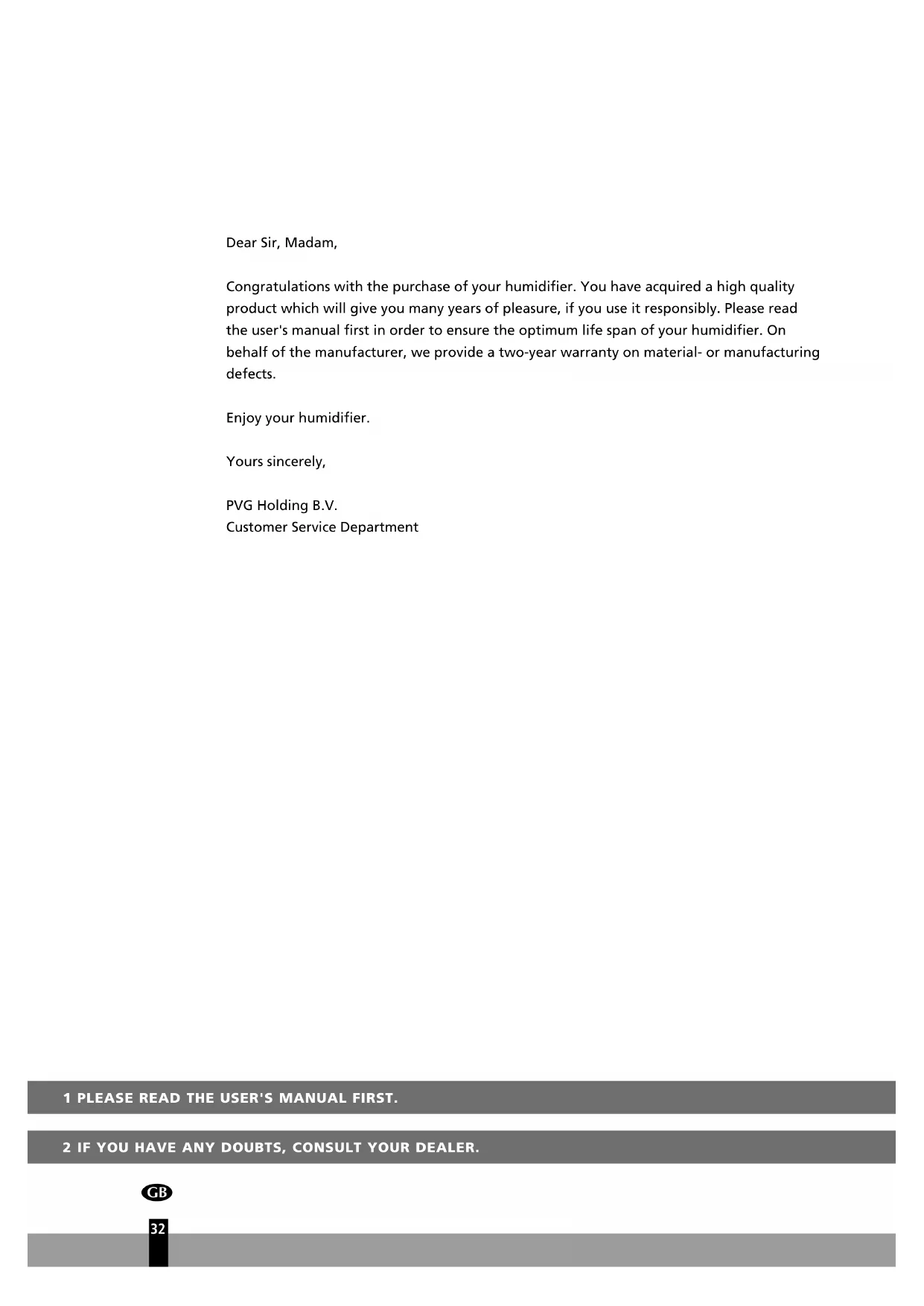

Congratulations with the purchase of your humidifier. You have acquired a high quality product which will give you many years of pleasure, if you use it responsibly. Please read the user's manual first in order to ensure the optimum life span of your humidifier. On behalf of the manufacturer, we provide a two-year warranty on material- or manufacturing defects.

Enjoy your humidifier.

Yours sincerely,

PVG Holding B.V.

Customer Service Department

1 PLEASE READ THE USER'S MANUAL FIRST.

2 IF YOU HAVE ANY DOUBTS, CONSULT YOUR DEALER.

GB

32

ATTENTION

Before use please check ultrasonic transducer first. When ultrasonic transducer is damaged, do not use this machine.

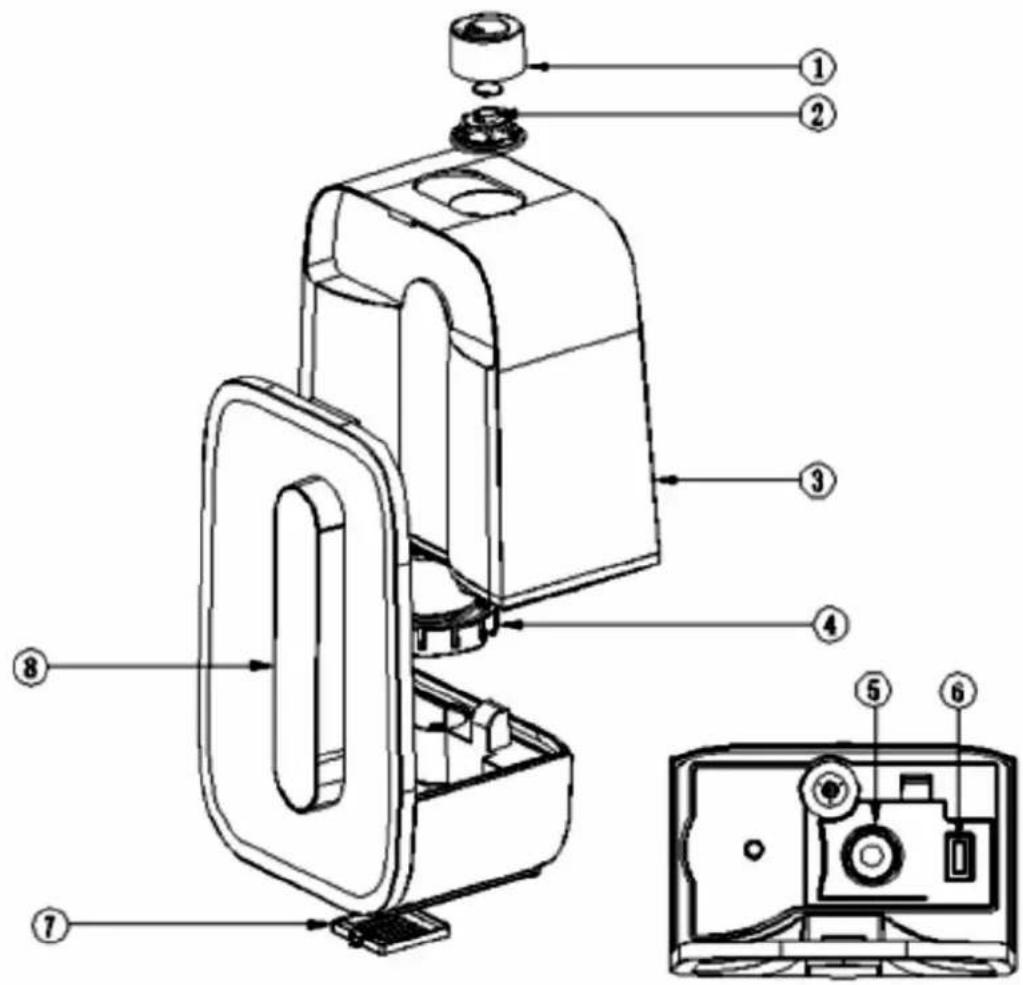

IMPORTANT COMPONENTS

Mist nozzle

Aroma box

Water tank

Water softening filter (not included)

Ultrasonic Transducer

PTC heating element

Ash damper

Control panel

1. SAFETY

• Read this user manual carefully before you using the appliance and keep it for future reference.
• The installation must be completely in accordance with local regulations, ordinances and standards.
• This product is only suitable for use a humidifier in normal indoor household operations.
• The appliance is suitable for mains voltages ranging from 220-240 V ~ 50/60 Hz.
• The capacity of the humidifier depends on the temperature and the humidity in the room.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• The electricity supply to the device must be checked by a recognized professional if you have any doubts regarding the compatibility.
• Always take the plug out of the socket when the device is not in use.
• Do not insert objects into the openings of the device.
• Keep the spraying mouth from directly facing furniture or electronic equipment to avoid damage.
• Never turn on when waterless.
• Never move the appliance when there's water inside.
• Never submerge the product in water or other fluids.
• Due to the emission of steam care should be

taken when using the appliance.

• Tap water can only be used when the hardness of the water is between 40 and 75mg of Calcium Carbonate per litre. Water with a higher level of Calcium Caronate will likely cause scaling inside the product and/or on surfaces or items surrounding the product (f.e. furniture). Hard water can cause the product to be damaged and to break. This is not covered by the warranty.
• Use a de-scaling fluid to remove scaling.
• To prevent legionella infections, it is necessary to replace the water in the water tank at least once a week.
• Never turn on the unit, when the water in the water tank is in there for over a week.
• Do not add other fluids to the (demineralised) water to the water container. Fluids like aroma oils could cause damage to the product.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Unplug the appliance during filling and cleaning.
• The appliance should always be placed on a firm, flat, waterproof surface at least 1.2 ~m away from bedside and 30 ~cm from the wall.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. INSTALLATION

ATTENTION BEFORE USE

1. Do not place this machine near human body to avoid discomfort of human body.
2. Do not place this machine near wooden furniture to prevent furniture become damp and damaged.
3. Place this machine evenly and keep distance from wall at least 30~cm to keep it running normally.

ATTENTION

Before use please check ultrasonic transducer first. When ultrasonic transducer is damaged, do not use this machine.

OPERATING PROCEDURES

1. Remove water tank from water sink, revolve and open water tank cover, fill suitable amount of water into water tank, then screw cap of water tank, place it on water sink steadily to make sure it is placed in proper position.
2. Connect this machine with 220-240V power socket, then it enters stand-by status. Press power key, it begins to work. At beginning, the defaulted speed is the min., at this time press mist +/- key to adjust the mist volume.
3. Press heating key, PTC heating part begins to work.
4. Press negative ions key and it will begin to work.
5. If during usage, water shortage icons is on, the machine will stop work. Only refill the water tank will the humidifier continue to work.
6. There is an aroma box in the mist nozzle, you can open the nozzle and put few drops of essential oil in the sponge, then fix the nozzle. When the humidifier is turn on, the aroma would come out together with the mist.

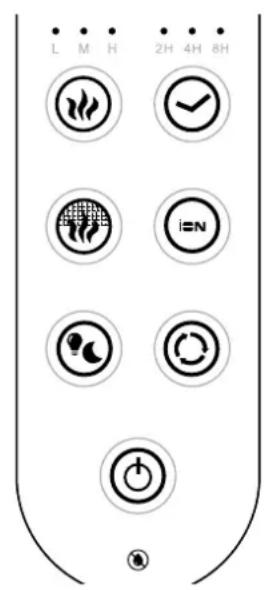

3. OPERATION

Power control: press the Power button to power ON or power OFF, when power ON, the mist level would stay at Lower speed, and the mist temperature is normal.
Indicator of water shortage: when the water level is low, it will show in red color, remind you to adding water into the water tank, and the humidifier would turn off automatically when this indicator shows. After refilling water, please press power ON to turn on the humidifier.
Mist volume adjustment: you can press this button to change the mist volume from L (Low), M (Medium) to H (High) as you need.
Timer setting: you can press this button to set the timer at 2 hours, 4 hours, 8 hours as you need. The humidifier would be turn off after the preset time. The timer program is 2 hours-4 hours-8 hours-off.
Warm mist function: when you press this button, the mist would be warmed after several minutes (around 8-10 minutes according to the weather), it will take you warm feel during winter, take care not to touch the warm mist near the nozzle. Press again

GB

to turn off warm mist function, then it will revert to normal temperature mist.

ION function: when you press this button, it will turn on the ION, press again to turn off ION.
Night light / Sleep mode button: press this button one time would turn on the night light if you need, press again to turn off the night light. You can also press the button for 3 seconds, then it will turn to Sleep mode which will turn off all the lights and indicator of the humidifier. You can press any key to exit Sleep mode.
Auto function: press this button would turn to Auto mode, the humidifier would detect the actual humidity level in the room, if it is lower than 70% RH , the humidifier would keep working until it reach 70% RH , then it will stop working. Once the humidity level lower than 70% RH again, the humidifier would turn on automatically to make sure the humidity level is around 70% RH all the time. Press Auto mode button again, it will exit Auto mode.

4. WARNINGS

1. Never fill the water reservoir with water hotter than 30^ .
2. Never fill the reservoir through the mist nozzle.
3. Ensure that the filler cap of the reservoir is not leaking. Close the filler cap tightly.
4. Ensure that the device and the reservoir are always clean. Remove any dirt before using the device.
5. Do not position the outlet of the cold mist nozzle too close to equipment, furniture etc. to avoid water damage.
6. Check the actual air humidity regularly in the room to prevent any damage to furniture, equipment etc. from a too high humidity.

5. MAINTENANCE

WARNING

Before clean and maintain this machine, do turn it off and pull out the plug.
Make sure machine is powered off to avoid electric shock.

CLEAN OSCILLATING PLATE

1. Take out water tank of humidifier.
2. Pour out residual water in the water sink
3. Use clean brush to clean oscillating plate. Do not use household cleaners to clean oscillating plate which will affect its lifetime.

Do not suggest expose humidifier under candle/ lampblack, fireplace ash and smoke.

ATTENTION

Do wear gloves when clean oscillating plate to avoid hand scald by hot water in water sink.

CLEAN OUTER APPEARANCE OF HUMIDIFIER

1. Power off and pull out the plug
2. Dip a little soap water by towel to clean outer appearance of humidifier
3. Do not make water flow into inside of machine. It may cause damage on your machine and electric shock.
4. After cleaning, place this machine in ventilating place to make it dry (do not expose to sun). Only when machine is completely dry can you use it.

6. FAULTS

Common problems Failure analysis Solutions
Machine doesn’t work	1.Power switch is not on 1.Open	switch button
	2"Forget to plug the power	2.Checked whether power is connected
	3.Water shortage 3.Fill water
	4.Machine doesn’t heat 4Pressed heating key
	5.Floating ball has failure	5.Checked if floating ball is assembled in proper place
Bad mist effect	1.Mist outlet is blocked	1.Checked and make sure mist outlet is not blocked
	2.Water level in water sink is too high	2. Empty the water tank and the basin and refill tank with cool tap water

7. TECHNICAL SPECIFICATIONS

Model H 609
Mains 220-240~50/60Hz
Electrical consumption 115 W
Capacity water container 7.5 l
Maximum evaporation capacity 9.6 l/day
Dimensions mm (w x d x h)	259x182x397
Net weight	2.6 Kg

8. CONDITIONS OF WARRANTY

There is a two-year warranty on your humidifier from the date of purchase. All material or manufacturing defects will be repaired free of charge. The following applies:

• All claims for compensation, including consequential damage, will not be entertained.
• Any repairs or replacement of components during the warranty period will not result in an extension of the warranty period.
• The warranty will expire if any alterations have been made, not genuine components have been fitted or if the humidifier has been repaired by a third party.
• Components subject to normal wear and tear, such as the air filter, are not covered by the warranty.
• The warranty is only valid on presentation of the original, unaltered, and date stamped purchase receipt.
• The warranty does not cover damage caused by actions that deviate from those as described in the user's manual or by neglect.
• Transportation costs and the risks involved during the transportation of the humidifier or components shall always be for the account of the purchaser.

To prevent unnecessary expenses, we recommend that you always carefully read the user's manual first. If this does not provide a solution, take the humidifier to your distributor for repair.

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new once, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge.

INTERNET

In order to better be able to be of service to you the most recent version of the user, installation and/or service guide can be downloaded from www.qlima.com.
