USER MANUAL KD50X81K SONY

Illustration of a remote control with a house icon and a question mark on a grid screen (no text or symbols)

BRAVIA

Reference Guide	GB
Guide de référence	FR
Guía de referencia	ES
Referentiegids	NL
Referenzanleitung	DE
Guia de referência	PT
Guida di riferimento	IT
Referensmaterial	SE
Referencevejledning	DK
Viiteopas	FI
Referanseveiledning	NO
Przewodnik	PL
Referenční příručka	CZ
Referenčná príručka	SK
Felhasználói útmutató	HU
Ghid de referință	RO
Информация за продукта	BG
Обдньо́с аναфорάς	GR
Başvuru Kılavuzu	TR

About Manuals

This TV comes with the following manuals. Please retain the manuals for future reference.

Setup Guide

• TV installation and setup.

Reference Guide (this manual) / Safety Documentation

- Safety information, remote control, troubleshooting, wall-mount installation, specification, etc.

Help Guide (On screen Manual)

• Settings, functions, Internet connection, troubleshooting, etc.
• To open it, press (Input select) on the remote control and select [Help]. If [Help] does not exist, select [Edit] and add [Help].

- You can refer to the Help Guide with your smartphone.

https://rd1.sony.net/help/tv/jaep1/h_aep/

Note

• Before operating the TV, please read the "Safety Information".
• Read the supplied safety documentation for additional safety information.
• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
• The "x"/"xx" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.

IMPORTANT NOTICE

Notice for Radio Equipment

Hereby, Sony Corporation declares that the radio equipment types KD-75X82K, KD-75X81K, KD-65X82K, KD-65X81K, KD-65X80K, KD-55X82K, KD-55X81K, KD-55X80K, KD-50X82K, KD-50X81K, KD-50X80K, KD-43X82K, KD-43X81K, KD-43X80K are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://compliance.sony.eu

Hereby, Sony Corporation declares that the radio equipment types KD-75X81K, KD-65X81K, KD-65X80K, KD-55X81K, KD-55X80K, KD-50X81K, KD-50X80K, KD-43X81K, KD-43X80K are in compliance with the UK relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: https://compliance.sony.co.uk

For this radio equipment, the following restrictions on putting into service or of requirements for authorization of use apply in AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, UK (NI), IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo : 5150 - 5350 MHz band is restricted to indoor operations only.

Safety Information

Transporting

• Before transporting the TV set, disconnect all cables.

• Two or more persons are needed to transport a large TV set.

• When transporting the TV set by hand, hold it as shown below. Do not put stress on the panel and the frame around the screen.

• When lifting or moving the TV set, hold it firmly from the bottom.

Illustration of two human figures holding a rectangular device with internal components (no text or symbols)

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

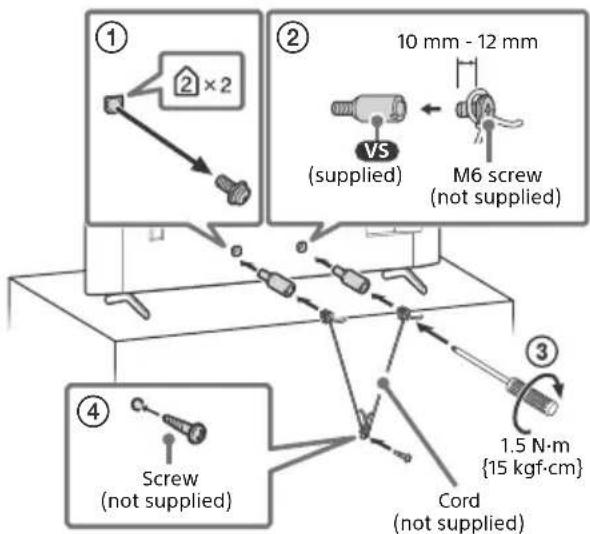

Topple prevention

① ② ×2 10 mm - 12 mm VS (supplied) M6 screw (not supplied) ③ ④ Screw (not supplied) 1.5 N·m {15 kgf·cm} Cord (not supplied)

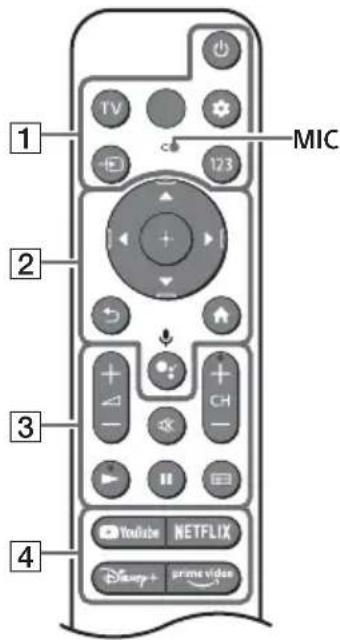

Remote Control and TV

The remote control shape, layout, availability and function of remote control buttons may vary depending on your region/country/TV model/TV settings ^4 .

1 TV MIC 2 123 + - CH + - YouTube NETFLIX Disney+ prime video 3 4

1 ⏻(Power)

TV: Display TV channel list or switch to input.

(Quick settings): Display Quick Settings.

→ (Input select): Display and select the input source, etc.

123 (Control menu): Display the Control menu.

2 ▲ / ▼ / ◀ / ▶ / ⊙: On screen menu navigation and selection.

(Back)

Home

(Google Assistant) /↓(Microphone): Use Google Assistant*2*3 or voice search*3.

3 +1 - (Volume)

Mute^*4

CH + / - (Channel)

/

(Guide): Display the digital programme guide of TV or TV box ^4 .

4 App buttons


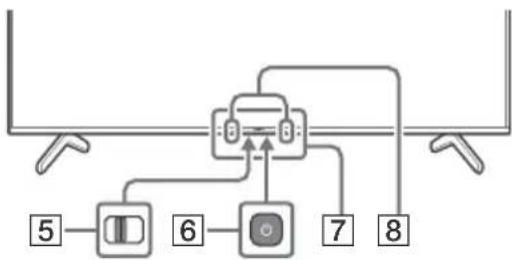

5 BUILT-IN MIC SWITCH: Turn on/off the built-in MIC.

6 ⏻(Power)

7 Remote Control sensor / Light sensor / LED

Built-in MIC ^236 : To enable the built-in MIC, press the Google Assistant/microphone button on the remote control and follow the on-screen instructions.

*1 For other remote control models, refer to the online Help Guide for details.

*2 Only for limited region/country/model/language.

*3 Google Assistant or voice search requires an Internet connection.

*4 Accessibility shortcut is available by pressing and holding ☐ (Mute).

*5 [TV box setup] setting is required.

*6 Power consumption will increase when the built-in MIC is enabled as it is always listening.

For more information, refer to the Help Guide.

Press → (Input select) on the remote control and select [Help]. If [Help] does not exist, select [Edit] and add [Help].

Optional Camera and Microphone Unit Cable Management

Pure electrical circuit lines without any symbols

Using Soundbar (not supplied)

(KD-75X82K / 65X82K / 55X82K / 50X82K / 43X82K)

■ Recommended (in front of the TV)

Place the soundbar (not supplied) in front of the TV's Table-Top Stand.

Line drawing of a flat-screen TV with a rectangular base (no text or symbols)

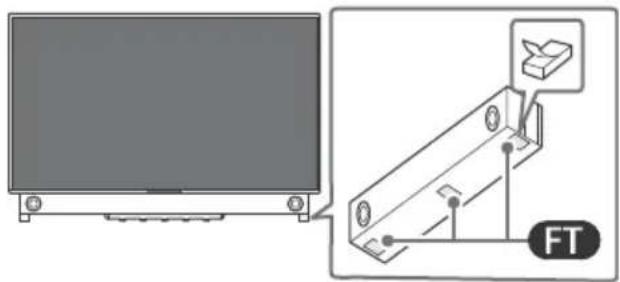

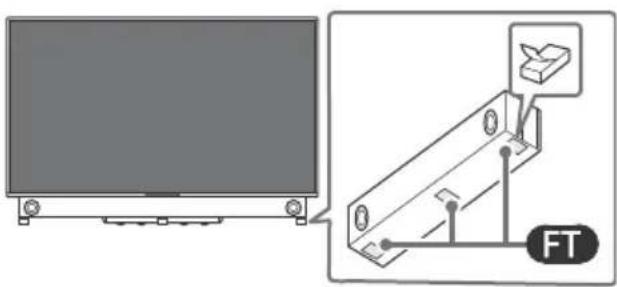

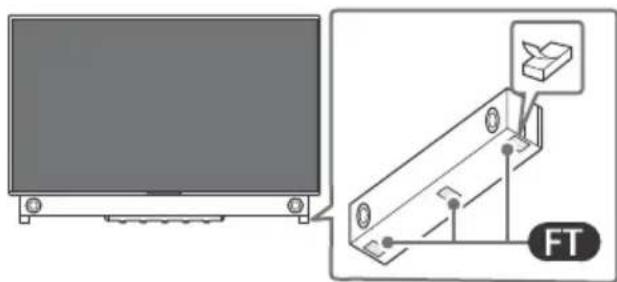

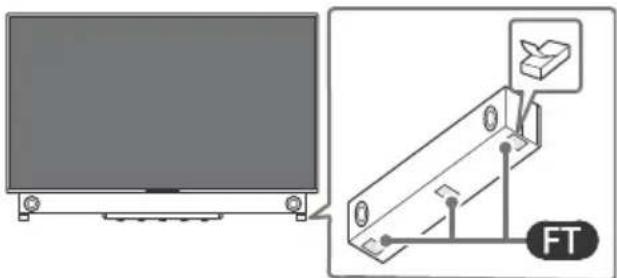

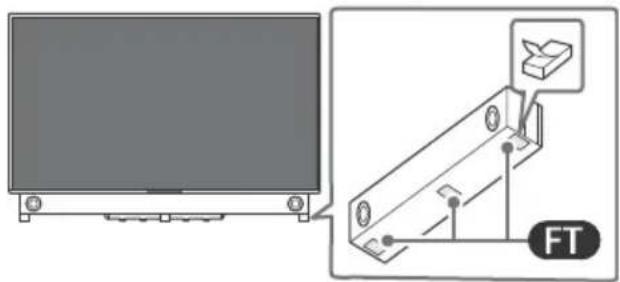

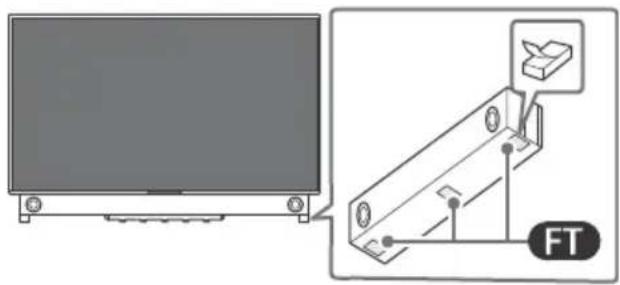

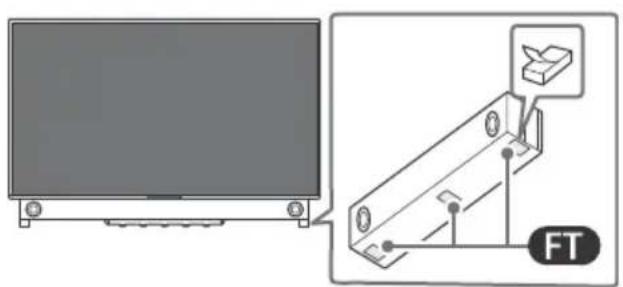

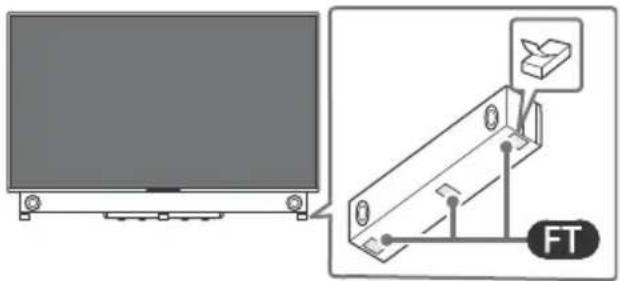

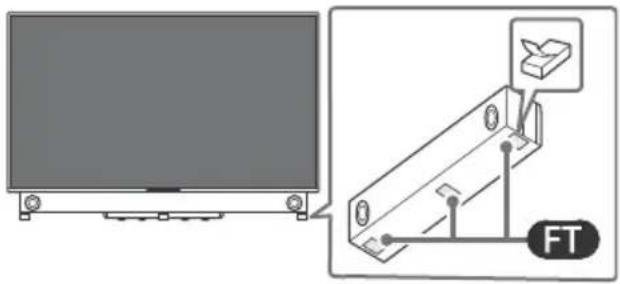

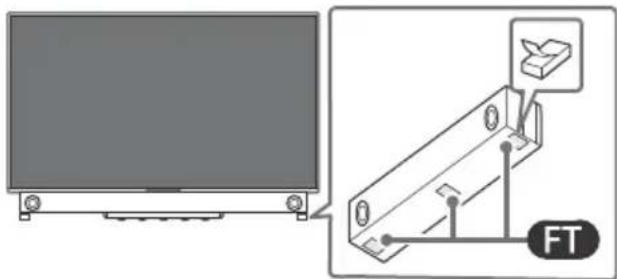

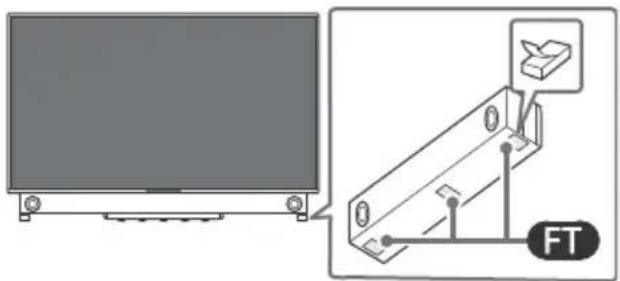

■ Alternate (on the Table-Top Stand)

If there is not enough space to place the soundbar in front of the TV, attach the rubber feet (F) applied with the TV) to the bottom of the soundbar (not supplied) and place the soundbar on top of the Table-Top Stand.

Illustration of a flat-screen monitor mounted on a rectangular base (no text or symbols)

Illustration of a flat-screen monitor and a mechanical device with a magnified view showing a labeled component (no text or symbols on the devices themselves)

Note

• Make sure that the soundbar height is not blocking the path between the remote control and the IR sensor on your TV.
• By using rubber feet, the sound condition may vary depending on soundbar model.
• Do not cover the ventilation hole and the identification label with the rubber feet.
• Be sure to store the removed rubber feet in a safe place, keeping them away from children. (e.g., When sending the soundbar for repair)

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

1 Restart your TV by pressing the power button on the remote control for about five seconds. The TV will restart. If the TV does not recover, try unplugging the mains lead then press the power button on the TV and release it. Wait for two minutes, and plug in the mains lead. Or, press the power button on the TV for about 40 seconds until the TV turns off.

2 Refer to the Help menu shown below.
3 Connect your TV to the Internet and perform a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements.
4 Visit Sony support website (information provided at the end of this manual).

When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.

It takes time to initialize the system. Wait for about one minute, then operate it again.

The remote control does not function.

- Replace the batteries.

The parental lock password has been forgotten.

- Enter 9999 for the PIN and enter the new PIN.

For more information on troubleshooting, refer to the Help Guide.

Press → (Input select) on the remote control and select [Help]. If [Help] does not exist, select [Edit] and add [Help].

Specifications

System

Panel system: LCD (Liquid Crystal Display) Panel, LED Backlight

TV system: Depend on your country/area

selection/TV model

Analogue: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2

Satellite: DVB-S/DVB-S2

Colour system: PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only)

Channel coverage: Depend on your country/area selection/TV model

Analogue: UHF/VHF/Cable

Digital: UHF/VHF/Cable

Satellite: Intermediate Frequency

950-2150 MHz

Sound output: 10 W + 10 W

Wireless technology

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® Version 4.2

Frequency range Output power
Wireless LAN (TV)
2400-2483.5 MHz	< 20.0 dBm
5150-5250 MHz	< 23.0 dBm
5250-5350 MHz	< 20.0 dBm
5470-5725 MHz	< 20.0 dBm
5725-5850 MHz	< 13.9 dBm
Bluetooth®(TV)
2400-2483.5 MHz < 10.0 dBm
Bluetooth®(RMF-TX800U)
2400-2483.5 MHz < 10.0 dBm

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

Satellite antenna

Female F Type Connector, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single

Cable Distribution EN50494.

→ / → AV IN

Video/Audio input (mini jack)

HDMI IN 1/2/3/4 (HDCP 2.3-compatible)

Video:

4096 × 2160p (50, 60 Hz)*1*2, 4096 × 2160p

(24 Hz) ^1 , 3840 × 2160p (50, 60 Hz) ^2 ,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC Formats ^*3

Audio:

In eARC (Enhanced Audio Return Channel) mode

Refer to the online Help Guide for details.

Except eARC mode

5.1 channel linear PCM: 32/44.1/48/88.2/

96/176.4/192 kHz 16/20/24 bits, Dolby

Audio, Dolby Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3 only)*4 In eARC mode

Refer to the online Help Guide for details. n ARC mode

Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, Dolby Atmos, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, DTS)

1, 2(HDD REC)* 5

USB device port (•2 USB HDD device for REC feature)

USB port 1 supports High Speed USB (USB 2.0)

USB port 2 supports Super Speed USB (USB 3.2 Gen 1)

↓

CAM (Conditional Access Module) slot

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)

Power, Product Fiche and others

Power requirements

220 V - 240 V AC, 50 Hz

Screen size (measured diagonally) (Approx.)

KD-75X8xK: 189.3 cm / 75 inches

KD-65X8xK: 163.9 cm / 65 inches

KD-55X8xK: 138.8 cm / 55 inches

KD-50X8xK: 125.7 cm / 50 inches

KD-43X8xK: 108.0 cm / 43 inches

Power consumption

In [Standard] mode

KD-75X8xK: 194 W

KD-65X8xK: 147 W

KD-55X8xK: 127 W

KD-50X8xK: 89 W

KD-43X8xK: 65 W

Standby power consumption ^6*7

0.50 W (25 W in software/EPG update mode)

Display resolution (horizontal × vertical) (pixels)

3840 × 2160

Output rating

500 mA (for USB 1), 900 mA (for USB 2)

Dimensions (Approx.) (w × h × d) (cm)

with Table-Top Stand

KD-75X82K: 167.5 × 104.0 × 44.4

KD-75X81K: 167.5 × 104.1 × 41.2

KD-65X82K: 145.2 × 90.8 × 32.5

KD-65X81K / 65X80K: 145.2 × 90.6 × 33.9

KD-55X82K: 123.3 × 78.5 × 32.5

KD-55X81K / 55X80K: 123.3 × 78.3 × 33.9

KD-50X82K: 111.9 × 71.6 × 30.3

KD-50X81K / 50X80K: 111.9 × 71.6 × 28.8

KD-43X82K: 96.4 × 63.0 × 30.3

KD-43X81K / 43X80K: 96.4 × 62.9 × 28.8

without Table-Top Stand

KD-75X8xK: 167.5 × 96.2 × 7.3

KD-65X8xK: 145.2 × 83.6 × 7.2

KD-55X8xK: 123.3 × 71.3 × 7.2

KD-50X8xK: 111.9 × 64.9 × 7.0

KD-43X8xK: 96.4 × 56.3 × 6.9

Stand width (Approx.) (cm)

Standard position:

KD-75X82K: 62.3

KD-75X81K: 132.9

KD-65X82K: 50.9

KD-65X81K / 65X80K: 120.9

KD-55X82K: 51.0

KD-55X81K / 55X80K: 106.1

KD-50X82K: 63.1

KD-50X81K / 50X80K: 66.5

KD-43X82K: 63.1

KD-43X81K / 43X80K: 66.5

Narrow position:

KD-75X81K: 55.9

KD-65X81K / 65X80K: 47.9

KD-55X81K / 55X80K: 45.8

Mass (Approx.) (kg)

with Table-Top Stand

KD-75X82K: 36.7

KD-75X81K: 33.5

KD-65X82K: 25.2

KD-65X81K / 65X80K: 22.7

KD-55X82K: 19.4

KD-55X81K / 55X80K: 16.9

KD-50X82K: 15.4

KD-50X81K / 50X80K: 13

KD-43X82K: 13.1

KD-43X81K / 43X80K: 10.7

without Table-Top Stand

KD-75X8xK: 32.2

KD-65X8xK: 21.7

KD-55X8xK: 15.9

KD-50X8xK: 12.4

KD-43X8xK: 10.1

Others

Optional accessories

Wall-Mount Bracket: SU-WL850

(KD-75X8xK / 65X8xK / 55X8xK only)

Wall-Mount Bracket: SU-WL450

Screw diameter and length:

10 mm - 12 mm S V

VS

Screw (M6)

Wall-Mount Bracket

Camera and Microphone Unit: CMU-BC1

Operating temperature: 0 °C – 40 °C

Operating humidity: 10 % - 80 % RH (non-condensing)

*1 When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p. To display 4096 × 2160p, set [Wide mode] setting to [Full 1] or [Full 2].

*2 Refer to the on screen menu to set [HDMI signal format].

*3 Refer to the online Help Guide for details.

*4 Connect your audio system to the HDMI IN 3 to route TV audio to your audio system.

*5 Function not available in Italy.

*6 Specified standby power is reached after the TV finishes necessary internal processes.

*7 Standby power consumption will increase when your TV is connected to the network.

Note

• Optional accessories availability depends on countries/region/TV model/stock.
• Design and specifications are subject to change without notice.
• Subscriptions for services and applications may be required and additional terms, conditions and/or charges may apply when using Google Assistant.
• Product fiche in this manual is for COMMISSION DELEGATED REGULATION (EU) 1062/2010. Refer to its website for (EU) 2019/2013 information.

Product registration number

(COMMISSION DELEGATED REGULATION (EU) 2019/2013)

KD-75X82K (1020625), KD-75X81K (1020623), KD-65X82K (1020621), KD-65X81K (1020618), KD-65X80K (1020616), KD-55X82K (1020613), KD-55X81K (1020610), KD-55X80K (1020607), KD-50X82K (1020603), KD-50X81K (1020601), KD-50X80K (1020593), KD-43X82K (1020573), KD-43X81K (1020570), KD-43X80K (1020568).

https://rd1.sony.net/help/tv/jaep1/h_aep/

Remarque

Illustration of two silhouetted figures holding a rectangular device with internal components (no text or symbols)

Simple line drawing of a pulley system with a hanging weight (no text or symbols)

Line drawing of a flat-screen TV with a rectangular base and circular screen (no text or symbols)

Illustration of a flat-screen monitor mounted on a rectangular base (no text or symbols)

Illustration of a flat-screen monitor and a mechanical device with a labeled 'FT' (no text or symbols on the devices themselves)

Remarque

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, Formats PC ^3

Audio :

En mode eARC (Enhanced Audio Return

Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3

uniquement)*4

En mode eARC

→ DIGITAL AUDIO OUT (OPTICAL)

KD-65X80K (1020616), KD-55X82K (1020613),

KD-55X81K (1020610), KD-55X80K (1020607),

KD-50X82K (1020603), KD-50X81K (1020601),

KD-50X80K (1020593), KD-43X82K (1020573),

KD-43X81K (1020570), KD-43X80K (1020568).

https://rd1.sony.net/help/tv/jaep1/h_aep/

Nota

Illustration of two silhouetted figures holding a rectangular device with internal components (no text or symbols)

Simple line drawing of a mechanical or electrical component with no text, numbers, or symbols

Line drawing of a flat-screen TV with a rectangular base and circular lens (no text or symbols)

Illustration of a flat-screen monitor mounted on a rectangular base (no text or symbols)

Diagram showing a flat-screen monitor connected to a mechanical device with a labeled 'FT' (no text or symbols on the device itself)

Nota

Digital: UHF/VHF/Cable

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, Formatos de PC ^*3

Audio:

En el modo eARC (Enhanced Audio Return Channel)

→ DIGITAL AUDIO OUT (OPTICAL)

Toma digital óptica (PCM lineal de dos

canales: 48 kHz 16 bits, Dolby Audio, DTS)

1, 2(HDD REC)* 5

KD-65X80K (1020616), KD-55X82K (1020613),

KD-55X81K (1020610), KD-55X80K (1020607),

KD-50X82K (1020603), KD-50X81K (1020601),

KD-50X80K (1020593), KD-43X82K (1020573),

KD-43X81K (1020570), KD-43X80K (1020568).

Over handleidingen

https://rd1.sony.net/help/tv/jaep1/h_aep/

Opmerkingen

Illustration of two human silhouettes holding a rectangular device with internal components (no text or symbols)

Simple line drawing of a pulley system with a hanging weight (no text or symbols)

Line drawing of a modern flat-screen TV with a rectangular base and circular lens (no text or symbols)

Illustration of a flat-screen monitor mounted on a rectangular base (no text or symbols)

Diagram showing a flat-screen monitor connected to a mechanical device labeled 'FT' (no text or symbols on the device itself)

Opmerkingen

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, Pc-formaten ^3

Audio:

In eARC (Enhanced Audio Return Channel)-modus

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (alleen HDMI IN 3) ^*4 In eARC-modus

→ DIGITAL AUDIO OUT (OPTICAL)

Afmetingen (ong.) (b × h × d) (cm)

met tafelstandaard

KD-75X82K: 167,5 × 104,0 × 44,4

KD-75X81K: 167,5 × 104,1 × 41,2

KD-65X82K: 145,2 × 90,8 × 32,5

KD-65X81K / 65X80K: 145,2 × 90,6 × 33,9

KD-55X82K: 123,3 × 78,5 × 32,5

KD-55X81K / 55X80K: 123,3 × 78,3 × 33,9

KD-50X82K: 111,9 × 71,6 × 30,3

KD-50X81K / 50X80K: 111,9 × 71,6 × 28,8

KD-43X82K: 96,4 × 63,0 × 30,3

KD-43X81K / 43X80K: 96,4 × 62,9 × 28,8

https://rd1.sony.net/help/tv/jaep1/h_aep/

Hinweis

Illustration of two silhouetted figures holding a rectangular device with internal components (no text or symbols)

Simple line drawing of a mechanical or electrical component with no text, numbers, or symbols

Line drawing of a modern flat-screen monitor mounted on a rectangular base (no text or symbols)

Illustration of a flat-screen monitor mounted on a rectangular base (no text or symbols)

Illustration of a flat-screen monitor and a mechanical device with a labeled 'FT' (no text or symbols on the devices themselves)

Hinweis

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p,

Computerformate ^*3

Audio:

Im eARC (Enhanced Audio Return Channel)-

Modus

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (nur HDMI IN 3)*4

Im eARC-Modus

https://rd1.sony.net/help/tv/jaep1/h_aep/

Nota

Illustration of two silhouetted figures holding a rectangular device with internal components (no text or symbols)

Simple line drawing of a mechanical or electrical component with no text, numbers, or symbols

Line drawing of a modern flat-screen TV with a rectangular base and circular screen (no text or symbols)

■ Alternativa (sobre o Suporte de mesa)

Illustration of a flat-screen monitor mounted on a rectangular base (no text or symbols)

Diagram showing a flat-screen monitor connected to a mechanical device labeled 'FT' (no text or symbols on the device itself)

Nota

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, Formatos PC ^*3

Áudio:

No modo eARC (Enhanced Audio Return

Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Apenas HDMI IN 3)*4

No modo eARC

→ DIGITAL AUDIO OUT (OPTICAL)

Tomada digital ótica (PCM linear de dois canais: 48 kHz 16 bits, Dolby Audio, DTS)

1, 2(HDD REC)* 5

Porta do dispositivo USB (2 dispositivo

USB HDD para a funcionalidade REC)

A porta USB 1 suporta High Speed USB (USB 2.0)

A porta USB 2 suporta Super Speed USB

(USB 3.2 Gen 1)

1

anhura CAM (Módulo de Acesso Condicional)

LAN

KD-65X80K (1020616), KD-55X82K (1020613),

KD-55X81K (1020610), KD-55X80K (1020607),

KD-50X82K (1020603), KD-50X81K (1020601),

KD-50X80K (1020593), KD-43X82K (1020573),

KD-43X81K (1020570), KD-43X80K (1020568).

https://rd1.sony.net/help/tv/jaep1/h_aep/

Nota

Illustration of two silhouetted figures holding a large rectangular device with internal components (no text or symbols)

Simple line drawing of a mechanical or electrical component with no text, numbers, or symbols

Illustration of a flat-screen TV with a rectangular base and circular screen (no text or symbols)

Illustration of a flat-screen monitor mounted on a rectangular base (no text or symbols)

Illustration of a flat-screen monitor and a mechanical device with a labeled 'FT' (no text or symbols on the devices themselves)

Nota

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, Formati PC*3

Audio:

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Solo HDMI IN 3)*4

In modalità eARC

→ DIGITAL AUDIO OUT (OPTICAL)

KD-65X80K (1020616), KD-55X82K (1020613),

KD-55X81K (1020610), KD-55X80K (1020607),

KD-50X82K (1020603), KD-50X81K (1020601),

KD-50X80K (1020593), KD-43X82K (1020573),

KD-43X81K (1020570), KD-43X80K (1020568).

Om manualer

https://rd1.sony.net/help/tv/jaep1/h_aep/

Obs!

Illustration of two human silhouettes holding a rectangular device with internal components (no text or symbols)

Simple line drawing of a mechanical linkage or cable with no text or symbols

Line drawing of a flat-screen TV with a rectangular base and circular screen on top (no text or symbols)

Illustration of a flat-screen monitor mounted on a rectangular base (no text or symbols)

Diagram showing a monitor and a mechanical assembly with a labeled 'FT' (no text or symbols on the diagram itself)

Obs!

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, PC-format*3

Ljud:

I eARC (Enhanced Audio Return Channel)-läge

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Endast HDMI IN 3)*4

I eARC-läge

→ DIGITAL AUDIO OUT (OPTICAL)

10 mm - 12 mm S V

VS

https://rd1.sony.net/help/tv/jaep1/h_aep/

Bemærk

https://compliance.sony.eu

Illustration of two silhouetted figures holding a rectangular TV (no text or symbols visible)

Simple line drawing of a pulley system with a hanging weight (no text or symbols)

Line drawing of a modern flat-screen monitor mounted on a rectangular base (no text or symbols)

Illustration of a flat-screen monitor mounted on a rectangular base (no text or symbols)

Diagram showing a monitor connected to a mechanical device with a labeled 'FT' (no text or symbols on the device itself)

Bemaerk

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, Pc-formater ^3

Lyd:

I eARC (Enhanced Audio Return Channel)-tilstand

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (kun HDMI IN 3)*4

I eARC-tilstand

DIGITAL AUDIO OUT (OPTICAL)

Digitalt optisk stik (to-kanals lineær PCM:

48 kHz 16 bit, Dolby Audio, DTS)

1, 2(HDD REC)* 5

USB-port (2 USB HDD-enhed for

REC-funktion)

I [Standard] tilstand

KD-75X8xK: 194 W

KD-65X8xK: 147 W

KD-55X8xK: 127 W

KD-50X8xK: 89 W

KD-43X8xK: 65 W

Strømforbrug i standby ^6*7

0,50 W (25 W i software-/

EPG-opdateringstilstand)

Skærmopløsning (vandret × lodret) (pixels)

3840 × 2160

Udgangseffekt

500 mA (for USB 1), 900 mA (for USB 2)

Mål (Ca.) (b × h × d) (cm)

Inkl. TV-fod

KD-75X82K: 167,5 × 104,0 × 44,4

KD-75X81K: 167,5 × 104,1 × 41,2

KD-65X82K: 145,2 × 90,8 × 32,5

KD-65X81K / 65X80K: 145,2 × 90,6 × 33,9

KD-55X82K: 123,3 × 78,5 × 32,5

KD-55X81K / 55X80K: 123,3 × 78,3 × 33,9

KD-50X82K: 111,9 × 71,6 × 30,3

KD-50X81K / 50X80K: 111,9 × 71,6 × 28,8

KD-43X82K: 96,4 × 63,0 × 30,3

KD-43X81K / 43X80K: 96,4 × 62,9 × 28,8

Uden TV-fod

KD-75X8xK: 167,5 × 96,2 × 7,3

KD-65X8xK: 145,2 × 83,6 × 7,2

KD-55X8xK: 123,3 × 71,3 × 7,2

KD-50X8xK: 111,9 × 64,9 × 7,0

KD-43X8xK: 96,4 × 56,3 × 6,9

Stativets bredde (Ca.) (cm)

Standardposition:

KD-75X82K: 62,3

KD-75X81K: 132,9

KD-65X82K: 50,9

KD-65X81K / 65X80K: 120,9

KD-55X82K: 51,0

KD-55X81K / 55X80K: 106,1

KD-50X82K: 63,1

KD-50X81K / 50X80K: 66,5

KD-43X82K: 63,1

KD-43X81K / 43X80K: 66,5

Smal position:

KD-75X81K: 55,9

KD-65X81K / 65X80K: 47,9

KD-55X81K / 55X80K: 45,8

Vægt (Ca.) (kg)

Inkl. TV-fod

KD-75X82K: 36,7

KD-75X81K: 33,5

KD-65X82K: 25,2

KD-65X81K / 65X80K: 22,7

KD-55X82K: 19,4

KD-55X81K / 55X80K: 16,9

KD-50X82K: 15,4

KD-50X81K / 50X80K: 13

KD-43X82K: 13,1

KD-43X81K / 43X80K: 10,7

Uden TV-fod

KD-75X8xK: 32,2

KD-65X8xK: 21,7

KD-55X8xK: 15,9

KD-50X8xK: 12,4

KD-43X8xK: 10,1

Andre

Ekstraudstyr

KD-65X80K (1020616), KD-55X82K (1020613),

KD-55X81K (1020610), KD-55X80K (1020607),

KD-50X82K (1020603), KD-50X81K (1020601),

KD-50X80K (1020593), KD-43X82K (1020573),

KD-43X81K (1020570), KD-43X80K (1020568).

Tietoa oppaista

https://rd1.sony.net/help/tv/jaep1/h_aep/

Huomautus

Illustration of two silhouetted figures holding a rectangular device with internal components (no text or symbols)

5 BUILT-IN MIC SWITCH

Simple line drawing of a mechanical or electrical component with no text, numbers, or symbols

Line drawing of a flat-screen TV with a circular button and rectangular base (no text or symbols)

Illustration of a flat-screen monitor mounted on a rectangular base (no text or symbols)

Diagram showing a flat-screen monitor connected to a mechanical bracket with a labeled 'FT' (no text or symbols on the device itself)

Huomautus

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, PC-muodot ^*3

Audio:

eARC (Enhanced Audio Return Channel)-tilassa

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Vain HDMI IN 3)*4

eARC-tilassa

DIGITAL AUDIO OUT (OPTICAL)

KD-65X80K (1020616), KD-55X82K (1020613),

KD-55X81K (1020610), KD-55X80K (1020607),

KD-50X82K (1020603), KD-50X81K (1020601),

KD-50X80K (1020593), KD-43X82K (1020573),

KD-43X81K (1020570), KD-43X80K (1020568).

Om håndbøker

https://rd1.sony.net/help/tv/jaep1/h_aep/

Merknader

https://compliance.sony.eu

Illustration of two human silhouettes holding a rectangular device with internal components (no text or symbols)

Simple line drawing of a mechanical linkage or cable with a hanging weight (no text or symbols)

Line drawing of a flat-screen TV with a rectangular base (no text or symbols)

■ Alternativ (på bordstativet)

Illustration of a flat-screen monitor mounted on a rectangular base (no text or symbols)

Diagram showing a flat-screen monitor connected to a mechanical bracket with a 3D object labeled 'FT' (no text or symbols on the diagram itself)

Merknader

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, PC-formater*3

Lyd:

I eARC (Enhanced Audio Return Channel)-modus

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Kun HDMI IN 3) ^4

I eARC-modus

→ DIGITAL AUDIO OUT (OPTICAL)

Digital optisk kontakt (tokanals lineær PCM:

48 kHz 16 biter, Dolby Audio, DTS)

1, 2(HDD REC)* 5

500 mA (for USB 1), 900 mA (for USB 2)

Mål (ca.) (b × h × d) (cm)

med bordstativ

KD-75X82K: 167,5 × 104,0 × 44,4

KD-75X81K: 167,5 × 104,1 × 41,2

KD-65X82K: 145,2 × 90,8 × 32,5

KD-65X81K / 65X80K: 145,2 × 90,6 × 33,9

KD-55X82K: 123,3 × 78,5 × 32,5

KD-55X81K / 55X80K: 123,3 × 78,3 × 33,9

KD-50X82K: 111,9 × 71,6 × 30,3

KD-50X81K / 50X80K: 111,9 × 71,6 × 28,8

KD-43X82K: 96,4 × 63,0 × 30,3

KD-43X81K / 43X80K: 96,4 × 62,9 × 28,8

uten bordstativ

KD-75X8xK: 167,5 × 96,2 × 7,3

KD-65X8xK: 145,2 × 83,6 × 7,2

KD-55X8xK: 123,3 × 71,3 × 7,2

KD-50X8xK: 111,9 × 64,9 × 7,0

KD-43X8xK: 96,4 × 56,3 × 6,9

Stativbredde (ca.) (cm)

Standardplassering:

KD-75X82K: 62,3

KD-75X81K: 132,9

KD-65X82K: 50,9

KD-65X81K / 65X80K: 120,9

KD-55X82K: 51,0

KD-55X81K / 55X80K: 106,1

KD-50X82K: 63,1

KD-50X81K / 50X80K: 66,5

KD-43X82K: 63,1

KD-43X81K / 43X80K: 66,5

Snever plassering:

KD-75X81K: 55,9

KD-65X81K / 65X80K: 47,9

KD-55X81K / 55X80K: 45,8

Vekt (ca.) (kg)

med bordstativ

KD-75X82K: 36,7

KD-75X81K: 33,5

KD-65X82K: 25,2

KD-65X81K / 65X80K: 22,7

KD-55X82K: 19,4

KD-55X81K / 55X80K: 16,9

KD-50X82K: 15,4

KD-50X81K / 50X80K: 13

KD-43X82K: 13,1

KD-43X81K / 43X80K: 10,7

uten bordstativ

KD-75X8xK: 32,2

KD-65X8xK: 21,7

KD-55X8xK: 15,9

KD-50X8xK: 12,4

KD-43X8xK: 10,1

Annet

Tilleggsutstyr

Veggmonteringsbrakett: SU-WL850 (Kun

https://rd1.sony.net/help/tv/jaep1/h_aep/

Uwaga

Illustration of two silhouetted figures holding a rectangular TV (no text or symbols visible)

Simple line drawing of a pulley system with a hanging weight (no text or symbols)

Line drawing of a modern flat-screen monitor mounted on a rectangular base (no text or symbols)

Illustration of a flat-screen monitor mounted on a rectangular base (no text or symbols)

Diagram showing a flat-screen monitor and a mechanical device with a labeled 'FT' (no text or symbols on the devices themselves)

Uwaga

W trybie eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (tylko HDMI IN 3)*4 W trybie eARC

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/jaep1/h_aep/

Poznámka

Illustration of two silhouetted figures holding a large rectangular device (no text or symbols visible)

Simple line drawing of a mechanical or electrical component with no text or symbols

Illustration of a flat-screen TV with a rectangular base and circular screen (no text or symbols)

Illustration of a flat-screen monitor mounted on a rectangular base (no text or symbols)

Diagram showing a flat-screen monitor connected to a mechanical bracket with a magnified view of the component (no text or symbols)

Poznámka

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, PC formáty*3

Audio:

V režimu eARC (Enhanced Audio Return

Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Pouze HDMI IN 3)*4

V režimu eARC

→ DIGITAL AUDIO OUT (OPTICAL)

KD-65X80K (1020616), KD-55X82K (1020613),

KD-55X81K (1020610), KD-55X80K (1020607),

KD-50X82K (1020603), KD-50X81K (1020601),

KD-50X80K (1020593), KD-43X82K (1020573),

KD-43X81K (1020570), KD-43X80K (1020568).

O príručkách

https://rd1.sony.net/help/tv/jaep1/h_aep/

Poznámka

Illustration of two silhouetted figures holding a rectangular TV (no text or symbols visible)

Simple line drawing of a mechanical or electrical component with no text or symbols

Line drawing of a flat-screen TV with a rectangular base and circular top (no text or symbols)

Illustration of a flat-screen monitor mounted on a rectangular base (no text or symbols)

Diagram showing a flat-screen monitor connected to a mechanical device with a labeled 'FT' (no text or symbols on the device itself)

Poznámka

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, Formáty PC*3

Audio:

V režime eARC (Enhanced Audio Return

Channel)

Podrobnosti nájdete v online Príručke.

Okrem režimu eARC

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (len model HDMI IN 3)*4

V režime eARC

Podrobnosti nájdete v online Príručke.

V režime ARC

Dvojkanálový lineárny PCM: 48 kHz 16 bitov,

Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digitálny optický konektor (dvojkanálový lineárny PCM: 48 kHz 16 bitov, Dolby Audio, DTS)

1, 2(HDD REC)* 5

Port v zariadení USB (2 Zariadenie s USB HDD pre funkciu REC)

KD-65X80K (1020616), KD-55X82K (1020613),

KD-55X81K (1020610), KD-55X80K (1020607),

KD-50X82K (1020603), KD-50X81K (1020601),

KD-50X80K (1020593), KD-43X82K (1020573),

KD-43X81K (1020570), KD-43X80K (1020568).

Az útmutatókról

https://rd1.sony.net/help/tv/jaep1/h_aep/

Megjegyzés

Illustration of two human figures holding a rectangular device with internal components (no text or symbols)

Simple line drawing of a pulley system with a hanging weight (no text or symbols)

Line drawing of a flat-screen TV with a rectangular base and circular button, no text or symbols present.

Illustration of a flat-screen monitor mounted on a rectangular base (no text or symbols)

Diagram showing a flat-screen monitor connected to a mechanical bracket with a labeled 'FT' (no text or symbols on the device itself)

Megjegyzés

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, PC

formátumok ^*3

Audio:

eARC (Enhanced Audio Return Channel)

üzemmodban

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Csak HDMI IN 3)*4

eARC üzemmodban

DIGITAL AUDIO OUT (OPTICAL)

KD-65X80K (1020616), KD-55X82K (1020613),

KD-55X81K (1020610), KD-55X80K (1020607),

KD-50X82K (1020603), KD-50X81K (1020601),

KD-50X80K (1020593), KD-43X82K (1020573),

KD-43X81K (1020570), KD-43X80K (1020568).

Despre manuale

https://rd1.sony.net/help/tv/jaep1/h_aep/

Notă

INFORMATIE IMPORTANTĂ

Illustration of two silhouetted figures holding a rectangular device with internal components (no text or symbols)

Pure electrical circuit lines without any symbols

Line drawing of a modern flat-screen TV mounted on a rectangular base (no text or symbols)

Illustration of a flat-screen monitor mounted on a rectangular base (no text or symbols)

Illustration of a flat-screen monitor and a mechanical device with a 3D coordinate system labeled 'FT' (no text or symbols on the devices themselves)

Notă

Analogic: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2

Satelit: DVB-S/DVB-S2

Sistem culoare: PAL/SECAM/NTSC3.58 (Numai video)/NTSC4.43 (Numai video)

Analogic: UHF/VHF/Cablu

Digital: UHF/VHF/Cablu

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, Formate PC*3

Audio:

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Numai HDMI IN 3)*4

În modul eARC

→ DIGITAL AUDIO OUT (OPTICAL)

KD-65X80K (1020616), KD-55X82K (1020613),

KD-55X81K (1020610), KD-55X80K (1020607),

KD-50X82K (1020603), KD-50X81K (1020601),

KD-50X80K (1020593), KD-43X82K (1020573),

KD-43X81K (1020570), KD-43X80K (1020568).

За ръководствата

https://rd1.sony.net/help/tv/jaep1/h_aep/

Забележка

Illustration of two silhouetted figures holding a rectangular device with internal components (no text or symbols)

Simple line drawing of a mechanical or electrical component with no text, numbers, or symbols

Line drawing of a flat-screen TV with a rectangular base and circular top (no text or symbols)

Illustration of a flat-screen monitor mounted on a rectangular base (no text or symbols)

Diagram showing a flat-screen monitor connected to a mechanical device labeled 'FT' (no text or symbols on the device itself)

Забележка

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, PC формати*3

Аудио:

В режим eARC (Enhanced Audio Return

Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (camo HDMI IN 3)*4

В режим eARC

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/jaep1/h_aep/

Σημείωση

Illustration of two silhouetted figures holding a rectangular device with internal components (no text or symbols)

Simple line drawing of a mechanical or electrical component with no text, numbers, or symbols

Line drawing of a modern flat-screen TV with a rectangular base (no text or symbols)

Illustration of a flat-screen monitor mounted on a rectangular base (no text or symbols)

Diagram showing a monitor connected to a mechanical bracket with a magnified view of the device (no text or symbols)

Σημείωση

eARC/ARC (Enhanced Audio Return Channel/

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/jaep1/h_aep/

Not

Illustration of two human figures holding a rectangular device with internal components (no text or symbols)

Simple line drawing of a pulley system with a hanging weight (no text or symbols)

Line drawing of a flat-screen TV with a rectangular base and circular head (no text or symbols)

Illustration of a flat-screen TV mounted on a rectangular base (no text or symbols)

Diagram showing a flat-screen monitor connected to a mechanical device labeled 'FT' (no text or symbols on the device itself)

Not

Dijital: UHF/VHF/Kablolu

Uydu: Ara Frekans 950-2150 MHz

2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50,

60 Hz), 720/24p, 576p, 480p, PC Formatlari ^3

Ses:

eARC (Enhanced Audio Return Channel)

modunda

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Sadece HDMI IN 3)*4

eARC modunda

→ DIGITAL AUDIO OUT (OPTICAL)

KD-65X80K (1020616), KD-55X82K (1020613),

KD-55X81K (1020610), KD-55X80K (1020607),

KD-50X82K (1020603), KD-50X81K (1020601),

KD-50X80K (1020593), KD-43X82K (1020573),

KD-43X81K (1020570), KD-43X80K (1020568).

Support / Assistance / Soporte / Ondersteuning / Unterstützung /
Suporte / Supporto / Support / Support / Tuki / Brukerstøtte /
Wsparcie / Podpora / Podpora / Támogatás / Asistență /
Поддържа / Упостніріξη / Destek

https://www.sony.eu/support
