USER MANUAL IAN 353823 Livarno Lux
DE AT CH
LED-TISCHLEUCHTE
Operation and safety notes
NL BE
LED-TAFELLAMP
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
GB/IE Operation and safety notes Page 11
Scope of delivery....Page 13
Description of parts....Page 13
Technical data......Page 13
Safety Page 14
Safety notices....Page 14
Initial use Page 14
Mounting the light....Page 14
Switching the light on/off......Page 15
USB connector Page 15
Maintenance and cleaning......Page 15
Disposal Page 15
Warranty and service......Page 16
Warranty Page 16
Service address......Page 16
Declaration of conformity....Page 16
Manufacturer......Page 16
| List of pictograms used | |||
 | Read the instructions! |  | The packaging is made from 100 % recycled paper. |
 | This light is only suitable for indoor use in dry and enclosed spaces. |  | Danger to life and risk of accidents for infants and children! |
 | Alternating current (type of current and voltage) |  | LED operating life |
 | Hertz (frequency) |  | Short-circuit proof safety transformer |
 | Watts (effective power) Separate control |  | |
 | Ampere Warning! Danger of electric shock |  | |
 | Milli-ampere |  | Ambient temperature |
 | Protection class II |  | Housing temperature at stated point |
 | Safety extra-low voltage |  | Case temperature measuring point |
 | Direct current (type of current and voltage) |  | For your safety |
 | Volt |  | Caution! Risk of burns due to hot surfaces! |
 | Polarity of the mains supply |   | Dispose of the packaging and device in an environmentally friendly manner! |
 | Observe the warnings and safety information! |  | Lumen |
 | This light is not suitable for external dimmers or electronic switches. |  | Colour rendering index |
 | Light temperature in Kelvin | IP20 | The light has protection class "IP20" and is exclusively intended for indoor use in private households. |
 | To prevent hazards, if an illuminant on this product is damaged, it must be replaced by the manufacturer, its service representative or an equally qualified professional. |  | To prevent hazards, if an operating unit on this product is damaged, it must be replaced by the manufacturer, its service representative or an equally qualified professional. |
 | Safety information Instructions for use | 04LDPE | Polyethylene (low density) |
 | Corrugated cardboard | ||
LED table lamp
- Introduction
Congratulations on your new product. You have selected a high quality product. The instructions for use are a part of the product. They contain important information about safety, use and disposal. Before using the product, please familiarise yourself with all the operating and safety instructions. Only use the product as described and for the indicated purpose. When passing this product on to others, please be sure to include all its documentation. Before using this product for the first time verify the correct voltage and that all parts are properly installed.
- Intended use
This light is only suitable for indoor use in dry and enclosed spaces.
This product is intended for private household use only. This product is intended for normal operation.
- Scope of delivery
Check immediately after unpacking that the parts are complete and that the product is in proper condition.
1 LED table lamp
1 Glass shade (14156002L)
1 Lamp base (14156002L)
2 Screws (14156002L)
1 Hexagonal key
1 Instructions for use

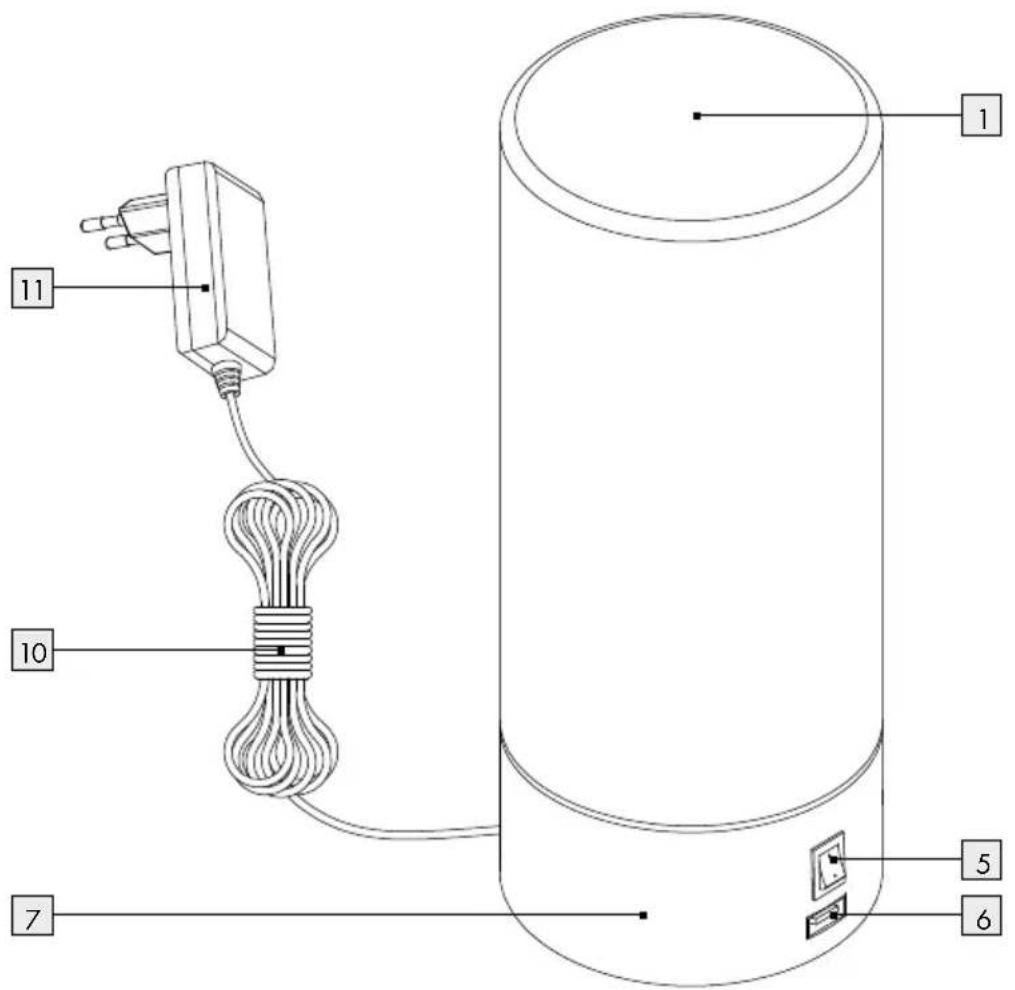

• Description of parts
1 Lamp glass
2 LED module (14156002L)
3 Rubber sleeve (14156002L)
4 Spacers (14156002L)
5 ON/OFF switch
6 USB connector
7 Lamp base
8 Screw (14156002L)
9 Allen key (14156002L)
10 Mains lead
11 Plug-in transformer
- Technical data
LED table lamp
Modelnumber:14156002/14156102
Operating voltage: 230-240V\~50Hz
Total capacity: 5.8 W
Protection class: II/
USB Connector: 5V, 1.0A
IP rating: IP20
LED module
Capacity: 4.9 W
Mains adapter
Type: ANU-120100EU-R231
Operating voltage: 220-240V\~50/60Hz, 0.5A
Output current: 12V ===, 1A, 12W
Protection class: II/
This product contains an illuminant from energy efficiency category "F".
- Safety
Safetynotices
Damage due to failure to comply with these operating instructions will invalidate the warranty! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!
WARNING! RISK OF FATAL INJURY AND ACCIDENT HAZ-ARD FOR TODDLERS AND SMALL
CHILDREN!
Never leave children unattended with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers.
This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, when supervised or instructed in the safe use of the device and they understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.
RISK OF INJURY!
Do not leave the lamp or packaging material lying unattended. Plastic film or bags, Styrofoam etc. can become dangerous toys for children.
Avoid the risk of fatal injury from electric shock
■ Always check the plug-in transformer and the USB connector for possible damage before connecting the light to the mains.
In the event of damage, repairs or other problems with the light, please contact the service centre or an electrician.
■ Ensure that the light does not come into contact with water or other liquids under any circumstances.
■ Never open or insert anything into electrical fittings or equipment (e.g. switches, fitting socket).
This will pose a risk of fatal injury from electric shock.
■ Only touch the insulated part of the plug-in transformer when connecting to or disconnecting from the mains supply!
To prevent hazards, if the external flexible lead on this lamp is damaged, it must only be replaced by the manufacturer, its service representative or an equally qualified professional.
Before every use, verify the available mains voltage matches the required operating voltage of the light (see "Technical data").
Always disconnect the plug-in transformer from the mains prior to assembly, disassembly, cleaning, or if the light will not be used for extended periods.
Safe working
■ Position the lamp so it is protected from moisture and dirt.
■ Always be attentive! Always pay attention to what you are doing and use common sense.
Do not cover the lamp with objects. Excessive heat can result in fire.
Do not look into the illuminant from a close distance during operation.
Do not use optical instruments to look at the light source (e.g. magnifying glass).
In order to disconnect the light completely from the power supply, the plug-in transformer must be removed from the socket.
The illuminant in this light must be replaced by the manufacturer or an authorised technician or a similarly qualified person.
- Initial use
- Mounting the light
14156102L:
☐ Plug the plug-in transformer 11 into a properly installed power socket.
Your light is now ready to use.
14156002L:
☐ Install the lamp base 7 using the designated screws 8.
☐ Check that all spacers 4 are equipped with rubber sleeves 3.
☐ If necessary, place the rubber sleeves 3 over the spacers 4.
☐ Bring the lamp glass ☐ into the correct position.
☐ Be sure it is correctly positioned.
Note: the lamp glass is only placed on. Ensure that the lamp is always firmly positioned.
☐ Plug the plug-in transformer 11 into a properly installed power socket.
Your light is now ready to use.
- Switching the light on/off
☐ Press the ON/OFF switch 5 to turn the lamp base 7 to turn the lamp on and off.
USB connector
☐ Your lamp has a USB connector 6 in the case. With this USB connector 6 you can operate any devices that may be operated using a USB connector.
☐ The charging function works during all settings (ON/OFF).
☐ The light is suitable for USB cables up to 5 mcong.
● Maintenance and cleaning
WARNING! DANGER OF ELECTRIC SHOCK!
First, unplug the plug-in transformer 11 from the socket.
□ Switch the light off.
CAUTION! RISK OF BURNS DUE TO HOT SURFACES!
☐ Allow the light to cool off completely. Remove the inserted USB plug if necessary.
WARNING! DANGER OF ELECTRIC SHOCK!
For electrical safety reasons, never clean the lamp with water or other liquids, or immerse it in water.
- Do not use solvents, benzene or similar substances. They could damage the light.
☐ Only use a dry, lint-free cloth for cleaning.
☐ Plug the plug-in transformer 11 into a properly installed power socket.
- Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibre-board/80–98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Old devices can also be returned to retailers who offer devices for purchase.
● Warranty and service
Warranty
You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event that a defect arises during the warranty period, please send the device to the listed service centre address, quoting the following model number: 14156002L/14156102L.
Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.
Serviceaddress
Free service number:
Tel.: 00800/27456637
IAN 389720\_2201
Please have your receipt and the item number (IAN 389720_2201) ready as your proof of purchase when enquiring about your product.
Declaration of conformity CE
This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.
