Product Type	Cordless Garden Blower
Brand	Einhell
Model	GEUB 18250 Li E
Power Supply	18 V Li-Ion battery, Power X-Change series (not included)
No-load Speed	6500 - 15,000 rpm
Max. Air Speed	250 km/h
Max. Air Flow	120 m³/h
Sound Pressure Level (LpA)	79 dB(A)
Measured Sound Power Level (LWA)	91 dB(A)
Guaranteed Sound Power Level	94 dB(A)
Vibration Level (ah)	3.7 m/s²
Weight	1.1 kg
Main Functions	Leaf blower, workshop blower, barbecue fire starter
Speed Adjustment	Electronic speed control with 5 positions (LED display)
Package Contents	Motor unit, 2 blowing tubes, blowing nozzle, instruction manual
Maintenance and Cleaning	Clean with a damp cloth and mild soap; avoid harsh chemicals
Safety	Use hearing and eye protection; do not use in rain
Spare Parts and Repairability	Parts available through Einhell after-sales service; repair by specialist
Warranty	24 months (current terms apply)
Storage	Dark, dry, frost-free location (5-30 °C); integrated wall mount

Frequently Asked Questions - GEUB 18250 Li E EINHELL

Which battery to use with the GEUB 18250 Li E?

The device works with Einhell's Power X-Change series Li-Ion batteries, sold separately. Only use the Power X charger to recharge them.

How to assemble the blowing tubes?

Insert blowing tube 1 onto the motor unit by aligning groove (A) with guide (B), then turn right until it stops. To add tube 2, repeat the process. The scraper edge must face downward to blow leaves.

How to adjust the blowing speed?

Use the speed regulator (dial) located on the device. Turn left to decrease speed, right to increase. The LED display shows 1 (minimum) to 5 (maximum) LEDs. An audible click indicates maximum speed.

Can I use the device as a vacuum cleaner?

No, the GEUB 18250 Li E is a blower only. It does not have a vacuum function. It can be used to gather leaves, clean a workshop, or light a barbecue.

How to light a barbecue with this device?

Attach the blowing nozzle directly to the motor unit. Set a low speed (1 LED). Tilt the device over the lit charcoal, keeping a sufficient distance to avoid damaging plastic parts.

What are the sound and vibration levels?

Sound pressure level: 79 dB(A); measured sound power: 91 dB(A); guaranteed: 94 dB(A). Vibrations: 3.7 m/s². Wear hearing protection and take regular breaks.

How to maintain the blower?

Clean the device after each use with a damp cloth and a little soap. Never use harsh chemicals. Ensure no water enters the interior. Remove the battery before cleaning.

What to do if the blower does not start?

Check that the battery is charged and correctly inserted. Check the charger. If the problem persists, contact Einhell after-sales service. Do not attempt to repair it yourself.

How to interpret the charger indicators?

Red LED flashing: fast charging. Green LED lit: battery charged (wait 15 min for trickle charge). Both flashing: defective battery. Both lit: thermal issue (too hot or too cold).

Where to find spare parts?

Order parts on the www.Einhell-Service.com website, providing the type, article number, and identification number of the device. Wear parts such as the battery are available.

USER MANUAL GEUB 18250 Li E EINHELL

GB Original operating instructions Cordless Universal Blower

Close-up of a mechanical component with a circular arrow indicating rotation (no text or symbols visible)

3D rendered image of a handheld device with black and gray casing (no text or symbols visible)

Close-up of a dark cylindrical object with two vertical measurement lines labeled 2 and 3, and an arrow pointing upward (no text or symbols on the object itself)

Close-up of a mechanical component with a curved arrow indicating rotation, labeled 2 and 3 (no text or symbols on the object itself)

Close-up of a mechanical component with a black cylindrical body and a gray handle, showing a rotational arrow (no text or symbols)

3D rendered image of a handheld electric shock absorber device (no text or symbols visible)

Mechanical component with labeled parts (6a and C), showing a handle and lever mechanism (no text or symbols beyond labels)

Exterior view of a gray and black handheld device (no text or symbols visible)

Close-up of a portable phone with a speaker grille and an arrow indicating compression (no text or symbols visible)

Close-up of a mechanical component with labeled part '1a' and numbered marker '11' (no readable text or symbols beyond labels)

D

Gefahr!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

Warning!

Read all the safety information, instructions, illustrations and technical data provided on or with this power tool. Failure to adhere to the following instructions may result in electric shock, fi re and/or serious injury.

Keep all the safety information and instructions in a safe place for future use.

This machine is never allowed to be used by children, persons with reduced physical, sensory or mental capacities or with a lack of experience and knowledge, or persons who are not familiar with the instructions. Local regulations might specify an age limit for the user.

The machine is never allowed to be used when there are people – particularly children – or pets nearby.

Explanation of the symbols used (see Fig. 12)

1. Read the directions for use before operating the tool.
2. Do not use the tool in rain or snow. Do not expose the tool to wet conditions.
3. Keep all other persons away from the danger zone.
4. Wear goggles and ear muff s.
5. Wear a dust mask

2. Layout and items supplied

2.1 Layout (Fig. 1/2)

1. Motor unit
2. Blow tube 1
3. Blow tube 2
   3a. Scratch edge
4. Display
5. Speed controller
6. On/Off switch
7. Battery mount
8. Blow attachment

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the nearest branch of the DIY store where you made your purchase at the latest within 5 work days after purchasing the article and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the warranty provisions at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Motor unit
• Blow tube 2x
• Blow attachment
  • Original operating instructions
  • Safety information

GB

3. Proper use

Leaf blower

When the blow tubes 1 and 2 (Fig. 2 / Item 2 and Item 3) are used, this machine is designed for clearing away and piling up dry to slightly damp leaves and grass from paved areas and lawns. Small, light-weight rubbish such as cigarettes, twigs, paper, etc. can be gathered from asphalted garden paths or lawns by blowing it into piles.

Workshop blower

When blow tube 1 (Fig. 2 / Item 2) or the blow attachment (Fig. 2 / Item 8) is used, this machine can serve to blow-clean workshop equipment (dust and loose particles of dirt).

Ignition aid

When the blow attachment (Fig. 2 / Item 8) is used, this machine can serve as an ignition aid for charcoal barbecues.

This machine is not allowed to be used for spreading or piling up chemicals and poisons such as fertilizers, pesticides, materials containing asbestos, or infl ammable liquids. Never pile up hot, combustible or explosive materials. In all areas of use take care to create as little dust as possible. Be aware of the hazards associated with naked flames.

The equipment is allowed to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind resulting from such misuse.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Operating voltage .... 18 V DC Idling speed n .... 6000-15000 rpm Air speed max. .... 250 km/h Air volume max. .... 120 m³/h Sound pressure level L pA .... 79 dB (A) Uncertainty K pA .... 3 dB (A) Measured sound power level L WA .... 91 dB(A) K WA uncertainty .... 3 dB Guaranteed sound power level L WA .... 94 dB(A) Vibration a n .... 3.7 m/s² Uncertainty K .... 1.9 m/s² Weight.... 1.1 kg

Important!

The equipment is supplied without batteries and without a charger and is allowed to be used only with the lithium-ion batteries of the Power X-Change series!

The lithium-ion batteries of the Power X-Change series are allowed to be charged only with the Power-X charger.

Measured and guaranteed sound power level determined in accordance with 2000/14/EC, extended by 2005/88/EC.

The value given for vibration was determined in accordance with a set of standardized criteria and can be used to compare different products with one another. This value is also suitable to be used for estimating the strain on the user caused by the vibration beforehand.

Caution!

Depending on how you use the device, the actual vibration emissions can vary from the values listed above. Take appropriate measures to protect yourself against vibration stress. Take the entire work sequence into consideration including times at which the device is not working under load or is switched off. Appropriate measures include among other things regular care and maintenance of the device and tool attachments, keeping your hands warm, taking regular breaks and good work sequence planning.

GB

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
  • Adapt your working style to suit the appliance.
  • Do not overload the appliance.
• Have the appliance serviced whenever necessary.
  • Switch the appliance off when it is not in use.
  • Wear protective gloves.
• Wear ear-muffs.

Caution!

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.
4. Risk of eye damage if suitable safety goggles are not worn.

5. Before starting the equipment

Important!

The machine is supplied without batteries and without a charger!

Warning!

Always remove the battery pack before making adjustments to the equipment.

5.1 Assembling blow tube 1 - motor unit (Fig. 3a/3b)

Plug blow tube 1 (Item 2) onto the motor unit (Item 1). The groove (A) must be pushed into the guide (B) when you do this. Turn the blow tube to the right to secure it in its final position on the motor unit.

Important! The tube must be turned as far as it will go to make sure it is firmly secured in position.

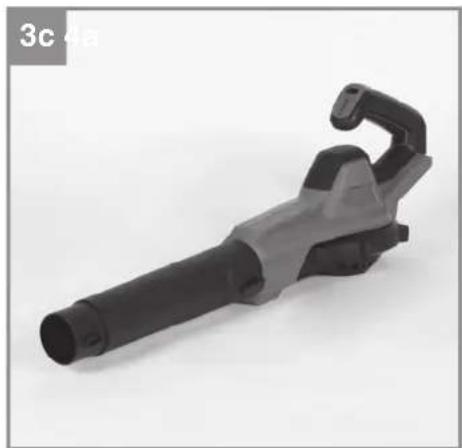

The machine can now be used as a workshop blower (Fig. 3c).

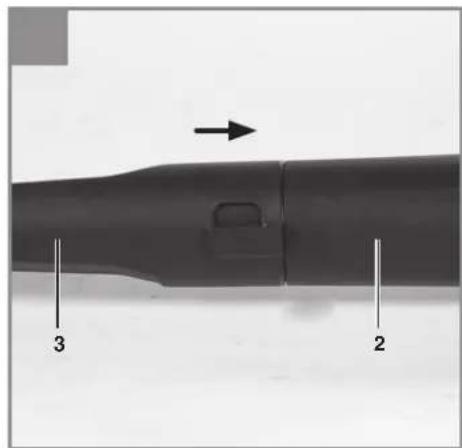

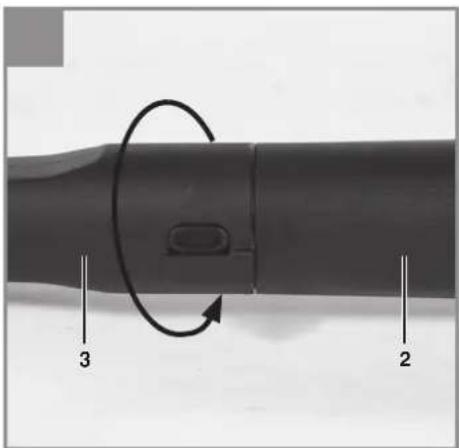

5.2 Assembling blow tube 2 – blow tube 1 (Fig. 4a/b)

Plug blow tube 2 (Item 3) onto blow tube 1 (Item 2). Secure the two blow tubes together (see Section 5.1). The scratch edge (Fig. 1/Item 3a) for freeing leaves from the ground must point downwards.

The machine can now be used as a leaf blower (Fig. 1).

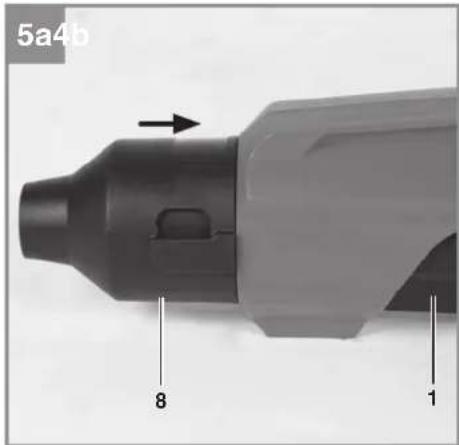

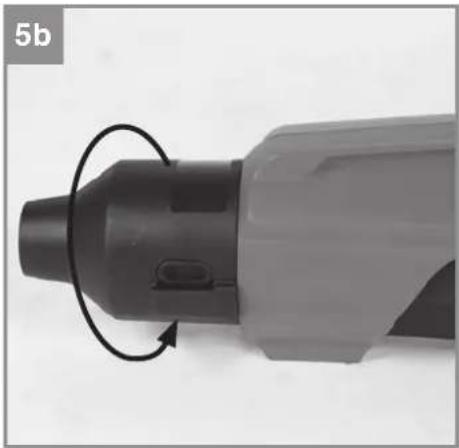

5.3 Assembling blow attachment 3 - motor unit (Fig. 5a - 5c)

Plug the blow attachment (Item 8) onto the motor unit (Item 1). Secure the two parts together (see Section 5.1).

The machine can now be used as a workshop blower or as an ignition aid for charcoal barbecues (Fig. 5c).

Note: To dismantle the above mentioned attachments, proceed in reverse order.

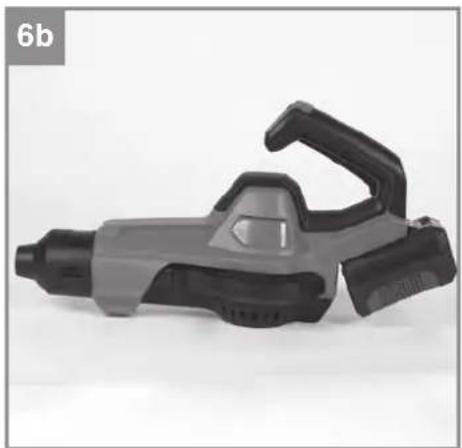

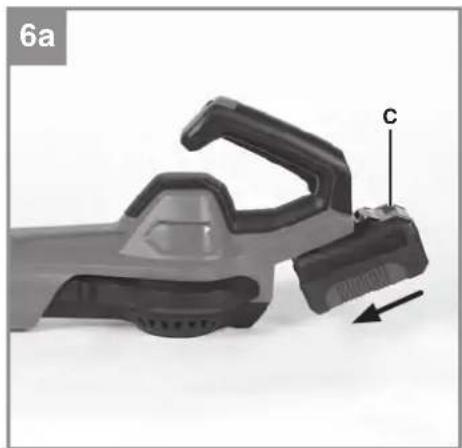

5.4 Fitting the battery (Fig. 6a/6b)

Press the pushlock button (Item C) of the battery pack as shown in Fig. 6a and push the battery pack into the mount provided. When the battery pack is positioned as in Fig. 6b, make sure that the pushlock button latches in place! To remove the battery, proceed in reverse order!

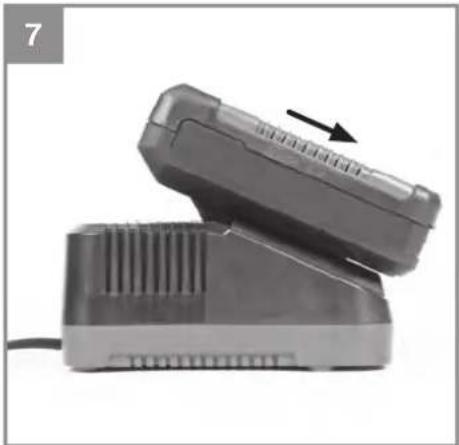

5.5 Charging the battery (Fig. 7)

1. Take the battery pack out of the equipment. Do this by pressing the pushlock button.
2. Check that your mains voltage is the same as that marked on the rating plate of the battery charger. Insert the power plug of the charger into the socket outlet. The green LED will then begin to blink.
3. Insert the battery pack into the charger.
4. In section „Charger indicator“ you will find a table with an explanation of the LED indicator on the charger.

The battery pack can become a little warm during the charging. This is normal.

If the battery pack fails to charge, check:

• whether there is voltage at the socket outlet
- whether there is good contact at the charging contacts

GB

If the battery pack still fails to charge, send

• the charging unit
• and the battery pack

to our customer service center.

To ensure that items are properly packaged and delivered when you send them to us, please contact our customer service or the point of sale at which the equipment was purchased.

When shipping or disposing of batteries and cordless tools, always ensure that they are packed individually in plastic bags to prevent short circuits and fi res.

To ensure that the battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the performance of the device drops. Never allow the battery pack to become fully discharged. This will cause it to develop a defect.

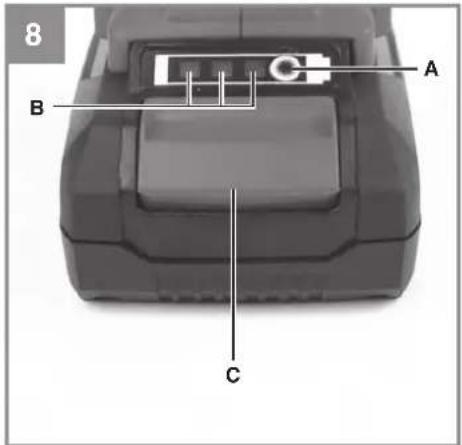

5.6 Battery capacity indicator (Fig. 8)

Press the button for the battery capacity indicator (A). The battery capacity indicator (B) shows the charge status of the battery using 3 LEDs.

All 3 LEDs are lit:

The battery is fully charged.

2 or 1 LED(s) are lit:

The battery has an adequate remaining charge.

1 LED fl ashes:

The battery is empty, recharge the battery.

All LEDs blink:

The battery temperature is too low. Remove the battery from the equipment, keep it at room temperature for one day. If the fault reoccurs, this means that the rechargeable battery has undergone exhaustive discharge and is defective. Remove the battery from the equipment. Never use or charge a defective battery.

6. Operation

Caution!

If you point the air flow at other people, animals or objects (e.g. windows), this could cause injuries and damage. Check that all the components are correctly seated.

• Point the air flow away from yourself.
• Never point the air flow at other people, animals or objects.
• Do not blow away any hard objects such as stones or branches.

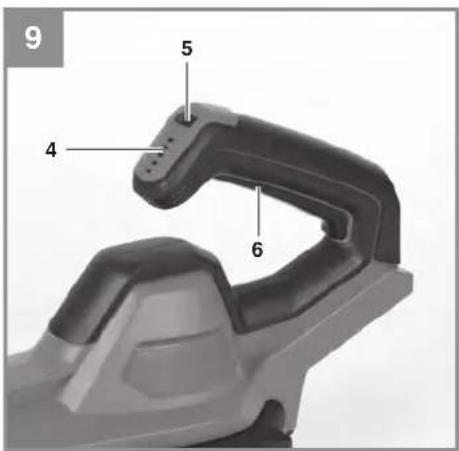

6.1 Switching the machine on/off (Fig. 9) a) Switching on:

To switch on, press and hold the On/Off switch (Item 6).

b) Switching off :

Let go of the On/Off switch (Item 6).

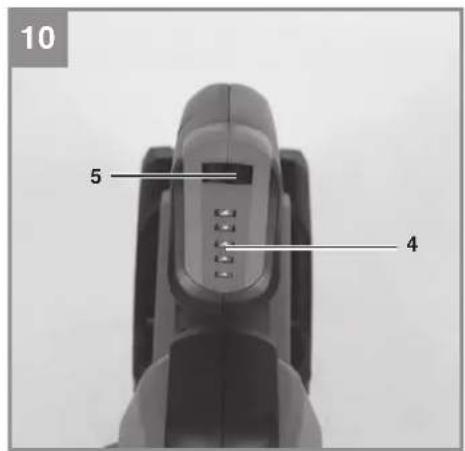

6.2 Controlling the speed (Fig. 9/10)

The equipment comes with electronic speed control for setting the blowing velocity. The blowing velocity depends on the setting of the speed controller (Item 5). The number of LEDs which appear on the display (Item 4) correspond to the selected blowing velocity.

1 LED = lowest blowing velocity
5 LEDs = highest blowing velocity

1. Switch on the machine (Section 6.1). The number of LEDs corresponding to the blowing velocity will appear on the display (Item 4).

2. Turn the speed controller (Item 5) counterclockwise to reduce the blowing velocity, turn it clockwise to increase it. The speed controller will make an audible click when the maximum blowing velocity (5 LEDs on the display) is reached.

Use the equipment only with the blowing velocity needed for the job.

6.3 Leaf blower (Fig. 1)

• Turn on the equipment (see section 6.1).
- Set the desired blowing velocity with the speed controller (see section 6.2).
- Direct the air stream forward and walk slowly to blow foliage or garden refuse into a pile or to remove it from hard-to-reach places.

GB

6.4 Workshop blower (Fig. 3c / 5c)

• Turn on the machine (see Section 6.1).

• Begin by setting the lowest blowing velocity with the speed controller (see Section 6.2).
• Channel the air stream forward and move slowly to remove dust and dirt from any machine parts.

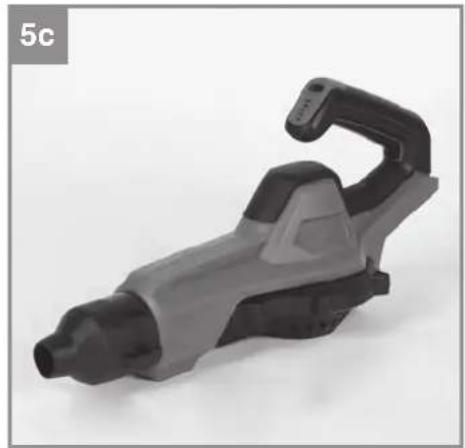

6.5 Ignition aid (Fig. 5c)

• Turn on the machine (see Section 6.1).
- Begin by setting the lowest blowing velocity with the speed controller (see Section 6.2).
- Hold the machine at an angle above the ignited charcoal.
- Keep a big enough distance away from the charcoal so that the heat does not damage any plastic parts.

Danger!

Never gather (blow) hot, combustible or explosive materials into piles.

7. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the battery pack before starting any cleaning work.

7.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

7.2 Maintenance

• Should the tool experience problems beyond those mentioned above, let only an authorised professional or a customer service shop perform an inspection.
• There are no other parts inside the equipment which require maintenance.

7.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine

• Replacement part number of the part required For our latest prices and information please go to www.Einhell-Service.com

8. Faults

The equipment does not work:

Check that the battery is charged and that the charger is working. If the equipment will not work in spite of the voltage supply being OK, please send it to the customer service address provided.

9. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

10. Storage

Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30^ . Store the electric tool in its original packaging.

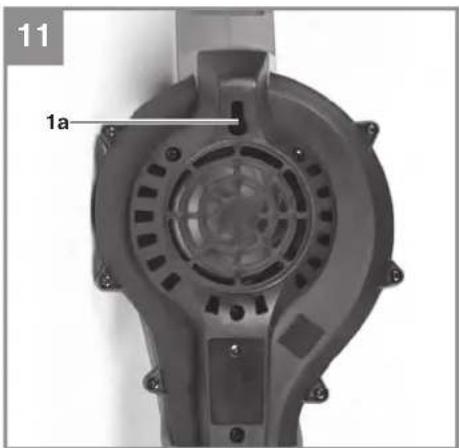

The equipment can be hung up by its integrated wall holder (Fig. 11 / Item 1a).

GB

11. Charger indicator

Indicator status Explanations and actions
Red LED Green LED
Off	Flashing	Ready for useThe charger is connected to the mains and is ready for use; there is no battery pack in the charger
On Off Charging		The charger is charging the battery pack in quick charge mode. The charging times are shown directly on the charger.Important! The actual charging times may vary slightly from the stated charging times depending on the existing battery charge.
Off	On	The battery is charged and ready for use. (READY TO GO)The unit then changes over to gentle charging mode until the battery is fully charged.To do this, leave the rechargeable battery on the charger for approx. 15 minutes longer.Action:Take the battery pack out of the charger. Disconnect the charger from the mains supply.
Flashing Off	Adapted charging	The charger is in gentle charging mode.For safety reasons the charging is performed less quickly and takes more time. The reasons can be:- The rechargeable battery has not been used for a very long time.- The battery temperature is outside the ideal range.Action:Wait for the charging to be completed; you can still continue to charge the battery pack.
Flashing Flashing Fault		Charging is no longer possible. The battery pack is defective.Action:Never charge a defective battery pack.Take the battery pack out of the charger.
On On Temperature fault		The battery pack is too hot (e.g. due to direct sunshine) or too cold (below 0^ ).Action:Remove the battery pack and keep it at room temperature (approx. 20^ ) for one day .

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

Please note that batteries and lamps (e.g. light bulbs) must be removed from the tool before it is disposed of.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Battery
Consumables*
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

8. To make a claim under the guarantee, please register the defective device at: www.Einhell-Service.com. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

F

Danger!

X 2006/42/EC
□ Annex IV
Notified Body: Reg. No.:

X 2000/14/EC_2005/88/EC

X Annex V

□ Annex VI

Noise: measured L_WA = 91dB (A) ; guaranteed L_WA = 94 dB (A) P = kW; L/∅ = cm

Notified Body:

2012/46/EU_(EU)2016/1628 Emission No.:

Standard references: EN 60335-1; EN 50636-2-100; EN 62233; EN 55014-1; EN 55014-2; EN IEC 55014-1; EN IEC 55014-2

Subject to change without notice

Archive-File/Record: NAPR022958

Documents registrar: Landauer Josef

Wiesenweg 22, D-94405 Landau/Isar

* GR Cordless Universal Browser - R Soulli universal series all - I So still are tovorsale a batteria - OKW Akku-universalistalmas - S Betardinen universalsbursa - CZ Akumulatoriunj unervalzali tuluk - SK Universitnaly akumulatoriya ofikawa - NL Universite occu blazer - R Sogradul universal inalmbrico - FIN Akkakdyttynen yisipuhellin - SLO Akumulatoraks unvernalto pulaha - H Akkus-unverzais lombolo - RO Sofuntia universali su accumulator - GR Raneng xorone quximyros, μ ματαματα - R Sopradul universal sem fio - HR/HH Universzina akumulatoriska pulhaka za lidao - RS Universitna akumulatoriska duvalka za lidao - PL Universita umicchawa akumulatorova - TR Akkú óok amáriči ulteme - PIUZ Универальnan akumulatorrska adizdukavena - CE Akura universabituhr - LY Akumulatora universales pálěje - LT Akumulatorinis universalis puřídež - BO AKMУлігорна універсівна духалка - OKP AKMУлігорна універсівна півітродука - MK Имверсівна духалка на батарки

Declaration of conformity

We, Einhell UK Ltd

Champions Business Park, First Floor Unit 10, Arrowe Brook Rd, Upton, Wirral CH49 0AB, United Kingdom

declare the conformity to UK standards and legislation was assessed for:

Cordless Universal Blower GE-UB 18/250 Li E (Einhell)

UK legislation

□ Simple Pressure Vessels (Safety) Regulation
□ Electrical Equipment (Safety) Regulation
□ Radio Equipment Regulation
□ Personal Protective Equipment Regulation
☐ The Ecodesign for Energy-Related Products and Energy Information Regulation
X The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation
X Noise Emission in the Environment by Equipment for use Outdoors Regulation
X Electromagnetic Compatibility Regulation
□ Measuring Instruments Regulation
☐ Pressure Equipment (Safety) Regulation

X Annex V

Annex VI

Noise:measuredLWA=91 dB (A); guaranteed LWA=94 dB (A)
P = kW; L/∅ = cm
UK Approved Body:

X Supply of Machinery (Safety) Regulation

Annex IV

UK Approved Body:

UKTE Certifi cate No.:

Standards: BS 60335-1; BS 50636-2-100; BS 62233; BS 55014-1; BS 55014-2

Wirral, 2021.11.29

Tom Chambers, Managing Director Einhell UK Ltd.

Archive-File/Record: NAPR022958

Article Number: 34.335.42 I.-No.: 21010

Subject to change without notice Wiesenweg 22, 94405 Landau/Isar, Germany

Documents registrar: Landauer Josef

EH 02/2022 (01)
