Product type	Ultrasonic aroma diffuser
Model	SASL 12 A1
Brand	SilverCrest
Power supply	Power adapter 24 V DC, 0.5 A, 100-240 V ~ 50/60 Hz
Water tank capacity	100 ml
Power consumption	500 mA
Lighting	LED, adjustable brightness
Automatic shut-off function	Yes, when the tank is empty
Intended use	Refresh and humidify air with essential oils
Number of buttons	2 (on/off, lighting adjustment)
Material	Plastic, ceramic (disc)
Included accessories	Power adapter, measuring cup, salt crystal
Cleaning	Clean the tank after each use; descale if necessary
Safety	Do not immerse; unplug before filling/cleaning; use only tap water + essential oils
Warranty	3 years
Reference (IAN)	389910_2201
Importer	KOMPERNASS HANDELS GMBH, BURGSTRASSE 21, 44867 BOCHUM, GERMANY

Frequently Asked Questions - SASL 12 A1 SILVERCREST

How to turn the diffuser on and off?

Press button 6 (on) to turn on. Diffusion starts and the light turns on. To turn off, press button 7. The device switches off automatically when the water runs out.

How to adjust the lighting?

Press button 6 several times to adjust brightness or turn off the light. The LEDs are not suitable for room illumination.

What water can I use?

Use clean tap water. Never use contaminated or stagnant water. Change the water every 3 days.

Can I use essential oils?

Yes, add 2 to 4 drops of essential oil (aromatic oil) to the water. Never use undiluted oil to avoid damaging the device.

How to clean the diffuser?

Unplug the adapter. Clean the water tank with a slightly damp soft cloth after each use. For oil stains, use a little mild dish soap or sunflower oil.

How to descale the device?

Use a commercial liquid descaling product. Fill the tank to the max level, let it sit, then empty and rinse. Do not use sharp objects.

Is the salt crystal necessary for operation?

No, the salt crystal is decorative. It is placed on the support and can be removed for cleaning.

What to do in case of burning smell or smoke?

Immediately turn off the device and unplug the adapter. Have it checked by a specialist before reuse.

Can the device be used without water?

No, never run the device without water. The tank must contain water to avoid damaging the ceramic disc.

How to store the device?

Empty and clean the tank, dry it, then store the device in a clean, dry place away from sunlight.

USER MANUAL SASL 12 A1 SILVERCREST

Operating instructions

FR BE

DIFFUSEUR D'AROMES À ULTRASONS

Mode d'emploi

CZ

ULTRAZVUKOVY AROMA DIFUZÉR

Návod k obsluze

SK

ULTRAZVUKOVY AROMATICKY DIFUZÉR

Návod na obsluhu

DK

AROMADIFFUSER MED ULTRALYD

GB/IE Operating instructions Page 1

Information about these operating instructions 2
Intended Use 2
Warnings used 3

Safety 4

Basic safety instructions 4

Description of components 10

Before use 10

Check package contents 10
Unpacking 10
Disposal of packaging 11
Electrical connection 11

Handling and operation 12

Initial use 12

Switching the appliance on/off and setting the lighting 12

Cleaning/Storage/Disposal 13

Cleaning/descending the appliance 14
Storage 14
Disposing of the appliance 15

Appendix 15

Notes on the EU declaration of conformity 15
Technical data 16
Kompernass Handels GmbH warranty 18
Service 20
Importer 20

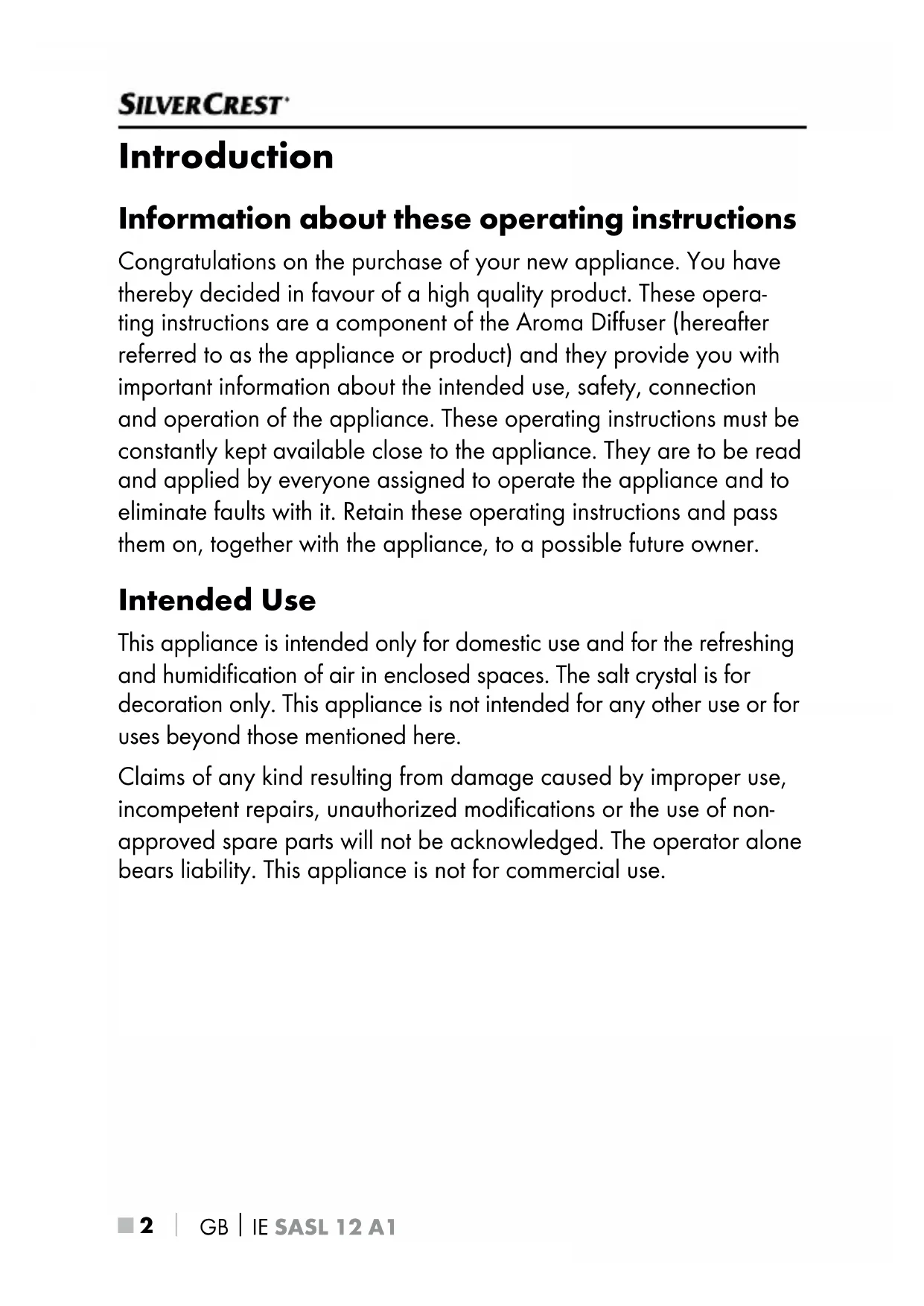

Introduction

Information about these operating instructions

Congratulations on the purchase of your new appliance. You have thereby decided in favour of a high quality product. These operating instructions are a component of the Aroma Diffuser (hereafter referred to as the appliance or product) and they provide you with important information about the intended use, safety, connection and operation of the appliance. These operating instructions must be constantly kept available close to the appliance. They are to be read and applied by everyone assigned to operate the appliance and to eliminate faults with it. Retain these operating instructions and pass them on, together with the appliance, to a possible future owner.

Intended Use

This appliance is intended only for domestic use and for the refreshing and humidification of air in enclosed spaces. The salt crystal is for decoration only. This appliance is not intended for any other use or for uses beyond those mentioned here.

Claims of any kind resulting from damage caused by improper use, incompetent repairs, unauthorized modifications or the use of non-approved spare parts will not be acknowledged. The operator alone bears liability. This appliance is not for commercial use.

Warnings used

In these extant operating instructions the following warnings are used:

WARNING

A warning at this risk level indicates a possibly dangerous situation.

If the dangerous situation is not avoided, it could lead to personal injury.

Follow the instructions in this warning to avoid personal injuries.

IMPORTANT

A warning at this risk level signifies possible property damage.

If the situation is not avoided it could lead to property damage.

The directives in this warning are there to avoid property damage.

NOTICE

A notice signifies additional information that assists in the handling of the appliance.

Safety

In this chapter you will receive important safety information regarding the handling of the appliance. Incorrect usage can, however, lead to personal and property damage.

Basic safety instructions

For safe handling of the appliance observe the following safety information:

• Check the appliance for visible external damage before use. Do not use an appliance that has been damaged or dropped.

This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.

Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

ADANGER! Do not allow children to play with the packaging material! Keep all packaging materials away from children. There is a risk of suffocation!
- Do not make any unauthorised modifications or alterations to the appliance.
- Do not operate the appliance near heat sources, such as radiators or other heat-generating appliances.
- Do not expose the appliance to direct sunlight or high temperatures. Otherwise, it could overheat and be irreparably damaged.
- Keep the appliance away from open flames (e.g. candles) at all times.
- Do not expose the appliance to water spray or dripping water, and do not place liquid-filled objects such as vases or open drink containers on or near the appliance.
- Never immerse the appliance in water or other liquids!

• Always set up the appliance on a stable and level surface. It can be damaged if dropped.
• Switch the appliance off immediately and disconnect the mains adapter from the appliance if you smell fumes or notice any smoke. Have the appliance checked by a qualified specialist before using it again.
  Use the mains adapter only in dry interior rooms.
• Operate the appliance only with the supplied mains adapter and use the supplied power adapter only for this appliance.
  Do not use the mains adapter if it has a damaged mains plug or cable.
  The mains adapter and the welded connection cable may not be repaired. In the event of a defect, the entire mains adapter must be replaced with another of identical design.
  No user action is required to set the product to 50 or 60Hz . The product switches automatically to 50 or 60Hz as required.

The mains power socket being used must be easily accessible at all times so that the mains adapter can be quickly removed from the mains power socket in the event of an emergency.
Always unplug the mains adapter before filling/emptying the water tank and before cleaning the appliance.
Note that high humidity can promote the growth of biological organisms in the environment.
Make sure that items in the vicinity of the appliance do not become damp or wet. If you notice damp formation, you need to reduce the output. If the output cannot be reduced, then you should only use the appliance periodically. Do not allow absorbent materials such as carpeting, curtains, drapes, or tablecloths to become damp.
Make sure there is no water left in the water tank when the appliance is not in use.

Before storage, empty and clean the appliance. Clean the appliance before using it again.
WARNING! Microorganisms that may be in the water or in the environment where the appliance is used or stored can multiply in the water tank and be blown into the air. This can lead to serious health risks if the water is not renewed and the water tank is not cleaned every 3 days.
The water tank must be emptied and refilled every 3 days. Before filling, rinse out the water tank with fresh water. Any build-up, deposits, or layer of dirt that has formed on the surfaces of the water tank or the internal surfaces must be removed. All surfaces should be wiped dry.
The appliance may only be used with clean tap water or additionally with essential oils (aromatic oils).

To prevent damage to the appliance, never use the appliance with undiluted aromatic oils.
Use only aromatic oils that comply with national health requirements. The use of other substances may result in poisoning or the risk of fire.
- Keep aromatic oils out of the reach of children.
Always store aromatic oils under lock and key.

Description of components

(For illustrations see the fold-out side)

1 Attachment
Steam outlet
Water tank
Ceramic disc
LED light source
6 button
7 button
8 Base
9 Mounting
Ventilation slit
Pouring direction arrow
12 Maximum filling level
Plug socket
14 Mains adapter
Measuring cup
Salt crystal

Before use

Check package contents

The appliance is supplied with the following components as standard:

• Ultrasonic aromatherapy diffuser SASL 12 A1
• Mains adapter
• Measuring beaker

Salt crystal

• Operating Instructions

Unpacking

Remove all parts of the appliance and these operating instructions from the box.
Remove all packaging materials from the appliance.

Disposal of packaging

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: Plastics, 20-22: Paper and cardboard, 80-98: Composites.

Electrical connection

IMPORTANT

Before you connect the appliance to the power supply, check to ensure that the required input voltage as given on the type plate tallies with that for the intended power source. To avoid possible damage to the appliance this data must match.
Check to ensure that the cable for the power adapter 14 is not damaged and that it does not lead over hot surfaces and or sharp edges, otherwise it could be damaged.
Ensure that the cable for the power adapter 14 is not over-taut or kinked.
Connect the power adapter 14 to the appliance by inserting the plug into the plug socket 13 on the underside of the appliance.

Handling and operation

Initial use

IMPORTANT

It is possible that oil drops may cause damage to furniture surfaces. If necessary, place a cloth under the appliance.
Place the appliance on a stable and level surface.

Place the salt crystal 16 onto the mounting 9 so that the line on the bottom of the salt crystal points to the symbol on the base 8. Turn the salt crystal 16 clockwise slightly until the line points to the symbol.
Remove the attachment 1 from the base 8.
Fill the water tank ③ with a maximum of 100 ml of clean tap water using the measuring cup ⑤ provided. Note the maximum filling level ⑫ , which is marked by a border.

Add 2-4 drops of the desired oil to the water.

Afterwards, place the attachment ① back on the water tank ③.
Connect the mains adapter 14 to the power socket.

Switching the appliance on/off and setting the lighting

Press the button to switch on the appliance. The aromatic mist production starts and the lighting is switched on.
Press the button repeatedly to select the desired brightness or to switch off the lighting.

If the appliance is switched on, press the button to switch it off immediately. Aromatic mist production and the lighting will be switched off.

NOTICE

The appliance switches itself off automatically as soon as the liquid in the water tank 3 has been used up.
The LED light source 5 are not suitable for lighting rooms in houses!

IMPORTANT

Damage to the appliance!

NEVER tilt the appliance during operation and do not try to empty it.
- Do not forget to unplug the mains adapter 14 before filling or emptying the appliance.

Cleaning/Storage/Disposal

IMPORTANT

Damage to the appliance!

To avoid irreparable damage, when you are cleaning the appliance ensure that no moisture can penetrate into it.
Always unplug the mains adapter 14 before cleaning the appliance.

Unscrew the salt crystal 16 anticlockwise from the mounting 9 on the base 8.

To prevent damage, do not empty the appliance over the ventilationslit. When emptying the appliance, note the pouring direction arrow on the water tank.
Under no circumstances should you try to remove scale deposits with a pointed or sharp object. The appliance could be irreparably damaged.

Cleaning/descaling the appliance

Clean the water tank ③ after each use so as to remove oil residue as completely as possible. For this, use a soft and slightly moist cloth. In the case of stubborn stains, place a few drops of mild detergent on the damp cloth.

NOTICE

• Use common retail sunflower oil to remove discolourations caused by oils from the water container 3.

Should the steam production diminish, the ceramic disk 4 located at the bottom of the water tank 3 must be cleaned. For this, use a slightly moistened cotton bud.

Clean the surfaces of the appliance with a soft and dry cloth.

To descale the appliance, use a standard commercial liquid descaling agent. Pay heed also to the manufacturer's instructions for your descaler.

Fill the water tank 3 to the maximum filling level 12 with descaler and let it stand until the scale is fully dissolved.

Pour the scale removal away and then clean the water tank ③ with a soft and slightly damp cloth.

Storage

Should you decide to not use the appliance for an extended period, disconnect it from the mains power supply and store it in a clean and dry location away from direct sunlight.

Disposing of the appliance

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

FR

The product and its packaging are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Appendix Notes on the EU declaration of conformity

In regard to conformity with essential requirements and other relevant provisions, this appliance complies with the European EMC Directive 2014/30/EU, the Low Voltage Directive 2014/35/EU and the Eco-design Directive 2009/125/EC.

The complete EU Declaration of Conformity is available from the importer.

Technical data

Mains adapter
Manufacturers	Putian Yijia Electronic Co., Ltd. The West of Lihan Avenue Hanjiang District, Putian, Fujian, China Commercial register number: 91350303579298423W Importer: KOMPERNASS HANDELS GMBH, BURGSTRASSE 21, 44867 BOCHUM, GERMANY, Register court: AG Bochum Register number: HRB 4598
Model YJTH12
Input voltage	100-240 V ~ (AC)
Input AC frequency 50/60 Hz
Output voltage 24.0 V	= (DC)
Output current 0.5 A
Output power 12.0 W
Average operating efficiency	84.5 %
Low load efficiency (10%) 77.1 %
No-load power consumption	0.07 W
Current consumption 0.5 A
Protection class	II / □ (double insulation)
Polarity	(positive inside, negative outside)
Protection type IP 20
Efficiency class 6	VI
Short-circuit proof safety transformer	8
Nominal ambient temperature (ta)	40°C
Switched-mode power supply	12
Appliance
Input voltage 24 V (DC)	---
Current consumption 500 mA
Water tank capacity 100 ml

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN) 389910_2201 available as proof of purchase.

• You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 389910_2201.

Service

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Servicelreland

Tel.: [phone]

E-Mail: [e-mail]

IAN389910_2201

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einführung 22

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Sommaire

Introduction 44

Chere cliente, cher client,

Chere cliente, cher client,

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoudsopgave

Inleiding 70

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Uvod. 90

Informace k tomuto navodu k obsluze 90

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMECKO

www.kompernass.com

Spis tresci

Wprowadzenie 110

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Uvod 130

Informáce k tomuto námodu na použivanie 130
Použivanie primerané učelu 130
Pouzité varovania 131

Bezpečnosf 132

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Indice

Introduccion 150

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Indholdsfortegnelse

Introduktion 170

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.coms

Indice

Introduzione 190

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Tartalomjegyzék

Bevezeto 210

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

Kazalo

Uvod 230

Informaciie o teh navodilih za uporabo 230
Predvidena uporaba 230
Opozorila v teh navodilih 231

Varna uporaba. 232

Osnovna varnostna navodila 232

Opisdelov. 238

Pred prvo uporabo 238

Preverjane obsega dobave 238
Jemanje iz embalaze 238
Odlaganje embalaze med odpadke 239
Elektricni priključek 239

Uporaba in delovanie 240

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMCIJA

www.kompernass.com

Pooblaščeni serviser

SI

ServisSlovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN 389910_2201

Garancijski list

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
