USER MANUAL SADL 300 A1 SILVERCREST

12. Environmental regulations and disposal information ................. 61

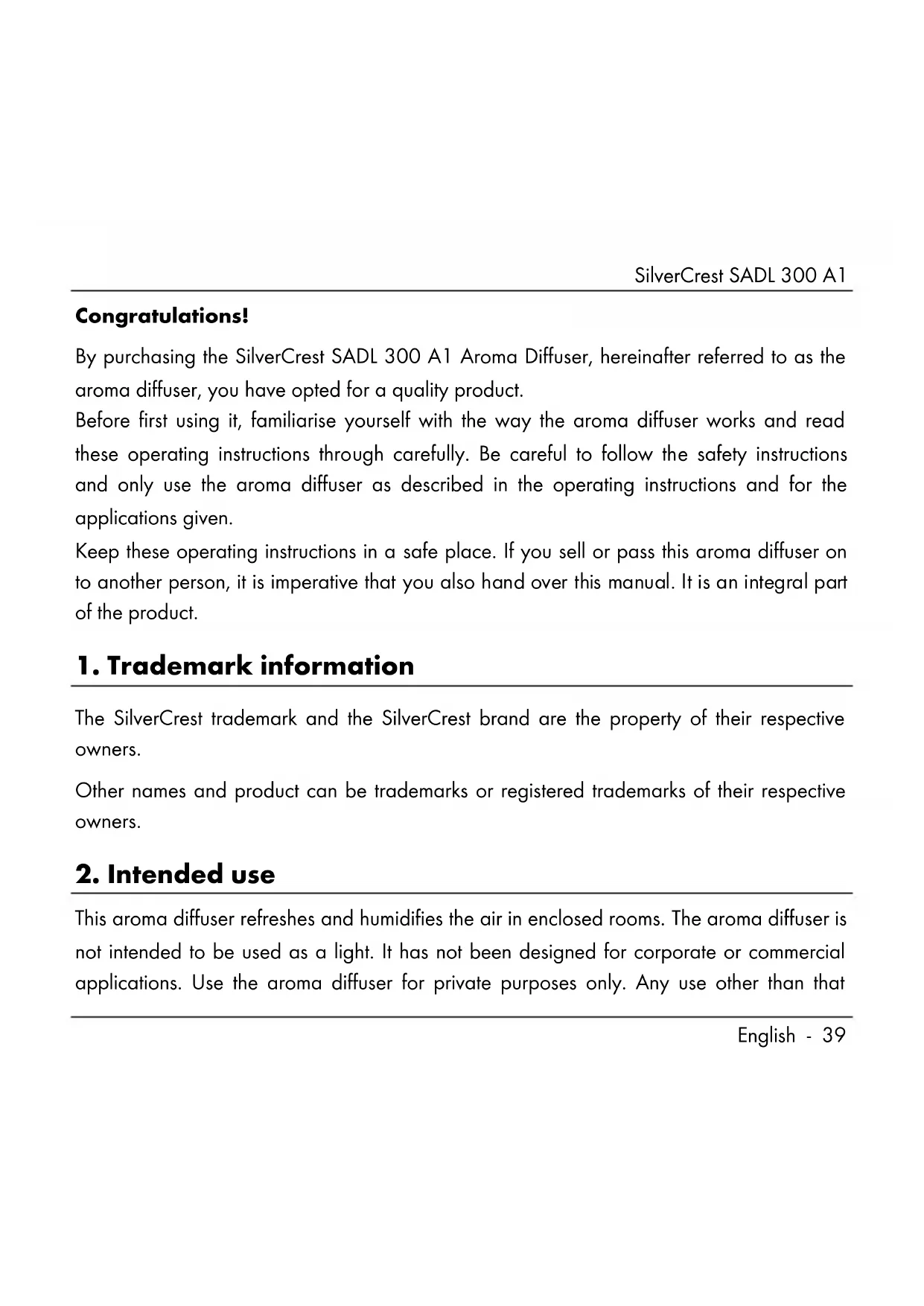

English - 39 Congratulations! By purchasing the SilverCrest SADL 300 A1 Aroma Diffuser, hereinafter referred to as the aroma diffuser, you have opted for a quality product. Before first using it, familiarise yourself with the way the aroma diffuser works and read these operating instructions through carefully. Be careful to follow the safety instructions and only use the aroma diffuser as described in the operating instructions and for the applications given. Keep these operating instructions in a safe place. If you sell or pass this aroma diffuser on to another person, it is imperative that you also hand over this manual. It is an integral part of the product.

1. Trademark information

The SilverCrest trademark and the SilverCrest brand are the property of their respective owners. Other names and product can be trademarks or registered trademarks of their respective owners.

This aroma diffuser refreshes and humidifies the air in enclosed rooms. The aroma diffuser is not intended to be used as a light. It has not been designed for corporate or commercial applications. Use the aroma diffuser for private purposes only. Any use other than thatSilverCrest SADL 300 A1

mentioned above does not correspond to the intended use. This aroma diffuser fulfils all the standards and directives listed in the EU Declaration of Conformity. Any modifications to the aroma diffuser which are not approved by the manufacturer, improper repairs or use of non-authorised replacement parts may result in these directives no longer being met. The manufacturer accepts no liability for any damage or malfunctions resulting from this. Observe the regulations and laws in the country of use.

Remove the aroma diffuser and all its accessories from the packaging. Remove all packaging material and check that all parts are complete and undamaged. If you find anything missing or damaged, please contact the manufacturer. SilverCrest SADL 300 A1 Aroma Diffuser Wall plug power adapter Measuring cup 1 bottle of essential oil These operating instructions The aroma diffuser is available in 2 variants with identical functions and controls.SilverCrest SADL 300 A1 English - 41

On the inside of the cover, the aroma diffuser is shown with figures indicated. The meanings of the numbers are as follows: 1 Light shield 2 Vapour chimney 3 Diffuser base 4 LEDs (for runtime set) 5 Power supply socket (on the bottom of the base)

Button (TIMER: 1h/3h/6h/OFF)

Button (Light: ON/15 levels/OFF) 10 Measuring cup 11 Mains power adapter (symbol) 12 Essential oilSilverCrest SADL 300 A1

Operating voltage: 24 V Nominal current consumption: 0.5 A Mist function time (depending on ambient temperature and humidity): Day mode: approx. 20 hours Night mode: approx. 27 hours Dimensions (WxDxH): Design A: approx. 120x120x220 mm Design B: approx. 120x120x200 mm Weight: Design A: approx. 280 g Design B: approx. 280 g Operating environment: 0°C to +40°C, max 85 % rel. humidity Storage temperature: -20° C to +60° C

5.2 Mains power adapter

Value Unit Vendor, register of commerce number, address TARGA GmbH, HRN: 12035 Coesterweg 45, 59494 Soest, Germany Manufacturer Dongguan Green Power One Co., Ltd. Model EU: GA09-2400500EU UK: GA09-2400500UK Input voltage 100 - 240 V AC input frequency 50 / 60 Hz Output voltage 24.0 V DCSilverCrest SADL 300 A1 English - 43 Output current 0.5 A Output power 12.0 W Average efficiency when in use 84.0 % Efficiency at low load (10 %) 79.4 % Power consumption at zero load 0.08 W The technical data and design may be changed without prior notice.

Before you use the aroma diffuser for the first time, please read the following notes and heed all warnings, even if you are familiar with handling electronic devices. Keep these operating instructions in a safe place for future reference.SilverCrest SADL 300 A1

Explanation of warnings and symbols used

DANGER! This signal word indicates a danger with a high risk, which will lead to death or major injuries if not avoided. WARNING! This signal word indicates a danger with a moderate risk, which can lead to death or major injuries if not avoided. ATTENTION! This signal word indicates a danger with a low risk, which can lead to minor or moderate injuries if not avoided.SilverCrest SADL 300 A1 English - 45 CAUTION! This signal word indicates important instructions to protect against damage to property. CAUTION! Essential oil can cause allergic reactions on the skin. Check the safety instructions for the essential oil! This symbol denotes further information on the topic. DC voltage AC voltage Protection Class II Use only in dry, indoor areas!SilverCrest SADL 300 A1

This symbol indicates that the operating instructions must be read/followed before use. Manufacturer's address The content of the water reservoir must be replaced and the water reservoir cleaned after 72h. Short-circuit protected, sealed safety transformer Switchable power supply ta 40 °C The mains power adapter (11) is designed for a maximum ambient temperature of 40 °C.SilverCrest SADL 300 A1 English - 47 Efficiency Class 6 Polarity of mains power adapter

DANGER! Personal safety This aroma diffuser may be used by children of 8 years or over or by persons with physical, sensory or mental impairments or those with no knowledge or experience providing they are supervised or they have been given instructions on the proper use of the aroma diffuser and they understand the associated risks. Do not allow children to play with the aroma diffuser. The product must not be cleaned or maintained by unsupervised children.SilverCrest SADL 300 A1

Keep the packaging materials out of the reach of children. Risk of suffocation! Basic safety guidelines

• No action needs to be taken by the user to set the product to 50 or 60 Hz. The product automatically adjusts to 50 or to 60 Hz.

• Check the aroma diffuser for visible damage before use. A damaged appliance must not be put into operation. Risk of injury!

• The aroma diffuser must only be used with the mains power adapter (11) supplied.

• Only use the aroma diffuser and mains power adapter (11) in dry indoor spaces!SilverCrest SADL 300 A1 English - 49

• Please note that the high humidity can encourage the growth of biological organisms nearby.

• Do not allow the area around the aroma diffuser to get too damp or wet. If the area gets too damp, reduce the output level. If the output is already on its lowest setting, do not use the aroma diffuser as often. Do not allow absorbent materials such as carpets, curtains or tablecloths to get damp.

• Disconnect the aroma diffuser from the mains before refilling and cleaning it.

• Do not leave water in the water reservoir when the aroma diffuser is not in use.SilverCrest SADL 300 A1

• Drain and clean the aroma diffuser before storing it. Clean the aroma diffuser before you use it again.

• WARNING: Micro-organisms which could be present in the water or the area where the aroma diffuser is used or stored can wash into the water reservoir and be emitted into the air, which can lead to serious health risks if the water is not replaced and the reservoir properly cleaned every 72 hours.

• Drain and refill the water reservoir every 72 hours. Before refilling, clean the water reservoir with clean water or any detergents recommended by the manufacturer. Remove anySilverCrest SADL 300 A1 English - 51 sediment, deposits or layers of dirt from the surface of the water reservoir or internal surfaces. Wipe all surfaces dry.

• Always place the aroma diffuser on a stable surface so that it does not tip over!

• Any repairs to the aroma diffuser or the mains power adapter (11) must be carried out by the manufacturer’s customer services department or an authorised professional to eliminate any risks to the user. Any improper repair attempts will invalidate the warranty.

• Never expose the aroma diffuser to rain. Protect the device from moisture and make sure that no liquids or objects are allowed to penetrate theSilverCrest SADL 300 A1

device. Never immerse the device in water and do not place objects containing liquids (e.g. vases) on the aroma diffuser. This could cause irreparable damage.

• Only use the device with the recommended substances to be evaporated. Using other substances could cause poisoning or fire hazards. The substances used must comply with national health regulations.

• Do not use the aroma diffuser near naked flames such as candles. This could cause irreparable damage.

• Avoid direct sunlight. This could cause irreparable damage to the aroma diffuser.SilverCrest SADL 300 A1 English - 53

• Please note that some furniture care products may contain substances that can damage the rubber feet of the aroma diffuser.

• Never pull on the cable to remove the mains power adapter (11) from the mains outlet, always pull the mains power adapter (11) itself. Otherwise, it could get damaged.

• The power cable on this device cannot be replaced. If the cable gets damaged, the device must be scrapped.

• The device may only be operated with essential oils (scented oils).

• To avoid damaging the device, never operate it with undiluted essential oils.SilverCrest SADL 300 A1

• Only use essential oils that comply with the relevant safety standards. Using other substances could cause poisoning or fire hazards.

• Keep the essential oils out of the reach of children.

• Always store the essential oils in sealed containers. Always heed the warnings on the label of the essential oil you are using.

• The aroma diffuser light source cannot be replaced. When the light source has reached the end of its service life, the entire device must be disposed of.SilverCrest SADL 300 A1 English - 55 Note on mains disconnection The mains power adapter consumes (11) electricity even in standby mode and must be removed from the power socket completely in order to disconnect it from the mains.SilverCrest SADL 300 A1

All the contents of this user manual are protected by copyright and provided to the reader for information only. Copying data and information without the prior explicit written consent of the author is strictly forbidden. This also applies to any commercial use of the contents and information. All texts and diagrams are up-to-date as of the date of printing. Subject to change without notice.

Check the aroma diffuser and the accessories for damage. If the aroma diffuser is damaged, do not use it.

8.1 Suitable essential oils

CAUTION! Under some circumstances, drops of oil can damage the surface of furniture. If necessary, place a coaster under the aroma diffuser.

• Only use scented oils and/or essential oils.

• Always follow the manufacturer’s instructions and safety advice on scented oils and/or essential oils.SilverCrest SADL 300 A1 English - 57

Connect to the mains by plugging the mains power adapter (11) into a mains socket which complies with the power adapter specifications. Then insert the connector on the cable into the power supply socket (5) on the diffuser base (3). When the power supply is established, an alarm sounds and the device flashes red. This is for safety reasons and indicates that the liquid in the aroma diffuser must be changed after 72 hours at the latest in order to prevent the build-up of bacteria. Press the button (8) for 3 seconds to confirm that the water container has been cleaned and there is fresh water in the reservoir. This switches off the alarm. After 72 hours, the alarm and the alarm light are reactivated to remind you to clean the water reservoir and change the liquid. CAUTION! If the device is faulty or used incorrectly (too much liquid added), liquid can leak out of the bottom of the device. CAUTION! If there is no liquid in the water reservoir, the diffuser cannot be switched on using the button (6). However, the light effects can be adjusted using the button (9). The parts of the aroma diffuser can be taken apart and put back together without tools. This makes it easy to fill and to clean. The procedure for filling is as follows:

• Use the measuring cup (10) provided to mix a specific quantity of water with the essential oil. Always check the mixing ratio on the label of the essential oil! Using too much can be damaging to your health or could cause damage to property. Follow the manufacturer’s instructions!

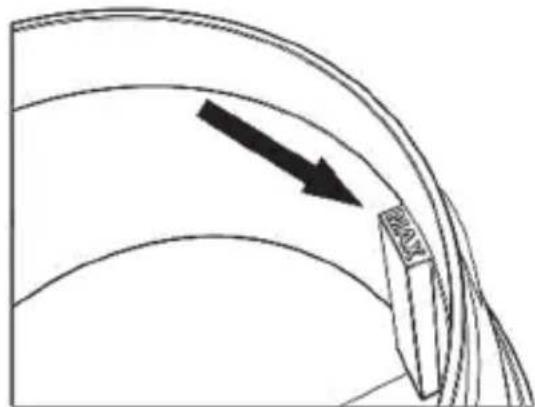

• Put the prepared mixture into the water reservoir. For the device to work correctly, at least the bottom of the water reservoir must be completely covered with water. The maximum water level is shown by the arrow marker inside the water reservoir. The water must not be higher than this marking.

• Replace the vapour chimney (2) and the light shield (1). The aroma diffuser is now ready for you to use the diffuser function.

9.1 Switching between modes

You can use the buttons (6, 7, 8, 9) to select different mode combinations. The functions of the buttons (6, 7, 8, 9) are described below: Button 6 (diffuser function) 1st press Diffuser “ON” 2nd press* Diffuser “OFF”

• After the diffuser function is switched off, the fan runs on for a few seconds to cool the electronics in the device.SilverCrest SADL 300 A1 English - 59 Button 7 (TIMER) 1st press TIMER Level 1: Run time 1 hour - Display (LED (4): "1H" 2nd press TIMER Level 2: Run time 3 hours - Display (LED (4): "3H" 3rd press TIMER Level 3: Run time 6 hours - Display (LED (4): "6H" 4th press TIMER “OFF” Button 8 (sleep mode) Activate sleep mode. In sleep mode, less vapour is generated and the light Is switched off. Button 9 (Light ON / 15 levels / Light OFF) 1st press Light “ON” (colour flow mode) 2nd to 15th presses Selection from 14 light colours Press and hold for approx. 3 seconds Light “OFF”

If you do not plan to use the aroma diffuser for some time, empty the water reservoir and clean the aroma diffuser as described in the chapter on “Cleaning”. Store the aroma diffuser in a clean, cool, dry place.SilverCrest SADL 300 A1

WARNING! Disconnect the aroma diffuser from the power supply before cleaning for safety reasons. For cleaning, use a clean, soft cloth, which you can moisten slightly if necessary. Never use solvents or aggressive detergents. Make sure that no liquid gets into the housing. The water reservoir must be cleaned after every use to remove oil residues as much as possible. Use a slightly damp, soft cloth. For stubborn dirt, add a few drops of mild detergent to the damp cloth. Then, remove any residues of the detergent used. If a reduced amount of mist is produced, clean the ceramic disc in the base of the water reservoir using a slightly damp cotton bud.

• Check that the mains power adapter (11) is properly inserted into the mains socket and the connector on the power adapter cable is firmly inserted into the power supply socket (5).

• Check that the mains socket used is live. Diffuser function not working / No mist produced

• Check that there is liquid in the water reservoir. Top up the water if necessary.SilverCrest SADL 300 A1 English - 61

12. Environmental regulations and disposal information

Devices marked with this symbol are subject to the European Union Directive 2012/19/EU. Electrical and electronic devices may not be put in the household waste, but must be disposed of via designated public disposal centres. By properly disposing of the old device, you can avoid environmental damage and hazards to health. Further information regarding proper disposal of the old device can be obtained from your local authority or the shop where you purchased the device. The symbol of the crossed-out wheelie bin on conventional and rechargeable batteries indicates that they cannot be disposed of in normal domestic waste but must be disposed of separately. Where batteries contain toxic materials, the chemical symbol of the toxic material is shown underneath the symbol, with meanings as follows: - Pb: Battery contains lead - Cd: Battery contains cadmium - Hg: Battery contains mercury You are obliged by law to return used batteries. Old batteries can contain toxic materials which can be damaging to health or the environment if not properly stored or disposed of. Batteries also containSilverCrest SADL 300 A1

important raw materials, such as iron, zinc, manganese and nickel, which can be reused. After use, you can return the batteries to us or to a local collection point (e.g. in retail outlets or a local collection point) free of charge. Please note that batteries must be disposed of fully discharged at appropriate collection points for old batteries. If disposing of batteries which are not fully discharged, take precautions to prevent short circuits. Dispose of all packaging in an environmentally friendly manner. Cardboard packaging can be taken to paper recycling centres or public collection points for recycling. Any film or plastic contained in the packaging should be taken to your public collection points for disposal. ES/PT Only relevant for France: “Sorting made easy” The product is recyclable, subject to advanced manufacturer responsibility and is sorted and collected separately.SilverCrest SADL 300 A1 English - 63 Please note the markings on the packaging material when disposing of it, it is labelled with abbreviations (a) and numbers (b), the meanings of which are as follows: 1–7: plastic / 20–22: paper and cardboard / 80-98: composite materials. Symbol Material Contained in the following packaging elements for this product Polyethylene terephthalate --- High density polyethylene --- Polyvinyl chloride --- Low density polyethylene ----- Polypropylene ---SilverCrest SADL 300 A1

Polystyrene ----- Other plastics --- Corrugated cardboard Packaging, inside box Other cardboard --- Paper Silk paper to protect the product Paper/cardboard/plastic --- Paper/cardboard/plastic/ aluminium ---SilverCrest SADL 300 A1 English - 65

13. Conformity notes

The product complies with the requirements of the applicable European and national directives. Evidence of conformity has been provided. The manufacturer has the relevant declarations and documentation. The external power adapter complies with regulation 2019/1782/EU. The product complies with the requirements of the applicable national directives of the Republic of Serbia. The product complies with the requirements of the applicable national directives for Great Britain. The complete EU Declaration of Conformity is available for download from this link: https://www.targa.gmbh/downloads/conformity/394475_2201.pdf

14. Warranty and service information

Warranty of TARGA GmbH This device is sold with three years warranty from the date of purchase. Please keep the original receipt in a safe place as proof of purchase. Before using your product for the first time, please read the enclosed documentation. Should any problems arise which cannot be solved in this way, please call our hotline. Please have the article number and, if available,SilverCrest SADL 300 A1

the serial number to hand for all enquiries. If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. Within the warranty period the product will be repaired or replaced free of charge as we deem appropriate. No new warranty period commences if the product is repaired or replaced. Consumables such as batteries, rechargeable batteries and lamps are not covered by the warranty. Your statutory rights towards the seller are not affected or restricted by this warranty. You can find this and many more manuals, product videos and installation software available for download at www.lidl-service.com. This QR code takes you directly to the LIDL service page (www.lidl-service.com). There, you can enter the item number (IAN) to access your operating manual.SilverCrest SADL 300 A1 English - 67 Service
