Circle Cutter PPKS 35 B2

- Introduction

Congratulations! You have purchased one of our high-quality products. The operating instructions form part of this product.

They contain important information on safety, usage and disposal. Please familiarise yourself with all operating and safety instructions before using the product. Use the product only as described and only for the specific applications as stated. Please retain the operating instructions properly and ensure that you hand over all documentation when passing the product onto someone else.

This product must be set up or used only by people who have been trained to do so.

Any use that differs to the intended use as stated above is prohibited and potentially dangerous. Damage or injury caused by misuse or disregarding the above warning is beyond the liability of the manufacturer. The device is not intended for commercial use.

KEEP OUT OF THE REACH OF CHILDREN!

- Intendeduse

The PPKS 35 B2 circle cutter is designed for use with the PPS 40 A1 and B2 and PPSK 40 plasma cutters from Parkside. You can use the circle cutter to make circular cuts, the diameter of these cuts can be continuously adjusted over a range of approx. 15 cm to 60 cm. Centring can be carried out either using a magnet or metal pin (during preparation for each centre punch). Please refer to the operating instructions of the plasma cutter you are using for information about material thicknesses which can be cut.

- Package contents

1 circle cutter PPKS 35 B2
1 magnetic holder
1 metal pin
1 fixing screw
1 set of operating instructions

- Parts description

NOTE!

▶ After unpacking the product, please check that all of the package contents are present and that the accessory is in perfect condition. Do not use the accessory if it is defective.

1 Circle cutter
2 Fixing screw
3 Magnetic holder
4 Metal pin
5 Torch holder with Bakelite inner ring

- Technical specifications

Length: 35.3 cm

Width: 4.2 cm

Height: 5.4 cm

Weight: approx. 310 g

Cut diameter: approx. 15–60 cm

- Safety instructions

Never attach the magnets to the plasma cutter itself or its housing. Before using, please read the

operating instructions for the circle cutter PPKS 35 B2 and the operating instructions for the plasma cutter you are using in full. Do not put body parts (e.g. fingers) between the magnets and the magnetic surfaces.

Risk of crushing!

It is essential that you observe the safety instructions of your plasma cutter! Check the circle cutter before fitting it to the plasma cutter. Damaged components must not be used.

● Fitting the circle cutter

Screw the rod of the circle cutter 1 to the torch holder with Bakelite inner ring 5 (Fig. D). Now fit the magnetic holder 3 or metal pin 4, as shown in Figure A.

NOTE! Bakelite is a durable, heat-resistant plastic.

- Handling the circle cutter

Attach the circle cutter 1 using the magnetic holder 3 or metal pin 4 (during preparation for

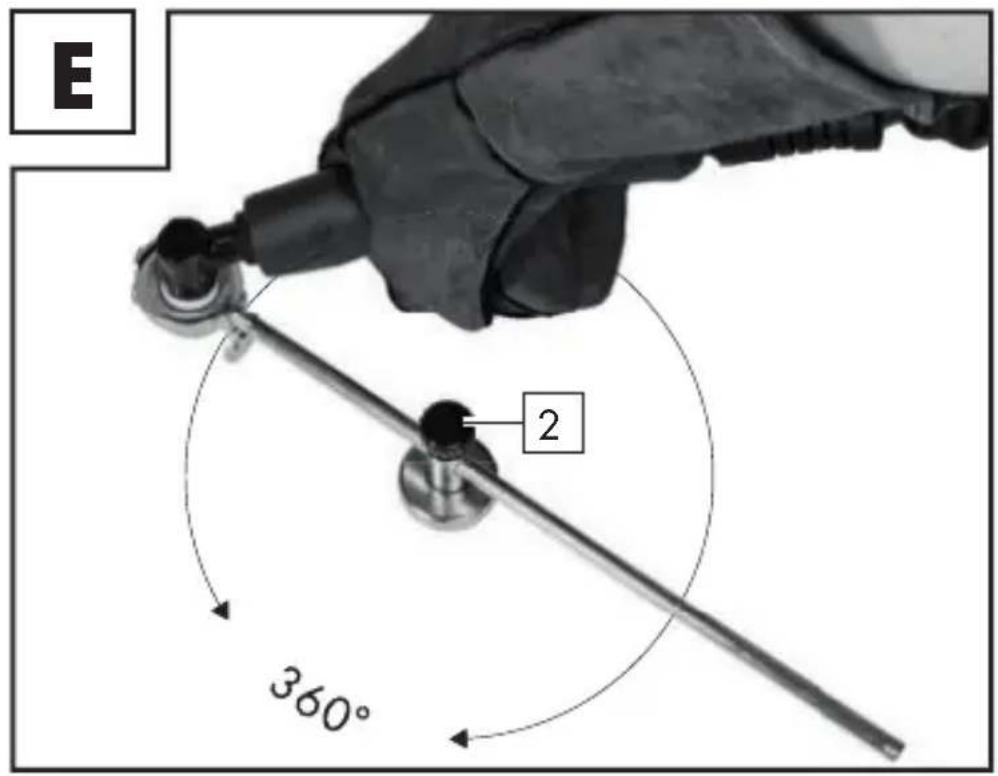

each centre punch) on to the metal surface to be processed. The plasma torch can now be inserted into the torch holder with Bakelite inner ring 5, as shown in Figure B. Using the fixing screw 2 on the magnetic holder 3 / metal pin 4 you can continuously adjust the diameter of the circle cutter 1. When setting a small diameter make sure that when the plasma torch is being used, it will not collide with the fixing screw 2 (Fig. E). Never attach the magnetic foot 3 to the plasma cutter itself or other electrical devices. Make sure that you do not touch the hot plasma torch by accident.

RISK OF BURNS!

- Cleaning

Clean the product with a soft moistened cloth. Do not use any aggressive or abrasive detergents.

- Storage

Keep the device in a dry location and out of the reach of children.

• Information about recycling and disposal

Please return this device, accessories and packaging to your local recycling depot.

Please note the marking on the packaging materials and separate them as necessary. The packaging materials are marked with abbreviations (a) and digits (b) with the following definitions: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composite materials.

- Service

Note:

You can download this handbook and many more, as well as product videos and software at www.lidl-service.com.

With this QR code you can gain immediate access to the Lidl Service page (www.lidl-service.com) and you can open your operating instructions by entering the article number (IAN) 373208.

PDF ONLINE www.lidl-service.com

How to contact us:

GB, IE, NI, CY, MT

Name: C. M. C. GmbH

Website: www.cmc-creative.de

E-mail: [e-mail]

Phone: [phone]

Registered office: Germany

IAN 373208\_2104

Please note that the following address is not a service address. Please first contact the service point given above.

Address:

C. M. C. GmbH

Katharina-Loth-Str. 15

66386 St. Ingbert

GERMANY

Ordering spare parts:

[e-mail]

[e-mail]

Telefon: [phone]

Supplement for operating instructions for circle cutter PPKS 35 B2

FR BE CH

COMPAS POUR DECOUPEUR PLASMA

Close-up of a mechanical component with an arrow indicating upward motion (no text or symbols)

1 9

Close-up of a pink ring with textured surface and label '10' pointing to its side (no other text or symbols)

- Parts description

6 Allen key

7 Screw

8 Locking ring

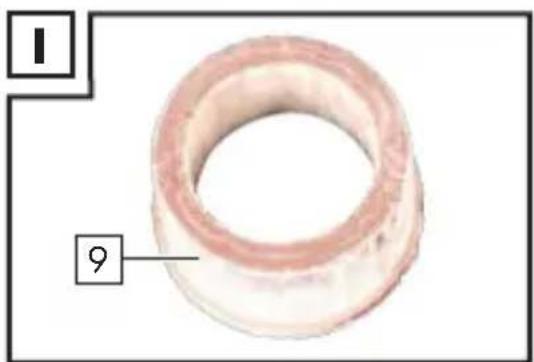

9 Bakelite inner ring with smaller internal diameter

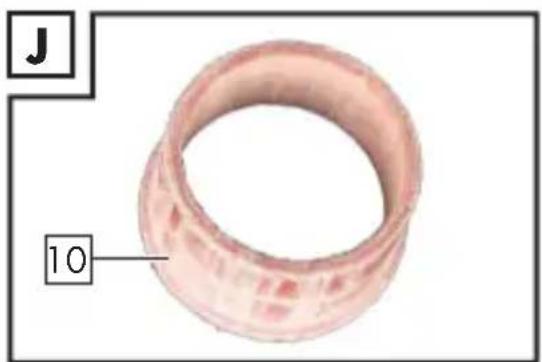

10 Bakelite inner ring with larger internal diameter

- Introduction

The pre-fitted Bakelite inner ring with smaller internal diameter ⑨ of the torch stand with Bakelite inner ring ⑤ is compatible with the plasma burners of the PPS 40 A1 and PPS 40 B2 plasma cutters.

By replacing the pre-fitted Bakelite inner ring with smaller internal diameter 9 with the separate Bakelite inner ring with larger internal diameter supplied 10, the circle cutter 1 can be converted for use with the pilot plasma burner of the PPS 40 B3 plasma cutter as well as with the PSPP 5 A1 pilot ignition conversion set.

Instructions for conversion:

First undo the screw 7 with the Allen key 6. Then remove the locking ring 8. To do this use a flat screwdriver if necessary.

Attention! Keep your fingers away from the notch of the locking ring 8. Danger of injury!

The Bakelite inner ring with smaller internal diameter 9 can be easily removed after the locking ring 8 has been removed by lifting it up out of the torch stand 5. Now insert the Bakelite inner ring with larger internal diameter 10 into the torch stand 5 from the top as well. When doing this, the thicker edge of the Bakelite inner ring must point upwards, the notch must point downwards. Put the screw 7 back in and tighten it with the Allen key 6. Now fix the Bakelite inner ring with larger internal diameter 10 by fitting the locking ring 8. If necessary, use a flat screwdriver and make sure that the locking ring 8 has clicked properly into place in the notch of the Bakelite inner ring with larger internal diameter 10.

To convert back to the Bakelite inner ring with smaller diameter 9 follow the instructions in reverse order.

Now follow the instructions in the section "Fitting the circle cutter" in the operating instructions for the circle cutter.

Before you can insert the plasma burner of your PPS 40 B3 plasma cutter into the torch stand with Bakelite inner ring 5, you must first remove the spacer of the plasma burner, by pushing it down away from the ceramic part as shown in Fig. H.

Otherwise follow the instructions in the section "Handling the circle cutter" in the operating instructions for the circle cutter.

QR code image containing encoded data, no visible human-readable text

You can view the detailed video showing the correct way to replace the Bakelite inner ring using the QR code below.

This video can also be found using this link https://cmc-creative.de/training/.
