Product type	Range hood
Brand	Bertazzoni
Model	KR70HER1NEDA
Width	70 cm
Power supply	220-240 V / 50 Hz
Electrical class	Class I (grounding required)
Minimum safety distance	650 mm above cooking surface
Exhaust duct diameter	120 mm minimum
Number of motor speeds	3 speeds + timed Intensive speed
Special functions	24h (cyclical extraction), Delay (delayed stop 30 min), Intensive (6 min)
Remote control	Yes, wireless (battery CR2032 not included)
Lighting	LED, adjustable intensity (full or reduced)
Grease filters	Dishwasher safe, every 2 months
Carbon filter	Non-washable, replace every 4 months
Filter saturation alarm	Yes (S1 flashing for carbon, steady for grease)
Intended use	Domestic, kitchen odor removal
Materials	Stainless steel, glass
Repairability	Spare parts available via after-sales service

Frequently Asked Questions - KR70HER1NEDA BERTAZZONI

How to correctly install the KR70HER1NEDA hood ?

Installation must be carried out by a qualified technician. Maintain a minimum distance of 650 mm between the hood and the cooking surface. Use an exhaust duct with a diameter of at least 120 mm. Ensure that the mains voltage corresponds to that indicated on the rating plate. For class I appliances, grounding is mandatory.

What is the 24h function and how to activate it?

The 24h function provides cyclical extraction for 10 minutes per hour over a 24-hour cycle. To activate it, press and hold the T1 button for about 2 seconds. The display shows "24" and the dot flashes. This function cannot be activated if Intensive or Delay mode is active.

How to clean the grease filters?

Grease filters should be cleaned every 2 months (or more often with heavy use). They can be washed in the dishwasher or by hand with a mild detergent. After washing, dry them thoroughly before reinstalling.

When and how to replace the carbon filter?

The activated carbon filter cannot be washed or regenerated. It must be replaced about every 4 months (or more often with heavy use). To activate the carbon filter alarm, press and hold the T4 button for 2 seconds (all loads off). The 4 LEDs flash twice to confirm.

What do the indicator lights and saturation alarms mean?

The steady S1 light indicates that the metal grease filters are saturated (after 100 hours of operation) and need to be washed. Flashing S1 indicates that the carbon filter needs to be replaced (after 200 hours). To reset the alarm, press and hold T3 for 3 seconds (all loads off): S1 flashes 3 times.

How to use the remote control?

The remote control works with a CR2032 battery (not included). The buttons allow you to start/stop the motor, turn the lighting on/off (long press for reduced intensity), activate/deactivate Intensive, Delay and 24h modes, and adjust the speed (+/-). Do not expose the remote control to heat sources.

What is the minimum safety distance between the hood and a gas hob?

The minimum distance is 650 mm. If the instructions for the gas hob indicate a greater distance, that must be respected. This distance is important to avoid fire hazards.

What to do if the hood does not turn on?

First check the power supply (socket, fuse). Make sure the plug is properly connected. If the remote control does not work, replace the battery. For any other problem, contact authorized after-sales service. Do not attempt to repair the appliance yourself.

How to deactivate the Delay function?

The Delay function (delayed stop of 30 minutes) is deactivated by briefly pressing the T2 button (or the corresponding button on the remote control). It cannot be activated if Intensive or 24h mode is active.

Where to find the complete manual for the Bertazzoni KR70HER1NEDA hood?

The user and installation manual is available for free on the site notice-facile.com in PDF format. You can download it in several languages, including French. A translated version can be requested by email.

USER MANUAL KR70HER1NEDA BERTAZZONI

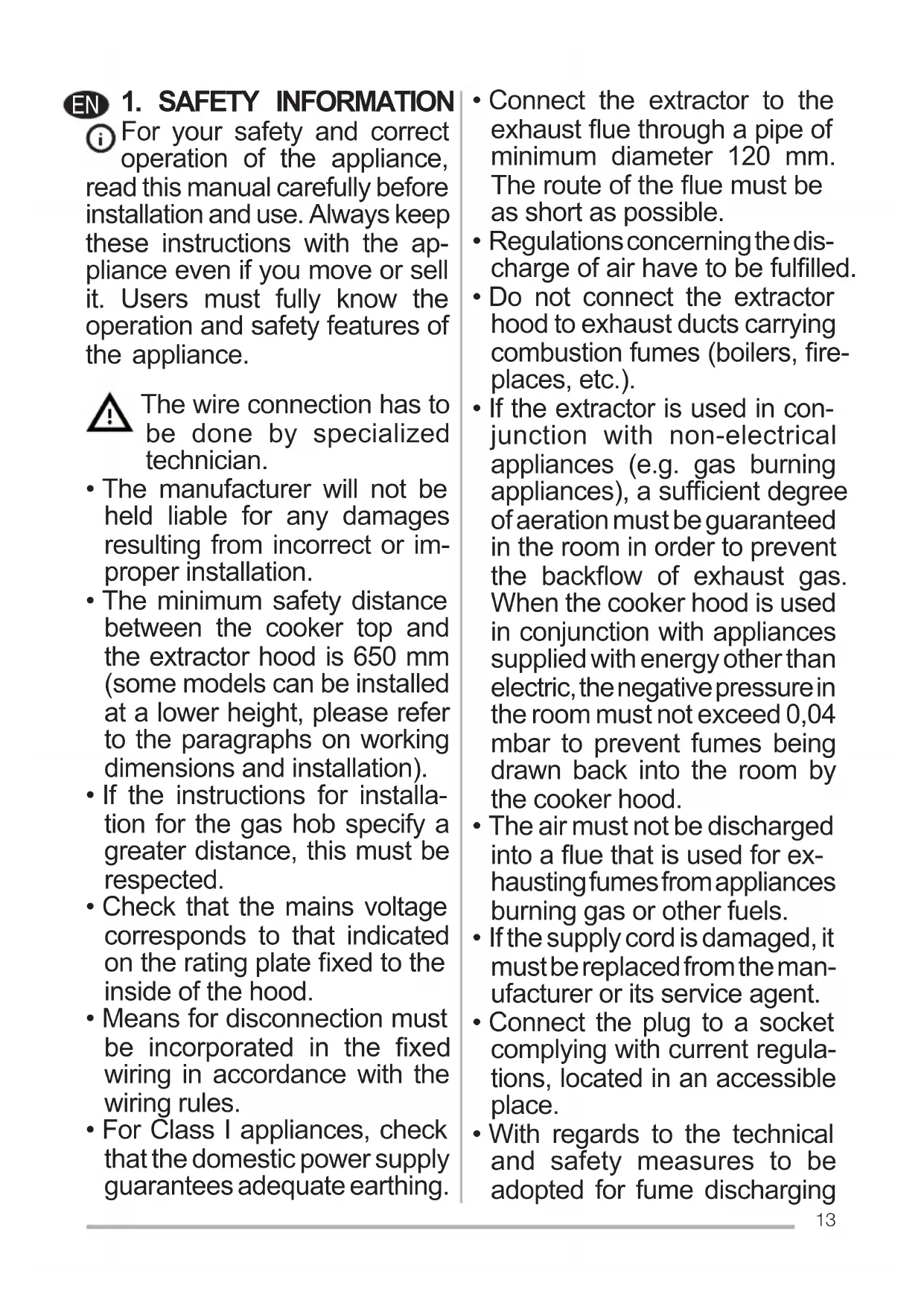

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120~mm . The route of the flue must be as short as possible.

• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.
- Use only screws and small parts in support of the hood.
WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
- Do not flambé under the range hood; risk of fire.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Children should be supervised to ensure that they do not play with the appliance.
- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given supervision or instruction.

! Accessible parts may become hot when used with cooking appliances.

• Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop

where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

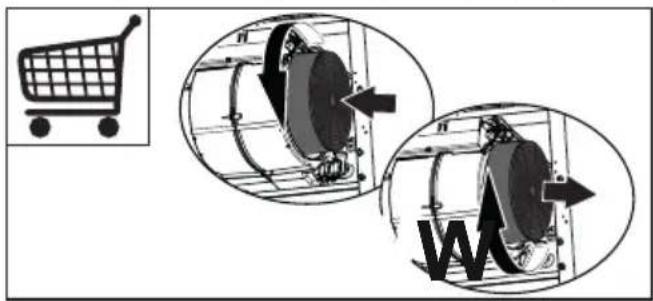

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

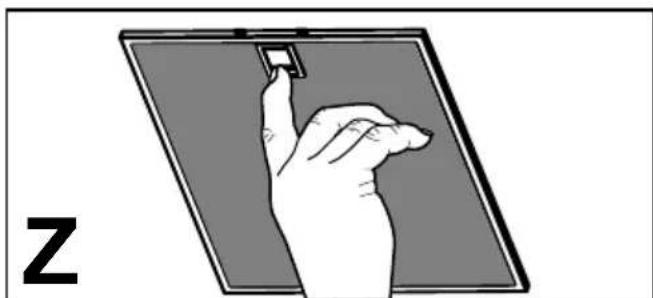

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.

4.CONTROLS

S1
Button	Led Function
L - Turns the lights ON/OFF at maximum strength.
- Press and hold for 2sec to turn the Hood lights On/Off at reduced intensity.
T1 Fixed Turns the motor on/off at speed one.
Flashing 24h function:Press and hold the button for approx. 2 seconds to Activate/Deactivate the motor in 24h Air Circulation mode, a speed that allows ducting for 10 minutes every hour, for a 24 hour cycle. Cannot be activated if Intensive or Delay modes are active.
T2 Fixed Turns the Motor on at speed two.
Flashing Delay function:Press and hold the button for approx. 3 seconds to Activate/Deactivate the Delay function (automatic switching off of the Motor, the Fans and the Lighting with a 30' delay). Cannot be enabled when Intensive or 24h are on.
T3 Fixed Turns the Motor on at speed three.
Flashing	Press and hold the button for approximately 3 seconds, with all the loads turned off (Motor and Lights), to reset the Filter saturation alarm. The LED S1 flashes three times.
T4 Fixed	Turns the Motor on at Intensive.Speed.This speed is timed to run for 6 minutes. At the end of this time, the system returns automatically to the speed that was set before. If it is activated with the motor turned off, the hood will switch to OFF at the end of the time.
Flashing	Press and hold the button for approximately 2 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm on. The 4 LEDs on the buttons flash twice to confirm.To turn the alarm off, press the button again and hold for at least 2 seconds. The 4 LEDs on the buttons flash once.
S1 Fixed	Signals the Metal Grease Filter saturation alarm, indicating that it is necessary to wash the filters. The alarm is triggered after the Hood has been in operation for 100 working hours.
Flashing	When this is activated, it signals the Activated Charcoal Filter saturation alarm, indicating that the filter must be changed; the Metal Grease Filters must also be washed. The Activated Charcoal Filter saturation alarm comes into operation after the Hood has been working for 200 hours.

5. REMOTE CONTROL

The remote control is powered by a CR2032 type 3 V battery (not included).

• Do not place the remote control near heat sources.
• Do not discard the batteries with normal waste, they must be put into the specific containers.

	Turns the motor On and Off.
	-
	-
	Turns the lights On/Off.
	Press and hold for 2sec to turn the Hood lights On/Off at reduced intensity.
	Activates/Deactivates Intensive operation.
	Brief pressure: Activates/Deactivates the Delay function: automatic switch-off with a 30' delay. The display shows the operating speed and the dot at the bottom right flashes once a second. Press for 2 seconds: Activates/Deactivates the 24h function: turns the suction motor on at speed one and effects one 10 minute extraction every hour. The display shows the number 24 and the dot at the bottom right flashes once a second.
+	Increases the working speed of the motor.
-	Decreases the working speed of the motor.

6. LIGHTING

• For replacement contact technical support ("To purchase contact technical support").
