USER MANUAL DT 108 BEYERDYNAMIC

Professional Headphone

Casque de Studio

DT 108/109

Design Features ...... Page 10

Connection.... Page 10

Operation Page 11

Maintenance. Page 12

Safety Page 12

Models Page 12

Spare Parts Page 13

Optional Accessories.... Page 13

Technical Specifications.... Page 14

Frequency response curve, Polar pattern,

Wiring diagrams ...... Page 22

NOTICE D'UTILISATION SERIES DT 100

Description Page 16

Branchements. Page 16

Utilisation Page 16

Entretien. Page 17

Sécurité Page 18

Versions Page 18

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of hands assembling or adjusting a mechanical component (no text or symbols)

Simple line drawing of a mechanical device with no text or symbols

② Schraube lösen.

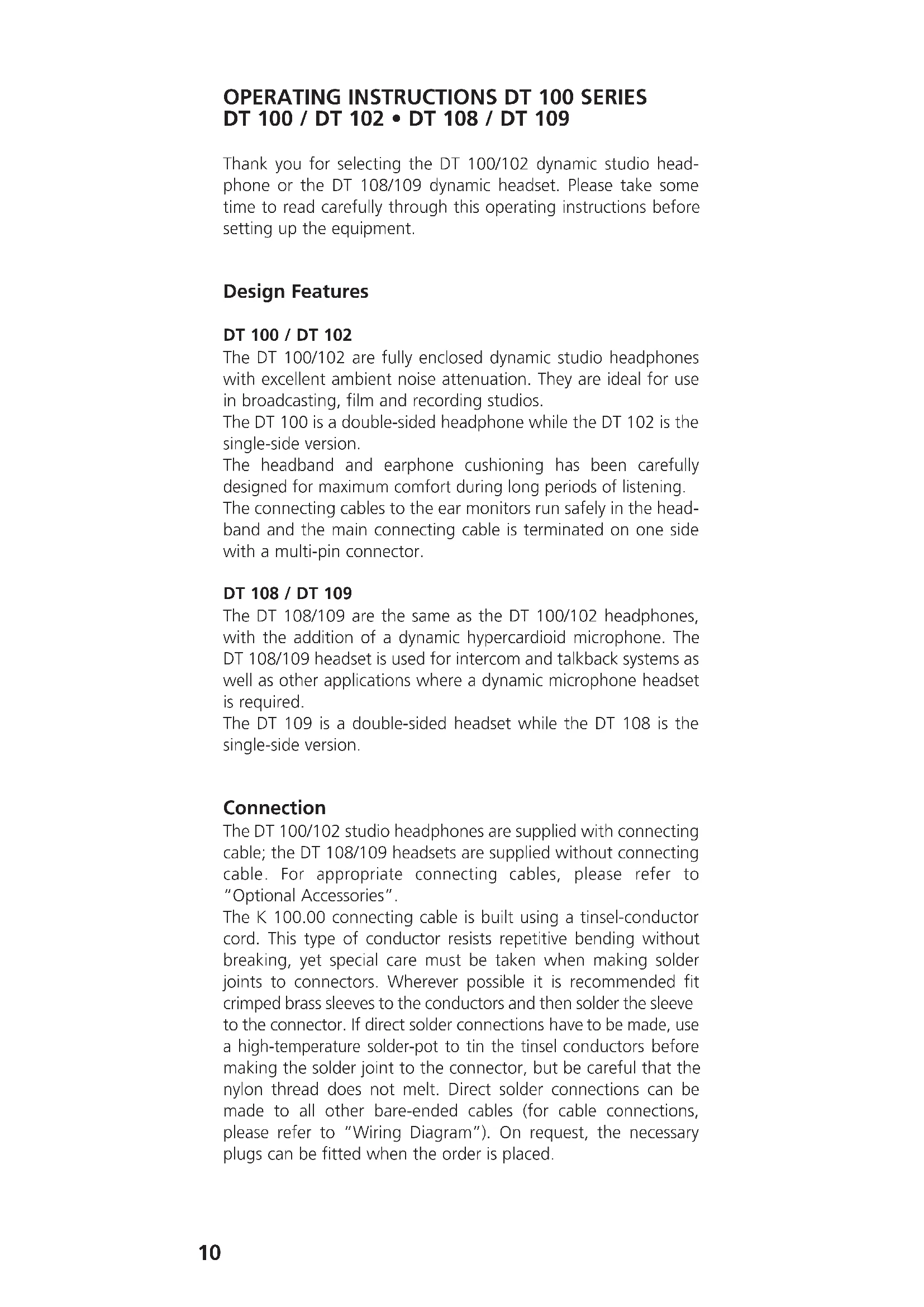

Thank you for selecting the DT 100/102 dynamic studio head-phone or the DT 108/109 dynamic headset. Please take some time to read carefully through this operating instructions before setting up the equipment.

Design Features

DT 100 / DT 102

The DT 100/102 are fully enclosed dynamic studio headphones with excellent ambient noise attenuation. They are ideal for use in broadcasting, film and recording studios.

The DT 100 is a double-sided headphone while the DT 102 is the single-side version.

The headband and earphone cushioning has been carefully designed for maximum comfort during long periods of listening.

The connecting cables to the ear monitors run safely in the headband and the main connecting cable is terminated on one side with a multi-pin connector.

DT 108 / DT 109

The DT 108/109 are the same as the DT 100/102 headphones, with the addition of a dynamic hypercardioid microphone. The DT 108/109 headset is used for intercom and talkback systems as well as other applications where a dynamic microphone headset is required.

The DT 109 is a double-sided headset while the DT 108 is the single-side version.

Connection

The DT 100/102 studio headphones are supplied with connecting cable; the DT 108/109 headsets are supplied without connecting cable. For appropriate connecting cables, please refer to "Optional Accessories".

The K 100.00 connecting cable is built using a tinsel-conductor cord. This type of conductor resists repetitive bending without breaking, yet special care must be taken when making solder joints to connectors. Wherever possible it is recommended fit crimped brass sleeves to the conductors and then solder the sleeve to the connector. If direct solder connections have to be made, use a high-temperature solder-pot to tin the tinsel conductors before making the solder joint to the connector, but be careful that the nylon thread does not melt. Direct solder connections can be made to all other bare-ended cables (for cable connections, please refer to "Wiring Diagram"). On request, the necessary plugs can be fitted when the order is placed.

Operation

The DT 100/102 studio headphone and the DT 108/109 headset are professional products. It is important that the external equipment they are connected to is of similar quality and has the correct impedance and power ratings to achieve the best performance. Please refer to the "Technical Specifications" for detailed information.

Convention states that when using the DT 108/109 the boom microphone is placed over the left ear. The microphone can be used from the right ear, but if true L and R headphone status needs to be maintained, it will be necessary to make a custom lead with the headphone connections reversed (swap brown/orange on the left side and red/blue on the right side). For connections refer please to "Block Diagram".

Illustration showing hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

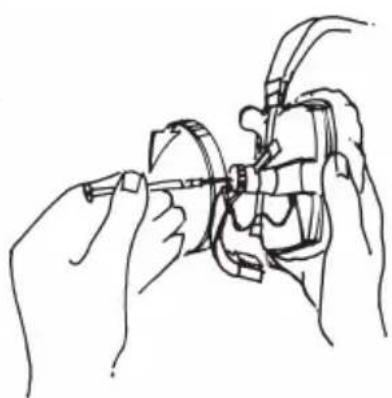

1 Lift cap with small screwdriver.

Line drawing of hands assembling or adjusting a mechanical component (no text or symbols)

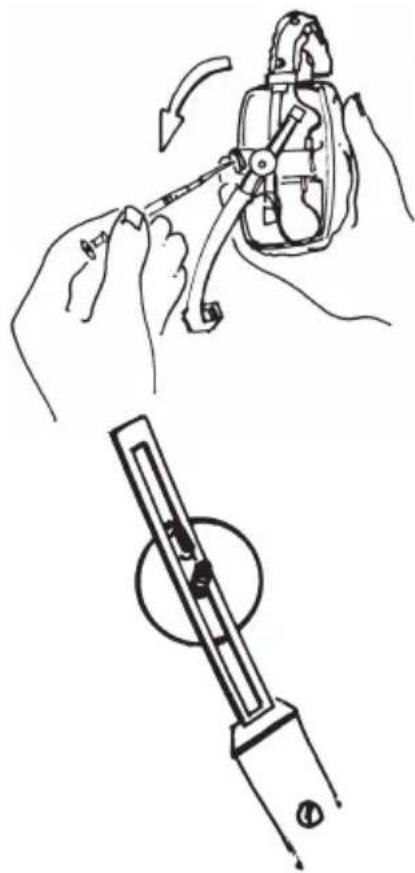

2 Loosen flat screw.
3 Turn disc 180°. Nose of the disc points to the upper end. of the boom arm.

4 Tighten flat screw and put cap on turning knob.

The microphone should be positioned to the side of the mouth, about 20 - 30 mm forward. This will keep it within the direct sound path, but out of the breath stream, therefore minimising any 'pop' sounds.

Important!

Please note that there have been two versions of ear cup connecting cables used during production. The older DT 100 models have a cable with screw terminal contacts whereas later versions have soldered connections. Please make sure the correct cable version is requested when ordering.

Maintenance

To keep the headband and earpads clean use a damp cloth with a gentle cleansing agent (such as washing-up liquid). Make sure not to allow any water to enter the transducer elements. Do not use any solvent cleaners.

The microphone pop-shield of the DT 108/109 headset can be easily removed and washed in warm water. Please take care that the pop shield is completely dry before it is replaced.

The fully modular design of the DT 100/102 and the DT 108/109 allows field replacement servicing without the need for specialist tools. The order numbers of the spare parts are listed under "Spares".

In the unlikely event of equipment failure, the product should be returned to your beyerdynamic dealer.

Safety

We strongly recommend that the headphone or headset is plugged into the drive amplifier before you put them on. This will give the technician the chance to check that the volume levels are not too high.

Be aware that the very low levels of distortion can make listening levels higher than is perceived. Please take into consideration, that too high level hearing may lead, after considerable time, to irrevocable hearing damage.

Models

DT 100

Studio headphone, grey, with K 100.07 cable

(stereo jack 6.35 mm), 3 m, plug-in type

16 Ω .... Order # 474.169

400 Ω .... Order # 421.022

Studio headphone, black, with K 100.07 cable

(stereo jack 6.35 mm), 3 m, plug-in type

16 Ω .... Order # 474.177

400 Ω .... Order # 421.464

DT 102

Single-ear studio headphone, grey, with K 100.07 cable

(stereo jack 6.35 mm), 3 m, plug-in type

16 Ω .... Order # 474.185

400 Ω .... Order # 421.561

DT 108

Single-ear headset, grey

200/50 Ω .... Order # 131.342

200/400 Ω .... Order # 101.702

Single-ear headset, black

200/50 Ω .... Order # 402.958

200/400 Ω .... Order # 402.966

DT 109

Headset, grey

200/50 Ω .... Order # 101.877

200/400 Ω .... Order # 101.885

Headset, black

200/50 Ω .... Order # 402.974

200/400 Ω .... Order # 402.982

Spare Parts

BN 59-18/A Headband pad .... . Order # 108.715

EDT 100 S Ear pads, soft PVC ..... Order # 907.003

EDT 100 P Ear pads, plush .... . Order # 945.576

EDT 100 T Ear pads, cotton jersey ..... Order # 945.584

BN 56-79/A Pop shield (5 pcs., supplied

with DT 108/109)....Order # 108.677

Optional Accessories

DT 100/102

K 100.00 Straight cable, 3 m, bare-ended .... . Order # 101.170

K 100.07 Straight cable, 3 m, with 1/4" stereo jack plug.....Order # 101.753

WK 100.00 Coiled cable, 3 m long, bare-ended .... . Order # 101.788

WK 100.07 Same as WK 100.00, but with 1/4" stereo jack plug.....Order # 101.826

DT 108/109

K 109.00 - 1,5 M Straight cable, 1.5 m long, bare-ended .... . Order # 101.907

K 109.00 - 3,0 M Straight cable, 3 m long, bare-ended .... . Order # 127.949

K 109.28 - 1,5 M Straight cable, 1.5 m long, with 4-pin XLR socket .... . Order # 220.132

K 109.38 - 1,5 M Straight cable, 1.5 m long, with 5-pin XLR plug ..... Order # 406.538

K 109.40 - 1,5 M Straight cable, 1.5 m long, with 3-pin XLR plug and 1/4" stereo jack plug.....Order # 449.121

K 109.42 - 1,5 M Straight cable, 1.5 m long, with 4-pin XLR plug .... . Order # 446.548

WK 109.00 Coiled cable, 3 m, bare-ended. Order # 198.900

Technical Specifications

Headphone

Transducer type .... Dynamic

Operating principle .... Closed

Frequency response 30 - 20,000 Hz

Nominal impedance....400 Ω ± 10% per system

Nominal SPL 94 dB SPL

T.H.D. < 1%

Input power rating 1000 mW = 124 dB SPL

Ambient noise attenuation. . . . . . . approx. 20 dBA

Headband pressure 4.5 N

Weight (without cable). . . . . . . . . . DT 100: 350 g

DT 102: 250 g

DT 108: 283 g

DT 109: 390 g

DT 108 / DT 109

Microphone

Transducer type .... Dynamic, moving coil

Frequency response ..... 40 - 12,000 Hz

Polar pattern .... Hypercardioid

Noise cancellation ....>30 dB

Output voltage

at a distance of 5 cm .... approx. 2.5 mV

Nominal impedance 200 Ω

Nominal output impedance ....≥ 1000 Ω

Weight incl. boom arm ..... 48 g

english

NOTICE D'UTILISATION SERIES DT 100 DT 100 / DT 102 • DT 108 / DT 109

Illustration showing two different techniques for using a tool, one with a curved tool and arrow indicating rotation, the other with a circular tool (no text or symbols)

Line drawing of hands assembling or adjusting a mechanical component (no text or symbols)

② Enlevez la vis.

Distorsion. .... < 1%

Charge nominale efficace....1000 mW = 124 dB SPL

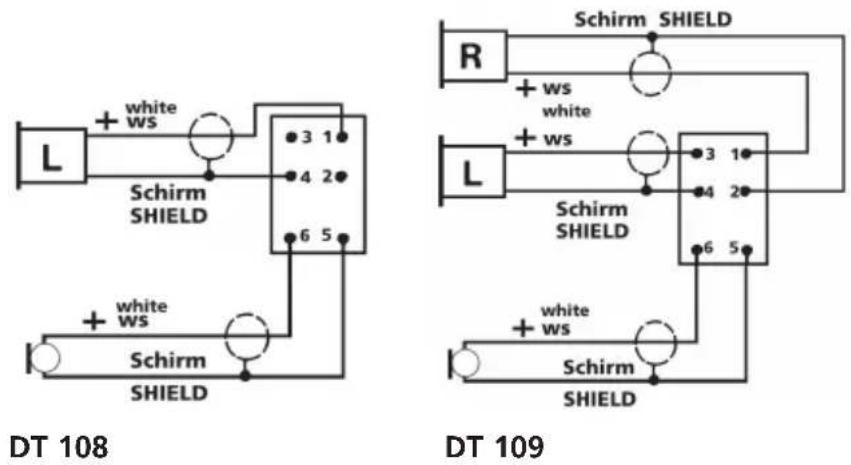

L + ws Schirm SHIELD ●3 1● ●4 2● ●6 5●

DT 102

rt R+ or L+ br L- bl R-

K 100

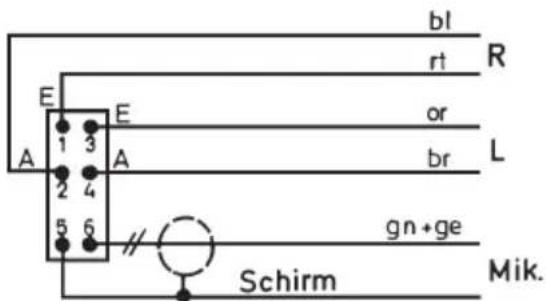

bl rt R or L br E E 1 3 A 2 4 5 6 gn+ge Schirm Mik.

K 109

bl = blau / blue / bleu

br = braun / brown / brun

ge = gelb / yellow / jaune

gr = grün / green / vert

or = orange / orange / orange

rt = rot / red / rouge

ws = weiß / white / blanc
