F1 Flexible Array Loudspeaker System

F1 Model 812 and F1 Subwoofer

Owner's Guide

Brugervejledning

Bedienungsanleitung

Guía del usuario

Please read this owner's guide carefully and save it for future reference.

WARNINGS:

• To reduce the risk of fire or electrical shock, do not expose the product to rain or moisture.
• Do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on or near the apparatus. As with any electronic products, use care not to spill liquids into any part of the system. Liquids can cause a failure and/or a fire hazard.
• Do not place any naked flame sources, such as lighted candles, on or near the apparatus.

The lightning flash with arrowhead symbol within an equilateral triangle alerts the user to the presence of uninsulated dangerous voltage within the system enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.

The exclamation point within an equilateral triangle, as marked on the system, is intended to alert the user to the presence of important operating and maintenance instructions in this owner's guide.

This product contains magnetic material. Please contact your physician if you have any questions on whether this might affect the operation of your implantable medical device.

Contains small parts which may be a choking hazard. Not suitable for children under age 3.

CAUTIONS:

• This product shall be connected to a mains socket outlet with a protective earthing connection.
• Do not make unauthorized alterations to the product; doing so may compromise safety, regulatory compliance, system performance, and may void the warranty.

Notes:

• Where the mains plug or appliance coupler is used as the disconnect device, such disconnect device shall remain readily operable.
• The product must be used indoors. It is neither designed nor tested for use outdoors, in recreational vehicles, or on boats.

This product conforms to all applicable EU directive requirements. The complete Declaration of Conformity can be found at www.Bose.com/compliance.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, Contact your local municipality, disposal service, or the shop where you bought this product.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their own expense. This Class A digital apparatus complies with Canadian ICES-003. Changes or modifications not expressly approved by Bose Corporation could void the user's authority to operate this equipment.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources, such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way: such as power supply cord or plug is damaged; liquid has been spilled or objects have fallen into the apparatus; the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

For Japan only:

Provide an earth connection before the main plug is connected to the mains.

For Finland, Norway, and Sweden:

CAUTION: Only suitable for use at areas with altitude less than 2000m.

Please complete and retain for your records

Now is a good time to record the serial numbers of your product. Serial numbers can be found on the rear panel. You can register your product online at www.Bose.com/register or by calling 877-335-2673. Failure to do so will not affect your warranty rights.

F1 Model 812 Loudspeaker ____

F1 Subwoofer

Introduction

Product Description 4

Features and Benefits 4

Carton Contents 4

F1 Model 812 Flexible Array Loudspeaker.... 5

F1 Subwoofer 5

Using the Flexible Array 6

Adjusting the array.... 6

Four coverage patterns.... 6

Applications 7

Setting Up the System

Using the F1 Model 812 with the F1 Subwoofer.... 8

Using the F1 Model 812 on a Tripod Stand....9

Operation

F1 Model 812 Control Panel.... 10

F1 Subwoofer Control Panel 11

Power On/Off Sequence 12

Setting EQ selector switches 12

Connecting Sources.... 12

Setting Up INPUT 1 with a Microphone.... 12

Setting Up INPUT 1 with a Source 12

Setting Up INPUT 2 with a Source 12

Connection Scenarios.... 13

Full band, mixing console stereo output to L/R F1 Model 812 Loudspeakers.... 13

Full band with mixing console, one F1 Subwoofer and two F1 Model 812 Loudspeakers.... 13

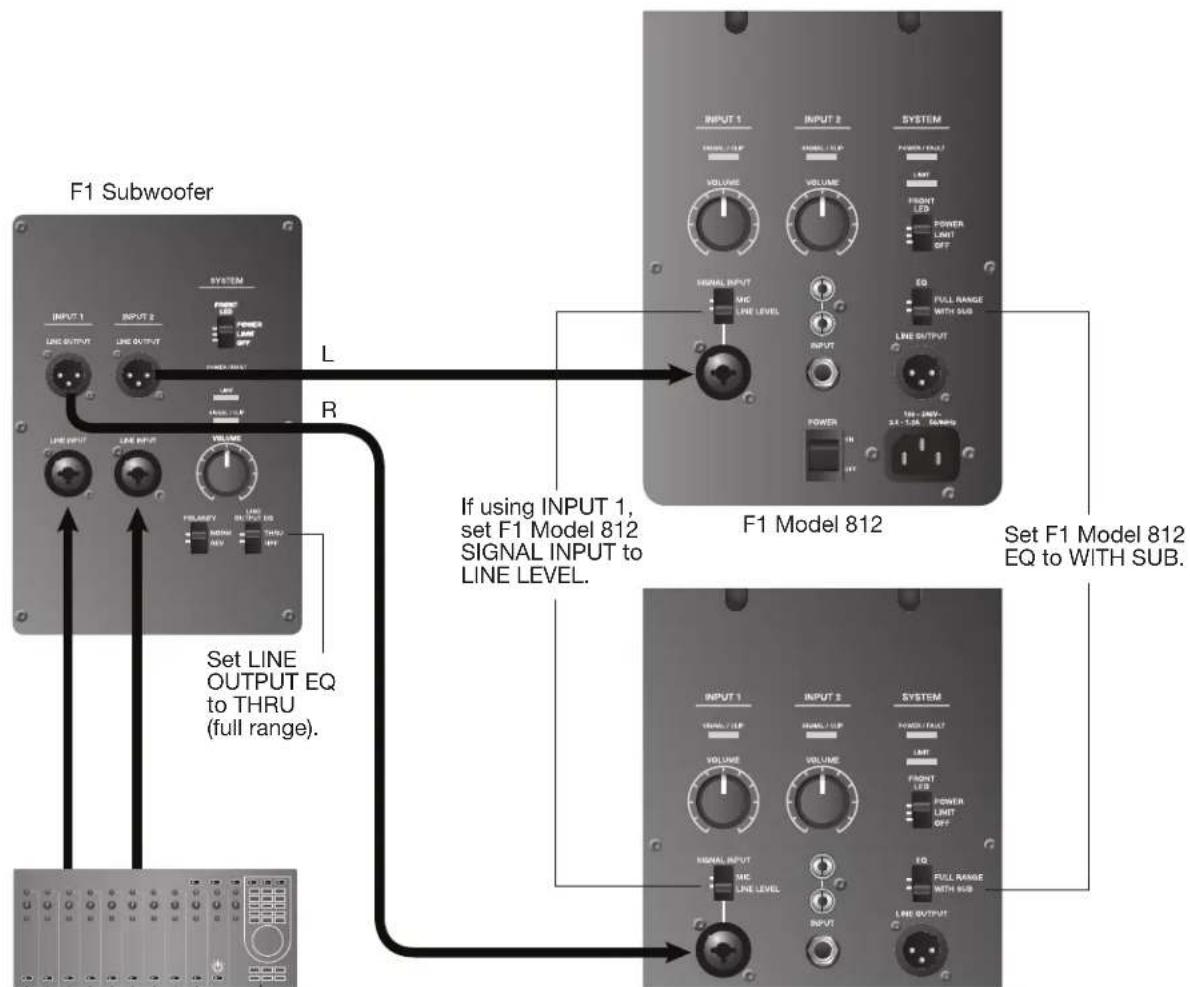

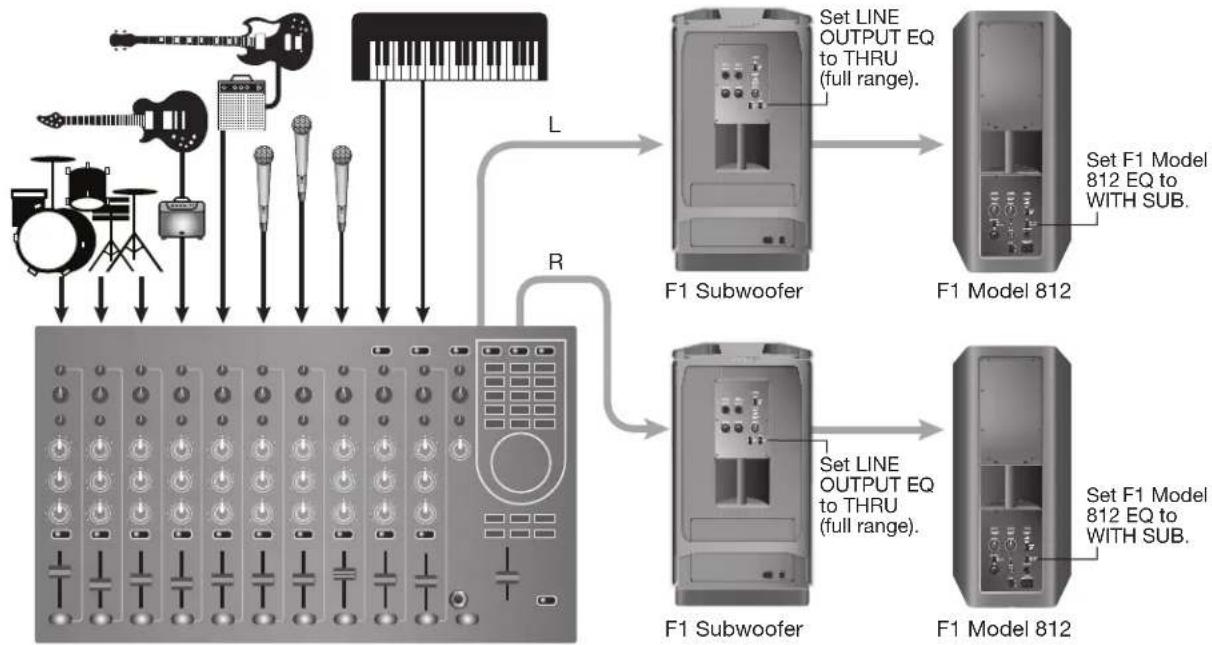

Mixing console stereo output to F1 Subwoofer and left/right F1 Model 812 Loudspeakers 14

Full band with mixing console stereo output to two F1 Subwoofers and two F1 Model 812 Loudspeakers...... 15

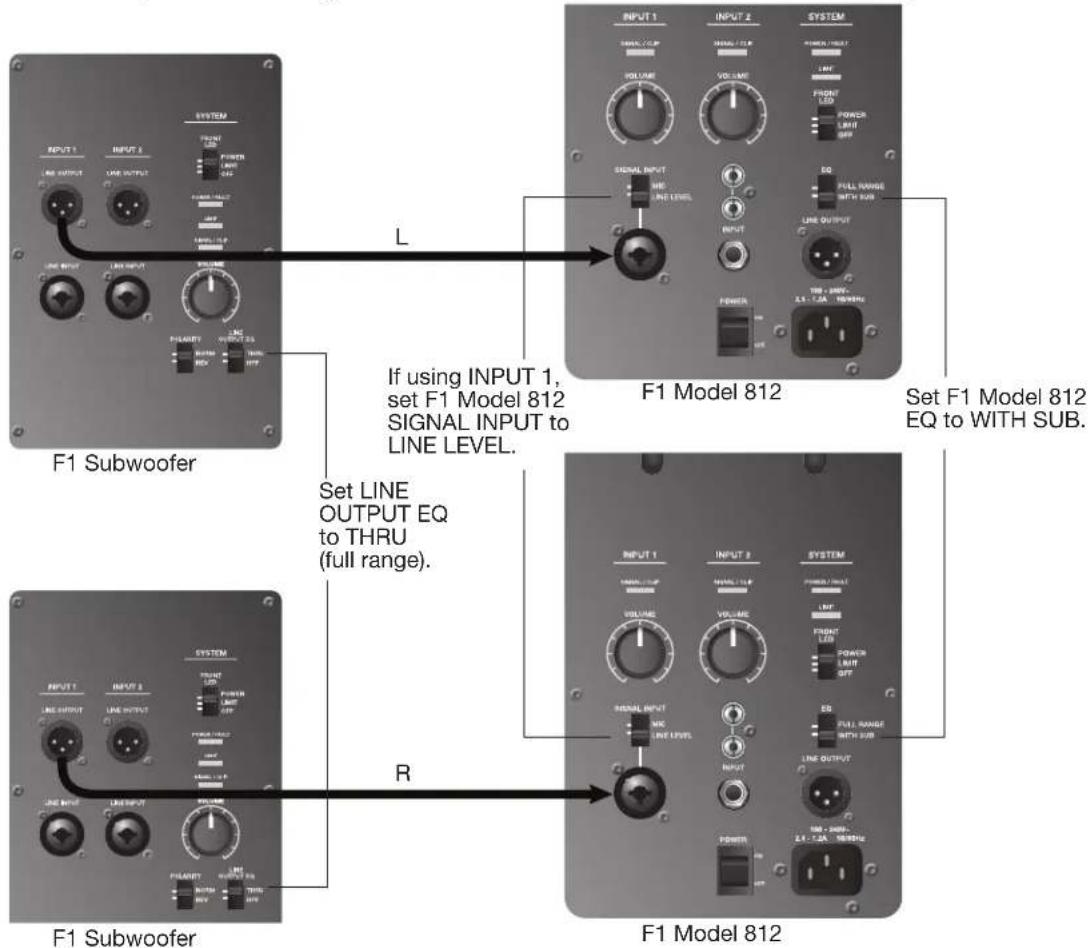

Stereo input to Left/right F1 Subwoofers and F1 Model 812 Loudspeakers 15

Mic to F1 Model 812 Loudspeaker INPUT 1 16

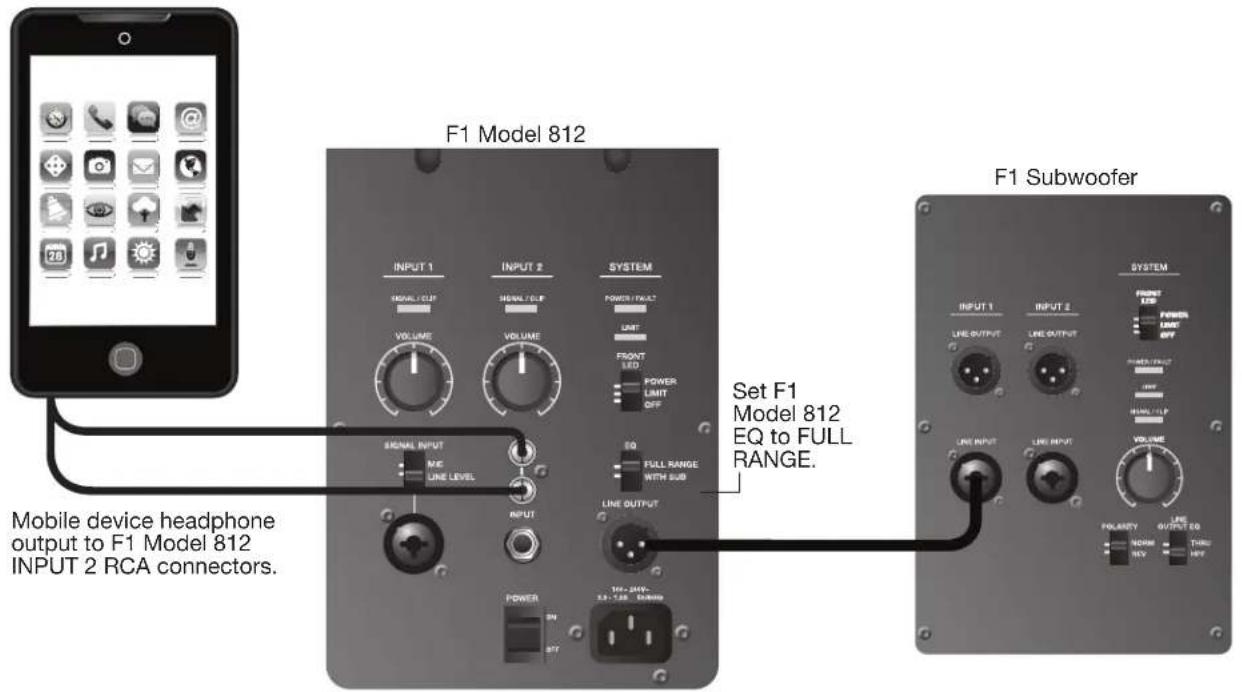

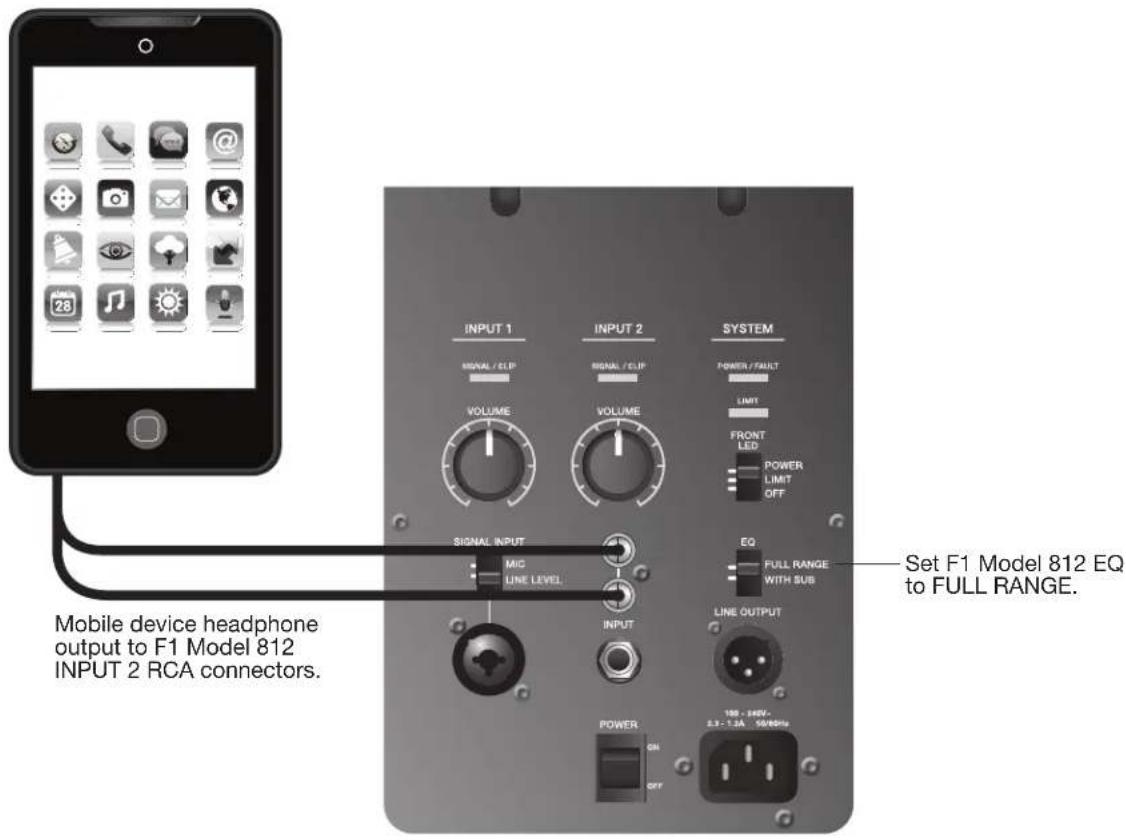

Mobile device to single F1 Model 812 Loudspeaker.... 16

Mobile device to F1 Model 812 Loudspeaker and F1 Subwoofer.... 17

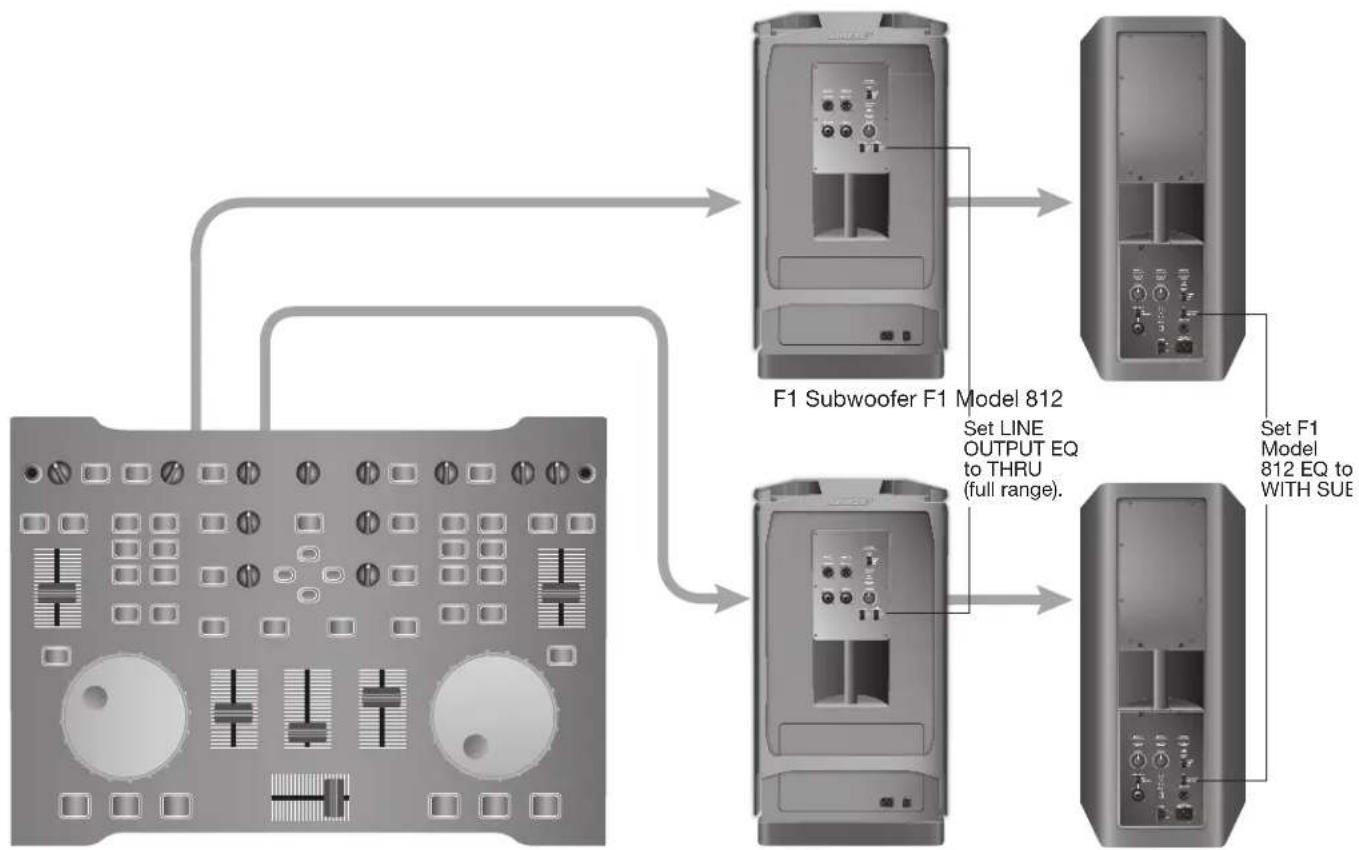

DJ Console to two F1 Subwoofers and two F1 Model 812 Loudspeakers.... 17

Care and Maintenance

Caring for Your Product.... 18

Cleaning.... 18

Getting Service 18

Troubleshooting.... 18

LED Indicators.... 19

Limited Warranty and Registration 19

Accessories 19

Technical Information 20

Physical.... 20

Electrical 20

Input/Output Connector Wiring Reference 20

Product Description

The Bose® F1 Model 812 Flexible Array Loudspeaker is the first powered portable loudspeaker that lets you control its vertical coverage pattern. Simply push or pull the array into position to create “Straight,” “C,” “J” or “Reverse J” coverage patterns. And once set, the system automatically changes the EQ to maintain optimum tonal balance for each coverage pattern. So whether you’re playing at floor level, on a stage, or facing raked seats or bleachers, you can now adapt your PA to match the room.

Engineered with an array of eight high-output mid/high drivers, a high-powered 12" woofer and a lower crossover point, the loudspeaker delivers high SPL performance while maintaining vocal and midrange clarity that's dramatically better than conventional loudspeakers.

For extended bass response, the Bose F1 Subwoofer packs all the power of a larger bass box into a more compact design that's easier to carry and fits in a car. A mounting stand for the loudspeaker is integrated right into the body of the subwoofer, so you always know where it is, making setup fast and easy. The stand even includes cable channels to neatly hide the wires.

The loudspeaker and subwoofer each have 1,000 watts of power, so you can fill nearly any venue with sound.

And now getting there is easier, too. The loudspeaker and subwoofer feature light weight, high impact composite materials and strategically placed handles for easy transport.

For the first time, the F1 Model 812 Loudspeaker allows you to focus sound where it's needed. So no matter where you perform, your PA has you covered.

Features and Benefits

• The flexible, eight-loudspeaker array of the F1 Model 812 allows you to select one of four coverage patterns to direct sound to where the audience is located resulting in better overall clarity throughout the venue.
• The vertical orientation of the eight-driver loudspeaker array helps deliver wide, consistent sound coverage, providing better clarity and tonal balance for speech, music, and instruments.
• F1 Subwoofer provides a unique built-in speaker stand for the F1 Model 812, eliminating the need for a conventional pole mount.
• Attractive design creates a unique system with a rugged but professional look.
• The bi-amplified design includes powerful, lightweight amplifiers that provide consistent output over long durations with extended dynamic range and lower operating temperatures.

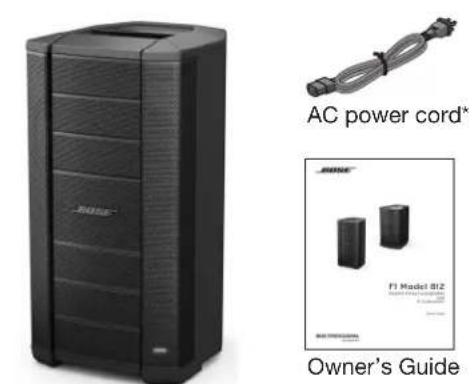

Carton Contents

Each loudspeaker is packaged separately with the items indicated below.

F1 Model 812 Flexible Array Loudspeaker F1 Subwoofer

F1 Model 812 Loudspeaker

Exterior view of a black industrial waste sorting unit (no visible text or symbols)

AC power cord*

Owner's Guide

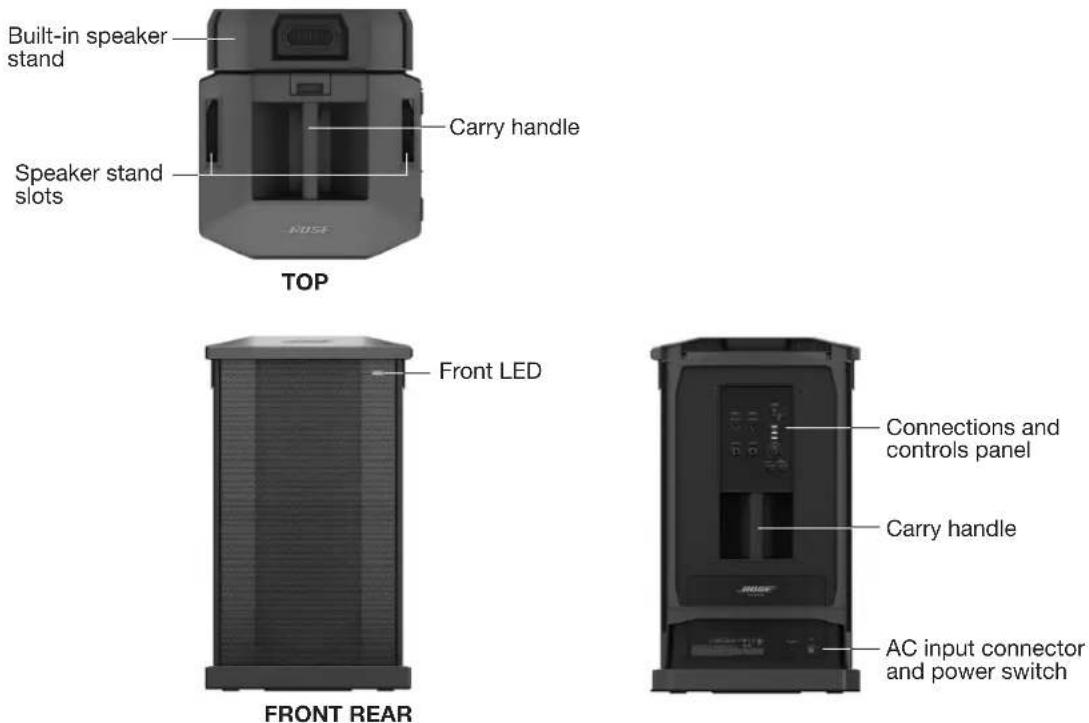

F1 Subwoofer with built-in stand

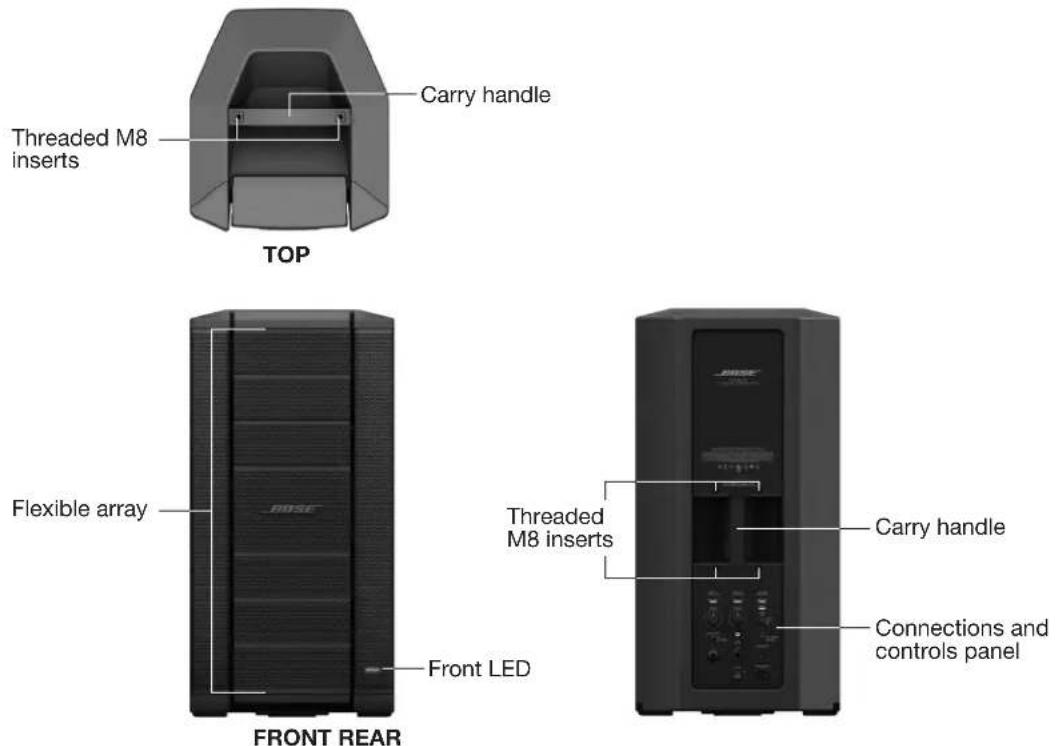

F1 Model 812 Flexible Array Loudspeaker

Note: The F1 Model 812 comes with threaded M8 inserts for rigging or attaching accessory brackets.

CAUTION: Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker overhead.

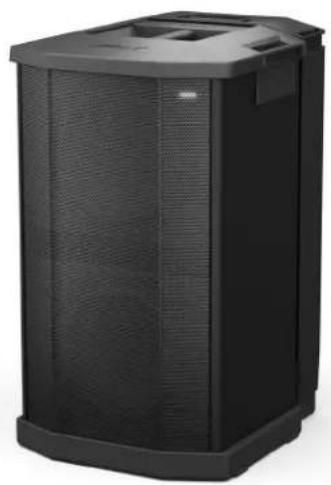

F1 Subwoofer

English - 5

Using the Flexible Array

You can shape the coverage pattern by moving the position of the top and bottom array. The array position is held in place by magnets that trigger internal sensors that adjust EQ according to array shape.

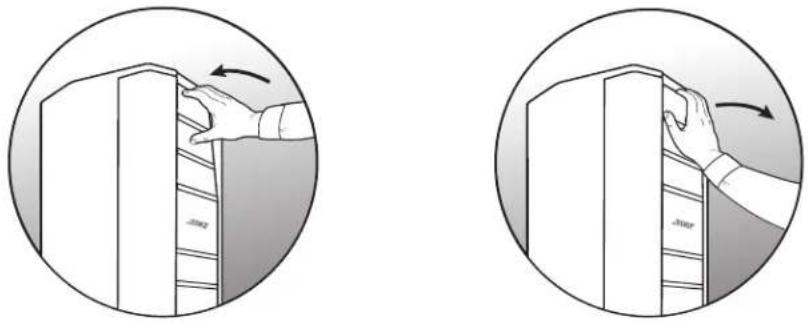

Adjusting the array

Pushing the array in Pulling the array out

Four coverage patterns

Straight pattern
Pull top and bottom array out
J pattern
Pull top array out, push bottom array in.

Diagram of a device casing with internal structure and directional arrows indicating flow or movement (no text or symbols)

C pattern
Push top and bottom array in.

Reverse-J pattern
Push top array in, pull bottom array out.

Applications

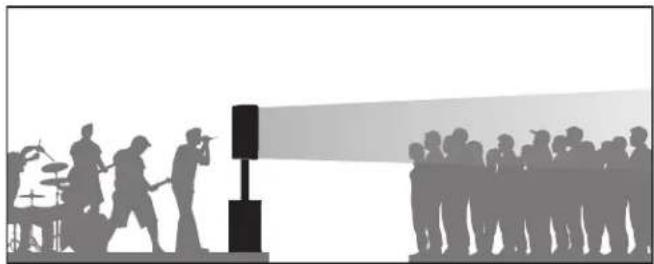

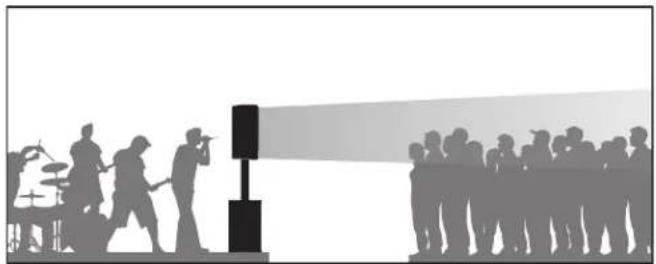

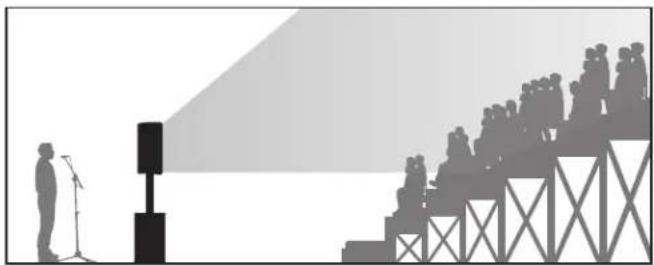

Straight pattern

Use the straight pattern when the audience is standing and their heads are approximately at the same height as the loudspeaker.

Line drawing of a cabinet or storage unit with shelves and top panel (no text or symbols)

Silhouette of a group of people in front of a large black structure, possibly a stage or monument (no text or symbols visible)

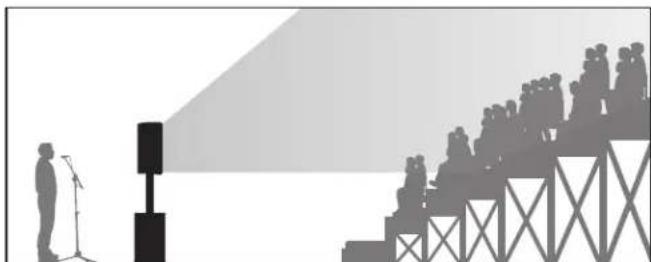

Reverse-J pattern

The reverse-J pattern is good for an audience in raked seating that starts at loudspeaker height and extends above the top of the loudspeaker.

Line drawing of a cabinet or storage unit with no visible text or symbols

Silhouette illustration of a speaker at a podium addressing an audience on a stage (no text or symbols)

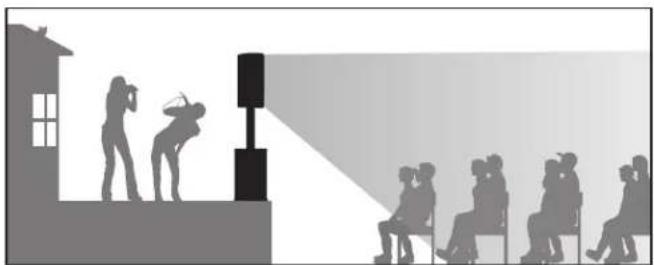

J pattern

The J pattern works well when the loudspeaker is up on a raised stage and the audience is seated below on the floor.

Line drawing of a cabinet or rack unit with shelves and a door, no text or symbols present

Silhouette illustration of people in various poses, including a person taking a photo near a building and sitting on chairs, with no visible text or symbols.

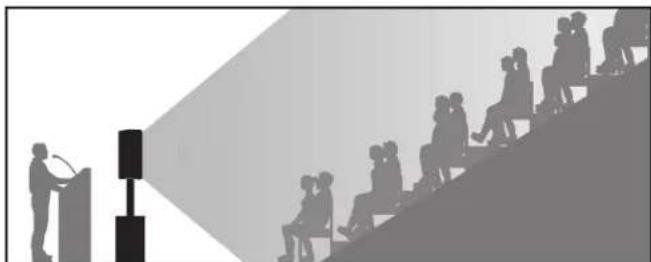

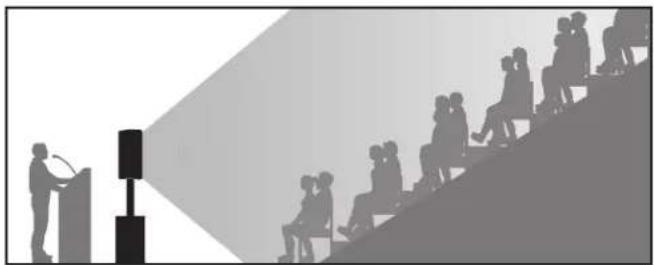

C pattern

Use the C pattern for raked seating in an auditorium when the first row is on the floor with the loudspeaker.

Line drawing of a cabinet or rack unit with no visible text, numbers, or symbols

Silhouette illustration of a speaker at a podium addressing a group of seated people on steps, with no visible text or symbols.

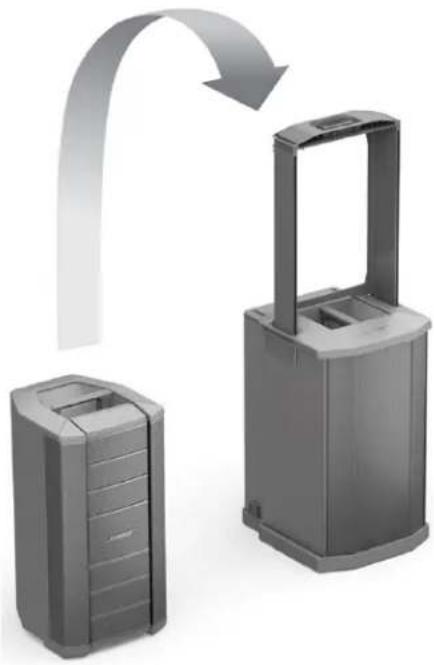

Using the F1 Model 812 with the F1 Subwoofer

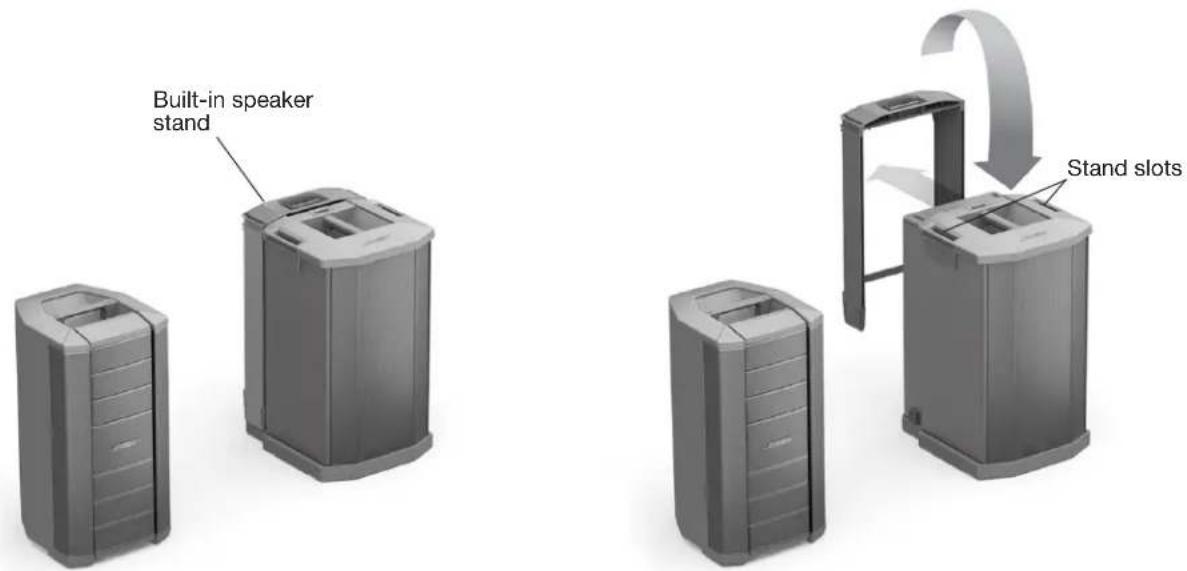

The built-in loudspeaker stand is stored in the rear of the subwoofer. Setting up the F1 Model 812 Loudspeaker with the F1 Subwoofer is easy:

1. Remove the built-in speaker stand from the back of the F1 Subwoofer and insert it into the stand slots.

1. Lift the F1 Model 812 Loudspeaker and place it on the stand.

Two gray industrial waste bins with a curved arrow indicating rotation or disposal (no text or symbols)

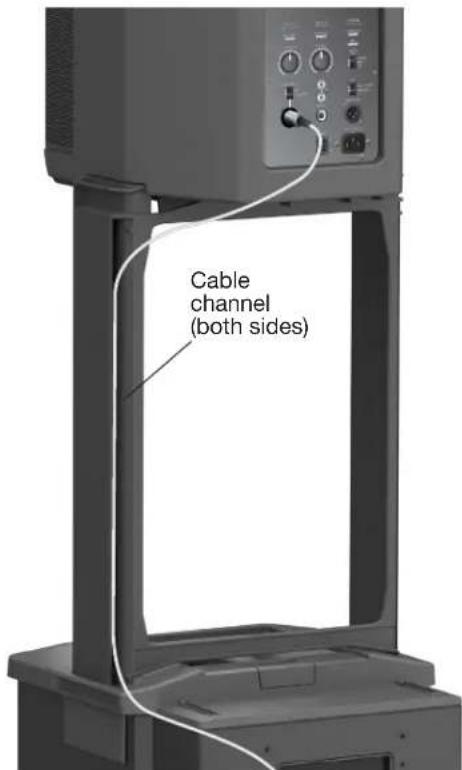

1. Plug in your audio cables. Feed the cables from the F1 Model 812 through the channels in the speaker stand to help keep them organized.

Using the F1 Model 812 on a Tripod Stand

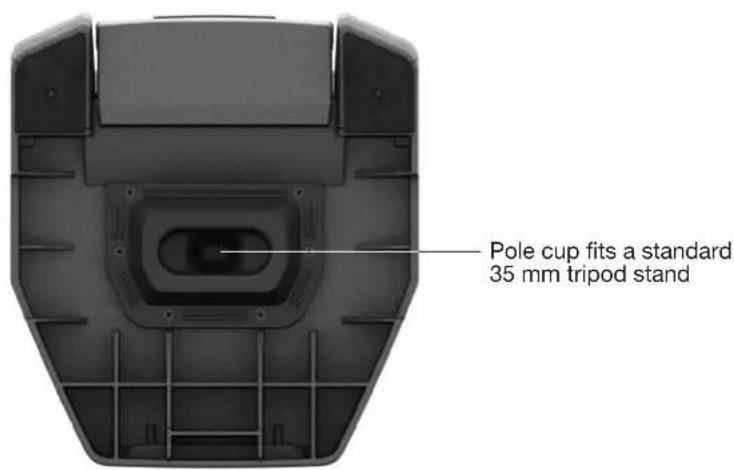

The bottom of the F1 Model 812 Loudspeaker includes pole cup for mounting the loudspeaker on a tripod speaker stand. The pole cup fits a standard 35 mm post.

WARNING: Do not use the F1 Model 812 Loudspeaker with a tripod stand that is unstable. The loudspeaker is only designed for use on a 35 mm pole, and the tripod stand must be capable of supporting a loudspeaker with a minimum weight of 44.5 lb (20.2 Kg) lbs and an overall size of 26.1" H x 13.1" W x 14.6" D (665 mm H x 334 mm W x 373 mm D) inches (mm). Using a tripod stand that is not designed to support the size and mass of the F1 Model 812 Loudspeaker may lead to an unstable and hazardous condition that could result in injury.

Exterior view of a black outdoor speaker mounted on a tripod stand (no text or symbols visible)

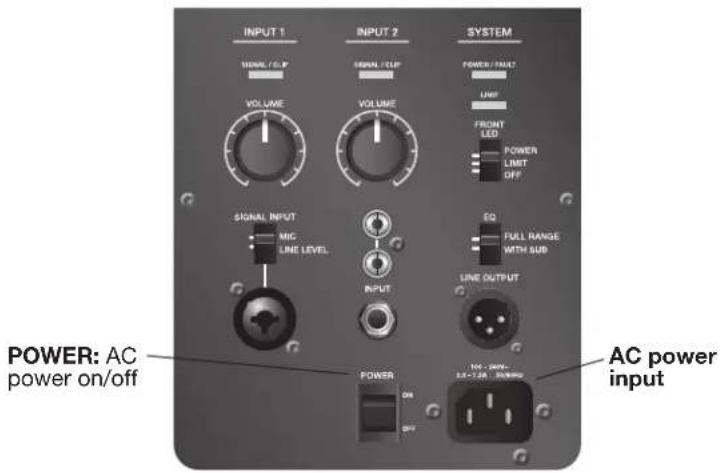

F1 Model 812 Control Panel

Note: For a complete list of LED indications and behaviors, see "LED Indicators" on page 19.

SIGNAL/CLIP: Displays the input signal status in color.

• Green = signal present.
• Red = signal clipping, input signal too high
  VOLUME: Adjusts channel volume.

SIGNAL INPUT: Selector switch sets input sensitivity for input type. Combo connector accepts XLR mic connector or 1/4" phone plug (TRS balanced or TS unbalanced cables).

• MIC selects sensitivity for microphone inputs (dynamic or self-powered mics only) – use only when a mic is connected directly to the input.
  • LINE selects sensitivity for line-level inputs, for example, from a mixing console or DJ controller.

SIGNAL/CLIP: Displays the input signal status in color.

• Green = signal present.
• Red = signal clipping, input signal too high.
  VOLUME: Adjusts channel volume.

RCA connectors: Analog stereo input for audio sources such as DJ controllers and other line-level sources. Left and right are summed, producing a mono audio output and mono signal to LINE OUTPUT (XLR).

• Left (White)
• Right (Red)

1/4" phone connector: Provides analog input for guitars and other instruments. Accepts TRS balanced or TS unbalanced cables.

POWER/FAULT:

• Blue = power on.
  • Red = fault condition.

LIMIT:

- Amber = system limiting (protection mode).

FRONT LED:

• POWER enables front LED to indicate power status.
- LIMIT engages a limiting display on the front LED.
• OFF turns off the front LED.

EQ: (See "Setting EQ selector switches" on page 12.)

• FULL RANGE allows the loudspeaker to function without high-pass filtering.
• WITH SUB engages a high-pass filter (100 Hz) when using the loudspeaker with the F1 subwoofer. Recommended when using with F1 Subwoofer.

LINE OUTPUT:

- Balanced XLR line output provides a mix of input 1 and 2, post input volume control. Can be used to daisy chain speakers together.

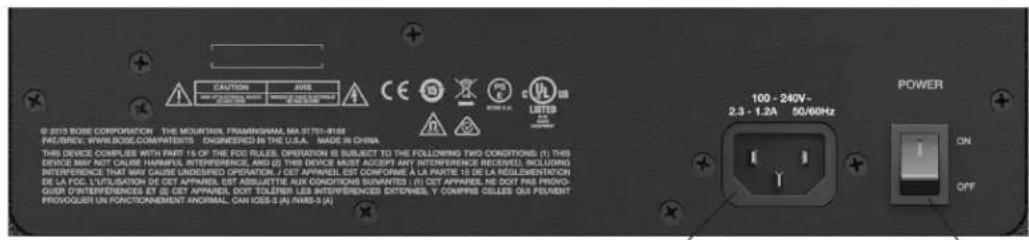

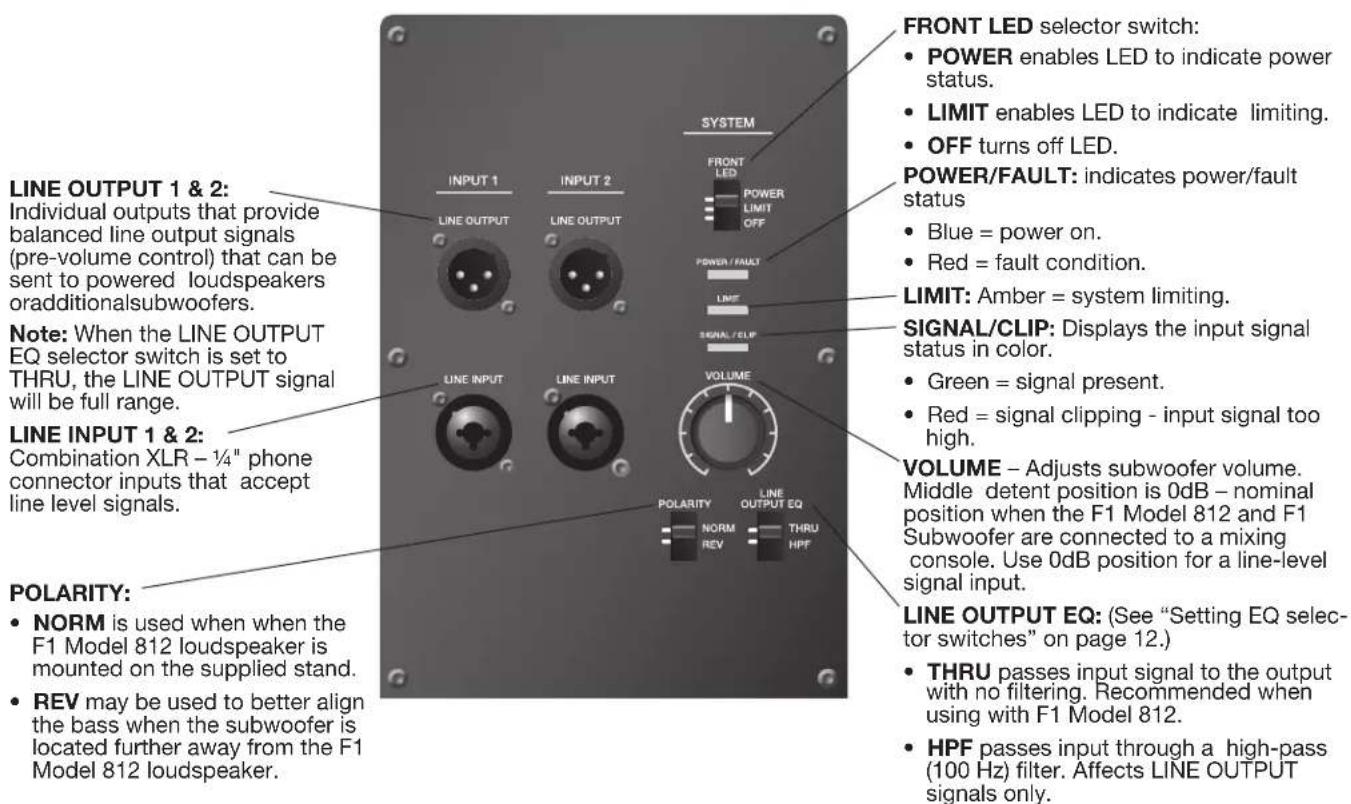

F1 Subwoofer Control Panel

Note: For a complete list of LED indications and behaviors, see "LED Indicators" on page 19.

AC input connector. POWER on/off switch.

Power On/Off Sequence

When turning the system on, turn on input sources and mixing consoles first and then turn on the F1 Model 812 Loudspeaker and the F1 Subwoofer. When turning the system off, turn off the F1 Model 812 and F1 Subwoofer first followed by input sources and mixing consoles.

Setting EQ selector switches

Recommended settings for the EQ selector switches on the F1 Model 812 Loudspeaker and the F1 Subwoofer are describe in the following table.

System Setup	F1 Model 812 EQ Switch	F1 Subwoofer LINE OUTPUT EQ Switch
F1 Model 812 Loudspeaker used without F1 Subwoofer FULL RANGE Not applicable
Signal input to F1 Subwoofer, F1 Subwoofer output to F1 Model 812 Loudspeaker	WITH SUB THRU
Signal input to F1 Model 812 Loudspeaker, F1 Model 812 output to F1 Subwoofer	FULL RANGE or WITH SUB*	No affect

*Provides more bass extension.

Connecting Sources

Before plugging in a sound source, turn the VOLUME control of the channel fully counter-clockwise.

The two independent inputs provide a combination of input connectors that can accommodate microphone and line-levelsources.

Note: Only dynamic or self-powered microphones can be used for INPUT 1.

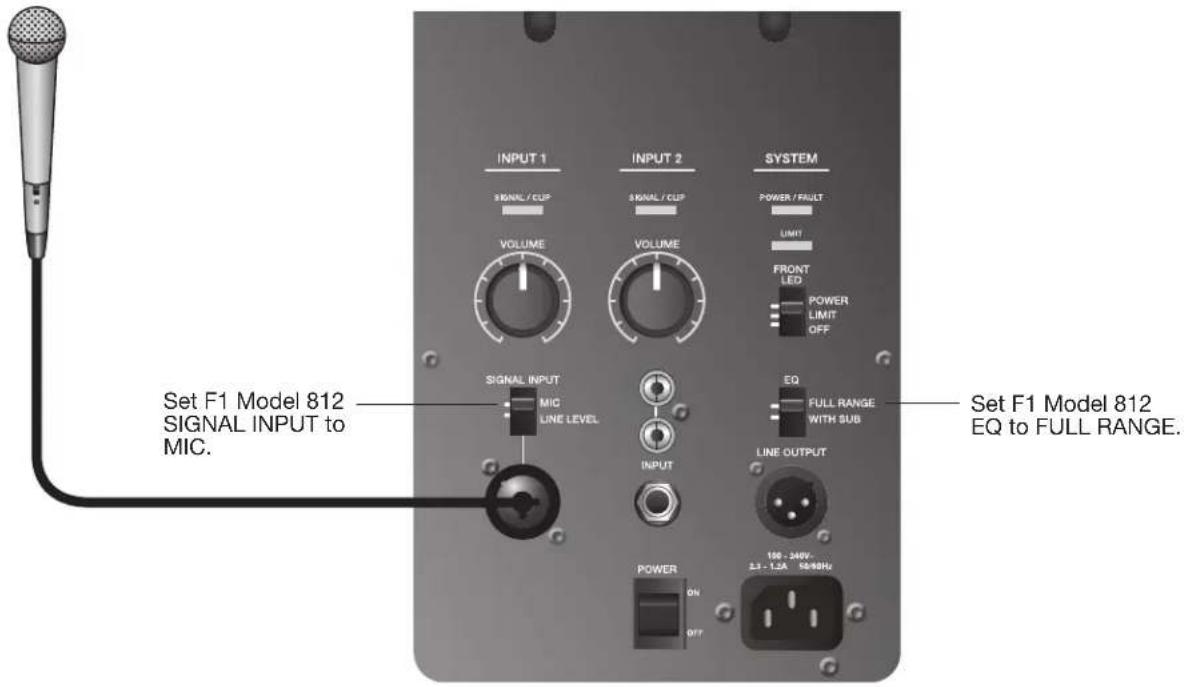

Setting Up INPUT 1 with a Microphone

1. Turn the INPUT 1 VOLUME fully counter-clockwise.
2. Set the SIGNAL INPUT switch to MIC.
3. Plug the mic cable into the INPUT 1 connector.
4. Adjust the VOLUME to your desired level.

Setting Up INPUT 1 with a Source

1. Turn the INPUT 1 VOLUME fully counter-clockwise.
2. Set the SIGNAL INPUT switch to LINE LEVEL.
3. Plug the source cable into the INPUT 1 connector.
4. Adjust the VOLUME to your desired level.

0 dB (detent)

Setting Up INPUT 2 with a Source

1. Turn the INPUT 2 VOLUME fully counter-clockwise.
2. Plug the source cable into an INPUT 2 connector.
3. Adjust the VOLUME to your desired level.

0 dB (detent)

Connection Scenarios

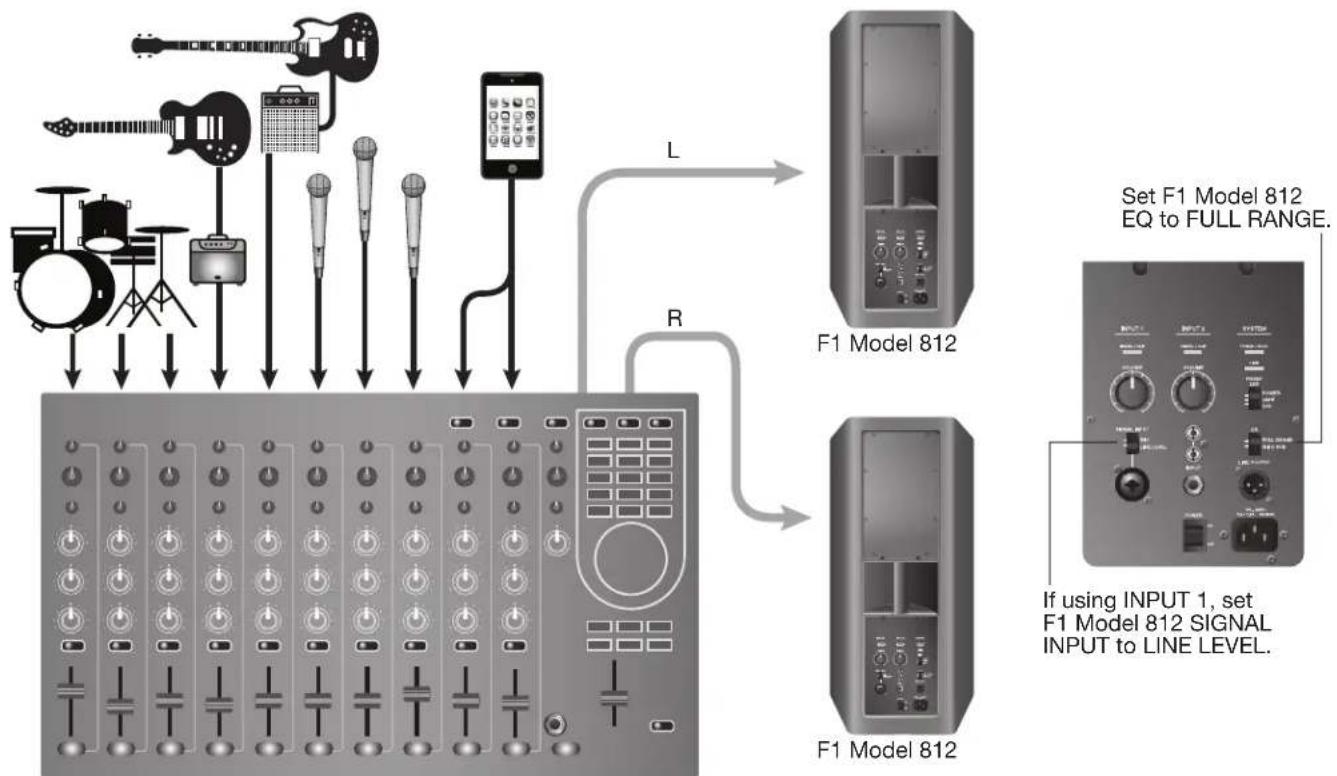

Full band, mixing console stereo output to L/R F1 Model 812 Loudspeakers


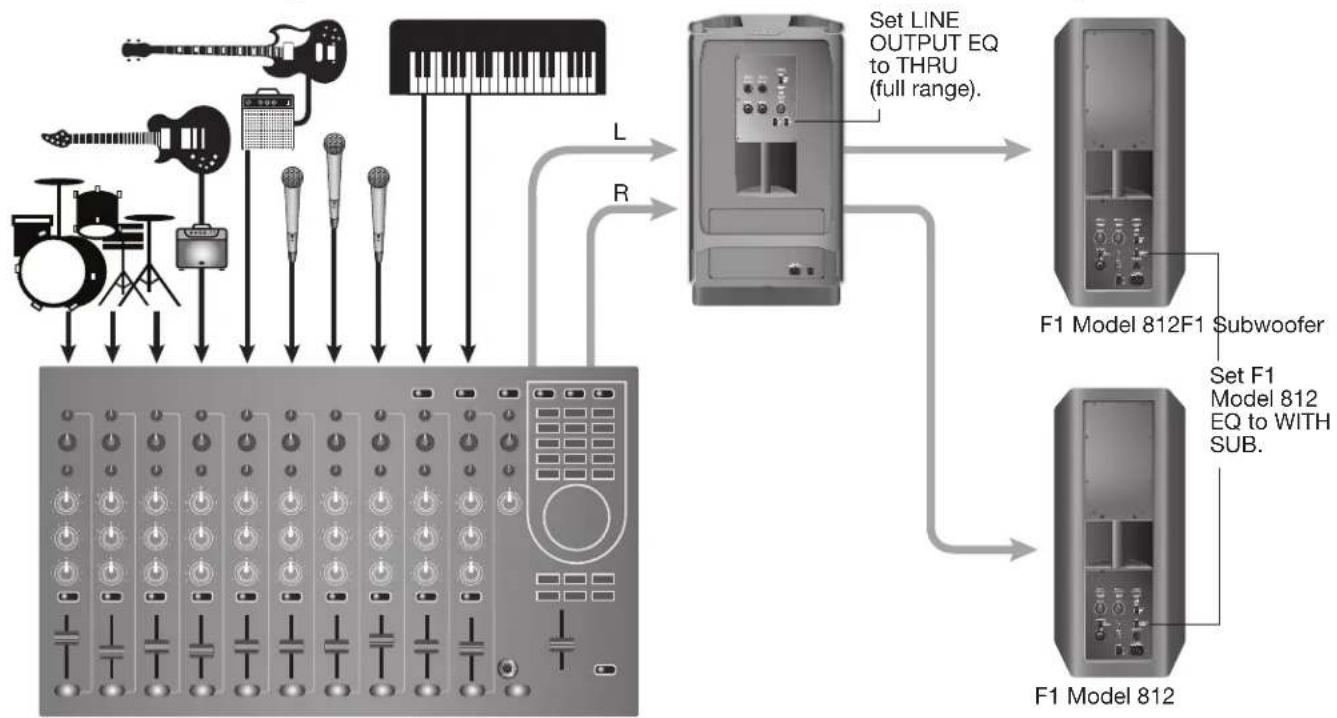

Full band with mixing console, one F1 Subwoofer and two F1 Model 812 Loudspeakers

Mixing console stereo output to F1 Subwoofer and left/right F1 Model 812 Loudspeakers

Note: The recommend EQ settings are provided under the heading, "Setting EQ selector switches" on page 12. However, for maximum bass response, set the EQ selector switch on both F1 Model 812 Loudspeakers to FULL RANGE and set the EQ selector switch on the F1 Subwoofer to THRU.

F1 Model 812

Full band with mixing console stereo output to two F1 Subwoofers and two F1 Model 812 Loudspeakers

Stereo input to Left/right F1 Subwoofers and F1 Model 812 Loudspeakers

Mic to F1 Model 812 Loudspeaker INPUT 1

Mobile device to single F1 Model 812 Loudspeaker

Mobile device to F1 Model 812 Loudspeaker and F1 Subwoofer

DJ Console to two F1 Subwoofers and two F1 Model 812 Loudspeakers

F1 Model 812F1 Subwoofe

Caring for Your Product

Cleaning

• Clean the product enclosures using only a soft, dry cloth.
• Do not use any solvents, chemicals, or cleaning solutions containing alcohol, ammonia, or abrasives.
• Do not use any sprays near the product or allow liquids to spill into any openings.
• If necessary, you may carefully vacuum the grille of the loudspeaker array.

Getting Service

For additional help in solving problems, contact the Bose Professional Sound Division at [phone] or visit our support area online at www.Bose.com/livesound.

Troubleshooting

If you experience problems while using this product, try the following solutions. The recommended troubleshooting tools include a spare AC power cord and extra XLR and 1/4" phone plug cables.

Problem What to do
Loudspeaker is plugged in, power switch is on, but power LED is off.	Make sure the power cord is fully engaged into both the F1 Model 812 Loudspeaker and the AC outlet.Make sure you have power at the AC outlet. Try operating a lamp or other equipment from the same AC outlet.Try a different power cord.
Power LED is on (green),but no sound.	Make sure the VOLUME control is turned up.Make sure volume control is turned up on your instrument.Make sure your instrument or audio source is plugged into the appropriate input connector.If the F1 Model 812 Loudspeaker is receiving input from the F1 Subwoofer, make sure the subwoofer is turned on.
Instrument or audio source sounds distorted.	Lower the volume of the connected audio source.If you are connected to an external mixing console, make sure input gain to the mixing console input channel is not clipping.Reduce the output of the mixing console.
Microphone is encountering feedback.	Reduce the input gain on the mixing console.Try positioning the microphone so it nearly touches your lips.Try a different microphone.Use the tone controls on the mixing console to reduce the offending frequencies.Increase the distance from the loudspeaker to the microphone.If using a vocal effects processor, make sure it is not contributing to the feedback.
Poor Bass Response • If using	the F1 Model 812 Loudspeaker without the F1 Subwoofer, make sure the EQ switch is set to FULL RANGE.If using the F1 Model 812 Loudspeaker with the F1 Subwoofer, check to see if the POLARITY switch is in NORMAL mode. If there is a fair amount distance between the F1 Subwoofer and the F1 Model 812 Loudspeaker, setting the POLARITY switch to REV may improve bass.If using two F1 Subwoofers, make sure that the POLARITY switch is in the same position on each subwoofer.
Excessive Noise or System Hum	When connecting a microphone to the F1 Model 812 Loudspeaker, make sure the INPUT 1, SIGNAL INPUT switch is set to MIC.Check to make sure that all system connections are secure. Lines that are not completely connected could create noise.If using a mixing console, external source or receiving input from the F1 Subwoofer, make sure the INPUT 1 SIGNAL INPUT switch on the F1 Model 812 Loudspeaker is set to LINE.For best results, use balanced (XLR) connections on the system inputs.Keep all signal-carrying cables away from AC power cords.Light dimmers can cause hum in loudspeaker systems. To avoid this, plug the system into a circuit that is not controlling lights or dimmer packs.Plug the audio system components into power outlets that share a common ground.Check cables at mixing console inputs by muting channels. If the hum goes away, replace the cable at that mixing console channel.

LED Indicators

The following table describes LED behavior on both the F1 Model 812 Loudspeaker and F1 Subwoofer.

Type Location Color Behavior Indication Required Action
Front LED (Power)	Front Grille Blue Steady state Loudspeaker is on			None
				Blue Pulsing	Limiter is active, amplifier protection engaged
SIGNAL/CLIP	INPUT 1/2	Green (nominal)	Flicker/Steady state	Input signal present	Adjust to desired level
		Red	Flicker/Steady state	Input signal too high	Reduce volume or source input level
POWER/FAULT	Rear panel	Blue	Steady state	Loudspeaker is on	None
		Red	Steady state Amplifier	thermal shutdown active	Turn loudspeaker off
LIMIT	Rear panel	Amber	Pulsing/Steady state	Limiter is active, amplifier protection engaged	Reduce volume or source input level

Limited Warranty and Registration

Your product is covered by a limited warranty. Visit pro.Bose.com for warranty details.

Register your products online at www.Bose.com/register or call [phone]. Failure to do so will not affect your warranty rights.

Accessories

A variety of wall/ceiling brackets, carry bags and covers are available for these products. Contact Bose to place an order. See the contact information inside the rear cover of this guide.

Technical Information

Physical

	Dimensions Weight
F1 Model 812 Loudspeaker 26.1" H x 13.1" W x 14.6" D (665 mm H x 334 mm W x 373 mm D) 44.5 lb (20.18 Kg)
F1 Subwoofer 27.0" H x 16.1" W x 17.6" D (688 mm H x 410 mm W x 449 mm D) 55.0 lb (24.95 Kg)
F1 system stack 73.5" H x 16.1" W x 17.6" D (1868 mm H x 410 mm W x 449 mm D) 99.5 lb (45.13 Kg)

Electrical

	AC power rating Peak inrush current
F1 Model 812 Loudspeaker	100-240V 2.3-1.2A 50/60Hz	120 V RMS: 6.3A RMS230 V RMS: 4.6A RMS
F1 Subwoofer	100-240V 2.3-1.2A 50/60Hz	120 V RMS: 6.3A RMS230 V RMS: 4.6A RMS

Input/Output Connector Wiring Reference

TRS balanced TS unbalanced
XLR balanced1 – Shield (ground)3 – Minus (-)2 – Plus (+)	XLR unbalanced1 – Shield (ground)3 – Minus (-)2 – Plus (+)

Black industrial fan or storage unit with mesh insulation and ventilation slots (no visible text or symbols)

Illustration of a hand placing a cabinet into a rack, with an arrow indicating rotation (no text or symbols)

Illustration of a hand placing a rectangular object into a vertical stack, with an arrow indicating rotation (no text or symbols)

Diagram of a device casing with internal structure and directional arrows indicating flow or movement (no text or symbols)

Omvendt J-mønster

Diagram of a device casing with internal compartments and a dashed circular outline (no text or symbols)

Anvendelsesområder

Lige mønster

Line drawing of a cabinet or rack unit with no visible text or symbols

Silhouette of a group of people in front of a large black structure, possibly a stage or monument (no text or symbols visible)

Omvendt J-mønster

Line drawing of a cabinet or storage unit with no visible text or symbols

Silhouette illustration of a speaker at a podium addressing an audience on a stage (no text or symbols)

J-mønster

Line drawing of a cabinet or storage unit with shelves and top panel (no text or symbols)

Silhouette illustration of people in various poses, including a person taking a photo near a building and sitting on chairs, with no visible text or symbols.

C-mønster

Line drawing of a cabinet or rack unit with no visible text or symbols

Silhouette illustration of a speaker at a podium addressing a group of seated people on steps, with no visible text or symbols.

Two gray industrial waste bins with a curved arrow indicating rotation or disposal (no text or symbols)

Exterior view of a black outdoor air conditioner unit mounted on a tripod stand (no text or symbols visible)

Betjeningspanelet på F1 Model 812

SIGNAL/CLIP: Viser status for inputsignalet i farver.

Tilslutningsscenarier

Black industrial air purifier unit with mesh insulation and ventilation slots (no visible text or symbols)

Diagram of a server rack with directional arrows indicating data flow (no text or symbols)

Diagram of a device casing with internal compartments and directional arrows indicating flow or movement (no text or symbols)

Anwendungen

Gerades Muster

Line drawing of a cabinet or storage unit with shelves and top panel (no text or symbols)

Silhouette of a group of people in front of a large black structure, possibly a stage or monument (no text or symbols visible)

Line drawing of a cabinet or rack unit with no visible text or symbols

Silhouette illustration of a speaker at a podium addressing an audience on a stage (no text or symbols)

J-Muster

Line drawing of a cabinet or storage unit with shelves and top panel (no text or symbols)

Silhouette illustration of people in various poses, including a person taking a photo near a building and sitting on chairs, with no visible text or symbols.

C-Muster

Line drawing of a cabinet or rack unit with no visible text or symbols

Silhouette illustration of a speaker at a podium addressing a group of seated people on a staircase (no text or symbols)

Two gray industrial storage bins with a curved arrow indicating rotation or assembly (no text or symbols)

Exterior view of a black outdoor stand-mounted device with tripod base (no text or symbols visible)

Bedienfeld F1 Model 812

0 dB (Entspannt)

0 dB (Entspannt)

Verbindungßzenarien

Black BoBo 3.0 computer tower with visible ventilation slots and front panel (no text or symbols)

Altavoz F1 Model 812

Black industrial air purifier unit with mesh ventilation slots (no visible text or symbols)

Illustration of a hand placing a folder into a rack, with an arrow indicating rotation (no text or symbols)

Illustration of a hand holding a book with an arrow indicating rotation (no text or symbols)

Diagram of a device casing with internal compartments and directional arrows indicating flow or movement (no text or symbols)

Patrón en J

Diagram of a device casing with internal compartments and directional arrows indicating flow or movement (no text or symbols)

Patrón en C

Aplicaciones

Patrón recto

Line drawing of a cabinet or storage unit with shelves and a door, no text or symbols present

Silhouette of a group of people gathered around a central black structure, possibly performing or acting (no text or symbols visible)

Line drawing of a cabinet or rack unit with no visible text or symbols

Silhouette illustration of a speaker at a podium addressing an audience on a stage (no text or symbols)

Patrón en J

Line drawing of a cabinet or storage unit with shelves and top panel (no text or symbols)

Silhouette illustration of people in various poses, including a person taking a photo near a building and sitting on chairs, with no visible text or symbols.

Patrón en C

Line drawing of a cabinet or rack unit with no visible text, numbers, or symbols

Silhouette illustration of a speaker at a podium addressing a group of seated people on steps, with no visible text or symbols.

Two gray industrial storage bins with one showing a curved arrow indicating rotation or assembly (no text or symbols)

Diagram of a device casing with internal compartments and directional arrows indicating flow or movement (no text or symbols)

Type J inversé

Diagram of a device casing with internal compartments and directional arrows indicating flow or movement (no text or symbols)

Applications

Type droit

Line drawing of a cabinet or storage unit with shelves and a door, no text or symbols present

Silhouette of a group of people gathered around a central black structure, possibly performing or acting (no text or symbols visible)

Type J inversé

Line drawing of a cabinet or rack unit with no visible text, numbers, or symbols

Silhouette of a person standing at a podium with a stage and audience on a platform, no text or symbols present

Type J

Line drawing of a cabinet or storage unit with shelves and top panel (no text or symbols)

Silhouette illustration of people in various poses near a building and a vertical structure, with no visible text or symbols.

Type C

Line drawing of a 3D cabinet or storage unit with no visible text or symbols

Silhouette of a speaker at a podium addressing a group of seated people on stairs, with no visible text or symbols.

Two gray industrial storage bins with a curved arrow indicating rotation or assembly (no text or symbols)

Exterior view of a black outdoor stand-mounted device with tripod base (no text or symbols visible)

Illustration of a hand placing a rectangular object into a cabinet, with an arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cabinet with an arrow indicating rotation (no text or symbols)

Quattro coperture

Copertura verticale

Diagram of a server rack with ventilation ducts and indicator arrows (no text or symbols)

Applicazioni

Copertura verticale

Line drawing of a server rack with no text or symbols

Silhouette of a group of people gathered around a central black structure, possibly performing or acting (no text or symbols visible)

Line drawing of a cabinet or storage unit with no visible text or symbols

Silhouette of a person standing at a podium with a stage and audience on a platform (no text or symbols)

Copertura a J

Line drawing of a cabinet or storage unit with shelves and top panel (no text or symbols)

Silhouette illustration of people in various poses near a building and a vertical structure, with no visible text or symbols.

Copertura a C

Line drawing of a cabinet or storage unit with shelves and door (no text or symbols)

Silhouette of a speaker at a podium addressing a group of seated people on stairs, with no visible text or symbols.

Two gray industrial waste bins with a curved arrow indicating rotation or disposal (no text or symbols)

Exterior view of a black speaker mounted on a tripod stand (no text or symbols visible)

0 dB (con fermo)

0 dB (con fermo)

Exterior view of a black industrial air purifier unit (no visible text or symbols)

Illustration of a hand placing a file into a folder, with an arrow indicating rotation (no text or symbols present)

Illustration of a hand holding a book with an arrow indicating rotation (no text or symbols)

Vier dekkingspatronen

Recht patroon

Diagram of a server or device casing with directional arrows indicating flow or movement (no text or symbols present)

Diagram of a device casing with internal compartments and directional arrows indicating flow or movement (no text or symbols)

Toepassingen

Recht patroon

Line drawing of a server rack with no text or symbols

Silhouette of a group of people gathered around a central black structure, possibly performing or acting (no text or symbols visible)

Line drawing of a cabinet or storage unit with no visible text or symbols

Silhouette of a person standing at a podium with a stage and audience on a platform (no text or symbols)

J-patroon

Line drawing of a cabinet or storage unit with shelves and top panel (no text or symbols)

Silhouette illustration of people in various poses near a building and a vertical structure, with no visible text or symbols.

C-patroon

Line drawing of a cabinet or storage unit with shelves and top panel (no text or symbols)

Silhouette of a speaker at a podium addressing a group of seated people on stairs, with no visible text or symbols.

Two gray industrial waste bins with a curved arrow indicating rotation or disposal (no text or symbols)

• Blauw = ingeschakeld.
• Rood = storing.

LIMIT:

Exterior view of a black industrial air purifier unit (no visible text or symbols)

F1-subwoofer med inbyggt stativ

Eisladd*

Bruksanvisning

F1 Model 812 Flexible Array-högtalare

Illustration of a hand placing a rectangular object into a cabinet, with an arrow indicating rotation (no text or symbols)

Illustration of a hand holding a cabinet with an arrow indicating rotation (no text or symbols)

Diagram of a server rack with ventilation ducts and indicator arrows (no text or symbols)

J-mönster

Omvänt J-mönster

C-mönster

Line drawing of a server rack with multiple tiers and a back panel (no text or symbols)

Silhouette of a group of people, including a large black object, standing before and after a light beam (no text or symbols visible)

Omvänt J-mönster

Line drawing of a cabinet or storage unit with no visible text or symbols

Silhouette illustration of a speaker at a podium with audience seated on a platform, no text or symbols present

J-mönster

Line drawing of a cabinet or rack unit with shelves and legs (no text or symbols)

Silhouette illustration of people in various poses, including a person taking a photo near a building and sitting on chairs, with no visible text or symbols.

C-mönster

Line drawing of a cabinet or rack unit with shelves and legs (no text or symbols)

Silhouette illustration of a speaker at a podium addressing a group of seated people on steps, with no visible text or symbols.

Two gray industrial waste bins with a curved arrow indicating transformation or disposal (no text or symbols)

0 dB (spärr)

0 dB (spärr)

Americas Professional Systems,

Teknisk support: 800-994-2673

Australien

Bose Pty Limited

Unit 3/2 Holker Street

Newington NSW Australien

61 2 8737 9999

Belgien

Bose N.V. / S.A

Limesweg 2, 03700

Tongeren, Belgien

012-390800

Kina

Bose Electronics (Shanghai) Co Ltd

25F, L'Avenue

99 Xianxia Road

Shanghai, Folkrepubliken Kina 200051 Kina

86 21 6010 3800

Frankrike

Bose S.A.S

12 rue de Temara

78100 St. Germain en Laye, Frankrike

01-30-61-63-63

Tyskland

Bose GmbH

Max-Planck Strasse 36D 61381

Friedrichsdorf, Tyskland

06172-7104-0

Hong Kong

Bose Limited

Suites 2101-2105, Tower One, Times Square

1 Matheson Street, Causeway Bay, Hong Kong

852 2123 9000

Indien

Bose Corporation India Private Limited

Salcon Aurum, 3rd Floor

Plot No. 4, Jasola District Centre

New Delhi - 110025, Indien

91 11 43080200

Italien

Bose SpA

Centro Leoni A – Via G. Spadolini

5 20122 Milano, Italien

39-02-36704500

Japan

Bose Kabushiki Kaisha

Sumitomo Fudosan Shibuya Garden Tower 5F

16-17, Nanpeidai-cho

Shibuya-Ku, Tokyo, 150-0036, Japan

TEL [phone]

www.bose.co.jp

Holland

Bose BV

1 Ambley Green, Gillingham Business Park

KENT ME8 0NJ

Gillingham, England

0870-741-4500
