| Product type | USB nano charger |
| Brand | Tronic |
| Model | TPA 20 A1 |
| Dimensions | 7.9 × 3.7 × 3.1 cm |
| Weight | Approx. 60 g |
| Input power | 100-240 V~, 0.6 A, 50/60 Hz |
| USB Type C output voltage | 5.0 V, 9.0 V or 12.0 V (PD) |
| USB Type C output current | 3 A (5 V), 2.22 A (9 V), 1.67 A (12 V) |
| Maximum output power | 20 W (USB Type C) |
| Average active efficiency | 81.4% |
| Low load efficiency (10%) | 75.6% |
| No-load power consumption | 0.10 W |
| Protection class | II (double insulation) |
| Operating conditions | 10 to 35 °C, 40 to 85% RH |
| Storage temperature | -10 to 45 °C |
| Package contents | 1 USB nano charger, 1 instruction manual |
| Main functions | Fast charging compatible with PD (Power Delivery), overcharge and short-circuit protection |
| Care and cleaning | Unplug before cleaning, use a dry soft cloth |
| Safety | Do not expose to water, do not open, avoid heat sources, unplug during storms |
| Warranty | 3 years from date of purchase |
Frequently Asked Questions - TPA 20 A1 TRONIC
User questions about TPA 20 A1 TRONIC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your USB Charger in PDF format for free! Find your manual TPA 20 A1 - TRONIC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TPA 20 A1 by TRONIC.
USER MANUAL TPA 20 A1 TRONIC
Operation and Safety Notes
FR BE
CHARGEUR USB NANO
Operation and Safety Notes Page 23
FR/BE
Pokyny pre obsluhu a
Description of parts.. Page 27
TechnicalData... Page 27
Scope of delivery.. Page 29
Safety notices.. Page 29
Before use . Page 33
Start-up Page 33
Troubleshooting Page 34
Storage when not in use 35
Cleaning and Care 35
Disposal.. Page 36
Warranty and service Page 37
Warranty 37
Warranty claim procedure......Page 38
Service.. Page 39

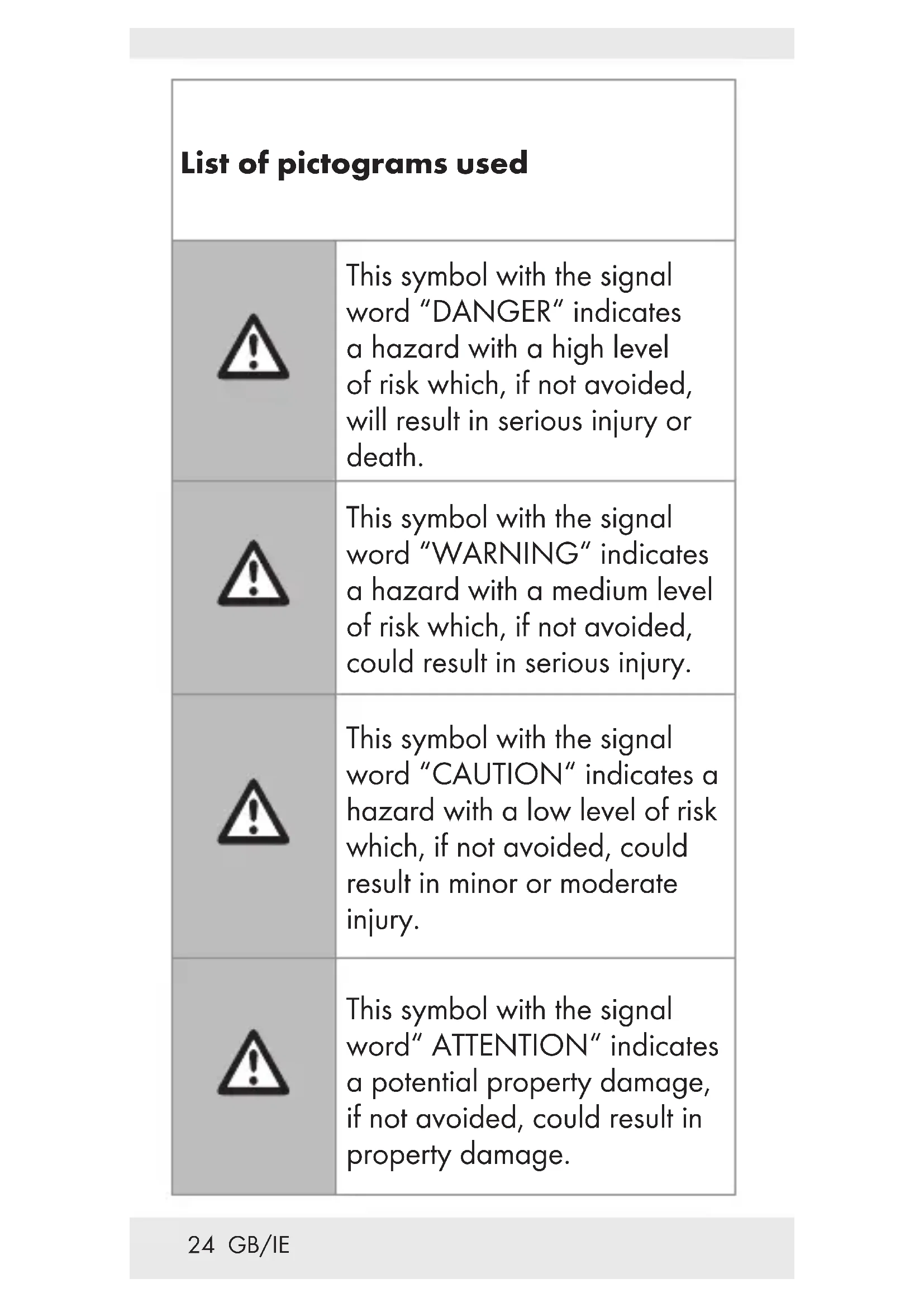

| List of pictograms used | |
| This symbol with the signal word “DANGER” indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death. | |
| This symbol with the signal word “WARNING” indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury. | |
| This symbol with the signal word “CAUTION” indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury. | |
| This symbol with the signal word“ATTENTION”indicates a potential property damage, if not avoided, could result in property damage. | |
| i | This symbol with the signal word "NOTE" provides additional useful information. |
| = | Direct current / voltage |
| ~ | Alternating current / voltage |
| △ | Use product only in dry indoor areas. |
| □ | Safety class II The product has double insulation and no safety connection with grounding is required. |
| SmartFastCharge | Technology to optimise charging time. |
| CE | CE mark indicates conformity with relevant EU directives applicable for this product. |
USB CHARGER
Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intended use
This USB CHARGER (hereinafter called "product") is an information technology device designed for charging and operating USB devices that are charged or operated from a USB port by default.
The product can be used in a normal socket which provides the power supply stated in the "Technical Data". The product is not intended for commercial use.
The manufacturer is not liable for any damages caused by any use other than for the intended purpose.
Description of parts
Please refer to the fold out page.
1 USB port (Type C)
Technical Data
| Manufacturer's name or trade mark, commercial registration number and address: | OWIM GmbH & Co. KG HRA 721742 Stiftsbergstraße 1, 74167 Neckarsulm, GERMANY |
| Model identifier: | HG08289A, HG08289B |
| Input voltage and current: | 100-240 V~, 0.6 A |
| Input AC frequency: | 50/60 Hz |
Description Value
Output voltage
USB Type C
(PD*:
5.0 V = or 9.0 V = or 12.0 V
Output current
USB Type C
(PD*):
3 A (for 5.0V = F = 2.22 A (for 9.0V = F = 1.67 A
(for 12.0V = F =
Output power: 20.0 W (USB Type C)
Average active efficiency: 81.4%
Efficiency at low load (10%): 75.6%
No-load power consumption: 0.10 W
Protection class: II /
Operating 10 - 35 °C, 40 to conditions: 85 % rel. humidity
Description Value
Storage
temperature:
10 - 45 °C
Dimensions: 7.9 × 3.7 × 3.1 cm
Weight: approx. 60 ~g
*Power Delivery (PD) is a cutting edge technology which enables extremely fast charging for all PD-compatible devices, including Apple iPhone and Samsung Android mobile devices. GS Certified
Scope of delivery
1 USB charger
1 Set of operating instructions
Safety notices
PLEASE READ THE INSTRUCTIONS PRIOR TO USE! PLEASE KEEP THE INSTRUCTIONS IN A SAFE PLACE!
Check the product for damage before use. Never use a damaged product.
This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.
Packaging materials are not a toy. Never leave children unsupervised with the packaging material. Children frequently underestimate the dangers. Always keep children away from the packaging material.
Suitable for indoor use only. Do not expose the product to direct sunlight or moisture.
WARNING!
Unplug the product during lightning storms or when unused for long periods of time.
To unplug the product from the wall socket, always grasp the housing.
Never touch the power plug with wet hands, as this could result in either a short circuit or electric shock.
The mains socket used must be easily accessible so that the power plug can be quickly disconnected in an emergency.
To completely disconnect the product fi the power, you must remove the power plug from the mains socket. The power plug serves as a separator. As long as the USB power supply is plugged into a power socket, it always consumes little power.
If you notice any unusual noise, smoke similar uncertian situations, immediately disconnect the power plug from the mains socket and disconnect all connected devices. Have the product checked by a qualified person before using it again.
WARNING!
Before operating this product, check the input voltage of this product to see if it is identical to the voltage of your local power supply.
Unplug the product from the mains sock before cleaning.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
- Never open the housing of the product It has no internal parts requiring maintenance.
- Do not cover the product during operation or charging. Otherwise the product can be overheated.
ATTENTION! RISK OF PROPERTY DAMAGE
This product does not contain any parts which can be serviced by the user.
Do not place burning candles or other open fire on or next to the product.
Check the product and accessories for damage before each use. Never use a damaged product.
Do not operate the product near heat sources, e.g. radiators or other devices emitting heat!
ATTENTION! Ensure that:
the product is not exposed to bright artificial light.
any contact with splashed and dripping water and corrosive liquids is avoided and the product are not operated in the vicinity of water. In particular, the product should never be submerged in liquid; do not place any vessels filled with liquid, for example, vases or drinks, on or near the product.
the product is not used in the immediate vicinity of magnetic fields (e.g. speakers).
no foreign objects penetrate the product
the product is never subjected to extreme temperature fluctuations as this could result in condensation and electrical short circuits. If the product were subjected to extreme temperature fluctuations, however, wait (approx. 2 hours) until the product has reached ambient temperature before use.
the product is never subjected to excess shocks and vibrations.
Before use
Remove all packaging materials (including foils).
Verify the package contents are complete and undamaged!
Place the product on a level, even surface.
Start-up
ATTENTION! RISK OF PROPERTY DAMAGE The current consumption of the connected device must not exceed 20 W.
Plug the product into a correctly install socket.
Connect the appliance that should be charged with the product by plugging its USB plug into the output USB port (Type C).
- Disconnect the charged device from the product after charging, by unplugging the USB-plug from the USB-socket.
Unplug the adapter from the socket.
- Troubleshooting
What should I do if external devices cannot get power from the product?
Check the USB cable (not included) connection between the external devices and the product.
Make sure the external device's charging socket is working properly.
What should I do if the device charges very slowly?
Check if your device is Quick Charge capable.
Storage when not in use
Store the product in a dry environment, protected from dust and direct sunlight.
- Cleaning and Care
- Disconnect the product from the mains socket and remove all plugs before cleaning!
- Be sure moisture does not enter the product during cleaning to prevent damage to the product and related repairs.
Only use a clean, dry cloth for cleaning the product and never use any corrosive liquids / abrasive cleaning agents. Use a slightly moistened cloth and a mild cleaning agent to remove stubborn dirt.
Disposal
Packaging:
The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.
Product:
Contact your municipality for information on how to dispose of your worn-out product.
The adjacent symbol of a crossed out dustbin on wheels indicates this product is subject to Directive 2012/19/EU. This directive states at the end of the life this product must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.
This disposal is free of charge to you.
Protect the environment and dispose of properly.
The product is recyclable, subject to extended manufacturer responsibility, and collected separately.an be obtained from your local authority.
Warranty and service
Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.
Should this product show any fault in materials or manufacture within 3 years
from the date of purchase, we will repair or replace it - at our choice - free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (IAN 377472_2101) available as proof of purchase.
You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
Service
GB Service Great Britain
Tel.: 08000569216
E-Mail: owim@lidl.co.uk
IE Service Ireland
Tel.: 1800 200736
E-Mail: owim@lidl.ie
