USER MANUAL Skagen 370 DAB BT BLAUPUNKT

AM (MW): 531 - 1602 kHz

LW (tylko Europa): 153 - 279 kHz

Pasma w USA:

FM: 87,7 - 107.9 MHz

AM (MW): 530 -1710kHz

AM (MW): 530 -1710kHz

1 Microphone in
2 Steeringwheelremotecontrol
3 Rear USB
4 Preamp Out (Front)
5 Preamp Out (Rear)
6 Sub Out (Subwoofer)
7 Radio antenna

5.

6.

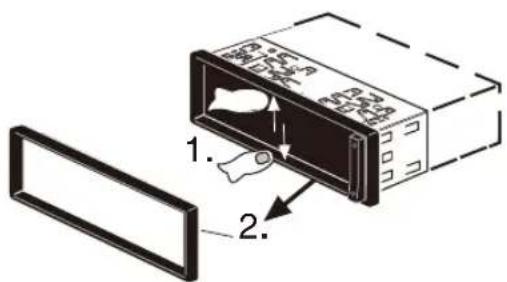

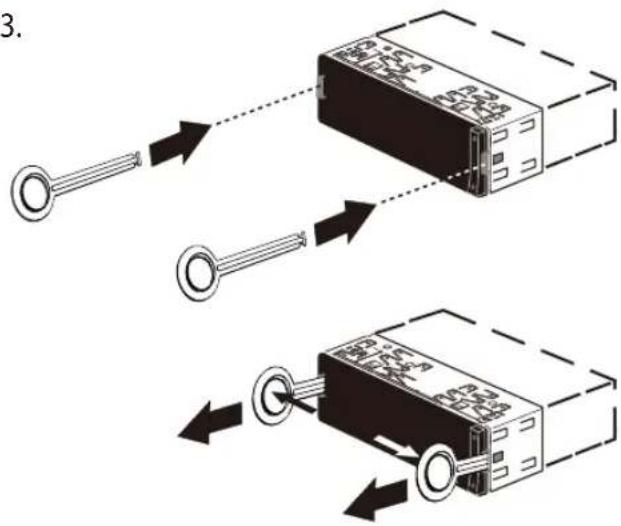

Demontaz · Ausbau · Removal · Demontage · Desmontaje · Desmontagem · Pelepasan

1.

3.

2.

7.

B

A

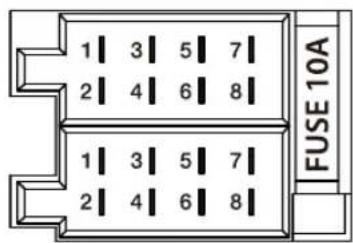

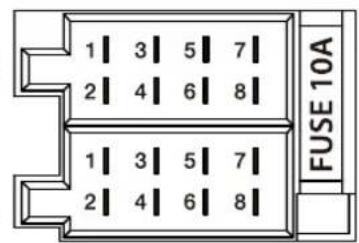

A		B
1	NC	1	Speaker out RR+
2	Telephone Mute	2	Speaker out RR-
3	NC	3	Speaker out RF+
4	Permanent +12V	4	Speaker out RF-
5	Auto antenna*	5	Speaker out LF+
6	Illumination	6	Speaker out LF-
7	KI.15/Ignition	7	Speaker out LR+
8	Ground	8	Speaker out LR-

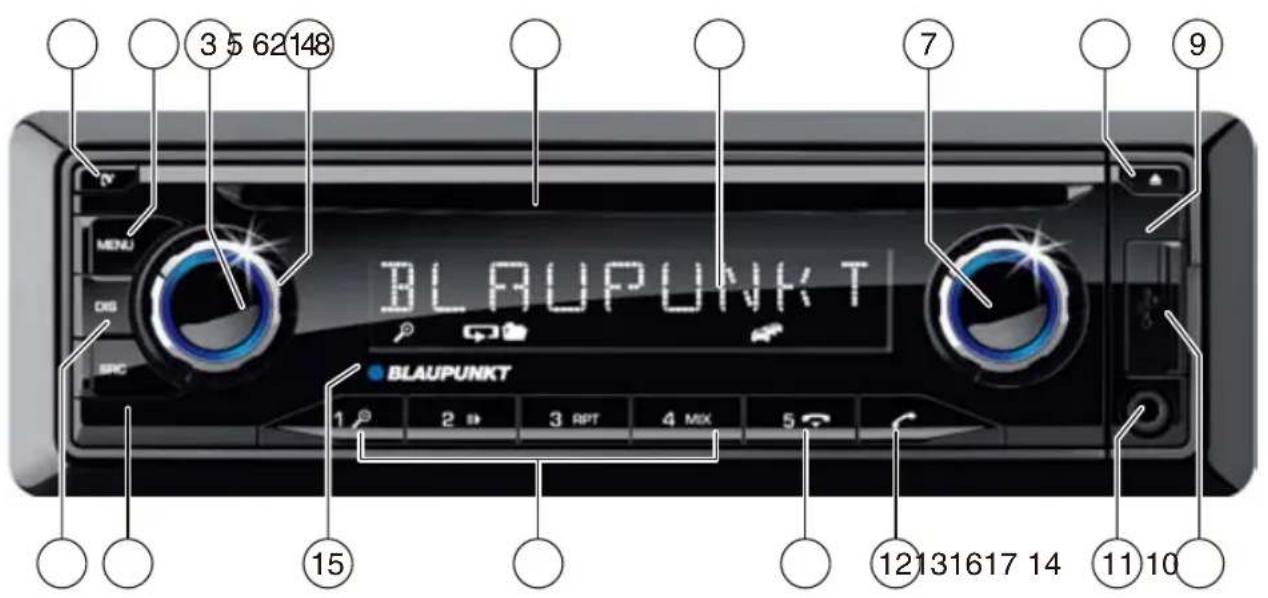

Short press: Call up/close menu Long press: Start scan function

3 On/Off button

Short press: Switch on car sound system In operation: Mute car sound system (Mute) Long press: Switch off car sound system

4 Volume control

5 CD tray

6 Display

7 Rotary control

In the menu: Change menu level,
select menu item, change setting
Radio mode: Set frequency,
start station/PTY seek tuning
CD/MP3/WMA/iPod mode:
Track selection, fast forward/reverse
Browse mode in MP3/WMA/iPod mode: ID3 category (iPod only), select folder and track

8 button (Eject)

Eject a CD

9 Microphone

10 Front USB port

11 Front AUX-IN socket

12 + button

Ending/rejecting a phone call

13 button

Short press: Answering a call, speed dial Long press: Open the phone book of the cell phone or activate voice dialing

14 Keys 1-5

15 Infrared receiver

16 SRC button

Select memory bank or audio source

17 DIS button

Short press: Switch display Long press: Switch display brightness

18 SD card slot

Access only with detached control panel

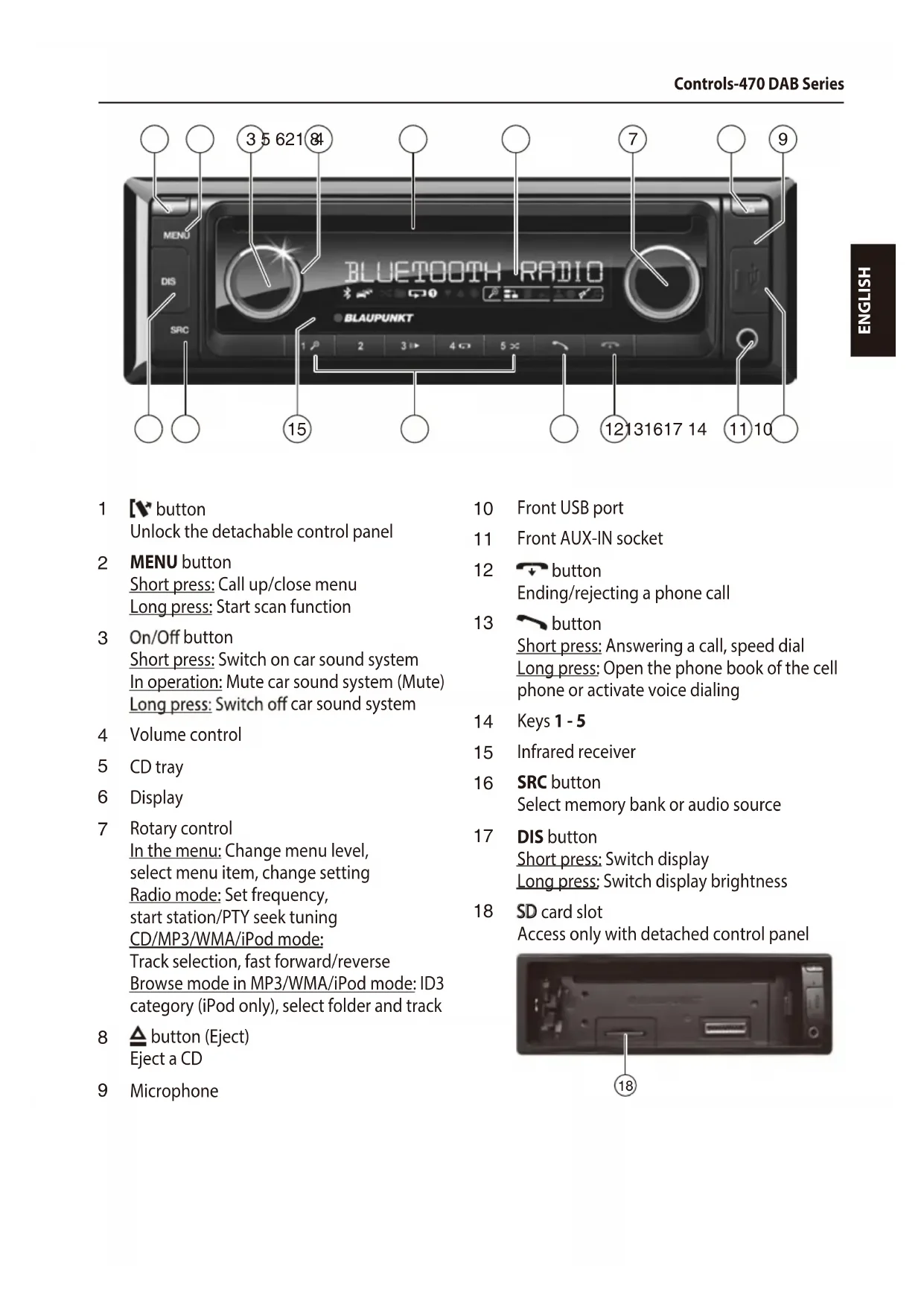

1 button

Unlock the detachable control panel

2 MENU button

Short press: Call up/close menu Long press: Start scan function

3 On/Off button

Short press: Switch on car sound system In operation: Mute car sound system (Mute) Long press: Switch off car sound system

4 Volume control

5 CD tray *) only for models with CD

6 Display

7 Rotary control

In the menu: Change menu level, select menu item, change setting Radio mode: Set frequency, start station/PTY seek tuning CD/MP3/WMA/iPod mode: Track selection, fast forward/reverse Browse mode in MP3/WMA/iPod mode: ID3 category (iPod only), select folder and track

8 button (Eject)

Eject a CD*) only for models with CD

9 Microphone

10 Front USB port

11 Front AUX-IN socket

12 + button

Ending/rejecting a phone call

13 button

Short press: Answering a call, speed dial Long press: Open the phone book of the cell phone or activate voice dialing

14 Keys 1-5

15 Infrared receiver

16 SRC button

Select memory bank or audio source

17 DIS button

Short press: Switch display Long press: Switch display brightness

18 SD card slot

Access only with detached control panel

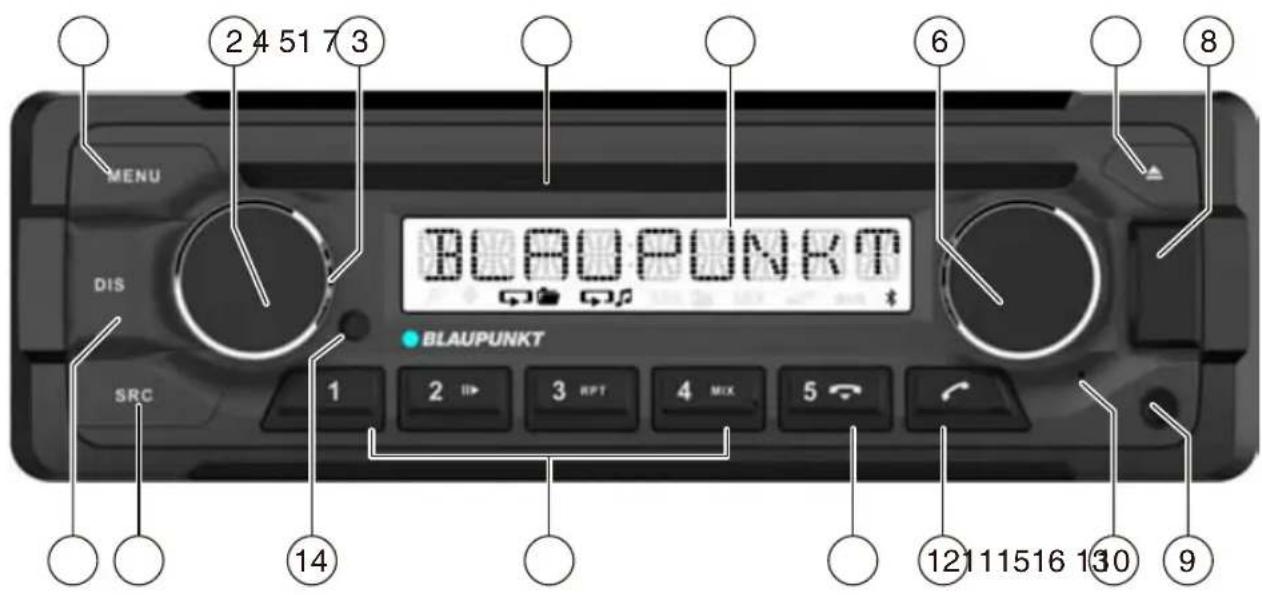

1 MENU button

Short press: Call up/close menu Long press: Start scan function

2 On/Off button

Short press: Switch on car sound system In operation: Mute car sound system (Mute) Long press: Switch off car sound system

3 Volume control

4 CD tray

5 Display

6 Rotary control

In the menu: Change menu level,
select menu item, change setting
Radio mode: Set frequency,
start station/PTY seek tuning
CD/MP3/WMA/iPod mode:
Track selection, fast forward/reverse
Browse mode in MP3/WMA/iPod mode: ID3
category (iPod only), select folder and track

7 button (Eject)

Eject a CD

8 Front USB port

9 Front AUX-IN socket

10 Microphone

11 + button

Ending/rejecting a phone call

12 button

Short press: Answering a call, speed dial Long press: Open the phone book of the cell phone or activate voice dialing

13 Keys 1-5

14 Infrared receiver

15 SRC button

Select memory bank or audio source

16 DIS button

Short press: Switch display Long press: Switch display brightness

Safety notes

The car sound system was manufactured according to the state of the art and established safety guidelines. Even so, dangers may occur if you do not observe the safety notes in these instructions.

These instructions contain important information to easily and safely install and operate the car sound system.

• Read these instructions carefully and completely before using the car sound system.
• Keep the instructions at a location so that they are always accessible to all users.
• Always pass on the car sound system to third parties together with these instructions.

In addition, observe the instructions of the devices used in conjunction with this car sound system.

Symbols used

These instructions employ the following symbols:

DANGER!

Warns about injuries

CAUTION!

Warns about damaging the CD drive

DANGER!

Warns about high volume

The CE mark confirms the compliance with EU directives.

Identifies a sequencing step
- Identifies a listing

Road safety

Observe the following notes about road safety:

• Use your device in such a way that you can always safely control your vehicle. In case of doubt, stop at a suitable location and operate your device while the vehicle is standing.
• Remove or attach the control panel only while the vehicle is standing.
• Always listen at a moderate volume to protect your hearing and to be able to hear acoustic warning signals (e.g. police sirens). During mute phases (e.g. when changing the audio source), changing the volume is not audible. Do not increase the volume during this mute phase.

General safety notes

Observe the following notes to protect yourself against injuries:

• Do not modify or open the device. The device contains a Class 1 laser that can cause injuries to your eyes.
• Do not increase the volume during mute phases, e.g. when changing the audio source. Changing the volume is not audible during a mute phase.

Use as directed

This car sound system is intended for installation and operation in a vehicle with 12 V vehicle system voltage and must be installed in a DIN slot. Observe the performance limits in the technical data. Repairs and installation, if necessary, should be performed by a specialist.

Installation instructions

You may only install the car sound system yourself if you are experienced in installing car sound systems and are very familiar with the electrical system of the vehicle. For this purpose, observe the installation instructions at the end of these instructions.

Declaration of conformity

The Blaupunkt Competence Center Car Multimedia-Evo Sales GmbH declares that the devices complies with the basic requirements and the other relevant regulations of the directive 2014/53/EU.

The declaration of conformity can be found on the Internet under www.blaupunkt.com.

Cleaning notes

Solvents, cleaning and scouring agents as well as dashboard spray and plastics care product may contain ingredients that will damage the surface of the car sound system.

• Use only a dry or slightly moistened cloth for cleaning the car sound system.
• If necessary, clean the contacts of the control panel regularly using a soft cloth moistened with cleaning alcohol.

Disposal notes

Do not dispose of your old unit in the household trash!

Use the return and collection systems available to dispose of the old device.

Scope of delivery

The scope of delivery includes:

1 Car sound system
1 Operating/installation instructions
1 Case for the control panel
1 Support frame
1 Antenna connection adapter
2 Disassembly tools
1 Spacer screw
1 Handheld remote control (incl. battery)

1 Connecting cable chamber A
1 Connecting cable chamber B

Optional equipment (not part of the scope of delivery)

Use only accessories approved by Blaupunkt. Information is available from your Blaupunkt specialised dealer or on the Internet under www.blaupunkt.com.

Placing the device in operation

Caution!

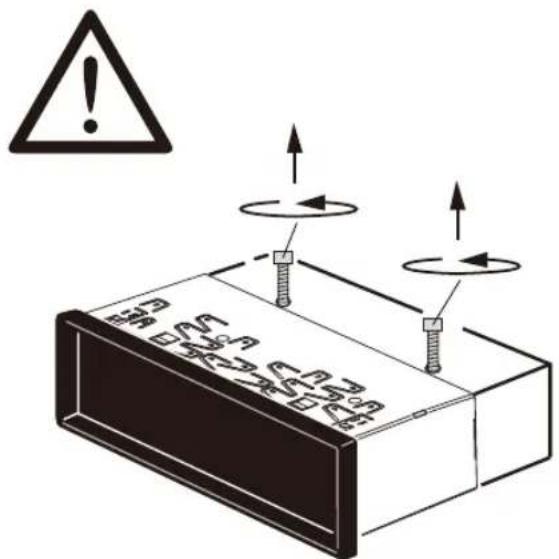

Transport securing screws

Before the startup of the car sound system, ensure that the transport securing screws are removed (see the chapter "Installation instructions").

Attaching/detaching the control panel

The car sound system is equipped with a detachable control panel (release panel) to protect your equipment against theft. In the delivery state, the control panel is in the supplied case. To start operating the radio after installation, you must first attach the control panel (see the section "Attaching the control panel" in this chapter).

Always take the control panel with you when leaving the vehicle. The car sound system is worthless to a thief without this control panel.

Caution

Damage to the control panel

Never drop the control panel.

Transport the control panel so that it is protected against impacts and the contacts cannot become dirty.

Do not expose the control panel to direct sunlight or another heat source.

Avoid direct skin contact with the control panel's electrical contacts.

Attaching the control panel

Push the control panel into the bracket at the right edge of the device.
Push the control panel carefully into the left bracket until it clicks into place.

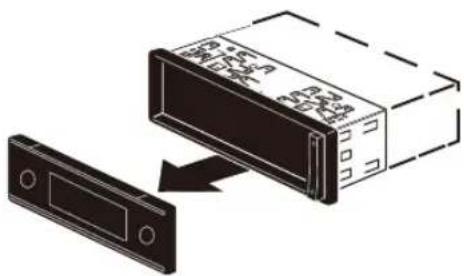

Removing the control panel

Press the button 1 to unlock the control panel.
The left side of the control panel detaches from the device and is secured by the bracket against falling out.
Move the control panel slightly to the left until it disengages from the right bracket.
Carefully remove the control panel from the left bracket.

Note:

The car sound system automatically switches off after approx. 10 seconds if the control panel is removed.

Switching on/off

Switching on/off with the On/Off button

For switch-on, press the On/Off button 3.

The car sound system switches on.

To switch off the device, press and hold down the On/Off button 3 for longer than 2 seconds.

The car sound system switches off.

Note:

If you switch on the car sound system while the vehicle ignition is switched off, it automatically switches off after 1 hour to preserve the vehicle battery.

Switching on/off via vehicle ignition

The car sound system will switch off/on simultaneously with the ignition if the device is correctly connected to the vehicle's ignition as shown in the

installation instructions and you did not switch the device off by pressing the On/Off button 3

Volume

Adjusting the volume

You can adjust the volume in steps from 0 (off) to 50 (maximum).

Turn the volume control 4 to change the volume.

Note:

If a telephone is connected with the car sound system as described in the installation instructions, the car sound system is muted in case of a phone call. During muting, the display shows "TELEPHONE".

Muting the car sound system (Mute)

Briefly press the On/Off button 3 to mute the car sound system or to reactivate the previous volume.

While it is muted, the display shows "MUTE".

DAB mode

With DAB, you can enjoy radio in digital sound quality.

In contrast with standard radio broadcasting, several programmes (services) are always broadcast over the same frequency for DAB.

These services are combined into a so-called ensemble. In some cases, the same service can be received in different ensembles.

Note:

You will need a special DAB antenna to be able to receive DAB signals. This can be a separate DAB roof/ window antenna or a DAB/AM/FM combination antenna.

Below model with DAB function:

London 470 DAB BT 2001017123460

Bamberg 470 DAB BT 2001017123461

Stockholm 370 DAB BT 2001017123462

Frankfurt 370 DAB BT 2001017123463

Skagen 370 DAB BT 2001017123470

Nurnberg 370 DAB BT 2001017123471

Dubai 324 DAB BT 2001017123489

Changing to DAB mode or selecting a DAB memory bank

Press the SRC button? repeatedly until the desired DAB memory bank is displayed: DAB1 DAB2 DAB3

If DAB mode is switched on, the display shows the symbol

Notes:

• Up to 5 services can be stored in each DAB memory bank.
• DAB memory banks can be activated or deactivated via the user menu (see the chapter "User settings", section "Making settings in the "DAB TUNER" menu, "PRESETS" menu item). Deactivated DAB memory banks are skipped during the source selection with the SRC button?

Tuning into ensembles/services

With DAB, several services broadcast over the same frequency are always combined into an "ensemble".

Selecting an ensemble

You can directly select ensembles that you have received once already (for this to work, the ensemble must be receivable).

Briefly press the V / A button 7 to change to the previous/next ensemble.

The first available service in the ensemble is played.

Note:

With activated PTY function, the next service with the currently selected programme type is set (see the section "DAB-PTY" in this chapter).

Ensemble seek tuning

You can find new ensembles using seek tuning.

Press the / A button 7 for approx. 2 seconds to start the search for an ensemble.

The seek tuning stops if an ensemble is being received. The first available service in the ensemble is played.

Selecting a service

After you have tuned into an ensemble, you can select a service from the ensemble.

• Briefly press the < / > button 7 to change to the previous/next service.

As soon as a service with the desired programme type is found, it remains being tuned into.

Radio mode

RDS

Many FM stations broadcast an RDS (Radio Data System) signal in addition to their programme in the reception area "EUROPE" that allows the following additional functions:

• The station name is shown on the display.

The car sound system recognises traffic announcements and news broadcasts and can automatically switch them through in other operating modes (e.g. in CD mode).
- Alternate frequency: If RDS is activated, the car sound system automatically selects the best receivable frequency for the station that is currently set.
Regional: At certain times, some radio stations divide their programme into regional programmes providing different content. If the REGIONAL function is activated, the car sound system changes only to those alternate frequencies on which the same regional programme is being broadcast.

Note:

If you adjust a different reception area than "EUROPE", RDS is automatically switched off. The station name continues to be shown on the display. If you want to use radio stations with RDS features in your region, switch on RDS in the user menu.

Tuning into a station

There are various ways of tuning into a station: Starting station seek tuning

Turn rotary control 7 one notch counterclockwise or clockwise to start station seektuning.

The display briefly shows "SEARCH AUTO". The radio tunes into the next receivable station.

Notes:

• For the reception area "EUROPE": In the FM waveband, only traffic information stations are tuned into if the priority for traffic information (一) is switched on.
• The sensitivity of seek tuning can be adjusted (see the chapter "User settings", section "Making settings in the "TUNER" menu", menu item "SENSITIVITY").

Tuning into stations manually

Press the rotary button 7 once to activate manual station tuning.

The display briefly shows "SEARCH MANUAL".

Turn the rotary control 7 to change the frequency in increments.

Note:

The manual station tuning is automatically exited approx. 15 seconds after the last frequency change, and the station seek tuning is started by turning the rotary control 7

Storing stations or calling stored stations

Select the desired memory bank.
If necessary, set the desired station.
Press the station button 1 - 5 > for approx. 2 seconds to store the current station under the button.

-or-

Briefly press the station button 1-5> to call up the stored station.

Changing to CD/MP3/WMA/iPod mode

Press the SRC button @ repeatedly until the desired audio source is displayed:

• "CD": Inserted CD.
• "SD(HC): Inserted memory card

• "USB FRONT" or "USB REAR": USB data carrier connected to the front or rear.

• "IPOD FRONT / IPHONE FRONT" or "IPOD REAR / IPHONE REAR": Connected iPod / iPhone at the front or rear side
  "AUX": Connected external audio source.

Notes:

• The respective audio source can be selected only if a corresponding CD is inserted or a corresponding device is connected.
• If the car sound system first has to read the data of a connected device or data carrier before the playback, the display shows "READING". The duration of the reading depends on the data volume and design of the device or data carrier. If the device or data carrier is defective or the transferred data cannot be played back, a corresponding message appears on the display (e.g. "CD ERROR").

Inserting/ejecting a CD Inserting a CD

Risk of severe damage to the CD drive!

Noncircular contoured CDs (shape CDs) and CDs with a diameter of 8cm (mini CDs) must not be used.

We accept no responsibility for any damage to the CD drive that may occur as a result of the use of unsuitable CDs.

Note:

You must not hinder or assist the drive as it automatically draws in the CD.

Insert the CD with its printed side up into the CD tray 5 until you feel a slight resistance.

The drive automatically draws in the CD and checks its data. Afterwards, the playback starts in CD or MP3 mode.

Note:

If the inserted CD cannot be played back, "CD ERROR" is briefly displayed and the CD is automatically ejected after approx. 2 seconds.

Ejecting a CD

Note:

You must not hinder or assist the drive as it ejects the CD.

Press the button 8 to eject an inserted CD.

Notes:

• If a CD is ejected and not removed, the drive will automatically draw it back in again after approx. 10 seconds.
• You can also eject CDs while the car sound system is switched off or whilst another audio source is activated.

Bluetooth® menu

In the Bluetooth® menu, you find all the functions for pairing, connecting and managing Bluetooth® devices.

Calling the Bluetooth® menu

• Briefly press the MENU button 2 to open the user menu.
  Turn the rotary control 7 until the "BLUE-TOOTH" menu item is selected.
  Press the rotary control 7 to open the Bluetooth® menu.
  Turn the rotary control 7 until the desired menu item is selected.
  Perform the setting (see the following sections).
• Briefly press the MENU button 2 to exit the menu.

Notes:

• The Bluetooth® menu is automatically exited approx. 30 seconds after the last button activation and you are returned to the display of the current audio source.
  To go back to the next higher-level menu, turn the rotary control 7 until the "<<" option is selected and press the rotary control 7.
• If a Bluetooth® process is running (e.g. re-establishing the connection to the last connected device), the functions of the

Bluetooth® menu are blocked. If you attempt to open the Bluetooth® menu during this time, "LINK BUSY" briefly appears on the display. If you want to cancel the Bluetooth® process and open the Bluetooth® menu, press the 12 button < .

Pairing and connecting a device

Note:

You can pair up to 5 Bluetooth® devices with this car sound system. Before you can pair a sixth device, you must first unpair one of the 5 already paired devices (see ch. "Additional functions in the Bluetooth® menu", section "Managing paired devices").

If you should attempt to pair a sixth Bluetooth® device, "PHONE LIST FULL - PLEASE DELETE ENTRIES FROM LIST" is displayed.

Pairing and connecting a cell phone

Note:

If a connection with a cell phone currently exists, this connection is automatically disconnected if you pair and connect another cell phone.

In the Bluetooth® menu, select the "PAIRING" menu item.
Press the rotary control7 to open the menu. The "MOBILE PHONE" menu item is selected.
Press the rotary control 7 to register a cell phone.

The display intermittently shows "ENTER PIN" and the currently stored PIN (default "1234"). In addition, the Bluetooth icon flashes. The car sound system can now be recognised by a Bluetooth cell phone for approx. 2 minutes and connected.

Search the car sound system from your cell phone (Bluetooth name:"BP 440 BT") and establish the connection. Enter the PIN displayed by the car sound system, if necessary. The display may show "PAIRED", followed by "CONNECTED", as soon as the car sound system and the cell phone are paired and connected.

Note:

If no connection can be established, the display briefly shows "CONNECT Failed".

Pairing and connecting a Bluetooth® streaming device

Note:

If a connection with a streaming device currently exists, this connection is automatically disconnected if you pair and connect another streaming device.

In the Bluetooth® menu, select the "PAIRING" menu item.
Press the rotary control7 to open the menu. The "MOBILE PHONE" menu item is selected.
Turn the rotary control 7 to select the "STREAMING" menu item.
Press the rotary control 7 to register a streaming device.

The display shows the currently stored PIN (default "1234"). If required, enter the PIN of the streaming device:

Turn the rotary control 7 to select a digit for the respective position.
Press the rotary control 7 to go to the next position.

Note:

Not all streaming devices require the entry of a PIN on the car sound system. For some streaming devices, you have to enter the PIN of the car sound system instead. For these devices, press only the rotary control 7 repeatedly until you reach beyond the last position, thereby confirming the current PIN, and then enter this PIN on the streaming device.

The display intermittently shows "ENTER PIN" and the currently stored PIN (default "1234"). In addition, the Bluetooth icon flashes. The car sound system can now be recognised by the streaming device for approx. 2 minutes and connected.

Search the car sound system from your streaming device (Bluetooth name: "BP 440 BT") and establish the connection. Enter the PIN displayed by the car sound system, if necessary.

The display may show "PAIRED", followed by "CONNECTED", as soon as the car sound system and the streaming device are paired and connected.

Notes:

If no connection can be established, the display briefly shows "CONNECT Failed".
If a Bluetooth device is connected with the car sound system, the display shows the Bluetooth icon.
- After switch-on, the car sound system automatically attempts to reconnect the device connected last. If the connection attempt fails, the display briefly shows "NO DEVICE". If necessary, attempt to re-establish the connection from the Bluetooth device.

Telephone functions

Answering/rejecting an incoming phone call

With an incoming call, the display alternately shows "INCOMING CALL" and the number of the caller. The current audio source is muted and a ring tone is played via the loudspeakers of the car sound system.

Note:

If the number of the caller is not being transmitted, the display shows "PRIVATE NUMBER" instead of the number. If the number of the caller is stored together with a name, the name of the entry and the number are displayed (see the section "Storing a phone number in the car sound system" in this chapter).

Press the 13 button to answer the call. "CALL" and the duration of the ongoing call are displayed.
Press the 12 button to reject the call or to end the current call.

The display shows "CALL END".

Notes:

During the call, you can adjust the volume with the volume control 4 or mute the microphone and the loudspeakers with a short press of the On/Off button 3.

• You can preset the minimum volume for the call playback in the user menu (see the chapter "User settings", section "Making settings in the "VOLUME" menu", menu item "HANDSFREE VOL").
• You can switch the call playback back and forth between the loudspeakers of the car sound system and the cell phone with the button = .
• If another call is received during an ongoing phone call, the second call cannot be answered via the car sound system.
  If the car sound system is switched off with active ignition, it automatically switches on with an incoming call. This allows you to make the call over the hands-free system.

After the call has ended, the car sound system automatically switches off again.

Making a call

In the Bluetooth® menu, select the "DIAL NEW NUMBER" menu item.
Press the rotary control 7 to open the entry menu.

You can now enter a phone number with up to 20 digits:

Turn the rotary control 7 to select a digit for the respective position.
Press the rotary control 7 to go to the next position.

Note:

To return to the previous position in the entry menu, turn the rotary control 7 until the < option is selected, and press the rotary control 7.

Press the 13 button to call the number entered.

"CALLING" and the dialed number are alternately shown on the display.

As soon as your calling party answers the call, the display shows "CALL" and the time of the current phone call.

Upon ending the call, the display briefly shows "CALL END".

Calling an entry in the phone book

Note:

This function is available only if the phone book of the connected cell phone was transferred to the car sound system (see the chapter "Phone book functions").

In the Bluetooth® menu, select the "PHONEBOOK" menu item.
Press the rotary control7 to open the phone book.

The display shows the first phone book entry.

Note:

If the phone book has not yet been transferred, the display briefly shows "PHONEBOOK NOT AVAILABLE".

-or-

IntheBluetooth*menu,selectthe"PBSEARCH" phone book search) menu item.
Press the rotary control 7 to open the entry menu.
Turn the rotary control 7 to select the first letter of the desired entry.
Press the rotary control 7 to confirm the selection.

The display shows the first phone book entry that starts with the selected letter.

Note:

If the phone book does not contain any entry with the selected first letter, the display briefly shows "NOT FOUND".

Turn the rotary control 7 to select a different entry.
Press the rotary control 7 or the 13 button to call the number.

"CALLING" and the dialed number are alternately shown on the display.

Note:

You can also call an entry in the phone book via speed dial (see the section "Speed dial for phone book entries" in this chapter).

Making a call with voice dial

Note:

This function is only available if the connected cell phone supports voice dial.

In the Bluetooth® menu, select the "VOICE DIAL" menu item.
Press the rotary control 7 or the 13 button to activate voice recognition.

The car sound system is muted and the display shows "SPEAK NOW".

Say the name of the desired calling partner.

Notes:

• If no Bluetooth connection is established when voice recognition is activated, the display briefly shows "VOICE DIAL FAILD - NO BT CONNECTION".
• If the spoken name is not being recognised or the time for the voice recognition has already expired, the display briefly shows "DIAL Failed".
• You can cancel the voice recognition by pressing the 12 button.
• Please note that the duration of the voice recognition is limited and depending on the respective cell phone.
• You can also activate the voice recognition via speed dial (see the section "Speed dial for voice dial" in this chapter).

Storing a phone number in the car sound system

You can store phone numbers in the car sound system and make calls using the speed dial (see the following section).

A phone number is stored for the currently connected telephone and is available only for this telephone. The car sound system can store up to five numbers for up to five paired devices.

Enter the phone number as described in the section "Making a call".
Press the desired memory button 1-5> for approx. 2 seconds to store only the number.

-or-

Press the rotary control 7 for approx. 2 seconds to enter a name for the entry.
You can now enter a name with up to 15 characters:
Turn the rotary control 7 to select a character for the respective position.
Press the rotary control 7 to go to the next position.

Note:

To return to the previous position in the entry menu, turn the rotary control 7 until the < option is selected, and press the rotary control 7.

Press the desired memory button 1 - 5 > for approx.2 seconds to store the number and name.

The display briefly shows "NUMBER SAVED". Afterwards, you are returned to the Bluetooth® menu and the "DIAL NEW NUMBER" menu item.

Notes:

• A number previously stored on the memory button is replaced.
• If a telephone is unpaired, the numbers stored for this telephone are automatically deleted.

Speed dial for any phone number or for the number dialed last or a stored number

With speed dial, you can make a call without first having to select the corresponding function in the Bluetooth® menu.

To call the number dialed last,

press the 13 button.

The display shows the number dialed last.

Note:

If no cell phone is currently connected, the Bluetooth® menu is opened. The "PAIRING" menu item is selected.

Press the 13 button to call the number.
"CALLING" and the dialed number are alternately shown on the display.
To call a stored number,
press the 13 button.

Press a memory button 1 - 5 > to call the number stored.

Note:

If no number is stored under the selected memory button, the display briefly shows "NO NUMBER".

Press the TS button to call the number.

"CALLING" and the dialed number are alternately shown on the display.

To call any number,

press the 13 button .
Press the rotary control 7 to open the entry menu and enter a number (enter the phone number as described in the section "Making a call").
Press the 13 button to call the number.

"CALLING" and the dialed number are alternately shown on the display.

Speed dial for phone book entries

Note:

This function is only available

• if the phone book of the connected cell phone was transferred to the car sound system (see the chapter "Phone book functions").
• if the speed dial is set for phone book entries (see the chapter "Additional functions in the Bluetooth® menu", section "Setting the button function for speed dial").

To select an entry of the phone book with the speed dial and call it,

press the 13 button for approx. 2 seconds.
The display shows the first phone book entry or the search function for phone book entries.
If necessary, select another entry as described in the section "Calling an entry in the phone book".
Press the 13 button to call the number.

"CALLING" and the dialed number are alternately shown on the display.

Speed dial for voice dial

Note:

This function is only available

• if the connected cell phone supports voice dial.
• if the speed dial is set for voice dial (see the chapter "Additional functions in the Bluetooth® menu", section "Setting the button function for speed dial").

To activate the voice recognition with the speed dial,

press the 13 button for approx. 2 seconds.

The car sound system is muted and the display shows "SPEAK NOW".

Say the name of the desired calling partner.

External audio sources

Front AUX-IN socket

Danger!

Increased risk of injury from connector.

In case of an accident, the protruding connector in the front AUX-IN socket may cause injuries. The use of straight plugs or adapters leads to an increased risk of injury.

For this reason, it is recommended to use angled jack plugs.

As soon as an external audio source, such as a portable MP3 player is connected to the front AUX-IN socket; it can be selected with the SRC button @ . "AUX" then appears on the display.

Making settings in the "VOLUME" menu

ON VOLUME

Setting the power-on volume. Settings: ON VOL- UME (power-on volume; 1 - 50) or LAST VOLUME (volume set last before switching off the car sound system).

Danger!

High volume

The power-on volume can be unexpectedly high if the LAST VOLUME setting is selected and a high volume was set the last time the radio was switched off.

Always set the device to a moderate volume.

Press the rotary control7 to open the menu.
Turn the rotary control 7 to switch between the menu items "LAST VOLUME" and "ON VOLUME" (power-on volume).

Upon selecting "LAST VOLUME":

Press the rotary control 7 twice to confirm the setting.

Upon selecting "ON VOLUME":

Press the rotary control 7 to change the setting.
Turn the rotary control 7 to set the volume.
Press the rotary control 7 to confirm the setting.

TRAFFIC VOL (traffic information volume) (reception area EUROPE only)

Setting the minimum volume for traffic announcements. Settings: 1 - 50.

Press the rotary control 7 to change the setting.
Turn the rotary control 7 to set the volume.
Press the rotary control 7 to confirm the setting.

HANDSFREE VOL

Adjusting the minimum volume for telephone calls. Settings: 1 - 50.

Press the rotary control 7 to change the setting.
Turn the rotary control 7 to set the volume.
Press the rotary control 7 to confirm the setting.

Note:

During the phone call, you can change the volume directly by means of the volume control 4.

BEEP (button beep)

Switching the confirmation beep on or off. Settings: ON, OFF.

Note:

When storing radio stations, a confirmation beep sounds even if the OFF setting is selected.

Press the rotary control 7 to change the setting.
Turn the rotary control 7 to change between the settings.
Press the rotary control 7 to confirm the setting.

Useful information

Warranty

The warranty terms can be called up from www.blaupunkt.com.

Service

If you ever need to use a repair service you will find information about service partners in your country under

www.blaupunkt.com.

Additional information on the functions of the device can be found in the instructions at www.blaupunkt.com

Technical data

Voltage supply

Operating voltage: 10.5 - 14.4 V

Operating voltage: 10.5 - 14.4 V

Heavy duty model

Current consumption

In operation: < 10A

10 sec. after switch-off: < 3.5 mA

Amplifier

Output power: 4 × 24 watts sine at

14.4 V at 4 ohms.

4 x 50 watts max. power

Tuner

Wavebands in Europe/Asia/Thailand:

FM: 87.5-108MHz

AM (MW): 531 - 1,602 kHz

LW (Europe only): 153 - 279 kHz

Wavebands in the US:

FM: 87.7 - 107.9 MHz

AM (MW): 530 - 1,710 kHz

Wavebands in South America:

FM: 87.5 - 107.9 MHz

AM (MW): 530 - 1,710 kHz

FM frequency response: 30 - 15,000Hz

CD

Frequency range: 20 - 20,000 Hz

Pre-amp out

4 channels: 4 V

Input sensitivity

Front AUX-IN: 300mV / 10k

Dimensions and weight

WxHxD: 178x50x160mm

Weight: approx. 1.55kg

EN Installation instructions

Safety instructions

When carrying out installation work and making connections please observe the following safety instructions:

- Do not connect the vehicle's plug connectors to the radio!

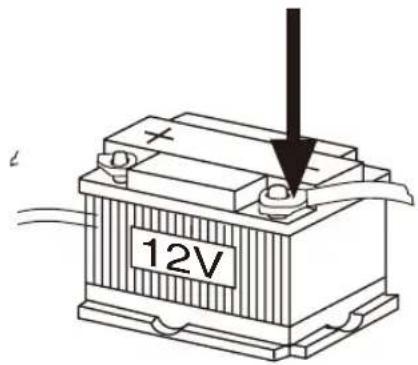

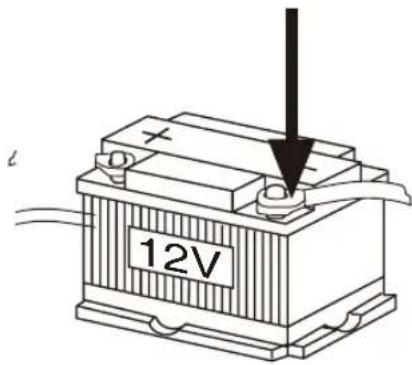

• Disconnect the negative terminal of the battery! When doing so, please observe the vehicle manufacturer's safety instructions.
  Make sure you do not damage vehicle components when drilling any holes.
• The cross sections of the positive and negative cables must not be less than 1.5 mm^2 .

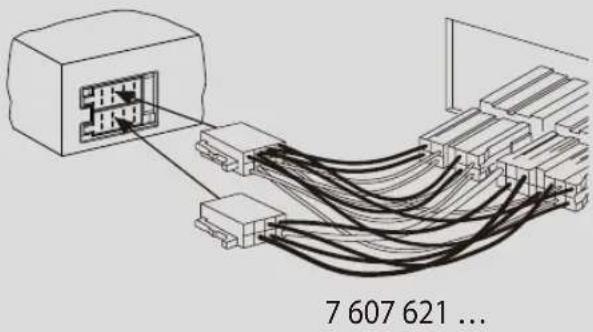

You can obtain the adapter cable required for your vehicle type from any BLAUPUNKT dealer.

Depending on the model, your vehicle may differ from the description provided here. We accept no responsibility for any damages due to incorrect installation or connection or for any consequential damages.

If the information provided here is not suitable for your specific installation requirements, please contact your Blaupunkt dealer, your vehicle manufacturer or our telephone hotline.

When installing an amplifier, you must first connect the device earth connections before connecting the plugs for the line-out jacks.

Earth connection of external devices may not be connected to earth of car sound system (housing).

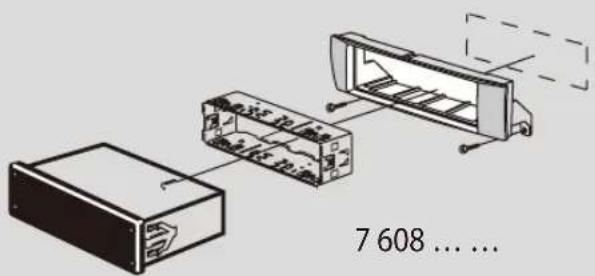

Available as an optional accessory

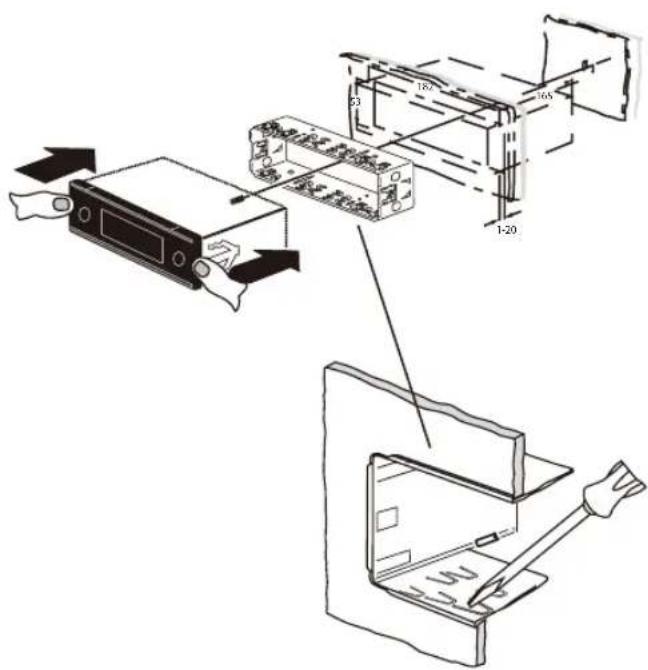

Installation kits

1.

2.

3.

4.

1 Microphone In
2 Steering wheel remote control
3 Rear USB
4 Preamp Out (Front)
5 Preamp Out (Rear)
6 Sub Out (Subwoofer)
7 Radio antenna

5.

6.

Ausbau · Removal · Démontage · Desmontaje · Desmontagem · Pelepasan

1.

3.

2.

7.

B

A

A		B
1 NC 1 Speaker out RR+
2 Telephone Mute 2 Speaker out		RR-
3 NC 3 Speaker out RF+
4 Permanent +12V 4 Speaker out		RF-
5 Auto antenna* 5 Speaker out LF+
6 Illumination 6 Speaker out LF-
7 KL.15/Ignition 7 Speaker out LR+
8 Ground 8 Speaker out LR-

Supported iPod/iPhone devices

Our product can support below listed iPod/iPhone generations;

iPhone 7 Plus
iPhone7
iPhone 6S Plus
iPhone 6S
- iPod touch (5th generation)
iPhone 6 Plus
iPhone 6
iPhone 5s
iPhone 5c
iPhone5

"Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed connect specifically to iPod, iPhone respectively, and has been certified by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone may affect wireless performance. iPhone, iPod are trademarks of Apple Inc., registered in the U.S. and other countries.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.

Android is a trademark of Google Inc.

Suitable for below listed models:

Information:

Please note that this is a general manual for different models and that from model to model there can become operating differences, in particular in the graphical representations or existing functions (e.g.CD drive, DAB and / or BT).

• London 470 DAB BT 2001017123460
  Bamberg 470 DAB BT 2001017123461
  Stockholm 370 DABBT 2001017123462
  Frankfurt 370 DAB BT 2001017123463
• Barcelona 270 BT 2001017123464
  Kiel 270BT 2001017123465
• Skagen 370 DABBT 2001017123470
  Nurnberg 370 DAB BT 2001017123471
  Dubai 324 DABBT 2001017123489
  Dakar 224BT 2001017123490
  Doha 112BT 2001017123491

1 -knapp

Lase opp det avtagbare betjeningspanelet

2 MENU-knappen

Kort trykk: Apne/lukke meny Langt trykk: Starte skannefunksjon

3 On/Off -knappen

Kort trykk: Sla pa bilradiosystemet
I drift: Sla av lyden i bilradiosystemet (Mute)
Langt trykk: Sla av bilradiosystemet

4 Volumbryter

5 CD-stasjon

6 Skjerm

7 Dreiebryter

AM (MW): 531 - 1602 kHz

LW (kun Europa): 153 - 279 kHz

AM (MW): 530 -1710kHz

Frekvensområder i Sør-Amerika:

FM: 87,5 - 107.9 MHz

AM (MW): 530 -1710kHz

FM-overf.orgsamrade 30-15,000 Hz CD

9 Microfoon
10 Front USB bus
11 Front AUX-IN bus

12 toets

4 X 50 watts max. power

Tuner

AM (MW): 531 - 1602 kHz

LW (Enkel Europa): 153 - 279 kHz

AM (MW): 530 -1710kHz

AM (MW): 530 -1710kHz

FM frequencies: 30 - 15 000 Hz CD

Frequeniebereik: 20 - 20 000 Hz

Pre-amp out

4kanalen: 4V

Ingangsgevoeligheid

Front AUX-IN: 300 mV / 10 kΩ

AM (MW): 531 - 1602 kHz

LW (csak Europa): 153 - 279 kHz

AM (MW): 530 -1710kHz

AM (MW): 530 -1710kHz

A		B
1	NC	1	Speaker out RR+
2	Telephone Mute	2	Speaker out RR-
3	NC	3	Speaker out RF+
4	Permanent +12V	4	Speakerout RF-
5	Auto antenna*	5	Speaker out LF+
6	Illumination	6	Speakerout LF-
7	KI.15/Ignition	7	Speaker out LR+
8	Ground	8	Speaker out LR-

• Switched power supply +12 V / max. 150 mA

ON VOLUME (VOLUME SONORE A LA MISE EN MARCHE)

FM (OUC): 87,5 - 108 MHz

AM (OM): 531 - 1602 kHz

OL (uniquement Europe): 153 - 279 kHz

FM (OUC): 87,7 - 107.9 MHz

AM (OM): 530 -1710kHz

FM (OUC): 87,5 - 107.9 MHz

AM (OM): 530 -1710kHz

L X H X P: 178X50X160mm

Poids: env. 1,55 kg

AM (MW): 531 - 1602 kHz

LW (vain Eurooppa): 153 - 279 kHz

Aaltoalueet USA:

FM: 87,7 - 107.9 MHz

AM (MW): 530 -1710kHz

AM (MW): 530 -1710kHz

1 Microphone in
2 Steering wheel remote control
3 Rear USB
4 Preamp Out (Front)
5 Preamp Out (Rear)
6 Sub Out (Subwoofer)
7 Radio antenna

5.

6.

Irrotus · Ausbau · Removal · Demontage · Desmontaje · Desmontagem · Pelepasan

1.

3.

2.

7.

B
A

A		B
1	NC	1	Speaker out RR+
2	Telephone Mute	2	Speaker out RR-
3	NC	3	Speaker out RR+
4	Permanent +12V	4	Speaker out RR-
5	Auto antenna*	5	Speaker out RR+
6	Illumination	6	Speaker out RR-
7	KI.15/Ignition	7	Speaker out LR+
8	Ground	8	Speaker out LR-

AM (MW): 531 - 1602 kHz

LW (solo Europa): 153 - 279 kHz

AM (MW): 530 -1710kHz

AM (MW): 530 -1710kHz

Satt in frontpanelen

ON VOLUME (PASLAGNINGSVOLYM)

HANDSFREE VOL (VOLYM FÖR HANDSFREE)

AM (MW): 531 - 1602 kHz

LW (endast Europa): 153 - 279 kHz

AM (MW): 530 -1710kHz

AM (MW): 530 -1710kHz

FM-ljudfrekvensomfang: 30-15000Hz CD

AM (MW): 531 - 1602 kHz

LW (kun Europa): 153 - 279 kHz

Bølgeområde I Nordamerika:

FM: 87,7 - 107,9 MHz

AM (MW): 530 -1 710kHz

Bolgeomrade I Sydamerika:

FM: 87,5-107,9MHz

AM (MW): 530 -1,710kHz

FN- frekvensrespons: 30 - 15 000 Hz CD

Overforselsomrade 20-20 000 Hz

Pre-amp Out

4kanaler: 4V

Indgangsfolsomhed

Front-AUX-IN: 300mV / 10k

Målog vægt

B xHxL 178 X 50 X 160 mm

Vægt ca. 1,55 kg

AM (MW): 531 - 1602 kHz

LW (nur Europa): 153 - 279 kHz

AM (MW): 530 -1 710kHz

AM (MW): 530 -1,710kHz

AM (MW): 531 - 1602 kHz

LW (solo Europa): 153 - 279 kHz

AM (MW): 530 -1 710kHz

AM (MW): 530 -1,710kHz

Competence Center Car Multimedia

Evo-Sales GmbH

Hastenbecker Weg 33
