USER MANUAL AirFry Chef 1700 CASO

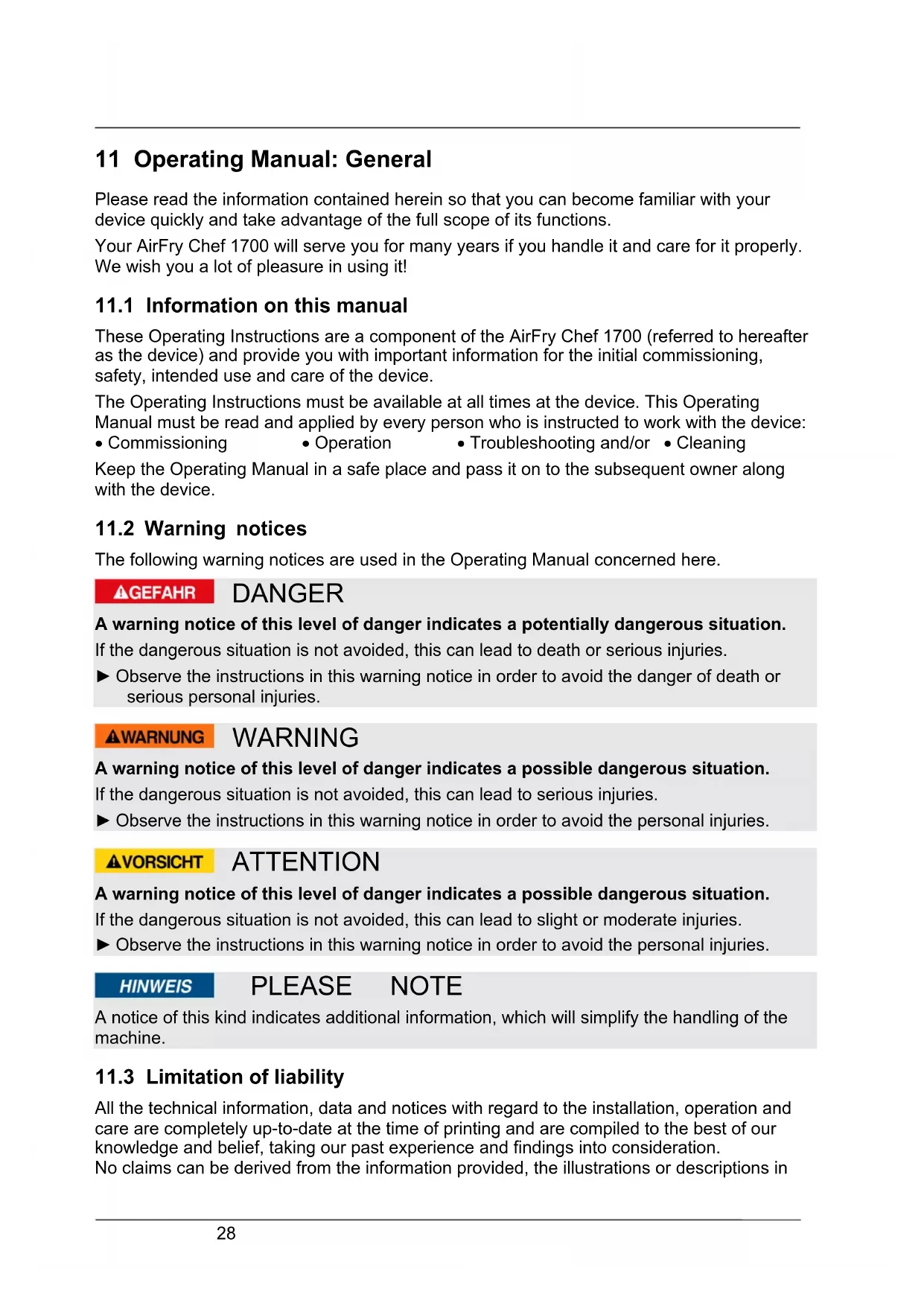

Item No. 300028 11 Operating Manual: General Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your AirFry Chef 1700 will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

11.1 Information on this manual

These Operating Instructions are a component of the AirFry Chef 1700 (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: Commissioning Operation Troubleshooting and/or Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.2 Warning notices

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.3 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in29 this manual. The manufacturer does not assume any liability for damages arising as a result of the following: Non-observance of the manual Uses for non-intended purposes Improper repairs Technical alterations, modifications of the device Use of unauthorized spare parts Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.4 Copyright protection

This document is copyright protected. CASO GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 12 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is only intended for use in households in enclosed spaces for Heating, defrosting, keeping warm, fat-free frying, cooking, roasting, baking, grilling or drying of food. This device is intended for use in the household and for similar applications such as: in kitchens for employees in shops, offices, and other commercial areas; in B&Bs, in agricultural estates; by customers in hotels, motels and other residential establishments. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use. WARNING Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

12.2 General Safety information

Please note Please observe the following general safety notices with regard to the safe handling of the device.30 Please note ► Read all these instructions before using the device. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► Do not operate this device if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. ► This device can be used by children aged 8 and above, and by persons with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved. ► Children shall not play with the device. ► Cleaning and maintenance shall not be made by children unless they are older than 8 years and supervised. ► The device and its connecting cable must be kept away from children who are less than 8 years old. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user. ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled. ► The device is not intended to be operated by means of an external timer or separate remote-control system. ► Unplug from the outlet when not in use and before cleaning and before assembling or deassembling parts. ► Use only the accessory recommeded by the manufacturer or the device could be damaged. ► Do not immerse in water, dishwasher or any other liquids.31 Please note ► Do not leave the device unsupervised during operation. Do not leave the door open for longer time when the device is in operation. ► Unplug after use.

12.3 Sources of danger

12.3.1 Danger of burns

Warning The food prepared in the device, the device and the surfaces of the device can become very hot. Please observe the following safety notices in order not to burn or scald yourself or others ► Attention: The functional surfaces and the adjacent surfaces can get very hot. Danger of burns! ► The temperature of the accessible surface can become very hot when the device is operating. ► Use pot holders when you want to touch the hot device, accessory or food or want to remove them from the device. ► Do not touch the heating elements. Danger of burns! ► The upper side of the device is during and after use very hot. Do not store any items on the device. ► Do not move or change the position of the device during use. Danger of burns! ► Be carefull when handling hot food. ► Let the device cool down before assembling/deassembling of parts and before cleaning. ► Pay attention while handling the device especially if it is full of hot food. ► Keep children away from the device, since the surfaces of the device become hot during use and remain hot for a some time.32

12.3.2 Danger of fire

Warning There is a danger of fire due to the ignition of the content in the event the device is not used properly. Observe the following safety notices to avoid dangers of fire: ► This device produces high temperatures, which can lead to burns. ► This device works on hot air. Do not fill it with oil or fat! Danger of burns! ► Make sure that no flammable objects are above or near the device. ► Never use the device to store or dry flammable materials. ► Do not use the device for storage of food or utensils. ► Never cover the device with towels or other materials during use. Heat and steam must be free to escape. Danger of fire arises if the device is covered with flammable materials or comes in contact with curtains. ► Do not use the device near to flammable materials for example curtains. ► Caution: Very oily or fatty food can easily ignite at high heat. Therefor make sure that fat do not drip on the heating elements, for example through a overfilled baking tray. ► Always remove grease residues in the device, as these residues can otherwise ignite.

12.3.3 Dangers due to electrical power

Danger Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:33 Danger ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur. ► Do not unplug by pulling the cord pull the plug. ► Do not operate this device if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. ► Do not submerge the heating unit, cord or plug in water or other liquids to prevent electrical shock. 13 Commissioning This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

WARNING ► Packaging materials may not be used for playing. There is a danger of suffocation.

13.2 Delivery scope and transport inspection

As a rule, the AirFry Chef 1700 is delivered with the following components: AirFry Chef 1700 operating instructions baking tray grill rack crumb tray rotisserie Frying drum Extra large frying basket removal assistance for grill rack and baking tray removal assistance for rotisserie and frying drum Please note ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

Remove the device out of the carton, remove the packaging material, shovel and measuring container.34

13.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. Please note ► If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

13.4.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites: Place the device on a firm, flat, level and heat-resistant surface with sufficient load- bearing capacity for the device and its contents. Dot not place the device on a metal surface. Choose the setup location in such a way that children cannot reach any hot surfaces on the device. The device is not intended to be installed in a wall or a built-in cupboard. Do not set up the device in a hot, wet or extremely damp environment or near flammable material. Do not place the device near a gas or electric cooker or an oven. The device requires an adequate flow of air in order to operate correctly. Make sure that the back of the device is at least 15 cm away from the wall. Keep 10 cm free space at the other sides of the device. Do not cover up any openings on the device and do not block these off. The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency. The device and power cord should not come in contact with hot surfaces. The device could be damaged. The installation and assembly of this device in non-stationary setup locations must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

13.5 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection: Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician. The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this. Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.35 The electrical outlet must be protected by a 16A safety cut-out switch, separately from other electricity consumers. The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor. 14 Design and Function This chapter provides you with important safety notices on the design and function of the device.

14.1 Warning notices on device

ATTENTION Danger due to hot surface! There is a warning notice referring to dangers due to hot surfaces located on the back upper side of the housing. The surfaces of the device can become extremely hot. ► Do not touch the hot surfaces of the device. Danger of burns! ► Do not set or lay any items on the device.

1. Baking tray - Use for grilling, roasting and baking

or as a fat drip tray for the grill rack, extra large frying basket, rotisserie and frying drum Cover with baking paper for easier cleaning

2. Grill rack - Use for grilling, baking or roasting

3. Removal assistance for baking tray and grill rack

4. Extra large frying basket - Use for baking,drying of food and fat-free frying36

5. Rotisserie - For evenly grilling of meat for example poultry

6. Removal assistance for rotisserie and frying drum

8. Crumb tray - For safe and easy remove of crumbs

14.4 Use of rotisserie and frying drum

Slide the hooks for the rotisserie or the frying drum onto the spit and fasten them with the provided screws. A) Place with the slightly rounded side on the right side. B) After this place at left side.

1. Temperature selection (40-230°C, in 5°C steps)

4. Switch the interior light on / off

5. Display of the program, temperature and time setting

6. Control dial for program selection and temperature / time setting

The rating plate with the connection and performance data can be founded on the back of the device.

Remove all accessory from the inside of the device, clean them with soapy water and dry them after this. Wipe the bottom and the top of the interior with a damp cloth and thoroughly dry the interior after this. The heating elements have a protection layer. At first use vapor can occur. This is not harmful and do not affect the performance of the device. Therefore operate the device at first use for 10 minutes on 150°C (AIRFRY program), then for 10 minutes on 200°C (AIRFRY program) and let it thoroughly aerate after this and let it cool down.

1. Insert the plug. After plugging in, the device beeps twice and the display of the program,

temperature and time setting light up.

2. Check that the crumb tray is inserted correctly.

3. Place your food on the baking tray, grill rack or extra large frying basket and slide it into

the device. Or: Place the food on the rotisserie or in the frying drum and insert it into the device as described under "Use of rotisserie and frying drum ".

4. Make sure that the oven door is properly closed.

5. Turn the control dial to select the desired program. The illuminated arrow indicates the

selected program. The preset temperature and time are displayed alternately for 5 seconds each.

6. Press the button to set the desired temperature. As long as the temperature is

flashing in the display (5 times), you can adjust the setting with the control dial.

7. Press the button to set the desired cooking time. As long as the temperature is

flashing in the display (5 times), you can adjust the setting with the control dial.

8. Press to start the cooking process.

9. You can pause and continue the process by pressing . To cancel the process, press

and hold the button.

10. After the set time has elapsed, an acoustic signal sounds. Use oven gloves or the

removal assistance to remove the accessories with food.

11. To turn off the device, press and hold the button.

Please note ► The display shows the set temperature and the remaining time during operation. ► You can adjust the temperature / time setting during the process by repeating step 6 / 7.39 Please note ► After 2 minutes without operation, the device switches into standby mode automatically. Press any button to switch the display back on - the unit is ready for operation. Set the desired settings and start the unit.

15.3 Advices for frying

Smaller ingredients usually require a slightly shorter preparation time than larger ingredients. A larger amount of ingredients requires a slightly longer preparation time, a smaller amount of ingredients requires a slightly shorter preparation time. Shaking or moving the ingredients halfway through the preparation time optimises the end result and can help prevent unevenly fried ingredients. Coat fresh potatoes with a bit of oil for crispy result. Do not prepare extremely greasy ingredients such as sausages in the fryer. Some snacks that can be prepared in an oven can also be prepared in the fryer. We recommend the following quantities and settings: Food Quantity (max.) Accessorie Program Temp. (°C) Time (min.) French fries (frozen) 750 g Frying basket Fries 200 20-25 French fries (frozen) 500 g Frying drum Fries 200 20-25 Homemade sweet potato wedges 500 g Frying drum Fries 200 25-30 Grilled vegetables (carrots, peppers, zucchini, etc.)

500 - 750 g Frying basket Grill I 180 15-25

Burger patty 150 g each Grill rack Grill II 230 5-15 Chicken nuggets 500 g Frying basket Roast 180 10-12 Grilled chicken 1300 g Rotisserie Roast 210 50 Pizza Ø 27 cm Grill rack Pizza 200 10 Homemade croutons 150 g Frying drum AirFry 180 8 Popcorn 50 g maize kernel Frying drum AirFry 215 10-12 Buns 6 pcs Grill rack / Baking tray Bake 180 8-10 Muffins 12 pcs Baking tray Bake 180 15-20 Homemade apple chips 1-2 pcs Frying basket Dryfruit 40 180 Please note ► After half of time you can check the browning level and turn/ shake the food.40 Please note ► When opening the door during the cooking process, the device stops automatically for safety reasons (display indicator and light turn off and the heating process stops). As soon as the door is closed again, the cooking process continues. ► Please note that a different quantity can require an adjustment of time and temperature. ► Keep in mind that these settings are indications. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients. 16 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

16.1 Safety information

Attention Please observe the following safety notices, before you commence with cleaning the device: ► The device must be cleaned and food residues must be removed at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria. ► Unplug the device before cleaning. ► The baking chamber is hot after it is used. There is a danger of burns! Wait until the device has cooled down. ► Clean the baking chamber after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances. Remaining food leftovers can catch fire during next heating. ► If dampness penetrates into the device, this can damage the electronic components. Please ensure that no liquid can enter the interior of the device through the ventilation slots. ► Do not use any aggressive or abrasive cleaning agents or solvents. ► Do not scrape off stubborn dirt with hard items.

Danger of fire ► Always remove grease residues in the device, as these residues can otherwise ignite. Clean the housing and the crumb tray with a damp cloth. Clean the door with a soft cloth and some glass cleaner or a mild detergent. Thoroughly wipe the interior after each use with a damp soft cloth or a soft cleaning sponge. For easier cleaning of the accessories, soak them in hot water with a bit washing-up liquid for about 10 minutes. Then clean them with a damp, soft cloth. Thoroughly dry the accessory and the device before using them again. Slide the crumb tray back into the device after cleaning.41 17 Troubleshooting This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

Attention ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment. ► Improperly performed repairs can cause considerable dangers for the user and damages to the device.

17.2 Causes and rectification of faults

The following table assists in localizing and rectifying minor faults. Problem Solution The device is not functioning Please check whether the power plug is properly plugged. The process doesn’t start when start / stop is pressed. Make sure the door is properly locked. E1 / E2 is shown in the display. The temperature sensor in the device is defective. Contact customer service. E3 is shown in the display. The temperature in the device is too high. Please stop the process until the device has cooled down and then start again. Please note ► If you are unable to solve the problem with the steps shown above, please contact Customer Service. 18 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances. Please note ► Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. ► Ensure that your old device is stored safely away from children until it is taken away.42 19 Guarantee We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us. Your legal guarantee claims as per Art. 437 ff. German Civil Code (BGB) will remain unaffected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product’s functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us. This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use. In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product’s delivery. Any further claims are excluded. When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details (“Guarantor”) are provided at the beginning of this instruction manual. 20 Technical Data Device AirFry Oven Name AirFry Chef 1700 Item No.: 3000 Mains data 220-240V; 50-60Hz Power consumption 1700W External measurements (W x H x D): 405 x 350 x 390 mm Net weight 6,9 kg43
