Tokyo - Watch accessory Klarstein - Free user manual and instructions

Product type	Automatic watch winder
Brand	Klarstein
Model	Tokyo
Dimensions (L x W x H)	32,5 x 19 x 18,4 cm
Power supply	100-240 V ~ 50/60 Hz (mains adapter) or 2 AA 1.5 V batteries
Capacity	1 watch
Programs	4 presets (Stop, P1, P2, P3, P4)
Program 1	1920 TPD, clockwise rotation 6 min, pause 30 min
Program 2	1920 TPD, counterclockwise rotation 6 min, pause 30 min
Program 3	7680 TPD (3840 each direction), reverse rotation 20 min, pause 10 min, then clockwise 20 min, pause 10 min
Program 4	2304 TPD (1152 each direction), alternate 10 min each direction for 3 h, then pause 9 h
Material	Bamboo frame, acrylic cover
Included accessories	4 adjustable watch cushions (with and without strap)
User manual	Available in FR, DE, EN, ES, IT (28-page PDF)
Article numbers	10032798, 10032800
Manufacturer	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany
Approximate weight	Approximately 1.5 kg (estimate)
Battery type	2 x AA 1.5 V (for cordless use)
Power consumption	Low, mains adapter 100-240 V
Maintenance	Wipe with a soft, dry cloth. Do not use abrasive products.
Recycling	Do not dispose of with household waste. Take to a collection point for WEEE. Used batteries should be returned according to local regulations.
Safety	Unplug the adapter when the device is not in use. Do not remove the watch during rotation. Use only the supplied adapter.

Frequently Asked Questions - Tokyo Klarstein

How to choose the right program for my watch?

The program depends on the needs of your automatic watch. Program 1 (clockwise rotation) is suitable for watches requiring unidirectional winding. Program 2 (counterclockwise rotation) is for those requiring the other direction. Program 3 offers intensive winding (7680 TPD) for watches with short power reserve. Program 4 alternates with a long pause, ideal for watches worn regularly. Consult your watch's manual for the recommended winding direction.

Can I use the winder without mains power?

Yes, the winder can operate on AA batteries (2 x 1.5 V). Insert the batteries into the compartment. Note that battery life is limited; for continuous use, it is preferable to use the supplied mains adapter.

What to do if the winder does not turn on?

First check that the mains adapter is properly plugged in or that the batteries are inserted and not depleted. Make sure the program selector is not set to 'Stop'. If the problem persists, contact customer service.

How to adjust the cushion for my watch?

The supplied cushions are adjustable: you can use the strap for watches with long bands, or remove the strap for watches with short bands. Place the watch on the cushion ensuring it fits snugly without being too tight.

The winder makes noise during operation, is this normal?

A slight mechanical noise is normal, especially during rotations. If the noise becomes loud or irregular, check that the watch is properly installed and that nothing obstructs the movement. If the noise persists, stop the device and contact customer service.

Can I leave the winder running continuously?

Yes, the winder is designed for continuous operation, but it is recommended to unplug it when not in use to save energy and extend the motor's lifespan.

How to clean the winder?

Use a soft, slightly damp cloth to wipe the bamboo frame and acrylic cover. Do not use chemical or abrasive products. Avoid excessive moisture. Never immerse the device in water.

What is the ideal number of turns per day (TPD) for an automatic watch?

Most automatic watches require between 600 and 800 TPD to stay wound. The programs of this winder offer from 1920 to 7680 TPD, which is more than sufficient. Too high a TPD does not harm the watch, but may unnecessarily wear the mechanism. Choose a low program for modern watches.

Can I use the winder for multiple watches at once?

This model has only one winder, so it can only wind one watch at a time. If you have multiple watches, you can swap them or use a multi-watch winder.

What to do if I lose the mains adapter?

Use exclusively a mains adapter with the same specifications (100-240 V ~ 50/60 Hz, appropriate output). Contact the manufacturer or an authorized dealer to obtain a replacement adapter. Using a non-compliant adapter may damage the device.

USER MANUAL Tokyo Klarstein

ONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

KLARSTEIN

www.klarstein.com

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom

10032798

10032800

SICHERHEITSHINWEISE

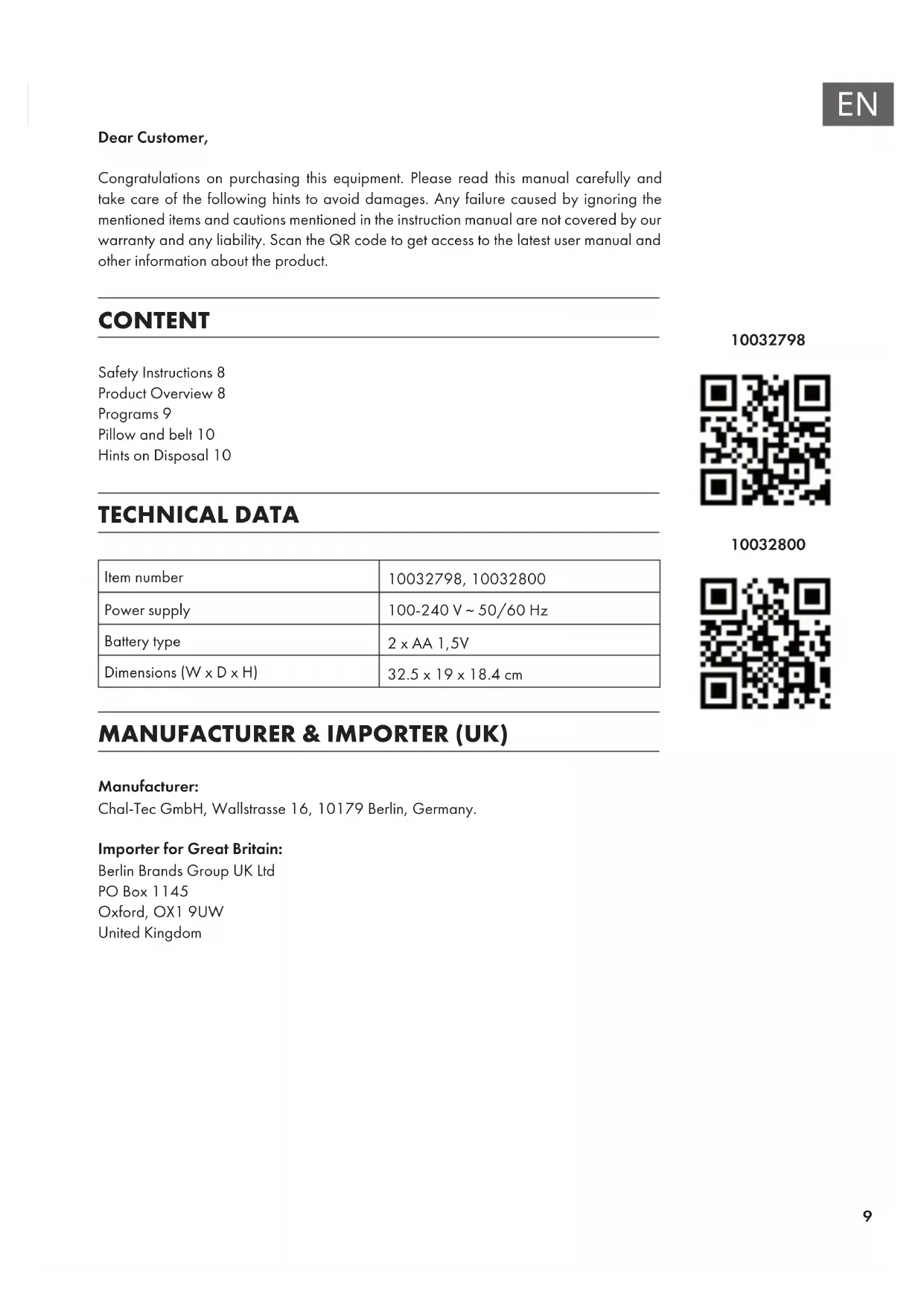

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENT

Safety Instructions 8

Product Overview 8

Programs 9

Pillow and belt 10

Hints on Disposal 10

TECHNICAL DATA

Item number	10032798, 10032800
Power supply	100-240 V ~ 50/60 Hz
Battery type	2 x AA 1,5V
Dimensions (W x D x H)	32.5 x 19 x 18.4 cm

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

10032798

10032800

SAFETYINSTRUCTIONS

• Read all the safety and operating instructions carefully and retain them for future reference.
• Please use the AC adaptor supplied with the unit.
• Remove the adaptor when the winder is not in use.
  Always turn off the power when inserting or removing watches.
• Don't shake or rotate when winder is stationary.
• If you do not use this product for a long time, please take off the adaptor.
  Always turn off the power when inserting or removing watches.

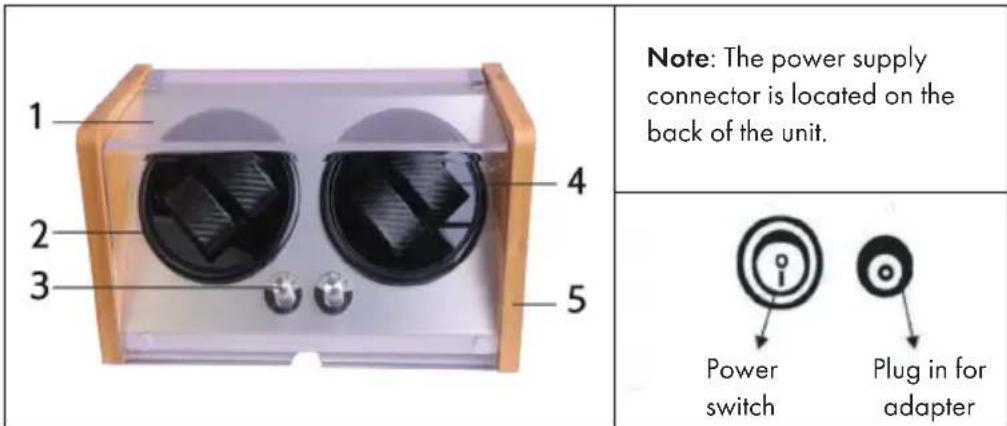

PRODUCT OVERVIEW

1	Acrylic cover	4	Pillow
2	Watch winder	5	Bamboo frame
3	Programm button

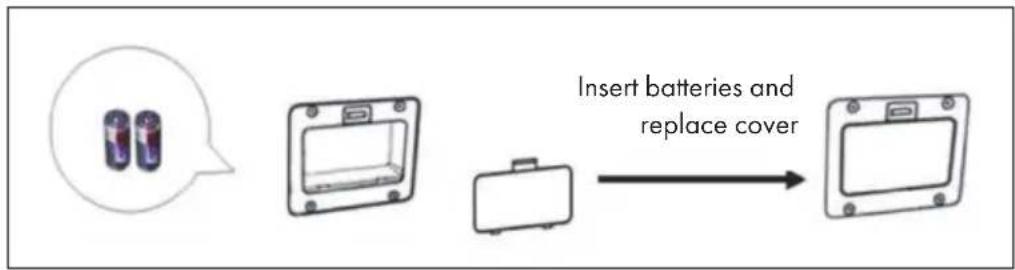

To insert the battery (optional)

Remove the battery compartment cover and insert two AA batteries.

PROGRAMS

Stop		The device is off.
Program 1	1920 turns per day	In this program, the clock rotates clockwise for 6 minutes and then pauses for 30 minutes. Afterwards the cycle starts again.
Program 2	1920 turns per day	In this program, the clock rotates counterclockwise for 6 minutes and then pauses for 30 minutes. Afterwards the cycle starts again.
Program 3	7680 turns per day (3840 in both directions)	In this program, the clock rotates counterclockwise for 20 minutes and then pauses for 10 minutes. The watch rotates clockwise for 20 minutes and then pauses for 10 minutes. Afterwards the cycle starts again.
Program 4	2304 turns per day (1152 in both directions)	In this program, the clock rotates clockwise for 10 minutes and then clockwise for 10 minutes. This change is carried out for 3 hours. The unit then pauses for 9 hours. Then the cycle starts again.

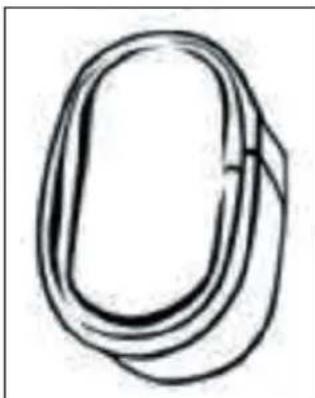

PILOW AND BELT

The watch turner is supplied with 4 watch cushions. The strap around the watch cushions is intended for watches with longer bracelets and can be removed.

Pillow with belt Pillow

without belt

HINTS ON DISPOSAL

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.
