Download the instructions for your Watch accessory in PDF format for free! Find your manual ChronoVault - Klarstein and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ChronoVault by Klarstein.
USER MANUAL ChronoVault Klarstein
bar
| Category | Value | |---|---| | Category 1 | 100 | | Category 2 | 100 | | Category 3 | 100 | | Category 4 | 100 | | Category 5 | 100 | | Category 6 | 100 | | Category 7 | 100 | | Category 8 | 100 | | Category 9 | 100 | | Category 10 | 100 | | Category 11 | 100 | | Category 12 | 100 | | Category 13 | 100 | | Category 14 | 100 | | Category 15 | 100 | | Category 16 | 100 | | Category 17 | 100 | | Category 18 | 100 | | Category 19 | 100 | | Category 20 | 100 | | Category 21 | 100 | | Category 22 | 100 | | Category 23 | 100 | | Category 24 | 100 | | Category 25 | 100 | | Category 26 | 100 | | Category 27 | 100 | | Category 28 | 100 | | Category 29 | 100 | | Category 30 | 100 | | Category 31 | 100 | | Category 32 | 100 | | Category 33 | 100 | | Category 34 | 100 | | Category 35 | 100 | | Category 36 | 100 | | Category 37 | 100 | | Category 38 | 100 | | Category 39 | 100 | | Category 40 | 100 | | Category 41 | 100 | | Category 42 | 100 | | Category 43 | 100 | | Category 44 | 100 | | Category 45 | 100 | | Category 46 | 100 | | Category 47 | 100 | | Category 48 | 100 | | Category 49 | 100 | | Category 50 | 100 | | Category 51 | 100 | | Category 52 | 100 | | Category 53 | 100 | | Category 54 | 100 | | Category 55 | 100 | | Category 56 | 100 | | Category 57 | 100 | | Category 58 | 100 | | Category 59 | 100 | | Category 60 | 100 | | Category 61 | 100 | | Category 62 | 100 | | Category 63 | 100 | | Category 64 | 100 | | Category 65 | 100 | | Category 66 | 100 | | Category 67 | 100 | | Category 68 | 100 | | Category 69 | 100 | | Category 70 | 100 | | Category 71 | 100 | | Category 72 | 100 | | Category 73 | 100 | | Category 74 | 100 | | Category 75 | 100 | | Category 76 | 100 | | Category 77 | 100 | | Category 78 | 100 | | Category 79 | 100 | | Category 80 | 100 | | Category 81 | 100 | | Category 82 | 100 | | Category 83 | 100 | | Category 84 | 100 | | Category 85 | 100 | | Category 86 | 100 | | Category 87 | 100 | | Category 88 | 100 | | Category 89 | 100 | | Category 90 | 100 | | Category 91 | 100 | | Category 92 | 100 | | Category 93 | 100 | | Category 94 | 100 | | Category 95 | 100 | | Category 96 | 100 | | Category 97 | 100 | | Category 98 | 100 | | Category 99 | 100 | | Total (Total) = [sum of bars] / [values] * (sum of bars + bars) * (sum of bars + bars) * (sum of bars + bars) * (sum of bars + bars) * (sum of bars + bars) * (sum of bars + bars) * (sum of bars + bars) * (sum of bars + bars) * (sum of bars + bars) * (sum of bars + bars) * (sum of bars + bars) * (sum of bars + bars) * (sum of bars + bars) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (total).* (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets) * (total).* (sum in brackets) * (sum in brackets) * (sum in brackets) * (sum in brackets)text_image
QR code image containing encoded data, no visible human-readable textINHALTSVERZEICHNIS
US
Standard
Standard
UK
Standard
AU
Standard
SICHERHEITSHINWEISE
35 Ballards Lane
London, N3 1XW
United Kingdom
Dear customer,
Congratulations on your purchase. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.
Safety Instructions 12
Switches and connections 12
Fixing the watch in place 13
Operation 14
Disposal Considerations 16
Manufacturer & importer (UK) 16
TECHNICAL DATA
| Article number 10046309, | 10046312 10046310, 10046311 | |
| Power supply (power adapter) | 100-240 V AC, 50/60 Hz5 V DC /2 A | |
| Power consumption in standby mode | <0.5 W(Switch to standby mode after 30 min) | |
| Maximum watch diameter | 55 mm 55 mm | |
| Maximum circumference (strap) | 62 mm 62 mm | |


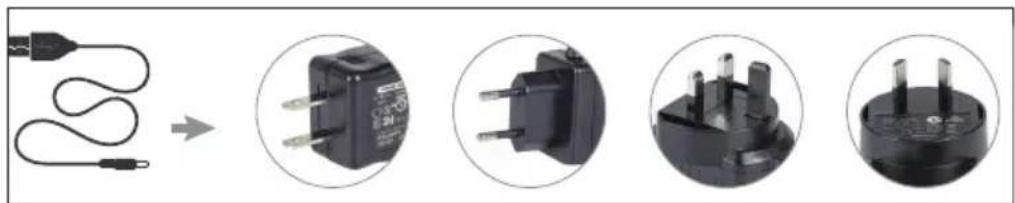

Diagram showing a connected electrical plug being replaced by four views of the plug (no text or symbols present)USB-connection EU
US Standard
Standard
UK Standard
AU Standard
SAFETY INSTRUCTIONS
• Children from the age of 8 years and mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.
- Only use the supplied power adapter.
- Do not rotate the watch winder manually as this could damage the watch winder.
• To avoid damaging the box, do not place the watch winder in direct sunlight and do not expose it to water, moisture or extreme temperatures.
SWITCHES AND CONNECTIONS
| 1 Rotation Knob 6 Drawer | ||
| 2 LED Light Strip 7 Switch Button | ||
| 3 Watch Cuff 8 Power Port | ||
| 4 Key Lock 9 Pause Switch | ||
| 5 Watch Pillow 10 Light Switch |
- If you press the pause button and open the front cover, all watch holders will stop.
- If you press the pause button again and open the front cover, all watch holders will continue to work.
FIXING THE WATCH IN PLACE


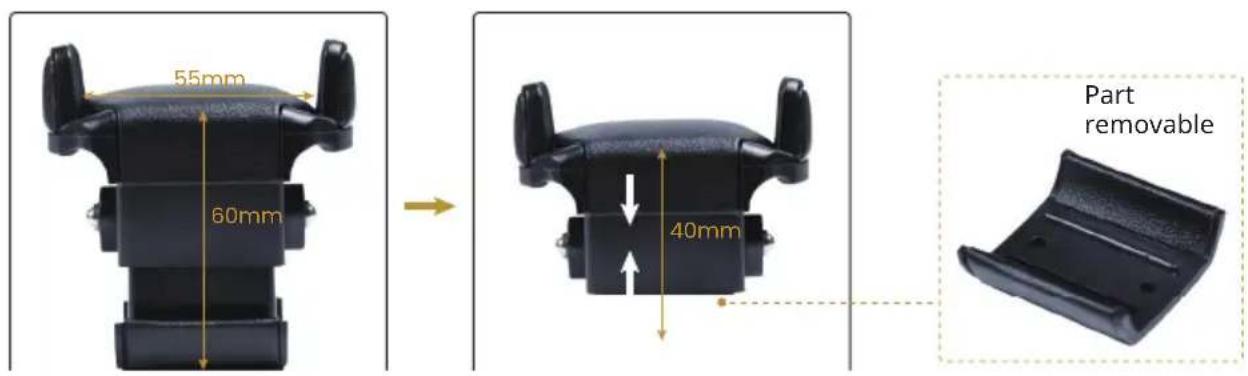

55mm 60mm 40mm Part removableThis unique patent design is best match for different size of watch bracelet/wrist. It can fit max. 55 mm watch diameter, the watch thickness is up to 20 mm and the bracelet/ wrist diameter is limited from 35-62mm.
How to fix the watch in place
| 1 Remove the watch holder from the device by pulling the two tabs on the side. |
| 2 Close the strap or bracelet of your watch. |
| 3 Compress the cuff, and slide your watch over the cuff, watch dial facing outward. |
Note: If the strap is too short, you can push out the detachable part at the bottom at the bottom and then follow the steps to put the watch inside. Push the cuff into the drum until it locks into place and an audible click is heard.

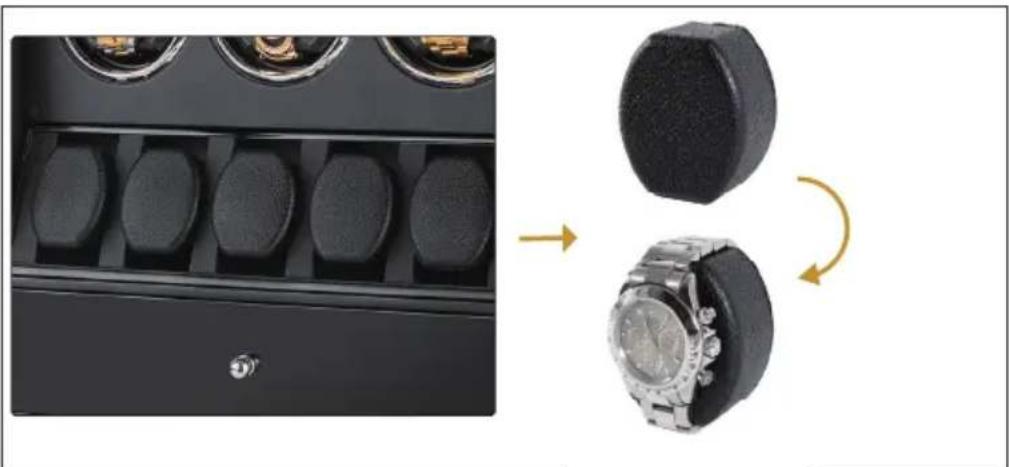

Watch pillow
This flexible watch pillow is suitable for different sizes of watch and bracelet wrist.


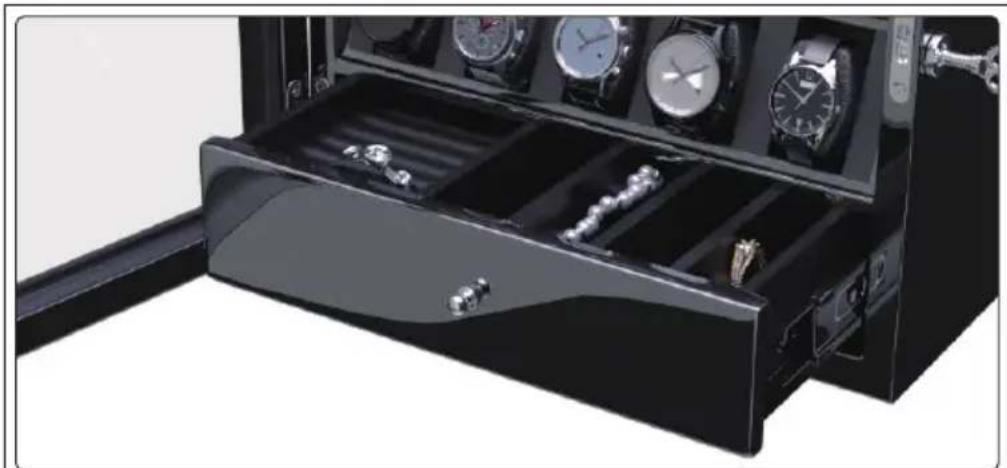

The drawer contains a removable piece of wood that you can arrange to your liking.


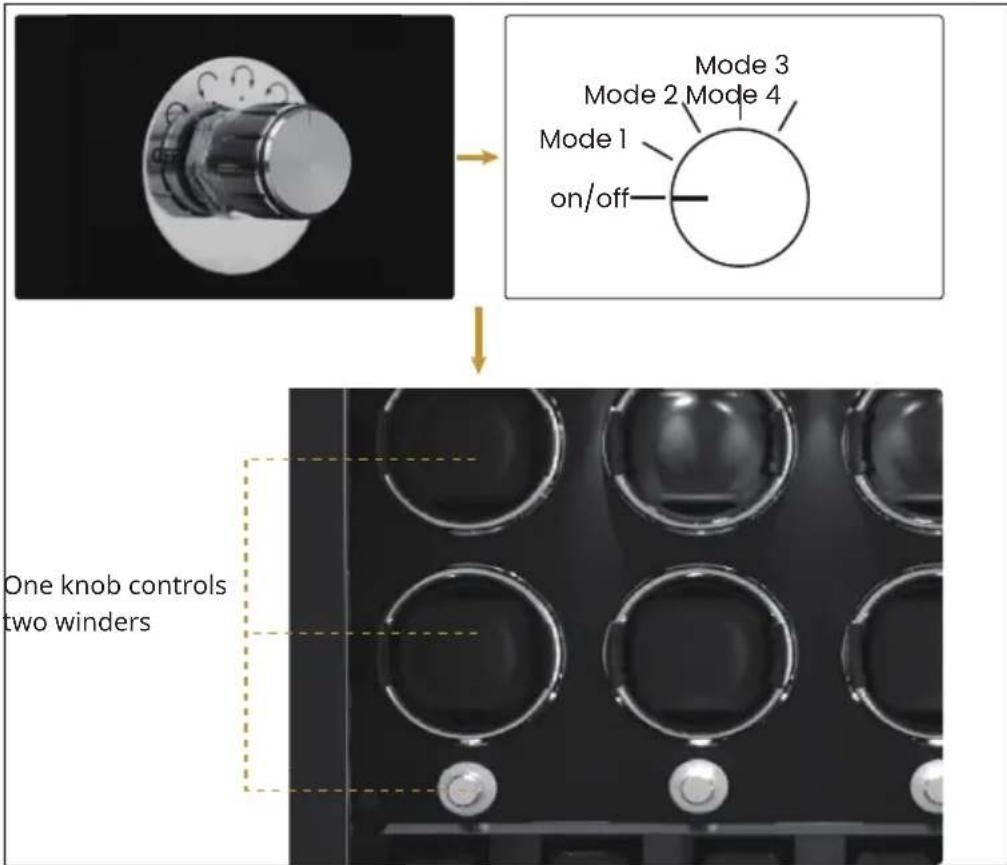

The different programs can be set using the controller.
| Mode 1 Rotate | 2 minutes clockwise, rest for 6 minutes, cycle repeat |
| Mode 2 Rotate | 2 minutes counter clockwise, rest for 6 minutes, cycle repeat |
| Mode 3 Rotate | 2 minutes clockwise, rest for 6 minutes, Rotate 2 minutes counter clock-wise, rest for 6 minutes, cycle repeat |
| Mode 4 Rotate | 5 minutes clockwise, rotate 5 minutes counter -clockwise, repeat above for 3 hours, rest for 9 hours, cycle repeat. |
DISPOSAL CONSIDERATIONS
This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.
MANUFACTURER & IMPORTER (UK)
Manufacturer:
Chal-Tec GmbH, Mühlenstrasse 25, 10243 Berlin, Germany.
Contact: info@electronic-star.de
Importer for Great Britain:
Berlin Brands Group UK Limited
35 Ballards Lane
London, N3 1XW
United Kingdom
Contact: info@electronic-star.de
