USER MANUAL Sarthe 3 Klarstein

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

on/off Mode 1 Mode 2 Mode 3 Mode 4

Programme

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear customer,

Congratulations on your purchase. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 14

Switches and connections 14

Fixing the watch in place 15

Operation model 10045659 16

Operation model 10045660 17

Disposal Considerations 20

Manufacturer & importer (UK) 20

TECHNICAL DATA

Article number 10045659 1	0045660
Power supply (power adapter)	100-240 V AC, 50/60 Hz5 V / 1 A	100-240 V AC, 50/60 Hz5 V / 2 A
Maximum watch diameter	53 mm 53 mm
Maximum circumference (strap)	62 mm 62 mm

SAFETY INSTRUCTIONS

• Children from the age of 8 years and mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.
- Only use the supplied power adapter.
- Do not rotate the watch winder manually as this could damage the watch winder.
• To avoid damaging the box, do not place the watch winder in direct sunlight and do not expose it to water, moisture or extreme temperatures.

SWITCHES AND CONNECTIONS

1 On/off switch 3 LED switch
2 Power connection 4 Pause switch

• If you press the pause button and open the front cover, all watch holders will stop.
• If you press the pause button again and open the front cover, all watch holders will continue to work.
• When you press the LED switch, the LED light bar will turn on so that you can see the status of the watches better.

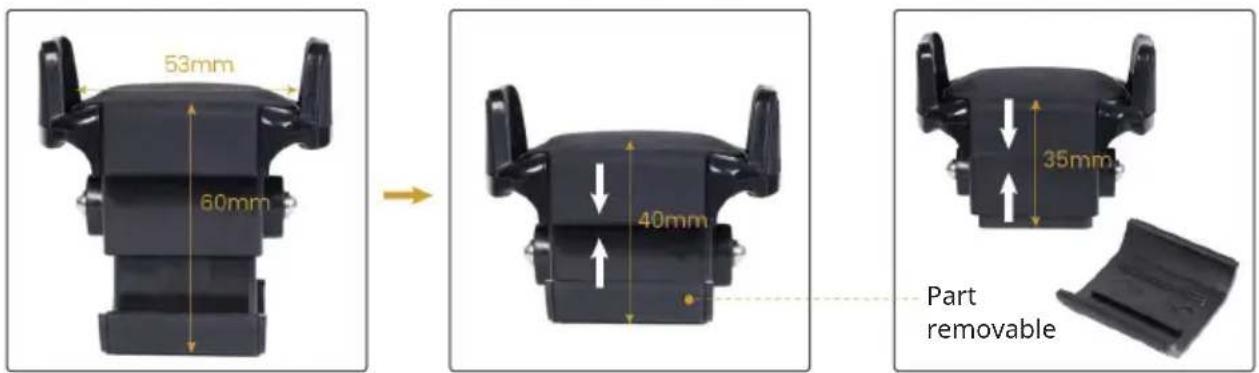

FIXING THE WATCH IN PLACE

53mm 60mm 40mm 35mm Part removable

The watch holder can accommodate watches with a maximum diameter of 53 mm. The watch may be a maximum of 20 mm thick. The circumference of the strap must be between 35-62 mm.

Note: If the strap is too short, you can push out the detachable part at the bottom and then put the watch in place.

How to fix the watch in place

1 Remove the watch holder from the device by pulling the two tabs on the side.

2 Close the strap of your watch.

3 Pinch the watch mount and slide your watch over the mount.

4 Slide the watch holder into the device until you hear a click.

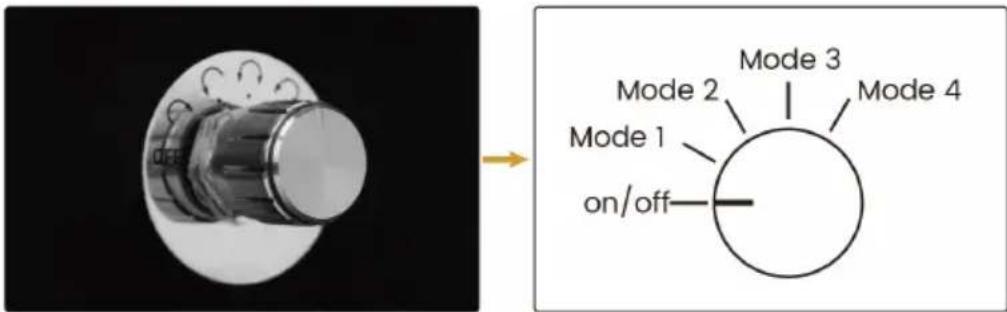

OPERATION MODEL 10045659

The different programs can be set using the controller.

on/off Mode 1 Mode 2 Mode 3 Mode 4

Programs

On/off Device on/off

Mode 1 The watch holder rotates clockwise. The watch holder rotates for 2 minutes and then rests for 6 minutes. Then the process is repeated (approx. 650 revolutions per day).

Mode 2 The watch holder rotates anti-clockwise. The watch holder rotates for 2 minutes and then rests for 6 minutes. Then the process is repeated (approx. 750 revolutions per day).

Mode 3 The watch holder rotates in both directions. The watch holder first rotates in one direction for 2 minutes and then rests for 6 minutes. After that, the watch holder rotates in the opposite direction for 2 minutes, and then rests for 6 minutes. Then the whole process is repeated (approx. 850 revolutions per day).

Mode 4 The watch holder rotates in both directions. The watch holder only rotates in one direction for 5 minutes. After that, the watch holder rotates in the opposite direction for 5 minutes. This process is repeated for 3 hours. The watch winder then rests for 9 hours before the entire process is repeated (approx. 1000 revolutions per day).

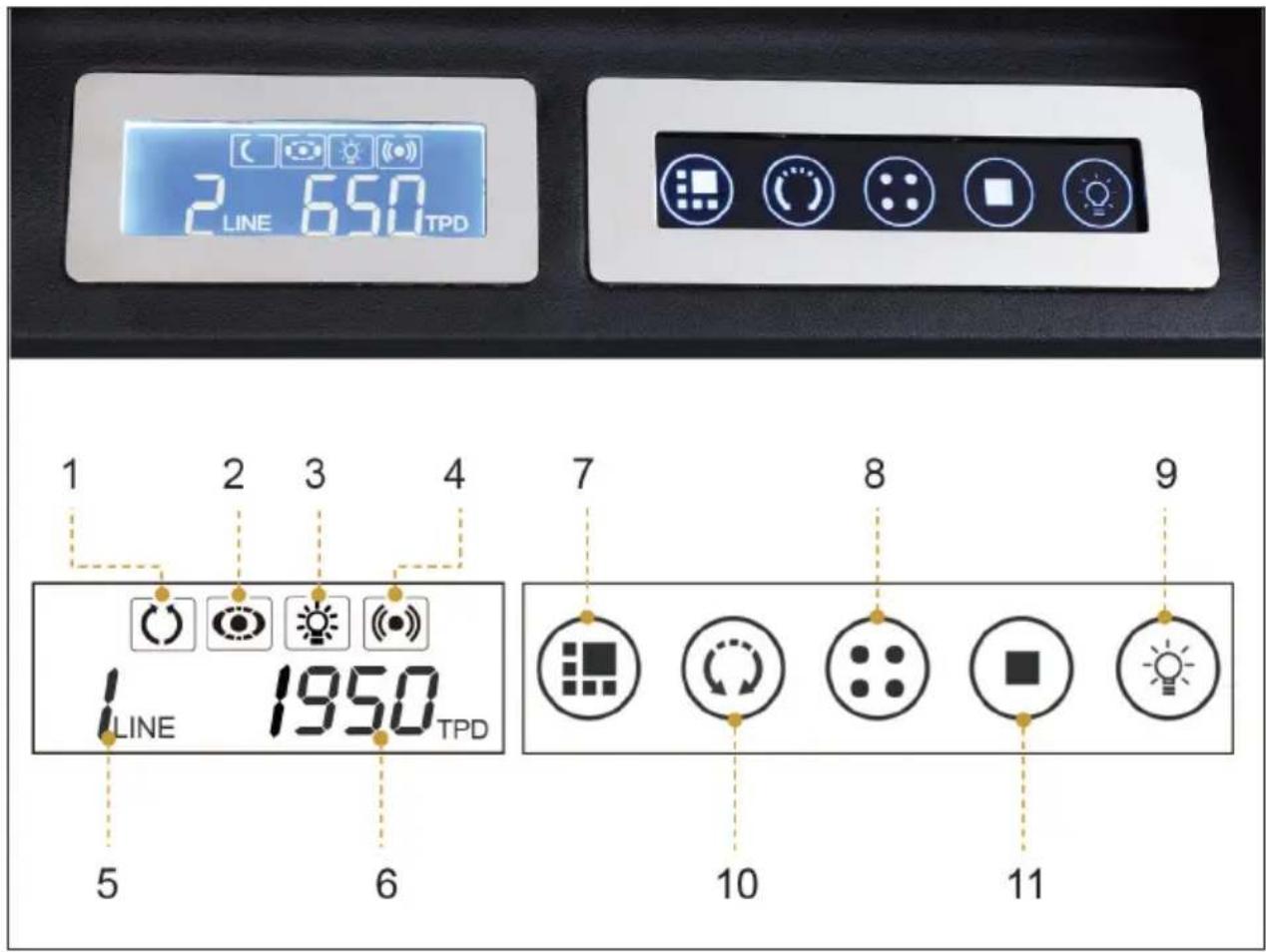

OPERATION MODEL 10045660

2 LINE 650 TPD 1 2 3 4 LINE 1950 TPD 5 6 7 8 9 10 11

1 Direction of rotation 7 Program selection
2 Rotate/stop 8 Watch selection
3 LED light 9 LED light on/off
4 Remote control signal 10 Direction selection
5 Selected watch 11 Rotate/stop
6 Revolutions per day

Note: The blue backlight makes it easier for the user to read the display. It is activated when the device is switched on, the lid is opened or a program is changed. To save power, the backlight turns off automatically after 10 seconds.

Programs

TPD Functionality in 12-hour operation
650 Duration	1 minute rotation, 571 seconds stop
	Direction: Clockwise/anti-clockwise /both directions
750 Duration	1 minute rotation, 487 seconds stop
	Direction: Clockwise/anti-clockwise /both directions
850 Duration	1 minute rotation, 423 seconds stop
	Direction: Clockwise/anti-clockwise /both directions
1000 Duration	1 minute rotation, 350 seconds stop
	Direction: Clockwise/anti-clockwise /both directions
1950 Duration	1 minute rotation, 150 seconds stop
	Direction: Clockwise/anti-clockwise /both directions

There is no specific program with which your watch can be optimally wound. Factors such as number of watch functions, frequency of use of the chronograph function, frequency of wear, brand, time since last service, and many other variables affect what program your watch needs to stay wound.

The watch winder cannot wind a watch that has stopped completely. Therefore, you must first manually wind the watch to get it running. Then try different programs until you have found the right program for your watch.

Important notes on operation

• Do not remove or insert a watch during operation.
• Never move the turntables by hand.
• Switch off the device and pull the plug out of the socket if you will not be using the watch winder for a long period of time.
• The working temperature of the watch winder is between 0-40 °C.
• Place the watch winder far away from magnetic objects.

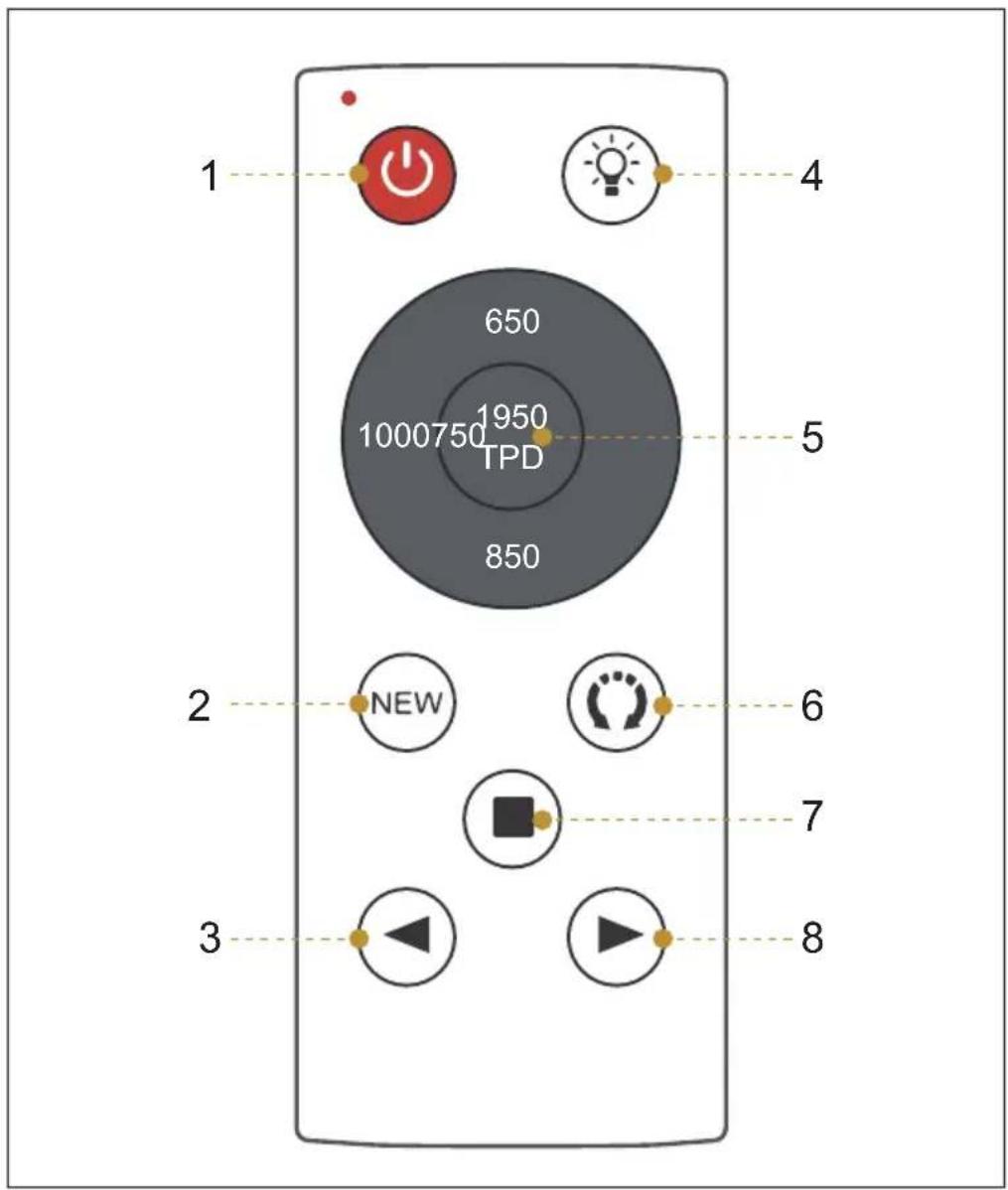

Remote control

1 4 650 1950 1000750 TPD 850 2 NEW 6 7 3 8

1 Device on/off 5 Revolutions per day
2 New watch mode 6 Direction of rotation
3 Watch selection (left) 7 Rotate/stop
4 LED light on/off 8 Watch selection (right)

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

This product contains batteries. If there is a legal regulation in your country regarding the disposal of batteries, the batteries must not be disposed of in household waste. Consult your local regulations for the disposal of batteries. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
