USER MANUAL MS4300.4U DOLMAR

Read this instruction manual carefully before putting the Petrol Brushcutter into operation and strictly observe the safety regulations! Preserve instruction manual carefully!

Important :

(Original instructions)

Thank you very much for purchasing the DOLMAR Outdoor Power Equipment. We are pleased to recommend to you the DOLMAR product which is the result of a long development program and many years of knowledge and experience. Please read this booklet which refers in detail to the various points that will demonstrate its outstanding performance. This will assist you to obtain the best possible result from your DOLMAR product.

Table of Contents Page

Symbols....2

Safety instructions ....3

Technical data....7

Designation of parts....8

Mounting of handle....9

Mounting of protector....10

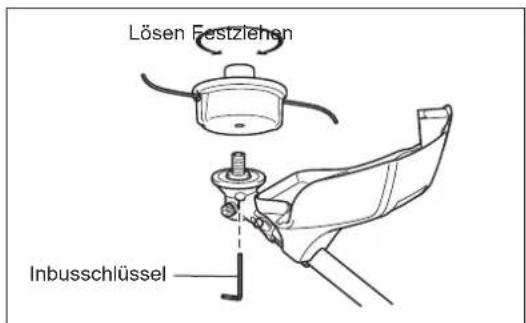

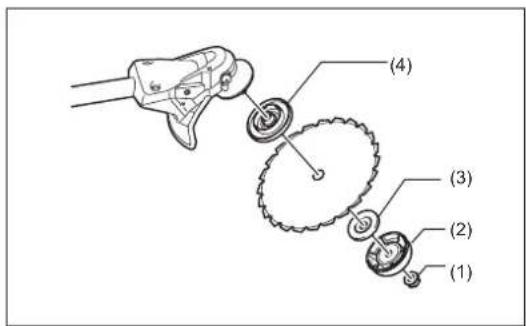

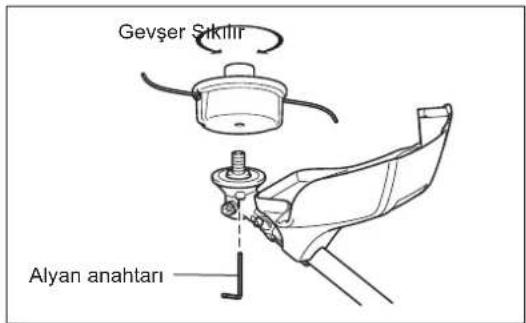

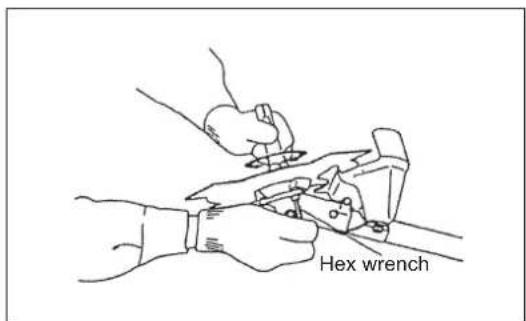

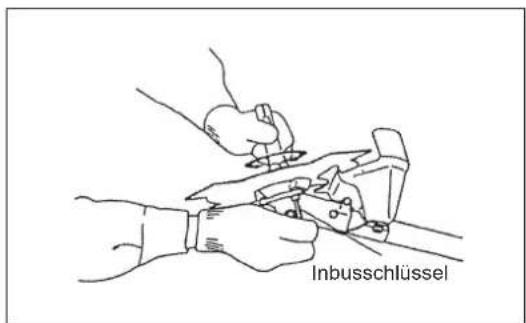

Mounting of metal blade or nylon cutting head....12

Before start of operation....13

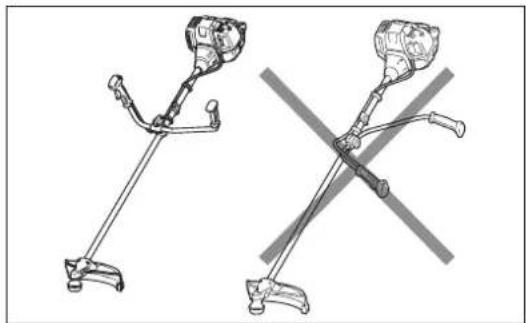

Correct handling of machine....15

Points in operation and how to stop 17

Resharpening the cutting tool....20

Servicing instructions....23

Storage 26

SYMBOLS

You will note the following symbols when reading the instructions manual.

Read instruction manual and follow the warnings and safety precautions!

Take Particular care and attention!

Forbidden!

Keep distance!

Flying object hazard!

Kickback!

No smoking!

No open flame!

Protective gloves must be worn!

Wear sturdy boots with nonslip soles. Steeltoed safety boots are recommended!

Keep the area of operation clear of all persons and pets!

Wear protective helmet, eye and ear protection!

Top permissible tool speed

Fuel (Gasoline)

Engine-manual start

Emergency stop

First Aid

ON/START

OFF/STOP

THROTTLE LOCK POSITION

SAFETY INSTRUCTIONS

General Instructions

• Read this instruction manual to become familiar with handling of the equipment. Users insufficiently informed will risk danger to themselves as well as others due to improper handling.
  – It is recommended only to lend the equipment to people who have proven to be experienced.
  Always hand over the instruction manual.
• First users should ask the dealer for basic instructions to familiarize oneself with the handling of brushcutters.
  – Children and young persons aged under 18 years must not be allowed to operate this equipment. Persons over the age of 16 years may however use the device for the purpose of being trained while under supervision of a qualified trainer.
  – Use with the utmost care and attention.
• Operate only if you are in good physical condition. Perform all work calmly and carefully. The user has to accept liability for others.

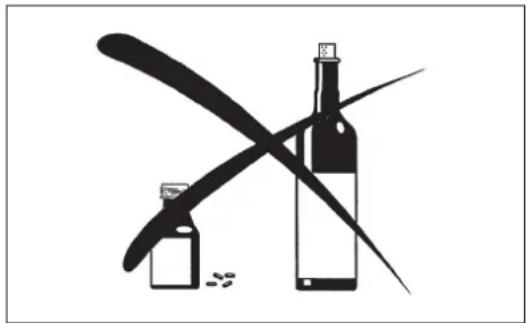

  – Never use this equipment after consumption of alcohol or drugs, or if feeling tired or ill.
  – National regulation can restrict the use of the machine.

Intended use of the machine

- This equipment is only intended for cutting grass, weeds, bushes, undergrowth. It should not be used for any other purpose such as edging or hedge cutting as this may cause injury.

Personal protective equipment

• The clothing worn should be functional and appropriate, i.e. it should be tight-fitting but not cause hindrance. Do not wear either jewelry or clothing which could become entangled with bushes or shrubs.
• In order to avoid either head-, eye-, hand-or foot injuries as well as to protect your hearing the following protective equipment and protective clothing must be used during operation.

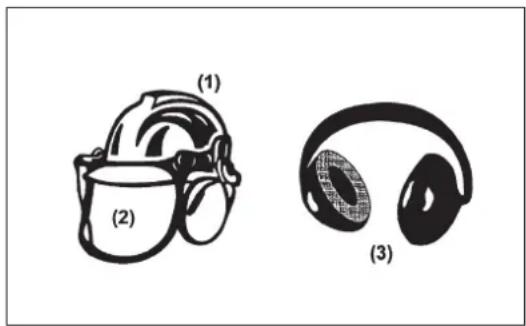

  – Always wear a helmet where there is a risk of falling objects. The protective helmet (1) is to be checked at regular intervals for damage and is to be replaced at the latest after 5 years. Use only approved protective helmets.
  – The visor (2) of the helmet (or alternatively goggles) protects the face from flying debris and stones. During operation always wear goggles, or a visor to prevent eye injuries.
• Wear adequate noise protection equipment to avoid hearing impairment (ear muffs (3), ear plugs etc.).

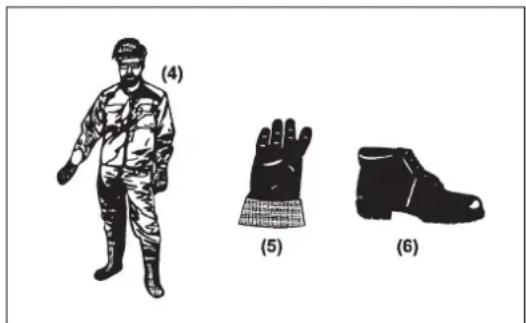

  – The work overalls (4) protect against flying stones and debris. We strongly recommend that the user wears work overalls.
  – Gloves (5) are part of the prescribed equipment and must always be worn during operation.
• When using the equipment, always wear sturdy shoes (6) with a non-slip sole. This protects against injuries and ensures a good footing.

Starting up the brushcutter

• Please make sure that there are no children or other people within a working range of 15 meters (50 ft), also pay attention to any animals in the working vicinity.
  – Before use always check the equipment is safe for operation: Check the security of the cutting tool, the throttle lever for easy action and check for proper functioning of the throttle lever lock.
• Rotation of the cutting tool during idling speed is not allowed. Check with your dealer for adjustment if in doubt. Check for clean and dry handles and test the function of the start/stop switch.

Warning symbol with exclamation mark inside a triangle

Black and white illustration of wine bottles and a propeller crossed over, with scattered pills below (no text or symbols)

(3)

(5)

(6)

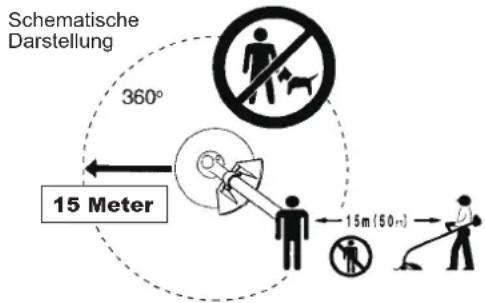

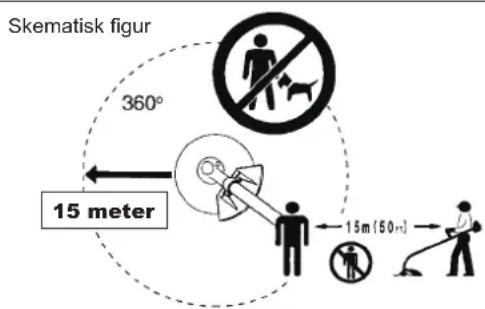

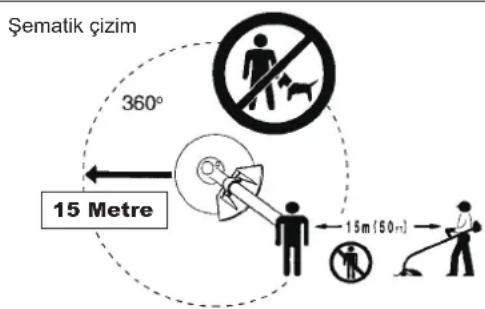

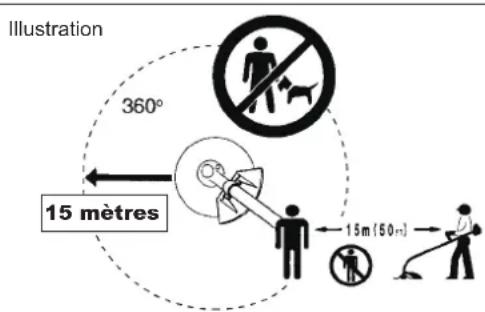

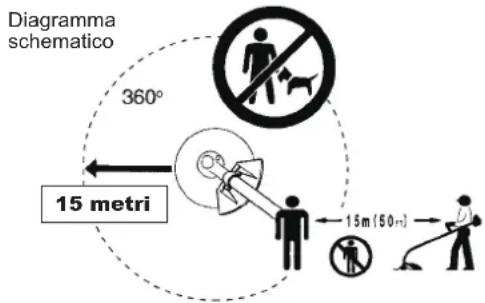

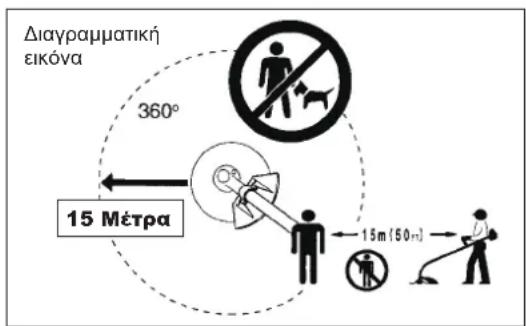

Diagrammatic figure 360° 15 Meters 15m (50 m)

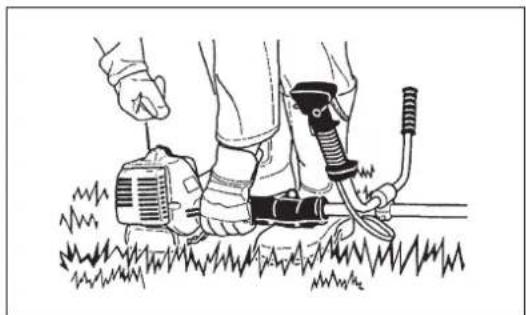

Start the brushcutter only in accordance with the instructions.

- Do not use any other methods for starting the engine!

- Use the brushcutter and the tools only for such applications as specified.

- Only start the engine, after the entire assembly is done. Operation of the device is only permitted after all the appropriate accessories are attached!

- Before starting make sure that the cutting tool has no contact with hard objects such as branches, stones etc. as the cutting tool will revolve when starting.

- The engine is to be switched off immediately in case of any engine problems.

- Should the cutting tool hit stones or other hard objects, immediately switch off the engine and inspect the cutting tool.

- Inspect the cutting tool at short regular intervals for damage (detection of hairline cracks by means of tapping-noise test).

- If the equipment gets heavy impact or fall, check the condition before continuing work. Check the fuel system for fuel leakage and the controls and safety devices for malfunction. If there is any damage or doubt, ask our authorized service center for the inspection and repair.

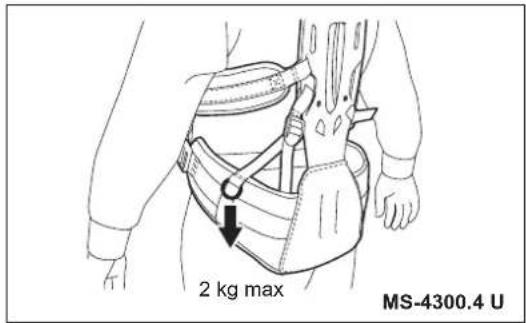

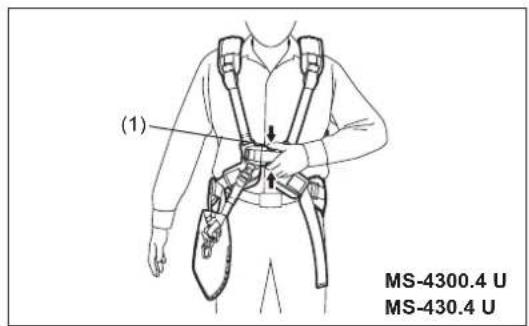

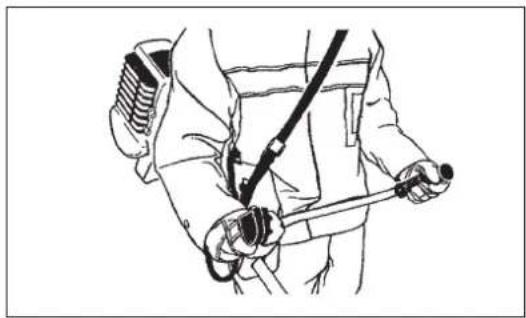

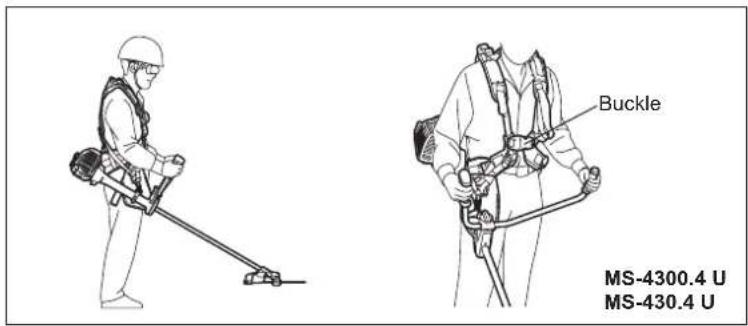

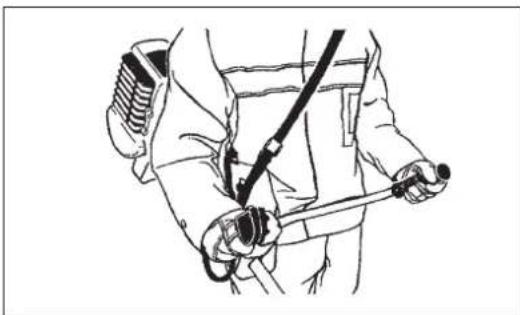

- Operate the equipment only with the shoulder harness attached which is to be suitably adjusted before putting the brushcutter into operation. It is essential to adjust the shoulder harness according to the user size to prevent fatigue occurring during use. Never hold the cutter with one hand during use.

– During operation always hold the brushcutter with both hands. Always ensure a safe footing.

- Operate the equipment in such a manner as to avoid inhalation of the exhaust gases. Never run the engine in enclosed rooms (risk of gas poisoning). Carbon monoxide is an odorless gas.

- Switch off the engine when resting and when leaving the equipment unattended, and place it in a safe location to prevent danger to others or damage to the machine.

- Never put the hot brushcutter onto dry grass or onto any combustible materials.

- Always install the approved cutting tool guard onto the equipment before starting the engine. Otherwise contact with the cutting tool may cause serious injury.

- All protective installations and guards supplied with the machine must be used during operation.

- Never operate the engine with faulty exhaust muffler.

- Shut off the engine during transport.

- When transporting the equipment, always attach the cover to the metal blade.

- Ensure safe position of the equipment during car transportation to avoid fuel leakage.

- When transporting, ensure that the fuel tank is completely empty.

- When unloading the equipment from the truck, never drop the Engine to the ground or this may severely damage the fuel tank.

- Except in case of emergency, never drop or cast the equipment to the ground or this may severely damage the equipment.

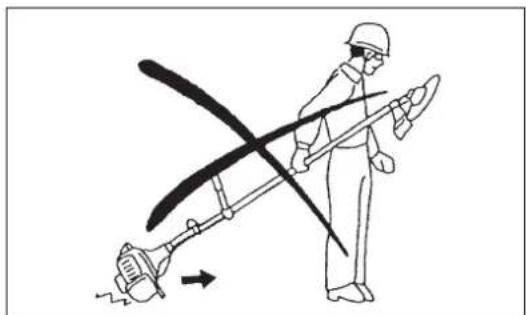

– Remember to lift the entire equipment from the ground when moving the equipment. Dragging the fuel tank is highly dangerous and will cause damage and leakage of fuel, possibly causing fire.

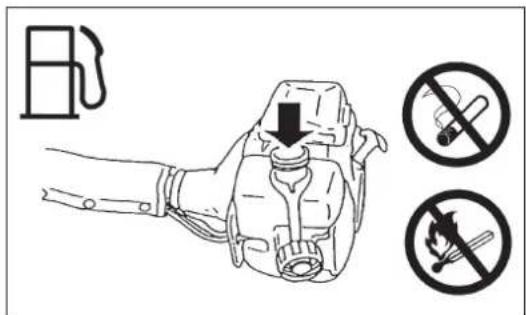

Refueling

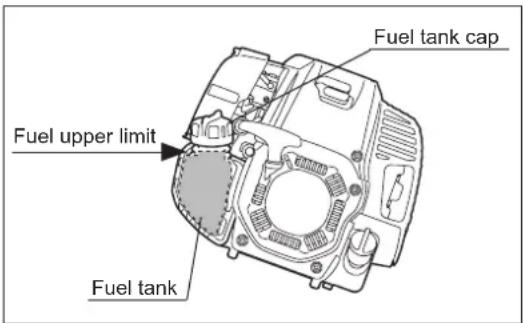

- Shut off the engine during refueling, keep away from open flames and do not smoke.

- Avoid skin contact with mineral oil products. Do not inhale fuel vapor. Always wear protective gloves during refueling. Change and clean protective clothing at regular intervals.

- Take care not to spill either fuel or oil in order to prevent soil contamination (environmental protection). Clean the brushcutter immediately after fuel has been spilt.

- Avoid any fuel contact with your clothing. Change your clothing instantly if fuel has been spilt on it (to prevent clothing catching fire).

- Inspect the fuel cap at regular intervals making sure that it can be securely fastened and does not leak.

- Carefully tighten the fuel tank cap. Change location to start the engine (at least 3 meters away from the place of refueling).

- Never refuel in closed rooms. Fuel vapors accumulate at ground lever (risk of explosions).

- Only transport and store fuel in approved containers. Make sure the fuel stored is not accessible to children.

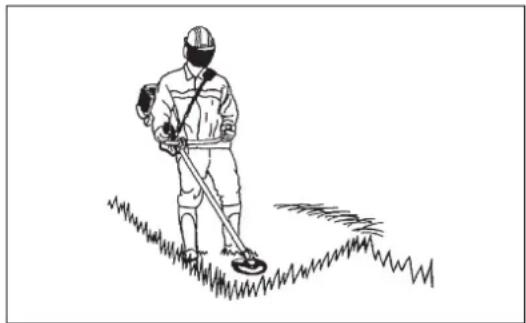

Line drawing of a person using a power tool on grass, no text or symbols present

Line drawing of a person holding a medical device with attached bandages (no text or symbols)

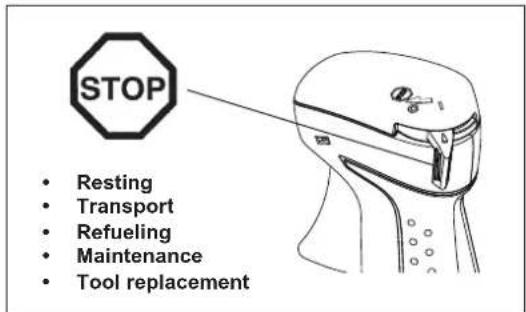

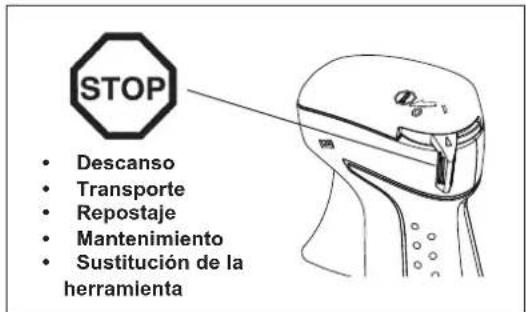

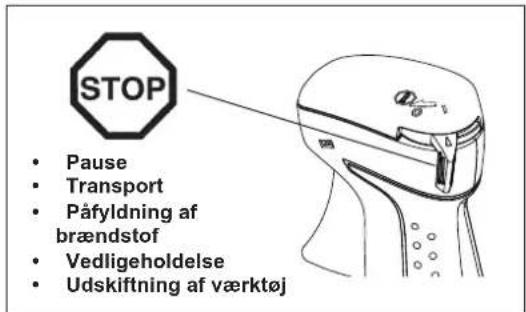

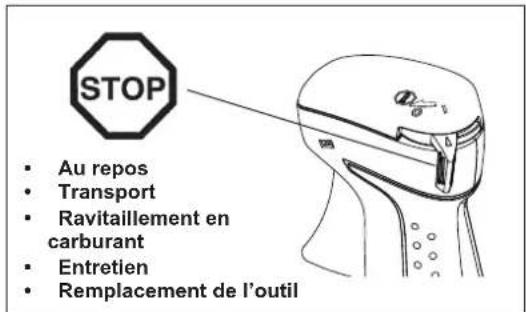

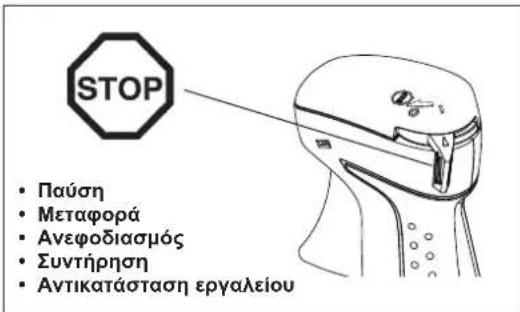

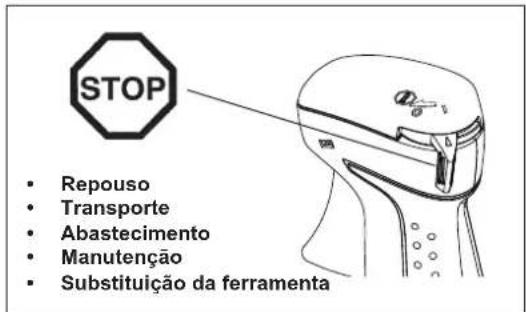

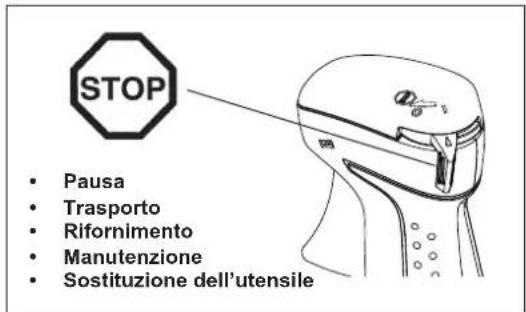

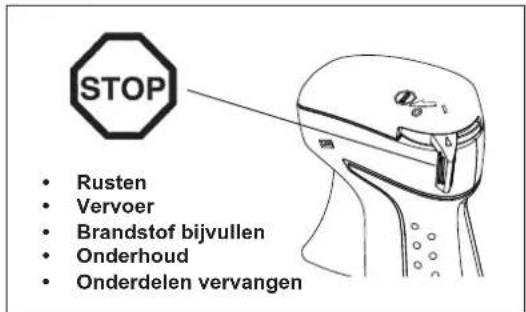

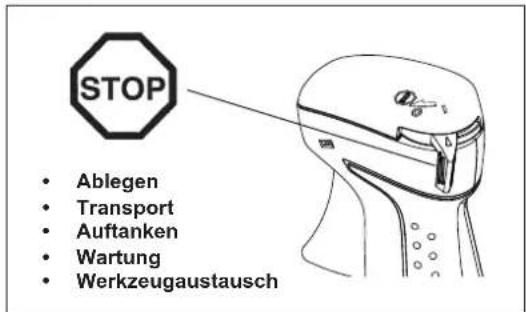

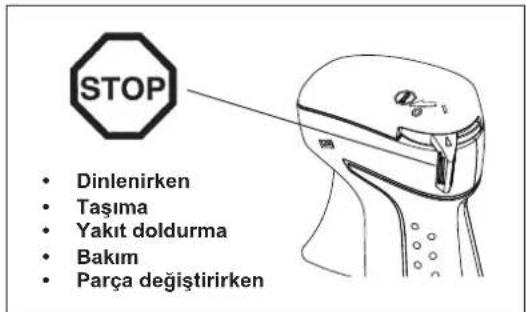

STOP Resting Transport Refueling Maintenance Tool replacement

Illustration of a person using a manual power tool to lift a blade, with an arrow indicating motion (no text or symbols)

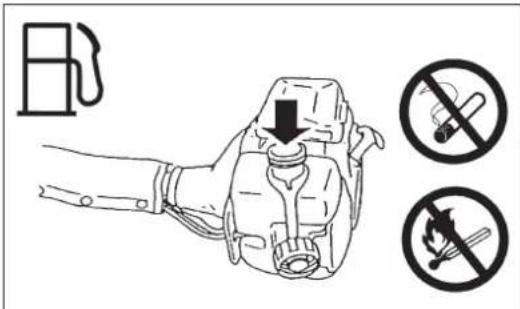

Diagram illustrating a hand using a fuel pump to switch, with no smoking symbols shown.

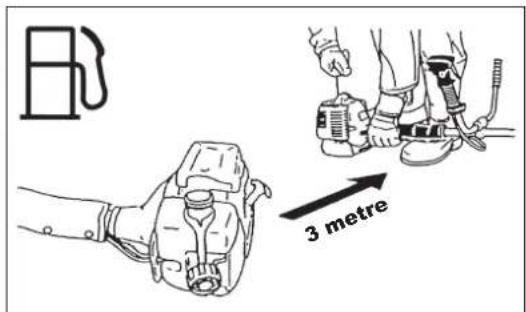

3 meters

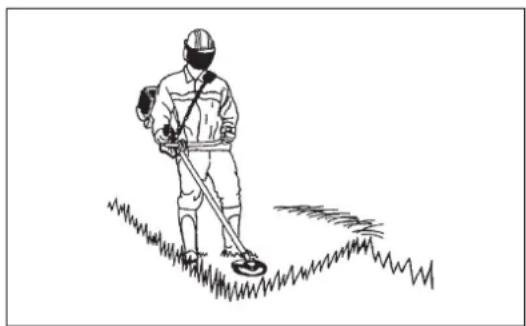

Method of operation

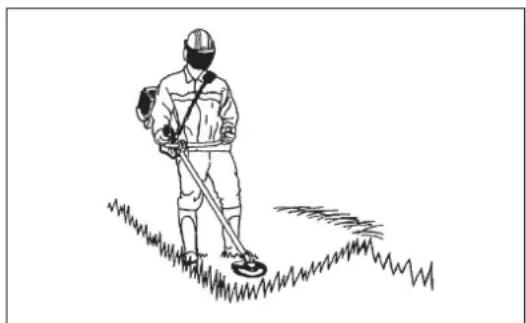

- Only use in good light and visibility. During the winter season beware of slippery or wet areas, ice and snow (risk of slipping). Always ensure a safe footing.

– Never cut above waist height.

- Never stand on a ladder.

- Never climb up into trees to perform cutting operation.

– Never work on unstable surfaces.

- Remove sand, stones, nails etc. found within the working range.

Foreign particles may damage the cutting tool and can cause dangerous kick-backs.

– Before commencing cutting, the cutting tool must have reached full working speed.

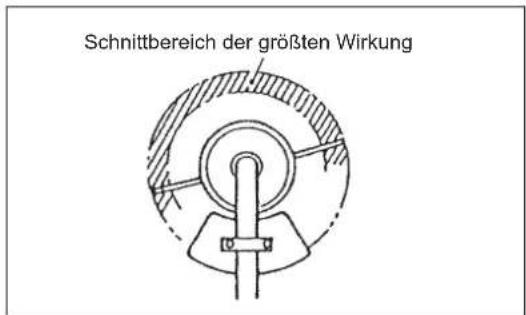

- When using metal blades, swing the tool evenly in half-circle from right to left, like using a scythe.

If grass or branches get caught between the cutting tool and guard, always stop the engine before cleaning. Otherwise unintentional blade rotation may cause serious injury.

- Take a rest to prevent loss of control caused by fatigue. We recommend to take a 10 to 20-minute rest every hour.

Cutting Tools

– Use an applicable cutting tool for the job in hand.

Nylon cutting heads (string trimmer heads) are suitable for trimming lawn grass.

Metal blades are suitable for cutting weeds, high grasses, bushes, shrubs, underwood, thicket, and the like.

Never use other blades including metal multi-piece pivoting chains and flail blades. Otherwise serious injury may result.

- When using metal blades, avoid "kickback" and always prepare for an accidental kickback. See the section "Kickback" and "Kickback prevention."

Kickback (blade thrust)

– Kickback (blade thrust) is a sudden reaction to a caught or bound metal blade. Once it occurs, the equipment is thrown sideway or toward the operator at great force and it may cause serious injury.

– Kickback occurs particularly when applying the blade segment between 12

and 2 o'clock to solids, bushes and trees with 3 cm or larger diameter.

- To avoid kickback:

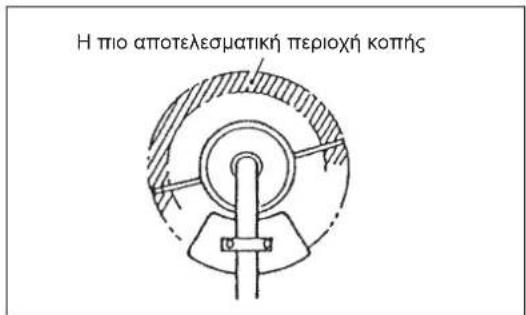

- Apply the segment between 8 and 11 o'clock;

- Never apply the segment between 12 and 2 o'clock;

- Never apply the segment between 11 and 12 o'clock and between 2 and 5 o'clock, unless the operator is well trained and experienced and does it at his/her own risk;

- Never use metal blades close to solids, such as fences, walls, tree trunks and stones;

- Never use metal blades vertically, for such operations as edging and trimming hedges.

Vibration

- People with poor circulation who are exposed to excessive vibration may experience injury to blood vessels or the nervous system. Vibration may cause the following symptoms to occur in the fingers, hands or wrists: "Falling asleep" (numbness), tingling, pain, stabbing sensation, alteration of skin color or of the skin. If any of these symptoms occur, see a physician!

- To reduce the risk of "white finger disease", keep your hands warm during operation and well maintain the equipment and accessories.

Maintenance instructions

- Have your equipment serviced by our authorized service center, always using only genuine replacement parts. Incorrect repair and poor maintenance can shorten the life of the equipment and increase the risk of accidents.

- The condition of the cutter, in particular of the cutting tool of the protective devices and also of the shoulder harness must be checked before commencing work. Particular attention is to be paid to the metal blades which must be correctly sharpened.

- Turn off the engine and remove spark plug connector when replacing or sharpening cutting tools, and also when cleaning the cutter or cutting tool.

Warning sign depicting a person using a tool to avoid accidents, with arrows indicating direction and symbols for 'no accident' or 'no damage'.

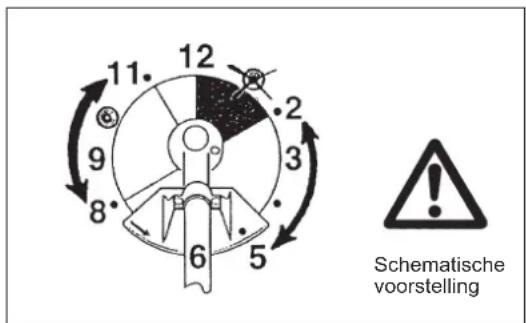

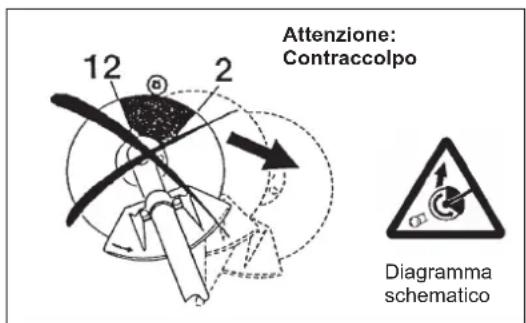

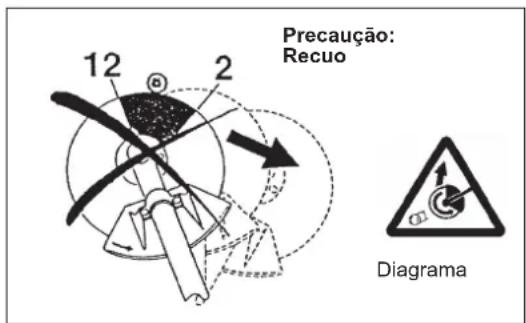

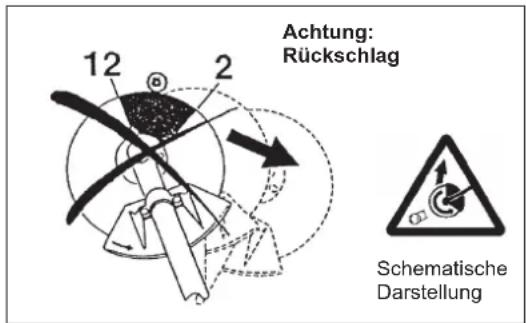

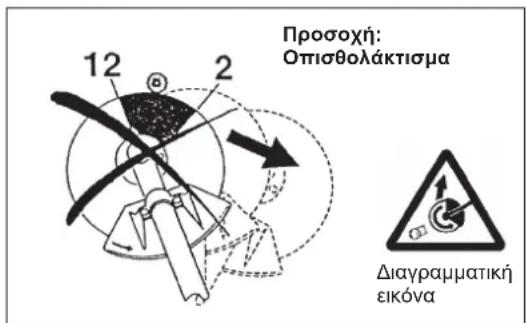

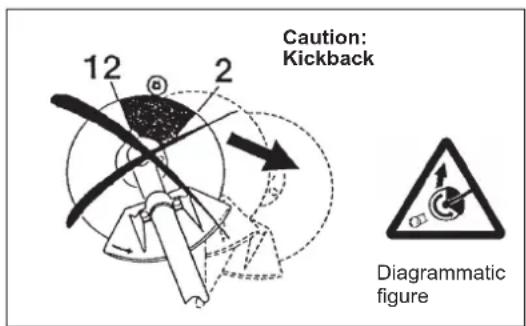

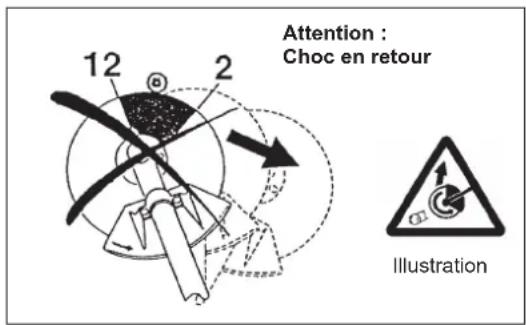

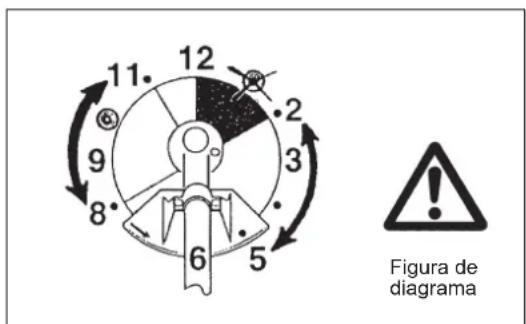

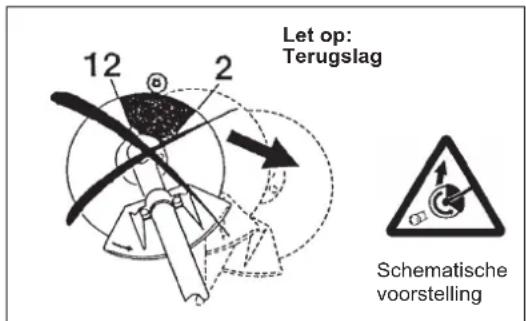

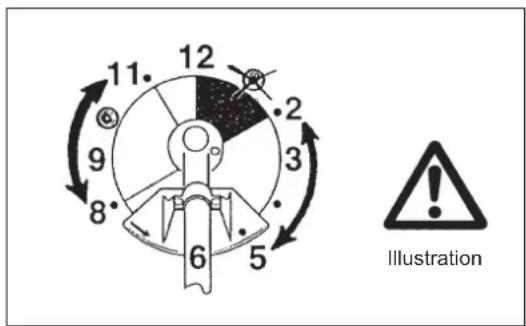

Caution: Kickback 12 2 Diagrammatic figure

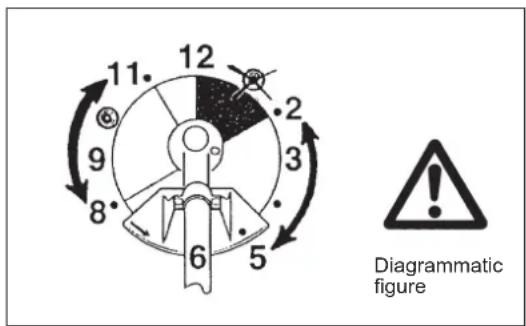

12 2 3 5 6 8 9 11 Diagrammatic figure

Line drawing of a person in protective gear using a tool on a slope (no text or symbols)

Never straighten or weld damaged cutting tools.

– Pay attention to the environment. Avoid unnecessary throttle operation for less pollution and noise emissions. Adjust the carburetor correctly.
– Clean the equipment at regular intervals and check that all screws and nuts are well tightened.

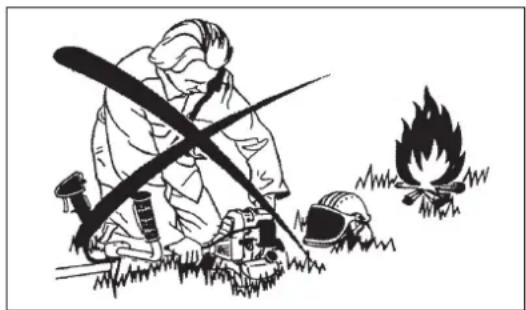

- Never service or store the equipment in the vicinity of naked flames.
- Always store the equipment in locked rooms and with an emptied fuel tank.
- When cleaning, servicing and storing the equipment, always attach the cover to the metal blade.

Illustration of a soldier in protective gear operating equipment with a crossed sword and smoke, next to a campfire (no text or symbols)

Observe the relevant accident prevention instructions issued by the relevant trade associations and by the insurance companies.

Do not perform any modifications to the equipment as this will endanger your safety.

The performance of maintenance or repair work by the user is limited to those activities as described in the instruction manual. All other work is to be done by an Authorized Service Agent. Use only genuine spare parts and accessories released and supplied by DOLMAR.

Use of non-approved accessories and tools means increased risk of accidents.

DOLMAR will not accept any liability for accidents or damage caused by the use of non-approved cutting tools and fixing devices of cutting tools, or accessories.

First Aid

In case of accident make sure that a first-aid box is available in the vicinity of the cutting operations. Immediately replace any item taken from the first aid box.

When asking for help, please give the following information:

• Place of accident
• What happened
  – Number of injured persons
• Kind of injuries
• Your name

EC Declaration of Conformity

For European countries only

The EC declaration of conformity is included as Annex A to this instruction manual.

TECHNICAL DATA MS-4300.4 U, MS-430.4 U, MS-430.4 C

Model MS-4300.4 U MS-430.4 U MS-430.4 C
Handle type Bike handle Bike handle Loop handle
Dimensions: length x width x height (without cutting tool) mm 1,812 x				618 x 528 1,812 x 635 x		460 1,812 x 339 x 250
Mass (without plastic guard and cutting tool) kg 8.6 8.3 7.9
Volume (fuel tank) L 0.6
Volume (oil tank) L				0.1
Engine displacement cm3				43.0
Maximum engine performance kW				1.5 at 7,500 min-1
Engine speed at recommended max. spindle speed min-1				10,500
Maximum spindle speed (corresponding) min-1				7,200
Idling speed min-1				3,000
Clutch engagement speed min-1				4,000
Carburetor				Diaphragm type
Ignition system				Non-contact, magnet type
Spark plug type				NGK CMR6A
Electrode gap mm				0.7 - 0.8
				CUTTER BLADE	NYLON CUTTING HEAD	CUTTER BLADE	NYLON CUTTING HEAD	CUTTER BLADE	NYLON CUTTING HEAD
Vibration per ISO 22867	Right handle (Rear grip)	ahv eq m/s2		2.2	2.5	3.1	4.0	4.2	2.6
		Uncertainty K m/s2		0.5	0.3	0.5	0.7	1.1	0.7
	Left handle (Front grip)	ahv eq m/s2		1.7	2.6	4.8	5.0	3.8	3.7
		Uncertainty K m/s2		0.5	1.3	2.9	0.6	1.0	1.4
Sound pressure level average to ISO 22868		LPAeq dBA		92.4	99.8	91.2	99.1	92.8	94.9
		Uncertainty K dBA		1.8	1.0	2.2	1.3	1.6	2.1
Sound power level average to ISO 22868		LWAeq dBA		104.8 114.3 106.0 113.8 106.4 110.7
		Uncertainty K dBA		1.8	1.5	1.1	1.1	1.5	1.2
Fuel				Automobile gasoline (petrol)
Engine Oil				API grade SF class or higher, SAE 10W-30 oil (automobile 4-stroke engine oil)
Cutting tools (cutter blade dia.) mm				305 (with three blades)
Gear ratio				13/19

MS-430.4 CMS-4300.4 U

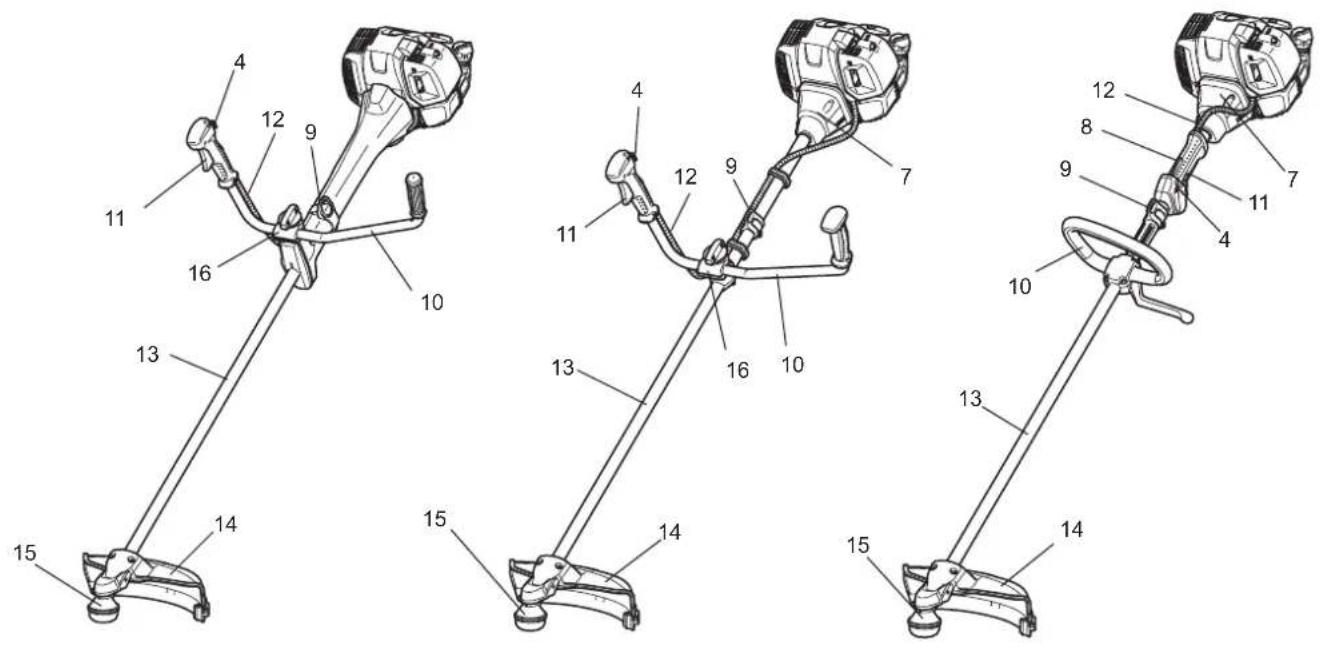

Technical diagram of a mechanical device with numbered parts for identification and assembly reference.

Technical diagram of a camera body with numbered parts for identification

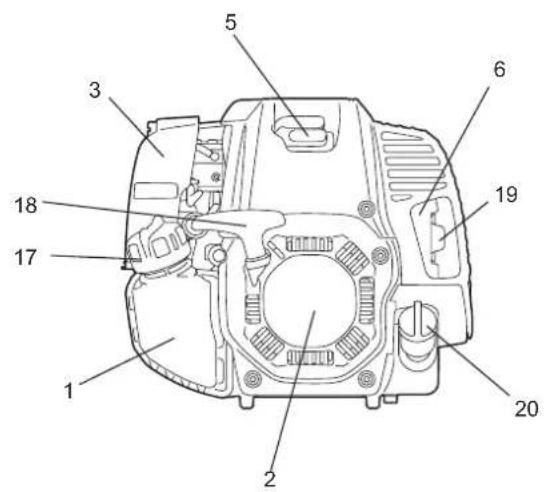

GB DESIGNATION OF PARTS

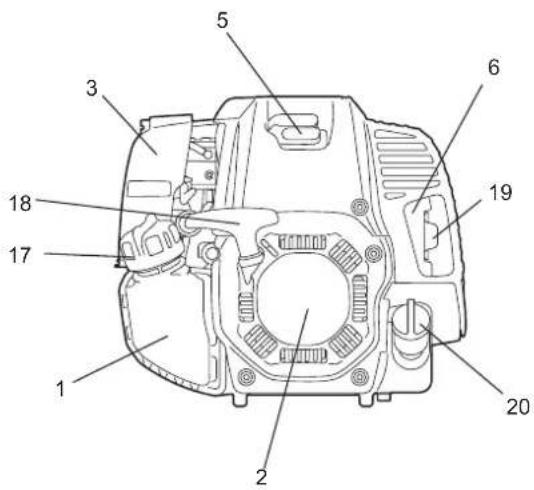

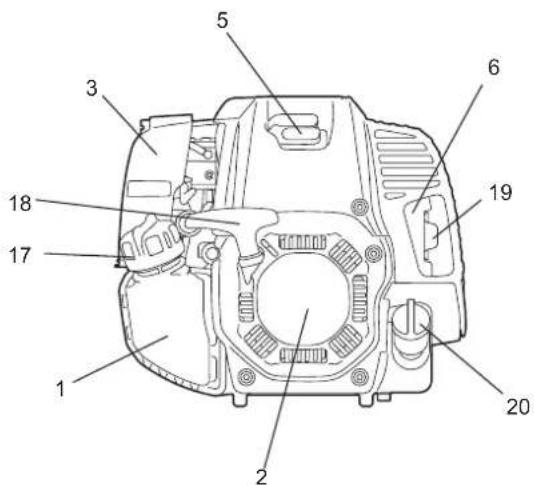

1 Fuel tank
2 Recoil starter
3 Air cleaner
4	I-O and throttle lock switch (on/off)
5 Spark plug
6 Exhaust muffler
7 Clutch case
8 Rear grip
9 Hanger
10 Handle
11 Throttle lever
12 Control cable
13 Shaft
14 Protector (Cutting tool guard)
15 Gear Case/Head case
16 Handle holder
17 Fuel tank cap
18 Starter knob
19 Exhaust pipe

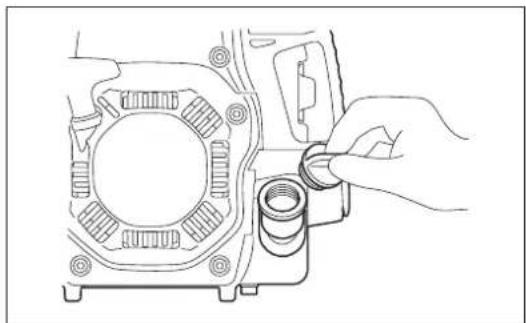

20 Oil cap

MOUNTING OF HANDLE

CAUTION: Before doing any work on the equipment, always stop the engine and pull the spark plug connector off the spark plug.

Always wear protective gloves!

CAUTION: Start the engine only after having assembled it completely.

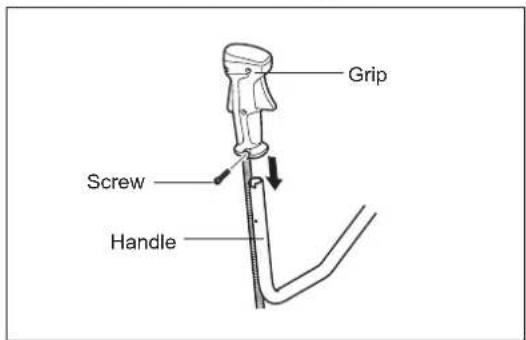

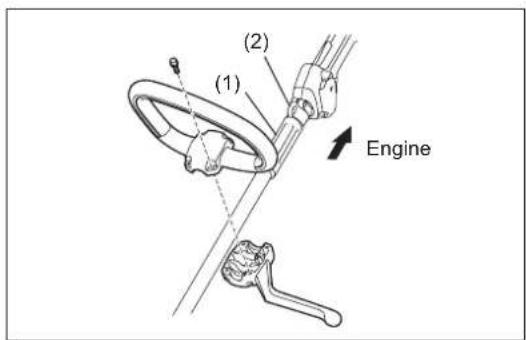

1. For model MS-4300.4 U, MS-430.4 U (with solid-type handle)

Insert the shaft of the handle into the grip as shown. Align the screw hole in the grip with the one in the shaft. Tighten the screw securely.

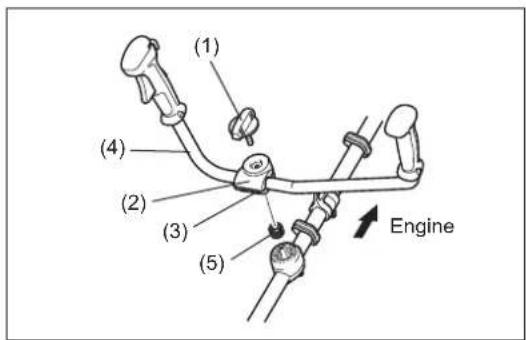

• Loosen knob (1).
• Place handle (4) between handle clamp (2) and handle holder (3).
• Adjust handle (4) to an angle that provides a comfortable working position and then secure by firmly hand-tightening knob (1).

CAUTION: Do not forget to mount spring (5).

2. For model MS-4300.4 U, MS-430.4 U (with separate-type handle) (country specific)

Insert the shaft of the handle into the grip as shown. Align the screw hole in the grip with the one in the shaft. Tighten the screw securely.

• Place the handle with the throttle lever on the handle holder on the right side (to be held by the right hand) and the other on the left side.
• Fit the handle edge to the handle holder groove, and provisionally fix the upper side (1) of the handle holder by four bolts M5 x 25 (2).
• Adjust the handle to an angle easy to manipulate, and tighten the bolt (2) uniformly on the right and left sides.

3. For model MS-430.4 C

• Fix the loop handle on the shaft with four screws.
• To keep a proper distance between the grips, place the spacer (1) between the loop handle and the hanger (2).

STOP

Grip Screw Handle

(1) (4) (2) (3) (5) Engine

(1) (2)

(1) (2) Engine

MOUNTING OF PROTECTOR

To meet the applicable safety provisions, only the tool/protector combinations as indicated in the table must be used.

Be sure to use genuine DOLMAR metal blades (including saw blade and cutter blade) or nylon cutting head.

- The metal blade must be well polished, free of cracks or breakage. If the metal blade hits against a stone during operation, stop the engine and check the blade immediately.

- Polish or replace the metal blade every three hours of operation.

- If the nylon cutting head hits against a stone during operation, stop the engine and check the nylon cutting head immediately.

CAUTION: The appropriate protector must always be installed, for your own safety and in order to comply with accident prevention regulations.

Operation of the equipment without the guard being in place is not permitted.

The outside diameter of the cutter blade must be 300 mm (12") or smaller. Never use any blades exceeding 300 mm (12") in outside diameter.

Use 200 mm saw-blade protector only when using 200 mm saw-blade.

Use 225 mm saw-blade protector only when using 225 mm saw-blade.

Do not apply other combination when using saw-blade.

NOTE: The standard combination of cutting tool differs from county to country.

NOTE: When using this protector on Model MS-430.4 C in combination with the nylon cutting heads (B&F Z5L or B&F Eco6L), use balance washer (P/N:326755*2) between receiver washer and the nylon cutting head. (See page 12 as a reference to mounting.)

Cutter blade Protector for metal blades

Two abstract geometric shapes resembling stylized arrows or a cross, with no text or symbols present.

Line drawing of a boat hull with visible hull, hull, and side ribs (no text or symbols)

200 mm saw blade

Protector for 200 mm saw blade

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

225 mm saw blade

Protector for 225 mm saw blade

Technical line drawing of a mechanical component (no text or symbols)

Nylon cutting head

Protector for nylon cutting head

Line drawing of a mechanical component with no visible text or symbols

Protector for nylon cutting head

Line drawing of a pair of boots (no text or symbols)

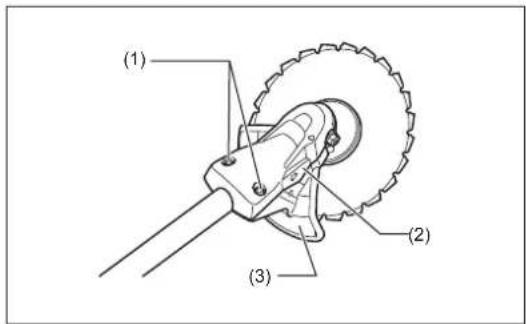

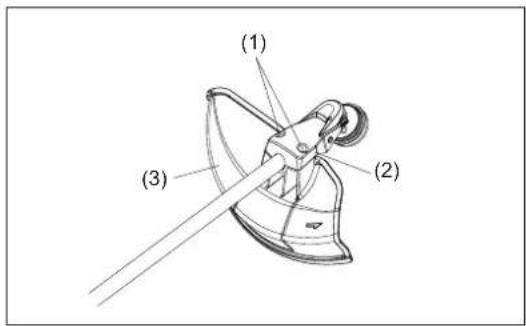

- In use of the metal blade, fix the protector (3) to the clamp (2) with two bolts (1).

NOTE: Tighten the right and left bolts evenly so that the gap between the clamp (2) and the protector (3) will be constant.

Otherwise, the protector sometimes may not function as specified.

(1) (2) (3)

(1) (2) (3)

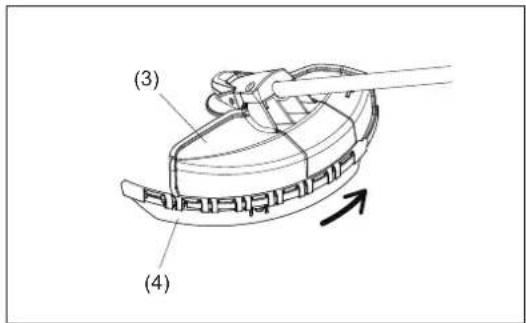

• In cases where the nylon cord cutter is to be used, be sure to mount the nylon cord cutter protector (4) onto the metal blade protector (3).
• Mount the nylon cord cutter protector (4) by sliding it into place from the flank of the metal blade protector (3) as shown.
• Remove tape adhered to cutter, which cuts nylon cord, on nylon cord cutter protector (4).

CAUTION: Be sure to push in nylon cord cutter protector (4) until it is fully inserted.

Take care not to injure yourself on the cutter for cutting the nylon cord.

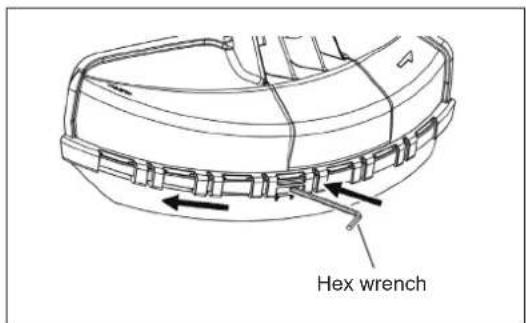

- To remove the nylon cord cutter protector (4), apply a hex wrench into the notch on the metal blade protector (3), push it in and meanwhile slide the nylon cord cutter protector (4).

(3) (4)

Hex wrench

MOUNTING OF METAL BLADE OR NYLON CUTTING HEAD

Be sure to use genuine DOLMAR metal blades or nylon cutting head.

• The metal blade must be well polished, free of cracks or breakage. If the metal blade hits against a stone during operation, stop the engine and check the blade immediately.
• Polish or replace the metal blade every three hours of operation.
• If the nylon cutting head hits against a stone during operation, stop the engine and check the nylon cutting head immediately.

CAUTION: The appropriate protector must always be installed, for your own safety and in order to comply with accident-prevention regulations.

Operation of the equipment without the guard being in place is not permitted.

The outside diameter of the cutter blade must be 300 mm (12") or less. Never use any blades exceeding 300 mm (12") in outside diameter.

Turn the machine upside down, and you can replace the metal blade or nylon cutting head easily.

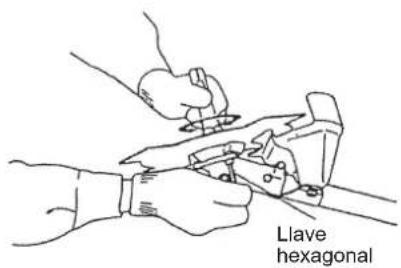

• Insert the hex wrench through the hole in the gear case and rotate the receiver washer (4) until it is locked with the hex wrench.
• Loosen the nut (1) (left-hand thread) with the socket wrench and remove the nut (1), cup (2), and clamp washer (3).

Mounting of metal blade with the hex wrench still in place

• Mount the metal blade onto the shaft so that the guide of the receiver washer (4) fits in the arbor hole in the metal blade. Install the clamp washer (3), cup (2), and secure the metal blade with the nut (1).
  [Tightening torque: 20 - 30 N-m]

NOTE: Always wear gloves when handling the metal blade.

NOTE: The metal blade-fastening nut (with spring washer) is a consumable part. If there appears any wear or deformation on the spring washer, replace the nut.

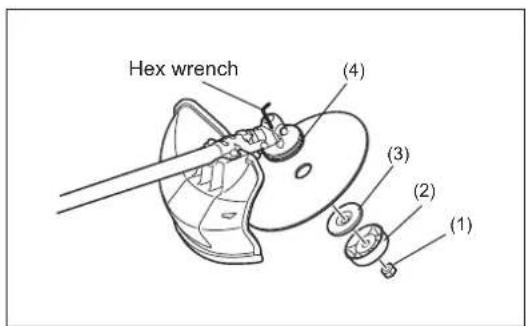

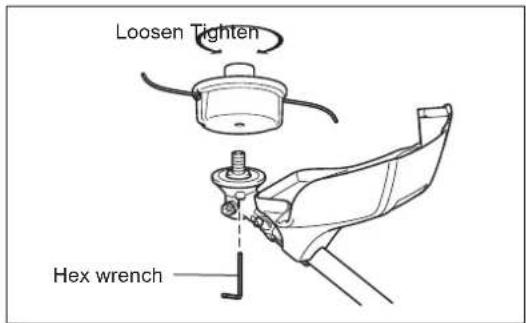

Mounting of nylon cutting head

• The clamp washer (3), cup (2), and nut (1) are not necessary for mounting the nylon cutting head. The nylon cutting head should go on top of the receiver washer (4).

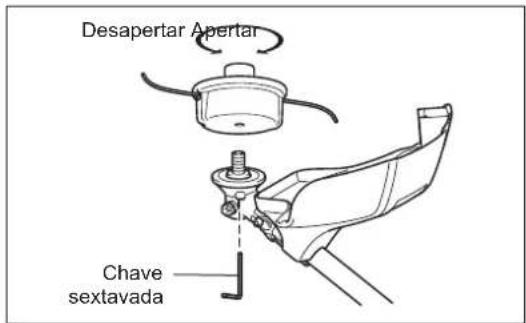

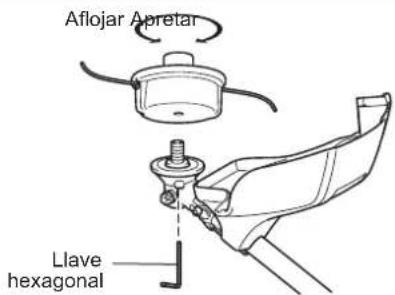

• Insert the hex wrench through the hole in the gear case and rotate the receiver washer (4) until it is locked with the hex wrench.
• Then screw the nylon cutting head onto the shaft by turning it counterclockwise.
• Remove the hex wrench.

STOP

Hex wrench (4) (3) (2) (1)

(1) (2) (3) (4)

Hex wrench

Loosen Tighten Hex wrench

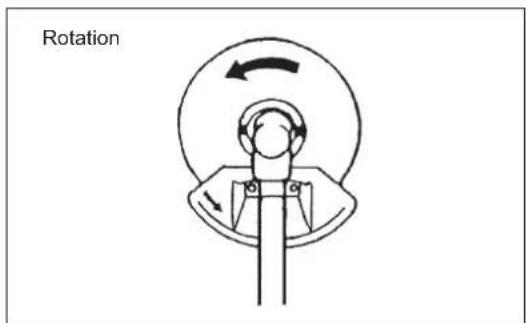

Rotation

Inspection and refill of engine oil

• Perform the following procedure, with the engine cooled down.
• Assure that the engine is on a flat horizontal surface and confirm if the oil level is between the lower or upper limit of the oil indicator.
• If the oil level is below the lower limit, remove the oil cap and add oil.
• The area surrounding the external marks is transparent, so the amount of oil inside can be checked without having to remove the oil cap. However, if oil pipe becomes extremely dirty, visibility may be lost, and oil level will have to be checked against stepped section on inside of oil pipe.
• You may need to refill oil approximately every 10 operating hours (every 10 refuelings). If the oil changes in color or mixes with dirt, replace it with new one. (For the interval and method of replacement, refer to P 23.)

Recommended oil: SAE 10W-30 oil of API Classification, Class SF or higher (4-stroke engine for automobile)

Oil volume: Approx. 0.10L

NOTE: If the engine is not positioned as illustrated on a horizontal surface, an inaccurate indication of oil level may occur and oil may be overfilled. Filling oil above the upper limit may cause oil contamination and/or white smoke.

Replacement of oil: "Oil cap"

• Remove dust or dirt near the oil refill port, and detach the oil cap.
• Keep the detached oil cap free of sand or dust. Otherwise, any sand or dust adhering to the oil cap may cause irregular oil circulation or wear on the engine parts, which will result in troubles.

Oil Upper limit Lower limit

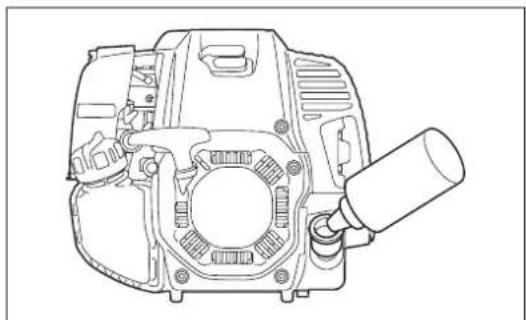

(1) Keep the engine level, and detach the oil cap.

Line drawing of a mechanical assembly with a hand adjusting a bolt (no text or symbols)

(2) Fill with oil to upper limit mark. Use oil bottle when filling.

Technical line drawing of a mechanical engine component (no text or symbols)

(3) Securely tighten the oil cap. Insufficient tightening may cause oil leakage.

Note

• Do not replace oil with the engine in a tilted position.
• Filling with oil while engine is tilted leads to overfilling which causes oil contamination and/or white smoke.

After refilling oil

– Wipe with a rag any spilled oil immediately.

REFUELING

Handling of fuel

It is necessary to handle fuel with utmost care. Fuel may contain substances similar to solvents. Refueling must be performed in a sufficiently ventilated room or in the open air. Never inhale fuel vapor, and keep fuel away from you. If you touch fuel repeatedly or for a long time, the skin becomes dry, which may cause skin disease or allergy. If fuel enters into the eye, clean the eye with fresh water. If your eye remains still irritated, consult your doctor.

Storage period of fuel

Fuel should be used within a period of 4 weeks, even if it is kept in a special container in a well-ventilated and shaded area. Otherwise, fuel may deteriorate in one day.

STORAGE OF MACHINE AND REFILL TANK

• Keep the machine and tank at a cool place free from direct sunshine.
  – Never keep the fuel in a car.

Fuel

The engine is a four-stroke engine. Be sure to use an unleaded automobile gasoline 87 or higher octane ((R+M)/2). It may contain no more than 10% alcohol (E-10).

Points for fuel

• Never use a gasoline mixture which contains engine oil. Otherwise, it will cause excessive carbon accumulation or mechanical troubles.
  – Use of deteriorated oil will cause irregular start-up.

Refueling

WARNING: Shut off the engine before refueling, keep away from open flames and do not smoke.

• Loosen the tank cap a little to release the tank pressure.
• Detach the tank cap, and refuel, discharging air by tilting the fuel tank so that the refuel port will be oriented upward. DO NOT fill fuel up to the top of the tank.
  – Wipe the outside of the tank cap to prevent debris from entering into the fuel tank.
  – After refueling, securely tighten the tank cap.

Fuel tank cap Fuel upper limit Fuel tank

• If there is any flaw or damage on the tank cap, replace it.
• The tank cap wears out in course of time. Replace it every two to three years.
  • DO NOT put fuel in the oil fill port.

CORRECT HANDLING OF MACHINE

Attachment of shoulder harness

- Adjust the strap length so that the metal blade will be kept parallel with the ground.

For MS-4300.4 U, MS-430.4 U

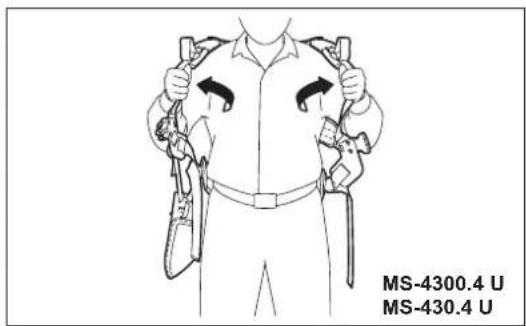

Hold the harness on your back, attach it with the buckle, and adjust the length of the bands.

NOTE: Be careful not to trap clothing, etc., in the buckle.

Buckle MS-4300.4 U MS-430.4 U

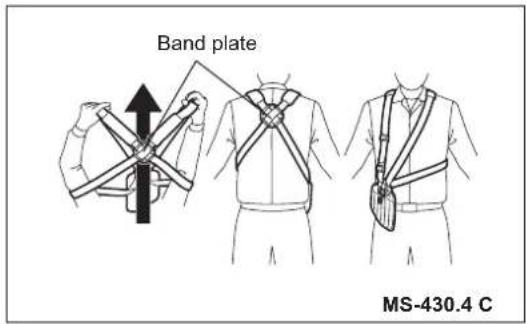

For MS-430.4 C

1) Stand as the band plate closer to you. And let your arms and head pass through the band.
2) The band plate sits on your back and the adjustors and hook comes on the right side of your body when you appropriately equip the harness.

Releasing the machine

For MS-4300.4 U, MS-430.4 U

• To release the machine, squeeze the sides of the buckle (1) and take off the shoulder harness.
  Be extremely careful to maintain control of the machine at this time. Do not allow the machine to be deflected toward you or anyone in the work vicinity.

WARNING: Failure to maintain complete control of the machine at all could result in serious bodily injury or DEATH.

Band plate MS-430.4 C

(1) MS-4300.4 U MS-430.4 U

MS-4300.4 U MS-430.4 U

For MS-430.4 C

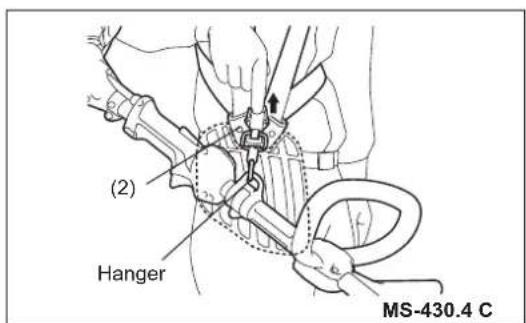

- To release the machine, release the emergency detachment lever (2) by pulling strongly with fingers.

Be extremely careful to maintain control of the machine at this time. Do not allow the machine to be deflected toward you or anyone in the work vicinity.

WARNING: Failure to maintain complete control of the machine at all could result in serious bodily injury or DEATH.

(2) Hanger MS-430.4 C

Hanging ring

For MS-4300.4 U

- You can use the ring for hanging something weighing less than 2kg (4.4 lbs).

NOTICE: Do not hang anything weighing more than 2 kg(4.4 lbs) on the ring. Anything heavier on the ring can cause it to fail and the item to be damaged.

CAUTION: Do not hang anything on the ring that can become entangled with bushes or shrubs. Entanglement can cause loss of balance and control resulting in personal injury.

2 kg max MS-4300.4 U

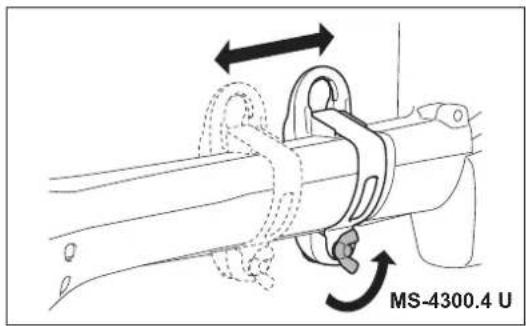

Weight balance adjustment

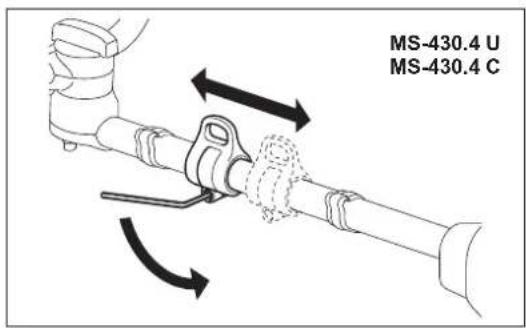

The machine's weight balance can be adjusted by moving location of the hanger forward or backward.

Adjust the height of the cutting tool appropriately for operation.

MS-4300.4 U

MS-430.4 U MS-430.4 C

POINTS IN OPERATION AND HOW TO STOP

Observe the applicable accident prevention regulations!

Three safety warning symbols: triangular warning triangle with exclamation mark, hand gesture with index finger, and helmeted worker wearing protective gear.

Before starting the engine, always set the handle in the proper position. Otherwise the cutting tool may turn suddenly and cause injury, because the throttle cable may be pulled or bent, and open the throttle.

Two technical illustrations of a manual tool with a lever and handle, showing no text or symbols.

STARTING

Move at least 3 m away from the place of refueling. Place the unit on the ground taking care that the cutting tool does not come into contact with the ground or any other objects.

A: Cold start

1) Set this machine on a flat space.
2) Set the I-O switch (1) to OPERATION.

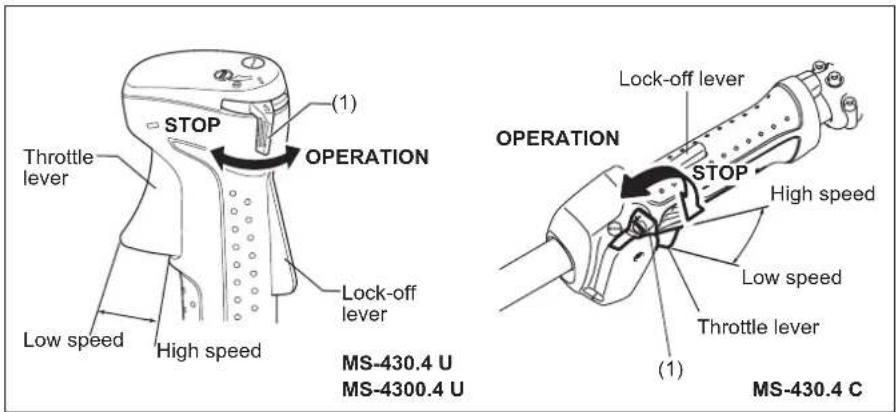

STOP (1) OPERATION Throttle lever Low speed High speed Lock-off lever MS-430.4 U MS-4300.4 U OPERATION LOCK-off lever STOP High speed Low speed Throttle lever (1) MS-430.4 C

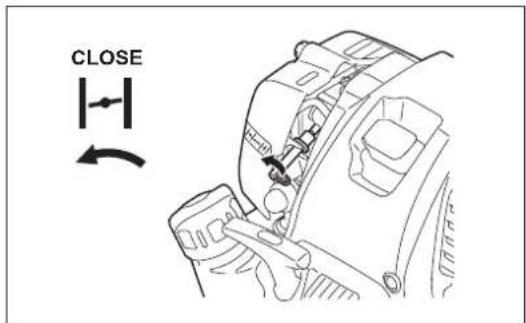

3) Choke lever

Close the choke lever.

Choke opening:

• Full closing in cold or when the engine is cold.
• Full or half opening if the engine is a bit warm, such as restarting engine just after stopping during warm-up operation.

CLOSE

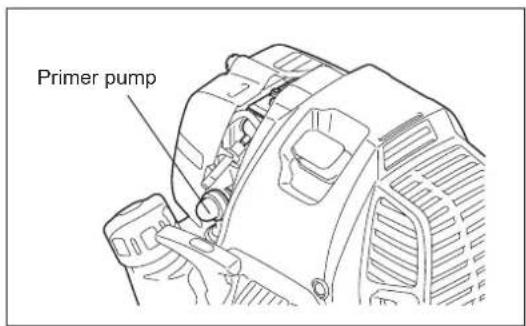

4) Primer pump

Continue to push the primer pump until fuel comes into the primer pump. (In general, 7 to 10 pushes.)

If the primer pump is pushed excessively, an excess of gasoline returns to the fuel tank.

Primer pump

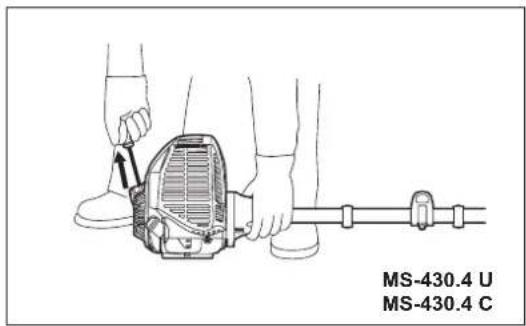

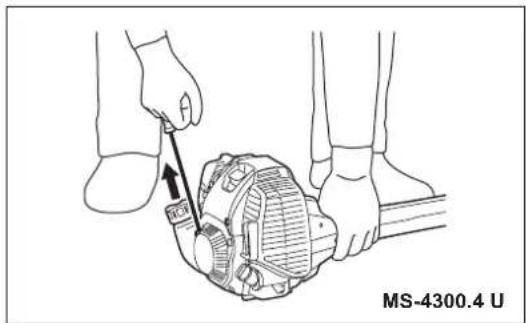

5) Recoil starter

Make sure you have a firm footing.

Hold the unit with your left hand and press it down firmly.

CAUTION: Do not stand or kneel on the throttle cable. The internal wire may be pulled and the cutting tool may start rotating unintentionally.

Do not open the throttle.

Pull the starter knob gently until a certain resistance is felt. Then, return the starter knob, and pull it strongly.

Never pull the rope to the full extension. Once the starter knob is pulled, never release your hand immediately. Hold the starter knob until it returns to its original point.

MS-430.4 U MS-430.4 C

MS-4300.4 U

6) Choke lever

Once engine starts, set choke lever to the OPEN position.

- Open the choke lever gradually while checking the engine operation. Be sure to open the choke lever to the full in the end.

- In cold or when the engine is cooled down, never open the choke lever suddenly. Otherwise the engine may stop.

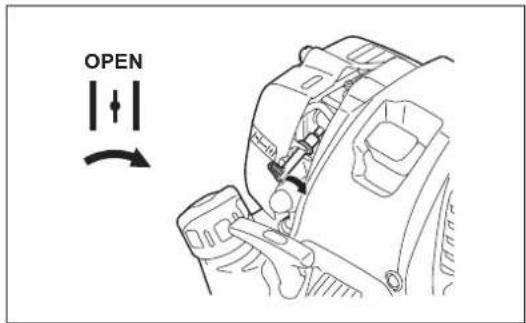

7) Warm-up operation

Continue warm-up operation for 2 to 3 minutes.

NOTICE: Do not pull the throttle lever unnecessarily while the engine is not running. It may cause fuel leak from the air cleaner. If it happens, wipe leaked fuel off. Also, open the air cleaner cover and clean the element and the air cleaner plate.

OPEN

NOTE:

• Do not pull the throttle lever unnecessarily when the engine is not running. It may cause flooding of fuel in the engine, and may cause the engine difficult to start up.
• In case of flooding of the fuel, remove the spark plug and pull the starter handle slowly to remove excess fuel. Also, dry the electrode section of the spark plug.
• If the engine fires and stops, or stops soon after starting, return the choke lever to the OPEN position, and pull the starter knob a few times again to start the engine.
• If the choke lever is left in the CLOSE position, and the starter knob merely pulled repeatedly, too much fuel will be sucked in, and the engine will become difficult to start.
• Do not race the engine in warm-up operation unnecessarily.

B: Warm start

1) Keep the choke lever full open.
2) Push the primer pump repeatedly.
3) Keep the throttle lever at the idling position.
4) Pull the recoil starter strongly.
5) If it is difficult to start the engine, release the lock-off lever (3), pull the throttle lever (2), and move the I-O switch (1) to the throttle lock position. With holding the I-O switch (1), release the throttle lever (2) and the lock-off lever (3). Then pull the starter knob.

WARNING: Pay attention that the cutting tool rotates immediately.

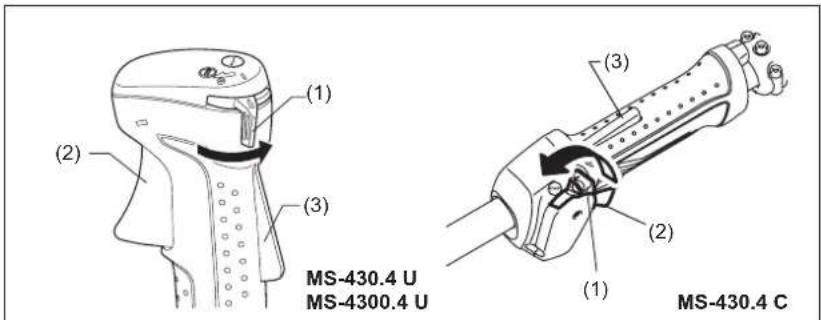

6) Once the engine starts, release the lock-off lever (3) and pull the throttle lever (2), and release them to make the engine idle.

(1) (2) (3) MS-430.4 U MS-4300.4 U MS-430.4 C

STOPPING

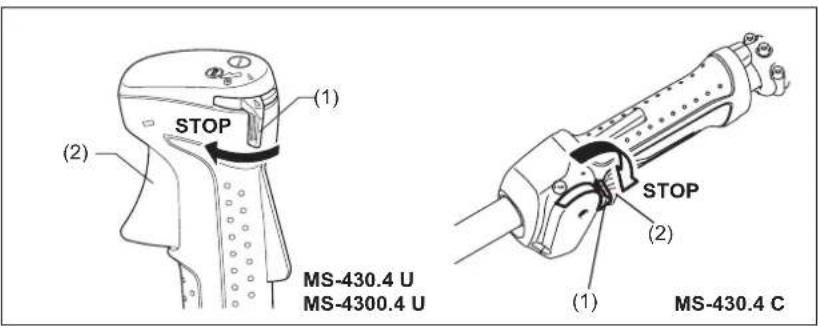

1) Release the throttle lever (2) fully, and when the engine rpm has lowered, set the I-O switch (1) to STOP the engine will now stop.
2) The cutting tool continues to rotate a while after stopping the engine. Wait until it stops completely.

STOP (1) (2) MS-430.4 U MS-4300.4 U STOP (2) (1) MS-430.4 C

ADJUSTMENT OF IDLE SPEED

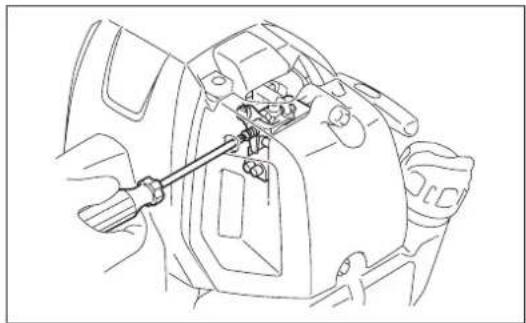

When it is necessary to adjust the idle speed, perform it by the carburetor adjusting screw.

CHECKUP OF IDLE SPEED

• Set the idle speed to 3,000 min.
  If it is necessary to change the idle speed, use a phillips head screw driver on the screw illustrated on the right.
• To increase the idle speed, turn the adjusting screw clockwise.
  To reduce the idle speed, turn the adjusting screw counterclockwise.
• The carburetor is factory adjusted. However, after several use the idle speed need to be re-adjusted.

Technical line drawing of a mechanical assembly with a lever and adjustment knob (no text or symbols)

PREVENTION FROM CARBURETOR ICING

CAUTION: When environmental temperature is higher than 10^ C, always return the shutter to normal (sun mark) setting. Otherwise the engine may be damaged by overheating.

When the environmental temperature is low and humidity is high, water vapor may freeze inside the carburetor and the engine drives unsteadily (carburetor icing). Change the setting of the shutter as follows if necessary.

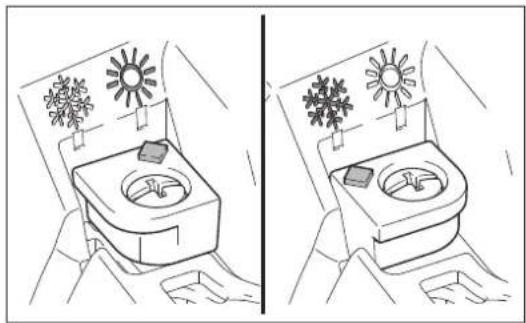

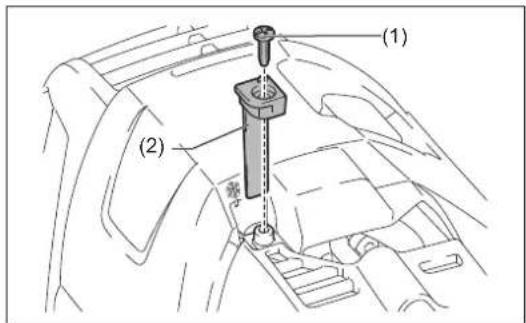

1. Remove the screw (1).
2. Change the direction of the shutter (2) as follows:

- Environment temperature is higher than 10°C: Set the shutter in normal position (sun mark).

- Environment temperature is equal or lower than 10°C: Set the shutter in anti-icing position (snow mark).

1. Tighten the screw.

(1) (2)

Two-panel line drawing showing a hand holding a small object with floral patterns on top, and another with a bowl containing a tray with snow-like symbols (no text or labels)

RESHARPENING THE CUTTING TOOL

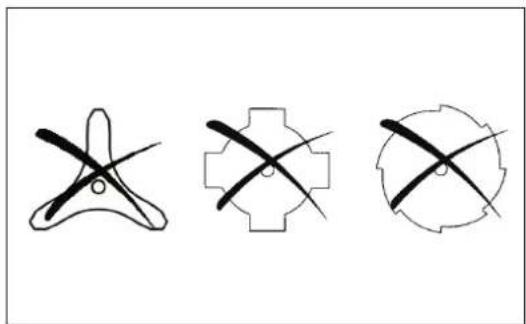

CAUTION: The cutting tools shown in the illustration are not to be sharpened. Manual resharpening will result in imbalances of the cutting tool causing vibrations and damage to the equipment.

NOTE: To increase the service life of the cutter blade it may be turned over once, until both cutting edges have become blunt.

NYLON CUTTING HEAD

The nylon cutting head is a dual line trimmer head that has bump & feed mechanism.

The nylon cutting head will feed out the proper length of nylon line after tapping the nylon cutting head on the ground by changes in centrifugal force caused by increasing or decreasing rpms.

Operation

• Increase the nylon cutting head speed to approx. 6,000 m/h. Bump the nylon cutting head lightly on the ground.

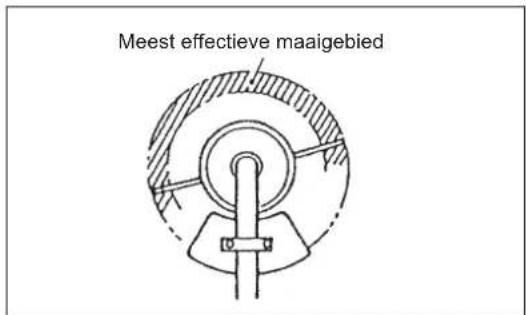

• The most effective cutting area is shown by the shaded area.
• If the nylon cord does not feed out, rewind/replace the nylon cord by following the procedures described under "Replacing the nylon cord."

Replacing the nylon cord (BUMP & FEED)

WARNING: Make sure that the cover of the nylon cutting head is secured to the housing properly as described below. Failure to properly secure the cover may cause the nylon cutting head to fly apart resulting in serious personal injury.

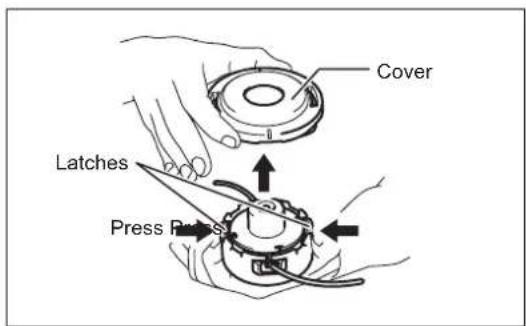

Press inward on the housing latches and lift upward to remove the cover. Discard any of the remaining nylon cord.

Hook the middle of the new nylon cord to the notch located at the center of the spool between the 2 channels provided for the nylon cord. One side of the cord should be about 80 mm longer than the other side.

Wind both ends firmly around the spool in the direction marked on the head for left hand direction indicated by LH.

Wind all but about 100 mm of the cords, leaving the ends temporarily hooked through a notch on the side of the spool.

Three abstract geometric diagrams with intersecting lines, no text or symbols present

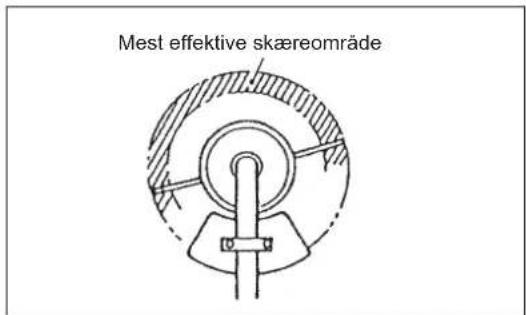

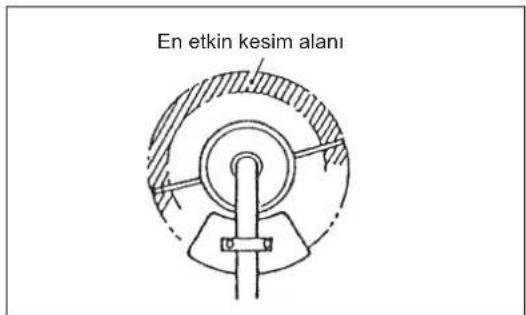

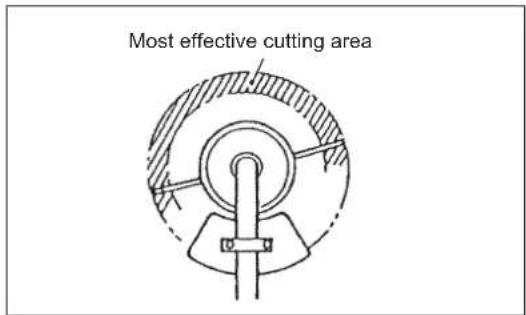

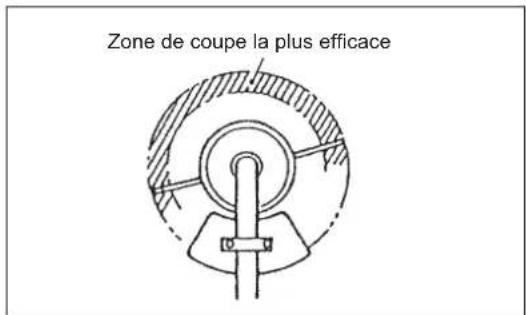

Most effective cutting area

Cover Latches Press Press

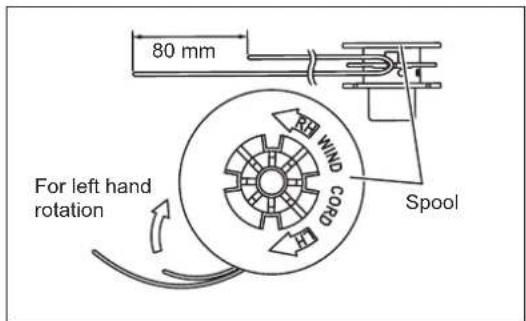

80 mm For left hand rotation spool

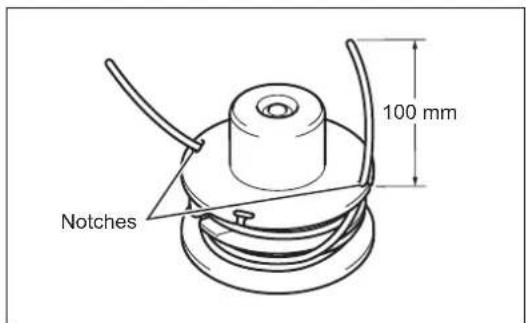

100 mm Notches

Mount the spool in the housing so that the grooves and protrusions on the spool match up with those in the housing. Keep the side with letters on the spool visible on the top. Now, unhook the ends of the cord from their temporary position and feed the cords through the eyelets to come out of the housing.

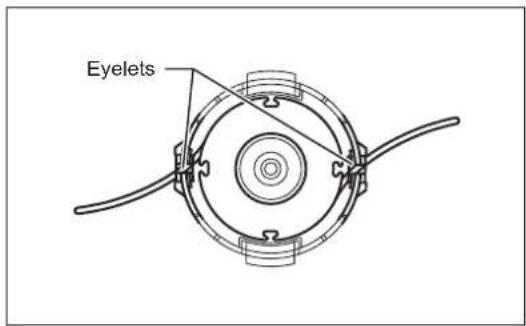

Eyelets

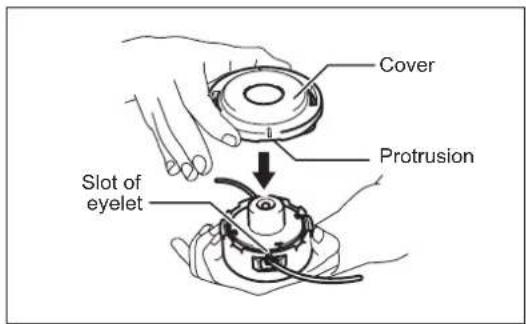

Align the protrusion on the underside of the cover with the slots of the eyelets. Then push cover firmly onto the housing to secure it. Make sure the latches fully spread in the cover.

Cover Protrusion Slot of eyelet

Replacing the nylon cord (ULTRA AUTO)

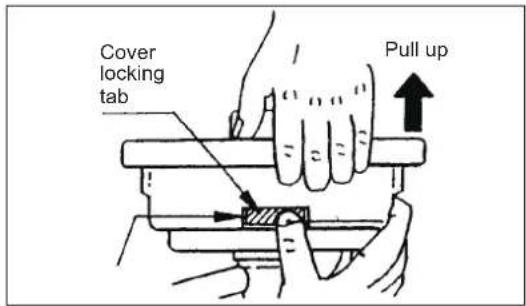

1. Put off cover from housing, pressing two cover locking tabs located oppositely on side of the housing.

Cover locking tab Pull up

1. Take off tab knob and spool from the housing.

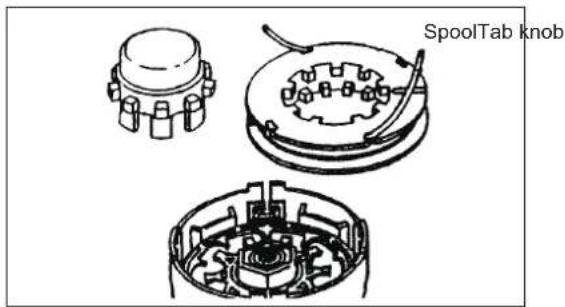

SpoolTab knob

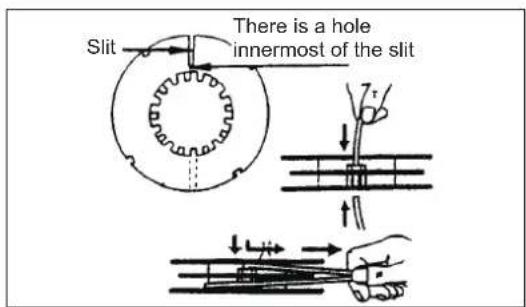

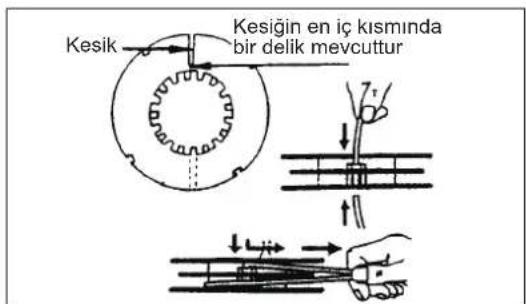

1. Put each one end of two cutting lines into each holes at innermost of the slot on one of spool outer flanges. Put the lines into spool gutters through each slit on the flanges.

Slit There is a hole innermost of the slit

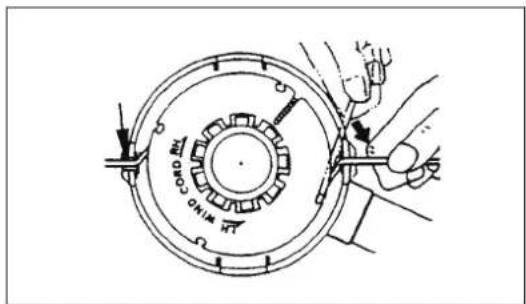

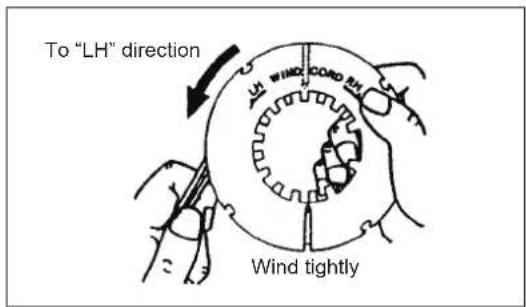

1. Wind the lines up firmly to the direction slown by left-hand (LH) arrow on the flange. Do not cross the lines.
2. Wind all but about 100 mm (3-15/16") of the Cords, leaving the end temporarily hooked through a notch on the side of the spool.
3. Put tab knob onto the housing hub, positioning it can freely move up and down against spring tension. Put the spool into the housing, aligning the teeth on spool and tap knob alternately like gears.
4. Put in the cutting lines through the slot of eyelets.
5. Put the cover onto the housing, aligning the tabs on cover and the windows on housing. Make sure the cover is secured exactly to the housing. Outer edge of cover locking tab and outer surface of the housing should be on same circumference.

To "LH" direction Wind tightly

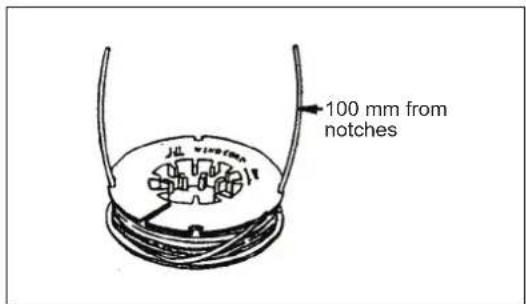

100 mm from notches

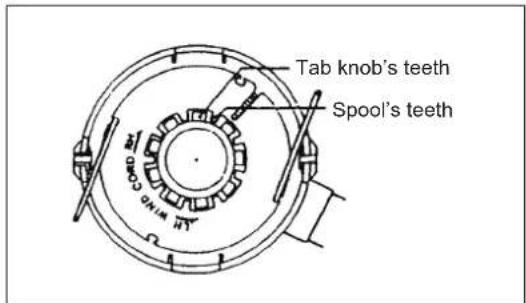

Tab knob's teeth Spool's teeth

CÓDRO ONION

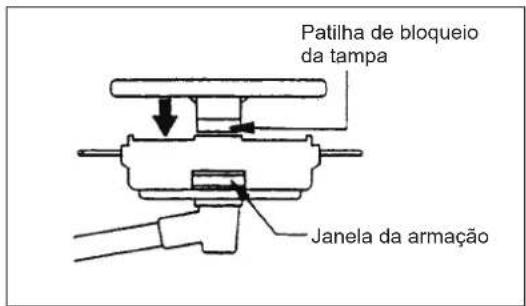

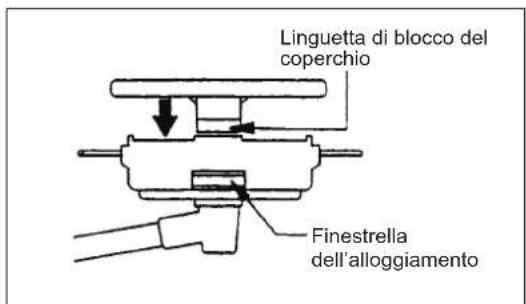

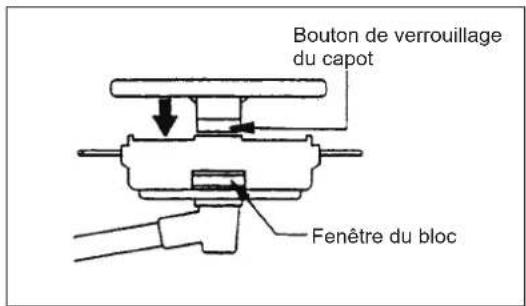

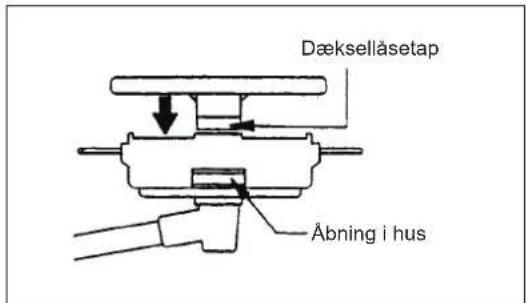

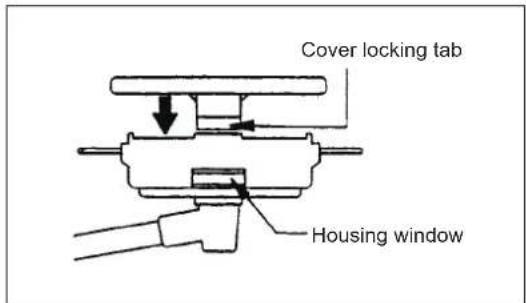

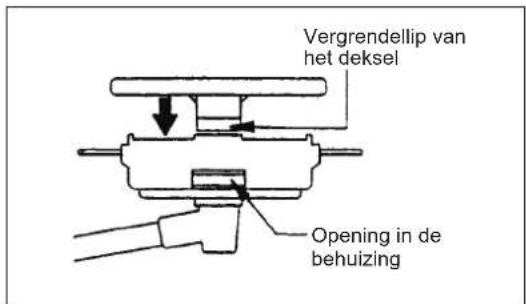

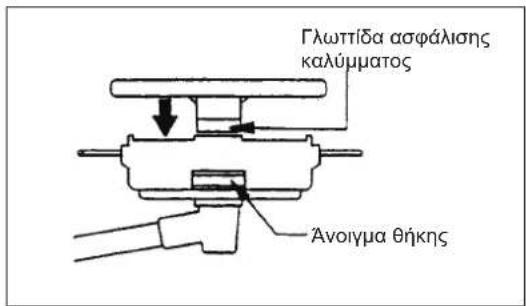

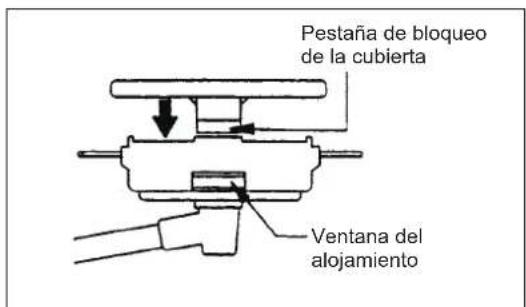

Cover locking tab Housing window

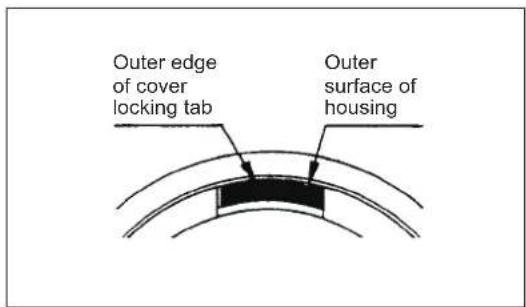

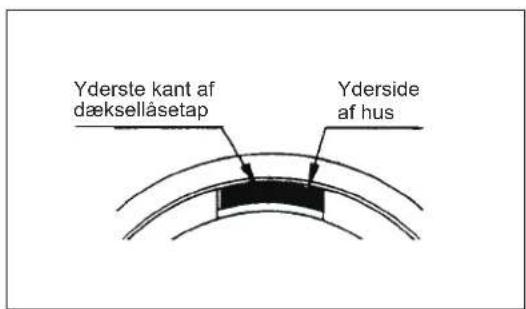

Outer edge of cover locking tab Outer surface of housing

SERVICING INSTRUCTIONS

CAUTION: Before doing any work on the equipment, always stop the engine and pull the plug cap off the spark plug (see "checking the spark plug").

Always wear protective gloves!

To ensure a long service life and to avoid any damage to the equipment, the following servicing operations should be performed at regular intervals.

Daily checkup and maintenance

- Before operation, check the machine for loose screws or missing parts. Pay particular attention to the tightness of the metal blade or nylon cutting head.

- Before operation, always check for clogging of the cooling air passage and the cylinder fins.

Clean them if necessary.

- Perform the following work daily after use:

- Clean the equipment externally and inspect for damage.

- Clean the air filter. When working under extremely dusty conditions, clean the filter the several times a day.

- Check the blade or the nylon cutting head for damage and make sure it is firmly mounted.

- Check that there is sufficient difference between idling and engagement speed to ensure that the cutting tool is at a standstill while the engine is idling (if necessary reduce idling speed).

If under idling conditions the tool should still continue to run, consult your nearest Authorized Service Agent.

- Check the functioning of the I-O switch, the lock-off lever, the throttle lever, and the lock button.

REPLACEMENT OF ENGINE OIL

Deteriorated engine oil will shorten the life of the engine. Be sure to check the oil and level regularly.

WARNING: The engine and engine oil is still hot just after stopping engine. Allow sufficient time for the engine and engine oil to cool down. Otherwise a skin burn may result.

NOTE: If the oil filled above the limit, it may be contaminated or may catch fire with white smoke. Allow sufficient time after stopping engine for the engine oil to return to the oil tank to ensure accurate reading of the oil level.

Interval of replacement: After first 20 operating hours, followed by every 50 operating hours.

Recommended oil: SAE10W-30 oil of API Classification SF Class or higher (4-stroke engine oil for automobile)

In replacement, perform the following procedure.

1) Make sure that the fuel tank cap is tightened securely.

2) Place large container (pan, etc.) under drain hole.

3) Remove drain bolt and then remove oil cap to drain out oil from drain hole. At this time, be sure not to lose drain bolt's gasket, or get dirty any of the removed components.

4) Once all the oil has been drained, install gasket and drain bolt, and tightly secure drain bolt, so that it will not loosen and cause leaks.

[Tightening torque: 5 N-m]

* Use cloth to fully wipe off any oil attached to bolt and equipment.

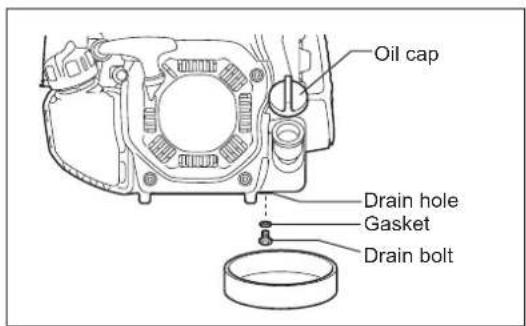

Alternative draining method

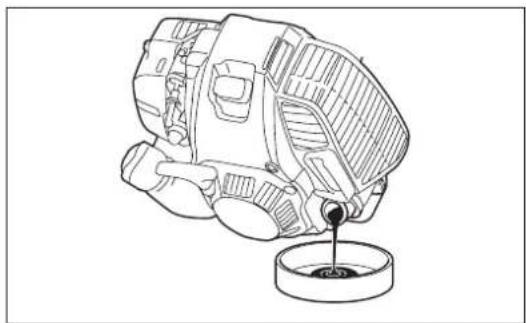

Remove oil cap, tilt the equipment toward oil filler hole, and drain out oil. Collect oil in container.

Oil cap Drain hole Gasket Drain bolt

Line drawing of a mechanical component with a small inset showing liquid being poured into it (no text or symbols)

5) Set the engine level, and gradually fill up to upper limit mark with new oil.
6) After filling, tightly secure oil cap, so that it will not loosen and cause leaks. If oil cap is not tightly secured, it may leak.

POINTS ON OIL

• Never discard replaced engine oil in garbage, earth or sewage ditch. Disposal of oil is regulated by law. In disposal, always follow the relevant laws and regulations. For any points remaining unknown, contact Authorized Service Agent.
  – Oil will deteriorate even when it is kept unused. Perform inspection and replacement at regular intervals (replace with new oil every 6 months).

CLEANING OF AIR CLEANER

WARNING: Shut off the engine, keep away from open flames and do not smoke.

Interval of Cleaning and Inspection: Daily (every 10 operating hours)

- Turn the choke lever to the full close side, and keep the carburetor off from dust or dirt.

Removing air cleaner cover

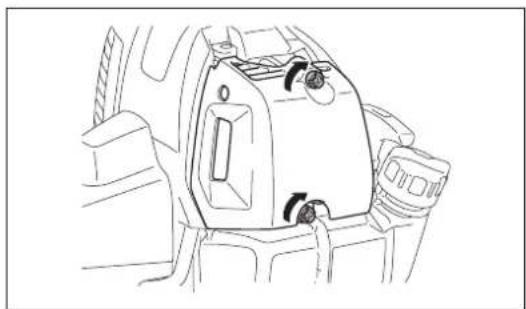

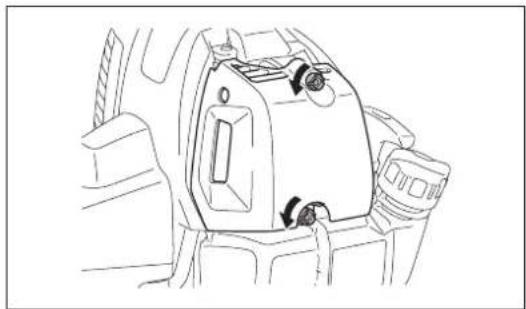

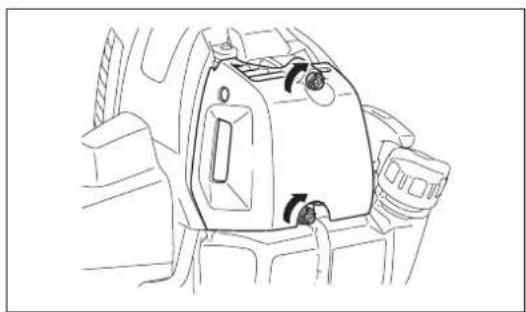

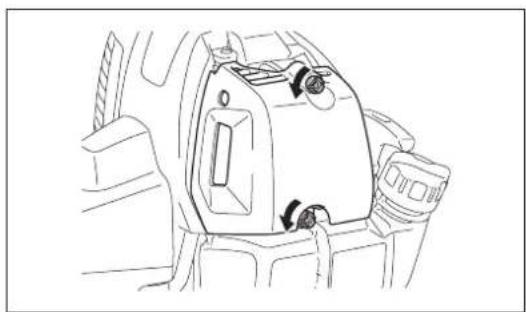

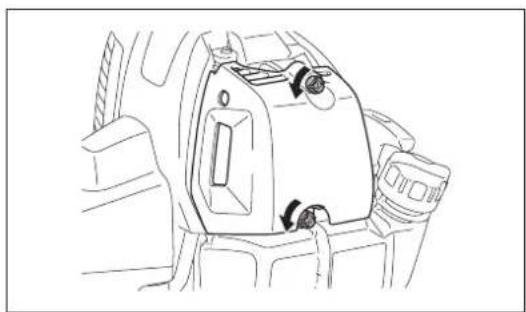

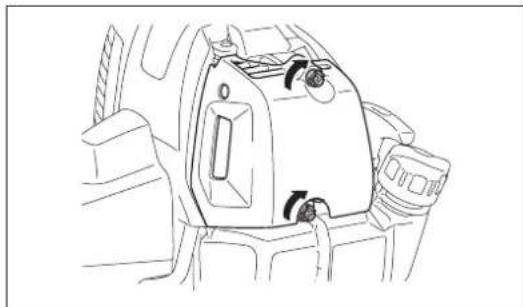

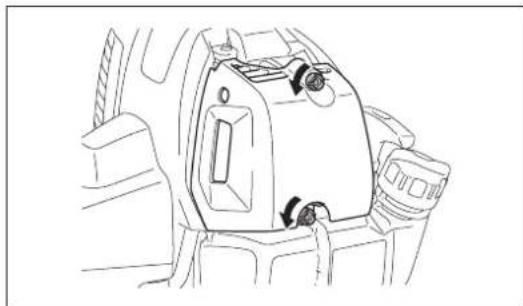

• Loosen two fixing bolts (1).
  – Pull and remove the air cleaner cover (2).

Cleaning element

• Remove the elements (3, 4) and tap them to remove dirt.
• For heavy contamination:

1) Remove the element (sponge) (3), immerse it in warm water or in water diluted neutral detergent, and dry it completely. Do not squeeze or rub it when washing.
2) Clean the element (paper) (4) by tapping it gently. If you can use an air blow gun, blow the compressed air onto the inside of the element (paper). Do not wash the element (paper).

- Before attaching the element (sponge), be sure to dry it completely.

Insufficient drying of the element (sponge) may lead to difficult start-up.
- Wipe out oil adhering around the air cleaner cover and separator plate (5) with waste cloth.

Attaching air cleaner cover

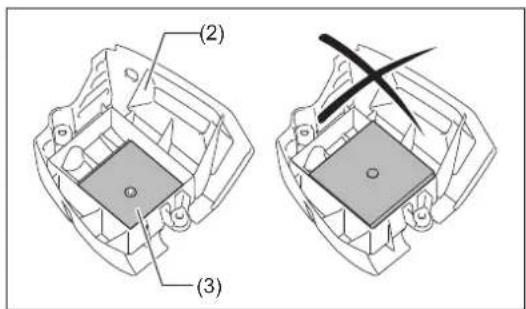

• Fit the element (sponge) and element (paper). Insert the element (sponge) all the way into the air cleaner cover.

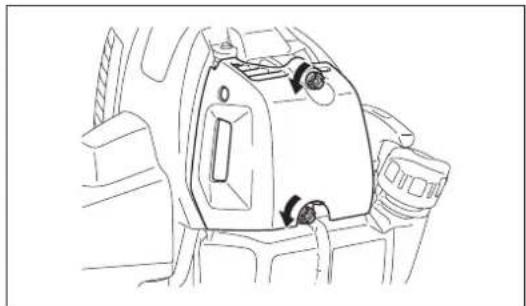

• Tighten the air cleaner cover with two fixing bolts.

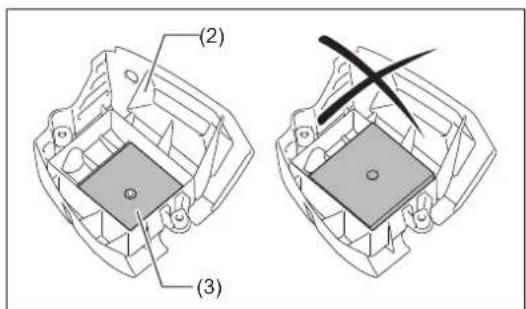

NOTICE:

• Clean the elements several times a day, if excessive dust adheres to it. Dirty elements reduce engine power and make starting engine difficult.
• Remove oil on the elements. If operation continues with the elements remaining not cleared of oil, oil in the air cleaner may fall outside, resulting in contamination of the environment.
• Do not put the elements on the ground or dirty place. Otherwise they pick up dirt or debris and it may damage the engine.
• Never use fuel for cleaning the elements. Fuel may damage them.

Technical line drawings of mechanical components, including a lever and housing (no text or symbols)

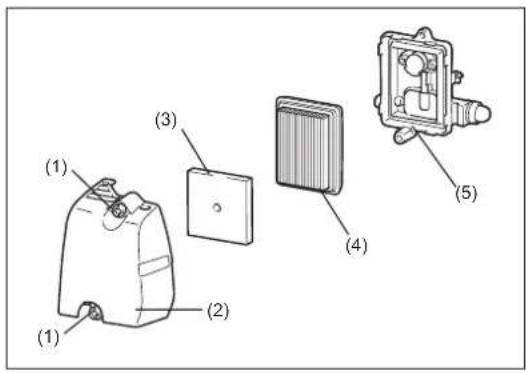

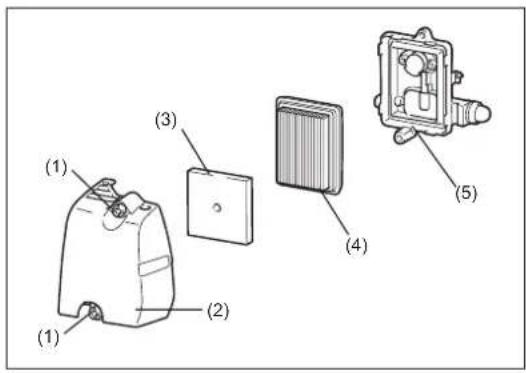

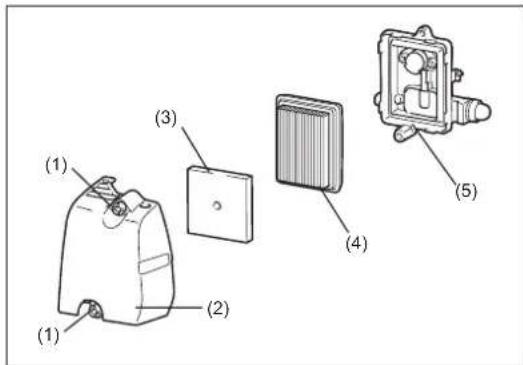

(1) (2) (3) (4) (5)

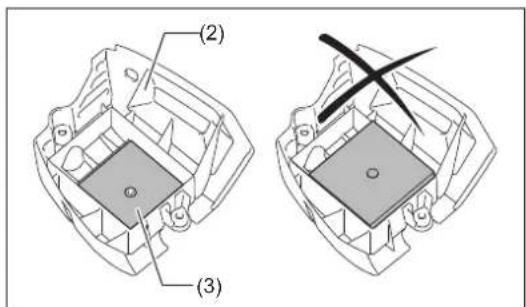

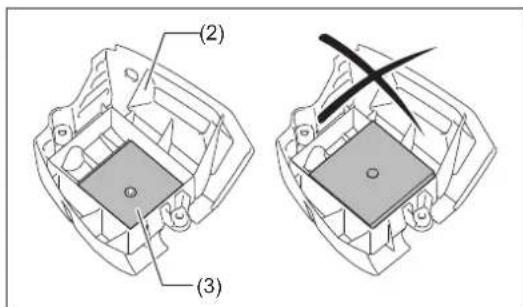

Technical line drawing of a mechanical component with no visible text or symbols

(2) (3)

Technical line drawing of a mechanical component with no visible text or symbols

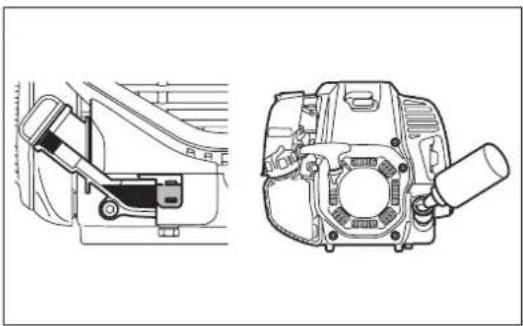

CHECKING THE SPARK PLUG

• Only use the supplied universal wrench to remove or to install the spark plug.

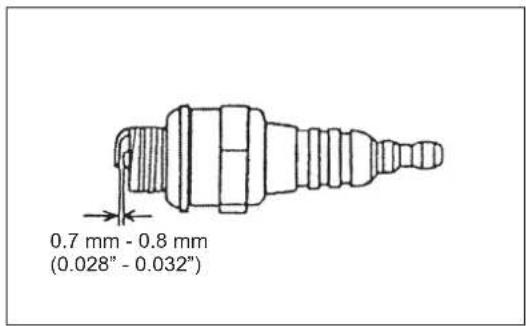

• The gap between the two electrodes of the spark plug should be 0.7 - 0.8 mm (0.028" - 0.032"). If the gap is too wide or too narrow, adjust it. If the spark plug is clogged or contaminated, clean it thoroughly or replace it.

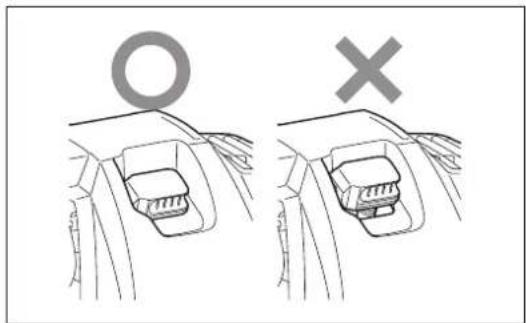

  Place the plug cap properly as illustrated after checking.

CAUTION: Never touch the spark plug connector while the engine is running (danger of high voltage electric shock).

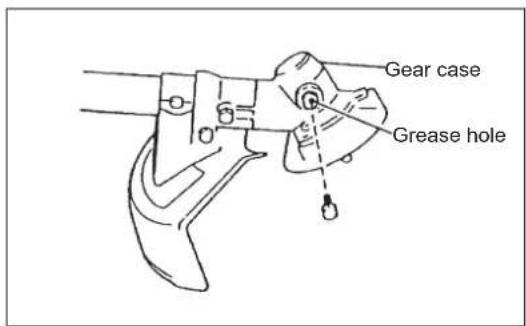

SUPPLY OF GREASE TO GEAR CASE

– Supply grease (Shell Alvania 2 or equivalent) to the gear case through the grease hole every 30 hours. (Genuine DOLMAR grease may be purchased from your DOLMAR dealer.)

CLEANING OF FUEL FILTER

WARNING: INFLAMMABLES STRICTLY PROHIBITED

Interval of Cleaning and Inspection: Monthly (every 50 operating hours)

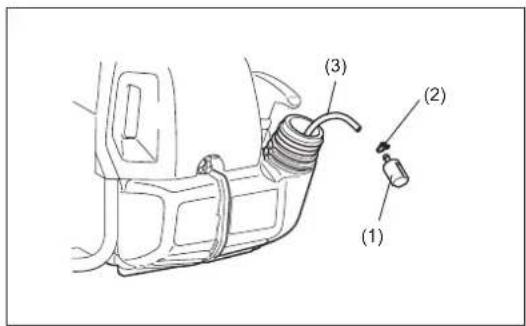

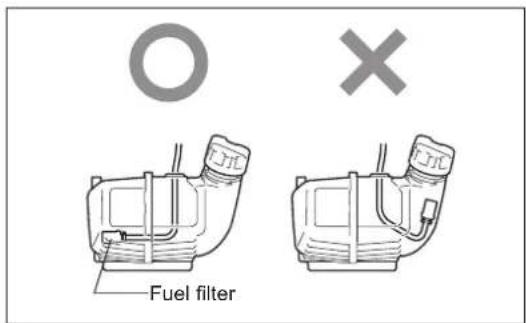

Suction head in the fuel tank

• The fuel filter (1) of the suction head is used to filter the fuel required by the carburetor.
• A periodical visual inspection of the fuel filter is to be conducted. Open the tank cap, use a wire hook and pull out the suction head through the tank opening. If the filter is hard or clogged up, replace it.
• Replace the fuel filter at least quarterly to ensure an enough fuel supply to the carburetor. Otherwise an insufficient fuel supply will cause the engine start failure and limited maximum speed.
• After checking, cleaning or replacing, fix the fuel filter onto the fuel pipe (3) with the hose clamp (2). Push the fuel filter in all the way to the bottom of the fuel tank.

0.7 mm - 0.8 mm (0.028" - 0.032")

O X

Gear case Grease hole

(1) (2) (3)

O X Fuel filter

REPLACEMENT OF FUEL PIPE

CAUTION: INFLAMMABLES STRICTLY PROHIBITED

Interval of Cleaning and Inspection: Daily (every 10 operating hours)

Replacement: Annually (every 200 operating hours)

Replace the fuel pipe every year, regardless of operating frequency. Fuel leakage may lead to fire.

If any leakage is detected during inspection, replace the fuel pipe immediately.

INSPECTION OF BOLTS, NUTS AND SCREWS

– Retighten loose bolts, nuts, etc.
- Check the fuel cap and oil cap for tightness. Check for fuel and oil leakage.
– Replace damaged parts with new ones for safety operation.

CLEANING OF PARTS

• Always keep the engine clean by wiping down with a cloth rag.
• Keep the cylinder fins free of dust or dirt. Dust or dirt adhering to the fins will cause piston seizure.

REPLACEMENT OF GASKETS AND PACKINGS

Replace gaskets and packings if the engine is disassembled.

Any maintenance or adjustment work that is not included and described in this manual is only to be performed by Authorized Service Agents.

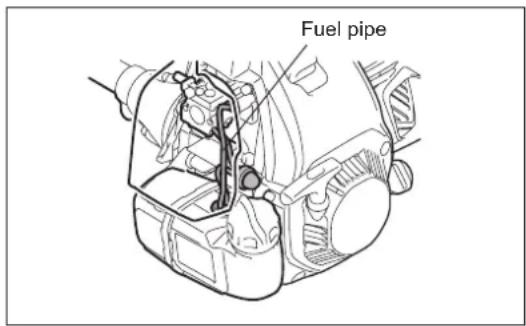

Fuel pipe

STORAGE

WARNING: The engine is still hot just after stopping engine. When draining the fuel, allow sufficient time for the engine to cool down after stopping it. Otherwise a skin burn and/or fire may result.

DANGER: When the machine is kept out of operation for a long time, drain all fuel from the fuel tank and carburetor, and keep it at a dry and clean place.

- Drain fuel from the fuel tank and carburetor according to the following procedure:

1) Remove the fuel tank cap, and drain fuel completely.
If there is any foreign matter remaining in the fuel tank, remove it completely.
2) Pull out the fuel filter from the refill port using a wire.
3) Push the primer pump until fuel is drained from there, and drain fuel coming into the fuel tank.
4) Put the filter to the fuel tank, and securely tighten the fuel tank cap.
5) Then, continue to operate the engine until it stops.

• Remove the spark plug, and drip several drops of engine oil through the spark plug hole.
  – Gently pull the starter handle so that engine oil will spread over the engine, and attach the spark plug.
• Attach the cover to the metal blade.
  – In general, store the machine in horizontal position, or if it is not possible, place the machine as the cutting tool comes below the engine. Pay full attention how to store the machine to prevent the machine from falling. Otherwise it may result in personal injury.
• Keep the drained fuel in a special container in a well-ventilated shade.

Line drawing of a vertical pole with a central hub and two feet, no text or symbols present

Attention after long-time storage

- Before startup after long-time shutdown, be sure to replace oil (refer to P 23). Oil will deteriorate while the machine is kept out of operation.

Operating time Item		Before operation	After refuleling	Daily (10h)	30h 50h	200h		Before storage	Corresponding P
Engine oil	Inspect/clean	○							13
	Replace					○^*1			23
Tightening parts (bolt, nut)	Inspect	○							25
Fuel tank	Clean/inspect	○							—
	Drain fuel							○^*3	26
Throttle lever Check function			○						—
Stop switch Check function			○						23
Cutting tool Inspect		○		○					10
Idle speed Inspect/adjust				○					19
Air cleaner Clean				○					24
Spark plug Inspect				○					25
Cooling air passage and cylinder fins	Clean/inspect			○					26
Fuel pipe	Inspect			○					26
	Replace						○^*2		—
Gear-case grease Refill					○				25
Fuel filter Clean/replace						○			25
Valve clearance (intake valve and exhaust valve)	Inspect/adjust						○^*2		—
Carburetor Drain fuel								○^*3	26

*1 Perform initial replacement after 20h operation.
*2 For the 200 operating hour inspection, request Authorized Service Agent or a machine shop.
*3 After emptying the fuel tank, continue to run the engine and drain fuel in the carburetor.

TROUBLESHOOTING

Before making a request for repairs, check for trouble by yourself. If any abnormality is found, control your machine according to the description of this manual. Never tamper or dismount any part contrary to the description. For repairs, contact Authorized Service Agent or local dealership.

State of abnormality Probable cause (malfunction) Remedy
Engine does not start	I-O switch is set to STOP. Set the I-O switch to	OPERATION.
	Failure to operate primer pump Push 7 to 10 times
	Low pulling speed of starter rope Pull strongly
	Lack of fuel Feed fuel
	Clogged fuel filter Clean
	Broken fuel tube Straighten fuel tube
	Deteriorated fuel Deteriorated fuel makes starting more difficult.Replace with new fuel. (Recommended replacement: 1 month)
	Excessive suction of fuel Set throttle lever from	medium speed to high speed, and pull starter handle until engine starts.Once engine starts, metal blade starts rotating. Pay full attention to metal blade.If engine will not start still, remove spark plug, dry the electrode, and reassemble them as they originally are. Then, start as specified.
	Detached plug cap Attach securely
	Contaminated spark plug Clean
	Abnormal clearance of spark plug Adjust clearance
	Other abnormality of spark plug Replace
	Abnormal carburetor	Make request for inspection and maintenance.
	Starter rope cannot be pulled	Make request for inspection and maintenance.
	Abnormal drive system	Make request for inspection and maintenance.
Engine stops soonEngine speed does not increase	Insufficient warm-up	Perform warm-up operation
	Choke lever is set to “CLOSE” although engine is warmed up.	Set to “OPEN”
	Clogged fuel filter Clean
	Contaminated or clogged air cleaner	Clean
	Abnormal carburetor	Make request for inspection and maintenance.
	Abnormal drive system	Make request for inspection and maintenance.
Metal blade does not rotate↓Stop engine immediately	Loosened metal blade-tightening nut	Tighten securely
	Twigs caught by metal blade or dispersion-preventing cover.	Remove foreign matter
	Abnormal drive system	Make request for inspection and maintenance.
Main unit vibrates abnormally↓Stop engine immediately	Broken, bent or worn metal blade	Replace metal blade
	Loosened metal blade-tightening nut	Tighten securely
	Shifted convex part of metal blade and metal blade support fitting.	Attach securely
	Abnormal drive system	Make request for inspection and maintenance.
Metal blade does not stop immediately↓Stop engine immediately	High idling rotation	Adjust
	Detached throttle wire	Attach securely
	Abnormal drive system	Make request for inspection and maintenance.
Engine does not stop↓Run engine at idling, and set choke lever to CLOSE	Detached connector	Attach securely
	Abnormal electric system	Make request for inspection and maintenance.

When the engine does not start after warm-up operation:
If there is no abnormality found for the check items, open the throttle by about 1/3 and start the engine.

Français

(Instructions d'origine)

SOUS TENSION/DÉMARRAGE

HORS TENSION/ARRÊT

POSITION DE VERROUILLAGE DE L'ACCÉLÉRATEUR

CONSIGNES DE SÉCURITÉ

Warning symbol image with exclamation mark inside a triangle

Black and white illustration of wine bottles and a propeller crossed over, with scattered pills below (no text or symbols)

(3)

(5)

(6)

Illustration 360° 15 mètres 15m (50m)

Line drawing of a person using a power tool on grass, no text or symbols present

Line drawing of a person holding a medical device with attached bandages (no text or symbols)

Illustration of a person using a manual power tool to lift a blade, with an arrow indicating motion (no text or symbols)

Diagram showing a hand holding a fuel pump with a downward arrow and two prohibition symbols below.

3 mètres

Mode d'emploi

Warning sign depicting a person using a net with arrows indicating pollution or leakage, symbolizing environmental hazard.

Attention : Choc en retour 12 2 Illustration

12 11 2 3 9 8 6 5 Illustration

Line drawing of a person using a metal detector on a grassy field (no text or symbols)

Illustration of a soldier in protective gear operating equipment near a campfire (no text or symbols)

Technical diagram of a mechanical device with numbered parts for assembly or maintenance reference.

Technical diagram of a camera body with numbered parts for identification

Technical line drawing of a mechanical component with no visible text or symbols

Two abstract geometric shapes resembling stylized arrows or a cross, with no text or symbols present.

Line drawing of a boat hull with visible hull, hull, and side ribs (no text or symbols)

Lame de scie de 200 mm

Technical line drawing of a mechanical component with no visible text or symbols

Lame de scie de 225 mm

Technical line drawing of a mechanical component (no text or symbols)

Line drawing of a shoe with a partially cut blade and handle (no text or symbols)

Line drawing of a boot with label 'Remarque' (no other text or symbols)

Line drawing of a mechanical assembly with a hand adjusting a bolt (no text or symbols)

Technical line drawing of a mechanical engine component (no text or symbols)

Three black-and-white warning symbols: triangular warning triangle with exclamation mark, hand gesture with index finger, and helmeted safety gear with head covering (no text)

Two technical illustrations of a manual tool with a lever and handle, showing no text or symbols.

DÉMARRAGE

Line drawing of a car interior showing dashboard and steering wheel (no text or symbols)

PRÉVENTION DU GIVRAGE DU CARBURATEUR

Two-panel line drawing showing a hand holding a small object with floral patterns on top, and another with a bowl containing a tray with snow-like symbols (no text or labels)

RÉAFFÛTAGE DE L'OUTIL DE COUPE

Three abstract geometric diagrams with intersecting lines, no text or symbols present

Technical line drawing of a mechanical component with hands operating it (no text or symbols)

Line drawing of a mechanical component pouring liquid into a container (no text or symbols)

Technical line drawings of mechanical components, including a side view and top view (no text or symbols)

(1) (2) (3) (4) (5)

Line drawing of a vehicle's front compartment showing valve and handle (no text or symbols)

(2) (3)

Technical line drawing of a mechanical component with no visible text or symbols

VÉRIFICATION DE LA BOUGIE

Line drawing of a vertical pole with a mounted device and two arms, no text or symbols present

Warning symbol image with exclamation mark inside a triangle

Black and white illustration of wine bottles and a propeller crossed over, with scattered pills below (no text or symbols)

(3)

(5)

(6)

Line drawing of a person using a power tool on grass, no text or symbols present

Line drawing of a person holding a tool, wearing a cap and gloves (no text or symbols)

Illustration of a person using a manual plow with a tool, showing motion direction (no text or symbols)

Diagram illustrating a hand holding a fuel pump with a downward arrow and two prohibition symbols for no smoking.

3 Meter

Handhabung

Warning sign depicting a person using a tool to avoid accidents, with arrows indicating direction and symbols for 'no accident' or 'no damage'.

Line drawing of a person in protective gear using a metal detector on a grassy field (no text or symbols)

Illustration of a soldier in protective gear operating equipment with a crossed sword and smoke, next to a campfire (no text or symbols)

Technical diagram of a mechanical linkage system with numbered components for each assembly.

Technical diagram of a camera body with numbered parts for identification

MONTIEREN DES GRIFFS

(1) (2) Motor

MONTIEREN DES SCHUTZES

Two abstract geometric shapes resembling stylized arrows or a cross, with no text or symbols present.

Line drawing of a boat hull with visible hull, hull, and side ribs (no text or symbols)

Sägeblatt 200 mm

Technical line drawing of a mechanical component (no text or symbols)

Sägeblatt 225 mm

Technical line drawing of a mechanical component (no text or symbols)

Nylon-Schneidkopf

Line drawing of a bicycle seat with a strap and seatbelt (no text or symbols)

Line drawing of a boot with label 'Hinweis' (no other text or symbols)

Inbusschlüssel

MONTIEREN DES METALLBLATTS / NYLON-SCHNEIDKOPFS

Inbusschlüssel (4) (3) (2) (1)

(1) (2) (3) (4)

Inbusschlüssel

Line drawing of a mechanical assembly with a hand adjusting a bolt (no text or symbols)

Technical line drawing of a mechanical engine component (no text or symbols)

Three safety warning symbols: triangular warning triangle with exclamation mark, hand gesture with glove, and helmeted worker wearing protective gear.

Technical line drawing of two mechanical tools with no visible text or symbols

STARTEN

Technical line drawing of a mechanical assembly with a tool inserted (no text or symbols)

Two-panel line drawing showing a hand holding a small object with floral patterns on top, and another hand holding a container with snow-like symbols (no text or labels)

Three abstract geometric diagrams with intersecting lines, no text or symbols present

Alternative Ablassmethode

Line drawing of a mechanical component pouring liquid into a container (no text or symbols)

Technical line drawings of mechanical components, including a lever and housing (no text or symbols)

(1) (2) (3) (4) (5)

Line drawing of a car interior panel with directional arrows indicating movement or change (no text or symbols)

(2) (3)

Technical line drawing of a mechanical component with no visible text or symbols

ÜBERPRÜFEN DER ZÜNDKERZE

Line drawing of a vertical pole with a mounted device and two legs, no text or symbols present

Warning symbol image with exclamation mark inside a triangle

Black and white illustration of wine bottles and a propeller crossed over, with scattered pills below (no text or symbols)

(3)

(5)

(6)

Diagramma schematico 360° 15 metri 15m (50 m)

Line drawing of a person using a power tool on grass, no text or symbols present

Line drawing of a person holding a tool, wearing a cap and gloves (no text or symbols)

Illustration of a person using a manual power tool to lift a blade, with an arrow indicating motion (no text or symbols)

Diagram showing a hand holding a fuel pump with a downward arrow and two prohibition symbols below.

3 metri

Warning sign depicting a person using a tool to clean debris, with arrows indicating removal or disposal.

Line drawing of a person using a metal detector on a grassy field (no text or symbols)

Illustration of a firefighter in protective gear operating equipment near fire and smoke (no text or symbols)

Technical diagram of a mechanical device with numbered parts for identification and assembly reference.

Technical diagram of a camera body with numbered parts for identification

Two abstract geometric shapes resembling stylized arrows or a cross, with no text or symbols present.

Line drawing of a boat hull with handle and side panel (no text or symbols)

Lama a sega 200 mm

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

Lama a sega 225 mm

Technical line drawing of a mechanical component (no text or symbols)

Line drawing of a shoe component with a strap and handle (no text or symbols)

Line drawing of a boot-shaped object with a small arrow pointing to the side (no text or symbols)

Simple line drawing of a person with a circular head and arrow indicating rotation (no text or symbols)

Line drawing of a mechanical component with a hand adjusting a bolt (no text or symbols)

Technical line drawing of a mechanical engine component (no text or symbols)

Three safety warning symbols: triangular warning triangle with exclamation mark, hand gesture with index finger, and helmeted worker wearing protective gear.

Two technical illustrations of a manual tool with a lever and handle, showing no text or symbols.

AVVIAMENTO

Line drawing of a mechanical assembly with a wrench inserted, no text or symbols present

Two-panel line drawing showing a hand holding a small object with sun and flower patterns, next to a second empty container with a tray and bowl (no text or symbols)

AFFILATURA DELL'UTENSILE DA TAGLIO

Three abstract geometric diagrams with intersecting lines, no text or symbols present

Technical line drawing of a mechanical assembly with gears and adjustment tools (no text or symbols)

Line drawing of a mechanical device pouring liquid into a container (no text or symbols)

Technical line drawings of mechanical components, including a lever and housing (no text or symbols)

(1) (2) (3) (4) (5)

Line drawing of a vehicle's front compartment showing steering wheel and dashboard (no text or symbols)

(2) (3)

Technical line drawing of a mechanical component with no visible text or symbols

CONTROLLO DELLA CANDELA

Line drawing of a vertical pole with a central hub and two feet, no text or symbols present

Warning symbol image with exclamation mark inside a triangle

Black and white illustration of wine bottles and a propeller crossed over, with scattered pills below (no text or symbols)

(3)

(5)

(6)

Schematische voorstelling 360° 15 meter 15m (50 m)

Line drawing of a person using a power tool on grass, no text or symbols present

Line drawing of a person holding a medical device with a sphygmomanometer (no text or symbols)

Illustration of a person using a manual power tool to lift a blade, with an arrow indicating motion (no text or symbols)

Gas Pump No Smoking No Smoking

3 meter

Gebruiksmethode

Warning sign depicting a person using a tool to avoid accidents, with arrows indicating direction and symbols for 'no accident' or 'no damage'.

Let op: Terugslag 12 2 Schematische vorstelling

12 2 3 5 6 8 9 11 Schematische voorstelling

Line drawing of a person using a metal detector on a grassy field (no text or symbols)

Illustration of a soldier in protective gear operating equipment with a crossed sword and smoke, next to a campfire (no text or symbols)

Technical diagram of a mechanical device with numbered parts for identification and assembly reference.

Technical diagram of a camera body with numbered parts for identification

DE HANDGREEP MONTEREN

(1) (2) Motor

DE BESCHERMKAP MONTEREN

Two abstract geometric shapes resembling stylized arrows or a cross, with no text or symbols present.

Line drawing of a boat hull with handle and side panel (no text or symbols)

Zaagblad van 200 mm

Technical line drawing of a mechanical component (no text or symbols)

Zaagblad van 225 mm

Technical line drawing of a mechanical component (no text or symbols)

Nylondraad-snijkop

Line drawing of a shoe with a strap band (no text or symbols)

Line drawing of a boot with label 'Opmerking' (no other text or symbols)

Line drawing of hands using a pliers to cut a piece, labeled 'Inbussleutel' (no other text or symbols)

Simple line drawing of a person with a circular head and arrow indicating rotation (no text or symbols)

VÓÓR HET BEGIN VAN HET WERK

Line drawing of a mechanical assembly with a hand adjusting a bolt (no text or symbols)

Technical line drawing of a mechanical engine component (no text or symbols)

Three safety warning symbols: triangular warning triangle with exclamation mark, hand gesture with index finger, and helmeted worker wearing protective gear.

Technical line drawing of two mechanical tool assemblies with no visible text or symbols

STARTEN

Technical line drawing of a mechanical assembly with a tool inserted (no text or symbols)

IJSVORMING IN CARBURATEUR VOORKOMEN

Two-panel line drawing showing a hand holding a small object with floral patterns on top, and another hand holding a container with snow-like symbols (no text or labels)

HET SNIJGARNITUUR SLIJPEN

Three abstract geometric diagrams with intersecting lines, no text or symbols present

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or movement

Line drawing of a mechanical component pouring liquid into a container (no text or symbols)

Technical line drawings of mechanical components, including a lever and housing (no text or symbols)

(1) (2) (3) (4) (5)

Line drawing of a car interior panel with directional arrows indicating movement or change (no text or symbols)

(2) (3)

Technical line drawing of a mechanical component with no visible text or symbols

DE BOUGIE CONTROLEREN

Zuigkop in brandstoftank

Line drawing of a vertical pole with two legs and a central hub, no text or symbols present

Warning symbol with exclamation mark inside a triangle

Black and white illustration of wine bottles and a propeller crossed over, with scattered pills below (no text or symbols)

(3)

(5)

(6)

Figura de diagrama 360° 15 metros 15m (50 m)

Line drawing of a person using a power tool on grass, no text or symbols present

Line drawing of a person holding a medical device with attached bandages (no text or symbols)

Illustration of a person using a manual power tool to lift a blade, with an arrow indicating motion (no text or symbols)

Diagram illustrating a hand using a fuel pump to switch, with no smoking symbols shown.

3 metros

Método de trabajo

Warning sign depicting a person using a tool to avoid accidents, with symbols indicating exposure and damage.

Precaución: Contragolpe 12 2 Figura de diagrama

12 2 3 4 5 6 7 8 9 10 11 Figura de diagrama

Illustration of a person using a metal detector on a slope (no text or symbols)

Illustration of a soldier in protective gear operating equipment with a crossed sword and smoke, next to a campfire (no text or symbols)

Technical diagram of a mechanical device with numbered parts for identification and assembly reference.

Technical diagram of a camera body with numbered parts for identification

(1) (2) Motor

MONTAJE DEL PROTECTOR

Two abstract geometric shapes resembling stylized arrows or a cross, with no text or symbols present.

Line drawing of a boat hull with handle and side panel (no text or symbols)

Cuchilla de sierra de 200 mm

Technical line drawing of a mechanical component (no text or symbols)

Cuchilla de sierra de 225 mm

Technical line drawing of a mechanical component (no text or symbols)

Line drawing of a shoe with a partially cut section showing internal components (no text or symbols)

Line drawing of a pair of boots with no text or symbols

Llave hexagonal

MONTAJE DE LA CUCHILLA DE METAL O DEL CABEZAL DE CORTE DE NYLON

Llave hexagonal (4) (3) (2) (1)

(1) (2) (3) (4)

Llave hexagonal

Aflojar Apretar Llave hexagonal

Rotación

Simple line drawing of a person with a circular head and arrow indicating rotation (no text or symbols)

ANTES DEL USO

Line drawing of a mechanical assembly with a hand adjusting a bolt (no text or symbols)

Technical line drawing of a mechanical engine component (no text or symbols)

Three safety warning symbols: triangular warning triangle with exclamation mark, hand gesture with index finger, and helmeted worker wearing protective gear.

Two technical illustrations of a manual tool with a lever and handle, showing no text or symbols.

ARRANQUE

Technical line drawing of a mechanical assembly with a tool inserted (no text or symbols)

Two-panel line drawing showing a hand holding a small container with flowers and snowflakes, separated by a vertical line (no text or symbols)

Three abstract geometric diagrams with crosshair marks, no text or symbols present

Technical line drawing of a mechanical assembly with hands operating a tool (no text or symbols present)

Line drawing of a mechanical component pouring liquid into a container (no text or symbols)

Technical line drawings of mechanical components, including a lever and housing (no text or symbols)

(1) (2) (3) (4) (5)

Technical line drawing of a mechanical component with no visible text or symbols

(2) (3)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vertical pole with a central hub and two legs, no text or symbols present

Warning symbol with exclamation mark inside a triangle

Black and white illustration of wine bottles and a propeller crossed over, with scattered pills below (no text or symbols)

(3)

(5)

(6)

Diagrama 360° 15 Metros 15m (50m)

Line drawing of a person using a power tool on grass, no text or symbols present

Line drawing of a person holding a medical device with attached bandages (no text or symbols)

Illustration of a person using a manual power tool to lift a blade, with an arrow indicating motion (no text or symbols)

Diagram showing a hand holding a fuel pump with a downward arrow and two prohibition symbols below.

3 metros

Warning sign depicting a person using a tool to avoid accidents, with arrows indicating direction and symbols for 'no accident' or 'no damage'.

Illustration of a person using a metal detector on a slope (no text or symbols)

Nunca alise ou solde ferramentas de corte danificadas.

Illustration of a soldier in protective gear operating equipment near a campfire (no text or symbols)

Technical diagram of a mechanical device with numbered parts for identification and assembly reference.

Technical diagram of a camera body with numbered parts for identification

(1) (2) Motor

MONTAGEM DO PROTECTOR

Two abstract geometric shapes resembling stylized arrows or a cross, with no text or symbols present.

Line drawing of a boat hull with handle and side panel (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Lâmina de serra de 225 mm

Protector para lâmina de serra de 225 mm

Technical line drawing of a mechanical component with flanges and bolt holes (no text or symbols)

Line drawing of a pair of shoes with straps and latches (no text or symbols)

Line drawing of a boot-shaped object with a label 'Nota' (no other text or symbols)

Chave sextavada

MONTAGEM DA LÂMINA METÁLICA OU DA CABEÇA DE CORTE EM NYLON

Chave sextavada

Desapertar Apertar Chave sextavada

Rotação

Line drawing of a mechanical assembly with a hand adjusting a bolt (no text or symbols)

Technical line drawing of a mechanical engine component (no text or symbols)

Three black-and-white warning symbols: triangular warning triangle with exclamation mark, hand gesture, and helmeted safety gear.

Technical line drawing of two mechanical tools with no visible text or symbols

INÍCIO

Technical line drawing of a mechanical assembly with a wrench tool (no text or symbols)

Two-panel line drawing showing a hand holding a small object with flowers and snowflakes above, next to a second empty container with items (no text or symbols)

VOLTAR A AFIAR A FERRAMENTA DE CORTE

Three abstract geometric diagrams with intersecting lines, no text or symbols present

Technical line drawing of a mechanical assembly with hands operating a tool (no text or symbols present)

Line drawing of a mechanical component with a cylindrical base and a pointed tip, no text or symbols present

Technical line drawings of mechanical components, showing front and side views (no text or symbols)

(1) (2) (3) (4) (5)

Line drawing of a vehicle's front compartment showing steering wheel and dashboard (no text or symbols)

(2) (3)

Technical line drawing of a mechanical component with no visible text or symbols

VERIFICAR A VELA DE IGNICÃO

Line drawing of a vertical pole with a central hub and two feet, no text or symbols present

Warning symbol with exclamation mark inside a triangle

Black and white illustration of wine bottles and a curved blade intersecting, with scattered pills below (no text or symbols)

(3)

(5)

(6)

Skematisk figur 360° 15 meter 15m (50 m)

Line drawing of a person using a power tool on grass, no text or symbols present

Line drawing of a person holding a medical device with attached bandages (no text or symbols)

Illustration of a person using a manual power tool to lift a blade, with an arrow indicating motion (no text or symbols)

Diagram showing a hand holding a fuel pump with a downward arrow and two prohibition symbols below.

3 meter

Betjeningsmetode

Warning sign depicting a person using a tool to avoid accidents, with arrows indicating direction and symbols for 'no accident' and 'no damage'.

Illustration of a person using a metal detector on a grassy field (no text or symbols)

Illustration of a soldier in protective gear operating equipment with a crossed sword and smoke, next to a campfire (no text or symbols)

Technical diagram of a mechanical device with numbered parts for identification and assembly reference.

Technical diagram of a camera body with numbered parts for identification

3. For model MS-430.4 C

(1) (2) Motor

MONTERING AF SKÆRM

Two abstract geometric shapes resembling stylized arrows or a cross, with no text or symbols present.

Line drawing of a boat hull with visible hull, hull, and side ribs (no text or symbols)

200 mm savklinge

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

225 mm savklinge

Technical line drawing of a mechanical component (no text or symbols)

Nylontrimmerhoved

Skærm til nylontrimmerhoved

Line drawing of a shoe with a strap (no text or symbols)

Skærm til nylontrimmerhoved

Line drawing of a boot-shaped object with a label 'Bemærk' (no other text or symbols)

Line drawing of a mechanical assembly with a hand adjusting a bolt (no text or symbols)

Technical line drawing of a mechanical engine component (no text or symbols)

Three black-and-white warning symbols: triangular warning triangle with exclamation mark, hand gesture with index finger, and helmeted safety gear with head covering (no text)

Two technical illustrations of a manual tool with a lever and handle, showing no text or symbols.

START

Technical line drawing of a mechanical assembly with a tool inserted (no text or symbols)

FORHINDRING AF TILISNING AF KARBURATOR

Two-panel line drawing showing a hand holding a small object with floral patterns on top, and another hand holding a container with snow-like symbols (no text or labels)

SLIBNING AF SKÆREVÆRKT∅JET

Three abstract geometric diagrams with intersecting lines, no text or symbols present

100 mm Indhak

Technical line drawing of a mechanical assembly with hands operating a tool (no text or symbols present)

Dæksellåsetap Åbning i hus

Line drawing of a mechanical component with a small bowl labeled 'P-53' inserted into it (no text or symbols on the diagram itself)

Technical line drawings of mechanical components, showing front and side views (no text or symbols)

(1) (2) (3) (4) (5)

Line drawing of a vehicle's front compartment showing valve and handle (no text or symbols)

(2) (3)

Technical line drawing of a mechanical component with no visible text or symbols

KONTROL AF TÆNDR∅RET

Simple line drawing of a vertical pole with a central rod and two horizontal rods (no text or symbols)

Two black-and-white warning symbols: a book icon inside a circle and a triangular warning sign with an exclamation mark (no text or numbers present)

Black-and-white illustration of a wine bottle and a pen crossed over it, with scattered pills nearby (no text or symbols)

Three labeled illustrations of different types of headphones (no text or symbols present)

Illustration of three different types of footwear: a person in camouflage uniform, a glove with a plaid collar, and a boot (no text or symbols)

Line drawing of a person using a power tool on grass, no text or symbols present

Line drawing of a person wearing a helmet and holding a belt, no text or symbols present

Illustration of a person using a manual lawn power tool to lift a blade, with an arrow indicating motion (no text or symbols)

B No No

Warning sign depicting a person using a tool to avoid accidents, with arrows indicating direction and symbols for 'no accident' or 'no damage'.

Line drawing of a person using a metal detector on a slope (no text or symbols)

Illustration of a soldier in protective gear operating equipment with a crossed sword and smoke, next to a campfire (no text or symbols)

Technical diagram of a mechanical device with numbered parts for identification and assembly reference.

Technical diagram of a camera body with numbered parts for identification

Two abstract geometric shapes resembling stylized arrows or a cross, with no text or symbols present.

Line drawing of a boat hull with handle and side panel (no text or symbols)

Πριονόδισκος 200 mm

Technical line drawing of a mechanical component (no text or symbols)

Πριονόδισκος 225 mm

Technical line drawing of a mechanical component (no text or symbols)

Line drawing of a shoe with a strap (no text or symbols)

Line drawing of a shoe with no text or symbols

Line drawing of a mechanical component with a hand adjusting a bolt (no text or symbols)

Technical line drawing of a mechanical engine component (no text or symbols)

Three safety warning symbols: triangular warning triangle with exclamation mark, hand gesture with index finger, and helmeted worker wearing protective gear.

Two technical illustrations of a manual tool with a lever and handle, showing no text or symbols.

EEKINHMA

(1) (2) (3) MS MS

(1) (2) (3) MS-430.4 C

Technical line drawing of a mechanical assembly with a tool inserted (no text or symbols)

Two-panel line drawing showing a hand holding a small object with floral patterns, next to a second panel of a container with snow-like symbols (no text or labels)

Three abstract geometric diagrams with intersecting lines, no text or symbols present

Technical line drawing of a mechanical component with hands operating it (no text or symbols present)

Line drawing of a mechanical component pouring liquid into a container (no text or symbols)

Technical line drawings of mechanical components, showing front and side views (no text or symbols)

(1) (2) (3) (4) (5)

Line drawing of a car interior panel with directional arrows indicating movement or change (no text or symbols)

(2) (3)

Technical line drawing of a mechanical component with no visible text or symbols

ΕΛΕΓΧΟΣ ΤΟΥ ΜΠΟΥΖΙ

Line drawing of a vertical pole with a central hub and two legs, no text or symbols present

Warning symbol image with exclamation mark inside a triangle

Black and white illustration of wine bottles and a propeller crossed over, with scattered pills below (no text or symbols)

(3)

(5)

(6)

Şematik çizim 360° 15 Metre 15m (50 m)

Line drawing of a person using a power tool on grass, no text or symbols present

Line drawing of a person holding a medical device with attached bandages (no text or symbols)

Illustration of a person using a manual power tool to lift a blade, with an arrow indicating motion (no text or symbols)

Diagram illustrating a hand using a fuel pump to switch, with no smoking symbols shown.

3 metre

Çalıştırma yöntemi

Warning sign depicting a person using a tool to avoid accidents, with arrows indicating direction and symbols for 'no accident' and 'no damage'.

Illustration of a person using a metal detector on a grassy field (no text or symbols)

Illustration of a soldier in protective gear operating equipment with a crossed sword and smoke, next to a campfire (no text or symbols)

Technical diagram of a mechanical device with numbered parts for identification and assembly reference.

Technical diagram of a camera body with numbered parts for identification

(1) (2) Motor

KORUYUCUNUN TAKILMASI

Two abstract geometric shapes resembling stylized blades or floral patterns, no text or symbols present.

Line drawing of a boat hull with visible hull, hull, and side ribs (no text or symbols)

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

Technical line drawing of a mechanical component (no text or symbols)

Line drawing of a shoe with a strap and handle (no text or symbols)

Line drawing of a pair of boots (no text or symbols)

Alyan anahtarı

METAL BIÇAĞIN VEYA MİSİNALI KESİM BAŞLİĞININ TAKILMASI

Alyan anahtarı

Line drawing of a mechanical component with a hand adjusting a bolt (no text or symbols)

Technical line drawing of a mechanical engine component (no text or symbols)

Three safety warning symbols: triangular warning triangle with exclamation mark, hand gesture with index finger, and helmeted worker wearing protective gear.

Two technical illustrations of a manual tool with a lever and handle, showing no text or symbols.

ÇALIŞTIRMA

Technical line drawing of a mechanical assembly with a tool inserted (no text or symbols)

KARBÜRATÖR BUZLANMASININ ÖNLENMESİ

Two-panel line drawing showing a hand holding a small container with flowers and snowflakes, separated by a vertical line (no text or symbols)

KESİCİ PARÇANIN BİLENMESİ

Three abstract geometric diagrams with intersecting lines, no text or symbols present

Topuz Makara

Line drawing of a mechanical component pouring liquid into a container (no text or symbols)

Technical line drawings of mechanical components, including a side view and top view (no text or symbols)

(1) (2) (3) (4) (5)

Line drawing of a vehicle's front compartment showing valve and handle (no text or symbols)

(2) (3)

Technical line drawing of a mechanical component with no visible text or symbols

BUJİNİN KONTROLÜ

Simple line drawing of a vertical pole with a central horizontal bar and two vertical supports (no text or symbols)
