USER MANUAL DTSC 400 3 1 IPlus FESTOOL

Two identical black industrial robotic tools with adjustable base and mesh cover, shown from different angles (no text or symbols visible)

2a 2b ① ② CLICK ① ②

3a 3b ① ② CLICK

3c 1 2 3d 2 1

4a DTSC 400 Li RTSC 400 Li

DTSC 400 Li

DTSC 400 LI 1 2 CLICK

6

RTSC 400 Li

RESTOOL 1 2 CLICK

FASTOOL MOTOR 3 4

Schwingschleifer

Seriennummer *

Orbital sander

Serial number *

Ponceuse vibrante

N° de série *

(T-Nr.)

RTSC/DTSC 400 Li 10018960, 10022934

Signed on behalf of and in name of/

Head of Product Development

Ralf Brandt

Head of Product Conformity

Four horizontal bars with varying internal patterns and a small circular icon at the bottom (no text or symbols)

$$ 70 - 100 \% $$

$$ 40 - 70 \% $$

$$ 15 - 40 \% $$

$$ < 15 \% $$

Original operating manual

1 S y m b o

Symbol Significance

Warning of general danger

Risk of electric shock

Read operating instructions and safety notices!

Wear ear protection.

Wear a dust mask.

Wear protective goggles.

Switch the power supply on.

Switch the power supply off.

Do not dispose of as domestic waste.

Tip or advice

Handling instruction

Safety class II

2 Safety instructions

2.1 General safety instructions

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

2.2 Machine-related safety instructions

- Dust that is harmful to your health may be produced as you work (e.g. paint products containing lead and some types of wood). Contact with or inhalation of this dust may pose a risk for the operating personnel or persons in the vicinity. Observe the safety regulations that apply in your country.

Wear a P2 respiratory mask to protect your health. In enclosed spaces, ensure that there is sufficient ventilation and connect an extraction system.

Always wear protective goggles to protect against sanding hazards.

• Clean work equipment soaked in oils, for example sanding pad or polishing felt, with water and allow to dry. Work equipment soaked in oil may combust spontaneously.
• Attention: Risk of fire! Avoid overheating the grinding material and the sander. Always empty the dust container before taking a break. Swarf in the filter bag or filter of the mobile dust extractor may self-ignite in unfavourable conditions such as flying sparks when grinding metals. Particular danger exists if the swarf is mixed with paint, polyurethane residue or other chemical materials and the grinding material is hot after long periods of work.
• If the power tool is dropped or falls, check for damage to the machine and sanding pad. Remove the sanding pad for closer inspection. Have the damaged parts repaired before use. Broken sanding pads and damaged machines can cause injuries and machine instability.
• Always use original Festool sanding pads.
• While using the long-life dust bag be aware of electric charge. Always when possible use an antistatic suction hose with the power tool. A slight electric shock may cause you to panic briefly and become distracted, which may result in an accident.
• Only use the mains adapter with this device.
• Only use the mains adapter together with an original Festool plug-it cable.
• Only for AS/NZS: The tool shall always be supplied via residual current device with a rated residual current of 30 mA or less.

2.3 Battery pack and charger safety instructions

- This charger can be operated by persons with reduced physical, sensory or mental capabilities or a lack of practical experience and knowledge, provided they are supervised or have been instructed to use the machine safely and understand the dangers of machine operation. Children are not allowed use or play with the machine.

GB DTSC 400 Li, RTSC 400 Li

• Do not open the battery pack or the charger!
• Prevent metal parts (e.g. me from entering the charger!
• Do not use power adapters or battery packs form other manufacturers to operate the cordless power tool. Do not use any charger from other manufacturers for charging the battery pack. The use of impermissible accessories may result in electric shock and / or serious accidents!
• Protect the battery pack from excessive heat > 50 °C or constant heat sources such as sunlight or naked flames!
• Never use water to extinguish burning li-ion battery packs! Use sand or a fire blanket.
• Check the plug and the cable regularly and should either become damaged, in order to avoid a hazard, have them replaced by an authorised after-sales service workshop.
• Always pull the mains plug out of the socket when the charger is not in use.

2.4 Emission levels

Typically, the noise levels that are determined in accordance with EN 62841 (see EC declaration of conformity) are as follows:

	DTSC 400Li	RTSC 400Li
Sound pressure level L_PA	68 dB(A)	68 dB(A)
Noise level L_WA	79 dB(A)	79 dB(A)
Uncertainty K 3 dB	3 dB

CAUTION

When working with noise Damage to hearing

▶ Always use ear protection.

Vibration emission value a_h (vector sum for three directions) and uncertainty K measured in accordance with EN 62841 (see EU Declaration of Conformity):

	DTSC 400Li	RTSC 400Li
Vibration emissions value (triaxial) ah	< 2.5 m/s2	3 m/s2
Uncertainty K	2 m/s2	2 m/s2

The specified emission values (vibration, noise)

- are used to compare machines.

• They are also used for making preliminary estimates regarding vibration and noise loads during operation.
• They represent the primary applications of the power tool.

Increase possible for other applications, with other insertion tools or if not maintained adequately. Take note of idling and downtimes of machine!

3 Intended use

The sanders are designed for sanding wood, plastic, composites, paint/varnish, filler and similar materials as directed. Metals and materials that contain asbestos must not be processed.

To guarantee electrical safety, the machine must not be damp or operated in a damp environment. The machine must only be used for dry sanding.

The user is liable for improper or non-in-tended use.

4 T e c h n i c a l d a t

Cordless orbital sander	DTSC 400Li	RTSC 400Li
Voltage	18 - 20 V	18 - 20 V
No-load speed	6000 - 10000 rpm	6000 - 10000 rpm
Sanding stroke	2,0 mm	2,0 mm
Sanding pad	100 x 150 mm	80 x 130 mm
Weight (excl. battery pack, incl. sanding pad)	0,9 kg	0,9 kg

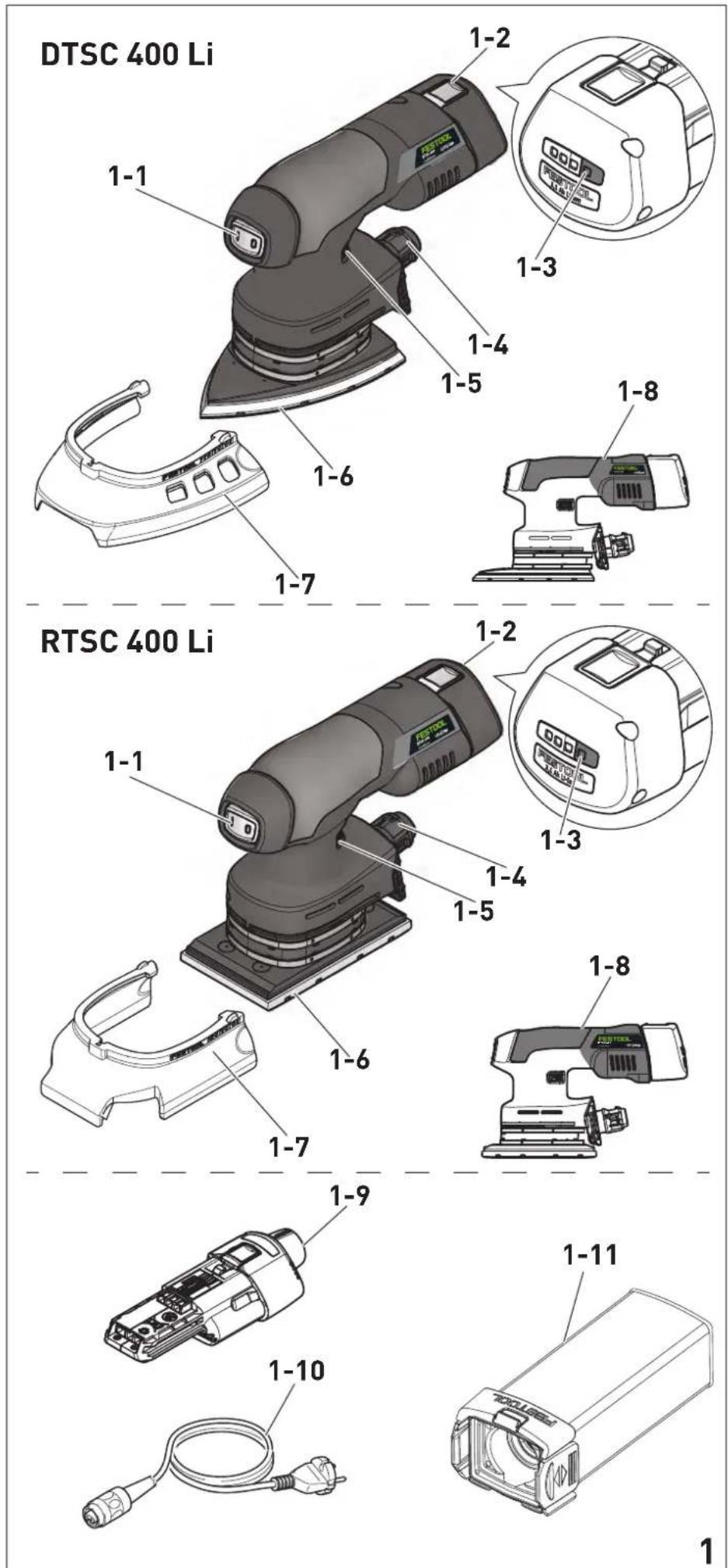

5 Machine features

[1-1] On/Off switch

[1-2] Battery pack

[1-3] Capacity display

[1-4] Extractor connector

[1-5] Speed control

[1-6] Sanding pad

[1-7] Edge protector

[1-8] Handle (insulated gripping surface)

[1-9] Mains adapter with plug-it connection*

[1-10] Plug-it cable*

[1-11] Long-life dust bag

* not on all versions included in the scope of delivery

The specified illustrations appear at the beginning of the Operating Instructions.

6 Commissioning

6.1 Switch on/off

The switch [1-1] is an on/off switch (I = ON, 0 = OFF).

① When the battery is empty, or if there is a power failure or the mains plug is removed, move the on/off switch immediately to the Off position. This prevents uncontrolled restarting.

6.2 Battery pack

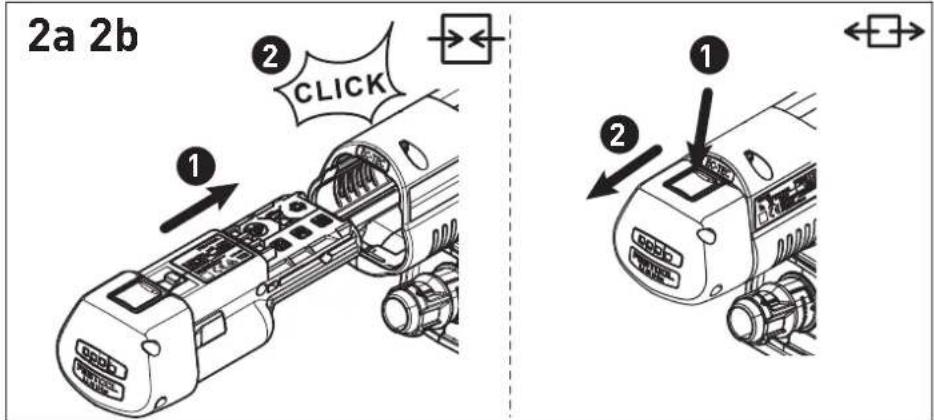

▶ Inserting the battery pack [2a]
▶ Removing the battery pack [2b]

Capacity display

Pressing the green button on the capacity display [1-3] shows the charge status of the battery pack:

Four horizontal bars with varying internal patterns and a small circular icon at the bottom (no text or symbols)

70 - 100%

40 - 70%

15 - 40%

< 15%

Recommendation: Charge battery pack before further use.

6.3 Mains adapter

WARNING

Unauthorised voltage or frequency!

Risk of accident

The mains voltage and the frequency of the power source must correspond with the specifications on the machine's name plate.
▶ In North America, only Festool machines with the voltage specifications 120 V/60 Hz may be used.

The mains adapter (available as an accessory depending on the model) facilitates use of the cordless sanding technology with mains power, enabling you to switch between power supply sources. The mains adapter enables the mobile dust extractor's automatic electronic switch-on/shut-off function.

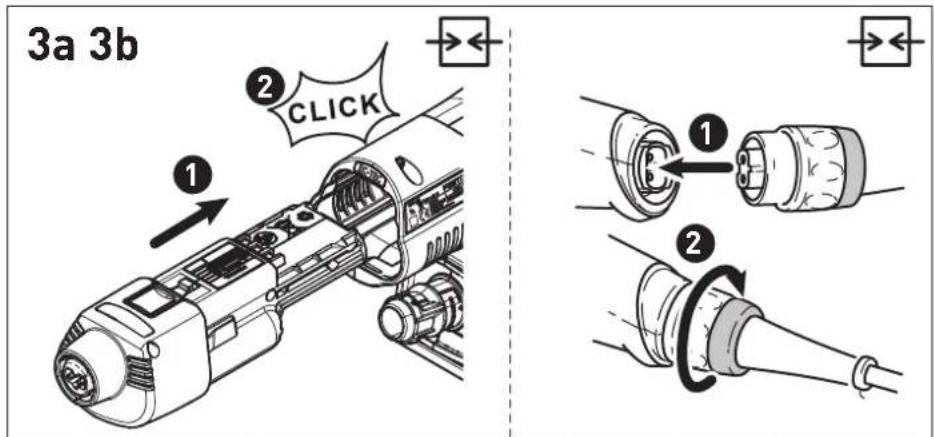

▶ Insert the mains adapter [3a]
▶ Connect the mains adapter and plug-it cable [3b]

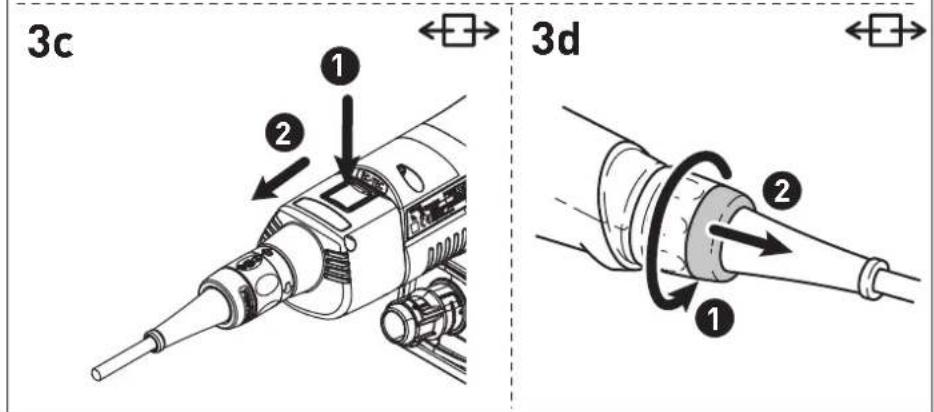

▶ Remove the mains adapter [3c]
▶ Detach the mains adapter from the plug-it cable [3d]

7 Settings

WARNING

Risk of injury

▶ When working on power tools, always remove the batteries or disconnect the mains adapter first.

7.1 Electronics

Smooth start-up

The electronically controlled smooth start-up ensures that the machine starts up jolt-free.

Temperature cut-out

To avoid the motor overheating, the power consumption is limited at an excessive motor temperature. If the temperature continues to rise, the power tool switches off and can only be switched on again once the motor has cooled sufficiently.

Constant speed

The preselected motor speed is kept constant through electronic control. This means that, if the machine is used as intended (reasonable contact pressure), a constant sanding speed is achieved.

Setting and adjusting the speed

The speed can be set [1-5] between 6000 and 10000min^-1 using the adjusting wheel.

For sanding, we recommend the following settings for the adjusting wheel [1-5]:

Sanding work Adjusting
wheel setting

- Sanding with max. abrasion	5 - 6
- Sanding off old paint
- Sanding of wood and veneered surface prior to paintwork
- Intermediate sanding of paintwork on surfaces
- Sanding thinly applied undercoat	4 - 5
- Sanding wood with sanding cloth
- Edge breaking on wooden parts
- Smoothing primed wooden surfaces
- Sanding solid wood and veneered edges	3 - 4
- Sanding rebate of windows and doors
- Intermediate sanding of paintwork at edges
- Light sanding of natural wood windows using sanding cloth
- Smoothing wooden surfaces using sanding cloth before staining
- Rubbing or removing excess limestone residue using sanding cloth
- Intermediate sanding of paintwork on stained surfaces	2 - 3
- Cleaning natural wood window rebate using sanding cloth
- Sanding stained edges	1 - 2
- Sanding of thermoplastics

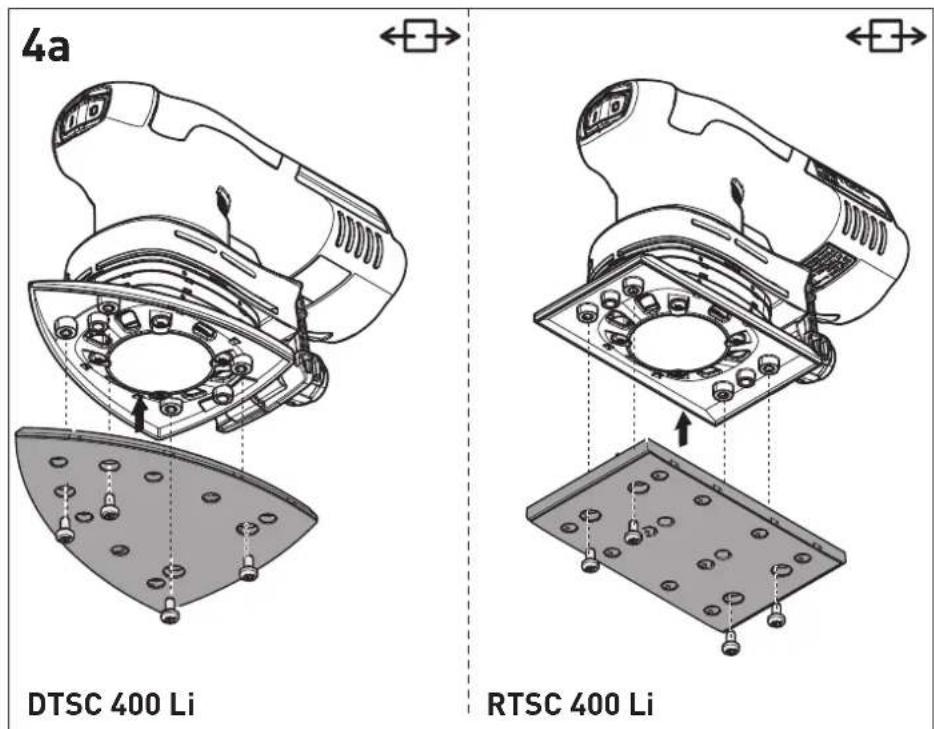

7.2 Changing sanding pad [4a]

An optimal work result can only be achieved using original accessories and consumables.

The use of non-original accessories or consumables invalidates the right to claim under warranty.

If the StickFix coating on the sanding pad has worn out, the entire sanding pad can be replaced:

① Undo the four screws.
② Remove the sanding pad by pulling it downwards.
③ Attach the new sanding pad.
④ Use four screws to tighten it by hand (2.5 Nm).

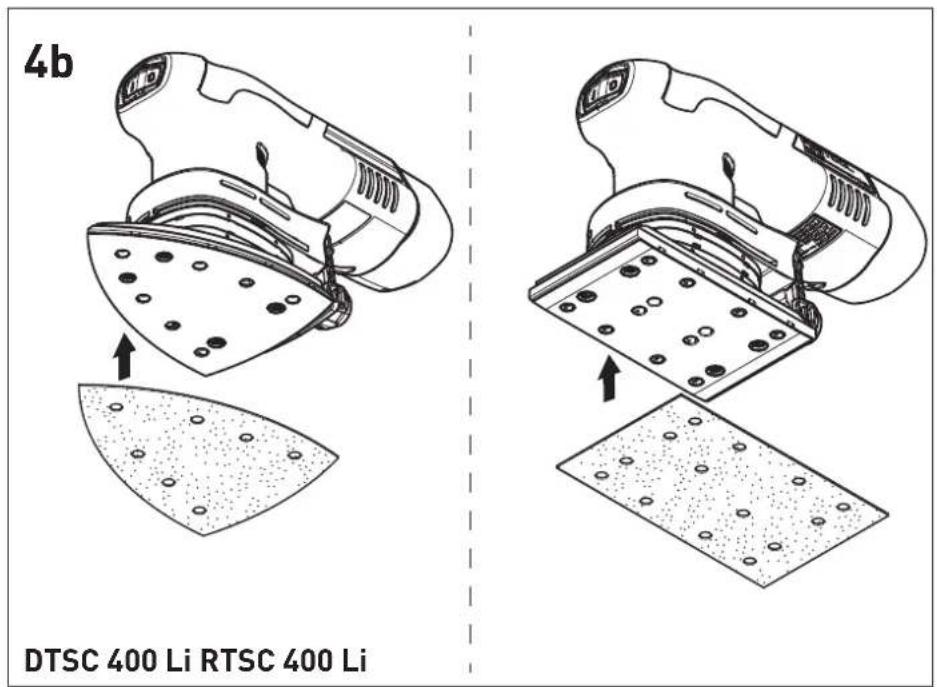

7.3 Attaching sanding accessories using StickFix [4b]

The suitable StickFix sandpaper and StickFix sanding cloth can be attached quickly and simply to the StickFix sanding pad.

▶ Affix the self-adhesive sanding accessory to the sanding pad.

7.4 Dust extraction

WARNING

Dust hazard

▶ Dust can be hazardous to health. Always work with a dust extractor.
▶ Always read applicable national regulations before extracting hazardous dust.

Integral dust extractor with long-life dust bag

As standard, the sanders are equipped with an integral dust extractor. The sanding dust is extracted through extraction openings in the sanding pad and is collected in the dust bag.

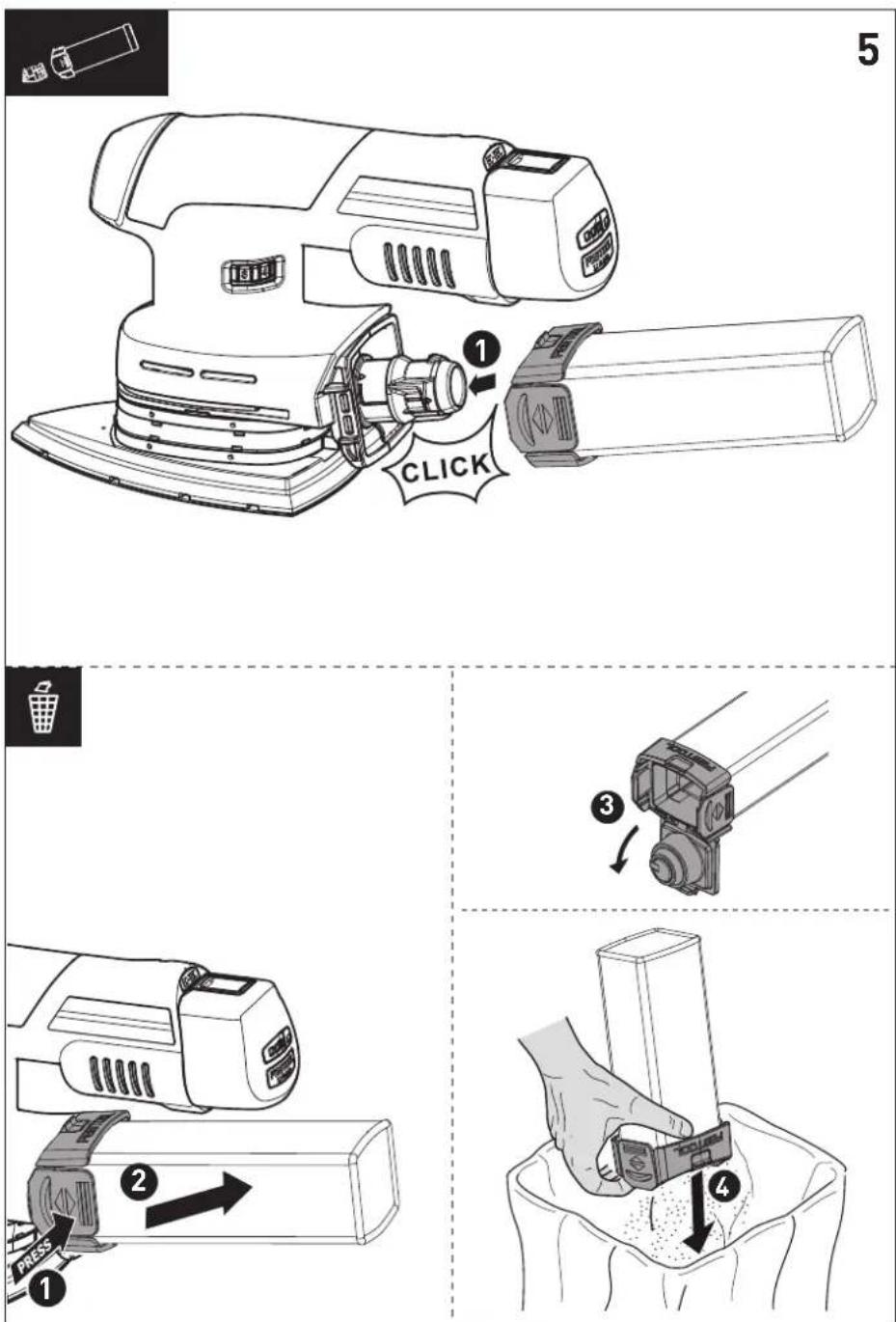

Installing the dust bag [5]

① Slide the dust bag onto the machine until it clicks into place.
If the suction power is decreasing, empty the dust bag.
1 Press the dust bag onto the actuating elements.
② Remove the dust bag by moving it towards the rear.
③ Open the flap on the dust bag.
④ Empty the dust bag and dispose of the waste.

Dust extraction with Festool's mobile dust extractor

To prevent having to frequently empty the dust bag when carrying out sanding work for a long period of time, you can connect Festool's mobile dust extractor (with an extraction hose diameter of 27 mm) to the extractor connection piece [1-4].

① The start-up mode switches the mobile dust extractor on as soon as you switch the orbital sander on. The start-up mode only works in conjunction with the mains adapter.

Recommendation: Use an antistatic suction hose. This helps reduce the electric charge.

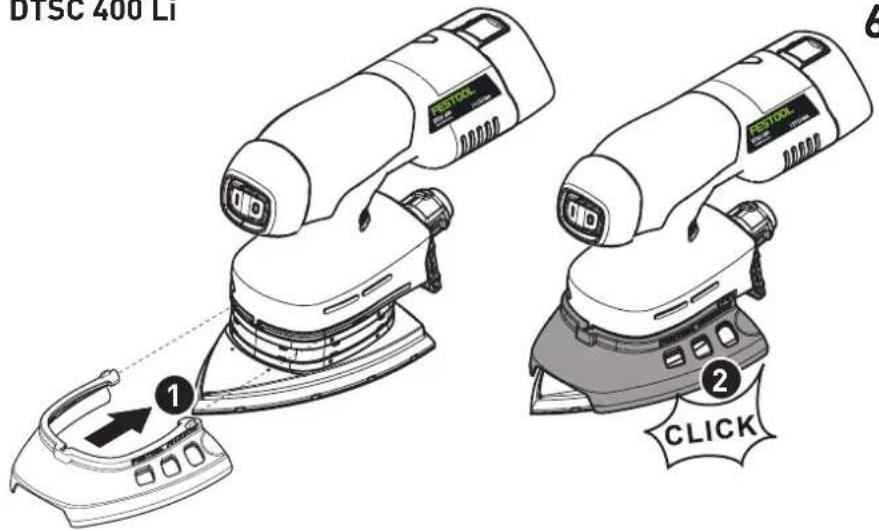

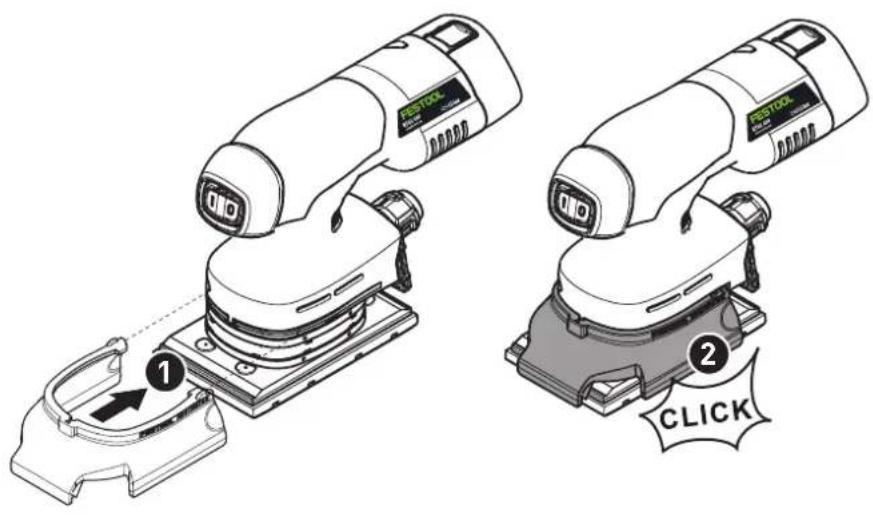

The edge protector [1-7] prevents the sanding pad circumference from coming into contact with a surface (e.g. when sanding along a wall or a window), thus preventing back-kick of the machine, or machine damage.

① Push the edge protector into the groove on the machine.
② Slot the two ends of the edge protector into place until they click.

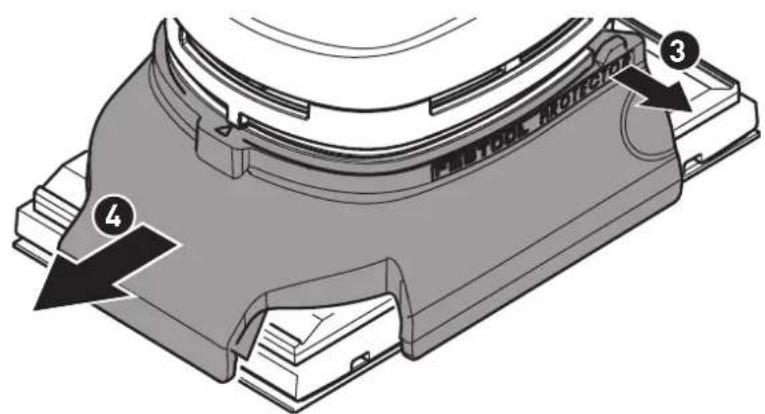

③ Loosen both ends of the edge protector.

④ Remove the edge protector by pulling it forwards.

8 Working with the machine

WARNING

Risk of injury

▶ Always secure the workpiece in such a manner that it cannot move while being machined.

Observe the following instructions:

• Do not overload the machine by pressing with excessive force! The best sanding results are achieved with moderate application pressure. The sanding capacity and quality are mainly dependent on the selection of the correct abrasive.
• Work in corners and on edges tends to subject the tip to increased stress and results in increased heat development. In such cases, work with reduced contact pressure.
• Hold the machine with one hand on the handle [1-8].

8.1 Warning signal

The machine shuts down and makes a sound:

▶ Switch off the machine.
Battery pack is empty.
▶ Change the battery pack.

The machine shuts down and does not make a sound:

Machine is overheated or has been overloaded.

▶ Switch off the machine for 30 seconds.

▶ Reduce the machine load.

If the machine's final speed is then not reached, allow the machine to cool down.

9 Service and maintenance

WARNING

Risk of injury, electric shock

▶ When carrying out servicing and maintenance work, always remove the batteries or the mains adapter from the power tool first.
▶ All maintenance and repair work which requires the motor housing to be opened should always be carried out by an authorised service workshop.

Customer service and repair only through manufacturer or service workshops: Please find the nearest address at: www.festool.com/service

Only use original Festool spare parts! Order No. at: www.festool.com/service

To ensure constant air circulation, always keep the cooling air openings in the motor housing clean and free of any obstruction.

In the event of a slowdown in performance or increased vibrations, blow and clean cooling air openings.

▶ Keep the contacts on the machine, charger and battery pack clean.

For service, maintenance, disposal and transport of the battery pack, note enclosed instructions of the battery pack!

10 Accessories

Use only original Festool sanding pads. Low-quality sanding pads may cause serious machine imbalance that decreases the quality of the working results and increases machine wear.

The order numbers of the accessories and tools can be found in the Festool catalogue or on the Internet under "www.festool.com".

11 Environment

Do not dispose of electric power tools in household waste! Recycle devices, accessories and packaging. Observe applicable country-specific regulations.

EU only: In accordance with European Directive on waste electrical and electronic equipment and implementation in national law, used electric power tools must be collected separately and handed in for environmentally friendly recycling.

Information on REACH: www.festool.com/reach

Information on data protection

The power tool contains a chip which automatically stores machine and operating data (RFID). This data saved cannot be traced back directly to an individual.

GB DTSC 400 Li, RTSC 400 Li

The data can be read using special (contactless) devices and shall only be used by Festool for fault diagnosis, repair and warranty processing and for quality improvement or enhancement of the power tool. The data shall not be used in any other way without the express consent of the customer.

Imported into the UK by

Festool UK Ltd

1 Anglo Saxon Way Bury

St Edmunds

IP30 9XH

Great Britain

Four horizontal bars with black segments and a small gray bar at the bottom, no text or symbols present.

70 - 100 %

40 - 70 %

15 - 40 %

< à 15 %

[1-10] Cable plug it*

[1-11] Saco para polvo Longlife

Four horizontal bars with black segments and a small gray bar at the bottom, no text or symbols present.

70 - 100 %

40 - 70 %

15 - 40 %

< 15

[1-11] Longlife-stofzak

Four horizontal bars with black segments and a small gray icon at the bottom (no text or symbols)

70 - 100 %

40 - 70 %

15 - 40 %

< 15 %

▶ Netadapter inbrengen[3a]
▶ Netadapter met plug it-kabel verbinden [3b]
▶ Netadapter ontkoppelen [3c]
▶ Netadapter van plug it-kabel losmaken[3d]

7 Instellingen

WAARSCHUWING

Gevaar voor letsel

Machine is oververhit of overbelast.

▶ Machine 30 seconden lang uitschakelen.
▶ Machine minder belasten.

Four horizontal bars with black segments and a glowing battery icon at the bottom (no text or symbols)

$$ 70 - 100 \% $$

$$ 40 - 70 \% $$

$$ 15 - 40 \% $$

$$ < 15 \% $$

Four horizontal bars with black segments and a small gray icon at the bottom (no text or symbols)

70 - 100 %

40 - 70 %

15 - 40 %

< 15 %

Four horizontal bars with black segments and a gray indicator light at the bottom (no text or symbols)

70 - 100 %

40 - 70 %

15 - 40 %

< 15 %

Four horizontal bars with black segments and a gray rectangular object at the bottom (no text or symbols)

70 - 100 %

40 - 70 %

15 - 40 %

< 15 %

Four horizontal bars with black segments and a small gray bar at the bottom, no text or symbols present.

$$ 70 - 100 \% $$

$$ 40 - 70 \% $$

$$ 15 - 40 \% $$

$$ < 15 \% $$

Four horizontal bars with black segments and a small icon below, no text or symbols present

70-100%

40-70%

15-40%

< 15 %

Four horizontal bars with black segments and a gray indicator light at the bottom (no text or symbols)

70-100%

40-70%

15-40%

< 15%

Declaration of Conformity

We as the manufacturer Festool GmbH, Wertstraße 20, 73240 Wendlingen, Germany

declare under our sole responsibility that the product(s):

Designation:

Designation of Type(s):

Serial number(s) 1):

Cordless Orbital sander

RTSC 400 Li, DTSC 400 Li

10018960, 10022934

fulfills all the relevant provisions of the following UK Regulations:

S.I. 2008/1597
S.I. 2016/1091 ^2
S.I. 2017/1206 ^3)
S.I. 2012/3032
Supply of Machinery (Safety) Regulations 2008
Electromagnetic Compatibility Regulations 2016
Radio Equipment Regulations 2017
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

and are manufactured in accordance with the following designated standards:

• BS EN 62841-1: 2015
• BS EN 62841-2-4: 2014
BS EN 55014-1:2017 ^21
• BS EN 55014-2:2015 ^21
• EN 300 328:2016 V2.1.1 ^3)
• EN 301 489-1:2017 V2.1.1 ^3
• EN 301 489-17:2017 V3.1.1 ^3)
• BS EN IEC 63000:2018

11 in the specified serial number range (S-Nr.) from 400000000 - 499999999
21 valid in combination with battery pack BP 18 Li 5,2 AS, BP 18 Li 6,2 AS, BP 18 Li 3,1 C, BP 18 Li 4,0 HPC-AS
31 valid in combination with Bluetooth® battery pack BP 18 Li 5,2 ASI, BP 18 Li 6,2 ASI, BP 18 Li 3,1 Cl, BP 18 Li 4,0 HPC-ASI

Place and date of declaration: Wendlingen, 31.03.2021

Signed on behalf of and in name of Festool GmbH

ppa.138

Markus Stark

Head of Productdevelopment

i. V. Q. Corandt

Ralf Brandt

Head of Productconformity

Declaration of Conformity

We as the manufacturer Festool GmbH, Wertstraße 20, 73240 Wendlingen, Germany declare under our sole responsibility that the product(s):

Designation:

Designation of Type(s):

Serial number(s) 1):

Mains adaptor

ACA 220-240/18V ERGO

10023306

fulfills all the relevant provisions of the following UK Regulations:

S.I. 2016/1101
S.I. 2016/1091
S.I. 2012/3032
Electrical Equipment (Safety) Regulations 2016
Electromagnetic Compatibility Regulations 2016
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

and are manufactured in accordance with the following designated standards:

• BS EN 60950-1:2006+A2:2013BS
• EN 55014-1:2017
• BS EN 55014-2:2015
• BS EN IEC 61000-3-2:2019
• BS EN 61000-3-3:2013
• BS EN IEC 63000:2018

1) in the specified serial number range (S-Nr.) from 400000000 - 49999999

Place and date of declaration: Wendlingen, 31.03.2021

Signed on behalf of and in name of Festool GmbH

ppa. 138

Markus Stark

Head of Productdevelopment

i.v. R. Brandt

Ralf Brandt

Head of Productconformity
