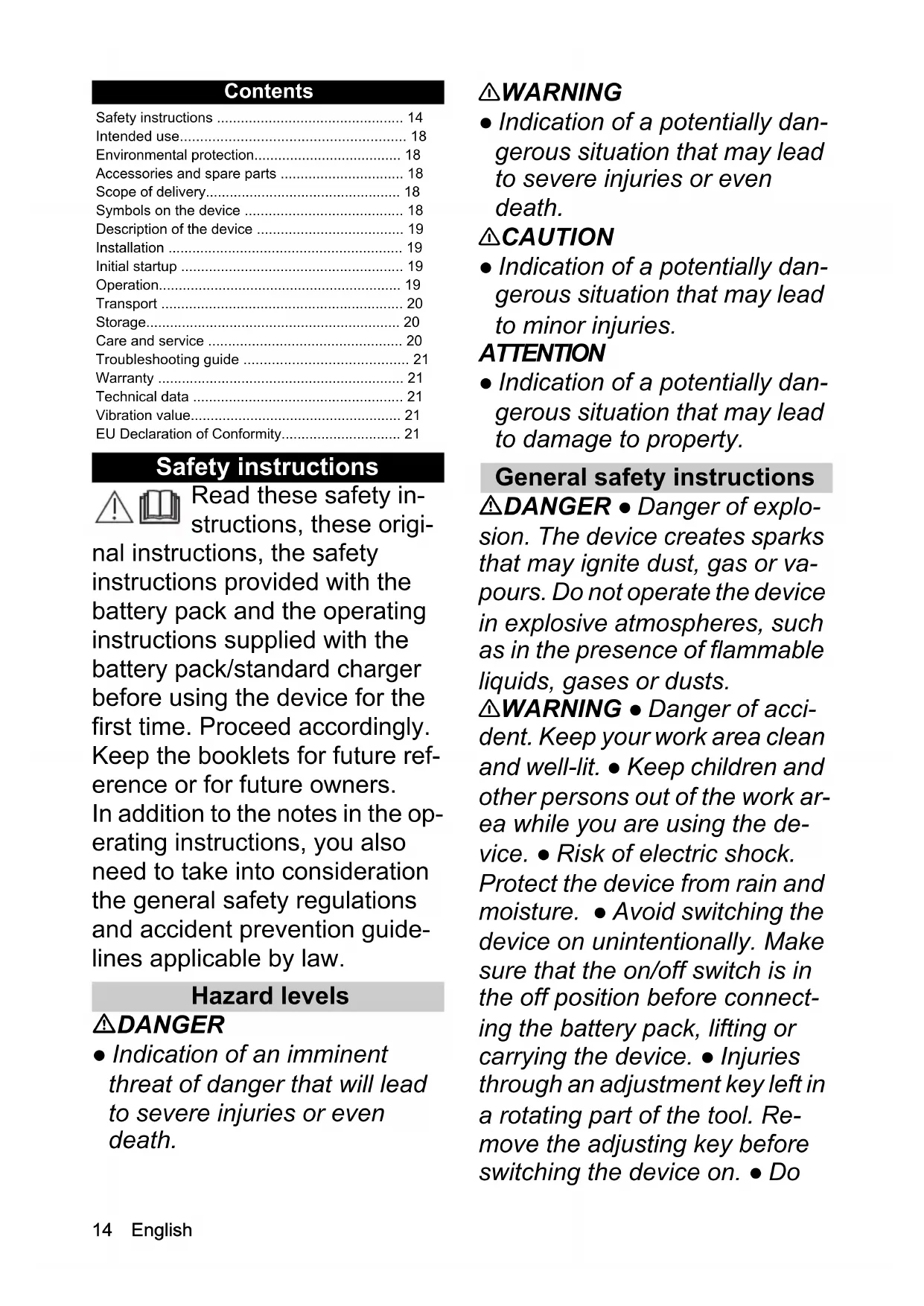

Inhalt

H. Jenner Chairman of the Board of Management

Safety instructions .... 14

Intended use.... 18

Environmental protection.... 18

Accessories and spare parts 18

Scope of delivery.... 18

Symbols on the device 18

Description of the device 19

Installation 19

Initial startup 19

Operation.... 19

Transport 20

Storage.... 20

Care and service 20

Troubleshooting guide 21

Warranty 21

Technical data 21

Vibration value.... 21

EU Declaration of Conformity.... 21

Safety instructions

Read these safety instructions, these original instructions, the safety instructions provided with the battery pack and the operating instructions supplied with the battery pack/standard charger before using the device for the first time. Proceed accordingly. Keep the booklets for future reference or for future owners. In addition to the notes in the operating instructions, you also need to take into consideration the general safety regulations and accident prevention guidelines applicable by law.

Hazard levels

⚠️DANGER

- Indication of an imminent threat of danger that will lead to severe injuries or even death.

⚠ WARNING

- Indication of a potentially dangerous situation that may lead to severe injuries or even death.

△CAUTION

- Indication of a potentially dangerous situation that may lead to minor injuries.

ATTENTION

- Indication of a potentially dangerous situation that may lead to damage to property.

General safety instructions

⚠️DANGER ● Danger of explosion. The device creates sparks that may ignite dust, gas or vapours. Do not operate the device in explosive atmospheres, such as in the presence of flammable liquids, gases or dusts.

⚠ WARNING ● Danger of accident. Keep your work area clean and well-lit. ● Keep children and other persons out of the work area while you are using the device. ● Risk of electric shock.

Protect the device from rain and moisture. • Avoid switching the device on unintentionally. Make sure that the on/off switch is in the off position before connecting the battery pack, lifting or carrying the device. • Injuries through an adjustment key left in a rotating part of the tool. Remove the adjusting key before switching the device on. • Do

not run but rather walk when working with the device. Do not walk backwards. Avoid an abnormal posture, keep a stable, safe footing and maintain your balance. ● Never use the device if the on/off switch on the handle does not switch on and off correctly. ● Do not overload the device. ● Keep the cutting tools sharp and clean. Sharp cutting tools are easier to control and do not block so easily. ● Switch the motor off, remove the battery pack and make sure that all moving parts have stopped moving:

● Before making any adjustments.
● Before leaving the device un-attended.
● Before checking, cleaning or servicing the device.
● Before removing a blockage or cleaning the ejection chute.
● Before changing accessories.
● After hitting a foreign object. First check the device for damage and repair any damage before restarting the device.
- When the device starts to vibrate unusually. First check the device for damage and repair any damage before restarting the device.

⚠CAUTION • You must not operate the device when you are under the influence of medication or drugs which restrict your reactive capacity. Only work with the device when you are well rested and are in good health.

- Wear suitable personal protective equipment when working with the device. Protective equipment such as dust masks, non-slip shoes, safety helmet or hearing protection reduce the risk of injury. • Wear especially safety glasses and hearing protection. • Hearing protection can impair your ability to hear warning sounds, so pay attention to hazards in your vicinity and in the work area. • Wear head protection when working in areas with a danger of falling objects.WARNING • Wear long, heavy trousers, clothing with long arms and non-slip boots when working with the device. Do not work barefoot. Do not wear sandals or short trousers.

Avoid wearing loose clothing or clothing with cords and straps. CAUTION ● Risk of injury when loose fitting clothing, hair or jewellery is caught by moving parts of the device. Keep clothing and jewellery away from moving parts of the device. Tie long hair back. ● Use the device and accessories only according to these instructions and take the working conditions and the work to be performed into con-

sideration to avoid dangerous situations.

Safe operation

⚠️DANGER ● Severe injuries when objects are flung by the cutting blade or when the cutting tool becomes entangled in wires or cords. Inspect the work area thoroughly for objects such as stones, sticks, metal, wires, bones or toys and remove these before using the device.

⚠ WARNING ● The device is not intended for use by children, persons with restricted physical, sensory or mental abilities or persons unfamiliar with these instructions. ● Use the device only in daylight or under good artificial lighting. ● Do not operate the device on wet grass or in the rain. ● Maintain a minimum distance of 15 m from persons and animals. Stop the device when any persons or animals enter this area. ● Keep the cutting head below the level of your hips. ● Never use the device with damaged or absent safety devices. ● Never use a metallic cutting string. ● Only operate the device outdoors. ● Keep your hands and feet away from the cutting area, especially when switching on the motor. ● Danger of injury. The blade on the protective cover for shortening the cutting string is very sharp

and you must avoid touching this, especially when cleaning the device. ● Make sure that the ventilation openings are free of deposits. ● Check the device for damage before each use and after any impacts. Damaged parts, e.g. a switch, must be repaired or replaced by the authorised Customer Service department.

- Ensure that the drive head attachment is correctly fitted and fastened. • Ensure that all protective devices, deflectors and handles are correctly fitted and securely fastened. • Check that the string cutter is correctly positioned and secured each time before use. • Use only replacement strings from the original manufacturer. Do not use any other cutting attachment. • Danger of injury. Do not make any modifications to the device.

Note • Regulations may restrict the use of this device in some regions. Seek advice from your local authorities.

Safe servicing and care

⚠ WARNING • After pushing out a new string, bring the device into the normal operating position before switching it on. - Ensure that the device is in a safe condition by regularly checking that all bolts, nuts and screws are screwed tight. - Check that the moving parts

function correctly and are not blocked, and that no parts are broken or damaged. Have a damaged device repaired before using it. ● Switch the motor off, remove the battery pack and make sure that all moving parts have stopped moving:

● Before cleaning or servicing the device.
● Before changing accessories.
⚠️CAUTION • Only use accessories and spare parts which are approved by the manufacturer. Only original accessories and original spare parts ensure that the appliance will run fault-free and safely.

ATTENTION • Clean the product with a soft, dry cloth each time after use.

Note • Service and maintenance work may only be performed by suitably qualified and specially trained personnel. We recommend sending the product to an authorised service centre for repair. • You may only perform the adjustments and repairs described in these operating instructions. Contact your authorised Customer Service department for other repairs. • Have damaged or illegible warning signs on the device replaced by the authorised Customer Service department.

Safe transport and storage

⚠ WARNING ● Switch the device off, allow it to cool down and remove the battery pack before storage or transportation.

△CAUTION ● Risk of injury and damage to the device. Secure the device against movement or falling down during transport.

ATTENTION • Remove all foreign bodies from the device before storage or transportation.

- Store the device in a dry, well ventilated location out of the reach of children. Keep the device away from corrosive substances such as garden chemicals. • Do not store the device outdoors.

Residual risks

⚠ WARNING

• Certain residual risks remain present, even when the device is operated in the prescribed manner. The following dangers can be present when using the device:
• Vibration can cause injuries. Use the correct tools for the job, use the handles provided and restrict the working time and hazard exposure time.
• Noise can cause hearing injuries. Wear hearing protection and limit the duration of exposure.
  ● Injuries due to flung objects.

Risk reduction

⚠CAUTION

• Using the device for longer periods can cause poor circulation in the hands due to vibrations. A general period of use cannot be set, because this depends on several influencing factors:
  ● Personal tendency to suffer from poor circulation (fre- quently cold fingers, tingling sensation in the fingers)
• Low ambient temperature. Wear warm gloves to protect your hands.
  ● Holding the device too tightly hindering blood circulation.
• Continuous operation is more harmful than operation interrupted by work breaks. You should see a doctor if using the device regularly and for lengthy periods of time, and in the event of repeated occurrences of symptoms such as tingling in the fingers or cold fingers.

Intended use

⚠️DANGER

Improper use

Risk of fatal injury from incision injuries

Only use the device for its proper use.

Never use metal blades such as saw blades or brush blades.

⚠ WARNING

Flying objects

Risk of injury and damage

Maintain a minimum distance of 15 m from persons, animals and other objects.

● The device is intended for outdoor use.
- The device can be used for trimming grass along walls, fences, trees and on edgings.
- The device can also be used for mowing in places that are difficult to access with lawnmowers, e.g.ditches, slopes and clearings.

• Modifications and changes not authorised by the manufacturer are prohibited.
• Never use the device in a wet environment or in the rain.
  ● Never mow wet grass or other growth.

Foreseeable misuse

Any type of improper use is prohibited.

The operating personnel are liable for damage resulting from incorrect use.

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic appliances contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can a potential threat to human health and the environment. However, these components are required for the act operation of the appliance. Appliances marked this symbol are not allowed to be disposed of together with the household rubbish.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.com/REACH

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Symbols on the device

Read the operating instructions and all safety instructions before operating the device for the first time.

Always wear suitable eye protection and hearing protection when working with the device.

Wear non-slip, sturdy gloves when working with the device.

Wear non-slip safety shoes when working with the device.

Hand injuries from sharp cutting tool.

Danger due to flung objects. Keep a safe distance away.

Do not subject the device to rain or moist conditions.

Do not use saw blades or metal blades.

The guaranteed sound level specified on the label is 94 dB.

Pull: Quick release for carrying belt

Description of the device

The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging).

For the illustrations, refer to the graphics page Illustration A

① Cutting blade

② String reel

③ Unlocking string reel

④ Lower shaft

⑤ Upper shaft

⑥ Front handle

⑦ Eyelet for carrying belt

⑧ Rear handle

⑨ Battery pack unlocking button

⑩Trigger

⑪ Trigger lockout button

⑫ Switch speed

⑬ Type plate

⑭ String guard

⑮*Battery Pack Battery Power 36V

⑯*Quick Charger Battery Power 36V

⑰Carrying belt

* optional

Rechargeable battery pack

The device can be operated with a Kärcher 36 V Battery Power battery pack.

Installation

Installing the string guard

⚠ WARNING

Blade on the string guard

Incision injuries

Install the string guard before using the device for the first time.

⚠ WARNING

Exposed string

Incision injuries

Never use the device without the string guard.

Illustration B

The string guard must face the operator.

1. Insert the string guard into the bracket.

2. Screw the string guard to the bracket.

Mounting the string reel

When assembling the components, make sure that the side recesses match.

1. Assemble the sprocket. Illustration C

2. Mount the string guard cover.

3. Insert a tool (e.g. screwdriver) through the recesses on the side to prevent the support from rotating. Illustration D

4. Mount the string reel.

Installing shaft

1. Connect the upper and lower shaft segments. Illustration E

Installing the front handle

1. Screw the front handle to the upper shaft section at the desired height. Illustration F

Initial startup

Installing the battery pack

1. Push the battery pack into the mounting in the device until it audibly latches into place. Illustration G

Operation

Inserting the carrying belt

1. Place the belt over one shoulder. Illustration H

2. Push the hook of the carrying belt into the eyelet on the shaft.

Working techniques

△CAUTION

Obstacles in the mowing area

Risk of injury and damage

Before starting mowing, check the work area for objects that may be flung away, e.g. wires, stones, cords or glass.

1. Fold back the trigger lockout button to the rear. Illustration I

2. Press the trigger.

The device starts up.

1. Use the speed switch to select the desired speed. Illustration J

2. Guide the cutting head parallel to the ground.

3. Guide the device in a semi-circular movement over the cutting area.

4. Mow long grass in several passes.

5. Release the trigger.

The device stops.

Extending the string length during operation

The string on the device wears during mowing and becomes shorter due to fraying and being torn off. A string that is too short will result in unsatisfactory mowing results.

Note

The string length can be extended during operation.

1. With the appliance switched on, briefly tap the cutting head on the ground.

The string extends automatically and is automatically trimmed to the correct length by the cutting blade.

Note

You must replace the string reel or cutting string if the string no longer extends automatically (see Chapter Replacing the cutting tool).

Removing the battery pack

Note

During longer work breaks, remove the battery pack from the device and secure it against unauthorised use.

1. Pull the battery pack unlocking button in the direction of the battery pack.

Illustration K

1. Press the battery pack unlocking button to unlock the battery pack.

2. Remove the battery pack from the device.

Ending operation

1. Remove the battery pack from the device (see Chapter Removing the battery pack).

2. Clean the device (see Chapter Cleaning the device).

Transport

△CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during transportation.

1. Remove the battery pack (see Chapter Removing the battery pack).

2. Secure the device against slipping and tipping over when transporting in vehicles.

Storage

Clean the device before storing (see Chapter Cleaning the device).

△CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during storage.

1. Store the device in a dry, well ventilated location. Keep away from corrosive substances such as garden chemicals and defrosting salt. Do not store the device outdoors.

Care and service

△CAUTION

Uncontrolled startup

Incision injuries

Remove the battery from the device before all work on the device.

Cleaning the device

1. Remove any remaining cutting residue from the string guard and the cutting head.

2. Clean the device components with a damp cloth if required.

3. Clean the battery mount and electric contacts of dirt and foreign bodies regularly.

Replacing the cutting tool

Replacing the cutting string

1. Position the rotary knob of the string reel so that the marks on the rotary knob and string reel cover match.

Illustration L

1. Remove remnants of string if necessary.

2. Pull the new cutting string through the eyelets until the cutting string on both sides of the string reel is the same length.

3. Press the rotary knob of the string reel and turn it clockwise.

Illustration M

The cutting string is wound on the reel.

Replacing the string reel

1. Press the two unlocking buttons on the string reel. Illustration N

2. Remove the reel cover.

3. Pull the string reel off the support and dispose of it properly.

4. Possibly. wind a cutting string on the new string reel.

5. Fit the string reel in the support.

6. Fit the string reel cover in the support. Take care to ensure that the string reel cover audibly latches into place.

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.

As the battery pack ages, even if it is looked after, its capacity reduces such that the full run time will no longer be reached when fully charged. This does not indicate a defect.

Fault Cause Rectification
The device does not start up	Battery pack is not inserted correctly.	● Push the battery pack into the mounting until it latches into place.
	Battery pack is empty ● Charge the battery pack.
	Battery pack is defective. ● Replace the battery pack.
The device stops during operation	String is too long and is causing the motor to overload	● Install the string guard.The string will automatically be shortened.
	Cutting head blocked by cutting residue	● Remove the cutting residue.
	Motor is overloaded	● Mow only suitable cutting material, see Chapter Intended use.
	Motor has overheated	● Stop working and allow the motor to cool down.
	The battery has overheated	● Stop working and allow the battery to cool down to normal battery temperature.

Warranty

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site. (See overleaf for the address)

Technical data

Device performance data
Working voltage of the battery	V	36
Working width	mm	380
Cutting string, diameter	mm	1,65
Max. speed	/min	5600 ± 10%

Determined values in acc. with EN 50636-2-91
Sound pressure level L_pA	dB(A)	79,6
Uncertainty K_pA	dB(A)	3,0
Sound power level L_WA+ Uncertainty K_WA	dB(A)	94
Front handle hand-arm vibration value	m/s ^2	3,4
Rear handle hand-arm vibration value	m/s ^2	2,1
Uncertainty K	dB(A)	1,5
Dimensions and weights
Length x width x height	mm	1773 x 366 x 277
Weight (without battery pack)	kg	4,0

Subject to technical modifications.

Vibration value

⚠ WARNING

The specified vibration value was measured using a standard test procedure and may be used to compare devices.

The specified vibration value may be used in a provisional assessment of the load.

Depending on the way the device is used, the vibration emission can deviate from the specified overall value during the current use of the device.

Device with a hand-arm vibration value > 2.5 m/s ^2 (see chapter Technical Data in the operating instructions)

⚠️CAUTION • Uninterrupted use of the device for several hours can lead to numbness.

- Wear warm gloves to protect your hands.
- Take regular breaks from work.

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.

Product: Battery-powered grass trimmer

Type: 1.042-502.x

Currently applicable EU Directives

2000/14/EC (+2005/88/EC)

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

Harmonised standards used

EN 60335-1:2012+A11:2014+A13:2017

EN 50636-2-91:2014

EN 50581: 2012

EN 55014-1: 2017

EN 55014-2: 2015

Conformity evaluation procedure used

2000/14/EC and amended by 2005/88/EC: Annex VI

Name and address of the notified body involved

TÜV Rheinland LGA Products GmbH (NB 0197)

Tillystraße 2

D-90431 Nuremberg

Sound power level dB(A)

Measured:89,3

Guaranteed:94

The signatories act on behalf of and with the authority of the company management.

H. Jenner

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Documentation supervisor: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2018/07/01

Contenu

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Responsable de la documentation : S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 07/01/2018

Inhoud

Reduceren van risico's

⚠VOORZICHTIG

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/07/01

2006/42/CE (+2009/127/CE)

2011/65/UE

2014/30/UE

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/07/2018

Indice

2006/42/CE (+2009/127/CE)

2011/65/UE

2014/30/UE

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

2006/42/EF (+2009/127/EF)

2011/65/EU

2014/30/EU

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Fax: [phone]

Winnenden, 2018/07/01

Indhold

2006/42/EF (+2009/127/EF)

2011/65/EU

2014/30/EU

Anvendte harmoniserte standarder

EN 60335-1:2012+A11:2014+A13:2017

EN 50636-2-91:2014

EN 50581: 2012

EN 55014-1: 2017

EN 55014-2: 2015

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Winnenden, 2018/07/01

Innehåll

Säkerhetsanvisningar.... 81

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

D-71364 Winnenden (Germany)

Tfn: [phone]

Fax: [phone]

Winnenden, 2018/07/01

Sisältö

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Dokumentointivastaava: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Puh.: [phone]

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

Winnenden, 2018/07/01

İçindekiler

2006/42/AT (+2009/127/AT)

2011/65/AT

2014/30/AB

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Winnenden, 2018/07/01

Содержание

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 2018.07.01

Obsah

2006/42/ES (+2009/127/ES)

2011/65/EU

2014/30/EU

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Zmocněnec pro dokumentaci: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

Winnenden, 2018/07/01

Kazalo

Varnostna navodila.... 142

Namenska uporaba 146

Varovanje okolja 146

Pribor in nadomestni deli.... 146

Obseg dobave.... 147

Simboli na napravi.... 147

Opis naprave.... 147

Montaža.... 147

Zagon 147

Upravljanje 148

Transport 148

Skladiščenje 148

Varen transport in shranjevanje

www.kaercher.com/REACH

Pribor in nadomestni deli

Uporabljajte samo originalni pribor in originalne nadomestne dele, ki zagotavljajo varno in nemoteno delovanje naprave.

Informacije o priboru in nadomestnih delih najdete na spletnem naslovu www.kaercher.com.

Obseg dobave

2006/42/ES (+2009/127/ES)

2011/65/EU

2014/30/EU

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Winnenden, 1. 7. 2018

Spis treści

2006/42/WE (+2009/127/WE)

2011/65/UE

2014/30/UE

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Directive UE relevante

2000/14/CE (+2005/88/CE)

2006/42/UE (+2009/127/UE)

2011/65/UE

2014/30/UE

Norme armonizate aplicate

EN 60335-1:2012+A11:2014+A13:2017

EN 50636-2-91:2014

EN 50581: 2012

EN 55014-1: 2017

EN 55014-2: 2015

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germania)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/07/01

Obsah

2006/42/ES (+2009/127/ES)

2011/65/EÚ

2014/30/EÚ

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01.07.2018

Sadržaj

Sigurnosni napuci.... 176
Namjenska uporaba 180
Zaštita okoliša 180
Pribor i zamjenski dijelovi 180
Sadržaj isporuke.... 181
Simboli na uređaju.... 181
Opis uređaja 181
Montaža.... 181
Puštanje u pogon 181
Rukovanje 182
Transport 182
Skladištenje 182
Njega i održavanje.... 182
Pomoć u slučaju smetnji.... 182
Jamstvo 183
Tehnički podaci 183
Vrijednost vibracije 183
EU izjava o sukladnosti 183

Sigurnosni napuci

2006/42/EZ (+2009/127/EZ)

2011/65/EU

2014/30/EU

Primijenjene uskladene norme

EN 60335-1:2012+A11:2014+A13:2017

EN 50636-2-91:2014

EN 50581: 2012

EN 55014-1: 2017

EN 55014-2: 2015

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Opunomoćenik za dokumentaciju: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Njemačka)

Tel.: [phone]

Telefaks: [phone]

Winnenden, 1. 7. 2018.

Sadržaj

Sigurnosne napomene 184

Namenska upotreba 188

Zaštita životne sredine 189

Pribor i rezervni delovi.... 189

Obim isporuke 189

2006/42/EZ (+2009/127/EZ)

2011/65/EU

2014/30/EU

Primenjene harmonizovane norme

EN 60335-1:2012+A11:2014+A13:2017

EN 50636-2-91:2014

EN 50581: 2012

EN 55014-1: 2017

EN 55014-2: 2015

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Lice ovlašćeno za dokumentaciju: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2018/07/01

Съдържание

Указания за безопасност 192

Употреба по предназначение 198

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Виненден, 2018/07/01

Sisukord

Ohutusjuhised 202

2006/42/EÜ (+2009/127/EÜ)

2011/65/EL

2014/30/EL

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2018/07/01

Saturs

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Pilnvarotais sagatavot dokumentāciju: S. Reizers (S. Reiser)

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Winnenden, 2018/07/01

目次

安全注意事项.... 247

規定に沿った使用.... 251

環境保護.... 251

付属品と交換部品.... 251

同梱品.... 251

機器上のシンボル…… 251

機器に関する説明.... 252

取り付け…… 252

セットアップ…… 252

操作.... 252

搬送.... 253

保管.... 253

手入れとメンテナンス…… 253

障害発生時のサポート…… 254

保証.... 254

技術データ 254

振動値 254

EU準拠宣言 255

安全注意事項

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

文書の全権委員：S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

電話番号：[phone]

.4. retirement because Highway

تركيب الساق

Black silhouette of a hand giving a thumbs-up gesture (no text or symbols)

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

Icon showing a gear and wrench symbol (no text or labels)

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

QR code image with a central logo, likely linking to a digital resource or website.
