ANGLE EXACT

2|3|6|7|8|14CF|15|17|22CF|23|29CF|30

BOSCH

English ...... Page 16

Français......Page 27

Technical diagram of a Bosch electric shaver with numbered parts and labeled parts in Chinese

4

A (11) APT (21) BOSCH (24) (23) (22)

Illustration of a power supply unit with attached cables and connectors (no visible text or symbols)

(C) (25) (26) (27) (28) (12)

(1) (2) (29)

E (6) (2) (1)

F (14)

(7) (1) (31) (30) - +

H (2) (7) (30) - +

(32) (30)

(16) (17) (33) (34) (18) (16)

Deutsch

Sicherheitshinweise

General Power Tool Safety Warnings

WARNING

Read all safety warnings, instructions, illustrations and specifica-

tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents.

▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with

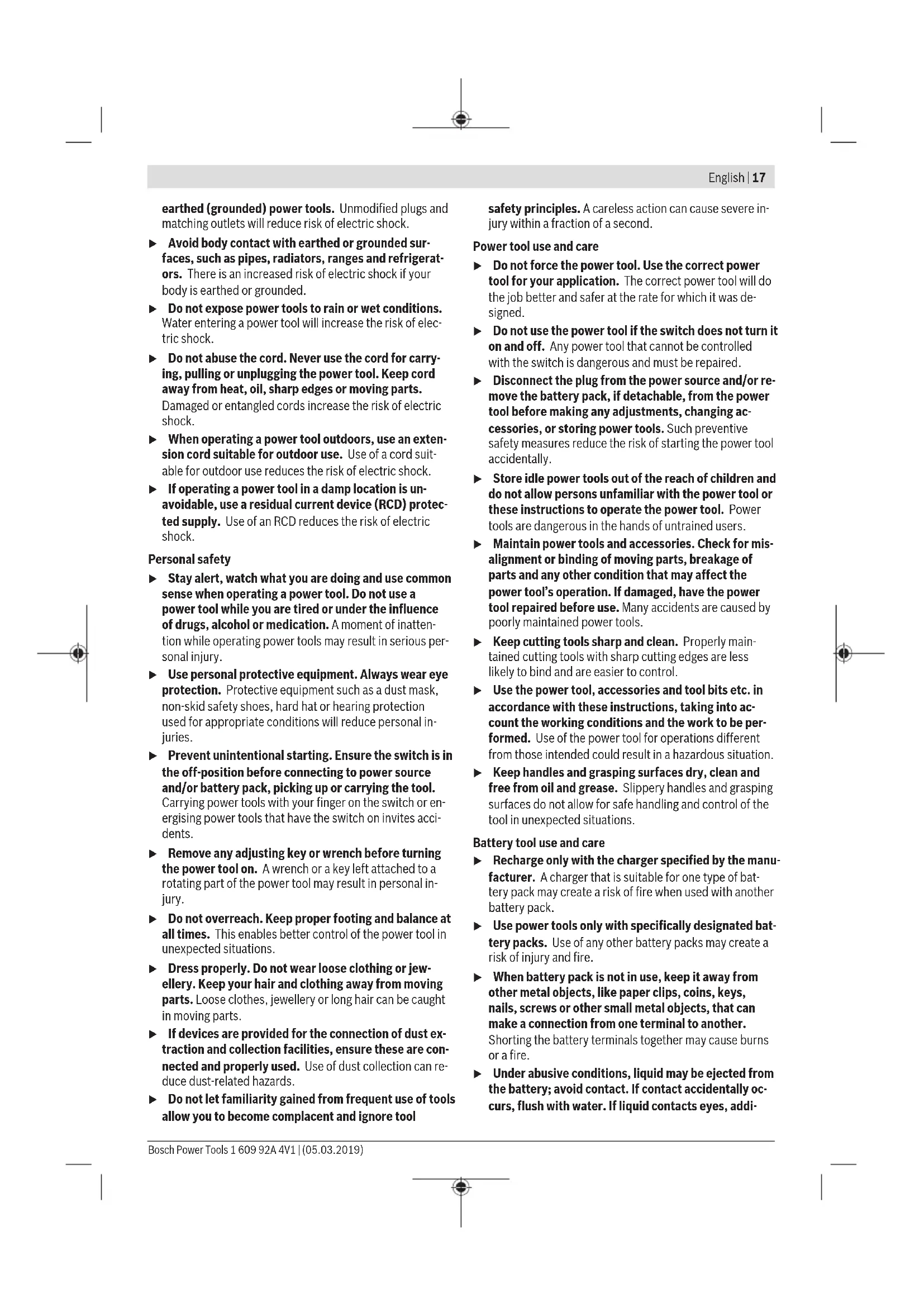

earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
▶ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
▶ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
▶ Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool

safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
▶ Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, addi-

18 | English

tionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

▶ Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
▶ Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
▶ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
▶ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Safety Warnings for Screwdrivers

▶ Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
▶ Use suitable detectors to determine if there are hidden supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to explosion. Breaking water pipes causes property damage.
▶ Hold the power tool securely. When tightening and loosening screws be prepared for temporarily high torque reactions.
▶ Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
▶ Always wait until the power tool has come to a complete stop before placing it down. The application tool can jam and cause you to lose control of the power tool.
In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.
▶ Do not open the battery. There is a risk of short-circuiting.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
▶ Only use the battery with products from the manufacturer. This is the only way in which you can protect the battery against dangerous overload.

Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting.

▶ Switch the power tool off immediately if the application tool becomes blocked. Be prepared for high torque reactions which cause kickback. The application tool becomes blocked when it becomes jammed in the workpiece or when the power tool becomes overloaded.

WARNING

The dust produced by sanding, sawing, grinding, drilling and

other similar activities may cause cancer, congenital defects or genetic mutations. Some of these dusts contain substances such as:

Lead in lead-based paint and varnish; crystalline silica in bricks, cement and other building materials; arsenic and chromate in chemically treated wood. The risk of becoming ill depends on how frequently you are exposed to these substances. To reduce the potential danger, you should always wear adequate personal protective equipment (e.g. specially made breathing apparatus that can filter out even the smallest of dust particles) and work only in well-ventilated areas.

▶ Avoid switching on the tool accidentally. Make sure that the on/off switch is set to the off position before inserting a battery. Accidents can occur as a result of carrying the power tool with your finger on the on/off switch or inserting the battery while the power tool is switched on.
▶ Do not use application tools that are worn or in otherwise less than perfect condition. Defective application tools can break, for example, causing material damage and personal injury.
When fitting an application tool, make sure that it is held securely in the tool holder. If the application tool is not held securely in the tool holder, it may become loose and consequently uncontrollable.
▶ Be careful when screwing in long screws – there is a risk of slipping when using particular screws and application tools. Long screws are often difficult to control and there is a danger that you will slip and hurt yourself when screwing them in.
▶ Check which rotational direction is set before switching on the power tool. If you want to loosen a screw but the rotational direction is set to tighten the screw, for example, the power tool may move violently and uncontrollably.
▶ Do not use the power tool as a drill. Power tools with a shut-off clutch are not suitable for drilling. The clutch can shut off automatically and without warning.

Product Description and Specifications

Read all the safety and general instructions. Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.

Please observe the illustrations at the beginning of this operating manual.

Intended Use

ANGLE EXACT 2|3|6|7|8|15|17|23|30

The power tool is intended for tightening and loosening screws, bolts, nuts and other threaded connectors in the specified power and dimension ranges.

The power tool is not intended for drilling; in order to prevent personal injury and damage to property, power tools with a shut-off clutch should never be used for drilling.

ANGLE EXACT 14CF | 22CF | 29CF

Due to its slow anti-clockwise rotation, the power tool is intended for operation with an open flat drive. It is suitable for working on screw connections that are only accessible from one side, e.g. on pipelines.

It is not suitable for loosening screws.

The power tool is not intended for drilling; in order to prevent personal injury and damage to property, power tools with a shut-off clutch should never be used for drilling.

Product Features

The numbering of the product features refers to the diagram of the power tool on the graphics page.

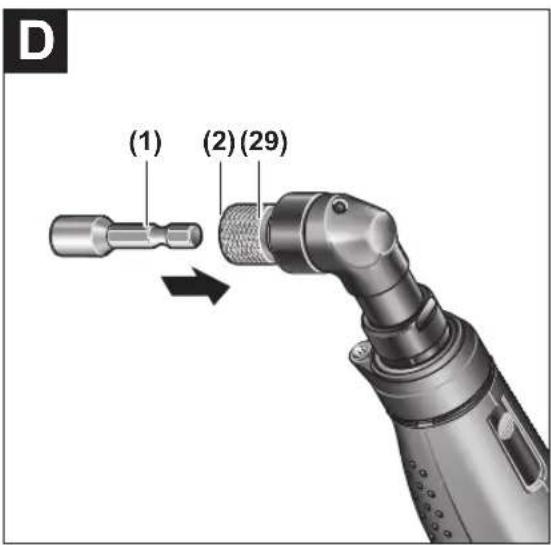

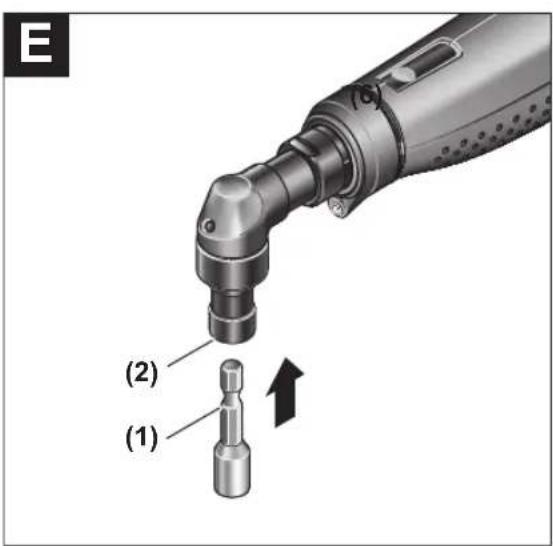

(1) Application tool (e. g. nut driver bit)
(2) Tool holder
(3) Angled screw head
(4) Open-ended spanner with width across flats of 27 mm
(5) Spanner flat on angled head flange

(6) Open-ended spanner with width across flats of 22 mm
(7) Slider for preselecting the torque
(8) Hanging hook
(9) LED indicator for screwdriving applications
(10) Battery charge LED indicator
(11) Battery with contact APT
(12) Battery release button
(13) On/off switch

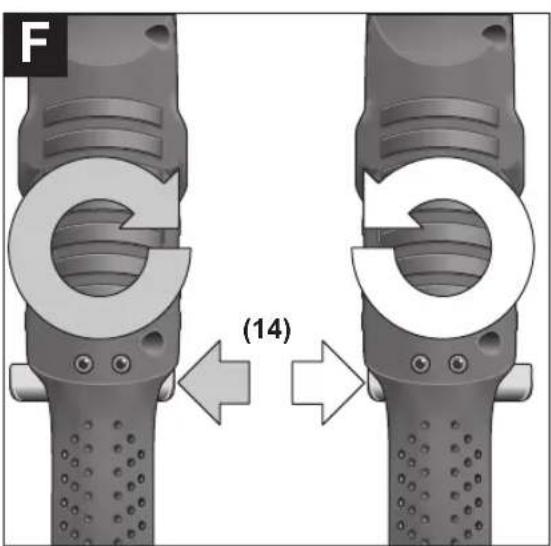

(14) Rotational direction switch
(15) Attachment slots for hanging hook

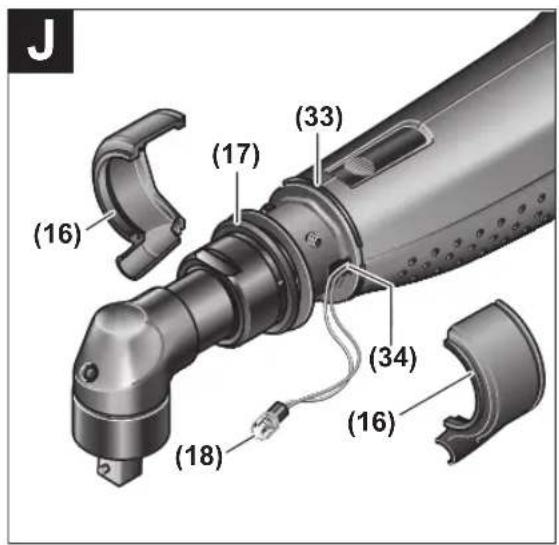

(16) LED holder
(17) Marking ring
(18) Worklight
(19) Spanner flat on the cap nut
(20) Lock nut

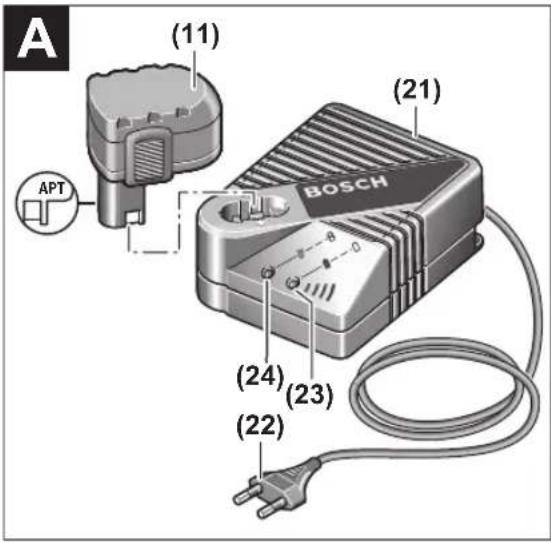

(21) Charger
(22) Mains plug
(23) Green LED indicator on the charger
(24) Red LED indicator on the charger

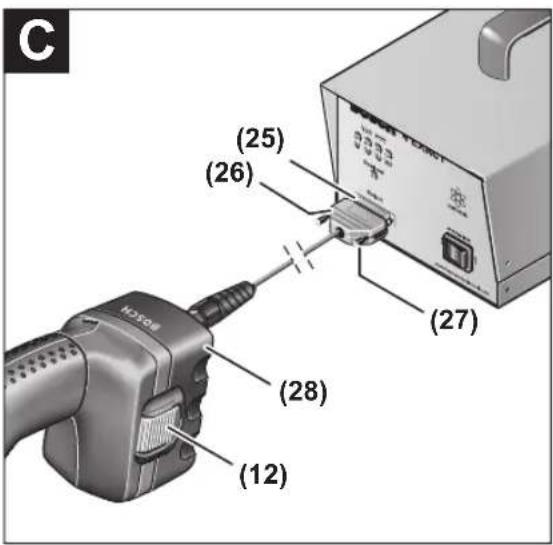

(25) Connection socket for a voltage adapter on the 4EX-ACT
(26) D-Sub connector plug
(27) Screws on the D-Sub connector plug

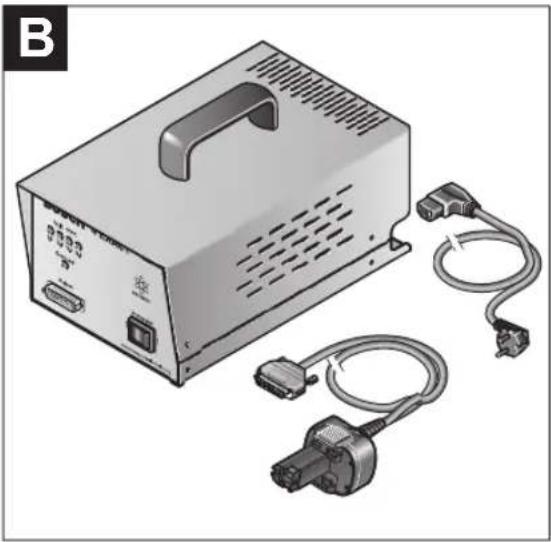

(28) Voltage adapter
(29) Quick-change chuck

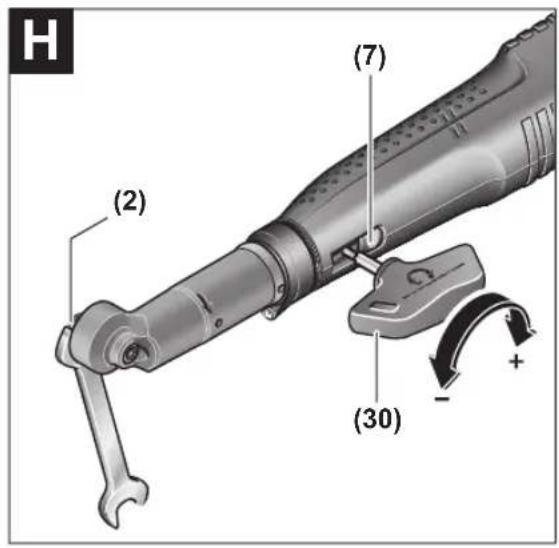

(30) Adjustment tool
(31) Hex key

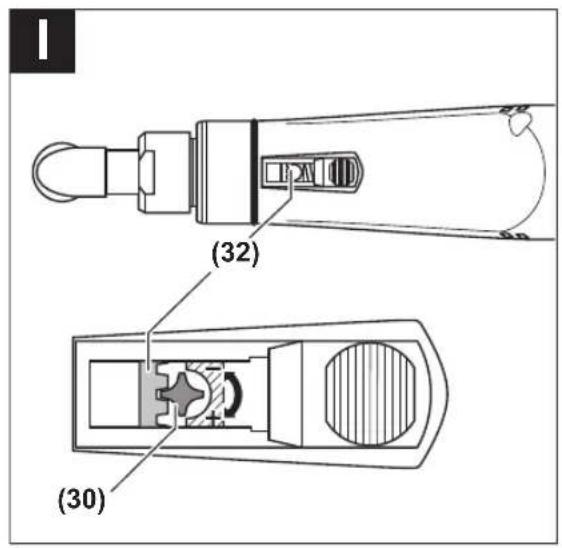

(32) Setting disc
(33) Spring ring
(34) Cavity in the housing shell
(35) Handle (insulated gripping surface)

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical data

ANGLE EXACT industrial cordless angle wrench 2 3 6
Article number		0 602 490 647 0 602 490 656 0 602 490 652
Max. torque, hard/soft screwdriving application according to ISO 5393	Nm 2/2 3/3 6/6
No-load speed n_o	min^-1	110 420 650
Rated voltage V 9.6 9.6 9.6
Direction of rotation		ΩΩ	ΩΩ
Weight according to EPTA-Procedure 01:2014 kg 1.0 1.0 1.0
Protection rating IP 20 IP 20 IP 20

20 | English

ANGLE EXACT industrial cordless angle wrench 7 8 15

Article number		0 602 490 669 0 602 490 651 0 602 490 650
Max. torque, hard/soft screwdriving application according to ISO 5393	Nm	7/7 9/9 15/15
No-load speed n_0	min^-1	110 420 250
Rated voltage V 9.6 9.6 9.6
Direction of rotation		ΩΩ	ΩΩ	ΩΩ
Weight according to EPTA-Procedure 01:2014 kg 1.0 1.0 1.0
Protection rating IP 20 IP 20 IP 20

ANGLE EXACT industrial cordless angle wrench 17 23 30

Article number		0 602 490 675 0 602 490 673 0 602 490 671
Max. torque, hard/soft screwdriving application according to ISO 5393	Nm	17/13 23/20 30/28
No-load speed n_0	min^-1	560 320 220
Rated voltage V 14.4 14.4 14.4
Direction of rotation		ΩΩ	ΩΩ	ΩΩ
Weight according to EPTA-Procedure 01:2014 kg 1.5 1.5 1.5
Protection rating IP 20 IP 20 IP 20

ANGLE EXACT industrial cordless angle wrench 14CF 22CF 29CF

Article number		0 602 490 690 0 602 490 693 0 602 490 691
Max. torque for hard screwdriving applications in clockwise rotation ^A)	Nm	10 16 20
No-load speed n_0 in clockwise rotation ^A)	min ^-1		340 440 300
Rated voltage V 9.6 14.4 14.4
Direction of rotation			ΩΩ	ΩΩ
Weight according to EPTA-Procedure 01:2014 kg 1.0 1.5 1.5
Protection rating IP 20 IP 20 IP 20

A) The power tools are slower in anti-clockwise rotation and have a lower torque. The speed and torque on the application tool change in line with the flat drive's transmission ratio.

NiCd battery pack		9.6	9.6	12.0	12.0	14.4	14.4
Article number		2 607 335877	2 607 335659	2 607 335879	2 607 335375	2 607 335881	2 607 335655
Number of cells		8	8	10	10	12	12
Battery voltage	V	9.6	9.6	12.0	12.0	14.4	14.4
Capacity	Ah	1.8	2.4	1.8	2.4	1.8	2.4
Weight according to EPTA-Procedure 01:2014	kg	0.45	0.50	0.65	0.70	0.70	0.80
Recommended chargers		AL 2450 DV	AL 2450 DV	AL 2450 DV	AL 2450 DV	AL 2450 DV	AL 2450 DV

NiMH battery pack 9.6 12.0 14.4

Article number	2 607 335 681 2 607 335 683 2 607 335 685
Number of cells	8 10 12
Battery voltage	V 9.6 12.0 14.4
Capacity	Ah 2.6 2.6 2.6
Weight according to EPTA-Procedure 01:2014 kg 0.55 0.70 0.80
Recommended chargers	AL 2450 DV	AL 2450 DV	AL 2450 DV

English | 21

Angled screw head	■ 1/4"	■ 3/8"	■ 3/8"	● 1/4"	QC ● 1/4"
Article number	0 607 453 617 0 607 453 620 0 607 451 618 0 607 453 618 0 607 453 630
Maximum torque, hard screw-driving application according to ISO 5393	Nm 20 25 30 20 20
Weight according to EPTA-Procedure 01:2014	kg 0.23 0.23 0.27 0.23 0.23

Straight screw head QC 1/4"
Article number		0 607 453 631
Maximum torque, hard screwdriving application according to ISO 5393	Nm	6
Weight according to EPTA-Procedure 01:2014 kg 0.22

Noise/Vibration Information

Noise emission values determined according to EN 62841-2-2.

Typically, the A-weighted sound pressure level of the power tool is 70 dB(A). Uncertainty K = 3 dB. The noise level when working can exceed 80 dB(A).

Wear hearing protection

Total vibration values a_h (triax vector sum) and uncertainty K determined according to EN 62841-2-2: Screwdriving: a_h < 2.5 m/s^2 , K = 1.5 m/s^2 .

The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to compare power tools. They may also be used for a preliminary estimation of vibration and noise emissions.

The stated vibration level and noise emission value represent the main applications of the power tool. However, if the power tool is used for other applications, with different application tools or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period.

To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period.

Implement additional safety measures to protect the operator from the effects of vibration, such as servicing the power tool and application tools, keeping their hands warm, and organising workflows correctly.

Assembly

Items included

ANGLE EXACT 2|3|6|7|8|15|17|23|30

These industrial cordless angle wrenches are supplied without application tools, angled screw head, straight screw head, battery pack, charger, constant voltage regulator or voltage adapter.

The voltage adapters are to be used exclusively to connect Bosch industrial cordless angle wrenches to the 4EXACT constant voltage regulator.

ANGLE EXACT 14CF | 22CF | 29CF

These industrial cordless angle wrenches are supplied without application tools, flat drive, intermediate flange, battery pack, charger, constant voltage regulator or voltage adapter.

The voltage adapters are to be used exclusively to connect Bosch industrial cordless angle wrenches to the 4EXACT constant voltage regulator.

Operating and storage conditions

The power tool is suitable only for operation at enclosed work sites.

To ensure smooth operation, the permitted

ambient temperature should be between -5 °C and +50 °C (23 °F and 122 °F), at a permitted relative humidity of between 20% and 95%, free of condensation.

The battery should be stored at a temperature of between 0 °C (32 °F) and 45 °C (113 °F) in order to avoid damaging the battery cells.

Fitting the angled screw head

ANGLE EXACT 2|3|6|7|8|15|17|23|30

These cordless angle wrenches must be fitted with a compatible angled screw head (see "Technical data", page 19) first.

▶ Make sure that the rotational direction switch is in the middle position (lock-off function) or that the battery has been removed from the power tool before you fit, adjust or remove a screw head.

Hold the power tool with the open-ended spanner (6) against the spanner flat (5) of the angled head flange.

▶ Never clamp the power tool to the housing shells.

Place the angled screw head (3) in the required position on the flange and tighten the cap nut with the open-ended spanner (4) against the spanner flat (19).

While doing this, place the open-ended spanner (6) against the angled head flange to hold it in place.

22 | English

ANGLE EXACT 14CF | 22CF | 29CF

These cordless angle wrenches must be fitted with a compatible flat drive first. There are different flat drives available on the market.

Ask your dealer for the appropriate flat drive.

▶ Observe the fitting instructions for the flat drive.

Suspension device

You can use the hanging hook (8) to attach the power tool to a suspension device.

Fit the hanging hook (8) onto the power tool and make sure it engages in the slots (15).

▶ Regularly check the condition of the hanging hook and the catch in the suspension device.

Charging process

Note: Batteries and chargers not included.

The mains plug pictured here may differ from that on your power tool.

▶ Make sure that the charger and battery are suitable for your country's mains voltage.

Charger AL 2450 DV (see figure A)

Connect the charger (21) to the power supply with the mains plug (22) and insert the battery (11) correctly into the charging slot on the charger.

▶ Do not use force to insert/remove the battery. Batteries with APT contact (Akku Pack Top, English: battery pack top) are designed such that they can only be inserted into the power tool or charger in the correct position.

The green LED indicator (23) will start to flash. This indicates that charging current is flowing. The charging process will stop automatically once the battery is fully charged. When the charging process is complete, the green LED indicator will stop flashing and will be continuously lit. An sound is emitted for approximately two seconds, indicating that the battery is fully charged.

If the red LED indicator (24) is continuously lit, this indicates that charging is being carried out with a reduced charging current. If the red LED indicator is flashing, charging is not possible.

Errors - causes and corrective measures

Cause Corrective measures
LED indicators do not light up
Mains plug of the charger is not (correctly) plugged in	Insert the mains plug (fully) into the plug socket
Plug socket, mains cable or charger defective	Check the mains voltage, have the charger checked if necessary by an authorised after-sales service centre for Bosch power tools

Charging not possible

Battery temperature outside the permitted range

Lower or raise the battery temperature until it is in the permitted temperature range

Cause Corrective measures

	of 0 °C (32 °F) to 45 °C (113 °F)
Battery contacts are dirty Clean the battery contacts;e.g. by connecting and dis-connecting the battery several times. Replace battery if necessary
Battery defective Replace the battery
Battery is not inserted (cor-rectly)	Insert the battery (fully) into the battery charging slot

Constant voltage regulator (see figure B)

ANGLE EXACT 2|3|6|7|8|14CF|15|17| 22CF|23|29CF|30

Note: As an alternative to battery operation, industrial cordless angle wrenches can also be operated with a constant voltage regulator.

The mains plug pictured here may differ from that on your power tool.

▶ Make sure that the constant voltage regulator is suitable for your country's mains voltage.

In addition to the 4EXACT constant voltage regulator and compatible mains cable, you will also need a voltage adapter with the same rated voltage as your screwdriver.

The voltage on the constant voltage regulator (LED indicator) must match the voltage of the screwdriver. The constant voltage regulator is only suitable for Bosch industrial cordless screwdrivers from the EXACT, ANGLE EXACT and BT-EXACT series with a voltage of between 9.6 V and 14.4 V. Otherwise there is a risk of fire and explosion.

Connecting to the power supply

Note: On delivery, neither a battery nor a voltage adapter are inserted in the power tool.

▶ Never store batteries inside a battery-powered tool. Batteries will remain functional for longer and can be charged more easily if they are stored separately. Please remember to fully charge the battery prior to use after longer periods of storage.

Battery Charging

Charge the battery using a suitable charger before inserting it in the power tool. The charging process in described in detail in the charger's operating manual and the instructions of this manual (see (see "Charging process", page 22)).

The battery features NTC temperature monitoring, which only permits charging in a temperature range between 0 °C (+32 °F) and 45 °C (+113 °F). This achieves a long battery life. If used correctly, the battery can withstand up to 3000 charging cycles.

A new battery or one that has not been used for a long time will only operate at full capacity after approximately five charge and discharge cycles. Batteries should only be

charged if the battery charge LED indicator on the power tool lights up red.

Inserting and Removing the Battery

Push the rotational direction switch (14) into the middle position. This locks the on/off switch (13) in the "Off" position and prevents the power tool from being switched on unintentionally.

Push a charged battery (11) into the handle of the power tool.

Make sure that you insert the battery correctly and that you can feel the release buttons (12) engage in the handle of the power tool.

▶ Do not use force to insert/remove the battery. Batteries with APT contact (Akku Pack Top, English: battery pack top) are designed such that they can only be inserted into the power tool or charger in the correct position.

To remove the battery (11), press the release buttons (12) on both sides and pull the battery down and out of the handle.

Inserting and removing the voltage adapter (see figure C)

ANGLE EXACT 2 | 3 | 6 | 7 | 8 | 14CF | 15 | 17 |

22CF|23|29CF|30

Select the voltage adapter that matches your power tool's rated voltage.

The voltage adapters can be differentiated by the colour of the housing of the D-Sub connector plug (26), which differs according to voltage. The housing of the D-Sub connector plug for a voltage of 9.6 V is light blue, the one for a voltage of 14.4 V is black.

The adapter housing (28) may only be fitted on or removed from the industrial cordless screwdriver when the constant voltage regulator is switched off or when the connector plug (26) is disconnected from the constant voltage regulator.

Push the rotational direction switch (14) into the middle position. This locks the on/off switch (13) in the "Off" position and prevents the power tool from being switched on unintentionally.

Then push the adapter housing (28) into the handle of the power tool. Make sure that you insert the adapter housing correctly and that you can feel the release buttons (12) engage in the handle of the power tool.

Then insert the connector plug (26) for the voltage adapter that is compatible with your power tool into the connection socket (25). Tighten the connector plug (26) in the connection socket (25) by hand-tightening the two screws (27).

To remove the voltage adapter, loosen the two screws (27) on the connector plug (26) of the constant voltage regulator (switched off) and remove the connector plug from the connection socket (25).

Then press the release buttons (12) on both sides and pull the adapter housing (28) out of the handle of the power tool.

Changing the tool – screw head with quick-change chuck (see figure D)

When fitting an application tool, make sure that it is held securely in the tool holder. If the application tool is not held securely in the tool holder, it may become loose and consequently uncontrollable.

ANGLE EXACT 2 | 3 | 6

An angled screw head with a 1/4" quick-change chuck is available for these industrial cordless angle wrenches (article number 0 607 453 631).

ANGLE EXACT 2|3|6|7|8|15

An angled screw head with a 1/4" quick-change chuck is available for these industrial cordless angle wrenches (article number 0 607 453 630).

Inserting the application tool

Pull the quick-change chuck (29) forwards. Insert the application tool (1) into the tool holder (2) and release the quick-change chuck again.

Only use application tools with a matching shank (1/4" hexagon).

Do not attempt to insert drill bits into this quick-change chuck.

Industrial cordless angle wrenches with a shut-off clutch are not suitable for drilling. The clutch can shut off automatically and without warning. If you continue drilling after the clutch has shut off, the power tool may be wrenched out of your grip until the shut-off clutch engages again.

Removing the application tool

Pull the quick-change chuck (29) forwards. Take the application tool (1) out of the tool holder (2) and release the quick-change chuck again.

Changing the tool – screw head with external square

When fitting an application tool, make sure that it is held securely in the tool holder. If the application tool is not held securely in the tool holder, it may become loose and consequently uncontrollable.

ANGLE EXACT 2|3|6|7|8|15

An angled screw head with a 1/4" square (article number 0 607 453 617) and an angled screw head with a 3/8" square (article number 0 607 453 620) are available for these industrial cordless angle wrenches.

ANGLE EXACT 17 | 23 | 30

An angled screw head with a 3/8" square is available for these industrial cordless angle wrenches (article number 0607451618).

Inserting the application tool

Press the pin on the square of the tool holder (2) inwards, e.g. using a narrow screwdriver, and slide the application tool (1) over the square. Ensure that the pin engages in the recess of the application tool.

24 | English

Removing the application tool

Press the pin in the recess of the application tool (1) inwards and pull the application tool off the tool holder (2).

Changing the tool – screw head with hexagon socket (see figure E)

When fitting an application tool, make sure that it is held securely in the tool holder. If the application tool is not held securely in the tool holder, it may become loose and consequently uncontrollable.

ANGLE EXACT 2|3|6|7|8|15

An angled screw head with a 1/4" hexagon socket is available for these industrial cordless angle wrenches (article number 0 607 453 618).

Inserting the application tool

Push the application tool (1) into the internal hexagon of the tool holder (2) until you hear it engage.

Removing the application tool

Pull the application tool (1) off the tool holder (2), using pliers if necessary.

Operation

Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

Starting Operation

Always set the rotational direction using the rotational direction switch (14) before starting the power tool:

The power tool will not start if the rotational direction switch (14) is in the centre (lock-off button).

Setting the rotational direction (see figure F)

▶ Only push the rotational direction switch (14) when the power tool is not in use.

Clockwise: To drive in screws, press the rotational direction switch (14) all the way to the left.

Anti-clockwise: To loosen or unscrew screws, press the rotational direction switch (14) all the way to the right.

Switching on the worklight

The worklight (18) illuminates the work area in poor lighting conditions. Switch on the worklight (18) by lightly pressing the on/off switch (13). If you press down harder on the on/off switch, the power tool will switch on and the worklight will remain illuminated.

▶ Do not look directly into the worklight; it can blind you.

Switching on/off

The screwdrivers have a torque-dependent shut-off clutch that can be set to a value in the specified range. It activates when the set torque is reached.

Note: If you are operating the screwdriver with a voltage adapter, you will need to put the constant voltage regulator into operation first.

To switch on the power tool, press the on/off switch (13) down fully.

The power tool will switch off automatically when the set torque is reached.

▶ If the on/off switch (13) is released too early, the pre-set torque will not be reached.

Practical advice

▶ Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.
▶ Only apply the power tool to the screw/nut when the tool is switched off. Rotating tool inserts can slip off.

Setting the torque (see figures G - I)

The torque depends on the spring preload of the shut-off clutch. The shut-off clutch is triggered upon reaching the set torque, both in clockwise and anti-clockwise rotation.

Only use the supplied adjustment tool (30) to set the individual torque.

Slide the slider (7) on the power tool back completely.

ANGLE EXACT 2 | 3 | 6 | 7 | 8 | 15 | 17 | 23 | 30

Insert a hex key (31) into the application tool (30) and turn it slowly.

Once a small protrusion (setting disc (32)) in the clutch can be seen through the opening of the housing, insert the adjustment tool (30) into this protrusion and turn it.

ANGLE EXACT 14CF | 22CF | 29CF

Observe the information for your purchased flat drive or ask your dealer.

Turning clockwise will result in a higher torque; turning anticlockwise will result in a lower torque.

Remove the adjustment tool (30). Slide the slider (7) to the front again to protect the clutch from contamination.

Note: The required setting is dependent on the type of threaded connector and can be best determined by practical trials. Check a trial screw application with a torque spanner.

▶ If you set the torque to a value outside the specified power range, the shut-off clutch will not be triggered.

Marking the torque setting

ANGLE EXACT 2 | 3 | 6 | 7 | 8 | 14CF | 15 | 17 | 22CF | 23 | 29CF | 30

To label individually set torques, you can replace the marking ring (17) with a marking ring of a different colour. If you use certain EXACT power tools with a torque of 4.5 Nm, for example, you can fit red marking rings on these to identify the set torque. If you use other EXACT power tools in a different assembly area with a torque set to 7.5 Nm, you can fit a marking ring of a different colour (black, blue, green or yellow) to identify the torque in this area. The different marking ring colours are only intended as an aid for fitters to

facilitate identifying the set torque on a specific power tool. Press the marking ring (17) with a thin screwdriver blade, a spatula or similar implement.

Always use the power tool with a marking ring to be certain that the housing is protected against dust and dirt.

LED indicator

Battery charge indicator

If the battery (11) needs to be charged, the LED indicator (10) flashes green and a sound is emitted. You can only drive in six to eight

more screws.

If the LED indicator lights up red, there is not enough capacity left to drive in another screw or the power tool has overloaded. The power tool can no longer be switched on. The lock-off function remains active until the drained battery has been removed from the power tool and a charged battery inserted.

If you are working with a voltage adapter, the red LED (10) indicates overloading.

If the LED indicator (10) flashes red, the power tool has overheated and switched itself off. Wait a short while for the light to stop flashing before switching the power tool on again.

A significantly reduced operating time of the power tool after charging indicates that the battery must be replaced soon. Dispose of depleted batteries in accordance with legal/country-specific provisions.

Indicator for screwdriving applications

The shut-off clutch is triggered upon reaching the preset torque. The LED indicator (9) lights up green.

If the preset torque has not been reached, the LED indicator (9) lights up red and the tool emits a sound. The screw must be driven in again.

Repeat protection

If the shut-off clutch is triggered while driving a screw, the motor will switch off. You will need to wait 0.7 seconds before you can switch the tool on again. This prevents you from accidentally retightening screws that are already firmly in place.

Adjusting the angled screw head

ANGLE EXACT 2|3|6|7|8|15|17|23|30

You can adjust the angled screw head (3) to a total of eight different positions.

Hold the power tool with the open-ended spanner (6) against the spanner flat (5) of the angled head flange.

▶ Never clamp the power tool to the housing shells.

Loosen the cap nut with the open-ended spanner (4) against the spanner flat (19). Move the angled screw head (3) in 45° degree increments into the required position and tighten the cap nut again with the open-ended spanner (4) against the spanner flat (19).

While doing this, place the open-ended spanner (6) against the angled head flange to hold it in place.

ANGLE EXACT 14CF | 22CF | 29CF

Observe the information for your purchased flat drive or ask your dealer.

Adjusting the LED worklight (see figure J)

ANGLE EXACT 2|3|6|7|8|14CF|15|17| 22CF|23|29CF|30

Press the marking ring (17) with a thin screwdriver blade, a spatula or similar implement. Slide the spring ring(33) back onto the housing shell using a pair of spring ring pliers.

The two shell halves of the LED holder (16) that encase the LED worklight (18) can now be brought into the required position. Taking care not to damage the cable on the LED worklight, slide the cable into the cavity provided for it (34) in the housing shell without allowing it to bend. Encase the LED worklight (18) in the two housing shells of the LED holder (16) once again.

Press the spring ring (33) and the marking ring (17) back into their original position.

Maintenance and Service

Maintenance and Cleaning

Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.
▶ To ensure safe and efficient operation, always keep the power tool and the ventilation slots clean.

Lubricating the power tool

Lubricant:

Special gearbox grease (225 ml)

Article number 3 605 430 009

Molykote grease

Motor oil SAE 10/SAE 20

• Clean the gearbox with a mild solvent after the first 150 operating hours. Follow the solvent manufacturer's instructions on use and disposal. Then lubricate the gearbox with Bosch special gearbox grease. Repeat the cleaning process once every 300 operating hours after cleaning has been carried out for the first time.
• After driving 100,000 screws, oil the moving parts of the shut-off clutch with a couple of drops of SAE 10/SAE 20 motor oil. Lubricate the sliding and rolling parts with Molykote grease. Use this occasion to check the clutch for wear to ensure that accuracy and reproducibility have not been affected. You will need to reset the clutch torque once you have done this.
  ▶ Have maintenance and repair work performed exclusively by a qualified specialist. This will ensure that the safety of the power tool is maintained.

An authorised Bosch after-sales service point will handle this work quickly and reliably.

26 | English

▶ Dispose of lubricants and cleaning products in an environmentally friendly manner, taking legal regulations into account.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax:[phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch-pt.com.au

www.bosch-pt.co.nz

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

Disposal

The machine, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EU countries:

According to the Directive 2012/19/EU, power tools that are no longer usable, and according to the Directive 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Battery packs/batteries:

Ni-Cd

Ni-MH

Ni-Cd: Nickel cadmium

Warning: These battery packs contain cadmium, a highly toxic heavy metal.

Ni-MH: Nickel metal hydride

Français

Robert Bosch (France) S.A.S.

Calle Robert Bosch No. 405

NOM PRODUCED CERTIFIED ANCE CERTIFIED PRODUCT

Ni-Cd: nickel-cadmio

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

Bortskaffelse

Ni-Cd: Nikkel-cadmium

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax:[phone]

Avfallshantering

Robert Bosch Sp. z o.o.

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

Service scule electrice

Strada Horia Măcelariu Nr. 30–34, sector 1

013937 Bucureşti

Service scule electrice

Strada Horia Măcelariu Nr. 30–34, sector 1

013937 Bucureşti, România

www.bosch-pt.com/bg/bg/

Бракуване

Palma Tower 10th Floor

Jalan RA Kartini II-S Kaveling 6

Pondok Pinang, Kebayoran Lama

Đơn nguyên 8BC, GT Tower, Tâng 08,

Đường 169, Tiếp Khắc Blvd, Sangkat Veal Vong,

Khan 7 Makara, Phnom Penh

VAT TIN: 100 169 511

Tel.: [phone]

Tel.: [phone]

www.bosch.com.kh

Sự thải bổ

وي Pref Reduced her own foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign ForeignForeign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign Foreign From 1/4 Bouda (Rcrm) Puf. (0607453618

Robert Bosch Morocco SARL

53,شارع الملازم محمد محرود

20300 الدار البيضاء

يتم جمعEC/96/2006/66/EC

◀jā meaning (ajī) meaning (aī)

Illustration of a Bosch electric shock absorber with cooling fins and buttons (no text or symbols on body)

AL 2450 DV

2 607 225 027 (EU)

2 607 225 029 (UK)

9,6 V

Illustration of a gray electronic device with ports and a handle (no text or symbols visible)

4EXACT

0602490507

410

CE

1

de	EU-Konformitätserklärung		Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.Technische Unterlagen bei:*
	Industrie-Akku-WinkelschrauberANGLE EXACT	Sachnummer
en	EU Declaration of Conformity		We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.Technical file at:*
	ANGLE EXACT industrial cordless angle wrench	Article number
fr	Déclaration de conformité UE		Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.Dossier technique auprès de:*
	Visseuse d'angle industrielle sans fil ANGLE EXACT	N° d'article
es	Declaración de conformidad UE		Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las Directivas y los Reglamentos mencionados a continuación y están en conformidad con las siguientes normas.Documentos técnicos de:*
	Atornilladora acodada industrial accionada por acumulador ANGLE EXACT	N° de artículo
pt	Declaração de Conformidade UE		Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.Documentação técnica pertencente à:*
	Aparafusadora angular sem fio industrial ANGLE EXACT	N.° do produto
it	Dichiarazione di conformità UE		Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle Direttive e dei Regolamenti elencati di seguito, nonché alle seguenti Normative.Documentazione Tecnica presso:*
	Avvitatore ad angolo industriale a batteria ANGLE EXACT	Codice prodotto
nl	EU-conformiteitsverklaring		Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordeningen en overeenstemmen met de volgende normen.Technisch dossier bij:*
	Haakse industrie-accuschroeven-draaier ANGLE EXACT	Productnummer
da	EU-overensstemmelseserklæring		Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstem-melse med alle gældende bestemmelser i følgende direktiver og forordninger og opfylder følgende standarder.Tekniske bilag ved:*
	Industriel akku-vinkelskruemas-kine ANGLE EX-ACT	Typenummer
sv	EU-konformitetsförklaring		Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningar nas och att de stämmer överens med följande normer.Teknisk dokumentation:*
	Industriell sladd-lös vinkels-kruvdragare ANGLE EXACT	Produktnummer
no	EU-samsvarserklæring		Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og forordningene nedenfor og med følgende standarder.Teknisk dokumentasjon hos:*
	Batteridrevet vin-kelskrutrekker for industri ANGLE EXACT	Produktnummer
fi	EU-vaatimustenmukaisuusvakuutus		Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardi-töön tarkoitettu
	Teollisuuskäyt-	Tuotenumero

||

CE

	akkukulmaruu-vinväännin AN-GLE EXACT	en vaatimusten mukaisia.Tekniset asiakirjat saatavana: *
el	Δήλωση πιστότητας EE	Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.Τεχνικά έγγραφα στη: *
	Βιομηχανικό γωνιακόκατσαβίδιμπαταρίας ANGLE EXACT
tr	AB Uygunluk beyanı	Tek sorumlu olarak, tanımlanan ürünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz.Teknik belgelerin bulunduğu yer: *
	Sanayi tipi akülü açılı vidalama makinesi ANGLE EX-ACT
pl	Deklaracja zgodności UE	Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiada-ją wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporząd-zeń, oraz że są zgodne z następującymi normami.Dokumentacja techniczna: *
	Akumulatorowa wkrętarka kąto-wa do zastosowańprzemysłowych ANGLE EXACT
cs	EU prohlásení oshodě	Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení níže uvedených směrnic anařízení aje vsouladu snás-ledujícími normami:Technické podklady u: *
	Průmyslový aku-mulátorový úhlo-vý šroubovák AN-GLE EXACT
sk	EÚ vyhlásenie ozhode	Vyhlasujeme na výhradní zodpovednosť, že uvedený výrobok splňa všetky príslušné ustanovenia nižšie uvedených smerníc anariadení aje vsúlade snas-ledujúcími normami:Technické podklady má spoločnosť: *
	Priemyselný aku-mulátorový uhlo-vý skrutkovačANGLE EXACT
hu	EU konformitási nyilatkozat	Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi ide-vágó előírásainak és megfelelnek a következő szabványoknak.Müszaki dokumentumok megőrzési pontja: *
	Ipari akkumuláto-ros könyökös csa-varozógép ANGLE EXACT
ru	Заявление о соответствии ЕС	Мы заявляем под нашу единоличную ответственность, что названные продукты соответствуют всем действующим предписаниям нижеуказанных директив и распоряжений, а также нижеуказанных норм.Техническая документация хранится y: *
	Промышленный Товарный No аккумуляторный угловой шуруповерт AN-GLE EXACT
uk	Заява про відповідність ЄС	Мизаявляємо під нашу одноособову відповідальність, що названі вироби відповідають усім чинним положенням нищеозначених директив і розпоряджень, а також нижчеозначеним нормам.Технічна документація зберігається y: *
	Промисловий Товарний номер акумуляторний кутовий шуруповерт AN-GLE EXACT
kk	EO сәйкестік маглумдамасы	Өз жауапкершілікпен біз аталған өнімдер төменде жзылған директикалар мен жарлыктардың тиісті қағидаларына сәйкестігін және теменdegі нормаларға сай екенін білдіреміз.Техникалық кужаттар: *
	Өнеркәсіптік Өнім нөмірі аккумуляторлық бұрыштық

CE

III

	6yrauyni ANGLE EXACT
ro	Declarație de conformitate UE		Declarăm pe proprie răspundere că produsele menționate corespund tutu- ror dispozițiilor relevante ale directivelor și reglementărilor enumerate în ce- le ce urmează și sunt în conformitate cu următoarele standarde.Documentație tehnică la: *
	Mașină de însuru- bat unghiulară in- dustrială cu acu- mulator ANGLE EXACT	Număr de identificare
bg	EC декларация за съответствие		С пълна отговорност ние декларираме, че посочените продукти отговарят на всички валидни изисквания на директивите и разпоредбите по-долу и съответства на следните стандарти.Техническа документация при: *
	Промишлен акумулаторен ъглов винтоверт ANGLE EXACT	Каталожен номер
mk	EU-Изjava за сообразност		Со целосна одговорност изјавуваме, дека опишаните производи се во согласност со сите релевантни одредби на следните регулативи и прописи и се во согласност со следните норми.Техничка документација кaj: *
	Индустриски аголен одвртувач AN- GLE EXACT	Број на дел/артикл
sr	EU-izjava o usaglašenosti		Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svim dotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu sa sledećim standardima.Tehnička dokumentacija kod: *
	Industrijski aku- mulatorski ugaoni odvrtač ANGLE EXACT	Broj predmeta
sl	Izjava o skladnosti EU		Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vse- mi relevantnimi določili direktiv in uredb ter ustreza naslednjim standardom. Tehnična dokumentacija pri: *
	Industrijski aku- mulatorski kotni vijačnik ANGLE EXACT	Številka artikla
hr	EU izjava o sukladnosti		Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svim relevantnim odredbama direktiva i propisima navedenima u nastavku i da su sukladni sa sljedećim normama.Tehnička dokumentacija se može dobiti kod: *
	Industrijski aku- mulatorski kutni odvljač ANGLE EXACT	Kataloški br.
et	EL-vastavusdeklaratsioon		Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetle- tud direktiivide ja määruste köikidele asjaomastele nõuetele ja on kooskõlas järgmiste normidega.Tehnilised dokumentid saadaval: *
	Tööstuslik aku- nurkkruvikeeraja ANGLE EXACT	Tootenumber
lv	Deklaracija par atbilstibu ES standartiem		Mës ar pilnu atbildību paziņojam, ka šeit aplūkotie izstrādājumi atbilst visiem tālāk minētajās direktivās un rīkojumos ietvertajām saistošajām nostādnēm, kā arī sekojošiem standartiem.Tehniskā dokumentacija no: *
	Rūpniecisks aku- mulatora lenķa skrūvgriezis AN- GLE EXACT	Izstrādājuma numurs
lt	ES atitikties deklaracija		Atsakingai pareiškiame, kad išvardyti gaminiai atitinka visus privalomus že- miau nurodytu direktyvu ir reglamentu reikalavimus ir šiuos standartus.Techninė dokumentacija saugoma: *
	Pramoninis aku- muliatorinis kam- pinis suktuvas ANGLE EXACT	Gaminio numeris
	ANGLE EXACT ...		2006/42/EC EN 62841-1:20152014/30/EU EN 62841-2-2:20142011/65/EU EN 61000-6-4:2007+A1:2011
	2	0 602 490 647
	3	0 602 490 656

IV

CE

6	0 602 490 652
7	0 602 490 669
8	0 602 490 651
15	0 602 490 650
17	0 602 490 675
23	0 602 490 673
30	0 602 490 671
14CF	0 602 490 690
22CF	0 602 490 693
29CF	0 602 490 691

BOSCH

EN 61000-6-2:2005

EN 50581:2012

* Robert Bosch Power Tools GmbH (PT/ECS)

70538 Stuttgart

GERMANY

Henk Becker

Helmut Heinzelmann

Chairman of Executive

Head of Product Certification

Management

i.v. h=m

Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANY

Stuttgart, 05.03.2019
